Schneider
Electric ATV12HU22M2 VFD
Complete Guide, Features, Specifications & Applications
Presented by ElectroSync Limited

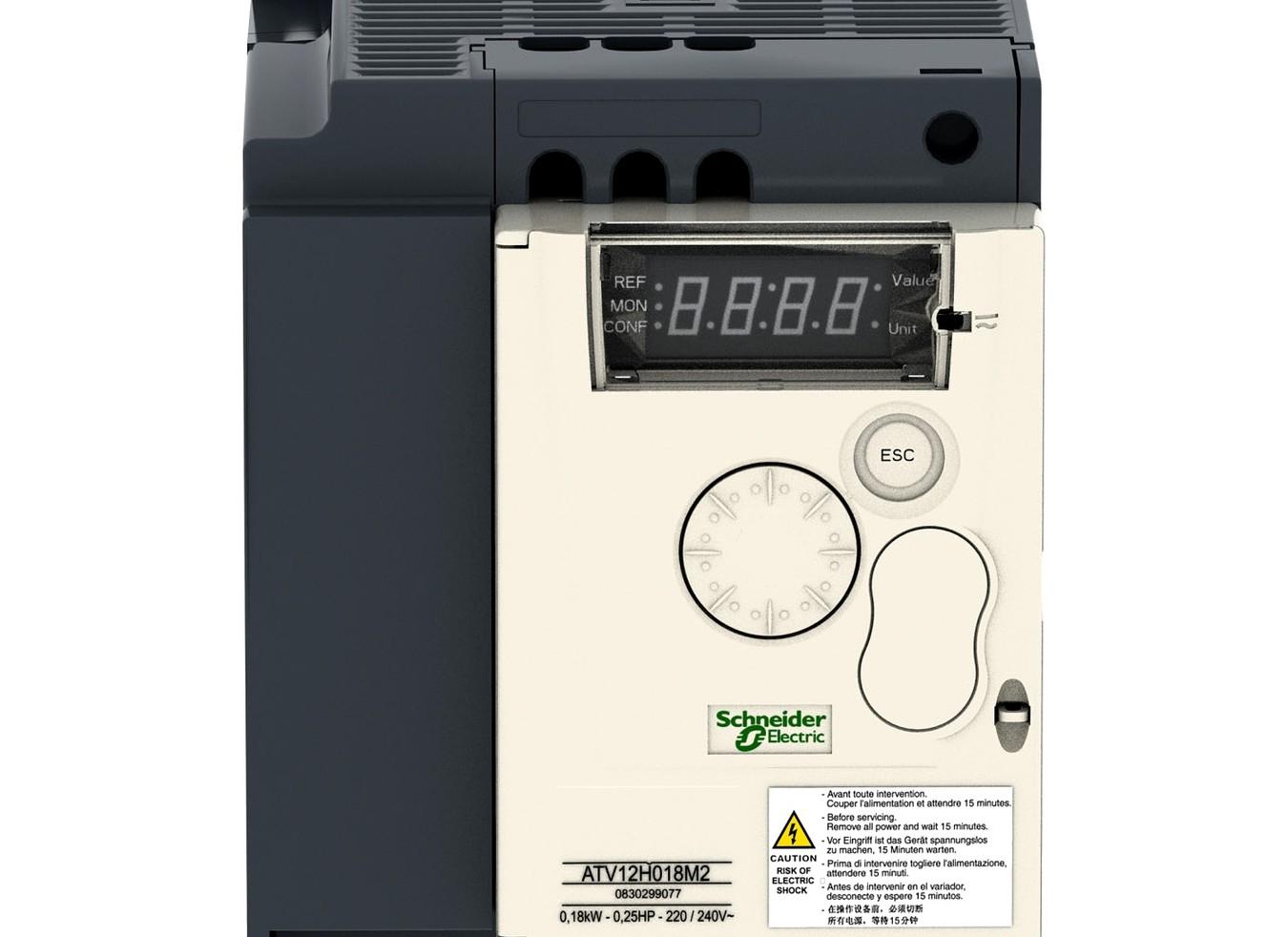

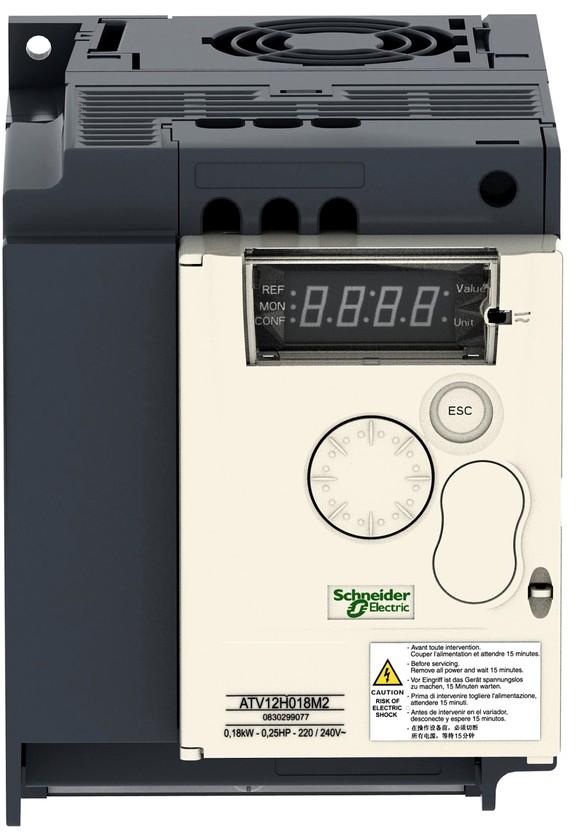

About Schneider Electric ATV12HU22M2
The Schneider Electric ATV12HU22M2 is a compact Variable Frequency Drive (VFD) designed for controlling three-phase induction motors in simple industrial and commercial applications. It offers reliable motor speed control, energy savings, smooth acceleration, and improved machine performance.
Its compact design makes it ideal for control panels where installation space is limited while providing dependable operation for continuous industrial use. It supports 200–240V single-phase input and delivers up to 2.2 kW (3 HP) motor power.
Key Features
• Compact cabinet-friendly design
• 2.2 kW (3 HP) motor capacity
• 200–240V Single Phase Input
• Three-phase motor output
• Sensorless Vector Control
• Built-in PID Controller
• Integrated EMC Filter
• RS485 Modbus Communication
• Easy programming and commissioning
• Energy-saving operation
• Smooth acceleration and deceleration
• Reliable overload protection
Technical Specifications
Specification
Model Product Series
Power Rating
Input Voltage
Input Phase
Output Phase
Frequency
Output Frequency
Communication
Protection
Mounting
Details
Detail s ATV12HU22
AltivarM2 12
2.2 kW (3 HP)
200–240V AC
Single Phase
Three Phase 50/60 Hz
0.5–400 Hz
Modbus RS485
IP20
Cabinet Mount
Major Applications
The Schneider Electric ATV12HU22M2 VFD is widely used in:
• Conveyor Systems
• Textile Machines
• Packaging Equipment
• Food Processing Machines
• Pumps
• Fans & Blowers
• Small CNC Machines
• Mixers
• Compressors
• Material Handling Systems
• Printing Machines
• Industrial Automation
Benefits of Using ATV12HU22M2
Using this VFD offers several operational advantages:
• Reduces electricity consumption
• Extends motor life
• Minimizes mechanical wear
• Smooth motor starting
• Better production efficiency
• Reduced maintenance costs
• Improved speed accuracy
• Stable motor performance
• Easy installation
• High operational reliability
Protection Features
The ATV12HU22M2 includes multiple protection functions to improve equipment safety.
• Over Voltage Protection
• Under Voltage Protection
• Motor Overload Protection
• Short Circuit Protection
• Over Temperature Protection
• Phase Loss Detection
• Stall Protection
• Safe Motor Operation
• Fault Diagnostics
• Automatic Fault Monitoring
Why Choose ElectroSync Limited?
ElectroSync Limited supplies genuine Schneider Electric products backed by professional support.
We Offer
• Genuine Schneider Electric Products
• Competitive Pricing
• Fast Delivery Across India
• Technical Assistance
• Product Selection Support
• Experienced Automation Team
• Quick Customer Response
• Industrial Automation Solutions
• Reliable After-Sales Service
Why Choose Schneider Electric ATV12HU22M2?
The ATV12HU22M2 is an excellent choice for industries seeking a compact, energy-efficient, and reliable variable frequency drive. Its advanced motor control technology, Modbus communication, and user-friendly setup make it suitable for a wide range of industrial machines. The drive delivers smooth motor performance while helping reduce energy consumption and maintenance costs, making it a dependable solution for modern automation systems.
