Growing from its origins in Sweden with over 70 years' experience in powering the future, El-Björn has become an industry recognised name across northern Europe, providing climate control and power solutions to various industries.
Through our continuous investment in research and development, we provide our customers with the most efficient and effective products on the market for; Heating, Cooling, Drying, Power Supply and Energy Generation.
Our distribution products are designed specifically for construction sites and similar environments, providing electricity to plant, power tools and equipment while ensuring compliance with the latest safety regulations.
Available for purchase and hire, our distribution products ensure uninterrupted workflow and enhanced productivity, whilst prioritising electrical safety on construction sites. El-Björn UK Ltd have a large selection of electrical distribution and transformer products to suit the needs of any project.
Electrical distribution products for events play a crucial role in ensuring the smooth and safe operation of various electrical equipment, lighting systems, and sound setups.
El-Björn UK Ltd caters to the diverse needs of event organizers with products designed to handle the unique challenges and power requirements posed by large-scale events, such as concerts, conferences and trade shows.

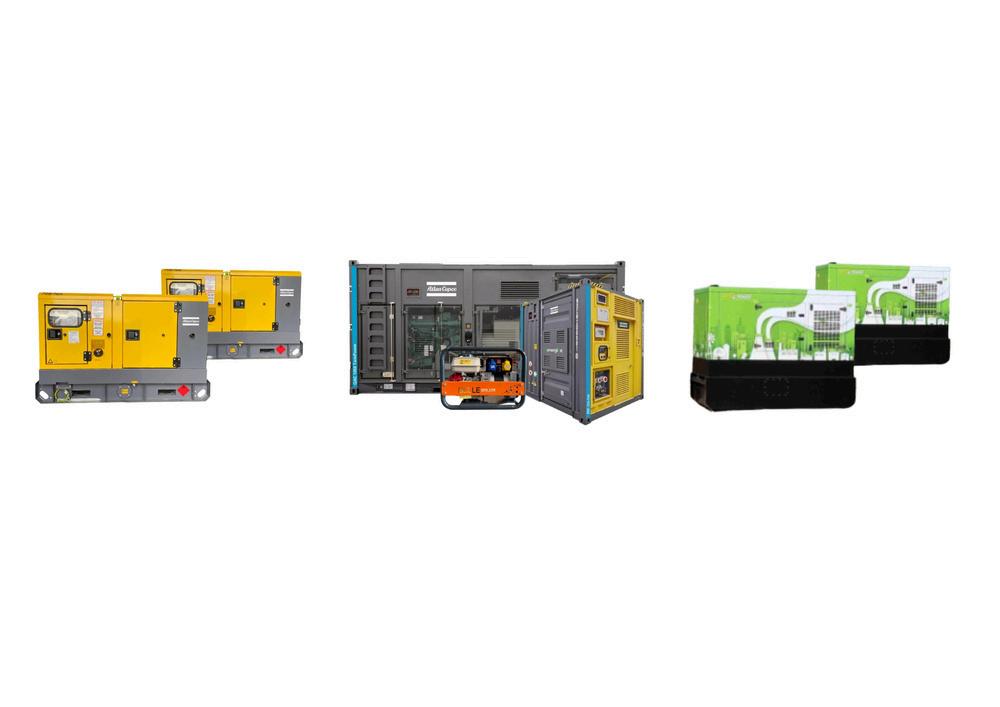

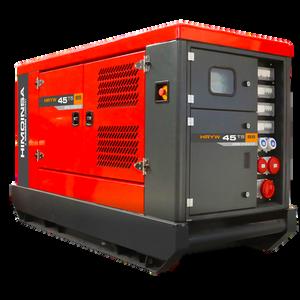

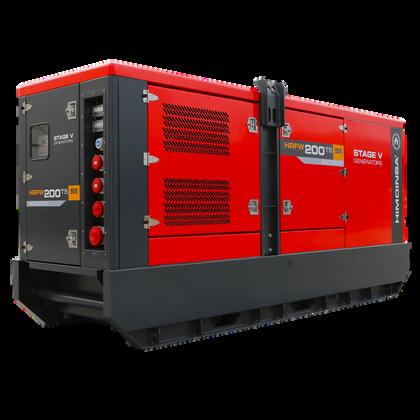

We offer a selection of canopied Stage V Diesel Generators with power outputs ranging between 17kVA to 200kVA.
Our Stage V Diesel Generators have been specifically designed to be compliant with EU Regulation 2016/1628/CE, aimed at limiting the amount of emissions produced by internal combustion engines, installed in non-road mobile machinery (NRMM), used within large populated cities such as London, Birmingham and Manchester.
Using a sophisticated built in exhaust treatment system, these generators clean the fumes expelled by the engine before they are released into the atmosphere This process provides a reduction of up to 90% of environmentally hazardous gases and particles compared to previous technology.
El-Björn UK Ltd are well positioned to provide effective fuel management packages for your project from our 3 UK locations; Surrey, Rochdale and Glasgow.
All generators are perfect for use in:
Construction sites
Events Venues
Temporary workspaces
Plant Hire & General Industry

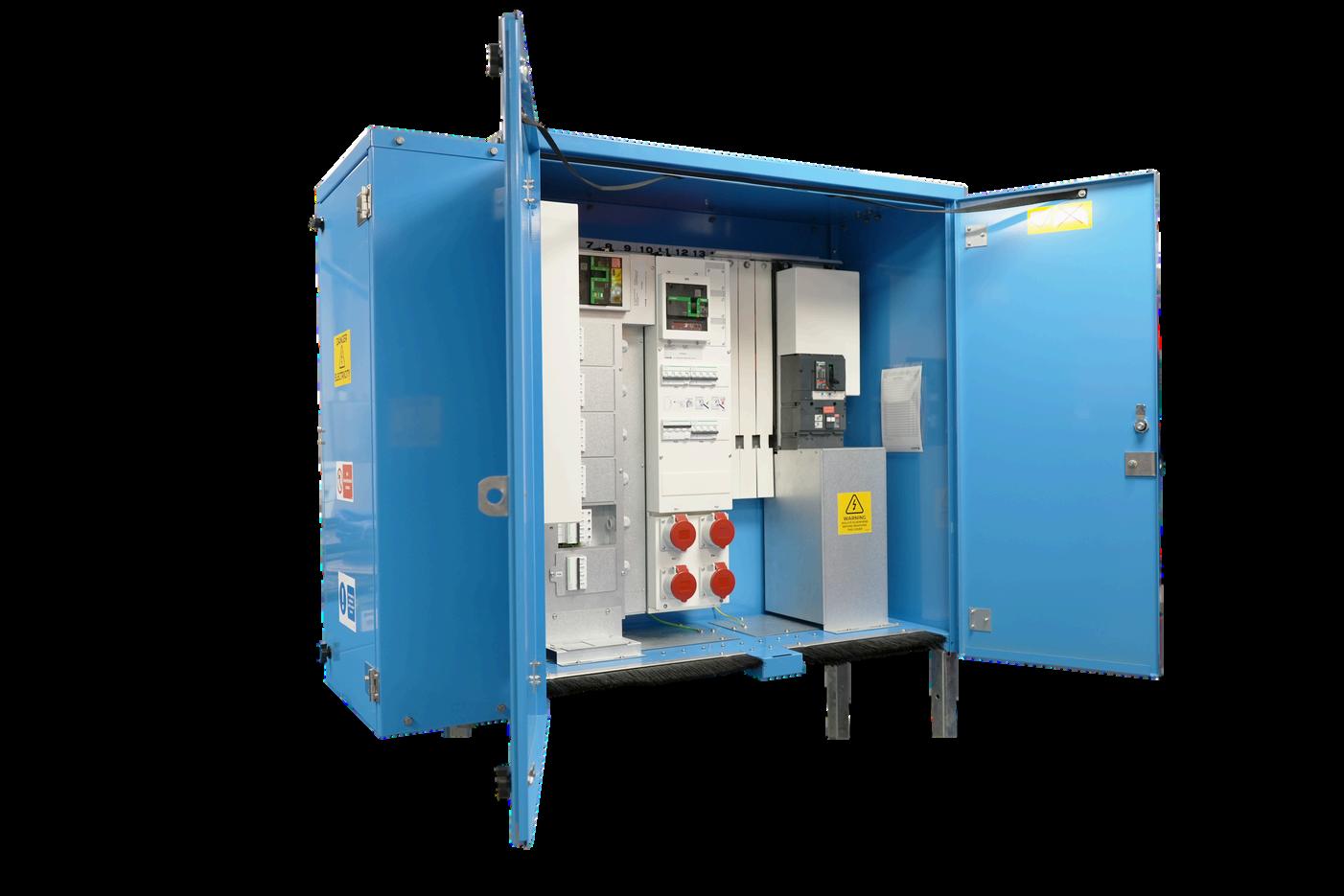

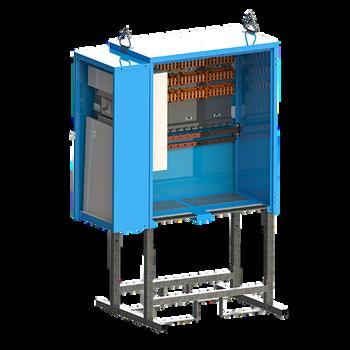

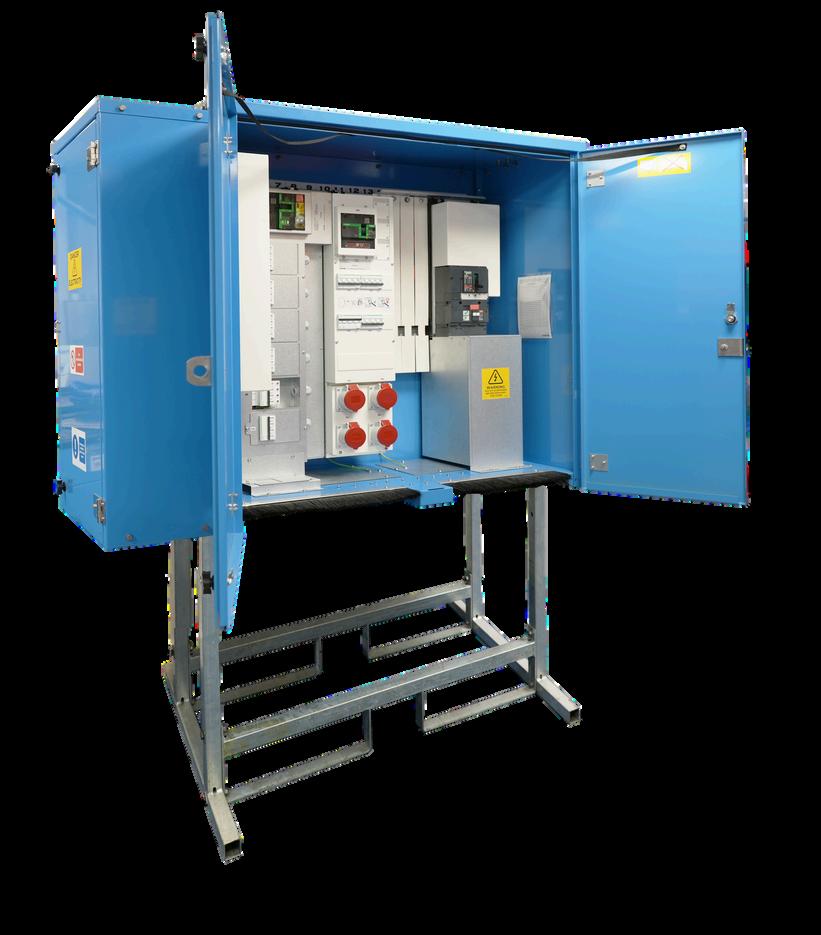

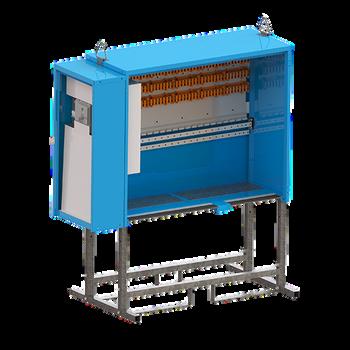

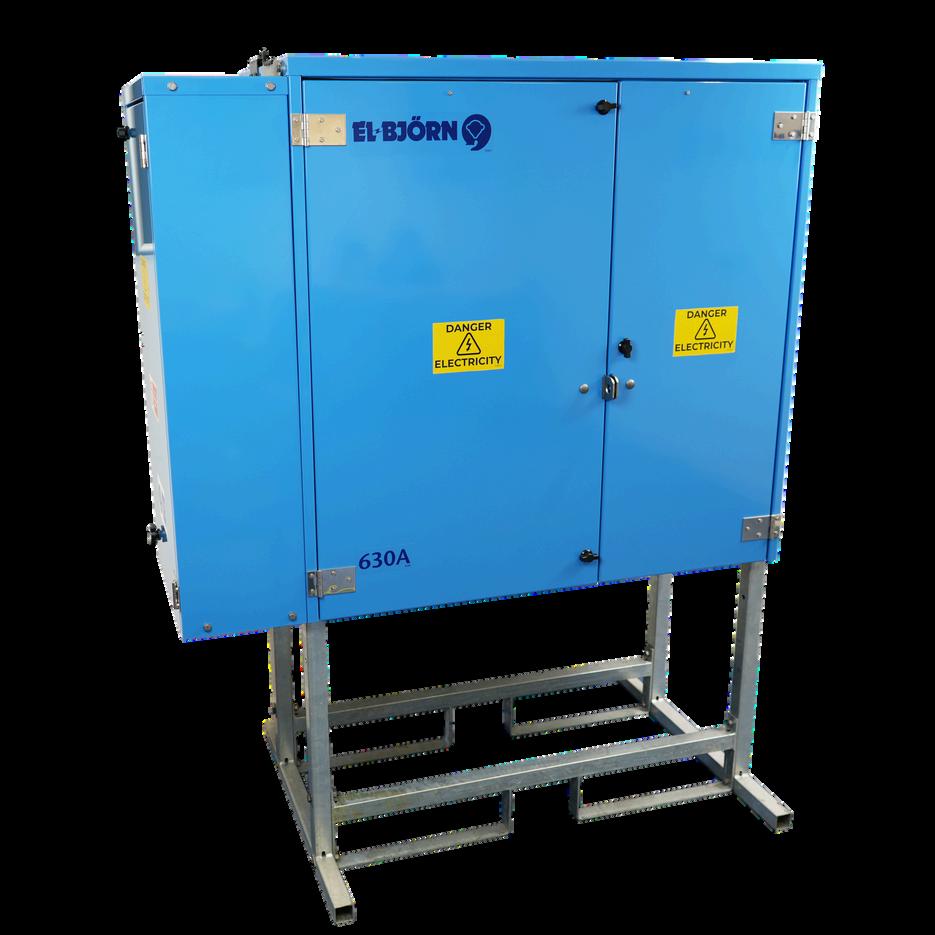

The El-Björn MOD.DU system is a modular, interchangeable distribution system rated from 125A-630A. Consisting of a main enclosure with MCCB incomer, and a series of modules incorporating either; an MCCB for direct outgoing cable connection, Powerlock connections for high current plug-and-play applications, or commando socket outlets. Custom modules such as changeover switches are also available upon request.
Live testing sockets are provided on the incomer of each distribution unit as standard. Each module has segregation from the live busbars and each adjacent module, allowing cable connection to modules to be carried out independently, minimising onsite downtime.
MOD.DU is perfect for:
Rapid deployment of plug and play power systems
Temporary Construction Site Services Plant Hire & General Industry
El-Björn MOD.DU units work in conjunction with our web based temporary BMS system, El-Björn CONNECT. See page 9 for further details.
Feature
IncomerRange
El-BjörnCONNECT Ready
IncomerTestSockets
NumberofModule Ways
IP2xSegregation
MCCBwithRCD protection)
MCBModule
CraneSwitchModule
FreeStanding
WallMounting
IncomingDevice EmergencyAccessfor switching
N/A
Interchangeable modules are available for hire or purchase in various configurations. If a module configuration is not available as a standard item, our innovation department can produce bespoke modules to suit your requirements.
Incoming
Incoming
Distribution
Distribution
Distribution Distribution
Distribution
Distribution
Distribution
Distribution
Distribution
Distribution
Distribution
Distribution
Distribution
Distribution
Distribution
Distribution
Direct Connection
Direct Connection
125A5pin400Vcommandoincomermodule-MCCB
630Apre-wiredPowerlockglandplate-2x500Aperphase
400AVIGImodule-outgoingPowerlock500Aconnectors
250AVIGImodule-outgoingPowerlock500Aconnectors
125AIP67module-5Pin400Voutlet-variableRCD
125AIP67module-5Pin400Voutlet-variableRCDswitchedinterlocked
2x63Amodule-5Pin400Voutlets-switchedinterlockedRCDprotection
2x63Amodule-5Pin400Voutlets-RCDprotection
4x16Amodule-5Pin400Voutlets-RCDprotection
4x32A,2x16A2x13AOutletsModule
160ARCD/MCBModule-Segregated-6W
400AMCCBmodule-VIGIEarthLeakageProtection
250AElectronicVIGImodule
160AVIGImodule-TMDTrip
125AVIGImodule- TMDTrip
160Amodule- 4x32A400VSockets
160Amodule- 6x16A230VSockets
160Amodule- 6x32A230VSockets
160Amodule-3x16A230V,3X32A230VSockets
DK240DirectConnectModule-upto240mmcable
DK240DirectConnectModule-upto95mmcable
When rapid deployment of power is required onsite, at an event or temporary workplace, our patented IP44 commando socket mains distribution units (SMDU) come in a range of configurations ready to provide power. Ranging from 125A down to 16A and are available with digital LED voltage and amperage indicators.
Housed in a robust aluminium enclosure with a folding stand and padlockable door, bespoke configurations can also be catered for. Available for hire and purchase.
Name
SMDU-125A-2W
SMDU-125A-4W
SMDU-63A-6W
SMDU-32A-2W
Input:125A5-pin400APlugwith1mH07RN-Fcable
Output:2x63A400V5-pinMCB/RCDindividuallyprotectedoutlets
Input:125A5-pin400APlugwith1mH07RN-Fcable Output:4x32A400V5-pinMCB/RCDindividuallyprotectedoutlets
Input:63A5-pin400AIP44commandoinlet
Output:4x16A,2x32A400V5-pinMCB/RCDindividuallyprotected outlets.CompletewithLEDphaseandvoltageindicators
Input:32A5-pin400APlugwith1mH07RN-Fcable Output:2x16A400V5-pinMCB/RCDindividuallyprotectedoutlets

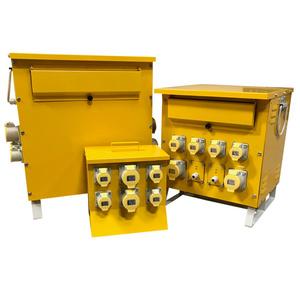

Site Power and Lighting Transformers are manufactured in accordance with BS4363:1998 and provide a 110V Reduced Low Voltage (RLV) supply to BS7671 (IET 18th Edition Wiring Regulations) Available in; 5 kVA or 10 kVA, single phase or 3 phase, and with outgoing RCD options.

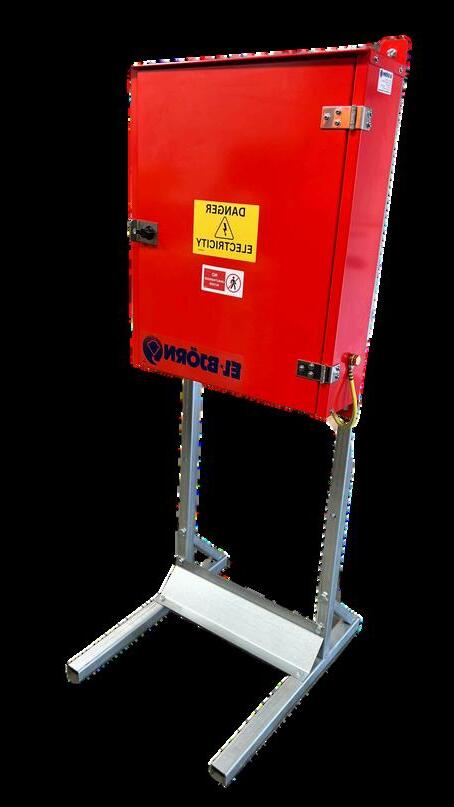

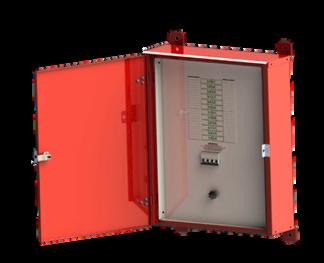

Built according to BS EN (IEC) 60439-4 product standards, our Pan-Assembly Distribution Pane provide efficient and reliable power supply for temporary commercial and industrial buildings
Manufactured in our UK assembly facility, the robust structure is designed to withstand the demands of busy industrial areas and construc sites. Featuring a corrosion resistant and powd coated galvanised steel enclosure, stainless ste hinges, heavy-duty padlock latch and detachab stainless steel stand to allow greater positionin flexibility.
The S1 Enclosures are our most compact and cost effective Pan-Assembly Distribution Panels Offering Incoming devices with a switch disconnector or range of RCD ratings up to 125A with an 8W Pan-Assembly.
The P1 Enclosures come available in configurations of 100A and 125A, with incoming devices by means of switch disconnector, MCCB or MCCB with variable modular RCD The P1 panels are manufactured with an internal DIN rail for mounting additional RCD’s, Time Clocks or Contactors, providing the user with extra adaptability on site. The P1 panel has the capacity for a 8W or 12W Pan-Assembly

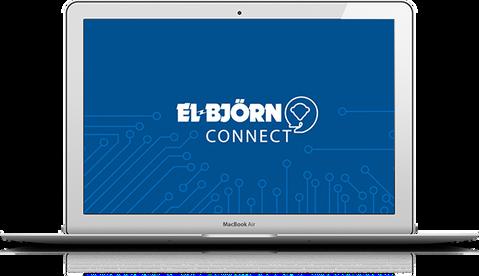

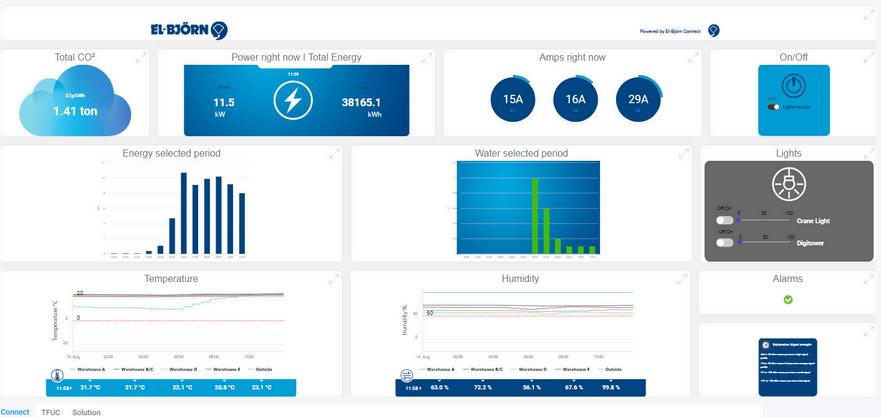

El-Björn CONNECT is the web-hosted platform that monitors, enables proactive energy management and identifies the energy drains on construction sites, using our bespoke IOT hardware.
CONNECT provides the foundation for long-term improvement of your project. The platform gives you easy access to consumption figures for your entire project as well as individual circuit metering.
The alert features and easy online access help to safeguard the energy supply to your project, as well as simplifying troubleshooting. This provides opportunities to increase unit productivity in real time, make preventive actions and continuously improve process optimization. All of which lead to lower energy use and lower overall costs.
El-Björn CONNECT integrates with our climate products in one portal to form a Temporary BMS system.

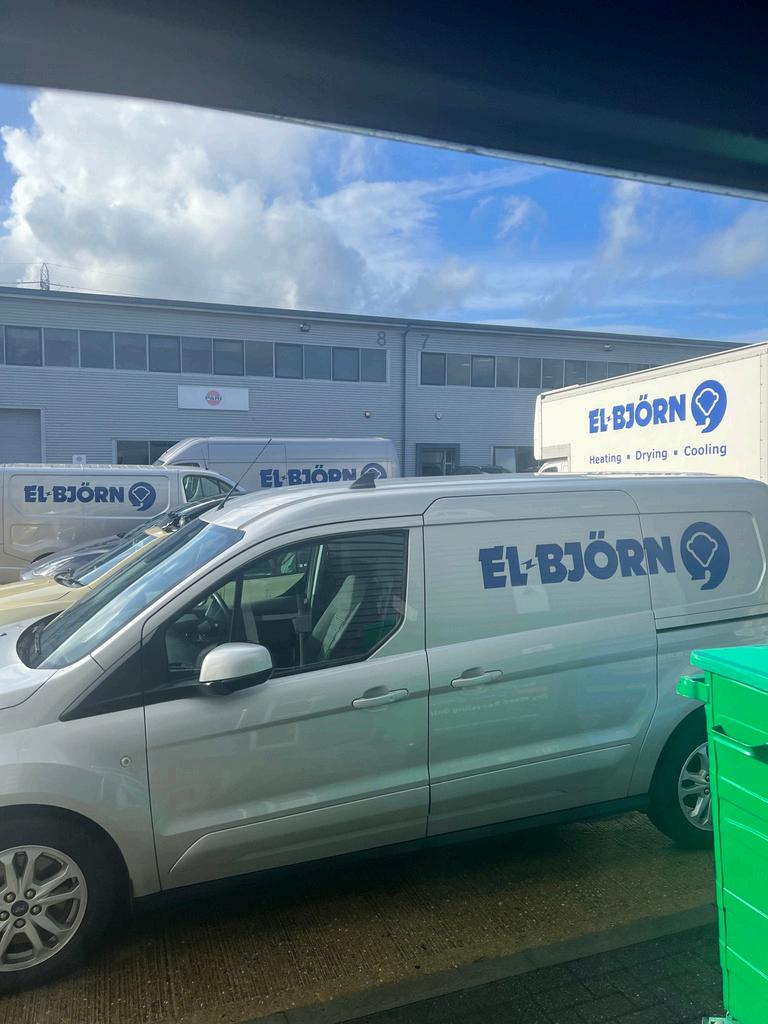

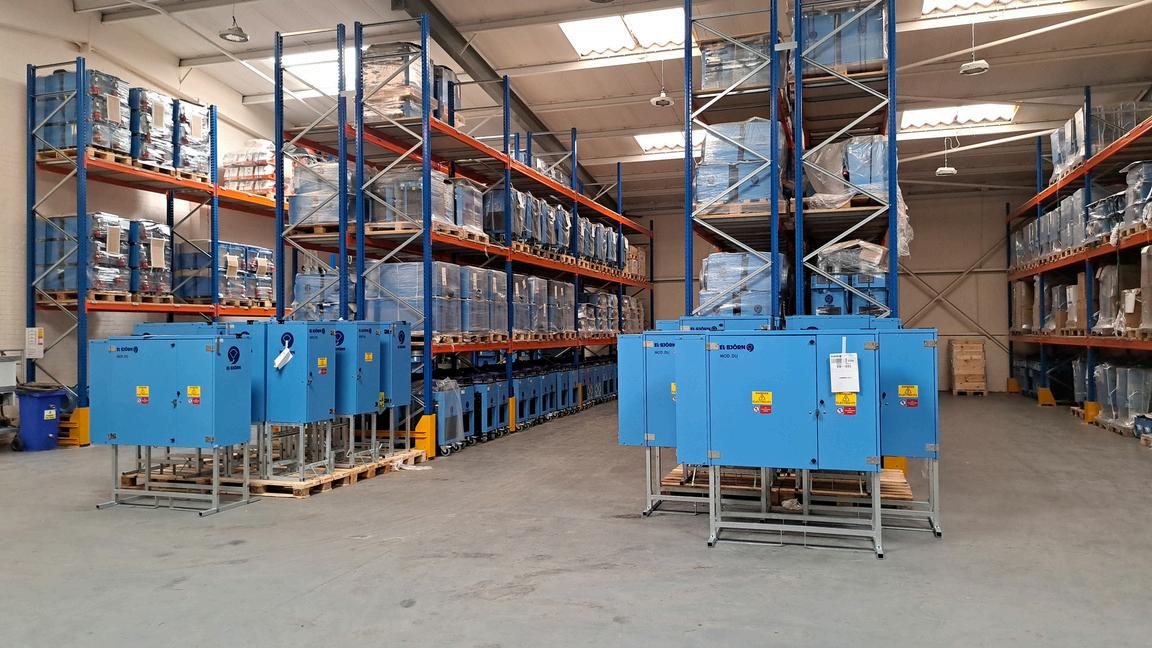

Operating from our 3 UK distribution centres, El-Björn UK Ltd can provide nationwide delivery and collection services.
Our fleet of diverse delivery vehicles are suitable for delivery into busy towns and cities such as London, making us the perfect partner for long or short term hire of Power and Distribution products.
