Growing from its origins in Sweden with over 70 years' experience in powering the future, El-Björn has become an industry recognised name across northern Europe, providing climate control and power solutions to various industries.
Through our continuous investment in research and development, we provide our customers with the most efficient and effective products on the market for; Heating, Cooling, Drying, Power Generation and Distribution.
Designed for temporary or permanent heating, our Kube Heaters produce a powerful single column of air with minimal noise, ideal for use in; retail shops, warehouses, workshops, constructions sites, industrial areas, event spaces and similar areas Equipped with a mechanical thermostat, wheels for ease of movement and a large connection collar, allowing for the connection of additional ductwork to help better direct the flow of warm air to specific areas.
The KH9 portable heater is our mid sized Kube Heater, fitted with a 5 pin, 3 phase, 16 Amp plug, able to produce a total heat output of 9kW.
The KH12 portable heater is one of our largest Kube Heater, fitted with a 5 pin, 3 phase, 32 Amp plug, able to produce a total heat output of 12kW.
The KH18 portable heater is our largest and most powerful Kube Heater, fitted with a 5 pin, 3 phase, 32 Amp plug, able to produce a total heat output of 18kW
The KH2.5 portable heaters are the our smallest Kube Heater able to reach a total heat output of 2.5KW. Designed for temporary or permanent heating, able to produce a powerful single column of air and available in a range of power configurations
The KH2.5 110V is fitted with a 110V, 3 pin, 32 Amp plug perfect for use in construction, industrial or events environments.
The KH2.5 230V is fitted with a 230V, 3 pin, 13 Amp plug perfect for use in retail shops, workshops, office space, domestic and school environments.

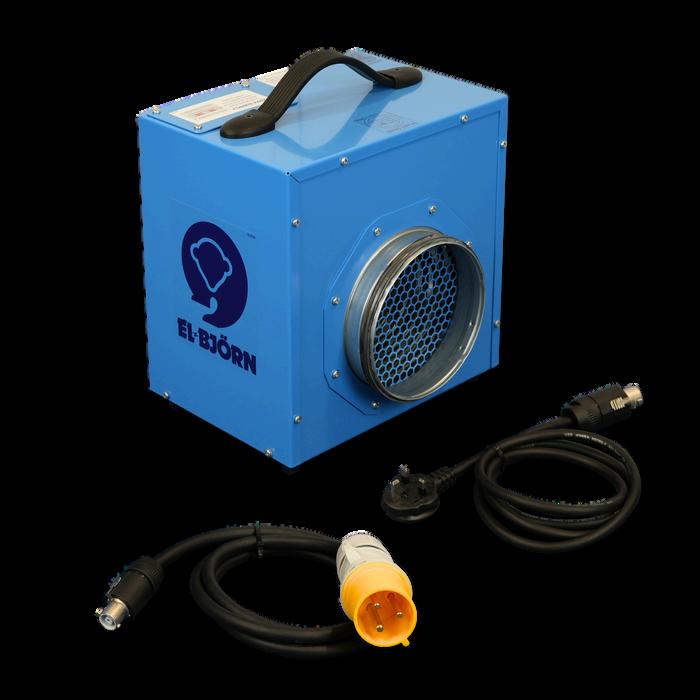

The Dual Voltage version is our most versatile small heater, able to be easily changed between a 230V domestic plug and a 110V, 3 pin, 32 amp plug (both plug variants included) by following the visual instructions on the top of the unit. This allows the heater to be used across domestic and industrial environments.
El-Björn’s latest generation of heating and drying fans, developed to meet the current and future requirements of the commercial and construction sectors, using state of the art materials to create robust, high performing and energy efficient heating units.

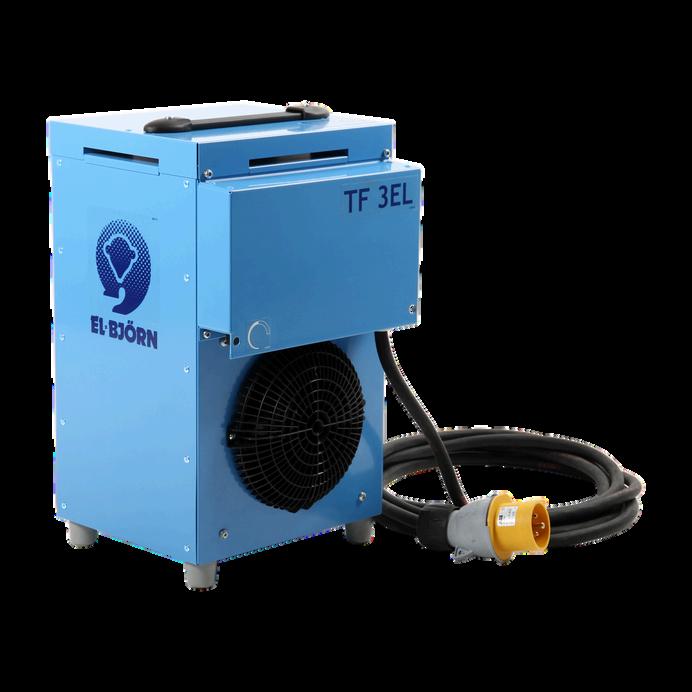

The most convenient machine on the market in terms of dimensions, weight and performance. Available with a 110V or 230V power incomer, the TF 3EL delivers a full 2.8 kW of heating power. Able to be used indoors and outdoors , the TF 3EL is adaptable for a multitude of applications, from industrial and construction sites to warehouses and event spaces.
Fitted with a continuously thermostat, variable between 5–45 °C, and automatic overheating protection, the TF 3EL is able to spread heated air over 360° of direction, thanks to the integrated air distributor, making it a powerful drying fan for floor area of 50–60 square metres.

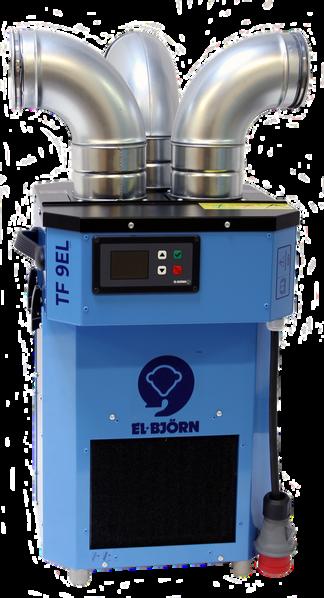

An energy-efficient, commercial heating fan. Featuring two power settings; 4.5kW / 9kW, the TF 9EL EBC is equipped with three adjustable ejectors, able maintain a constant temperature in areas up to 175m². Operated through a user-friendly digital control panel mounted on the front of the machine, allowing you to easily change the temperature and fan speed of the unit (lockable through an access code).

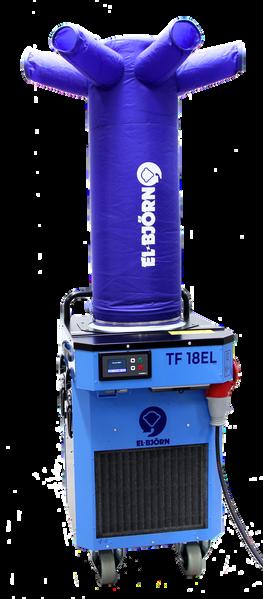

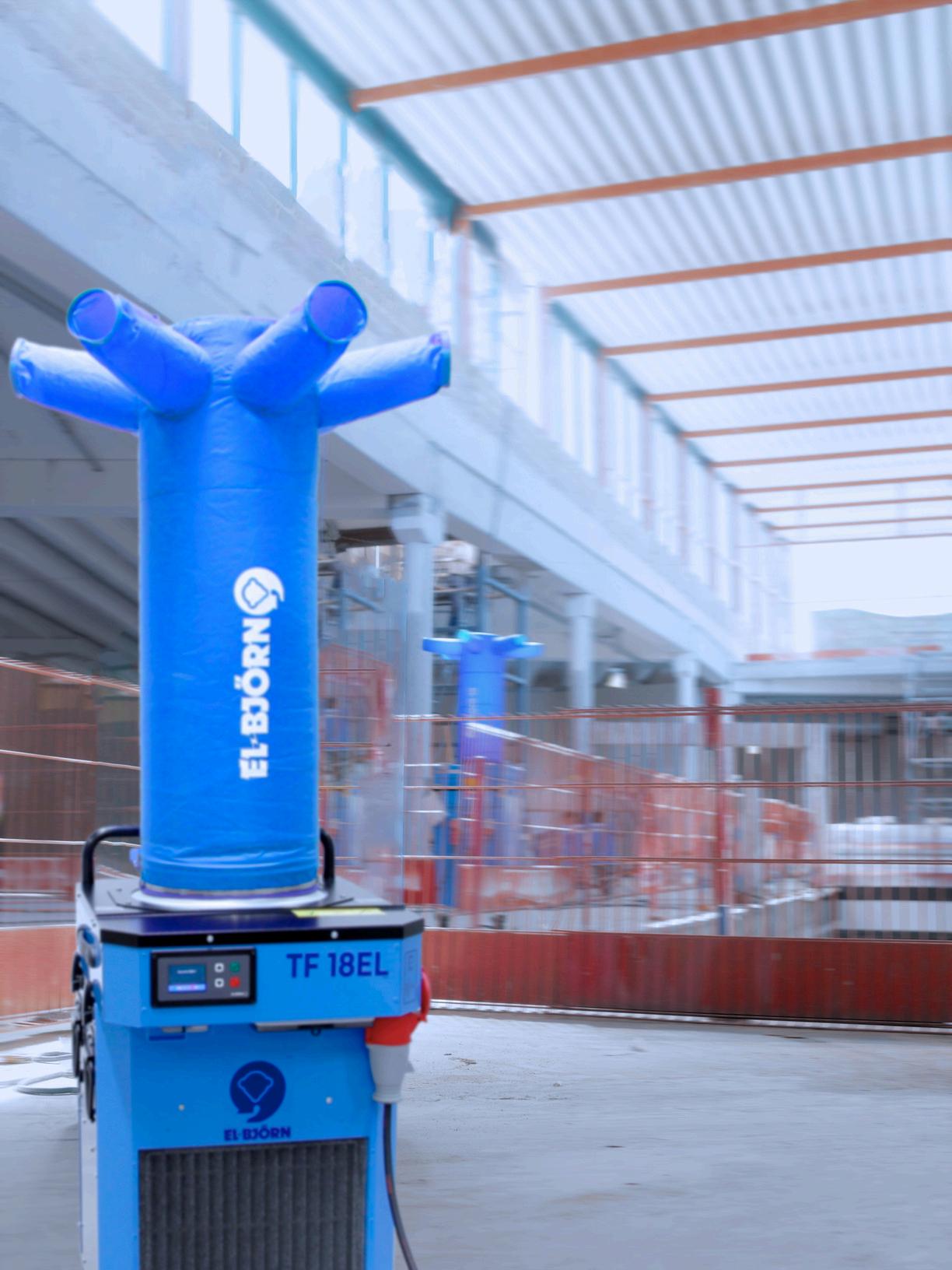

An energy-efficient, commercial heating fan, designed to maximise the throw of warm air to its given environment The TF 18EL is the most popular heater in our range, featuring two power settings; 9kW / 18kW, able to maintain a constant temperature in areas up to 350m² through a textile air distributor that spreads the air in 360˚ of direction.
Available in two model types, the TF 18El EBS is operated by a mechanical controls for temperature and power, whilst the TF 18 EBC is operated by a built in touch screen computer and display, able to provide real time ambient temperature and humidity levels (lockable through an access code). The TF 18EL EBC can also work in connection with our online control and monitoring platform ElBjörn CONNECT, allowing users to remotely view the current and historic performance of their connected machines, adjust the targeted temperature in real time and even turn the machines on and off without needing to be there.
Robust, practical and lightweight the TF 18EL models are constructed with galvanised sheet steel and finished with a corrosion-resistant powder coating, making it easy to maintain and reposition when needed.
TF 18EL is the ideal heating unit for use in medium sized open areas, such as constructions sites, industrial areas, event spaces, warehouses, retail shops, workshops, and similar areas

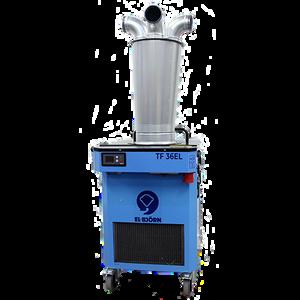

The TF 36EL EBC is one of the most powerful heaters in our range. Featuring two power settings; 18kW / 36kW, the TF 36EL is able to maintain a constant temperature in areas up to 600m² through a sheet metal air distributor that spreads the air in 360˚ of direction.
Robust, practical and lightweight the TF 36EL is constructed with galvanised sheet steel and finished with a corrosion-resistant powder coating, making it easy to maintain, and to reposition with its 4 fixed easy roll wheels Operated through a user-friendly digital control panel mounted on the front of the machine, allowing you to easily change the temperature and fan speed of the unit(lockable through an access code) .

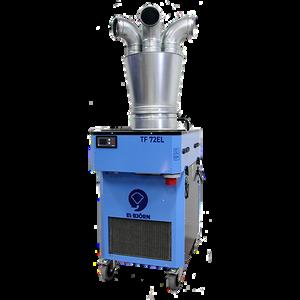

The TF 72EL is the largest and most powerful heater in our range. Featuring two power settings; 36 kW / 72 kW, the TF 72EL is able to maintain a constant temperature in areas up to 1500m² through a sheet metal air distributor that spreads the air in 360˚ of direction.
Robust, practical and lightweight the TF 72EL is constructed with galvanised sheet steel and finished with a corrosion-resistant powder coating, making it easy to maintain, and to reposition with its 4 fixed easy roll wheels. Operated through a user-friendly digital control panel mounted on the front of the machine, allowing you to easily change the temperature and fan speed of the unit(lockable through an access code).

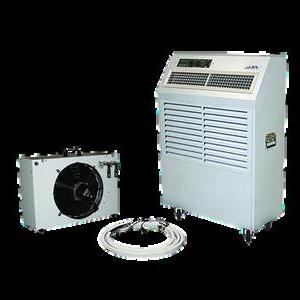

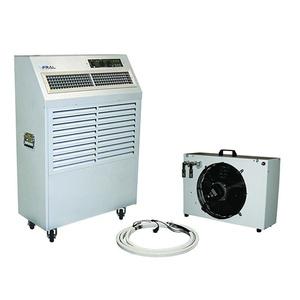

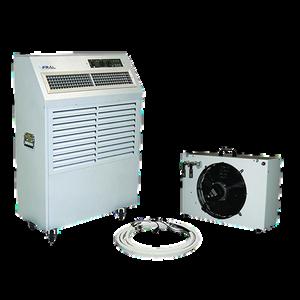

Available in 6.7kW and 15kW versions, our Split Cooler Air Conditioning Units have been designed for a fast installation and easy use within temporary cooling situations. Featuring a freestanding indoor unit able to rapidly cool large volumes of air by utilising the 3-speed fan and an external unit that can be posited up to 30m away. Ideally suited to cool large office areas, data centres and workspaces.
6.7kWUnit 15kWUnit
Weight(indoorunit) 86KG 140KG
Weight(outdoorunit) 165KG 35KG
HxWxD(mm)indoorunit 1020x815x360 1513x1074x414
HxWxD(mm)outdoorunit 460x650x320 895x930x641
NoiseRating 47/52/59dba 52/56/60dba
RatedCurrent 13A 13A
Maxlinelength 30m 30m
TotalThermalPower 67kW 15kW
Operatingrange 8-35˚C 8-35˚C
AirFlow 1150/140/150m3/H 1500/1900/2300m3/H
Voltage 230V 230V
Refrigerationtype R410A(2088) R410A(2088)
Incoming 2-pol/230V13ABS 2-pol/230V13ABS

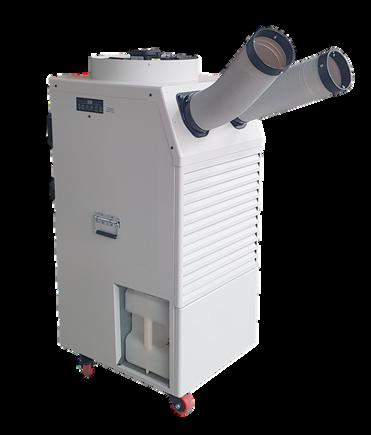

Our Spot Cooler Air Conditioning Units are one of the most powerful hose type units on the market from a 13-amp supply, delivering 24,000 Btu/hr. Designed to work with up to 10 metres of exhaust ducting, suitable for use in offices spaces with opening windows, industrial and working environments, event spaces and data centres.
Weight 98KG
HxWxD(mm) 1326x620x790
NoiseRating 55dba
RatedCurrent 10A
Maxexhaustlength 5m(10moptional)
TotalThermalPower 71kW
Operatingrange 10-42˚C
Suitablearea 73m2
Voltage 230
Seasonalavg Efficiency 36%
Refrigerationtype R1234yf
Incoming 2-pol/230V13ABS

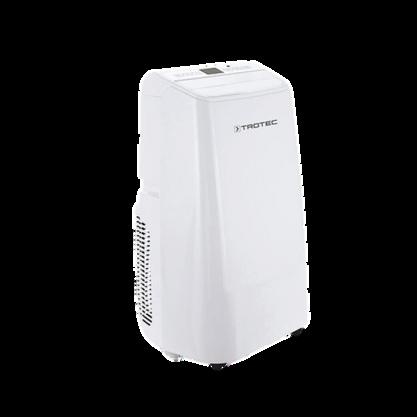

Our small but powerful 3.5kW Air Conditioning Units are able to create a pleasant climate in rooms up to 45m2 within a short period of time. This self contained unit has a three-stage switchable ventilator and swing fan, allowing the ventilation speed and air flow direction to be easily adjusted by remote control. At the push of a button, the air conditioner can also be turned into a powerful air dehumidifier with a maximum dehumidification capacity of 1.2 litres per hour.
Weight 295KG
HxWxD(mm) 730x430x360
NoiseRating 56dba
RatedCurrent 7A
Maxexhaustlength 1.5m
TotalThermalPower 31kW
Operatingrange 7-35˚C
Airflow 420m3/h
Voltage 230V
Seasonalavg Efficiency 36%
Refrigerationtype R-410A(600g) Incoming 2-pol/230V13ABS

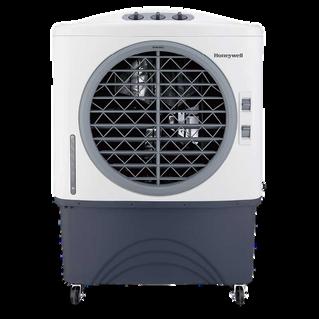

Built to cool your immediate area through the power of water. Without the need for condensers, coolant fluid or extraction hoses, our EC units require considerably less energy to operate. This units slimline design and quiet operation makes it suitable for domestic and office environments with the ability to be used in enclosed environments with no access to opening windows.
Weight 6.6KG
HxWxD(mm) 750x310x300
NoiseRating 37/44/47dba
RatedCurrent 1A
Numberofspeeds 3
TotalThermalPower 120W
Suitablearea 15m2
AirFlow 330m3/h
Voltage 230V
Seasonalavg Efficiency 36%
Watertanksize 9L
Incoming 2-pol/230V13ABS
Built to cool large open spaces through the power of water. Without the need for condensers, coolant fluid or extraction hoses, our EC units require considerably less energy to operate. Effective in indoor and outdoor environments up to 96m2, complete with a top loaded ice tray allowing for additional cooling power. This unit is able to be used in enclosed environments with no access to opening windows.
Weight
HxWxD(mm) 869x620x376
NoiseRating
Built to cool open indoor and outdoor environments through the power of water. Without the need for condensers, coolant fluid or extraction hoses, our EC units require considerably less energy to operate Effective in indoor and outdoor environments up to 150m2, complete with a top loaded ice tray allowing for additional cooling power This unit is able to be used in enclosed environments with no access to opening windows.
Weight 178KG
HxWxD(mm) 869x620x376
NoiseRating 62dba
RatedCurrent(A) 4
Numberofspeeds
Condensing dehumidification is a well-proven method for quickly and conveniently reduce the level of water in the air of a given area, and extract water from surrounding materials. At El-Björn our highly effective dehumidifier units are the result of over 30 years of hard work and development by our experienced engineers to produce a market leading product.

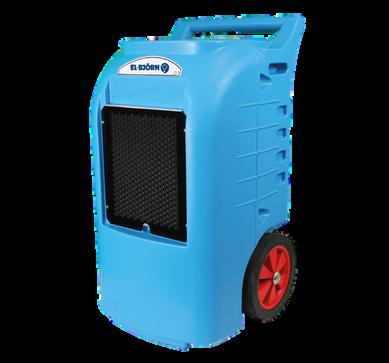

A strong and robust casing ideal for drying in the toughest conditions, able to quickly reduce air humidity and reverse water damage in construction sites and similar environments. With adjustable fan speeds and humidity settings for full control of moisture reduction, the AD series are are able to work in temperatures as low as 7˚C with the ability to b stackable for ease of storage.
Designedforcontinuoususewithinthedemandingconditionsofconstructionsitesandindustrial areas,theRM85isastackableunitallowingforeasystorageanduseincombinationwithmultiple units Fittedwitharotarycompressor,ductableairoutletsanda5mincomingcable,theRM85 alsofeaturesahotgasdefrostsystemallowingtheunittooperateat7˚Cambienttemperature. Thisunitcanbeconfiguredbetweena110Vanddomestic230Vpowersupply,makingitsuitable forcommercialanddomesticapplications
HxWxD(mm) 945x545x492 945x545x492
NoiseRating 52dba 52dba
Suitablearea 250m3 250m3
TotalPower 680W 680W
Extractionhoselength 10m 10m
Operatingrange(Temp) 7-35˚C 7-35˚C
Capacity(at20/27/30˚C) 202/33/479Lper24h 202/33/479Lper24h Voltage 110V 230V Seasonalavg
ProtectionClass

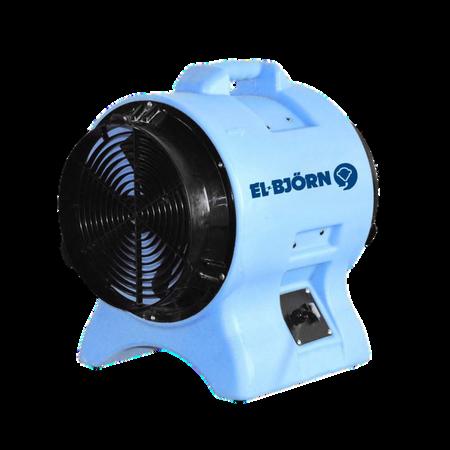

Lightweightfanswithlowpowerconsumptionthatdeliveranimpressivevolumeofairthanksto largefanbladesthatgeneratehighairflow OurVentDryingFanscanbeconnectedtoastraight ductsystemupto38metresinlength,idealforextractinggasesfromtunnels,basementsand buildings,recirculatingair,dryingfloors&carpets,andforlocalcooling.Fanhousingisconstructed fromhighlydurablepolypropylene,equippedwithpracticalcarryinghandleandcordholderand caneasilybestackedforuse,transportandstorage.
Weight 13.5kg
HxWxD(mm) 520x380x495
NoiseRating 52dba
Hosedimension 300mm
FanSpeed 3400rpm
AirFlow 3850m3/h
Voltage 110V
Seasonalavg Efficiency 36%
ProtectionClass IP22
Incoming 3-pol/110V16ACCE
The A75 is a compact Drying Room Dehumidifier which creates a moisture and mold free environment with a gentle temperature drying process, providing short drying times with minimal energy usage. Suitable for areas up to 10m2, the A75 comes with a water extraction connection valve, an external fan, and thermostat controls able to heat up to 35˚C (situated in a tamper free location).
Weight 48KG
HxWxD(mm) 685x460x480
NoiseRating 67dba
RatedCurrent 13A
TotalPower 3kW
AdditionalHeating 2kW
Operatingrange(Temp) 15-35˚C
Capacity(at26˚C) 30Lper24h Voltage
The A155 is a compact Drying Room Dehumidifier which creates a moisture and mold free environment with a gentle temperature drying process, providing short drying times with minimal energy usage. Suitable for areas upwards of 8m2, the A155 comes with a water extraction connection valve, an external fan, and thermostat controls able to heat up to 38˚C (situated in a tamper free location)
Weight 70KG
HxWxD(mm) 1498x470x370
NoiseRating 61dba
RatedCurrent 14A
TotalPower 54kW
AdditionalHeating 4kW
Operatingrange(Temp) 15-38˚C
Capacity(at26˚C) 72m3/h
Voltage 400V
Seasonalavg Efficiency 36%
Refrigerant R134a
ProtectionClass IPX4

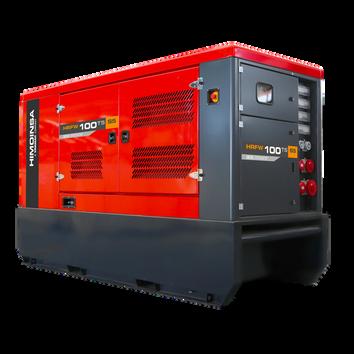

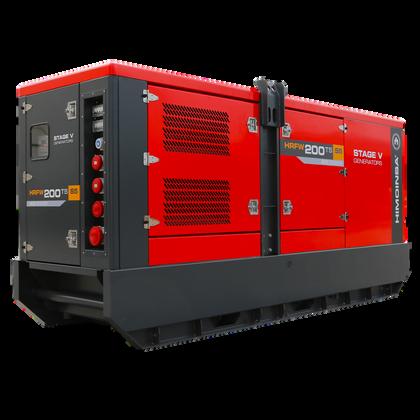

At El-Björn we provide a range of Stage V Diesel Generators to suit your project needs, with power capacities from 20kVA - 200kVA. All of our Stage V Diesel Generators have been specifically designed to be compliant with EU Regulation 2016/1628/CE, used within large populated cities such as London, Birmingham and Manchester.
Using a sophisticated built in exhaust treatment system, these generators reduce up to 90% of environmentally hazardous gases and particles compared to previous technology.
Available with full fuel management and remote generator monitoring.
MOD.DU - Our customisable Modular Distribution Units allow you to adapt to your project’s power needs in real time. With a selection of interchangeable modules, you have the flexibility to power multiple electrical units with a variety of power demands, all at once.
SMDU - Our Socket Mains Distribution Units are created with the customer in mind. With a convenient Plug & Play design, an SMDU is ready to go upon arrival with no complicated setups required Available in a range of power inputs of 32A – 125A and a selection of distribution setups, allowing you to power a variety of onsite appliances.
El-Björn CONNECT is the web-hosted platform that monitors, enables proactive energy management and identifies the energy drains on construction sites, using our bespoke IOT hardware.
CONNECT provides the foundation for long-term improvement of your project. The platform gives you easy access to consumption figures for your entire project as well as individual circuit metering.
The alert features and easy online access help to safeguard the energy supply to your project, as well as simplifying troubleshooting. This provides opportunities to increase unit productivity in real time, make preventive actions and continuously improve process optimization. All of which lead to lower energy use and lower overall costs.
El-Björn CONNECT integrates with our climate products in one portal to form a Temporary BMS system.

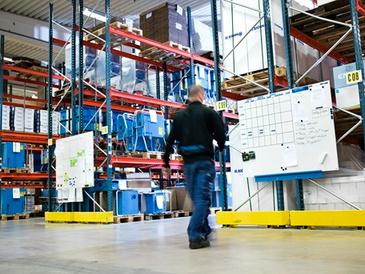

Operating from our 3 UK distribution centres, El-Björn UK Ltd can provide nationwide delivery and collection services.
Our fleet of diverse delivery vehicles are suitable for delivery into busy towns and cities such as London, making us the perfect partner for long or short term hire of Power and Distribution products.
