RARE OPPORTUNITY
CLOSES 21ST NOVEMBER, FROM 15:00 BST*
*AVAILABLE BY NEGOTIATED SALE TODAY
WWW.APEXAUCTIONS.COM
£ Available immediately UK Finance options available International offers welcome A rare opportunity to purchase high-quality machinery from leading manufacturers. These metalworking machines are late models, used in automotive production. Assets located in the West Midlands. CONTACT US: Eloise Walker ewalker@apex-group.com +44 (0)7570 429275 +44 (0)1273 224466 4 X MATSUURA MULTI PALLET HORIZONTAL MACHINING CENTRES 3 X DOOSAN DNM6700 VERTICAL MACHINING CENTRES FOR SALE:

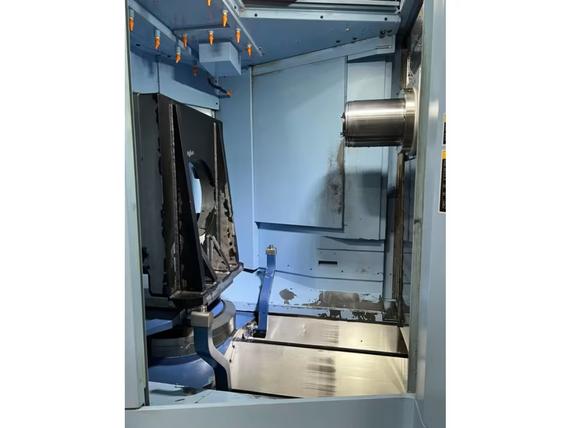

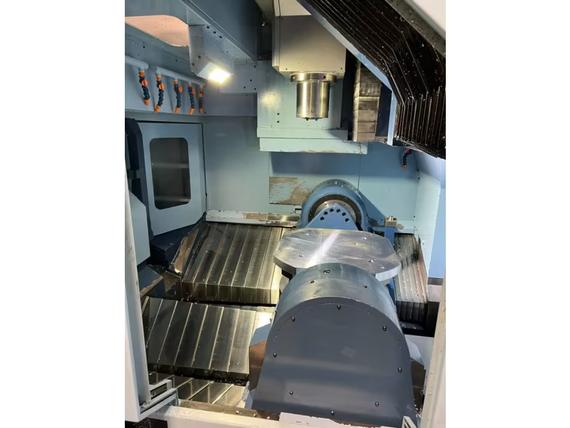

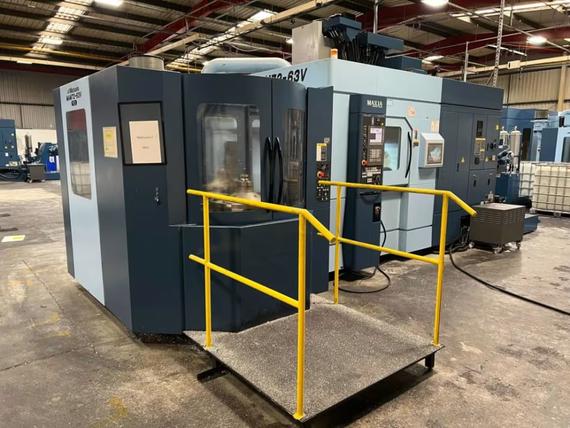

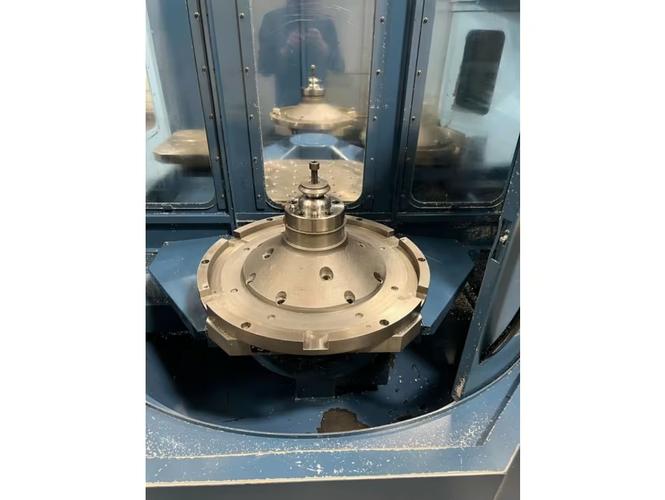

MATSUURA MAM72-63V
6 PALLET CNC 5 AXIS HORIZONTAL MACHINING CENTRE (2019)

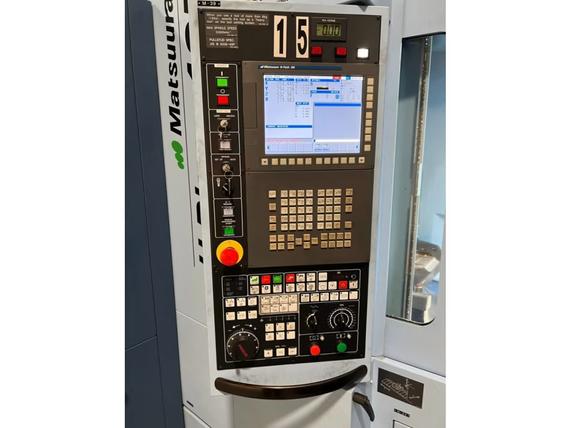

With Matsuura G-tech 30i control, dual auger to FSE chip conveyor, FSE through coolant high pressure filtration system, Renishaw NC4 laser tool setter, Filtermist FX6002 mist extraction unit, Oil Matic C1500 Sky Nexus chiller, SMC air dryer type IDF8E & handwheel. Weight 13,300kg.
REGISTER & BID
LOT 1

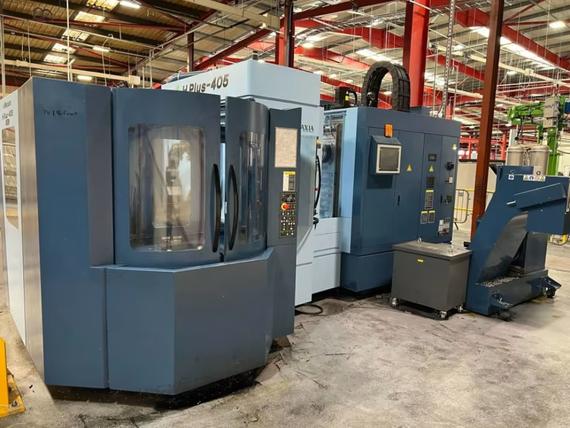

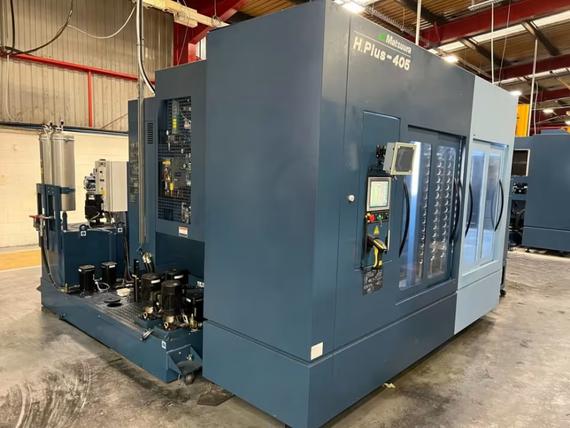

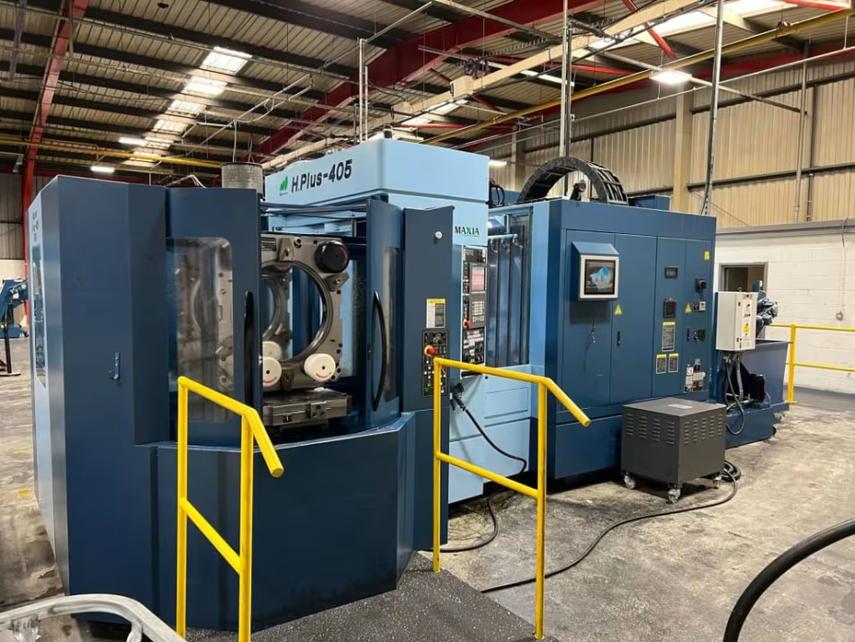

MATSUURA H-PLUS 405
6 PALLET CNC 4 AXIS HORIZONTAL MACHINING CENTRE (2021)
With Matsuura G-tech 30i control, dual auger to FSE chip conveyor, FSE through coolant high pressure filtration system, Renishaw NC4 laser tool setter, Filtermist FX6002 mist extraction unit, oil matic C1500 Sky Nexus chiller, SMC air dryer type IDF8E & handwheel. Weight 10,400kg.
REGISTER & BID LOT 2

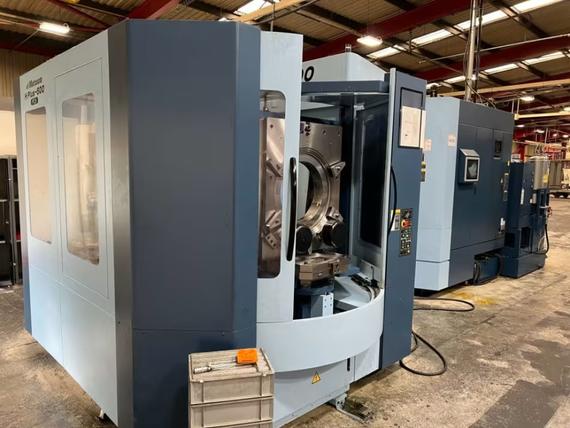

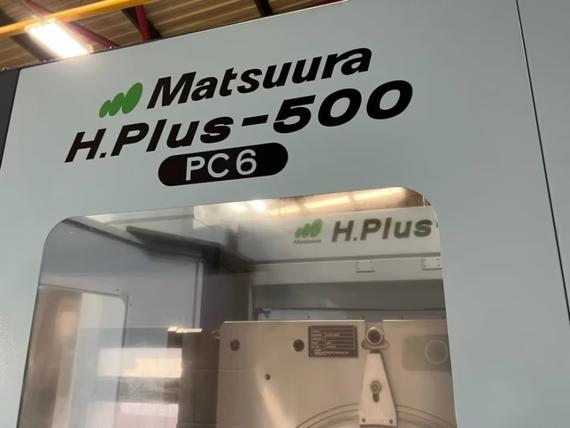

MATSUURA H-PLUS 500
6 PALLET CNC 4 AXIS HORIZONTAL MACHINING CENTRE (2019)
With Matsuura G-tech 31i control, dual auger to FSE chip conveyor, FSE through coolant high pressure filtration system, Renishaw NC4 laser tool setter, Hepa Exomist HPM 1000 mist extraction unit, oil matic C1500 chiller, SMC air dryer type IDF8E & handwheel. Weight 15,000kg.
REGISTER & BID
LOT 3
MATSUURA H-PLUS 405
6 PALLET CNC 4 AXIS HORIZONTAL
LOT 4
With Matsuura G-tech 30i control, dual auger to FSE chip conveyor, FSE through coolant high pressure filtration system, Renishaw NC4 laser tool setter, Filtermist FX6002 mist extraction unit, oil matic C1500 Sky Nexus chiller, SMC air dryer type IDF8E & handwheel. Weight 10,400kg.
REGISTER & BID
-120°/+30°
001° Increment)
(0 001°
- MATSUURA MAM72-63V 2 - MATSUURA H-PLUS 405 3 - MATSUURA H-PLUS 500 4 - MATSUURA H-PLUS 405 Year 2019 2021 2019 2021 Opening Bid £160,000 £145,000 £155,000 £150,000 Table Dimension 500 x 500mm 500 x 500mm 500 x 500mm 500mm x 500mm Max Table Load 350kg 400kg 750kg 400kg Maximum Component Dimension Ø630mm x H450mm Ø700mm x H850mm Ø850mm x H1,050mm Ø700mm x H850mm Axis Travel 'X'=760
'Z'=660mm 'A'=
(0
'C'=360°
Increment) 'X'=660
'Z'=660mm 'B'=0-360° X'=800
'Z'=800mm 'B'=0-360° 'X'=660
'Z'=660mm 'B'=0-360° Rapid Traverse 'XYZ'=60,000mm/ min, 'A'= 25rpm. 'C'=50rpm 'XYZ'=60,000mm/ min, 'B'= 100rpm XYZ'=60,000mm/m in, 'B'= 100rpm 'XYZ'=60,000mm/ min, 'B'= 100rpm Maximum Speed Range 40-20,000rpm (15/22kW Motor) 45-20,000rpm (30kW Motor) 45-12,000rpm (30kW Motor) 45-20,000rpm (30kW Motor) Spindle Taper BT40. 120 Position ATC BT50. 120 Position ATC BT50. 120 Position ATC BT50. 120 Position ATC Max Tool Ø96mm/Ø175mmØ110mm/ Ø320mmMax Tool Length 350mm 350mm 500mm 350mm Max Tool Weight 10kg 10kg 20kg 10kg S/no. 21731 22130 21621 21736
1
x 'Y'=845mm
x 'Y'=660mm
x 'Y'=800mm
x 'Y'=660mm
COMPARE MODELS

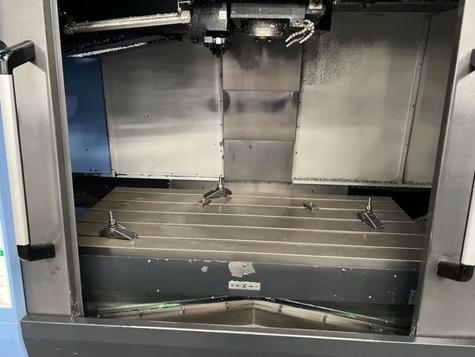

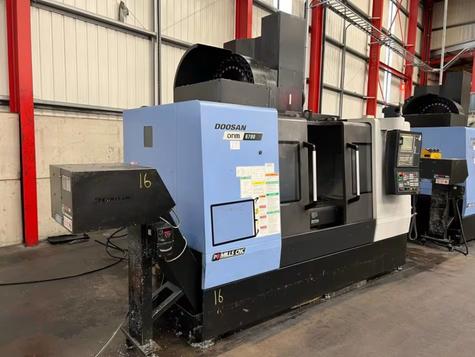

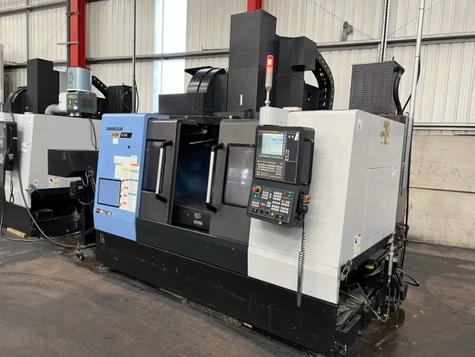

DOOSAN DNM 6700 CNC

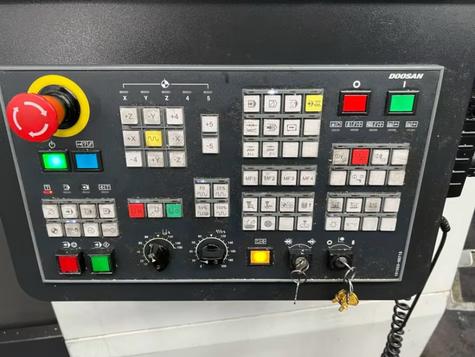

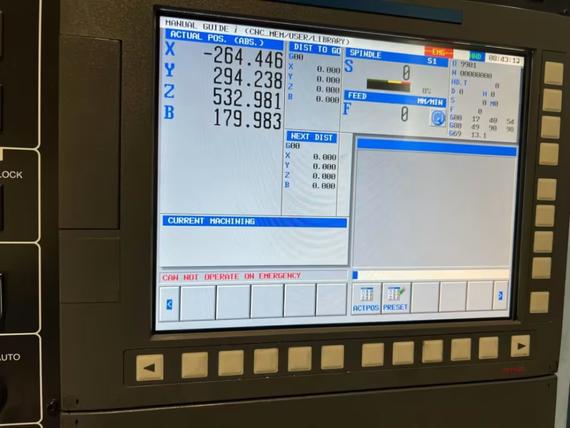

VERTICAL MACHINING CENTRE WITH DOOSAN FANUC I CONTROL (GUIDE I)
3 available for purchase
With through coolant system, dual auger to lNS Turbo MS500 chip conveyor, Kaukan oil chiller, signal tower & handwheel. Overall dimensions L2,597 x W3,350 x H3,120mm. Weight 8,500kg.
Year: 2016
Table Dimension: 1,500 x 670mm (5 'T' Slots)
Maximum Table Load: 1,500kg
Axis Travel: X=1,300mm Y=670mm Z=625mm
Rapid Traverse 'X & Y'=36m/min, 'Z'=30m/min
Spindle Nose To Table Surface: 150-775mm
S/No.: MV0092000133
Maximum Spindle Speed: 12,000rpm (18.5kW Motor)
Spindle Torque: 117.8Nm. 30 Position ATC.
Spindle Nose: ISO 40
Maximum Tool: Ø80mm/Ø125mm
Maximum Tool Length: 300mm
REGISTER &
BID
LOT
5-7

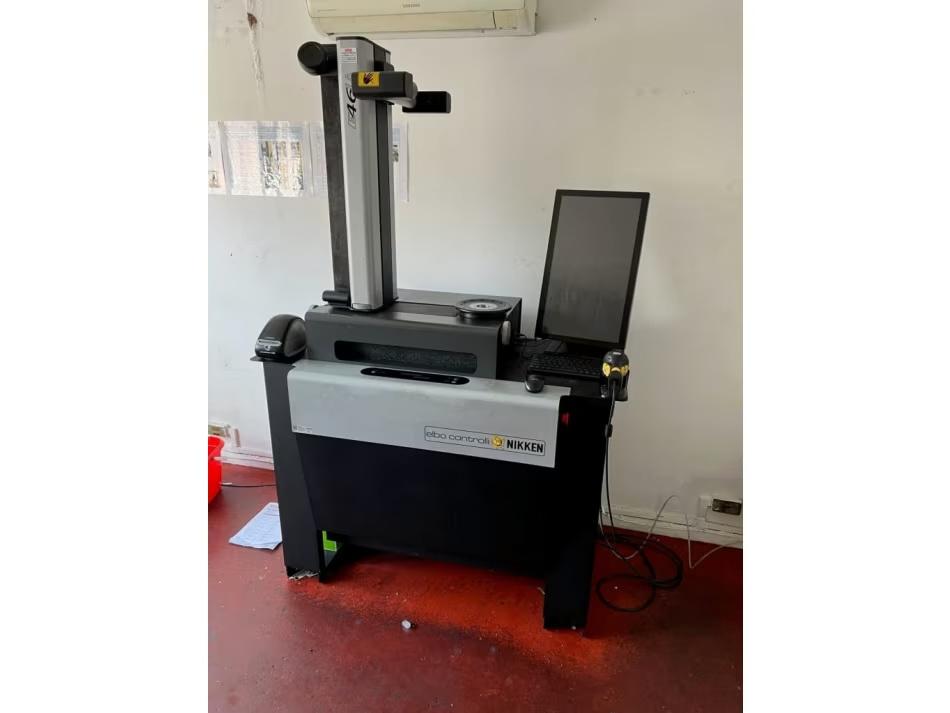

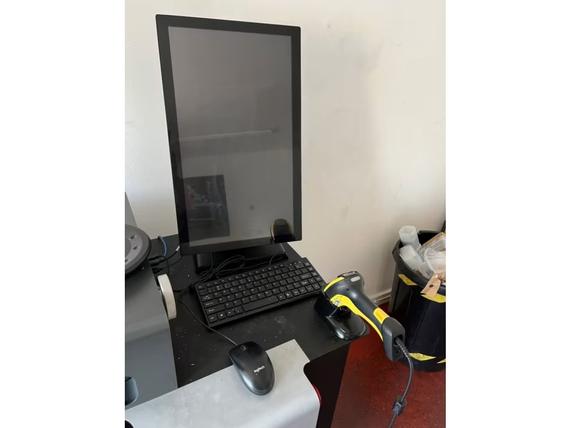

ELBO CONTROLLI
NIKKEN PRESETTER MODEL E46LA
Measurable Range:
X-Axis: 14.17” (Diameter)
Z-Axis: 18.11” (Length)
Angle and Radius Comparison Tool
Inspection Mode to verify condition of cutting tools
Micro adjustments in X and Z (40 millionths of an inch resolution)
25x Camera magnification S/No 200184.
REGISTER & BID
LLOT OT 8
Please see the sale information section for any additional fees that may be applicable upon purchasing a lot. Vendor to approve all offer and/or closing bids prior to Apex invoicing.
VIEW AUCTION & REGISTER HAPPY TO HELP With registration, booking a viewing, placing offers, and more. CONTACT US Eloise Walker ewalker@apex-group.com +44 (0)7570 429275 +44 (0)1273 224466 INTERESTED?
LOCATION
SITE
WWW.APEXAUCTIONS.COM
West Midlands United Kingdom
