UNIQUE OPPORTUNITY TO PURCHASE A STEAM GENERATING PLANT THIS IS A PRIVATE TREATY DEAL

What's on offer: One complete 20mW steam generating power plant with building and supporting structures. The plant includes: (1) WEG 2625Kva 11,000 volt synchronous continuous duty alternator (built 2012); (1) Triveni 20 mW steam bleed condensing turbine with gearbox (built 2012). The 20,000kW power rated steam turbine has inlet steam pressure of 40 bar and steam temperature of 400 degree C and a turbine speed of 6,150RPM; The 21,800kW powered gearbox has an input speed of 6150RPM and output speed of 1,500rpm.

The plant includes ACC vacuum condensing equipment, a RO water plant capable of 5000 Ltrs per hour, a condensate polishing plant and includes all ancillaries.

Auction Ends: 14 November 2023

Viewing:

By Appointment Only

Location: Oldbury, UK

LISTING 1: Complete 20MW Steam Turbine Generator Plant

LISTING 2: Unused Triveni TST-2300-24 Steam Turbine

Within the plant the equipment includes: (1) WEG 26250kVA 11,000 volt synchronous continuous duty alternator (built 2012); (1) Triveni 20 mW steam bleed condensing turbine & gearbox (built 2012); RO water plant (5000 Ltrs/hour) & transfer system; Condensate polishing plant & boiler feed water system; Equipment installed 2014 & all ancillaries such as motors, pumps, electrical controls & panels are included. This unit was commissioned in 2015, saw little use and is offered for sale in it's mothballed condition.

Note: The turbine is bared regularly.

Triveni TST-2300-24 (UNUSED, 2013) Steam Turbine, power 20,000kW, complete with Triveni Gearbox, Serial number M2919X0000039N; Rated power: 21,800kW; (UNUSED, 2012); Included with this turbine is the Condensate Tank and the Air Cool Condenser panels (not full set & poor condition); The Building Structure and the turbine shed which are both easily dismountable, are also included. Turbine & gearbox were manufactured to GE/Peter Brotherhood design.

MAKE OFFER

MAKE OFFER

LISTING 1A: Collective Lot to Include All Items Shown in LISTING 1 & LISTING 2 1) Triveni TST-2300-23 Steam Turbine (2012); Power 20,000 kW; Inlet Steam 400 Degree C; Inlet Pressure 40 Bar; Turbine Rotor Speed 6,150RPM; Gear Box Output Speed 1,500; Complete with Triveni Gearbox (2012) (Manufactured under licence from Lufkin, USA), Serial Number M2919X000037; 21,800kW; Input/Output 6,141/1,500RPM; Ratio 4.094; (13,000kg); (1) WEG Synchronous Alternator, Model number SPW 1120. (2012); 26,250 kVA; 11,000 Volts; 1500RPM, 50HZ; Serial Number 1016864569; (Alternator stator was repaired and rebuilt in 2017), Complete with Exciter 140.55kVA, 73.51 Input voltage, 9.43 Input current & Main Exciter 2.4 power kVA; 180 Voltage, 12 poles; (1) CC Jensen PTU3 27/108 MZ-E2H1PW Turbine oil purification & cooling system (2013) (1) CC Jensen PTU3 27/108 MZ-E2H1PW Turbine oil purification & cooling system (2013) Turbine auxiliary cooling oil skid consisting of (2) Eskay 020120120, ST-BEM Heat exchangers, 1135 LPM (2012) (1) Pollet Water Group Condensate Polishing System; 2 cubic metres/hour. (2016) consisting of: (4) Pentair composite PE inner shell 712 Litre capacity resevoir tanks with LTH Digital Control MXD 75; Watercare CF0740SB-316-3'PN16 Stainless steel Water purification filter; Cooling water system; Consisting of (2) Siemens motors & pumps, controls & distribution panel board & dosing pot; Also includes (3) Chemical Support Systems Flowserve SCS4S Condensate/RO Make up & Boiler Feedwater controls with Endress &

& Hauser Liquiline Control & W014 13644 Steam sampling system; (2014) Air Cooler Condenser (ACC) Condensate Condenser Vacuum System (2013); Including Vacuum pumps & motors with controls: (1) Pneumatik-Behalter 7403-001 System, 1.0PS Mn Bar, 0.5 Max Bar, 410 Litre Volume, (2) Siemens motors 1LE15012B, 400V 30kW & (2) Pumps; (1) Econ pneumatic actuator & (2) Sterling Sihl PHA 5320 BN pumps.

Stork Thermaq Condensate return storage tank, 80,000 litre capacity; (2014) on fabricated stand complete with (3) Siemens 3-MOT, 1LE 15012AA434AB5-Z, motors, 400V 30kW; (3) Eagle Burgmann LS 2000-00 pressure Vessels (2014); Rosemount 1066 Control, Condensate pump & motor controls; Boiler feed water system (2014) Consisting of (3) Siemens Compact 3 MOT, 1LAB 317-2 AC60-Z Motors, 400V 315kV; (3) Pumps & controls; (1) Funke FP205-123-1-EH-1 Heat Exchanger (2014) Envirogen Water Technologies EWT Twin pass, Reverse Osmosos Water Treatment System (RO water plant, 5 cubic metres/hour) (2013); Complete with (4) Pentair composite PE inner shell 309 Litre capacity resevoir tanks with Flowserve Gestra URB 50 Control - View full list here.

MAKE OFFER

IN PARTNERSHIP WITH

UNIQUE OPPORTUNITY TO PURCHASE A STEAM GENERATING PLANT IN THE UK

BY PRIVATE TREATY MAKE OFFER

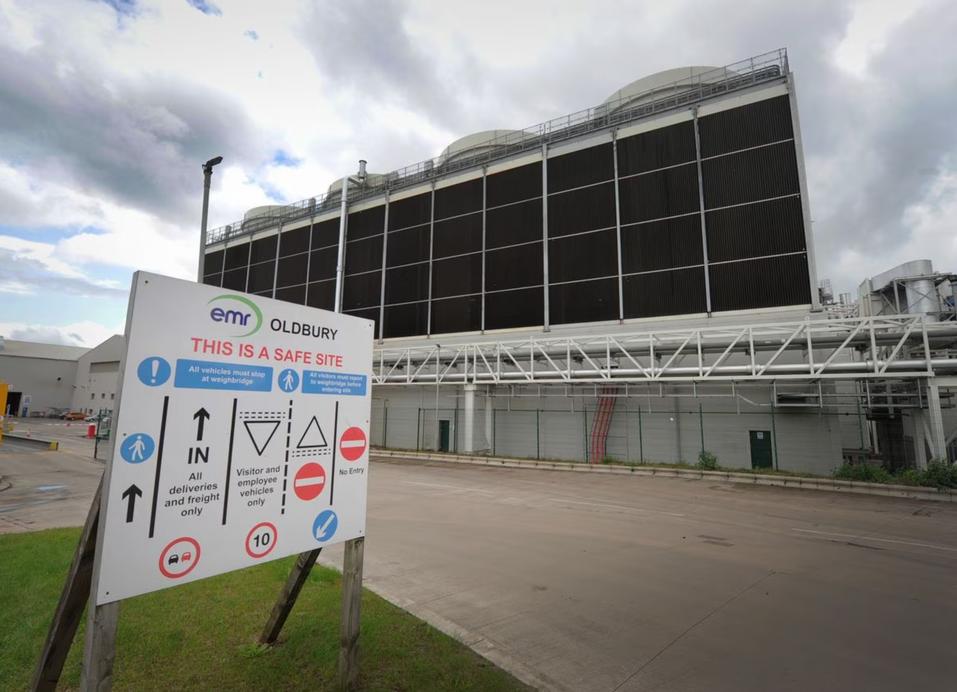

SITE LOCATION: Oldbury 2 Union Road Oldbury B69 3EL United Kingdom
