Preface Thread is a protocol for building efficient, secure and scalable wireless mesh networks for the Internet of Things (IoT), based on IPv6. OpenThread is an open-source implementation of the Thread protocol, originally developed by Google. It offers a comprehensive Application Programming Interface (API) that is both operating system and platform agnostic. OpenThread is the industry’s reference implementation and the go-to platform for professional Thread application developers.

This book uses OpenThread in conjunction with Zephyr, an open-source real-time operating system designed for use with resource-constrained devices. This allows you to develop Thread applications that work on various hardware platforms, without the need to delve into low-level details or to learn another API when switching hardware platforms.

With its practical approach, this book not only explains theoretical concepts, but also demonstrates Thread’s network features with the use of practical examples. It explains the code used for a variety of basic Thread applications based on Constrained Application Protocol (CoAP). This includes advanced topics such as service discovery and security. As you work through this book, you’ll build on both your knowledge and skills. By the time you finish the final chapter, you’ll have the confidence to effectively implement Thread-based wireless networks for your own IoT projects.

Koen Vervloesem, February 2024

● 11

Boek Building wireless sensor networks with OpenThread - UK.indd 11

11-04-2024 11:13

Building wireless sensor networks with OpenThread

Chapter 1• Introduction Thread is a protocol for building efficient, secure, and scalable wireless mesh networks for Internet of Things (IoT) applications. This book will serve as a comprehensive guide to help you understand and implement wireless sensor networks using the Thread protocol. In this book, you’ll learn how to: • Set up Thread Border Routers to connect a Thread network to a non-Thread network.

• Establish a Thread network between devices, using advanced features such as NAT64 and multicast addressing.

• Permit devices to join a Thread network by using network commissioning.

• Use Constrained Application Protocol (CoAP) as a communication protocol for messages between Thread devices.

• Discover Thread devices and their services on a network using SRP and mDNS/ DNS-SD protocols.

• Secure application protocols such as CoAP with Datagram Transport Layer Security (DTLS).

• Reduce power consumption of Thread devices.

This introductory chapter takes an overview of the Thread protocol, its advantages and disadvantages. It also goes on to list the other software and hardware platforms used in this book.

Thread is a low-power, wireless, and IPv6-based networking protocol designed specifically for IoT devices. Development of the protocol is managed by the Thread Group (https:// www.threadgroup.org), an alliance founded in 2015. This is a consortium of major industry players, including Google, Apple, Amazon, Qualcomm, Silicon Labs, and Nordic Semiconductor.

The Thread specification can be downloaded from https://www.threadgroup.org/ support#specifications (registration is required). The version history is as follows: Version

Release year

Remarks

Thread 1.0

2015

Never implemented in commercial products

Thread 1.1

2017

The ability to automatically move to a clear channel on detecting interference (channel agility) The ability to reset a master key and drive new rotating keys in the network

Thread 1.2

2019

Enhancements to scalability and energy efficiency Support for large-scale networking applications, including the ability to integrate multiple Thread networks into one singular Thread domain

Thread 1.3

2023

Enhancements to scalability, reliability, and robustness of Thread networks Standardization of Thread Border Routers, Matter support, and firmware upgrades for Thread devices

Table 1.1 Versions of the Thread specification

● 12

Boek Building wireless sensor networks with OpenThread - UK.indd 12

11-04-2024 11:13

Chapter 1• Introduction

All versions of the Thread specification maintain backward compatibility.

1.2 Thread’s architecture Thread employs a mesh networking architecture that allows devices to communicate directly with each other, eliminating the need for a central hub or gateway. This architecture offers inherent redundancy, as devices can relay data using multiple paths, ensuring increased reliability in case of any single node failure.

The Thread protocol stack is built upon the widely used IPv6 protocol, which simplifies the integration of Thread networks into existing IP infrastructures. Thread is designed to be lightweight, streamlined and efficient, making it an excellent protocol for IoT devices running in resource-constrained environments.

Before discussing Thread, it’s essential to understand its place in the network protocol environment. Most modern networks are based on the Internet Protocol suite, which uses a four-layer architecture. The layers of the Internet Protocol suite are, from bottom to top: Link layer Defines the device’s connection with a local network. Protocols like Ethernet and WiFi operate within this layer. In the more complex Open Systems Interconnection (OSI) model, this layer includes the physical and data link layers.

Network layer Enables communication across network boundaries, known as routing. The Internet Protocol (IP) operates within this layer and defines IP addresses.

Transport layer Enables communication between two devices, either on the same network or on different networks with routers in between. The transport layer also defines the concept of a port. User Datagram Protocol (UDP) and Transmission Control Protocol (TCP) operate within this layer.

Application layer Facilitates communication between applications on the same device or different devices.

Protocols like HyperText Transfer Protocol (HTTP), Domain Name System (DNS), Simple Mail Transfer Protocol (SMTP), and Message Queuing Telemetry Transport (MQTT) operate within this layer.

When data is transmitted across the network, the data of each layer is embedded in the layer below it, as shown in this diagram:

● 13

Boek Building wireless sensor networks with OpenThread - UK.indd 13

11-04-2024 11:13

Building wireless sensor networks with OpenThread

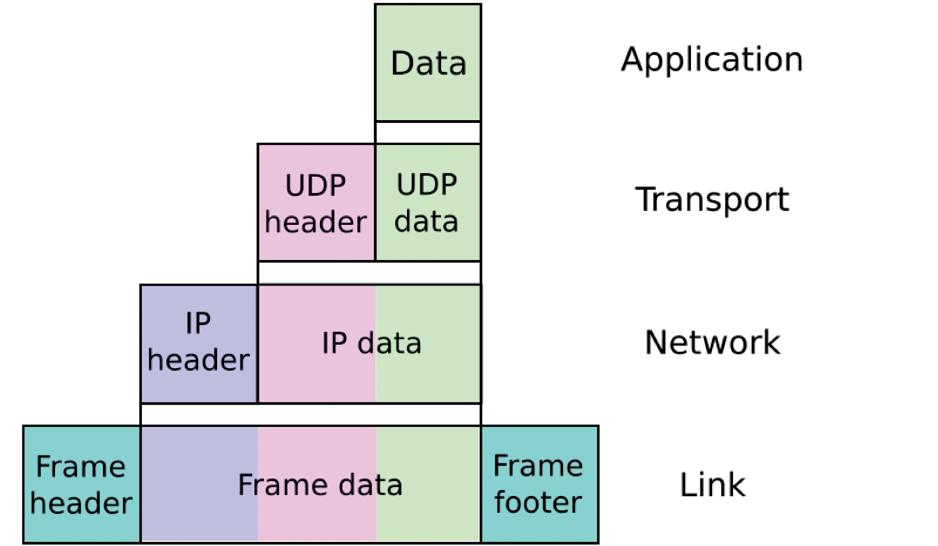

Figure 1.1 Network data is encapsulated in the four layers of the Internet Protocol suite (based on: Colin Burnett, CC BY-SA 3.0) Thread operates in the network and transport layers. However, it’s important to know what’s going on in all layers.

1.2.1 Link layer: IEEE 802.15.4 For its link layer, Thread builds upon the IEEE 802.15.4 standard, a specification by the Institute of Electrical and Electronics Engineers (IEEE). This is the same link layer that Zigbee uses. It focuses on low power consumption, allowing devices to communicate for months or even years on a single battery charge. The direct communication range is approximately 10 meters under normal conditions.

IEEE 802.15.4 is a radio standard operating in the license-free 2.4 GHz frequency band with data rates up to 250 kbit/s. It has 16 channels (channels 11 to 26), ranging from 2405 to 2530 MHz with 5 MHz channel spacing. This is the same 2.4 GHz frequency band used

by Bluetooth and Wi-Fi. Note: In Europe and North America, IEEE 802.15.4 also supports channels at frequencies of 868 MHz and 920 MHz, respectively. Channel 0 (with a data rate of 20 kbit/s) is for 868.3 MHz, and channels 1 to 10 (with a data rate of 40 kbit/s) are for 906 to 924 MHz with 2 MHz channel spacing.

An IEEE 802.15.4 network includes two types of devices: Full Function Device (FFD) A device that implements the complete feature set of the IEEE 802.15.4 standard.

It can communicate with all other IEEE 802.15.4 devices within its immediate radio range.

Reduced Function Device (RFD) A device that implements only a subset of features of the IEEE 802.15.4 standard to conserve device resources. It can only communicate with the FFD through which it joined the network.

● 14

Boek Building wireless sensor networks with OpenThread - UK.indd 14

11-04-2024 11:13

Chapter 1• Introduction

An IEEE 802.15.4 network is known as a Personal Area Network (PAN). Each PAN is identified by a unique PAN ID that no other PAN in range is allowed to have. Within each PAN, one FFD is the PAN coordinator. This device initiates and manages the PAN, enabling other devices to join the network.

IEEE 802.15.4 includes built-in encryption and authentication, using AES-128 (128bit Advanced Encryption Standard) in CCM* mode, a variation of CCM mode (counter with cipher block chaining message authentication code). This mode provides authenticated encryption by combining encryption in CTR (counter) mode with authentication using CBC-MAC (cipher block chaining message authentication code). The original message is transmitted alongside a MIC (Message Integrity Check) so the recipient can validate that the message has not been tampered with.

Devices can only communicate with each other in an IEEE 802.15.4 network if they use the same 128-bit AES key. The IEEE 802.15.4 standard doesn’t, however, define the key exchange process. The key must therefore either be stored in each device during manufacture, entered manually by the user, or by a key exchange protocol in the layers above the link layer.

IEEE 802.15.4 data packets can transmit data from 0 to 127 bytes long. Each IEEE 802.15.4 device has an EUI-64 (Extended Unique Identifier) address set by the manufacturer, which is used as a MAC address. When a device joins a PAN, it’s also assigned a 16-bit short address. This allows the transmitted packets to be shorter because they only need to use two instead of eight bytes to define source and target addresses. Some special short addresses exist, such as 0xffff as a broadcast address to send packets to all devices, and 0xfffe as an unassigned address, used by devices while joining a network.

1.2.2 Network layer: 6LoWPAN and IPv6 Thread’s network layer consists of IPv6 over Low-Power Wireless Access Networks (6LoWPAN). This is an IETF specification described in RFC 4944, "Transmission of IPv6 Packets over IEEE 802.15.4 Networks", with an update for the compression mechanism in RFC 6282, "Compression Format for IPv6 Datagrams over IEEE 802.15.4-Based Networks".

6LoWPAN’s purpose is to allow even the smallest devices with limited processing power and low energy requirements to be part of the Internet of Things.

6LoWPAN essentially enables you to run an IPv6 network over the IEEE 802.15.4 link layer. It acts as an ‘adaptation layer’ between IPv6 and IEEE 802.15.4 and is therefore sometimes considered part of the link layer. This adaptation poses some challenges. For example, IPv6 mandates that all links can handle datagram sizes of at least 1280 bytes, but IEEE 802.15.4, as explained in the previous subsection, limits a frame to 127 bytes.

6LoWPAN solves this by excluding information in the 6LoWPAN header that can already be derived from IEEE 802.15.4 frames and by using local, shortened addresses. If the payload is still too large, it’s divided into fragments.

The link-local IPv6 addresses of 6LoWPAN devices are derived from the IEEE 802.15.4 EUI64 addresses and their shortened 16-bit addresses. The devices in a 6LoWPAN network

● 15

Boek Building wireless sensor networks with OpenThread - UK.indd 15

11-04-2024 11:13

Building wireless sensor networks with OpenThread

can communicate directly with ‘normal’ IPv6 devices in a network if connected via an edge router. This means there is no need for translation via a gateway, in contrast to non-IP networks such as Zigbee or Z-Wave. Communication with non-6LoWPAN networks purely involves forwarding data packets at the network layer.

In this layer, Thread builds upon IEEE 802.15.4 to create an IPv6-based mesh network. In IEEE 802.15.4 only communication between devices that are in immediate radio range is possible, whereas routing allows devices that aren’t in immediate range to communicate.

If you want to delve into more details of Thread’s network layer, consult the Thread Group’s white paper "Thread Usage of 6LoWPAN" (https://www.threadgroup.org/Portals/0/ documents/support/6LoWPANUsage_632_2.pdf).

1.2.3 Transport layer: UDP On top of 6LoWPAN and IPv6, Thread’s transport layer employs the User Datagram Protocol (UDP), which is the lesser known alternative to Transmission Control Protocol (TCP).

UDP has the following properties: Connectionless Unlike TCP, UDP doesn’t require establishing a connection before transferring data. It sends datagrams (packets) directly without any prior setup.

No error checking and recovery UDP doesn’t provide built-in error checking, nor does it ensure the delivery of packets.

If data is lost or corrupted during transmission, UDP doesn’t attempt to recover or resend it.

Speed UDP is faster than TCP, as it doesn’t involve the overhead of establishing and maintaining a connection, error checking, or guaranteeing packet delivery.

UDP is ideal for use by Thread for several reasons: Resource constraints Thread devices often have limited processing power, memory, and energy. The simplicity and low overhead of UDP make it a better fitting choice for such resourceconstrained devices compared to TCP. Lower latency UDP’s connectionless and lightweight nature guarantees data transmission with low latency, making it appropriate for wireless sensors.

● 16

Boek Building wireless sensor networks with OpenThread - UK.indd 16

11-04-2024 11:13

Chapter 1• Introduction

1.2.4 Thread lacks an application layer Unlike home automation protocols such as Zigbee, Z-Wave, or Matter, the Thread standard doesn’t define an application layer. A Thread network merely offers network infrastructure that applications can use to communicate. Just as your web browser and email client use TCP/IP over Ethernet or Wi-Fi, home automation devices can use Thread over IEEE 802.15.4 as their network infrastructure.

Several application layers exist that can make use of Thread: Constrained Application Protocol (CoAP) A simpler version of HTTP, designed for resource-constrained devices and using UDP instead of TCP. MQTT for Sensor Networks (MQTT-SN) A variant of MQTT designed to be used over UDP. Apple HomeKit Apple’s application protocol for home automation devices.

Matter A new home automation standard developed by the Connectivity Standards Alliance (CSA).

Note: Matter was developed by the Zigbee Alliance, the original developers of the Zigbee standard for home automation. Following the introduction of Matter, the Zigbee Alliance rebranded to the Connectivity Standards Alliance. Matter’s application layer is heavily influenced by Zigbee. It not only runs on top of Thread, but can also be used over Wi-Fi and Ethernet.

Like your home network which simultaneously hosts a lot of application protocols including HTTP, DNS, and SMTP, a Thread network can also run all these application protocols concurrently.

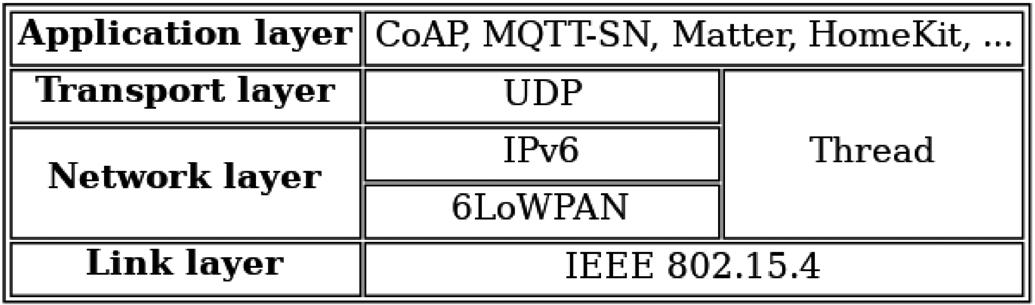

Figure 1.2 The Thread network stack supports multiple application protocols simultaneously.

Throughout this book, we will be using CoAP as an application protocol in a Thread network.

Once you have a Thread network set up, you can also use it for Apple HomeKit and Matter devices.

● 17

Boek Building wireless sensor networks with OpenThread - UK.indd 17

11-04-2024 11:13

Building wireless sensor networks with OpenThread

Chapter 1• Introduction

1.3 Advantages of Thread Some of Thread’s key benefits include:

1.3.1 Scalability Thread’s mesh network architecture allows for large-scale deployment of IoT devices, supporting hundreds of devices within a single network. Thread accommodates up to 32 Routers per network and up to 511 End Devices per Router (you’ll learn about these different device roles in chapter 4). In addition, from Thread 1.2, multiple Thread networks can be integrated into one single Thread domain, allowing thousands of devices within a mesh network.

1.3.2 Security Devices can’t access a Thread network without authorization. Moreover, all communication on a Thread network is encrypted using IEEE 802.15.4 security mechanisms. As a result, an outsider without access to the network credentials can’t read network traffic.

1.3.3 Reliability Thread networks are robust and support self-healing and self-organizing network properties at various levels, ensuring the network’s resilience against failures. This all happens transparently to the user; messages are automatically routed around any bad node via alternative paths.

For example, an End Device requires a parent Router to communicate with the rest of the network. If communication with this parent Router fails for any reason and it becomes unavailable the End Device will choose another parent Router in its neighborhood, after which communication resumes.

Thread Routers also relay packets from their End Devices to other Routers using the most efficient route they can find. In case of connection problems, the Router will immediately seek an alternate route. Router-Eligible End Devices can also temporarily upgrade their status to Routers if necessary. Each Thread network has a Leader who supervises the Routers and whose role is dynamically selected by the Routers. If the Leader fails, another Router automatically takes over as Leader.

Border Routers have the same built-in resilience. In a Thread network with multiple Border Routers, communication between Thread devices and devices on another IP network (such as a home network) occurs along multiple routes. If one Border Router loses connectivity, communications will be rerouted via the other Border Routers. If your Thread network only has a single Border Router, this will become a single point of failure for communication with the outside network.

1.3.4 Low power consumption Thread is based on the power-efficient IEEE 802.15.4 link layer. This enables devices to operate on batteries for prolonged periods. Sleepy End Devices will also switch off their radio during idle periods and only wake up periodically to communicate with their parent Router, thereby giving even longer battery life.

● 18

Boek Building wireless sensor networks with OpenThread - UK.indd 18

11-04-2024 11:13

Chapter 1• Introduction

1.3.5 Interoperability As the protocol is built upon IPv6, Thread devices are straightforward to incorporate into existing networks, both in industrial and home infrastructure, and for both local networks and cloud connections. You don’t need a proprietary gateway; every IP-based device is able to communicate with Thread devices, as long as there’s a route between both devices facilitated by a Border Router.

1.4 Disadvantages of Thread In life, they say there’s no such thing as a free lunch and Thread is no exception to this rule.

Some of its limitations are:

1.4.1 Limited range Thread’s emphasis on low power consumption can lead to a restricted wireless range compared with other technologies such as Wi-Fi. Although this can be offset by its mesh architecture, where Routers relay messages, it still means that devices in general can’t be placed too far apart.

1.4.2 Low data rates Thread supports lower data rates than some rival IoT technologies. This makes Thread unsuitable for applications requiring high throughput.

1.4.3 Complexity The Thread protocol stack may be more challenging to implement compared to other IoT networking solutions, potentially ramping up development costs and time.

1.5 Platforms used in this book In this book we focus on building wireless sensor networks using the Thread protocol together with the following hardware and software environments: Nordic Semiconductor’s nRF52840 SoC A powerful yet energy-efficient and low cost hardware solution for Thread-based IoT devices OpenThread (https://openthread.io) An open-source implementation of the Thread protocol, originally developed by Google, making it easy to incorporate Thread into your IoT projects Zephyr (https://zephyrproject.org) An open-source real-time operating system designed for resource-constrained devices Armed with these tools and by using practical examples we will go on to guide you step-bystep through the details of the hardware and software required to build Thread networks and OpenThread-based applications.

● 19

Boek Building wireless sensor networks with OpenThread - UK.indd 19

11-04-2024 11:13

Building wireless sensor networks with OpenThread

1.5.1 Nordic Semiconductor’s nRF52840 SoC Nordic Semiconductor’s nRF52840 is a SoC built around the 32-bit ARM Cortex-M4 CPU running at 64 MHz. This chip supports Bluetooth Low Energy (BLE), Bluetooth Mesh, Thread, Zigbee, IEEE 802.15.4, ANT and 2.4 GHz proprietary stacks. With its 1 MB flash storage and 256 KB RAM, it offers ample resources for advanced Thread applications.

This SoC is available for developers in the form of Nordic Semiconductor’s user-friendly nRF52840 Dongle. You can power and program this small, low-cost USB dongle via a computer USB port. The documentation at https://docs.nordicsemi.com/bundle/ug_ nrf52840_dongle/page/UG/nrf52840_Dongle/intro.html lists comprehensive information about the dongle.

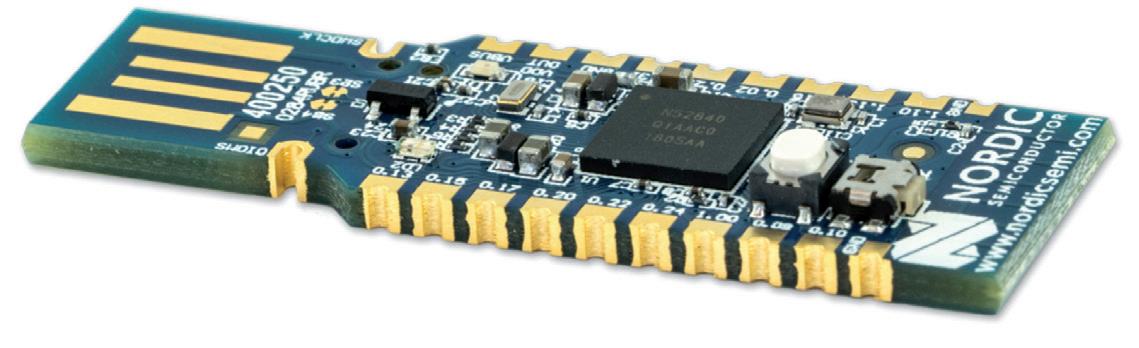

Figure 1.3 Nordic Semiconductor’s nRF52840 Dongle is a low-cost USB dongle ideal for experimenting with Thread.

1.5.2 OpenThread Thread is basically a networking protocol; in order to work with it we need an implementation of the Thread networking protocol. The industry’s reference implementation, used even by professional Thread device developers, is OpenThread. It’s a BSD-licensed implementation, with development ongoing via its GitHub repository https://github.com/openthread/ openthread. The license for this software allows for its use in both open-source and proprietary applications.

OpenThread provides an Application Programming Interface (API) that’s operating system and platform agnostic. It has a narrow platform abstraction layer to achieve this, and has a small memory footprint, making it highly portable. In this book, we will be using OpenThread in conjunction with Zephyr, but the same API can be used in other combinations, such as ESP-IDF for Espressif’s Thread SoCs.

● 20

Boek Building wireless sensor networks with OpenThread - UK.indd 20

11-04-2024 11:13

Chapter 1• Introduction

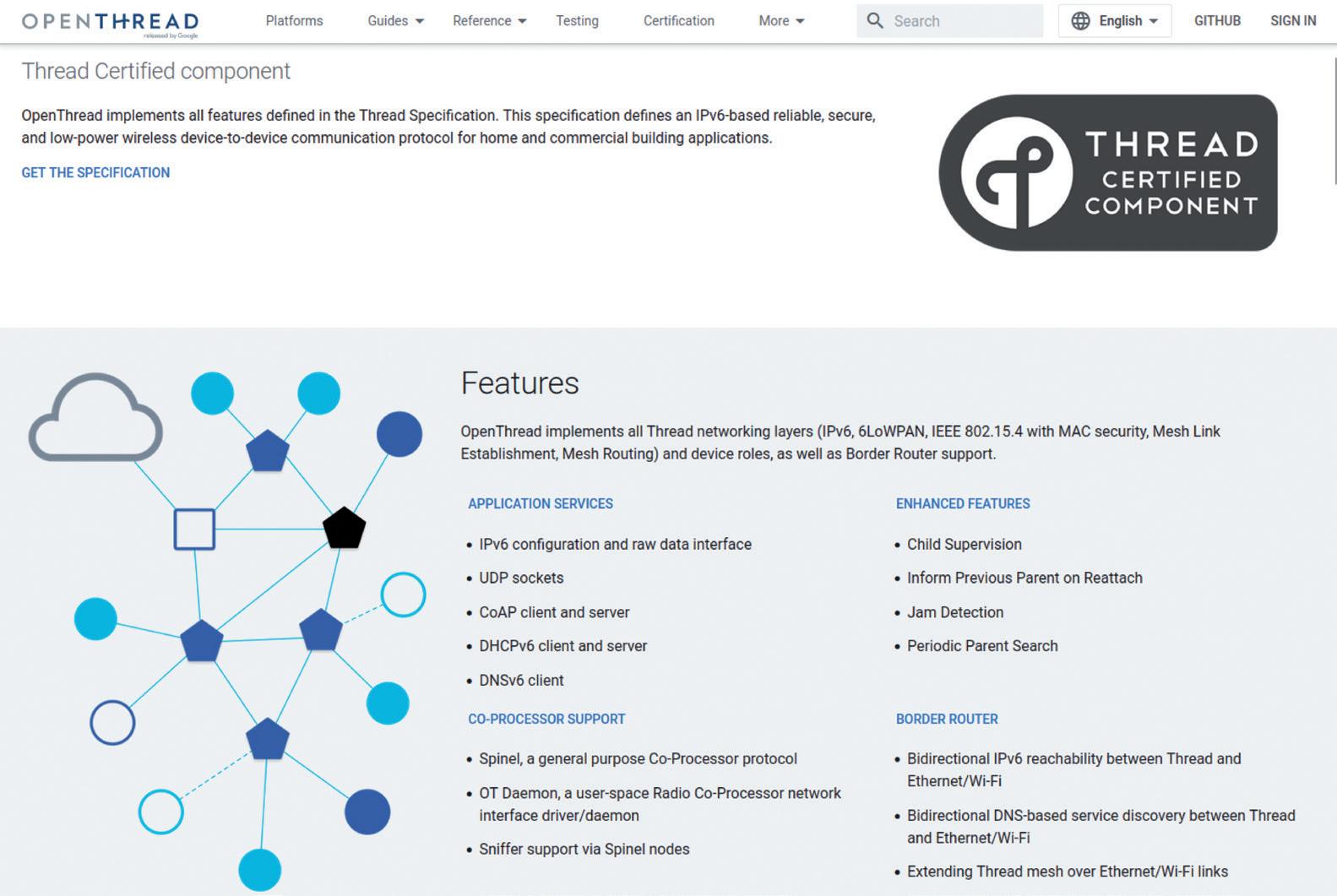

Figure 1.4 The BSD-licensed OpenThread project is the industry’s standard implementation of the Thread protocol.

1.5.3 Zephyr Zephyr is an open-source real-time operating system (RTOS) designed for resourceconstrained devices. It incorporates OpenThread as a module, simplifying the process of creating Thread applications based on Zephyr and OpenThread. Because of Zephyr’s hardware abstraction layer, these applications will run on all SoCs supported by Zephyr that have an IEEE 802.15.4 radio facility.

● 21

Boek Building wireless sensor networks with OpenThread - UK.indd 21

11-04-2024 11:13

Building wireless sensor networks with OpenThread

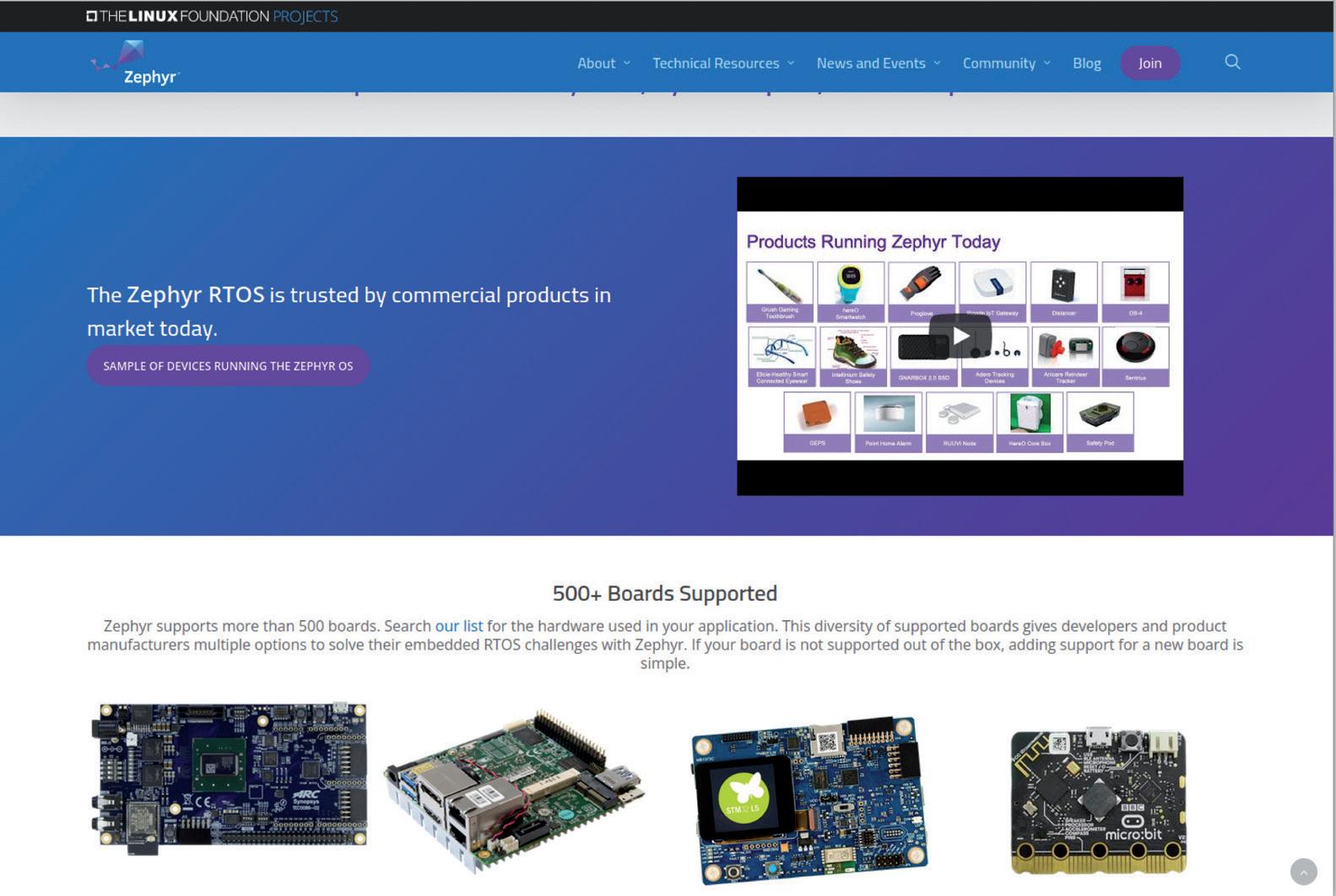

Figure 1.5 Zephyr is an open-source real-time operating system (RTOS) with excellent support for OpenThread.

1.6 How to use this book Like a lot of manuals covering IoT topics, this book combines network administration, programming, and electronics. The electronics part is minimal, largely restricted to connecting a sensor and hookup to a power supply. However, the other two topics are substantial. Hence, I assume that you have some prior experience in network administration and programming. The programs for Zephyr are written in C, some prior basic knowledge will be useful here.

For the hardware, I recommend a Nordic Semiconductor nRF52840 Dongle, but you can use any microcontroller board with Thread radio supported by Zephyr (see chapter 11 for some alternatives). There are variants of the dongle by other manufacturers, such as the April USB Dongle 52840 (with an external antenna) or the nRF52840 MDK USB Dongle from makerdiary (with a case). Consult the appendix at the end of this book if you want to use one of these, as they come with a different bootloader.

● 22

Boek Building wireless sensor networks with OpenThread - UK.indd 22

11-04-2024 11:13

Chapter 1• Introduction

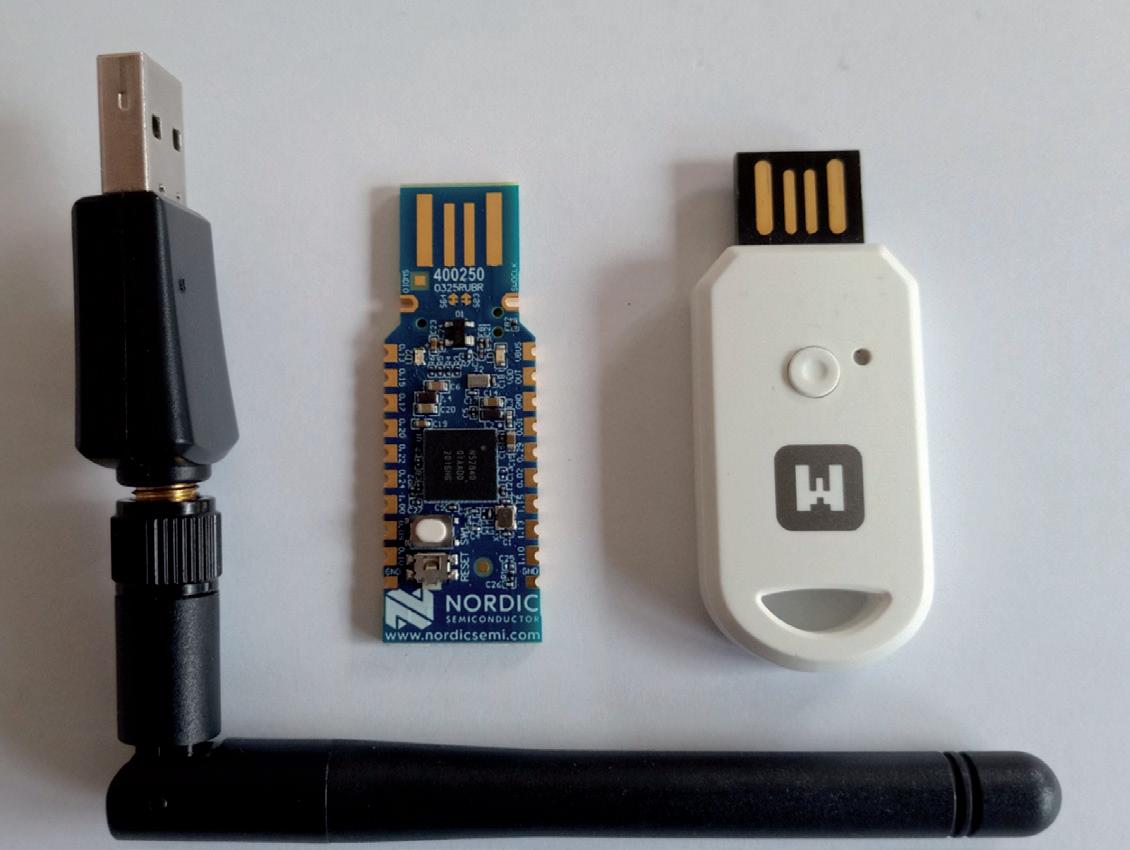

Figure 1.6 From left to right: April Brother’s April USB Dongle 52840, Nordic Semiconductor’s nRF52840 Dongle, and makerdiary’s nRF52840 MDK USB Dongle.

The more devices you have in a Thread network, the better it works, because Routers can relay messages via other devices. Having more devices also aids in understanding how Thread operates: we can turn devices on and off, run commands on them through Zephyr’s shell, and observe how the network reacts. So, if possible, I recommend purchasing a handful of nRF52840 Dongles or other IEEE 802.15.4 devices supported by Zephyr. A USB hub with several Thread devices plugged in makes an excellent test setup, as shown in this example:

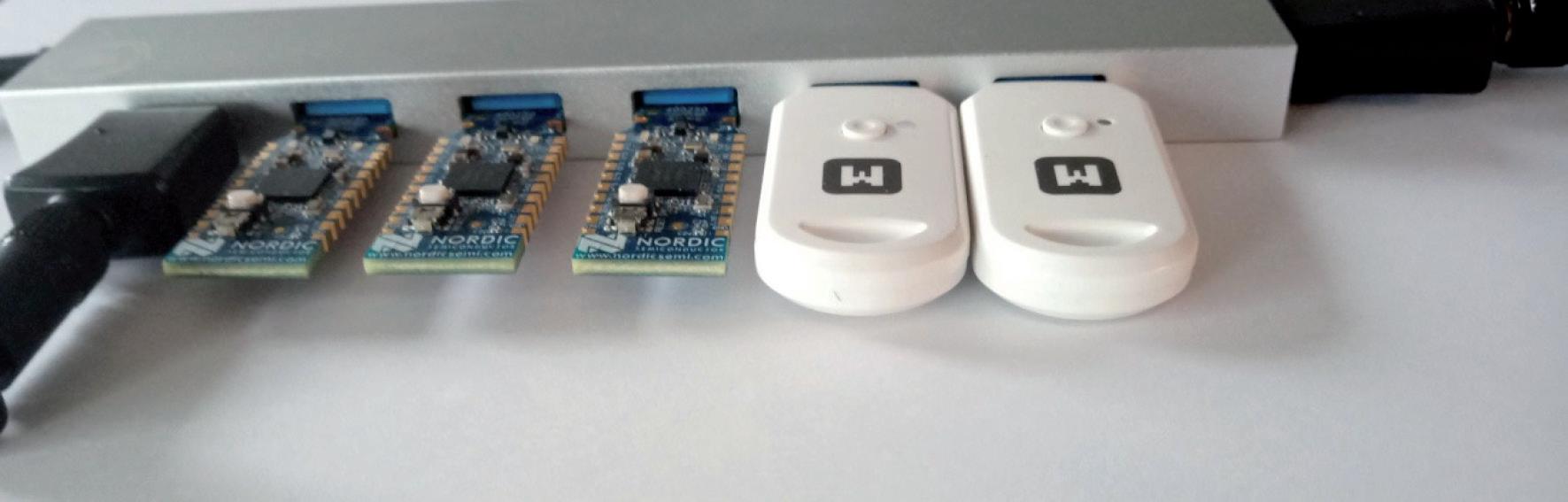

Figure 1.7 A USB hub with some Thread dongles plugged in is a great test setup to get to know Thread networking.

If you’re serious about Thread development with Zephyr, I also recommend Nordic Semiconductor’s nRF52840 Development Kit. This is the bigger (and slightly less affordable) brother of the nRF52840 Dongle, offering more capabilities to debug code easily. With one of these, you can carry out initial development and debugging then flash the code to the nRF52840 Dongle once all the bugs have been ironed out.

● 23

Boek Building wireless sensor networks with OpenThread - UK.indd 23

11-04-2024 11:13

Building wireless sensor networks with OpenThread

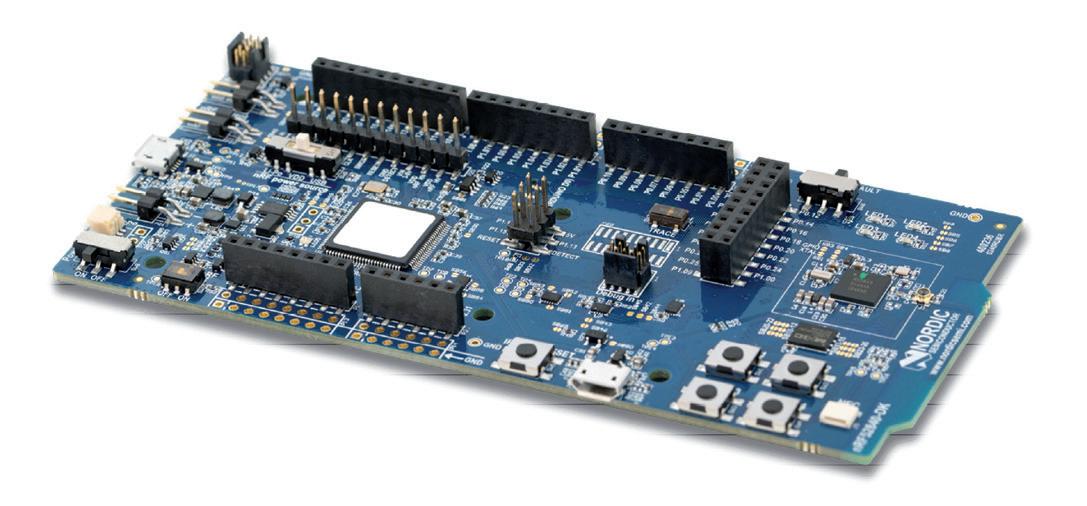

Figure 1.8 Nordic Semiconductor’s nRF52840 Development Kit has some powerful debugging capabilities.

This book serves as a practical guide. It not only explains theoretical concepts, but also demonstrates the network features using examples, accompanied by code for a variety of basic Thread applications. I encourage you to make use of all these examples as you progress through the book.

By the time you finish you will have gained the necessary knowledge and skills to confidently implement Thread-based wireless sensor networks for your own IoT projects.

Here’s a brief overview of what we will be covering in this book: Chapter 1: Introduction An introduction to Thread, its layered architecture, its advantages and disadvantages.

Chapter 2: Preparing your development environment A guide to preparing the development environment for Zephyr, as well as some tools for inspecting IEEE 802.15.4 traffic and simulating Thread networks.

Chapter 3: Setting up Thread Border Routers Steps for setting up a Thread Border Router, using a Raspberry Pi or an ESP32-based platform.

Chapter 4: Thread networking fundamentals A deep dive into Thread networking basics, including device roles, device types, and the diverse types of IPv6 addresses used within a Thread network.

Chapter 5: Setting up a Thread network Setup of a minimal Zephyr application and a closer look at network discovery, NAT64, DNS queries, multicast addresses across Thread and non-Thread networks, including UDP communication.

Chapter 6: Network commissioning An explanation of network commissioning as a more user-friendly way to add devices to a Thread network.

● 24

Boek Building wireless sensor networks with OpenThread - UK.indd 24

11-04-2024 11:13

Chapter 1• Introduction

Chapter 7: Using CoAP in a Thread network An introduction to CoAP, with various applications running a CoAP server and client using a Thread network.

Chapter 8: Service registration and discovery An explanation of how to register services of Thread devices with a Border Router and how to discover them Chapter 9: Securing application protocols with DTLS Adding application-level security with Datagram Transport Layer Security (DTLS) for CoAP applications, including the setup of pre-shared keys and X.509 certificates Chapter 10: Low-power Thread devices An exploration and optimization of power consumption of Thread devices Chapter 11: Conclusion A wrap-up to this book, offering some resources for learning more about Thread and some ideas for further exploration Appendix Some specialized tips that will come in handy in various situations Note: All the code examples from this book are published on https://github.com/ koenvervloesem/openthread-applications. Read the instructions in this GitHub repository for more information about how to download them. The repository also lists any errors that may have been found in this book since its publication as well as information about changes that affect the examples herein.

1.7 Summary and further exploration In this introductory chapter, we took a look at the basics of the Thread protocol and its layered architecture. We also gained insights into some of the advantages and disadvantages of this particular network protocol.

At the end of this chapter, we took a look at all the hardware and software platforms used throughout this book. Here we focus on the Zephyr RTOS with the OpenThread API running on Nordic Semiconductor’s nRF52840 Dongle. These particular platforms aren’t the only fish in the sea when it comes to platforms for use with Thread programming. For instance, I didn’t cover Espressif’s ESP-IDF platform for its ESP32-H2 SoCs, which also includes OpenThread. With the knowledge you pick up from this book about Thread networking basics, and in particularly with the OpenThread API, you will be in a good position to understand any Thread APIs running on other platforms.

In the next chapter, you’ll learn how to set up a development environment including the support tools you will need for all the exercises described in this book.

● 25

Boek Building wireless sensor networks with OpenThread - UK.indd 25

11-04-2024 11:13

Index

Index 6LoWPAN

15, 39, 69

A Acknowledgment (ACK) 132, 133, 137, 140, 141, 151, 152, 154, 162, 172 Adafruit nRF52 bootloader 250 Address Solicit Request 111 Address Solicit Response 111 Advertisement 111 aiocoap 173 All-Nodes multicast address 89, 96, 107, 111, 155, 160, 162, 170, 172, 177, 236 All-Routers multicast addresses 82, 83, 89, 96, 111 ALOC16 93 Ampere Meter mode 232, 233 anycast address 89 Anycast Locator (ALOC) 90, 93, 95 Apple HomeKit 17 application layer 13, 17

B Base64 223 battery power 83 Beacon 107 Beacon Request 107 bidirectional IPv6 connectivity 47 block-wise transfer 178 BME280 163, 165 bootloader 30 Border Agent 124, 180 Border Router 18, 19, 47, 78, 87, 94, 112, 122, 124, 179, 181, 182, 185, 186, 187, 246 button 159

C ca.conf 217 certificate 224, 226, 227 Certificate Authority (CA) 217 Certificate Authority (CA) certificate 218, 224, 226, 227 Certificate Signing Request (CSR) 219, 221 channel 36, 65, 66, 69, 70, 107, 108, 178

child

80, 81, 84, 90, 91, 92, 110, 111, 112, 192 Child ID 91, 109 Child ID Request 109 Child ID Response 109 child table 72, 110, 112 Child Update Request 109 Child Update Response 109 CMake 99 CMakeLists.tst 99 CoAP 39, 111, 123, 178, 204 CoAP client 139, 155, 160, 162, 163 CoAP ping 134, 138 CoAPS client 213, 227 Coap Secure (CoAPS) 204 CoAP server 139, 140, 141, 147, 149, 162, 163, 174, 175, 179, 189 CoAPS server 210, 223, 224 Commissioner 65, 74, 93, 121, 122, 123, 124 Commissioner Candidate 123 Commissioner Credential 125, 129 commissioning 81, 90, 121, 178, 204 configuration overlay 58, 100, 106 Confirmable (CON) 132, 133, 134, 136, 137, 138, 141, 151, 152, 154, 155, 161, 162, 174, 175 Constrained Application Protocol (CoAP) 17, 131 current consumption 235, 238, 240

D Datagram Transport Layer Security (DTLS) 131, 204 DELETE (0.04) 135 development environment 26 Device firmware updates (DFU) 246 device roles 80 device tree 145, 146, 147, 159, 236 device tree overlay 58, 146, 160, 165, 166, 236 device types 82 Device Under Test (DUT) 231, 232 DFU (Device Firmware Upgrade) mode 30

● 253

Boek Building wireless sensor networks with OpenThread - UK.indd 253

11-04-2024 11:13

Building wireless sensor networks with OpenThread

DNS 114 DNS-SD (DNS-based Service Discovery) 179, 180, 186, 197

E edge router 16, 87 EMPTY (0.00) 134 End Device 18, 72, 80, 81, 82, 83, 91 ESP32-C6 244 ESP32-H2 63, 244 ESP-IDF 64, 244 Espressif Thread Border Router 47, 62 EUI-64 15, 123, 128, 169, 170, 177 Extended PAN ID 125 External Commissioner 124, 180

F factory reset firmware package flashing Full End Device (FED) Full Function Device (FFD) Full Thread Device (FTD)

122 30 29, 31, 66 43, 83 14 82, 89, 106

G GET (0.01) 135, 139, 140, 141, 152, 153, 154, 155, 163, 174, 175, 207 Global Unicast Address (GUA) 90, 94, 95, 100, 119, 174, 183 guiconfig 104

H Home Assistant hostname

79 189

I I²C 163, 165 ICMP Echo (ping) request 40, 113, 117 ICMPv6 Router Advertisements (RA) 187 IEEE 802.15.4 14 IEEE 802.15.4 radio 82, 83, 107 instance name 189 interface identifier (IID) 87, 90 Internet Protocol (IP) 13 Internet Protocol suite 13 IP addresses 40, 69, 90, 92, 94, 183

IPv4 IPv6 IPv6 addresses IPv6 address prefix

112, 114, 115, 119 13, 15, 19 47, 87 87

J Joiner Joiner Credential JSON

65, 121, 123 123, 129 170, 176

K Kconfig

99, 101, 121, 122, 211, 224, 237

L Leader 18, 68, 85, 93, 108, 111, 123, 192 LED 145, 147, 153, 154, 155, 210 Link Accept 111 Link Accept and Request 111 link layer 13, 14, 107 , 204 Link-Local IPv6 address 15, 40, 72, 88, 89, 90, 95, 96 Link Request 111

M Matter 17 Mbed TLS 183, 189, 205, 211, 224 mDNS 48, 179, 197 mDNS hostname 187, 188 menuconfig 102 MeshCoP (mesh commissioning protocol) 123, 127 Mesh Link Establishment (MLE) Advertisement 27, 108, 235 Mesh-Local EID (ML-EID) 88, 89, 90, 92, 95, 96, 118, 139, 154, 182, 195, 206, 228 Mesh-Local prefix 39, 90, 92, 95 mesh network 16 Message ID 133, 137, 153, 154, 155 message type 132, 138, 150, 151, 152, 161 method code 134, 150, 153, 161 Minimal End Device (MED) 43, 80 , 83, 89, 107 Minimal Thread Device (MTD) 82, 83, 106 MLE Advertisement 107 MLE Announce 107 MLE Attach 108, 111, 112

● 254

Boek Building wireless sensor networks with OpenThread - UK.indd 254

11-04-2024 11:13

Index

MLE Link Request 111 MQTT for Sensor Networks (MQTT-SN) 17, 243, 246 multicast address 88, 95, 115, 116 Multicast Listener Discovery 96 Multicast Listener Registration (MLR) 58, 100

N NAT64 112, 114, 119 Native Commissioner 122 neighbors 90 netdata 113 network key 38, 65, 66, 68, 69, 70, 74, 77, 121, 204 network layer 13, 15 network name 70, 74, 107, 125, 180 network prefixes 68 network resilience 48 Non-confirmable (NON) 132, 134, 136, 138, 140, 151, 152, 155, 170, 172, 175, 176 nRF52840 20 nRF52840 Development Kit 23, 29, 164 nRF52840 Dongle 20, 30, 33, 49, 58, 100, 159, 163, 165 nRF Connect for Desktop 231 nRF Sniffer for 802.15.4 33 nRF Thread Topology Monitor 46 nrfutil 27

O Observe option 178 Off-Mesh Routable (OMR) address 68, 94, 95, 174, 183 Off-Mesh Routable (OMR) prefix 68, 69, 94 On-mesh commissioning 122 OpenSSL 217 OpenThread 20 OpenThread Border Router (OTBR) 47, 49 OpenThread C API 245 OpenThread CLI 245 OpenThread commands 62, 66 OpenThread Network Simulator (OTNS) 41, 80 OpenThread shell 61 operational dataset 65, 67, 68, 70, 105, 125

Option Numbers OTBR API

170 79

P PAN ID

15, 74, 105, 107, 108, 123, 129, 178 parent 80, 83, 91, 92, 109, 110 Parent Request 109 Parent Response 109 partition 86 PEM (Privacy-Enhanced Mail) 223, 224, 227 Personal Area Network (PAN) 15 petitioning 123 piggybacked response 137, 140, 154 polling period 107, 238, 240 POST (0.02) 135 power consumption 231 power management 238 Power Profiler 231, 235 Power Profiler Kit II (PPK2) 231 pre-shared key 125, 205, 206, 208, 209, 210, 211, 212, 213 Primary Backbone Router (PBBR) 93, 115 private key 217, 218, 219, 221, 224, 226, 227 prj.conf 99, 138, 141, 155, 166, 189, 204, 210, 213, 223, 227, 237 PUT (0.03) 135, 140, 141, 151, 152, 55, 161, 162, 163, 170, 175, 176 PuTTY 32, 66 Pyspinel 46

R Radio Co-Processor (RCP) 49, 58, 63, 122 radio interference 59 Raspberry Pi 47, 49 Raspberry Pi OS 49 Reduced Function Device (RFD) 14 reliability 18 Reset (RST) 132, 133, 134, 138, 151 response code 135, 137, 150, 153 RLOC16 44, 81, 90, 91, 92, 95, 111 Router 18, 43, 71, 80, 81, 82, 83, 91, 106, 107, 108, 109, 110, 192 Router capabilities 82, 83

● 255

Boek Building wireless sensor networks with OpenThread - UK.indd 255

11-04-2024 11:13

Building wireless sensor networks with OpenThread

Router Eligible End Device (REED) 18, 82, 83, 106, 107, 109 Router ID 91, 111 router table 71, 110, 111, 112 Routing Locator (RLOC) 90, 91, 92, 95 routing table 82, 83

S screen security self-healing serial connection

32, 66 18 18, 85 32, 66, 100, 217, 248, 249 serial terminal 66 service discovery 48, 68, 93, 179 service name 189 Service Registration Protocol (SRP) 48, 179 Service Registry 181 sleep mode 83 Sleepy End Device (SED) 18, 43, 83, 89, 107, 238 Source Meter mode 232, 233 Spinel 63 SRP client 181, 182, 184 SRP server 181, 182, 185 SRP service 179, 186, 189 Stateless Address Autoconfiguration (SLAAC) 100 Synchronized Sleepy End Device (SSED) 83 synthesized IPv6 address 114, 115, 120

USB extension cable User Datagram Protocol (UDP)

59 13, 16, 118

W west west build west flash Wireshark

29, 97 29 29 33, 70

X X.509 certificate XPAN ID

217, 223, 227 74, 107

Z Zephyr 21 Zephyr development environment 26 Zephyr shell 33, 100, 237 zeroconf 197 Zigbee 14, 16, 17

T Thread Group 12, 245 Thread Management Framework (TMF) 178 Thread protocol stack 13 Thread specification 12, 245 Thread version 105, 180 TLV (Type-Length-Value) 109 token 135, 137, 153, 155, 154 Transmission Control Protocol (TCP) 13, 49 transport layer 13, 16

U UF2 unicast address Unique Local Address (ULA)

251 88, 90 90

● 256

Boek Building wireless sensor networks with OpenThread - UK.indd 256

11-04-2024 11:13

books books

books books

Developing CoAP applications for Thread networks with Zephyr This book will guide you through the operation of Thread*, the setup of a Thread network, and the creation of your own Zephyr-based OpenThread applications to use it. You’ll acquire knowledge on:

> The capture of network packets on Thread networks using Wireshark and the nRF Sniffer for 802.15.4.

> Network simulation with the OpenThread Network Simulator. > Connecting a Thread network to a non-Thread network using a

Thread Border Router. > The basics of Thread networking, including device roles and types, as well as the diverse types of unicast and multicast IPv6 addresses used in a Thread network. > The mechanisms behind network discovery, DNS queries, NAT64, and multicast addresses. > The process of joining a Thread network using network commissioning. > CoAP servers and clients and their OpenThread API. > Service registration and discovery. > Securing CoAP messages with DTLS, using a pre-shared key or X.509 certificates. > Investigating and optimizing a Thread device’s power consumption.

Once you‘ve set up a Thread network with some devices and tried connecting and disconnecting them, you’ll have gained a good insight into the functionality of a Thread network, including its self-healing capabilities. After you’ve experimented with all code examples in this book, you’ll also have gained useful programming experience using the OpenThread API and CoAP. *Thread is a protocol for building efficient, secure and scalable wireless mesh networks for the Internet of Things (IoT), based on IPv6. OpenThread is an open-source implementation of the Thread protocol, originally developed by Google. It offers a comprehensive Application Programming Interface (API) that is both operating system and platform agnostic. OpenThread is the industry’s reference implementation and the go-to platform for professional Thread application developers.

Koen Vervloesem has been writing for over 20 years on Linux, open-source software, security, home automation, artificial intelligence (AI), programming, and the Internet of Things (IoT).

He holds a Master’s degree in Computer Science Engineering, a Master’s degree in Philosophy, and an LPIC-3 303 Security certificate. He is a teaching Linux and Python classes to students aspiring to an Associate degree in Internet of Things.

6|4006

Elektor International Media www.elektor.com

Building Wireless Sensor Networks with OpenThread • Koen Vervloesem

Building Wireless Sensor Networks with OpenThread

Building Wireless Sensor Networks with OpenThread 3|2003

Developing CoAP Applications for Thread Networks with Zephyr 7|F009

10|2004

5|2000

9|1803

4|F000

12|4000 2|1800

1|6C00 8|1802

12|6C0C

11|6C0B

Koen Vervloesem
