PROJECT MAGAZINE Drive-In OR-Complex Reinier de Graaf Delft Welcoming and homely ambiance puts patients at ease before treatment
2 20220712.EN
0 60 m30 Situation 3Drive-In OR-complex Reinier
EGM architects
Unique in the Netherlands: first operating complex on a car park EGM architects has completed a new, innovative complex of operating rooms on the roof of the visitor car park at the Reinier de Graaf Hospital in Delft. The drive-in complex offers rapid, easily accessible and welcoming care services. The complex responds to the growing demand for high-quality outpatient facilities in Dutch hospitals. Drive-In complex,OR-Delft de Graaf Hospital Delft ©
Concept Lounge area 4 Drive-In OR-complex Reinier de Graaf Hospital Delft © EGM architects
care treatment Best care quality in a friendly environment Route through the building results into a pleasant stay OR as a extended drawer, independent & connected care treatment Best care quality in a friendly environment Route through the building results into a pleasant stay OR as a extended drawer, independent & connected care treatment Best care quality in a friendly environment Route through the building results into a pleasant stay OR as a extended drawer, independent & connected
Unique concept With the design of this drive-in operating room complex (OR), EGM has realized a concept that provides care in a new way. Everything is geared to getting patients back on their feet and giving them full control. Built directly on top of the existing visitor car park, the complex lets patients drive right into the operating room, so to speak. And, after their treatment, they can drive home again. Patients are welcomed into the lounge, designed to exude a homely ambiance. Instead of being wheeled into the operating room on a bed, they can walk on their own from the lounge, via the changing room, to the operating room.
Once treatment has ended, they rest in the outpatient area in the knowledge that their loved ones are waiting nearby in the lounge. This low-threshold care process offers a human scale with maximum comfort. Carina Hilders, chair of the hospital board, shares her vision of the future of care: “In the coming years we have to provide care that is more attuned to the needs of patients. This drive-in OR is an excellent example of that. Our new OR-complex is organized in such a way that patients can return home speedily and get back to a normal life. The Reinier de Graaf Hospital will continue to develop this vision in the years ahead.”
Operating Complex as extended drawer of the hospital, independent & connected Best care quality in a friendly environment Route through the building results into a pleasant stay
Ground floor 0 10 m5 A A 1. Reception and lounge 2. Day treatment 3. Operating theatre 4. Holding, recovery and eye lounge Floor plan OR-complex 5. Personnel support 6. Facility support 7. Connecting bridge 8. Sedum roof 8 4 2 6 3 8 5 7 3 1 5 0 10 m5 A A 1. Reception and lounge 2. Day treatment 3. Operating theatre 4. Holding, recovery and eye lounge Floor plan OR-complex 5. Personnel support 6. Facility support 7. Connecting bridge 8. Sedum roof 8 4 2 6 3 8 5 7 3 1 5 0 10 m5 A A 1. Reception and lounge 2. Day treatment 3. Operating theatre 4. Holding, recovery and eye lounge Floor plan OR-complex 5. Personnel support 6. Facility support 7. Connecting bridge 8. Sedum roof 8 4 2 6 3 8 5 7 3 1 5 Ingenious structural system on top of the car park eliminates vibrations in the OR-complex Overview Reinier de Graaf Hospital (r) and OR-complex (l) Connecting bridge 5Drive-In OR-complex Reinier de Graaf Hospital Delft © EGM architects
In the outpatient area, partition walls with wooden frames and matt glass divide the space, creating a friendly atmosphere with more light and openness OR corridorWall-sized images of nature to reduce patient stress in the OR 6 Drive-In OR-complex Reinier de Graaf Hospital Delft © EGM architects
GIVEN THE SPECIAL NATURE OF THIS NEW CENTRE, WE DO EVERYTHING WE CAN TO CREATE A RELAXED AND WELCOMING ATMOSPHERE FOR PATIENTS, SO THAT WE CAN GUIDE THEM THROUGH THEIR PROCEDURE AS PLEASANTLY AND EFFICIENTLY AS POSSIBLE Caroline van Herpen, Manager OR ” 7Drive-In OR-complex Reinier de Graaf Hospital Delft © EGM architects

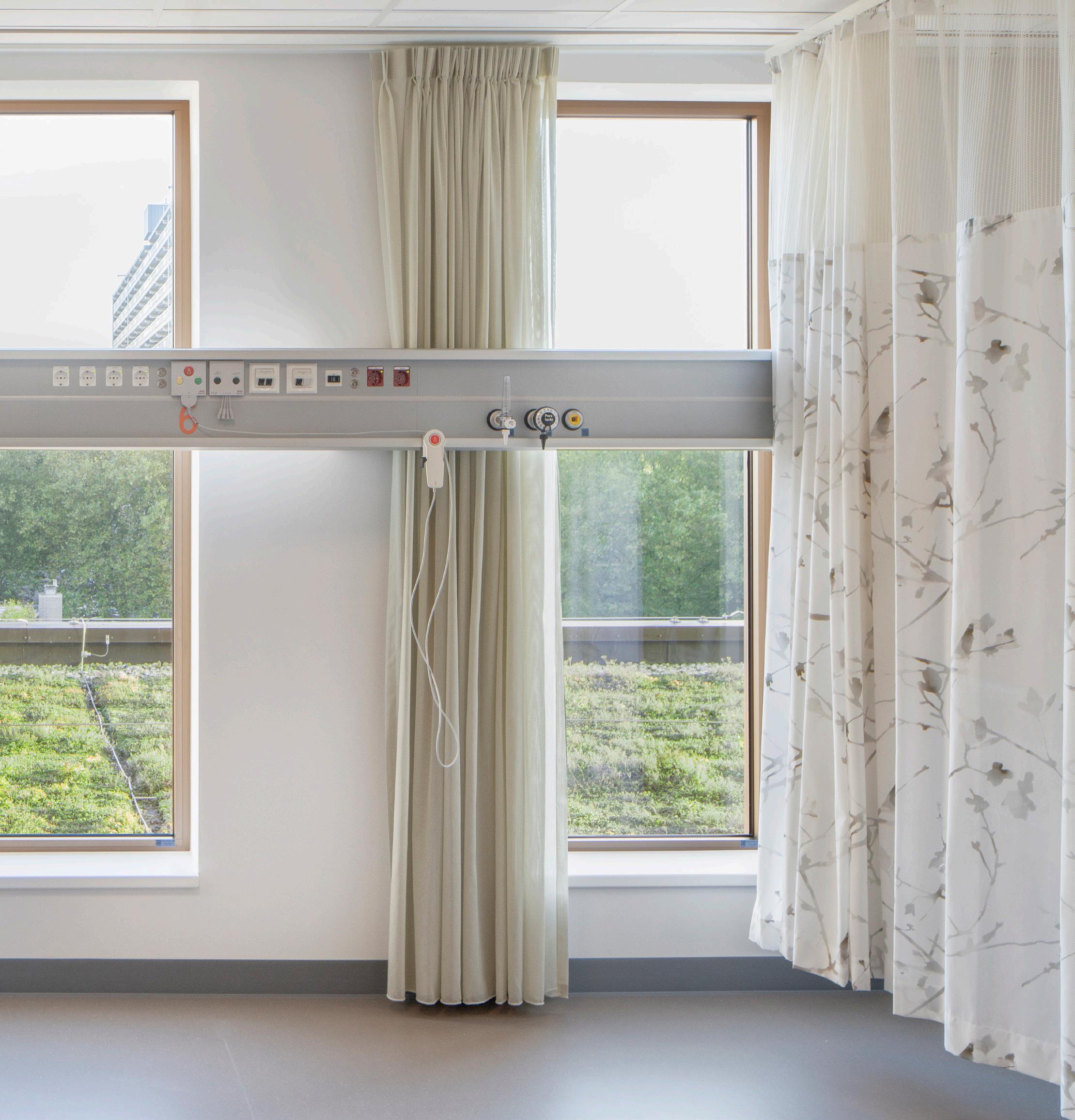

OUR NEW OR COMPLEX IS ORGANIZED IN SUCH A WAY THAT PATIENTS CAN RETURN HOME SPEEDILY AND GET BACK TO A NORMAL LIFE Carina Hilders, chairwoman of RdGG hospital board ” Calming eye lounge in the recovery space limits visual and acoustic stimuli Patient room with views of Delft and the newly realised green roofs 8 Drive-In OR-complex Reinier de Graaf Hospital Delft © EGM architects
Relaxed and welcoming The new drive-in OR is designed to put patients at ease and to ensure they experience as little tension as possible. Plenty of attention is devoted to drawing daylight inside and maximizing the views of Delft. Operating rooms are fitted with windows as well as wall-sized images of nature to reduce patient stress. The lobby is fitted out as a relaxing living room, complete with an open fire and a host of seating areas and tables. Together with the sedum roof garden, the interior enhances the sense of well-being not only among patients, but also among hospital staff. Partitions of matt glass framed by timber supports divide the outpatient area, enhancing the sense of lightness and openness. A special eye lounge in the recovery space limits visual and acoustic stimuli. This comes as a relief after undergoing a strenuous operation. In this way the interior design supports the key care aim of providing a unique stressfree treatment route through the drive-in OR complex. de Graaf Hospital © EGM architects
9Drive-In OR-complex Reinier
Delft
Besides
Ingenious construction
clinical facilities in the
The construction of an OR complex on top of a car park presented a huge structural and technical challenge. Together with Royal HaskoningDHV, EGM devised an ingenious structural system to eliminate vibrations in the building: the entire OR complex is positioned on huge springs on top of the car park. a structural tour de force, this is a remarkable sight to behold! In order to offer optimal care, a footbridge on the four floor connects the Reinier de Graaf Hospital with the drive-in OR. That creates the certainty that, in addition to within the outpatient additional available the specialized Reinier
centre,
de Graaf Hospital. 0 10 m54. Reinier de Graaf Gasthuis 3. Verbindingsbrug 2. Parkeergarage 1. Drive-in OK-complex Doorsnede A-A 4 312 0 10 m54. Reinier de Graaf Gasthuis 3. Verbindingsbrug 2. Parkeergarage 1. Drive-in OK-complex Doorsnede A-A 4 312 Section Connection between the OR-complex and Reinier de Graaf Hospital 10 Drive-In OR-complex Reinier de Graaf Hospital Delft © EGM architects
care is
in
the care provided
Facts and numbers Client Reinier de Graaf Groep, Delft Architect EGM architects, Dordrecht Interior architect EGM interiors, Dordrecht Structural engineer Royal Haskoning DHV, Rotterdam Mechanical engineering consultant Reinier de Graaf Groep, Delft Electro technical consultant Reinier de Graaf Groep, Delft Acoustic/building physics consultant Wolf Dikken adviseurs, Wateringen Building management Stevens Van Dijck, Zoetermeer General contractor Aan de Stegge Twello, Twello De Groot Installatiegroep, Ridderkerk Mechanical engineering systems De Groot Installatiegroep, Ridderkerk Electro technical systems De Groot Installatiegroep, Ridderkerk Programme Reception and lounge area, holding and recovery area, eye lounge, sterile central storage, 2 operating theaters and day treatment Size 2.210 m² bvo Design period 2018 - 2019 Year of completion 2021 Photography Stijnstijl Fotografie Operating rooms with windows and nature scenes from the Delft area 11Drive-In OR-complex Reinier de Graaf Hospital Delft © EGM architects
