DARTMOUTH COLLEGE: EAST WHEELOCK RENOVATION AND ADDITION

THE EAST WHEELOCK RENOVATION AND ADDITION PROJECT CONSISTED OF UPGRADES TO THE EXISTING FRESHMAN DORMITORIES AND NEW ADDITION ON THE STUDENT COMMONS SPACE. THE DESIGN CONCEPT HINGES ON PROVIDING A WELCOMING AND INCLUSIVE STUDENT EXPERIENCE THAT PUTS HUMAN COMFORT AT THE HIGHEST PRIORITY. DUE TO THE SUSTAINABLE MATERIAL ASSEMBLIES AND ALTERNATIVE ENERGY SOURCES, THE PROJECT WAS SUBMITTED TO USGBC AS A LEED SILVER DESIGN.

LEED SCORE: 55(SILVER)

SIZE: 76,493SF

SUSTAINABLE SYSTEMS:

• SOLAR DOMESTIC HOT WATER

• SOLAR PV INSTALLATION

• DISPLACEMENT VENTILATION

• LED LIGHTING UPGRADE

• FULL SYSTEM METERING

ABOVE: DIAGRAM OF THE SOLAR THERMAL HOT WATER SYSTEM AT THE EAST WHEELOCK CAMPUS.

ABOVE: ANNUAL SUNLIGHT EXPOSURE (ASE) SIMULATIONS WERE CONDUCTED TO UNDERSTAND THE PERCENTAGE OF FLOOR AREA THAT RECEIVES TO MUCH DIRECT SUNLIGHT (1000 LUX OR MORE FOR AT LEAST 250 OCCUPIED HOURS PER YEAR).

SOLAR HOT WATER SYSTEM: DUE TO THE ORIENTATION OF THE BUILDINGS, THE SOLAR RADIATION AT THE ROOF LEVEL PROVIDES EACH BUILDING WITH 4500 GAL/DAY OF DOMESTIC HOT WATER

THE LANDSCAPE IS INTEGRATED INTO THE PLAZA DECK TO REDUCE HEAT ISLAND EFFECT

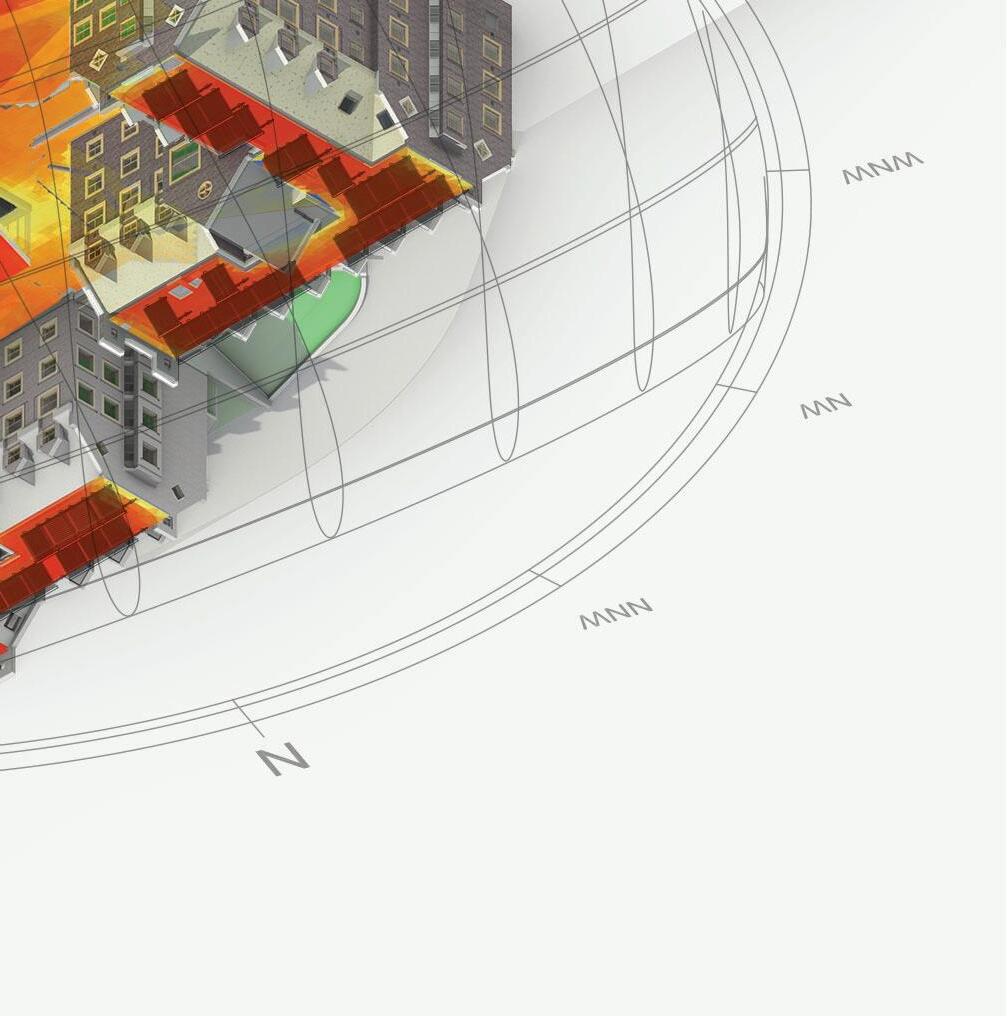

ABOVE: THE SOLAR RADIATION STUDIES PROVIDED HEATMAP CALCULATIONS THAT WERE USED TO TEST DESIGN CONCEPTS AND TO APPROXIMATE THE ENERGY THAT CAN BE COLLECTED FROM PHOTOVOLTAIC AND SOLAR THERMAL SYSTEMS.

ABOVE: PROPOSED SCHEMATIC LAYOUT OF THE GROUND FLOOR, NORTH GARDEN, AND SOUTH LAWN.

Bath Fire Department Conceptual Design

AS THE MODERN FIRE TRUCK APPARATUS GROWS IN SIZE, SO DOES THE REQUIRED SPACE FOR STORAGE. THE GOAL OF BATH FIRE DEPARTMENT CONCEPTUAL DESIGN WAS TO PROVIDE THE CITY WITH A NEW FACILITY THAT WOULD SUPPORT ALL THE NECESSARY PROGRAM REQUIREMENTS. THE DESIGN AESTHETIC DRAWS FROM THE ARCHITECTURAL MOTIFS OF THE ADJACENT MORSE HIGH SCHOOL. PROGRAMMATICALLY, THE BUILDINGS ORGANIZATION FOCUSSES ON THE KEY ADJACENCIES THAT MAKE A FIRE STATION RUN SMOOTHLY AND EFFICIENTLY.

ABOVE: EARLY PHASE SITE PLAN SHOWING THE ADJACENT MORSE HIGH SCHOOL AND THE PROPOSED BATH FIRE STATION.

ABOVE: EARLY PHASE SCHEMATIC PLANS OF THE PROPOSED FIRST AND SECOND FLOOR.

ABOVE: THESE ASE SIMULATIONS PROVIDE INSIGHT INTO AREAS OF THE FACADE THAT NEED SHADING. SOLAR IRRADIANCE

ABOVE: IN COLLABORATION WITH LINCOLN BROWN, THIS ILLUSTRATION HELPED SWAY THE PUBLIC’S DECISION TO ALLOT FUNDS FOR A NEW FIRE STATION. THE DESIGN INTENT IS A SPACE THAT CAN ENHANCE EMERGENCY RESPONSE AND MAXIMIZE HUMAN COMFORT.

UNH: IDDLES LECTURE HALLS

AS PART OF THE CAMPUS IMPROVEMENT INITIATIVE AT THE UNIVERSITY OF NEW HAMPSHIRE, THIS PROJECT CONSISTED OF ACCESSIBILITY UPGRADES TO MULTIPLE CHEMISTRY LECTURE HALLS, AS WELL AS DESIGNING A NEW STUDENT COMMONS SPACE. DRAWING INSPIRATION FROM THE EXISTING HEXAGONAL SHAPED LECTURE HALLS, THE CHOICE OF CARPET STYLES AS WELL AS THE ACOUSTIC PANEL DESIGN WAS INCORPORATED INTO THE CONCEPT.

ABOVE: STUDENT COMMONS 3D-SECTION VIEW AND CORRESPONDING ACOUSTIC CEILING DETAIL.

ABOVE: STUDENT COMMONS RENDERING.

ABOVE: CROSS SECTION THROUGH THE LECTURE HALLS AND STUDENT COMMONS.
