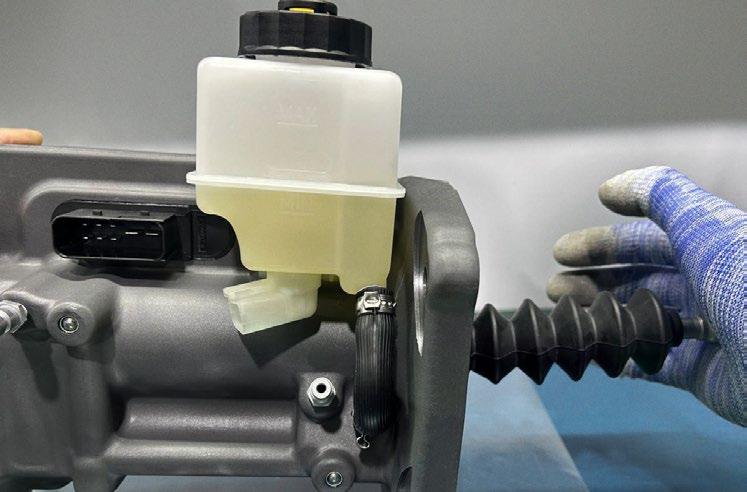

Brake fluid refilling ECHA - 05.35.10001 Step 1
Step 2

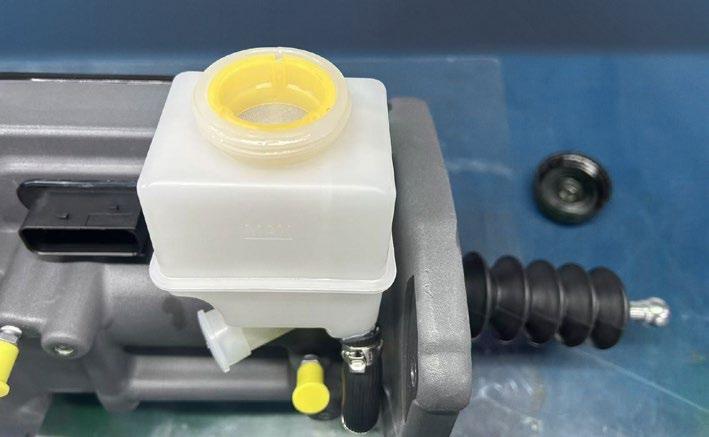

Take off the lid.
Pour in the brake fluid and keep the fluid level between the MIN and MAX marks.
Step 3
Step 4
Close the lid. Press the top rod with your hand and push it in 5 to 10 times until the liquid level no longer drops.

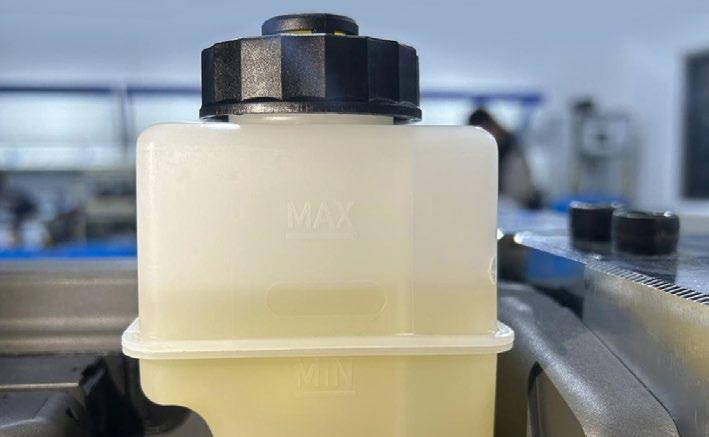

Observe whether the liquid level is between MIN and MAX. If the liquid level is below the MIN mark, add brake fluid to keep the liquid level between the MIN and MAX marks.
General tips for brake fluid refilling: 1 For safety reasons, refilling the brake fluid in the Electro-Hydraulic Clutch Actuator (EHCA) reservoir must be carried out exclusively by qualified personnel/professionals. 2 Strictly comply with all applicable accident prevention regulations, as well as the guidelines established by the competent authorities. 3 Fully follow the recommendations and specifications provided by the vehicle manufacturer. The handling and disposal of brake fluid must strictly follow the instructions contained in the Safety Data Sheet (SDS) provided by the fluid manufacturer. 4 The brake fluid to be used must comply with DOT 4/HZY4 specifications. The use of DOT 4/HZY4 brake fluid manufactured by Bosch is recommended.
