Diagnostic & Test Equipment Products

www.ebs.co.uk

As the air braking world has changed, we have had to adapt the way we deal with diagnostic problems that can arise on modern day vehicle systems. As the air signalling system has been phased out and replaced by the EBS/ABS system, we have endeavoured to keep up with the advancements in the technology and created our own range of testing equipment.

Our test devices can be used in conjunction with the OE manufacturer’s equipment to create a complete analysis structure for truck and trailers that is not only easy to use, but also affordable to all types and sizes of fleets from owner driver to multinational fleet service garages.

Index Part No. DRA01 DRA01.V.1 DRA02HDL (+DRA02BATT) DRA03 DRA03A DRA07T DRA08

Page Potentiometer Tester Potentiometer Tester + Extra Cables Trailer Master Heavy Duty Power (+Batteries) Trailer Master (Van Mounted) Trailer Master (Van Mounted) c/w Pneumatic Function Triple ISO Tester SensorMaster

5 6 7 8 9 10 11

4

Diagnostic Equipment

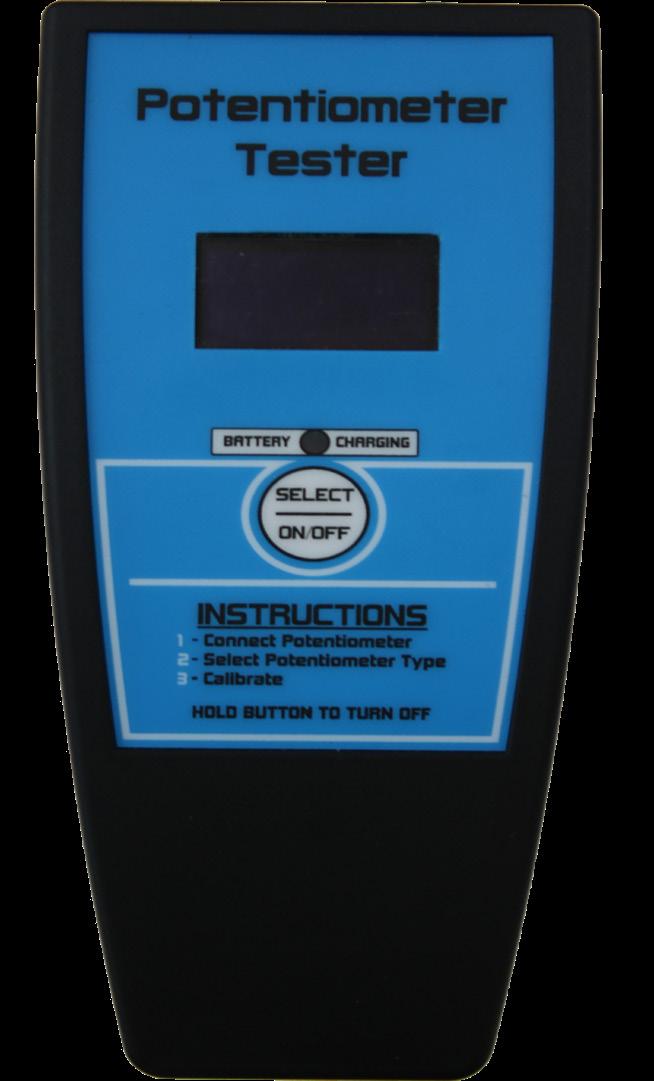

Potentiometer Tester DRA01 This tester is used to check caliper potentiometer readings and to determine the wear status of brake discs and brake pads.

Brake discs and brake pads are some of the most important wearing parts on vehicles. Before replacing them it is worth testing them with an automotive Potentiometer Tester.

To check the potentiometer simply connect the corresponding cable to the brake potentiometer, power the tester and choose which type you are testing. This can be can be carried out with the caliper installed on the vehicle or with the caliper removed.

Screen Selections: MAN / Mercedes - 3 Wire Gold DAF /Mercedes - 2 Wire Scania / Iveco / Mercedes - 3 Wire Silver

Diagnostic Equipment

5

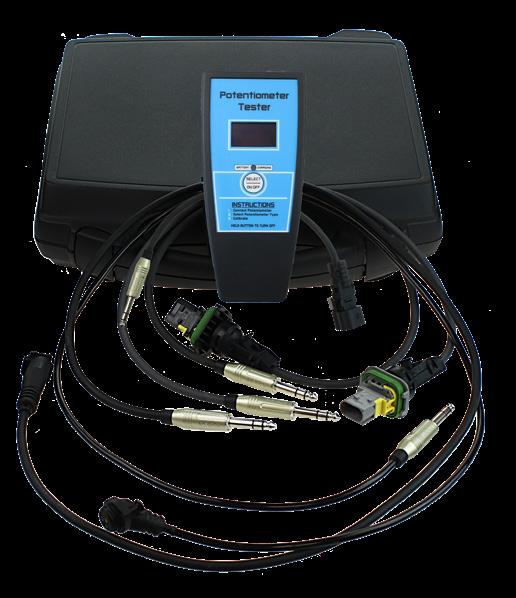

Potentiometer Tester +Extra Cables

DRA01.V.1

Potentiometer testing device (+Extra Volvo Cables).

DRA01.1 and DRA01.2 added.

Operation of the tester DRA01.3

DRA01.5

DRA01.6

• • •

CONNECTION DETAIL

Battery

CONNECTION DETAIL

CONNECTION DETAIL

DRA01.1

DRA01.2

CONNECTION DETAIL

CONNECTION DETAIL

• •

•

Connect the appropriate test cable or adaptor to the tester via the phono connector at the top of the device.

Connect the cable to the potentiometer being tested.

Turn on the tester, press select button to scroll through vehicle/potentiometer choices.

Press and hold select button to choose potentiometer.

If no potentiometer is connected a failure message will appear; failure please attach potentiometer, this means either no potentiometer is connected or a faulty one is connected.

Observe pad wear % and voltages from potentiometer being tested and adjust to suit your requirements by turning the potentiometer.

Before operation of the tester the battery should be fully charged, battery percentage can be seen on the display (battery supplied inside). If the battery is not fully charged the accuracy of the tests cannot be guaranteed as the tester supplies voltage to the potentiometer being tested.

6

Diagnostic Equipment

Trailer Master

Heavy Duty Power DRA02HDL Portable 24 Volt Power Box with auto light test for testing your trailer electrical system. Designed to enable one operator to test the complete trailer lighting system without the need to connect a tractor unit, using the 24N and 24s power sockets, using the 24N and 24S power sockets, and to test the ABS warning lamp function on the trailer using the ISO 7638 socket.

1. Quick to setup

7. Tests trailer’s EBS/ABS warning light function.

2. Easy to use

8. Tests trailer’s CAN activity

3. Rechargeable from mains supply

9. Single operator auto test

4. Housed in a durable carry case

10. All necessary leads supplied

5. Portable 24V power box

11. Designed and manufactured in the UK

6. Tests trailer’s lighting system

DRA02BATT Replacement batteries to suit Trailer Master (pair).

Diagnostic Equipment

7

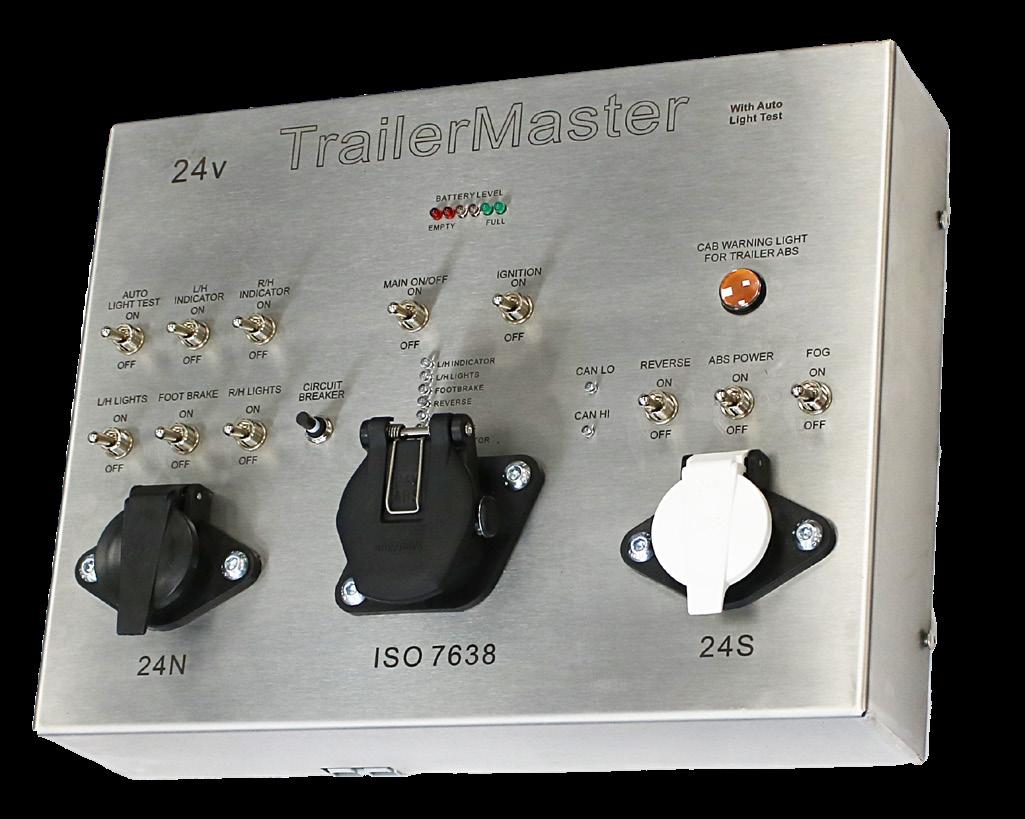

Trailer Master Van Mounted

DRA03 Van mounted 24 volt power box with auto light test feature for testing the trailers electrical system.

Van mounted 24 volt power box with auto light test feature for testing the trailers electrical system.

Designed to enable one operator to test the complete trailer lighting system and test the ABS warning lamp function on the trailer using the ISO 7638 socket.

Self contained 24 volt power box in a robust stainless steel case which mounts to headboard of your vehicle, comes with three switchable sockets (24S, 24N & ISO7638) & built in voltmeter. (batteries not included)

8

Diagnostic Equipment

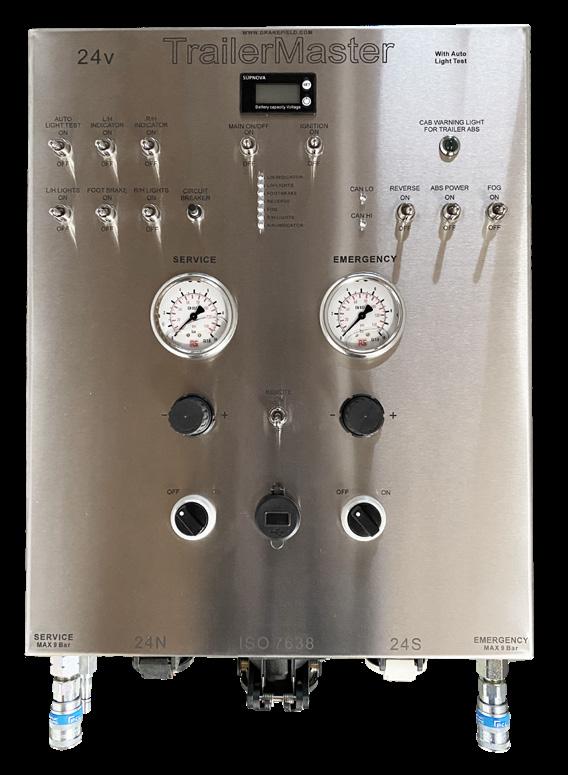

Trailer Master (Van Mounted) c/w Pneumatic Function

DRA03A Van Mounted TrailerMaster testing system for trailer lights and brakes.

TrailerMaster is designed to enable a single operator to test a trailer’s complete lighting system using the 24n and 24s power sockets, and to test the EBS warning light function on the trailer using the ISO 7638 socket.

Users can connect an air supply from a compressor in order to test the braking system, and test the service brake manually with the service brake switch or via the wired 15m remote control. The system features two glycerin-filled air gauges for service and emergency pressures.

How it works: Connect the 24n and 24s sockets to the trailer then turn on the auto light test switch; the trailer lights will illuminate in a pre-set order for approximately 10 seconds each, allowing you time to check each light The sequence is as follows: left lights, left indicator, brake light, reverse light, fog light, right indicator, right lights.

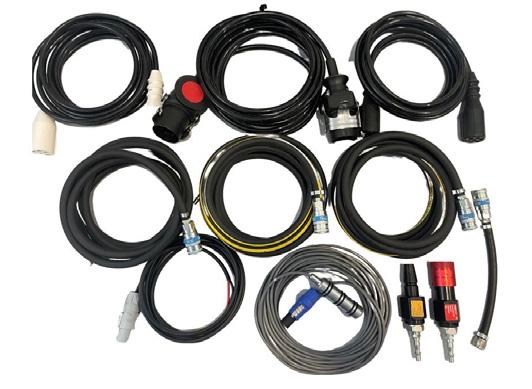

The kit is equipped with three five-metre air hoses for yellow line, red line and air supply in; a 15-metre wired remote control for service brake operation; three five-metre electrical leads for 24n, 24s and ISO 7638; red and yellow line coupling adaptors; and a power supply cable (connect to fused 24-volt supply).

Diagnostic Equipment

9

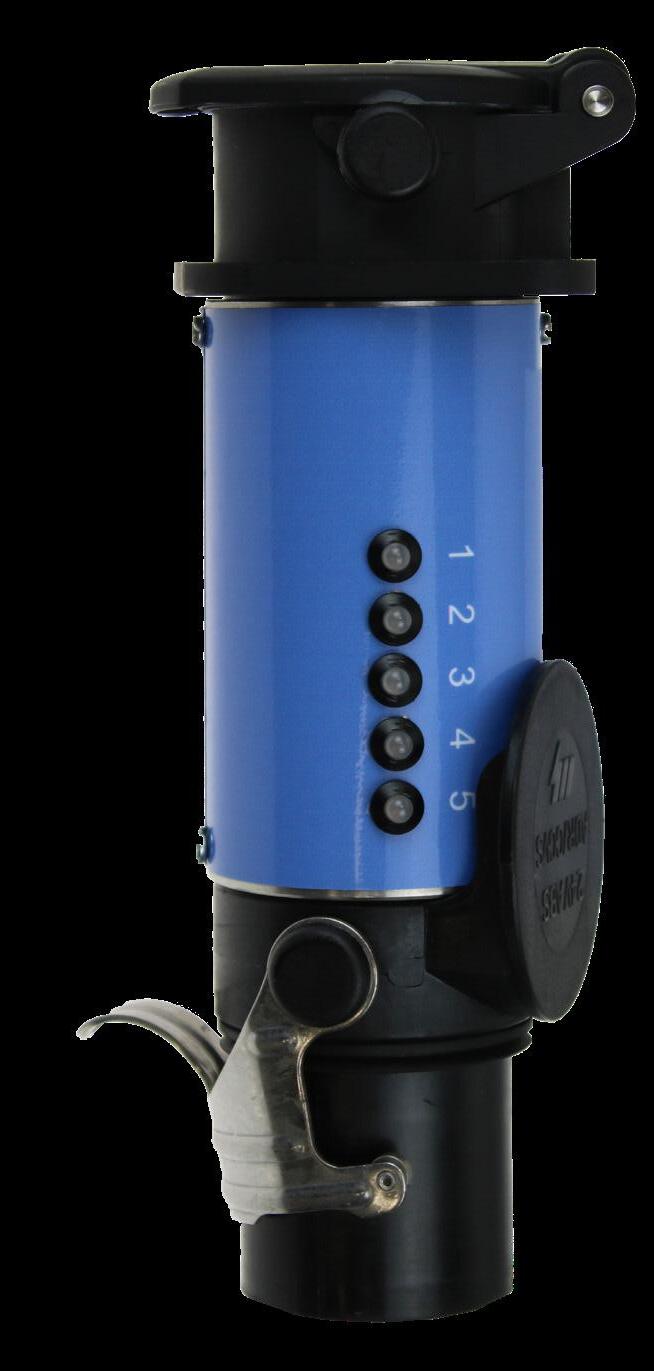

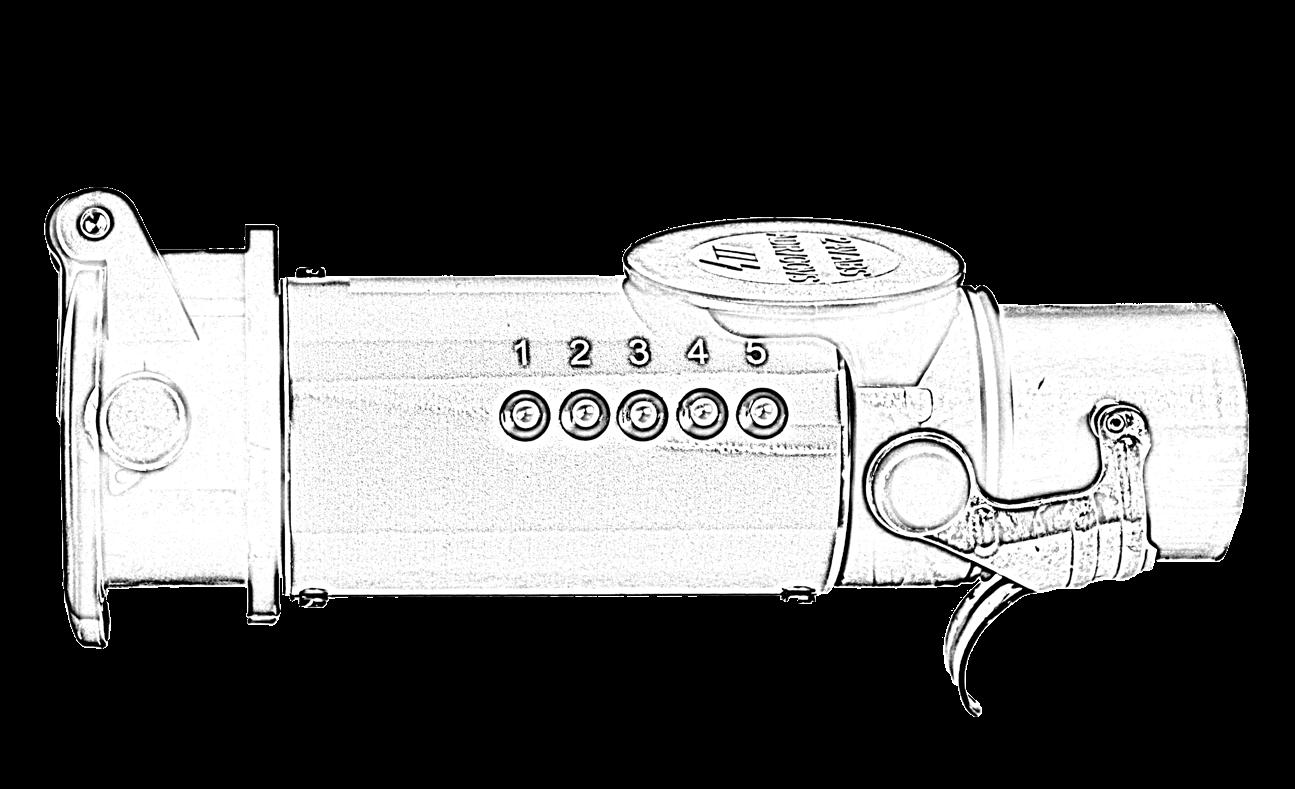

Triple ISO Tester Isomaster

Advanced circuit tester for testing your truck’s ISO 7638 Socket, Trailer Susie, and ABS Functions

DRA07T

ISOTester is an advanced diagnostic device for testing a truck’s ISO 7638 socket, trailer Susie lead and ABS functions for short or open circuits.

By running a simple series of tests the ISOTester quickly identifies fault details and the location (tractor unit, Susie lead or trailer), which is not always easy to locate.

1. Tests truck’s ISO 7638 socket 2. Tests ISO 7638 Susie lead 3. Tests vehicle’s ABS functions 4. Reveals missing/faulty ABS warning light 5. Quick to setup 6. Easy to interpret LED display 7. Powered by tractor unit’s ISO 7638 socket 8. Durable construction 9. Designed and manufactured in the UK.

10

Diagnostic Equipment

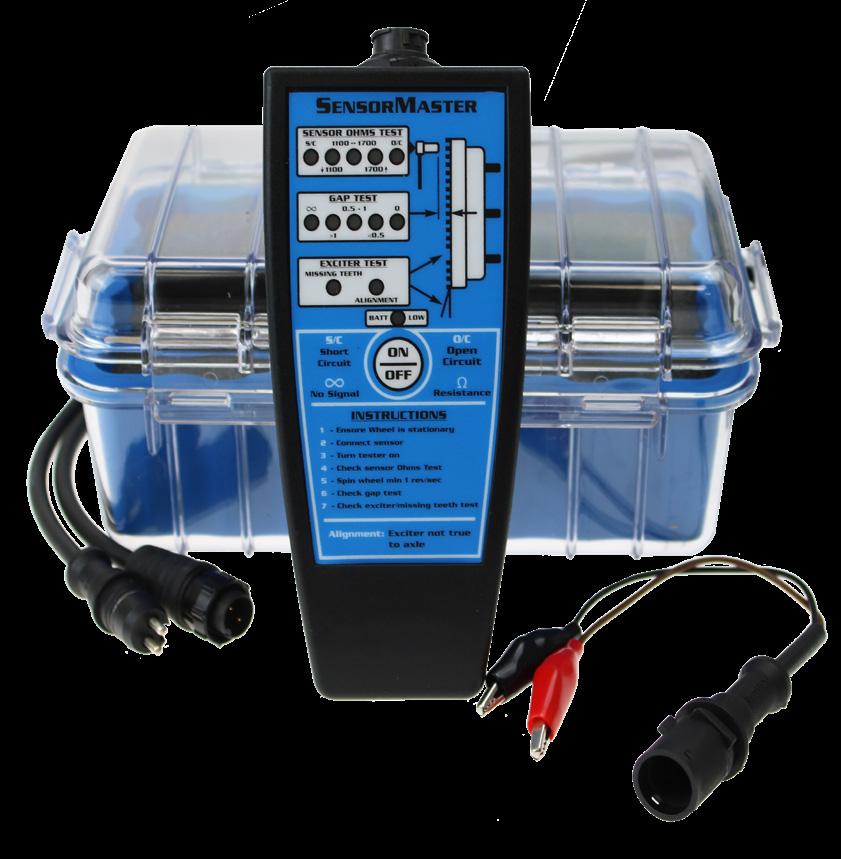

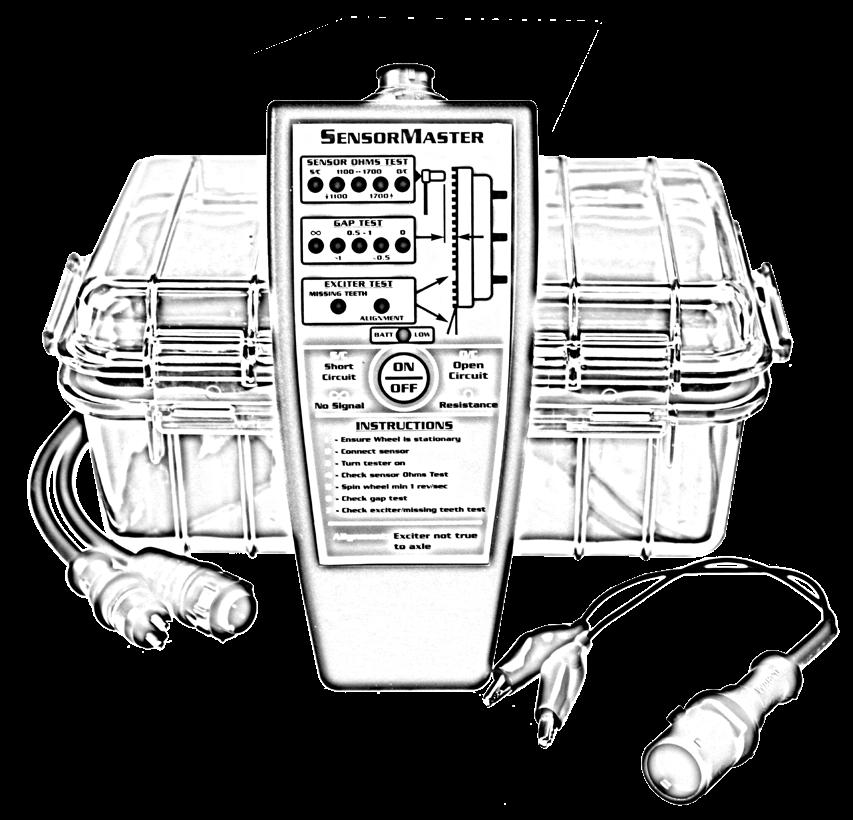

Sensormaster

EBS/ABS Sensor and Exciter Ring Tester

For testing and identifying sensor gap and exciter ring faults on any ABS & EBS system.

DRA08

Lightweight, portable and simple to operate.

The SensorMaster is supplied with a 1.6m high quality cable and a separate universal adapter for those applications where the standard lead’s termination is not applicable. The SensorMaster comes ready to use straight out of the box.

The SensorMaster is compatible with 90% of applications as standard.

It works with any ABS system made by Knorr Bremse, Haldex or Wabco fitted to any type of commercial vehicle whether it be truck, trailer, bus or coach.

The SensorMaster tests for the following causes of sensor related faults: 1. Correct OHMS resistance 2. Open Circuit 3. Short Circuit 4. Exciter ring tooth damage 5. Exciter ring misalignment 6. Sensor gap measurement Diagnostic Equipment

11
