APi Raufoss Catalogue

RAUFOSS ABC BUILDING BLOCK SYSTEMS & NEWLINE STUD CONNECTORS

CONTACT US: (01) 4601 482 sales@assuredperformance.ie assuredperformance.ie Assured Performance Intl (Ireland) Ltd Unit 12 -13 Ballymount Court Business Centre Ballymount Rd, Walkinstown Dublin 12 Rep. Of Ireland D12 Y792

CONTENTS

ABC BUILDING BLOCK SYSTEM...............1

ABC NEWLINE STUD CONNECTORS.......8

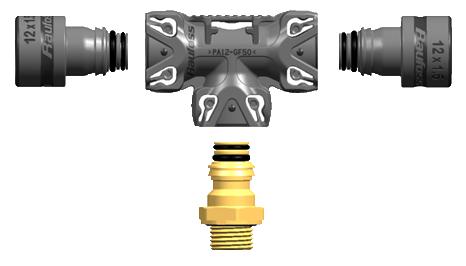

ABC BUILDING BLOCK SYSTEM The ABC Building Block system enables the customer to fit any of the below parts together to make bespoke fittings to suit their application. The range consists of 3 different size fittings, small, regular and heavy duty.

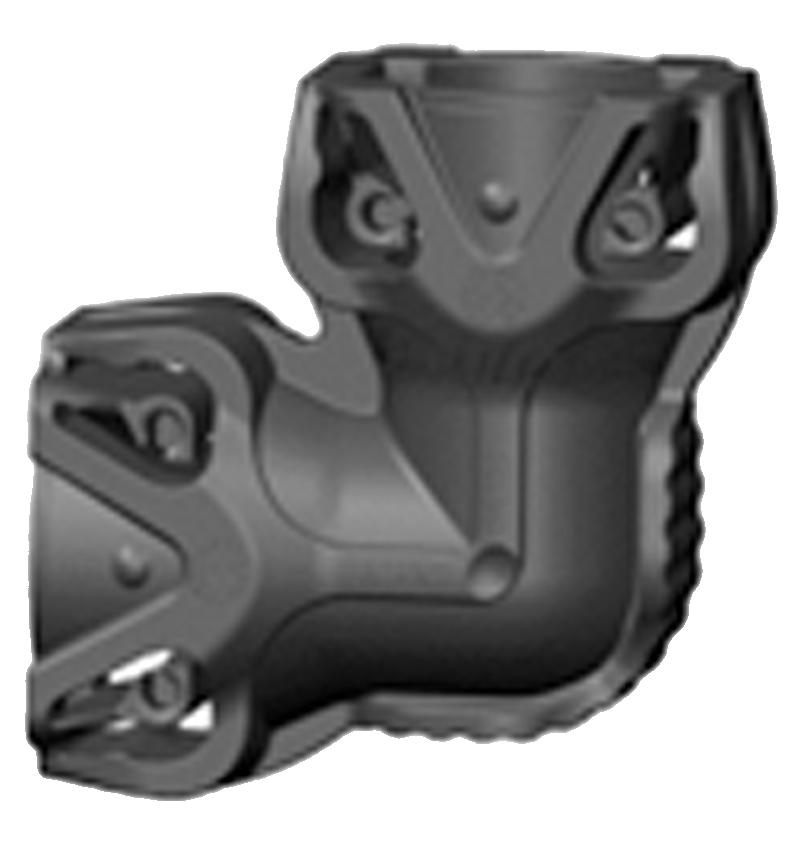

INTEGRAL ELBOW

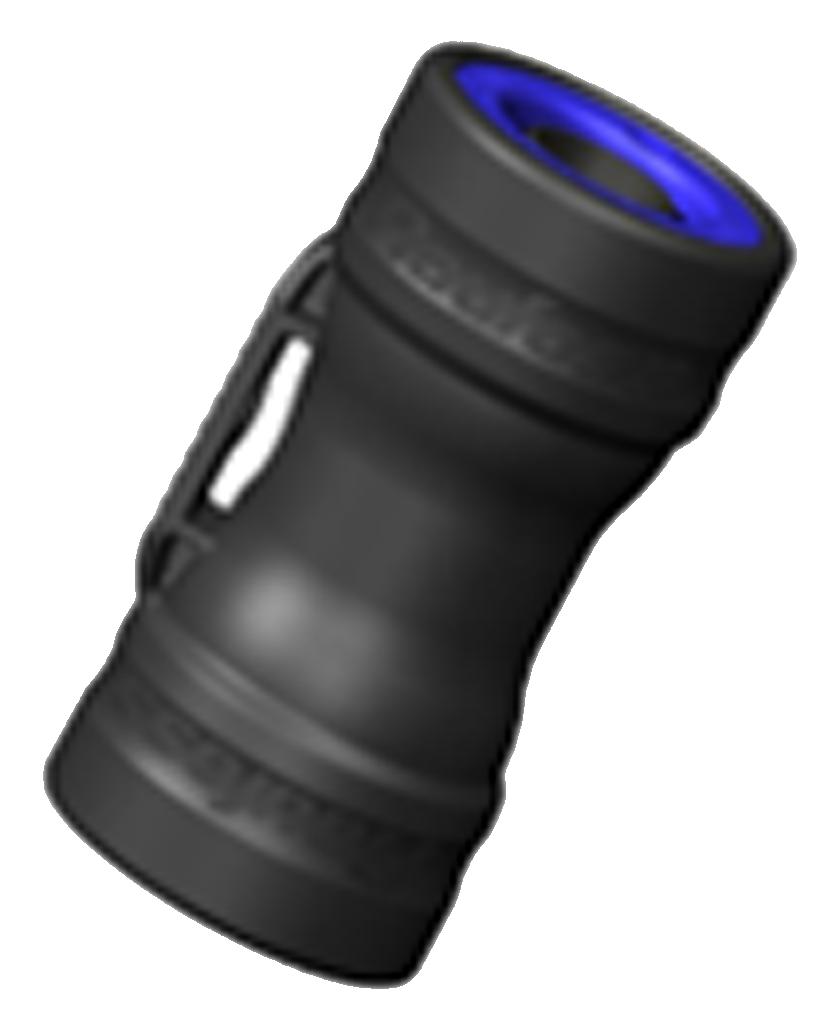

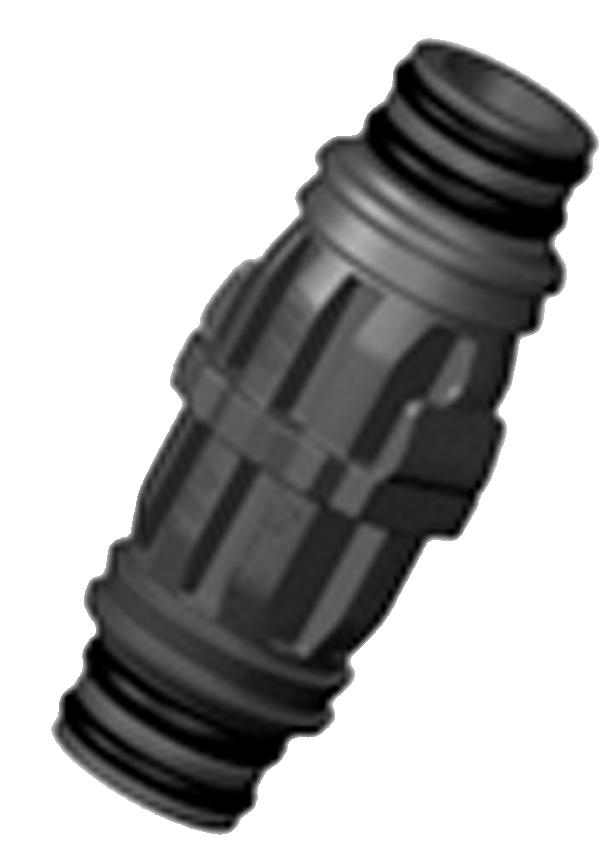

THREADLESS COUPLING

Part Number 90204004 90206004 90208004 90206005 90208005 90210005 90210105 90210205 90212005 90212006 90214006 90215006 90216006

ABC System Size Small Small Small Regular Regular Regular Regular Regular Regular Heavy Duty Heavy Duty Heavy Duty Heavy Duty

To Suit Tube Size 4 x 1.0mm 6 x 1.0mm 8 x 1.0mm 6 x 1.0mm 8 x 1.0mm 10 x 1.0mm 10 x 1.25mm 10 x 1.5mm 12 x 1.5mm 12 x 1.5mm 14 x 2.0mm 15 x 1.5mm 16 x 2.0mm

Part Number 90306004 90308004 90306005 90308005 90310005 90310105 90310205 90312205 90212006 90214006 90315006 90316006

STRAIGHT MALE UNION

Part Number 96540004 96540005 96550005 96550006 96560006

ABC System Side 1 ABC System Side 2 Small Small Small Regular Regular Regular Heavy Duty Regular Heavy Duty Heavy Duty

ABC System Size Small Regular

To Suit Tube Size 6 x 1.0mm 8 x 1.0mm 6 x 1.0mm 8 x 1.0mm 10 x 1.0mm 10 x 1.25mm 10 x 1.5mm 12 x 1.5mm 12 x 1.5mm 14 x 2mm 15 x 1.5mm 16 x 2.0mm

45 DEGREE UNION

Part Number 92040045 92050045 92060045

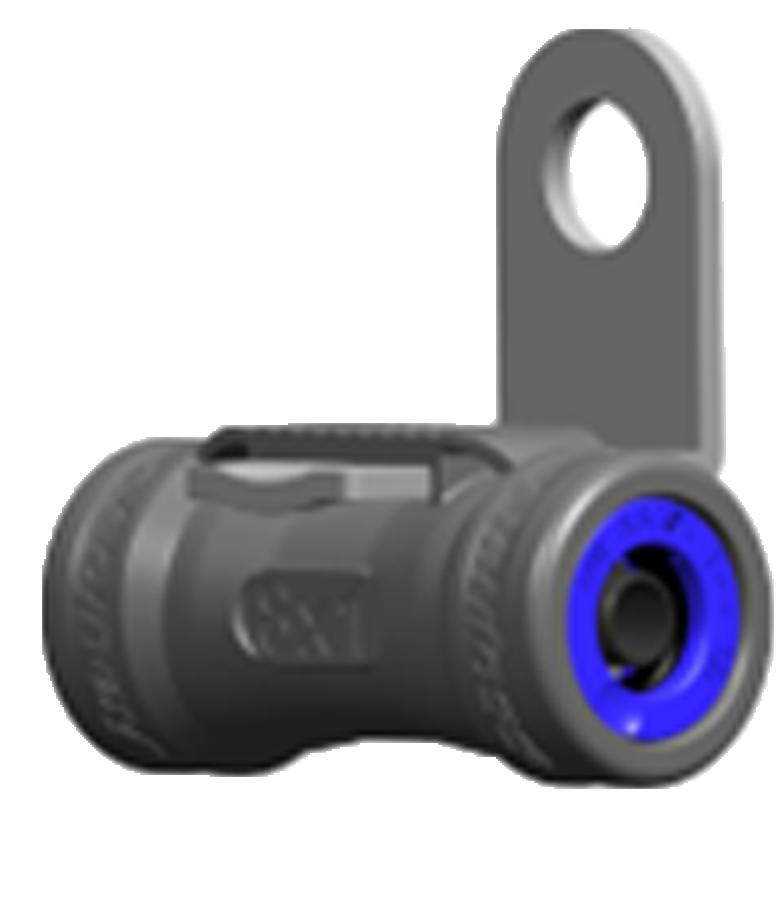

STRAIGHT FEMALE UNION WITH BRACKET

Part Number 96140024 96150225

ABC System Size Small Small Regular Regular Regular Regular Regular Regular Heavy Duty Heavy Duty Heavy Duty Heavy Duty

ABC System Size Small Regular Heavy Duty

STRAIGHT FEMALE UNION

Part Number 96140004 96150205

ABC System Size Small Regular

1 (01) 4601 482

|

sales@assuredperformance.ie

|

assuredperformance.ie

ABC BUILDING BLOCK SYSTEM The ABC Building Block system enables the customer to fit any of the below parts together to make bespoke fittings to suit their application. The range consists of 3 different size fittings, small, regular and heavy duty.

Y UNION

Part Number 92040030 92050030

ELBOW UNION

ABC System Size Small Regular

Part Number 92050090 92060090

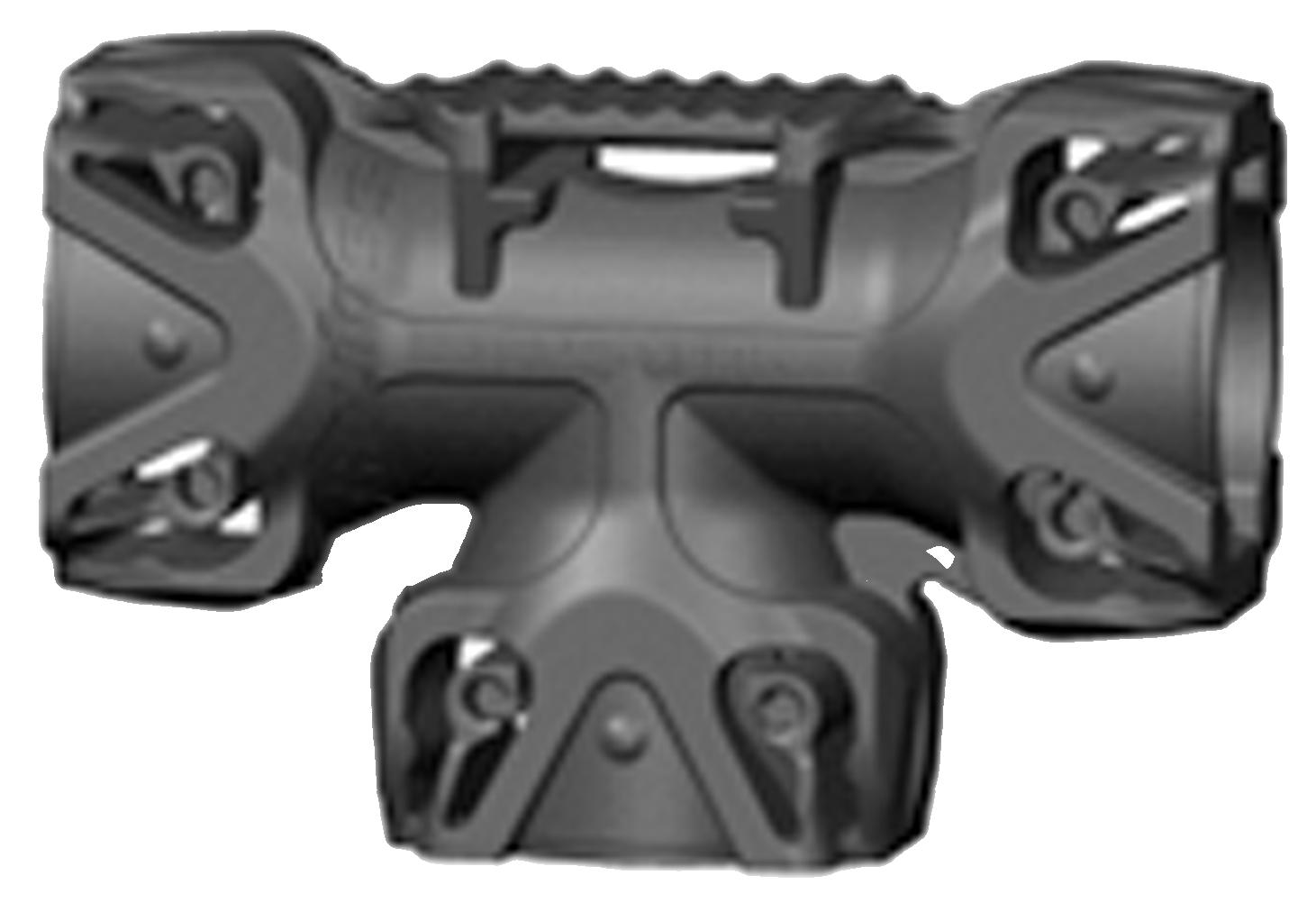

TEE UNION

Part Number 92040010 92050010 92060010

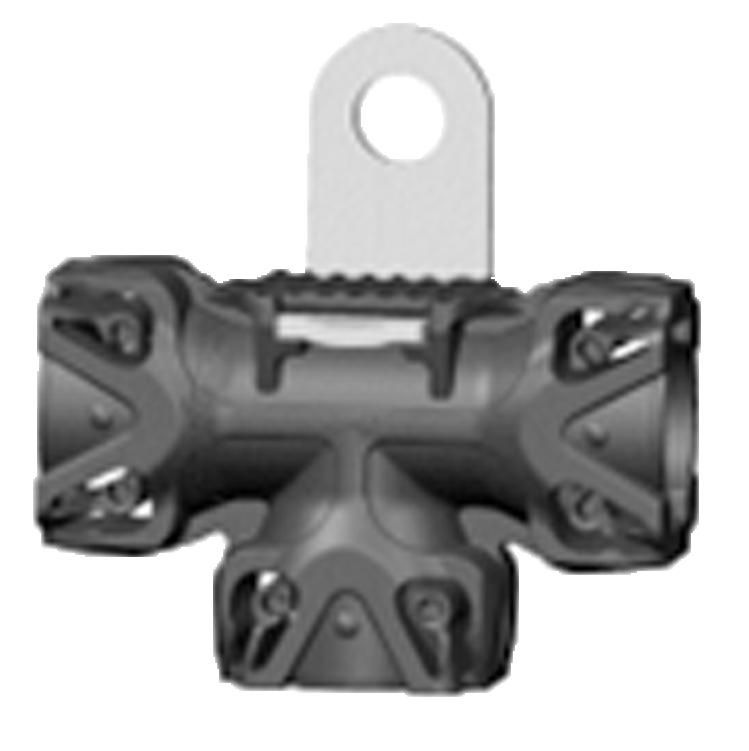

TEE UNION WITH BRACKET

ABC System Size Small Regular Heavy Duty

Part Number 92050025 92060025

Tube Size 1 6 x 1.0mm 8 x 1.0mm 10 x 1.5mm 12 x 1.5mm 15 x 1.5mm 16 x 2.0mm

Tube Size 2 6 x 1.0mm 8 x 1.0mm 10 x 1.5mm 12 x 1.5mm 15 x 1.5mm 16 x 2.0mm

Part Number 90506022 90508022 90512022

F UNION

Part Number 92040015 92050015 92060015

ABC System Size Regular Heavy Duty

STRAIGHT CONNECTOR WITH BRACKET

STRAIGHT CONNECTOR

Part Number 90506006 90508008 90510210 90512012 90515015 90516016

ABC System Size Regular Heavy Duty

Tube Size 1 6 x 1.0mm 8 x 1.0mm 12 x 1.5mm

Tube Size 2 6 x 1.0mm 8 x 1.0mm 12 x 1.5mm

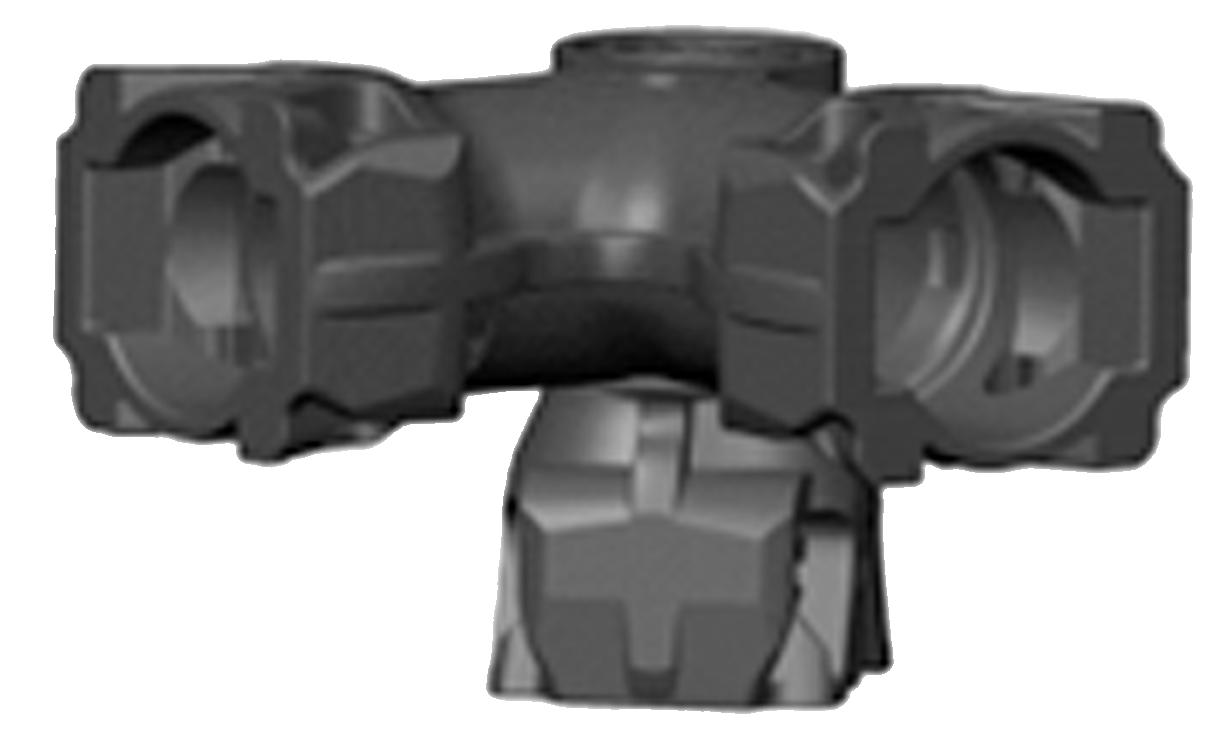

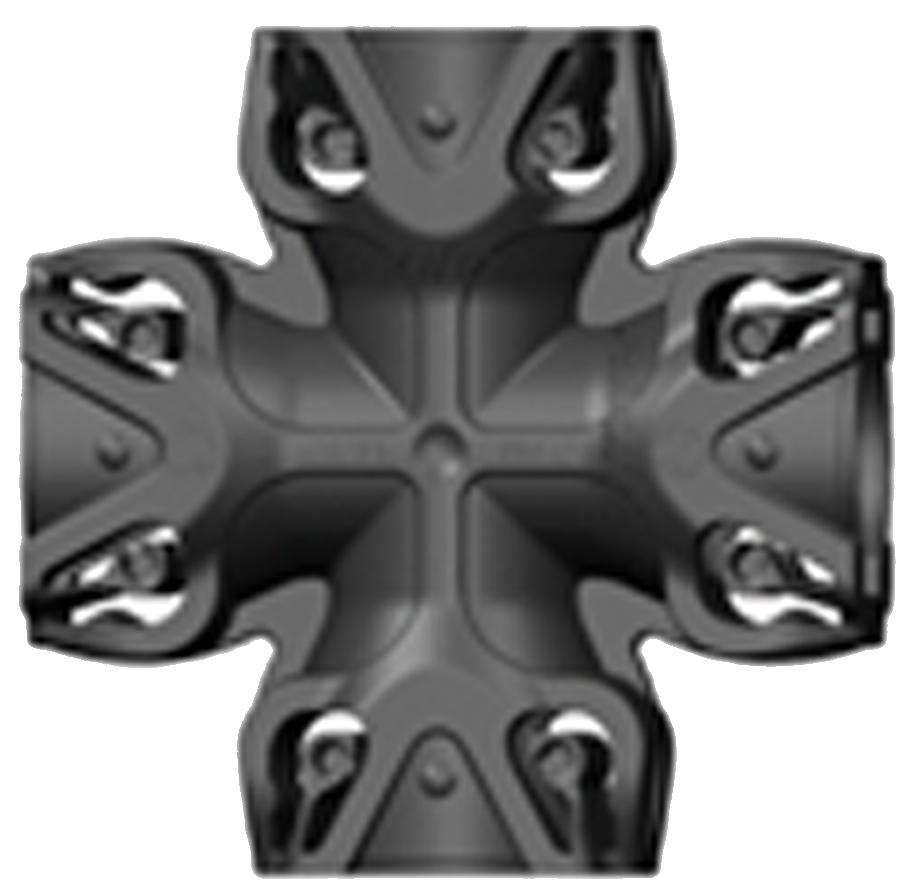

4 WAY CROSS UNION

ABC System Size Small Regular Heavy Duty

Part Number 92050070 92060070

ABC System Size Regular Heavy Duty

2 (01) 4601 482

|

sales@assuredperformance.ie

|

assuredperformance.ie

ABC BUILDING BLOCK SYSTEM The ABC Building Block system enables the customer to fit any of the below parts together to make bespoke fittings to suit their application. The range consists of 3 different size fittings, small, regular and heavy duty.

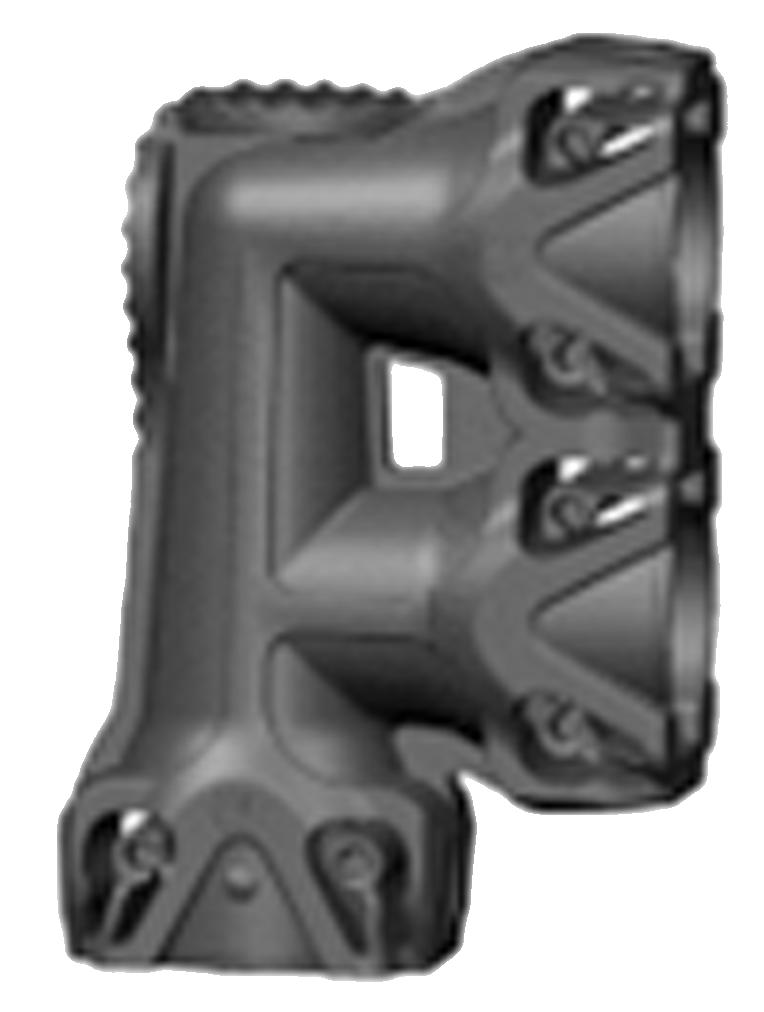

3 WAY CORNER UNION

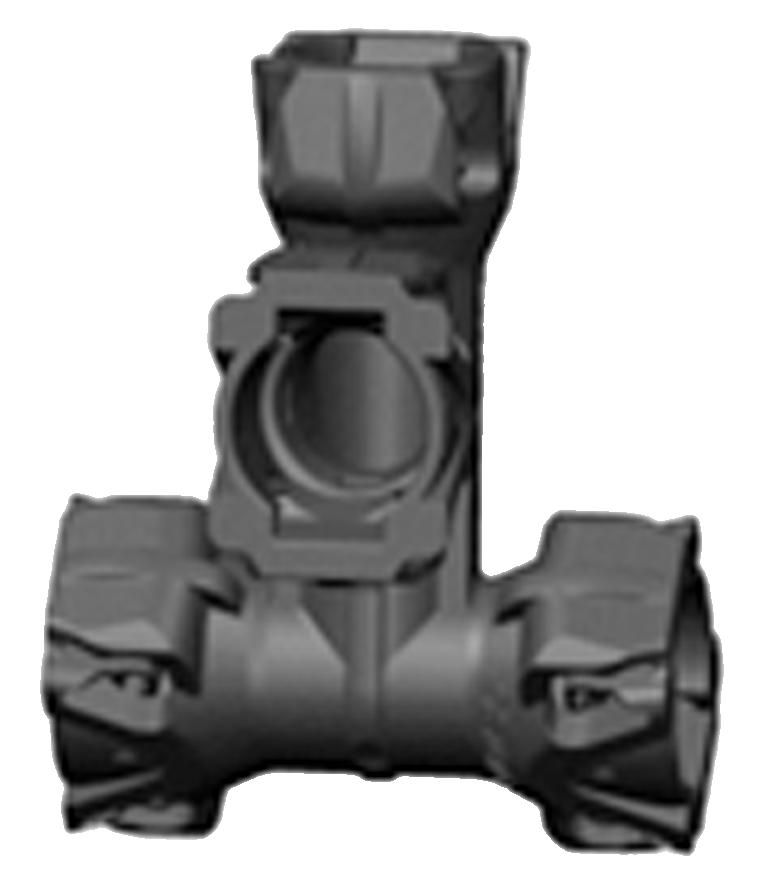

4 WAY CORNER UNION

Part Number 92050061 92060061

ABC System Size Regular Heavy Duty

Part Number 92040060 92052060 92060060

ABC System Size Small Regular Heavy Duty

ROTOLOCK THREADLESS SWIVEL PLUG

Part Number 96442016 96442018 96442022 96452018 96450020 96450022 96452028 96460022 96462028

ABC System Size Small Small Small Regular Regular Regular Regular Heavy Duty Heavy Duty

Hex Size 16 18 22 18 20 22 28 22 28

Part Number 96240000 96250000 96260000

ABC System Size Small Regular Heavy Duty

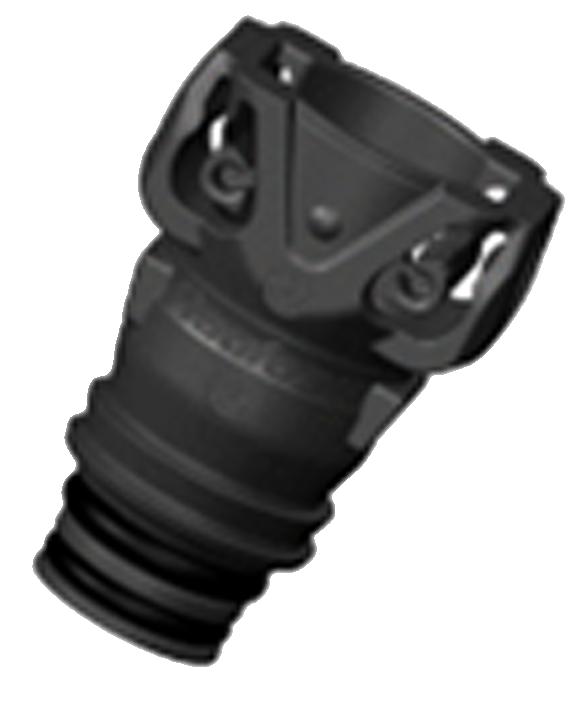

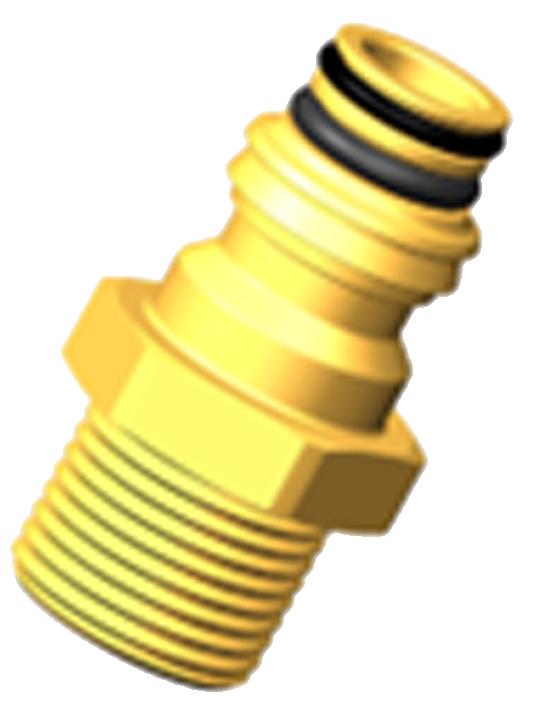

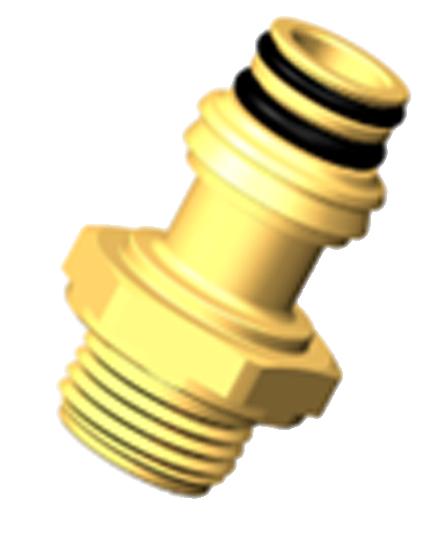

SWIVEL STUD WITH MALE THREAD

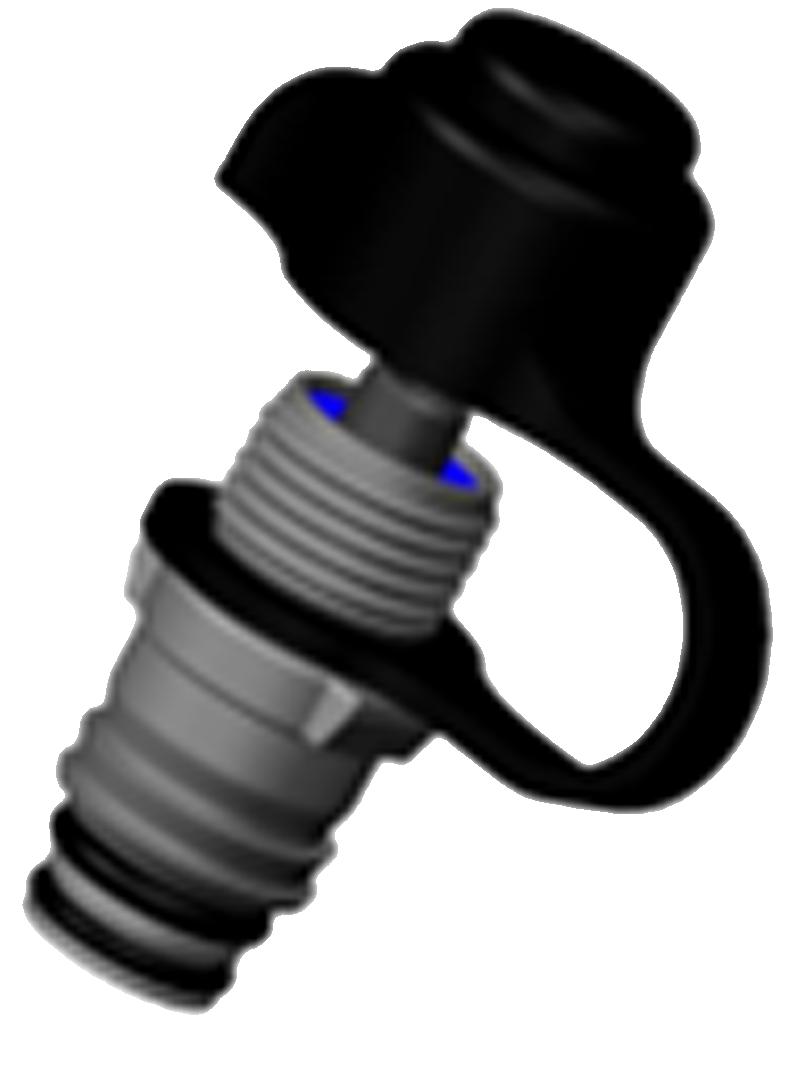

THREADLESS TEST POINT

Part Number 96050000

ABC System Size Regular

ABC REDUCER

Part Number 96150106

Part Number 93140010 93140012 93140014 93140016 93150010 93150012 93150014 93150016 93150018 93150022 93160016 93160022 93160026

ABC System Size Small Small Small Small Regular Regular Regular Regular Regular Regular Heavy Duty Heavy Duty Heavy Duty

Thread Size M10 x 1.0 M12 X 1.5 M14 x 1.5 M16 x 1.5 M10 x 1.0 M12 X 1.5 M14 x 1.5 M16 x 1.5 M18 x 1.5 M22 x 1.5 M16 x 1.5 M22 x 1.5 M26 x 1.5

Male System Size Female System Size Heavy Duty Regular

3 (01) 4601 482

|

sales@assuredperformance.ie

|

assuredperformance.ie

ABC BUILDING BLOCK SYSTEM The ABC Building Block system enables the customer to fit any of the below parts together to make bespoke fittings to suit their application. The range consists of 3 different size fittings, small, regular and heavy duty.

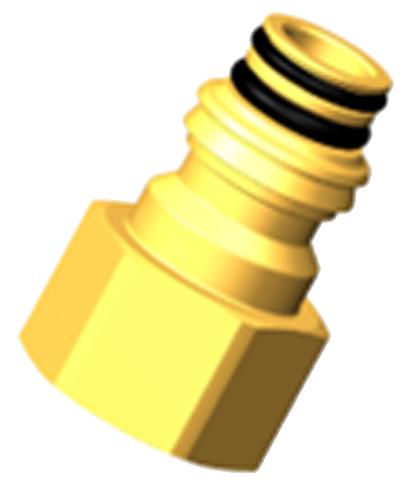

SWIVEL STUD WITH FEMALE THREAD

Part Number 93150110 93150112 93150114 93150116 93150122

ABC System Size Regular Regular Regular Regular Regular

Thread Size M10 x 1.0 M12 x 1.5 M14 x 1.5 M16 x 1.5 M22 x 1.5

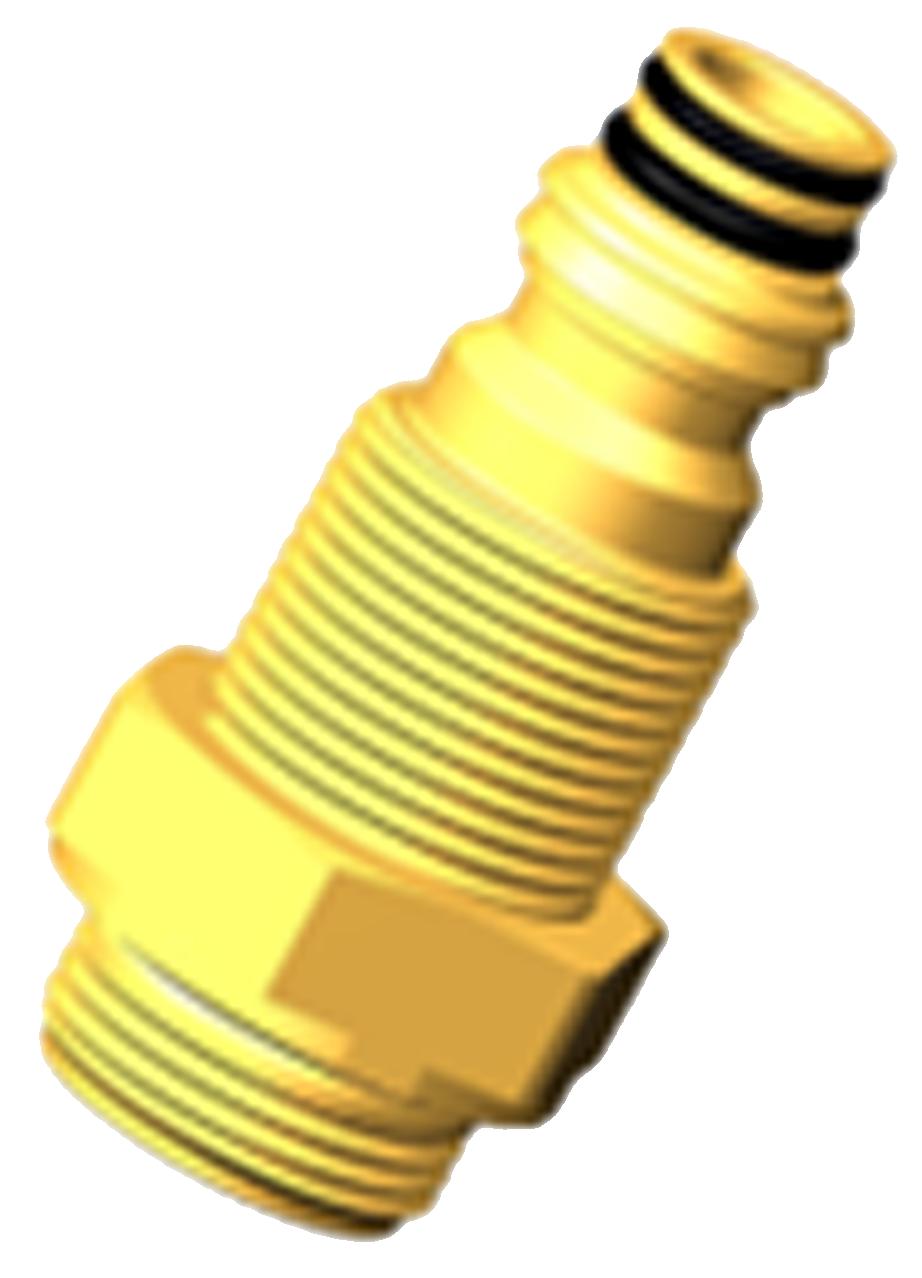

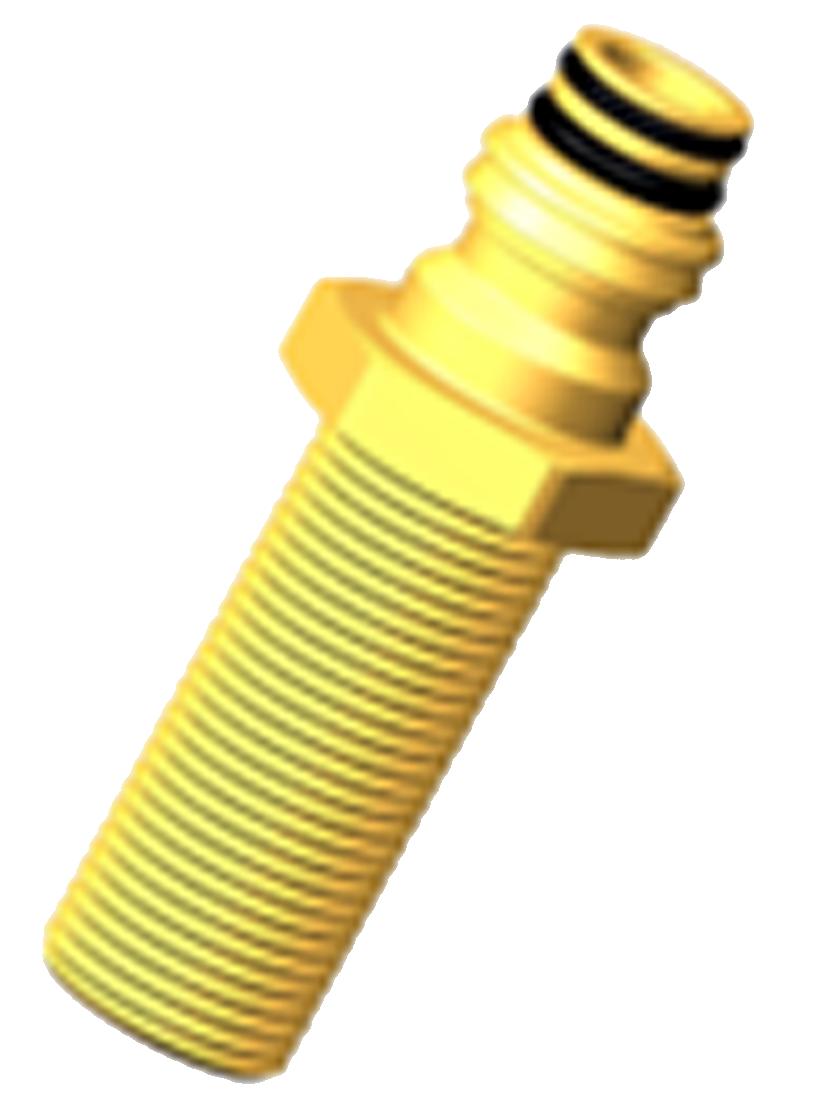

EXTENDED SWIVEL STUD WITH MALE THREAD

Part Number 93141016 93151012 93151014 93159014 93151022

ABC System Size Small Regular Regular Regular Regular

Extension Length 42mm 37mm 36mm 55mm 42mm

Thread Size M16 x 1.5 M12 x 1.5 M14 x 1.5 M14 x 1.5 M22 x 1.5

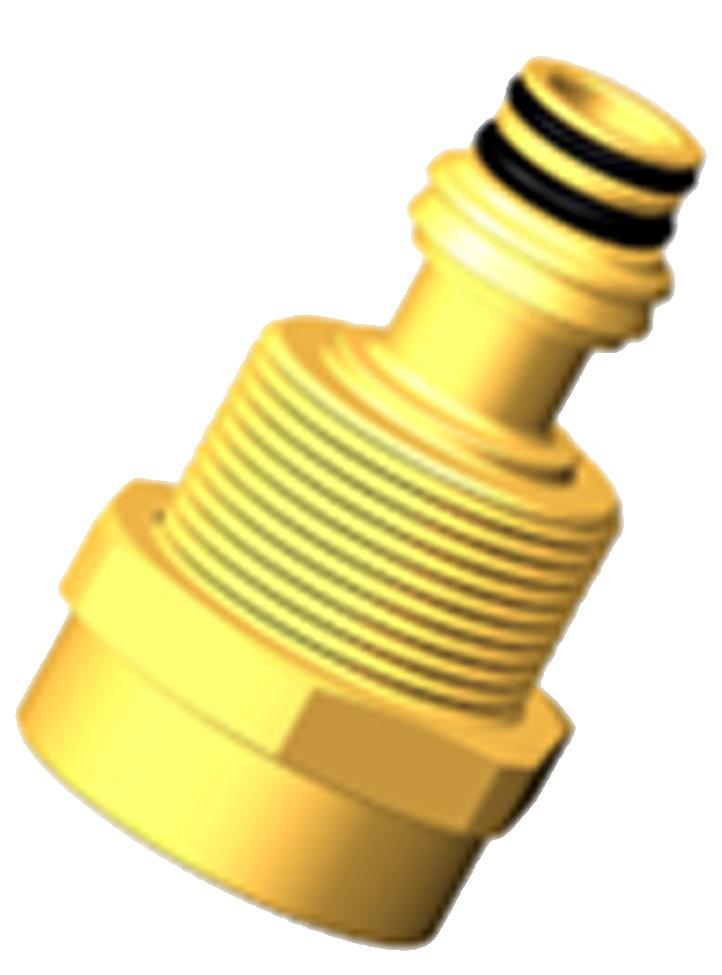

BULKHEAD SWIVEL STUD WITH MALE THREAD & INTERNAL THREAD

Part Number 93351218 93352217 93351622 93362228

Internal Thread ABC System Size Male Thread M12 x 1.5 Regular M18 x 1.5 M16 x 1.5 Regular M22 x 1.5 x 14mm M16 x 1.5 Regular M22 x 1.5 x 23mm M22 x 1.5 Heavy Duty M28 x 1.5

4 (01) 4601 482

|

sales@assuredperformance.ie

|

assuredperformance.ie

ABC BUILDING BLOCK SYSTEM The ABC Building Block system enables the customer to fit any of the below parts together to make bespoke fittings to suit their application. The range consists of 3 different size fittings, small, regular and heavy duty.

DOUBLE MALE THREAD BULKHEAD SWIVEL STUD W/ INTERNAL THREAD

Part Number 93352216 93352222

ABC System Size Regular Regular

Short Thread M16 x 1.5 M22 x 1.5

Long Thread M22 x 1.5 M22 x 1.5

EXTENDED BULKHEAD SWIVEL STUD MALE THREAD

Part Number 93352416 93353418 93352418 93362418

ABC System Size Regular Regular Regular Heavy Duty

Thread Length 35mm 22mm 42mm 42mm

Thread Size M16 x 1.5 M18 x 1.5 M18 x 1.5 M18 x 1.5

MALE & FEMALE THREAD DOUBLE BULKHEAD STUD

Part Number 93352226

ABC System Size Regular

Male Thread M22 x 1.5

Female Thread M26 x 1.5

BULKHEAD SWIVEL STUD MALE THREAD WITH BUILT IN COUPLING

Part Number 93450060 93450080 93450101 93450120 93460150

ABC System Size Regular Regular Regular Regular Heavy Duty

Thread Size M18 x 1.5 M20 x 1.5 M22 x 1.5 M24 x 1.5 M30 x 2.0

Tube Size 6 x 1.0mm 8 x 1.0mm 10 x 1.25mm 12 x 1.5mm 15 x 1.5mm

5 (01) 4601 482

|

sales@assuredperformance.ie

|

assuredperformance.ie

ABC BUILDING BLOCK SYSTEM The ABC Building Block system enables the customer to fit any of the below parts together to make bespoke fittings to suit their application. The range consists of 3 different size fittings, small, regular and heavy duty.

BULKHEAD DOUBLE SWIVEL STUD

Part Number 93352205 93362206 93362216

ABC System Size Regular Heavy Duty Heavy Duty

Thread Length 20mm 20mm 42mm

Thread Size M22 x 1.5 M22 x 1.5 M22 x 1.5

2600962 4 PC PIPE RELEASE TOOL KIT PLASTIC

Contains Tools to Suit Pipe Sizes 6mm

8mm

12mm

10mm

2600921 7 PC PIPE RELEASE TOOL KIT METAL

Contains Tools to Suit Pipe Sizes 6mm 14mm

8mm 15mm

12mm

10mm 16mm

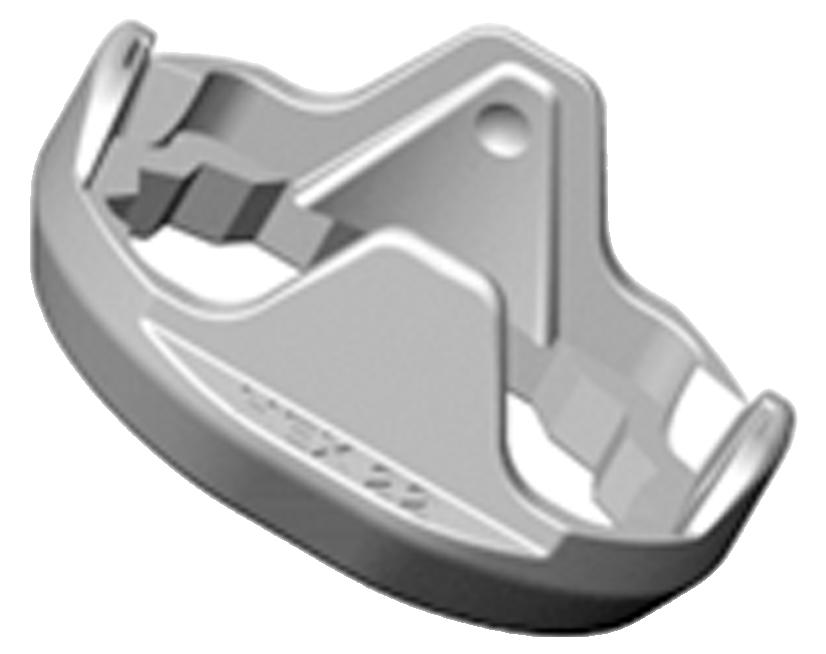

SINGLE PIPE RELEASE TOOL PLASTIC

Part Number 96606010 96608010 96610010 96612710 96614010 96615010 96616010

To Suit Pipe Size 6mm 8mm 10mm 12mm 14mm 15mm 16mm

6 (01) 4601 482

|

sales@assuredperformance.ie

|

assuredperformance.ie

ABC BUILDING BLOCK SYSTEM The ABC Building Block system enables the customer to fit any of the below parts together to make bespoke fittings to suit their application. The range consists of 3 different size fittings, small, regular and heavy duty.

BUILDING BLOCK STRAIGHT NOSE CIRCLIP PLIERS

BUILDING BLOCK 90 DEGREE NOSE CIRCLIP PLIERS

Part Number 892001

Part Number 892000

SINGLE PIPE RELEASE TOOL METAL LONG VERSION

SINGLE PIPE RELEASE TOOL METAL SHORT VERSION

Part Number 96606020 96608020 96610020 96612020 96614020 96615020 96616020

Part Number 96606021 96608021 96610021 96612021 96614021 96615021 96616021

To Suit Pipe O.D. 6mm 8mm 10mm 12mm 14mm 15mm 16mm

To Suit Pipe O.D. 6mm 8mm 10mm 12mm 14mm 15mm 16mm

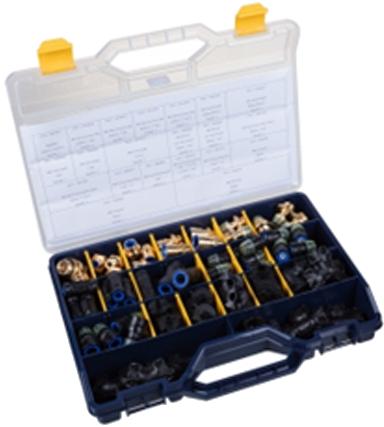

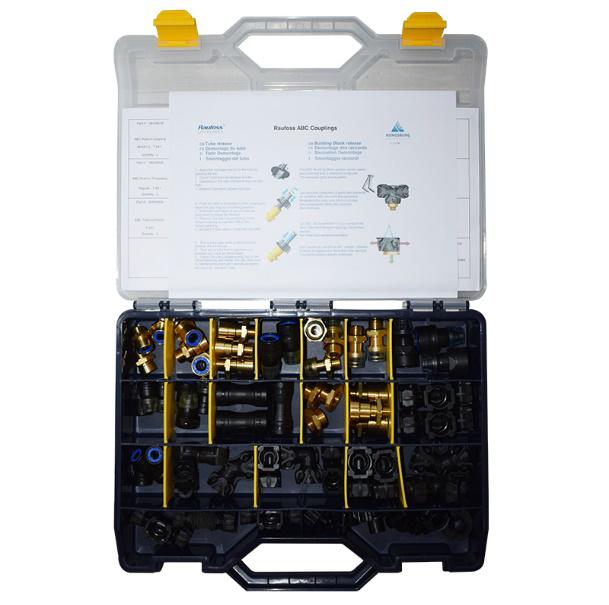

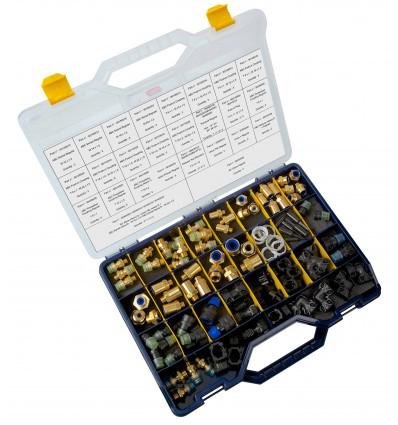

ABC 101 PIECE SELECTION BOX

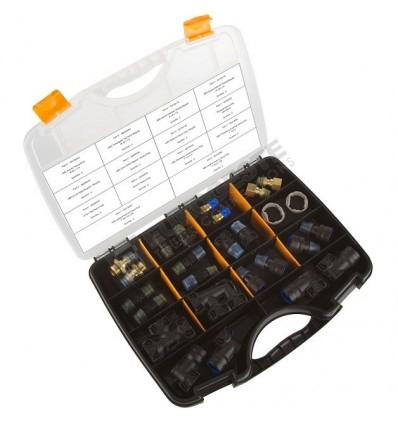

ABC 28 PIECE SELECTION BOX

Part Number 2600960

Part Number 2600968

ABC 61 PIECE SELECTION BOX

ABC 61 PIECE SELECTION BOX

Part Number 2600958

Part Number 2600959

7 (01) 4601 482

|

sales@assuredperformance.ie

|

assuredperformance.ie

ABC NEWLINE STUD CONNECTORS BULKHEAD STRAIGHT STUD

Part Number 90906212 90908214

Tube Size 6 x 1.0mm 8 x 1.0mm

Thread M12 x 1.5 M14 x 1.5

MALE/MALE BULKHEAD ADAPTOR WITH BUILT IN COUPLING

Part Number 90908016 90912016 90912022

Short Thread M16 x 1.5 M16 x 1.5 M22 x 1.5

Long Thread M20 x 1.5 M24 x 1.5 M24 x 1.5

Tube Size 8 x 1.0mm 12 x 1.5mm 12 x 1.5mm

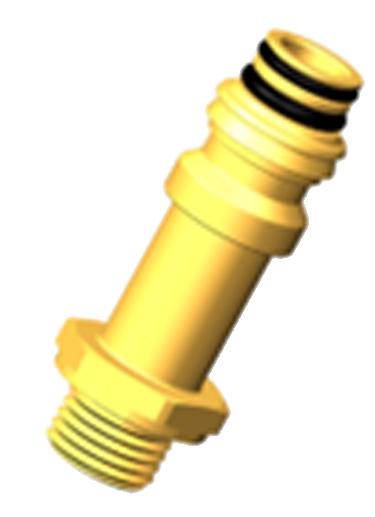

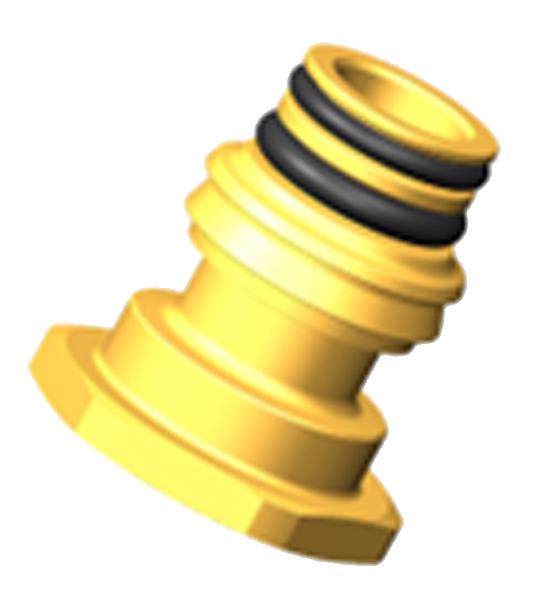

ABC NEWLINE PUSH IN STRAIGHT STUD

TYPE 1 Part Number 90106010 90108010 90110210 90112010 90106012 90108012 90110212 90112012 90116012 90106014 90108014 90110214 90112014 90115014 90116014 90106016 90108016 90110016 90110216 90112016 90115016 90116016 90106018 90106022 90108022 90110222 90112022 90114022 90115022 90116022 90115026 90116026

Stud Type Type 1 Type 1 Type 1 Type 1 Type 1 Type 1 Type 1 Type 1 Type 1 Type 2 Type 1 Type 1 Type 1 Type 1 Type 1 Type 2 Type 1 Type 1 Type 1 Type 1 Type 1 Type 1 Type 2 Type 2 Type 2 Type 2 Type 2 Type 1 Type 2 Type 1 Type 2 Type 1

TYPE 2 Tube Size Thread Size 6 x 1.0mm M10 x 1.0 8 x 1.0mm M10 x 1.0 10 x 1.5mm M10 x 1.0 12 x 1.5mm M10 x 1.0 6 x 1.0mm M12 x 1.5 8 x 1.0mm M12 x 1.5 10 x 1.5mm M12 x 1.5 12 x 1.5mm M12 x 1.5 16 x 2.0mm M12 x 1.5 6 x 1.0mm M14 x 1.5 8 x 1.0mm M14 x 1.5 10 x 1.5mm M14 x 1.5 12 x 1.5mm M14 x 1.5 15 x 1.5mm M14 x 1.5 16 x 2.0mm M14 x 1.5 6 x 1.0mm M16 x 1.5 8 x 1.0mm M16 x 1.5 10 x 1.0mm M16 x 1.5 10 x 1.5mm M16 x 1.5 12 x 1.5mm M16 x 1.5 15 x 1.5mm M16 x 1.5 16 x 2.0mm M16 x 1.5 6 x 1.0mm M18 x 1.5 6 x 1.0mm M22 x 1.5 8 x 1.0mm M22 x 1.5 10 x 1.5mm M22 x 1.5 12 x 1.5mm M22 x 1.5 14 x 2.0mm M22 x 1.5 15 x 1.5mm M22 x 1.5 16 x 2.0mm M22 x 1.5 15 x 1.5mm M26 X 1.5 16 x 2.0mm M26 X 1.5

8 (01) 4601 482

|

sales@assuredperformance.ie

|

assuredperformance.ie

Should you require anything not shown in this catalogue.

Please contact us:

(01) 4601 482 sales@assuredperformance.ie assuredperformance.ie Assured Performance Intl (Ireland) Ltd Unit 12 -13 Ballymount Court Business Centre Ballymount Rd, Walkinstown Dublin 12 Rep. Of Ireland D12 Y792
