Easy-Kleen, Canadian Portable Pickup Skid

The Longest Lasting Pressure Washers On The Market

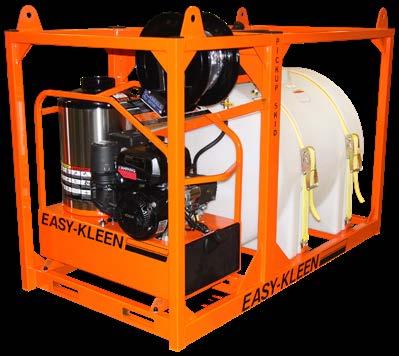

PORTABLE PICKUP SKID

sales@easykleen.com

PORTABLE PICKUP TRUCK SKID Pumps The Easy Kleen Portable Skid Unit is a totally self contained system that • Heavy-Duty Triplex allows for 100% portable cleaning. These units have been designed Plunger Pumps to fit perfectly into the 6’ 6” box of a pickup truck. Forklift slots and • Oil Bath Crankcase a lifting eye make loading this unit easy and efficient. There is also a • Stainless Steel Valves built in winterization system which makes year round cleaning and • Brass Manifold • Gearbox Drive transportation possible.

• Thermo Pump Protector Engines • 14 HP Kohler / 13 HP Honda Gasoline Engine or 9.8 HP Diesel Engine • Efficient • Serviceable Heating Coil • Schedule 80 Pipe • Elliptically Wound & Stretched • No Seam Welds • Structurally Braced to Reduce Vibration & Pipe Wear • Sealed with a Ceramic Blanket EZO3504G-H-PSR • Stainless Steel Housing 13 HP Honda Engine DOT Bolt On Trailer Package Burners (Wayne - 12 Volt) • Oil Fired • Adjustable Thermostat • On/Off Switch • North American Made • Dependable • Serviceable Frame • 2 x 4 Tube Fully Welded Steel • Powder Coated • Lifting Eye • Forklift Slots • 225 Gallon Poly Water Tank • 10 Gallon Winterization System • Rain Cap on Boiler Includes • Hose Reel • 36” Gun and Wand Assembly with Quick Coupler System • 0°/15°/25°/40° Nozzles • 1 Soap Nozzles • 100’ of High Pressure Hose • Downstream Soap Injection System Options & Accessories • Drain Cleaning/Jetter Kit • Rotary Nozzle • Wet Sandblast Kit • Battery EZO3504G-K-PSR Propane Fired Units Are Available for Food Warehouse Applications (Modified for Two 100 Pound Tanks) MODEL EZO3504G-K-PSR EZO3504G-H-PSR EZO3204D-K-PSR TKIT-PU1BS TKIT-PU1BS-DOT

easykleen.com

GPM PSI BTU HP/ ENGINE FUEL DRIVE ELECTRIC START 4 3500 400,000 14 KOHLER GASOLINE GEARBOX YES 4 3500 400,000 13 HONDA GASOLINE GEARBOX YES 4 3200 400,000 9.8 KOHLER DIESEL GEARBOX YES BOLT ON TRAILER PACKAGE - 3500 LB. AXLE - NOT ROAD LEGAL DOT APPROVED BOLT ON TRAILER PACKAGE 3500LB SINGLE AXLE, FENDERS, AND TONGUE WITH LIGHTS.

1-800-315-5533

sales@easykleen.com

BURNER 12V 12V 12V

WARNING: California Proposition 65 - www.P65Warnings.ca.gov)

LEARN MORE FROM OUR VIDEOS! TESTIMONIAL Blaney Logging “We purchased a pickup skid for our harvesting operation and so far it’s working out really well! The reliability has been excellent! Having the pressure washer and water tank together just makes it so easy to load up with the forklift and take it out to the equipment to keep it clean and running cool.” - Joe Blaney

PICK UP SKID DEMONSTRATION Hosted by Josh Watch as Josh walks you through the components, features, and accessories the pickup skid has to offer!

It blasts away grease and caked on mud from hard working logging equipment by using a standard nozzle, a rotary nozzle, a foam cannon, and a side handle grip for extra control.

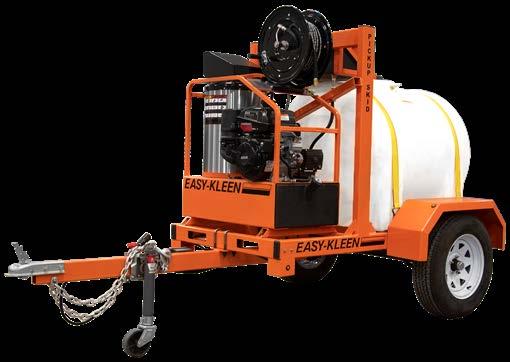

PICK UP SKID BOLT ON TRAILER PACKAGE Hosted by Josh Introducing the Pickup Skid Bolt on Trailer Package!

You asked for it, and it is finally here. The same great Pickup Skid design now on wheels. This rugged machine is equipped with a 14 HP Kohler gas engine, General Pump - gearbox driven, outputs 4 GPM @ 3500 PSI and 100 ft of high pressure hose on a U-Frame hose reel. This heavy-duty frame has a single 3500 lb axel with a 225 Gallon Poly Water Tank. This trailer is what every service contractor or rental shop needs!

WINTERIZATION KIT

These pickup skids come stock with a winterization kit!

This allows you to quickly winterize your pressure washer in cooler climates to protect your pump, coil, and hose.

WARNING: California Proposition 65 - www.P65Warnings.ca.gov)

sales@easykleen.com

1-800-315-5533

easykleen.com

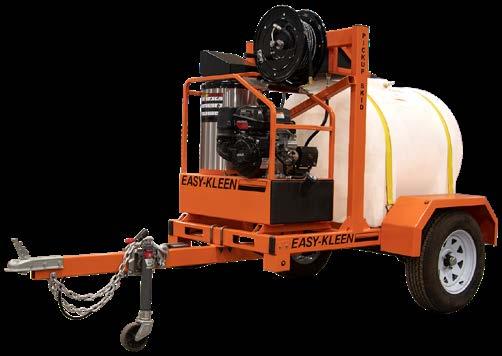

FRAME OPTIONS & ACCESSORIES The same great Pickup Skid design now on wheels! This trailer is what every service contractor or rental shop needs!

Complete with optional Cage Frame.

This unit was designed for a ship yard that required their unit to be moved by crane.

QUICK COUPLERS

ROTARY NOZZLES

For speedy and sturdy interchanging of tools and attachments.

Disconnect coupler band rated at 5000 PSI, 210°F.

Rotary nozzles can cut cleaning time in half.

Easy-Kleen carries a variety of rotary nozzles from commercial to industrial grade.

MEGA-FLEX DRAIN CLEANING KIT

FOAM CANNON

Allows full chemical coverage and activation.

Ideal for vehicle and house washing.

UNDERCARRIAGE, WATERBROOM, & SURFACE CLEANER ACCESSORIES

Maintain shop cleanliness and easily wash everything from floors to the undercarriages on your equipment.

WET SANDBLAST KIT

Used for cleaning drains, culverts and downspouts, as well as thawing and unclogging pipes. Stainless steel drain nozzle included. Available in 50 or 100 foot lengths.

Peels paint and rust from metal effortlessly with no dust. Leaves surface ready to paint. 10 GPM max flow.

GUN & WAND ASSEMBLIES Gun & Wand Assemblies 12”/18”/24”/36”(Standard)/48”/59”/72”

SIDE HANDLE GRIP

Great for extra control, leverage, and precision.

Telescopic Wand Extends to - 18’ & 24’ Relaxed Trigger Gun (VEGA)
