PRECISIONANTI
IBRATIONTABLEFOR
ONTOURANDSURFACE EASURINGMACHINES
ANTI VIBRATION PRECISION METROLOGY TABLES
1 2 3
4 Custom Design Integrated Components
Vibration Isolation Aesthetic Integration

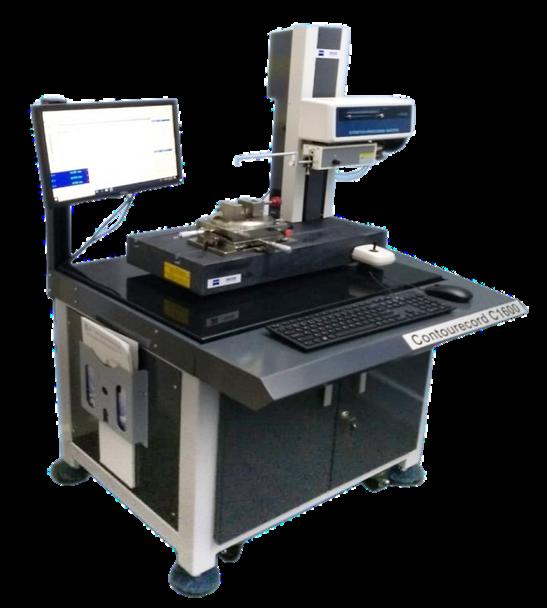

ANTI-VIBRATION TABLES FOR METROLOGY INSTRUMENTS Precision Anti Vibration Table for Measuring Station for Contour Measurements sales@dynemech.com www.vibrationmountsindia.com
ANTI-VIBRATION TABLES FOR METROLOGY INSTRUMENTS sales@dynemech.com www.vibrationmountsindia.com Precision Anti Vibration Table for Measuring Station for Contour Measurements
ANTI-VIBRATION TABLES FOR METROLOGY INSTRUMENTS sales@dynemech.com www.vibrationmountsindia.com Precision Anti Vibration Table for Measuring Station for Contour Measurements
Specifications Specifications
Granite base of size L 750 X B 600 X T 50 mm
60 mm Tubular Structure with cross member
Wrap Around Construction
Swiveling bracket for monitor with tilting facility
65 X 65 mm AV pads at 9 places between structure and granite base
4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
4 No’s – 3” Wheel
Front keyboard panel for keyboard and mouse Power Strip in Rear; controller, CPU and UPS
inside structure
Drawing Pouch L.H Side
Anti Vibration Table for contour and surface measuring machines sales@dynemech.com
ANTI-VIBRATION TABLES FOR METROLOGY INSTRUMENTS Precision
www.vibrationmountsindia.com
Cable manager at rear side
Front double door with handles and lock
Leveling Ball, Spanner 24/27
Powder Coat, structure RAL 9002, side sheets and doors – graphite gray
Instrument sticker
Overall dimensions: L 770 X B 820 X H 730
(over granite base) mm
Precision Anti Vibration Table for contour and surface measuring machines
Execution in wooden box sales@dynemech.com www.vibrationmountsindia.com Specifications Specifications
ANTI-VIBRATION
TABLES FOR METROLOGY INSTRUMENTS
PRECISIONANTI BRATIONTABLEFOR NTOURANDSURFACE ASURINGMACHINES ECONOMICAL ANTI VIBRATION PRECISION METROLOGY TABLE FOR CONTOURECORD C1600-12/-13, P-65
