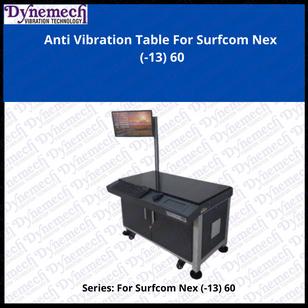

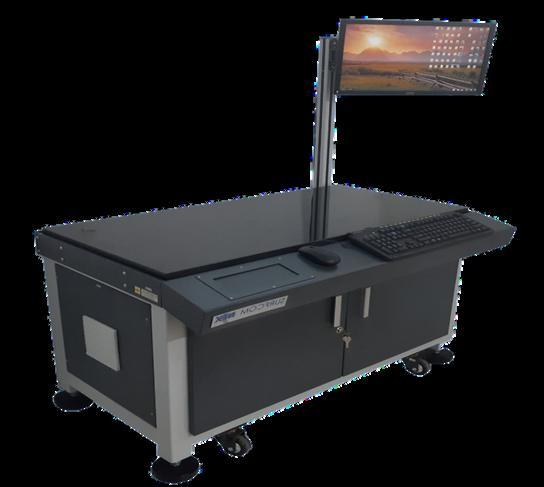

LAB ANTI VIBRATION TABLE FOR

ZEISS SURFCOM NEX ( 14) P-61

PRECISIONANTI IBRATIONTABLEFOR ONTOURANDSURFACE EASURINGMACHINES

ANTI VIBRATION PRECISION METROLOGY TABLES

1 2 3

4 Custom Design Integrated Components

Vibration Isolation Aesthetic Integration

Specifications Specifications

Granite base of size L 1100 X B 550 X T 50 mm

60 mm Tubular Structure with cross member to suit 1000 X 450 X 80 mm Granite Base

Wrap Around Construction

Swiveling bracket for monitor - Monitor Bracket on L.H Rear with swivelling and tilting facility

65 X 65 mm AV pads at 9 places between structure and granite base

4 No’s DLP3 (AV disc with adjustable screws) at Ground Level

4 No’s – 3” Wheel

Front keyboard panel for keyboard and mouse with laser cut joystick pocket, top rim and Zplates at bottom with support plate to fix joystick

Power Strip in Rear & Drawing Pouch L.H Side

Precision Anti Vibration Table for contour and surface measuring machines

ANTI-VIBRATION

TABLES FOR METROLOGY INSTRUMENTS

Controller, CPU and UPS inside structure

Cable manager at rear side

Front double door with handles and lock

Leveling Ball, Spanner 24/27

Powder Coat, structure RAL 9002, side sheets and doors – graphite gray

Instrument sticker

Overall dimensions: L 1120 X B 770 X H 730 (over granite base) mm

Execution in wooden box

Precision Anti Vibration Table for contour and surface measuring machines
