VIBRATION TECHNOLOGY

VIBRATION INSULATION PLATES

ELASTOMERICCOMPOSITEMATERIALSOLUTIONS

Dynemech insulation plates are made from the compound of Nitrile Rubber, Cork, Synthetic Fibre which at varying compositions gives different natural frequencies for providing vibration damping solution to almost every machine tool. These Vibration Insulation plates are resistant to water, oils, lubricating oils, fuels etc. Used in the shop floor. The maximum available size for Dp1, Dp3 is 600x600mm. For all other types, it is 500x500mm. These sheets can be cut & supplied to any smaller sizes as per requirements.

Du Dm Dp1 Dp2 Ds2 3-9 5-10 1-4 1-5 2-8 10-35 15 15 15 20 25 15 35-18 50-30 20-7 30-12 35-8 70-45 0.9 0.7 0.8 0.8 0.8 0.6 ASTM D575 -20 to + 70 -20 to + 70 -20 to + 70 -20 to + 70 -20 to + 70 -20 to + 70 ASTM D575 ASTM D575 ASTM D575 ASTM D575 ASTM D575 Dh

TYPE LOAD Kg./Sq.cm. THKS mm. Natural Frequency Range (Hz). Coeff. of Friction. Load Test 0 Working Temp. Range C 1

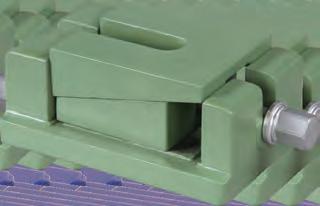

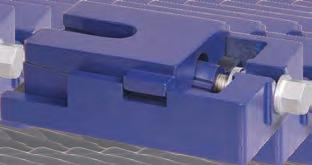

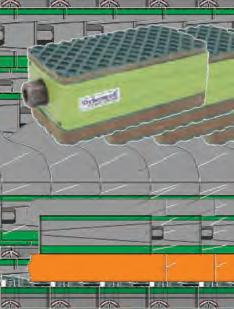

WEDGE MOUNTS, Series : DF

PRECISIONLEVELLINGMOUNTS

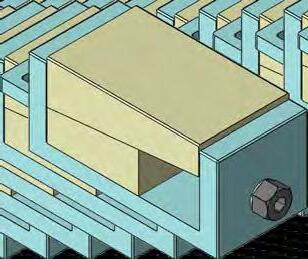

Dynemech Wedge Mounts, Series DF are designed for industrial machine tools that require precision levelling. This three piece wedge mount has an adjustable bolt which moves the centre wedge between top & bottom wedges. Antiskid plate is provided on the top wedge therefore, machines are installed as free standing. Large supporting surface ensures solidity and rigidity. Vibration reduction is possible through assembling respective Dynemech Insulation plates.

Model

DF1-u

DF2-u

DF3-u

DF4-u

DF1-m

DF2-m

DF3-m

DF4-m

DF1-I

DF2-I

DF3-I

DF4-I

DF1-p1

DF2-p1

DF3-p1

DF4-p1

DF1-p2

DF2-p2

DF3-p2

DF4-p2

DF1-p3

DF2-p3

DF3-p3

DF4-p3

DF1-s1

DF2-s1

DF3-s1

DF4-s1

DF1-s2

DF2-s2

DF3-s2 DF4-s2 DF1-h

Applicaons:ToolRoomMachines,PlascInjeconMoulding Machines,PressureDieCasngMachines,Shaper,Prinng andTexleMachinesetc.

Applicaons:LatheMachines,MachiningCentres,Milling Machines,PrecisionGrindingMachines,DrillingMachines,Turning Centres,TransferLinesetc.

Applicaons:PowerPresses,StampingMachines,Shearing Machines,PunchingMachines.Formachineswithhigh vercalimpact.

Applicaons:Tunedtolownaturalfrequency,suitableforpassive vibraoncontrolofmeasuring&tesngmachines,grindersetc.

Applicaons:Measuring&Tesngmachines,surfaceplates, hardnesstesters,microscopes,EDMmachines,proﬁle projectorsetc.

Applicaons:Tunedtolownaturalfrequency,suitableforpassive vibraoncontrolofmeasuring&tesngmachines,grindersetc.

Applicaons:ToolRoomMachinesonsuspendedﬂoors,light weightpresses,compressoretc.

Applicaons:MediumPresses,PunchingPresses,Centreless GrindingMachines,GearShapers,HighSpeedMachines onupperﬂoors.

Applicaons:Veryheavyandlongbedmachines,longmachines centres,plannersetc.

Applicaons:

VIBRATION TECHNOLOGY

DF2-h

DF2-a2 DF3-a2 DF4-a2 DF1 DF2 DF3 DF4 Load Kg/pc 400 900 1500 3200 500 1200 2000 4000 600 1500 2500 5200 230 450 800 1600 180 400 725 1450 340 670 1200 2400 280 560 1000 2000 350 800 1400 2800 1740 3380 6000 12000 570 1120 2000 4000 1200 3000 5000 10400 Length (L)mm 105 150 200 200 105 150 200 200 105 150 200 200 105 150 200 200 105 150 200 200 105 150 200 200 105 150 200 200 105 150 200 200 105 150 200 200 105 150 200 200 105 150 200 200 Adjustment range(mm) 8 10 10 12 8 10 10 12 8 10 10 12 8 10 10 12 8 10 10 12 8 10 10 12 8 10 10 12 8 10 10 12 8 10 10 12 8 10 10 12 8 10 10 12 Height(H) atmean posion (mm) 60 63 70 73 54 57 64 67 70 73 80 83 54 57 64 67 59 62 69 72 63 66 73 76 59 62 69 72 64 67 74 77 60 63 70 73 53 56 63 66 37 40 47 50 Width(B) mm 55 75 100 200 55 75 100 200 55 75 100 200 55 75 100 200 55 75 100 200 55 75 100 200 55 75 100 200 55 75 100 200 55 75 100 200 55 75 100 200 55 75 100 200

INTIAL HEIGHT MAXIMUM HEIGHT MINIMUM HEIGHT ADJUSTMENT CONFIGURATION MACHINE FOOT TOP ANTI BOTTOM INSTALLATION PLATE INSTALLATION CONFIGURATION 2 MACHINE FOOT WEDGE MOUNT LEVELLING SCREW BOTTOM INSULATION PLATE GROUND Series DF DIMENSIONAL DETAIL L H H L B

DF3-h DF4-h DF1-a2

APPLICATIONS

Forlevellingofprecisionmachines.

VIBRATION TECHNOLOGY

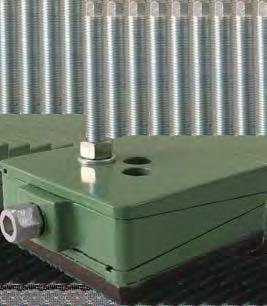

WEDGE MOUNT, Series : DB (Bolt on)

PrecisionLevellingMount

Dynemech Wedge mounts, Series DB are designed for industrial machine tools that require precision levelling, vibration reduction, and/or need to be firmly mounted with the isolator.

DIMENSIONAL DETAIL

INSTALLATION CONFIGURATION

MACHINE FOOT

ADJUSTMENT CONFIGURATION

Applicaons:Forlevellingofprecision machines.

FOOT

MOUNT

SCREW

INSULATION PLATE GROUND

MACHINE

WEDGE

LEVELLING

BOTTOM

MAXIMUM HEIGHT

1 3

DB (BOLT ON) Series

MAXIMUM HEIGHT MAXIMUM HEIGHT

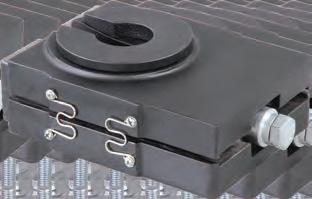

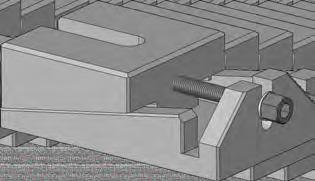

HIGH PRECISION LEVELLING & ALIGNMENT MOUNTS,

Precision Levelling Mounts

The DLF series mounts are made from a high grade casting body. Large supporting surface and high levelling adjustment is available. The slot in the middle allows placement of these mounts after the grounting bolts are fixed in the foundation, Suitable for VTL long bedded CNC machines, large boring machines, plano miller etc.

4 VIBRATION TECHNOLOGY

DFL

Series :

S.No. Model Load Capacity (Kg.) Length L (mm) Width B (mm) Height H (mm) Max. Torque value (mm) Adjustment Range(mm) 1. DFL1-S1-SP1 8000 207 142 86 554 13

1. DFL2-S1 4000 255 155 73 216 5 1. DFL1-S3 12200 188 140 68.3 603 6 1. DFL4 17000 340 200 113 1090 15 1. DFL3-S2 20000 315 150 140 1748 8

DFL1-S1-SP1 DFL1-S3 DFL4 DFL3-S2

S.No. S.No. S.No. S.No. Model Model Model Model Load Capacity (Kg.) Load Capacity (Kg.) Load Capacity (Kg.) Load Capacity (Kg.) Length L (mm) Length L (mm) Length L (mm) Length L (mm) Width B (mm) Width B (mm) Width B (mm) Width B (mm) Height H (mm) Height H (mm) Height H (mm) Height H (mm) Max. Torque value (mm) Max. Torque value (mm) Max. Torque value (mm) Max. Torque value (mm) Adjustment Range(mm) Adjustment Range(mm) Adjustment Range(mm) Adjustment Range(mm)

B L B L H L H L L B L H L B L H L B L H

DFL2-S1

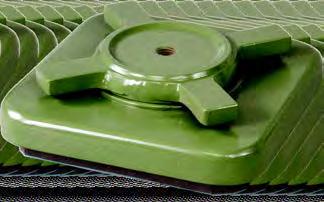

SCREW SUPPORT MOUNT, Series : DLC

ScrewSupportLevellingMounts

DLC Series mounts are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both how frequency attenuation and stable machine levelling.

Applications: Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.

Applications : Very Heavy and long bed machines, long machining centres, planners etc.

5 VIBRATION TECHNOLOGY

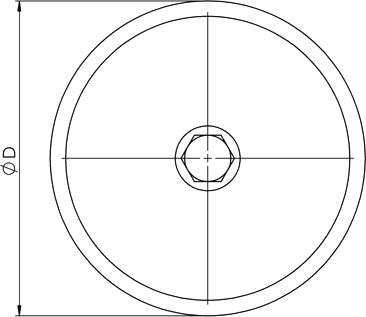

H D

DLC Series

DYNEMECH SCREW SUPPORT MOUNT :

Screw Support Levelling Mounts

The various presses, shears, stamping or ,moulding machines in metal processing shop floor generally generate vibrations that disturb the surroundings. Dynemech Press Mount series DLC-p2-G05 provides effective isolation of impact and operating vibrations. The customized insulation plate Series Dp2-G05 engineered with special profile ensures higher grip and higher vibration isolation for impact generating machine, having medium range of natural frequency.

DLC1-p2-G-05

DLC2-p2-G-05

DLC3-p2-G-05

DLC4-p2-G-05

DLC5-p2-G-05

DLC6-p2-G-05

DLC7-p2-G-05

DLC8-p2-G-05

DLC9-p2-G-05

Dp2-G-05

Technical Specifications of DP2-G-05 Insulation Plate

Resistance to fuels, lubricating oils, cutting oils, water & ozone

composite material made from natrilc rubber, cork particles & polyester fiber. The composite material ensures high damping capacity, high compressive strength & high load capacities

6 VIBRATION

TECHNOLOGY

S. No. 1 2 3 4 5 6 7 8 9 Model

Load Capacity kG/PC 250 575 1000 1600 2300 3100 4000 5200 6500 Diameter D mm 65 98 125 150 180 204 235 270 302 Adjustment Range (mm) 6 8 8 10 10 12 12 18 18 Height H mm 35 42 49 51 53 57 62 77 89 Belt (mm) M12X100 M12X100 M16X100 M16X100 M18X150 M20X150 M20X150 M24X200 M24X200 Bottom Pad Type

Coeff. of Friction against Concrete 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 0.8 Bottom Pad Thickness (mm) 20 20 20 20 20 20 20 20 20 Natural Frequency at Max. Load (Hz) 12 12 12 12 12 12 12 12 12

Load (Kg/sq.cm) Natural Frequency (Hz) Thickness (mm) Coefficient of Friction Shore A Hardness Working Temp. Range (Degree Celsius) Oil & Chemical Resistance Construction S.No. 1 2 3 4 5 6 7 8 Values 01-05 12-30 20 0.8 70-75 -20 to +70

Properties

DLC-p2-G-05 DLC-p2-G-05

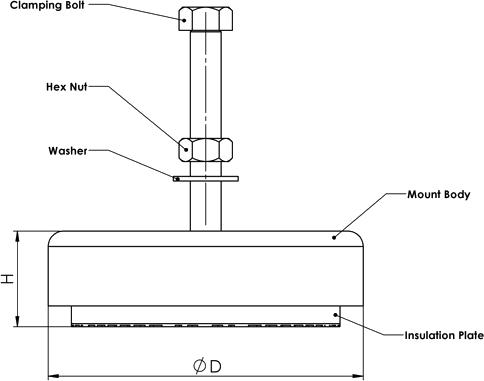

Clamping Bolt Hex Nut Washer Mount Body Insulation Plate

Series :

Series

VIBRATION TECHNOLOGY

SCREW SUPPORT LEVELLING MOUNTS, Series : DL / DLS

Dynemech DL series is used for light to medium weight machines suited to levelling screw support or having tapped hole in the base.

Dynemech DLS series mounts, developed in stainless steel finds application in pharmaceutical, food and beverages processing and packaging units, medical equipment manufacturing and chemical processing industries. Provide vibration isolation with complete hygienic seal and corrosion resistance.

Applications: Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Shaper, Printing and Textile Machines etc.

Applications: Power Presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.

H D

DLS Series Ø DL Series

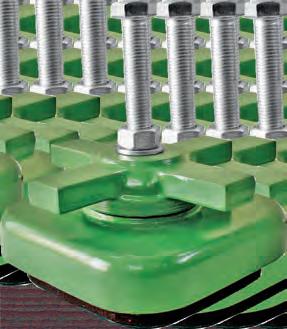

SCREW SUPPORT MOUNT, Series : DLM/DLMS

ElastomericMachineryMounts

Dynemech DLM/DLMS series mounts, developed in low carbon steel and stainless steel respectively are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer low frequency attenuation, stable machine levelling and vibration reduction. The flexible levelling screw accommodates uneven/sloped surfaces.

Series DLMS is used where stainless steel is desired for environmental reasons like in pharmaceutical, food and beverages processing and packaging units, medical equipments manufacturing and chemical processing industries.

One nut fixed with bolt & two nuts free

One nut fixed with bolt & two nuts free

Two free nuts & bolt fixed

These are available in three varients of M, RA and F.

Type M - The bolt can rotate on its axis and moves radially provides compensation of ground unevenness of up to 5° and simple levelling with a great levelling range. The levelling is done by rotating the hex provided at the base of the bolt just above the mount body. Machine base must have a tapped hole. One free nut and washer is provided for clamping after the levelling is completed.

Type RA - The bolt can rotate on its axis and provides simple levelling with a great levelling range. The levelling is done by rotating the hex provided at the base of the bolt just above the mount body. Machine base must have a tapped hole. One free nut and washer is provided for clamping after the levelling is completed.

Type F - The bolt is fixed with the mount body. Two free nuts and a washer is provided. Machine base rests over the bottom nut and washer. Levelling is done by rotating the bottom nut. Machine base must have plain holes. The top nut is used for clamping after the levelling is completed.

Note : Bolt size many vary as per the customer requirement.

8 VIBRATION TECHNOLOGY

DLM/DLMS Series Type-M Type-RA Type-F

VIBRATION TECHNOLOGY

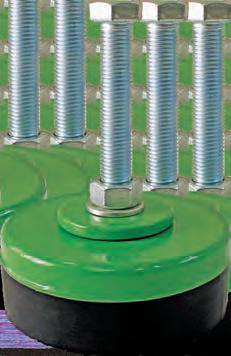

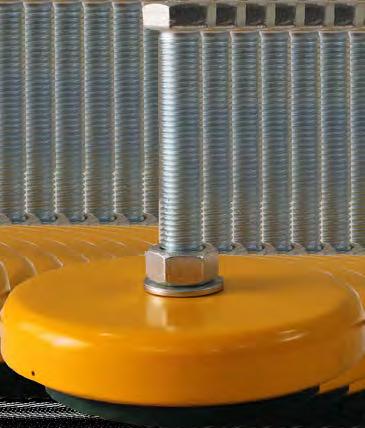

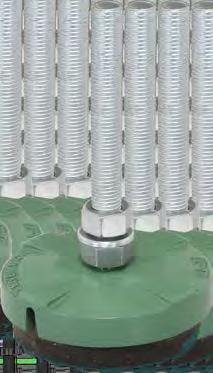

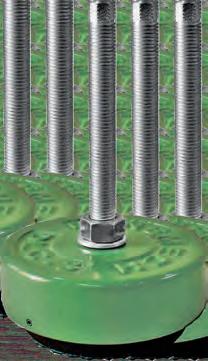

DYNEMECH SCREW SUPPORT MOUNT, Series : DLK

ElastomericMachineryMounts

Dynemech screw support mounts series DLK are simple and effective vibration dampers for machines with respective holes in the base. these mounts offer both low frequency attenuation and stable machine levelling. the DLK series vibration damping and levelling mounts provide fast and easy installation of machines. DLK series anti vibrations mounts have low carbon steel body and are used for machines having mounting holes in the base. this levelling mount has a cover plate and dimpled bottom plate holding the insulation plate. levelling is done by tightening the bolt which lifts the cover plate with the machine base.

Textile Machines, CNC Machines, Power Presses, Plastic Injection Moulding Machines, Pressure Die Casting Machine, Printing Machines, Compressors, Grinding Machines and All Types of Heavy Industrial Applications.

Note : Black coating or Zinc coated bolts availability

Dynemech screw support mounts series DLK-4 are suitable for heavy machine installations. They provide additional damping in shear and radial directions.

Note : DLK-4 Series Bolt Sizes M-10,

M-12, M16, M20, M24, M30 possible on special request. Note : Black coating or Zinc coated bolts availability Model DLK4-a DLK4-b DLK4-c Load Capacity Kg/pc 4000 5000 6000 BoltSize (mm) M24X150 M24X150 M24X150 D (mm) 238 238 238 Height(H) (mm) 78 78 78 Levelling Adjustment Range(mm) +20 +20 +20 Applicaons DLK1-a DLK1-b DLK1-c DLK2-a DLK2-b DLK2-c DLK3-a DLK3-b DLK3-c DLKH2-c DLKH3-c 580 750 900 1200 1900 2600 2900 3400 4200 2600 4200 M12X100 M12X100 M12X100 M16X100 M16X100 M16X100 M20X150 M20X150 M20X150 M16X100 M20X150 92 92 92 135 135 135 195 195 195 135 195 50 50 50 50 50 50 58 58 58 62 72 +10 +10 +10 +10 +10 +10 +12 +12 +12 +20 +20 Model Load Capacity Kg/pc BoltSize (mm) D (mm) Height(H) (mm) Levelling Adjustment Range(mm) Applicaons

DYNEMECH SCREW SUPPORT MOUNT, Series : DLK-4 DLK Series

Hex Head Bolt Small Hex HeadBolt Hex Nut Hex HeadBolt MACHINE FOOT Rotating Clockwise for Levelling Low Carbon Steel Note:PleaseselectBoltHeadas pertherequirement Note

PleaseselectBolt Headaspertherequirement

DLK4 Series

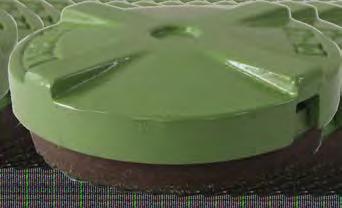

DYNEMECH SCREW SUPPORT MOUNT, Series :

ElastomericMachineryMounts

Dynemech Screw Support Mounts series DLK-LP are simple and effective vibration dampers for machines with respective holes in the base. These mounts offer both low frequency attenuation and stable machine levelling. The DLK-LP Series has a lower height for fast and easy installation of machines. DLK-LP Series anti vibrations mounts have low carbon steel body and are used for machines having mounting holes in the base. This levelling mount has a cover plate and dimpled bottom plate holding the insulation plate. Levelling is done by tightening the bolt which lifts the cover plate with the machine base.

DLK-LP Series

DLK1-LP-a

DLK1-LP-b

DLK1-LP-c

DLK2-LP-a

DLK2-LP-b

Note:PleaseselectBoltHeadas pertherequirement

Textile Machines, CNC Machines, Power Presses, Plastic Injection

Moulding Machines, Pressure Die Casting Machine, Printing Machines, Compressors, Grinding Machines and All Types of Heavy Industrial Applications.

Note : DLK-LP Series Bolt Sizes M-10, M-12, M16, M20, M24, M30 possible on special request. Note : Black coating or Zinc coated bolts availability

TECHNOLOGY

VIBRATION

DLK-LP

DLK3-LP-c 580 750 900 1200 1900 2600 2900 3400 4200 M12X100 M12X100 M12X100 M16X100 M16X100 M16X100 M20X150 M20X150 M20X150 93 93 93 135 135 135 187 187 187 +10 +10 +10 +10 +10 +10 +10 +10 +10

DLK2-LP-c DLK3-LP-a DLK3-LP-b

Model Load Capacity Kg/pc BoltSize (mm) D (mm) Height(H) (mm) Levelling Adjustment Range(mm) Applicaons 36 36 36 34.5 34.5 34.5 34.5 34.5 34.5 Hex Head Bolt Small Hex HeadBolt

OpenTypeSpringIsolators

11 VIBRATION TECHNOLOGY

OPEN SPRING

Series : DOS-B

Hex Head Bolt Small Hex HeadBolt Note:PleaseselectBoltHeadas pertherequirement DLM Series

DYNEMECH FLOOR MOUNTED

ISOLATORS,

DOS Series LEVEL MOUNT, Series : DML ElastomericMachineMounts

VIBRATION TECHNOLOGY

HEAVY DUTY LEVELLING GRIP MOUNTS, Series : DRM

HeavyDutylevellingMounts

DRM mounts levelling is done using a large lever screw. This screw transmits static and dynamic load of the machine on a larger area and thus provides greater stability to the machine. The levelling leaver requires lesser torque for lifting the machine while levelling.

MACHINERY RAISER DAMPING BLOCK, Series: DRS

DRS series mounts are available in different heights as per the required ground clearance. The options of threading and dimple are available for levelling the machine. The vibration reduction is done using vibration isolation sheet of tuned natural frequency under the base of this mount.

DRS1-50-m

DRS1-65-h

DRS1-95-h

DRS1-100-h

DRS2-65-h-u

bolt size.

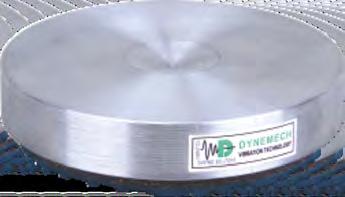

MACHINERY RAISER DAMPING BLOCKS, Series DR

DYNEMECH Series DR, are suitable for machines having tapped hole in the base. The bolt rests over the dimple provided on the top face of the mount. Dimple size is provided as per the bolt diameter in the machine base.

*Dimple size can be customized

Load kg/pc 1000 3300 Model DRM1-150-S2 DRM2-232-S2 length L (mm) 150 232 Width B (mm) 150 232 Height H (mm) 77 77 Levelling Adjustment 20 20 Sl.no. 1 2

as per available

Model

Load kg/pc 1160 3450 3450 3450 7200 HeightH (mm) 50 65 95 100 65 A (mm) 150 150 150 150 150 Dimple 28 27 27 32 32 Natural Frequency 30 45 45 45 45 coeﬃcient offricon 0.7 0.6 0.6 0.6 0.6 S.No. 1 2 3 4 5

Model DR1-u DR2-u DR3-u Load Capacity Kg/pc 350 600 900 Model DR1-m DR2-m DR3-m Model DR1-h DR2-h DR3-h Model DR1-s2 DR2-s2 DR3-s2 Load Capacity Kg/pc 300 550 850 Model DR1-s1 DR2-s1 DR3-s1 Load Capacity Kg/pc 200 375 575 Dia(D) (mm) 109 150 170 H u/m/h (mm) 100/150 100/150 100/150 D mm 87 108 136 Load Capacity Kg/pc 450 800 1150 Load Capacity Kg/pc 1200 2400 3500 H s1 (mm) 105/155 105/155 105/155 H s2 (mm) 110/160 110/160 110/160

DRM1-150-S2

DRS Series Series DR H A A/2

DRM1-232-S2

VIBRATION TECHNOLOGY

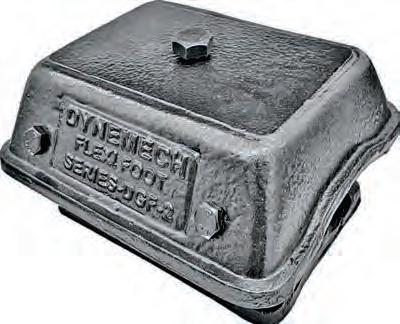

FLEXIFOOT MOUNT, Series : DGF

COMPRESSIONSHEARMOUNT

Dynemech Flexi Foot Mounts, Series DGF is well suited for machines requiring vibration damping in both compression and shear. An anti skid plate is provided in the base of the mount to prevent machine walking. These mounts can also be anchored to the floor through the holes provided in the base for machines producing high unbalance forces.

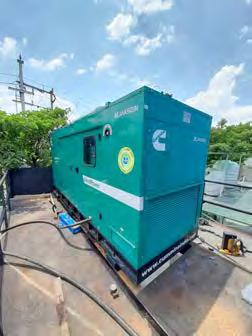

Applications: Generators, Blowers, Pumps, ID & FD Fans, Cooling Towers, etc.

DGF Series

DGF0-B DGF0-C DGF0-D DGF0-E 85 85 85 85 85

DGF0-A

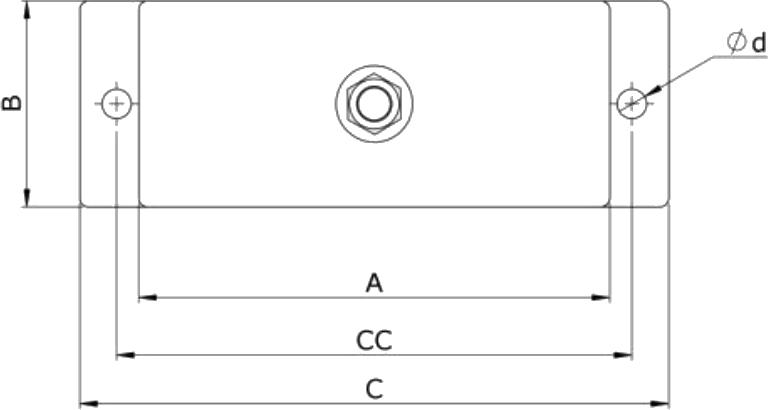

SANDWICH MOUNT, Series : DMS

CompressionShearMounts

The sandwich mounts comprise one or more layers of elastomer bonded to flat steel plates. They are designed to withstand very high compressive loads. These mounts have large supporting surface area and are slim. These mounts can also be stacked to achieve lower natural frequencies.

SeriesDSM-250/75 SeriesDSM-240/50

Dynemech Sandwich Mounts Series DSM are available in various standard and customized sizes. These mounts provides support to motors, pumps and equipment installed on a machine body. These mounts provides high vibration isolation efficiency.

14 VIBRATION TECHNOLOGY

lenghth L (mm) width B (mm) heigth H (mm)

DMS2-sp1 DMS1 DMS1 DMS2 h DMS2 C x D CC C x D G CC L x B H L x B d H

240

DSM-240/50

SANDWICH

MOUNT, Series : DSM

VIBRATION TECHNOLOGY

STUD MOUNT, Series : DS

COMPRESSIONSHEARMOUNT

DYNEMECH Stud Mounts, Series DS are highly effective and compact. vibration dampers for a variety or applications like - Compressors, Pumps, ID & FD fans, Motors, Machine tools, Gensets, Air Conditioners, Measuring and Testing Equipments/ instruments, Material Handling Equipments, Laboratory Equipments etc.These mounts can be used for load applications in compression.

Series DS

Model

DSa10-10

DSb10-10

DSc10-10

DSa15-15

DSb15-15

DSc15-15

DSa20-15

DSb20-15

DSc20-15

DSa20-25

DSb20-25

DSc20-25

DSa20-30

DSb20-30

DSc20-30

DSa22-09

DSb22-09

DSc22-09

DSa22-25

DSb22-25

DSc22-25

DSa22-35

DSb22-35

DSc22-35

DSa25-25

DSb25-25

DSc25-25

DSa25-30

DSb25-30

DSc25-30

DSa30-30

DSb30-30

DSc30-30

DSa40-30

DSb40-30

DSc40-30

DSa40-35

DSb40-35

DSc40-35

D (mm) 10 10 10 15 15 15 20 20 20 20 20 20 20 20 20 22 22 22 22 22 22 22 22 22 25 25 25 25 25 25 30 30 30 40 40 40 40 40 40 H (mm) 10 10 10 15 15 15 15 15 15 25 25 25 30 30 30 09 09 09 25 25 25 35 35 35 25 25 25 30 30 30 30 30 30 30 30 30 35 35 35 G (mm) M4 M4 M4 M4 M4 M4 M6 M6 M6 M6 M6 M6 M6 M6 M6 M6 M6 M6 M6 M6 M6 M6 M6 M6 M8 M8 M8 M8 M8 M8 M8 M8 M8 M10 M10 M10 M10 M10 M10 L (mm) 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 33 33 33 33 33 33 33 33 33 38 38 38 38 38 38 Load Kgs. 2 4 6.5 4 9 15 9 18 25 7 16 24 10 20 30 08 18 26 09 18 27 10 19 28 12 28 39 10 22 30 17 37 57 34 70 110 40 75 114 Natural Frequency (Hz) 12 15 15 12 12 12 12 12 12 10 10 12 10 10 12 10 10 12 12 12 12 12 12 12 12 12 12 9 9 9 8 8 8 7 8 8 7 8 8 Type DS-MF G H D Type DS-FF G H D Type DS-FP G H D Type DS-MP G H D Type DS-MM G H D L L ASSEMBLY Compression

STUD MOUNT, Series : DS

COMPRESSIONSHEARMOUNT

Model

DSa40-40

DSb40-40

DSc40-40

DSa50-20

DSb50-20

DSc50-20

DSa50-30

DSb50-30

DSc50-30

DSa50-45

DSb50-45

DSc50-45

DSa50-50

DSb50-50

DSc50-50

DSa60-25

DSb60-25

DSc60-25

DSa60-30

DSb60-30

DSc60-30

DSa60-45

DSb60-45

DSc60-45

DSa60-55

DSb60-55

DSc60-55

DSa75-25

DSb75-25

DSc75-25

DSa75-55

DSb75-55

DSc75-55

DSa80-60

DSb80-60

DSc80-60

DSa100-45

DSb100-45

DSc100-45

DSb100-55

DSc100-55

DSa100-55

DSb100-90

DSc100-90

DSa100-90

DSb105-55

DSc105-55

DSa105-45

DSb125-45

DSc125-45

DSb125-45

DSc150-55

DSa150-55

DSb150-55

DSc250-125

DSa250-125

DSb250-125

16 VIBRATION TECHNOLOGY

D (mm) 40 40 40 50 50 50 50 50 50 50 50 50 50 50 50 60 60 60 60 60 60 60 60 60 60 60 60 75 75 75 75 75 75 80 80 80 100 100 100 100 100 100 100 100 100 105 105 105 125 125 125 150 150 150 250 250 250 H (mm) 40 40 40 20 20 20 30 30 30 45 45 45 50 50 50 25 25 25 30 30 30 45 45 45 55 55 55 25 25 25 55 55 55 60 60 60 45 45 45 55 55 55 90 90 90 55 55 55 45 45 45 55 55 55 125 125 125 G (mm) M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M10 M16 M16 M16 M16 M16 M16 M16 M16 M16 M16 M16 M16 M16 M16 M16 M16 M16 M16 M16 M16 M16 M16 M16 M16 M16 M16 M16 M24 M24 M24 L (mm) 38 38 38 38 38 38 38 38 38 38 38 38 38 38 38 38 38 38 38 38 38 38 38 38 38 38 38 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 80 80 80 Load Kgs. 30 60 95 45 90 135 50 100 150 55 110 160 60 115 165 85 170 250 70 140 190 75 150 200 80 155 205 115 250 380 125 275 400 150 300 450 240 490 735 250 500 750 275 550 900 255 505 755 425 785 1100 450 800 1300 12000 15000 20500 Natural Frequency (Hz) 7 8 8 8 8 8 8 8 8 8 8 8 8 8 8 6 7 7 7 7 7 7 7 7 7 7 7 6 7 7 6 7 7 6 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 8 8 7 8 8 7 8 8

Series

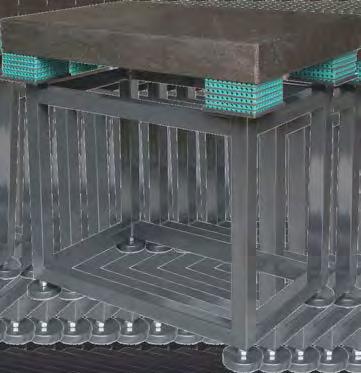

ANTI VIBRATION TABLE WITH ELASTOMERIC ISOLATION,

SHOCKRESISTANTTABLE/PLATFORM

Up-to5layeredDP insulaonsheets

Two Levels of Vibration Isolation

DLMmounts forlevelling andvibraon control

Dynemech Anti Vibration Tables-Series DIT- E are ideal for Testing/Quality Laboratories co-located with industrial units having high degree of vibration due to working machines like presses, hammers, VMCs etc. The vibrations are isolated using double-layered DP Elastomeric sheets. These Anti-Vibration tables have a granite surface plates with Grade-00/Grade-01 accuracy for very precise measuring accuracies. The passive vibrations from nearby motors and other heavy machinery is reduced by 65-70%. The Vibration isolation efficiency of these tables cab be further increased by placing more than 2 layers of our DP insulation sheets. Five layer of DP exhibits a natural frequency of 7-8 Hz. Which damps most of the incoming frequenciesabove20Hz.

APPLICATION : The vibration isolated table (VIT) finds usage in critical areas where reading accuracy of instrument like Balance, Galvanometers, Electronics Microscopes and atomic absorption Spectrophotometers,isaffectedbyvibrations.

With this specialized design, we obtain a very precise and highly shock resistant Anti-vibration table.

Model

DIT-E/01

DIT-E/01/s1

DIT-E/02

DIT-E/03

DIT-E/04

*Special table sizes and designs can also be ordered as per client's requirements

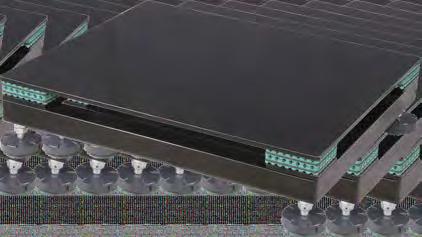

DynemechAnti Vibration Platform, are ideal for precision lab balances / microscopes/testing & measuring or scientific instruments and other vibration sensitive equipment like probes etc. They are suitable for equipment in Testing / Quality/Medical & Biological Laboratories co-located nearby industrial units/commercial units having high degree of vibration transmission due to vehicular traffic, HVAC installations and other vibration creating equipment.Audio centres and Research laboratories may find use of Dynemech Vibration Isolation Platforms for the vibration sensitive equipments.

Dynemech Anti Vibration Platform VIP-E The Vibrations are isolated using Double-Layered Dp Elastomeric Sheets where in vibration transmission by 65-70%. The vibration isolation efficiency of these tables can be further increased by placing more than 2 layers of our Dp insulation Sheets. Five layers of DP exhibits a natural frequency of 7-8 Hz. which damps most of the incoming frequencies above 15 Hz.

VIP-E-03

VIP-E-04

VIP-E-05 VIP-E-06

17 VIBRATION TECHNOLOGY

Length (mm) 500 630 750 900 1000 Width (mm) 500 630 500 600 800 Height (mm) 800-1000 800-1000 800-1000 800-1000 800-1000 SurfacePlate Thickness (mm) 80 80 80 100 150 Table

(Kg) upto250 upto250 upto-450 upto-1250 upto-1250 NaturalFrequency atMax.load (Hz) 7to8 7to8 7to8 7to8 7to8

PLATFORM, Series: VIP- E S.No. 1 2 3 4 5 6 7 Model

Load Capacity

ANTI-VIBRATION

VIP-E-01 VIP-E-01-S1 VIP-E-02

LoadCapacity (Kg) upto100 upto150 upto200 upto250 upto400 upto500 upto750 Length L (mm) 500 600 750 900 1000 1500 1800 Width B (mm) 500 600 500 600 800 1000 1200 Height H (mm) 170 170 170 170 180 180 200 TopPlateThickness T (mm) 10 10 15 15 20 20 25

DIT-E

L B Low Carbon Steel Plate DP1 Insulation Sheet Base Frame DLM Levelling Mounts H

VIP-E Series

Series : DIT-E

VIBRATION TECHNOLOGY

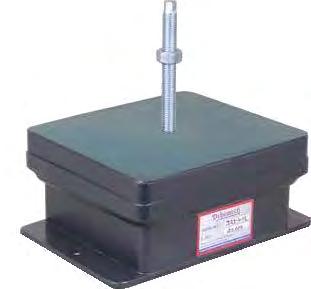

SPRING ISOLATORS, Series : MAI

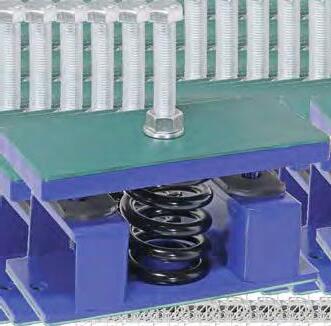

EnclosedSpringIsolators

A spring isolator gives desired natural frequency to obtain phase difference in the frequencies for a rotating machine and HVAC Equipments. Viscous damping is an important feature of an isolation system. In most cases viscous damping is required to limit excessive movement which could occur as a machine operates at a speed near to, or coinciding with the resonant frequencies of the system. Generally this problem arises during slow run up and run down of rotating machines.

Model

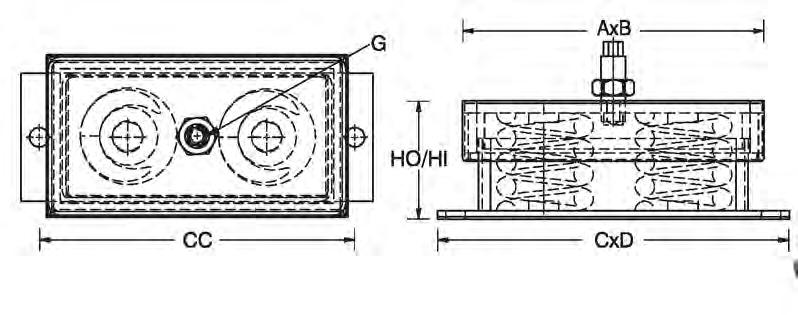

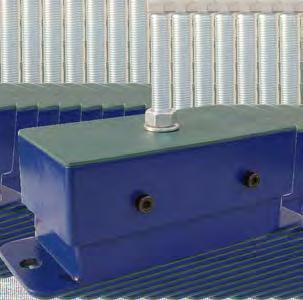

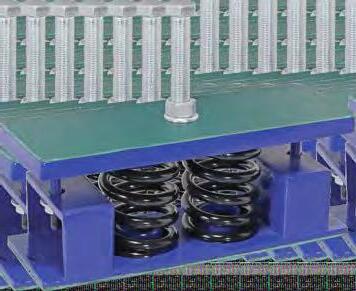

SPRING ISOLATORS, Series : MBI

MBI-LK4

MBI-P5 MBI-P4

MAI-H2 MAI-J2 MAI-L3 MAI-K3 MAI-P5 MAI-P3 LOAD kg 25-200 30-300 50-500 200-850 250-900 500-1400 HO mm 66 84 84 69 82 92 HI mm 86 101 101 75 91 101 BoltSize (G) M12 M12 M12 M12 M12 M12 Topplate (AxB) mm 110x110 125x125 125x125 125x125 125x125 125x125 BoomPlate (CxD) mm 110x110 125x125 125x125 125x125 125x125 125x125 CC mm 90 95 95 95 95 95 Natural Frequency (Hz) 3.5-10 3.5-11 3.5-11 5.0-10 5.0-09 5.0-09

MBI-J4 MBI-L4

60-580 10-1000 400-1700 500-1800 1000-2800 96 86 69 86 91 110 105 80 95 105 M12 M12 M12 M12 M12 271x096 271x096 271x096 271x096 271x096 221x117 221x117 189x119 236x121 221x117 241 241 211 261 241 3.5-11 3.5-11 5.0-10 5.0-10 5.0-08 Model LOAD kg HO mm HI mm BoltSize (G) Topplate (AxB) mm BoomPlate (CxD) mm CC mm Natural Frequency (Hz)

SeriesMAI SeriesMBI

SPRING ISOLATORS SERIES : RAD-RT

EnclosedRoundSpringElementsWith ViscousDamping

SERIES : RBD-RT

19 VIBRATION TECHNOLOGY S.No. 1 2 3 4 5 6 7 MODEL RAD-J2-RT RAD-L4-RT RAD-P4-RT RAD-K6-RT RAD-P5-RT

RAD-J2-A2-RT Load(Kg) 30-300 50-500 500-1400 200-850 250-900 25-200 30-300 FreeHeight (H) 101 101 101 101 91 101 108 BoltSize M12 M12 M12 M12 M12 M12 M12 TopPlate (AxB) (mm) 125x125 125x125 125x125 125x125 140x140 125x125 125x125 BoomPlate (CxD) (mm) 125x125 125x125 125x125 125x125 140x140 125x125 125x125 CC (mm) 95 95 95 95 120 95 95 NaturalFrequency range (Hz) 3.5-11 3.5-11 5.0-8.0 5.0-10 5.0-10 3.5-10 3.5-11 S.No. 1 2 3 4 5 6 MODEL Load(Kg) FreeHeight (H) BoltSize TopPlate (AxB) (mm) BoomPlate (CxD) (mm) CC (mm) NaturalFrequency range (Hz) RBD-J2-RT RBD-L4-RT RBD-P4-RT RBD-K6-RT RBD-P5-RT RBD-H2-RT 60-580 100-1000 1000-2800 400-1700 500-1800 50-400 108 108 108 108 98 108 M12 M12 M12 M12 M12 M12 235x235 235x235 235x235 235x235 245x245 235x235 3.5-11 3.5-11 5.0-8.0 5.0-10 5.0-10 3.5-10 205 205 205 205 215 205 235x235 235x235 235x235 235x235 245x245 235x235

RAD-H2-RT

RAD-RT RBD-RT

SPRING ISOLATORS, Series : DSI

Enclosed SpringIsolatorsWith ViscousDamping

DSI-2.10

DSI-2.12

DSI-2.16

DSI-2.11-S3

DSI-2.16-SPL

Model

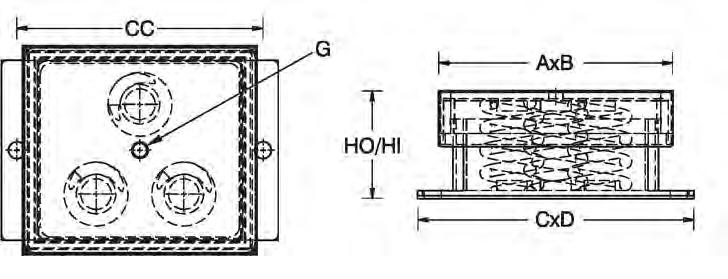

DSI-3.10

DSI-3.12

DSI-3.16

DSI-3.11-S3

DSI-3.16-SPL

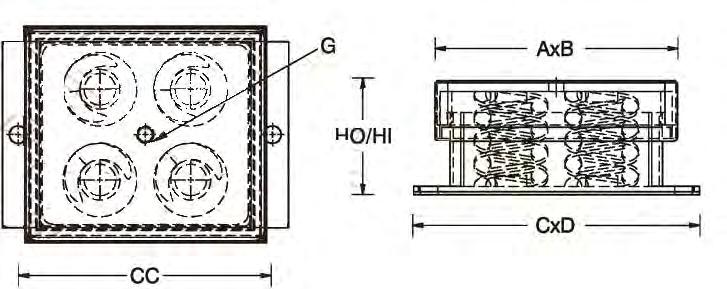

SERIESDSI-4

Model

DSI-4.10

DSI-4.12

DSI-4.16

DSI-4.11-S3

DSI-4.16-SPL

VIBRATION TECHNOLOGY

Natural Frequency (Hz) 3.5-11 3.5-11 5.0-09 5.0-10 5.0-10

Model

Load. kg 60-580 100-1000 1000-2800 400-1700 500-1800 HeightUnder LoadHO (mm) 103 103 103 74 89 FreeHeight HI (mm) 112 112 112 85 98 Bolt Size G M12 M12 M12 M12 M12 TopPlate (AxB) mm 232x127 232x127 232x127 208x138 252x137 BoomPlate (CxD) mm 271x96 271x96 271x96 241x101 291x106 CC mm 241 241 241 211 261 Natural Frequency (Hz) 3.5-11 3.5-11 5.0-8.0 5.0-10 5.0-10

Load. KG 82-900 150-1500 1500-4100 600-2550 750-2700 HeightUnder LoadHO (mm) 103 103 103 74 89 FreeHeight HI (mm) 112 112 112 85 98 Bolt Size G M16 M16 M16 M16 M16 TopPlate (AxB) mm 232x213 232x213 232x213 202x177 252x228 BoomPlate (CxD) mm 271x176 271x176 271x176 241x146 291x196 CC mm 241 241 241 211 261 Natural Frequency (Hz) 3.5-11 3.5-11 5.0-8.0 5.0-10 5.0-10

Load. KG 110-1200 200-2000 2000-5500 800-3400 1000-3600 HeightUnder LoadHO (mm) 103 103 103 74 89 FreeHeight HI (mm) 112 112 112 85 98 Bolt Size G M16 M16 M16 M16 M16 TopPlate (AxB) mm 232x213 232x213 232x213 202x177 252x228 BoomPlate (CxD) mm 271x176 271x176 271x176 241x146 291x196 CC mm 241 241 241 211 261

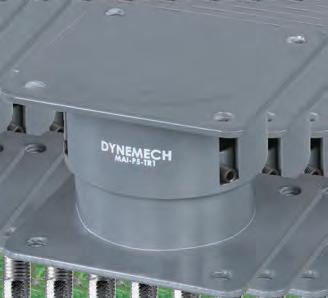

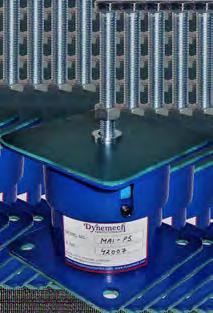

SPRING ISOLATORS, SERIES : MAI-P5-TR1

Housed Spring Isolators

MAI-P5-TR1 Series

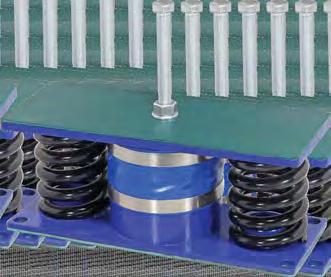

SPRING ISOLATORS, SERIES : RBD-OPSD WITH SAFETY VISCOUS DAMPING

RBD-OPSD Series

S.NO. 1 MODEL MAI-P5-TR1 LoadMax. (Kg) 1200 FreeHeight (H)mm 90 Heightat maximum Load (mm) 72 TopPlate AXB (mm) 130x130 BoomPlate (CxD) (mm) 130x130 Mounng Center Distance (ExF)(mm) 100x100 SpringRate (KN/mm) K(Vercal) 0.9+/-0.1 SpringRate (KN/mm)K (Horizontal) 1.3+/-0.2 S.NO. 1 2 3 4 5 6 MODEL RBD-J2-OPSD RBD-L4-OPSD RBD-P4-OPSD RBD-K6-OPSD RBD-P5-OPSD RBD-H2-OPSD Load(Kg) 60-580 100-1000 1000-2800 400-1700 500-1800 50-400 FreeHeight (H) 108 108 108 83 98 94.5 Heightat maximum Load (mm) 91 91 99 77 89 74.5 BoltSize (G) M12 M12 M12 M12 M12 M12 TopPlate (AxB) (mm) 275x110 275x110 275x110 275x110 285x120 275x110 Boom Plate (CxD) (mm) 275x110 275x110 275x110 275x110 285x120 275x110 CC (mm) 255x90 255x90 255x90 255x90 265x100 255x90 Natural Frequencyr ange (Hz) 3.5-11 3.5-11 5.0-8.0 5.0-10 5.0-10 3.5-10

VIBRATION TECHNOLOGY

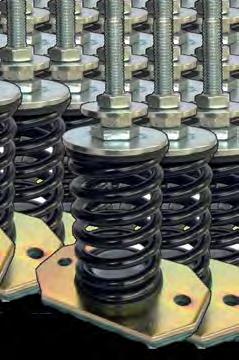

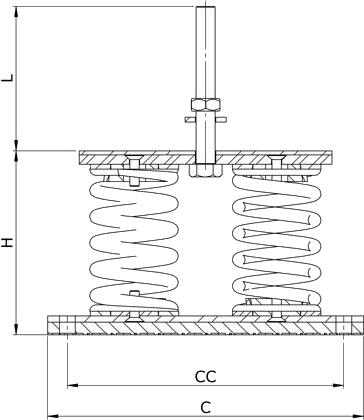

FLOOR MOUNTED OPEN SPRING ISOLATORS, Series : DOS-B

OpenTypeSpringIsolators

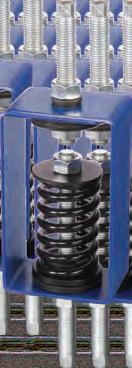

HANGER TYPE SPRING ISOLATORS, Series DIH

TECHNOLOGY M12 M12 M12 M12 M12 M12 M12 M12

VIBRATION

DOS Series D C B G F J H A (Free Height) E DIH Series

SPRING ISOLATORS, SERIES (RESTRAINED TYPE): MAI-RSTD

RESTRAINED SPRING ISOLATORS

MAI-J2-RSTD

MAI-L4-RSTD

MAI-P4-RSTD

MAI-K6-RSTD

MAI-P5-RSTD

MAI-RSTD Series

TopPlate (AxB) (mm)

BoomPlate (CxD)(mm)

SPRING ISOLATORS, SERIES (RESTRAINED TYPE): MBI-RSTD

MBI-RSTD Series

VIBRATION TECHNOLOGY

3 4 5 6 7

NO. 1 2

MODEL

Load (Kg) 30-300 50-500 500-1400 200-850 250-900 10-60 25-200 Free Height (mm) 115 115 115 115 105 115 115 Height Under Load(mm) 95 95 106 109 96 95 95 Bolt (G) M16 M16 M16 M16 M16 M16 M16

220x100 220x100 220x100 220x100 220x100 220x100 220x100

MAI-F2-RSTD MAI-H2-RSTD

220x100 220x100 220x100 220x100 220x100 220x100 220x100 Mounng CenterDistance (CC)(mm) 200 200 200 200 200 200 200 Natural Frequency range(Hz) 3.5-11 3.5-11 5.0-8.0 5.0-10 5.0-10 3.0-8.0 3.5-10 S.NO. 1 2 3 4 5 6 7 MODEL MAI-J2-RSTD MAI-L4-RSTD MAI-P4-RSTD MAI-K6-RSTD MAI-P5-RSTD MAI-F2-RSTD MAI-H2-RSTD Load (Kg) Free Height (mm) 115 115 115 115 105 115 115 Height Under Load(mm) 95 95 106 109 96 95 95 Bolt (G) M16 M16 M16 M16 M16 M16 M16 TopPlate (AxB) (mm) BoomPlate (CxD)(mm) Mounng CenterDistance (CC)(mm) 270 270 270 270 270 270 270 Natural Frequency range(Hz) 3.5-11 3.5-11 5.0-8.0 5.0-10 5.0-10 3.0-8.0 3.5-10 60-600 100-1000 1000-2800 400-1700 500-1800 20-120 50-400 290x100 290x100 290x100 290x100 290x100 290x100 290x100 290x100 290x100 290x100 290x100 290x100 290x100 290x100

DYNEMECH INSULATION SHEETS

Tuned to different natural frequencies for different applications.

WEDGE MOUNTS

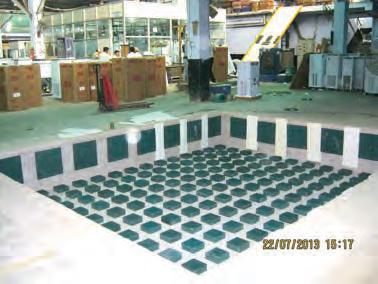

FOUNDATION ISOLATION For Active and Passive Vibration isolation of CMMs,Power Presses, Forging Hammers, Engine Test Rigs etc.

Series DF/DFP For CNC Grinding/Machining Centres,Turning Centres etc.

WEDGE MOUNTS

Series DFH/DBH/DTH These Mounts are sturdy in construction, useful for installing very heavy or long bedded machines.

JACKUP MOUNTS

Series DJM

Anchoring is possible with

DRS CNC MACHINE MOUNTS

Series DRS For Levelling Machine having Tapped Hole, Dimple or Through Hole Variants.

STUD MOUNTS

WEDGE MOUNTS

Series DB/DBP For Power Presses, Pressure Die Casting Machines etc.

Taper Shim Levelling Mounts

Series TSOH/TSPOH have a ange at the bottom to provide precise levelling after xing to rigid support for the equipment.

SCREW SUPPORT MOUNTS

Series DLS/DLMS In Stainless Steel for Pharma, Food, Medical and Allied industries.

SANDWICH MOUNTS

Series DMS For Fans, Blowers etc.

Series DS For Compressors, Pumps, ID and FD Fans, Motors, Gen Sets etc.

MEMBRANE AIR SPRINGS

Series DMAS BH/BL For CMM, Gear Prole testing, Hardness Tester etc.

Membrane Air Springs (Self Levelling)

WEDGE MOUNTS

Series DT/DTP For Machines which produce unbalanced Forces and must be anchored to the Ground

SCREW SUPPORT MOUNTS

Series DL/DLM/DLC/DLT For light to medium weight machines

MACHINE BASE MOUNTS

Series SL For Machines with Tapped Hole in the base of the machine.

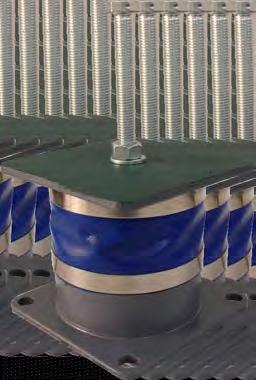

COMPAC MACHINERY MOUNTS

Series DH for Compression, Shear and Radial Vibration Damping.

MEMBRANE AIR SPRINGS

Series DMAS SH/SL For all high precision Metrology Equipments.

Membrane Air Springs (Self Levelling)

WEDGE MOUNTS

Series DBSP/DTSP/DFSP To transmit the load of the machine 0 to the ground @ 90 despite angle difference between machine base and foundation.

RUBBER

AIR SPRINGS Auto-Levelling Pneumatic Vibration Isolator

Series DLPM Low Frequency, Vibration Damping with Auto-Levelling.

LEVEL GRIP MOUNTS

Series DRM For Machine Levelling using a Larger Lever Screw.

SANDWICH MOUNTS

Series DSM For motors, pumps and other equipments.

HORIZONTAL STOPS BUFFER MOUNTS

Series DHS For shock absorption in machines with high axial force.

Series RB Available in different sizes and rubber compositions based on application.

RUBBER AIR SPRINGS

Series DRAS For Low Frequency Vibration Damping of EDM Machines, Measuring and Testing Instruments.

WEDGE MOUNTS

Series DBO/DBOP/DTO/DTPO For anchoring CNC, VMC, Pressure Die Casting etc.

SCREW SUPPORT MOUNTS

Series DLK/DLK-4/DLKR Cost effective solutions for low frequency attenuation and stable machine levelling.

TEXL FOOT MOUNTS

Series DTXL Simple, ready to install conguration for stability and vibration control.

FLEXIFOOT MOUNTS

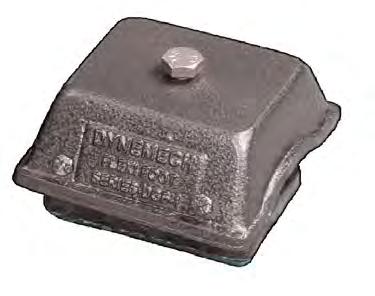

Series DGF For Quick and Easy Installation of DG Sets, Blowers etc.

MACHINERY RAISER MOUNTS

Serie DR/DRC For raising Height of the Machines, besides Vibration Damping and having Hole or Bolt in the Base

MAC LEVEL MOUNTS

Series DML For Economical and Easy Instalation of Light Weight Machines

HIGH PRECISION LEVELLING & ALIGNMENT MOUNTS

Series DFL

VIBRATION TECHNOLOGY

Product Range

PRECISION LEVELLING MOUNTS

Series VHS The Levelling can be done after the unit is Anchored to the Floor. Faster Installation of Long Bedded Machines.

SPRING ISOLATOR

Series RT/RT-SP2 For Presses, Embroidery, Fatigue Testing Machines etc.

OPEN SPRING HANGER MOUNT Series DIH

VIBRATION PLATFORM

SHOCK MOUNTS

Series DXO For Forging Hammers, Heavy Power Press, Gen Sets and all types of very Heavy Industrial Machines.

SPRING ISOLATOR

Series MAI-P5-TR/RAD-RT-2L For Machines requiring Low Frequency isolation.

OPEN SPRING COMPRESSION MOUNTS Series DOS

SPRING ISOLATOR For Forging Hammers, Heavy Power Press, Bowl Mills, Crushers and Turbines

SPRING ISOLATORS

Series MAI/MBI/MDI For all Textiles, Chillers, Gensets etc

SPRING ISOLATOR

Series RDD/RFD With Multi Degree Restrainer for Medium Stroke Presses.

SPRING ISOLATOR

Series RFD-Y4 For Heavy Machine Tools & High Speed Presses.

SPRING ISOLATOR WITH PRE-COMPRESSION & SEISMIC RESTRAINER

Series RT-SP2 LVL

SPRING ISOLATOR

Series OPSD For Gen Sets, Chillers, Embroidery Machines etc. SPRING ISOLATOR

VIBRATION TECHNOLOGY

SPRING

Series MDI Customized Series.

AIR SPRING

ANTI

PLATFORM ANTI VIBRATION PLATFORM ANTI VIBRATION TABLE ANTI VIBRATION PLATFORM Series VIP E with Elastomeric Isolation. Series VIP AM with Auto Levelling Pneumatic Vibration Mounts. Series VIP AIS with DAR Isolation. Series VIP AM-HC Auto Levelling Pneumatic Isolation with Honeycomb Top. Series DIT-E-SP1 For Pharmaceutical Labs. Series DIT E-CM Elastomeric Isolation with Corian Marble. ANTI VIBRATION PLATFORM Series VIP AM-ST Auto Levelling Pneumatic Isolation. ANTI VIBRATION TABLE ANTI VIBRATION TABLE AVT WITH HONEYCOMB TABLETOP & AUTO LEVELLING PNEUMATIC VIBRATION MOUNTS AVT WITH AUTO LEVELLING

Series DIT EW Elastomeric

Wooden PU Coated

Series DIT AM-HC Series DIT AHL

TABLE ANTI

TABLE TULLIYAM AVT ANTI

TABLE TULLIYAM SURFCOM NEX TABLE TULLIYAM RONDCOM NEX TABLE Tulliyam Mitutoyo Contracer CV2100 Table TULLYAM MITUTOYO MICROSCOPE

TABLE

ISOLATOR

CRADLE PLATFORM WITH MEMBRANE

ANTI

VIBRATION PLATFORM

VIBRATION

PNEUMATIC ISOLATION & VIBRATION MOUNTS Series DIT E

with Elastomeric Vibration Isolation

Isolation with

Support.

ANTI VIBRATION

VIBRATION

MFJ2017

Series DIT-AM with Auto Levelling Pneumatic Mounts.

Series DIT E-LDLM Elastomeric Isolation with Two Stage Levelling & Vibration Isolation . Series DIT AM-DCC Auto Levelling Vibration Isolation with Casters Support.

Pneumatic Isolation with Auto Levelling for Nano Scale Measuring Instrument.

Product Range

Power Presses

Tool Room Machines

Plastic Injection Moulding Machines

CNC Turning / Machining Centres

Punching, Stamping & Shearing Machines

Coal Crushers, Turbines, ID/FD Fans

Precision Machine Tools (Turning Centres, Machining Centres, Grinding Machines)

Press Brakes & Turret Punch Presses

CNC Milling

Lathes, Broachers

HMC / VMC

Deep Drilling Machines

Textile Machines

Forging Hammers

Generators, Compressors and HVAC Installations

Pressure Die Packaging Machines

Measuring and Testing Machines/Equipments

(Surface Plates, Hardness Testers)

Anti-Vibration Tables and Isolation Platforms

Centrifugal Pumps and Fans

Contour Measuring Machines

Food & Pharmaceutical Sector Machinery

Printing And Packaging Machines

Surface Roughness Tester

Gear Profile Tester

RU-395, Near Power House, Main Outer Ring Road, Pitam Pura, Delhi-110 034, INDIA

Phones : +91-98107 60131, 99111 45131, 92122 58131, 99902 26131, 92123 75011, 9599587131

Email : sales@dynemech.com

web : www.vibrationmountsindia.com www.vibrationdampingpads.com

Manufactured by DYNEMECH SYSTEMS PVT. LTD.

TECHNOLOGY APPLICATIONS

VIBRATION

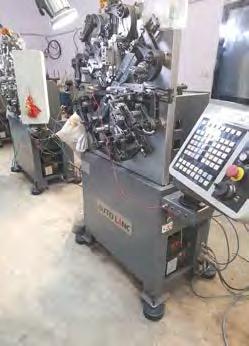

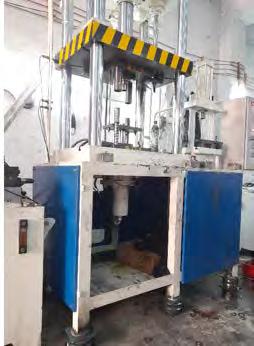

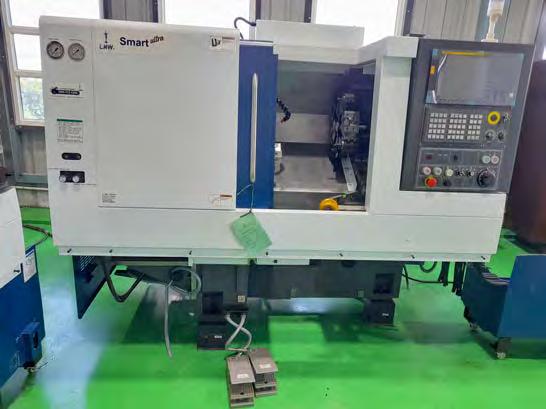

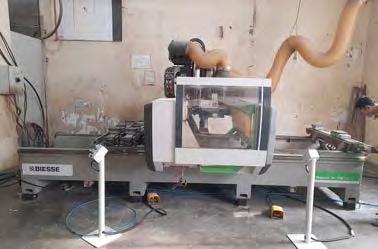

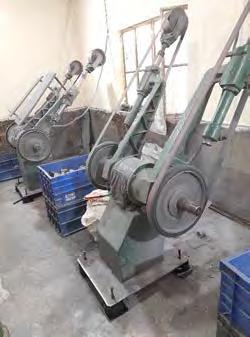

Vertical Injection Molding Machine installed on Spring Isolator MAI-RT Spring making Machine installed on Levelling Mounts Series DLC Extruder Machine installed on Spring Isolator MDI Injection Molding Machine installed on DLK CNC Turning installed on Wedge Mounts Series DBO Belt Grinder installed on Spring Isolator MAI 125kva DG Set installed on Spring Isolator MBI Press Machine installed on Spring Isolator RBD & RDD CNC Machine Center installed on Wedge Mounts Series DBO Surface Grinder installed on Screw Support Mount Series DLC Press Machine installed on Wedge Mount Series DB
