DYNEMECH ANTI VIBRATION TECHNOLOGY

ENHANCING INDUSTRIAL STABILITY A DEEP DIVE INTO DYNEMECH'S VIBRATION INSULATION PLATES sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

VIBRATION INSULATION PLATES INNOVATIVE SOLUTIONS FOR VIBRANT INDUSTRIES Vibration management is crucial for optimal performance in the dynamic world of industrial machinery. Dynemech Vibration Insulation Plates are a reliable solution to this issue, offering numerous benefits for diverse industries.

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

STRATEGIC ADVANTAGES OF VIBRATION MANAGEMENT WHY IT'S A GREAT INVESTMENT OPTION

Fast , Easy and Inexpensive Machinery Installation

Enhanced Component Finish, Accuracy and Part Tolerance

Vibration Reduction for Prolonged Machinery Lifespan

Safeguarding Machinery and Surrounding Structures

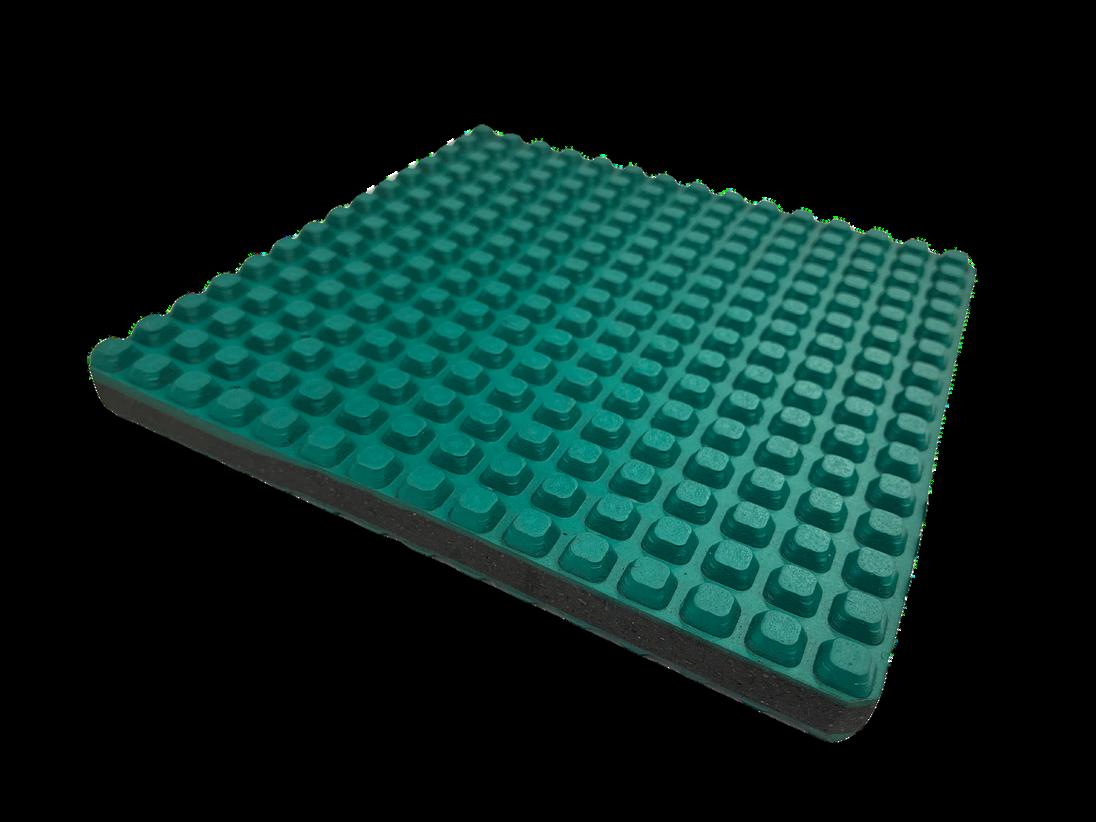

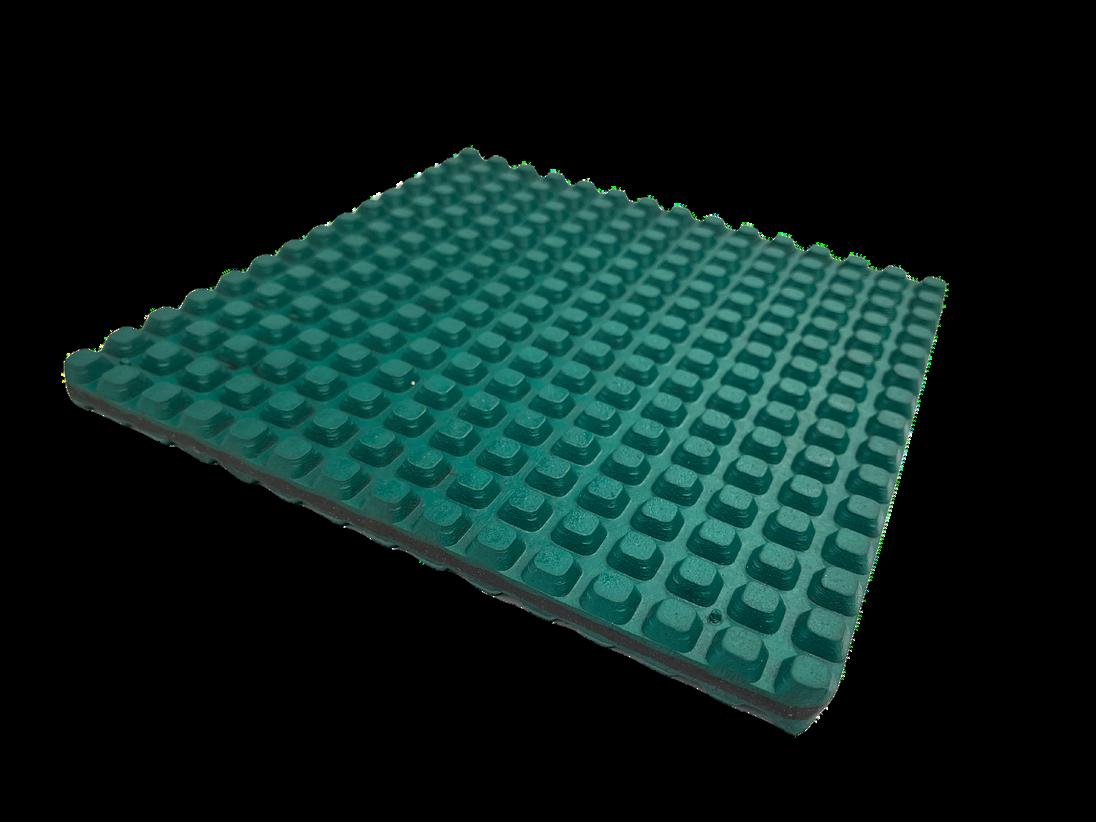

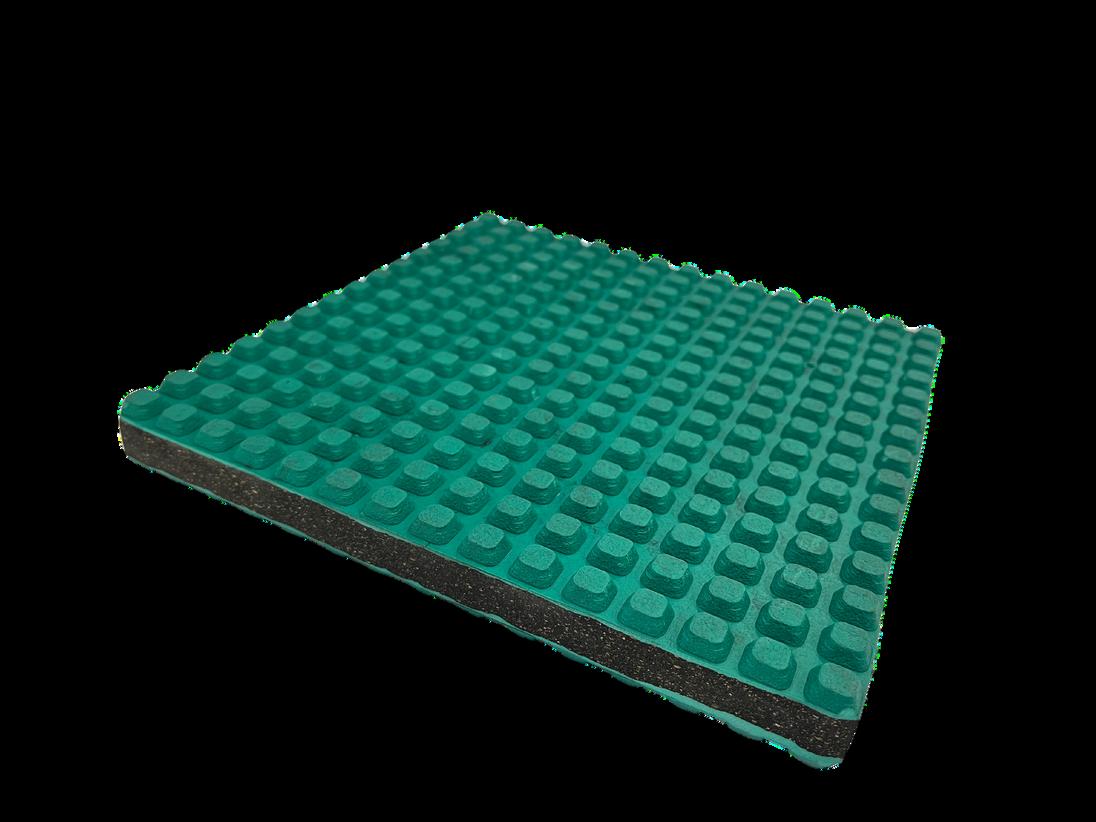

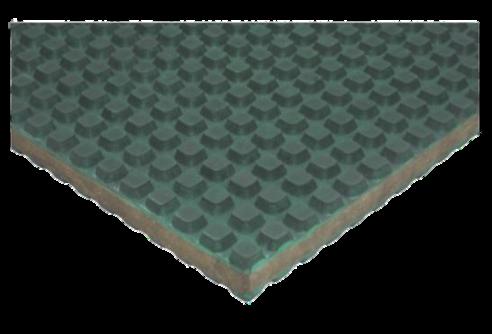

Unique cell design ; high coefficient of friction - prevents “machine walking”.

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

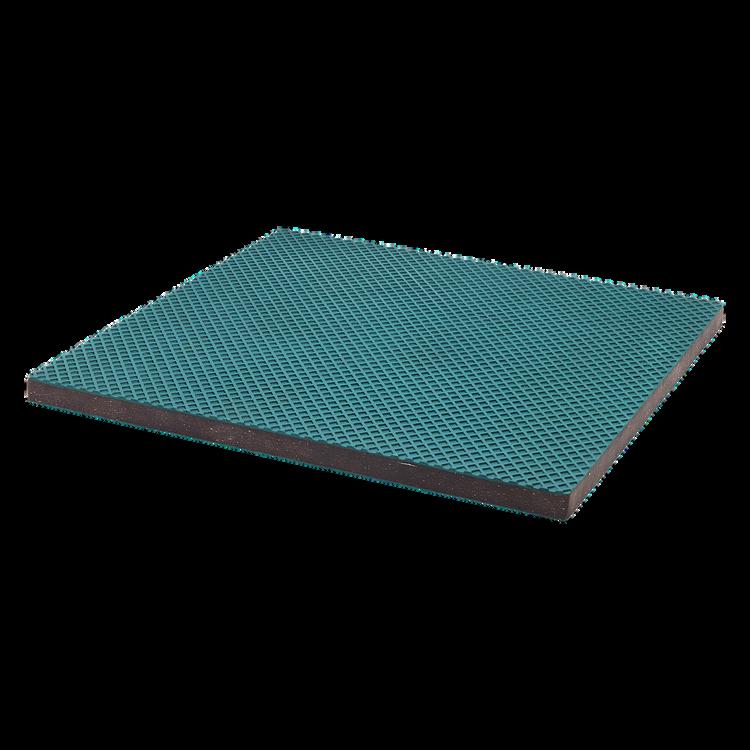

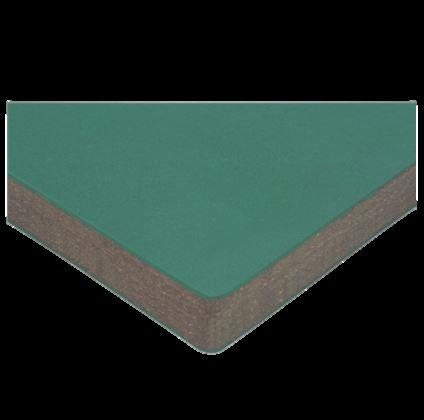

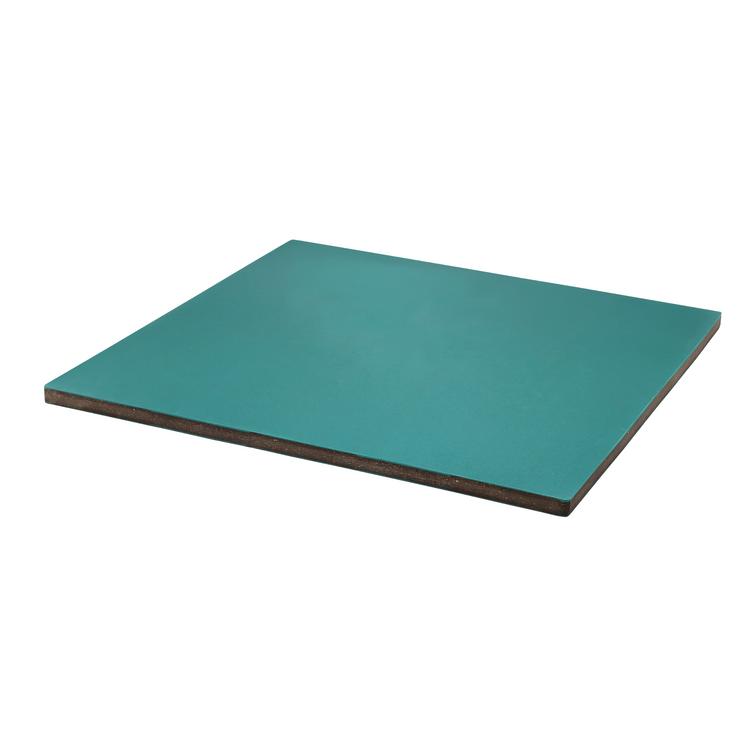

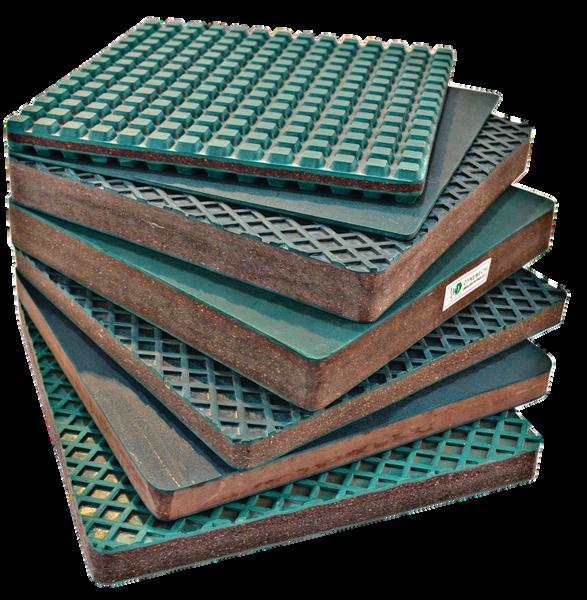

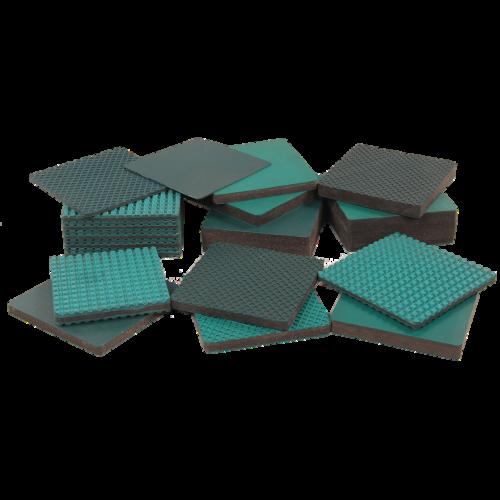

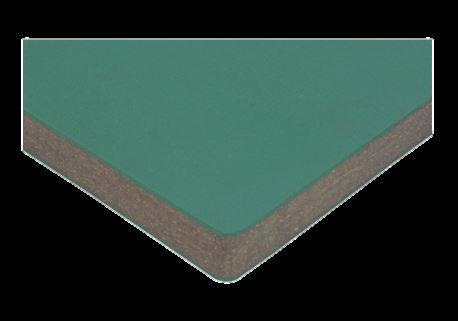

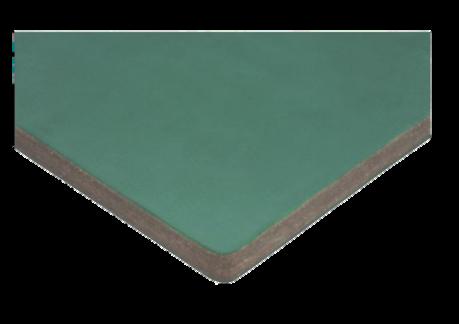

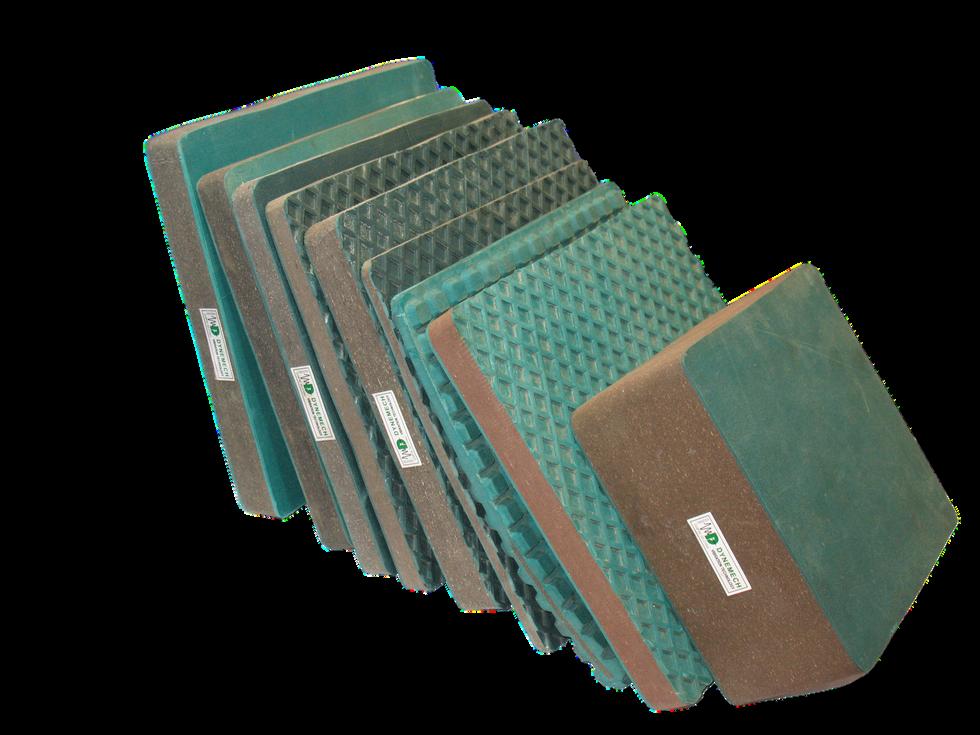

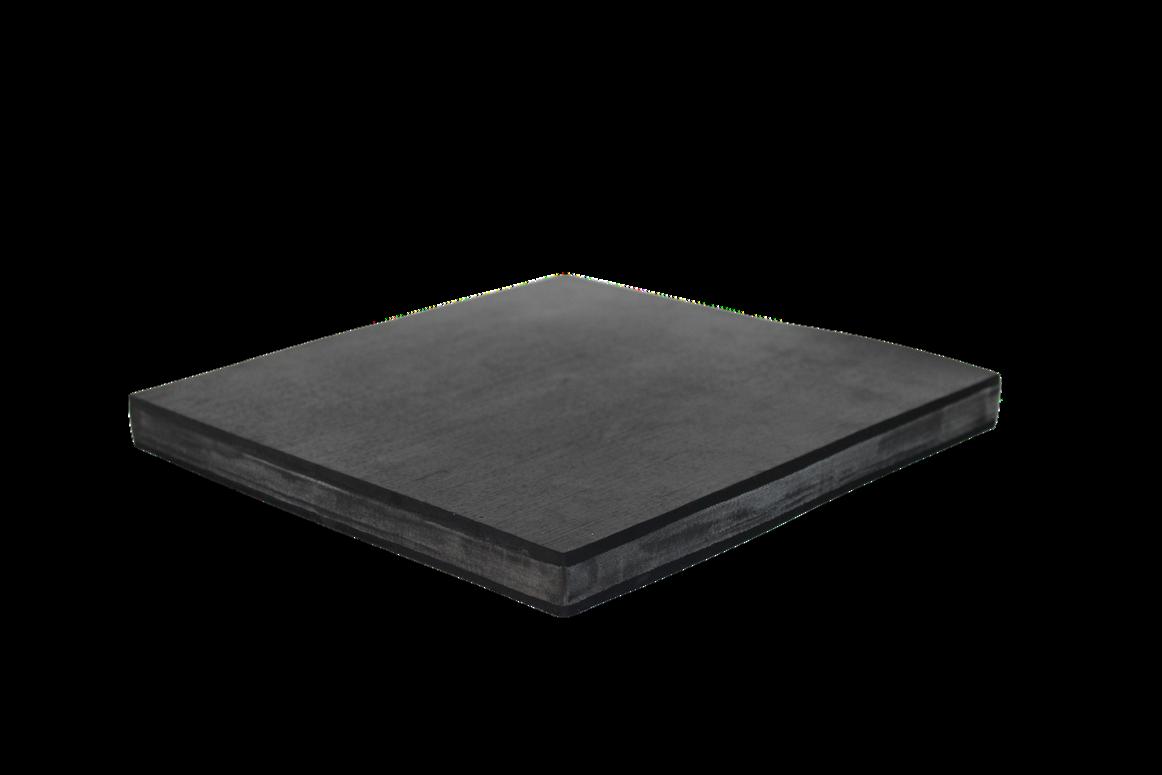

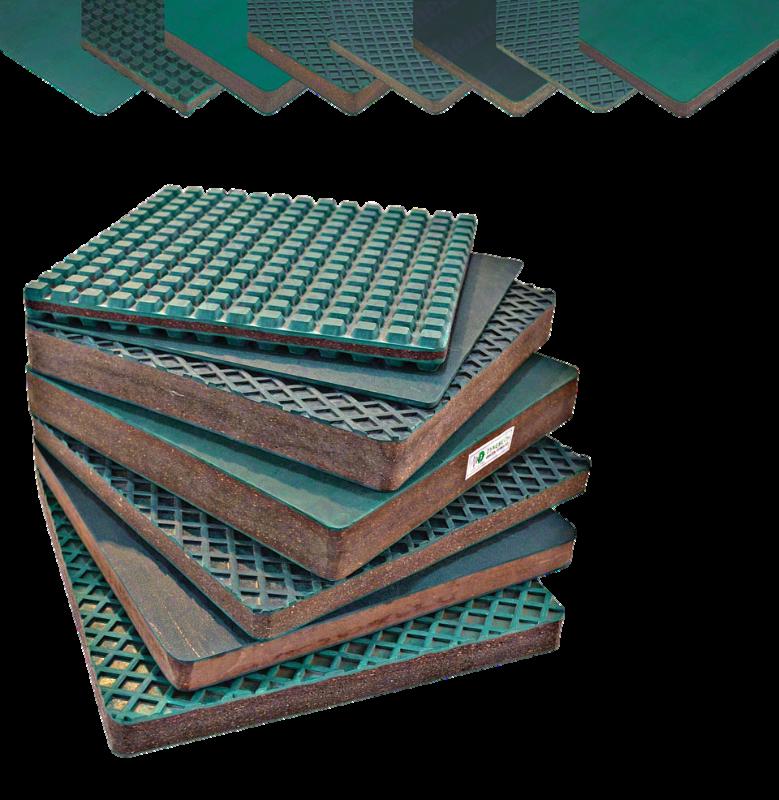

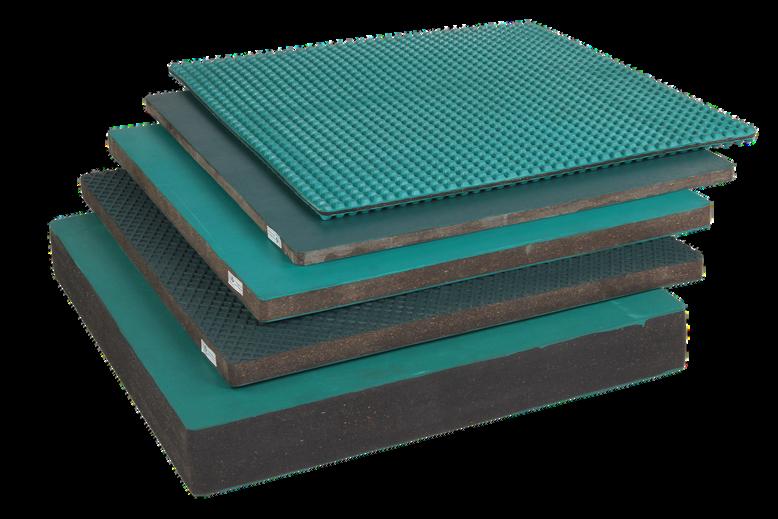

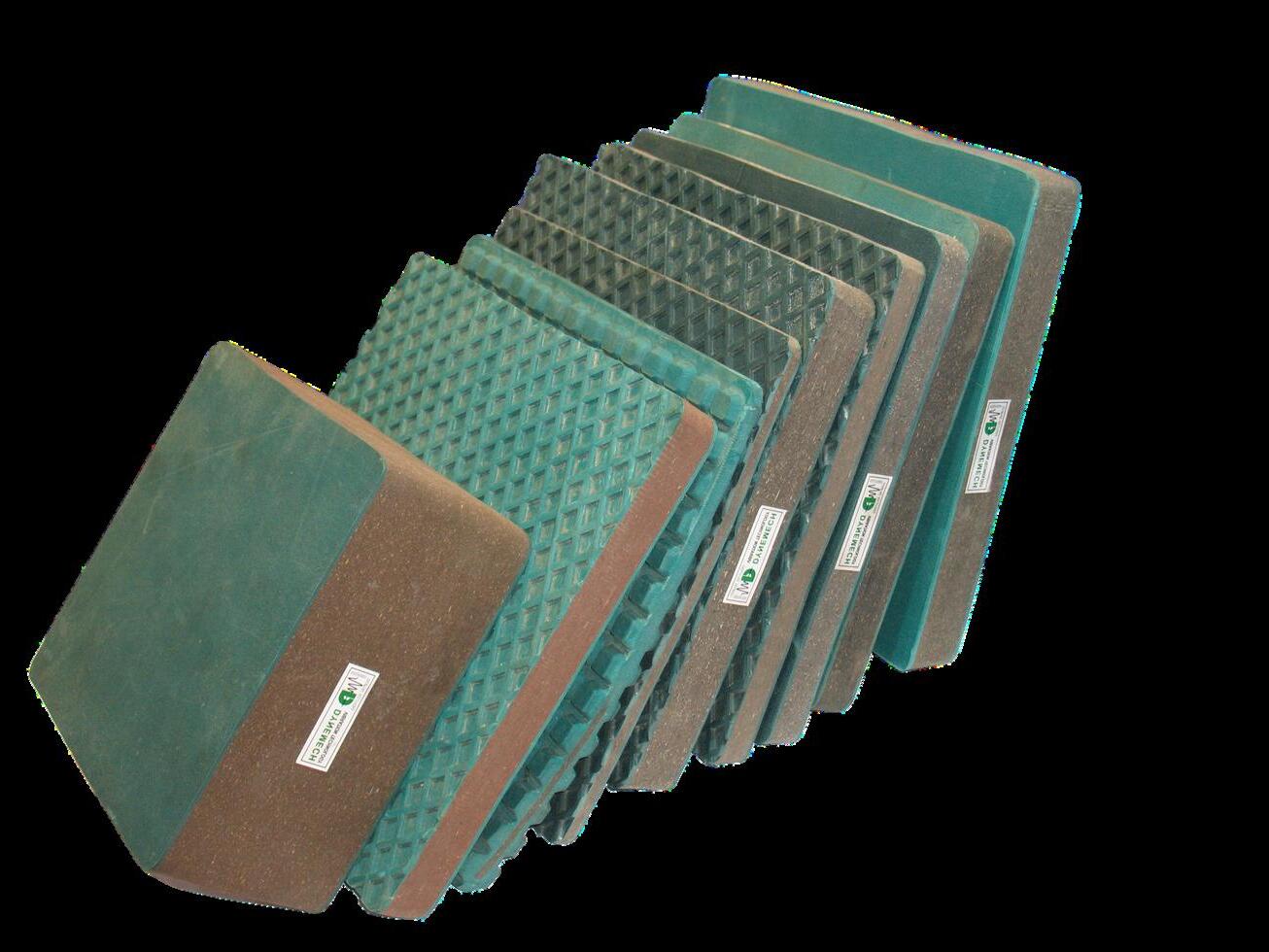

VIBRATION DAMPING SHEETS MATERIAL COMPOSITION Made from a high-grade synthetic elastomeric composite material of Nitrile Rubber, Cork, Synthetic Fibre.

LOAD CAPACITIES: Manufactured in different load capacities, allowing them to support machines of various weights.

NATURAL FREQUENCIES Engineered for different natural frequencies, for providing vibration damping to almost all machine tool.

RESISTANCE Resistant to water, oils, lubricating oils, fuels, etc., making them suitable for use in industrial environments.

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

VIBRATION DAMPING SHEETS STRESS VALUES Each sheet has defined stress values, and they can be placed directly under the machine based on the weight of the machine and the number of mounting positions.

DEFORMATION RESISTANCE The plates are designed not to deform plastically, provided the weight of the machine does not exceed the maximum load value specified for the insulation plates.

THICKNESS OPTIONS The plates are available in various thicknesses, including 2mm, 8mm, 15mm, 20mm, 25mm, and 65mm.

SIZES The maximum available size for Dp1, Dp3 is 600x600mm. For others, it is 500x500mm. These sheets can be cut & supplied as per specific requirements.

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

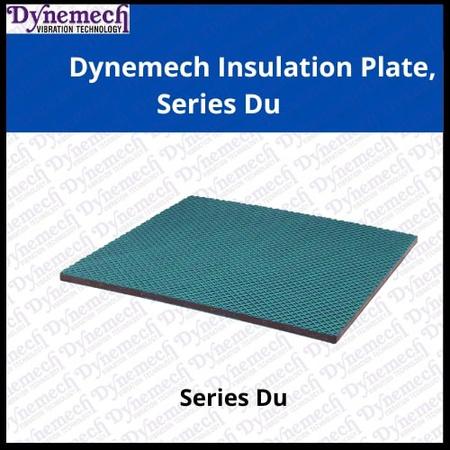

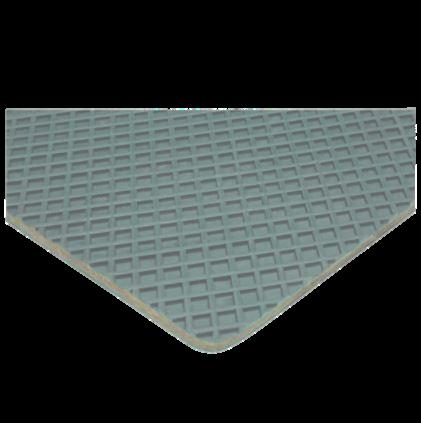

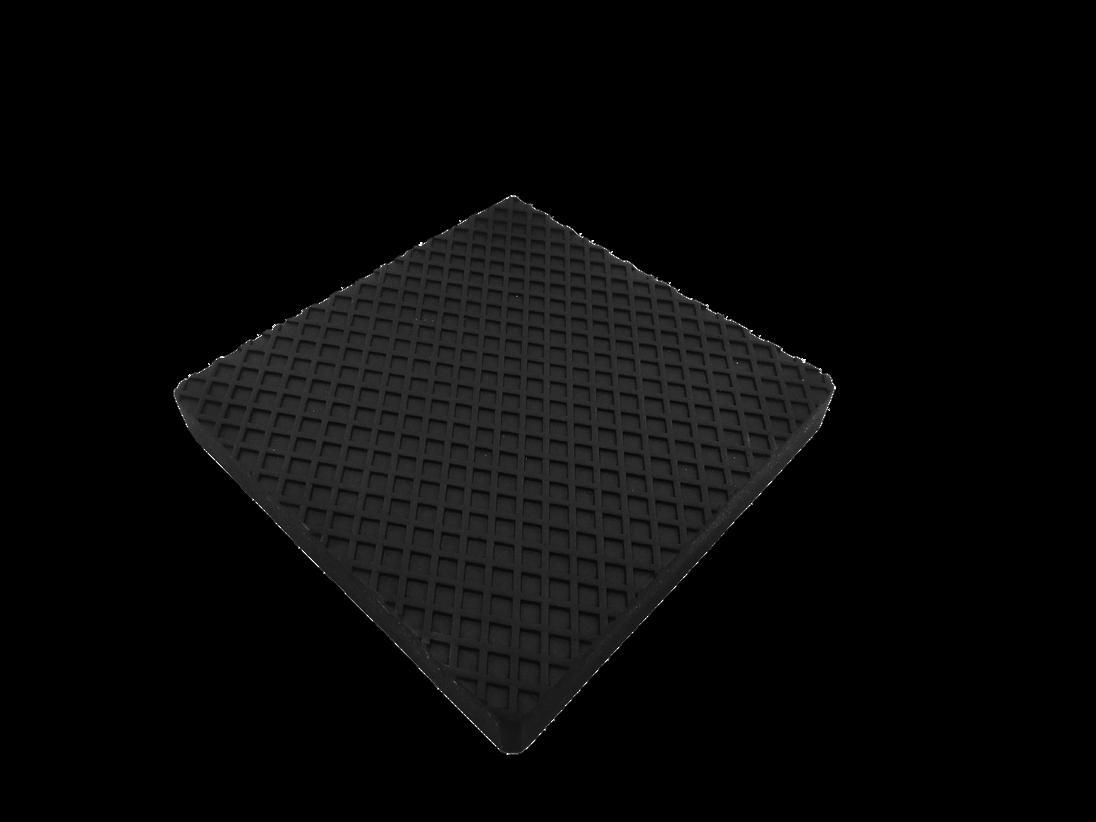

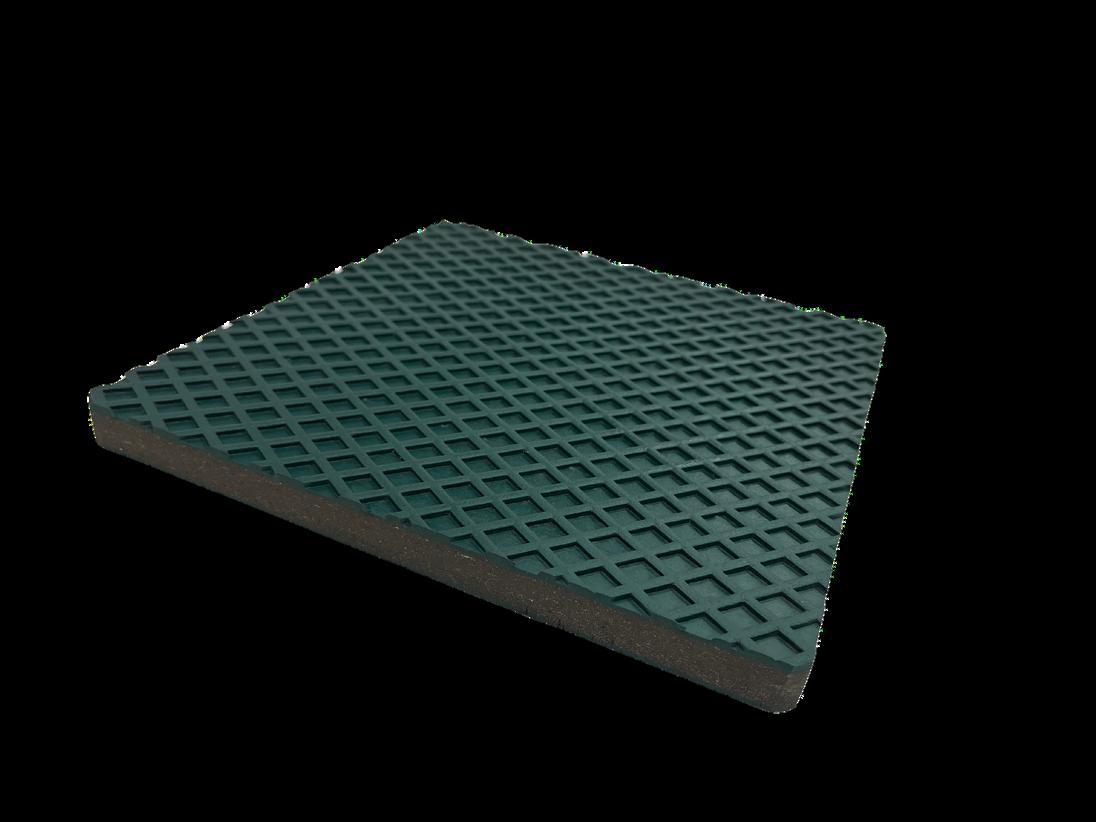

Vibration Insulation Plate , Du Applications : Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Printing and Textile Machines (For Machines having high axial forces.)

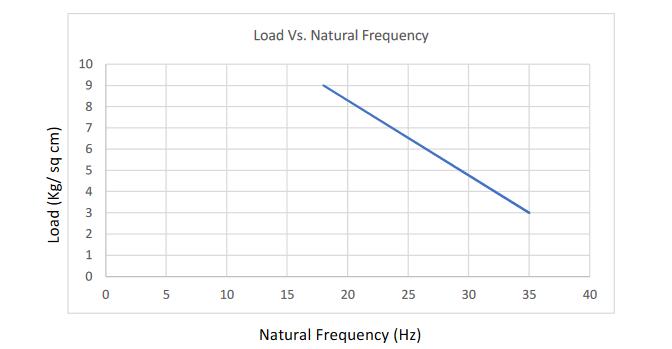

Load Capacity (Kg./sq. cm) : 3-9 Thickness (mm) : 15 Coefficient of Friction : 0.9 Natural Frequency Range : 35 Hz-18 Hz

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

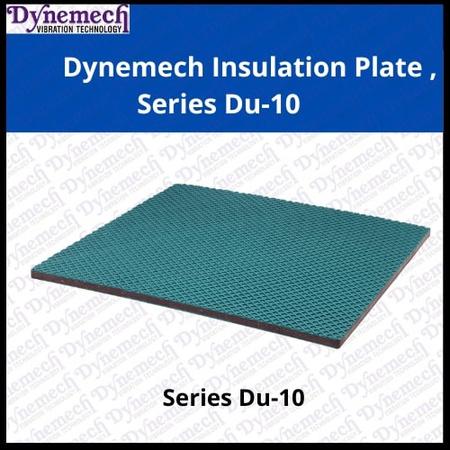

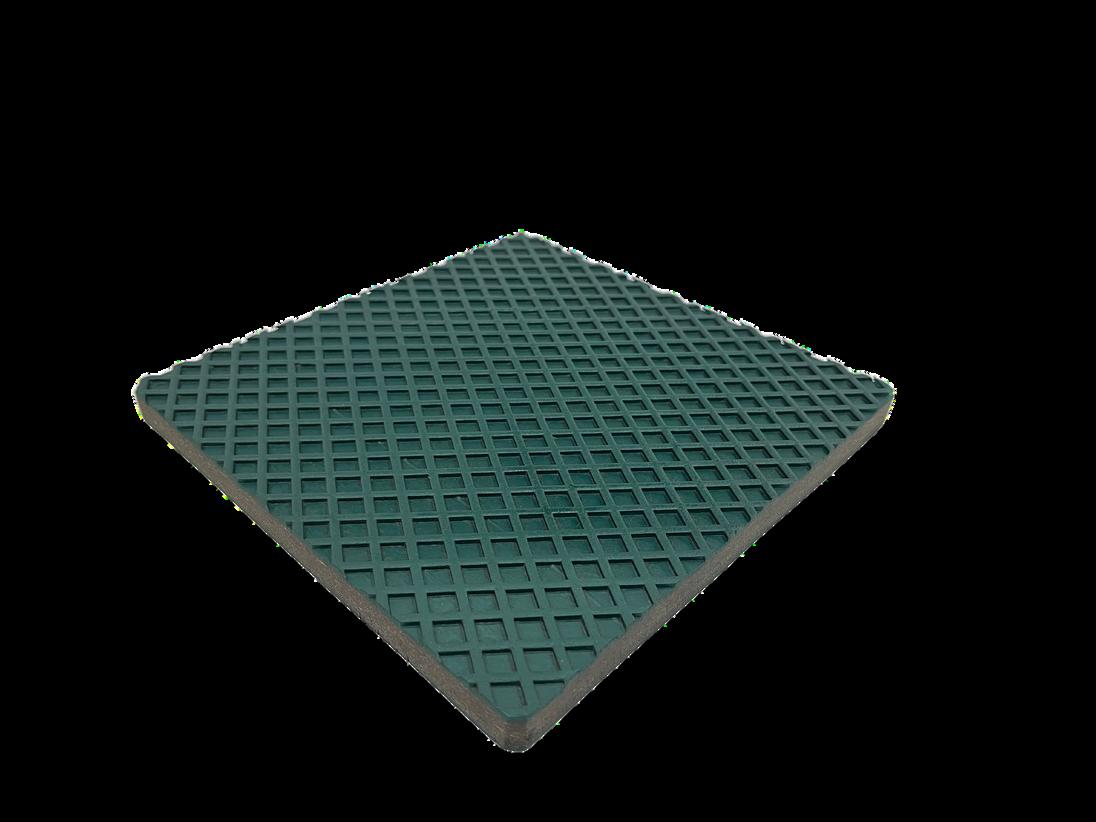

Vibration Insulation Plate , Du-10 Applications : Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Printing and Textile Machines (For Machines having high axial forces.)

Load Capacity (Kg./sq. cm) : 3-9 Thickness (mm) : 10 Coefficient of Friction : 0.9 Natural Frequency Range : 35 Hz-18 Hz

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

Vibration Insulation Plate , Du-12 Applications : Tool Room Machines, Plastic Injection Moulding Machines, Pressure Die Casting Machines, Printing and Textile Machines (For Machines having high axial forces.)

Load Capacity (Kg./sq. cm) : 3-9 Thickness (mm) : 12 Coefficient of Friction : 0.9 Natural Frequency Range : 35 Hz-18 Hz

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

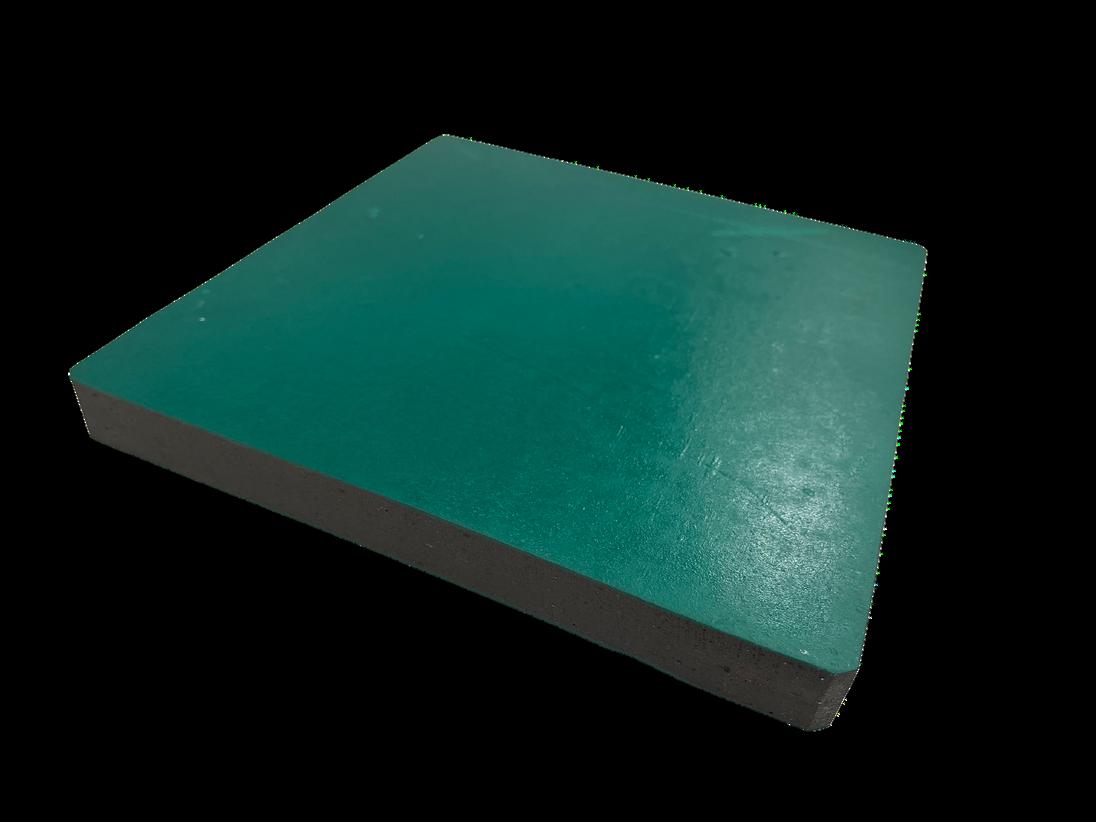

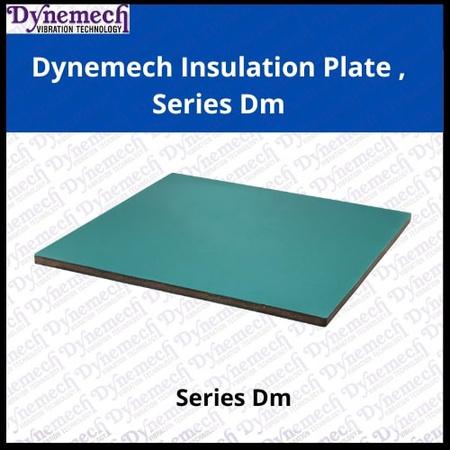

Vibration Insulation Plate , Dm Applications : Lathe Machines, Milling Machines, Grinding Machines, Machining Centres, Turning Centres etc.

Load Capacity (Kg./sq. cm) : 5-10 Thickness (mm) : 15 Coefficient of Friction : 0.7 Natural Frequency Range : 50 Hz-30 Hz

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

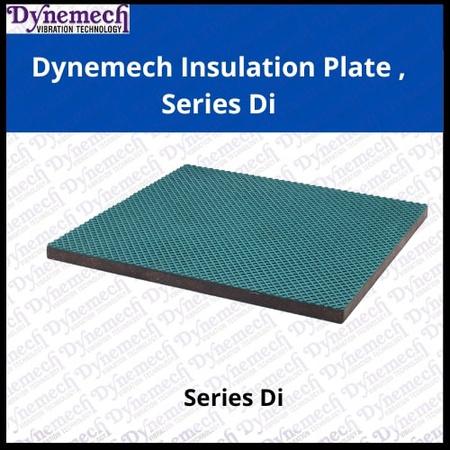

Vibration Insulation Plate , Di Applications : For machines with high vertical dynamic forces such as Power Presses, Punching Machines, Stamping Machines, Shearing Machines etc.

Load Capacity (Kg./sq. cm) : 5-14 Thickness (mm) : 25 Coefficient of Friction : 0.8 Natural Frequency Range : 25 Hz-7 Hz

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

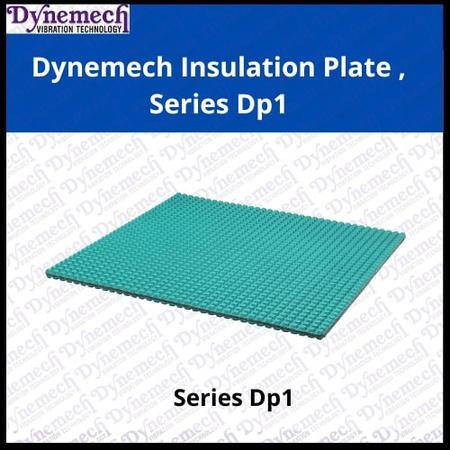

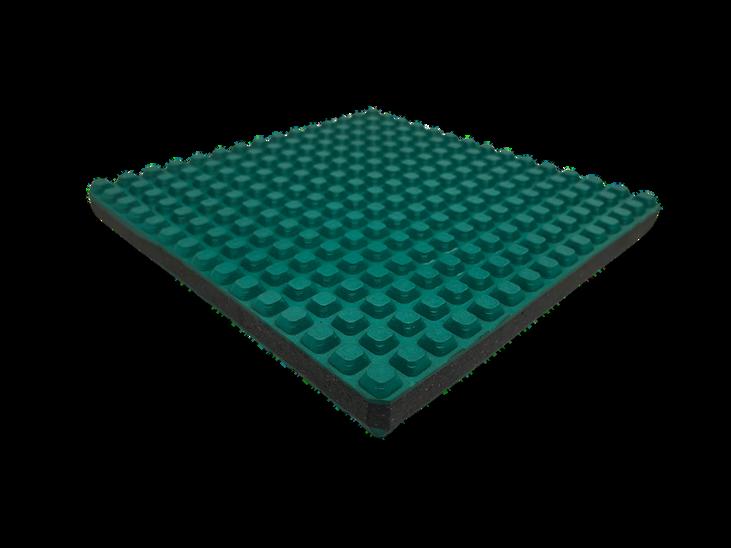

Vibration Insulation Plate , Dp1 Applications : Tuned to low natural frequency, suitable for passive vibration control of Measuring & Testing Machines, Grinders etc.

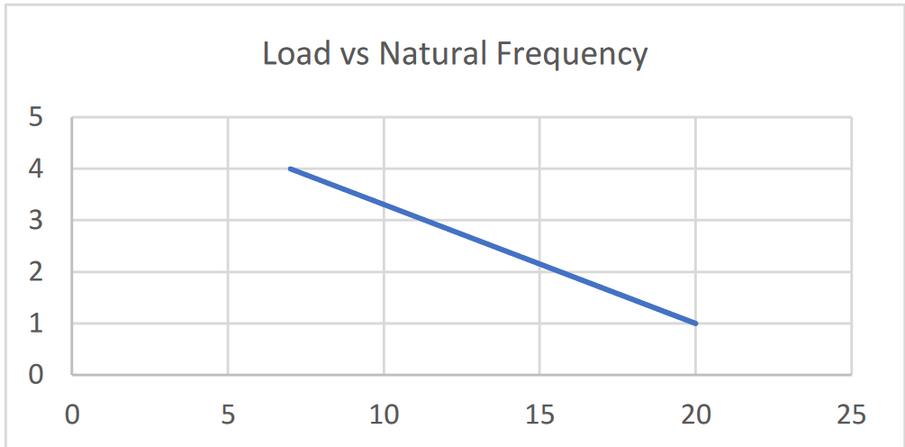

Load Capacity (Kg./sq. cm) : 1-4 Thickness (mm) : 15 Coefficient of Friction : 0.8 Natural Frequency Range : 20 Hz-7 Hz

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

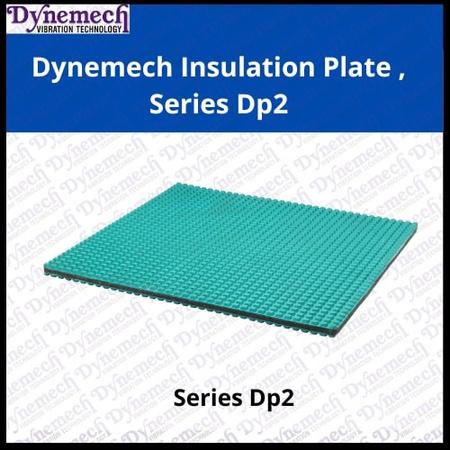

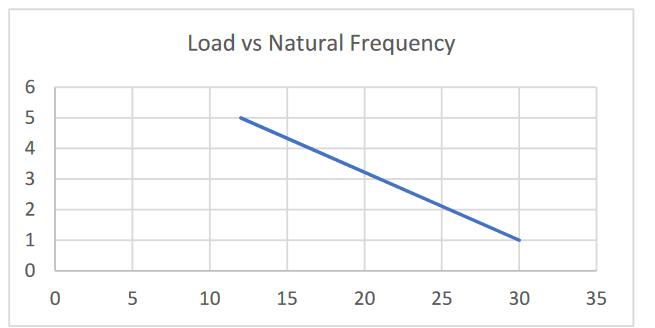

Vibration Insulation Plate , Dp2 Applications : Suitable for passive vibration control of measuring & testing machines maintains machines stability along with vibration reduction.

Load Capacity (Kg./sq. cm) : 1-5 Thickness (mm) : 20 Coefficient of Friction : 0.8 Natural Frequency Range : 30 Hz-12 Hz

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

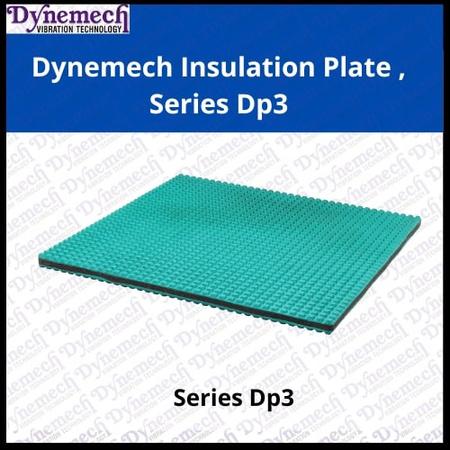

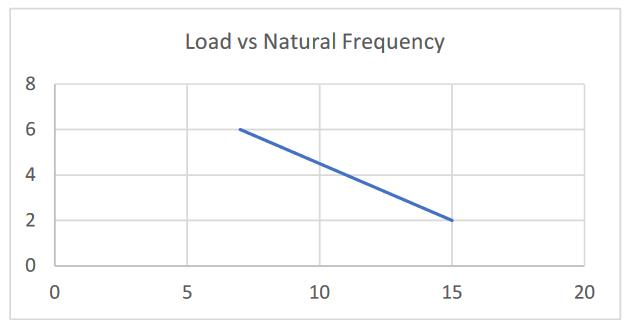

Vibration Insulation Plate , Dp3 Applications : Tuned to low natural frequency, suitable for both active & passive vibration isolation of metrology and production machines.

Load Capacity (Kg./sq. cm) : 2-6 Thickness (mm) : 24 Coefficient of Friction : 0.8 Natural Frequency Range : 15 Hz-7 Hz

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

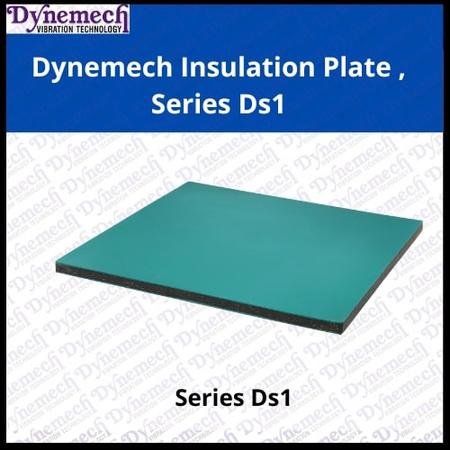

Vibration Insulation Plate , Ds1 Applications : Light Weight Presses, Tool Room Machines, Compressors etc. on Ground Floor as well as upper Floors.

Load Capacity (Kg./sq. cm) : 2-5 Thickness (mm) : 20 Coefficient of Friction : 0.8 Natural Frequency Range : 35 Hz-15 Hz

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

Vibration Insulation Plate , Ds1 Applications : Light Weight Presses, Tool Room Machines, Compressors etc. on Ground Floor as well as upper Floors.

Load Capacity (Kg./sq. cm) : 2-5 Thickness (mm) : 20 Coefficient of Friction : 0.8 Natural Frequency Range : 35 Hz-15 Hz

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

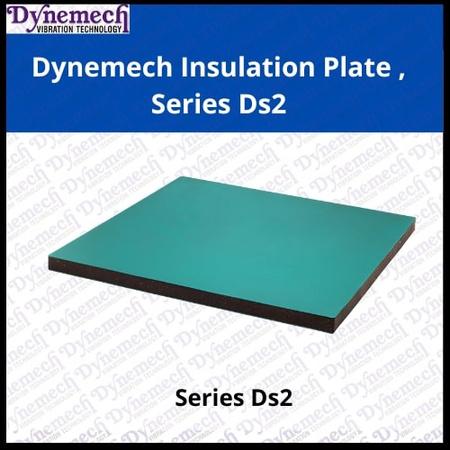

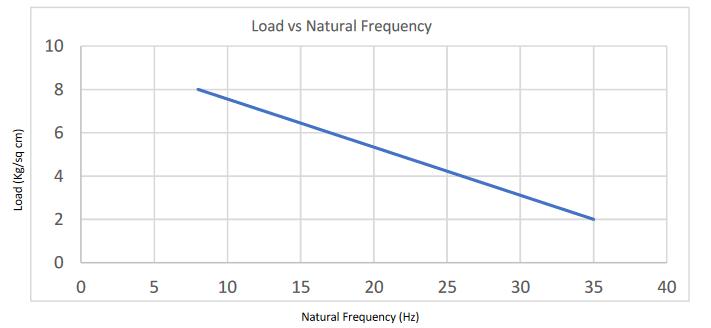

Vibration Insulation Plate , Ds2 Applications : High Vibration Insulation for both active and passive range, Medium Presses, Stamping Machines, also well suited for high speed rotating machines on upper floors.

Load Capacity (Kg./sq. cm) : 2-8 Thickness (mm) : 25 Coefficient of Friction : 0.8 Natural Frequency Range : 35 Hz-8 Hz

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

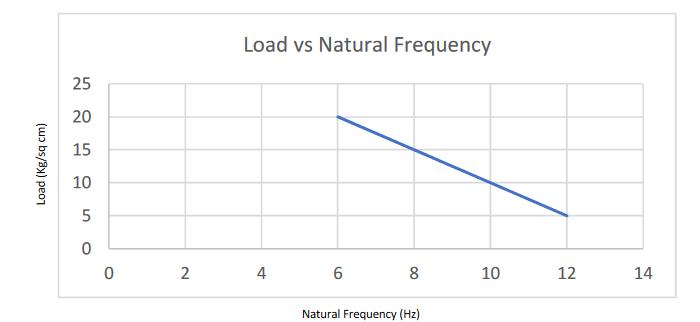

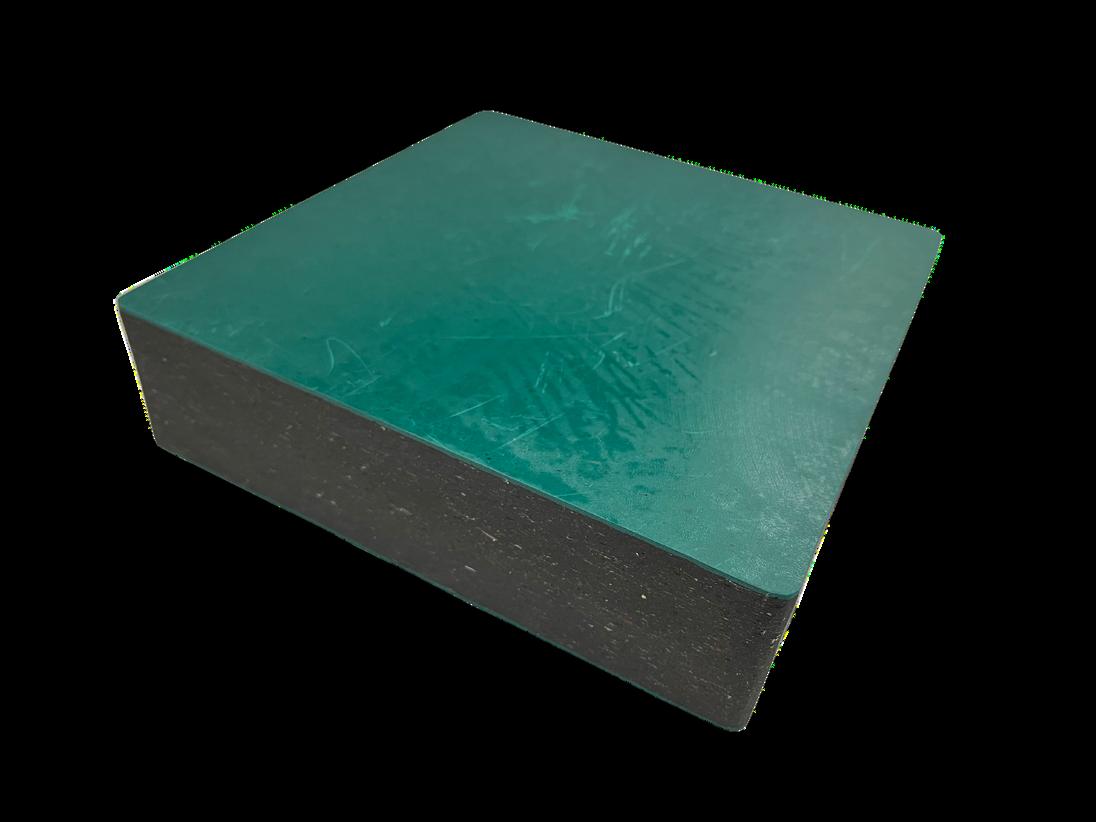

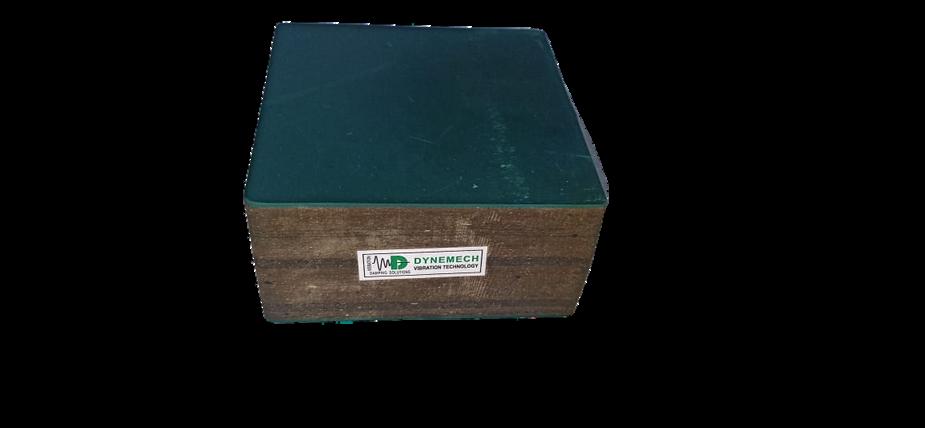

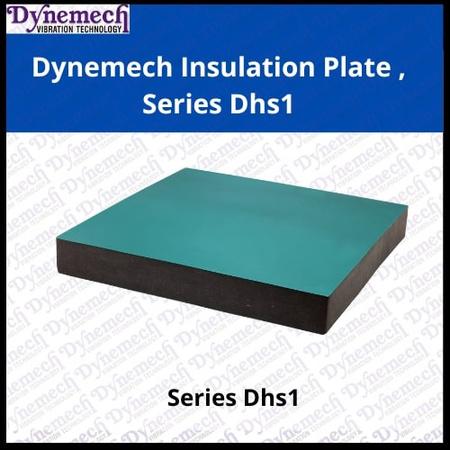

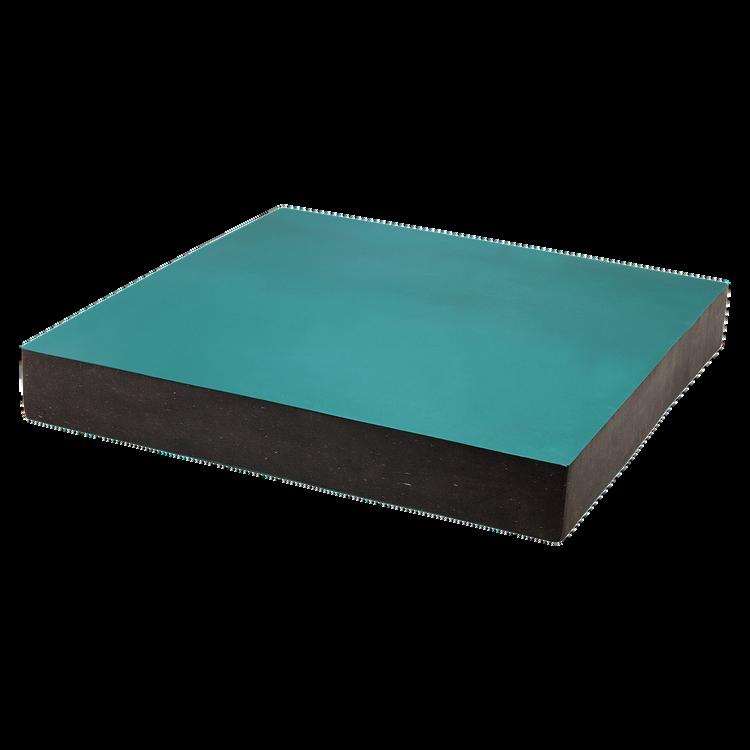

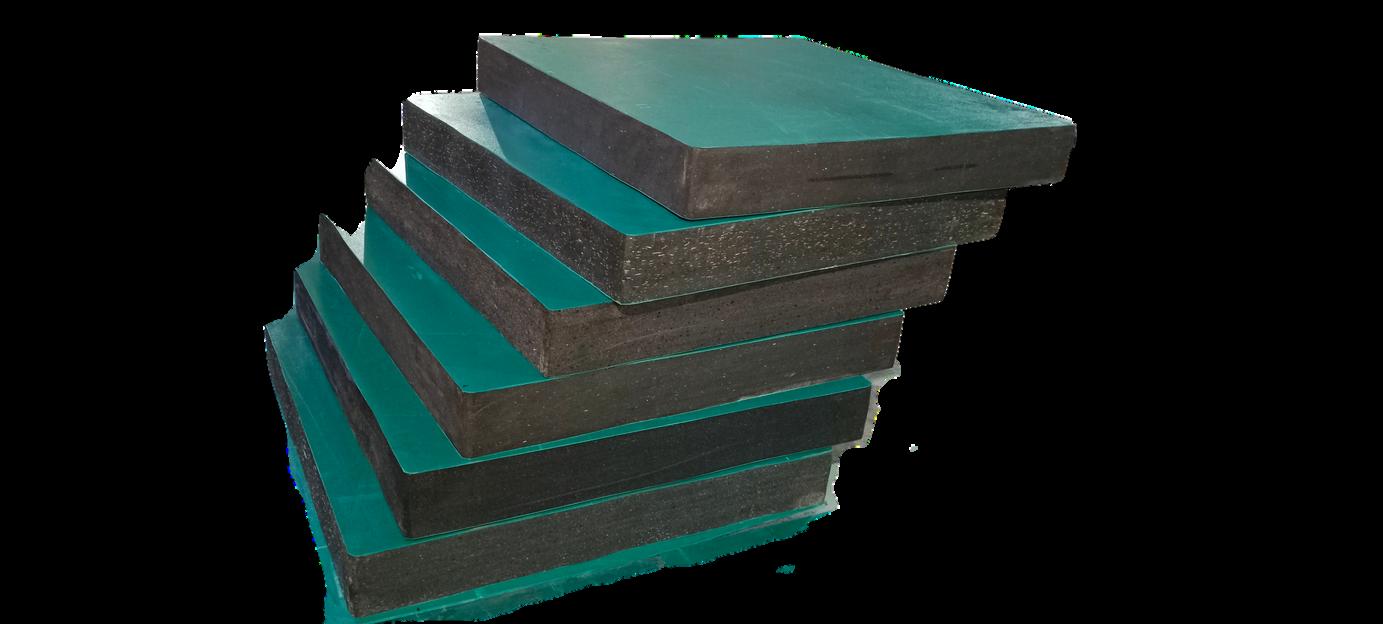

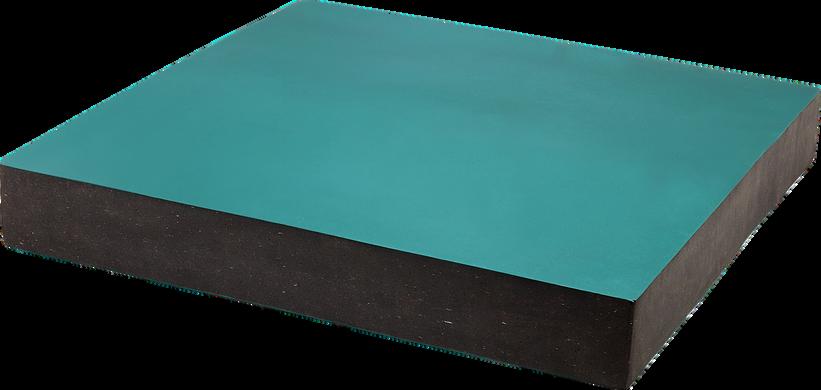

Vibration Insulation Plate , Dhs1 Applications : Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses etc.

Load Capacity (Kg./sq. cm) : 5-20 Thickness (mm) : 65 Coefficient of Friction : 0.8 Natural Frequency Range : 12 Hz-6 Hz

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

Vibration Insulation Plate , Dhs2 Applications : Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses, Crushers etc.

Load Capacity (Kg./sq. cm) : 2-8 Thickness (mm) : 65 Coefficient of Friction : 0.8 Natural Frequency Range : 8 Hz-4 Hz

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

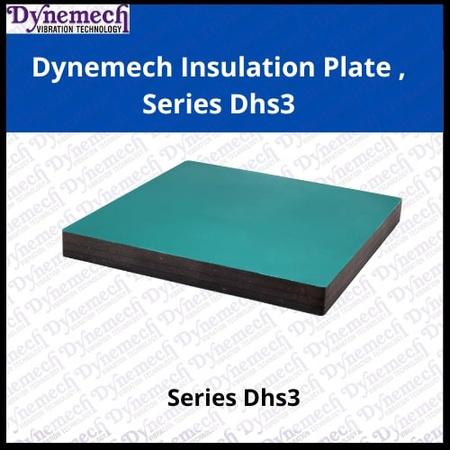

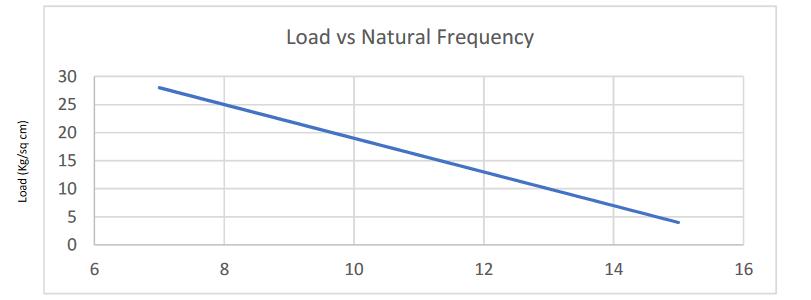

Vibration Insulation Plate , Dhs3 Applications : Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses, etc.

Load Capacity (Kg./sq. cm) : 4-28 Thickness (mm) : 50 Coefficient of Friction : 0.8 Natural Frequency Range : 15 Hz-7 Hz

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

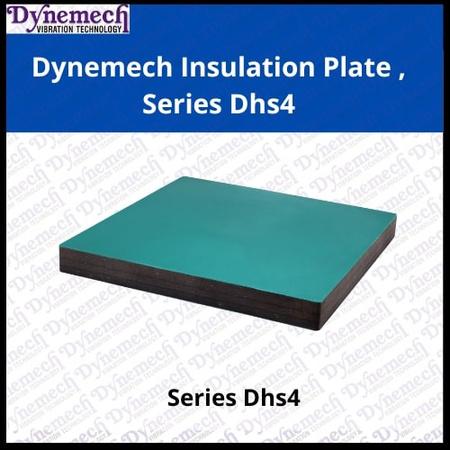

Vibration Insulation Plate , Dhs4 Applications : Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses, Crushers,etc.

Load Capacity (Kg./sq. cm) : 3-12 Thickness (mm) : 50 Coefficient of Friction : 0.8 Natural Frequency Range : 8 Hz-5 Hz

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

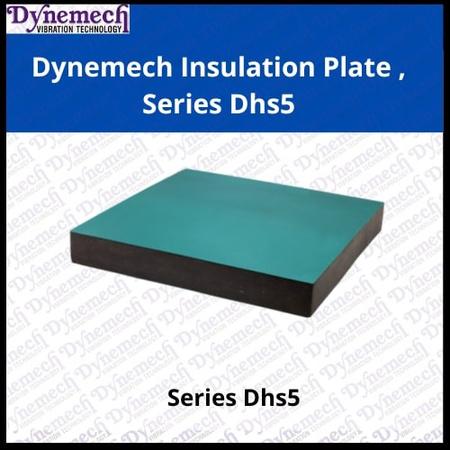

Vibration Insulation Plate , Dhs5 Applications : Forging Hammers, Heavy Gen Sets, Heavy Industrial Machines, Test Rigs, Heavy Presses, etc.

Load Capacity (Kg./sq. cm) : 4-28 Thickness (mm) : 80 Coefficient of Friction : 0.8 Natural Frequency Range : 12 Hz-5 Hz

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

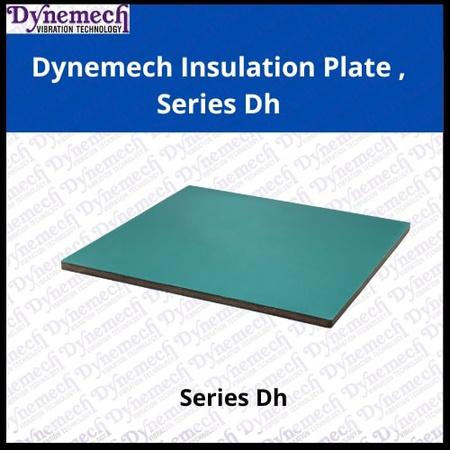

Vibration Insulation Plate , Dh Applications : Very Heavy and Long Bed Machines, Long Machining centres, Planners etc.

Load Capacity (Kg./sq. cm) : 10-35 Thickness (mm) : 15 Coefficient of Friction : 0.6 Natural Frequency Range : 70 Hz-45 Hz

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

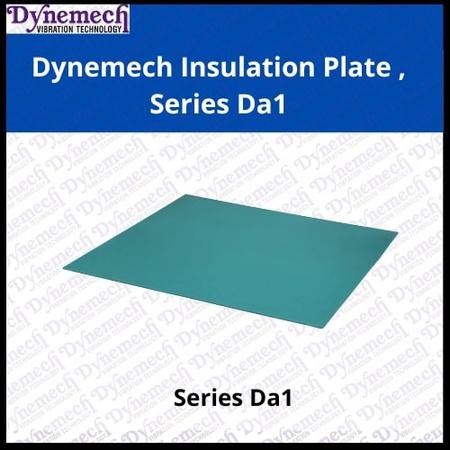

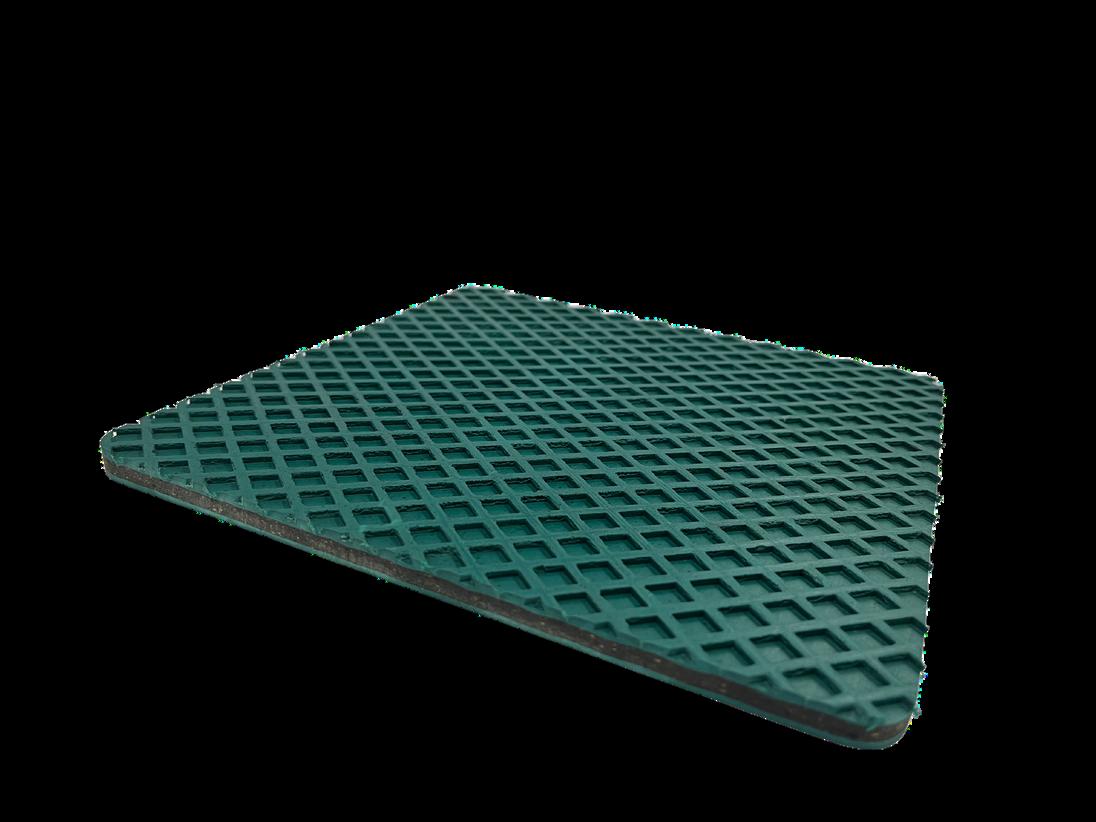

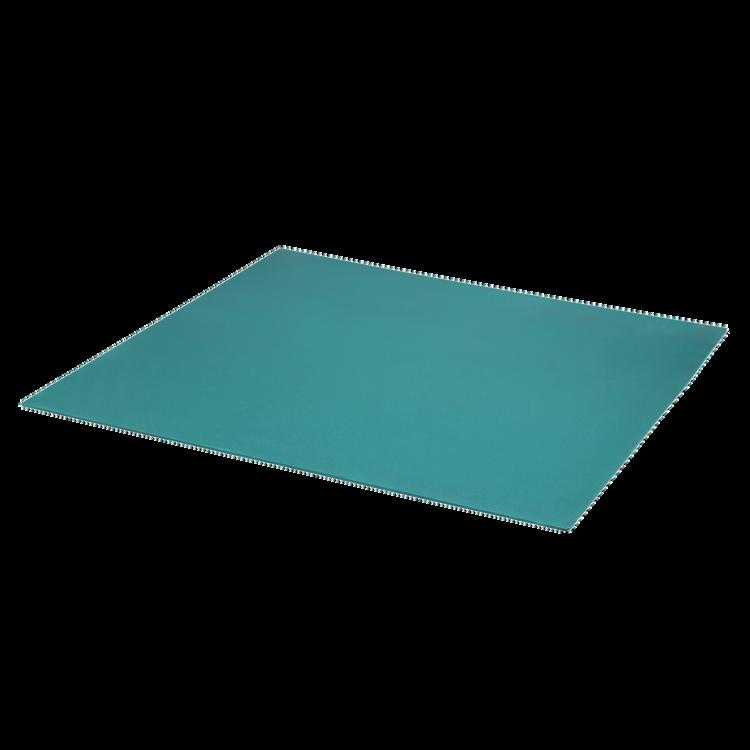

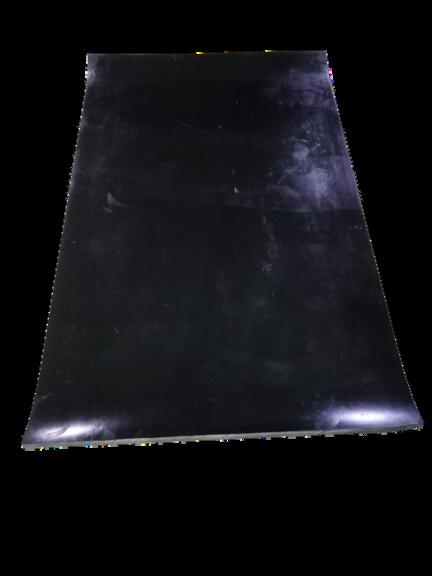

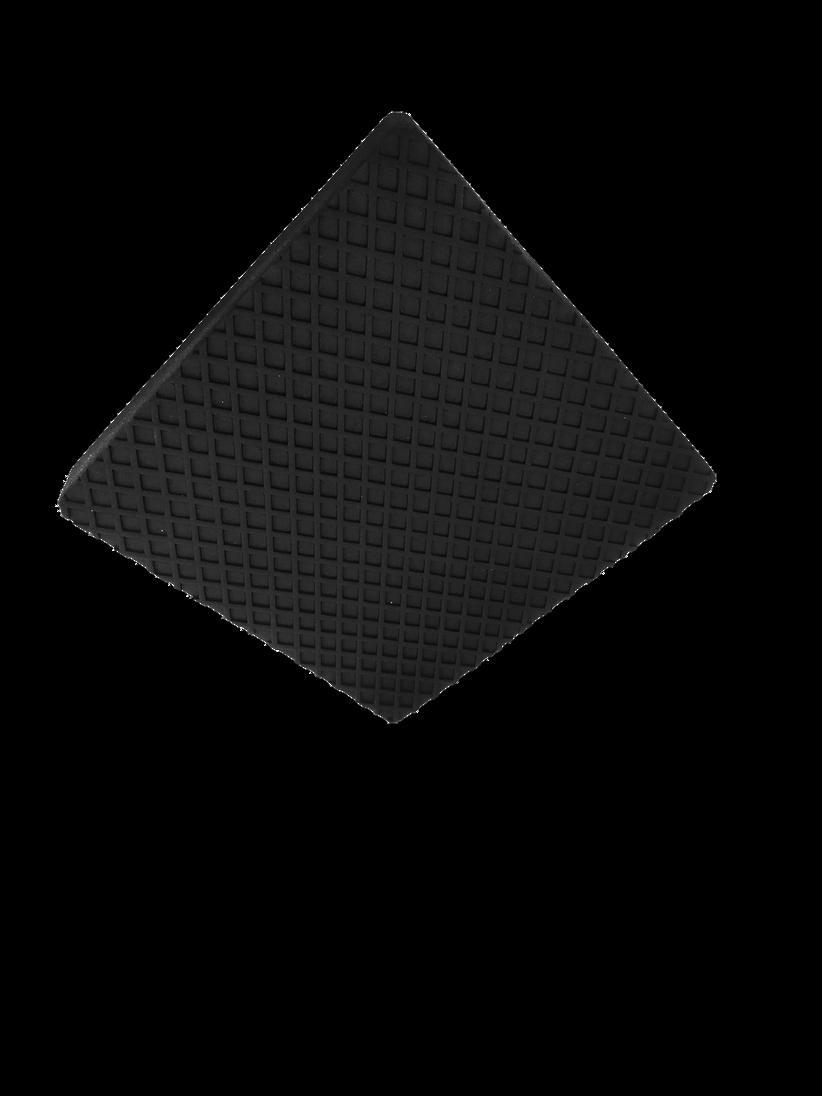

Vibration Anti Skid Plate , Da1 Load Capacity (Kg./sq. cm) : 2-18 Thickness (mm) :2

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

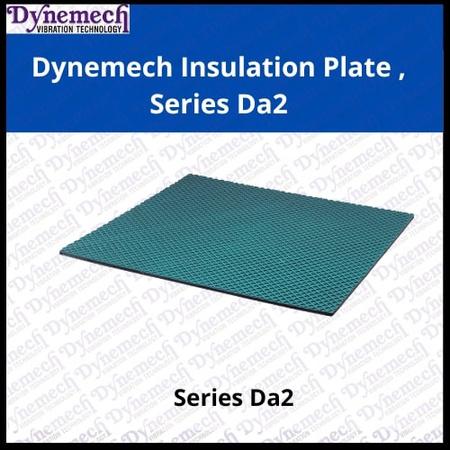

Vibration Anti Skid Plate , Da2 Load Capacity (Kg./sq. cm) : 2-10 Thickness (mm) :8

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

DyneStarke Shock & Vibration Isolation Pads , DHS6-ML High Strength , Exceptional Shock Absorption, High Vibration Damping Applications: HVAC Equipements, Gensets, AHUs, Transformers, Compressors, Pumps etc.

Load Capacity (Kg./sq. cm) : 527 Thickness (mm) : 15,25 Coefficient of Friction : 0.7 Natural Frequency Range : 15 Hz-20 Hz

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

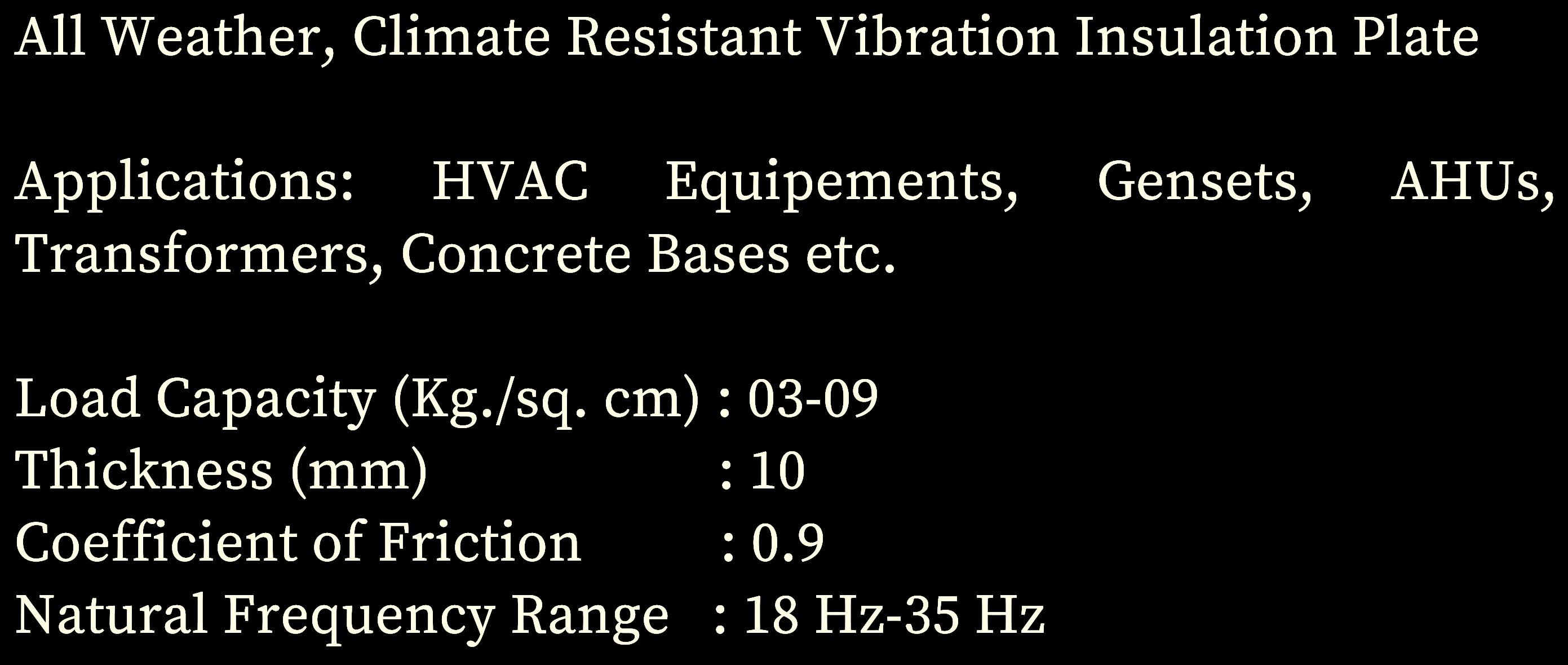

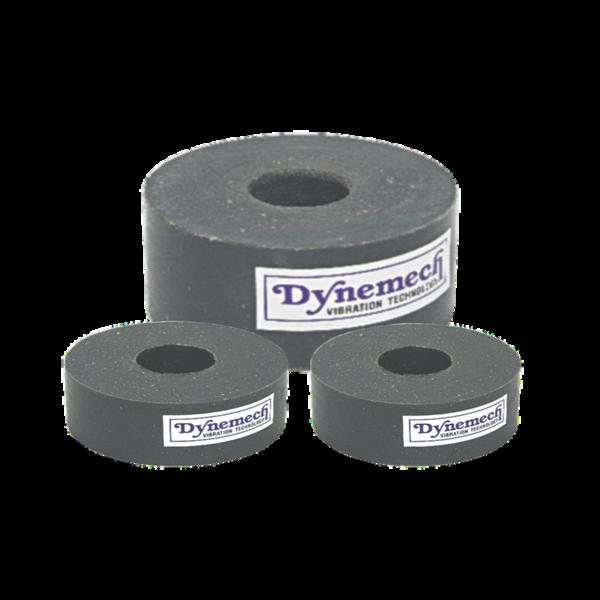

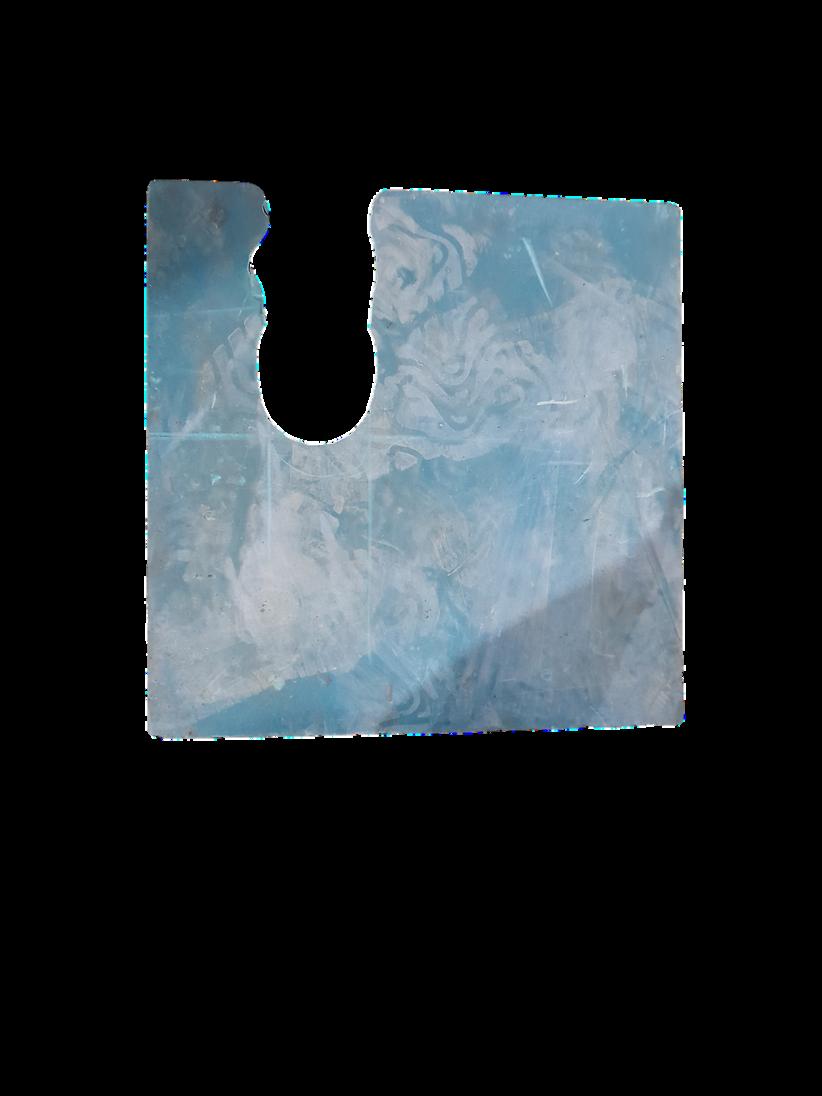

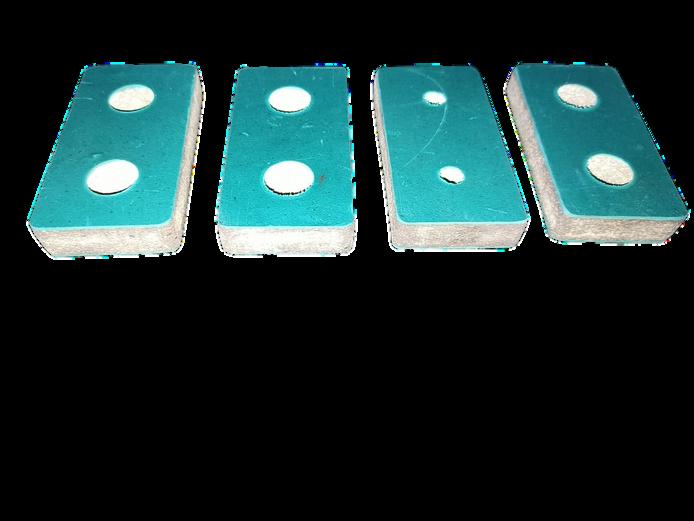

Dynemech Rituresilire Vibration Isolation Pads , DU-10-NP

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

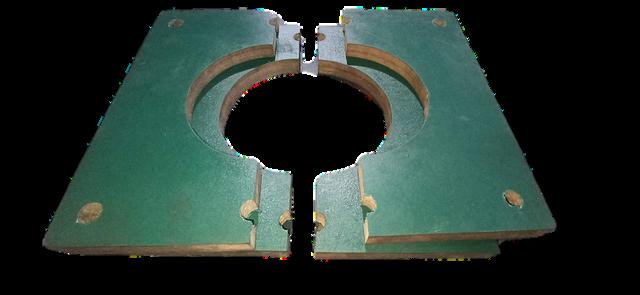

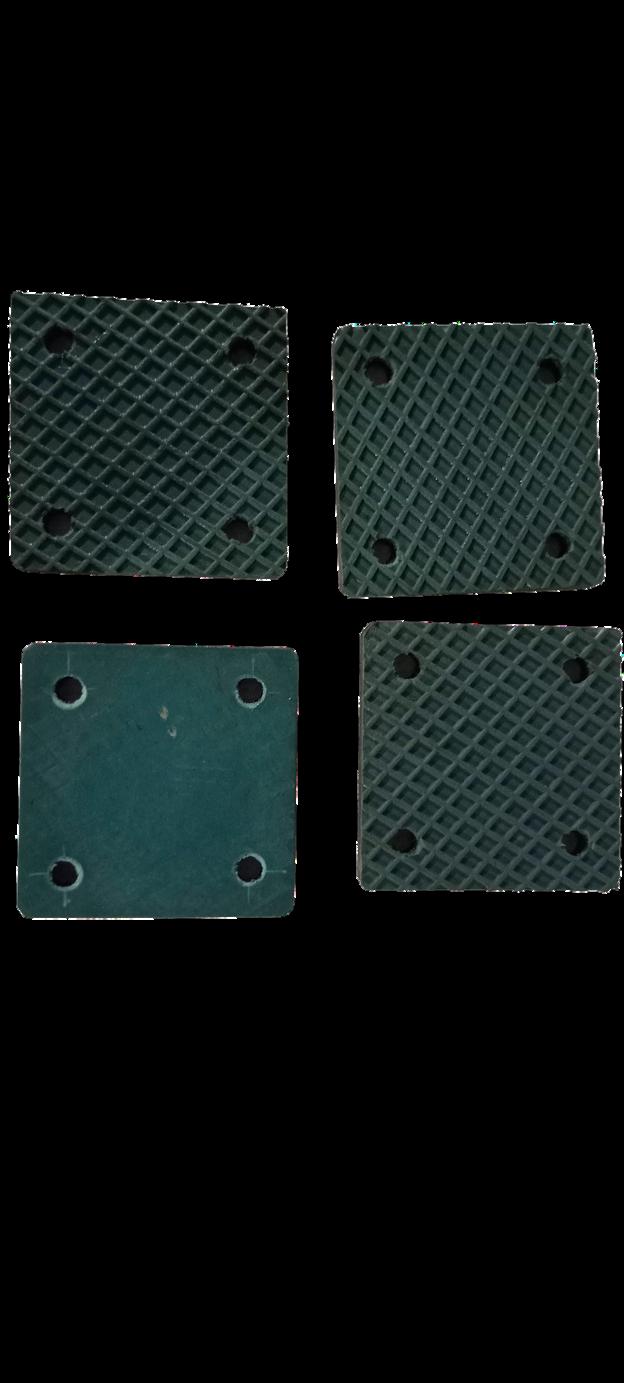

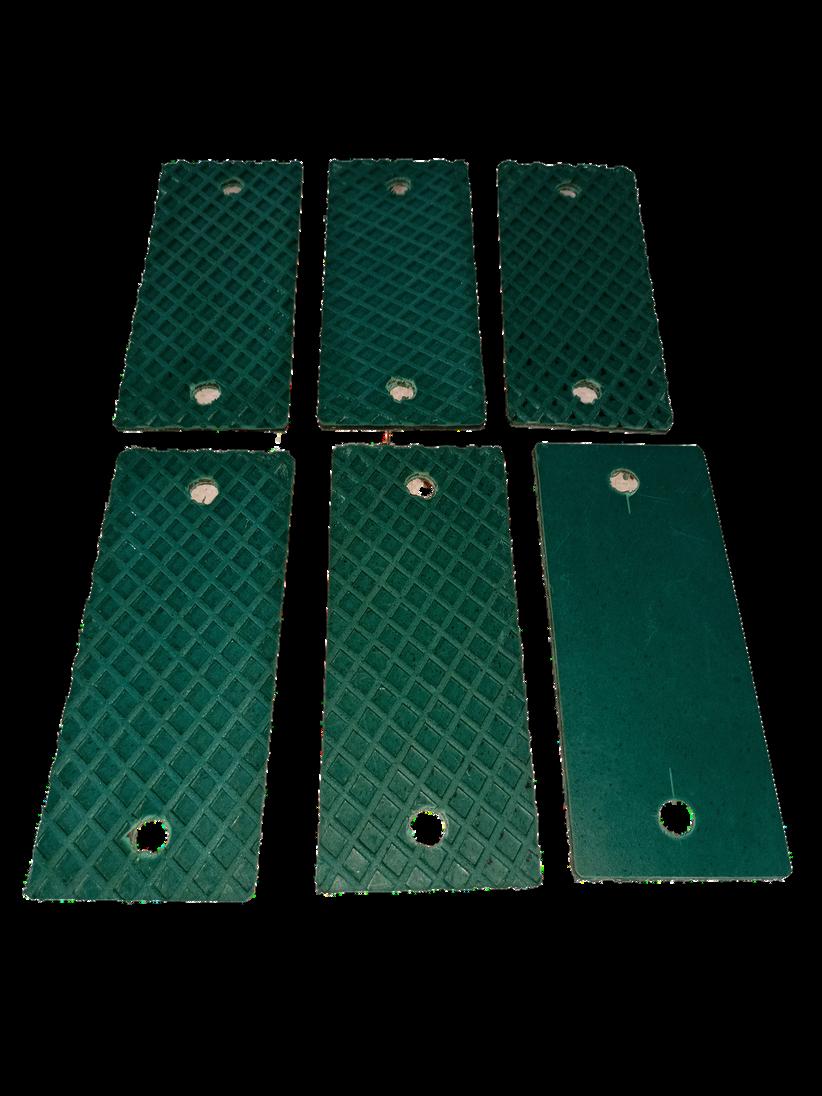

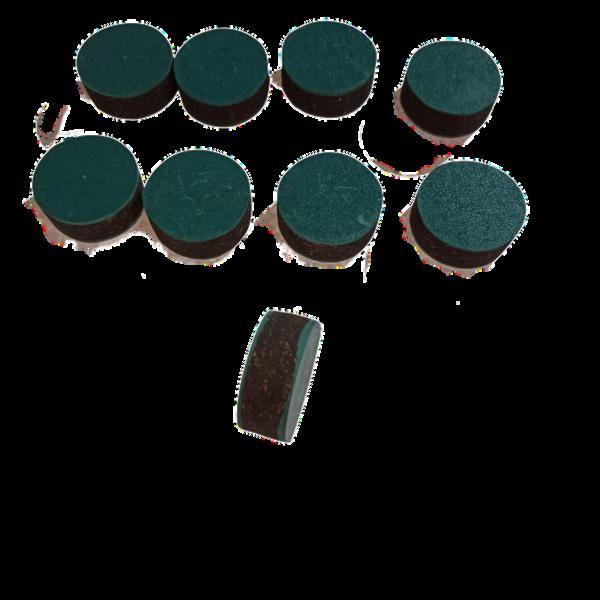

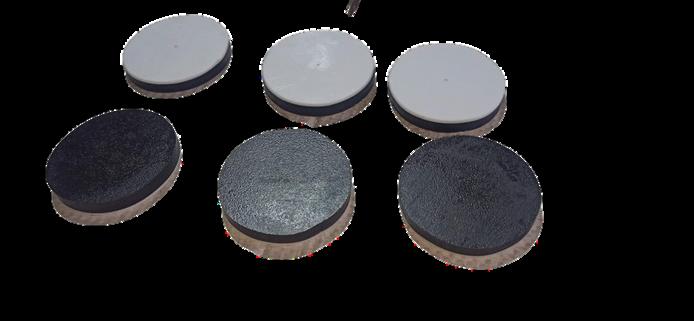

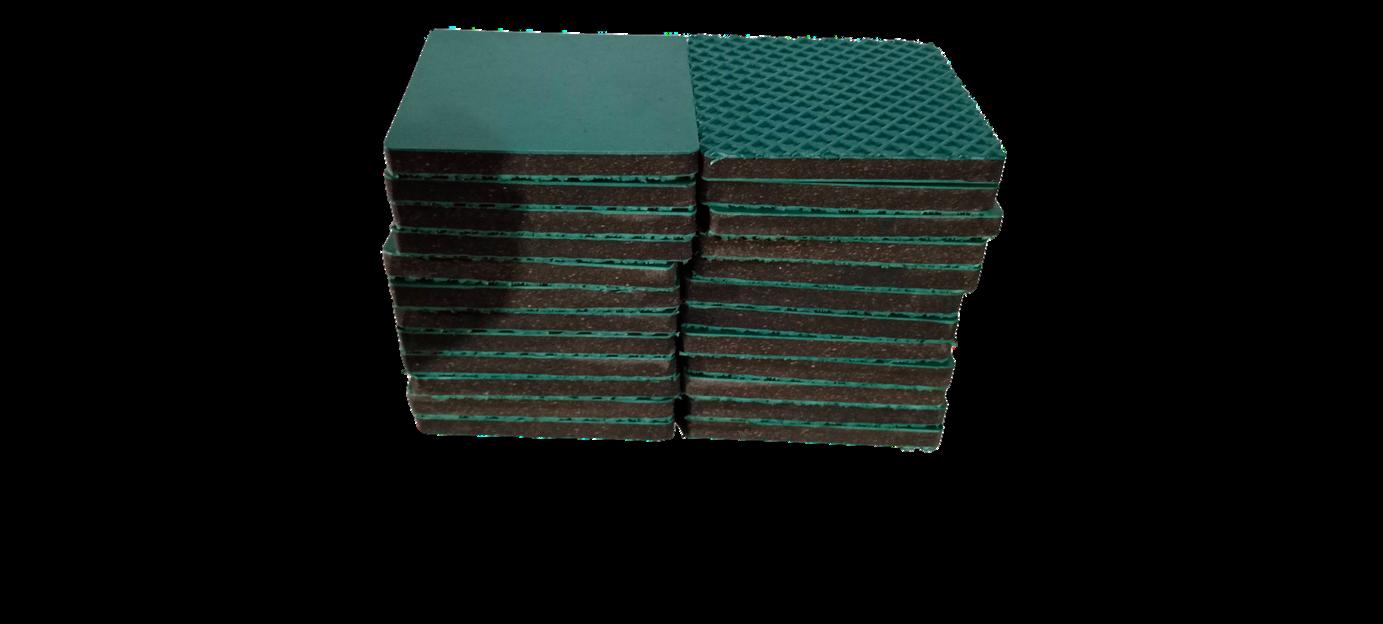

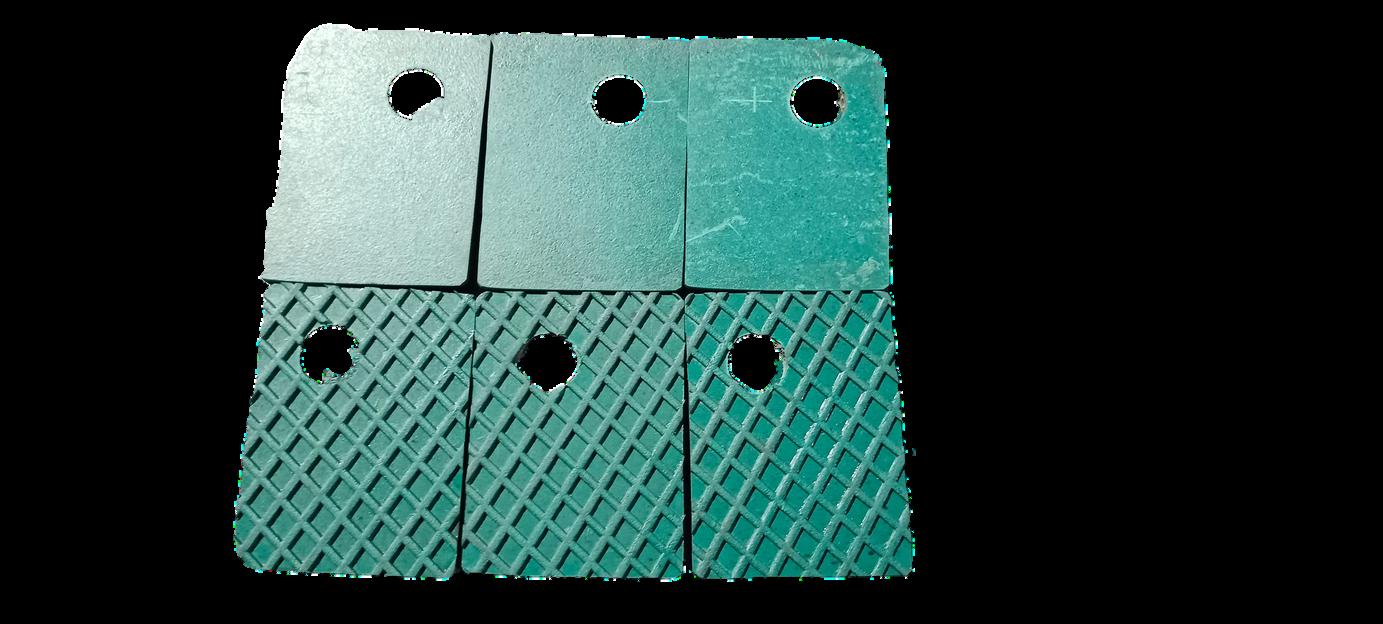

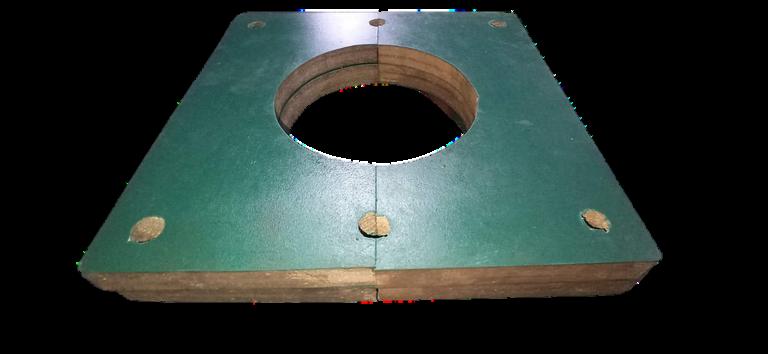

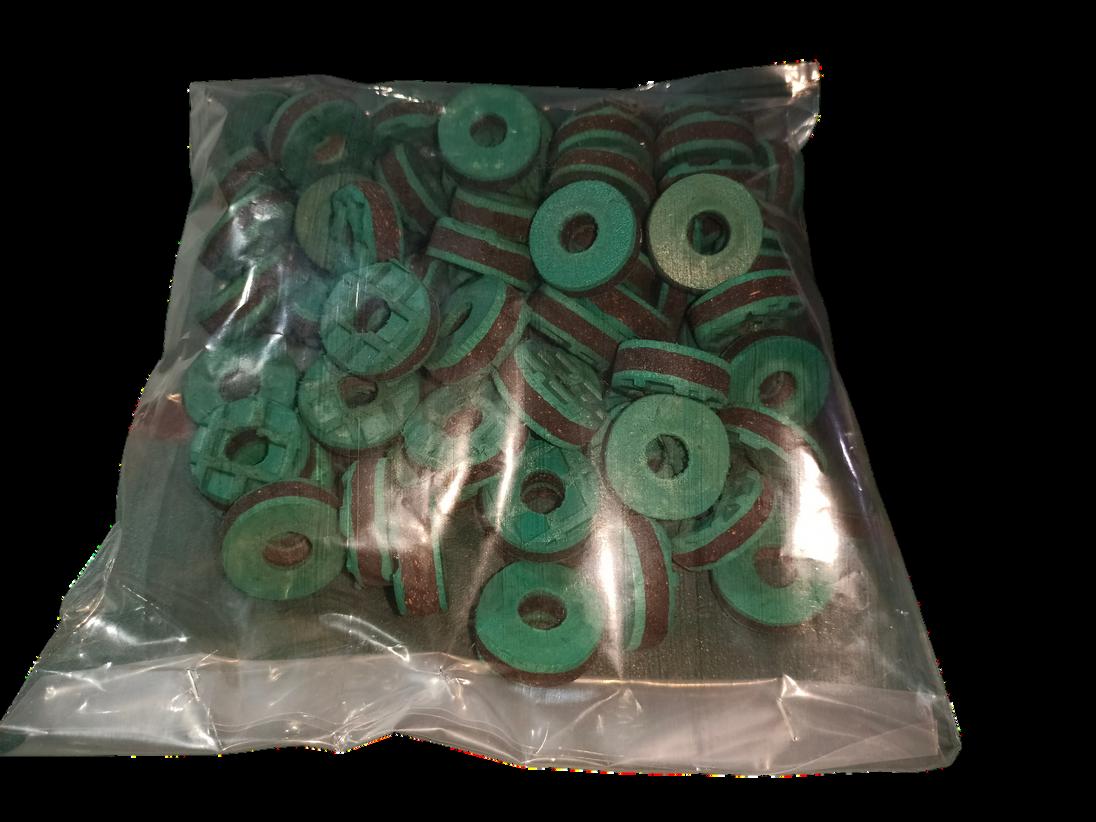

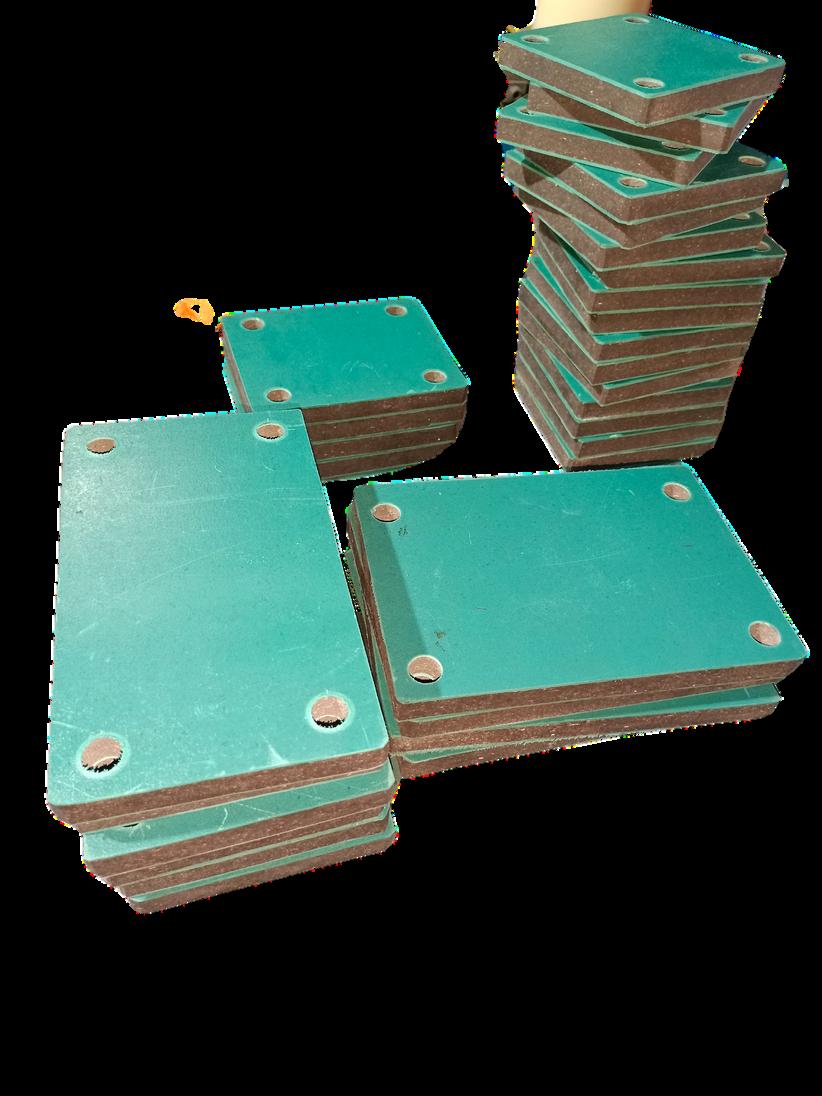

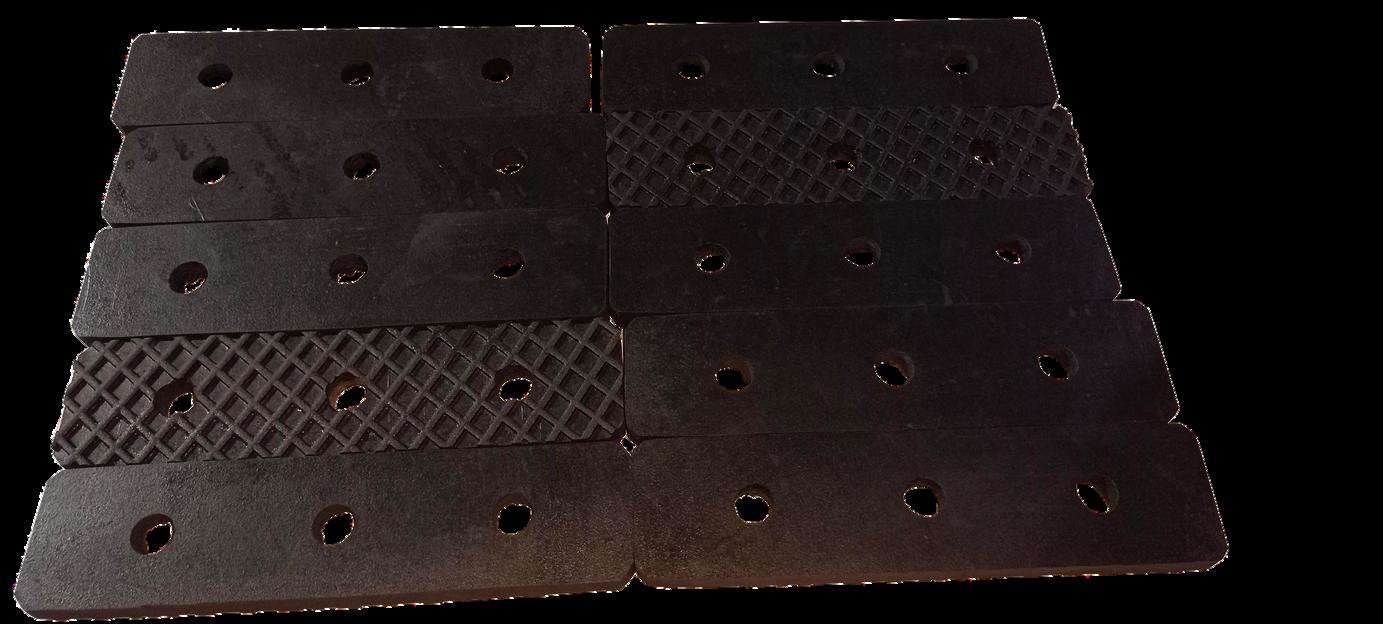

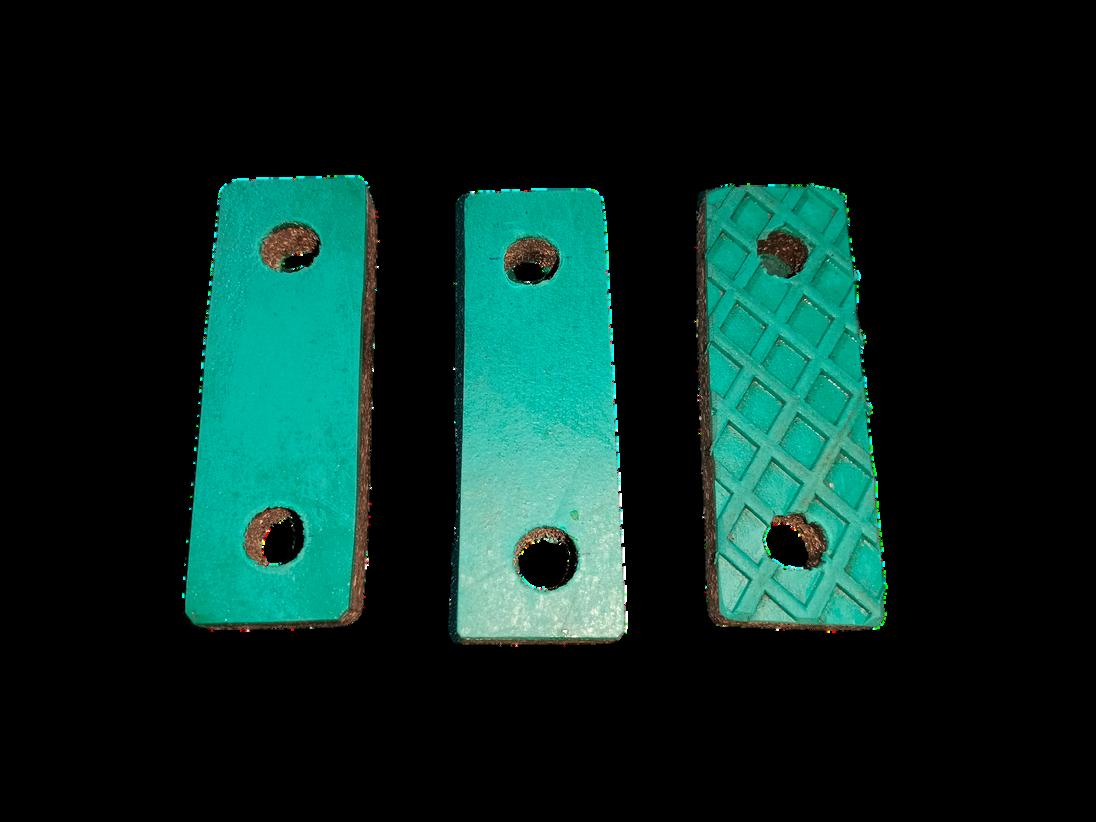

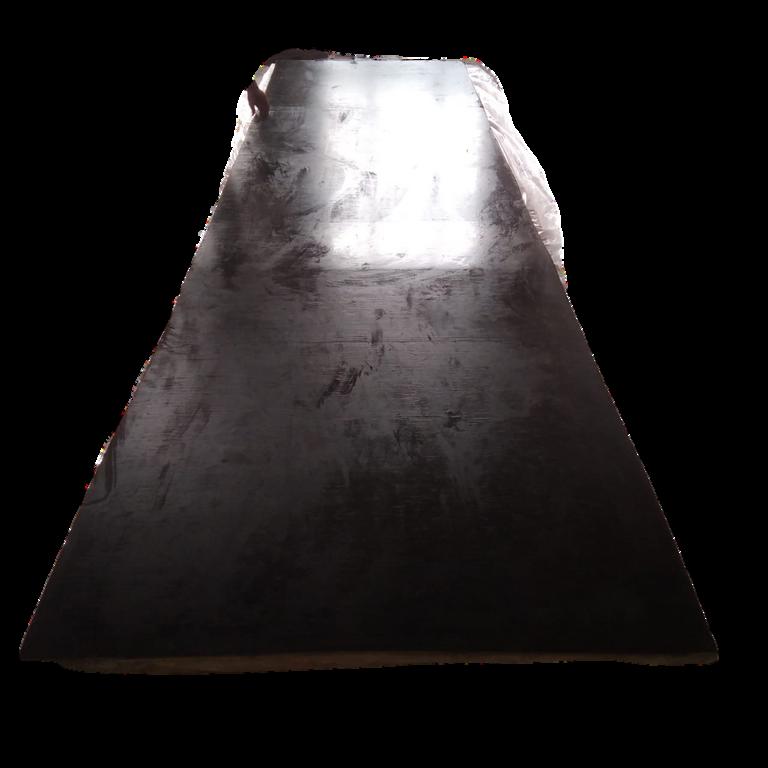

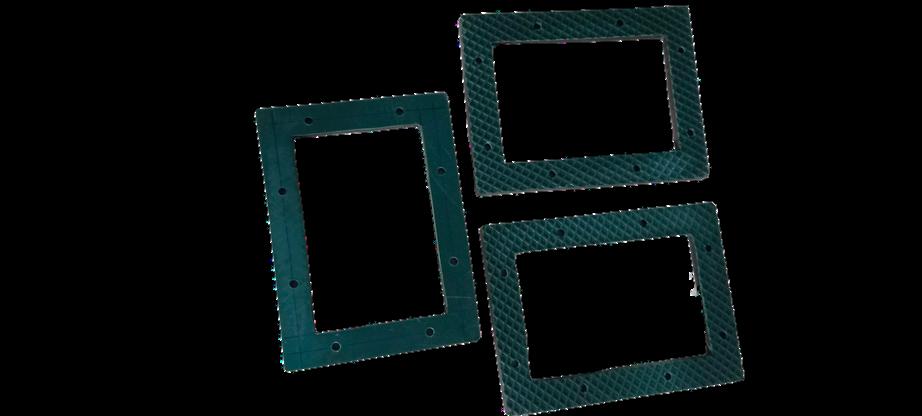

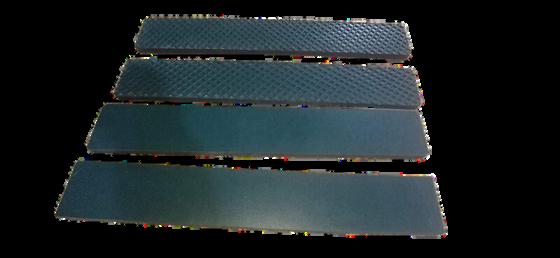

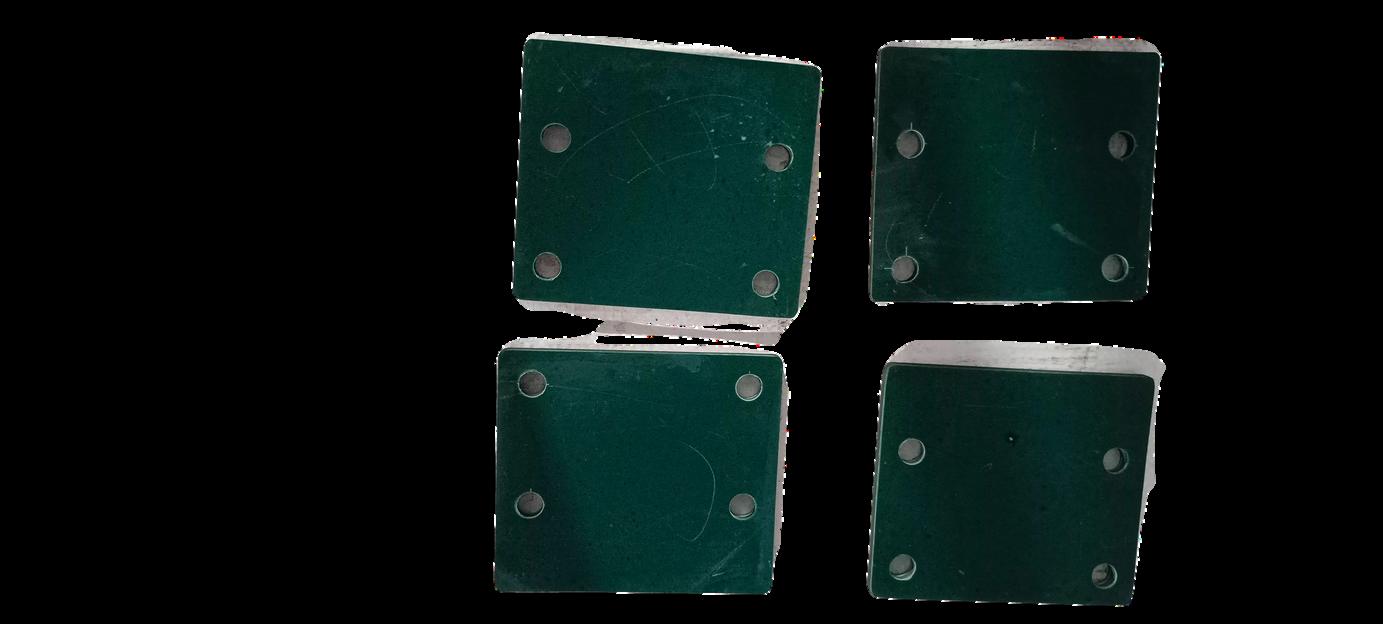

Customised VIBRATION DAMPING PADS

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

Customised VIBRATION DAMPING PADS

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

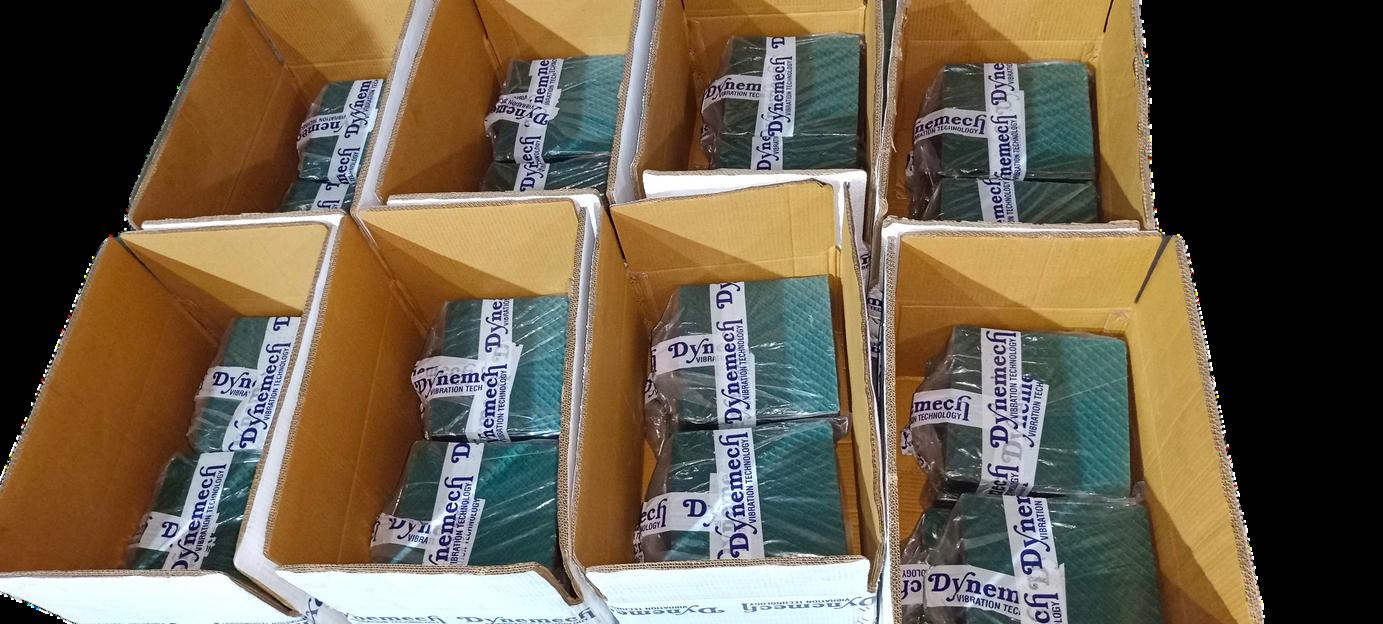

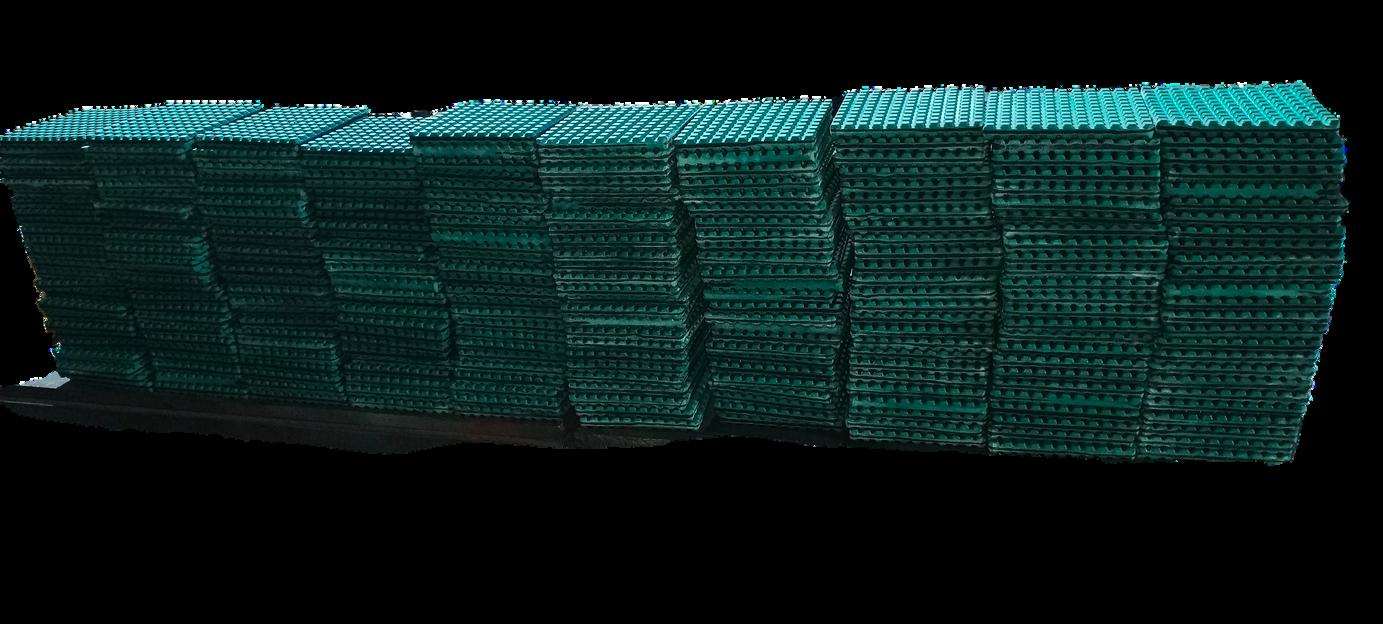

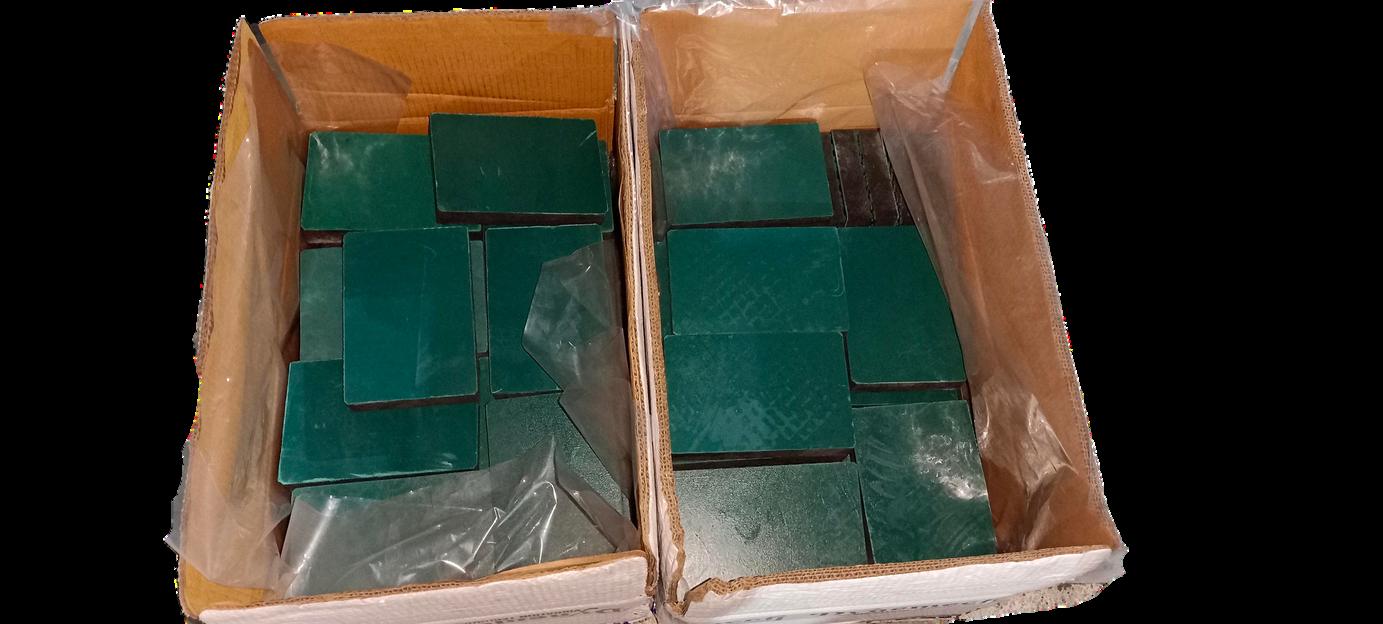

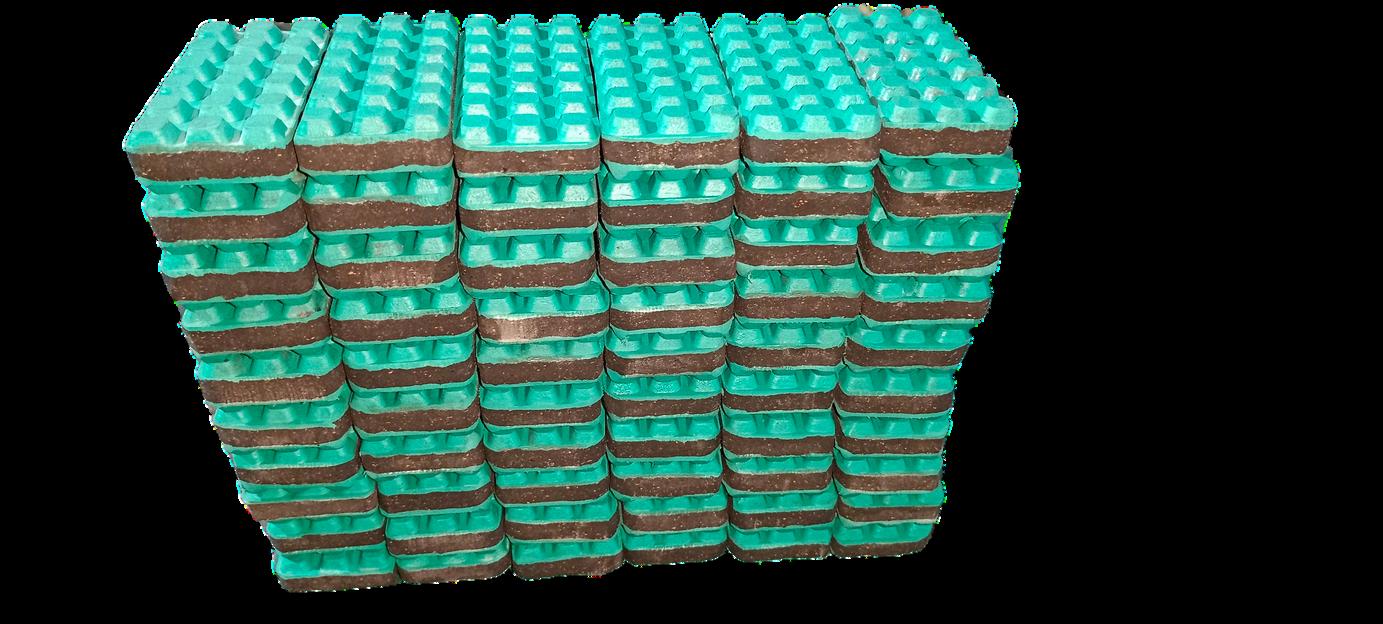

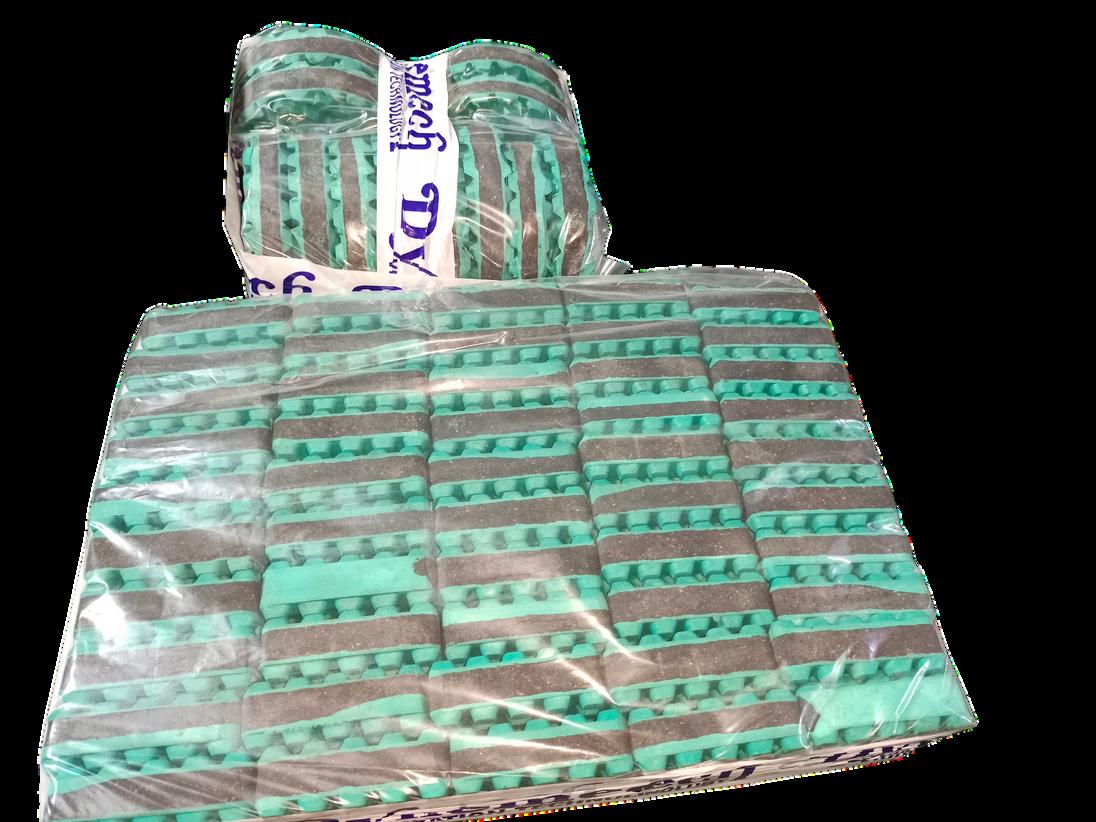

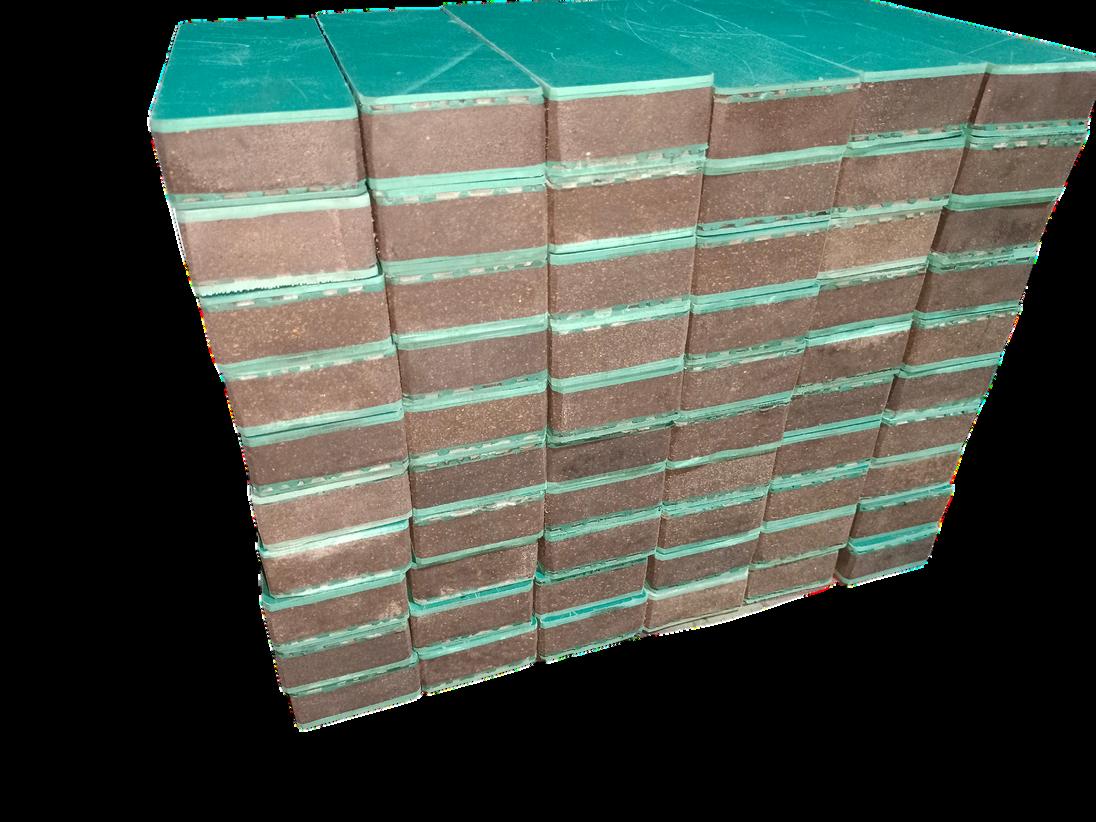

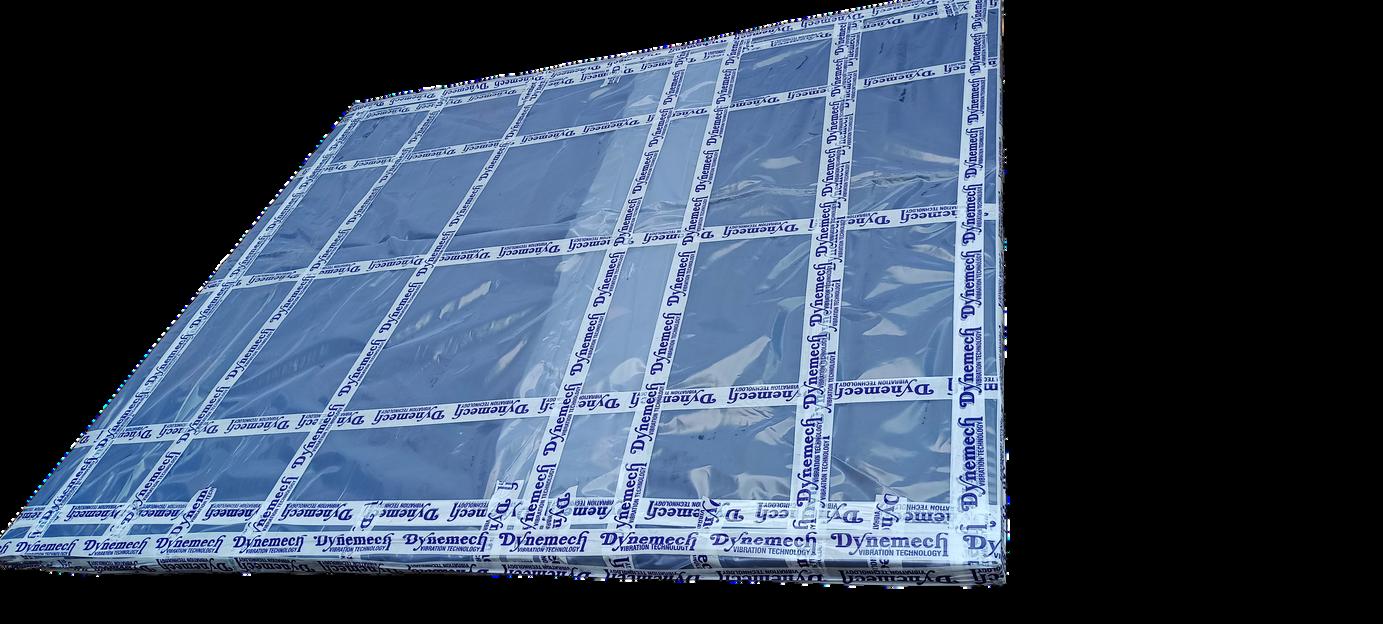

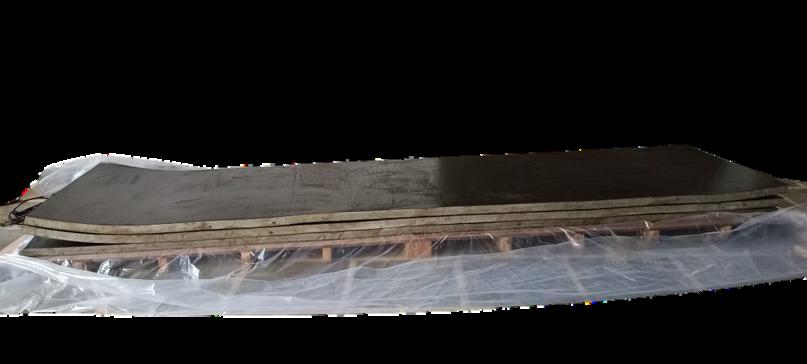

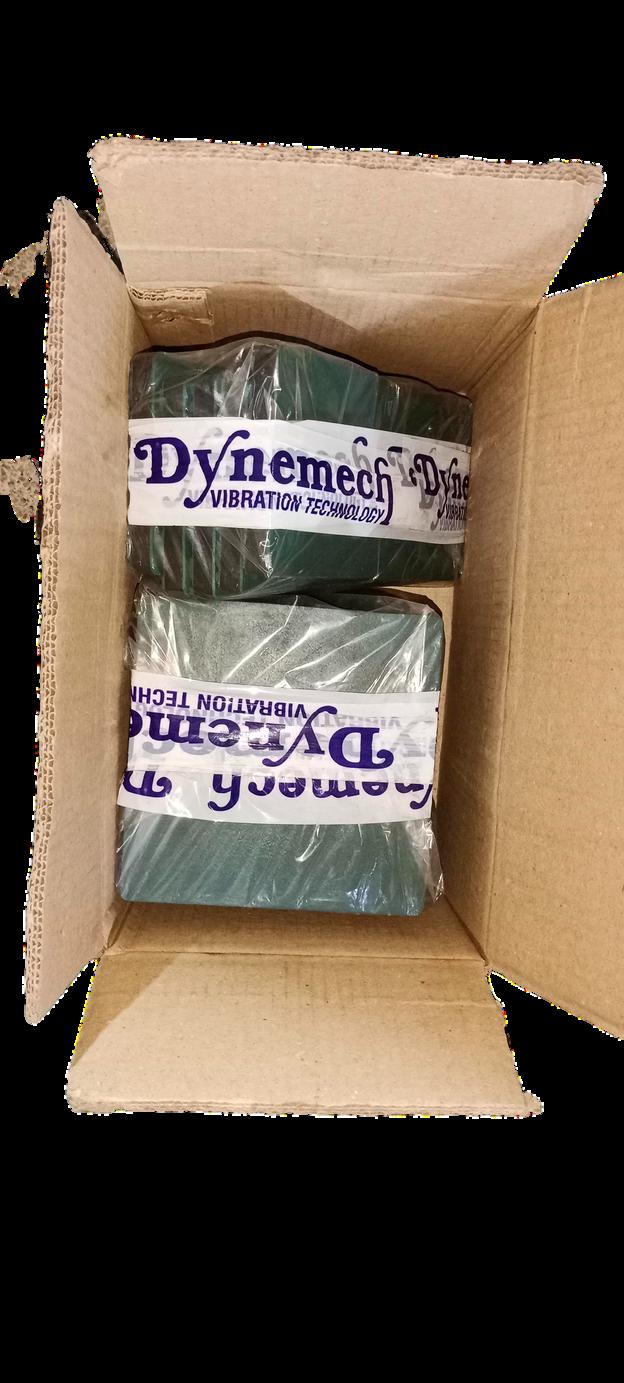

VIBRATION ISULATION PLATE UNDER DISPATCH

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

Vibration Damping Pads In Action

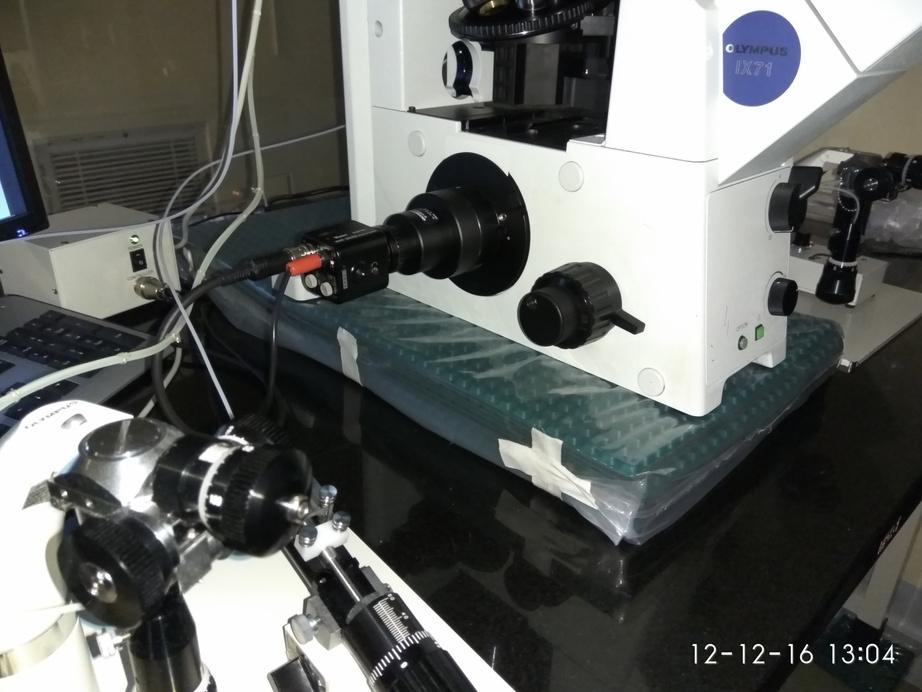

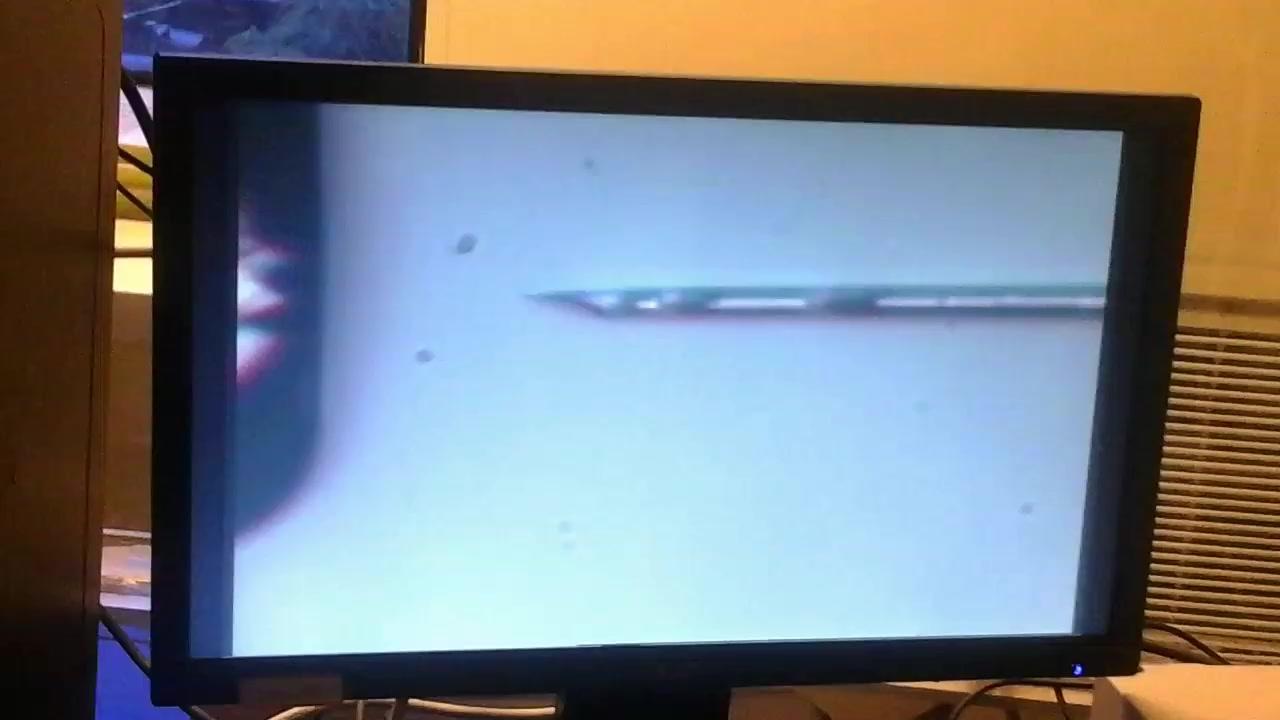

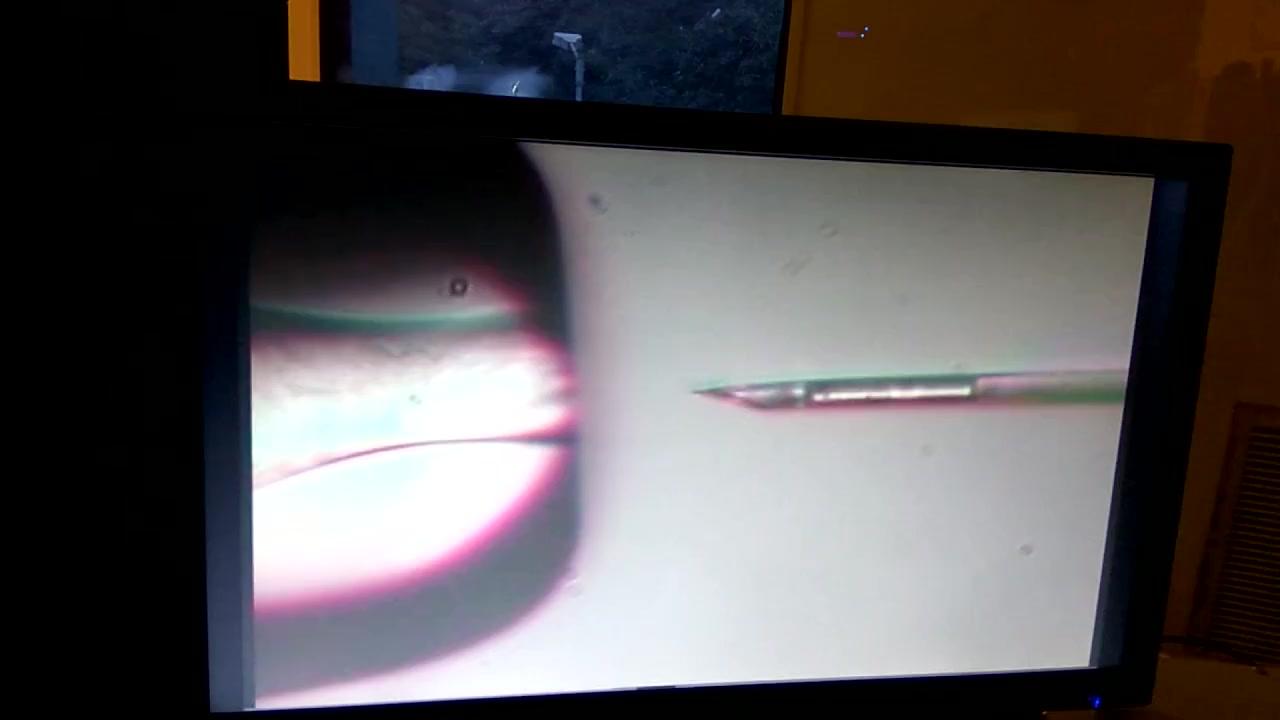

Dp Insulation Plates installed under the Table and Microscope in IVF Laboratory

AFTER ANTI VIBRATION PLATES

BEFORE ANTI VIBRATION PLATES

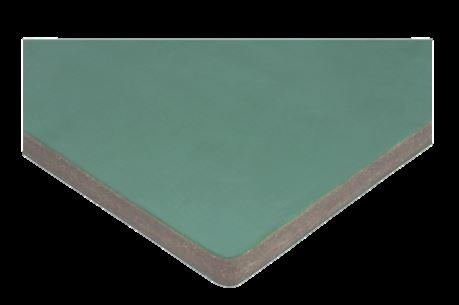

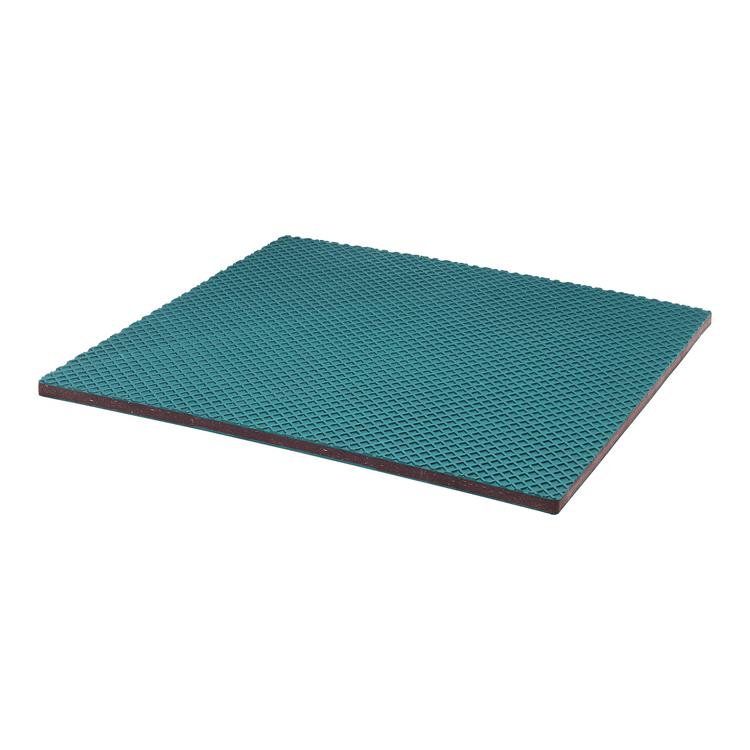

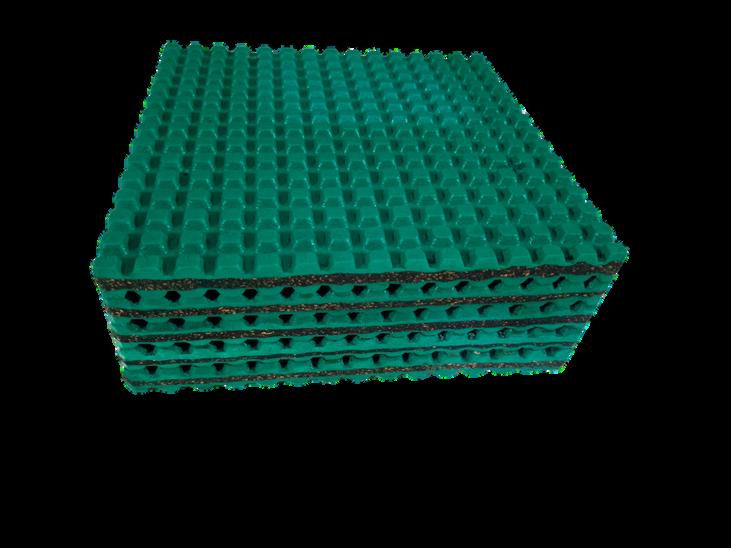

Dp Vibration Isolation Sheet

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

Vibration Damping Pads In Action

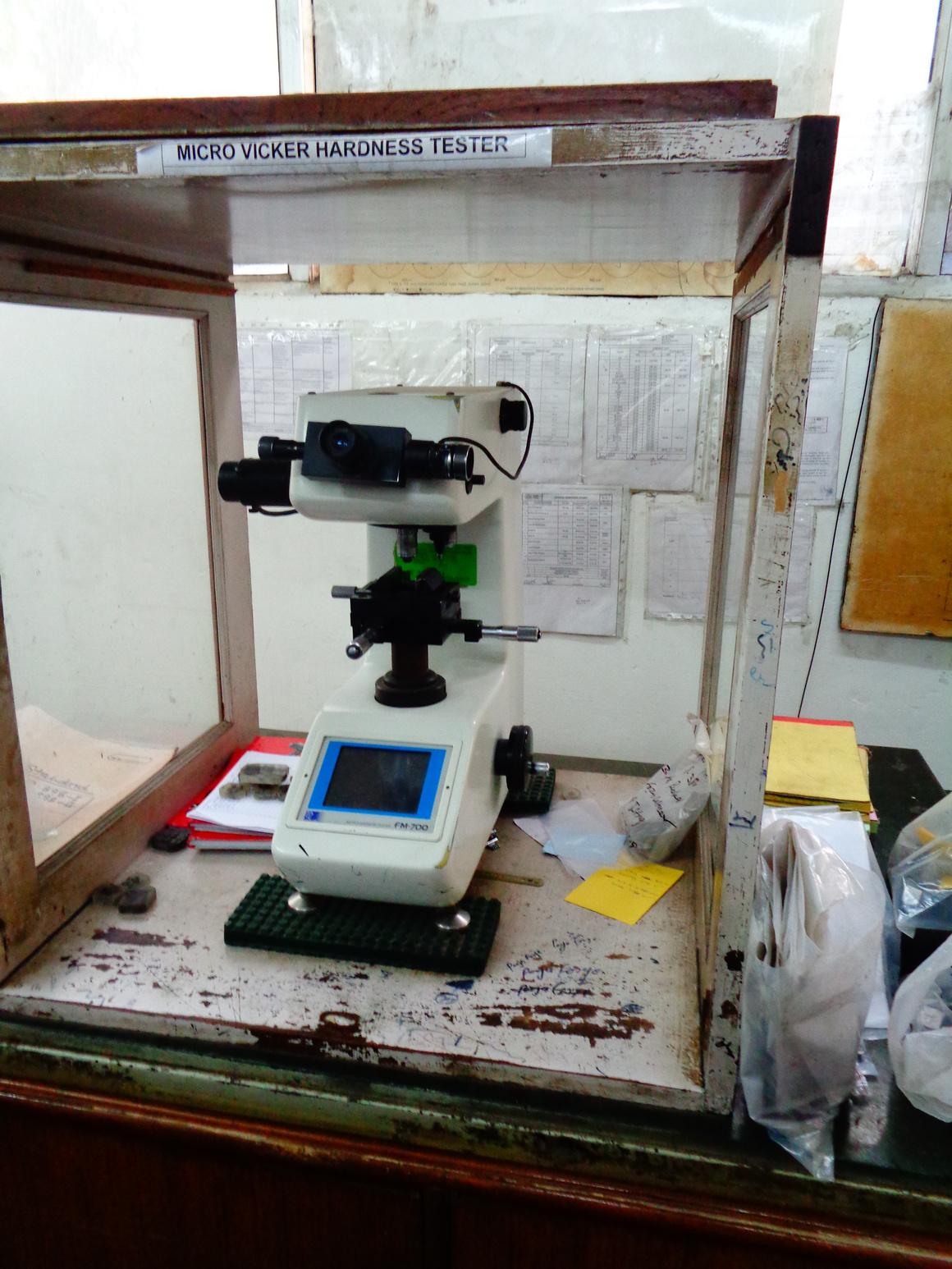

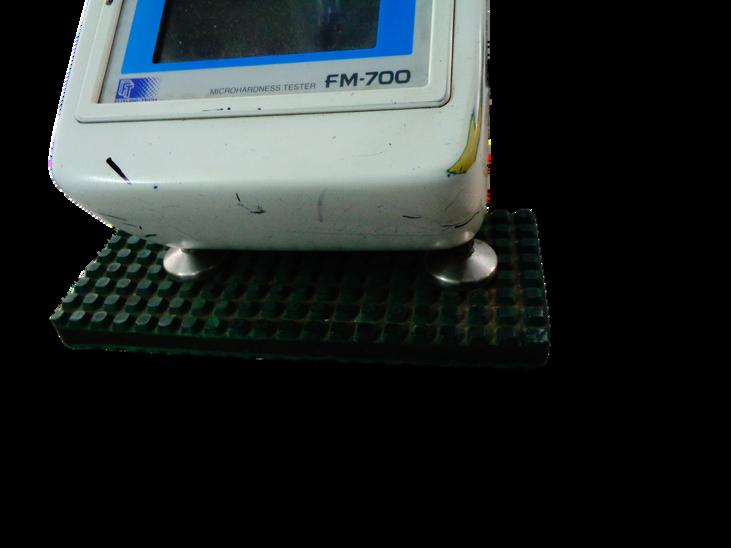

MickroVicker Hardness Tester Machine on Vibration Isolation Pads Dp

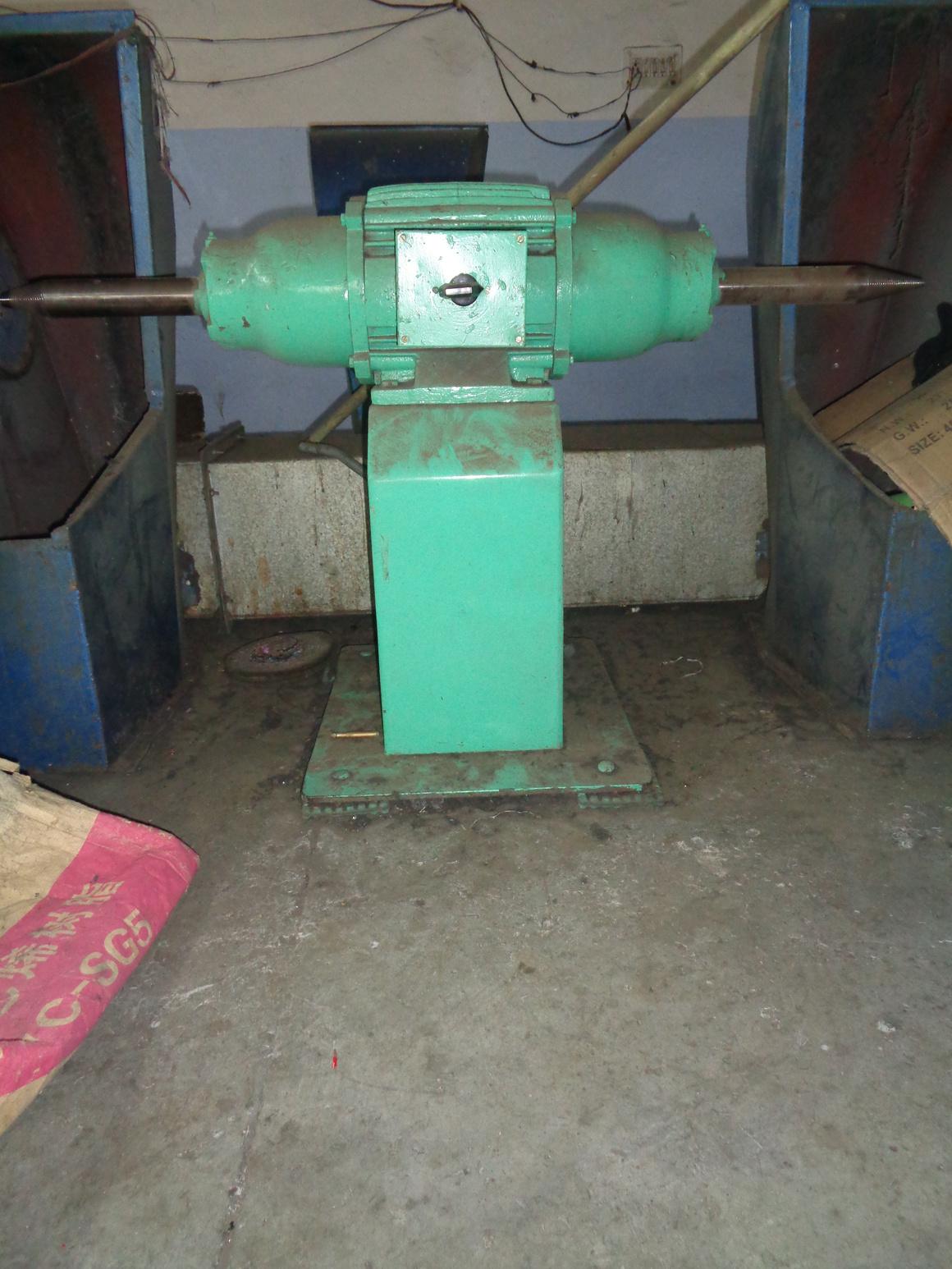

Belt Grinder installed on Vibration Insulation Sheets

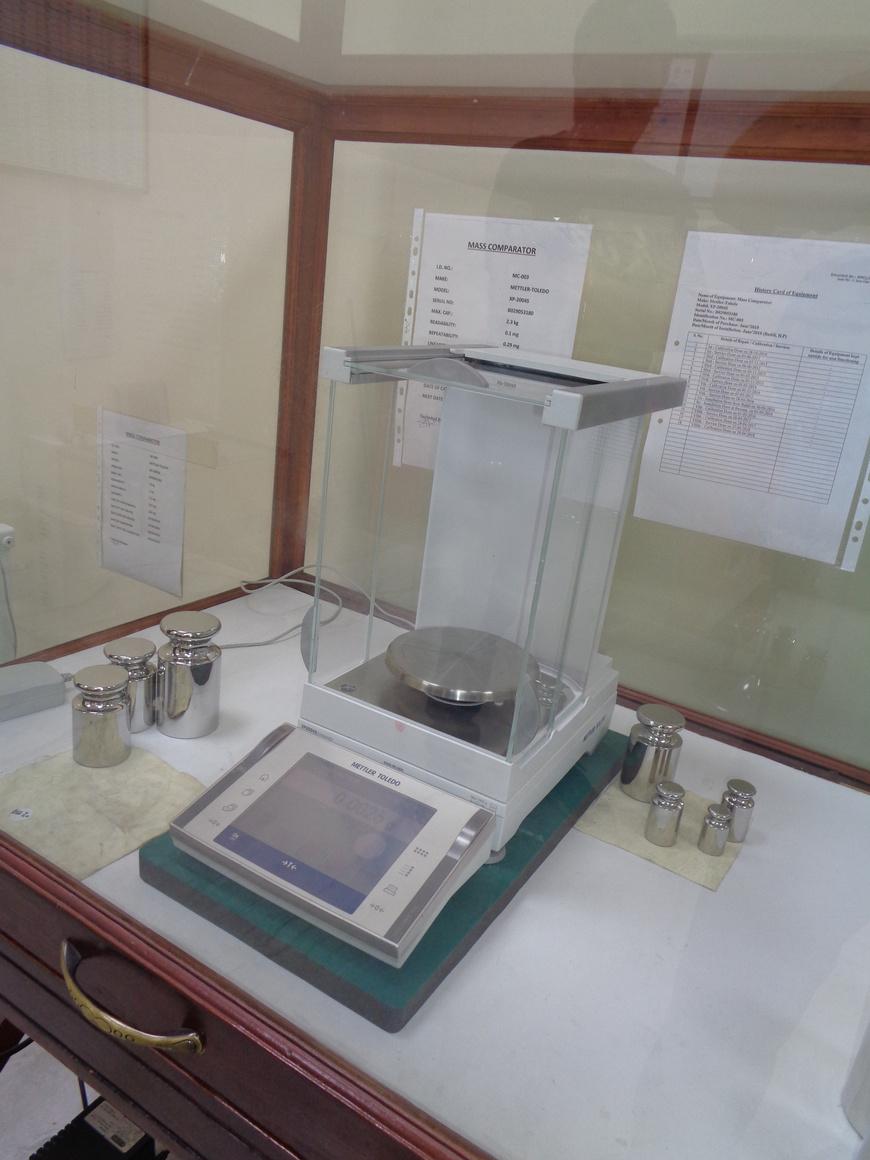

Weighing Balance installed on Vibration Insulation Sheets

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

Vibration Damping Pads In Action

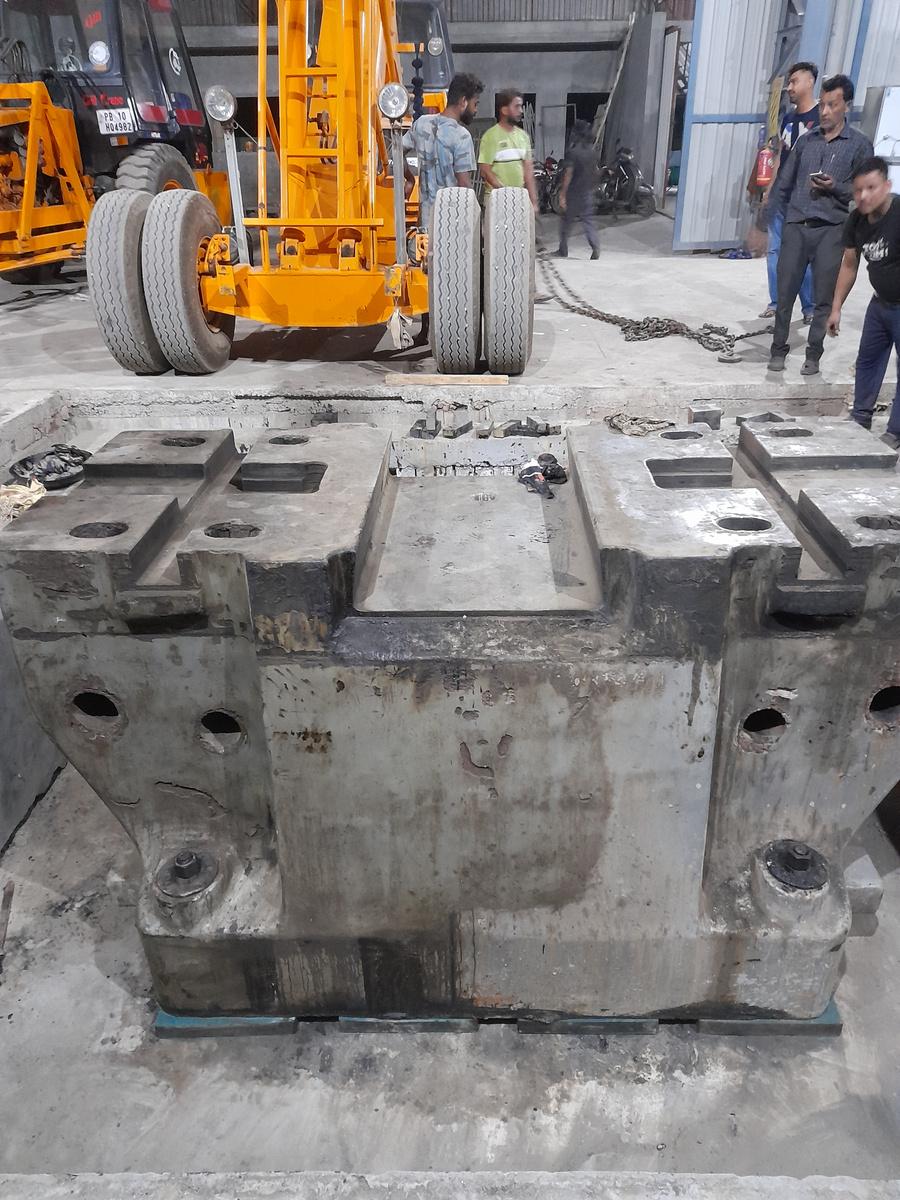

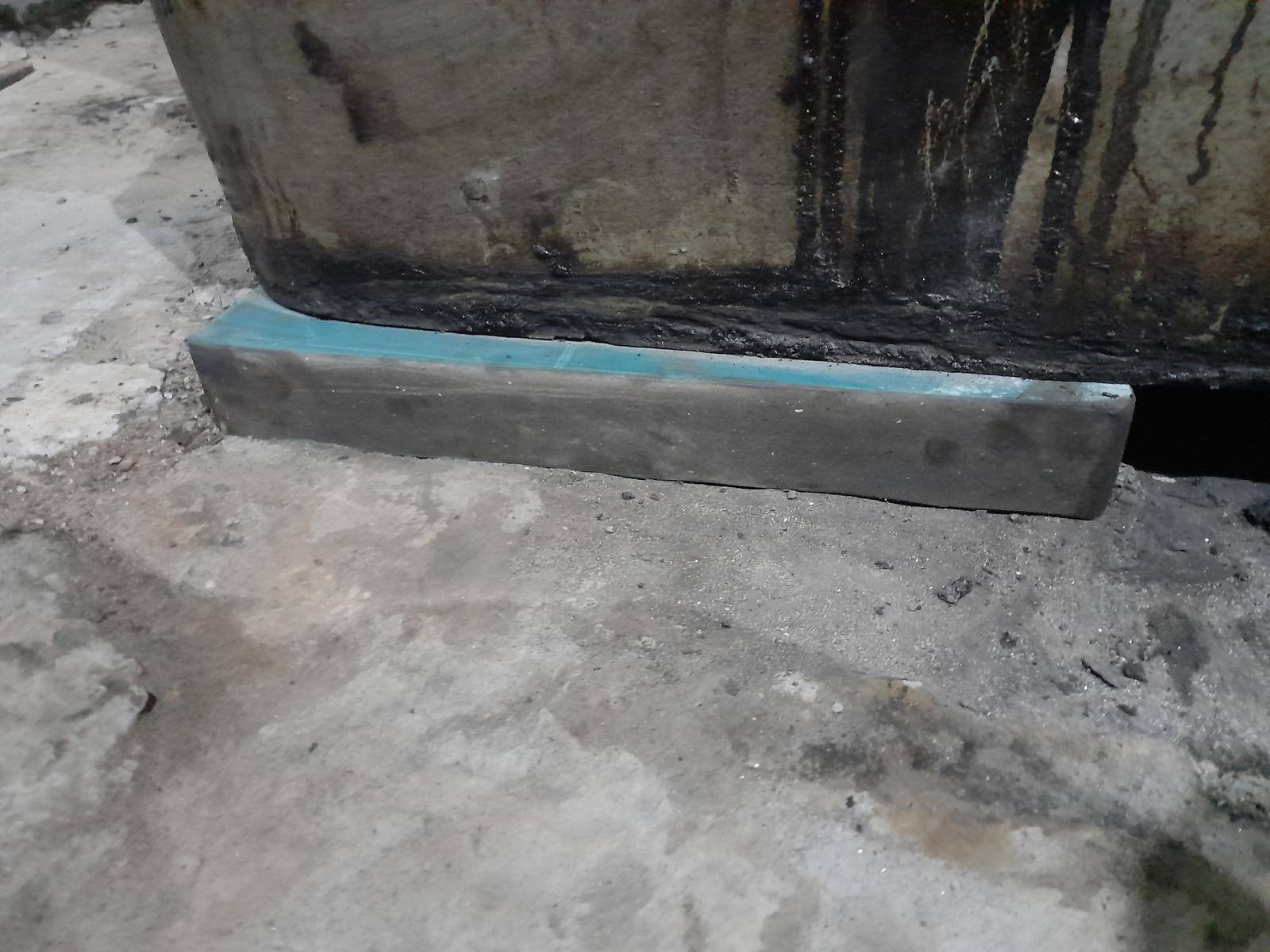

Hammer anvil on Dhs Shock Isolation Plate

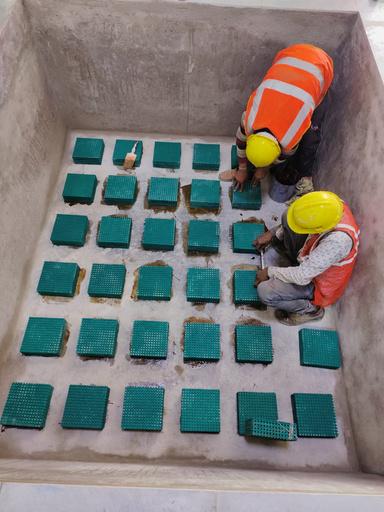

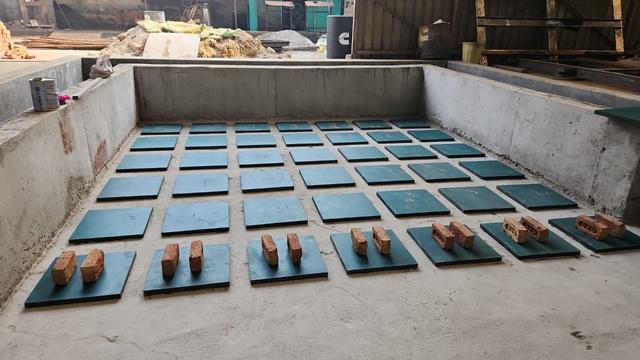

DNM Insulation Plates for Foundation Isolation For 50 T DOOSAN VMC

ISOLATED FOUNDATION For Zeiss CMM Spectrum: 10/12/6 on Dp Insulation Plate Stack

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

Vibration Damping Pads In Action

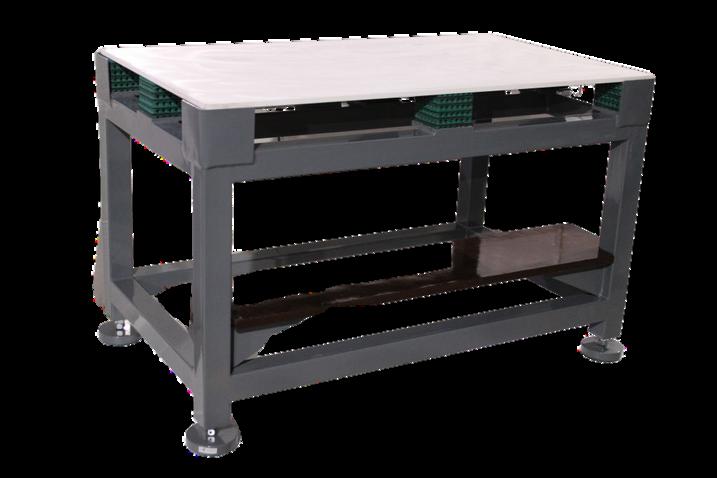

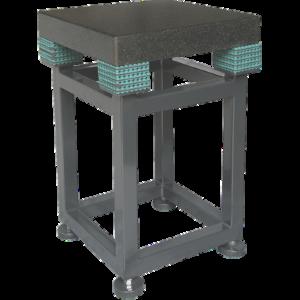

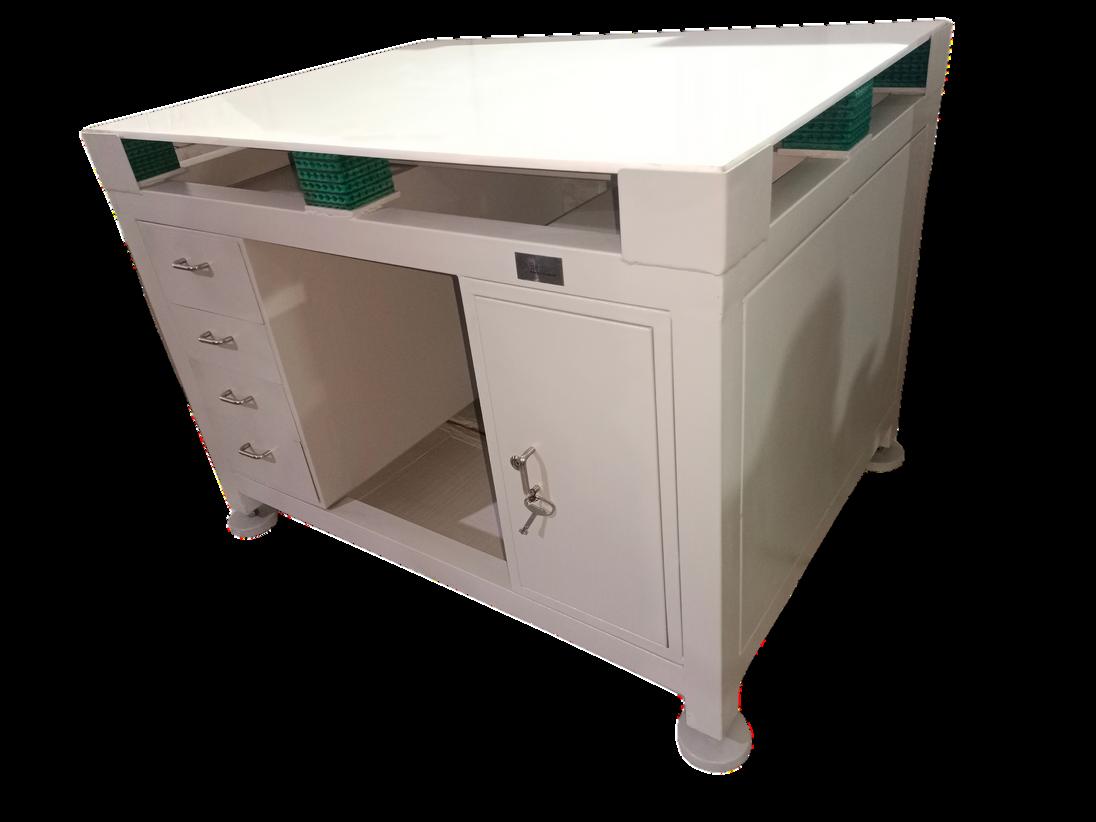

Anti Vibration Tables with Elastomeric Isolation use Vibration Damping Sheets

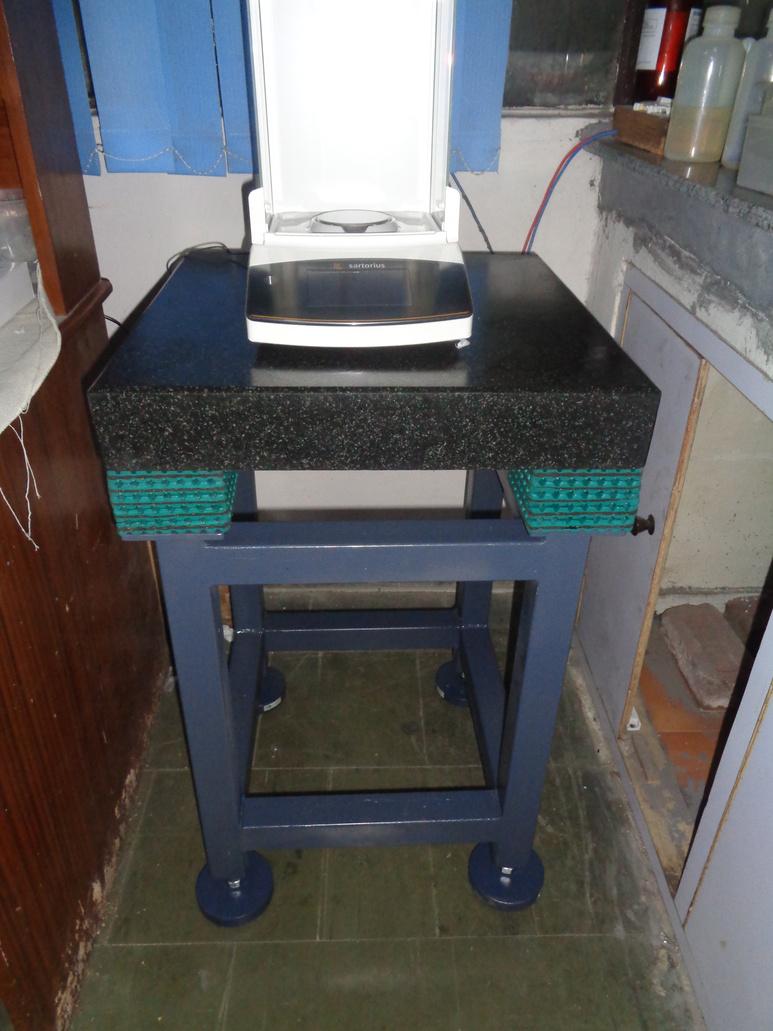

Vibration Isolated Table with Dynemech vibration Isolation Sheets

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

HEADING1-A APPLICATIONS

★ Plastic Injection Moulding Machines ★CNC Turning/ Machining Centers ★Pressure Die Casting Machines ★Coal Crushers, Turbines, ID/FD Fans ★Printing and Packaging Machines ★Food and Pharmaceutical Machines ★CMM and EDM Machines ★Press Brakes and Turret Punch Presses ★ Surface Roughness Tester ★Power Presses ★Tool Room Machines ★Textile Machines ★ Forging Hammers ★ CNC Milling ★ Lathes, Broachers ★HMC/VMC ★Gear Profile Tester

★Deep Drilling Machines ★Generators, Compressors & HVAC Installations ★Punching, Stamping & Shearing Machines ★Measuring and Testing Machines & Equipements (Surface Plates, Hardness Testers) Anti-Vibration Tables and Isolation Platforms Precision Machine Tools (Turning Centers, Machining Centers, Grinding Machines) Centrifugal Pumps and Fans Contour Measuring Machines

★ ★ ★ ★

sales@dynemech.com | +91-9810760131 | vibrationmountsindia.com

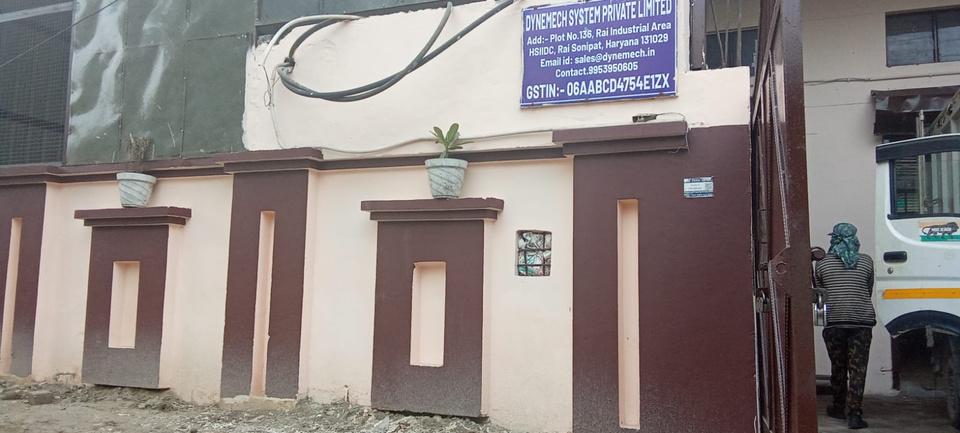

MEET US :
