Kova
Extreme performance in tough situations

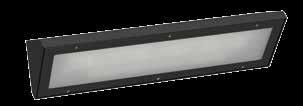

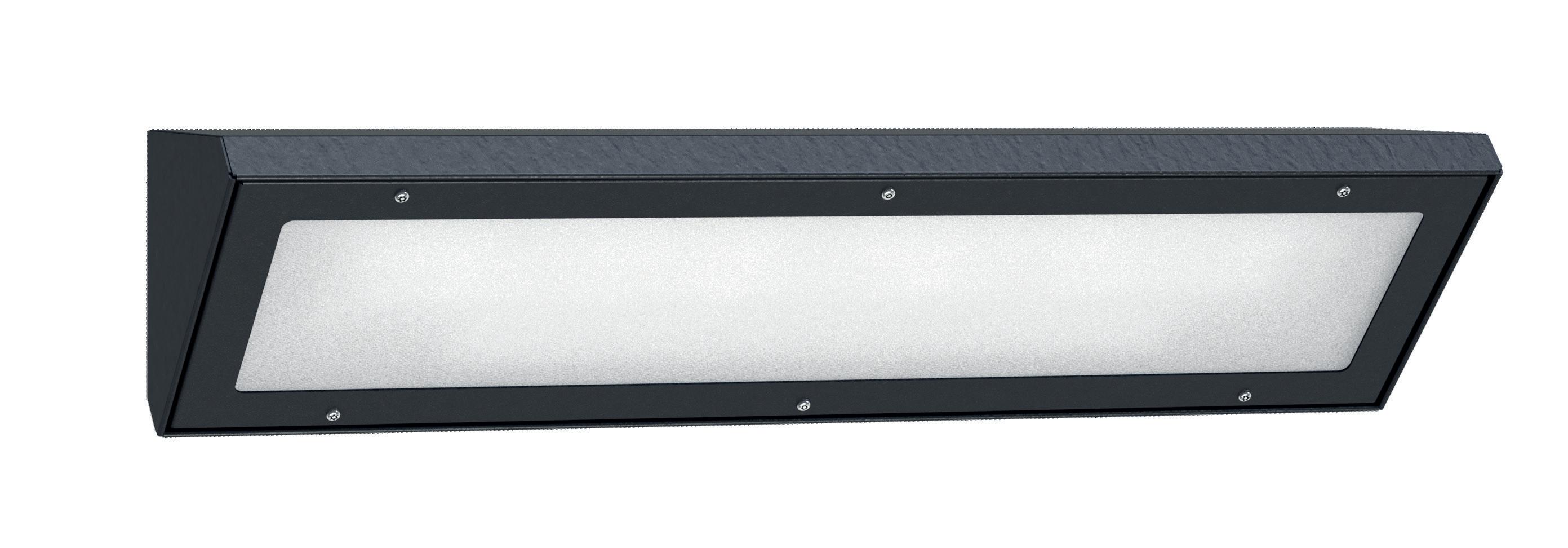

Kova Corner
IP65 | IK10+ | CLASS I / CLASS II
Features:
Suitable for lighting underpasses
Vandal-proof design
Highly efficient, save up to 65% energy over fluorescent alternatives
Light source:
LED module: Tridonic linear LED modules
Colour temperature: 4000K
Colour rendering index: >80Ra
Optical control:
Asymmetric
Light output:
L70 (B10) lifetime prediction: In excess of 50,000 hours
Driver
Switching and control:
Programmable
3hr Emergency option
Black
RAL colours available on special request
Colours: Materials:
Body: Fabricated stainless steel
Glazing:
Polycarbonate
Finish: Powder coated
Image:
Dimensions:
Size (mm) Power Consumption Lumen Output (lm) Efficacy (lm/W) Max. Ambient Temperature Version L L1 B H D D1 600mm 1200mm 1500mm
Tridonic
Dimmable: 1-10V / DALI L B H L1 D D1 760 170 170 652 1370 170 170 1290 40 40 1670 170 170 1590 40 75 75 75 20.5W 600 600 600 600 1200 1200 1200 1200 1500 1500 28.9W 2170 2926 106 101 45°C 45°C 35.8W 4064 113 45°C 43.2W 4768 110 45°C 39.2W 47.2W 4305 5054 109 107 45°C 45°C 55.5W 5741 103 45°C 71.9W 8280 115 45°C 51.5W 5520 108 45°C 58.5W 6410 110 40°C

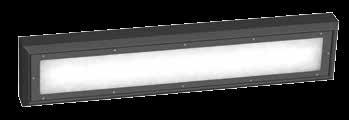

Kova Surface
IP65 | IK10+ | CLASS I / CLASS II
Features:
Vandal-proof design
Highly efficient, save up to 65% energy over fluorescent alternatives
Recessed version available
Light source:
LED module: Tridonic linear LED modules
Colour temperature: 4000K
Colour rendering index: >80Ra
Optical control:
Asymmetric
Light output:
L70 (B10) lifetime prediction:
In excess of 50,000 hours
Switching and control:
Black
RAL colours available on special request
Colours: Materials:
Body: Fabricated stainless steel
Glazing:
Polycarbonate
Finish: Powder coated
Image:
Dimensions:
L L1 B B1 H 600mm 1200mm 1500mm
Version
Size (mm) Power Consumption Lumen Output (lm) Efficacy (lm/W) Max. Ambient Temperature
Tridonic
3hr Emergency
Dimmable: 1-10V
DALI 600 600 600 600 1200 1200 1200 1200 1200 1500 1500 20.5w 29w 2180 2850 106 98 45 45 35.8w 3960 111 45 43.2w 4600 106 45 39.2w 47.2w 4560 5350 116 113 45 45 55.5w 5906 106 45 71.9w 8280 115 45 86.5w 51.5w 9715 5290 112 103 45 45 71.7w 7235 101 45 760 280 90 594 1370 280 90 1240 110 110 1670 280 90 1240 110 L B L1 B1 H
Driver
Programmable
option
/
Kova Specification
Product code configurator
example: KOV C 60 2 E
20.5W 28.9W 35.8W 43.2W
February 2017
DW Windsor Pindar Road, Hoddesdon, Hertfordshire, EN11 ODX T: +44(0) 1992 474600 | E: info@dwwindsor com dwwindsor com Product range Kova KOV Version Corner Surface Recessed C S R Length 600(mm) 1200(mm) 1500(mm) 15 12 60 Emergency None 3h emergency module Power Corner Surface E Power 1 20.5W 28.9W 35.8W 43.2W 39.2W 47.2W 55.5W 71.9W 51.5W 58.5W 71.7W N/A 2 3 4 N/A 86.5W 39.2W 47.2W 55.5W 71.9W 86.5W N/A 5 Lumen Output: 600mm 1200mm 1500mm 600 1200 1500 Dimensions Corner L L1 B H D D1 600mm 1200mm 1500mm L B H L1 D D1 760 170 170 652 1370 170 170 1290 40 40 1670 170 170 1590 40 75 75 75 51.5W 58.5W 71.7W 2180lm 2850lm 3960lm 4600lm 4560lm 5350lm 5906lm 8280lm 9715lm 5290lm 7235lm Surface L L1 B B1 H 600mm 1200mm 1500mm 760 280 90 594 1370 280 90 1240 110 110 1670 280 90 1240 110 L B L1 B1 H 2170lm 2926lm 4064lm 4768lm 4305lm 5054lm 5741lm 8280lm 5520lm 6410lm
