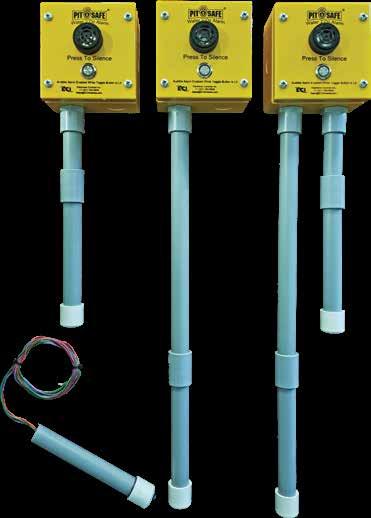

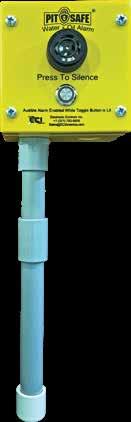

Standalone Flood Detection Device
FloodGuard o ers versatile flood event detection to suit various needs. As a standalone device, it provides an audible alarm and light indication for immediate notification of building personnel. It supports two solid-state fluid detection sensors, allowing for the detection of both water and/or oil at di erent heights or can provide redundancy in the detection of fluids above the pit floor.
THE FLOODGUARD ADVANTAGE
Standalone Flood Alarm: Functions independently if not interfaced with a controller or monitoring system.
Universal Flood Detection: Easily connects with any elevator control system.
Dry Contact Terminal Connections: Provides event signaling.
Integrated Elevator Control Option
For enhanced functionality, FloodGuard can be integrated with elevator control systems through a wired terminal interface. This integration allows the device to signal the controller to move the elevator car to an alternate, higher floor in the event of a flood.
Solid-State Fluid Detection Sensors: Reliable detection with no moving parts or float switches.
Supports Two Fluid Detection Sensors: Capable of detecting water and oil.
Audible Alarm and Visual Indication: Alerts personnel immediately upon detection.
NEMA Enclosure: Facilitates easy installation with conduit-friendly design.
Made in America: Proudly manufactured in the USA.
Model: FloodGuard
Part NUMBERS:
Single Sensor w/ Control Unit:
ECIA045.00015273
Two Sensor w/ Control Unit: ECIA045.00015063
Input power: 120VAC or 24 VDC
Output Contacts: Two 5Amp Normally Open
Enclosure Type & Dimensions: NEMA 4 enclosure
5L x 5W x 3 D
Audible Alarm: 100db Electric Piezo
Water/Oil Sensor: Solid State
