CHARGING RANGE

We can’t imagine life without a smartphone – can you? They are an essential accessory, both at work and in our private life. For optimal use, your phone needs to be charged and ready to go at all times. At home or on the road, we have the right charger for you!

We proudly present our Connect Charging range that offers many different designs, colours, materials and style options to suit all your wishes. Paying attention to the tiniest details, sturdy materials and premium quality connectors are our key values. We carefully select our range based on factors such as quality, functionality and usability. Quality is non-negotiable; all our products meet the quality and safety standards according to European legislation.

We are happy to help you select the right accessories for a strong product range to fit your shop shelves. For example cables for charging and data transfer to wall and car chargers. DRESZ is your creative and reliable partner!

Retail Concepts & Assortments

The starting point for (non-food) retail success. DRESZ develops and supplies complete ranges of Consumer Goods.

We have several private label products or items that you can sell, but we also offer a full in-house service where we tailor our products to your needs as a brand or company. As a creative partner, we can create private label collections with both a personalized identity and an attractive appearance on the shop shelves. Everything is arranged from start to finish, so that you can distinguish yourself in the market. Whatever we do, we do it with attention to commerce, originality, and quality - and with a heart for people and nature.

We design with purpose: success starts with a strong product range from DRESZ.

Stay Connected with CONNECT

CONNECT offers a wide range of Consumer Electronics & Accessories to suit every lifestyle thanks to the perfect mix of technology and fashion.

The Connect assortment consists of a wide range of protection-, charging-, audio-, gaming- and vlogging accessories. From basics to the latest fashionable musthaves; this collection offers something for everyone.

b y DRESZ ®

CONTENTS

Connect by DRESZ Cables

Cables

We are surrounded by a diversity of portable devices with many different kinds of charging connectors and input ports. That means there are many types of cables on offer. These cables are intended for charging devices and/or data transfer.

Customisation is key. Every single cable we develop, can be fully customised to your needs. With an ever-changing range of ontrend colours, our items are ideal to mix and match. Take your pick from different kinds of high quality materials; even the fine details on

the designs can be adapted to your taste or budget.

Using our full-service concept, we can help you on all fronts making the right choices, because it’s all in the details. Which connector? Which materials? What about cable lengths? USB 2.0 or 3.0?

We will look for the right commercial offer and provide you with an original design.

Together, we will develop the perfect cables.

Quality

Connect cables do not just look good; they are also super strong!

The reinforced cable joints can withstand repeated bending and insertion. Because of their high quality, they last longer. As a result, fewer cables need to be produced, which in turn contributes to less waste and a happier planet.

Options overview

Different lengths for different needs. Short and compact when you need your phone within a reach? Or preferring an extra long version?

Any length charging cable is possible. As part of the standard range, we offer cables in the following common standard lengths:

Length

Material

TPE

TPE is a synthetic rubber and has a good elasticity.

TPE is also eco-friendlier because the waste materials can be recycled.

Fabric

Braided nylon fabric is a special textile material, less prone to damage, creates a more bold and stylish look and is tangle-free.

Both materials are strong and flexible. The reinforced cable joints can withstand repeated bending and insertion.

Micro-USB for older (Android) devices (Samsung and other older Androidbased phones)

USB-C (2.0 or 3.0)* for modern (Android) devices (Samsung cable)

8-pin (MFi or non-MFi)

8-pin/Lightning for Apple iPhones and iPads (iPhone cable)

Micro-USB / 8-pin

Micro-USB / USB-C

USB-C / 8-pin

Choose any colour for the cable including the connectors.

As an extra feature there is the option for a cable binder. Choose from several designs and materials.

Colour Cable binder Other wishes

Looking for something different? Let us know. We can source options for you.

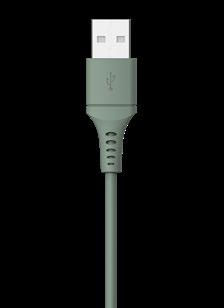

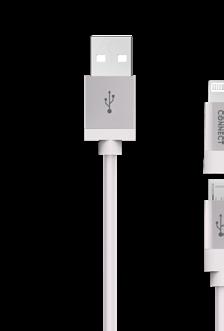

USB-A connector

USB-C connector

* A 3.0 input connector’s full potential only works combined with a 3.0 output connector and visa versa.

2-in-1 connector

1 connector

What is what

A short roundup of several important terms used regarding cables suitable for charging and data transfer. If you have any questions, do not hesitate to contact us.

FAST CHARGING

USB-A connector is the best known of all types of USB. This is also the most common connector found on computers.

USB-C is the newest type and will become the new standard USB connection in the coming years. The biggest advantage of USB-C to other charging connections is that it is suitable for fast charging.

MFi means ‘Made for iPhone’. The registered MFi certification ensures a safe and stable charging solution for your devices. We offer both MFi and non-MFi cables.

You can recognise the certified cables by the MFi (Made for iPhone/iPad) logo on the packaging.

Fast charging is a popular feature that has changed the way we power our devices. Fast charging is a lot faster rate compared to traditional charging methods, you can go from zero to full battery in a matter of an hour.

How it works

Fast charging is measured in watts. Generally, fast charging starts at 15 watts and goes up to 120 watts or more. The exact wattage required for fast charging depends on the device and the type of fast charging technology it supports.

USB 2.0 OR 3.0

USB 3.0 has more speed, can withstand more power and will become the new standard.

The 3.0 version is capable of data transfer at a speed of 5 Gbps, which is 10 times faster than the USB-C 2.0 cable. How to recognise the 3.0 version? See the blue colour on the connector. Plus USB 3.0 cables are thicker than 2.0 versions.

CABLE LENGTH & THICKNESS

In general, the shorter the cable, the faster the device attached to it will be charged.

Besides the length, the thickness of the cable also affects the charging speed. A long, thin cable has more resistance, so the voltage at the end of it is lower. As a result, your device charges slower.

USB-C helps to achieve fast charging with support up to a maximum of 240W. Combine a fast charging compatible cable and compatible Power Delivery charger, to charge devices that support fast charging extra quickly.

Smartphones have a protection to prevent the battery from burning out on fast charging. This protection causes the phone to start charging more slowly from 80% onwards. When your battery is at 20%, fast charging works more effective.

USB-A VS USB-C

8-PIN - MFI AND NON-MFI

2.0 3.0

USB-A USB-C

Connector USB-C

Connector USB-A

Wall & car chargers

Picking the right wall- or car charger for any cable is essential to best use their full charging potential.

Our chargers are lightweight and compact, so you can easily take them everywhere you go. They have multiple safety features like protection against overcurrent, overload and short circuit and a thermal protection. Charging multiple devices at once? Take your pick from chargers with 1, 2 or 3 ports.

Mix and match the wall- and car chargers with our cables for an eye-catching and uniform shelf appeal.

Wall chargers 1 port

Wall chargers with one port for charging one device at a time - great for phones, tablets, speakers etc.

1 port USB-A

29020391187

• 1 USB-A port

• Input: 100-240V 50 / 60 Hz 0.3A max.

• Output USB-A: 5V-1A

• Max power output is 5 Watt

1 port USB-C

29020391188

• 1 USB-C port

• Input: 100-240V 50 / 60 Hz 0.5A max.

• Output USB-C: 5V=3A, 9V=2.22A, 12V=1.66A

• Max power output is 20 Watt

Wall chargers multi port

You can charge multiple devices at the same time via one socket with one of these multi port wall chargers.

2 port USB-A

29020391189

• 2 USB-A ports

• Input: 100-240V 50 / 60 Hz 0.3A max.

• Output USB-A1/A2: 5V=2.1A

• Max power output is 10.5 Watt

2 port USB-A + USB-C

29020391190

• 1 USB-A port and 1 USB-C port

• Input: 100-240V 50 / 60 Hz 0.5A max.

• Output USB-A: 5V=3A, 9V=2A, 12V=1.5A

• Output USB-C: 5V=3A, 9V=2.22A, 12V=1.66A

• Output USB-A/USB-C: 5V=3.4A

• Max power output is 20 Watt

3 port USB-A + USB-C

29020391191

• 2 USB-A ports and 1 USB-C port

• Input: 100-240V 50 / 60 Hz 0.5A max.

• Output USB-A: 5V=3A, 9V=2A, 12V=1.5A

• Output USB-C: 5V=3A, 9V=2.22A, 12V=1.66A

• Output USB-A/USB-C: 5V=3.4A

• Max power output is 20 Watt

Car chargers

With a car charger, you charge your navigation system, smartphone or other USB device on the go. Our MagSafe car charger is versatile; use it as car holder as well as charger.

29020391192

29020391193

• 1 USB-A port

• Input: DC 12-24V dc

• Output USB-A: 5V=1A

• Max power output is 5 Watt

• Suitable for car and truck (12V/24V)

Carholder & charger MagSafe

29020231105

• Size: 60 x 80 mm

• Material: ABS + Aluminum

• Power: 15W/7.5W

• Input: 12V/1.67A, 9V/1.67A, 5V/2A

• Output: 9V/1.67A, 9v/1.12A, 5V/1A

• Distance: ≤6mm

• Including: 1m USB-A to USB-C cable

• Mouting: dashboard air vent hook

• 2 USB-A ports

• Input: DC 12-24V dc

• Output USB-A1/A2: 5V=2.4A, USB-A1/A2: 5V=3.1A

• Max power output is 15.5 Watt

• Suitable for car and truck (12V/24V)

29020391194

• 1 USB-A and 1 USB-C port

• Input: DC 12-24V dc

• Output USB-A: 5V=3A, 9V=2A, 12V=1.5A

• Output USB-C: 5V=2.4A, 9V=2.22A, 12V=1.67A

• Output USB-A/USB-C: 5V=3A

• Max power output is 20 Watt

• Suitable for car and truck (12V/24V)

Other mounting options:

• Suction

• Air vent clamp

1 port USB-A

2 port USB-A

2 port USB-A + USB-C

Power banks

Power bank 5.000 mAh

29020341139

• Size: 100 x 63,8 x 15,8mm

• Material: ABS /PC with matt varnish,

• Input: USB-C: 5V/2.1A

• Input: micro-USB 5V/2.1A

• Output: USB-C 5V/2.1A

• Output: USB1 5V/2.1A, USB2 5V/2.1A, USB1/2 share 5V/ 2.1A

• Capacity: 5.000 mAh

• Features: built-in 4 LED indicator

• Including: 30cm micro-USB charging cable

Power bank wireless 10.000 mAh

29020341141

• Size 140 x 68,8 x 17,5 mm

• Material: ABS with PC with matt varnish

• Input x 1: micro-USB: 5V/2.0A. Input 2: USB-C: 5V/3.0A 9V/2.0A 12V/1.5A (dual input/output)

• Output 1: USB-C 5V/3.0A 9V/2.0A 12V/1.5A (dual input/output). Output 2: 2x USB-A: 5.0V/3.0A 9V/2.22A 9V/2.22A 12V/1.5A 5V 4.5A 4.5V5A (22.5W)

• Wireless output 3: 15W

• Capacity: 10.000 mAh

• Connectors: USB-C and USB-A (2x)

• Features: built-in 4 LED indicator

• Including: 30cm USB-A to USB-C cable

Power bank 10.000 mAh

29020341140

• Size:140 x 68,8 x 17,5mm

• Material: ABS /PC with matt varnish

• Input 1: USB-C: 5V/2.1A

• Input 2: micro-USB : 5V/2.1A

• Output: USB C: 5V/2.1A

• Output: USB1 5V/2.1A, USB2 5V/2.1A, USB1/2 share 5V/ 2.1A

• Capacity: 10.000 mAh

• Features: built-in 4 LED indicator

• Including: 30cm micro-USB charging cable

Power bank LED indicator 20.000 mAh

29020341146

• Size: 100 x 71,5 x 25 mm

• Material: ABS with matt varnish

• Input 1: USB-C: 5V/2.6A 9V/2.0A 12V/1.5A (dual input/output), Input 2: micro-USB: 5V/2.0A 9V/2.0A 12V/1.5A

• Output 1: USB-C: 5V/3.0A 9V/2.22A 12V/1.67A (dual input/output), Output 2: 2x USB-A: 4.5V/5.0A 5V/4.5A 9V/2.0A 12V/1.5A

• Capacity: 20.000 mAh

• Connectors: USB-C and USB-A (2x)

• Features: built-in LED indicator display and supports fast charging

• Including: 30 cm micro-USB charging cable

MagSafe power banks

Input: micro-USB, USB-C

Output: USB-A, USB-C Input: micro-USB

Power bank MagSafe 5.000 mAh

29020341147

Power bank MagSafe 10.000 mAh

29020341145

Power bank stand Magsafe 5.000 mAh

29020341150

• Size: 94 x 66 x 20 mm

• Material: ABS with matt varnish

• Size: 113 x 67,8 x 12,8 mm

• Size: 94 x 66 x 13 mm

• Material: ABS with matt varnish

• Input 1: micro-USB: 5V/2.0A, Input 2: USB-C: 5V/2.0A

• Output 1: USB-C: DC5V/3A 9V/2.25A 12V/1.5A

• Wireless output 2: 15W

• Capacity: 5.000 mAh

• Features: built-in LED indicator

• Suitable for all MagSafe devices (iPhone 12, 13, 14 +Pro)

• Including: 20cm USB-A to USB-C charging cable for power bank

• Input: micro-USB: 5V/2.0A.

• Input 2: USB-C: 5V/2.0A (dual input/output)

• Output 1: USB-A: 5.0V/3.0A 9V2A 12V/1.5A.

• Wireless output 2: 10W.

• Output 3: USB-C: 5.0V/3.0A 9V2A 12V/1.5A (dual input/output)

• Capacity: 10.000 mAh

• Features: built-in LED indicator

• Suitable for all MagSafe devices (iPhone 12, 13, 14 +Pro)

• Including: 20cm USB-A to USB-C charging cable for power bank

• Material: ABS, Input: 5V/2.5A

• Output 1 (wireless): 5W, Output 2: 5V/2.4A

• Maximum charging output: 20W by USB-C cable, 18W by wireless charging

• Capacity: 5000 mAh

• Distance: ≤6mm

• Charging time: 3-5h

• Suitable for MagSafe smartphones (iPhone 12, 13, 14 +Pro)

• Including: 20 cm USBC charging cable

Wireless chargers

Charger wireless round Qi

29020391195

Charger wireless basic stand

29020391196

• Size: Dia 100 x 7,4 mm

• Material: ABS & PC

• Input: 5V/2A, 9V/2A, 12V/1.67A,

• Output: 5V/1A, 9V/1.12A, 9V/1.67A

• Charging efficiency: ≥75%

• Power: 15W/10W/7.5W/5W

• Transmission distance: ≤6mm

• Qi certified

• Including: 1m USB-A to USB-C charging cable

Charger 3-in-1 wireless stand foldable

29020391200

• Size: 185x99,5mm

• Material: ABS

• Input 5V/2A, 9V/2A/12V/2A

• Output: 15W/ 10W/7.5W/5W

• iWatch: 3W(max, Airpods 5W(max)

• Features: built-in LED indicator

• Including: 1m USB-A to USB-C charging cable

• Size: 70x130mm

• Material: ABS

• Input: 5V/2A, 9V/1.67A

• Output: 10W/7.5W/5W

• Charging distance: 4-8 mm

• Efficiency: 72%

• Features: smart charging and for both horizontally and vertically charging

• Including: 1m micro-USB charging cable

Folds

Removable

Charger 3-in-1 wireless foldable

29020391215

3-in-1 wireless charging

• Size: 97.8 x 72.4 x 25.2 mm

• Material: ABS / silicon

• Input: 9V/2A, 12V/2A

• Output: 15W/10W/7.5W/5W

• Features: charge three devices at the same time

• Including: built-in LED indicator and 1m USB-A to USB-C charging cable

Charging alarm clock wireless RGB

29020391216

• Size: 97,8 x 72,4 x 25,2 mm

• Material: ABS + silicon

• Input: 9V-2A, 12V-2A

• Output: 15W-10W-7.5W-5W

LED indicator

Folds into phone stand

MagSafe chargers

Charger Magsafe flat

29020391205

• Size: 63 x 9,5mm

• Material: ABS

• Input: 12V/1.67A,9V/1.67A,5V/2A

• Output: 9V/1.67A,9v/1.12A,5V/1A

• Distance: ≤6 mm

• Including 1m USB-C cable

Charger stand Magsafe

29020391206

• Size: 106,5x158x2mm

• Material: ABS & Aluminum

• Power: 15W/7.5W

• Input: 12V/1.67A,9V/1.67A,5V/2A

• Output : 9V/1.67A,9v/1.12A,5V/1A

• Distance: ≤6 mm

• Features: smart charging (devices can be used while charging), devices can be charged both horizontally and vertically

• Suitable for MagSafe phones (iPhone 12, 13, 14), not for Pro models

• Including 1m USB-A to USB-C charging cable

• Available in different colours

LED light edge

Apple Watch chargers

Charger Apple watch

TPE 1 metre

29020391213

• Size: 2,7 x 0,8 mm

• Material: ABS

• Material cable: TPE

• Connector: USB-A charging port

• Power: 2.5W, Suitable for all Apple Watch series

• Available in different colours.

Fullservice partner

As a creative partner, we give private label collections both an identity and appealing appearance on shop shelves. We leave nothing to chance in this regard. Everything is arranged from A to Z, so that you can distinguish yourself in the market. Whatever we do, we do it with attention to commerce, originality and quality. And with a heart for people and nature. We design with purpose.

Quality

Test certificates

Everything we supply is not only good, but actually exceeds all legal requirements in terms of quality.

Far East

Our local office monitors our strict standards for quality and sourcing.

In-house

We do Good(s)

Design

Our in-house design studio is our beating heart.

Product development

We possess all the inhouse knowledge and expertise required for product development.

Deal is a deal

We stand for reliability.

Sustainable norms

We do more than simply attaining standard accreditations, such as a BSCI, BEPI, RSPO or FSC® label. In everything we do, we make choices – wherever possible – that benefit people, animals and the planet.

Service

Logistics & warehousing

Nothing is too much effort for us, every customer is tailor-made.

A to Z

We supply the entire process from A to Z.

COPYRIGHT

Images shown are subject to change.

Dresz reserves the right to modify. With reservation of typing errors.

No part of this work, nor any of the information contained, may be reproduced or used in any form or by any means. Legal action will be taken against infringements.

DRESZ International BV

Professor Asserweg 12

5144 NC Waalwijk

The Netherlands

Email: sales@dresz.nl

Phone: +31(0)416 – 349942

Website: www.dresz.com

DRESZ Shenzhen Ltd.

Room 816, 8/F, Fenghuang

Xingyuan, No. 146 Fenghuang Avenue, Pinghu

Street, Longgang Area, Shenzhen City, Guangdong Province, China

Email: info@dreszhk.com

Phone: +852 3628 2355/2377
