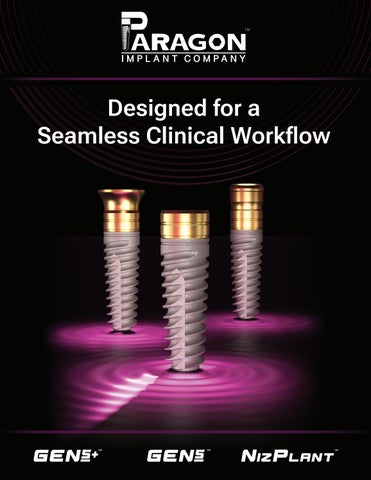

Paragon Implant System Overview

Designed for a Seamless Clinical Workflow

GEN5+

TM

GEN5

TM

NIZPLANT

TM

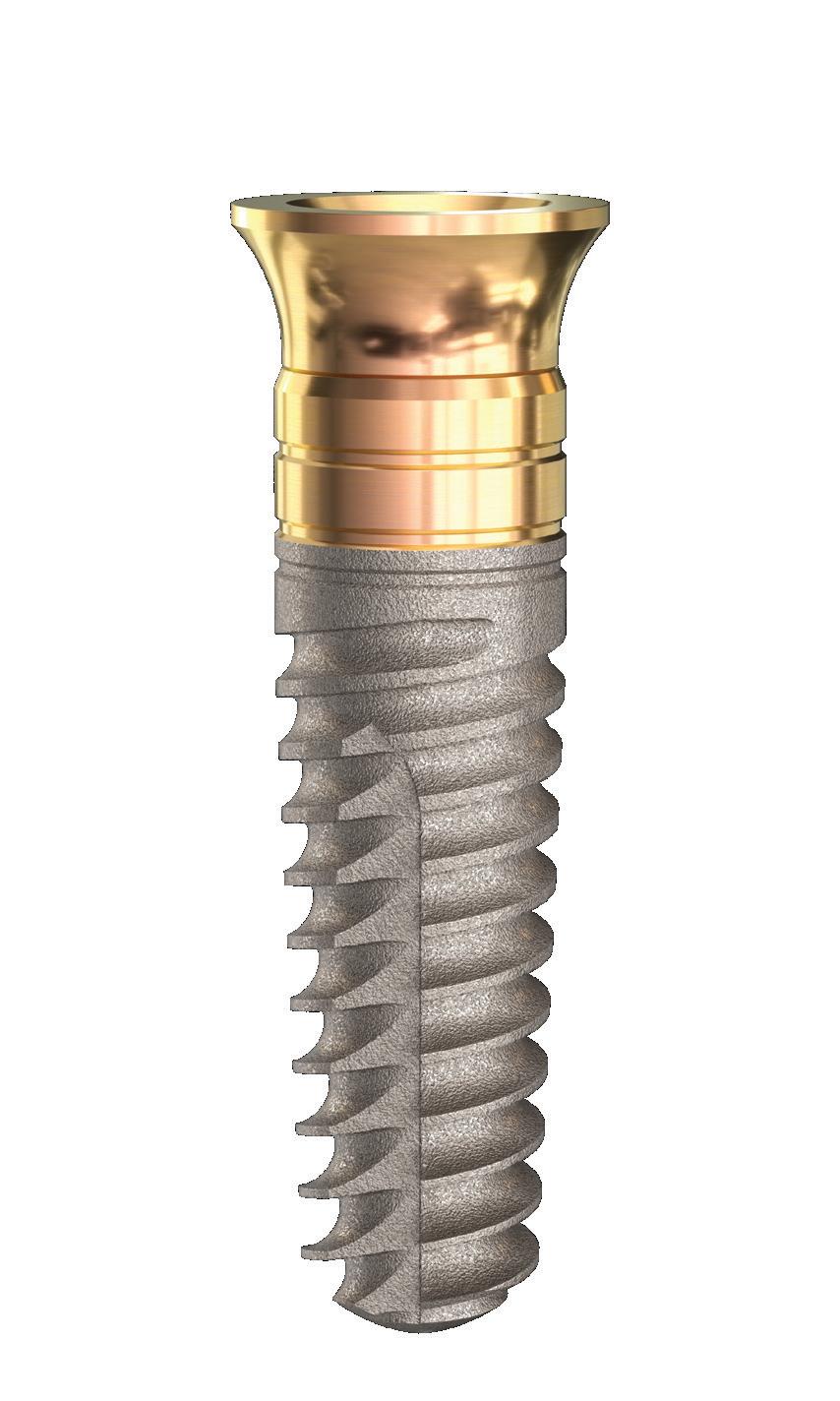

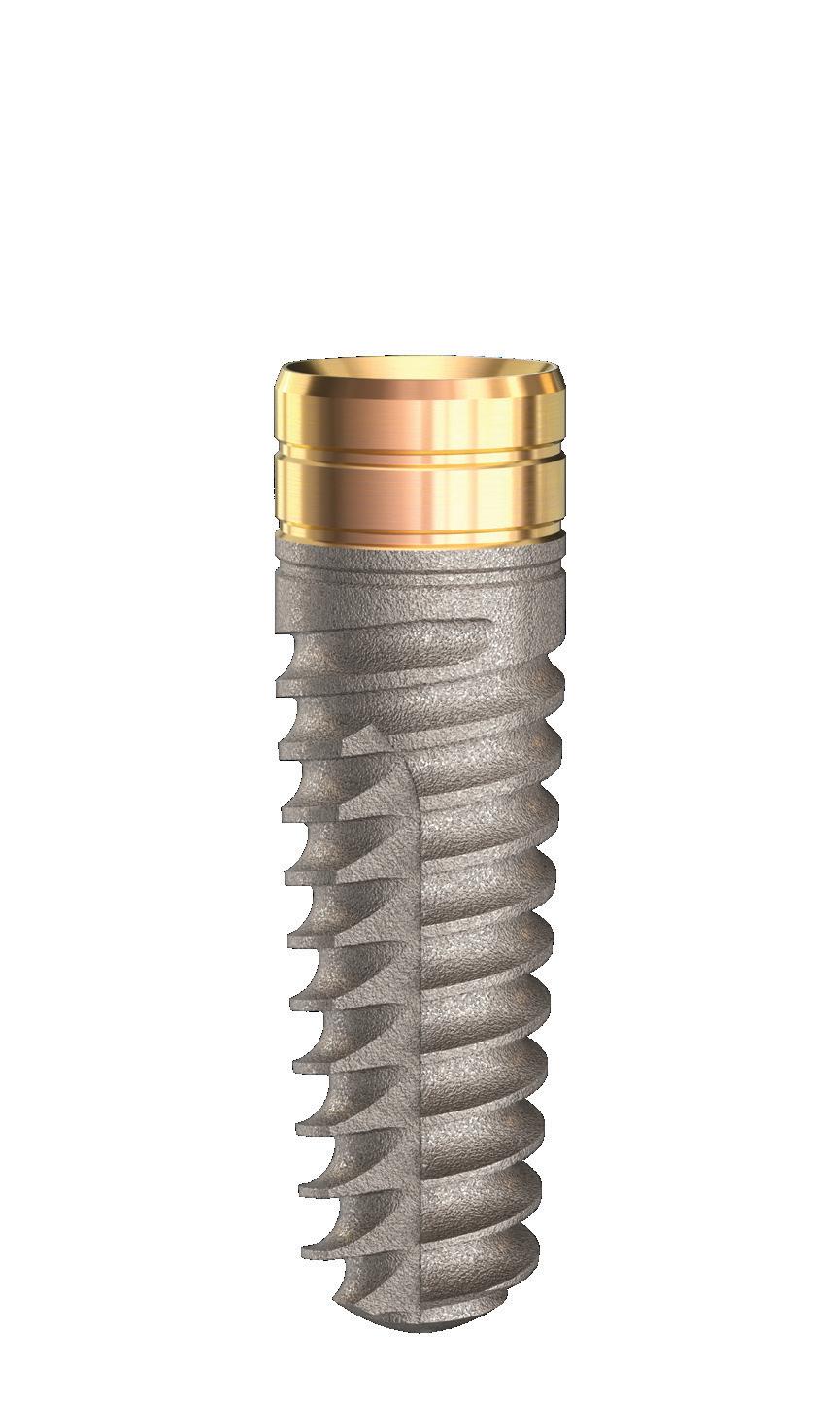

The neXt generation GEN5

TM

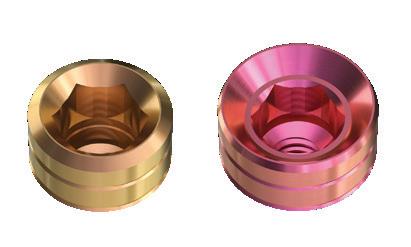

Two Platforms Color-coded internalhex conical connections

Straight Neck Crestal bone seal and increased stability

Anodized Neck with Gauge Lines Accommodate uneven ridges and immediate extraction sites by varying insertion depth

Progressive Thread Depth Double-lead, reverse buttress threads for increased bone contact

Cutting Grooves

Tapered Body

Two full-length, selftapping cutting grooves

Tapered body for increased initial stability

Round Apex Minimizes the risk of tearing the sinus membrane

Lingual 1mm

Buccal

Uneven ridge dips 1mm from lingual to buccal

Placement 1mm supracrestal

Placement bone-level, lingual side

Industry Standard 45° lead-in Conical Connection (Niznick US Patent #4,960,381) maximizes wall thickness on narrow implants Two Platform Diameters (3.5mmD & 4.5mmD) optimize emergence profile 1mm added to the standard lengths provides vertical flexibility for placement in uneven ridges and extraction sockets 3.5mmD Platform

4.5mmD Platform

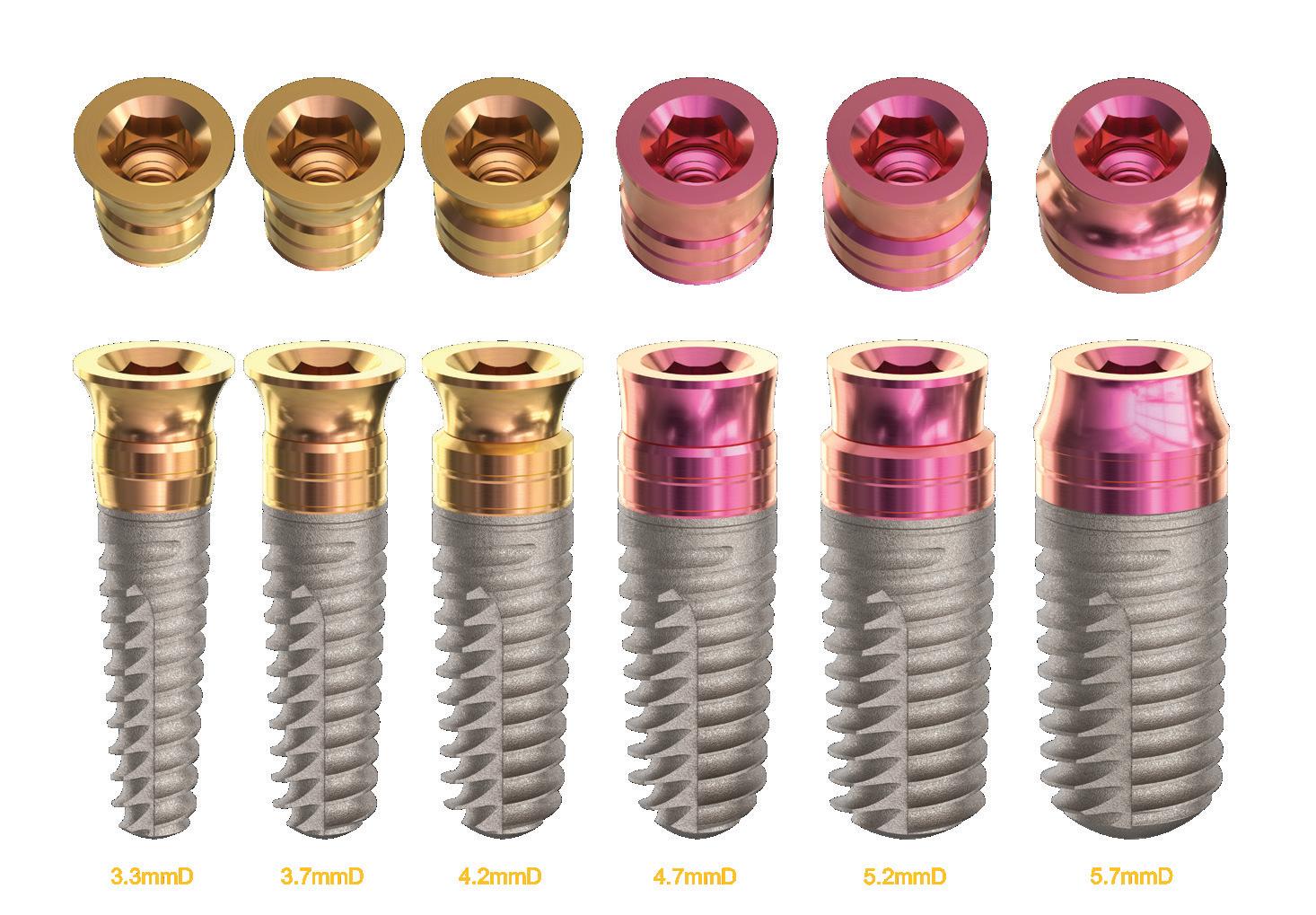

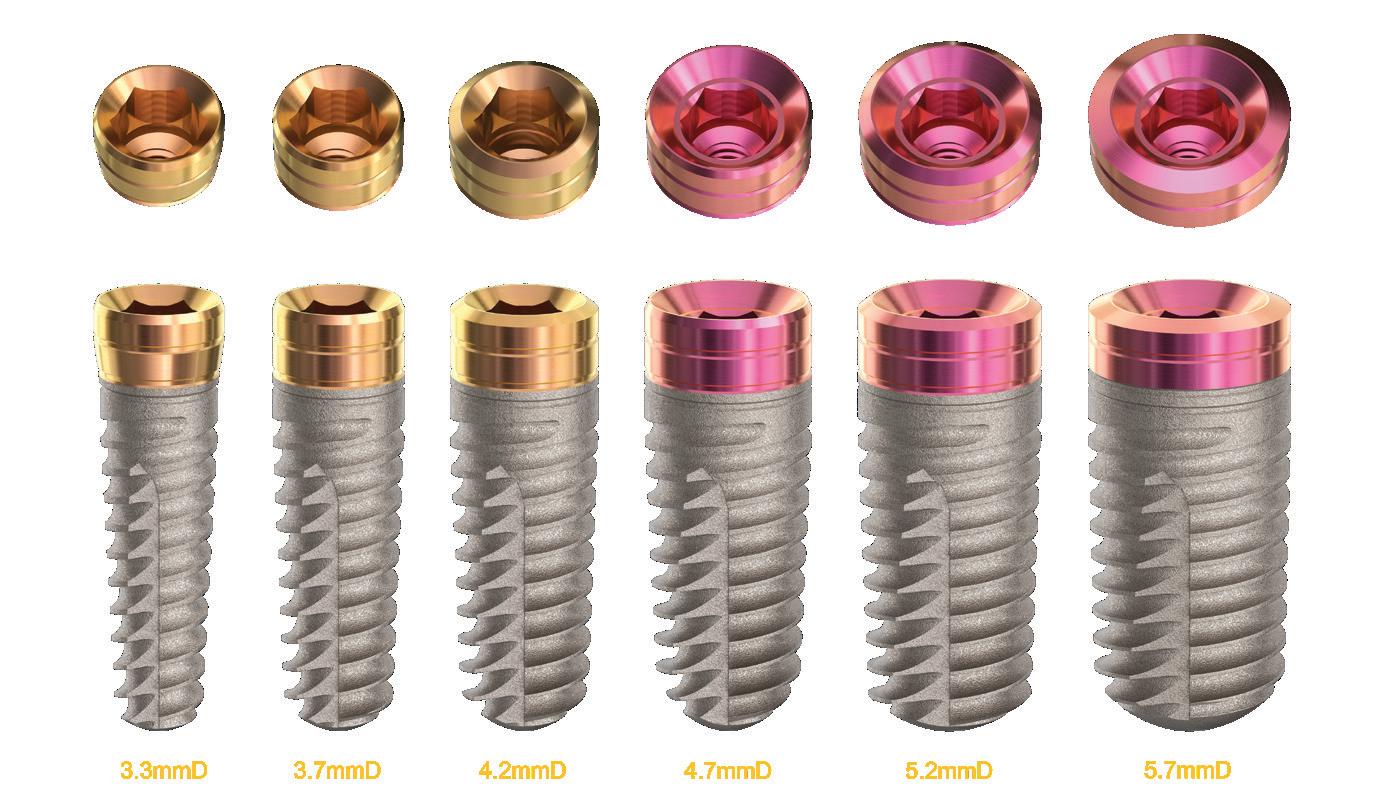

Diameters: 3.3mmD | 3.7mmD | 4.2mmD | 4.7mmD | 5.2mmD | 5.7mmD Lengths: 7mmL | 9mmL | 11mmL | 12.5mmL | 14mmL

The neXt generation GEN5+

TM

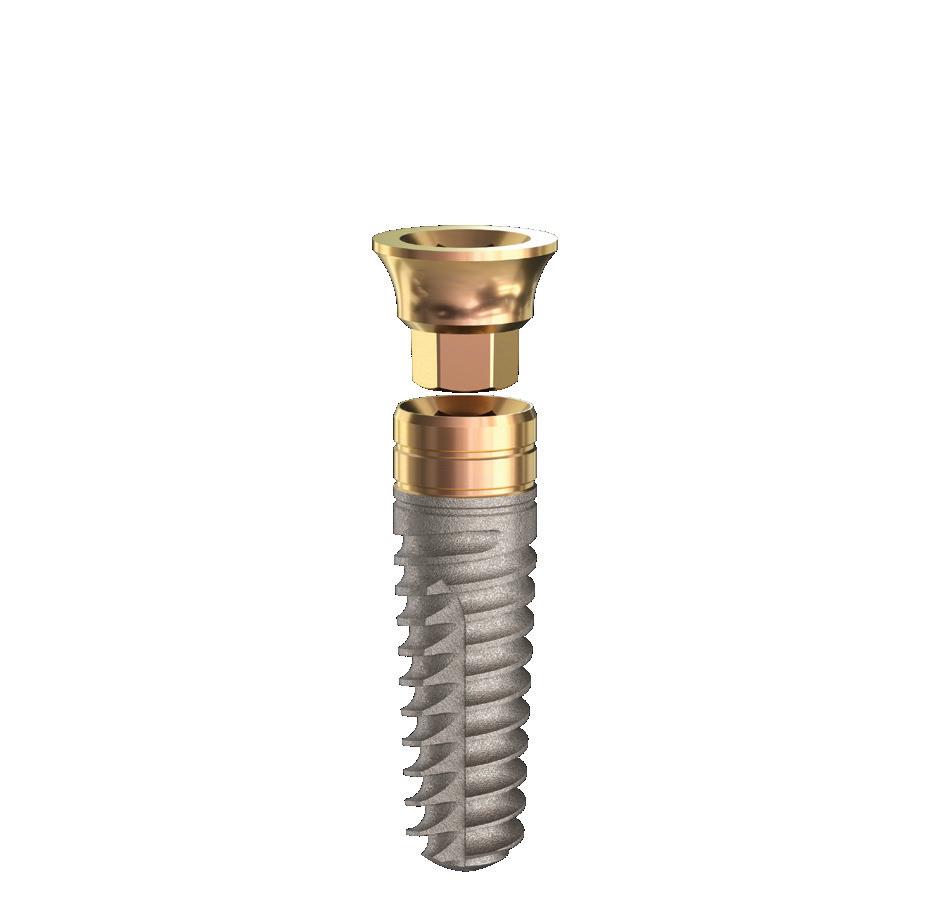

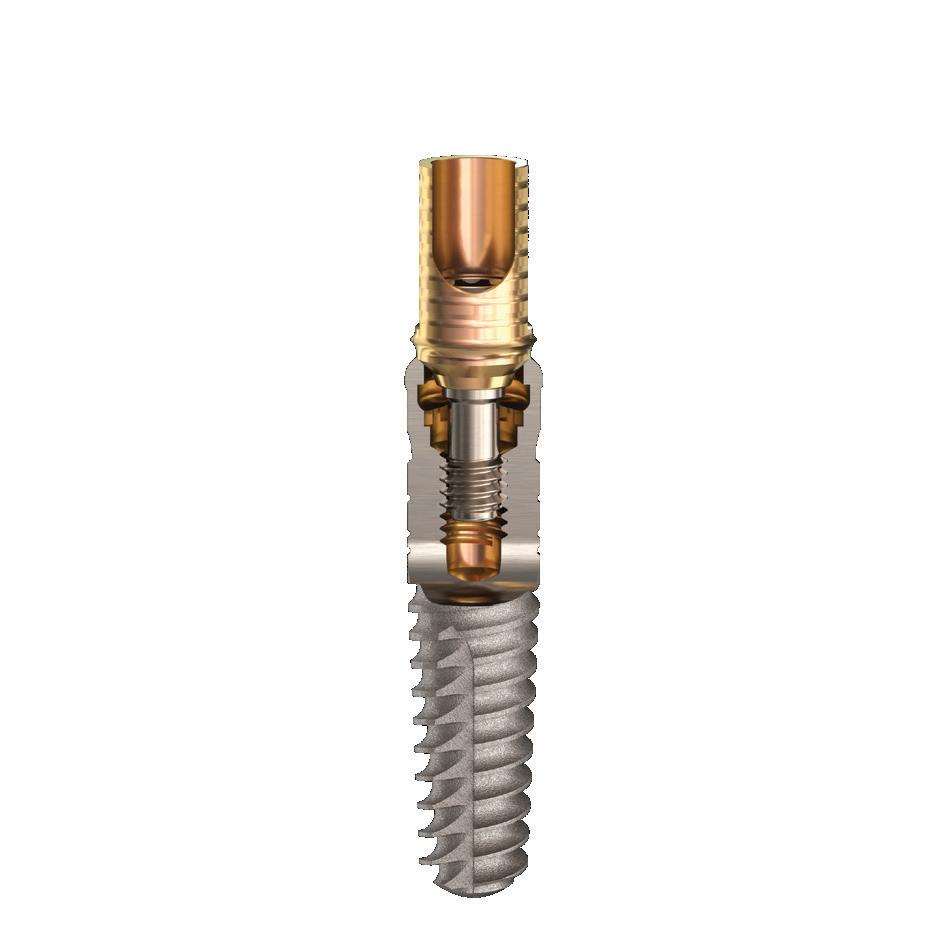

Restorative Flexibility Friction-Fit extender can be converted to standard MUA, Overdenture Abutment or a variety of Abutment Options

Friction-Fit Extender

Same GEN5™ body, with a factory installed, friction-fit 2mm contoured extender for one-stage surgery

Straight Neck

Anodized Neck with Gauge Lines

Crestal bone seal and increased stability

Accommodate uneven ridges and immediate extraction sites by varying insertion depth

Progressive Thread Depth Double-lead, reverse buttress threads for increased bone contact

Cutting Grooves Two full-length, selftapping cutting grooves

Tapered Body Tapered body for increased initial stability

Round Apex Minimizes the risk of tearing the sinus membrane

Friction-fit

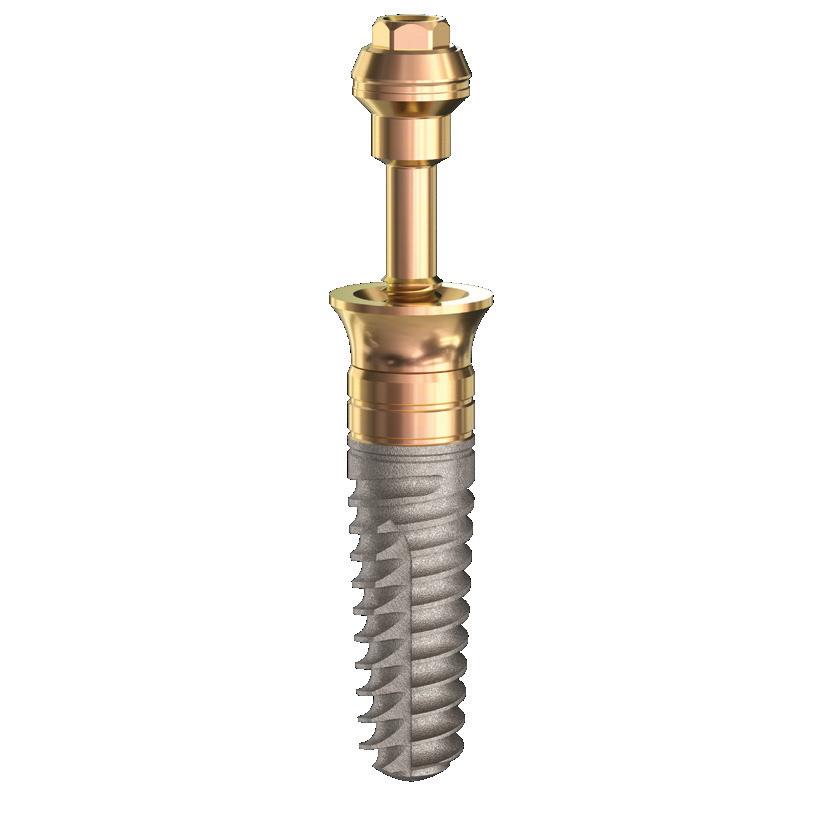

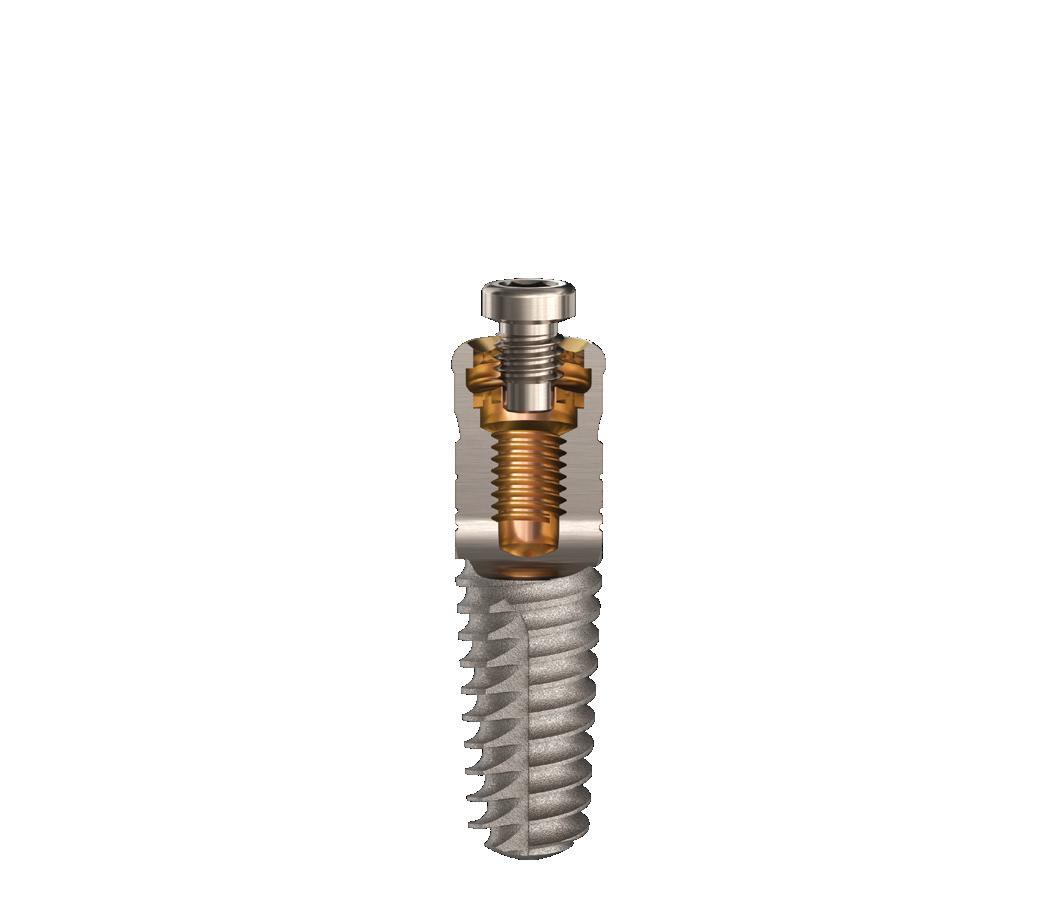

Screw converts to MUA

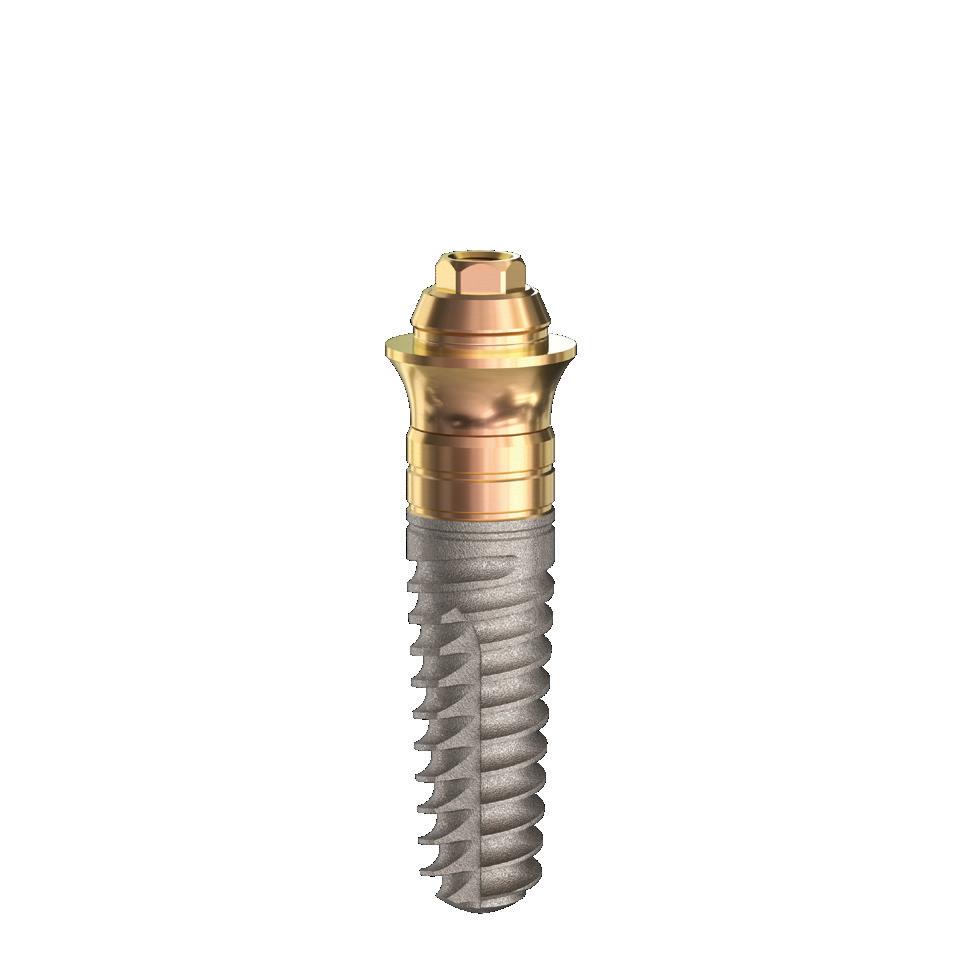

Standard MUA

Detachable 2mm friction-fit extender for 1-Stage Surgery, simplifies restorative procedures by elevating platform Extender can be removed to allow prosthetic connection to the implant platform for esthetics if tissue recedes Attachment of application-specific prosthetic screws converts platform to standard MUA or a variety of other abutment options 4.8mmD Platform

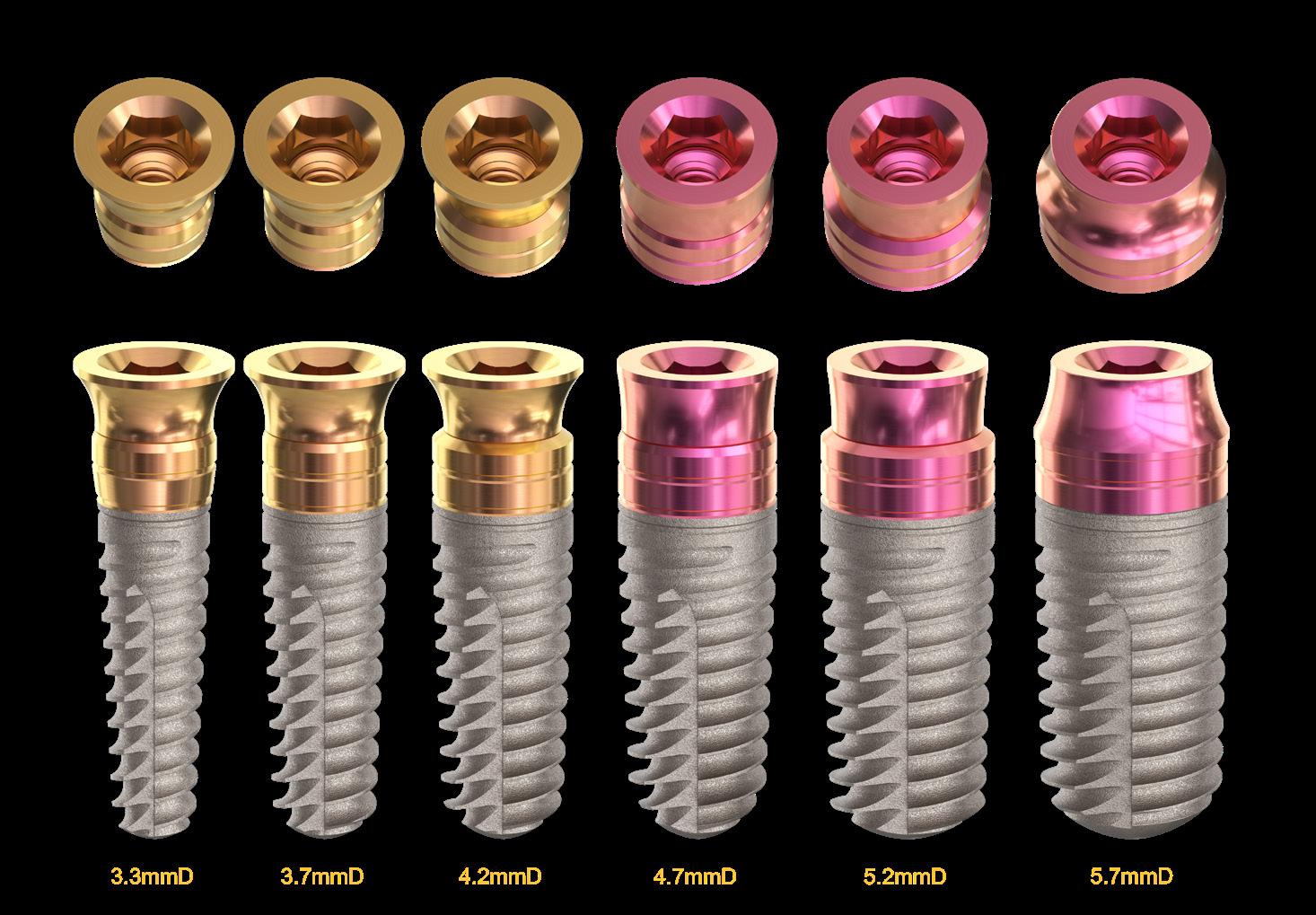

Diameters: 3.3mmD | 3.7mmD | 4.2mmD | 4.7mmD | 5.2mmD | 5.7mmD Lengths: 7mmL | 9mmL | 11mmL | 12.5mmL | 14mmL

The neXt generation NIZPLANT

TM

Dual-Function

Platform can function as an overdenture or a multi-unit abutment

Compatible Platform External wall provides Locator® compatible platform*

Straight Neck Crestal bone seal and increased stability

Anodized Neck with Gauge Lines Accommodate uneven ridges and immediate extraction sites by varying insertion depth

Progressive Thread Depth Double-lead, reverse buttress threads for increased bone contact

Cutting Grooves

Tapered Body

Two full-length, selftapping cutting grooves

Tapered body for increased initial stability

Round Apex Minimizes the risk of tearing the sinus membrane *Locator is a registered trademark of Zest IP Holdings

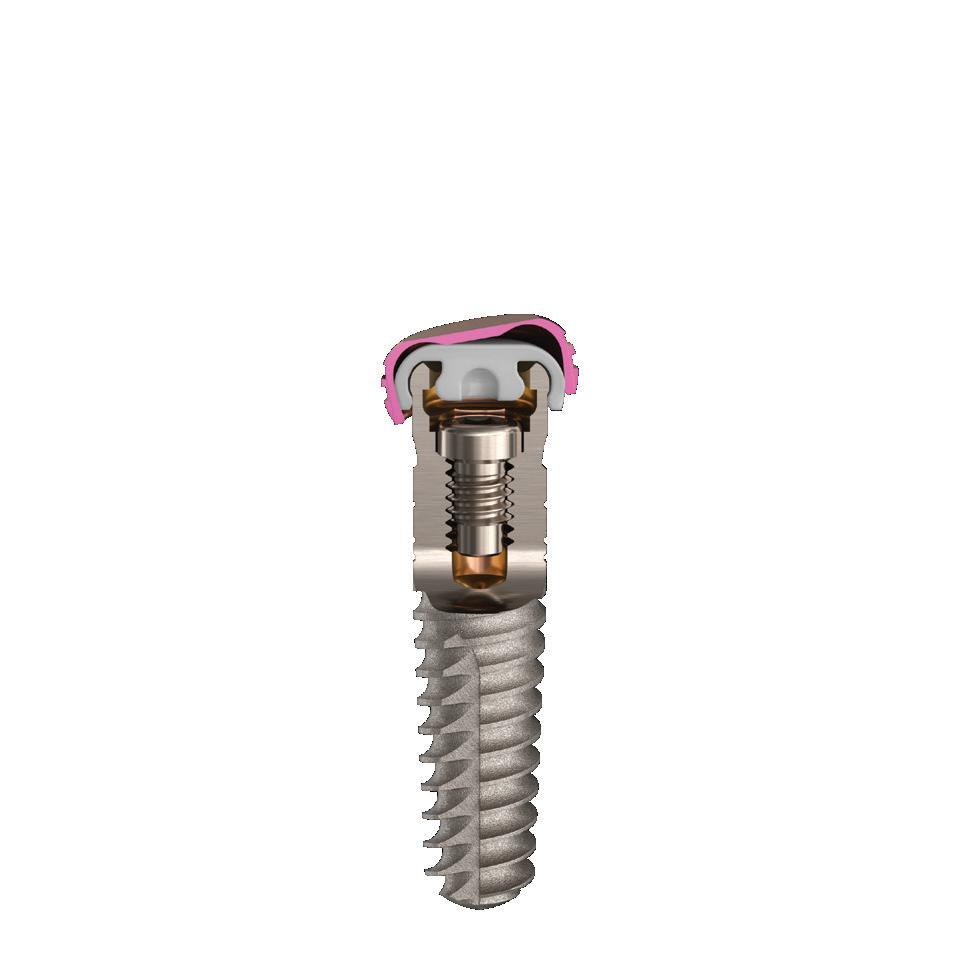

NizLoc engages both the inside and the outside of the platform

Screw Removed

Fixed Bridge

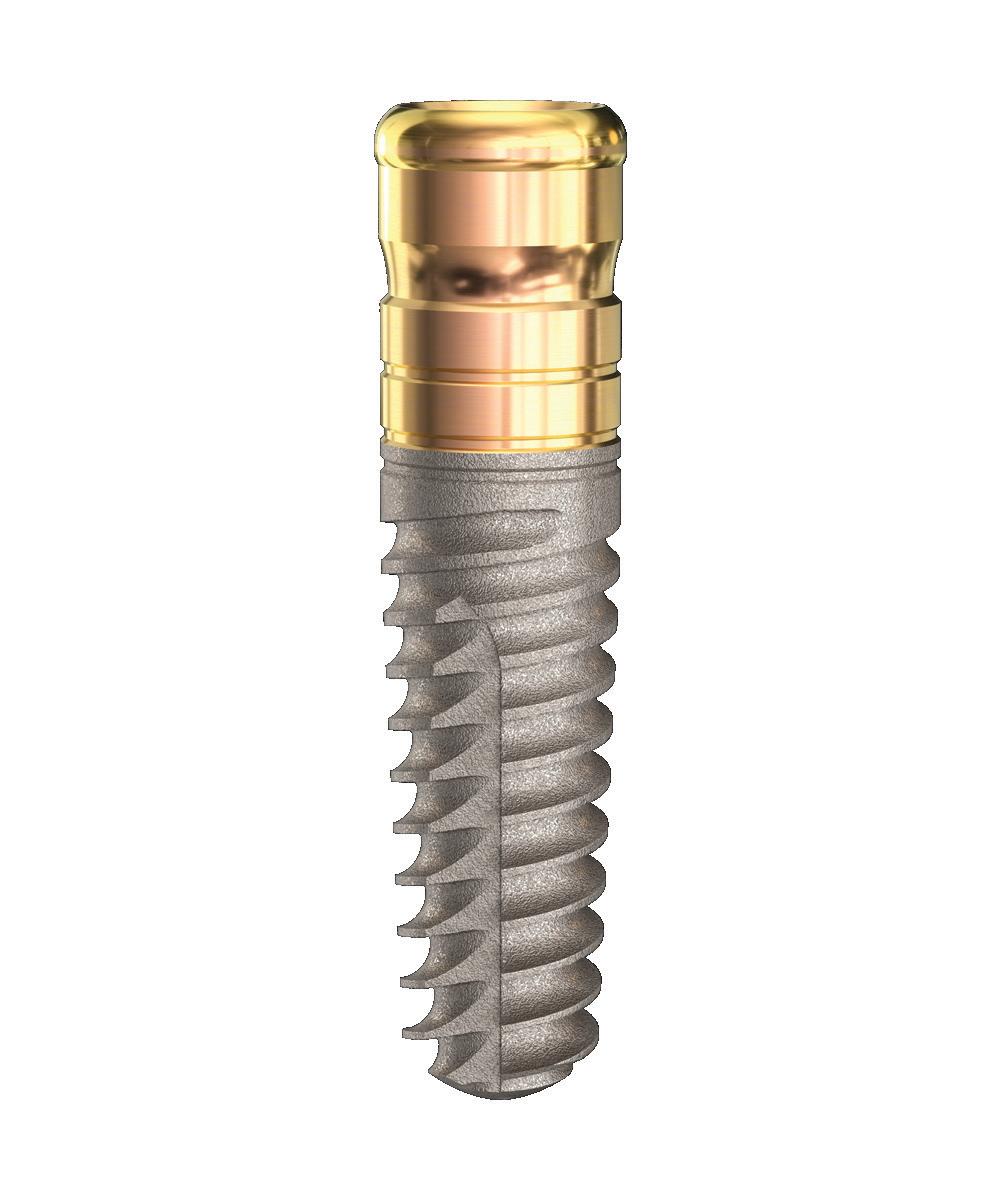

1-piece implant with a dual-function platform that allows it to be used to initially retain an overdenture, and then be converted to a full-arch fixed restoration 2mm extender for height ranges 1-5mm NizPlant™ has a 45° lead-in bevel, internal hex, and internal threads for attachment of a fixed full-arch hybrid restoration Dual-function Platform

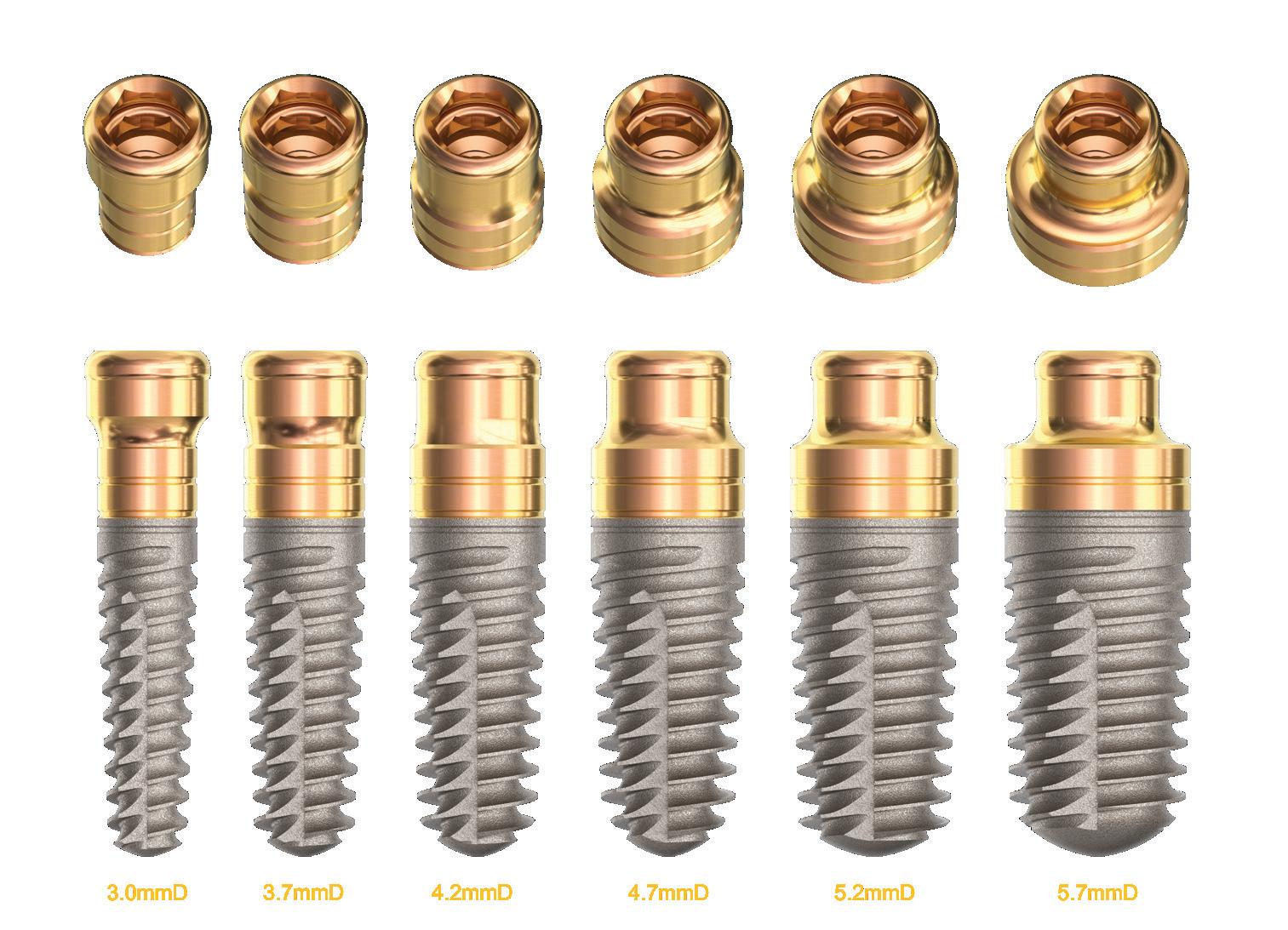

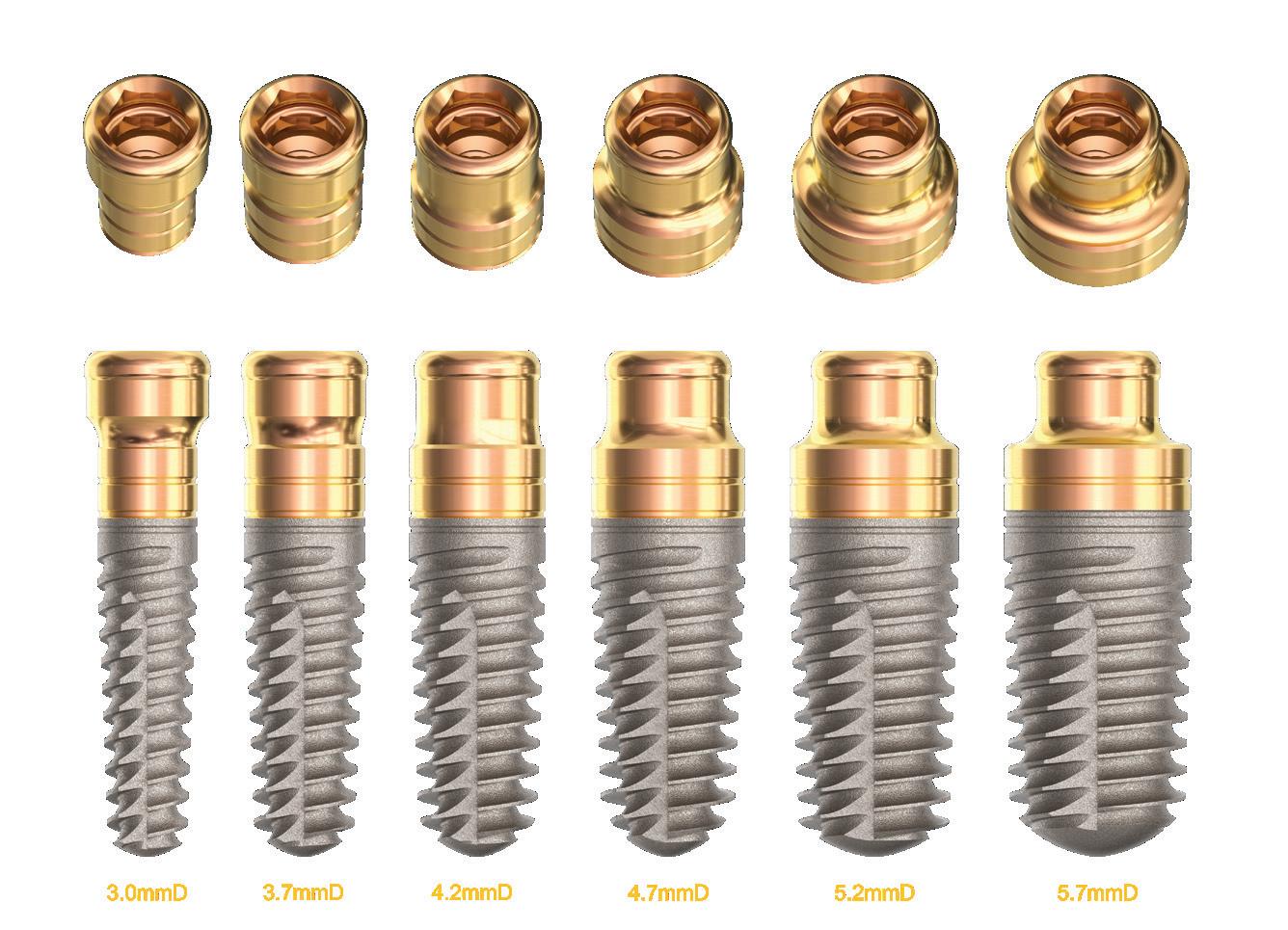

Diameters: 3.0mmD | 3.7mmD | 4.2mmD | 4.7mmD | 5.2mmD | 5.7mmD Lengths: 7mmL | 9mmL | 11mmL | 12.5mmL | 14mmL

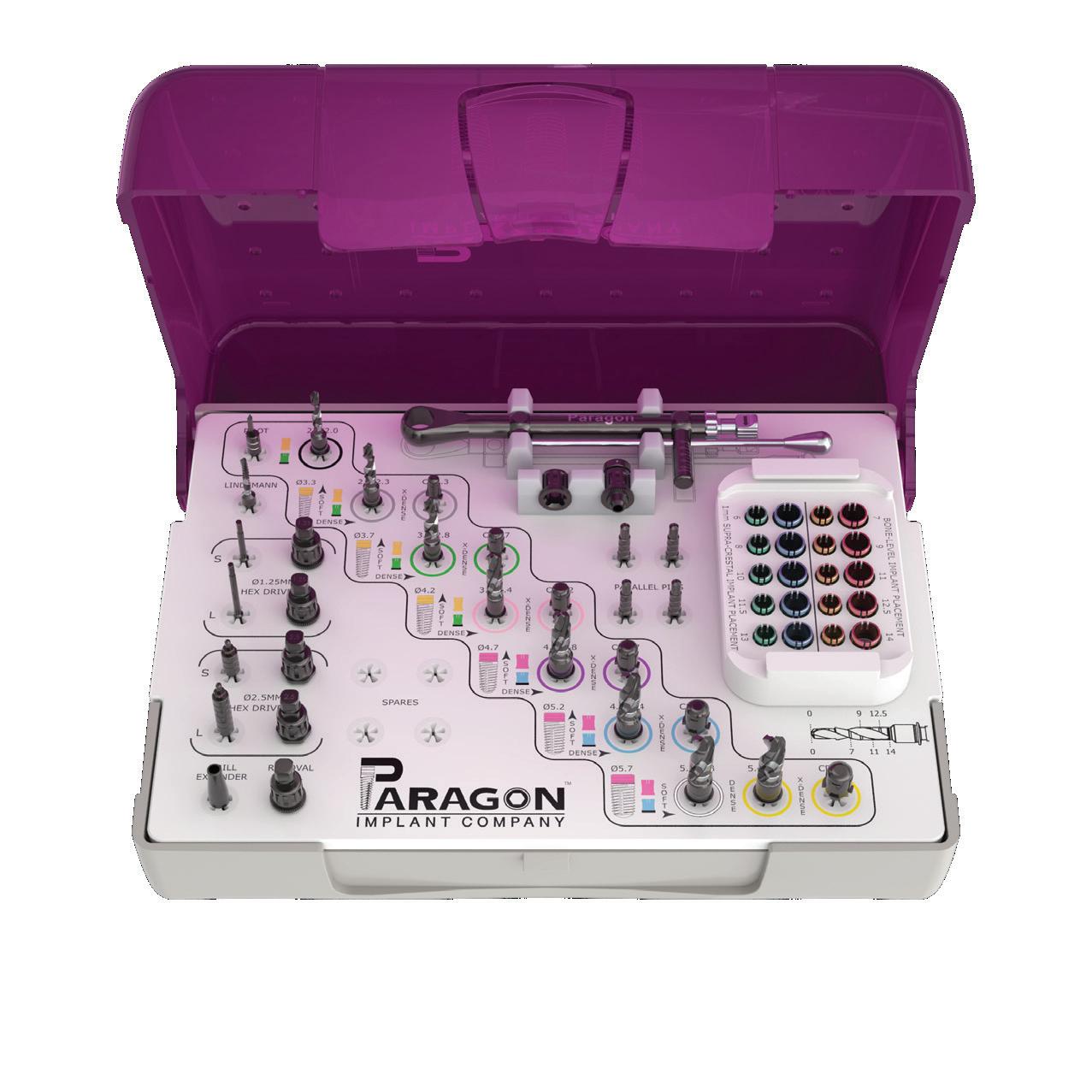

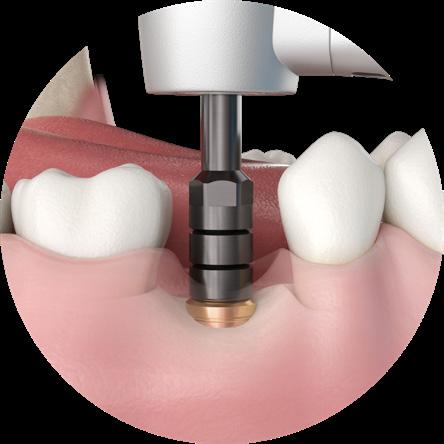

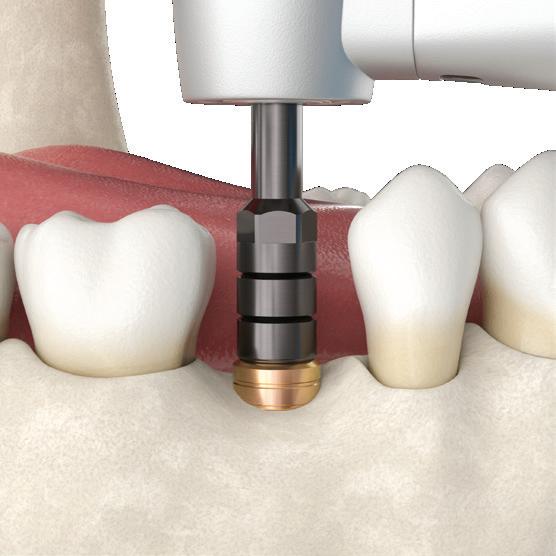

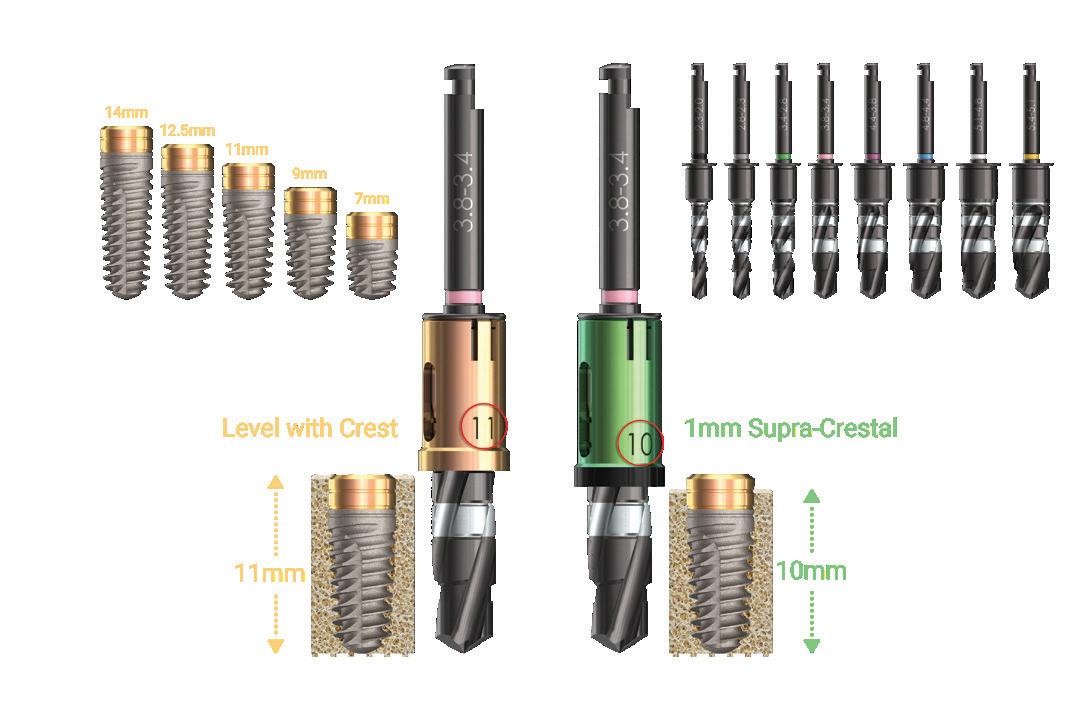

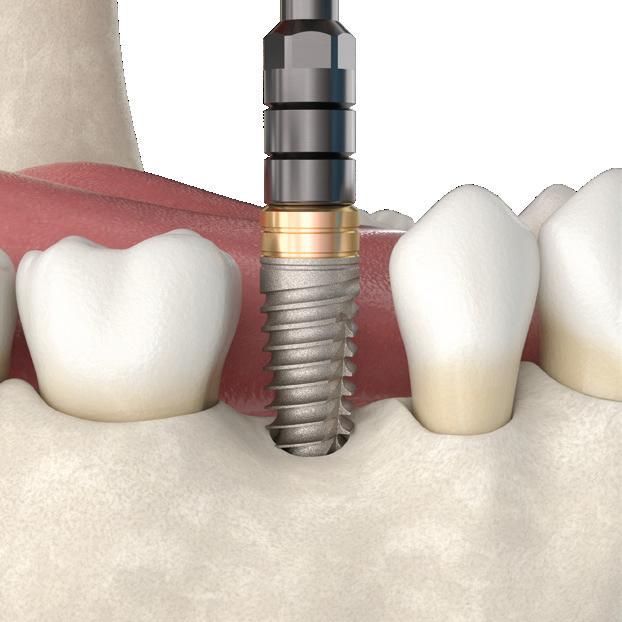

• Placement bone level or supra-crestal • Drill stops in two heights, inserted through sleeves in surgical guides • Eliminates need for surgical guide keys or length specific drills

40+ YEARS OF INNOVATION 35 PATENTS - 3 SPECIFIC TO THE PARAGON™ SYSTEM

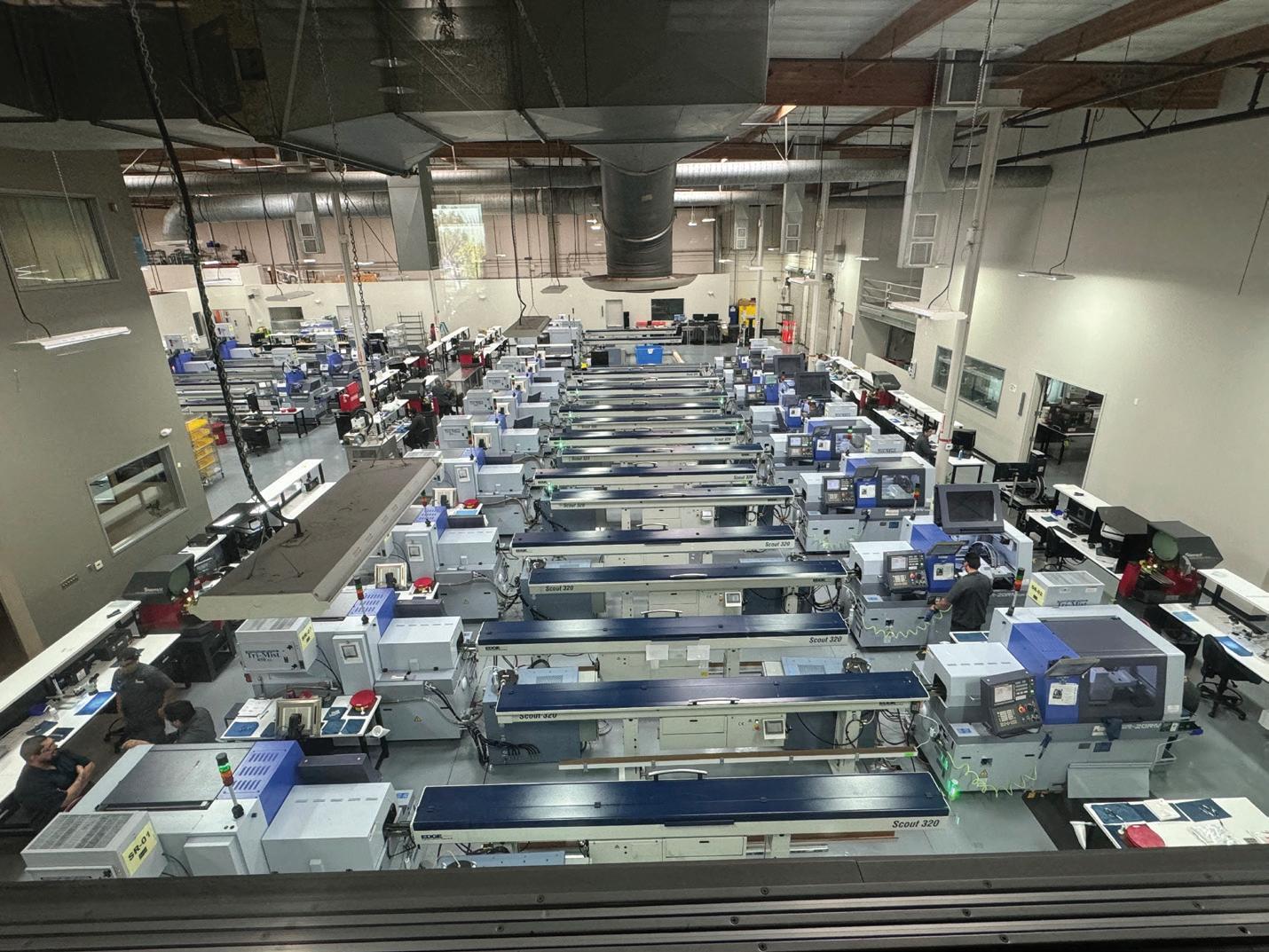

24/7 LIGHTS OUT MANUFACTURING

Paragon-implant.com

View Catalog

GERALD NIZNICK, DMD, MSD

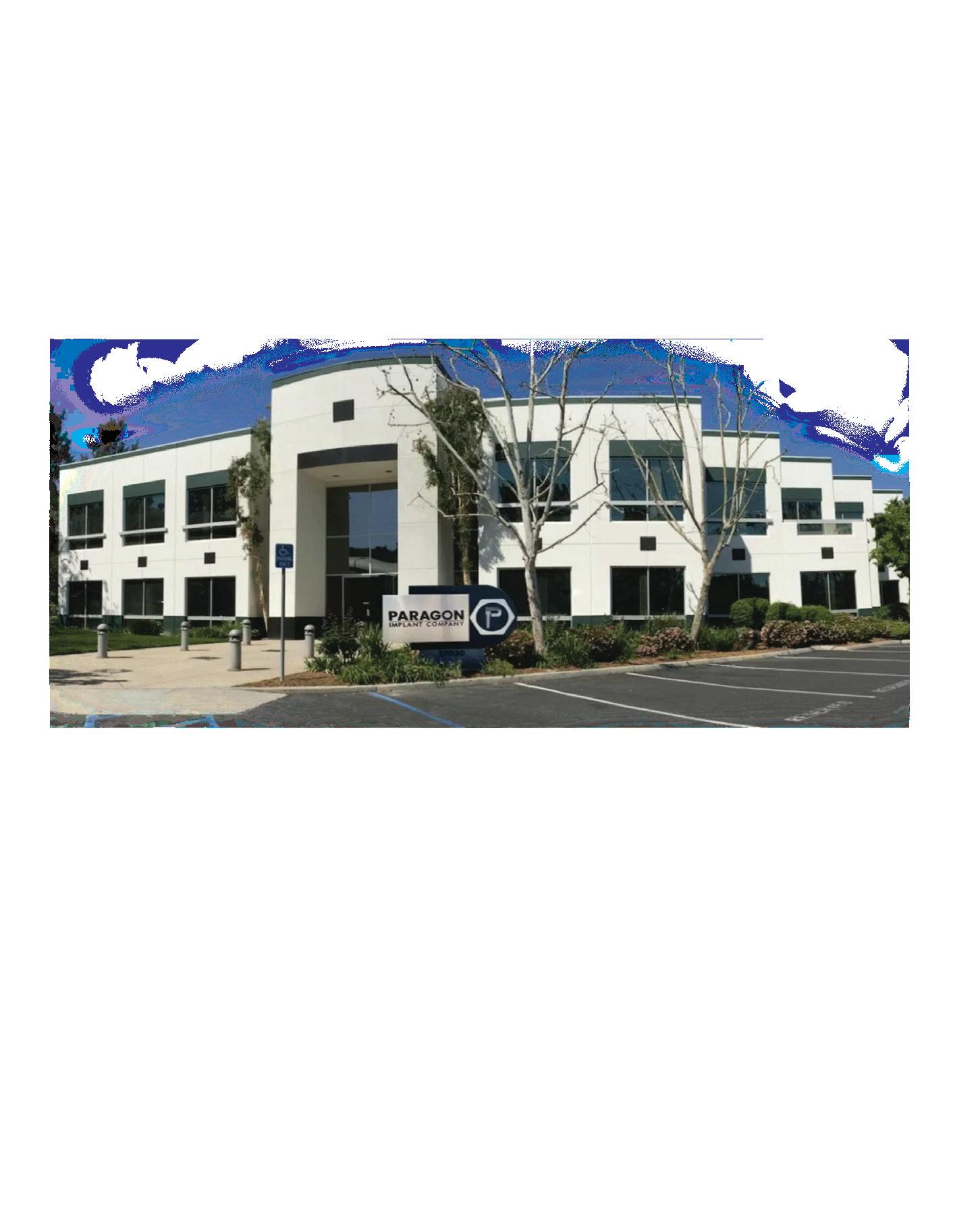

Manufacturing
