Technical data DPH(S)I horizontal pump

Multistage Horizontal High-pressure Centrifugal Pump Type Series Booklet

DPH(S)I

Legal information/Copyright Type Series Booklet DPH(S)I All rights reserved. The contents provided herein must neither be distributed, copied, reproduced, edited or processed for any other purpose, nor otherwise transmitted, published or made available to a third party without the manufacturer's express written consent.

Subject to technical modification without prior notice. © Duijvelaar Pompen, Alphen aan den Rijn, Netherlands 17/02/2022

Contents

Contents High-pressure Pumps ...................................................................................................................................... 5 Multistage Horizontal High-pressure Centrifugal Pump ......................................................................................................... 5 DPH(S)I .................................................................................................................................................................................. 5 Main applications........................................................................................................................................................... 5 Fluids handled ................................................................................................................................................................ 5 Operating data............................................................................................................................................................... 5 Design details ................................................................................................................................................................. 5 Designation .................................................................................................................................................................... 6 Materials ......................................................................................................................................................................... 8 Coating and preservation .............................................................................................................................................. 8 Product benefits ............................................................................................................................................................. 9 Product information ...................................................................................................................................................... 9 Product information as per Regulation No. 1907/2006 (REACH) .......................................................................... 9 Certifications .................................................................................................................................................................. 9 Acceptance tests and warranty ..................................................................................................................................... 9 Selection information .................................................................................................................................................. 10 Impeller for lower NPSH values............................................................................................................................. 10 Information about the characteristic curve.......................................................................................................... 11 Fluid handled.......................................................................................................................................................... 12 Overview of product features / selection tables ........................................................................................................ 13 Overview of fluids handled ................................................................................................................................... 13 Shaft seal ................................................................................................................................................................ 16 Technical data .............................................................................................................................................................. 17 Motors..................................................................................................................................................................... 17 Selection chart.............................................................................................................................................................. 19 DPH(S)I, 2P 50 Hz.................................................................................................................................................... 19 DPH(S)I, 4P 50 Hz.................................................................................................................................................... 20 DPH(S)I, 2P 60 Hz.................................................................................................................................................... 21 DPH(S)I, 4P 60 Hz.................................................................................................................................................... 22 Characteristic curves..................................................................................................................................................... 23 DPH(S)I, 2B, 2P 50 Hz.............................................................................................................................................. 24 DPH(S)I, 2-LB, 2P 50 Hz........................................................................................................................................... 25 DPH(S)I, 4B, 2P 50 Hz.............................................................................................................................................. 26 DPH(S)I, 4-LB, 2P 50 Hz........................................................................................................................................... 27 DPH(S)I, 6B, 2P 50 Hz.............................................................................................................................................. 28 DPH(S)I, 6-LB, 2P 50 Hz........................................................................................................................................... 29 DPH(S)I, 10B, 2P 50 Hz............................................................................................................................................ 30 DPH(S)I, 10-LB, 2P 50 Hz......................................................................................................................................... 31 DPH(S)I, 15C, 2P 50 Hz............................................................................................................................................ 32 DPH(S)I, 15-LC, 2P 50 Hz......................................................................................................................................... 33 DPH(S)I, 10B, 4P 50 Hz............................................................................................................................................ 34 DPH(S)I, 10-LB, 4P 50 Hz......................................................................................................................................... 35 DPH(S)I, 15C, 4P 50 Hz............................................................................................................................................ 36 DPH(S)I, 15-LC, 4P 50 Hz......................................................................................................................................... 37 DPH(S)I, 2B, 2P 60 Hz.............................................................................................................................................. 38 DPH(S)I, 2-LB, 2P 60 Hz........................................................................................................................................... 39 DPH(S)I, 4B, 2P 60 Hz.............................................................................................................................................. 40 DPH(S)I, 4-LB, 2P 60 Hz........................................................................................................................................... 41 DPH(S)I, 6B, 2P 60 Hz.............................................................................................................................................. 42 DPH(S)I, 6-LB, 2P 60 Hz........................................................................................................................................... 43 DPH(S)I, 10B, 2P 60 Hz............................................................................................................................................ 44 DPH(S)I, 10-LB, 2P 60 Hz......................................................................................................................................... 45 DPH(S)I, 15C, 2P 60 Hz............................................................................................................................................ 46 DPH(S)I, 15-LC, 2P 60 Hz......................................................................................................................................... 47 DPH(S)I, 10B, 4P 60 Hz............................................................................................................................................ 48 DPH(S)I, 10-LB, 4P 60 Hz......................................................................................................................................... 49

3

Contents

DPH(S)I, 15C, 4P 60 Hz............................................................................................................................................ 50 DPH(S)I, 15-LC, 4P 60 Hz......................................................................................................................................... 51 Installation types .......................................................................................................................................................... 52 Dimensions and connections ....................................................................................................................................... 53 DPH(S)I 2B, 2P 50 Hz............................................................................................................................................... 53 DPH(S)I 2B, 2P 60 Hz............................................................................................................................................... 54 DPH(S)I 4B, 2P 50 Hz............................................................................................................................................... 55 DPH(S)I 4B, 2P 60 Hz............................................................................................................................................... 56 DPH(S)I 6B, 2P 50 Hz............................................................................................................................................... 57 DPH(S)I 6B, 2P 60 Hz............................................................................................................................................... 58 DPH(S)I 10B, 4P 50 Hz............................................................................................................................................. 59 DPH(S)I 10B, 4P 60 Hz............................................................................................................................................. 60 DPH(S)I 10B, 2P 50 Hz............................................................................................................................................. 61 DPH(S)I 10B, 2P 60 Hz............................................................................................................................................. 62 DPH(S)I 15C, 4P 50 Hz............................................................................................................................................. 63 DPH(S)I 15C, 4P 60 Hz............................................................................................................................................. 64 DPH(S)I 15C, 2P 50 Hz............................................................................................................................................. 65 DPH(S)I 15C, 2P 60 Hz............................................................................................................................................. 66 Scope of supply ............................................................................................................................................................ 66 General assembly drawing with list of components.................................................................................................. 67 DPH(S)I 2/4/6B ......................................................................................................................................................... 67 DPH(S)I 10 B ............................................................................................................................................................ 68 DPH(S)I 15 C ............................................................................................................................................................ 70

4

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

High-pressure Pumps

Design details

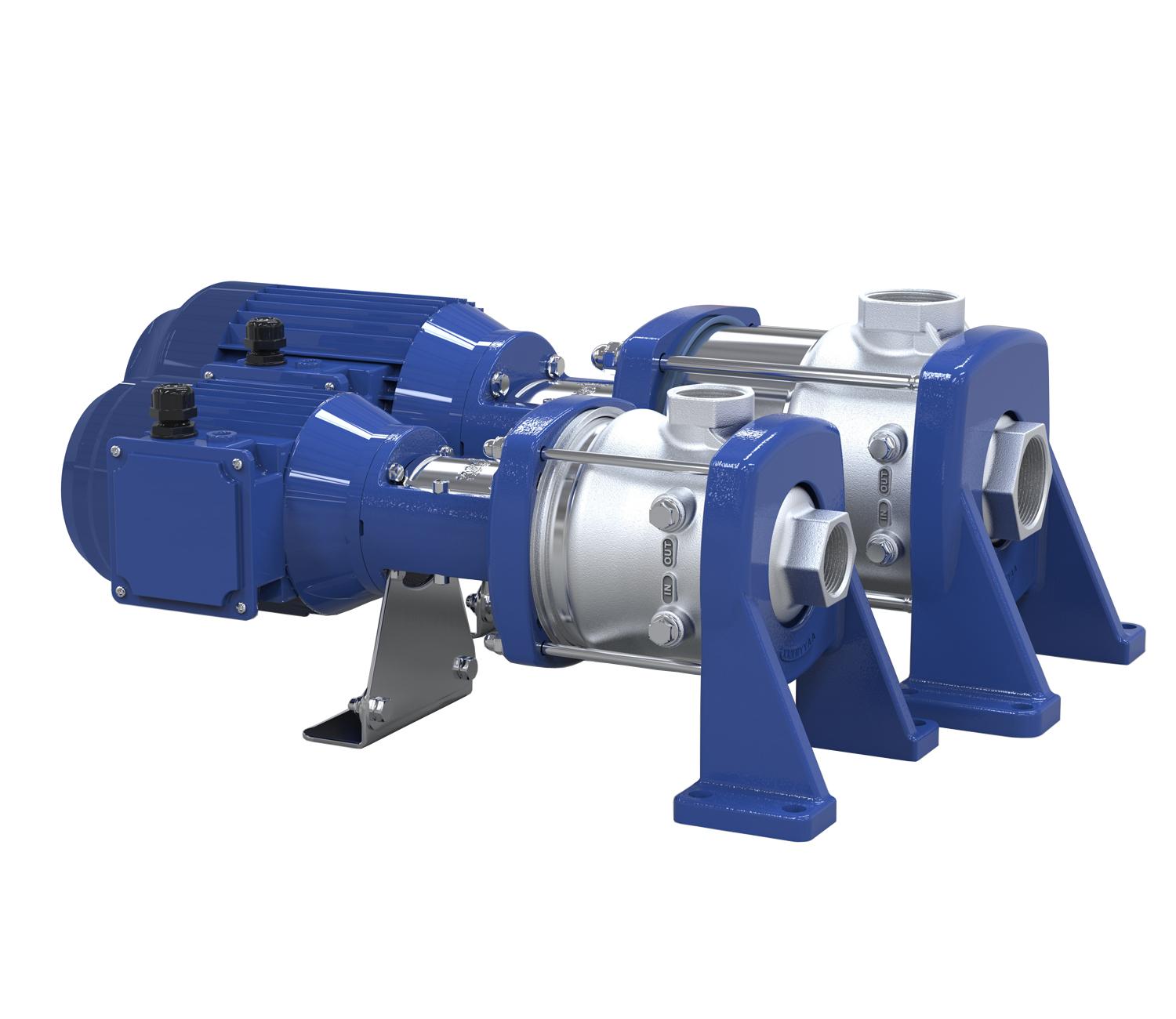

Multistage Horizontal High-pressure Centrifugal Pump

Design ▪ High-pressure pump ▪ Maximum pressure class PN 25

DPH(S)I

▪ Centrifugal pump ▪ Single-stage or multistage

Installation ▪ Horizontal installation

Drive ▪ Surface-cooled DP squirrel-cage motor ▪ Thermal class F to IEC 34-1 ▪ Efficiency class IE3 to IEC 60034-30 (≥ 0.75 kW) ▪ Enclosure IP55 ▪ Frequency 50 Hz/60 Hz Optional: ▪ Harting connector, type HAN 10E

Automation Automation options: ▪ PumpDrive

19068612107

▪ PumpMeter

Main applications

Shaft seal

▪ Spray irrigation systems

▪ Uncooled maintenance-free mechanical seal – Fixed mechanical seal – Easy Access mechanical seal – Cartridge seal

▪ General irrigation systems ▪ Washing plants ▪ Fire-fighting systems ▪ Pressure boosting

Bearings

▪ Industrial plants

▪ Tungsten carbide plain bearings at the hydraulic rotor

▪ Water supply systems ▪ Heating, ventilation and air-conditioning systems ▪ Marine applications

Fluids handled ▪ Hot water ▪ Clear water ▪ Condensate ▪ Cooling water ▪ Fire-fighting water ▪ Oil ▪ Cleaning agents ▪ And others

Operating data Table 1: Operating properties Characteristic Flow rate Head Fluid temperature

Q [m3/h] H [m] T [°C]

Operating pressure

p [bar]

Value ≤ 27 ≤ 195 ≥ -20 ≤ +140 ≤ 25

DPH(S)I

5

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

Designation Table 2: Designation example

1 D

2 P

3 H

4 5 6 7 8 9 S I 1 5 / 0 See name plate and data sheet

10 4

11 -

Position 12 13 B 4

14 S

15 1

16 3

17 18 19 20 F E 1 1 See data sheet

Table 3: Designation key Position 1-2

Code Description Pump type DP DP Version H Cast steel (1.4308) HS Cast steel (1.4408) Connection type I Internal thread Size 02 2 ... ...

15 15 Number of stages 01 1 ... ...

14 14 Number of stages with special impeller No stage with a special impeller -1)

3-4

5 6-7

9-10

11

L Product generation B C Connection standard 4 Material variant S Seal code 11 12 13 14 15 16 18 23 24 28 29 Mechanical seal design F E C Drive E Motor size 056 071 080 090 100

12

13 14 15-16

17

18

19-21

1

6

Blank

DPH(S)I

First stage with a special impeller for lower NPSH values DP from 2010 DP from 2021 Internal thread (EN ISO 228-1) Cast steel (1.4408 - 1.4408 - EN-GJS-400-15) BQ1EGG BQ1VGG Q1BEGG Q1BVGG U3U3X4GG U3U3VGG U3BEGG Q1BEGG Q1Q1VGG Q1Q1X4GG Q1Q1EGG Fixed mechanical seal Easy Access mechanical seal Cartridge seal Without motor Standard IEC NEMA 56C IEC 71 IEC 80 IEC 90 IEC 100

21 2

22 B

23 7

24 U

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

Position 19-21

22

23

24

Code Description 112 IEC 112 132 IEC 132 143 NEMA 143TC 145 NEMA 145TC 160 IEC 160 180 IEC 180 182 NEMA 182TC 184 NEMA 184TC 200 IEC 200 215 NEMA 215TC 225 IEC 225 256 NEMA 256TC 284 NEMA 284TC 286 NEMA 286TC 324 NEMA 324TC 326 NEMA326TC 364 NEMA 364TC Pressure class A PN16 / PN25 B PN25 Frequency, number of motor poles 5 50 Hz, 2-pole 6 60 Hz, 2-pole 7 50 Hz, 4-pole 8 60 Hz, 4-pole Motor specification A 0.37/0.55 kW, without IE classification M 230 V, single-phase AC motor U 230/400 V - IE3 V 400/690 V - IE3 W 230/400 V - IE4/IE5 X 400/690 V - IE4/IE5

DPH(S)I

7

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

Materials Table 4: Overview of available materials Part No.

Description

10-6 101 108 160 210 230 341

Pump shroud Pump casing Stage casing Discharge cover Shaft Impeller Drive lantern

412 525 529 89-11 890 905 920 932

O-ring Spacer sleeve Bearing sleeve Retaining bracket Baseplate Tie bolt Nut Circlip

Variant H 1.4301 1.4408 1.4301 1.4301 1.4057 1.4301

EN-GJL-2502) / EN-GJS-400-153) EPDM-WRc / ACS FPM / HNBR 1.4301 1.4401 Tungsten carbide / aluminium oxide 1.4301 EN-GJS-400-15 1.4057 1.4301 1.4404 1.4571

Table 5: Comparison of materials EN EN-GJL-250 EN-GJS-400-15 1.4057 1.4301 1.4308 1.4404 1.4408 1.4460 1.4571

ASTM A48 Class 35 B A536 Gr. 60-40-18 SS 431 SS 304 Gr. CF8 SS 316L Gr. CF8M SS 329 SS 316Ti

Coating and preservation Table 6: Coating of pump components Component Drive lantern Pump foot

2 3

8

Coating Cataphoretic coating Powder coating

Sizes 2B, 4B, 6B, 10B, 15C (≤ 4 kW) Sizes 2B, 4B, 6B, 10B, 15C (≥ 5.5 kW)

DPH(S)I

HS 1.4404 1.4408 1.4404 1.4404 1.4460 1.4404

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

Product benefits

Product information

▪ Reliable: product-lubricated plain bearings made of tungsten carbide, cast pump foot, torsion-resistant pump shroud and confined O-rings ▪ Long service life: corrosion-resistant hydraulic components made of stainless steel ▪ Easy to service: can be fitted with any standardised mechanical seal (to EN 12756)

Product information as per Regulation No. 1907/2006 (REACH) For information as per chemicals Regulation (EC) No. 1907/2006 (REACH), see http://www.dp.nl/reach.

▪ Easy to install underneath other machinery due to horizontal installation

Certifications Table 7: Overview Label

Effective in: United Kingdom

Comment Approved in accordance with the UK drinking water regulation

Acceptance tests and warranty ▪ Pressure test – to EN 809 ▪ Leak test – with water ▪ Materials testing – Certificate of compliance with the order (corresponds to EN 10204) In the certificate of compliance with the order the manufacturer confirms by way of an informal report without specifying test results that the delivery complies with the stipulations of the purchase order.

– Test report 2.2 on request ▪ Final inspection – Inspection certificate 3.1 to EN 10204 on request ▪ Hydraulic test The duty point of each pump is guaranteed to ISO 9906:2012 Grade 3B. This test is always carried out using the original motor. The NPSH and the suction lift are not measured (3.2 certificate available).

▪ Warranties Warranties are given within the scope of the valid terms and conditions of sale and delivery.

DPH(S)I

9

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

Selection information Impeller for lower NPSH values An impeller for lower NPSH values is available for sizes 2, 4, 6, 10 and 15.

This type of impeller ensures that the pump’s NPSH curve is significantly improved.

The solution is based on a newly developed impeller for lower NPSH values and a modified stage casing.

Cavitation inside the pump can hence be prevented in the case of critical inlet conditions.

Risks of cavitation: ▪ Reduced lifetime of the pump due to damaged parts and unbalanced hydraulic system ▪ Excessive wear of pump parts or motor bearings ▪ Insufficient cooling and/or lubrication of the mechanical seal and pump bearing Benefits of using impellers for lower NPSH values: ▪ More suitable in critical inlet conditions ▪ Easy adaptation to non-optimised application parameters ▪ The suction lift (Hp) is less crucial (the frame height of the degassing tank used in boiler feeding can be reduced).

Consequences of using impellers for lower NPSH values: ▪ No need to change pump installation heights or pump nozzles ▪ Minor adjustments to the characteristic curve Calculation: Hb

NPSHA ≥ NPSHR + Hz

Ho

NPSHA = Hb + Ho + Hp - Hv - Hl

Hv

Hp

Hl

x

= Hb + Ho + Hp - Hv - Hl - NPSHR - Hz

x

≥0

NPSHR

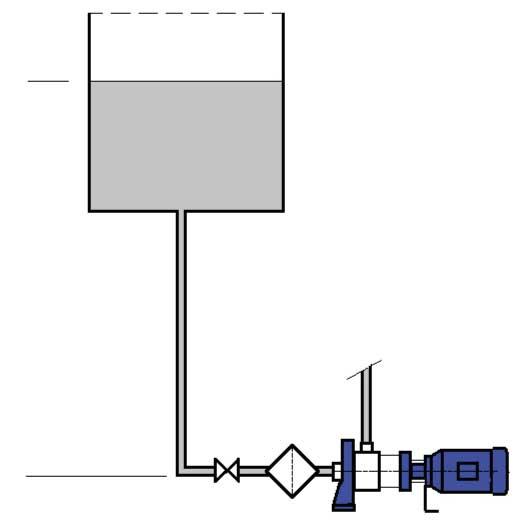

Fig. 1: Calculating the NPSHA NPSHA NPSHR Hb Ho Hp Hv Hl Hz x

NPSH system value at operating point NPSH pump value at operating point (see characteristic curve of the pump) Atmospheric pressure [mWc] Positive pressure (with tank closed) [mWc] Suction lift [mWc] Vaporisation pressure [mWc] (see water vaporisation pressure diagram) Friction losses in pipes and accessories [mWc] Safety margin (min. 0,5 m) Minimum pressure

Result: If the minimum pressure (x) is positive, there is no risk of cavitation.

If the minimum pressure (x) is negative, there is a risk of cavitation which can be avoided by using an impeller for lower NPSH values.

Another option is to change one of the other values so that the value becomes positive.

Example: ▪ Boiler feed water: 105 °C ▪ Positive height of tank: 2 m ▪ Positive pressure in tank: 3 mWc ▪ Flow rate: 5 m³/h ▪ Head: 100 m (10 bar) ▪ Size selected: 4

10

DPH(S)I

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

Table 8: Calculation of positive pressure on suction flange: Calculation of positive pressure on suction flange: Atmospheric pressure [mWc] Positive pressure (with tank closed) Suction lift Vaporisation pressure [mWc] (see water vaporisation pressure diagram) Friction losses in pipes and accessories [mWc] Safety margin (min. 0,5 m) NPSH pump value at operating point (see characteristic curve of the pump)

Standard impeller

Special impeller for lower NPSH values

10,3 3,0 2,0 -12,5

10,3 3,0 2,0 -12,5

-1,0

-1,0

-0,5 -2,1

-0,5 -0,8

Minimum pressure

-0,8

+0,5

Conclusion

Cavitation will occur.

No cavitation

Hv [metres of water]

60

50

40

30

20

10

0

0

20

40

60

80 T [°C]

100

120

140

Fig. 2: Vaporisation pressure diagram (Hv) for water

Information about the characteristic curve NPSH [m], [ft]: ▪ The NPSH values given in the individual characteristic curves are minimum values which correspond to the cavitation limit.

▪ A safety margin of at least 0.5 m must be added when selecting the pump to compensate for measuring inaccuracies.

▪ The NPSH curves reflect average values.

▪ A safety margin of 0.5 m must be added to the NPSH value of the characteristic curve when selecting a system.

P [kW], [hp]: ▪ The power input is indicated per stage (St = 1).

The pump input power can be calculated accordingly.

Calculation: value indicated in the diagram (St = 1) × number of stages Example: DPH(S)I 15/4: P = (St = 1) × 4

DPH(S)I

11

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

Fluid handled The actual operating conditions must always be checked (concentration, temperature, solids content). Penetration of air into the system must be avoided by all means.

If the fluid handled contains solids such as steel chips or steel chip dust, check the permissible particle concentration with DP.

Q [%]

Minimum flow rate and maximum flow rate 40 35 30 25 20 15 10 5 0 40

50

60

70

80

90

100

110

120

130

140

T [°C]

Fig. 3: Minimum flow rate required as a function of fluid temperature at a fluid temperature > +20 °C Table 9: Minimum flow rate and maximum flow rate Q at a fluid temperature ≤ +20 °C depending on the speed, 50 Hz Size

2B 4B 6B 10B 15B 15C

Q 2900 rpm Min. Max. [m3/h] [m3/h] 0,2 3,3 0,4 6,5 0,6 9,0 1,1 13,2 1,6 22,5 1,9 22,5

1450 rpm Min. Max. [m3/h] [m3/h] 0,5 6,6 0,8 11,3 0,9 11,3

Table 10: Minimum flow rate and maximum flow rate Q at a fluid temperature ≤ +20 °C depending on the speed, 60 Hz Size

2B 4B 6B 10B 15B 15C

12

Q 3500 rpm Min. Max. [m3/h] [m3/h] 0,2 4,0 0,5 7,8 0,8 10,8 1,3 15,8 2,0 27,0 2,3 27,0

DPH(S)I

1750 rpm Min. Max. [m3/h] [m3/h] 0,6 7,9 1,0 13,5 1,1 13,5

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

Overview of product features / selection tables Overview of fluids handled The data refer to the chemical resistance of the materials. The relevant regulations / standards governing individual pump applications have to be complied with.

If the operating conditions differ from the data given (e.g. mixed products) or if the fluids handled are not included in the table below, please contact the manufacturer.

▪ Temperature ranges: – Reference temperature: +20 °C – For temperatures <0 °C: contact the manufacturer.

– For temperatures > +50 °C: check and observe the vapour pressure of the fluid handled.

– Max. temperature = +120 °C, unless indicated otherwise.

▪ Max. concentration = 100 % unless indicated otherwise.

▪ Mechanical seal silicon carbide / carbon (Q1B): not suitable for fluids containing solid substances. This rule also covers particles developing as a result of salt crystallisation at low fluid temperatures.

▪ Mechanical seal tungsten carbide / tungsten carbide (U3U3): solids content max. 20 ppm (depending on particle size), with the exception of corrosive fluids. Fluids with a higher solids content are not permitted (ppm = 1 mg/kg).

▪ Caution: High temperatures will increase corrosion (reference temperature = +20 °C).

▪ Under unfavourable conditions (high temperatures, deposits, long idle periods), chloride contents of more than 300 mg/l may result in localised corrosion.

Table 11: Selecting the design of pump and mechanical seal depending on the fluid to be handled Fluid handled Substance contained

Tmax. [°C]

≤3 ≤3 ≤ 100

+50 +80 +40

HS Seal code 11 12 13 14 15 16 18 11 12 13 14 15 16 18 - ✘ - ✘ - - - - ✘ - ✘ - - - - - - - - - - ✘ - ✘ - - - - - - ✘ - - - - - - ✘ - -

▪ Butanol

≤ 100

+60

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

-

▪ Ethanol

≤ 100

+60

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

-

▪ Propanol

≤ 100

+80

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

-

▪ Spirits (40 % ethanol)

≤ 100

+60

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

-

≤ 100 ≤ 100 ≤ 10 ≤5 ≤5 ≤ 20 ≤ 10 ≤ 10 ≤5 ≤ 100 ≤ 20

+60 +60 +40 +50 +60 +60 +60 +60 +80 +80 +110

✘ ✘ ✘ ✘ -

✘ ✘ ✘

-

✘ ✘ ✘ ✘

-

✘ ✘ ✘ ✘ -

✘4)

✘4)

-

✘ ✘ ✘ ✘ ✘

-

+110

✘4)

✘ ✘ - - ✘ - - - ✘ - ✘ - - ✘ ✘ ✘4) ✘ ✘4)

✘ ✘ ✘

≤ 25

✘ ✘ - - ✘ - - - ✘ - ✘ - - ✘ ✘ ✘4) ✘ ✘4)

≤ 30

+110

4)

Alum, acid-free Alum, acid-free Alkaline solution, bottle rinsing, max. 2 % sodium hydroxide Alcohol

Wine (white, red) Tartaric acid Ammonium bicarbonate Aluminium sulphate, acid-free Aluminium sulphate, acid-free Ammonium sulphate Calcium acetate, acid-free Calcium nitrate, acid-free Ferric sulphate (II) Water-oil emulsion (95 %, 5 %), free of solids Ethylene glycol base anti-freeze, inhibited, closed system

Ethylene glycol base anti-freeze, inhibited, open system

4

Design Max. percentage [%]

H

✘

4)

✘

-

✘

-

✘4)

✘ ✘4) ✘ ✘ ✘4) ✘

-

✘

-

4)

-

✘

-

✘

-

✘

-

-

✘

-

≤ 35

+110

✘

≤ 40

+110

≤ 45

+110

≤ 50

+110

✘4) ✘ ✘4) ✘ ✘4) ✘ ✘4) ✘ ✘4) ✘ ✘4) ✘

≤ 20

+110

≤ 25

+110

≤ 30

+110

≤ 35

+110

≤ 40

+110

4)

4)

✘ ✘ ✘4) ✘ ✘4) ✘4) ✘ ✘4) ✘4) ✘ ✘4) ✘

4)

✘

✘

-

✘

-

-

✘

-

-

✘

✘ ✘4) ✘ ✘ ✘4) ✘

-

✘

-

-

✘4) ✘ ✘4) ✘ ✘4) ✘ ✘4) ✘ ✘4) ✘ ✘4) ✘

-

✘

-

-

✘

-

-

✘

-

✘

-

✘

-

✘

-

✘

-

✘

-

✘

-

✘

-

✘

-

✘ ✘4) ✘

-

✘

-

✘

-

✘

-

✘

-

✘

-

✘

-

✘

-

✘

-

✘

-

✘ ✘4) ✘

-

✘

-

✘

4)

4)

4)

✘ ✘ ✘4) ✘ ✘4) ✘4) ✘ ✘4) ✘4) ✘ ✘4) ✘

4)

✘

≤ 100 °C

DPH(S)I

13

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

Fluid handled Substance contained

Design Max. percentage [%]

Tmax. [°C]

Ethylene glycol base anti-freeze, inhibited, open system

≤ 45

+110

≤ 50

+110

Glycerine Ethylene glycol (pure) Diethylene glycol Ethylene glycol Potassium hydroxide Potassium nitrate, acid-free Potassium sulphate, acid-free Copper sulphate Magnesium sulphate Milk Lactic acid

≤ 40 ≤ 100 ≤ 100 ≤ 100 ≤5 ≤5 ≤3 ≤5 ≤ 10 ≤ 100 ≤ 40 ≤ 100

H

HS Seal code 11 12 13 14 15 16 18 11 12 13 14 15 16 18 ✘4) ✘ ✘4) ✘ - ✘ - ✘4) ✘ ✘4) ✘ - ✘ ✘ ✘4) ✘ ✘ - ✘ ✘ ✘ ✘ - - ✘ - ✘ ✘ ✘ - - -

✘

-

✘

-

+80 +100 +100 +100 +40 +30 +20 +80 +80 +60 +60 +40

✘4) ✘ ✘ ✘ ✘ -

✘ ✘4) ✘ ✘ - ✘ ✘ ✘ ✘ - - ✘ - ✘ ✘ ✘ - - -

✘

-

✘

-

-

✘4) ✘ ✘ ✘ ✘ -

✘ ✘ ✘ ✘ ✘ ✘ -

✘ ✘ ✘ -

-

✘ ✘ ✘ ✘ ✘ ✘ -

✘ ✘ ✘ -

-

-

≤6 ≤5 ≤ 10 ≤ 10 ≤5

+60 +60 +30 +60 +60

✘ ✘ ✘ ✘

-

✘ ✘ ✘ ✘

-

✘ -

-

-

✘ ✘ ✘

-

✘ ✘ ✘

-

✘ -

-

-

▪ Peanut oil

≤ 100

+90

-

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

▪ Peanut oil

≤ 100

+100

-

-

-

-

-

-

-

-

-

-

-

-

-

-

▪ Linseed oil, ≤ 3 % H2SO4

≤ 100

+20

-

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

▪ Linseed oil, ≤ 3 % H2SO4

≤ 100

+60

-

-

-

-

-

-

-

-

✘

-

✘

-

-

-

≤ 100

+80

-

-

-

-

-

-

-

-

-

-

-

-

-

-

▪ Linseed oil

≤ 100

+60

-

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

▪ Linseed oil

≤ 100

+60

-

-

-

-

-

-

-

-

-

-

-

-

-

-

▪ Corn oil

≤ 100

+100

-

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

▪ Mineral oil5)

≤ 100

+80

-

-

-

-

-

-

-

-

-

-

-

-

-

-

▪ Vegetable oil5)

≤ 100

+100

-

-

-

-

-

-

-

-

-

-

-

-

-

-

▪ Rapeseed oil

≤ 100

+100

-

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

▪ Salad oil

≤ 100

+100

-

-

-

-

-

-

-

-

-

-

-

-

-

-

▪ Lubricating oil5)

≤ 100

+100

-

-

-

-

-

-

-

-

-

-

-

-

-

-

▪ Silicone oil5)

≤ 100

+60

-

-

-

-

-

-

-

-

-

-

-

-

-

-

≤ 100

+100

-

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

≤ 100

+60

-

-

-

-

-

-

-

-

-

-

-

-

-

-

≤ 100

+100

-

-

-

-

-

-

-

-

-

-

-

-

-

-

≤ 100

+100

-

-

-

-

-

-

-

-

-

-

-

-

-

-

≤ 100

+100

-

-

-

-

-

-

-

-

-

-

-

-

-

-

Polyethylene glycol5)

≤ 100 ≤ 100

+80 +80

-

✘ -

-

✘ -

-

-

-

-

✘ -

-

✘ -

-

-

-

Polyglycol5)

≤ 100

+80

-

-

-

-

-

-

-

-

-

-

-

-

-

-

Crude oil5)

≤ 100

+80

-

-

-

-

-

-

-

-

-

-

-

-

-

-

Crude oil condensate5) Juice (fruit and sugar juice) Acid

≤ 100

+80

-

-

-

-

-

-

-

-

-

-

-

-

-

-

≤ 100

+60

-

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

▪ Acetic acid

≤ 10

+60

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

-

▪ Acetic acid

≤5

+60

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

-

Miscella5) Sodium carbonate Sodium hydroxide Sodium nitrate, acid-free Sodium nitrate, acid-free Sodium sulphate, acid-free Oil

▪ Hydraulic oil

5)

▪ Soybean oil ▪ Turpentine oil

5)

▪ Turbine oil (no SDF oils) ▪ Oil-water mixtures 5)

Paraffin Kerosene

5

14

4) Fluid details required

DPH(S)I

5)

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

Fluid handled Substance contained

Design Max. percentage [%]

Tmax. [°C]

H

▪ Tannic acid

≤ 20

+80

HS Seal code 11 12 13 14 15 16 18 11 12 13 14 15 16 18 - ✘ - ✘ - - - - ✘ - ✘ - - -

▪ Maleic acid

≤ 10

+60

-

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

▪ Lactic acid

≤5

+60

-

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

▪ Lactic acid

≤ 40

+60

-

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

▪ Phosphoric acid

≤5

+20

-

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

▪ Sulphuric acid

≤5

+20

-

-

-

-

-

-

-

-

-

-

-

-

✘

-

▪ Tartaric acid

≤8

+40

-

-

-

-

-

-

-

-

✘

-

✘

-

-

-

▪ Citric acid

≤ 25

+30

-

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

▪ Citric acid

≤ 10

+30

-

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

▪ Diesel oil

≤ 100

+80

-

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

▪ Fuel oil

≤ 100

+80

-

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

▪ Jet fuel

≤ 100

+80

-

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

≤4

+80

-

-

-

-

✘

-

-

-

-

-

-

✘

-

-

▪ Deionised water (fully desalinated)

≤ 100

+140

✘

-

✘

-

-

-

✘6) ✘

-

✘

-

-

-

✘6)

▪ Distilled water

≤ 100

+140

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

-

▪ Dealkalised water

≤ 100

+120

-

-

-

-

✘

-

-

-

-

-

-

✘

-

-

▪ Decarbonised water

≤ 100

+120

-

-

-

-

✘

-

-

-

-

-

-

✘

-

-

▪ Swimming pool water (no brine)

≤ 100

+100

-

-

-

-

-

-

-

-

-

-

-

-

-

-

▪ Permeate (osmosis)

≤ 100

+140

✘

-

✘

-

-

-

6)

✘

✘

-

✘

-

-

-

✘6)

▪ Partly desalinated water

≤ 100

+120

-

-

-

-

✘

-

-

-

-

-

-

✘

-

-

▪ Fire-fighting water

≤ 100

+60

-

-

-

-

✘

-

✘

-

-

-

-

✘

-

✘

▪ Heating water in accordance with VDI 2035

≤ 100

+100

✘

-

✘

-

-

-

✘

✘

-

✘

-

-

-

✘

▪ High-temperature hot water treated in accordance with VdTüV 1466

≤ 100

+140

✘4)

-

✘4)

-

-

-

✘6) ✘4)

-

✘4)

-

-

-

✘6)

▪ Boiler feed water to VdTÜV 1466

≤ 100

+140

✘4)

-

✘4)

-

-

-

✘6) ✘4)

-

✘4)

-

-

-

✘6)

▪ Condensate treated in acc. with VdTÜV 1466

≤ 100

+140

✘4)

-

✘4)

-

-

-

✘6) ✘4)

-

✘4)

-

-

-

✘6)

▪ Vapour condensate (brewery)

≤ 100

+140

✘4)

-

✘4)

-

-

-

✘6) ✘4)

-

✘4)

-

-

-

✘6)

▪ Cooling water

≤ 100

+100

-

-

-

-

-

✘

-

-

-

-

-

-

✘

-

▪ Tap water

≤ 100

+60

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

-

▪ Brewing water

≤ 100

+60

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

-

▪ Ice water (brewery)

≤ 100

+60

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

-

▪ Drinking water / tap water

≤ 100

+60

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

-

▪ Hot water (brewery)

≤ 100

+60

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

-

▪ Clean water

≤ 100

+60

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

✘

▪ Brackish water

≤ 100

+15

-

-

-

-

-

-

-

-

-

-

-

-

✘

-

▪ Seawater

≤ 100

+15

-

-

-

-

-

-

-

-

-

-

-

-

✘

-

▪ Raw water

≤ 100

+60

-

-

-

-

✘

-

-

-

-

-

-

✘

-

-

▪ Grey water, slightly contaminated water

≤ 100

+60

-

-

-

-

✘

-

-

-

-

-

-

✘

-

-

▪ River water

≤ 100

+60

-

-

-

-

✘

-

-

-

-

-

-

✘

-

-

Fuel

Trisodium phosphate Water

6

≤ 120 °C, depending on the pressure classes

DPH(S)I

15

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

Fluid handled Substance contained

Design Max. percentage [%]

Tmax. [°C]

H

▪ Lake water

≤ 100

+60

HS Seal code 11 12 13 14 15 16 18 11 12 13 14 15 16 18 - - - - ✘ - - - - - - ✘ - -

▪ Dam water

≤ 100

+60

-

-

-

-

✘

-

-

-

-

-

-

✘

-

-

▪ Surface water

≤ 100

+60

-

-

-

-

✘

-

-

-

-

-

-

✘

-

-

▪ Fresh water

≤ 100

+60

-

✘

-

✘

-

-

-

-

✘

-

✘

-

-

-

▪ Barrier water

≤ 100

+70

-

-

-

-

-

✘

-

-

-

-

-

-

✘

-

▪ Rinsing water

≤ 100

+70

-

-

-

-

-

✘

-

-

-

-

-

-

✘

-

▪ Rainwater, with strainer

≥ 20

+60

-

-

-

-

-

✘

-

-

-

-

-

-

✘

-

▪ Water-glycol mixture

≤ 100

+100

-

-

-

-

-

-

-

-

-

-

-

-

-

-

Shaft seal

Seal code

Table 12: Available mechanical seals

Type

Mechanical seal Material C ✘ ✘ ✘ ✘ ✘

Design E ✘ ✘ ✘ ✘ ✘

F ✘ ✘ ✘ ✘ ✘

U3U3VGG

✘

✘

✘

T Min. Max. [°C] [°C] -20 +100 -20 +120 -20 +100 -20 +120 -20 +1207) -20 +1207)

11 12 13 14 15

MG-G60 MG-G60 RMG-G606 RMG-G606 RMG-G606

BQ1EGG BQ1VGG Q1BEGG Q1BVGG U3U3X4GG

16

RMG-G606

18

RMG-G606

U3BEGG

✘

✘

✘

-20

23 24 28 29

RMG-G606 MG-G606 MG-G606 MG-G606

Q1BEGG Q1Q1VGG Q1Q1X4GG Q1Q1EGG

✘ ✘ ✘ ✘

✘ ✘ ✘ ✘

✘ ✘ ✘ ✘

-20 -20 -20 -20

+1207) +100 +120 +120 +100

Pressure [bar] 10 10 25 25 25

WRAS -

25

-

25

-

25 10 10 10

-

Table 13: Key to mechanical seal materials Description Primary ring

Mating ring

Elastomer

Spring Other metal parts

7

16

Code to EN 12756 B U3 Q1 B U3 Q1 E V X4 G G

Temperatures up to 140 °C if the pressure does not exceed 16 bar

DPH(S)I

Certification

Seal face materials / secondary seals Hard carbon, resin-impregnated Tungsten carbide (CrNiMo binder) Silicon carbide, sintered without pressure Hard carbon, resin-impregnated Tungsten carbide (CrNiMo binder) Silicon carbide, sintered without pressure EPDM (ethylene propylene rubber) FPM (fluoroelastomer) HNBR CrNiMo steel CrNiMo steel

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

Technical data Motors ▪ Efficiency class IE3 to IEC 60034-30 (for three-phase motors ≥ 0.75 kW) Table 14: Technical motor data, 50 Hz PN

UN

IA

IA/IN

cos φ

Tolerance UN

n

η

Lp

Cable gland

0,92 0,92 0,92 0,95 0,95 0,95

[%] +/-10 +/-10 +/-10 +/-10 +/-10 +/-10

rpm 2750 2760 2780 2790 2800 2800

[%] 67 70 70 75 76 77

[dB] 58 56 56 58 58 58

1 × M18 × 1,5 1 × M18 × 1,5 1 × M20 × 1,5 1 × M20 × 1,5 1 × M20 × 1,5 1 × M20 × 1,5

Maximum frequency of starts [h⁻¹] 20 20 20 20 20 20

[kW] 0,37 0,55 0,75 1,1 1,5 2,2

[V] 1 × 230 1 × 230 1 × 230 1 × 230 1 × 230 1 × 230

[A] 2,6 3,69 5 6,68 8,99 13,04

3,7 3,9 3,9 4,3 4,8 4,8

0,37 0,55 0,75 1,1 1,5 2,2 3 3 4 4 5,5 5,5 7,5 7,5

230/400 230/400 230/400 230/400 230/400 230/400 230/400 400/690 230/400 400/690 230/400 400/690 230/400 400/690

1,6/0,95 2,1/1,2 3,1/1,8 4,0/2,3 5,5/3,2 8,0/4,6 10,2/5,8 5,8/3,3 12,8/7,4 7,4/4,3 17,3/10,0 10,0/5,80 23,0/13,3 13,3/7,7

4,6 5,3 6,6 6,4 8 8,8 9,3 9,3 9,5 9,5 8,8 8,8 9,2 9,2

0,76 0,8 0,76 0,81 0,81 0,8 0,85 0,85 0,89 0,89 0,89 0,89 0,89 0,89

+/-10 +/-10 +/-10 +/-10 +/-10 +/-10 +/-10 +/-10 +/-10 +/-10 +/-10 +/-10 +/-10 +/-10

2865 2880 2880 2880 2880 2900 2920 2920 2930 2930 2940 2940 2940 2940

76 82 80,7 84 84,2 85,9 87,1 87,1 88,1 88,1 89,2 89,2 90,1 90,1

60 60 55 55 55 55 57 57 58 58 63 63 63 63

1 × M20 × 1,5 1 × M20 × 1,5 1 × M20 × 1,5 1 × M20 × 1,5 1 × M20 × 1,5 1 × M20 × 1,5 2 × M20 × 1,5 2 × M20 × 1,5 2 × M20 × 1,5 2 × M20 × 1,5 2 × M25 × 1,5 2 × M25 × 1,5 2 × M25 × 1,5 2 × M25 × 1,5

50 50 50 50 50 50 30 30 30 30 20 20 20 20

0,55 0,75 1,1 1,5 2,2 3 3 4 4 5,5 5,5 7,5 7,5

230/400 230/400 230/400 230/400 230/400 230/400 400/690 230/400 400/690 230/400 400/690 230/400 400/690

2,34/1,34 3,13/1,8 4,21/2,42 5,59/3,21 7,86/4,52 10,6/6,10 6,10/3,53 14,0/8,05 8,05/4,66 19,0/10,9 10,9/6,34 25,4/14,6 14,6/8,47

5,3 6,5 6,5 7 7,5 7,5 7,5 8,5 8,5 8,5 8,5 8,5 8,5

0,73 0,73 0,78 0,79 0,81 0,81 0,81 0,81 0,81 0,81 0,81 0,82 0,82

+/-10 +/-10 +/-10 +/-10 +/-10 +/-10 +/-10 +/-10 +/-10 +/-10 +/-10 +/-10 +/-10

1425 1425 1440 1440 1445 1445 1445 1450 1450 1460 1460 1460 1460

80,7 82,5 84,4 85,3 86,7 87,7 87,7 88,5 88,6 89,9 89,6 90,4 90,4

57 57 58 58 59 59 59 60 60 60 60 60 60

1 × M20 × 1,5 1 × M20 × 1,5 1 × M20 × 1,5 1 × M25 × 1,5 2 × M25 × 1,5 2 × M25 × 1,5 2 × M25 × 1,5 2 × M25 × 1,5 2 × M25 × 1,5 2 × M32 × 1,5 2 × M32 × 1,5 2 × M32 × 1,5 2 × M32 × 1,5

20 20 20 20 20 20 20 20 20 20 20 20 20

Tolerance UN

n

η

Lp

Cable gland

Table 15: Technical motor data, 60 Hz PN

UN

IA

IA/IN

cos φ

[kW] 0,37 0,55 0,75 1,1 1,5 2,2 3 3 4 4 5,5 5,5 7,5 7,5

[V] 230/400 230/400 230/400 230/400 230/400 230/400 230/400 400/690 230/400 400/690 230/400 400/690 230/400 400/690

[A] 1,6/0,95 2,1/1,2 2,8/1,6 3,8/2,2 5,1/2,9 7,1/4,1 9,7/5,6 5,6/3,2 12,5/7,2 7,2/4,2 17/9,8 9,8/5,6 22,5/13,0 13,0/7,5

4,5 5,3 6,2 6,4 7,5 8,6 7,6 7,6 8,8 8,8 7,8 7,8 8 8

0,76 0,8 0,84 0,86 0,88 0,9 0,9 0,9 0,92 0,92 0,92 0,92 0,93 0,93

[%] -10,+20 -10,+20 -10,+25 -10,+25 -10,+25 -10,+25 -10,+25 -10,+25 -10,+25 -10,+25 -10,+25 -10,+25 -10,+25 -10,+25

[rpm] 3430 3460 3460 3440 3455 3480 3495 3495 3525 3525 3525 3525 3525 3525

[%] 76 82 80,7 84 84 86,5 86,4 86,4 87,2 87,2 88,5 88,5 89,5 89,5

[dB] 58 60 58 58 58 58 61 61 62 62 67 67 67 67

1 × M20 × 1,5 1 × M20 × 1,5 1 × M20 × 1,5 1 × M20 × 1,5 1 × M20 × 1,5 1 × M20 × 1,5 2 × M20 × 1,5 2 × M20 × 1,5 2 × M20 × 1,5 2 × M20 × 1,5 2 × M25 × 1,5 2 × M25 × 1,5 2 × M25 × 1,5 2 × M25 × 1,5

Maximum frequency of starts [h⁻¹] 50 50 50 50 50 50 30 30 30 30 20 20 20 20

0,55 0,75

230/400 230/400

2,30/1,32 3,1/1,8

4,5 6

0,74 0,74

-5/+20 -10/+20

1710 1720

81 82,7

57 60

1 × M20 × 1,5 1 × M20 × 1,5

20 25

DPH(S)I

17

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

PN

UN

IA

IA/IN

cos φ

[kW] 1,1 1,5 2,2 3 3 4 4 5,5 5,5 7,5 7,5

[V] 230/400 230/400 230/400 230/400 400/690 230/400 400/690 230/400 400/690 230/400 400/690

[A] 4,1/2,4 5,5/3,2 7,7/4,5 10,4/6,0 6,0/3,5 13,8/7,9 7,9/4,6 18,7/10,8 10,7/6,2 25,0/14,4 14,4/8,3

6 6 6,5 6,5 6,5 7 7 7 6 7 7

0,79 0,8 0,82 0,82 0,82 0,82 0,82 0,82 0,83 0,83 0,83

18

DPH(S)I

Tolerance UN

n

η

Lp

Cable gland

[%] -10/+20 -10/+20 -10/+20 -10/+20 -10/+20 -10/+20 -10/+20 -10/+20 -10/+20 -10/+20 -10/+20

[rpm] 1730 1730 1720 1740 1740 1740 1750 1755 1750 1755 1755

[%] 84,3 85,5 86,7 87,9 87,9 88,8 88,8 89,6 89,5 90,6 90,6

[dB] 61 61 57 62 62 63 63 63 62 63 63

2 × M25 × 1,5 2 × M25 × 1,5 2 × M25 × 1,5 2 × M25 × 1,5 2 × M25 × 1,5 2 × M25 × 1,5 2 × M25 × 1,5 2 × M32 × 1,5 2 × M32 × 1,5 2 × M32 × 1,5 2 × M32 × 1,5

Maximum frequency of starts [h⁻¹] 25 25 20 20 20 20 20 20 20 20 20

Selection chart DPH(S)I, 2P 50 Hz

US.gpm

5 4

200

5

10

20

IM.gpm

30

10

40

20

50

30

40

100 50

100 500 400

100

300 200

50 40 100

30 2

4

10

6

15c

20 50 40 30 20 5 ft

4

10

3

1

Q[m³/h] 0.3

0.4

2 0.5

3 l/s

4 1

5

10 2

20 3

4

5

30

19

High-pressure Pumps

DPH(S)I

2

Multistage Horizontal High-pressure Centrifugal Pump

10 H [m]

20

DPH(S)I, 4P 50 Hz

US.gpm

5 4

30

10

20

IM.gpm

5

30

10

40

20

50

30

40

50

20

DPH(S)I

50 40 10 30

10

15c

20

5 4 10

3

H [m]

5 4

1 Q[m³/h] 0.3

0.4

2 0.5

3 l/s

4 1

5

10 2

20 3

4

5

High-pressure Pumps

1

Multistage Horizontal High-pressure Centrifugal Pump

ft 2

DPH(S)I, 2P 60 Hz

US.gpm

5 4

200

5

10

20

IM.gpm

30

10

40

20

50

30

40

100 50

100 500 400

100

300

200 50 40 2

30

4

15c

10

6

100

20 50 40 30

H [m]

20 5 ft

4 3 Q[m³/h] 0.3

0.4

2 0.5

3 l/s

4 1

5

10 2

20 3

4

5

10 30

21

High-pressure Pumps

DPH(S)I

1

Multistage Horizontal High-pressure Centrifugal Pump

10

22

DPH(S)I, 4P 60 Hz

US.gpm

5 4

40

10

20

IM.gpm

5

30

10

40

20

50

30

40

50

100

30

DPH(S)I

20

50 40 15c

10

10

30 H [m] 20

ft 4

10

3

2 Q[m³/h] 0.3

0.4

2 0.5

3 l/s

4 1

5

10 2

20 3

4

5

High-pressure Pumps

1

Multistage Horizontal High-pressure Centrifugal Pump

5

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

Characteristic curves The characteristic curves are based on the following principles: ▪ Tolerances to ISO 9906:2012 Grade 3B The characteristic curves were measured under the following conditions: ▪ Motor used: – Standardised KSB motor with integrated frequency inverter ▪ Fluid properties: – Deaerated water – Fluid temperature: +20 °C – Density: 1.0 kg/dm³ – Kinematic viscosity: 1 mm²/s

DPH(S)I

23

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 2B, 2P 50 Hz

St=1

St = 1

24

P per stage

DPH(S)I

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 2-LB, 2P 50 Hz 0

5

0

10

Q [US.gpm]

2 Q [IM.gpm] 4

6

15

8

10

12

2/14 1,1kW 100 2/12 1,1kW

300

2/11 1,1kW 80 2/10 0,75kW 2/9 0,75kW

60

2/8 0,55kW

200

2/7 0,55kW H [ft]

2/6 0,55kW 40

2/5 0,37kW

H [m]

2/4 0,37kW

100

2/3 0,37kW 20 2/2 0,37kW

0 0.0 0.0 1.5

0 0.5 Q [m³/h] 1.0 0.2

Q [l/s]

1.5

2.0

0.4

2.5 0.6

3.0 0.8

3.5 1.0 4 NPSH3 [ft]

NPSH3 [m] 0

0

60 Eta [%] 0 0.08 P [kW]

0.1 n=2880/St=14 P [hp]

0.05

0.04 0.02 0.0

0.5 Q [m³/h] 1.0

1.5

2.0

2.5

3.0

3.5 Mvt_H(S)I_02L2900/0

St = 1

P per stage

DPH(S)I

25

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 4B, 2P 50 Hz

St=1

St = 1

26

P per stage

DPH(S)I

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 4-LB, 2P 50 Hz 0

10

0

5

Q [IM.gpm]

20

Q [US.gpm] 10

30

15

20

25

4/14 2,2kW

400

120

4/12 2,2kW 100

4/11 2,2kW 300

4/10 1,5kW 80

4/9 1,5kW 4/8 1,5kW 4/7 1,1kW

60

200

4/6 1,1kW H [ft]

4/5 0,75kW 40 4/4 0,55kW

100

H [m] 4/3 0,55kW 20

4/2 0,37kW

0

0 0

1

0.0 3

Q [m³/h]

2

3 Q [l/s]

0.5

4

5

1.0

6

7

1.5

2.0 NPSH3 [ft] 5

NPSH3 [m] 0

0

80 Eta [%] 0 0.2 0.2 n=2880/St=14 P [hp]

P [kW] 0.0

0.0 0

1

Q [m³/h]

2

3

4

5

6

7 Mvt_H(S)I_04L2900/0

St = 1

P per stage

DPH(S)I

27

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 6B, 2P 50 Hz

St=1

St = 1

28

P per stage

DPH(S)I

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 6-LB, 2P 50 Hz 0

10

0

Q [US.gpm] 10

20

Q [IM.gpm]

30

40

20

30

140 6/14 3,0kW

400

120 6/12 3,0kW 6/11 3,0kW 100 6/10 2,2kW

300 6/9 2,2kW 80 6/8 2,2kW 6/7 1,5kW 200

60

6/6 1,5kW 6/5 1,1kW

H [ft]

40

6/4 1,1kW

H [m]

6/3 0,75kW

20

6/2 0,37kW

100

0

0 0

2

0.0 1.5

0.5

Q [m³/h] Q [l/s]

4 1.0

6 1.5

8 2.0

10 2.5 4 NPSH3 [ft]

NPSH3 [m] 0

0

60 Eta [%] 0 0.3

St=1

0.2

P [hp]

P [kW]

0.1

0.05 0

2

Q [m³/h]

4

6

8

10 Mvt_H(S)I_06L2900/0

St = 1

P per stage

DPH(S)I

29

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 10B, 2P 50 Hz

St=1

St = 1

30

P per stage

DPH(S)I

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 10-LB, 2P 50 Hz 0

20

0

10

Q [IM.gpm]

40

Q [US.gpm] 20

60

30

40

50 300

10/8 3,0kW

80 10/7 3,0kW

10/6 2,2kW 200

60 10/5 2,2kW

H [ft]

10/4 1,5kW 40 10/3 1,1kW

100

H [m]

10/2 0,75kW 20

10/1 0,75kW

0

0 0

1.5

2

0

Q [m³/h]

4

6 Q [l/s]

1

8

10

2

12

14

3

4 4 NPSH3 [ft]

NPSH3 [m] 0

0

80 Eta [%] 0 0.4

0.5 n=2920/St=8 P [hp]

P [kW]

0.2 0.1 0

2

Q [m³/h]

4

6

8

10

12

14 Mvt_H(S)I_10L2900/0

St = 1

P per stage

DPH(S)I

31

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 15C, 2P 50 Hz 0

20

Q [US.gpm]

0

20

40

60

80

40

Q [IM.gpm]

100

60

80

15/7 7.5 kW 100 15/6 7.5 kW

300

80 15/5 5.5 kW

200

60 15/4 4 kW

15/3 3 kW

H [ft]

15/2 2.2 kW

100

40

H [m]

20 15/1 1.1 kW

0

0 0

3 NPSHR

5

0

Q [m³/h] 2

10 Q [l/s]

15

20

4

6 NPSHR 5

[m]

0

0

80 Eta [%] 0 1 1 P [hp]

P [kW] 0

0 0

5

Q [m³/h]

10

15

20 20210137/0

St = 1

32

P per stage

DPH(S)I

[ft]

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 15-LC, 2P 50 Hz 0

20 Q [US.gpm]

0

20

40

60

80

40

Q [IM.gpm]

100

60

80

15/7 7,5 kW

100

300 15/6 7,5 kW 80 15/5 5,5 kW

200

60 15/4 4,0 kW

H [ft] 15/3 3,0 kW 40

100

H [m] 15/2 2,2 kW 20 15/1 1,1 kW

0

0 0

3 NPSHR

5

0

Q [m³/h] 2

10 Q [l/s]

15

20

4

25 6 NPSHR 5

[m]

0

[ft]

0

80 Eta [%] 0 1 St=1

1.0 P [hp]

P [kW]

0.5 0.2 0

5

Q [m³/h]

10

15

20

25 Mvt_H(S)I_15CL_2900/0

St = 1

P per stage

DPH(S)I

33

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 10B, 4P 50 Hz

St=1

St = 1

34

P per stage

DPH(S)I

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 10-LB, 4P 50 Hz 0

10

0

5

Q [IM.gpm]

20

Q [US.gpm] 10

30

15

20

25

10/8 0,55kW

20 10/7 0,55kW 60 10/6 0,55kW 15 10/5 0,55kW 40 10/4 0,55kW 10 H [ft] 10/3 0,55kW H [m] 20 10/2 0,55kW 5

10/1 0,55kW

0

0 0

1

0.0 0.4

Q [m³/h]

2

3 Q [l/s]

0.5

4

5

1.0

6

7

1.5

2.0 1 NPSH3 [ft]

NPSH3 [m] 0.0

0

80 Eta [%] 0 0.05 St=1 P [kW]

0.06 P [hp] 0.02

0.01 0

1

Q [m³/h]

2

3

4

5

6

7 Mvt_H(S)I_10L1450/0

St = 1

P per stage

DPH(S)I

35

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 15C, 4P 50 Hz 0

10

0

Q [US.gpm] 10

20

Q [IM.gpm]

30

40

20

50

30

40

15/7 1.1 kW 25 80 15/6 0.75 kW

20 15/5 0.75 kW 60

15/4 0.55 kW

15

40

15/3 0.55 kW 10

H [ft] 15/2 0.55 kW

H [m]

20 5 15/1 0.55 kW

0

0 0

0.8 NPSH

2

Q [m³/h]

0

4

6 Q [l/s]

1

8

10

2

12 3 2 NPSH

[m]

3%

0

0

80 Eta [%] 0 0.15

0.2

P [kW]

P [hp]

0.0

0.0 0

2

Q [m³/h]

4

6

8

10

12 20210139/0

St = 1

36

[ft] 3%

P per stage

DPH(S)I

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 15-LC, 4P 50 Hz 0

10 Q [US.gpm]

0

10

20

Q [IM.gpm]

30

40

20

50

30

40

15/7 1,1 kW

25

80

15/6 0,75 kW 20 60

15/5 0,75 kW

15 15/4 0,55 kW 40 15/3 0,55 kW 10 H [ft] H [m] 15/2 0,55 kW 20 5 15/1 0,55 kW

0

0 0

0.6 NPSH

2

Q [m³/h]

0

4

6 Q [l/s]

1

8

10

2

12 3 NPSH [ft] 3% 1

[m]

3%

0

0

80 Eta [%] 0 0.15

0.2 St=1

P [kW]

P [hp]

0.0

0.0 0

2

Q [m³/h]

4

6

8

10

12 Mvt_H(S)I_15CL_1450/0

St = 1

P per stage

DPH(S)I

37

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 2B, 2P 60 Hz

St=1

St = 1

38

P per stage

DPH(S)I

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 2-LB, 2P 60 Hz 0

5

0

10

Q [US.gpm] 5

Q [IM.gpm]

15 10

15

160 2/14 2,2kW 500 140 2/12 1,5kW 2/11 1,5kW

120

400

2/10 1,5kW 100

2/9 1,1kW 300

2/8 1,1kW 80

2/7 1,1kW 2/6 0,75kW 200

60

2/5 0,75kW 2/4 0,55kW

H [ft]

40 2/3 0,37kW H [m]

100 2/2 0,37kW

20

0

0 0

0.0 1.5

0.2

1

Q [m³/h]

Q [l/s]

0.4

2

3 0.6

0.8

4 1.0

1.2 4 NPSH3 [ft]

NPSH3 [m]

2

0.5 60 Eta [%] 0 0.14 P [kW]

n=3460/St=14 0.15 P [hp]

0.1

0.10 0.04 0

1

Q [m³/h]

2

3

4 Mvt_H(S)I_02L3500/0

St = 1

P per stage

DPH(S)I

39

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 4B, 2P 60 Hz

St=1

St = 1

40

P per stage

DPH(S)I

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 4-LB, 2P 60 Hz 0

10

0

20

Q [US.gpm] 10

Q [IM.gpm]

30 20

30

600

4/14 4,0kW

180

160

4/12 4,0kW 4/11 3,0kW

140

4/10 3,0kW 400

120

4/9 3,0kW 4/8 2,2kW

100

H [ft]

4/7 2,2kW 80

4/6 1,5kW 4/5 1,5kW

200

60 4/4 1,1kW 40

4/3 0,75kW

H [m]

4/2 0,55kW

20

0

0 0

0.0 4

2

Q [m³/h] Q [l/s]

0.5

4 1.0

6 1.5

8 2.0 10 NPSH3 [ft]

NPSH3 [m] 0

0

80 Eta [%] 0 0.3 P [kW] 0.2

0.4 n=3510/St=14 P [hp] 0.1

0.05 0

2

Q [m³/h]

4

6

8 Mvt_H(S)I_04L3500/0

St = 1

P per stage

DPH(S)I

41

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 6B, 2P 60 Hz

St=1

St = 1

42

P per stage

DPH(S)I

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 6-LB, 2P 60 Hz 0

10

0

Q [US.gpm] 10

20

Q [IM.gpm]

30

40

20

50

30

40

200 6/14 5,5kW 600

180 6/12 5,5kW 160 6/11 4,0kW 140

6/10 4,0kW 6/9 4,0kW

400

120 6/8 3,0kW 100

6/7 3,0kW H [ft] 6/6 2,2kW

80 6/5 2,2kW 200

60

6/4 1,5kW

40

6/3 1,1kW

H [m]

6/2 0,75kW

20

0

0 0

2

2

Q [m³/h]

0

4

6 Q [l/s]

1

8

10

2

12 3 5 NPSH3 [ft]

NPSH3 [m] 0

0

60 Eta [%] 0 0.4 St=1

0.4 P [hp]

P [kW] 0.0

0 0

2

Q [m³/h]

4

6

8

10

12 Mvt_H(S)I_06L3500/0

St = 1

P per stage

DPH(S)I

43

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 10B, 2P 60 Hz

St=1

St = 1

44

P per stage

DPH(S)I

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 10-LB, 2P 60 Hz 0 140

20

0

40

Q [US.gpm] 20

60 40

Q [IM.gpm]

60

10/8 5,5kW 400

120 10/7 5,5kW

100 10/6 4,0kW 300 10/5 4,0kW

80

10/4 3,0kW 200

60

10/3 2,2kW

H [ft]

40 10/2 1,5kW

H [m]

100

20 10/1 0,75kW

0

0 0

2

0

2 Q [m³/h] 4 1

6 Q [l/s]

8

10

2

12

14

3

16 4 5 NPSH3 [ft]

NPSH3 [m] 0

0

80 Eta [%] 0 0.8

1 n=3530/St=8 P [hp]

P [kW] 0

0 0

2 Q [m³/h] 4

6

8

10

12

14

16 Mvt_H(S)I_10L3500/0

St = 1

P per stage

DPH(S)I

45

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 15C, 2P 60 Hz 0 100

20 Q [US.gpm] 40

0

20

60

80

40

Q [IM.gpm]

100

60

120

80

100

300

15/4 7.5 kW

80

15/3 5.5 kW 200

60

15/2 4 kW

H [ft]

40

100

H [m] 15/1 2.2 kW 20

0

0 0

4 NPSH

5

0

Q [m³/h] 2

10 Q [l/s]

15

20

4

25 6

8 10 [ft] NPSH

[m]

0

0

80 Eta [%] 0 2 2 P [hp]

P [kW] 0

0 0

5

Q [m³/h]

10

15

20

25 20210138-B/0

St = 1

46

P per stage

DPH(S)I

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 15-LC, 2P 60 Hz 0

20 Q [US.gpm] 40

0

20

60

80

40

Q [IM.gpm]

100

60

120

80

100 300

90 15/4 7,5 kW 80

250 70

15/3 5,5 kW

200

60

50 150 15/2 4,0 kW

40

H [ft]

100

30 H [m] 20

15/1 2,2 kW 50

10 0 3 NPSH

5

0

Q [m³/h] 2

10 Q [l/s]

15

20

4

25 6

8 NPSH [ft] 3% 5

[m]

3%

0

0

80 Eta [%] 0 2 St=1

P [kW] 0

2 P [hp] 0

0

5

Q [m³/h]

10

15

20

25 Mvt_H(S)I_15CL_3500/0

St = 1

P per stage

DPH(S)I

47

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 10B, 4P 60 Hz

St=1

St = 1

48

P per stage

DPH(S)I

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 10-LB, 4P 60 Hz 0 35

10

0

20

Q [US.gpm] 10

Q [IM.gpm]

30 20

30

10/8 0,75kW 100

30 10/7 0,55kW

25

80

10/6 0,55kW

10/5 0,55kW

20

60 10/4 0,55kW 15

40

10/3 0,55kW 10

H [ft] 10/2 0,55kW

H [m]

20 5 10/1 0,55kW

0

0 0

0.0 0.6

2

Q [m³/h] Q [l/s]

0.5

4 1.0

6 1.5

8 2.0

2.5 NPSH3 [ft] 1

NPSH3 [m] 0

0

80 Eta [%] 0 0.1 St=1

0.10 P [hp]

P [kW]

0.05 0.02 0

2

Q [m³/h]

4

6

8 Mvt_H(S)I_10L1750/0

St = 1

P per stage

DPH(S)I

49

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 15C, 4P 60 Hz 0

20

0

10

Q [IM.gpm]

40

Q [US.gpm] 20

60

30

40

50

40 15/7 1,5 kW 120 35 15/6 1,5 kW 100

30

15/5 1,1 kW 25

80

15/4 1,1 kW 20 60 15/3 0,75 kW

15

H [ft]

H [m]

40

10

15/2 0,55 kW

5

15/1 0,55 kW

20

0 1 NPSHR

2

0

Q [m³/h]

4

6 Q [l/s]

1

8

10

2

12

14

3

4

[m]

2

0

0

NPSHR

80 Eta [%] 0 0.3

0.2

St=1 P [hp]

P [kW]

0.1

0.05 0

2

Q [m³/h]

4

6

8

10

12

14 Mvt_H(S)I_15C_1750/0

St = 1

50

P per stage

DPH(S)I

[ft]

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I, 15-LC, 4P 60 Hz 0

20

0

10

Q [IM.gpm]

40

Q [US.gpm] 20

60

30

40

50

40 15/7 1,5 kW

120

35 15/6 1,5 kW 100

30

15/5 1,1 kW 25

80

15/4 1,1 kW

20

60 15/3 0,75 kW

15

40 15/2 0,55 kW

10

H [ft]

H [m] 20 5

15/1 0,55 kW

0

0 0

0.8 NPSHR

2

0

Q [m³/h]

4

6 Q [l/s]

1

8

10

2

12

14

3

4 2 [ft] NPSHR

[m]

0

0

80 Eta [%] 0 0.2 St=1 P [kW] 0.0

0.2 P [hp] 0.0

0

2

Q [m³/h]

4

6

8

10

12

14 Mvt_H(S)I_15CL_1750/0

St = 1

P per stage

DPH(S)I

51

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

Installation types a)

b)

0º

0º

90º

90º Fig. 4: Standard installation type a) Side view (seen from the motor) b) Top view

a)

90º

a)

b)

90º

90º

270º

270º

b)

270º

a)

0º

b) 0º

0º

Fig. 5: Optional installation types for terminal box position = position discharge side connection a) Side view (seen from the motor) b) Top view

52

DPH(S)I

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

Dimensions and connections DPH(S)I 2B, 2P 50 Hz F1 F2

27 14 G 5/4

E2

132

E1

90

80 G 5/4

P

50

Q

13 (4x)

56

Fig. 6: Dimensions and connections of DPH(S)I 2 with V18 motor

65 (@P)

184 (@Q) 210 (@Q)

8)

Table 16: Dimensions Number of stages

Motor

2 3 4 5 6 7 8 9 10 11 12 14

V18 V18 V18 V18 V18 V18 V18 V18 V18 V18 V18 V18

8

PN [kW] 0,37 0,37 0,37 0,37 0,55 0,55 0,55 0,75 0,75 1,1 1,1 1,1

E1 [mm] 138 138 138 138 138 138 138 157 157 157 157 157

E2 [mm] 109 109 109 109 109 109 109 133 133 133 133 133

F1 [mm] 502 523 545 566 588 609 631 706 728 749 771 814

F2 [mm] 289 310 332 353 375 396 418 449 471 492 514 557

Optional: connection height 160 mm

DPH(S)I

53

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I 2B, 2P 60 Hz F1 F2

27 14 G 5/4

E2

132

E1

90

80 G 5/4

P

50

Q

13 (4x)

56

Fig. 7: Dimensions and connections of DPH(S)I 2 with V18 motor

65 (@P)

184 (@Q) 210 (@Q)

9)

Table 17: Dimensions Number of stages

Motor

2 3 4 5 6 7 8 9 10 11 12 14

V18 V18 V18 V18 V18 V18 V18 V18 V18 V18 V18 V18

9

54

Optional: connection height 160 mm

DPH(S)I

PN [kW] 0,37 0,37 0,55 0,75 0,75 1,1 1,1 1,1 1,5 1,5 1,5 2,2

E1 [mm] 138 138 138 157 157 157 157 180 180 180 180 180

E2 [mm] 109 109 109 133 133 133 133 145 145 145 145 145

F1 [mm] 502 523 545 620 642 663 685 706 734 755 504 849

F2 [mm] 289 310 332 363 385 406 428 449 481 502 524 567

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I 4B, 2P 50 Hz F1 F2

27 14 G 5/4

E2

132

E1

90

80 G 5/4

P

50

Q

13 (4x)

56

Fig. 8: Dimensions and connections of DPH(S)I 4 with V18 motor

65 (@P)

184 (@Q) 210 (@Q)

10)

Table 18: Dimensions Number of stages

Motor

2 3 4 5 6 7 8 9 10 11 12 14

V18 V18 V18 V18 V18 V18 V18 V18 V18 V18 V18 V18

10

PN [kW] 0,37 0,55 0,55 0,75 1,1 1,1 1,5 1,5 1,5 2,2 2,2 2,2

E1 [mm] 138 138 138 157 157 157 180 180 180 180 180 180

E2 [mm] 109 109 109 133 133 133 145 145 145 145 145 145

F1 [mm] 502 523 545 620 642 663 691 712 734 784 806 849

F2 [mm] 289 310 332 363 385 406 438 459 481 502 524 567

Optional: connection height 160 mm

DPH(S)I

55

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I 4B, 2P 60 Hz F1 F2

27 14 G 5/4

E2

132

E1

90

80 G 5/4

P

50

Q

13 (4x)

56

Fig. 9: Dimensions and connections of DPH(S)I 4 with V18 motor

65 (@P)

184 (@Q) 210 (@Q)

11)

Table 19: Dimensions Number of stages

Motor

2 3 4 5 6 7 8 9 10 11 12 14

V18 V18 V18 V18 V18 V18 V18 V18 V18 V18 V18 V18

11

56

Optional: connection height 160 mm

DPH(S)I

PN [kW] 0,55 0,75 1,1 1,5 1,5 2,2 2,2 3,0 3,0 3,0 4,0 4,0

E1 [mm] 138 157 157 180 180 180 180 200 200 200 223 223

E2 [mm] 109 133 133 145 145 145 145 155 155 155 166 166

F1 [mm] 502 577 599 626 648 698 720 783 805 826 848 900

F2 [mm] 289 320 342 373 395 416 438 459 491 512 534 577

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I 6B, 2P 50 Hz F1 F2

27 14 G 5/4

E2

132

E1

90

80 G 5/4

P

50

Q

56

65 (@P)

13 (4x)

Fig. 10: Dimensions and connections of Movitec DPH(S)I 6 with V18 motor

184 (@Q) 210 (@Q)

12)

Table 20: Dimensions Number of stages

Motor

2 3 4 5 6 7 8 9 10 11 12 14

V18 V18 V18 V18 V18 V18 V18 V18 V18 V18 V18 V18

12

PN [kW] 0,37 0,75 1,1 1,1 1,5 1,5 2,2 2,2 2,2 3,0 3,0 3,0

E1 [mm] 138 157 157 157 180 180 180 180 180 200 200 200

E2 [mm] 109 133 133 133 145 145 145 145 145 155 155 155

F1 [mm] 509 588 613 638 669 694 748 773 798 865 890 940

F2 [mm] 296 331 356 381 416 441 466 491 516 551 576 626

Optional: connection height 160 mm

DPH(S)I

57

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I 6B, 2P 60 Hz F1 F2

27 14 G 5/4

E2

132

E1

90

80 G 5/4

P

50

Q

65 (@P)

13 (4x)

56

Fig. 11: Dimensions and connections of Movitec DPH(S)I 6 with V18 motor

184 (@Q) 210 (@Q)

13)

300

F1 27 14

F2 80

E2

G 5/4

160

E1

90

G 5/4

P

50

Q

56

184 (@Q) 210 (@Q) 254 (@P)

13 (4x)

Fig. 12: Dimensions and connections of Movitec DPH(S)I 6 with V1 motor Table 21: Dimensions Number of stages

Motor

2 3 4 5 6 7 8 9 10 11 12 14

V18 V18 V18 V18 V18 V18 V18 V18 V18 V18 V18 V18

13

58

Optional: connection height 160 mm

DPH(S)I

PN [kW] 0,75 1,1 1,5 2,2 2,2 3,0 3,0 4,0 4,0 4,0 5,5 5,5

E1 [mm] 157 157 180 180 180 200 200 223 223 223 260 260

E2 [mm] 133 133 145 145 145 155 155 166 166 166 190 190

F1 [mm] 563 588 619 673 698 765 790 824 849 874 998 1048

F2 [mm] 306 331 366 391 416 451 476 501 526 551 652 702

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I 10B, 4P 50 Hz F1 F2

46 33

85

E2

114

G2

132

E1

G2

P

50

Q

74

Fig. 13: Dimensions and connections of DPH(S)I 10 with V18 motor

130 (@P) 216 (@Q) 242 (@Q)

13 (4x)

14)

Table 22: Dimensions Number of stages

Motor

1 2 3 4 5 6 7 8

V18 V18 V18 V18 V18 V18 V18 V18

14

PN [kW] 0,55 0,55 0,55 0,55 0,55 0,55 0,55 0,55

E1 [mm] 157 157 157 157 157 157 157 157

E2 [mm] 112 112 112 112 112 112 112 112

F1 [mm] 597 597 623 650 676 703 729 755

F2 [mm] 351 351 377 404 430 457 483 510

Optional: connection height 160 mm

DPH(S)I

59

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I 10B, 4P 60 Hz F1 F2

46 33

85

E2

114

G2

132

E1

G2

P

50

Q

74

Fig. 14: Dimensions and connections of DPH(S)I 10 with V18 motor

130 (@P) 216 (@Q) 242 (@Q)

13 (4x)

15)

Table 23: Dimensions Number of stages

Motor

1 2 3 4 5 6 7 8

V18 V18 V18 V18 V18 V18 V18 V18

15

60

Optional: connection height 160 mm

DPH(S)I

PN [kW] 0,55 0,55 0,55 0,55 0,55 0,55 0,55 0,75

E1 [mm] 157 157 157 157 157 157 157 157

E2 [mm] 112 112 112 112 112 112 112 112

F1 [mm] 597 597 623 650 676 703 729 783

F2 [mm] 351 361 377 404 430 457 483 510

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I 10B, 2P 50 Hz F1 F2

46 33

85

E2

114

G2

132

E1

G2

P

50

Q

74

Fig. 15: Dimensions and connections of DPH(S)I 10 with V18 motor

130 (@P) 216 (@Q) 242 (@Q)

13 (4x)

16)

Table 24: Dimensions Number of stages

Motor

1 2 3 4 5 6 7 8

V18 V18 V18 V18 V18 V18 V18 V18

16

PN [kW] 0,75 0,75 1,1 1,5 2,2 2,2 3,0 3,0

E1 [mm] 157 157 157 180 180 180 200 200

E2 [mm] 133 133 133 145 145 145 155 155

F1 [mm] 626 651 677 709 750 777 858 885

F2 [mm] 351 376 402 439 465 492 528 555

Optional: connection height 160 mm

DPH(S)I

61

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I 10B, 2P 60 Hz F1 F2

46 33

85

E2

114

G2

132

E1

G2

P

50

Fig. 16: Dimensions and connections of DPH(S)I 10 with V18 motor

130 (@P) 216 (@Q) 242 (@Q)

13 (4x)

74

Q

17)

F1 F2

300

46 85 33 G2

114

E2

160

E1

G2

P

50

74

Q

216 (@Q) 242 (@Q) 254 (@P)

13 (4x)

Fig. 17: Dimensions and connections of DPH(S)I 10 with V1 motor Table 25: Dimensions Number of stages

Motor

1 2 3 4 5 6 7 8

V18 V18 V18 V18 V18 V18 V1 V1

17

62

PN [kW] 0,75 1,5 2,2 3,0 4,0 4,0 5,5 5,5

E1 [mm] 157 180 180 200 223 223 260 260

Optional: connection height 160 mm up to a maximum of 7 stages

DPH(S)I

E2 [mm] 133 145 145 155 166 166 190 190

F1 [mm] 626 656 697 779 815 842 973 999

F2 [mm] 351 386 412 449 475 502 608 634

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I 15C, 4P 50 Hz F1 F2

46 33

85

E2

114

G2

132

E1

G2

P

50

Q

74

Fig. 18: Dimensions and connections of DPH(S)I 15 with V18 motor

130 (@P) 216 (@Q) 242 (@Q)

13 (4x)

18)

Table 26: Dimensions Number of stages

Motor

1 2 3 4 5 6 7

V18 V18 V18 V18 V18 V18 V18

18

PN [kW] 0,55 0,55 0,55 0,55 0,75 0,75 1,1

E1 [mm] 157 157 157 157 157 157 180

E2 [mm] 112 112 112 112 133 133 145

F1 [mm] 616 616 657 698 739 780 849

F2 [mm] 359 359 400 441 482 523 574

Optional: connection height 160 mm

DPH(S)I

63

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I 15C, 4P 60 Hz F1 F2

46 33

85

E2

114

G2

132

E1

G2

P

50

Q

74

Fig. 19: Dimensions and connections of DPH(S)I 15 with V18 motor

130 (@P) 216 (@Q) 242 (@Q)

13 (4x)

19)

Table 27: Dimensions Number of stages

Motor

1 2 3 4 5 6 7

V18 V18 V18 V18 V18 V18 V18

19

64

Optional: connection height 160 mm

DPH(S)I

PN [kW] 0,55 0,55 0,75 0,75 1,1 1,5 1,5

E1 [mm] 157 157 157 157 180 180 180

E2 [mm] 112 112 133 133 145 145 145

F1 [mm] 616 616 657 726 767 833 874

F2 [mm] 359 359 400 451 492 533 574

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I 15C, 2P 50 Hz F1 F2

46 33

85

E2

114

G2

132

E1

G2

P

50

Fig. 20: Dimensions and connections of DPH(S)I 15 with V18 motor

130 (@P) 216 (@Q) 242 (@Q)

13 (4x)

74

Q

20)

F1 F2

300

46 85 33 G2

114

E2

160

E1

G2

P

50

74

Q

216 (@Q) 242 (@Q) 254 (@P)

13 (4x)

Fig. 21: Dimensions and connections of DPH(S)I 15 with V1 motor Table 28: Dimensions Number of stages

Motor

1 2 3 4 5 6 7

V18 V18 V18 V18 V1 V1 V1

20

PN [kW] 1,1 2,2 3,0 4,0 5,5 7,5 7,5

E1 [mm] 157 200 215 248 288 288 288

E2 [mm] 133 148 157 168 197 197 197

F1 [mm] 616 650 737 817 1014 1055 1069

F2 [mm] 359 369 420 461 582 623 664

Optional: connection height 160 mm up to a maximum of 4 stages

DPH(S)I

65

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I 15C, 2P 60 Hz F1 F2

46 33

85

E2

114

G2

132

E1

G2

P

50

Fig. 22: Dimensions and connections of DPH(S)I 15 with V18 motor

130 (@P) 216 (@Q) 242 (@Q)

13 (4x)

74

Q

21)

F1 F2

300

46 85 33 G2

114

E2

160

E1

G2

P

50

74

Q

216 (@Q) 242 (@Q) 254 (@P)

13 (4x)

Fig. 23: Dimensions and connections of DPH(S)I 15 with V1 motor Table 29: Dimensions Number of stages

Motor

1 2 3 4

V18 V18 V1 V1

PN [kW] 2,2 4,0 5,5 7,5

E1 [mm] 200 248 288 288

E2 [mm] 148 168 197 197

Scope of supply

▪ Pump

Depending on the model, the following items are included in the scope of supply:

▪ Electric motor

21

66

Optional: connection height 160 mm up to a maximum of 2 stages

DPH(S)I

F1 [mm] 650 735 932 973

F2 [mm] 369 379 499 540

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

General assembly drawing with list of components DPH(S)I 2/4/6B

800

920.05

341

554.05

554.02 920.01 914.01

89-11.08

862

901.05

560

89-11.03

914.03

901.02

471

681

903.01

914.05

412.07 412.06

920.03

950

554.01

108.05 412.01 932

433

108.01

160

10-6

905

108.02

210

230

525.05

412.03

525.03

108.04

525.01

101

529 525.04 930 920.02 903.02 412.04

890.02

Fig. 24: General assembly drawing of DPH(S)I 2/4/6B Table 30: List of components Part No. 10-6 101 108.01/.02/.04/.05 160 210 230 341 412.01/.03/.04/.06/.07 433

Description Pump shroud Pump casing Stage casing Cover Shaft Impeller Drive lantern O-ring Mechanical seal

Part No. 681 800 862 89-11.03/.08 890.02 901.02/.05 903.01/.02 905 914.01/.03/.05

Description Coupling guard Motor Coupling shell Retaining bracket Baseplate Hexagon head bolt Screw plug Tie bolt Hexagon socket head cap screw

DPH(S)I

67

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

Part No. 471 525.01/.03/.04/.05 529 554.01/.02/.05 560

Description Seal cover Spacer sleeve Bearing sleeve Washer Pin

Part No. 920.01/.02/.03/.05 930 932 950

Description Nut Safety device Circlip Spring

DPH(S)I 10 B

920.05 800

554.05

341

89-11.08

554.02

89-11.03

920.01

901.05

914.01

901.02

862

681

560

914.05

914.03 471 412.06 903.01

920.03

412.07

554.01

950 108.05

433

412.01

905

932

160

10-6

210

108.01

525.05

108.02

525.03

230

525.01

412.03

529 525.04

108.04

930

131

920.02

101

903.02 412.04

890.02

Fig. 25: General assembly drawing of DPH(S)I 10 B

68

DPH(S)I

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

Table 31: List of components Part No. 10-6 101 108.01/.02/.04/.05 131 160 210 230 341 412.01/.03/.04/.06/.07 433 471 525.01/.03/.04/.05 529 554.01/.02/.05

Description Pump shroud Pump casing Stage casing Inlet ring Cover Shaft Impeller Drive lantern O-ring Mechanical seal Seal cover Spacer sleeve Bearing sleeve Washer

Part No. 560 681 800 862 89-11.03/.08 890.02 901.02/.05 903.01/.02 905 914.01/.03/.05 920.01/.02/.03/.05 930 932 950

Description Pin Coupling guard Motor Coupling shell Retaining bracket Baseplate Hexagon head bolt Screw plug Tie bolt Hexagon socket head cap screw Nut Safety device Circlip Spring

DPH(S)I

69

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

DPH(S)I 15 C

800

920.05

341

554.05

554.02

89-11.08

920.01 914.01

89-11.09

862

901.05

560

901.02

914.03

681

471

914.05

412.06 903.01 412.07 920.03 554.01 433 950 108.05 412.01

160

932

905

10-6

210

108.01

525.05

108.02

525.03

230 525.01

412.03

529 930 108.04

920.02

101

903.02 412.04 890.02

Fig. 26: General assembly drawing of DPH(S)I 15 C

70

DPH(S)I

High-pressure Pumps Multistage Horizontal High-pressure Centrifugal Pump

Table 32: List of components Part No. 10-6 101 108.01/.02/.04/.05 160 210 230 341 412.01/.03/.04/.06/.07 433 471 525.01/.03/.05 529 554.01/.02/.05 560

Description Pump shroud Pump casing Stage casing Cover Shaft Impeller Drive lantern O-ring Mechanical seal Seal cover Spacer sleeve Bearing sleeve Washer Pin

Part No. 681 800 862 89-11.08/.09 890.02 901.02/.05 903.01/.02 905 914.01/.03/.05 920.01/.02/.03/.05 930 932 950

Description Coupling guard Motor Coupling shell Retaining bracket Baseplate Hexagon head bolt Screw plug Tie bolt Hexagon socket head cap screw Nut Safety device Circlip Spring

DPH(S)I

71

duijvelaar pompen Postbus 28 2400 AA Alphen aan den Rijn t +31(0)172 48 83 88 dp@dp.nl www.dp.nl

17/02/2022 97004539 (1798.5560/05-EN)
