Technical data 50 & 60 Hz Vertical centrifugal pumps Series: DPLHS

2

Table of Contents 1

2

3

4

5

6

7 8 9

Pump introduction

1.1 1.2 1.3 1.4 1.5

General .................................................................................................................................................. 4 Model key............................................................................................................................................... 4 Description of the product ...................................................................................................................... 4 Operation ............................................................................................................................................... 5 Working range........................................................................................................................................ 5

Performance characteristics

2.1 2.2 2.3

Performance curve details ..................................................................................................................... 6 Minimum efficiency index ....................................................................................................................... 6 Performance with variable frequency drive............................................................................................ 6

Technical specifications

3.1 3.2 3.3 3.4

Dimensions and weights DPLHS 6 50Hz............................................................................................... 8 Hydraulic performance DPLHS 6 50Hz - 2900 1/min ........................................................................... 9 Dimensions and weights DPLHS 6 60Hz............................................................................................. 10 Hydraulic performance DPLHS 6 60Hz - 3500 1/min ..........................................................................11

Motors and motor options

4.1 4.2 4.3

General ................................................................................................................................................ 12 Options................................................................................................................................................. 12 Electrical motor data ............................................................................................................................ 13

Materials

5.1 5.2 5.3

Overview of materials .......................................................................................................................... 14 Materials conversion ............................................................................................................................ 14 Mechanical seal specifications............................................................................................................. 14

Connections

6.1 6.2

Suction and discharge connections ..................................................................................................... 15 Suction and discharge connections optional ASME............................................................................. 15

Factory options

7.1

Factory options .................................................................................................................................... 16

Accessories

8.1

Thrust bearing housing ........................................................................................................................ 17

Sectional drawings

9.1 9.2

Parts list ............................................................................................................................................... 18 Sectional drawing DPLHS 6................................................................................................................. 19

3

1

Pump introduction

1.1

General

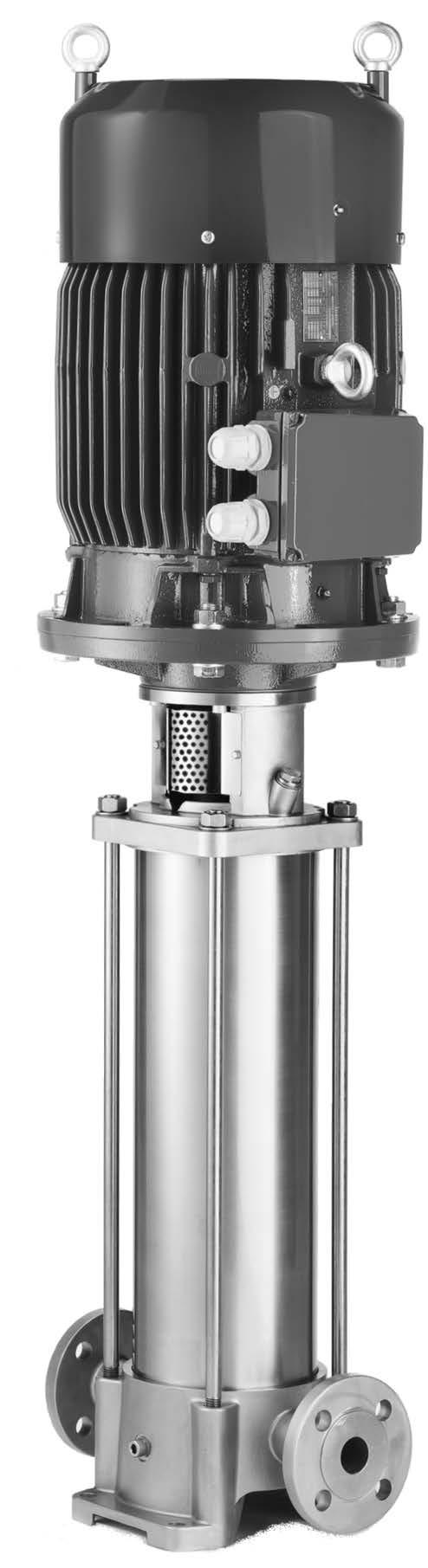

Figure 1: The vertical, multi-stage centrifugal pump, DPLHS is produced by Duijvelaar pompen.

1.2

Model key

Table 1: Model key Example Pump type Materials Pump connections Model / flow Stages / head

1.3

DPLHS DPLHS

6

-100

6 -100

DP Vertical pump in superior grade AISI 316 (1.4401) 40 Bar. Round flanges DIN or ASME. Pump model indicates nominal flow in [m3/h].

Indicates number of impeller stages (100 = 10).

Description of the product

The vertical, single or multistage pump serie DPLHS is designed for pumping clean, watery liquids. Suction and discharge of the pump are in-line, making the pump easy to install. The hydraulic assembly is installed vertically and driven by an electric motor.

4

All hydraulic parts of the pump are made of stainless steel, making the pump light and extremely suitable for applications that demand high grade materials, such as drinking water applications.

The DPLHS is designed for high pressures (up to 40 Bar)

1.4

Operation

Pump type Viscosity liquid [cSt]

The liquid is sucked in through the pump inlet (A) on the supply side under minimum pressure. The pump increases the pressure. The liquid leaves the pump through the pump outlet (B) on the delivery side under increased pressure.

Density liquid [kg/m3]

Cooling

Number of starts Minimum frequency [Hz] Maximum frequency [Hz]

C

1.

D

2.

3.

A

B

E 4.

Pump inlet Pump outlet Terminal box Fill plug/air relief plug Drain plug

Higher temperatures are possible at lower pressure.

For specific limits consult your supplier.

Contact your supplier for more detailed advice.

For standard motors see the technical specifications.

When the pump is fitted with another motor brand, please consult the motor supplier.

Pumps that are intended for 50Hz operation, may not be connected to 60Hz.

30 Q [%]

A B C D E

DPLHS 1 A higher viscosity may require more motor power.5 1000 A higher density may require more motor power.5 The space above the cooling fan of the motor must at least be equal to 1/4 of the diameter of the inlet of the cooling fan of the motor in order to have a sufficient supply of air.

Related to the motor3 10 504

25 20 15 10 5 0 40

50

60

70

80

90

100

110

120

t [°C]

A B

Figure 2: Minimum volume flows (Q) in% of Q optimum temperatures (t).

Table 3: Minimum volume flows (Qmin) DPLHS

1.5

6

Working range

The working range of the pumps in this series can be summarised as follows: Table 2: Specification of the working range Pump type Ambient temperature [°C] Liquid temperature [°C] Maximum working pressure [bar] Allowable size of solids pumped Minimum supply pressure

DPLHS +4 to 40 -15 to 801 404 5µ to 1mm Not cavitating2.

50Hz 0,8

Qmin in m3/h 60Hz 0,96

Table 4: Specific applications type DPLHS

application area Reverse osmosis installations and high pressure cleaning systems.

5

2

Performance characteristics

2.1

Performance curve details

The preceding diagrams give a global overview of all the pump models mentioned in this documentation.

Detailed characteristics are given for each model showing the hydraulic efficiency, NPSHreq, and shaft power as well.

The performance of the pump depends on the number of stages. The number of stages are shown as a multiple of 10, as per example:

DPHS 6-100

10 stage impellers

The detailed performance curves are in accordance with ISO 9906:2012 (Grade 3B). Vibration limits at rated speed and rated flow are according to ISO 9905.

The motors used for the measurements are standard DP. When using another motor brand the performance data, like Q/H, efficiency and shaft power must be corrected accordingly.

The characteristics given are based on: • De-aerated water at a temperature of 20 °C • Density of 1 kg/dm3 • Kinematical viscosity of 1 mm2/s (1 cst) To prevent the pump from overheating, gathering gas, cavitation etc. a minimum flow has to be secured.

The minimum flow corresponds to a percentage of the optimum flow Qopt in relation to the temperature of the liquid pumped.

2.2 6

Minimum efficiency index

The minimum energy-efficiency level according to the ErP regulations for water pumps is specified by the minimum efficiency index MEI. A high MEI value indicates a high efficiency of the determined pump.From 1 January 2015 on the minimum efficiency index (MEI) for standardised water pumps is ≥ 0.4.

2.3

Performance with variable frequency drive

The minimum frequency of the DP motor should be limited to 25 Hz to ensure sufficient cooling. When the rotational speed exceeds the nominal speed of the motor, make sure that the power output of the motor is suitable to drive the corresponding pump model.

The performance of the pump differs from the fixed speed performance according to the recalculation scheme.

ID3238

H

Q2

H1

n2 Q1 n1

n1

H2 n2

1

H2

n2

2

n1

2

H1

1

1

Q

2

hydr.

n1

n2

2

1

Q P/st.

3

n1

3

P2

n2

n2 P1 3 n1

Q NPSH req.

2

n1

NPSH 2

n2

Q2 Q1 Figure 3: Performance characteristics

Q

n2 N 2 n1

3238/08072008

4

7

Technical specifications

3.1

Dimensions and weights DPLHS 6 50Hz

94001301

3

F2 [mm]

Net weight [kg]

233 233 315 315 315 315

F1 [mm]

7,5 7,5 11 11 15 15

E2 [mm]

6- 100 6- 120 6- 140 6- 160 6- 180 6- 200

E1 [mm]1

General

P [kW]

8

DPLHS 6 50Hz

Model

DPLHS 6

162 162 206 206 206 206

928 1015 1250 1310 1369 1429

599 658 748 808 867 927

92 99 166 171 185 191

95000234-H

1.

Diameter adapter flange 5,5-7,5 kW = 300 mm, 11-22 kW = 350 mm, 30-37 kW = 400 mm

3.2

Hydraulic performance DPLHS 6 50Hz  2900 1/min

0 430

400

10

0

US.gpm 10

20

IM.gpm

30

40

20

30 1400

6-200 15 kW

6-180 15 kW

1200

350 6-160 11 kW

1000

300 Förderhöhe TDH Hauteur Prevalenza Opvoerhoogte Altura

6-140 11 kW

250 6-120 7,5 kW

800

ft 6-100 7,5 kW

200 600

m

150

400 100

0

0.0 8

2 0.5

m³/h l/s

4 1.0

6 1.5

8 2.0

2.5 20

NPSHR

m

ft

0

0

60 Eta

%

Leistungsbedarf Power Input Puiss. abs.

Potenza ass.

Opgenomen vermogen Potencia nec.

0.6

0.8

kW

hp

0

0.4 0.25

9

0.5 0.4 0

2

m³/h

4

6

8 94001143-I/0*

Figure 4: Performance curve DPLHS 6 - 50Hz - 2 pole

94001143 I

Fördermenge/Flow/Débit/Portata/Capaciteit/Caudal

Dimensions and weights DPLHS 6 60Hz

94001301

3.3

340 340 340

Net weight [kg]

15 15 20

F2 [mm]

P [HP]

11 11 15

F1 [mm]

P [kW]

6- 100 6- 120 6- 140

E2 [mm]

General E1 [mm]1

DPLHS 6 60Hz

Model

DPLHS 6

223 223 223

1162 1221 1281

629 688 748

165 168 185

95000687-F

1.

10

Diameter adapter flange ,11-22 kW = 350 mm, 30-37 kW = 400 mm

3.4

Hydraulic performance DPLHS 6 60Hz  3500 1/min

86 JSP

,0 JSP

N: +3

N: +3

)|UGHUK|KH 7'+ +DXWHXU 3UHYDOHQ]D 2SYRHUKRRJWH $OWXUD

N: +3

IW

P

136+5

Pñ K O V

IW

P

(WD

/HLVWXQJVEHGDUI 3RZHU ,QSXW 3XLVV DEV 3RWHQ]D DVV 2SJHQRPHQ YHUPRJHQ 3RWHQFLD QHF

KS

N:

11

Pñ K

)|UGHUPHQJH )ORZ 'pELW 3RUWDWD &DSDFLWHLW &DXGDO

Figure 5: Performance curve DPLHS 6 - 60Hz - 4 pole

)

94001356 F

4

Motors and motor options

4.1

General

The standard DPmotors are produced conform the latest technical design, and comply with the international standards and EU directives regarding safety measures.

20091254

The motors can be specified as: • Standard IE3 • T.E.F.C. (totally enclosed fan cooled) Squirrel cage.

• AC induction motor.

• Protection IP55.

• Insulation class F. • Temperature rise class B. • Duty class S1, maximum 20 starts per hour.

• Noise levels conform IEC 60034-9.

• standard 3 x PTC. The motors come in 3 different configurations.

Mounting in acc. with IEC60034-7 and dimensions in acc. with IEC 60072-1

V18 flange

4.2 • 12

• • • • • •

V1 flange

Options Provided with 10 pole industrial connector “Harting stecker” HAN 10, mounted in stead of the motor connection box, <= 7,5kW. Provided with Rain cover on top of the fan hood.

For motors < 3kW provided with 3 x PTC and/or anti condensation heater (1x230V).

Motors from other manufacturers like Siemens and VEM in efficiency class IE2.

Explosion proof, class Ex eb IIC T3.

Explosion proof, class Ex db eb IIC T4.

Marine approved variant acc. bureau Veritas

4.3

Electrical motor data

Article number

Rated power output [kW]

Rated Voltage [V]

Rated current [A]

Starting current Ia/In

Cos Phi

Tolerance rated voltage

Rated speed [rpm]

Motor efficiency

Sound pressure [dB(A)]

Cable gland

Max. starts per hour

Table 5: Motor data 3 phase, 2p, IE3, 50 Hz

3710151075 3710151075 3710151110 3710151110 3710151150 3710151150

7,5 7,5 11 11 15 15

230/400 400/690 230/400 400/690 230/400 400/690

22,9/13,2 13,2/7,7 36,5/21,0 21,0/12,2 49,0/28,2 28,2/16,3

8,5 8,5 7,8 7,8 7,6 7,6

0,92 0,92 0,84 0,84 0,85 0,85

10% 10% 10% 10% 10% 10%

2920 2920 2950 2950 2945 2945

88,6 88,6 90 90 90,3 90,3

64 64 71 71 70 70

2xM25x1,5 2xM25x1,5 2xM32x1,5 2xM32x1,5 2xM32x1,5 2xM32x1,5

20 20 15 15 15 15

Article number

Rated power output [kW]

Rated Voltage [V]

Rated current [A]

Starting current Ia/In

Cos Phi

Tolerance rated voltage

Rated speed [rpm]

Motor efficiency

Sound pressure [dB(A)]

Cable gland

Max. starts per hour

Table 6: Motor data 3 phase, 2p, IE3, 60 Hz

3710151075 3710151075 3710151110 3710151110 3710151150 3710151150

7,5 7,5 11 11 15 15

230/400 400/690 230/400 400/690 230/400 400/690

22,9/13,2 13,2/7,7 34,5/19,8 19,8/11,5 46,6/26,8 26,8/15,5

7,3 7,3 6,7 6,7 6,6 6,6

0,94 0,94 0,89 0,89 0,9 0,9

+20%,-10% +20%,-10% +20%,-10% +20%,-10% +20%,-10% +20%,-10%

3500 3500 3530 3530 3530 3530

87,4 87,4 90 90 89,8 89,8

68 68 75 75 74 74

2xM25x1,5 2xM25x1,5 2xM32x1,5 2xM32x1,5 2xM32x1,5 2xM32x1,5

20 20 15 15 15 15

13

5

Materials

5.1

Overview of materials

Pos. nr.

101 108 160 10-6 210 230 341 412 525 529 1) 903 905 920 932 1.

Description Pump casing Stage casing Cover Pump shroud Shaft Impeller Motor stool O-ring Spacer sleeve Bearing sleeve Bearing Vent plug Tie bolt Nut Circlip

The bearing has no pos.nr. because it is a fixed part of the stage casing (108) or diffuser (171)

5.2

Materials conversion

Material 1.4404 1.4408 1.4571 1.4057 1.4401 1.

5.3

14

DPLHS 1.4408 1.4404 1.4404 1.4404 1.4401 1.4404 1.4408 FPM 1.4404 Tungsten-carbide Ceramic 1.4401 1.4057 1.4404 1.4571

Description Chromium-nickel-molybdenum steel Chromium-nickel-molybdenum cast steel Chromium-nickel-molybdenum steel Chromium-nickel steel Chromium-nickel-molybdenum steel

Code and material nr.

X2CrNiMo 17-12-2 GX5CrNiMo 19-11-2 X6CrNiMoTi17-12-2 X17CrNi16-2--QT800 X5CrNiMo 17-12-2

Note: The indication of the material designations to ASTM / AISI is not binding

Mechanical seal specifications

Pump series Mechanical seal type

Max. pressure Dynamic part Static part Elastomer

DPLHS 6

4000 kPa Carbon Tungsten carbide FPM

Standard EN 10088 EN 10213 EN 10088 EN 10088-3 EN 10088

ASTM / AISI1 A276:316L A743CF8M A276:316Ti A276:431 A276:316

6

Connections

6.1

Suction and discharge connections

Pump model key

DPLHS

Connection Norm Pressure class

Round flange ridged cast to pump casing DIN EN 1092-2 PN 40 PN 40

DPLHS 6

6.2

DN 32

Suction and discharge connections optional ASME

Pump model key

DPLHS

Connection Norm Pressure class

Round flange ridged cast to pump casing ASME B 16.5 cl.600 PN40

DPLHS 6

1¼”

15

16

7

Factory options

7.1

Factory options

Description: Mechanical: Color finish De-staging Motor: Anti condensation heater

Applicable model:

Standard:

Options

All All

Pump and motor RAL 5002 Intermediate impeller stage

RAL 3000 (fire red) Stage without impeller

3 phase 4 kW - 15 kW

None

Rain cover Harting stecker

3 phase 4 kW - 15 kW 3 phase 4 kW - 15 kW

None None

Connection box position Increased motor power Enlarged motor lantern

4 kW - 37 kW 4 kW - 30 kW 4 kW - 30 kW

9h Standard motor power Standard motor lantern

Winding Voltage

3 phase 4 kW - 15 kW 3 phase 4 kW - 15 kW

400 / 692 V 400 V Y or 

With anti condensation heater 1~230 V Rain cover on fan hood Cable connection provided with 10-pole Harting stecker 0h, 3h, 6h One step higher motor power Motor lantern to fit one step higher motorpower 230 / 400 V 500 V Y or 

Accessories

8.1

Thrust bearing housing

Thrust bearing housing

20070627 I

8

The standard DP-Pumps motors are specially designed to drive the pump. When a standard IEC or NEMA norm motor has to be installed (or a special motor to fulfill the applications requirement, like explosion proof, high efficiency) a special bearing housing must be installed to relieve the motor of the axial force created by the pump.

ATTENTION Only a motor with a standard key can be installed with a thrust bearing housing.

ATTENTION There is no need to change the motor stool of the pump. The bearing flange can be mounted on the standard motor stool of the pump.

8.1.1

Dimensions and weights.

The total height increase of the pump will be 113,5 mm / 4.47 inch.

17

9

Sectional drawings

9.1

Parts list

Number (ZN) 101 108 210 230 341 411 412 433 525 529 554 560 681 722 801 831 832 833 835 862 901 903 905 914 920 930 932 10-6 81-37

18

Description: Pump casing Stage casing Shaft Impeller Motor stool Joint ring O-ring Mechanical seal Spacer sleeve Bearing sleeve Washer Pin Coupling guard Taper piece, flanged Flanged motor Fan impeller Fan hood Terminal box Terminal board Coupling shell Hexagon head bolt Screwed plug Tie bolt Hexagon socket head cap scr.

Nut Safety device Circlip Pump shroud Terminal box coverplate

Sectional drawing DPLHS 6

19

20030238-C

9.2

duijvelaar pompen Kalkovenweg 13 2400 LJ Alphen aan den Rijn The Netherlands t +31 172 48 83 88 dp@dp.nl www.dp.nl 08/2023 97004434 F Subject to modifications. Digital alteration, publication or distribution of the content of this document without prior notice is strictly prohibited.

Permission for use, copying and distribution of this document as published by DP-Pumps is granted on the condition that no part of the document is used for information or commercial purposes outside of the DP-Pumps organisation or one of its recognised dealerships.
