Door Controls USA Hardware Catalog

AVAILABLE · RELIABLE · ECONOMICAL · INNOVATIVE

OPENING DOORS FOR GENERATIONS

HARDWARE CATALOG

Version 2025

WE PARTNER WITH ALL LEADING BRANDS

DoorControlsUSA.com

33

TABLE OF CONTENTS ABOUT US General Information............................................................ 7 General Sales Policies...................................................... 8-9 HARDWARE FINISHES & DOOR HANDING........................... 10 SURFACE MOUNTED DOOR CLOSERS DCM 6000 Series................................................................ 11 DCM 4000 Series............................................................... 12 DCM 8000 Series................................................................ 13 LCN 4040XP Series............................................................ 14 LCN 4020 Series................................................................ 15 LCN 1460 Series................................................................. 16 LCN 1450 Series................................................................. 17 Norton 1600 Series............................................................ 18 Norton 7500 Series............................................................ 19 Norton 8300 Series........................................................... 20 Dormakaba 8900 Series..................................................... 21 OVERHEAD CONCEALED CLOSERS DCM 50 Series................................................................... 23 DCM 30 Series................................................................... 24 Jackson 20 Series............................................................ 25 Remanufactured Kawneer Husky....................................... 26 Kawneer Husky II............................................................... 27 LCN 2030 Series............................................................... 28 LCN 5030 Series............................................................... 29 Dormakaba RTS88 Series.................................................. 30 LOW ENERGY OPERATORS DCM DC7000................................................................ 32-33 DCM DC4000................................................................ 33-34 LCN 4640 and 4630 Series................................................. 35 LCN 9500 Series................................................................ 36 Norton 6000 Series........................................................... 37

4

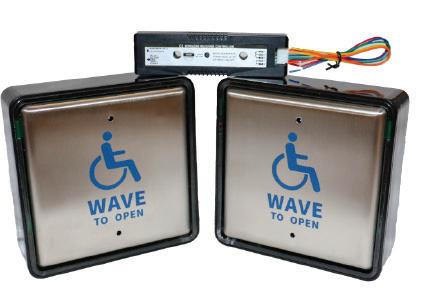

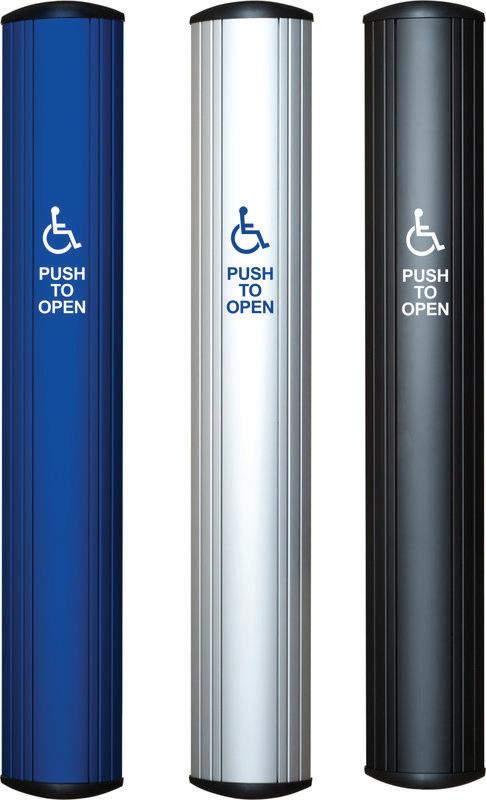

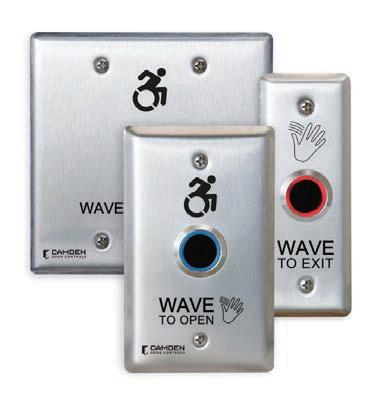

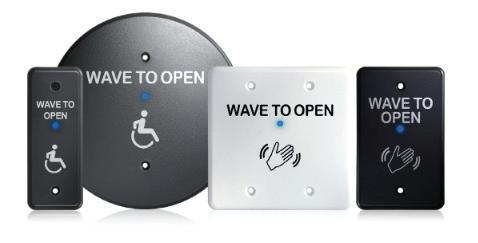

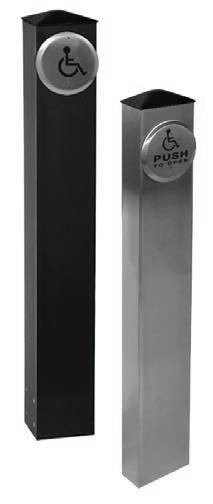

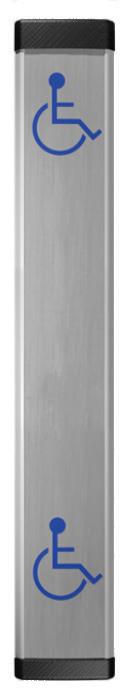

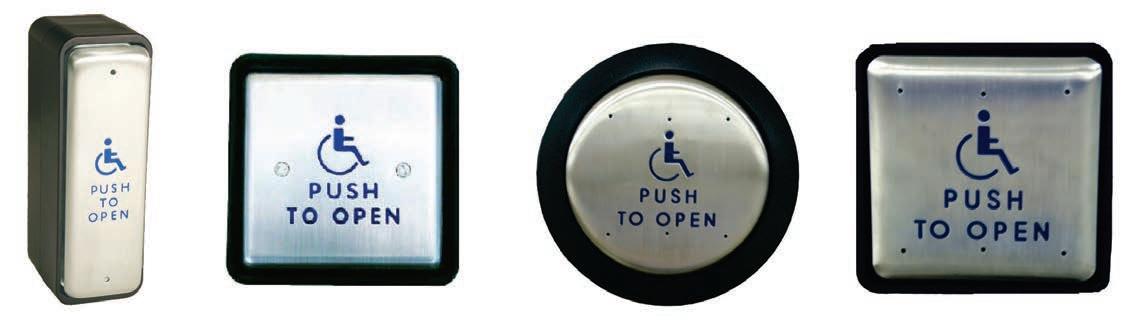

ADA DOOR ACCESSORIES DCM Wired Wave Plates..................................................... 39 DCM Push Plates............................................................... 40 DCM Wireless Push Plate Packages................................... 41 Automatic Door Accessories Wireless Wave Plates........... 42 BEA MS41 and MS31 Wave Plates........................................ 43 BEA MS21 Wave Plates....................................................... 44 BEA Restroom Kit.............................................................. 45 BEA 900 Long Range Wireless Transmitters and Receivers.................................................................... 46 BEA 36" Full Length High-Low Actuator............................. 47 BEA Bollard Mounting Post................................................ 48 Camden CM-333 and CM-325............................................ 49 Camden CM-221................................................................ 50 Camden CX-WC Series....................................................... 51 Camden Lazerpoint Wireless Door Control System............ 52 Camden CM-75................................................................... 53 Camden Mounting Post...................................................... 54 FLOOR CLOSERS Dormakaba BTS75V and BTS80 Series.............................. 55 Rixon 27 Offset & Rixon 28 Center Hung............................. 56 PIVOTS DCM Offset........................................................................ 57 DCM Intermediate.............................................................. 58 Rixon Offset...................................................................... 59 Dormakaba Offset and Intermediate.................................. 60 National Door Controls Retrofit Pivot Kits.......................... 61 Hardware Training Program............................................... 62 HINGES DCM Continuous Geared............................................... 63-64 Hager Roton Continuous Geared.................................. 65-66 Pemko FS-CP Full Surface Continous................................ 67 Pemko FM-SLF Full Mortise Continous.............................. 67 DCM Butt Hinges................................................................ 68 Hager Five Knuckle Ball Bearing........................................ 69 IVES 5 Knuckle Ball Bearing Full Mortise............................ 69

800-437-3667 · Parts@DoorControlsUSA.com

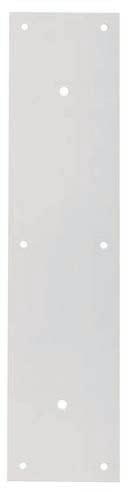

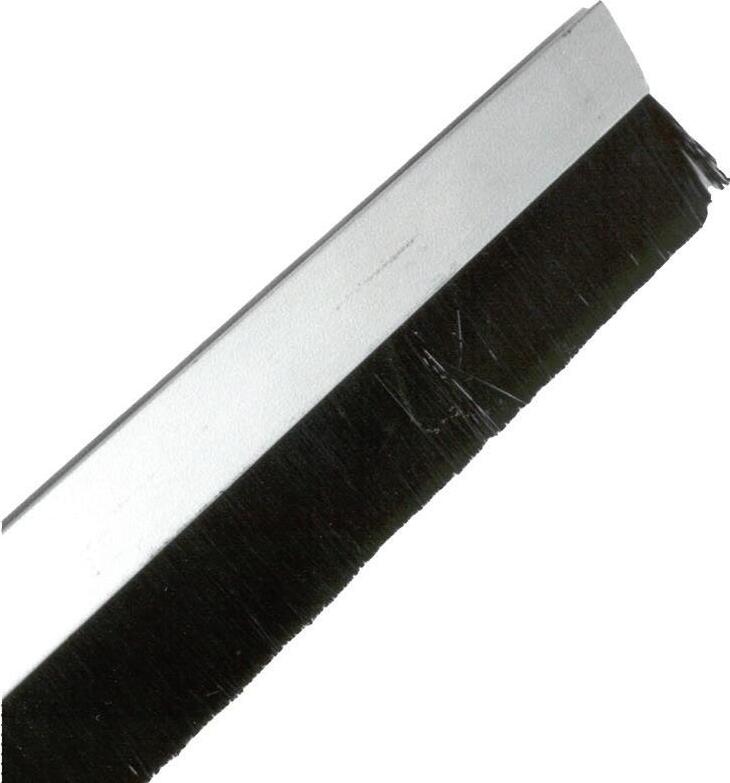

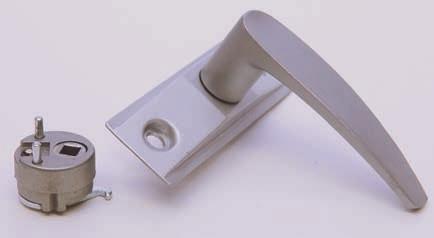

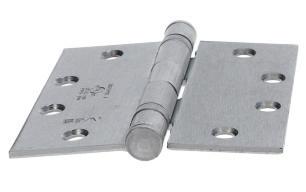

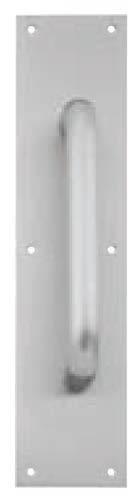

TABLE OF CONTENTS TRIM & AUXILIARY Hager Push / Pull / Kick Plates........................................... 70 DCM Door Trim................................................................... 71 Rockwood Door Trim.......................................................... 71 IVES Door Trim................................................................... 71 DCM Door Sweeps............................................................... 72 DCM Thresholds/Perimeter Seal Kits/Paint........................ 73 DCM Store Front Accessories............................................ 74 MORTISE LOCKS DCM Mortise Locks............................................................ 75 DCM Cylinders.................................................................... 76 Schlage L Series................................................................ 77 CYLINDRICAL LOCKS DCM Lever Sets................................................................. 78 DCM IC Core Lever Sets..................................................... 79 Schlage ALX...................................................................... 80 Schlage ND........................................................................ 81 EXIT DEVICES DCM Premium Series........................................................ 82 DCM EDTBAR Series......................................................... 83 DCM ED and CVR Series..................................................... 84 Von Duprin 98 and 99 Series Rim........................................ 85 Von Duprin 33A/35A, 3327A/3527A, and 3347A/3547A Series.......................................................... 86 Falcon 24/25, 1690 and 1790 Series.................................... 87 Falcon 19-R Series Non-Handed Rim................................. 88 Falcon 19-V Series Non-Handed Vertical Rod..................... 88 Marks USA M9900 Series Exit Device................................. 88 Adams Rite 8600 and 8800 Series..................................... 89 Accentra 6000 and 7000 Series......................................... 89 Detex V40xEB and ECL-230.............................................. 90 Jackson 10 Series.............................................................. 91

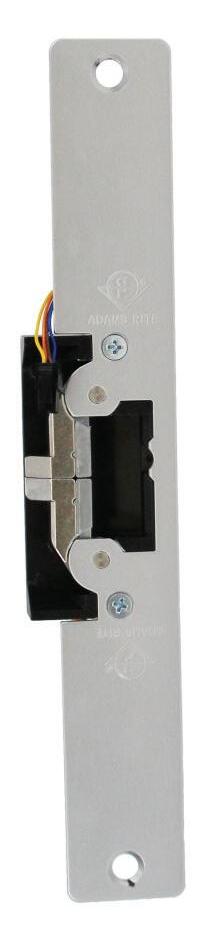

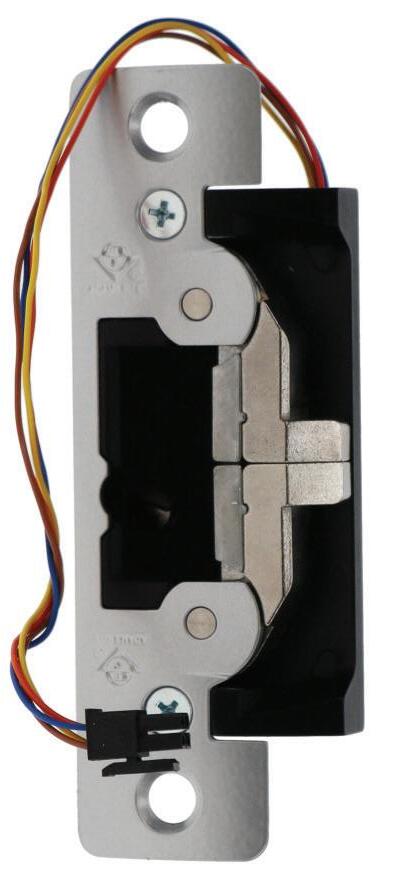

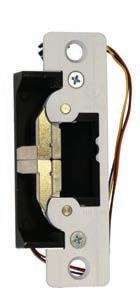

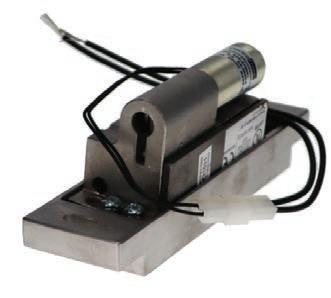

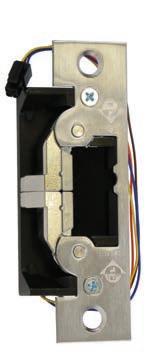

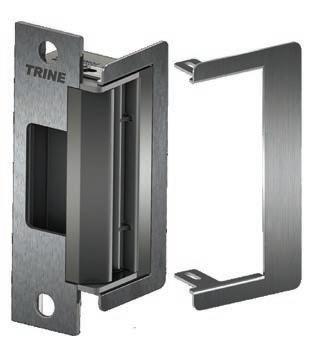

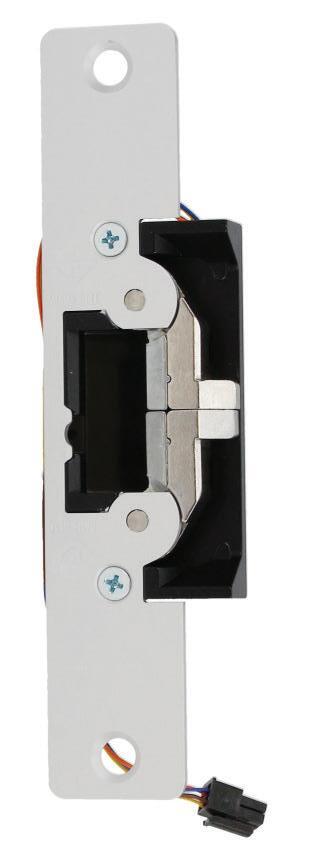

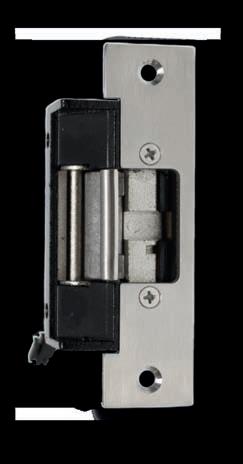

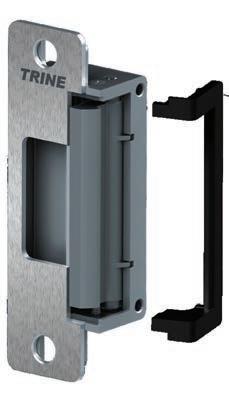

ELECTRIFIED SOLUTIONS CONTINUED Trine Electric Strikes - 4800, 4100 & 4200 Series.............. 97 BEA UL Electric Strikes..................................................... 98 Camden Electric Strikes.................................................. 99 BEA UL Listed Maglocks.................................................... 99 Camden CX-90 and CX-92 Series Maglock........................ 100 Von Duprin PS902 2 AMP Power Supply............................. 101 Von Duprin PS914 4 AMP Power Supply............................. 101 Securitron AQ Series and BPS Power Supply.................... 102 Altronix Option Boards.............................................. 103-106 Command Access MLRK1-VD, MLRK1-FAL25, MLRK1-SGT...................................................................... 107 INFORMATION Customer Service and Technical Support................... 108-109 Grade 1 Closers/Surface Mounted Closers......................... 111 Overhead Concealed Closers............................................. 111 Offset Door Pivots............................................................. 111 Lock Functions Chart.................................................. 112-113 Glossary..................................................................... 114-115

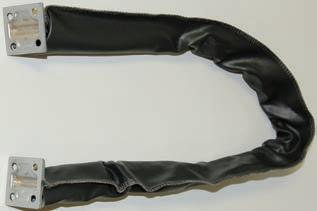

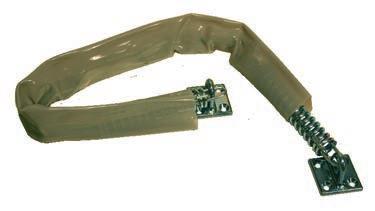

ELECTRIFIED SOLUTIONS Von Duprin EPT2 and EPT10 Series Power Transfer............... 92 Von Duprin 6100 and 6200 Series Electric Strike................ 92 HES 1600 and 5000 Electric Strike..................................... 93 HES 9400 Surface Mounted Electric Strike.....................93 DC20UES Door Controls USA Electric Strike...................... 94 HES 9600 Surface Mounted Electric Strike........................ 95 Securitron CEPT - Concealed Electrical Power Transfer.... 95 Adams Rite 7400 Electric Strike Series............................. 96

DoorControlsUSA.com NC 866-738-8911 · NCParts@DoorControlsUSA.com

55

MORE THAN TWO DECADES OF INDUSTRY LEADING EXPERIENCE Door Controls USA is the leader in manual and automatic door parts. Our focus is to provide you with the tools and support needed to help your company grow. We work hard to provide Available, Reliable, Economical, and Innovative products while offering the best prices, selection, and service in the industry.

Best-in-class service: • 2% off all online purchases • Technical Support 24/7/365 • Van stock programs available • Training Classes for Automatic Doors, Manual Door Hardware, Revolving Doors, and AAADM Certification • Same day shipping Come See Us! We welcome you to come tour our facility and promise you an experience of southern hospitality. During your tour you will be able to view our operation, observe our processes and meet the people that stand behind our products that are made in America and assembled in Texas. We appreciate the opportunity to earn your business.

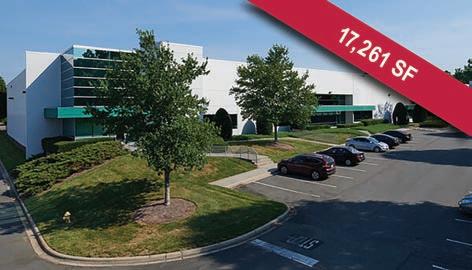

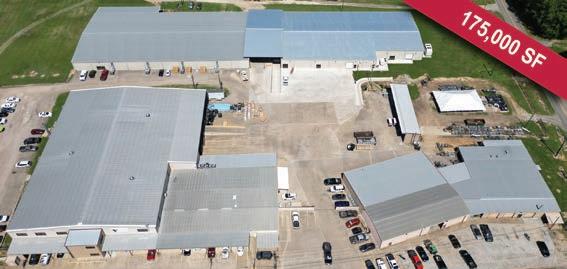

THREE NATIONWIDE LOCATIONS

Sparks, Nevada

Charlotte, North Carolina

Ben Wheeler, Texas

AVAILABLE · RELIABLE · ECONOMICAL · INNOVATIVE 6

800-437-3667 · Parts@DoorControlsUSA.com

GENERAL INFORMATION MISSION STATEMENT Door Controls USA's mission is to be the industry's premier manufacturer of automatic and manual door parts and to significantly enhance the lives of our community, employees, and customers. We do this by living our core values of being Available, Reliable, Economical, and Innovative. Their well-being is our top priority, and we are committed to making a positive difference and "Opening Doors for Generations".

AVAILABLE, RELIABLE, ECONOMICAL AND INNOVATIVE Door Controls USA is the leader in quality storefront hardware—from American made manufacturers to our exclusive brands. Whether you are a glass installer, locksmith or a door manufacturer, we are committed to providing you the best products, prices and service. We also offer custom programs for Original Equipment Manufacturer's (OEM) that provide solutions to your manufacturing process.

CUSTOMER SERVICE AND SALES With our focus being to provide you with the best service in the industry, we are here for you to go the extra mile when you need it most. Our Customer Service team is here to assist in finding the status of purchase orders, shipment tracking, part identification, quoting (24-hour quote turnaround time), provide copies of invoices, pricing and availability, check the status of a backorder item and determine if a part is still under warranty.

Open 7:00 a.m. – 6:00 p.m.CST. TECHNICAL SUPPORT We provide an array of technical support services unparalleled in the industry. Our team with 200+ years of combined experience are available 24 hours a day, 7 days a week, 365 days a year to answer any door-related inquiries.

Contact our Technical Support team at 800-437-3667.

SHIPPING Same-day shipping? Not a problem. We ship most orders the same day if received before 5:00 p.m. CST. CREATE AN ONLINE ACCOUNT TO VIEW PRICES Current pricing for products listed in this catalog and more are available on our website with the creation of an online account. To establish an online account visit DoorControlsUSA.com or email our Customer Service team at parts@doorcontrolsusa.com.

UP-TO-DATE INFORMATION We continuously update product information and data, as the information is made available. This information is available to you upon request or by viewing our online catalog which adheres to these updates, allowing you the most current information.

CONTACT US Email our Cutomer Service team at parts@doorcontrolsusa.com or call us at 800-437-3667 for all of your manual and automatic door needs. Not a customer? Simply scan the QR code to fill out a quick application, and one of our Customer Care Specialists will contact you to get you started.

Scan the QR code to visit our contact page.

DoorControlsUSA.com

7

GENERAL SALES POLICIES TERMS AND CONDITIONS Door Controls USA, Inc. published prices, discounts, payment terms, and transportation methods in effect at the time of the shipment shall apply unless otherwise expressly stated. Any deviation from stated terms and conditions must be agreed to in writing prior to purchase.

CORE RETURNS All remanufactured products are priced with “CORE EXCHANGE DUE”. This means a core is to be returned and shall be the EXACT same product as was purchased with normal wear so that the item can be remanufactured for future sale. The core must be shipped to Door Controls USA as soon as reasonably possible, but no later than 90 days after purchase. A core charge will be made if the core to be returned is not received by Door Controls USA within 90 days of purchase. If the EXACT same product cannot be returned for some reason, please contact our core department to negotiate a substitution of another product or products of equivalent value.

CREDITS Any and all refunds or credits due will be treated per the following: • Customer with no outstanding balances will receive a refund check within 60 days.

• Customers with an outstanding balance will have credits applied to the oldest invoices after 90 days.

CLAIMS All claims must be made within 10 days of the receipt of shipment. This applies to any missing products from the original shipment and/or damaged product. Less than Truckload (LTL) shipments, if damaged must be noted on the Bill of Lading (BOL) as damaged, failure to note could result in denial of the claim.

INVOICES Upon acceptance of goods from Door Controls USA, the full amount of the invoice is due and payable per the terms listed on the invoice. Unless accompanied by specific remittance instructions, applicant agrees that Door Controls USA is authorized to apply all unspecified payments at Door Controls USA discretion. Invoices not paid within 60 days may cause the account to be placed on credit hold and no additional orders will be shipped until payment is received. Invoices not paid within 30 days are subject to a service charge of 1.5% per month (18% per annum). A portion of the month shall be treated as a full month for the purpose of calculating service charges. Applicant agrees to promptly pay said service charge. Waiver of any service charge for any one month shall not be deemed a waiver of future charges. Applicant further agrees that with regard to such charges, applicant and Door Controls USA are parties to a written contract.

Applicant agrees to pay a reasonable fee, not to exceed the maximum allowed by state law, for any checks which are returned for non-sufficient funds or are dishonored for any reason. Should Door Controls USA have to institute collection proceedings to secure payment of amounts due, Door Controls USA shall be entitled to recover reasonable attorney fees, cost, and collection expenses. Applicant agrees that Door Controls USA shall have the right to choose, at its option, the jurisdiction and venue wherein to bring any legal proceeding to enforce any term or condition of the agreement between Applicant and Door Controls USA and waives any and all objections to the jurisdiction and venue so chosen.

RETURNS Products to be returned must use a Return Goods Authorization (RGA) form and/or packing slip provided by Door Controls USA. Contact a customer service representative to obtain a Sales Return Order (SRO) number to note on the RGA. Failure to properly complete the RGA form may delay processing or even result in lost items.

All requests for returns must be made within 90 days of original purchase. A 30% restock charge may be assessed for all unused parts returned to Door Controls USA. A 60% restock fee may be assessed for all special order items. All returns must be shipped prepaid, credit will be given toward future purchase only and no cash refunds will be given.

8

800-437-3667 · Parts@DoorControlsUSA.com

GENERAL SALES POLICIES REPAIR AND RETURN For your convenience, products can be sent to DCUSA for repair and return at a reduced price. Most products can be repaired the same day received and returned according to your shipping instructions. In most cases we will replace your unit with the same item from our warehouse to expedite processing while allowing you the advantage of reduced pricing. If you prefer to have the exact unit sent to us repaired and returned, please indicate on the RGA form or packing slip.

SALES TAX All customers must furnish Door Controls USA a Resale Tax Certificate or an Exempt Tax Certificate in order to avoid being charged any applicable taxes.

WARRANTY Door Controls USA warranty for new and remanufactured parts will be one year from the date of purchase and or invoice date. This warranty provides for the replacement or refund only. Warranty is made to the original customer and is not transferrable. Product sent back as such shall have all original parts/pieces as it was originally sold as, failure in this will result in additional charges and/or potentially void the warranty. Products sent back must be packed in original packing or equal to ensure the product arrive as originally shipped, damaged product received may result in no credit being issued. Products sent back and tested with No Problem Found (NPF) are subject to a 30% restock fee. All warranty products will be shipped back to the customer via UPS Ground at no charge. Freight for return of parts out of warranty will be at the customer's expense.

Contact a Door Controls USA customer service representative with the serial number of the defective unit to determine if it is under warranty and obtain a Sales Return Order (SRO) number, a copy of the SRO will be emailed that can be printed out and used as a packing slip to reduce paperwork for you. You can also visit our website to lookup warranty information and start the return process. Products to be returned must use a Return Goods Authorization (RGA) form and/or packing slip provided by Door Controls USA. Contact a customer service representative to obtain a Sales Return Order (SRO) number to note on the RGA. Failure to properly complete the RGA form may delay processing or even result in lost items. All requests for returns must be made within 90 days of original purchase. A 30% restock charge may be assessed for all unused parts returned to Door Controls USA. A 60% restock fee may be assessed for all special order items. All returns must be shipped prepaid, credit will be given toward future purchase only and no cash refunds will be given.

DoorControlsUSA.com

9

HARDWARE FINISHES & DOOR HANDING HARDWARE FINISH CHART Nearest U.S.

Canadian Equivalent

BHMA Code

Finish Description

USP

CP

600

Primed for painting

US2G

C2G

603

Zinc plated

US3

C3

605

Bright brass, clear coated

US4

C4

606

Satin brass, clear coated

LEFT HAND US9

C9

611

Bright bronze, clear coated

Interior US10

C10

612

Satin bronze, clear coated

US10B

C10B

613

Oxidized satin bronze, oil rubbed

US14

C14

618

Bright nickel plated, clear coated

US15

C15

619

Satin nickel plated, clear coated

US19 Exterior

C19

622

Flat black coated

US20A

C20A

624

Dark oxidized, statuary bronze, clear coated

US26

C26

625

Bright chromium plated

RIGHT HAND US26D

C26D

626

LEFTchromium HAND plated Satin

US27

C27

627

Satin aluminum, clear coated Interior

C28

628

Satin aluminum, clear anodized

US32

C32

629

Bright stainless steel

US32D

C32D

630

Satin stainless steel

US28

Interior

Exterior

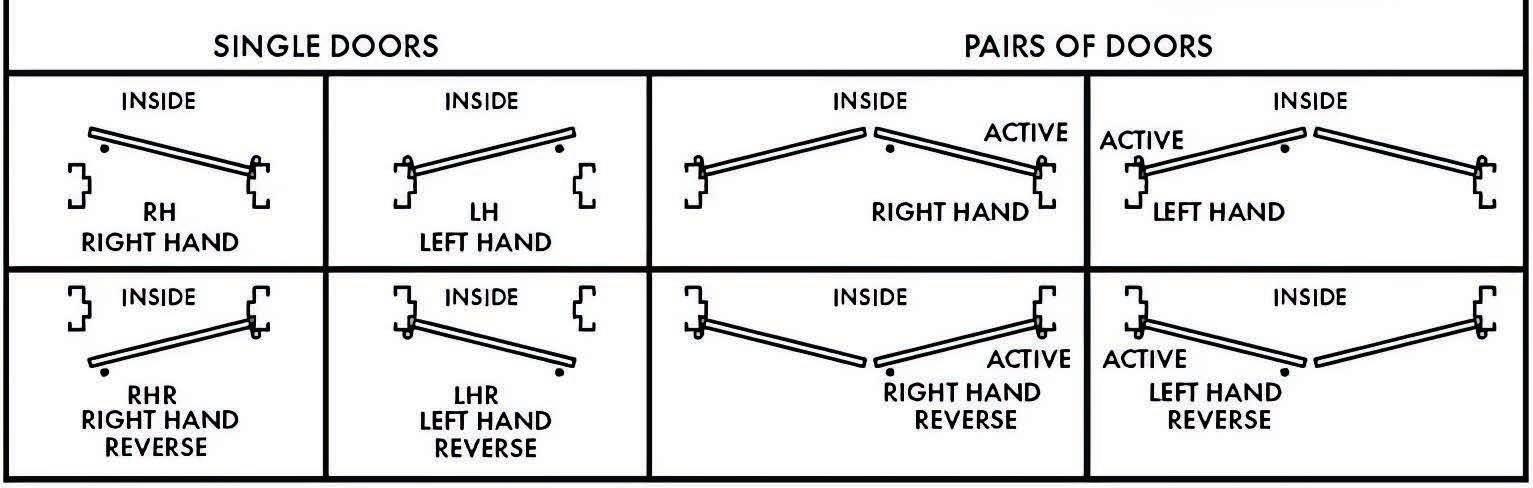

DOOR HANDING LEFT HAND RIGHT HAND REVERSE Interior Interior

Exterior Exterior

RIGHT HANDREVERSE LEFT HAND Interior Interior

Exterior Exterior

10

RIGHT HAND REVERSE

LEFT HAND Interior

Exterior Exterior

RIGHT HAND RIGHT HAND Interior Interior

Exterior Exterior

RIGHT HAND REVERSE RIGHT HAND REVERSE Interior Interior

Exterior Exterior

LEFT HAND REVERSE · Parts@DoorControlsUSA.com LEFT HAND REVERSE 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

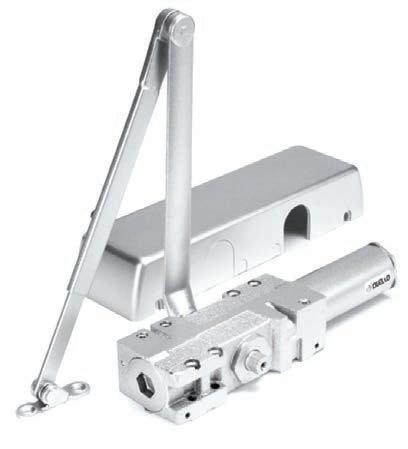

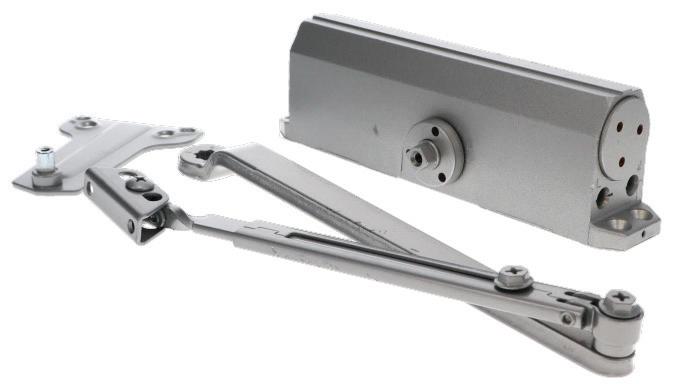

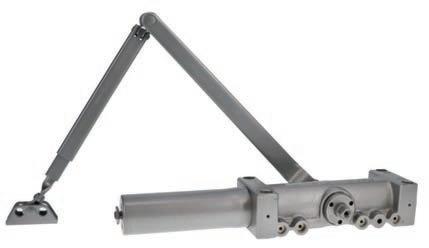

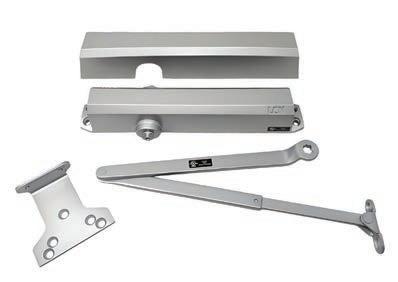

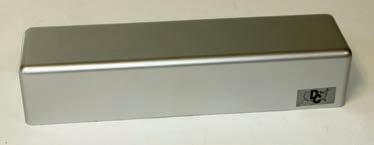

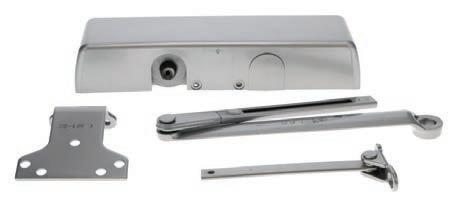

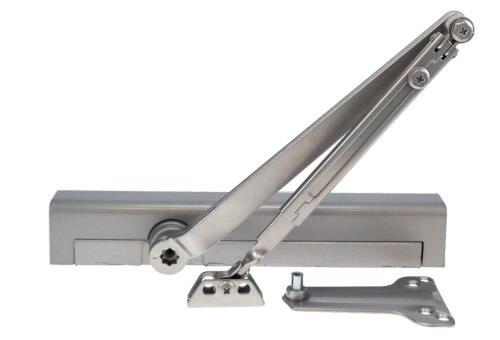

SURFACE MOUNTED DOOR CLOSERS DCM 6000 SERIES The DCM 6000 Premium Series door closer is constructed for all medium to high traffic commercial storefront applications. The 6000 Series door closer is built on a 9 1/16" hole pattern, manufactured from high-grade aluminum, packaged with an all-weather fluid (-20 °). It comes standard with power adjustable backcheck, sweep, latch and 1-6 spring tension valves.

ANSI Rated A 156.4 Grade 1 certified, UL and cUL listed; UL 10C fire-rated, ADA compliant, meets or exceeds California Building Code requirements for minimal foot pounds of pressure, cycle tested to meet or exceed 2 million cycle counts.

STANDARD FEATURES • • • • • • • • • • •

Barrier-free operation to comply with federal accessibility standards Adjustable spring power size 1-6 Cast-iron body, forged-steel arm Standard adjustable sweep and latching speed Standard adjustable backcheck Standard tri-pack for regular arm, top jamb, and parallel arm bracket Standard self-tapping and drilling screws Durable plastic cover **Available Finishes: AL - Aluminum (689), BLK - Black (693) and DU - Dark Bronze (695 RH) Lifetime warranty Cross reference chart on page 111

6115AL

NDP5000AL

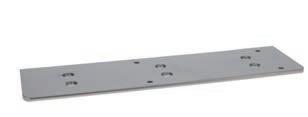

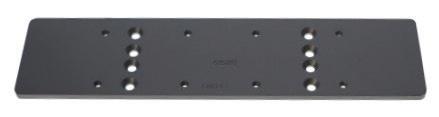

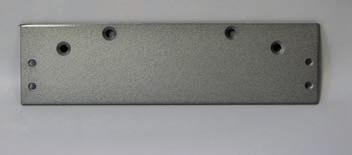

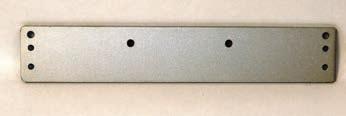

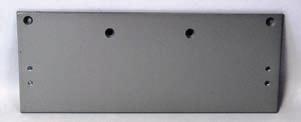

NDP5000** Top Jamb Drop Plate LDP5000AL

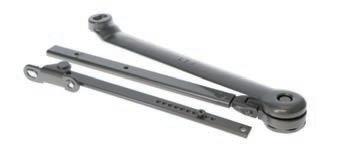

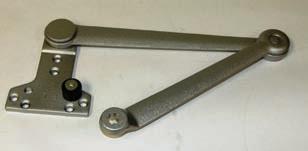

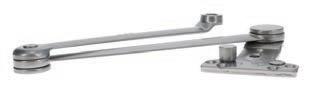

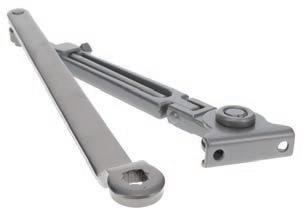

LDP5000** Parallel Arm Drop Plate ARM6115HOF** Hold Open Friction Arm 6000RA** Standard Threaded Rod Arm

ARM6115HOFAL

6000RA-AL

PAB5000-AL

5000SPACK-AL

SXN134AL

6000COV-AL

PAB5000** Parallel Arm Bracket 5000SPACK** Metal/Wood Self Tapping Screws SXN134** Architectural Through Bolts 6000COV** Large Plastic Cover

DoorControlsUSA.com

11

SURFACE MOUNTED DOOR CLOSERS DCM 4000 SERIES The DCM 4000 Premium Series door closer is constructed for all medium to high traffic commercial storefront/industrial door applications. The 4000 Series door closer is manufactured from high-grade cast iron, packaged with all-weather fluid (-20°). It comes standard with power adjustable backcheck, sweep, latch and 1-6 spring tension valves.

ANSI Rated A 156.4 Grade 1 certified, UL and cUL listed; UL 10C fire-rated, ADA compliant, meets or exceeds California Building Code requirements for minimal foot pounds of pressure, cycle tested to meet or exceed 2 million cycle counts.

4116DU

STANDARD FEATURES • • • • • • • • •

Barrier-free operation to comply with federal accessibility standards Adjustable spring power size 1-6 Cast-iron body, forged-steel arm Standard adjustable sweep and latching speed Standard adjustable backcheck Standard tri-pack for regular arm, top jamb, and parallel arm bracket Standard self-tapping and drilling screws Durable plastic cover **Available Finishes: AL - Aluminum (689), BLK - Black (693) and DU - Dark Bronze (695 RH) Lifetime warranty Cross reference chart on page 111

• •

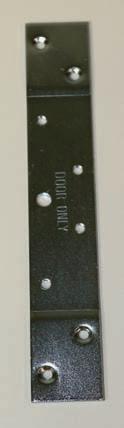

18PA** Parallel Arm Drop Plate

PAB4116** Parallel Arm Bracket

18** Pull Side Drop Plate

4116SPACK** Metal / Wood Self Tapping Screws

18TJ** Top Jamb Mount Narrow Transom Drop Plate

DC4116-30** Cush Shoe Support

18G** Top Jamb Mount Flush with the ceiling Drop Plate

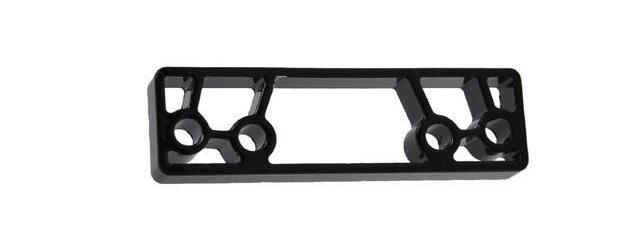

DC4116-61** Blade Stop Spacer

4116CUSH** Cushion Stop Arm

4116COV** Large Plastic Cover

4116CUSHHO** Hold Open Cushion Stop Arm

SXN134** Architectural Through Bolts

18PA-AL

18AL

18TJAL

18GAL

4116CUSHAL 4116CUSHHOAL

4116SPACK-AL

PAB4116-AL

12

DC4116-30-AL

DC4116-61AL

4116COV-AL

SXN134AL

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

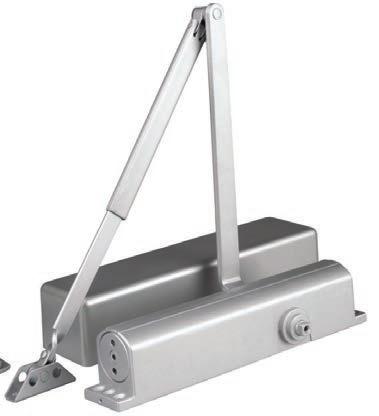

SURFACE MOUNTED DOOR CLOSERS DCM 8000 SERIES The DCM 8000 Premium Series door closer is constructed for all medium to high traffic commercial storefront, hollow metal and wood door applications. The 8000 Series door closer is built on a 12" hole pattern, manufactured from high-grade aluminum, packaged with all-weather fluid (-20 °). DCM's 8000 Premium Series door comes standard with power adjustable backcheck, sweep, latch and 1-6 spring power size adjustable tension valves.

AANSI Rated A 156.4 Grade 1 certified, UL and cUL listed; UL 10C fire-rated, ADA compliant, meets ADA 5 lbs opening force, meets or exceeds California Building Code requirements for minimal foot pounds of pressure, cycle tested to meet or exceed 2 million cycle counts.

8116BCAL

STANDARD FEATURES • • • • • • • • • •

Adjustable spring power size 1-6 Die cast aluminum body, forged steel arm Standard adjustable sweep and latching speed Standard adjustable backcheck Standard tri-packed for regular arm, top jamb and parallel arm bracket Standard self taping and drilling screws Plastic cover **Available Finishes: AL - Aluminum (689), BLK - Black (693) and DU - Dark Bronze (695 RH) Lifetime warranty Cross reference chart on page 111

8116LDP** Parallel Mount Drop Plate

PAB5000** Parallel Arm Bracket

8116NDP** Top Jamb Mount Drop Plate

8116COVFC** Full Plastic Cover

ARM8116HOC** Hold Open Cushion Stop Arm

8116COVSL** Slim Plastic Cover

ARM9116C** Cushion Stop Arm

5000SPACK** Metal/Wood Self Tapping Screws

6000RA** Standard Slide Arm

SXN134** Architectural Through Bolts

8116LDP-AL

8116NDP

ARM8116HOCAL

6000RA-AL

8116COVFC-AL

ARM9116C-AL

PAB5000-AL

SXN134AL

8116COVSL

DoorControlsUSA.com

5000SPACK-AL

13

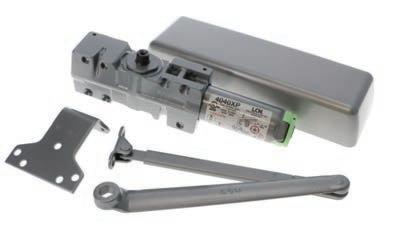

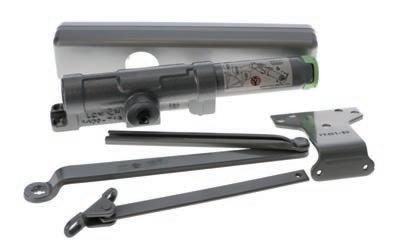

SURFACE MOUNTED DOOR CLOSERS LCN 4040XP SERIES LCN’s 4040XP is a durable surface mounted heavy duty closer. Designed for high demand traffic on commercial pedestrian door applications.

The patented LCN Green Dial takes the guesswork out of spring force adjustments. Also included is a peel-n-stick template to allow for a quick and accurate installation.

STANDARD FEATURES • • • • • • • • • • • • • • •

ANSI/BHMA A156.4 Grade 1 BHMA Certified UL/cUL for fired rated doors ADA compliant Goes through a 100-hour salt spray – meets BAA, Buy American Act Cast aluminum constructed door closer body Self reaming and tapping screws Power adjustable 1-6 spring tension valve Peel-n-Stick mounting template with 2 ¼” x 5” mounting hole pattern Standard backcheck, latch and speed adjustment valves Non-handed Mounts standard, top jamb and parallel arm applications Packaged with parallel arm bracket Delayed action feature also available **Available Finishes: AL - Aluminum (689) and DU - Dark Bronze (695) BLK - Black (693) finishes standard, other finishes also available

4040XP-REG-W-PA-AL

WITHOUT COVER

4040-18** Top Rail Drop Plate 4040-18G** Top Jamb Drop Plate w/Flush Ceiling 4040-18TJ** Top Jamb Drop Plate

4040-18TJ-AL

4040-18-AL 4040-18PA-AL 4040XP-18PA-695

4040-18PA** Parallel Arm Drop Plate 4040-3077** Standard Regular Arm (REGARM) 4040-3077XL** Long Arm (LONG)

4040-3077AL

4040XP-3049EDA** Hold Open Extra Duty Arm (HEDA)

4040-3077XL-689

4040XP-3049EDA-RHAL

4040-3077CNS** Cush-n-Stop Arm (CUSH) 4040XP-3077SCNS** Spring Cush-n-Stop Arm (SCUSH) 4040-62PA** Parallel Arm Shoe Bracket

4040-3077CNS-AL 4040XP-3077SCNS-AL

4040-62PA-AL

4040-30** Cush Shoe Support Bracket 4040-62A** Auxiliary Shoe Bracket 4040XP-61** Blade Stop Spacer

14

4040-30DU

4040-62A-AL

4040XP-61-693

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

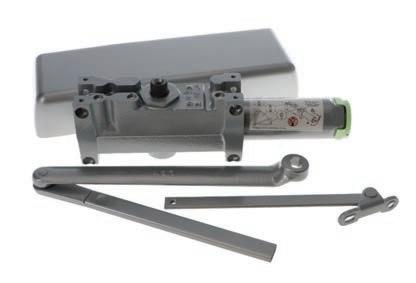

SURFACE MOUNTED DOOR CLOSERS LCN 4020 SERIES LCN’s 4020 is a heavy duty closer designed for high traffic commercial pedestrian door applications. The 4020 is specifically designed for unique mounting applications and includes the LCN Green Dial spring force indicator.

STANDARD FEATURES • • • • • • • • • • • • • • •

ANSI/BHMA A156.4 Grade 1 BHMA Certified UL/cUL for fired rated doors ADA compliant Goes through a 100-hour salt spray – meets BAA, Buy American Act Cast aluminum constructed door closer body Self reaming and tapping screws Power adjustable 1-5 spring tension valve Peel-n-Stick mounting template with 2 ½” x 6” mounting hole pattern Standard backcheck, latch and speed adjustment valves Handed Mounts standard, top jamb and parallel arm applications Packaged with parallel arm bracket Delayed action feature also available **Available Finishes: AL - Aluminum (689) and DU - Dark Bronze (695 RH) finishes standard, other finishes also available

4021RH-AL

WITHOUT COVER

4020-18** 18 Drop Plate 4020-18G** Narrow Top Rail Drop Plate

4020-18-AL

4020-18G-AL

4020-3077** Non-Handed Long Arm (LONG) 4020-3049** Handed Hold Open Arm (H) 4020-3049-FL** Handed Fusible Link Arm (FL)

4020-3077L-AL

4020-3049-RH-AL

4020-3049-FL-LH-AL

4020-72MC-RH-AL

4020-72MC** Handed Metal Cover (MC)

DoorControlsUSA.com

15

SURFACE MOUNTED DOOR CLOSERS LCN 1460 SERIES LCN’s 1460 is a non-handed surface mounted closer. The 1460 has a wide variety of options, mounting accessories and offers an easy installation.

Designed for use on metal and timber swinging commercial interior and exterior doors. Ideally suited for healthcare facilities, hotels, shopping centers and commercial building applications.

STANDARD FEATURES • • • • • • • • • • • • • •

ANSI/BHMA A156.4 Grade 1 BHMA Certified UL and uLC listed for self-closing doors without hold open ADA compliant Cast aluminum constructed door closer body Self reaming and tapping screws Power adjustable 1-6 spring tension valve Peel-n-Stick mounting template Standard backcheck, latch and speed adjustment valves Non-handed Mounts standard, top jamb and parallel arm applications Packaged with parallel arm bracket Delayed action feature also available **Available Finishes: AL - Aluminum (689) and DU - Dark Bronze (695 RH) finishes standard, other finishes also available 1460-18, 1460-18DS1, 1460-18FC** Top Jamb Drop Plate

WITHOUT COVER

1460-18DS1-AL

1460-18AL

1460-18PA, 1460-18PADS, 1460-18PAFC** Parallel Arm Drop Plate 1460-3077** Non-Handed Standard Regular Arm

1461RWPA-AL

1460-18FC-AL

1460-18PA-AL

1460-18PADS-AL

1460-18PAFC-AL

1460-3049** Non-Handed Hold Open Arm 1460-3077CNS** Non-Handed Cush-n-Stop Arm 1460-3049CNS** Non-Handed Hold Open Cush-N-Stop Arm 1460-30A** Cush Shoe Support Bracket

1460-3077DU

1460-3049AL

1460-3077CNS-DU

1460-62A** Auxiliary Shoe Bracket 1460-419** PA Shoe Adapter Bracket 1460-72** Non-Handed, Slim Line Plastic Cover

1460-3049CNS-AL

1460-30A

1460-72LL** Non-Handed, Lead Line Cover 1460-72FC** Non-Handed Full Cover Plastic Cover

1460-62A-AL

1460-72LL-AL

1460-72-AL

1460-419-689

1460-72FC-AL

1460-72DS1** Non-Handed Designer Series Metal Cover 1460-61** Blade Stop Spacer

16

1460-72DS1-AL

1460-61-AL

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

SURFACE MOUNTED DOOR CLOSERS LCN 1450 SERIES LCN’s 1450 is a medium duty closer designed for frequently used, low abusive traffic areas. The 1450 delivers consistent and dependable performance from new construction, aluminum storefront doors and aftermarket replacement products. Easy installation that includes a peel-n-stick template and standard slim line plastic cover.

STANDARD FEATURES • • • • • • • • • • • • • • •

ANSI/BHMA A156.4 Grade 1 BHMA Certified UL/cUL for fired rated doors ADA compliant Goes through a 100-hour salt spray – meets BAA, Buy American Act Cast aluminum constructed door closer body Self reaming and tapping screws Power adjustable 1-6 spring tension valve Peel-n-Stick mounting template with ¾” x 12” mounting hole pattern Standard backcheck, latch and speed adjustment valves Non-handed Mounts standard, top jamb and parallel arm applications Packaged with parallel arm bracket Delayed action feature also available **Available Finishes: AL - Aluminum (689) and DU - Dark Bronze (695 RH) finishes standard, other finishes also available

1450-RWPA-AL

WITHOUT COVER

1450-18PA** Parallel Arm Plate 1450-18PAFC** Full Cover w/Parallel Arm Plate

1450-18PA-AL 1450-18PAFC-AL

1450-3077EDA** Extra Duty Parallel Arm (EDA) 1450-HEDA** Hold Open Extra Duty Parallel Arm 1450-3077EDA-689

1450-3077CNS** Cush-n-Stop (CUSH)

1450-HEDA-689

1450-3049CNS** Hold Open Cush-n-Stop (HCUSH) 1450-3077SCNS** Spring Cush-n-Stop (SCUSH)

1450-3077CNS-689

1450-3049CNS-689

1450-3049SCNS** Spring Hold Open Cush-n-Stop (SHCUSH) 1450-30** Cush Shoe Support 1450-3077SCNS-689

1450-62PA** Auxiliary Shoe for Parallel Mount

1450-3049SCNS-689

1450-419** Cush Shoe Support 1450-61** Blade Stop Spacer

1450-30-689

1450-62PA-689

1450-419-689 1450-61-689

DoorControlsUSA.com

17

SURFACE MOUNTED DOOR CLOSERS NORTON 1600 SERIES Norton’s 1600 Series closers are designed for architectural specifications or new installations where a medium traffic door closer is a must. The 1600 Series can be mounted for any interior/exterior application for aluminum storefront doors. With a variety of arm packages and mounting options, the 1600 Series can be relied on for any surface mount door closer application.

STANDARD FEATURES • • • • • • • • • • • • • •

ANSI/BHMA A156.4 Grade 1 Certfified BHMA UL/cUL for fire rated doors ADA compliant Cast aluminum constructed door closer body Self reaming and tapping screws Power adjustable 1-6 spring tension valve ¾” x 9 1/16” mounting hole pattern Standard backcheck, latch and speed adjustment valves Non-handed Mounts standard, top jamb and parallel arm applications Packaged with parallel arm bracket Delayed action feature also available **Available Finishes: AL - Aluminum (689) and DU - Dark Bronze (695 RH) finishes standard, other finishes also available

1601BCAL

1600P** Closer Cover 1639** Pinion Cap 7701-1** Non-Hold Open Complete Arm Assembly

1600P

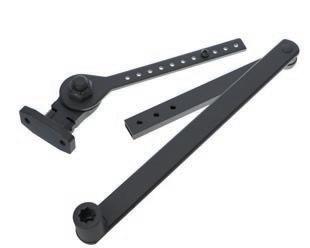

7701-3/779108** Hold Open Complete Arm Assembly PR7701-5** Non- Hold Open Parallel Rigid Complete Arm Assembly

1639-689

7701-1-689

7701-CA** Cushion Stop Complete Arm Assembly LDP5000 LG Drop Plate

7701-3AL

PR7701-5-689

7701-CA

LDP5000

18

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

SURFACE MOUNTED DOOR CLOSERS NORTON 7500 SERIES Norton’s 7500 Series closers offer the ideal combination of superior performance, strength and quality. 7500 Series can be mounted for any interior/exterior commercial pedestrian door application. Featuring a rack and piston design and non-handed for an easy installation.

STANDARD FEATURES • • • • • • • • • • • • • •

ANSI/BHMA A156.4 Grade 1 BHMA Cerfified UL/cUL for fired rated doors ADA compliant Cast aluminum constructed door closer body Self reaming and tapping screws Power adjustable 1-6 spring tension valve 2 3/8”” x 6 ¾” mounting hole pattern Standard backcheck, latch and speed adjustment valves Non-handed Mounts standard, top jamb and parallel arm applications Packaged with parallel arm bracket Delayed action feature also available **Available Finishes: AL - Aluminum (689) and DU - Dark Bronze (695) finishes standard, other finishes also available

7501AL

WITHOUT COVER

RP75-4040** Plate to replace LCN4040XP with Norton 7500 7786** Narrow Top Rail

RP75-4040-689

7786AL

77860H** Overhead Door Holder 7701-1** Non-Hold Open Complete Arm Assembly

77860H-689 7701-1 689

7701-3/7701-8** Hold Open Complete Arm Assembly PR7701-5** Parallel Rigid Complete Arm Assembly

7701-8

7701-3AL

PR7701-5-689

DoorControlsUSA.com

19

SURFACE MOUNTED DOOR CLOSERS NORTON 8300 SERIES Norton’s 8301 Series closers are constructed for moderate to high traffic commercial pedestrian door applications. The 8301 Series closers are designed with a cast aluminum closer body along with a rack and piston design. Non-handed for easy installation on any door application.

STANDARD FEATURES • • • • • • • • • • • • • •

ANSI/BHMA A156.4 Grade 1 BHMA Certified UL/cUL for fired rated doors ADA compliant Cast aluminum constructed door closer body Self reaming and tapping screws Power adjustable 1-6 spring tension valve ¾” x 12” mounting hole pattern Standard backcheck, latch and speed adjustment valves Non-handed Mounts standard, top jamb and parallel arm applications Packaged with parallel arm bracket Delayed action feature also available **Available Finishes: AL - Aluminum (689) and DU - Dark Bronze (695) finishes standard, other finishes also available

8301AL

MOUNTING OPTIONS • • • • • • • • • •

WITHOUT COVER

Closer Plus Arm Closer Plus Spring Arm CPS Arm Hold Open Arm Non-Hold Open Arm Parallel Arm Mount Parallel Rigid Arm Parallel Rigid Offset Arm Regular Rigid Heavy Duty Arm Unitrol Arms

**Multiple drop plates and brackets available for each mounting option. Please contact a Hardware Representative for all options.

7701-3AL

7701-1 689

7701-1** Non-Hold Open Complete Arm Assembly 7701-3/7701-8** Hold Open Complete Arm Assembly

7701-8

PR7701-5** Parallel Rigid Complete Arm Assembly

PR7701-5-689

20

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

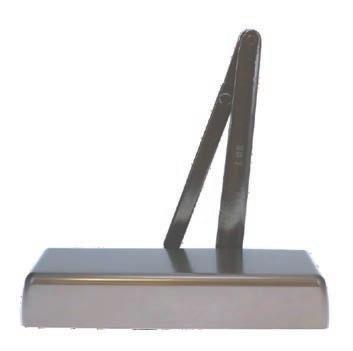

SURFACE MOUNTED DOOR CLOSERS DORMAKABA 8900 SERIES Dormakaba surface mounted door closers proven performance is evident in the 8900 Series. For architectural specifications or new installations where a medium to high traffic door closer is a must. The 8900 Series can be mounted for any interior/exterior application for aluminum storefront doors or hollow metal openings. With a variety of arm packages and mounting options, the 8900 Series can be relied on for any type of surface mount door closer application.

STANDARD FEATURES • • • • • • • • • • •

ANSI A156.4 Grade 1 Cast aluminum constructed door closer body Self reaming and tapping screws Power adjustable 1-6 spring tension valve for ADA compliancy to medium/high-traffic openings Standard backcheck, latch and speed adjustment valves Non-handed Mounts standard, top jamb and parallel arm applications Packaged with parallel arm bracket Available with holder/release with EMR Series Delayed action feature also available **Available Finishes: AL - Aluminum (689) and DU - Dark Bronze (695) finishes standard, other finishes also available

8916AF89P-689

WITHOUT COVER

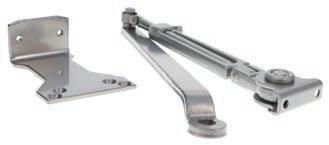

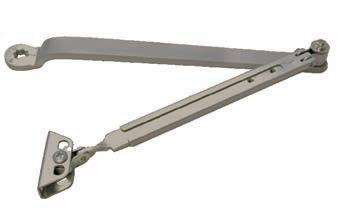

AF89** Regular Flat Form Arm AF89P** Parallel Flat Form Arm BP89** Backplate DP89** Drop Plate

AF89-689

AF89P-689

FHP** Friction HO Arm

BP89-689

DP89-689 FHP-689

DoorControlsUSA.com

21

DOOR CONTROLS USA IS YOUR ONE-STOP-SHOP FOR ALL YOUR HARDWARE NEEDS! ESTIMATING FOR CONTRACT HARDWARE

We partner with you from start to finish to help ensure a smooth and seamless project. Contact us for a quote today and let us help you embark on a journey toward elevating your business clientele.

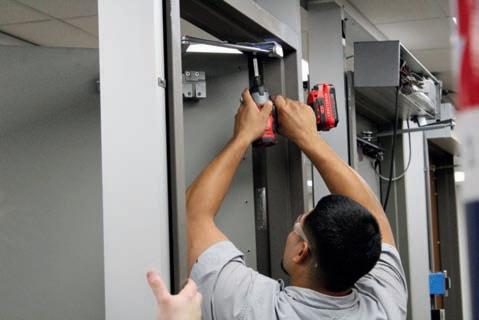

WE'RE WITH YOU EVERY STEP OF THE WAY PROFESSIONAL TAKE-OFF ASSISTANCE CONVERT HARDWARE SETS TO QUOTES SUBMITTAL PACKAGES INCLUDED DETAILING & LABELING OF HARDWARE PROVIDE WARRANTY & CLOSEOUT DOCUMENTATION

800-437-3667 22

Estimating@DoorControlsUSA.com · Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

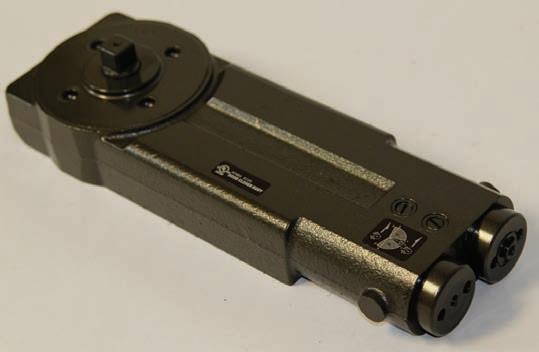

OVERHEAD CONCEALED CLOSERS DCM 50 SERIES The DCM Signature 50 Series overhead concealed door closer is constructed for all wood, metal, aluminum and hollow metal headers where aesthetically a surface mounted door closer will not work.

DCM Signature 50 Series overhead concealed door closer is built with an adjustable spring tension valve allowing to meet all ADA requirements for interior and exterior door applications.

STANDARD FEATURES • • • • • • • •

Certified UL Listed Dual and single acting Spring tension adjustment allen head valve Positive centering for alignment Cast iron body Flat head adjustment valves for closing and latching speeds Standard spindle size 1/2" Cross reference chart on page 111

AVAILABLE MODELS ADJUSTABLE SPRING TENSION DC5030 105 Degree Hold Open DC5031 105 Degree Non Hold Open, UL Listed DC5032 90 Degree Hold Open

DC5031

DCM SIGNATURE 50 SERIES ACCESSORIES ARM PACKAGES DC3000S

DC3000S 1 /2" Side Load Arm Package DC3000E

DC3000E 1" End load Arm Package DC20-2085 5 /8" End Load Arm Package

DC20-2085

DC20-900LC /8" Deep Rail Offset Arm Package 7

DC20-900LC

DC20-1134LC 5 /8" Narrow Rail Offset Arm Package

DC20-1134LC

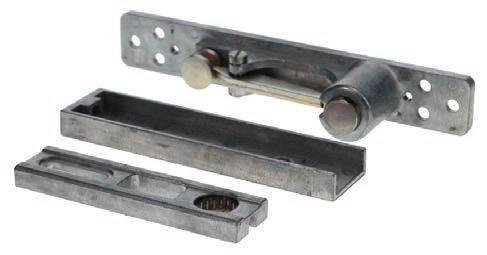

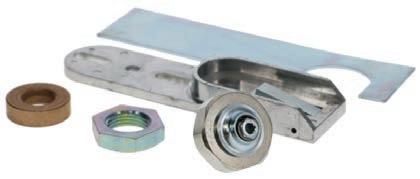

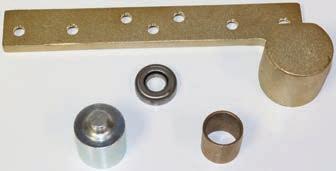

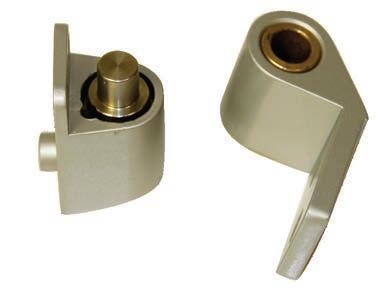

PIVOT PACKAGES DC20-1680 SV Style for Threshold & Floor Application - 1" Deep Bottom Door Rail DC20-1685 UP Style for Threshold & Floor Application - 1 1/2" Deep Bottom Door Rail 20-728 SL Style for Threshold Application 1" Deep Bottom Rail

DC20-1680

DC20-1685

20-728

20-944 SL Style for Threshold Application 1 1/2" Deep Bottom Door Rail DC20-1155 BE Style for Floor Application 1" Deep Bottom Door Rail DC3000G Dual Purpose Center Pivot for Threshold & Floor Application 1" Deep Bottom Door Rail

DoorControlsUSA.com

20-944

DC20-1155

DC3000G

23

OVERHEAD CONCEALED CLOSERS DCM 30 SERIES The DCM Signature 30 Series overhead concealed door closer is constructed for all wood, metal, aluminum and hollow metal headers where aesthetically a surface mounted door closer will not work.

DC3031

DCM SIGNATURE 30 SERIES ACCESSORIES

STANDARD FEATURES • • • • • • • •

Certified UL Listed Dual and single acting Positive centering for alignment Cast iron body Flat head adjustment valves for closing and latching speeds 1 /2" spindle size standard 7 /8" extended spindle size available Cross reference chart on page 111 AVAILABLE MODELS LIGHT SPRING TENSION MODELS DC3020 105 Degree Hold Open DC3021 105 Degree Non Hold Open, , UL Listed DC3022 90 Degree Hold Open DC3023 90 Degree Non Hold Open, UL Listed

MEDIUM SPRING TENSION MODELS DC3030 105 Degree Hold Open DC3031 105 Degree Non Hold Open, UL Listed DC3032 90 Degree Hold Open DC3033 90 Degree Non Hold Open, UL Listed

24

ARM PACKAGES DC3000S 1 /2" Side Load Arm Package

DC3000S

DC3000E 1" End Load Arm Package

DC3000E

DC20-2085 5 /8" End Load Arm Package DC20-900LC /8" Deep Rail Offset Arm Package 7

DC20-2085

DC20-900LC

DC20-1134LC 5 /8" Narrow Rail Offset Arm Package

DC20-1134LC

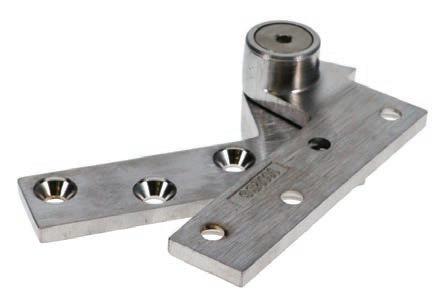

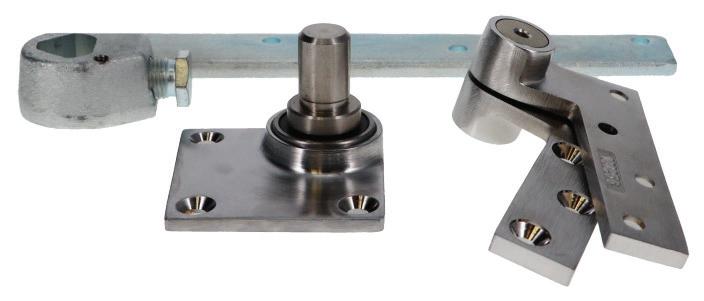

PIVOT PACKAGES DC20-1680 SV Style For Threshold & Floor Application - 1" Deep Bottom Door Rail

DC20-1680

DC20-1685 UP Style for Threshold & Floor Application - 1 1/2" Deep Bottom Door Rail 20-728 AE Style for Threshold Application 1" Deep Bottom Rail

DC20-1685

20-728

20-944 SL Style for Threshold Application 1 1/2" Deep Bottom Door Rail DC20-1155 BE Style for Floor Application 1" Deep Bottom Door Rail DC3000G Dual Purpose Center Pivot for Threshold & Floor Application 1" Deep Bottom Door Rail

20-944

DC20-1155

DC3000G

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

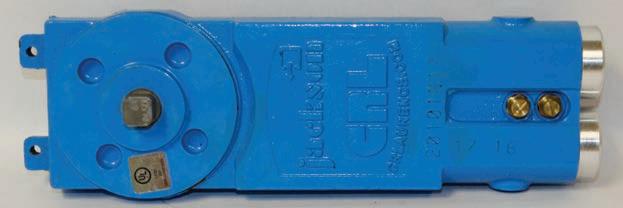

OVERHEAD CONCEALED CLOSERS JACKSON 20 SERIES Jackson’s 20-101 Series overhead concealed door closer is constructed for all wood, metal, aluminum and hollow metal headers where aesthetically a surface mounted door closer will not work.

Jackson’s 20-101M door closer is built with adjustable spring tension valve allowing to meet all ADA requirements for interior and exterior door applications.

STANDARD FEATURES • • • • • • • •

Certified UL Listed Dual and single acting Spring tension adjustment allen head valve Cast iron body Flat head adjustment valves for closing and latching speeds Mounting brackets included 1 /2" spindle size standard 7 /8" extended spindle size available AVAILABLE MODELS ADJUSTABLE SPRING TENSION MODELS 20-101M-17 105 Degree Non Hold Open 20-101M-18 105 Degree Hold Open 20-101M-20 90 Degree Hold Open 20-101M-19 90 Degree Non Hold Open 20-104M-01B 105 Degree Non Hold Open 7 /8" Ext. Spindle 20-104M-02B 105 Degree Hold Open 7 /8" Ext. Spindle 20-104M-19 90 Degree Non Hold Open 7 /8" Ext. Spindle 20-104M-20 90 Degree Hold Open 7 /8" Ext Spindle

20-101M-17

JACKSON OVERHEAD CONCEALED DOOR CLOSER ACCESSORIES ARM PACKAGES DC3000S 1 /2" Side Load Arm Package DC3000E 1" End Load Arm Package

DC3000E

DC20-2085 5 /8" End Load Arm Package

DC20-2085

DC20-900LC 7 /8" Deep Rail Offset Arm Package

DC20-900LC

DC20-1134LC 5 /8" Narrow Rail Offset Arm Package

DC20-1134LC

PIVOT PACKAGES DC20-1680 SV Style For Threshold & Floor Application - 1" Deep Bottom Door Rail DC20-1685 UP Style for Threshold & Floor Application - 1 1/2" Deep Bottom Door Rail 20-728 AE Style for Threshold Application 1" Deep Bottom Rail

DC20-1680

DC20-1685

20-728

20-944 SL Style for Threshold Application 1 1/2" Deep Bottom Door Rail DC20-1155 BE Style for Floor Application 1" Deep Bottom Door Rail DC3000G Dual Purpose Center Pivot for Threshold & Floor Application 1" Deep Bottom Door Rail

DoorControlsUSA.com

DC3000S

20-944

DC20-1155

DC3000G

25

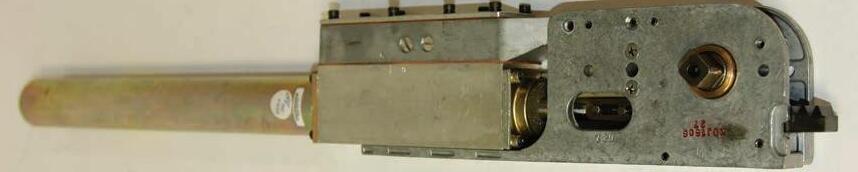

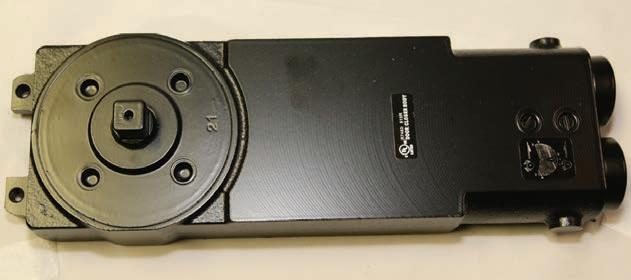

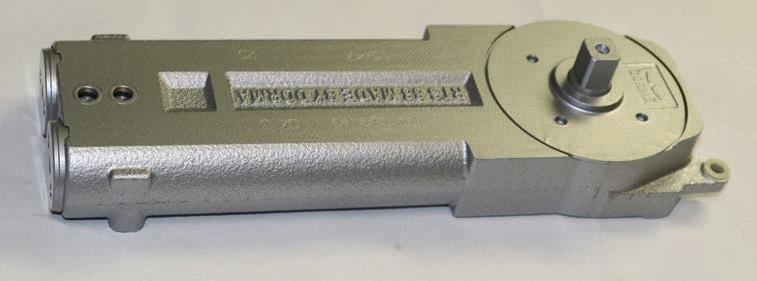

OVERHEAD CONCEALED CLOSERS REMANUFACTURED KAWNEER HUSKY Remanufactured Kawneer Husky overhead concealed door closer is built to be a direct replacement for the original Kawneer Husky “Shotgun” Door Closer. Remanufactured Kawneer Husky replacement is sold in light, medium and heavy-duty spring tensions.

REPLACES THE ORIGINAL KAWNEER HUSKY “SHOTGUN” CLOSER STANDARD FEATURES • • • •

Double acting Fully adjustable sweep & latch valves Backcheck Non-handed

R37-627

AVAILABLE MODELS

ACCESSORIES

LIGHT

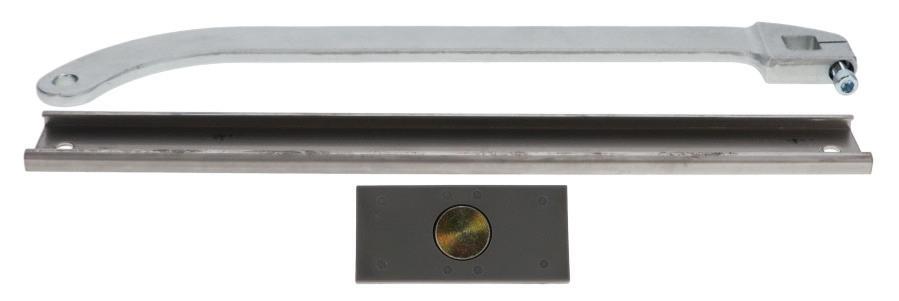

ARM PACKAGES

R37-626 105 Degree Hold Open

ARMKTA End load arm package

R37-624 105 Degree Non Hold Open

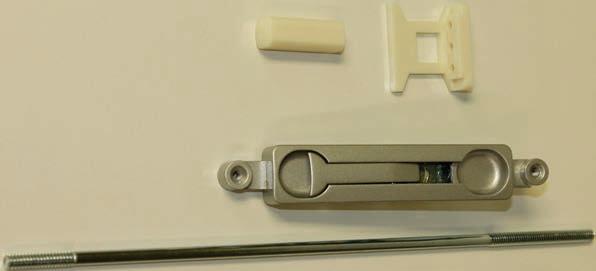

ARMSAM2 Side load arm sold with track and block

R37-625 90 Degree Hold Open

MEDIUM

ARMKTA

PIVOT PACKAGES ARMSAM2

DCKBCP Bottom Center Pivot

R37-629 105 Degree Hold Open R37-627 105 Degree Non Hold Open R37-628 90 Degree Hold Open

HEAVY R37-632 105 Degree Hold Open

DCKBCP

REFERENCE Door Size

Maximum Door Weight

Spring Tension

Type

30" & Under 155 lbs

Light

105° hold-open R37-626 105° no hold-open R37-624 90° hold-open R37-625

Up to 41"

243 lbs

Medium

105° hold-open R37-629 105° no hold-open R37-627 90° hold-open R37-628

Up to 48"

375 lbs

Heavy

105° hold-open R37-632 105° no hold-open R37-630 90° hold-open R37-631

R37-630 105 Degree Non Hold Open R37-631 90 Degree Hold Open

Model Number

Upon purchase of the remanufactured Kawneer Husky, a core is due. Cores are also wanted for future remanufacturing.

26

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

OVERHEAD CONCEALED CLOSERS KAWNEER HUSKY II Kawneer Husky II style overhead concealed closer is designed for use in commercial storefront aluminum glass doors.

Independently tested and certified to meet ANSI A156.4, Grade 1, exceeding the required 2,000,000 independent lab test cycles.

STANDARD FEATURES • • • • •

Double acting Exterior and interior door use Allows for 90 or 105 degree opening Hold open or non hold open Non-handed 50-627

HOW TO IDENTIFY • • •

**Stamped numbers on the closers spindle The spring size will be determined by door size 2 or 3 valves

50-719

REFERENCE Door Width

24"

30"

36"

42"

48"

105 degree non hold open

50-621

50-624

50-627

50-930

50-633

90 degree hold open

50-622

50-925

50-628

50-631

50-634

105 degree hold open

50-623

50-926

50-929

50-632

50-635

DoorControlsUSA.com

27

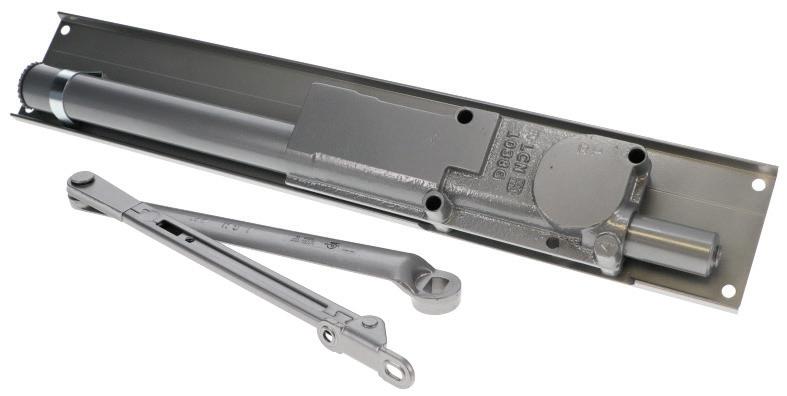

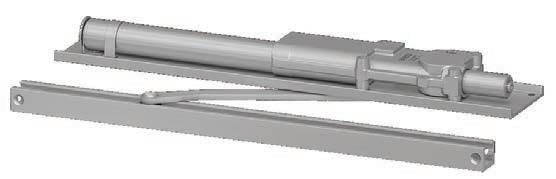

OVERHEAD CONCEALED CLOSERS LCN 2030 SERIES LCN’s 2030 Series overhead concealed door closer is constructed for medium to high traffic commercial door applications.

STANDARD FEATURES • • • • • • • • •

ANSI/BHMA A156.4 Grade 1 BHMA Certified UL/cUL for fired rated doors ADA compliant 100-hour salt spray and meets the BAA – Buy American Act Heavy duty handed closer Cast iron body Spring sizes from 1-5 – must specify spring size and handing on order **Available Finishes: AL - Aluminum (689) and DU - Dark Bronze (695) finishes standard, other finishes also available Must select spring size and handing when ordering

2031-2035STDLH-AL

2030-3077T-** Handed Standard Track Arm (STDTRKARM) 2030-3077T-RH-AL

2030-3038-** Standard Track (STDTRK)

2030-3038AL

2030-3038B-** Track with Bumper (BUMP) 2030-3038H-** Hold Open Track (H) 2030-3038HB-** Hold Open Track with Bumper (HBMP) 2030-3038B

2030-420-** Fire Shield

2030-3038H

2030-416 US10B** Wood Mounting Clip Set (Center Hung Doors) 2030-417-** Wood Mounting Clip Set (Offset Hung Doors) 2030-3038HB

2030-169-** Track Bumper

2030-420 AL

2030-3054-** Hold Open Clip 2030-3034-** Track Roller

2030-416 US10B 2030-417 AL

2030-3034H-** Hold Open Track Roller 2030-169

2030-3054

28

2030-3034

2030-3034H

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

OVERHEAD CONCEALED CLOSERS LCN 5030 SERIES LCN’s 5030 Series is constructed for medium to high traffic commercial pedestrian door applications.

STANDARD FEATURES • • • • • • • • •

ANSI/BHMA A156.4 Grade 1 BHMA Certified UL/cUL for fired rated doors ADA compliant 100-hour salt spray and meets the BAA – Buy American Act Heavy duty handed closer Cast iron body Spring sizes from 1, 3, 4, 5, or 6 – must specify spring size and handing on order **Available Finishes: AL - Aluminum (689) and DU - Dark Bronze (695) finishes standard, other finishes also available

5034RH-AL

ACCESSORIES 5030-3077-** Non-Handed Regular Standard Arm (REGARM) 5030-3049-** Handed Hold Open Arm (H) 5030-416-** Wood Mounting Clip Set (Center Hung Doors)

5030-3077AL 5030-3049-689

4030-417-** Wood Mounting Clip Set (Offset Hung Doors)

5030-416-689

4030-417-689

DoorControlsUSA.com

29

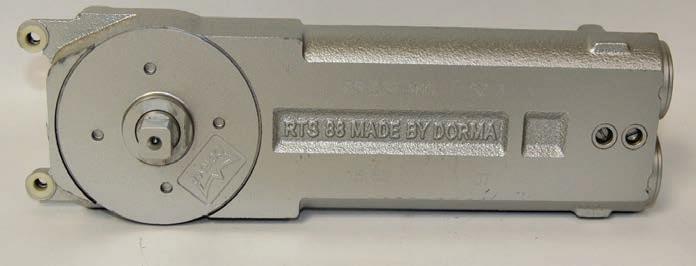

OVERHEAD CONCEALED CLOSERS DORMAKABA RTS88 SERIES The RTS88 is designed to give lasting, dependable service where surface applied units and other types of closers are not suitable or would interfere with the architectural design. The RTS88 is built for wood, aluminum or hollow metal doors and frames.

STANDARD FEATURES • • • • • • • •

Double acting Compact design to fit into smaller headers Pressure release valve to prevent damage from force closing Thermostatic valves to protect from varying temperatures Hold open or non-hold open 1 /2" spindle standard 5MM extended spindle available Standard spring size is 3 AVAILABLE MODELS RTS88-4105HO 105 Degree Hold Open RTS88-4105NH 105 Degree Non Hold Open RTS88-390HO 90 Degree Hold Open RTS88-390NHO 90 Non Hold Open

RTS88

RTS88-3105HO-5MMEXT 105 Degree Hold Open 5MM Ext. Spindle RTS88-3105NH-5MMEXT 105 Degree Non Hold Open 5MM Ext. Spindle RTS88-390HO-5MMEXT 90 Degree Hold Open 5MM Ext. Spindle

RTS88-5MM

RTS88-390NHO-5MMEXT 90 Degree Non Hold Open 5MM Ext. Spindle Available in Spring Size 3

30

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

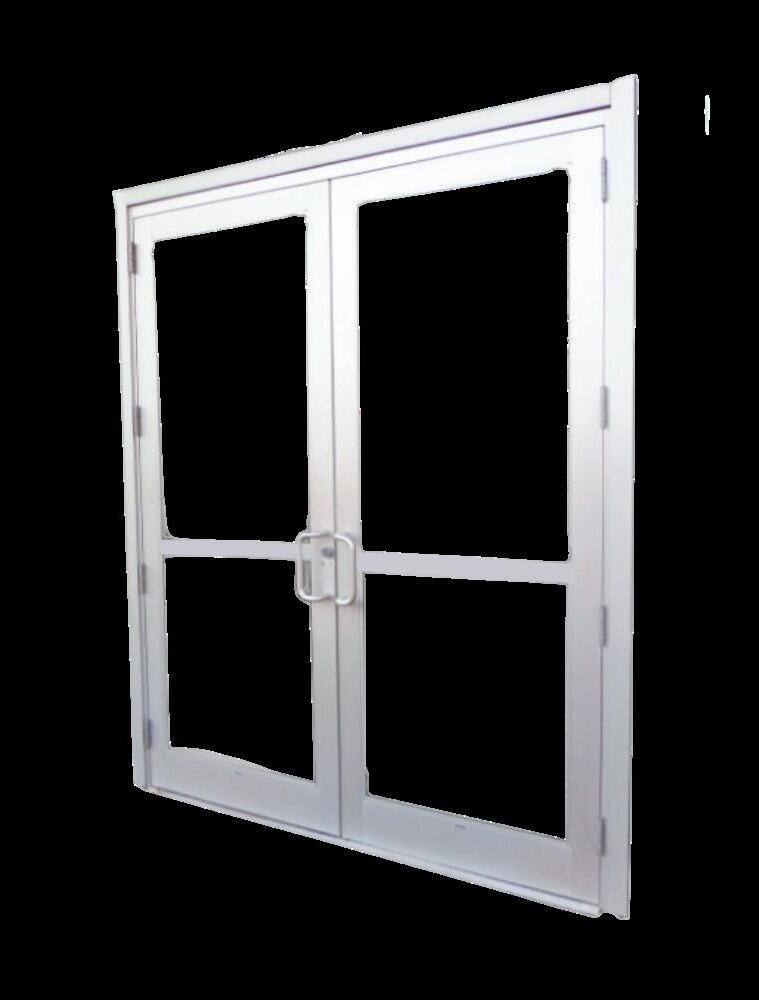

ALUMINUM STOREFRONT DOORS BUILT TO LAST. Looking for a sleek and secure storefront door that will stand up to everyday use? Look no further than Door Controls USA! Our high-quality commercial door systems are crafted from durable anodized aluminum and built to last, with sturdy hardware that ensures optimal security and performance.

Whether you need a single or double-door solution, we've got you covered. Our storefront doors come in a variety of standard sizes and finishes, so you can choose the perfect match for your business. And with our great prices and easy online ordering, it's never been easier to upgrade your storefront and boost your customer's curb appeal.

With Door Controls USA, you'll get the quality, security, and style you need to make your business shine.

COLOR OPTIONS Clear Anodized Bronze Anodized Powder Coat (Must provide RLA color code)

Clear Anodized

Bronze Anodized Dark Bronze

Anodized

MULTIPLE SWING AVAILABLE MULTIPLE SWINGOPTIONS OPTIONS AVAILABLE

DoorControlsUSA.com

31

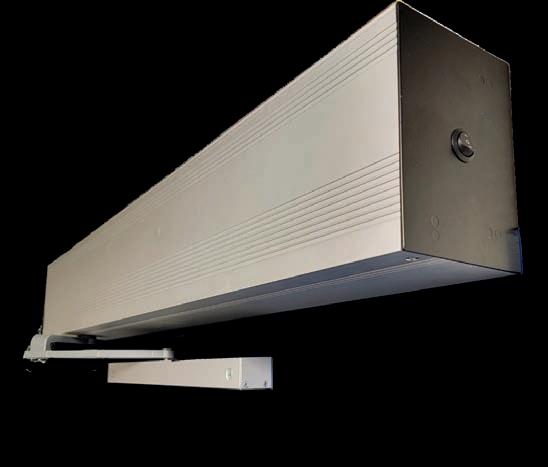

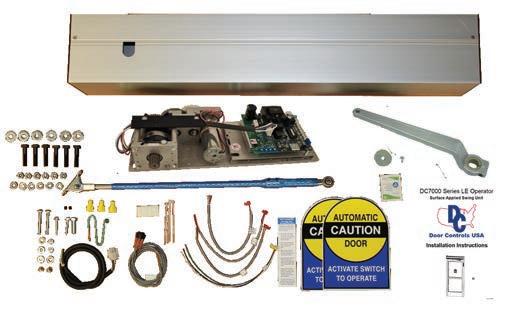

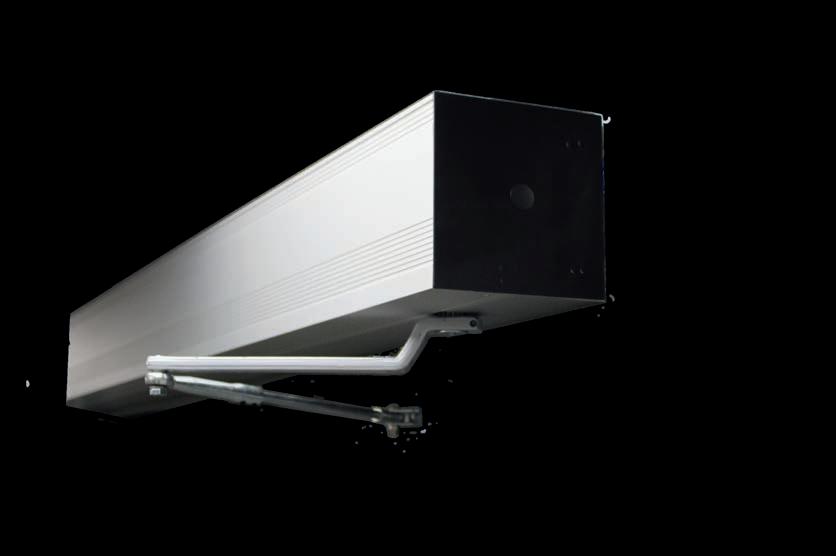

DC7000 Low Energy Swing Door Operator

1 YEAR

DC7000

Low Energy Swing Door Operator

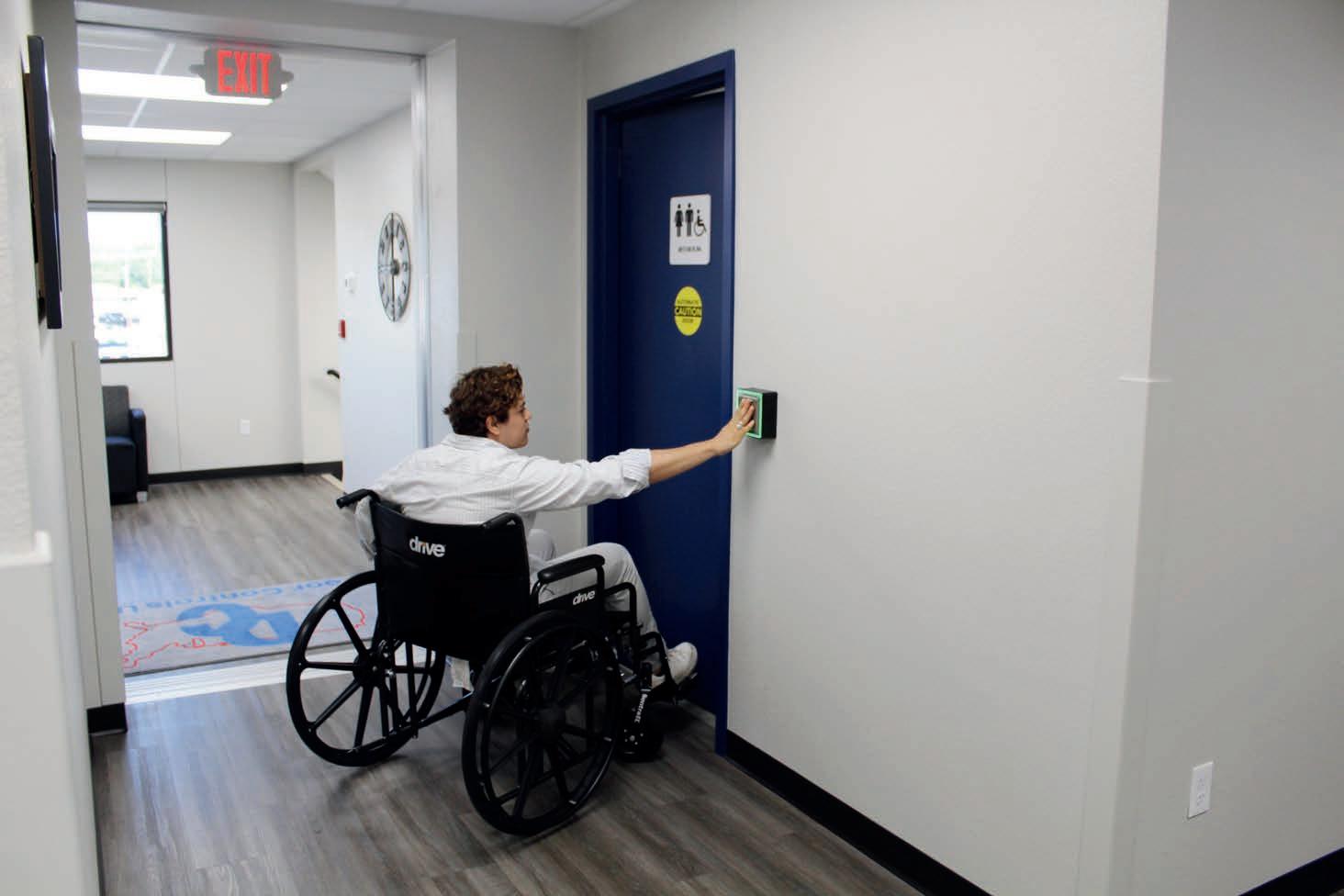

ADA-COMPLIANT LOW ENERGY DOOR SYSTEM The DC7000 is compliant with ANSI A156.19, A117.1 safety standards and is recognized as the top choice for making spaces accessible to individuals with disabilities.

STANDARD FEATURES Adjustable acceleration and deceleration rates On/off/hold open switch Two-digit display with a three-button interface for adjustments Built-in strike interface with a dedicated relay and connector for lock Adjustable Torque Limiting - Allows faster door operation without compromising safety Adjustable Obstruction Sensing - If an obstruction is encountered during door opening, the operator stalls temporarily, then switch to an independently adjustable seek speed to complete the cycle

32DoorControlsUSA.com

Selectable Close Recycle - If an obstruction is encountered during door closing, the operator recycles the door open, with an independently adjustable time delay Built-in power supply 24VDC accessory output for powering accessories up to 0.5-amperes total load Push plates and wave plates are available Shipped with "Power Close" chips as standard Selectable Push To Open - Automatically cycles door if a cycle is initiated manually, with independently adjustable time delay ANSI | BHMA A156.19 compliant

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com 32

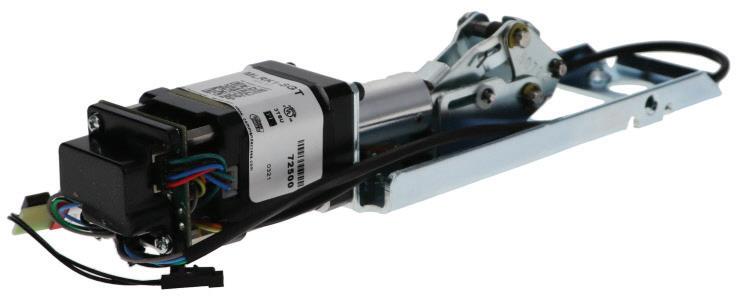

LOW ENERGY OPERATORS DCM DC7000 & DC4000

DC7000 FEATURES: • • • • • • •

Meets ANSI A156.19 as Knowing Act Application Stock Lengths: 39" Single and 75" Dual Headers Custom Lengths Available Mounting Type: Surface Mount Available in Dark Bronze and Clear Fast and Easy Installation Maximum Door Panel Weight: 200 pounds each

DC4000 FEATURES: • • • • • • •

Meets ANSI A156.19 as Knowing Act Application Designed for Heavy or Oversized Doors Custom Lengths Available Mounting Type: Surface Mount Available in Dark Bronze and Clear Fast and Easy Installation Maximum Door Panel Weight: 700 pounds each

SINGLES

SINGLES

DC7000-1A or DC7000-1B Single RH, Push (Out)

DC4000-1A or DC4000-1B Single RH, Push (Out)

DC7000-2A or DC7000-2B Single LH, Push (Out)

DC4000-2A or DC4000-2B Single LH, Push (Out)

DC7000-3A or DC7000-3B Single RH, Pull (In), 0" to 6" Reveal

DC4000-3A or DC4000-3B Single RH, Pull (In), 0" to 6" Reveal

DC7000-4A or DC7000-4B Single LH, Pull (In), 0" to 6" Reveal

DC4000-4A or DC4000-4B Single LH, Pull (In), 0" to 6" Reveal

PAIRS

PAIRS

DC7000-5A or DC7000-5B Pair LH-RH, Push (Out)

DC4000-5A or DC4000-5B Pair LH-RH, Push (Out)

DC7000-6A or DC7000-6B Pair LH-RH, Pull (In), 0" to 6" Reveal

DC4000-6A or DC4000-6B Pair LH-RH, Pull (In), 0" to 6" Reveal

DC7000-7A or DC7000-7B Double Egress RH

DC4000-7A or DC4000-7B Double Egress RH

DC7000-8A or DC7000-8B Double Egress LH

DC4000-8A or DC4000-8B Double Egress LH

ORDER NOW

DoorControlsUSA.com

ORDER NOW

33

LOW ENERGY OPERATORS

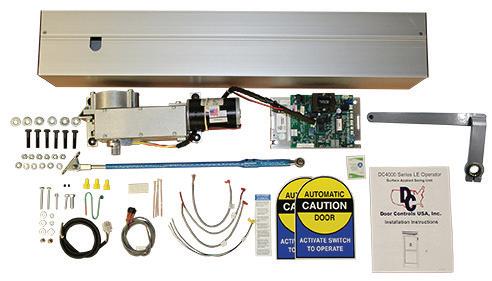

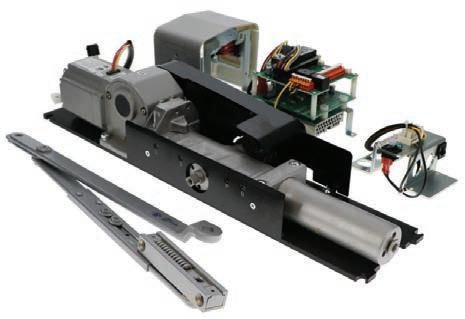

DC4000 HEAVY DUTY FULL POWER SWING DOOR OPERATOR

MADE TO CLOSE. BUILT TO LAST. PROUDLY MANUFACTURED IN BEN WHEELER, TEXAS The DC4000 is compliant with ANSI A156.10 safety standards and is designed for extra-large barrier-free doors with high wind conditions, stack pressure, and high volume pedestrian traffic.

STANDARD FEATURES Easy installation with no structural changes required Clear or dark bronze anodized finish Mounting Type: Surface mount Single, pair or double egress doors 1 Year Warranty Built in interface for use of electric strikes, mag locks, and other integrated systems User friendly display for status and error code troubleshooting.

34

APPLICATIONS Healthcare Facilities Colleges & Universities Supermarkets Airports

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

LOW ENERGY OPERATORS LCN 4640 (PUSH) & 4630 (PULL) SERIES LCN’s 4640/4630 electrohydraulic automatic low energy operator is constructed for manual door openings that seldomly require automatic opening. Built for high traffic commercial storefront, hollow metal and wood door applications. The 4640/4630 Series door closer is manufactured from cast iron body, packaged with all-weather fluid and comes standard with an adjustable spring size from 2 – 5.

ANSI A117.1, Grade 1 UL 10C, ADA compliant, goes through a 100 – hour salt spray and meets Buy American Act (BAA). **Available Finishes: AL- Aluminum (689) & DU - Dark Bronze (695)

4631-STD-689

ACCESSORIES FOR 4640

ACCESSORIES FOR BOTH

ACCESSORIES FOR 4630

4642-3971-** Cylinder Only

4640-334-** Switch End Cap

4631-3071-** Standard Cylinder Assembly

4642-3071-** Cast Iron Cylinder Assembly (CYL) (Cylinder, Motor Clutch, I/O Board, Mounting Plate) (Standard)

4640-334-2-** Blank End Cap

4631-3071CS-** Cylinder Assembly with Concealed I/O Switch

4642-3071CS-** Cylinder Assembly with Concealed I/O Switch 4640-72MC-** Metal Cover (MC) (72") 4640-3077-** Regular Arm (REGARM) (Standard) 4640-3077L-** Long Arm (LONG) 4640-79-** Rod and Shoe (For use with Regular Arm) 4640-70L-** Long Rod and Shoe (For use with Long Arm)

4640-334CS-** Switch End Cap (Concealed Switch Option)

4631-3971-** Cylinder Only

4640-3179-1-** On/Off Switch Assembly

4630-3077T-** Standard Arm

4640-3179-2-** Hold Open Switch Assembly

4630-3038-** Standard Track

4640-3180-** PC Board Assembly

4630-72MC-** Metal Cover

4640-3454-** Motor/Clutch Assembly

4630-3034 Track Roller

4640-3462-** Control Box Assembly

4630-3179-1 Rod and Shoe (For use with Regular Arm)

4640-3498-1-** Ribbon Cable Connector 4640-3498-2-** AC Power Cable

4630-3179-2 Long Rod and Shoe (For use with Long Arm) 4630-3454 Motor/Clutch Assembly 4630-3462 Controller Assembly

DoorControlsUSA.com

35

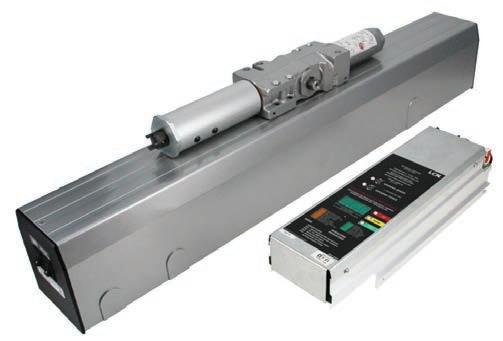

LOW ENERGY OPERATORS LCN 9500 SERIES SENIOR SWING OPERATOR LCN’s 9540 Senior Swing automatic low energy operator is constructed for wheelchair access and manual door openings that seldomly require automatic opening. The 9540 Series door closer is manufactured from cast iron body, packaged with all-weather fluid.

ANSI A156.19, Grade 1, UL325/228, UL 1998, and ADA compliant, goes through a 100 – hour salt spray and meets Buy American Act (BAA). *Specify Handing **Available Finishes: AL - Aluminum (689) & DU - Dark Bronze (695) ACCESSORIES 9540-3454-* Standard Handed Motor Gearbox (MGB)

9540-3454 9540-3462

9540-3462 Standard Controller (CTRL) 9540-275 Mounting Bracket (Front Bracket) 9540-334-1-** Angle Brackets (HLB) (Surface Mount Application)

9540-344-1 9540-275

9540-3077-** Handed Standard Regular Arm (REGARM) 9540-3077L-** Handed Long Arm (LONG)

9540-3077L

9540-3077

9540-77-** Handed Main Arm 9540-79-** Linkage Assembly 15" (extends from main arm)

9540-77

9540-79

9540-79LR-** Linkage Assembly 32" 9540-3572HL-** Standard Mounting Header (HDR) (33"-48" Max) 9540-3572DD-** Double Door Header (HDR2) (49"-98" Max)

9540-79LR

9540-3572HL

9540-334-** Header End Caps (For Openings with wire) 9540-334-2-** Dress Plates (Flush Metal Finish End Cap) 9540-11A-** Spindle Plate

9540-3572DD

9540-334

9540-12-** Filler Plate Blank 9540-18-** Mounting Plate

9540-11A 9540-334-2

9540-12

36

9540-18-DB

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

LOW ENERGY OPERATORS NORTON 6000 SERIES Norton 6000 Series low energy power operator is constructed for rigorous, high use applications. The 6000 Series is very versatile allows for easy integration with a multitude of systems and facilities.

• • •

Door width: 36” – 48” 1.3A onboard power supply Non-handed

**Available Finishes: AL - Aluminum (689) & DU - Dark Bronze (695) SUB-ASSEMBLIES 6011LAP-** Unit Sub-Assembly (6011, 6051) 6021LAP-** Unit Sub-Assembly (6021, 6031, 6061, 6071) H6010LAP-** Unit Sub-Assembly (6010, 6050)

6061-689

H6020LAP-** Unit Sub-Assembly (6020, 6030, 6060, 6070)

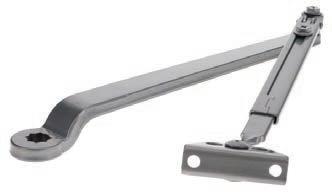

ARMS AND TRACK ASSEMBLIES 6610-** Arm and Track Assembly (6010, 6011)

7200-1T-** Track Assembly

7210-1A-** Arm Assembly

6051-1L-** Arm and Track Assembly - Deep Reveal (LH)

7200-1T-** Track Assembly

6051-11L-** Arm Assembly - Deep Reveal (LH)

6020-1-** Arm Assembly (6020, 6021)

6051-1R-** Arm and Track Assembly - Deep Reveal (RH)

6020-1W-** Main Arm and Rod

6051-11R-** Arm Assembly - Deep Reveal (RH)

6020-12-** Adjusting Tube and Shoe

6660-1-** Arm Assembly (6070, 6071)

6030-1-** Arm Assembly (6030, 6031)

6660-11-** Rod and Snubber Assembly

6030-1W-** Main Arm and Rod

6670-1-** Arm Assembly (6070, 6071)

6620-12-** Adjusting Tube and Shoe

6670-11-** Rod and Snubber Assembly

6050-1L-** Arm and Track Assembly, Left Hand (6050, 6051)

6061-1-** Unitrol Arm Assembly (D6001DE)

7250-1L-** Arm Assembly Right Hand

6660-11-** Rod and Snubber Assembly

7200-1T-** Track Assembly

6071-1-** Unitrol Arm Assembly (D6001DE1, D6001DE2) Double Egress, Deep Reveal

6050-1R-** Arm and Track Assembly - Right Hand (6050, 6051) 7250-1R-** Arm Assembly Right Hand

DoorControlsUSA.com

6070-1-** Rod and Snubber Assembly

37

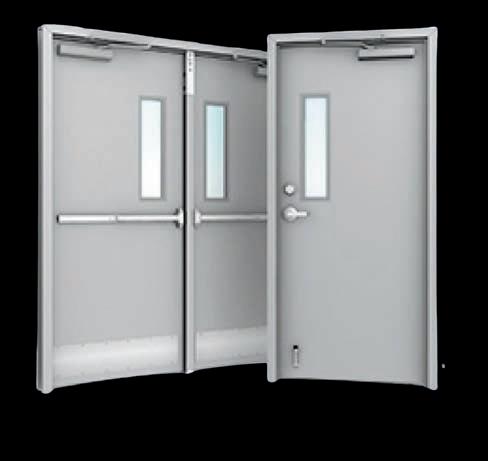

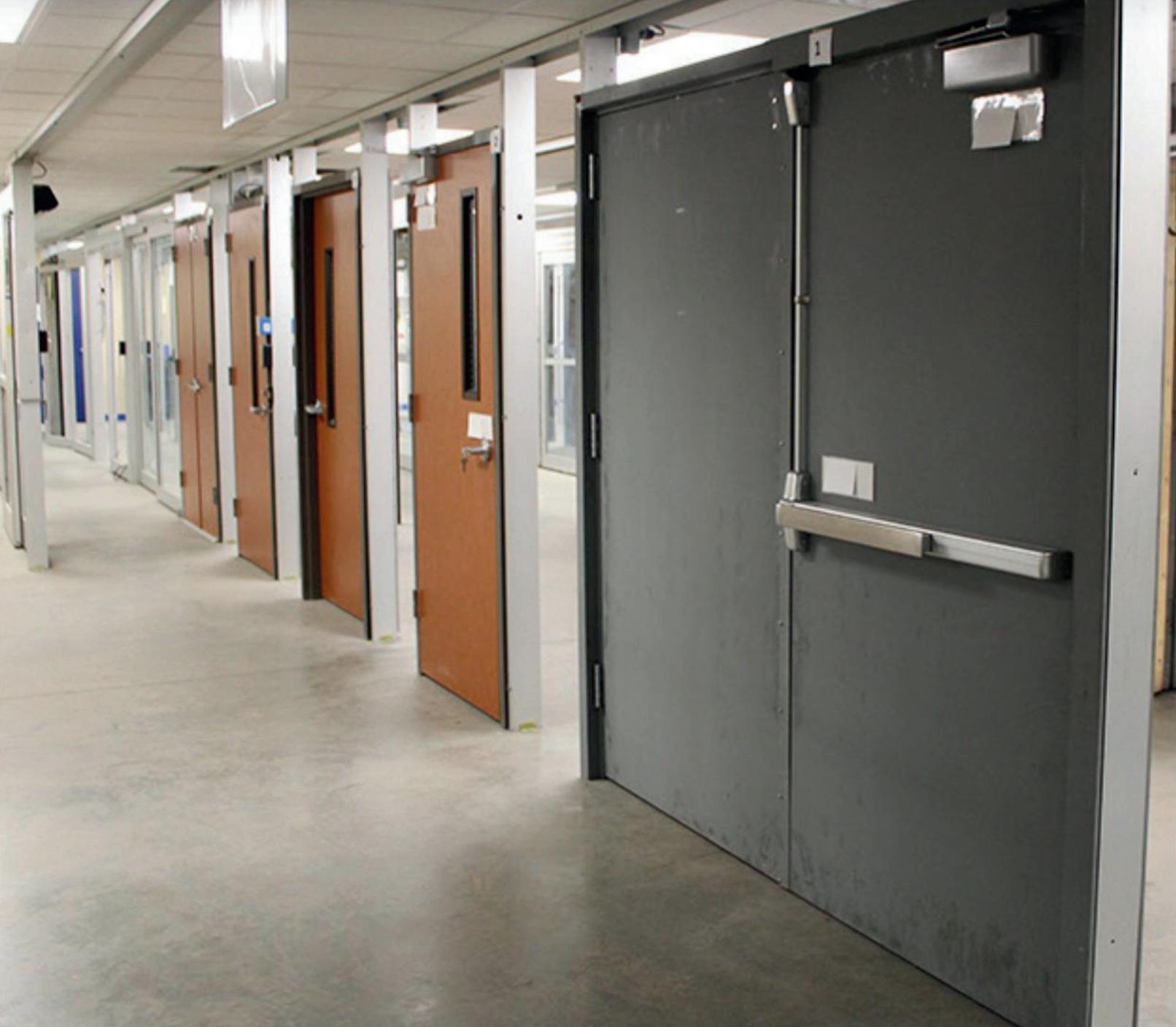

COMMERCIAL COMMERCIAL HOLLOW METAL HOLLOW METAL DOORS DOORS FOR ALL APPLICATIONS & STOCKED HARDWARE & FOR ALL APPLICATIONS STOCKED HARDWARE

Door Controls USA specializes in offering a comprehensive range of both standard and customizable hollow metal doors tailored to Door Controls USA specializes in offering a comprehensive range meet the specific requirements of new and retrofit construction of both standard and customizable hollow metal doors tailored to projects in the commercial, industrial, and institutional sectors. meet the specific requirements of new and retrofit construction We exclusively source hollow metal doors from reputable projects in the commercial, industrial, and institutional sectors.

American manufacturers who adhere to the rigorous standards set by the Steel Door Institute (SDI) and/or the We exclusively source of hollow metal doors from reputable (NAMM). This commitment to quality ensures that our National Association Architectural Metal Manufacturers American manufacturers who adhere to the rigorous standards set by the Steel Door Institute (SDI) and/or the customers receive products of the highest caliber, meeting industry specifications, and regulations.

National Association of Architectural Metal Manufacturers (NAMM). This commitment to quality ensures that our customers receive products of the highest caliber, meeting industry specifications, and regulations.

FEATURES AND BENEFITS: Multiple-fit doors with any hinge or FEATURES ANDavailable BENEFITS:

strike location Multiple-fit doors available with any hinge or Frames can also be prepped to align with any strike location hinges or strike location Frames can also be prepped to align with any Fire-rated doors available with fire label hinges or strike location included Fire-rated doors available with fire label Custom crate for shipping included Mullions available Custom crate for shipping Mullions available

REPLACEMENTS AVAILABLE FOR: DeenSteel Baron REPLACEMENTS AVAILABLE FOR: Steelcraft DeenSteel Curries Steelcraft Ceco Curries Ceco

Republic Baron Amweld Republic Amweld

COMPLETE DOOR PACKAGE Our door package includes: COMPLETE DOOR PACKAGE

3070 Hollowincludes: Metal Door with a 5 3/4" KD Universal 16 Gauge Frame.

Our door package Punched & dimpled 3070 Hollow Metal Door with a 5 3/4" KD Universal 16 Gauge Frame.

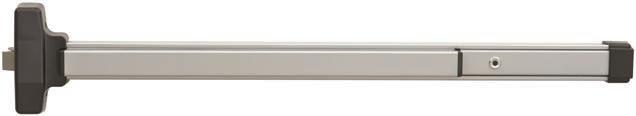

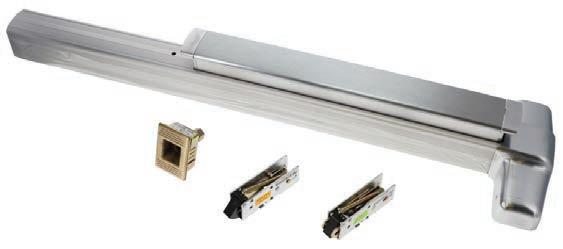

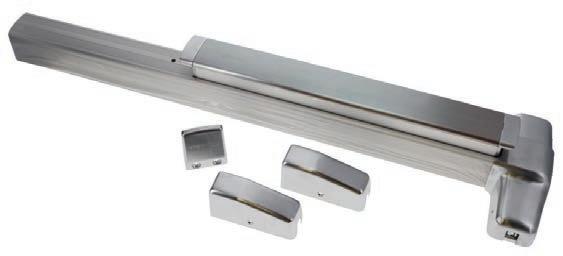

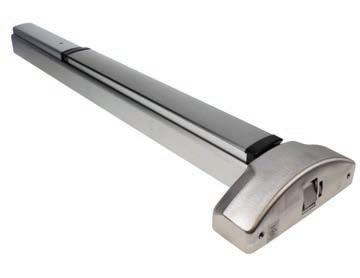

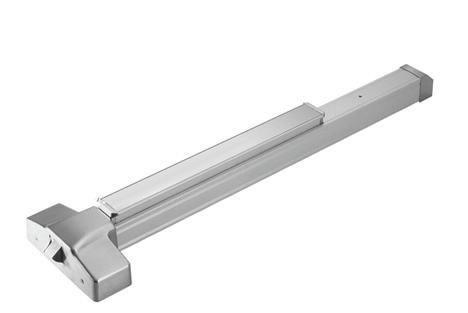

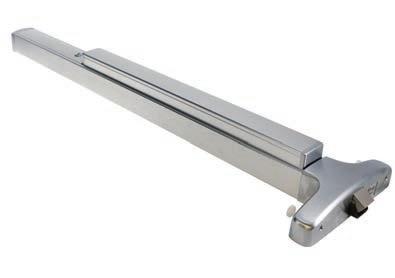

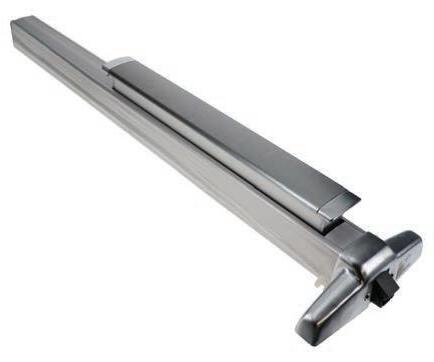

DCM Heavy Duty Closer Punched & dimpled DCM Rim Exit Device DCM Heavy Duty Closer Aluminum Threshold DCM Rim Exit Device Drip Edge Aluminum Threshold Weather-Stripping Drip Edge Lever Handle Trim Weather-Stripping NRP Steel Butt Hinges Lever Handle Trim LEARN MORE Includes Anchors NRP Steel Butt Hinges LEARN MORE Includes Anchors *Plus Crate, Shipping & Handling

38

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

Features

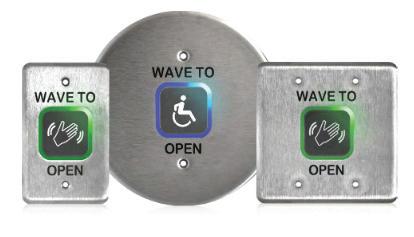

TOUCHLESS WAVE PLATES

Adjustable sensor sensor range range 2" 2" to to 8" 8" Adjustable (5 to to 20cm) 20cm) (5 Adjustable Adjustable time time delay delay (0.5 (0.5 to to 20 20 sec) and toggle operation sec) and toggle operation Red/green Red/green light light ring ring with with aa switch switch or remote remote activation activation or Weather/water Weather/water resistant, resistant, IP 65 rated.

IP 65 rated.

Single, Single, and and narrow narrow stainless stainless steel faceplates steel faceplates Laser-etched graphics, graphics, resistant resistant Laser-etched to to cleaners cleaners (1) Form (1) Form 'C' 'C' contact, contact, 1A 1A @ @ 30 30 VDC VDC Option for manual 'Override' switch Option for manual 'Override' switch

THE TOUCHLESS, SANITARY SOLUTION TO YOUR DOORS. The DCM DCM No No Touch Touch Wave Wave Sensor Sensor is is a a full-featured full-featured exit exit plate plate that that uses uses IR IR technology technology which which allows allows egress egress The from a a protected protected area area or or activates activates a a device device with with a a simple simple wave wave of of a a hand. hand. When When activated, activated, the the light light from illuminates the wave, changing from red to green to confirm activation.

This reduces the spread illuminates the wave, changing from red to green to confirm activation. This reduces the spread of of germs and bacteria from pedestrians touching the door. germs and bacteria from pedestrians touching the door.

REPLACEMENT PARTS: DC10326 Wave Plate with Box, Single Gang, Indoor DC10327 Wave Plate with Box, Jamb Mount, Outdoor DC10324 Wave Plate Only, Single Gang, Indoor DC10328 Single Gang Surface Mount Box - Black

DC10328

DC10324

DC10325 Wave Plate Only, Jamb Mount, Outdoor DC10329 Jamb Mount Box - Black

DoorControlsUSA.com

DC10325

DC10329

39

ADA DOOR ACCESSORIES DCM PUSH PLATES Stainless steel push plates are available in a wide variety of sizes and shapes, with standard and custom engravings. Choose from radio controlled and hardwired switches. Accessories and mounting boxes are also available.

STANDARD FEATURES • • • • •

Low voltage application 18 gauge stainless steel with brushed finish Usable in temperatures from minus 40°C to 60°C Designed for durability Noise reduction

DC10009

DC10006

DC10015

DC10011

SURFACE MOUNT BOXES

FLUSH MOUNT BOXES

DC10011 4.75" Square Push Plate

DC10012 4.75" Square Surface Mount Box

DC10010 4.75" Square Flush Mount Box

DC10015 6" Round Push Plate

DC10016 6" Round Surface Mount Box

DC10014 6" Round Flush Mount Box

DC10009 4.75" Jamb Mount Push Plate

DC10013 4.75" SFC Mount Jamb Box

DC10008 4.75" Flush Mount Jamb Box

DC10006 4.5" Square Push Plate

DC10007 4.5" Square Surface Mount Box

PUSH PLATES

DC10025 4.5" Square Push Plate - PTO Text DC10026 4.75" Square Push Plate - PTO Text DC10027 6" Round Push Plate - PTO Text DC10028 4.75" Jamb Push Plate - PTO Text

40

SAME DAY SHIPPING FROM 3 LOCATIONS · Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

ADA DOOR ACCESSORIES WIRELESS PUSH PLATE PACKAGES The DCM Wireless Push Plate Packages come in jamb, square, and round surface mount. The stainless steel push plates comes in several size options, making it easy to choose the one you need to automate your door or to replace an existing push plate.

PPW-475SQSM WIRELESS 4.75" SQUARE SURFACE MOUNT PUSH PLATE PACKAGE

PPW-6RNDSM WIRELESS 6" ROUND SURFACE MOUNT PUSH PLATE PACKAGE

433 MHZ WIRELESS PACKAGES

PPW-475JMBSM WIRELESS 4.75" JAMB SURFACE MOUNT PUSH PLATE PACKAGE

900 MHZ WIRELESS PACKAGES

PPW-45PTOSQSM 4.5" Push to Open Square Surface Mount Push Plate Package

PPW900-45PTOSQSM 4.5" Push to Open Square Surface Mount Push Plate Package

PPW-45SQSM 4.5" Square Surface Mount Push Plate Package

PPW900-45RNDSM 4.5" Round Surface Mount Push Plate Package

PPW-475JMBFM 4.75" Jamb Flush Mount Push Plate Package

PPW900-45SQSM 4.5" Square Surface Mount Push Plate Package

PPW-475JMBSM 4.75" Jamb Surface Mount Push Plate Package

PPW900-475JMBFM 4.75" Jamb Flush Mount Push Plate Package

PPW-475SQFM 4.75" Square Flush Mount Push Plate Package

PPW900-475JMBSM 4.75" Jamb Surface Mount Push Plate Package

PPW-475SQSM 4.75" Square Surface Mount Push Plate Package

PPW900-475SQFM 4.75" Square Flush Mount Push Plate Package

PPW-6RNDFM 6" Round Flush Mount Push Plate Package

PPW900-475SQSM 4.75" Square Surface Mount Push Plate Package

PPW-6RNDSM 6" Round Surface Mount Push Plate Package

PPW900-6RNDFM 6" Round Flush Mount Push Plate Package PPW900-6RNDSM 6" Round Surface Mount Push Plate Package

DoorControlsUSA.com

41

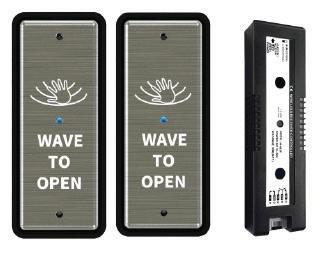

ADA DOOR ACCESSORIES AUTOMATIC DOOR ACCESSORIES WIRELESS WAVE PLATES ADA's Wireless Wave Plates create a touchless germ free entry. These highly sensitive infrared creates a quick response time using low power consumption to allow for a long lasting battery life. The wireless wave plates come in a variety of sizes making it easy to install them into tight fitting spaces if needed.

WIRELESS PACKAGES ADA415 Hardwired, HC, Access Infrared Narrow Touchless Switch ADA206P Slimline Wireless Touchless Jamb Switch Kit ADA805 SS Wireless, Touchless Jamb Switch Kit ADA805S SS Wireless, Touchless Jamb Switch Kit - Induction

ADA415

ADA206P

IRUSQUARE-KIT Wired/Wireless Hybrid Touchless 5" Switch ADA215S SS Wireless, Touchless 5" Switch Kit - Induction ADA315+ Hardwired Infrared SS Touchless Wave Switch with Box

42

ADA805

ADA805S

ADA215S

ADA315+

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

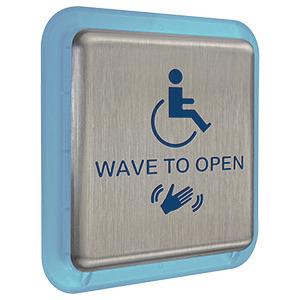

ADA DOOR ACCESSORIES BEA MS41 AND MS31 WAVE PLATES BEA’s Magic Switch® Family provides highly accessible and germ-free door activation. The proven microwave technology ensures consistent and dependable touchless activation. The MS41 and MS31 detect moving objects such as a hand, cart or wheelchair while reducing touchpoints in high traffic areas. Adjustable range and relay hold times to comply with the ANSI 156.10 standard. Common applications include hospitals, pharmacies, clean rooms and foodservice facilities.

MS41

MS31 STANDARD FEATURES

STANDARD FEATURES • • • • • •

• • • • • •

Durable faceplate Adjustable detection zone Adjustable hold time IP rating for harsh environments High visibility Stainless steel

MS31U-B/G/W Black, Gray or White Kit with Single and Double Gang

MS41-S SS Single Gang Text + Hand Logo MS41-SA SS Single Gang Text + Accessibility Logo

Adjustable detection zone Adjustable LED setting Adjustable hold time Silent activation Durable design Various faceplates available

MS41-S

MS31J-B/G/W Black, Gray or White Kit with Jamb

MS41-D SS Double Gang Text + Hand Logo

RD900 900 MHz Receiver

MS41-DA SS Double Gang Text + Accessibility Logo

TD900TR 900 MHz Retrofit Transmitter

MS41-R SS Round Plate Text + Hand Logo

MS41-SA

MS31U-B/G/W

TD900TR 900 MHz Retrofit Transmitter MS31J-B/G/W

MS41-RA SS Round Plate Text + Accessibility Logo TD900TR MS41-D

RD900

MS41-DA

MS41-R

DoorControlsUSA.com

MS41-RA

43

ADA DOOR ACCESSORIES **DISCONTINUED** BEA MS21 WAVE PLATES BEA’s MS21 is the industry’s first low-profile touchless plate that utilizes technology to activate automatic doors. The MS21 is a stainless-steel faceplate with an illuminated LED mounting ring for durability, visibility and convenience.

STANDARD FEATURES Ideal for close quarter environments Highly visible Durable, weather resistant design Aesthetically pleasing Various artwork options Adjustable features Universally compatible with automatic doors

• • • • • • •

MS21HR1 (Obsolete, Call For Availability) 5" Round, Text and Logo MS21HR (Obsolete, Call For Availability) 6" Round, Text Only

MS21HR1

MS21HRLL (Obsolete, Call For Availability) 6" Round, Logo Only MS21HS1 (Obsolete, Call For Availability) 4.75" Square, Text and Logo

MS21HR

MS21HS (Obsolete, Call For Availability) 4.75" Square, Text Only MS21HSLL (Obsolete, Call For Availability) 4.75" Square, Logo Only

MS21HSLL

RD900 900 MHz Receiver MS21HS1

TD900TR 900 MHz Retrofit Transmitter

MS21HS

MS21HRLL RD900

TD900TR

44

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

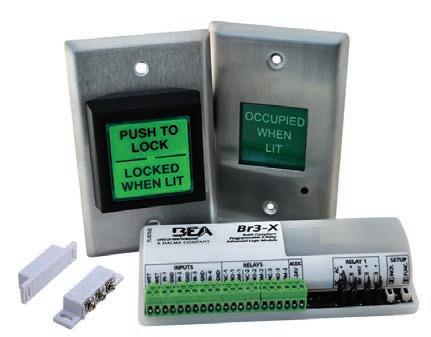

ADA DOOR ACCESSORIES BEA RESTROOM KIT BEA’s Restroom Kit is designed for normally locked and normally unlocked single occupancy restrooms. The BR3-X is the control center of this kit. With a programmable, 3-relay advanced logic module featuring restroom control functionality. The BR3-X can also power electric locking devices by using the WET output on Relay 1.

STANDARD FEATURES • • • • •

Advanced logic with restroom functionality Highly visible and audible Visual lock confirmation Door position reset for proper functionality Code compliant

RESTROOMKIT

RESTROOMKIT Restroom Kit BR3X 3-Relay Logic Module EMERGENCYKIT Emergency Add-On Kit

EMERGENCYKIT

LEDSOUNDER

LEDSOUNDER Occupied Indicator PTLBUTTON "Push To Lock" Button SWITCH1084 Door Position Switch

PTLBUTTON

BR3X

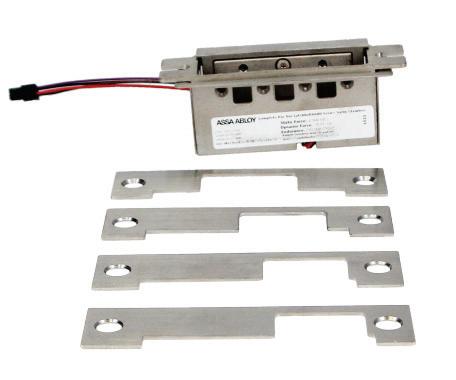

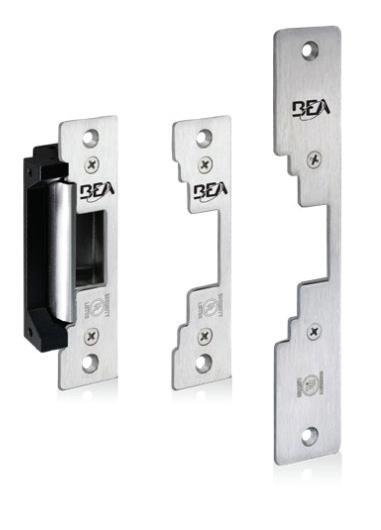

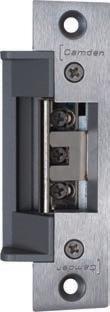

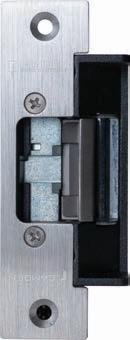

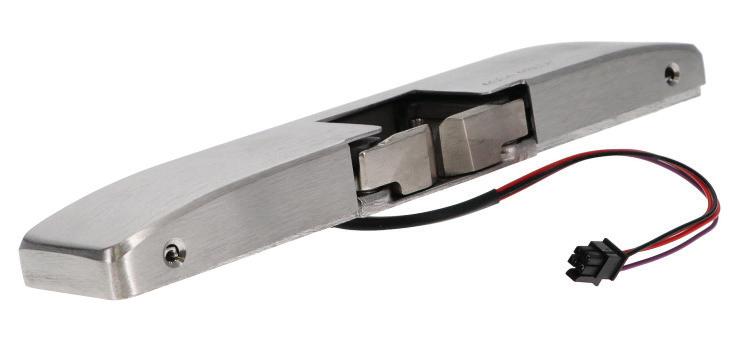

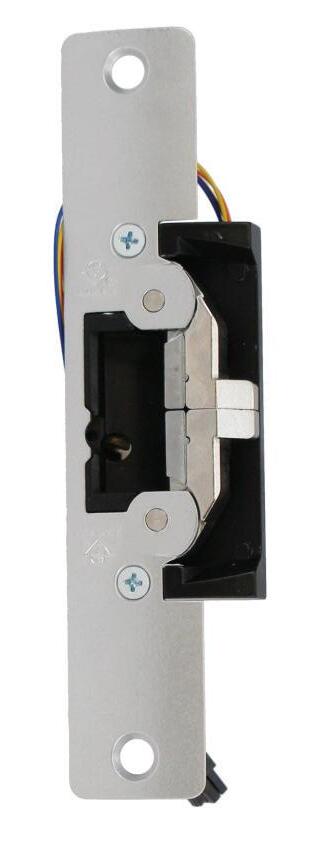

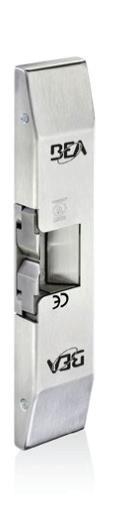

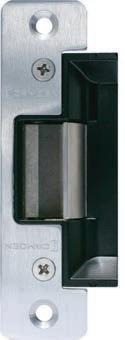

STRIKERE Rim Exit Electric Strike STRIKECU Universal Cylindrical Electric Strike PS12-24 UL/ULC Listed Power Supply

SWITCH1084

12VAC 12 VAC (20 VA) Transformer

STRIKERE

24VAC 24 VAC (40 VA) Transformer STRIKECU

12VAC

DoorControlsUSA.com

24VAC

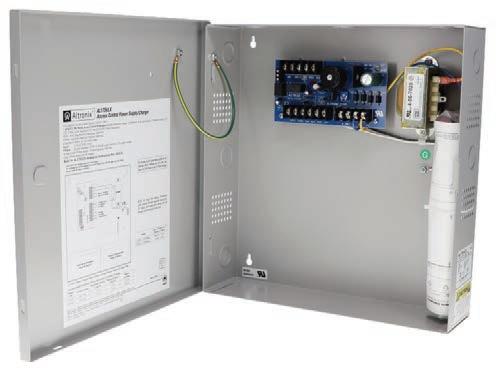

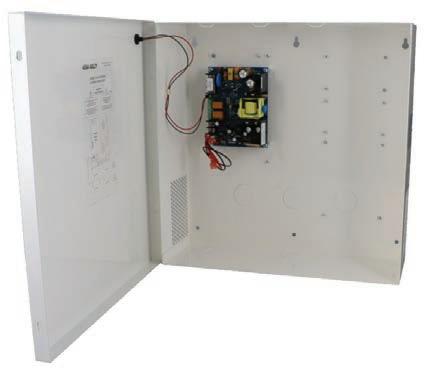

PS12-24

45

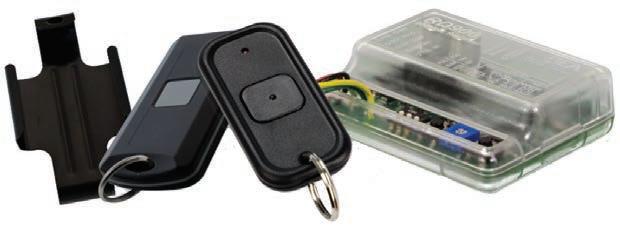

ADA DOOR ACCESSORIES BEA 900 MHZ LONG RANGE WIRELESS TRANSMITTERS AND RECEIVERS BEA’s 900 MHZ family of transmitters and receivers allow for wireless activation on any door control. The 900 MHZ wireless technology provides greater line-of-sight transmission distance than legacy wireless frequencies. It allows for better penetration of obstacles that include walls, partitions, doors or low-light glass.

STANDARD FEATURES • • • • •

Single strength indicator Consistent transmission Enhances accessibility Extended hold functionality Learn modes

RD900 900 MHz Receiver Module TD900HHX 1 - 4 Button Standard Handheld Transmitter TD900INDHHX 1 - 4 Button IP65 Rated Handheld Transmitter

RD900 TD900HHX

TD900HH1 Universal Transmitter BELTCLIP Industrial Transmitter Beltclip Accessory TD900TR 900 MHz Retrofit Transmitter

TD900INDHHX

TD900HH1

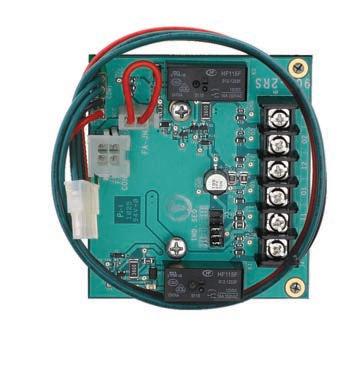

BR2-900 2-Relay Logic Module TD900PB 900 MHz retrofit transmitter BELTCLIP

TD900TR

BR2-900

TD900PB

46

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

ADA DOOR ACCESSORIES BEA 36" FULL LENGTH HIGH-LOW ACTUATOR BEA’s LPR36 is a 36 inch actuator that exceeds all local ADA building codes that require high and low actuators. This eliminates the need to install two (2) separate devices. The stainless-steel plate utilizes four (4) membrane switches that require very little force to ensure actuation across the entire surface. The functionality enhances accessibility for those who may have limited mobility or disabilities. The LPR36 is available in wireless or hard wire versions and can be mounted in a variety of locations.

STANDARD FEATURES • • • • • • •

Enhances accessibility Highly visible and audible Low profile, aesthetically pleasing design Standard compliant, high accessibility plate Versatile mounting Easily converts to wireless Full length activation

LPR36-433 433 MHz, Text and Logos LPR36L-433 433 MHz, Logos Only LPR36-900 900 MHz, Text and Logos LPR36L-900 900 MHz, Logos Only LPR36-HW Hardwired, Text and Logos

LPR36-433

LPR36L-433

LPR36-900

LPR36L-900

LPR36-HW

LPR36L-HW

LPR36L-HW Hardwired, Logos Only R300 300 MHz Analog Receiver RD433 433 MHz Receiver RD433EH Extended Hold Time Receiver RD900 900 MHz Receiver

R300

DoorControlsUSA.com

RD433

RD433EH

RD900

47

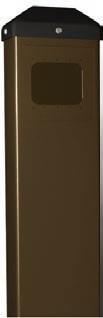

ADA DOOR ACCESSORIES BEA BOLLARD MOUNTING POSTS BEA’s Bollard Family is designed for mounting push plates to activate doors in a location where a mounting surface is not available. Enhances accessibility for those who may have limited mobility or disabilities. Bollards are compatible with a variety of push plate shapes and sizes.

STANDARD FEATURES • • • •

Enhances accessibility Versatile mounting Variety of styles available Wireless compatibility

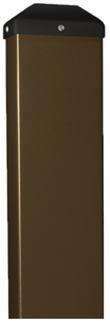

BOLLARDBRZ Bollard - Bronze BOLLARDSLV Bollard - Silver BOLLARDBLK Bollard - Black BOLLARDBRZWOH Bollard - Bronze, Without Hole BOLLARDSLVWOH Bollard - Silver, Without Hole BOLLARDBLKWOH Bollard - Black, Without Hole 70.0195 Bollard Cap 70.5022 U-Shaped Bollard Mounting Bracket

BOLLARDBRZ

BOLLARDSLV

BOLLARDBLK

BOLLARDBRZWOH

BOLLARDSLVWOH

BOLLARDBLKWOH

50.0073 Plastic Transmitter Shelf

70.0195

70.5022

50.0073

48

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

ADA DOOR ACCESSORIES CAMDEN CM-333 AND CM-325 CM-330 and CM-333 touchless switches offer the longest battery life, up to 100 activations per day for 2 years, with an option for even longer battery life using lithium batteries.

CM-325 touchless switches provide economical and reliable door activation command while eliminating the spread of germs and adding convenience. Adjustable operating range of 1-30", adjustable time delay of 1-5 seconds, and provide superior performance in all ambient lighting conditions.

CM-333

CM-325

CM-331 Wired, 1 Relay CM-333 Battery Powered, (1) Relay CM-333/42S Battery Powered, (1) Relay,SS, S/G, w/Hand/Chair/WTO CM-333/42SW Battery Powered, (1) Relay,SS, D/G, w/Hand/Chair/WTO

CM-333/42S

CM-333/42SW

CM-333/42 Battery Powered, (1) Relay, S/G, w/Hand/Chair/WTO CM-333/42W Battery Powered, (1) Relay, D/G, w/Hand/Chair/WTO

CM-333/42

DoorControlsUSA.com

CM-333/42W

49

ADA DOOR ACCESSORIES CAMDEN CM-221 Camden CM-221 Series ValueWave switches eliminate the spread of germs through the convenience of hands-free activation. Ideal for indoor or outdoor use as part of an automatic door or access control. Easy installation and trouble-free service in high traffic applications.

STANDARD FEATURES • • • • • • •

Adjustable sensor range 2” to 8” (5 to 20 cm) Adjustable time delay (0.5 to 20 sec.)

Red/green light ring with switch or remote activation Weather/water resistant, IP 65 rated Single, narrow and double gang switches Selection of faceplate laser etched graphics, resistant to cleaners (1) Form ‘C’ contact, 1A @ 30 VDC

CM-221/A42W CM-221/46N CM-221/A42

CM-221/A42 ValueWaveTM Touchless Switch, Single Gang, 'Wave to Open' Graphics. Compatible Surface Mounting Box CM-34BL CM-221/A42N ValueWaveTM Touchless Switch, Narrow (Jamb), 'Wave to Open' Graphics. Compatible Surface Mounting Box CM-23D CM-221/A42W ValueWaveTM Touchless Switch, Double Gang, 'Wave to Open' Graphics. Compatible Surface Mounting Box CM-53

CM-221/A42

CM-221/A42N

CM-221/A42W

CM-221/46N

CM-221/46W

CM-221/46 ValueWaveTM Touchless Switch, Single Gang, 'Wave to Exit' Graphics. Compatible Surface Mounting Box CM-34BL CM-221/46N ValueWaveTM Touchless Switch, Narrow (Jamb), 'Wave to Exit' Graphics. Compatible Surface Mounting Box CM-23D CM-221/46W ValueWaveTM Touchless Switch, Double Gang, 'Wave to Exit' Graphics. Compatible Surface Mounting Box CM-53

50

CM-221/46

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

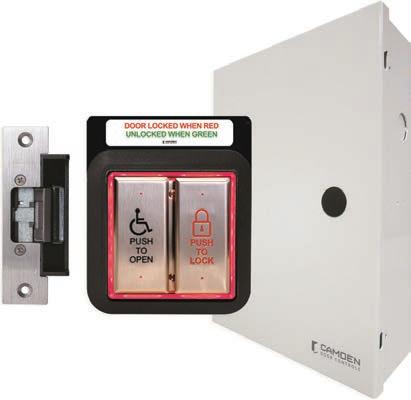

ADA DOOR ACCESSORIES CAMDEN CX-WC SERIES Camden is leading the industry with a range of packages designed specifically for the control of automatic doors in restroom application. The CX-WC Series barrier free restroom control kits include everything needed for complete installation. The kits also feature exclusive products not available elsewhere, including single gang LED annunciators with white out text, illuminated push plate switch enclosures, touchless switches and a pre-wired power supply.

STANDARD FEATURES • • • • •

System kits updated to include all components, power supply, controller, activation switches, annunciation, door contact and electric strike Exclusive products and features not available elsewhere The widest range of design options for one or two door restrooms, including the option for touchless switch activation Compatible with Camden ‘CX-WEC’ emergency call systems for universal restrooms Specifically designed to meet the latest requirements of Ontario Reg. 368/13 Amendment to 2012 OBC for barrier free restrooms

CX-WC14AXSM-PS

CX-WC11 Push Button and Annunciator System CX-WC11ASM-PS Surface Mount Push Button and Annunciator System CX-WC13AXSM Combo Illuminated Push Plate System, SM

CX-WC11 CX-WC11ASM-PS

CX-WC13AXSM-PS Surface Mount Combo Illuminated Push Plate System CX-WC14XSM Two Door Restroom System, SM CX-WC14AXSM-PS Two Door Restroom System, SM

CX-WC13AXSM

CX-WC15XSM Illuminated Push Plate Switch and Assistant SW, Sys, SM

CX-WC13AXSM-PS

CX-WC16 Touchless SW Restroom Kit CX-WC16-PS Two Door Restroom System, SM CX-WC14XSM CX-WC14AXSM-PS

CX-WC15XSM

DoorControlsUSA.com

CX-WC16

CX-WC16-PS

51

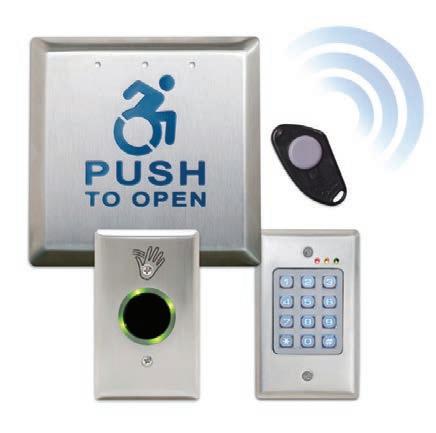

ADA DOOR ACCESSORIES CAMDEN LAZERPOINT WIRELESS DOOR CONTROL SYSTEM Lazerpoint RF introduces the many advantages of 915MHz. spread spectrum wireless technology to the automatic door market. With a Push and Learn transmitter enrollment and signal strength indicators, make Lazerpoint RF the easiest system to install. Wide range of transmitters, receivers, activation devices and switch enclosures.

STANDARD FEATURES • • • • • • • •

Advanced 915MHz spread spectrum (broadband) wireless communications Multi-year battery life (‘AAA‘alkaline or lithium) and low battery, gas gauge & stuck switch audible alerts CM-RX-90 advanced receiver, with 1 relay, 3 operating modes (delay, non-delay & latching). Ideal for vestibule applications RX-92 receiver with 2 channels and 6 operating modes; saves time and avoids buying and installing additional components Ultra-compact receivers can be mounted in door operator cabinets Compact ADA compliant 1, 2 and 4 button key FOBs Innovative FOB base for wheelchair, visor, belt or wall mounting Plug-in Lazerpoint RF™ wireless transmitter module for CM-120 digital keypads and CM-330 hands-free

CM-TXLF-1

CM-RFK45A4

CM-331

CM-120TX

CM-RX90 V2 Lazerpoint RFTM and KineticTM Compatible Single Relay Receiver CM-RX91 V2 Lazerpoint RFTM Dual Frequency Receiver, Slot for (1) KineticTM Plug-In No-Battery Wireless Daughterboard CM-RX92 V2 Lazerpoint RFTM Dual Frequency Receiver, Slot for (2) KineticTM Plug-In No-Battery Wireless Daughterboards

CM-RX90

52

CM-RX91

CM-RX92

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

ADA DOOR ACCESSORIES CAMDEN CM-75 Camden CM-75 Series Column switches offer greater user convenience and lower installation costs by providing a single activation device in place of two (2) high/low switches which are required by a growing number of building codes across North America. Available in solid aluminum or stainless steel with a range of finishes.

STANDARD FEATURES • • • • • •

Easily operated at any angle by hand, foot or body Exceeds state and provincial building code requirements Available in 9” and 36” sizes with Clear, Bronze or Blue Anodized Finishes and Stainless Steel (36” Only) Color matched with Camden Aluminum, Bronze and Stainless Steel Switch Mounting Posts (Bollards). In 42” and 48” tall sizes, (2) fully redundant SPDT switches, rated 15 Amps Option for Kinetic™ no battery wireless transmitter or Lazerpoint RF™ Transmitter and battery pack Adjustable leveling screws for easy installation on uneven walls

CM-7536-BLU

CM-7536-4

CM-7536-BRZ

CM-7509 9" Long ColumnTM Push Plate Switch, Anodized Aluminum Finish. Option for Dark Bronze or Blue Anodized finish CM-7536 36" Long ColumnTM Push Plate Switch, Anodized Aluminum Finish. Option for Dark Bronze or Blue Anodized Finish

CM-7509

CM-7636SS 36" Long ColumnTM push plate switch, stainless steel.

CM-7536

DoorControlsUSA.com

CM-7536SS

53

ADA DOOR ACCESSORIES CAMDEN MOUNTING POST Camden Mounting Posts are available in 42” with 36” switch height and 48” with 42” switch height. Available in clear aluminum and dark bronze anodized finishes. The mounting posts come with a flame and impact resistant ABS post cap, steel mounting base and stainless-steel mounting hardware.

STANDARD FEATURES • • •

Choice of aluminum or stainless-steel construction Models For 36” or 42” switch height Clear Aluminum and Dark Bronze Anodized, or Mill Finish (Suitable for painting) Available with or without single gang switch cut-out Cap design features peaked 'Roof' to shed water and easy removal with Allen key wrench Easy installation and service of Lazerpoint™ RF wireless switch transmitter and batteries

• • •

CM-42CSU-BRZ

ALUMINUM CLEAR FINISH MOUNTING POST

CM-42CSU-CLR

ALUMINUM BRONZE FINISH MOUNTING POST

CM-42CSU-CLR 42" Tall, No Switch Prep, 6" x 6" Clear Aluminum

CM-42-CSU-BRZ 42" Tall, No Switch Prep, 6" x 6" Bronze Finish

CM-42-BSU-CLR 42" Tall, (36" Switch Height) Single Gang Prep, 6" x 6" Clear Aluminum

CM-42-BSU-BRZ 42" Tall, (36" Switch Height) Single Gang Prep, 6" x 6" Bronze Finish

CM-42-DSU-CLR 42" Tall, prep for CM-7536 Switch, 6" x 6" Clear Aluminum

CM-42-DSU-BRZ 42" Tall, Prep for CM-7536 Switch, 6" x 6" Dark Bronze

CM-42-ESU-CLR 42" Tall Bollard, Clear Aluminum, Switch Prep at 7 1/2" & 36" (c-to-c) Height, from Bottom

CM-48-CSU-BRZ 48" Tall Bollard with No Switch Prep, Dark Bronze

CM-48-BSU-CLR 48" Tall, (42" Switch Height) Single Gang Prep, 6" x 6" Clear Aluminum CM-48-DSU-CLR 48" Tall, Prep for CM-7536 Switch, 6" x 6" Clear Aluminum CM-48-ESU-CLR 48" Tall Bollard, Clear Aluminum, Switch Prep at 7 1/2" and 42" (c-to-c) Height, from Bottom

IN GROUND BASE CM-XXX-IG In Ground Mounting Base with Rebar (for setting in poured concrete pad). Supplied in Place of Standard Post Mounting Base

CM-48-BSU-BRZ 48" Tall, (42" Switch Height) Single Gang Prep, 6" x 6" Bronze Finish CM-48-DSU-BRZ 48" Tall, Prep for CM-7536 Switch, 6" x 6" Dark Bronze

STAINLESS STEEL MOUNTING POSTS CM-42-BSU-SS 42" Tall, Single Gang Switch Prep, 6" x 6" Stainless Steel CM-48-BSU-SS 48" Tall, Single Gang Switch Prep, 6" x 6" Stainless Steel

CM-42-IG Stand-alone in ground mounting base with rebar

54

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

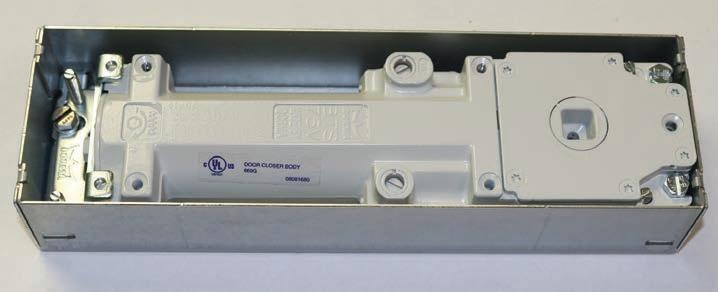

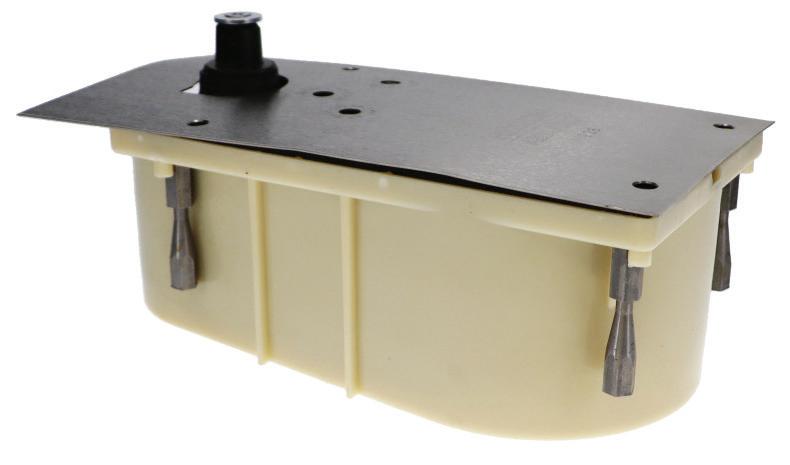

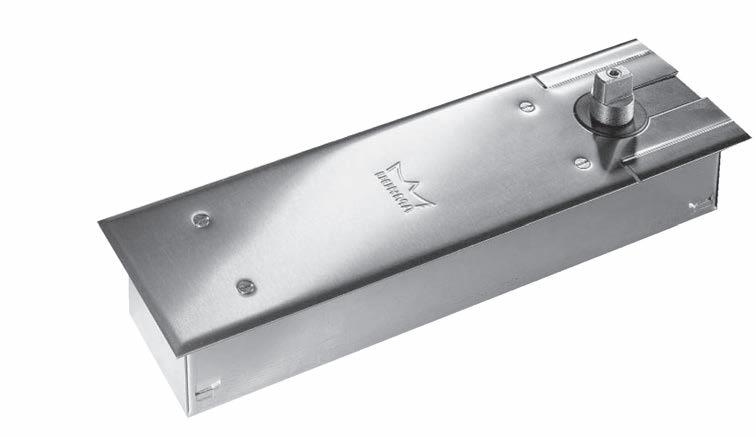

FLOOR CLOSERS DORMAKABA BTS75V SERIES Dormakaba's BTS75V compact design allows use where a larger door closer would be prohibitive. The versatility of the closer allows for installation in thin slab concrete subfloor construction. Adjustable spring tension from sizes 1 - 4 allows for both ADA barrier free openings and heavier non-barrier free openings.

STANDARD FEATURES • • • • • •

Double acting Accommodates doors weighing up to 600 pounds Dual thermostatic control valves combined with special hydraulic fluid ADA compliant available Sold as both closer body only or full package to include: closer, arm, cement box and cover plate Multiple spindle sizes, spring tensions and electrified versions available

BTS75V

DORMAKABA BTS80 SERIES The BTS80 Series of floor closers offer the adaptability to almost any floor installation. The closer's compact body permits its use where a surface or overhead concealed closer would be prohibitive. Versatility allows installation in thin slab concrete subfloor construction. A wide selection of interchangable spindles makes the BTS80 suitable for virtually any floor covering or threshold application. The BTS80 can control heavy single-action and double-action aluminum storefront or all-glass doors.

STANDARD FEATURES • • • • • • •

Double acting Accommodates doors weighing up to 660 pounds Selectable delayed action Dual thermostatic control valves combined with special hydraulic fluid ADA compliant available Sold as both closer body only or Full Package to include: closer, arm, cement box and cover plate Multiple spindle sizes, spring tensions and electrified versions available

DoorControlsUSA.com

BTS80

55

FLOOR CLOSERS RIXSON 27 OFFSET The RIXSON 27 heavy duty offset floor closer meets requirements for offset hung closers. It is concealed, efficient and used for both exterior and interior doors that are heavy and high traffic. The closer body is available in 90 or 105 degree opening and hold open or non-hold open.

STANDARD FEATURES • • • •

Single acting - handed Accommodates doors weighing up to 450 pounds ICC/ANSI A117.1 compliant available Sold as seperate or full package to include a steel top pivot and a non-hold open closer

27S-90LH

RIXSON 28 CENTER HUNG The RIXSON 28 center-hung floor closer body includes a built in positive dead-stop to keep the door from swinging past the set opening degrees. The Model 28 is the standard closer used for center-hung applications for doors weighing up to three-hundred and fifty pounds. The closer body is available in 90 or 105 degree opening and hold open or non-hold open.

STANDARD FEATURES • • • • • •

Single acting - handed Accommodates doors weighing up to 350 pounds Centering arm Built-in positive dead stop ADA compliant available Sold as seperate or full package to include a steel top pivot and a non-hold open closer 28S-90LH

56

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

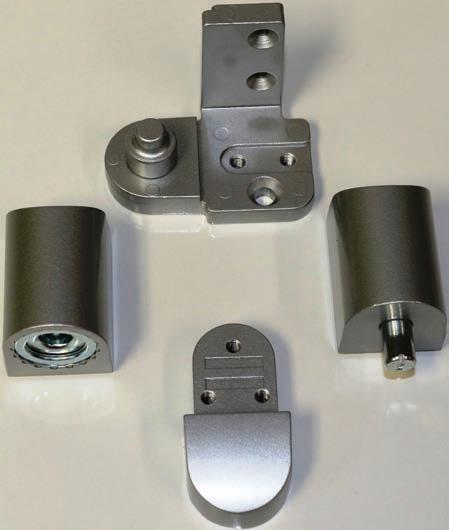

PIVOTS DCM OFFSET STANDARD FEATURES • • • • • • • • •

Suitable for aluminum frames and doors weighing up to 125 lbs.

Suitable for all weather conditions Manufactured from die cast aluminum Full race ball bearing and bushing Fully retractable, spring loaded top pin for easy door installations and adjustments 1 /8" vertical adjustment Case hardened stud in floor portion **Available Finishes: AL - Aluminum (689) and DU - Dark Bronze (695) Cross reference chart on page 111 OPYKK

Vistawall (Non-handed) OP09

Vistawall OP10

Amarlite OP12

US Aluminum OP14G

Pittco/PPG OP14KM

Aldora OP16

Kawneer OPKP

YKK OPYKK

DoorControlsUSA.com

57

PIVOTS DCM INTERMEDIATE 807 STANDARD FEATURES • • • • • •

/4" Intermediate full mortise offset pivot Used to keep door in alignment with pivots at top and bottom of the door Standard 1 3/4" storefront aluminum doors Fully mortised Handed **Available Finishes: AL - Aluminum (689) and DU - Dark Bronze (695) 3

807

808 STANDARD FEATURES •

• • • • •

/4" Offset intermediate pivot Standard 1 3/4" Storefront aluminum doors Not intended for load bearing Fully mortised Handed **Available Finishes: AL - Aluminum (689) and Duranodic (695) 3

808LH-AL

50-331 STANDARD FEATURES • • • • • •

Intermediate offset pivot Built specially for Kawneer aluminum storefront doors Used to keep door in alignment with pivots at top and bottom of the door Adjustable and load bearing Non-handed **Available Finishes: AL - Aluminum (689) and Duranodic (695) 50-331

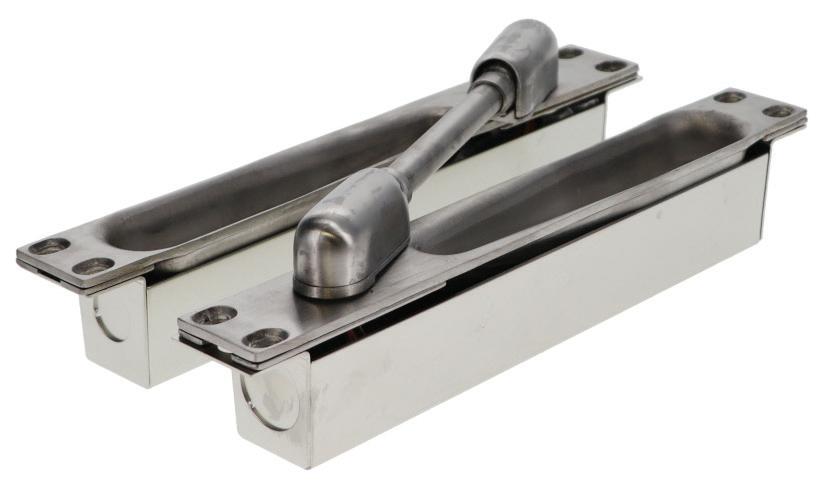

DHK-10AL / DHK-10DU-BB STANDARD FEATURES • • • • • • •

58

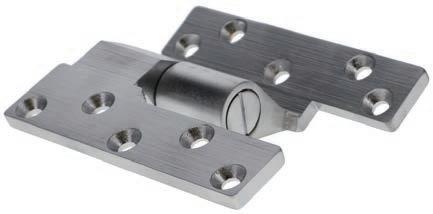

Deluxe Hinge Kit - 5" x 3 1/4" High tensile aluminum alloy Built for high traffic commercial doors up to 500 lbs.

Self-lubricating pin rotates in anti-friction bearings for smooth, trouble free operation Hinges can be mounted so that doors may be lifted off after installation, without removing pin or hinge Non-handed **Available Finishes: AL - Aluminum (689) and DU-Dark Bronze (695)

DHK-10AL-BB

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

PIVOTS RIXON OFFSET 147 STANDARD FEATURES • • • • •

/4" Intermediate full mortise offset pivot Standard 1 3/4" storefront aluminum doors Fully mortised Handed **Available Finishes: Satin Chrome (626) and DU - Dark Bronze (613) 3

147RH-626

180/H180 STANDARD FEATURES Standard 3/4" offset top door pivot For variety of door applications H180 is made for wide doors and/or high traffic areas Non-handed **Available Finishes: Satin Chrome (626) and DU - Dark Bronze (613)

• • • • •

180-626

M19 STANDARD FEATURES • • • • •

Offset non load-bearing 3/4" intermediate pivot Used with 147 pivot set Used for 60" - 90" doors (each additional 30" should use an extra pivot) Handed **Available Finishes: Satin Chrome (626) and DU - Dark Bronze (613)

DoorControlsUSA.com

M19-626

59

PIVOTS DORMAKABA OFFSET 75120 STANDARD FEATURES • • • • •

/4" top pivot for most Dorma 3/4" offset pivot sets and floor closers Includes machine screws Fully mortised Non-handed **Available Finishes: 605, 606, 613, 625, 626 3

75120

8062 STANDARD FEATURES • • • • • •

Walking beam top pivot with cover plate Used with Dorma CP440, CP660, various BTS75V and BTS80 center hung applications Optional extended pin available Includes machine screws Non-handed **Available Finishes: 605, 606, 613, 625, 626

8062-626

8855 STANDARD FEATURES • • • • •

Deluxe hinge kit - 5 x 3 1/4" Bottom door clearance adjustable - 3/16" to 7/16" Maximum weight capacity is 200 lbs.

Used with Dorma RTS88 series overhead concealed closers **Available Finishes: 605, 606, 613, 625, 626 8855-626

75220 STANDARD FEATURES • • • • • •

/4" Offset intermediate pivot for most 3/4" offset applications Includes machine screws Fully mortised Must know left hand or right hand Handed **Available Finishes: 605, 606, 613, 625, 626 3

75220

60

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

PIVOTS NATIONAL DOOR CONTROLS RETROFIT PIVOT KITS STANDARD FEATURES • • • • • •

Retrofits overhead concealed or floor closers into a pivot allowing for installation of a surface closer or automatic door operator Allows doors to become ADA compliant Easy install Heavy duty arm construction Extremely reliable option to ensure longevity of door package Economical option to a dummy closer

NDC100

Retrofit pivot kit for center hung floor closers

NDC101-LH

Retrofit pivot kit for left handed offset floor closers - Available for 3/4" offset and 1 1/2" offset floor closers

NDC101-RH

Retrofit pivot kit for right handed offset floor closers - Available for 3/4" offset and 1 1/2" offset floor closers

NDC102EL

Retrofit pivot kit for end loaded Overhead concealed door closers

NDC102SL-LH

Retrofit pivot kit for left handed side loaded Overhead concealed door closers

NDC102SL-RH

Retrofit pivot kit for right handed side loaded Overhead concealed door closers

DoorControlsUSA.com

61

HANDS-ON HARDWARE TRAINING IN-DEPTH KNOWLEDGE AND HANDS-ON EXPERIENCE Door Controls USA offers a dynamic three-day hardware training program to enhance your knowledge of door hardware. This comprehensive course provides hands-on training and detailed insights into the manual hardware industry.

Our hardware training class covers: Doors and frames Hardware types Terminology Applications Installations and adjustments Electrified hardware Low energy operators Troubleshooting

Scan the QR code for more information and to visit our training page.

Enroll in Door Controls USA's hardware training class to elevate your expertise in the door hardware industry.

62

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

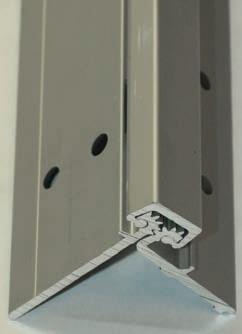

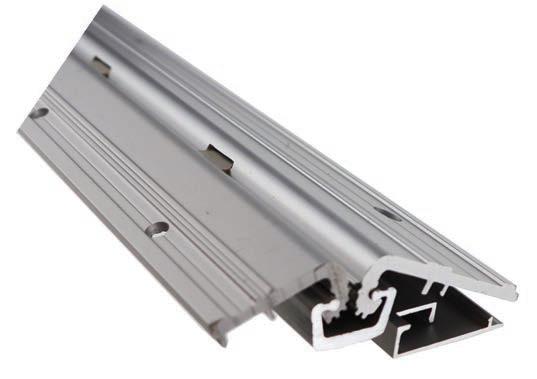

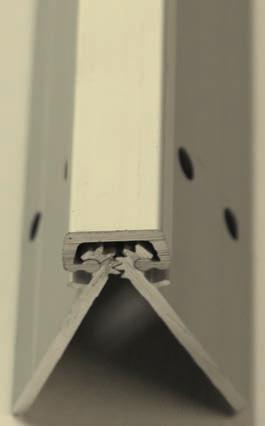

HINGES DCM CONTINUOUS GEARED Door Controls Manufactured full-length geared hinge is designed to provide superior performance and durability in high traffic areas. It is constructed from high-grade aluminum and the bushing allows for even distribution along the spine of the hinge.

Our geared hinge is only offered in a heavy-duty version because added security and durability should never cost you more.

The heavy-duty geared hinge is built to hold a door up to 300 pounds. It is suitable for medium to high traffic openings. Our models are suitable for aluminum storefront retrofit where an offset pivot or butt hinge package will no longer work. Standard through bolt mounting and secure molding on all DCM Geared hinges.

The 83" Geared Hinge is standard and 95" is also available.

Available in Aluminum and Dark Bronze

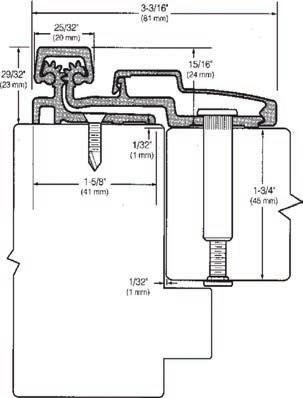

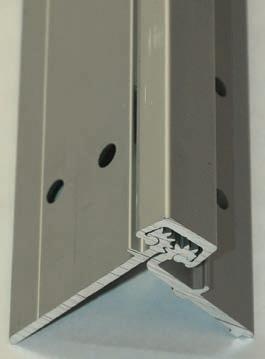

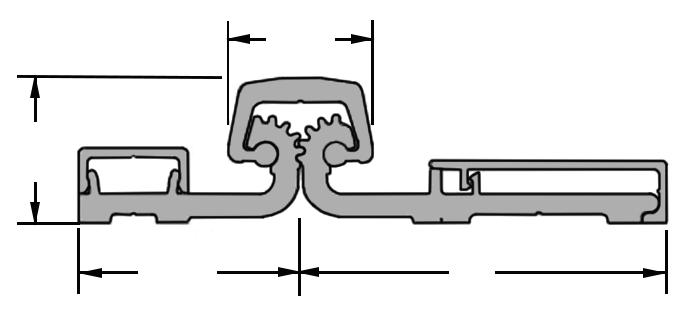

DCU210 DCM Full Surface Geared Hinges – hinge with one leaf secured to the surface of the door and the other leaf secured to the surface of the jamb. 1/16" inset.

• UL Listed and 90 minute fire rating 3 3/16" (81 mm) 25 32 / " • Lifetime warranty (20 mm) Part Number

Finish

Length

DCU21083-AL

Aluminum

83"

DCU21083-COV-AL

Aluminum

83"

DCU21083-COV-DU

Dark Bronze

83"

DCU21083-DU

Dark Bronze

83"

DCU21083SPACK-AL

Aluminum

83"

DCU21083SPACK-DU

Dark Bronze

83"

DCU21095-AL

Aluminum

95"

DCU21095-COV-DU

Dark Bronze

95"

DCU21095-DU

Dark Bronze

95"

/ "

15 16

/ "

29 32

(24 mm)

(23 mm)

/ "

1 32

(1 mm)

1 /" 5 8

1 3/4"

(41 mm)

(45 mm)

DCU21083-AL

/ "

1 32

(1 mm)

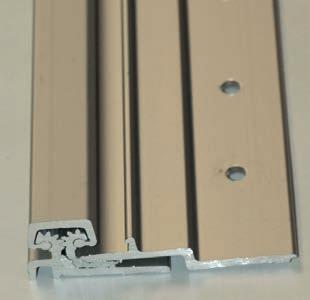

DCU053 DCM Half Surface - hinge with one leaf mortised in the door jamb and other leaf secured to the surface of the door 1/8" inset.

2 / " 3 16

• •

UL Listed and 90 minute fire rating Lifetime warranty

(56 mm)

/ "

25 32

(20 mm)

Part Number

Finish

Length

DCU05383-AL

Aluminum

83"

DCU05383-DU

Dark Bronze

83"

DCU05395-AL

Aluminum

95"

DCU05395-DU

Dark Bronze

95"

/ "

25 32

/ "

21 32

(20 mm)

(17 mm)

/ "

3 32

(2.4 mm)

1 15/16" (49 mm)

/ "

1 32

1 3/4"

(1 mm) minimum clearance

(45 mm)

DCU053-AL / "

3 32

(2.4 mm)

DoorControlsUSA.com

63

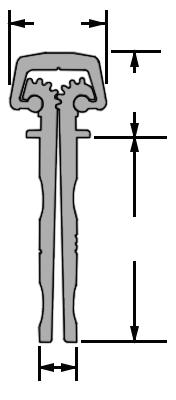

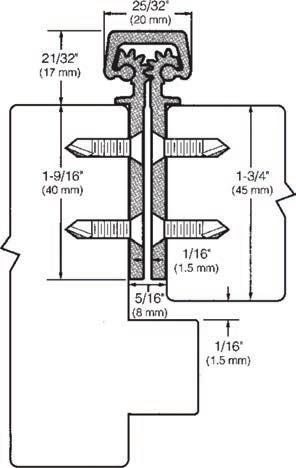

HINGES DCM CONTINUOUS GEARED DCU112 DCM Full Mortise - hinge with one leaf mortised in the edge of the door and the other leaf mortised in the door jamb. The DCHD112 model is the preferred model for new construction door openings.

• •

UL Listed and 90 minute fire rating Lifetime warranty

/ "

25 32

(20 mm)

Part Number

Finish

Length

DCU11283-AL

Aluminum

83"

DCU11283-DU

Dark Bronze

83"

DCU11283SPACK-AL

Aluminum

83"

DCU11283SPACK-DU

Dark Bronze

83"

DCU11295-AL

Aluminum

95"

/ "

21 32

(17 mm)

DCU11283-AL 1 9/16"

1 3/4"

(40 mm)

(45 mm)

/ "

1 16

(1.5 mm)

DCU11295-DU DCU15795-DU

Dark Bronze Dark Bronze

95"

/ "

5 16

(8 mm)

95"

/ "

1 16

(1.5 mm)

DELETE

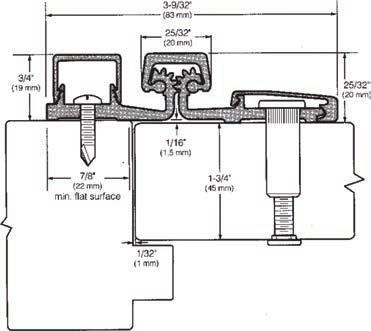

DCU157 DCM Full Surface Limited Frame - hinge with one leaf secured to the surface of the door and the other leaf secured to the surface of the jamb. A minimum 7/8" stile mount allows this hinge to be virtually used for any type of retrofit 1/32" inset.

• •

UL Listed and 90 minute fire rating Lifetime warranty DCU15783-AL

Aluminum

83"

DCU157119-AL

Aluminum

119"

DCU157119-DU

Dark Bronze

119"

DCU15783-AL

Aluminum

83"

DCU15783-COV-AL

Aluminum

83"

DCU15783-COV-DU

Dark Bronze

83"

DCU15783-DU

Dark Bronze

83"

DCU15783SPACK-AL

Aluminum

83"

DCU15783SPACK-DU

Dark Bronze

83"

DCU15795-AL

Aluminum

95"

DCU15795-COV-AL

Aluminum

95"

DCU15795-COV-DU

Dark Bronze

95"

DCU15795-DU

Dark Bronze

95"

3 9/32"

DCU15783-DU

(83 mm)

/ "

25 32

(20 mm)

/"

/ "

3 4

25 32

(19 mm)

(20 mm)

/ "

1 16

(1.5 mm)

/"

7 8

1 3/4"

(45 mm)

(22 mm) min. flat surface

/ "

1 32

(1 mm)

DELETE

64

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

HINGES HAGER ROTON CONTINUOUS GEARED The highly constructed Hager Roton Geared Hinge comes standard with 16 bearings to hold a door up to 320 pounds. The Heavy Duty version of the Roton Geared Hinge is built with 32 bearings to hold a door up to 640 pounds. The Roton Geared Hinge is suitable for medium to high traffic openings.

Hager offers models suitable for new construction architectural specifications or models for aluminum storefront retrofit where an offset pivot or butt hinge package no longer works. Standard through bolt mounting and secure molding on all Roton Geared Hinges. UL Listed.

The 83" Geared Hinge is Standard, 95" and 119" Geared Roton Hinges also available.

780210

Full Surface - hinge with one leaf secured to the surface of the door and the other leaf secured to the surface of the jamb 1/16" inset.

Part Number

Finish

Length

78021083HDDU

Dark Bronze

83"

78021095HDDU

Dark Bronze

95"

78021083DU

Dark Bronze

83"

78021095DU

Dark Bronze

95"

78021083HDAL

Aluminum

83"

78021095HDAL

Aluminum

95"

78021083AL

Aluminum

83"

78021095AL

Aluminum

95"

780210119HDAL

Aluminum

119"

780210119HDDU

Dark Bronze

119"

3 3/16" (81 mm)

/ "

25 32

(20 mm)

/ "

15 16

/ "

29 32

(24 mm)

(23 mm)

/ "

1 32

(1 mm)

1 /" 5 8

1 3/4"

(41 mm)

(45 mm)

78021083AL

/ "

1 32

(1 mm)

780157

Full Surface Limited Frame - hinge with one leaf secured to the surface of the door and the other leaf secured to the surface of the jamb. A minimum 7/8" stile mount allows this hinge to be virtually used for any type of retrofit 1/32" inset.

Part Number

Finish

Length

3 9/32"

78015783AL

Aluminum

83"

(20 mm)

78015783HDDU

Dark Bronze

83"

78015795HDDU

Dark Bronze

95"

780157119HDDU

Dark Bronze

119"

78015783HDAL

Aluminum

83"

78015795HDAL

Aluminum

95"

780157119HDAL

Aluminum

119"

78015783DU

Dark Bronze

83"

78015795AL

Aluminum

95"

78015795DU

Dark Bronze

95"

780157119-AL

Aluminum

119"

780157119DU

Dark Bronze

119"

DoorControlsUSA.com

(83 mm)

/ "

25 32

/"

3 4

/ "

25 32

(19 mm)

(20 mm)

78015783AL

/ "

1 16

(1.5 mm)

1 3/4"

/"

7 8

(45 mm)

(22 mm) minimum flat surface

/ "

1 32

(1 mm)

65

HINGES HAGER ROTON CONTINUOUS GEARED 780112 Full Mortise - hinge with one leaf mortised in the edge of the door and the other leaf mortised in the door jamb. The 780112 model is the preferred model for new construction door openings.

Part Number

Finish

Length

78011283AL

Aluminum

83"

78011283DU

Dark Bronze

83"

78011283HDAL

Aluminum

83"

78011283HDDU

Dark Bronze

83"

78011295AL

Aluminum

95"

78011295DU

Dark Bronze

95"

78011295HDAL

Aluminum

95"

78011295HDDU

Dark Bronze

95"

780112119HDAL

Aluminum

119"

780112119HDDU

Dark Bronze

119"

/ "

25 32

(20 mm)

/ "

21 32

(17 mm)

1 9/16"

1 3/4"

(40 mm)

(45 mm)

/ "

1 16

(1.5 mm)

/ "

5 16

(8 mm)

78011283AL

/ "

1 16

(1.5 mm)

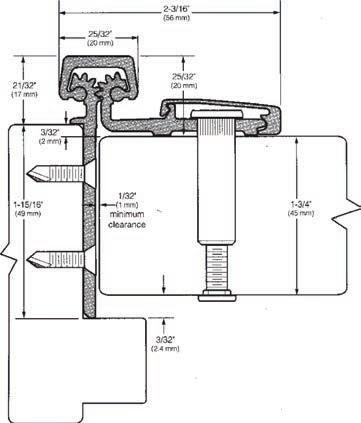

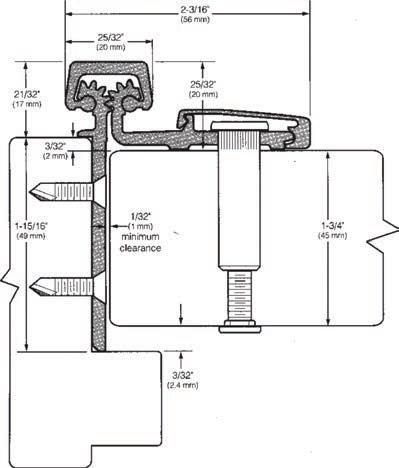

780054 Half Surface - hinge with one leaf mortised in the door jamb and other leaf secured to the surface of the door. 1/8" inset.

Part Number

Finish

Length

78005483HDAL

Aluminum

83"

78005483HDDU

Dark Bronze

83"

78005495HDAL

Aluminum

95"

78005495HDDU

Dark Bronze

95"

2 3/16"

(56 mm)

/ "

25 32

(20 mm)

/ "

25 32

/ "

21 32

(20 mm)

(17 mm)

/ "

3 32

(2 mm)

1 15/16"

(49 mm)

/ "

1 32

1 3/4"

(1 mm) minimum clearance

(45 mm)

78005483HDAL

/ "

3 32

(2.4 mm)

66

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

HINGES PEMKO FS-CP FULL SURFACE CONTINUOUS GEARED The anodized aluminum short leaf flush continuous geared hinge is designed mainly for retrofit work and are applied to exposed surfaces of the door and frame. The hinge is available in 83" and 95" lengths.

• • •

BHMA Certified Fire Rated - UL10C Positive Pressure and Pemko Hinge Fire Rating UL76Y2 Part Number

Finish

Length

CFS83CP-HD1

Clear

83"

CFS95CP-HD1

Clear

95"

DFSCP83-HD1

Dark Bronze

83"

DFSCP95-HD1

Dark Bronze

95" " "

/ "

25 32

CFS83CP-HD1

(19.8)

/ "

13 16

(20.6)

1 7/32" (31.0)

2"

(50.8)

PEMKO FM-SLF FULL MORTISE CONTINUOUS GEARED The anodized aluminum short leaf flush continuous geared hinge is designed mainly for new door applications. The hinge is also available in a heavy duty model. It's designed for use with doors that range between 1 3/4" to 2 1/4" and for bifold applications to keep the faces of the doors flush. The hinge is available in 83" and 95" lengths.

• • •

BHMA Certified Fire Rated - UL10C Positive Pressure and Pemko Hinge Fire Rating UL76Y2 Part Number

Finish

Length

BSPFM83SLF-HD1

Black

83"

BSPFM95SLF-HD1

Black

95"

CFM83SLF-HD1

Clear

83"

CFM95SLF-HD1

Clear

95"

DFM83SLF-HD1

Dark Bronze

83"

DFM95SLF-HD1

Dark Bronze

95"

/ "

25 32

(19.8)

/ "

23 32

CFM83SLF-HD1

(18.3)

1 11/16" (42.9)

/ "

5 16

(7.9)

DoorControlsUSA.com

67

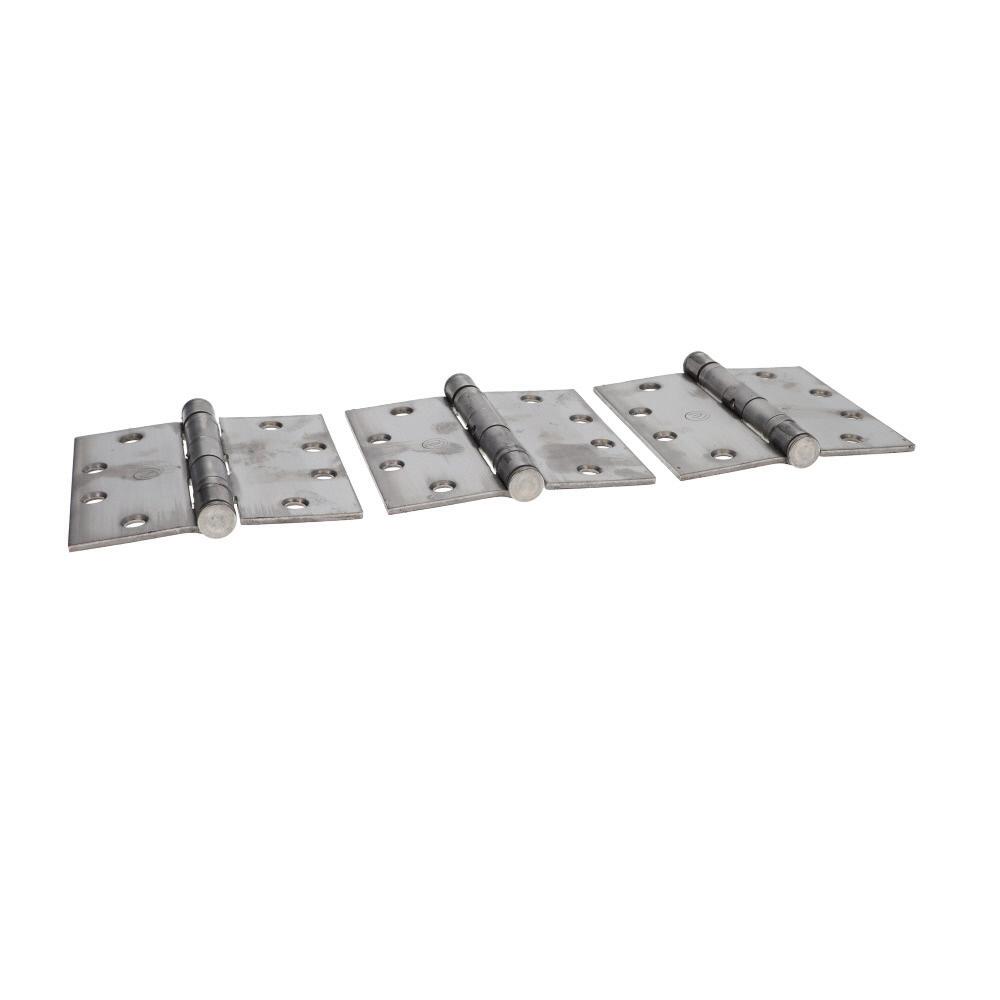

HINGES DCM BUTT HINGES STANDARD FEATURES • • • • • • • •

Intended for commercial use for medium to heavy weight aluminum storefront and hollow metal door frames Commercial grade steel Meets ANSI A156.1 standards Equipped with non-rising pin Packaged with wood and metal screws Full mortise only 5 Knuckle Ball Bearing Sold three per box

ALUMINUM STOREFRONT BUTT HINGES

FULL MORTISE SPRING HINGES

STANDARD FEATURES • •

STANDARD FEATURES

4.5" x 4.0" with 1/4" radius corner Available in 26D, 10B and 32D

• DCBB4540NR26

DCBB4540NR26 Aluminum Finish

• •

DCSH4545-26D

DCSH4545-26D Aluminum Finish

DCBB4540N10B Dark Bronze Finish DCBB4540NR32 Stainless Steel

Self closing action for when a door closer is not preferred 4.5" x 4.5" square corner hinge Available in 26D Aluminum Finish

DCBB4540N10B

DCBB4540NR32

BUTT HINGE REINFORCING BACKING PLATES

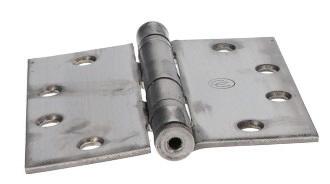

HOLLOW METAL / WOOD DOOR BUTT HINGES

STANDARD FEATURES

STANDARD FEATURES • •

4.5" x 4.5" square corner hinge Available in 26D, 10B and 32D

• DCBB4545N26D

DCBB4545N26D Aluminum Finish

• •

DCBB4545N10B Dark Bronze Finish

• •

DCBB4545N32D Stainless Steel

Intended for medium to heavy weight aluminum storefront and hollow metal door frames Commercial grade steel Adds additional stability to door and frame Fits standard butt hinge template Available in Aluminum finish

DCBB4545N10B

DCBB-BP Aluminum Finish

DCBB-BP

DCBB4545N32D

68

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

HINGES HAGER FIVE KNUCKLE BALL BEARING ECBB1101NRP The two ball bearing hinge has a non-removable pin with a button tip and plug. It is used on medium weight doors and/or doors that require medium frequency service.

• • •

ANSI A2112 (Brass) ANSI A5112 (Stainless steel) **Available Finishes: US15, US26, US32D, 32D (316SS) ECBB1101NRP-US15 ECBB1101NRP-US26 ECBB1101NRP-US32D ECBB1101NRP 4.5x4.5

BB1199 The four ball bearing hinge has a non-removable pin with button tip and plug. It's used on heavy weight doors or doors requiring high frequency service.

• • •

ANSI A2111 (Brass) ANSI A5111 (Stainless steel) **Available Finishes: US3, US4, US10, US10B, US15, US26, US26D, US32, US32D BB1199-6x5-** BB1199-6x6-** BB1199-8x6-** BB1199-8x8-** BB1199-4.5x4-** BB1199-4.5x4.5-** BB1199-5x4-** BB1199-5x4.5-** BB1199-5x5-**

BB1199-4.5X4.5-26D

BB1199-6x4.5-**

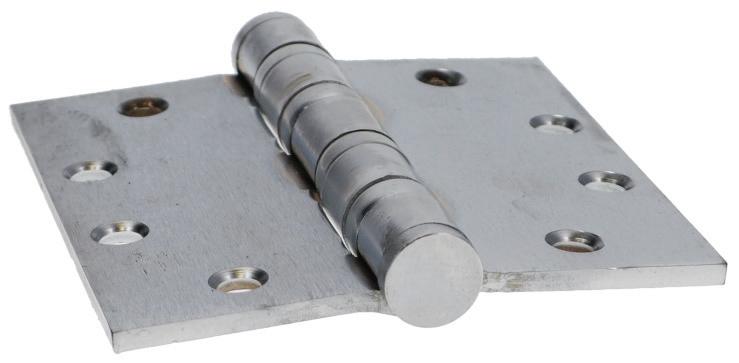

IVES 5 KNUCKLE BALL BEARING FULL MORTISE Full Mortise Hinge is recommended for medium weight doors with medium frequency usage. Made with two ball bearing assemblies, it is recommended to use with a door closer. The hinge comes packed with fasteners for hollow metal and wood doors.

• • • •

ANSI/BHMA A156.1 Certfied Meets ANSI/BHMA A156.7 Standards UL classified for windstorm rated assemblies R37965 and UL listed for 3 hour fire doors 5BB1-4.5X4.5-613 Dark Bronze Finish 5BB1-4.5X4.5-652 Satin Chrome Finish 5BB1-4.5X4.5-630 Stainless Steel

DoorControlsUSA.com

5BB1-4.5x4.5-652

69

TRIM & AUXILIARY HAGER PUSH / PULL / KICK PLATES 30S (PUSH PLATE) STANDARD FEATURES • • • •

Push plates meet ANSI A156.6 requirements for .050" thickness 4" x 16" plates Individually wrapped with mounting hardware Available in 10B and 32D

33E (PUSH/PULL PLATE) STANDARD FEATURES • • • • • •

Push /Pull plates meet ANSI A156.6 requirements for .050" thickness 1" round pull handle 4" x 16" plates 6" center to center pull Individually wrapped with mounting hardware Available in 10B and 32D

30S-US10B 30S-US32D

33E-US10B 33E-US32D

190S (KICK PLATES) STANDARD FEATURES • • • •

Kick plates meet ANSI A156.6 requirements for .050" thickness Designed to prevent damage/abuse to door bottom Individually wrapped with mounting hardware Available in 10B and 32D

STANDARD SIZES

70

CUSTOM SIZES

190S8x34-US32D 8" x 34" Kick Plate 32D

190S8x34-US10B 8" X 34" Kick Plate 10B

190S10x32-US32D 10" X 32" Kick Plate 32D

190S10x32-US10B 10" X 32" Kick Plate 10B

190S10x34-US32D 10" X 34" Kick Plate 32D

190S10x34-US10B 10" X 34" Kick Plate 10B

190S10x46-US32D 10" X 46" Kick Plate 32D

190S10x46-US10B 10" X 46" Kick Plate 10B

190S8X34-US32D

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

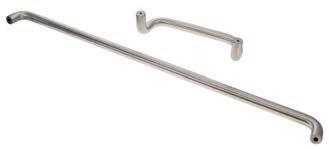

TRIM & AUXILIARY DCM DOOR TRIM DCPPS10X36 (PUSH/PULL) DC-OPH10 (DOOR PULL)

STANDARD FEATURES • • • •

36"/42"/48" standard aluminum single acting doors 2 1/2" projection, 1” diameter tubular push/pull set, 10” offset pull Supplied with mounting hardware for 1 ¾" thick hardware Available in AL and DU

STANDARD FEATURES • • • •

1” diameter solid tubing Supplied with mounting hardware for 1 ¾" thick door Two sizes available - 10" and 12" Available in 10B and 32D

DC-OPH10-AL DCPPS10X36-AL

ROCKWOOD DOOR TRIM BF15747 (PUSH/PULL)

BF157 (DOOR PULL) STANDARD FEATURES

STANDARD FEATURES • • • • •

47 offset single bar set, 1” diameter pull, 10” center to center Can be mounted to metal and wood PUSH or PULL engraving available Fastening types available for heavy duty versions Available in 10B and 32D

• • • • •

90 degree offset door pull, 1” diameter pull, 10” center to center Available in back-to-back mounting in pairs or as concealed mounting single pull For 1 ¾ inch door thickness – specify if different Fastening types available for heavy duty versions Available in 10B and 32D

BF157-10-US32D

BF15747-630

IVES DOOR TRIM 8190HD (DOOR PULL)

9190HD (DOOR PUSH/PULL)

STANDARD FEATURES • • • • • • •

STANDARD FEATURES

Available pull sizes: 8", 10", 12" and 18" Heavy duty mounting hardware Mounting hardware – 3/8 – 16 Door thickness needs to be specified Standard comes with through bolt screws and decorative washers Optional mounting hardware available Available in 10B and 32D

8190HD-0-US32D

DoorControlsUSA.com

• • • • • • •

Available sizes: 28”, 33”, and whole 1” increments from 25” to 45” Heavy duty mounting hardware Mounting hardware – 3/8 – 16 Door thickness needs to be specified Standard comes with through bolt screws and decorative washers Optional mounting hardware available Available in 10B and 32D

9190HD-33-0-US32D

71

TRIM & AUXILIARY DCM DOOR SWEEPS STANDARD FEATURES • • •

Disguise gaps Keeps air in and debris out Single packaged with mounting hardware

YDB103

YDS603

SINGLE VINYL DOOR SWEEP

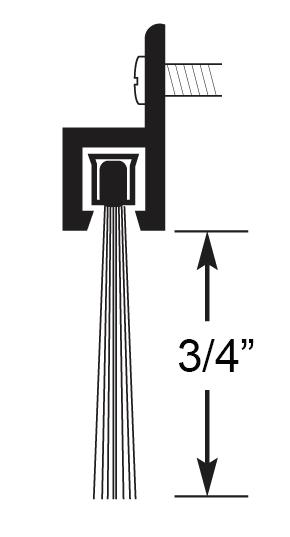

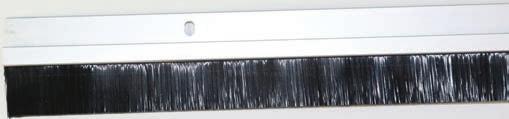

NYLON BRUSH DOOR SWEEPS

YDB103CV-36 36" Aluminum 1" Nylon Single Blade Sweep

YDS603CNB-36 36" Aluminum 3/4" Brush Sweep

YDB103DV-36 36" Dark Bronze 1" Nylon Single Blade Sweep

YDS603DNB-36 36" Dark Bronze 3/4" Brush Sweep

YDB103CV-48 48" Aluminum 1" Nylon Single Blade Sweep

YDS603CNB-48 48" Aluminum 3/4" Brush Sweep

YDB103DV-48 48" Dark Bronze 1" Nylon Single Blade Sweep

YDS603DNB-48 48" Dark Bronze 3/4" Brush Sweep

YDB102

TRIPLE VINYL DOOR SWEEP YDB102CV-36 36" Aluminum 7/8" Nylon Triple Blade Sweep YDB102DV-36 36" Dark Bronze 7/8" Nylon Triple Blade Sweep

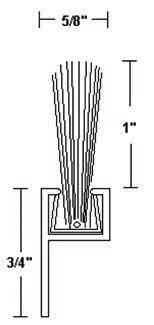

FS77

DCM NYLON BRUSH DOOR SWEEP FS77-AL 1" Aluminum Bug Guard Door Bottom Sweep

YDB102CV-48 48" Aluminum 7/8" Nylon Triple Blade Sweep YDB102DV-48 48" Dark Bronze 7/8" Nylon Triple Blade Sweep

72

FS77-BL 1" Black Bug Guard Door Bottom Sweep

•

Available in 4 foot and 8 foot pieces

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

TRIM & AUXILIARY DCM THRESHOLDS

DCM PERIMETER SEAL KITS STANDARD FEATURES

STANDARD FEATURES • • • • •

• • • •

Manufactured with high grade aluminum Single packaged with mounting hardware 5" x 1/2" Available sizes 36", 48", 72" Available in Aluminum and Dark Bronze

Vinyl bulb seal Single packaged with mounting hardware Available in sizes 36" x 84" and 48" x 84" Available in Aluminum and Dark Bronze

YDW204CV

YDW204CV36X84 Aluminum Perimeter Seal Kit YDW204CV48X84 Aluminum Perimeter Seal Kit

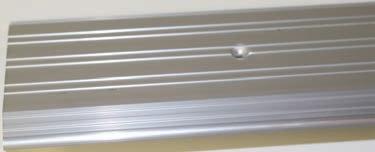

YDT309

YDT309AV Aluminum

YDW204DV36x84 Dark Bronze Perimeter Seal Kit

YDT309DV Dark Bronze

YDW204DV48x84 Dark Bronze Perimeter Seal Kit

DCM TOUCH-UP PAINT Door & Window Frame Paint

Ideal for touching up bronze and aluminum door frames at the job site while assembling or after assembly CLEAR ANODIZED

DARK BRONZE

Superior Durability

Adhesion ideal for both indoor and outdoor frames

PAINT CANS

PAINT PENS

PART NO. CLP

PART NO. DBP

PART NO. CLP-P

PART NO. DBP-P

TECHNICAL DATA

Contains No CFCs (Chlorofluorocarbons) Quality steel can is both recyclable and has recycled content

DoorControlsUSA.com

Film Build

Wet 3-12 mils, Dry .05-2 mils

Gloss Range

10-85 gloss units @ 60°

Dry Time

Air dry at 70°F, 50% R.H., 1 mil DFT

Dust Free

10 minutes

Print Free

< 1 hour

Full Cure

24-36 hours

Optimal Application Conditions

60 - 80°F, less than 60% relative humidity.

Appy at temperatures > 5°F above dew point

DCUSA Touch-Up Paint is perfect for covering up scratches, blemishes or any raw material shown.

73

TRIM & AUXILIARY DCM STORE FRONT ACCESSORIES LEVER HANDLE (LH1) STANDARD FEATURES • • • •

Field reversible for opposite hand Field reversible cam plug included Extruded aluminum handle Available in Anodized Aluminum and Bronze LH1-AL

CRASH CHAIN (15855) STANDARD FEATURES • • •

Prevents damage to door and hardware Available in 25" and 30" chain length Nylon outer coat for added protection 15855-AL 15850

FLUSH BOLT (FB-1) STANDARD FEATURES • • • •

Sold with rod and guide 11" with 1/8" offset Spring loaded lever action Available in Aluminum and Bronze

FB-1AL

PUSH PADDLE HANDLE (PP01) STANDARD FEATURES • • • •

Field reversible for opposite hand Field reversible cam plug included Extruded aluminum handle Available in Anodized Aluminum and Bronze

PP01-ALL

74

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

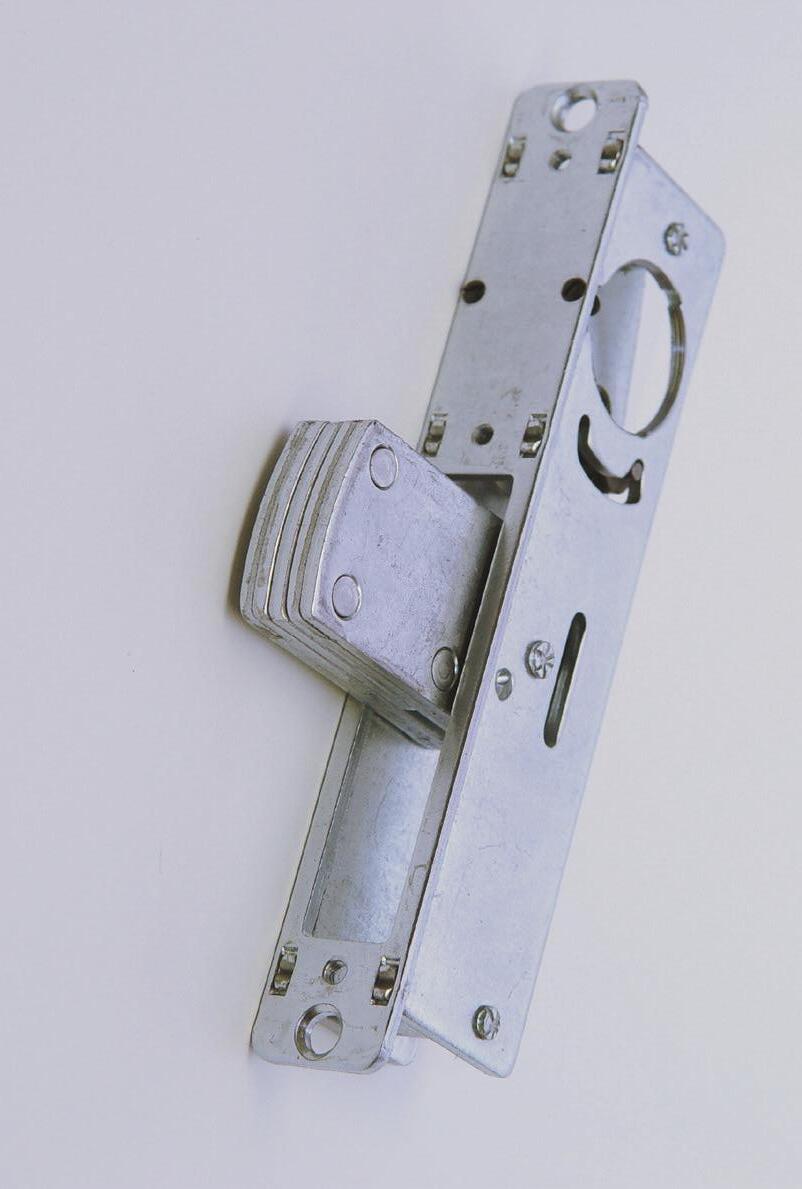

MORTISE LOCKS DCM MORTISE LOCKS Available in Deadbolt, Hookbolt & Deadlatch Throws STANDARD FEATURES • • • • • •

Designed for aluminum and steel entrance doors 1" x 6" steel case mechanism Built to accept any standard 1 5/32" mortise cylinder or thumbturn Huge five-ply laminated steel bolt with concealed hardened steel pin provides maximum security for any single leaf door, or where gap between door and jamb is greater than desired Field reversible Backsets available 1 1/8", 31/32" or 1 1/2"

DBL-02

AVAILABLE MODELS DBL

HBL

DLL

DEADBOLT

HOOKBOLT

DEADLATCH

DBL-02 (1 1/8" BS)

HBL-01 (1 1/8" BS)

DLL-01 (1 1/8" BS)

DBL-02A (31/32" BS)

HBL-01A (1 1/2" BS)

DLL-01-31/32 (31/32" BS)

DBL-02B (1 1/2" BS)

HBL-01B (31/32" BS)

DLL-01A (1 1/2" BS)

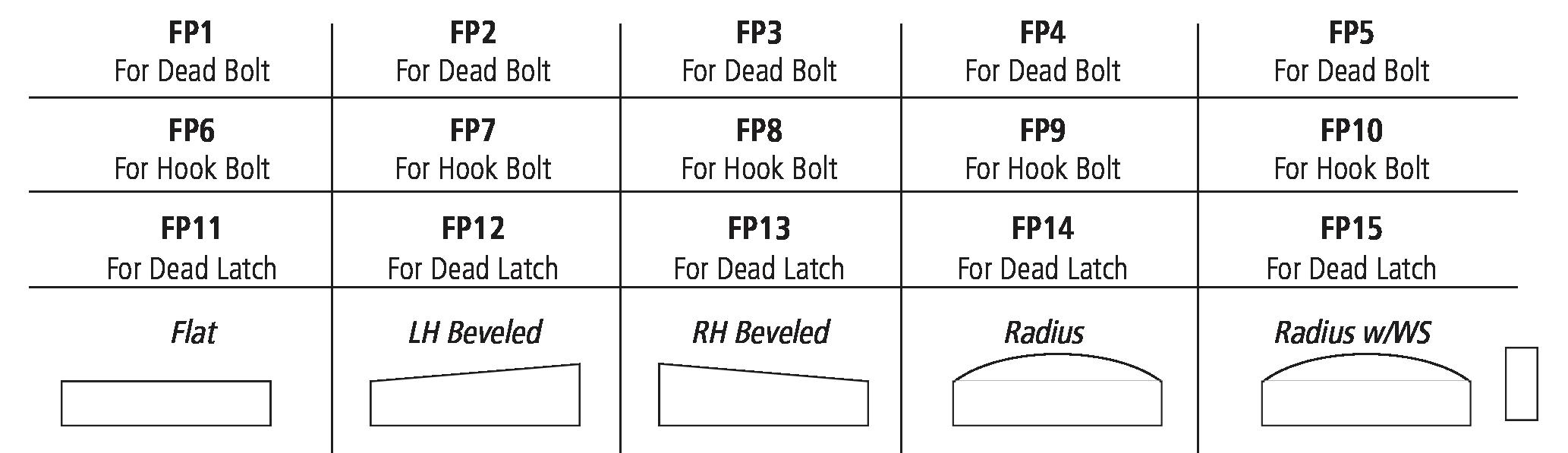

MORTISE LOCK FACE PLATES Available in flat, left-hand beveled, right-hand beveled and radius with a weather strip.

Available in anodized aluminum and bronze.

DoorControlsUSA.com

75

MORTISE LOCKS DCM CYLINDERS KEYED CYLINDERS (ZCKA/ZCKD)

MORTISE DUMMY CYLINDER (ZD)

STANDARD FEATURES

STANDARD FEATURES

• • • • • • •

1" length 5 pin cylinder 1 5/32" diameter Schlage keyway Sold in pairs Available keyed alike and keyed different Zinc based material Available in Anodized Aluminum and Bronze

• • • ZCKA-AL

ZD-AL

ZD-AL Aluminum ZD-DU Dark Bronze

ZCKA-AL Zinc Cylinder - Keyed Alike ZCKA-DU Zinc Cylinder - Keyed Alike ZCKD-AL Zinc Alloy Cylinder Keyed Different

LOCK INDICATOR (LI-4089)

ZCKD-DU Zinc Alloy Cylinder Keyed Different

• • •

STANDARD FEATURES

THUMBTURN CYLINDER (ZCTT) STANDARD FEATURES • • • •

1" length cylinder 1 5/32" diameter Available in Anodized Aluminum and Bronze

1" length cylinder 1 5/32" diameter Zinc based material Available in Anodized Aluminum and Dark Bronze

Locked in red, open in green Surface mount install Available in Anodized Aluminum and Bronze LI-4089DU

LI-4089AL Aluminum LI-4089DU Dark Bronze ZCTT-AL

MORTISE STRIKES (ST1 / ST2)

ZCTT-AL Aluminum

STANDARD FEATURES

ZCTT-DU Dark Bronze

• • •

RIM CYLINDER (RZ1003)

Mortise lock strike plates Available in single and double strike cut out Available in Anodized Aluminum

STANDARD FEATURES • • • •

5-pin cylinder Standard commercial field sizeable tailpiece Schlage keyway Available in Anodized Aluminum and Bronze

RZ1003-AL

ST1

ST2

RZ1003-AL Aluminum RZ1003-DU Dark Bronze

76

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

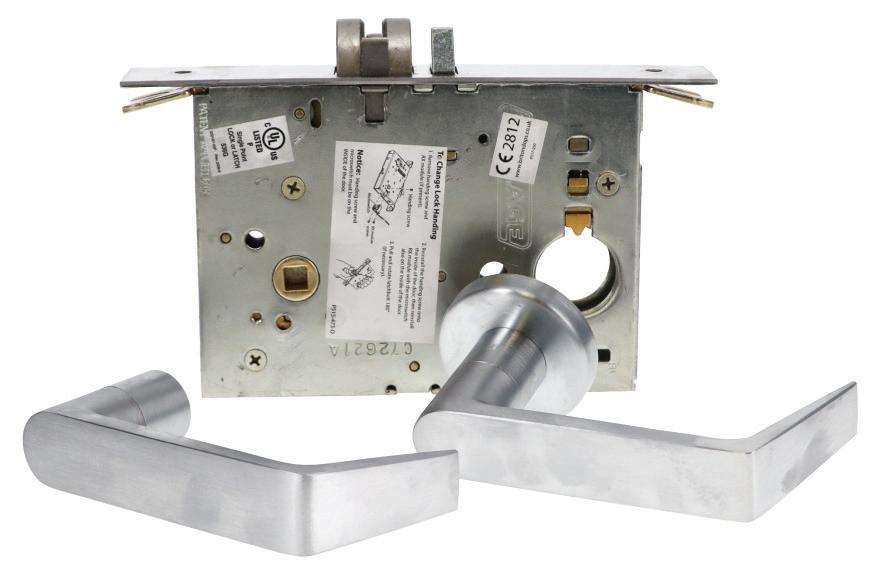

MORTISE LOCKS SCHLAGE L SERIES STANDARD FEATURES • • • • • •

Exceeds ANSI/BHMA Grade 1 Security and Operational standards Deadbolt functions include anti-saw pin in the bolt Security blocking hub prevents lock picking by removing the levers 55+ standard functions Electrified locks auto detect 12V/24V DC Comes in 14 finishes, 33 lever, 2 knob, 5 rose and 3 escutcheon designs

L9080-06A-626

LEVER SET FUNCTION

L9010

L9040

L9050

L9080

L9070

PART NUMBER

APPLICATION

FUNCTION

L9010

For doors that do not require locking.

Lever operates the latch bolt at all times.

PASSAGE FUNCTION

L9040

For doors that require no key and ability to lock from the interior. Latch bolt by lever either side. Anti-panic operation, turning inside lever retracts latch bolt.

PRIVACY FUNCTION

L9050

For doors that require locking function. Keyed on the outside lever and a push button on the inside lever.

Deadlocking latch bolt where either lever operates latch bolt.

ENTRY FUNCTION

L9080

For utility, storeroom and exit doors. Deadlocking latch bolt where exterior lever is always rigid. Latch bolt by key outside, lever inside.

STOREROOM FUNCTION

L9070

For classroom, office or utility doors. Deadlocking latch bolt where inside lever is always active.

CLASSROOM FUNCTION

DoorControlsUSA.com

77

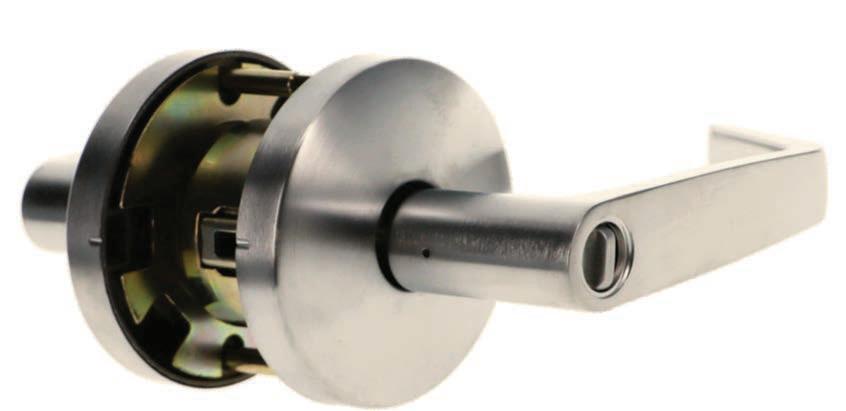

CYLINDRICAL LOCKS DCM LEVER SETS STANDARD FEATURES • • • • • • • •

ANSI A156.2 6-pin Schlage “C” keyway Clutch available in keyed lever sets Through bolted Meets ADA requirements 2 3/4" latch standard, 2 3/8" latch available Available in 26D Grade 2

5000ENT26D

LEVER SET FUNCTION

5000PASS

78

5000PRI

5000ENT

5000STR

5000CLR

PART NUMBER

APPLICATION

FUNCTION

5000PASS

For doors that do not require locking.

Lever operates the latch bolt at all times.

PASSAGE FUNCTION

5000PRI

For doors that require no key and ability to lock from the interior. Latch bolt by lever either side. Anti-panic operation, turning inside lever retracts latch bolt.

PRIVACY FUNCTION

5000ENT

For doors that require locking function. Keyed on the outside lever and a push button on the inside lever.

Deadlocking latch bolt where either lever operates latch bolt.

ENTRY FUNCTION

5000STR

For utility, storeroom and exit doors. Deadlocking latch bolt where exterior lever is always rigid. Latch bolt by key outside, lever inside.

STOREROOM FUNCTION

5000CLR

For classroom, office or utility doors. Deadlocking latch bolt where inside lever is always active.

CLASSROOM FUNCTION

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

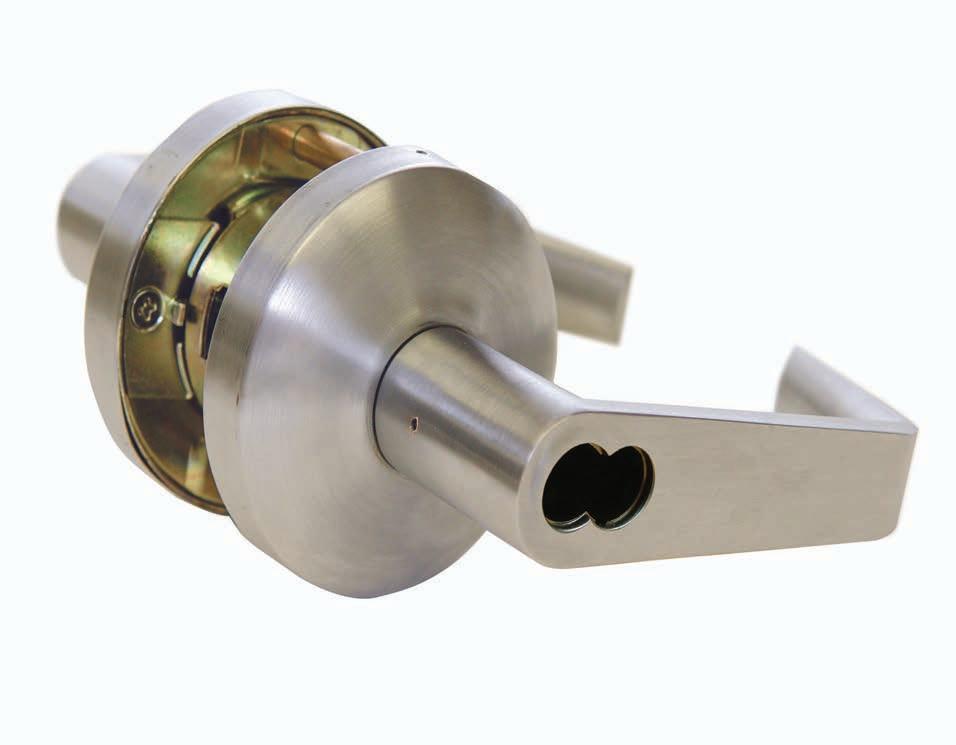

CYLINDRICAL LOCKS DCM IC CORE LEVER SETS STANDARD FEATURES • • • • • • •

ANSI A156.2 Interchangeable 6 pin or 7 pin small format Clutch available in keyed lever sets Through bolted Meets ADA requirements 2 3/4" latch standard, 2 3/8" latch available Available in 26D

5000ENT-ICF26D

LEVER SET FUNCTION

5000ENT ICF

5000STR ICF

5000CLR ICF

PART NUMBER

APPLICATION

FUNCTION

5000ENT-ICF26D

For doors that require locking function. Keyed on the outside lever and a push button on the inside lever.

Deadlocking latch bolt where either lever operates latch bolt.

ENTRY FUNCTION

5000STR-ICF26D

For utility, storeroom and exit doors. Deadlocking latch bolt where exterior lever is always rigid. Latch bolt by key outside, lever inside.

STOREROOM FUNCTION

5000CLR-ICF26D

For classroom, office or utility doors. Deadlocking latch bolt where inside lever is always active.

CLASSROOM FUNCTION

DoorControlsUSA.com

79

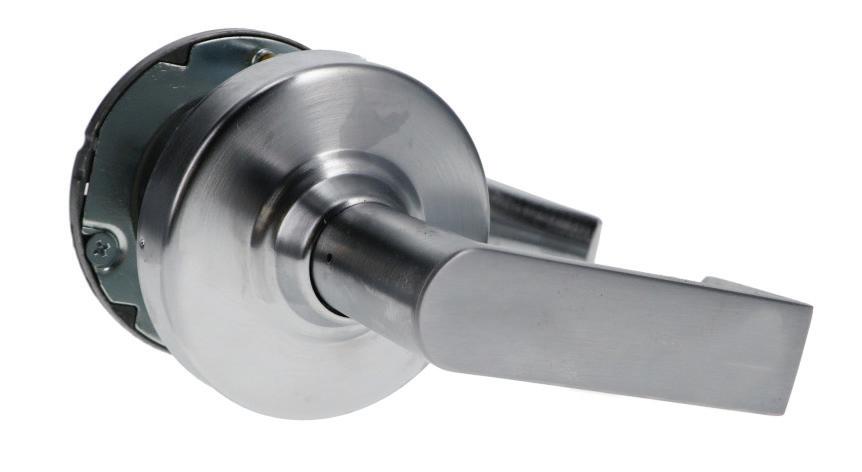

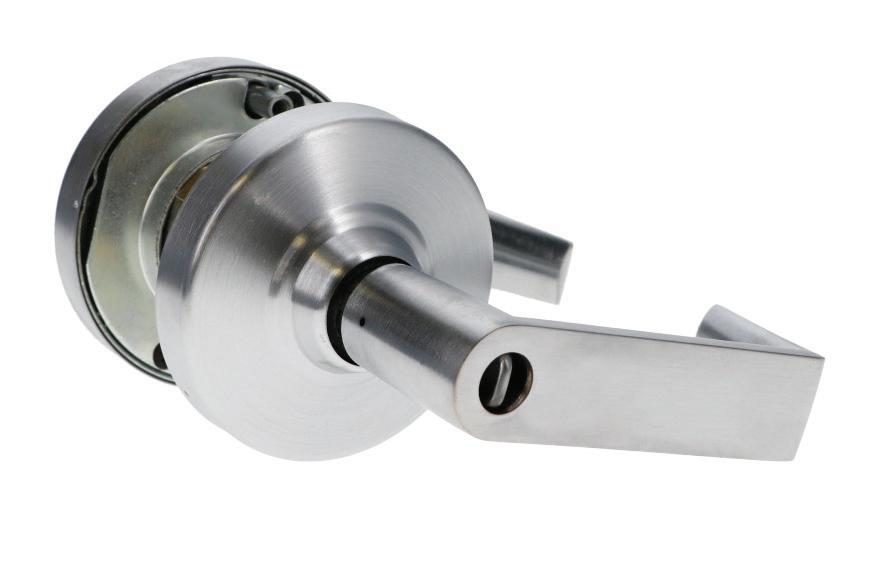

CYLINDRICAL LOCKS SCHLAGE ALX STANDARD FEATURES • • • •

One chassis fits all functions and cores to minimize inventory Spindle has 5 points of lever engagement to prevent droop and/ or wobble For 1 3/8" to 1 3/4" door thickness Available in 10 total designs

ALX10-RHO-626

LEVER SET FUNCTION

ALX10

80

ALX40

ALX50

ALX70

ALX80

PART NUMBER

APPLICATION

FUNCTION

ALX10

For doors that do not require locking.

Lever operates the latch bolt at all times.

PASSAGE FUNCTION

ALX40

For doors that require no key and ability to lock from the interior. Latch bolt by lever either side. Anti-panic operation, turning inside lever retracts latch bolt.

PRIVACY FUNCTION

ALX50

For doors that require locking function. Keyed on the outside lever and a push button on the inside lever.

Deadlocking latch bolt where either lever operates latch bolt.

ENTRY FUNCTION

ALX70

For classroom, office or utility doors. Deadlocking latch bolt where inside lever is always active.

CLASSROOM FUNCTION

ALX80

For utility, storeroom and exit doors. Deadlocking latch bolt STOREROOM FUNCTION where exterior lever is always rigid. Latch bolt by key outside, lever inside.

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

CYLINDRICAL LOCKS SCHLAGE ND STANDARD FEATURES • • • • •

ANSI 161 Spindle has 5 points of lever engagement to prevent droop and/or wobble For 1 3/8" to 1 3/4" door thickness Nine lever and four rose designs Available in 10 finishes

ND53PD-RHO-626

LEVER SET FUNCTION

ND10

ND40

ND50

ND70

ND80

PART NUMBER

APPLICATION

FUNCTION

ND10

For doors that do not require locking.

Lever operates the latch bolt at all times.

PASSAGE FUNCTION

ND40

For doors that require no key and ability to lock from the interior. Latch bolt by lever either side. Anti-panic operation, turning inside lever retracts latch bolt.

PRIVACY FUNCTION

ND50

For doors that require locking function. Keyed on the outside lever and a push button on the inside lever.

Deadlocking latch bolt where either lever operates latch bolt.

ENTRY FUNCTION

ND70

For classroom, office or utility doors. Deadlocking latch bolt where inside lever is always active.

CLASSROOM FUNCTION

ND80

For utility, storeroom and exit doors. Deadlocking latch bolt where exterior lever is always rigid. Latch bolt by key outside, lever inside.

STOREROOM FUNCTION

DoorControlsUSA.com

81

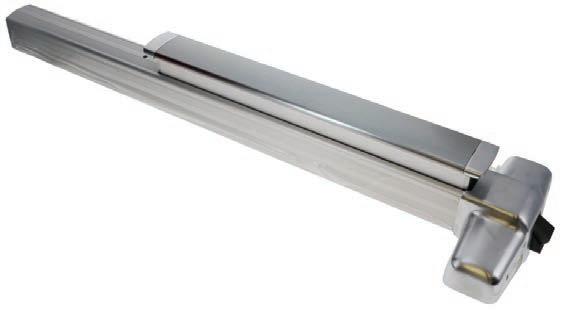

EXIT DEVICES DCM PREMIUM SERIES The DC99 Series provides a full range of heavy-duty, wide stile Panic and Fire-Rated Exit Devices. This series combines durability, safety, and aesthetics to meet modern security and access control requirements.

STANDARD FEATURES • • • •

UL/cUL Listed : UL listed as Panic Exit Hardware or 3-hour Fire Exit Hardware ANSI Certified : Devices are ANSI A156.3 – 2020 Grade 1 standard The DC99EO-3-US32D rim exit devices are compatible with single and double doors that utilize a mullion DC99EO-3-F-US32D devices are designed for UL-listed fire-rated applications, supporting single doors up to 4' x 8' (1219 mm × 2438 mm) and double doors with a mullion up to 8' x 8' (2438 mm × 2438 mm)

DC99E0-3-US32D

DC99EO-3-US32D Panic-Rated Rim Exit Device DC99EO-3-F-US32D Fire-Rated Rim Exit Device

DCM PREMIUM SERIES STANDARD FEATURES • • •

UL/cUL Listed : UL listed as Panic Exit Hardware or 3-hour Fire Exit Hardware ANSI Certified : Devices are ANSI A156.3 – 2020 Grade 1 standard Panic SVR exit devices are suitable for all types of single and double doors Fire SVR exit devices are designed for UL-listed fire-rated door pairs up to 8' x 8' DC9927E0-3-US32D

DC9927EO-3-US32D Panic-Rated SVR Exit Device DC9927EO-4-F-US32D Fire-Rated SVR Exit Device

DCM PREMIUM SERIES STANDARD FEATURES • • • •

UL/cUL Listed : UL listed as Panic Exit Hardware or 3-hour Fire Exit Hardware ANSI Certified : Compliant with ANSI A156.3 - 2020 Grade 1 standard Panic CVR exit devices are compatible with single and double doors Furnished with two (2) reinforced plates to strengthen both top edge and bottom edge of the wood door DC9947E0-3-US32D

DC9947EO-3-US32D Panic-Rated CVR Exit Device

82

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

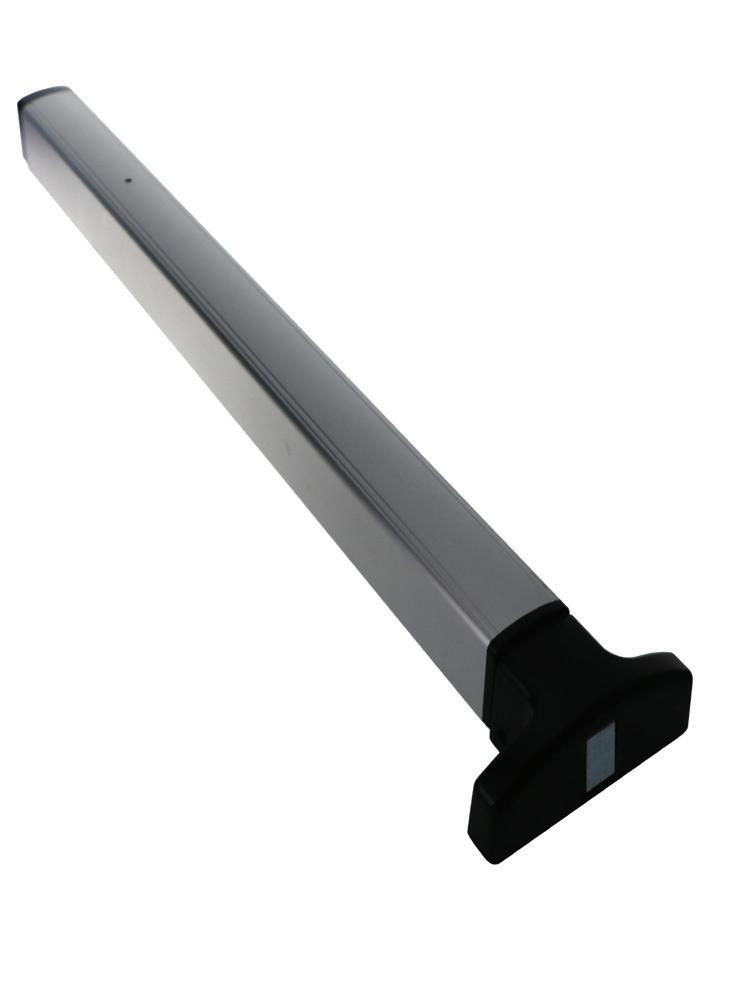

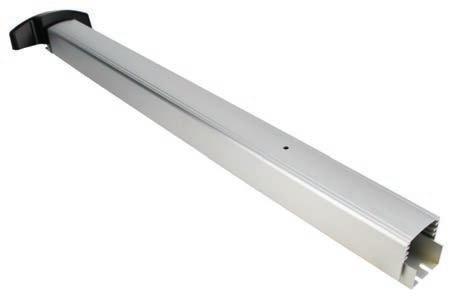

EXIT DEVICES DCM EDTBAR SERIES The EDTBAR is an all-metal unit designed for medium to wide style doors. This universal, well-crafted, non-handed unit is a cost-effective solution for all hollow metal or wood door applications. The EDTBAR is constructed for medium traffic doors needing a solution for exit or to meet fire code.

STANDARD FEATURES • • • • • • •

UL Listed ANSI 156.3 rating Allen dogging key standard Fire rated units available Minimum 4 1/2" stile requirement for mounting 2 3/4" backset Non-handed, field reversible

• • • •

All-metal unit, large-head cover with large push pad Built to accept standard rim cylinder for exterior key control 36" or 48" units available **Available in Aluminum, Bronze and Stainless Steel finishes

EDTBAR33-AL

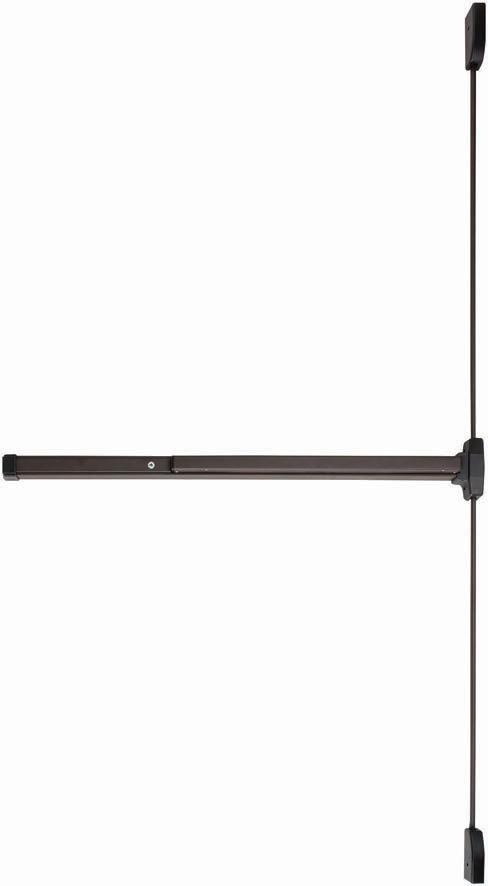

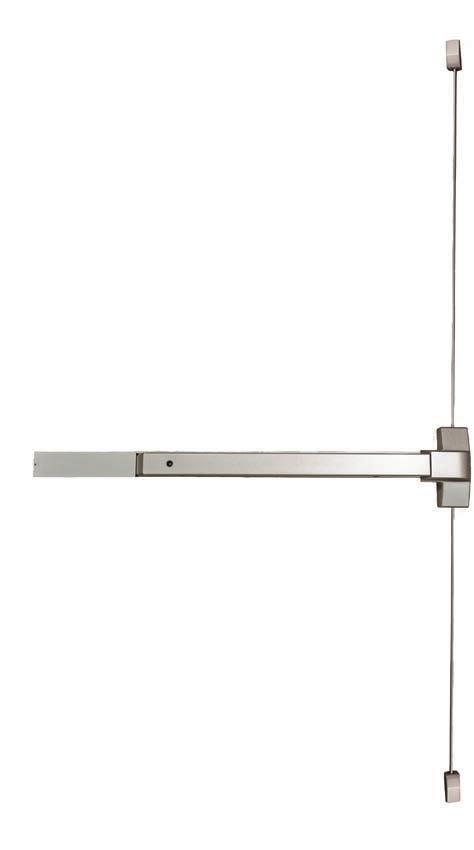

DCM EDTBARSVR SERIES The EDTBARSVR offers a tested solution for single or double door openings that require surface-mounted rods.

The highly reliable device can be installed where a mullion is not present. It can also carry the capability to function as a less bottom rod unit, which is desired in health care buildings.

STANDARD FEATURES • • • • • • • •

UL Listed ANSI A156.3 rating Allen dogging key standard Fire rated units available Minimum 4 1/2" stile requirement for mounting 2 3/4" backset Non-handed, field reversible All-metal unit, large-head cover with large push pad

• • • •

Built to accept standard rim cylinder for exterior key control 44" units available External rods to fit doors 7' to 8' **Available in Aluminum, Bronze and Stainless Steel finishes EDTBARSVR44-AL

TRIM PACKAGES STANDARD FEATURES • • • •

Cylindrical body hardened steel heavy duty tail piece Built for 1 3/4" to 2" thick doors Through bolt design for added security in the opening **Available in Aluminum (260) and Bronze (10B) finishes ACCESSORIES LTE-** Entry Function Lever Trim

LTE-26D

LTP-** Passage Function Lever Trim ELTE-**Escutcheon Lever Trim Designed with Built In Mortise Cylinder

EX100014

EX100007 Double Door Strike LTP-26D

ELTE-26D

DoorControlsUSA.com

EX100014 Pull Trim with Cylinder Hole, 8P03

ELTS-**Storeroom Escutcheon Lever with Cylinder EX100007

83

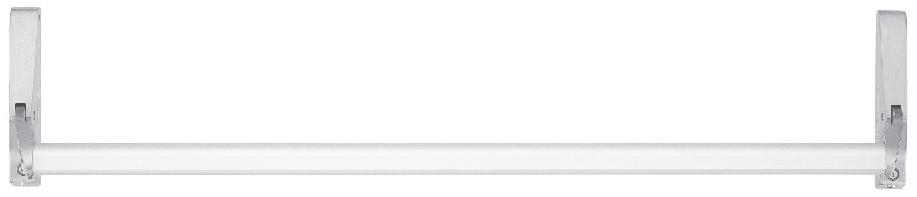

EXIT DEVICES DCM ED SERIES The ED Crossbar-Style Panic Device is acceptable for narrow, medium or wide style door applications. It is universally recognized as the standard for aluminum storefront exit device design. With the option of rim style and concealed vertical rod style, this device is the perfect solution when considering a reliable, maintenance-free means to satisfy life-safety requirements.

STANDARD FEATURES • • • • • • • •

UL Listed Constructed with high-grade aluminum Flat head dogging function available Concealed fasteners 42" crossbar that is able to be field cut Handed Built to accept standard rim cylinder for exterior key control Available in Aluminum and Bronze finishes EDLH-AL

EDLH-AL Narrow Style Crossbar EDLH-DU Narrow Style Crossbar

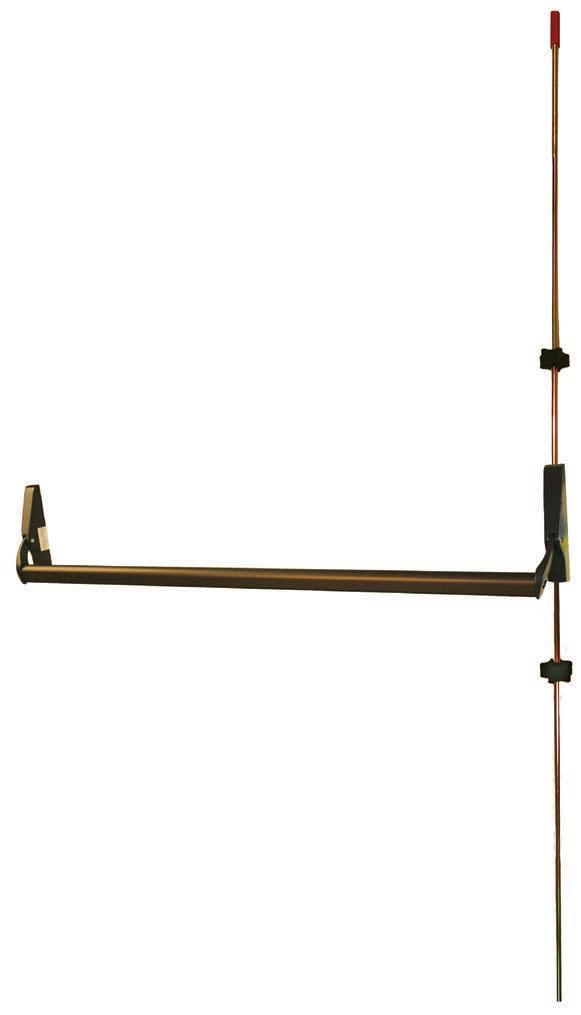

DCM CVR SERIES The signature CVR is a highly recommended solution for single or double door opening requiring concealed vertical rods. The highly reliable device can be installed where a mullion is not present. The CVR can also carry the capability to function as a less bottom rod unit, which is desired in health care buildings.

STANDARD FEATURES • • • • • • • • •

UL Listed Constructed with high grade aluminum Flat head dogging function available Concealed fasteners 42" crossbar that is able to be field cut Non-handed, field reversible Independent top and bottom bolt action - 1/2" bolt throw Built to accept standard rim cylinder for exterior key control Available in Aluminum and Bronze finishes

CVR-DU

CVR-AL Narrow Style Crossbar CVR-DU Narrow Style Crossbar

ACCESSORIES RZ1003-AL Rim Cylinder - 5 pin with 2 keys RZ1003-DU Rim Cylinder - 5 pin with 2 keys

84

RZ1003-AL

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

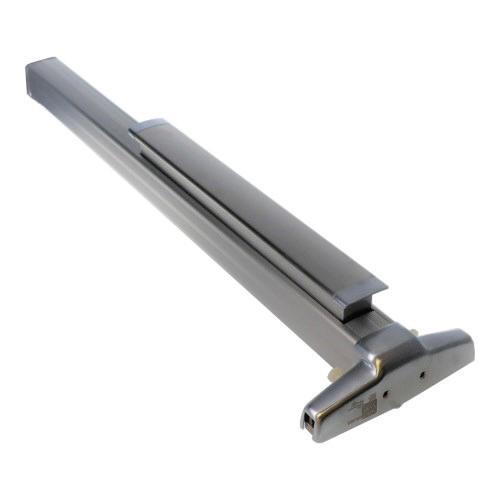

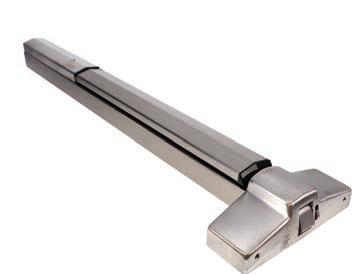

EXIT DEVICES VON DUPRIN 98/99 SERIES RIM STANDARD FEATURES • • • • • • • • •

UL Listed for panic exit hardware ANSI/BHMA A156.3 - 2014, Grade 1 certified Non-handed For doors with a mullion Alarm kit available 99 has grooved casing 98 has a smooth mechanism case 36" and 48" devices available Available in US26D, 313 and 32D* *For 98 series only

99EO-3-US26D

VON DUPRIN 9875/9975 SERIES MORTISE STANDARD FEATURES • • • • • • • •

UL Listed for panic exit hardware ANSI/BHMA A156.3 - 2014, Grade 1 certified Non-handed Fits door stiles as narrow as 4 3/4" 9975 has grooved casing 9875 has a smooth mechanism case 36" and 48" devices available Available in US26D, 313 and 32D* *For 98 series only

9975EO-US26D

VON DUPRIN 9827/9927 SERIES SVR STANDARD FEATURES • • • • • • •

UL Listed for panic exit hardware ANSI/BHMA A156.3 - 2014, Grade 1 certified Non-handed 9927 has grooved casing 9827 has a smooth mechanism case 24", 36" and 48" devices available Available in US26D, 313 and 32D* *For 98 series only

9927EO-3-US26D

VON DUPRIN 9847/9947 SERIES CVR STANDARD FEATURES • • • • • • •

UL Listed for panic hardware ANSI/BHMA A156.3 - 2014, Grade 1 certified Non-handed 9947 has grooved casing 9847 has a smooth mechanism case 24", 36" and 48" devices available Available in US26D, 313 and 32D* *For 98 series only

DoorControlsUSA.com

9947EO-3-US26D

85

EXIT DEVICES VON DUPRIN 33A/35A RIM SERIES STANDARD FEATURES • • • • • • • • • •

UL Listed for panic exit hardware ANSI/BHMA A156.3 - 2014, Grade 1 certified Non-handed For doors with a mullion Fits door stiles as narrow as 1 3/4" Alarm kit available 33A has grooved casing 35A has a smooth mechanism case 36" and 48" devices available Available in US26D and 313 33AEO-3-US26D

VON DUPRIN 3327A/3527A SVR SERIES STANDARD FEATURES • • • • • • • •

UL Listed for panic exit hardware ANSI A156.3 - 2008, Grade 1 certified Non-handed Fits door stiles as narrow as 1 3/4" 3327A has grooved casing 3527A has a smooth mechanism case 36" and 48" devices available Available in US26D and 313 3327A-EO-3-26D

VON DUPRIN 3347A/3547A CVR SERIES STANDARD FEATURES • • • • • • • • •

UL Listed for panic exit hardware ANSI A156.3 - 2008, Grade 1 certified Non-handed Fits door stiles as narrow as 2 1/8" Fits wood stiles as narrow as 4" 3347A has grooved casing 3547A has a smooth mechanism case 36" and 48" devices available Available in US26D and 313

86

3347A-EO-3-US26D

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

EXIT DEVICES FALCON 24/25 SERIES STANDARD FEATURES • • • • • •

ANSI A156.3, Grade 1 certified Built for constant traffic - offices, banks, retail stores and more Device types: rim, surface vertical rod, concealed vertical rod and the mortise vertical rod 24 Series is a narrow stile 25 Series is a wide stile Available finsihes: 26D, 32D, 313AN

24R-EO-3-US26D

25-R-EO-3-26D

FALCON 1690 SERIES STANDARD FEATURES • • • • • • • • •

ANSI A156.3, Grade 1 certified Non-handed, field reversable Used for hurricane rated door openings For demanding, moderate-traffic applications Electric functions available Fits door stile of 1 3/4" minimum For 1 3/4" thick metal doors 30", 36", 42" and 48" devices available Available finsihes: US28 and US26D

1690EO-36AL

FALCON 1790 SERIES STANDARD FEATURES • • • • • • • • • •

UL Listed ANSI A156.3, Grade 1 certified Non-handed Removable mullions For maintenance concerned entrances Electric functions available Fits door stile of 1 3/4" minimum For 1 3/4" thick metal or wood doors 30", 36", 42" and 48" devices available Available finsihes: US28 and US26D

DoorControlsUSA.com

1790EO-3-US28

87

EXIT DEVICES FALCON 19-R SERIES NON-HANDED RIM STANDARD FEATURES • • • • • • •

ANSI A156.3, Grade 1 certified Non-handed Exit only device Fits door stile of 1 3/4" minimum For 1 3/4" thick aluminum doors 48" devices available Available finishes: Aluminum (SP28), Dark Bronze (SP313) and Stainless Steel (32D)

19-R-EO-SP28-4

FALCON 19-V SERIES NON-HANDED VERTICAL ROD STANDARD FEATURES • • • • • • •

ANSI A156.3 2001, Grade 1 certified Field reversible Exit only device Fits door stile of 1 3/4" minimum For 1 3/4" thick aluminum doors 48" devices available Available finishes: Aluminum (SP28), Dark Bronze (SP313) and Stainless Steel (32D)

19-V-EO-4-SP313

MARKS USA M9900 SERIES EXIT DEVICE Heavy-duty, easily installed exit devices where high quality panic and fire listed hardware is needed.

These extremely durable, Grade 1 exit devices are perfect for high impact applications such as schools, universities and other institutional or commercial buildings, and retrofit all popular preps. The heavy-duty cast chassis provides superior durability, while the smooth reduced projection touch-bar assembly minimizes catch hazards and mitered steel flush mounted Panic Protector™ End Caps, prevent abuse.

STANDARD FEATURES • • • • •

ANSI A156.3 2001, Grade 1 certified Ultra-Durable, heavy gauge extrusion Steel flush mounted Panic ProtectorTM End Cap Easy Installation & Retrofits All Popular Preps M9900 is 3 Hour Fire Rated Dead Latch Bolt; Stainless Steel 3/4" Throw

88

M9900-32D

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

EXIT DEVICES ADAMS RITE 8600 CVR SERIES STANDARD FEATURES • • • • • • •

UL 305 exit devices ANSI/BHMA A156.3, Grade 1 certified Non-handed Electric functions available Designed for narrow stile of 1 3/4" up to 2 1/4" doors 30", 36", 42" and 48" devices available Availabe finishes: Aluminum and Dark Bronze 8611-36

ADAMS RITE 8800 RIM SERIES STANDARD FEATURES • • • • • • • •

UL 305 exit devices ANSI/BHMA A156.3, Grade 1 certified Non-handed Electric functions available Removable mullion Fits door stile of 2" minimum - narrow, medium, and wide stile aluminum doors 30", 36", 42" and 48" devices available Availabe finishes: Aluminum and Dark Bronze

8801-36-628

ACCENTRA 6000 SERIES STANDARD FEATURES • • • • • •

ANSI/BHMA A156.3, Grade 1 certified With stand multi-family, retail, office and other commercial exit usage Designed for wide or narrow stile configurations Available as rim, mortise, square bolt, surface vertial rod and concealed vertical rods Available sizes: 36" and 48" Available finishes: Stainless Steel (630), Dark Bronze (613E) and Black Suede Powder Coat

6100-36-630

ACCENTRA 7000 SERIES STANDARD FEATURES • • • • •

UL/cUL listed ANSI/BHMA A156.3, Grade 1 certified Integrates into existing security or fire alarm systems Available as rim, mortise, square bolt, surface vertial rod and concealed vertical rods Available finishes: Stainless Steel (630), Dark Bronze (613E) and Black Suede Powder Coat

DoorControlsUSA.com

7100-36-630

89

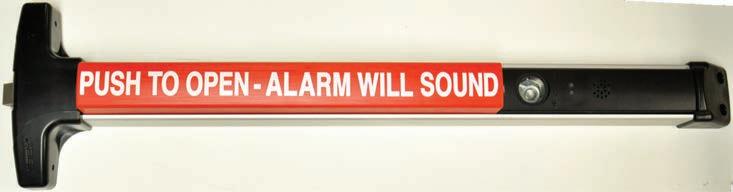

EXIT DEVICES DETEX V40xEB The V40xEB manufactured by Detex is built strong and durable for any exit door requiring an alarmed exit device.

This cost-effective unit provides a security option while meeting all life safety concerns. Built with a battery-operated alarm system, the V40xEB does not require any exterior power supply.

STANDARD FEATURES • • • • • • • • •

UL Listed for exit device Meets ADA requirements Non-handed Field sizeable Available for narrow, medium, and wide style door applications 100 decibel alarm Standard 9-volt battery operates alarm Alarm/disarmed field selectable status indicator included 36" and 48" devices available

V40EB-36

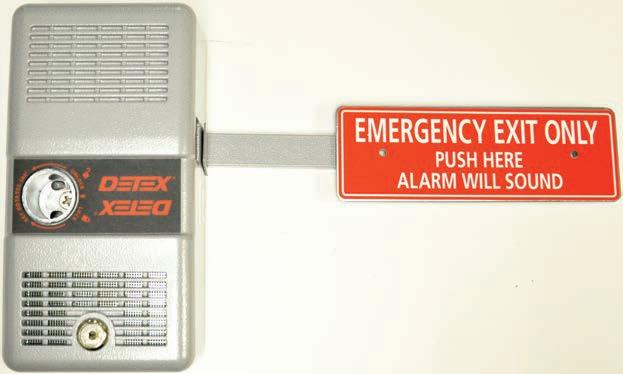

DETEX ECL-230 The Detex ECL-230 exit control device provides a cost-effective and controlled security option for exit doors requiring monitoring. The ECL-230 unit not only reduces theft from inside out but with 2000 lbs of resistant design, this unit will also help prevent break-ins from the outside in.

STANDARD FEATURES • • • • • •

UL Listed for exit device Meets ADA requirements Non-handed 100 decibel alarm Standard 9-volt battery operates alarm Extended bar also available ECL-230D

90

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

EXIT DEVICES JACKSON 10 SERIES Jackson 10 Series Exit Device is universally recognized as the standard for aluminum storefront hardware. This crossbar ® ® device was designed with simplicity in mind, yet it will provide many years of smooth, reliable operation. Available in both a rim and concealed vertical rod version, this device is suitable for use with narrow, medium and wide style doors. The 10 10 Device SERIES EXIT 10 DEVICE SERIES EXITconsidering DEVICEa reliable, maintenance-free means to® satisfy life safety Series Exit is the perfect solution when requirements.

10 SERIES EXIT DEVICE

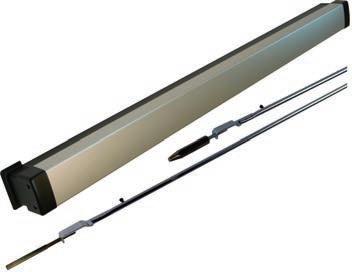

1085 CONCEALED VERTICAL ROD

1085 CONCEALED VERTICAL ROD

STANDARD FEATURES • • • •

Non-handed Independent top and bottom bolt action - 1/2" bolt throw UL Listed for exit device Uses standard mortise cylinder with maximum security

1085AL

TECHNICAL INFORMATION TECHNICAL INFORMATION

1095 RIM EXIT DEVICE

1095 RIM EXIT DEVICE

STANDARD FEATURES • • •

Handed - not reversible Uses standard rim cylinder for keyed entry UL Listed for exit device 1095LHR-AL

DIMENSIONS - Inch DIMENSIONS (Metric) - Inch (Metric)

TECHNICAL DRAWING

1095 RIM EXIT DEVICE

B2• EXIT DEVICES

EXIT DEVICES • B1

DoorControlsUSA.com

EXIT DEVICES • B1

91

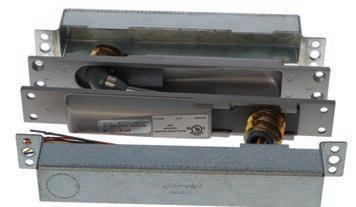

ELECTRIFIED SOLUTIONS VON DUPRIN EPT2/EPT10 SERIES POWER TRANSFER Two models available: • EPT2, two 18 gauge wires • EPT10, ten 24 gauge wires STANDARD FEATURES • • • • • •

UL listed for use on fire doors and miscellaneous door accessory Built for heavy traffic and high abuse door openings Door applications: butt hinge and offset pivots EPT2 and EPT10 are UL634, ULC/ORD C634 and UL10C/CAN-ULC-S104 certified PNT-1 is UL10C/CAN-ULC-S104 certified Comes in SP28 and SP313 EPT10-SP28

VON DUPRIN 6100 SERIES ELECTRIC STRIKE The 6100 Series electric strikes are for retrofit application or new construction. This electric strike is designed for use with a variety of rim exit devices including rim nightlatch.

STANDARD FEATURES • • • • • • • •

Heavy-duty Stainless Steel Five configurations available for rim exit and nightlatch devices 24 VDC standard with optional 12 VDC and AC operation For interior or exterior doors UL 10C 3-hour fire-rated electric strike for models 6111, 6112 and 6113 (fail secure only) UL 1034 listed for burglary-resistant electric door strike Comes in US3/BHMA 605, US4/BHMA 606, US10/BHMA 612, US10B/BHMA 613, US32/BHMA 629, US32/BHMA 630 Part # 6111-FSE-24-US32D and 6114-FSE-24-US32D

6111FSE-US32D

VON DUPRIN 6200 SERIES ELECTRIC STRIKE The 6100 Series electric strikes are for retrofit application or new construction. This electric strike is designed for use with a variety of mortise or cylindrical locksets.

STANDARD FEATURES • • • • • • • •

Heavy-duty Stainless Steel 17 configurations available for mortise and cylindrical devices 24 VDC standard with optional 12, 16 and 28 VDC For interior or exterior doors UL 10C 3-hour fire-rated (fail secure only) UL 1034 listed for burglary-resistant electric door strike Comes in US3/BHMA 605, US4/BHMA 606, US10/BHMA 612, US10B/BHMA 613, US32/BHMA 629, US32/BHMA 630 Part # 6211-FSE-24-360, 6223-FSE-24-630 and 6216-FSE-24-630

92

6211AL-US32D

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

ELECTRIFIED SOLUTIONS HES 1600 ELECTRIC STRIKE The 1600 Series is the most advanced strike available on the market for cylindrical latchbolt and deadbolt locks. It has a static strength of 1,500 pounds and can endure 1 million cycles.

STANDARD FEATURES • • • • • • • • •

UL listed ANSI/BHMA A153.31, Grade 1, ANSI/SDI 250.13 windstorm resistant, ANSI/ASTM E330 RoHS compliant and PoE friendly Non-handed Stainless Steel construction Tamper proof Field adjustable and field replaceable Dual voltage of 12/24 VDC/VAC Comes in 605, 606, 612, 613E, 629, 630, BSP

1600CLB-630

HES 5000 ELECTRIC STRIKE The 5000 Series is windstorm rated, surface mounted electric stike is designed for low profile openings where it has limited space behind the jamb. It has a static strength of 1,500 pounds and can endure 500,000 cycles.

STANDARD FEATURES • • • • • • •

UL 294 listed and UL 1034 burglary-resistant listed and can be used for outdoor use ANSI/BHMA A156.31, Grade 1 certified Non-handed Tamper resistant Plug-in connector Dual voltage of 12 or 24VDC/VAC Comes in 605, 606, 612, 613, 629, 630 and BLK 5000C-630

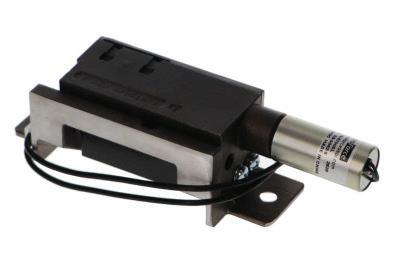

HES 9400 SURFACE MOUNTED ELECTRIC STRIKE The 9400 Series is a slimline, surface mounted electric stike that is designed to accommodate rim exit devices. It has a static strength of 1,500 pounds and can endure 1 million cycles.

STANDARD FEATURES • • • • • • • •

UL 294 listed and UL 1034 burglary-resistant and can be used for outdoor use ANSI/BHMA A153.31, Grade 1 certified RoHS compliant Non-handed For metal or wood frames Stainless Steel construction Field selectable fail safe/fail secure Comes in 605, 606, 612, 613, 613E, 629, 630, BSP

DoorControlsUSA.com

9400-630

93

DC20UES

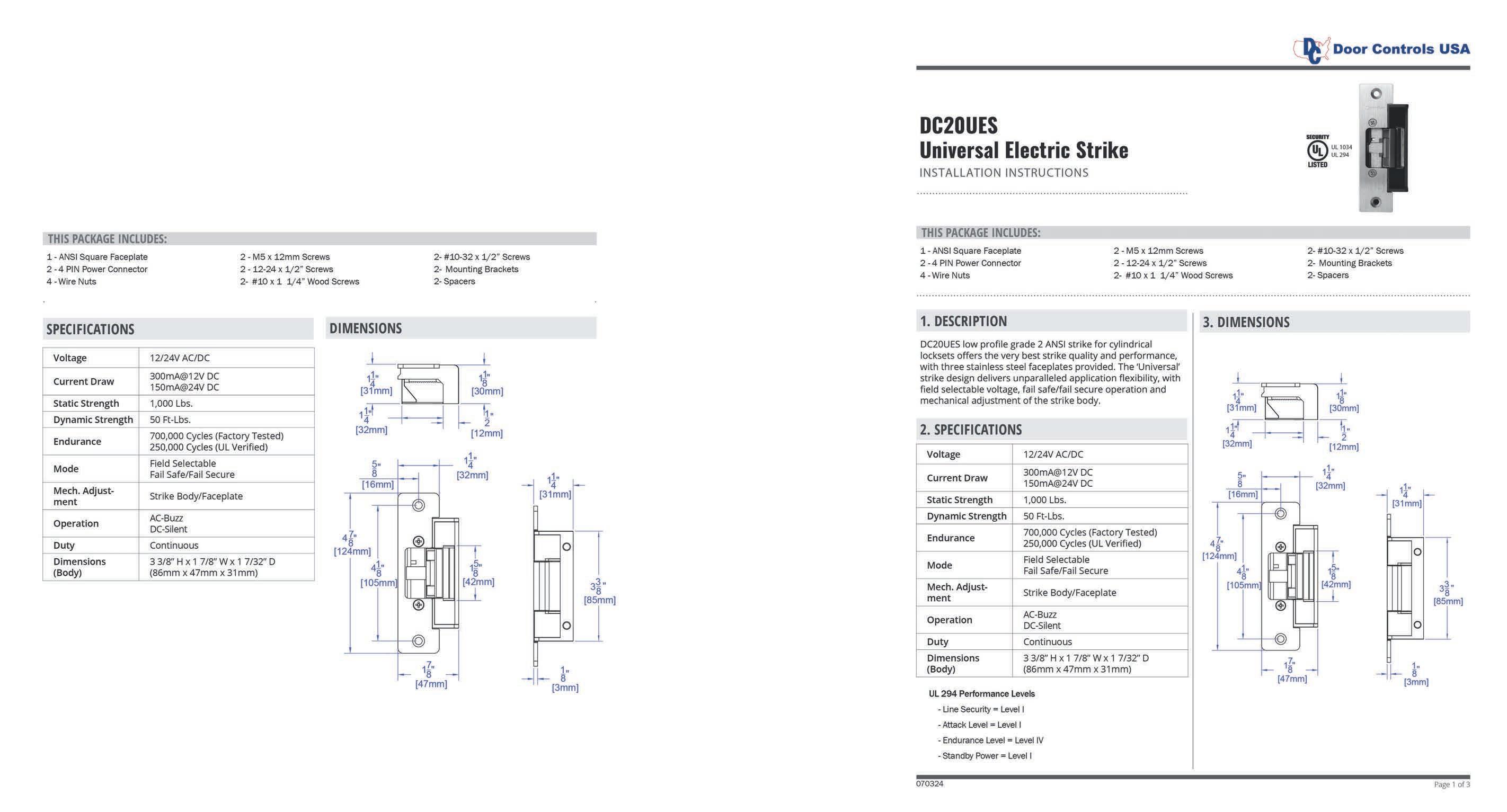

DOOR CONTROLS USA ELECTRIC STRIKE DC20UES low profile Grade 2 ANSI strike for cylindrical locksets offers the very best strike quality and performance, with three stainless steel faceplates provided. The ‘Universal’ strike design delivers unparalleled application flexibility, with field selectable voltage, fail safe/fail secure operation and mechanical adjustment of the strike body.

STANDARD FEATURES • Economical price • Field selectable (Fail/Safe or Fail Secure) • Can be 12/24 V AC/DC • Satin stainless steel 3 faceplatesINCLUDES: • Includes THIS PACKAGE UL listed •THIS PACKAGE INCLUDES:

DC20UES

INCLUDES: 2 - M5 x 12mm Screws 2- #10-32 x 1/2" Screws 1 -THIS ANSIPACKAGE Square Faceplate 2x 1/2" Screws x 12mm Screws 12--THIS ANSI Square Faceplate THIS PACKAGE INCLUDES: 222- --M5M5 THIS PACKAGE PACKAGE PACKAGE INCLUDES: INCLUDES: INCLUDES: 2 -#10-32 Mounting Brackets 12-24 x 1/2" Screws PIN Power Connector 2- #10-32 x 1/2" Screws x 12mm Screws 1 -4THIS ANSI Square Faceplate 2 - Mounting Brackets 2 -12mm 12-24 1/2" Screws --21 -4 PIN Power Connector M5 2- #10-32 x 1/2" Screws 12 14 -Square ANSI Square Square Faceplate Faceplate Faceplate 2 - 2M5 - 2M5 x-12mm x212mm Screws Screws 2#10-32 2- #10-32 x 1/2" x21/2" Screws Screws 2 Spacers 2 #10 x12mm 1x1/4" Wood Screws 4 Wire Nuts - Mounting Brackets 1/2" Screws -ANSI PIN Power Connector 2--#10-32 x 1/2" Screws 2-x--12-24 M5 xScrews Screws 1--ANSI ANSI Square Faceplate - 12-24 x#10 1/2" 2 - 2Mounting Brackets 24- -24 Wire -PIN -PIN Power 4 PIN Power Power Connector Connector Connector 2 - 212-24 - 212-24 x 1/2" 1/2" Screws Screws - 2Mounting - Mounting Brackets 2 - Spacers x1/4" 1 1/4" Wood Screws Nuts 2 Brackets - Spacers 22 -x --#10 x 1Screws Wood Screws 44 -24Wire Nuts 2 - Mounting Brackets 2 12-24 x 1/2" Screws 2 PIN Power Connector xWood 1 1/4" Wood Screws 2 - 2Spacers 4 - 4Wire - 4Wire -Nuts Wire Nuts Nuts 2 - 2#10 - 2#10 x- 1#10 1/4" x 1 1/4" Wood Screws Screws - 2Spacers - Spacers 2 - Spacers 2 - #10 x 1 1/4" Wood Screws 4 - Wire Nuts

SPECIFICATIONS:

DIMENSIONS:

SPECIFICATIONS: SPECIFICATIONS: SPECIFICATIONS: SPECIFICATIONS: SPECIFICATIONS:

DIMENSIONS: DIMENSIONS: DIMENSIONS: DIMENSIONS: DIMENSIONS:

SPECIFICATIONS:

DIMENSIONS:

UL 294 UL 294 UL Performance 294 Performance Performance Levels Levels Levels LineLine Security Line Security Security = Level = Level =I Level I I Attack Attack Attack Level Level =Level Level = Level =I Level I I Endurance Endurance Endurance Level Level =Level Level = Level =IVLevel IV IV ULStandby 294 Performance Standby Standby Power Power Power = Level = Level =I Level I Levels I

94

UL 294 Performance Levels Line Security = Level I UL 294 Performance Levels Line Security Level Attack Level ==Level I I Line Security Level Attack Level ==Level II IV Endurance Level = Level UL 294 Performance Levels Attack Level = Level I I IV Standby Power = Level Endurance Level = Level Line Security = Level I IV Endurance Level = Level Standby Power = Level I Attack = Level I I StandbyLevel Power = Level Endurance Level = Level IV

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

ELECTRIFIED SOLUTIONS HES 9600 SURFACE MOUNTED ELECTRIC STRIKE The 9500 Series is a windstorm rated, surface mounted electric stike that is designed to accommodate rim exit devices. It has a static strength of 2,000 pounds and can endure 1 million cycles.

STANDARD FEATURES • • • • • • • • • • •

UL 294 and 305 listed UL 1034 burglary-resistant listed and can be used for outdoor use ANSI/BHMA A156.31, Grade 1 certified (#E09731, #E09732, #E09373) ANSI 250.13-2003 Severe Windstorm listed RoHS compliant Non-handed For metal or wood frames Stainless steel construction Field selectable fail safe/fail secure Dual voltage of 12VDC or 24VDC Comes in 605, 606, 612, 613, 613E, 629

9600-630

SECURITRON CEPT - CONCEALED POWER TRANSFER The Securitron CEPT is a heavy-duty and tamper-resistant Concealed Electrical Power Transfer (CEPT) that securely transfer power and data from hinge side of the frame to the electrified hardware on the door. The CEPT can endure 1 million cycles.

STANDARD FEATURES • • • • • •

ULC-S318 listed, 3 hour ratad ANSI/UL 10C listed, 3 hour rated and ANSI/SDI-BHMA A250.13 (+/- 150 psi) Windstorm listed Florida Building Code approved Dimensions: 9 1/16"L x 1 3/16"W x 1 7/16"D Comes in US32D/630, US04/606, US10/612 and US10B/613

DoorControlsUSA.com

EL-CEPT

95

ELECTRIFIED SOLUTIONS ADAMS RITE 7400 ELECTRIC STRIKE SERIES STANDARD FEATURES • • • • • • • •

UL 294 and 1034 listed ULC-S319 certified ANSI/BHMA A156.18 and ANSI/BHMA A156.31 electric strikes and frame mounted actuators, grade 1 Field selectable to match power source of 12/24 VDC. VA7400-16VDC voltage adapter is required when using 16 VDC power, available seperately.

Equipped with a quick connect plug-in type connector Current Draw - .44 A at 12 VDC, .46 A at 16 VDC and .23 A at 24 VDC (requires 16 DC adapter) Field selectable fail safe/fail secure Part # 9600-630

7400

7401 Part Number

96

7410

7411

7430

Dimensions

7431

7440

Description

7400

1 1/4" x 4 7/8" (31.8 mm x 123.8 mm)

Flat with radius corners

7401

1 1/4" x 4 7/8" (31.8 mm x 123.8 mm)

Radiused to match nose on inactive leaf in a pair of narrow stile doors.

7410

1 7/16" x 7 15/16" (36.5 mm x 201.6 mm)

Flat with radius corners

7411

1 7/16" x 6 7/8" (36.5 mm x 174.6 mm)

Flat with radius corners

7430

1 1/4" x 6 7/8" (31.8 mm x 174.6 mm)

Flat with radius corners

7431

1 1/4" x 6 7/8" (31.8 mm x 174.6 mm)

Radiused to match nose on inactive leaf in a pair of narrow stile doors.

7440

1 1/4" x 4 7/8" (31.8 mm x 123.8 mm)

Flat with square corners

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

ELECTRIFIED SOLUTIONS TRINE ELECTRIC STRIKES 4800 SERIES 4800 Series Trine Electric Strike is the most flexible electric strike for use with surface-mounted rim exit devices.

STANDARD FEATURES • • • • • •

BHMA Grade 1 Electric Strike. Heavy duty construction, 1,000,000+ life cycles 1,500+ lbs. of holding force Class A.3 hour fire-rated single door / frame configuration Fail safe / fail secure field selectable Fire rated rim panic strikes available Available in US10B, US32D finishes 4850-US32D

4100 SERIES Trine's 4100 Series Electric Strike covers 90 percent + of cylindrical and mortise lock configurations (without deadbolt), plus faceplates can be kept and used to help accommodate for door sag.

STANDARD FEATURES • • • • • • •

BHMA Grade 1 Electric Strike. Heavy duty construction, 1,000,000+ life cycles 3,250+ lbs. of holding force ANSI / BHMA A156.5 rated Class A.3 hour fire rated single door / frame configuration UL Listed - 1034 burglary resistant Low current draw .240 Amp at 12DC, 12DC, 24DC or 12 - 24AC Available in US10B, US32D finishes

4100-32D

4200 SERIES The 4200 Series Electric Strike from Trine has the largest cavity in its class. The added height solves door sag and other alignment problems. With a 1 1/16" shallow backset the 4200 Series will solve depth issues from glass in aluminum storefront door applications.

STANDARD FEATURES • • • • • •

BHMA Grade 1 Electric Strike 1,500+ lbs of holding force For both cylindrical and deadlatch applications Low current draw 12DC, 24DC, 12-24AC Available in US10B and US32D finishes 4200-32D

DoorControlsUSA.com

97

ELECTRIFIED SOLUTIONS BEA UL ELECTRIC STRIKES BEA’s Electric Strikes include Rim Exit and Universal Cylindrical Strikes for access control applications. Rim Exit Strikes are surface mounted and specifically designed for rim exit devices. This eliminates the need to cut into the frame of the door.

The Universal Cylindrical Strike is UL294 and UL1034 listed. Designed for egress and ingress applications that allow controlled access and security for code compliance and safety.

STANDARD FEATURES • • • • •

Modular faceplate options Standards compliant Configurable Durable UL Listed STRIKEREV12/STRIKEREV34 Entry Function Lever Trim

STRIKECUV

Passage Function Lever Trim STRIKEREV12

STRIKEREV34

STRIKECUV

CAMDEN ELECTRIC STRIKES CX-ED1259L RIM Electric Strike – Grade 1 fire rated surface mount that accommodates ½” to ¾” latch projection and is a universal strike. Includes 2 spacer plates and horizontal adjustment to insure correct latch alignment in all applications.

CX-EPD2101L Series 20 Pre-Load Electric Strikes – Offers the highest preload rating, precision engineered quality and the most adjustability of any strike in the industry. Fail safe or fail secure with adjustable keeper and latch monitoring.

CX-ED1079 Series Universal Gr. 1 Electric Strikes – Universal grade 1 ANSI strike offers universal performance with selectable 12/24V AC/DC and fail safe/fail secure operation with horizontal faceplate/body adjustments.

CX-ED1309 Universal Electric Strike for Narrow Stile Aluminum – Specifically designed for narrow stile aluminum door frames, typically used for store front retail doors. Grade 1 ANSI electric strike features a universal files selection of 12/24V, AC/DC and fail safe/fail secure options.

CX-ED2071/ED2079 Universal Low-Profile Gr. 2 Electric Strike – New low-profile grade 2 ANSI electric strike for cylindrical locksets provide exceptional value with 3 faceplates. 12/24V, AC/DC voltage, fail safe/fail secure operation and horizontal adjustment of the strike body.

CX-ED1259L

98

CX-EPD2010L

CX-ED1079

CX-ED1309

CX-ED2079

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

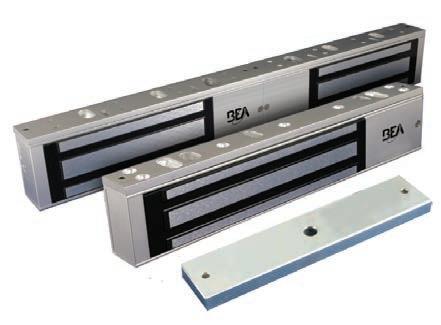

ELECTRIFIED SOLUTIONS BEA UL LISTED MAGLOCKS BEA’s UL Listed Maglocks provides standard compliant locking solutions for retail, healthcare, banking and other high security facilities. The maglocks can be used on various types of doors like wood, metal, aluminum, glass and other composite door materials. Available in surface mount single or double door configurations with a holding force of 600 or 1,200 pounds. Adjustable from zero (0) to ninety (90) second relock time delay. Also, a visible lock status provided by an LED. STANDARD FEATURES • • • • •

MAGLOCK5UL

Customizable Enhances accessibility UL Listed Mounting accessories Convenient packages

MAGLOCK3UL

MAGLOCK3UL

FILLER12UL ½” x ¾” Filler Plate

Single 600 lb 12/24 VDC

MAGLOCK6UL

Double 600 lb Maglock

MAGLOCK3UL

MAGLOCK1UL

FILLER34UL ¾” x ¾” Filler Plate

FILLER12UL

FILLER8UL 1 /16” x ¾” Filler Plate

Single 1,200 lb Maglock

MAGLOCK5UL

RIMHOUSING3UL

Double Maglock 1200 lbs w/DPS MAGLOCK1UL

LZBRMAG3UL

L&Z Brackets (MAGLOCK3UL)

Armature Plate Housing for Single 600 lb

RIMHOUSING1UL

FILLER34UL

Armature Plate Housing for Single 1,200 lb

LZBRMAG1UL

Passage function lever trim

SPACER3UL

MAG6LZUL

L&Z Brackets for Maglocks

MAGLOCK5UL

MAG5LZUL

Vertical Spacer Bracket for Single 600 lb

FILLER58UL

SPACER1UL

L&Z Brackets for MAGLOCK5UL

Vertical Spacer Bracket for Single 1,200 lb

UBRACKETUL

Glass Door Mounting Kit MAGLOCK6UL

PS12-24

UL/ULC Listed Power Supply

RIMHOUSING3UL

SP12-24D

UL/ULC Listed Power Supply RIMHOUSING1UL LZBRMAG3UL

LZBRMAG1UL

SPACER3UL SPACER1UL

MAG6LZUL

DoorControlsUSA.com

MAG5LZUL

BRACKETUL

PS12-24D

PS12-24

99

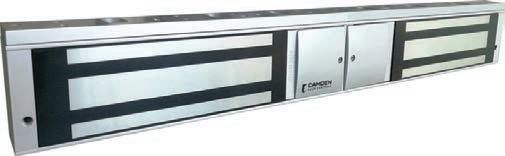

ELECTRIFIED SOLUTIONS CAMDEN CX-90 SERIES MAGLOCK CX-90 Series magnetic locks are compact and ideal for securing cabinets, gates and other security applications where a larger magnetic lock is not practical. The 300 lbs. magnetic locks feature heavy duty all metal construction with easy installation.

CX-91 Series are 600 lbs. and 1200 lbs. magnetic locks that have a built in ‘TLS’ option that provides an adjustable timer, lock sensor, relay and LED. STANDARD FEATURES • • • • •

Low profile design ideal for small enclosures Surface and mortise mount models Compatible with all access / egress systems Field selectable 12/24 VDC operation On board MOV power surge protection prevents damage to the magnetic lock

CX-90S-03

CX-90M-03

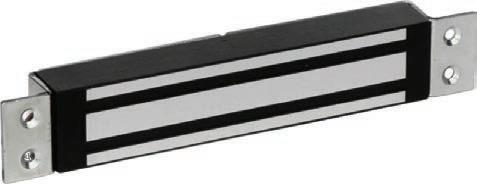

CAMDEN CX-92 SERIES MAGLOCK The CX-92 Series offer the best performance and value. With a ‘TDS’ option it provides an adjustable timer, lock sensor, door status switch, relay and LED. Easy installation and comes with mounting templates.

STANDARD FEATURES • • • • •

Weather and vandal resistant construction proven over thousands of installations Compatible with all access / egress systems Field selectable 12/24 VDC operation On board MOV power surge protection prevents damage to the magnetic lock A range of mounting brackets and spacers available

CX-92S-06

CX-92S-12

100

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

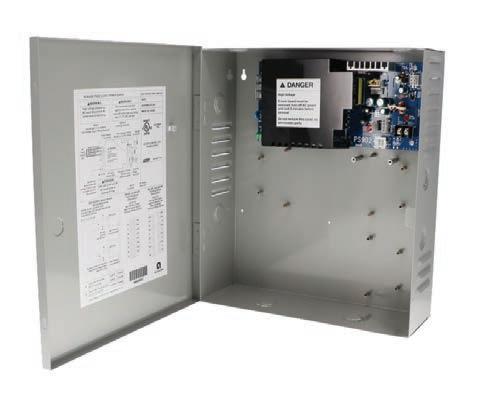

ELECTRIFIED SOLUTIONS VON DUPRIN PS902 2 AMP POWER SUPPLY STANDARD FEATURES • • • • • • • • • •

2A at 12/24 VDC constant output - field selectable with jumper Powers low-voltage, Class 2, filtered and regulated power Universal 120-240 VAC, fused primary input Single polarized option board connector AC input and DC output monitoring circuit with LED indicators Externally visible AC input indicator with isolated SPDT contacts High-voltage protective cover for AC circuitry (not shown) Battery back-up board auto-selects voltage Optional fire alarm plug-in board availabe UL 294, ULC-S318, RoHS and FCC Part 15 certified PS902

900-2RS Option Board for PS902

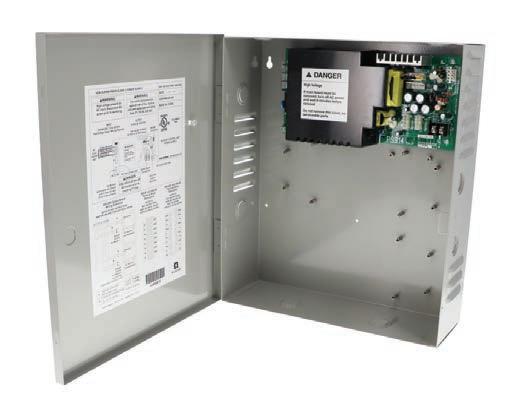

VON DUPRIN PS914 4 AMP POWER SUPPLY STANDARD FEATURES • • • • • • • • • • •

4A at 12/24 VDC constant output - field selectable with jumper Designed for use with electrified exit devices requiring high in rush current Provides low-voltage, Class 2, filtered and regulated power Universal 120-240 VAC, fused primary input Two polarized option board connector AC input and DC output monitoring circuit with LED indicators Externally visible AC input indicator with isolated SPDT contacts High-voltage protective cover for AC circuitry (not shown) Battery back-up board auto-selects voltage Optional fire alarm plug-in board availabe UL 294, ULC-S318, RoHS and FCC Part 15 certified

PS914

900-2RS Option Board for PS914

900-2RS

DoorControlsUSA.com

101

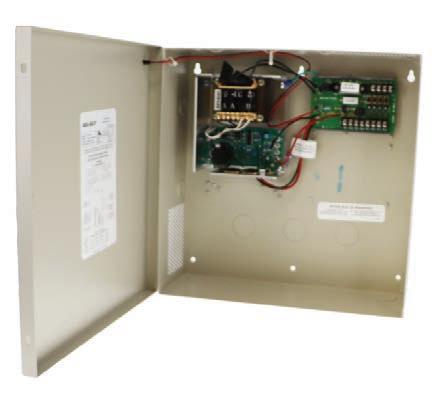

ELECTRIFIED SOLUTIONS SECURITRON AQ SERIES POWER SUPPLY STANDARD FEATURES • • • • • • • •

All combinations of AQ power supplies and distribution boards are UL Listed Tolerates brownout and over-voltage input + 15% of nominal voltage Thermal shut down protection with auto restart Circuit breaker protects against over-current and reverse battery faults Dedicated battery charging circuit prevents over-voltage on locking devices Expandable up to 16 outputs in the standard enclosure Available with a single relay fire trigger or individually triggered relayed outputs Low battery cutoff at 9V

AQD2

SECURITRON BPS POWER SUPPLY **DISCONTINUED** STANDARD FEATURES • • • • • • • • • • •

Dual voltage - field selectable 12 or 24 VDC via clearly marked toggle switch Supplies 1 full amp continuous current output, even while charging back-up batteries Linear regulated power supply provides the cleanest power available UL Class 2 power limited output SPDT AC monitoring output allows for remote monitoring for the power supply's 110 VAC input External LED indicator (AC and DC) easily determines power status UL Listed, low-current fire alarm disconnect requires only a minimum size fire alarm relay and wire gauge Polyswitch 2 A breaker allows for large short duration inrush current if batteries are installed (approximately 20 A for 1 second) Line voltage and DC fuses Sealed lead acid or gel battery charging capability (battery sold separately) MagnaCare lifetime replacement, no-fault, no questions asked warranty

102

BPS-24-2

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

ELECTRIFIED SOLUTIONS ALTRONIX OPTION BOARDS Switch Mode Power Supply/Chargers STANDARD FEATURES • • • • • • •

115VAC 60Hz. input Filtered and electronically regulated ouput(s) Short circuit and thermal overload protection Built-in charger for sealed lead acid or gel type batteries Zero voltage drop upon transfer to battery backup Automatic switch over to stand-by battery when AC fails AC input and DC output LED indicators

AL175ULB

AL125ULB

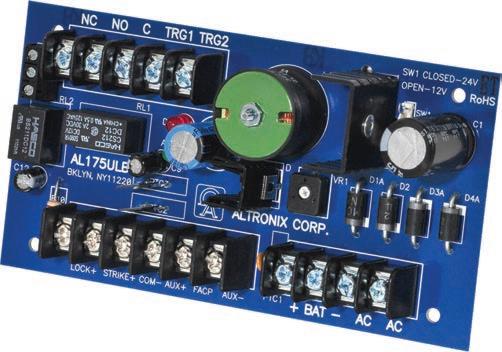

AL175ULB

• • • •

• • • •

• • • •

Board dimensions: 3.1"L x 3.9" W x 1.4"H UL Recognized for Access 1 amp at 12VDC or 24VDC Two Class 2 Rated power-limited outputs - One fail-safe/fail-secure lock output (switched) and one auxillary power output (unswitched) Access control trigger input Supervised fire alarm disconnect (latching with reset or non-latching AC fail supervision 24VAC input (transformer required)

• • • •

Board dimensions: 3.1"L x 5.8" W x 1.5" H UL Recognized for Access 1.75 amp at 12VDC or 24VDC Two Class 2 Rated power-limited outputs - One fail-safe/fail-secure lock output (switched) and one auxillary power output (unswitched) Dry trigger fire alarm disconnect/ access control input Auxillary relay output AC fail supervision 28VAC input (transformer required)

AL176ULB

AL400ULB

• • • • • •

• •

Board dimensions: 3.1"L x 5.3" W x 1.4"H UL Recognized for Access 1.75 amp at 12VDC or 24VDC Class 2 Rated power-limited output AC fail and low battery supervision 24VAC input

• • • •

Board dimensions: 4.1"L x 7.1" W x 1.75"H UL Recognized for Access, Burglar Alarm, Nurse Call and Fire 4 amp at 12VDC or 3 amp at 24VDC Class 2 Rated power-limited output AC fail and low battery supervision 24VAC or 28VAC input (transformer required)

AL600ULB • • • • • •

Board dimensions: 4.3"L x 7.1" W x 2.3"H UL Recognized for Access and Fire 6 amp at 12VDC or 24VDC Non power-limited output AC fail, low battery and battery presence supervision Two 28VAC inputs (transformer required)

DoorControlsUSA.com

103

ELECTRIFIED SOLUTIONS ALTRONIX OPTION BOARDS Switch Mode Power Supply/Chargers STANDARD FEATURES • • • • • • • • • •

115VAC 60Hz. input Built-in transformer Filtered and electronically regulated output(s) Short circuit and thermal overload protection Built-in charger for sealed lead acid or gel type batteries Zero voltage drop upon transfer to battery backup Automatic switch over to stand-by battery when AC fails AC fail, low battery and battery presence supervision AC input and DC output LED indicators Includes battery leads AL400ULXB2

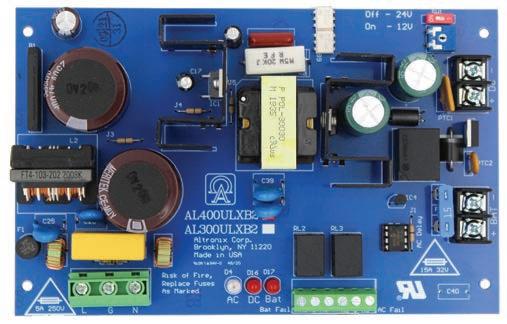

AL300ULXB2

AL400ULXB2

• •

• •

• •

Board dimensions: 4.5" L x 7.1" W x 1.44"H UL Recognized for Access, Burglar Alarm, Nurse Call and Fire 2.5 amp at 12VDC or 24VDC Class 2 Rated power-limited output

• • •

Board dimensions: 4.5"L x 7.1" W x 1.44"H UL listed Sub-Assembly in the U.S. for Access, Burglar Alarm, Nurse Call and Fire UL listed Sub-Assembly in Canada for Access 4 amp at 12VDC or 3 amp at 24VDC Class 2 Rated power-limited output

AL600ULXB

AL1012ULXB

• •

• •

• • •

Board dimensions: 4.5"L x 7.8" W x 2.15"H UL listed Sub-Assembly in the U.S. for Access, Burglar Alarm and Fire UL listed Sub-Assembly in Canada for Access 6 amp at 12VDC or 24VDC Non power-limited output

• •

Board dimensions: 5.1"L x 7.25" W x 1.75"H UL listed Sub-Assembly in the U.S. and Canada for Access 10 amp at 12VDC Non power-limited output

AL1024ULXB2 • • • • • •

Board dimensions: 4.5"L x 8.25" W x 1.5"H UL listed Sub-Assembly in the U.S. for Access, Burglar Alarm and Fire UL listed Sub-Assembly in Canada for Access Access control applications - 10 amp at 24VDC Fire Alarm applications: 8 amp @ 24VDC continuous with 10 amp during alarm Non power-limited output

104

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

ELECTRIFIED SOLUTIONS ALTRONIX OPTION BOARDS Two Output Switching Power Supply/Chargers STANDARD FEATURES • • • • • • • • • • •

115VAC 60Hz. input (except for AL 125ULE) 12VDC or 24VDC Class 2 Rated power limited outputs - One fail-safe/fail-secure lock output (switched) and one auxillary power output (unswitched) Supervised Fire Alarm disconnect (latching with reset or non-latching) Access control trigger input Filtered and electronically regulated output(s) Short circuit and thermal overload protection Built-in charger for sealed lead acid or gel type batteries Automatic switch over to stand-by battery when AC fails AC fail supervision AC input LED indicator on the front panel Includes battery leads

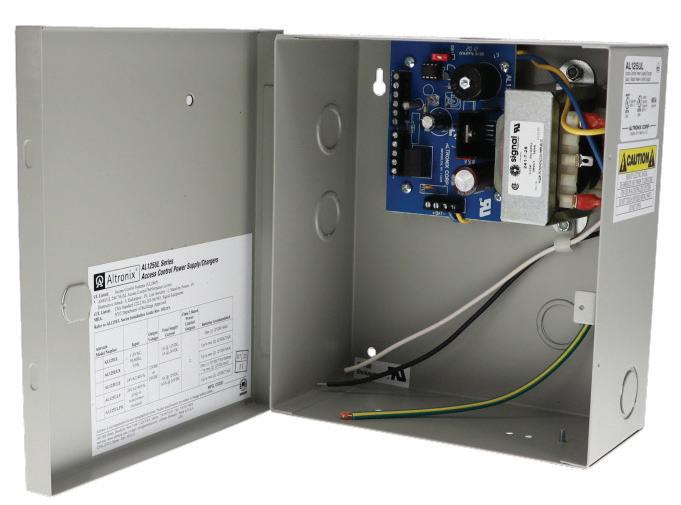

AL125UL

AL125UL

AL125ULX

• •

• • • •

• •

Enclosure dimensions: 8.5"H x 7.5" W x 3.5"D UL listed in the U.S. and Canada for Access Control 1 amp at 12VDC or 24VDC Fits one 12VDC/7AH or two 12VDC/4AH batteries

Enclosure dimensions: 13.5"H x 13" W x 3.25"D AL 125UL with larger enclosure and cam lock 1 amp at 12VDC or 24VDC Fits two 12VDC/7AH batteries

AL125ULE

AL125ULP

• •

• •

• • •

Enclosure dimensions: 8.5"H x 7.5" W x 3.5"D UL listed in the U.S. and Canada for Access Control 1 amp at 12VDC or 24VDC Fits one 12VDC/7AH or two 12VDC/4AH batteries 24VAC input

DoorControlsUSA.com

• • •

Enclosure dimensions: 8.5"H x 7.5" W x 3.5" D UL listed in the U.S. and Canada for Access Control 1 amp at 12VDC or .5 amp at 24VDC Fits one 12VDC/7AH or two 12VDC/4AH batteries Plug-in transformer (24VAC/40VA) included

105

ELECTRIFIED SOLUTIONS ALTRONIX OPTION BOARDS Two Output Switching Power Supply/Chargers Continued STANDARD FEATURES • • • • • • • • • • •

115VAC 60Hz. input 12VDC or 24VDC Class 2 Rated PTC protected power-limited outputs - One fail-safe/fail-secure lock output (switched) and one auxillary power output (unswitched) Dry trigger Fire Alarm disconnect/Access Control input Aux relay output Filtered and electronically regulated output(s) Short circuit and thermal overload protection Built-in charger for sealed lead acid or gel type batteries Automatic switch over to stand-by battery when AC fails AC fail supervision AC input LED indicator on the front panel Includes battery leads

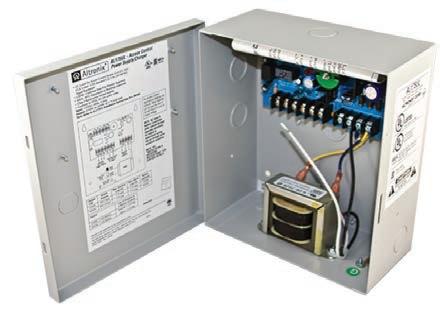

AL175ULX

AL175UL

AL175ULX

• •

• • •

•

Enclosure dimensions: 8.5"H x 7.5" W x 3.5"D UL listed in the U.S. and Canada for Access Control and CSFM approved 1.75 amp at 12VDC or 24VDC

Enclosure dimensions: 13.5"H x 13" W x 3.25"D AL 175UL with larger enclosure and cam lock Fits two 12VDC/7AH batteries

AL175ULX2 • • • • • • • •

Enclosure dimensions: 15.5"H x 12.23" W x 4.5" D UL listed in the U.S. and Canada for Access Control and CSFM approved 1.75 amp at 12VDC or 24VDC Field selectable 12VDC (range 10VDC - 13VDC) or 24VDC (range 24VDC - 27VDC) outputs External reset switch and power LED Latching fire alarm tie-in with manual reset Fits two 12VDC/12AH batteries Includes cam lock

106

· Parts@DoorControlsUSA.com 800-437-3667 800-437-3667 · Parts@DoorControlsUSA.com

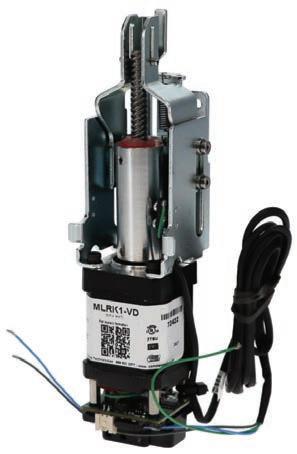

ELECTRIFIED SOLUTIONS COMMAND ACCESS MOTORIZED LATCH RETRACTION KITS MLRK1-VD: VON DUPRIN 33/35 AND 98/99 EXIT DEVICE The MLRK1-VD is a cost effective way to convert a mechanical Von Duprin series device to a motorized latch retraction device.

STANDARD FEATURES • • • • • • • •

24 to 28 VDC System protection - unit will shutdown when voltage exceeds 28VDC 900MA average current peak Approximately 1/4" PTS adjustment Wire run of 300' with 18GA wire Box size is 10.5" x 3.75" x 2.5" and weighs 2 pounds 15 master pack is 12.75" x 11.75" x 11" and weighs 30 pounds Cutdown: 36" and 48" - 6.5" filler plate needed MLRK1-VD

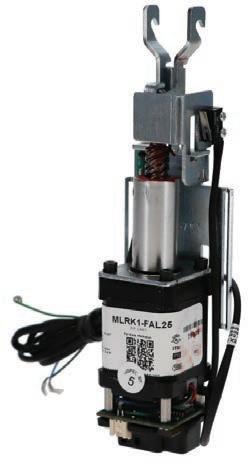

MLRK1-FAL25: FALCON 24/25 SERIES EXIT DEVICE The MLRK1-FAL25 is a cost effective way to convert a mechanical Falcon 24/25 series device to a electrified latch pullback device.

STANDARD FEATURES • • • • • • • • •

24 to 28 VDC System protection - unit will shutdown when voltage exceeds 28VDC 900MA standard average current peak and current hold of 215mA 2A high torque average current peak and current hold of 250mA Approximately 1/4" PTS adjustment Wire run of 300' with 18GA wire 10.5" x 3.75" x 2.5" and weighs 2 pounds Cutdown: 36" and 48" Request-to-Exit is built-in MLRK1-FAL25

MLRK1-SGT: SARGENT 80 SERIES EXIT DEVICE The MLRK1-SGT is a cost effective way to convert a mechanical Sargent 80 series device to a electrified latch pullback device while maintaining the UL listing.

STANDARD FEATURES • • • • • • • •

24 to 28 VDC System protection - unit will shutdown when voltage exceeds 28VDC 900MA standard average current peak and current hold of 215mA 2A high torque average current peak and current hold of 250mA Approximately 1/4" PTS adjustment Wire run of 300' with 18GA wire Weighs 2 pounds with a cutdown of 36" and 48" CRSREXKIT-ED - field installable REX kit

DoorControlsUSA.com

MLRK1-SGT

107

SUPPORT TEAM Customer CUSTOMERService SERVICE wealthofofcollective collectiveexperience experiencespanning spanning more than years, dedicated customer service With aawealth more than 100100 years, ourour dedicated customer service teamteam is is readily available available to to provide provide you you with with unparalleled readily unparalleled assistance. assistance. We We are are committed committed to to helping helping you you with with aa wide widerange rangeof inquiries, including: of inquiries, including:

1. Purchase Order Status: We can help you track the status of your purchase order, ensuring you have the most up-to-date information.

Purchase Status: Weiscan help youintrack the status of yourallowing purchase ensuring the 2. ShipmentOrder Tracking: Our team proficient tracking shipments, usorder, to provide youyou withhave real-time mostupdates up-to-date information. on the whereabouts of your package.

3. Part Identification: If you need assistance identifying a specific part, our knowledgeable team members can one. is proficient in tracking shipments, allowing us to provide you with real-time guide you Tracking: in finding the right Shipment Our team 4.

Quoting: We understand the importance updates on the whereabouts of your package.of timely quotes, and we guarantee a quick turnaround time to ensure your projects stay on schedule.

5. Invoice Copies, Pricing, and Availability: Whether you require copies of invoices, information about pricing, or Part Identification: If you need assistance identifying a specific part, our knowledgeable team members details on product availability, we are here to promptly fulfill your requests. can guide you in finding the right one.

6. Backorder Status: If you have items on backorder, we can check their status and provide you with the necessary updates.

Quoting: understandOur the team importance of timely quotes, and guarantee a quick time to ensure 7. WarrantyWe Information: can help you determine if awe particular part is stillturnaround covered under warranty, yourensuring projectsyou stayreceive on schedule. the appropriate support.

To receiveCopies, immediate assistance, reach out Whether to us byyou calling 800-437-3667 or sending an email to Invoice Pricing, andplease Availability: require copies of invoices, information about

Parts@DoorControlsUSA.com.

Our dedicated team are fulfill available our office hours, which are from pricing, or details on product availability, we are heremembers to promptly yourduring requests.

7 a.m. to 6 p.m. CST. We look forward to serving you today.

Backorder Status: If you have items on backorder, we can check their status and provide you with the

Technical Support

necessary updates.

Door Controls USA is committed to providing exceptional technical support services that set us apart from the

Warranty Our team can help you determine if a we particular partunparalleled is still covered under competition. Information: Alongside our reliable supply of high-quality parts, offer an range of warranty, technical assistance toreceive meet your ensuring you theneeds. appropriate support.

Wereceive take pride in delivering comprehensive technical support service to you at no It to significantly To immediate assistance, please reach out to us by calling 800-437-3667 oradditional sending ancost. email contributes to completing repairs, replacements, and adjustments efficiently during the first visit, eliminating the Parts@DoorControlsUSA.com. Our dedicated team members are available during our office hours, which are from need for return trips.

7 a.m. to 6 p.m. CST. We look forward to serving you.

At Door Controls USA, customers are our top priority. We understand the complexities of both automatic and manual doors, and our dedicated team of technical support specialists is available round the clock, every day of the year.

To further aid you in resolving door-related issues, we invite you to visit our website at Techhub.DoorControlsUSA.com. There, you'll find an extensive collection of Tech Tips and Technical Bulletins designed to assist you with programming, wiring, and troubleshooting. Our comprehensive library includes materials from over 50 OEM manufacturers, such as Besam/Assa Abloy, Sierra/BWN, Dorma, Dor-O-Matic, Horton, Hunter, NABCO/Gyro-Tech, Record/KM, Crane, Stanley, Tormax, Boon Edam, and many more.

Experience the Door Controls USA advantage today, and let us empower you with our exceptional technical support services and comprehensive resources.

108

800-437-3667 · Parts@DoorControlsUSA.com

SUPPORT TEAM Customer Service TECHNICAL SUPPORT With Controls a wealthUSA of collective experience spanning more than 100 years, ourservices dedicated service Door is committed to providing exceptional technical support thatcustomer set us apart fromteam the is tohigh-quality helping you with a wide range of readily available provide with assistance.

We are committed competition.

Withtoover 200you years of unparalleled combined experience and a reliable supply of parts, we provide inquiries, including: unmatched technical support tailored to your needs.

1. Purchase Order Status: We can help you track the status of your purchase order, ensuring you have the most up-to-date information.

We2.take pride inTracking: delivering comprehensive technical supportshipments, service to you at no us additional cost.you It significantly Shipment Our team is proficient in tracking allowing to provide with real-time contributes to completing repairs, replacements, and adjustments efficiently during the first visit, eliminating updates on the whereabouts of your package. the3.need for return trips.If you need assistance identifying a specific part, our knowledgeable team members can Part Identification: guide you in finding the right one.

Quoting: We understand the importance timelyWe quotes, and we the guarantee a quickofturnaround time to ensure At4.

Door Controls USA, customers are our topof priority. understand complexities both automatic and yourdoors, projects schedule. andstay our on dedicated team of technical support specialists is available round the clock, every day manual 5.

Invoice Copies, Pricing, and Availability: Whether you require copies of invoices, information about pricing, or of the year. details on product availability, we are here to promptly fulfill your requests.

6. Backorder Status: If you have items on backorder, we can check their status and provide you with the To further aid you in resolving door-related issues, we invite you to visit our website at Techhub.DoorControlsUSA.com. necessary updates. you'll find an extensiveOur collection of Tech Technical designed assist you with programming, There, 7. Warranty Information: team can helpTips you and determine if Bulletins a particular part istostill covered under warranty, wiring, and troubleshooting. comprehensive library includes materials from over 50 OEM manufacturers, such as ensuring you receive theOur appropriate support.

Besam/Assa Abloy, Sierra/BWN, Dorma, Dor-O-Matic, Horton, Hunter, NABCO/Gyro-Tech, Record/KM, Crane, Stanley, To receive Tormax, Boonimmediate Edam, and assistance, many more. please reach out to us by calling 800-437-3667 or sending an email to

Parts@DoorControlsUSA.com. Our dedicated team members are available during our office hours, which are from 7 a.m. to 6 p.m. CST. We look forward to serving you today.

Experience the Door Controls USA advantage today, and let us empower you with our exceptional technical support services and comprehensive resources.

Technical Support

Door Controls USA is committed to providing exceptional technical support services that set us apart from the competition. Alongside our reliable supply of high-quality parts, we offer an unparalleled range of technical assistance to meet your needs.

We take pride in delivering comprehensive technical support service to you at no additional cost. It significantly contributes to completing repairs, replacements, and adjustments efficiently during the first visit, eliminating the need for return trips.

At Door Controls USA, customers are our top priority. We understand the complexities of both automatic and manual doors, and our dedicated team of technical support specialists is available round the clock, every day of the year.

To further aid you in resolving door-related issues, we invite you to visit our website at Techhub.DoorControlsUSA.com. There, you'll find an extensive collection of Tech Tips and Technical Bulletins designed to assist you with programming, wiring, and troubleshooting. Our comprehensive library includes materials from over 50 OEM manufacturers, such as Besam/Assa Abloy, Sierra/BWN, Dorma, Dor-O-Matic, Horton, Hunter, NABCO/Gyro-Tech, Record/KM, Crane, Stanley, Tormax, Boon Edam, and many more.

Experience the Door Controls USA advantage today, and let us empower you with our exceptional technical support services and comprehensive resources.

DoorControlsUSA.com

109

DOWNLOAD THE DOWNLOAD THE DOWNLOAD THE DOWNLOAD THE DCUSA APP! DCUSA APP! DCUSA DCUSA APP! APP! With our app, you'll have a wealth of conveniences right at With our app, you'll have a wealth of conveniences right at your fingertips.

Including: With our app, you'll have With our app, you'll have a a wealth wealth of of conveniences conveniences right right at at your fingertips. Including: your fingertips.

Including: With our app, you'll have a wealth of conveniences right at your fingertips. Including: Freedom to access your account whenever and your fingertips. Including: Freedom to access your account whenever and Freedom access wherever to you need your Freedom to access your account account whenever whenever and and wherever you need Freedom to access your account whenever and Effortlessly build your cart for swift checkouts wherever you need Effortlessly build your cart for swift checkouts wherever need Effortlessly build your Engage inyou live chat Effortlessly build your cart cart for for swift swift checkouts checkouts Engage in live chat Effortlessly build your cart for swift checkouts Engage in live chat Reach out to our dedicated customer service team Engage in live chat Reach out to our dedicated customer service team Engage in live chat Reach out to customer service team And these are justdedicated a few of the features that await Reach out to our our dedicated customer service teamyou!

And these are just a few of the features that await Reach out to our dedicated customer service teamyou!

And these just few features await you!

Scan QR are code to a DCUSAthat App. Andthe these are just adownload few of of the thethe features that await you!

And these are just a few of the features that await you!

GET IN THE LOOP GET IN THE LOOP Sign up forIN our newsletter to receive promotions, GET THE LOOP Sign up for our newsletter to receive GET IN THE LOOP Sign up for our newsletter to receive promotions, training information, tech tip videos, promotions, and more!

Sign up for our newsletter to receive promotions, training information, tech tip videos, and more!

Sign up for our newsletter to receive training information, tech videos, and training information, tech tip tip videos, promotions, and more! more!

GET IN THE LOOP training information, tech tip videos, and more!

Sign up for our newsletter to receive promotions, Scan to download on the Google Play Store.

Scan to download on the Apple App Store.

training information, tech tip videos, and more!

CONNECT WITH US ON CONNECT WITH US ON CONNECT WITH US ON CONNECT WITH US ON SOCIAL MEDIA! CONNECT WITH US ON SOCIAL MEDIA! Join our Facebook and LinkedIn community for exclusive offers, SOCIAL MEDIA! Join our Facebook and LinkedIn community for exclusive offers, SOCIAL Join our Facebook and LinkedIn community for offers, training and much more!

Make sure to share with us your Join ourinformation, FacebookMEDIA! and LinkedIn community for exclusive exclusive offers, SOCIAL MEDIA!

training much more!

Make sure to share with us your Join ourinformation, Facebook LinkedIn community for exclusive offers, training information, and much more!

Make sure to share with us your installation photos and onand social media to be featured on our Facebook training information, and much more!

Make sure to share with us your installation photos on social media to be featured on our Facebook Join our Facebook and LinkedIn community for exclusive offers, training information, and much more!

Make sure to share with us your installation photos on social media to be featured on our Facebook and LinkedIn page. on social media to be featured on our Facebook installation photos and LinkedIn page. training information, and much more!

Make sure to share with us installation photos on social media to be featured on our Facebookyour and LinkedIn page. and LinkedIn page. installation and LinkedInphotos page. on social media to be featured on our Facebook and LinkedIn page. @DoorControlsUSA

@DoorControlsUSA @DoorControlsUSA @DoorControlsUSA

@DoorControlsUSA

110

800-437-3667 · Parts@DoorControlsUSA.com

CROSS REFERENCE GRADE 1 CLOSERS/SURFACE MOUNTED CLOSERS PREMIUM SERIES/SURFACE MOUNTED DOOR CLOSERS CROSS REFERENCE Door Controls Manufacturing (DCM)

Phoneix Hardware

Global Door

CRL

International

Cal Royal

Sentinel

Tell

Hagar

LCN

Falcon

DCU 4116

Phoneix 416

TC4300

CRL PR90

International 44CI

Cal Royal CR441

Sentinel 4016

Tell 900

Hagar 900

LCN 4040XP

Falcon SC70

DCU 6115

Phoneix 615

TC20

CRL PR80

International 8000-TP

Cal Royal 500PBF

Sentinel 5003

Tell 600

Hagar 5300

LCN 1250

Falcon SC60

DCU 8116

Phoneix 816

TC400

CRL PR80

International 5000-TP

Cal Royal CR801

N/A

Tell 800

Hagar 5200

LCN 1450

Falcon SC80

OVERHEAD CONCEALED CLOSERS OVERHEAD CONCEALED CLOSERS CROSS REFERENCE Door Controls Manufacturing (DCM)

Phoneix Hardware

Global Door

CRL

International

Jackson

Caliber

Concealed Closers

DC3010

N/A

TC7010

CRL6870/CRL6970

200

21-101M-14

CA2210

Extra light duty 105 hold open Extra light duty 105 no hold open

DC3011

N/A

TC7011

CRL6972

201

21-101M-13

CA2211

DC3012

N/A

N/A

CRL6960/CRL6860

202

21-101M-15

CA2212

Extra light duty 90 hold open

DC3013

N/A

N/A

CRL6962

203

21-101M-16

CA2213

Extra light duty 90 no hold open

DC3020

5010-150HO

TC7020

CRL7070

220

21-101M-06

CA2220

Light duty 105 hold open

DC3021

5011-150NHO

TC7021

CRL7072

221

21-101M-05

CA2221

Light duty 105 no hold open

DC3022

5012-90NO

TC7022

CRL7060

222

21-101M-08

CA2222

Light duty 90 hold open

DC3023

5013-90NHO

TC7023

CRL7062

223

21-101M-07

CA2223

Light duty 90 no hold open

DC3030

N/A

TC7030

CRL7170

230

21-101M-02

CA2230

Medium duty 105 hold open

DC3031

N/A

TC7031

CRL7172

231

21-101M-01

CA2231

Medium duty 105 no hold open

DC3032

N/A

TC7032

CRL7160

232

21-101M-04

CA2232

Medium duty 90 hold open Medium duty 90 no hold open

DC3033

N/A

TC7033

CRL7162

233

21-101M-03

CA2233

DC5030

N/A

TC7040

CRL7270

240

21-101M-10

CA2240

Heavy duty 105 hold open

DC5031

N/A

TC7041

CRL7272

241

21-101M-09

CA2241

Heavy duty 105 no hold open

DC5032

N/A

TC7042

CRL7260

242

21-101M-12

CA2242

Heavy duty 90 hold open

DC5033

N/A

TC7043

CRL7262

243

21-101M-11

CA2243

Heavy duty 90 no hold open

International

Jackson

Offset Pivot

OFFSET DOOR PIVOTS OFFSET DOOR PIVOTS CROSS REFERENCE Door Controls Manufacturing (DCM)

Phoneix Hardware

Global Door

OP10

OP10

TH1110

OP31

OP-2800

J-30 / J-31

Vistawall

OP12

OP12

TH1112

OP40

OP-6000

J-40

Amarlite

OP14KM

OP14

TH1114KM

N/A

N/A

J-41

Pittco

OP14G

OP15

TH1114G

OP34

OP-4000

J-34

US Aluminum

OP16

OP16

TH1116

N/A

OP-5000

N/A

Aldora

OPKP

OPKP-INT

TH1118-T & B

OP27 / OP28

OP-7000

N/A

Kawneer

OPYKK

OPYKK

N/A

N/A

N/A

N/A

YKK

DoorControlsUSA.com

CRL

111

112

F109

F20

F110

F90

Classroom Intruder

F84

F05

F13

Classroom

F76

F22

Entrance

Dormitory/ Corridor

Privacy

Apartment

F88

F09

Common Name

ANSI Cylindrical #

ANSI Mortise #

50

73

77

70

40

60

Allegion/ Dorma #

5

54

38

37

65

16

ASSA #

Opens if Deadbolt Unlocked and Stop Button Not Set

Opens if Unlocked

Opens if Unlocked

Opens if Unlocked

Opens if Unlocked

Opens if Unlocked

Operating Outside Trim

Unlocks/Locks

Unlocks/Locks

Unlocks/Locks Outside Trim

Unlocks/Locks

N/A

Unlocks

Turning Outside Key

Opens At All Times

Opens At All Times

Opens At All Times

Opens At All Times

Opens At All Times

Opens At All Times

Operating Inside Trim

N/A

N/A

Unlocks/ Locks Ouside Trim

N/A

N/A

Locks

Turning Inside Key

Unlocks/Locks

Locks

N/A

N/A

Locks

N/A

Operating Inside Push Button/ Thumbturn

LOCK FUNCTIONS CHART

800-437-3667 · Parts@DoorControlsUSA.com

Institution/ Asylum

Exit

F82

F91

F86

F87

F89

F01

DoorControlsUSA.com

F14

F07

F30

Storeroom

25 or 12

82

80

66

2

Dummy

Store/ Utility Room

10

53

Allegion/ Dorma #

Passage

Office/ Entrance

F82

F04

Common Name

ANSI Cylindrcal #

ANSI Mortise #

13

17

4

26

94-2

15

24

ASSA #

Rigid/No Effect

Rigid/No Effect

Rigid/No Effect

Opens if Unlocked

Rigid/No Effect

Opens At All Times

Opens if Deadbolt Unlocked and Stop Button Not Set

Operating Outside Trim

N/A

Opens

Opens

Unlocks/Locks

N/A

N/A

Unlocks/Locks

Turning Outside Key

Opens At All Times

Rigid/ No Effect

Opens At All Times

Opens If Unlocked

Rigid/ No Effect

Opens At All Times

Opens At All Times

Operating Inside Trim

N/A

Opens

N/A

Unlocks/ Locks

N/A

N/A

N/A

Turning Inside Key

N/A

N/A

N/A

N/A

N/A

N/A

Unlocks/Locks

Operating Inside Push Button/ Thumbturn

LOCK FUNCTIONS CHART

113

GLOSSARY GENERAL TERMS BACKCHECK

An optional hydraulic feature that prevents the door from opening to fast and damaging the closer or anything else in its path. Back-check usually takes place about 15 degrees before the maximum degree of opening is reached.

CEMENT CASE

Plastic or cast iron case that is set into the finished floor. The closer is then fastened to the case, allowing the closer to be removed easily from the floor.

CENTER HUNG

Center hung closers locate the pivot in the center of the door opening and require a frame applied stop at 0 degrees in a single acting application.

COLD WEATHER FLUID

Special cold weather closer fluid used in extreme cold to prevent the closer from freezing.

CLOSER SIZE

A term used to describe the strength of a door closer. Generally, the greater the door width, the larger the closer size should be.

CLOSING/LATCH SPEED

The cycle of closing from initial degree to about 10 degrees from closing position. This cycle is controlled by a valve to speed up or slow down the closing of the door.

DEAD STOP

A positive stop built in the closer prevents the door from going beyond the desired degree of opening.

DEGREE OF OPENING

Maximum opening that a door is allowed to open. Floor closers openings range from 85 - 105 degrees in 5-degree increments.

DELAY ACTION

Delays closing at any point from fully opening, down to 70 degrees to allow for wheelchairs or carts.

Note: In order for the delay feature to engage, the door must reach its maximum degree of opening.

DETERMINING DOOR HAND

Stand with your back to the hinge end of the door. Hand of door will be determined by which of your hands the door swings to.

DOUBLE ACTING

Double acting doors swing in both directions. Double acting closers are self-centering and center hung.

DROP PLATES

Necessary when narrow top rails or narrow frame face prevent standard closer mounting.

EXTENDED SPINDLE

Certain floor conditions may require the spindle of the closer to be longer than standard.

Spindles may be increased in size by 1/2" increments up to 2" max.

FIRE RATED CLOSERS

Closer that is made of approved fire-rated materials.

FLOOR CLOSER

A door closer that is mounted in the floor. A floor closer not only closes the door but also hangs it.

Standard floor closers come complete with a top pivot. Side jamb pivots need to be ordered separately.

HAND

A term used to indicate the direction a door swings.

HANDICAP CODE

Also referred to as barrier code or accessible code. A term used to describe a standard that is intended for use in making buildings and facilities accessible to the physically challenged.

114

800-437-3667 · Parts@DoorControlsUSA.com

GLOSSARY GENERAL TERMS HEAVY DUTY

Heavy duty floor closers are designed for use on heavy doors or doors subject to heavy use/abuse.

HOLD OPEN

An optional mechanical feature that is incorporated into the door closer arm assembly. Hold open arms cannot be used on “UL” or fire rated door assemblies.

LEAD LINED

L series closers have an arm and top pivot with a special screw pattern to span the lead lining on a door with lead mounted in the middle. If lead is mounted elsewhere in a door, consult with us before ordering. Lead lined closers can handle extremely heavy door loads.

MULTI-SIZED

Door closers with adjustable spring power, to permit the adjustment of closing power to meet the needs of most doors. They are available with normal power range adjustments or with barrier code and power range adjustments (Sizes 1 - 4 and 3 - 6).

NON-HANDED

Door closers which are non-handed permit installation on doors of either hand without modification to the door closer.

OFFSET HUNG

Offset closers locate the pivot point from the heel edge of the door and from the face of the door.

1 1/2" offset closers locate the pivot point from the heel edge of the door and 1 1/2" from the face of the door.

PARALLEL RIGID ARM

An exceptionally sturdy arm assembly for parallel arm application only.

REVEAL

The distance measured from the surface of the frame face to the surface of the door.

SEALED CLOSER

Closer sealed in cement case preventing debris from getting in between the closer body and cement case.

SINGLE ACTING

Doors that swing in one direction. All offset hung closers are single acting. Center hung closers may be single acting as well.

SLIDE TRACK

For installations where an aesthetic appearance is desirable. There is no arm or bracket projecting from the face of the door.

SPRING POWER ADJUSTMENT

On sized closers, power can be increased by 50% over the minimum closer force for each closer size.

SWEEP SPEED

A standard hydraulic feature that permits adjustment of the door's closing speed from the fully open position down to approximately 10 degrees from the closed position. Also referred to as closing speed.

THROUGH-BOLTS Bolts commonly used to secure door closer to “UL” rated wood fire doors.

(SEX NUT & BOLTS) TRI-PACK

A term used to describe the packaging of most closers for installation, regular arm, top jamb and parallel arm mountings.

DoorControlsUSA.com 115

800-437-3667 · Parts@DoorControlsUSA.com 115

QUICK SAME DAY SHIPPING Reliable

Available • • • • •

Three (3) locations to serve you Order online at DoorControlsUSA.com Training 24/7/365 LIVE technical Support Same day shipping

Economical • •

• • • •

Minimum one (1) year warranty on all products Customer service Real time online orders acceptance Products are 100% Quality Control tested

Innovative

Competitive pricing Online orders receive 2% discount

• • •

Research and development department Developing new ideas Your solutions partner

CONTACT US TODAY AT 800-437-3667 1 Day

2 Day

3 Day

Nevada

1335 Greg Street, Suite 101-102 Sparks, NV 89431 Located 10 miles from Reno

P: 800-437-3667

Texas

321 VZ County Road 4500 Ben Wheeler, TX 75754 P: 800-437-3667

Parts @DoorControlsUSA.com DoorControlsUSA.com

North Carolina

2311-A Distribution Center Drive Charlotte, NC 28269 P: 800-437-3667
