LANDSCAPE ARCHITECTURE + URBAN DESIGN

(re)working waterfront the commodore step bite-powered south park flowing locally grown design implementation

| 02 |

coalescing the urban fabrics

B e ll ingha m , WA | B e l l ing ham Wat erfront Scan|D e sign Founda tion S t udio | 2022 Our (Re)worked waterfront patchwork is an integrated marine working district that is walkable and offers education, employment, sustainable industry, play space for families, as well as passive and active recreation in nature. Through our proposed urban design and planning interventions, we aim to use the existing fabric of the Central Waterfront Site to create a (Re)working Waterfront district for Bellingham. A district that is climate-focused, accessible, functional, and sustainable for humans and the more than human world.

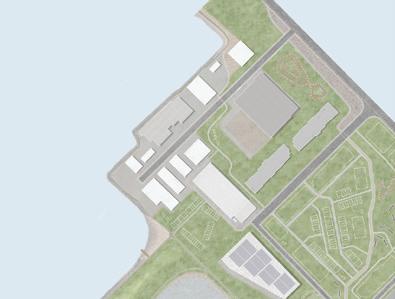

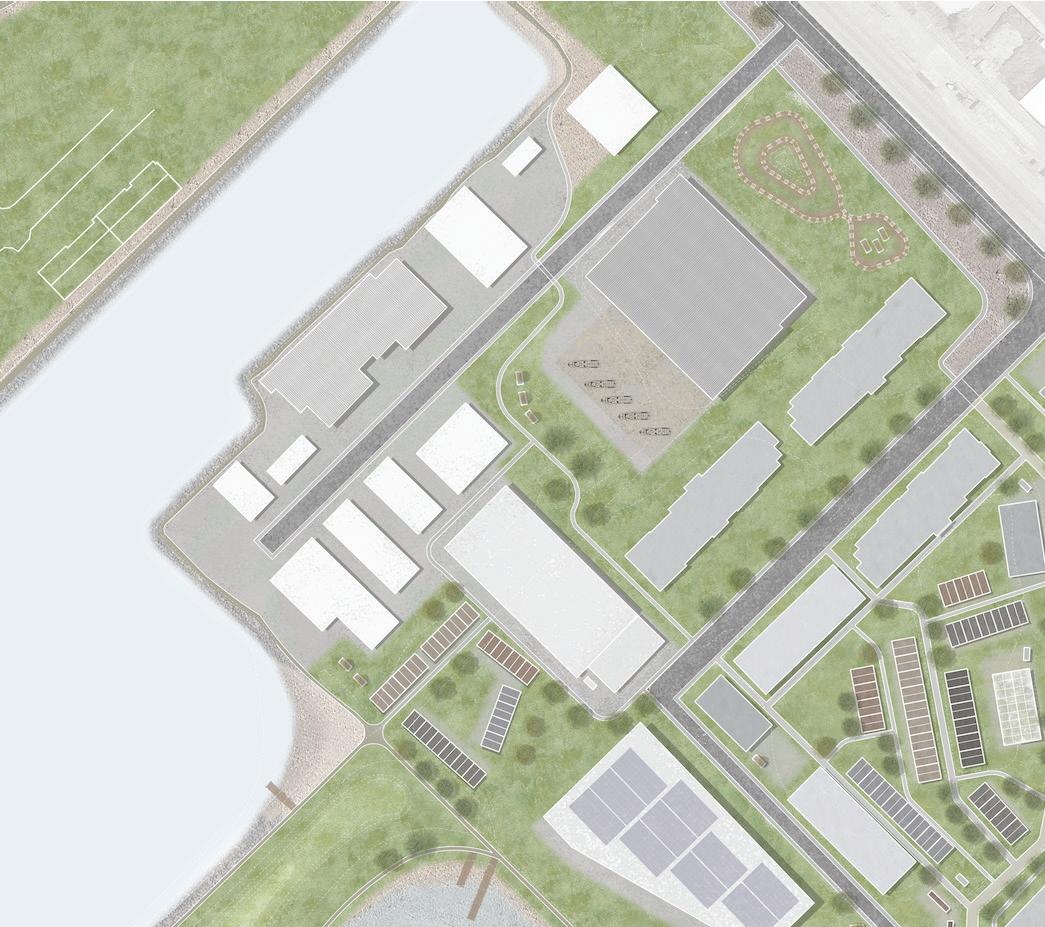

(Re)working Waterfront redefines how a modern waterfront operates. This strategy employs three focus areas to work towards the future of a climate focused district. (Re)working Waterfront changes the roles and relationships between these seemingly siloed focus areas, through phasing, to achieve a waterfront where these parts are inseparable from another. The resulting patchwork becomes a district where marine industry, research, living, commercial activity, and recreation are all possible while reducing environmental impacts.

This was a group project in which there were two landscape architecture student, an architecture student, and one urban planning student. The site design programing was conceptualized as a group. The site design and connections to the waterfront and adjacent waterfront were a joint urban design effort between Bri Weekes, and myself. I drafted the site plan in AutoCAD and rendered the site plan with Photoshop. I created our site’s grading model and calculations in Rhino and Revit. Floating structures were designed and rendered by Kat Golladay. All renders and sections shown were created by myself using Enscape, Rhino, and Photoshop.

Group Members: Kat Golladay, Bri Weekes and Alec Finewood | 03 |

| 04 |

TEMPORALITY AND TRANSITION

This phase emphasizes regrading of the site to allow for remediation of the ASB pond and site contaminants. We’ll be dredging the ASB pond and remediating on site. During this time there we will be a transitioning of the maritime industry to an established core. The northern portion of this site will continue to house All American Marine and Bornstein Seafoods, and make room for new and evolving industries to phase in.

TRANSITIONING TO NEW

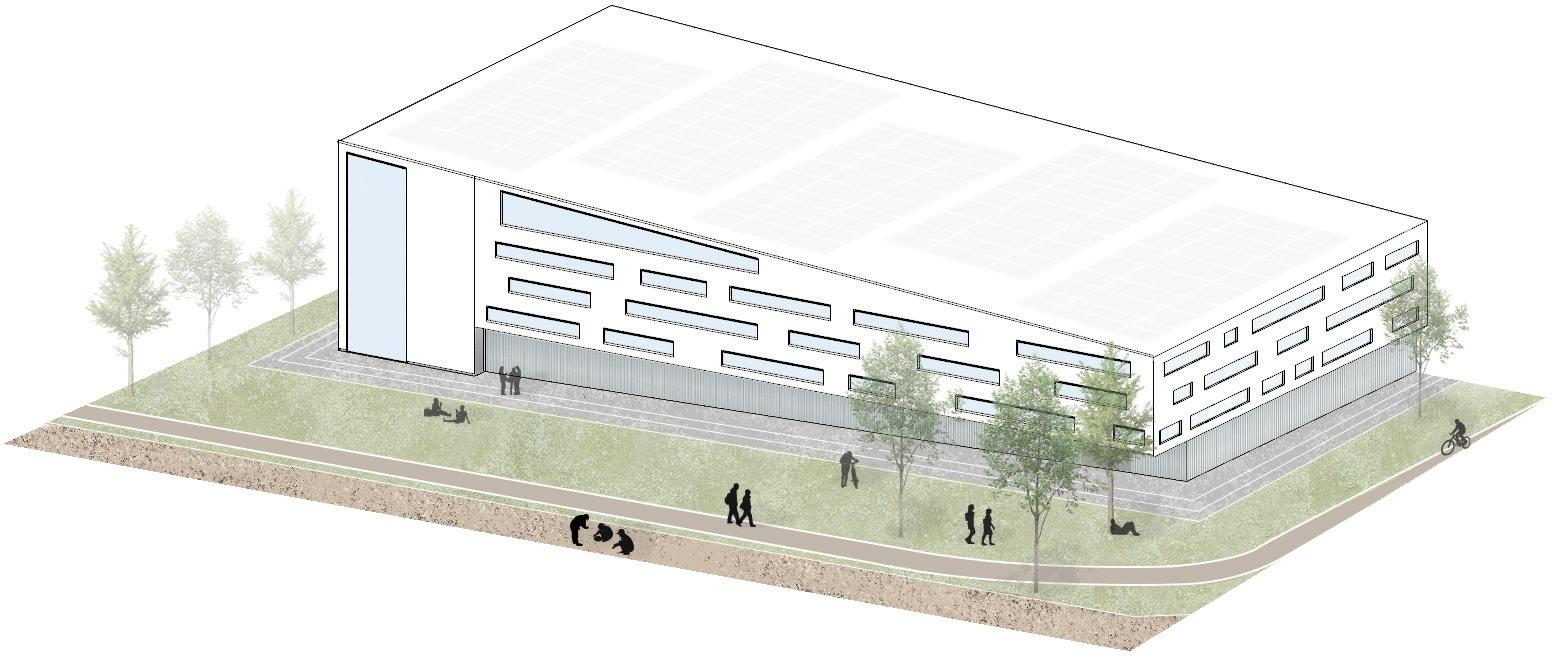

Tenants move into the maritime/marine core, already highly utilized and seen by the industry, making it a prime location for growth and adapting industries. The addition of mixed use buildings, and a pedestrian bridge connecting the two waterfront sites, brings public interest. The central area of the site continues remediation processes, which introduces opportunity for temporal activation of space. The addition of our Tech Hub brings students, researchers and industry workers to a unifying space that allows for incubation of ideas and growth in technologies.

NEW AND EVOLVING WATERFRONT

This phase envisions our site becoming a clean and desirable district, with housing and mixed use programming being added, as well as amenity spaces for residents and people of Bellingham. The addition of these spaces allows brings a neighborly and accessible environment to our district. This phase will introduce floating structures into the ASB pond that are adaptive and provide healthy habitat for the more than human world.

(RE)WORKED

Looking at the continued potential of this site, once remediation is completed and we see consistent positive impacts from our interventions, the ASB pond opens up. Just outside of the ASB pond is the areas largest eelgrass bed, critical habitat for salmon. Opening up the ASB pond will bring new life to the area and enhance research for those in the Tech Hub. With public docks, and direct connections to both residential and commercial areas we see our (Re)worked waterfront becoming a key Bellingham destination for industry workers, students, researcher, families, tourists and more. | 05 |

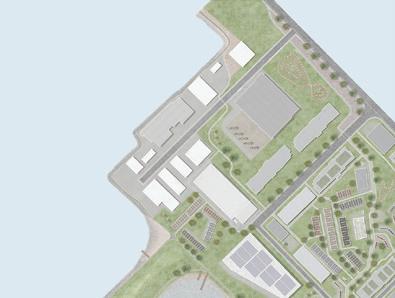

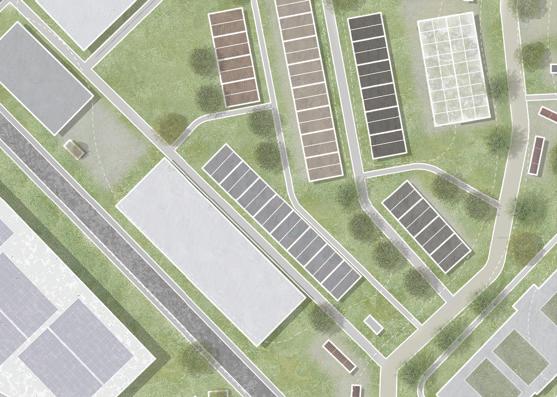

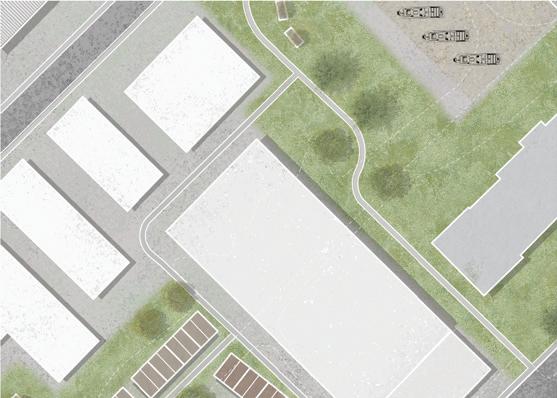

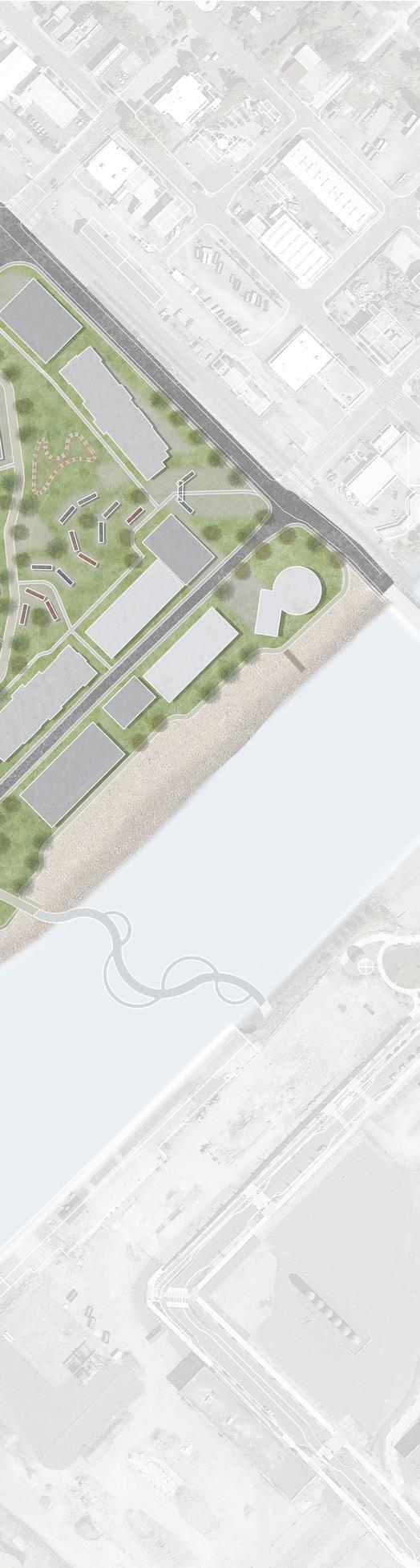

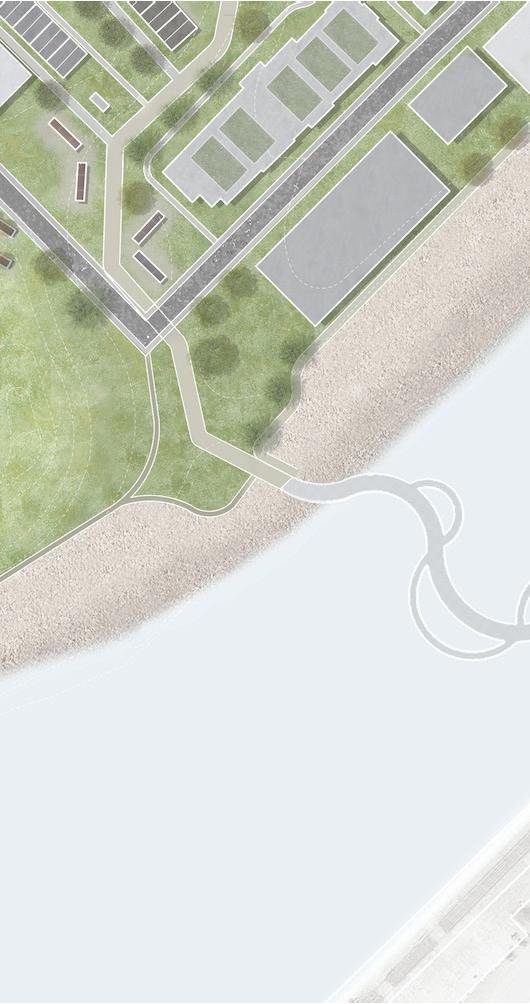

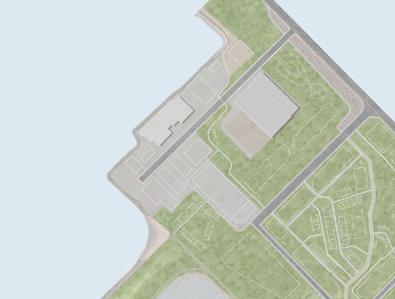

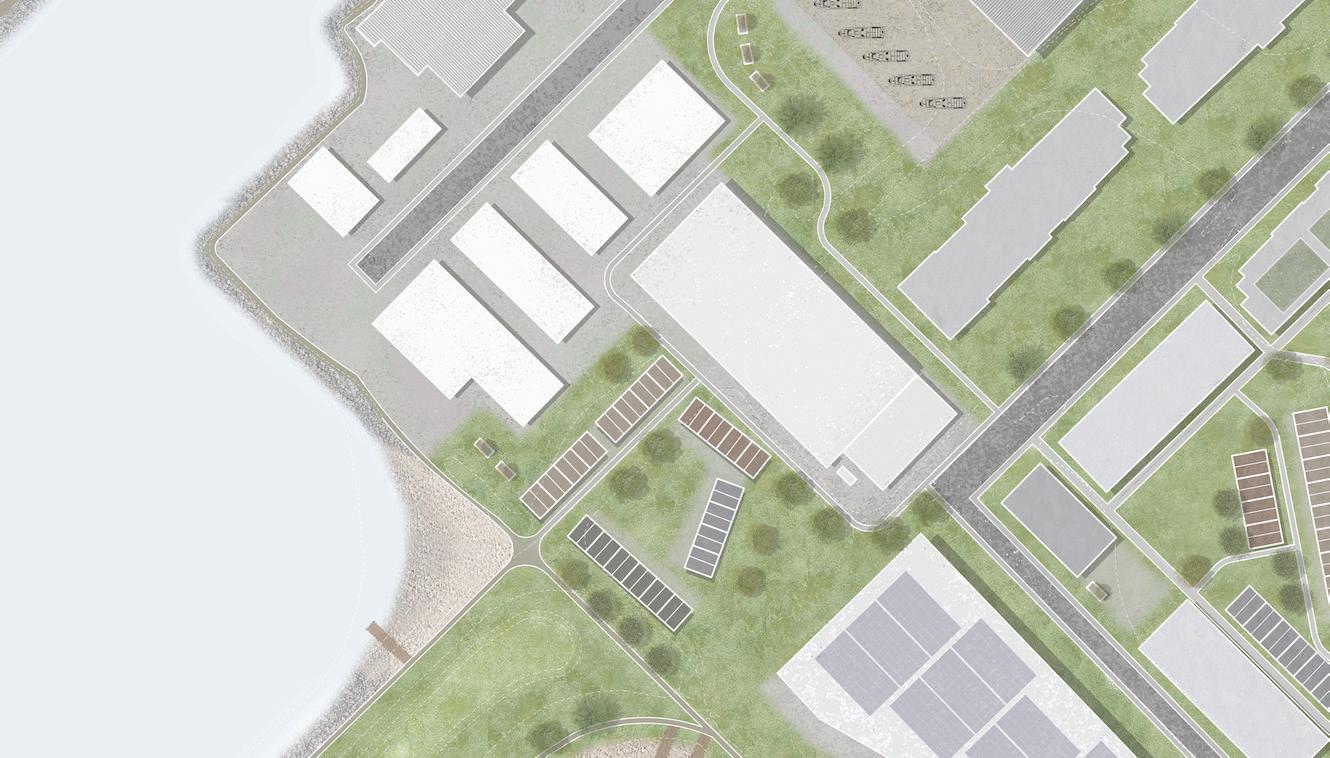

PU M P TR N

TECH HUB PU

BL

IC

DO

CK S O R YT NE PH TAI N

CO

LIBRARY

E US

PEOPLE PLACES

S

WHATCOM CREEK ACTIVATION

PEDESTRIAN CONNECTION

FLOATING HOMES

FLOATING STRUCTURES

ED M

OP

IX

E US ED

IX M ER NT CE E US RE

RESIDENTIAL CORE

OUSE

KS H

R NE AI GE NT L A CO V I L

OR

K AC

PUBLIC AMENITIES GREENH

W

TR

EVOLVING INDUSTRY

P

SP AC E

M

ER

CHEN

AK

PU

M

BIKE KIT

MARITIME/ MARINE CORE

RO M OF IXE AC D U TI SE VA + TI ON

BO

RN

ST

EI

N

SE

AF

OO

DS

L M AM AR ER IN IC E A

K AC

AL

SANCTU

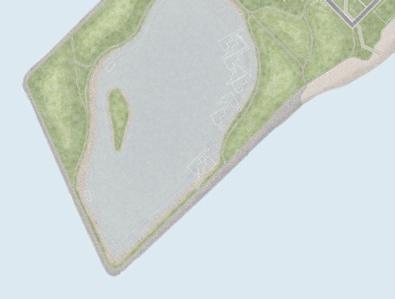

ASB TRAIL CONNECTIONS

ARY ISLA ND

HEALTHY HABITAT

| 06 |

EVOLVING INDUSTRY

A designated industry core and creation of a Marine Tech Hub. This adapted built environment framework provides opportunity for new connections between various users, creating an eco-industry district

PEOPLE PLACES

Creating people places with various forms of housing, including townhomes, live/work, and mixed use. Providing public and semi-private amenities: greenhouse, bike kitchen, etc.

HEALTHY HABITAT

Remediating toxins on site and paving the way for new research technologies to continue and monitor. Creating healthy habitats through floating wetlands, expanded green spaces, etc. | 07 |

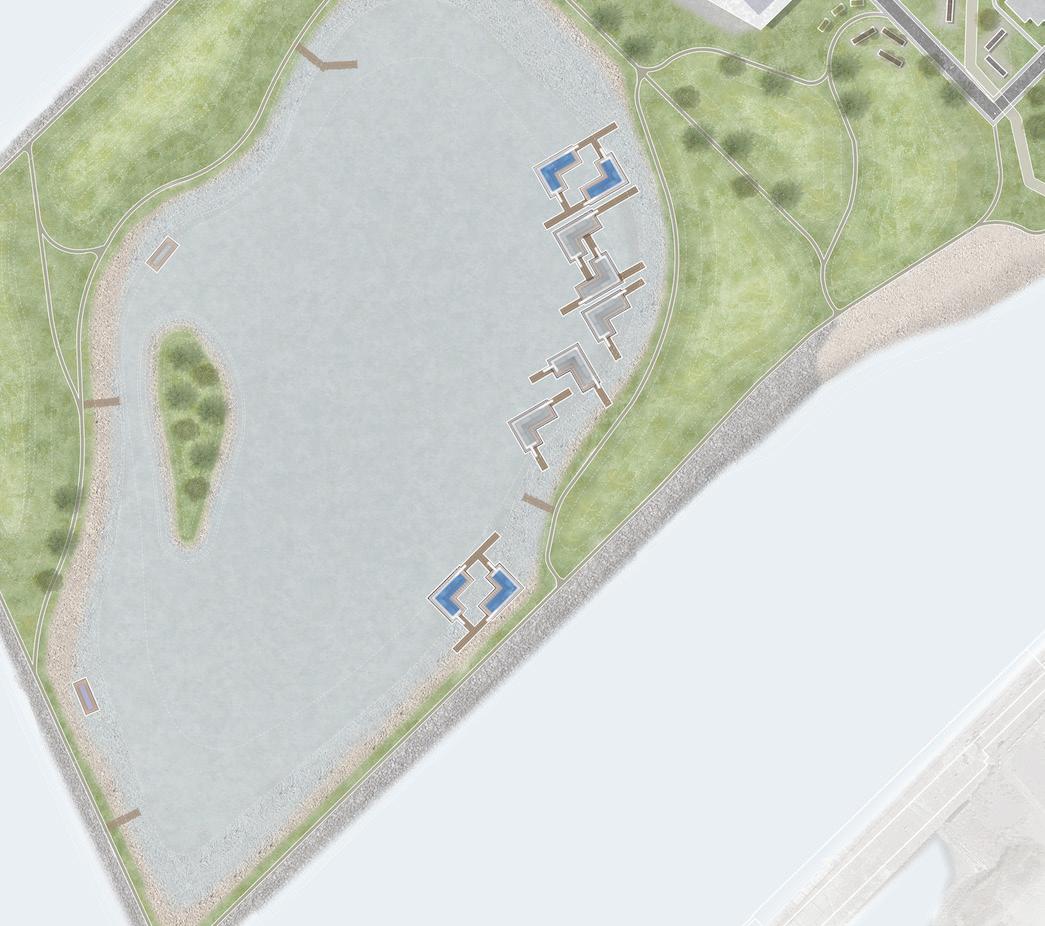

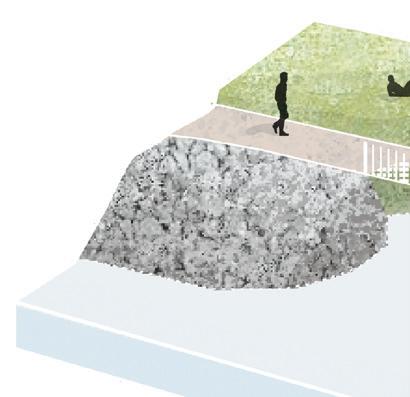

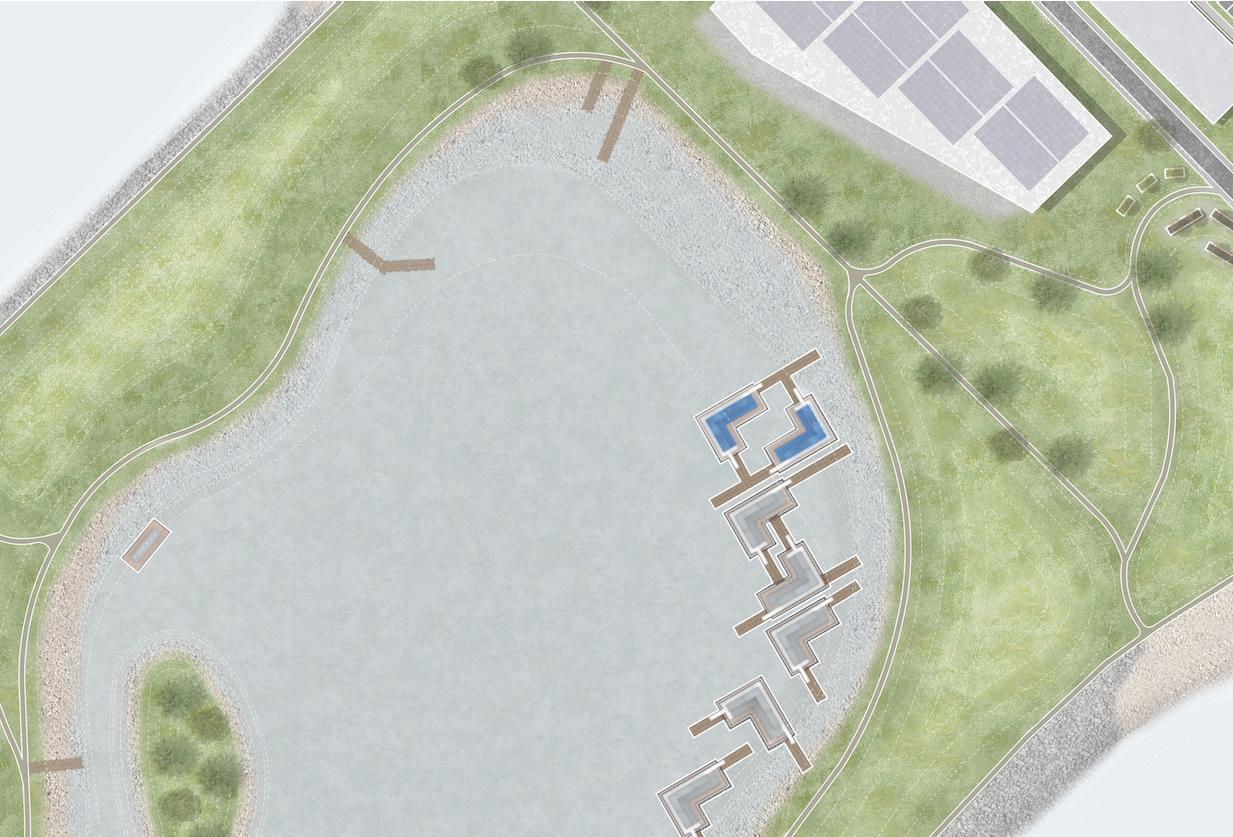

The ASB Trail provides a visual boundary for the ASB Pond, that will work as an immersive research site for users of the AS(HUB). The AS(HUB) is a space for students, marine researchers and industry workers to innovate and grow within their field.

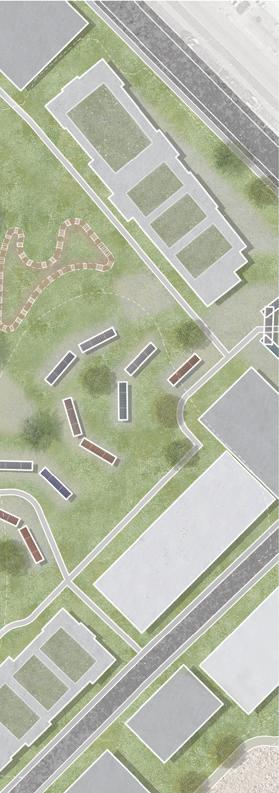

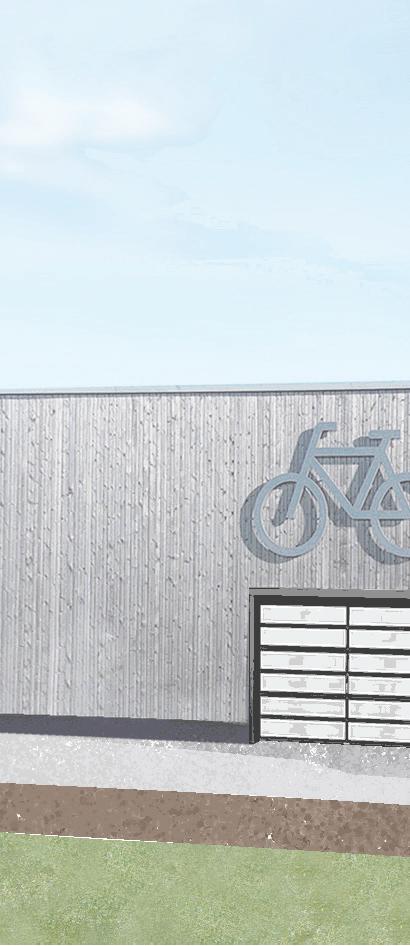

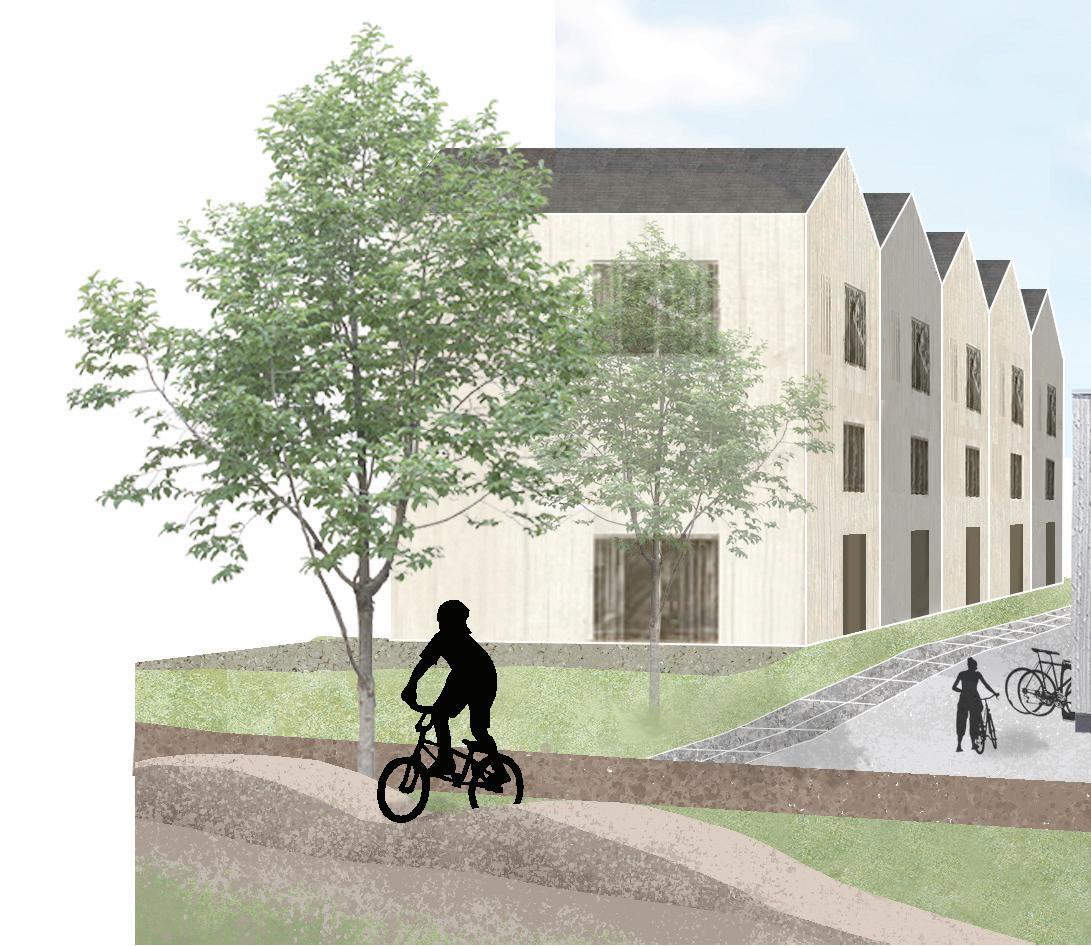

As one moves through this residential core, they could bike through and by the bike kitchen, townhomes, pump tracks, container village, greenhouse, and mixed use spaces before hitting our bridge, or continuing on to the variety of ASB and AS(HUB) connections.

Potential to open the ASB Pond would allow for ecological growth. New bridge connections are made of light penetrating surfaces, providing ideal conditions for passing wildlife.

| 08 |

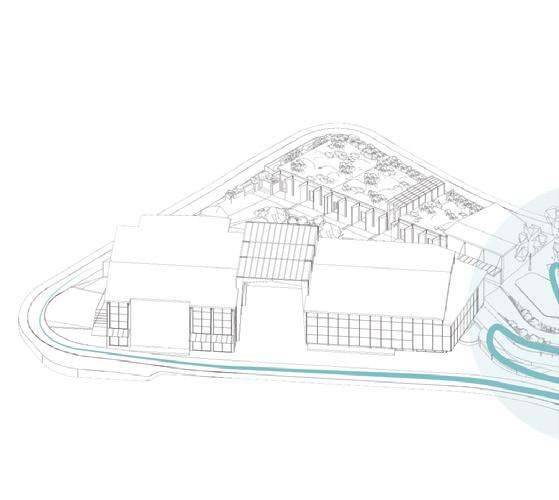

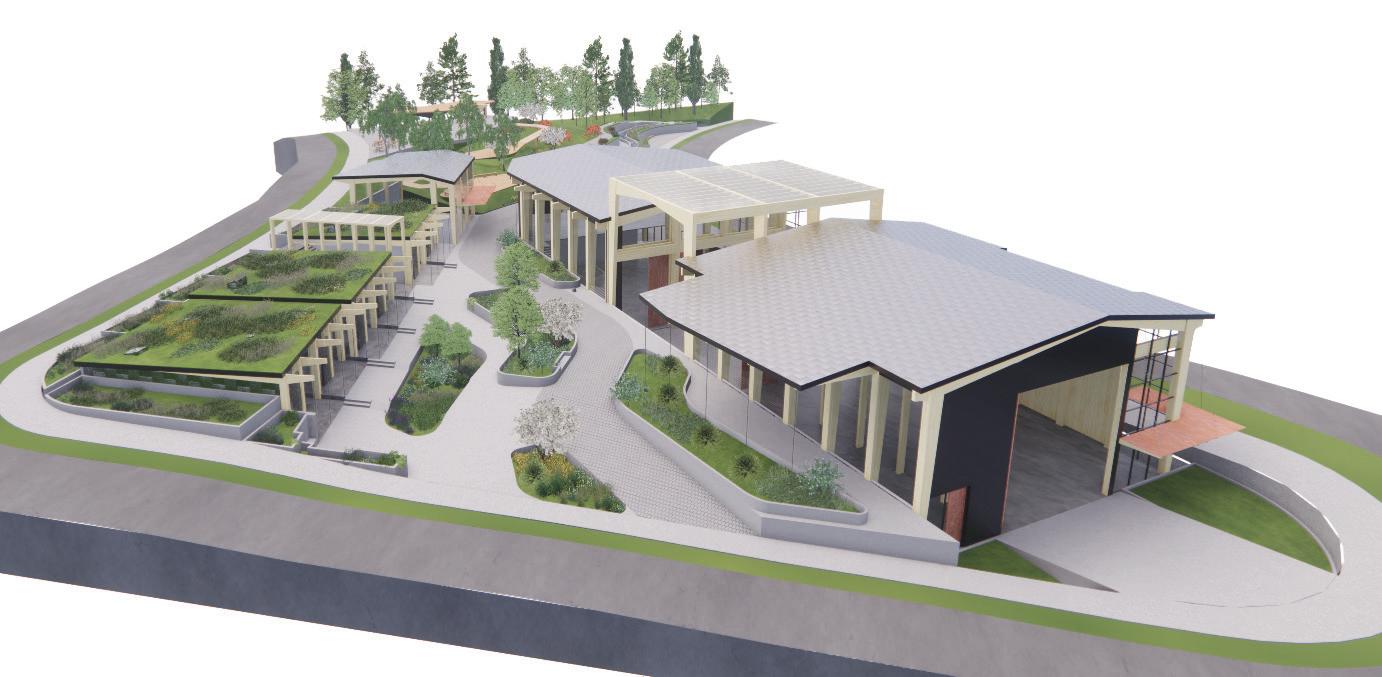

a maritime maker space, connecting residents to the waterfront

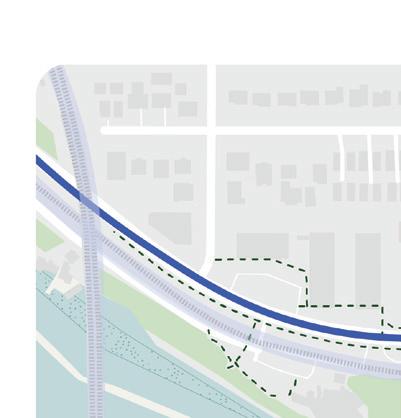

Se attl e, WA | Com m odore Way M a ritim e Future s Studio | 2021 This site was once a waterfront oil refinery, that is currently in the process of remediation. With the intent to sell the entire site to a developer, our studio broke up the space into seven (7) sites that would be part of a main campus. Our site was the southern most, and would be separated front he rest of the campus by a main road. Keeping this in mind we designed a space that could stand alone, but also seamlessly connect the surrounding commercial and residential areas to our campus. Our project could be the first thing you see when you approach the campus, or it could be the last place you visit when you are at the waterfront.

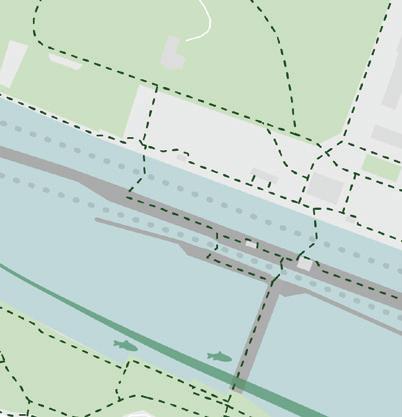

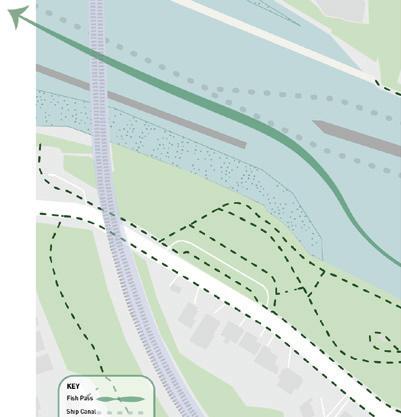

With views of the Salmon Bay Bridge, Salmon Bay, and the Ballard Locks, this waterfront location is a time capsule of maritime history in Seattle. It serves as a space for maritime makers and innovators, and a stepping stone that connects industry and recreation to the waterfront.

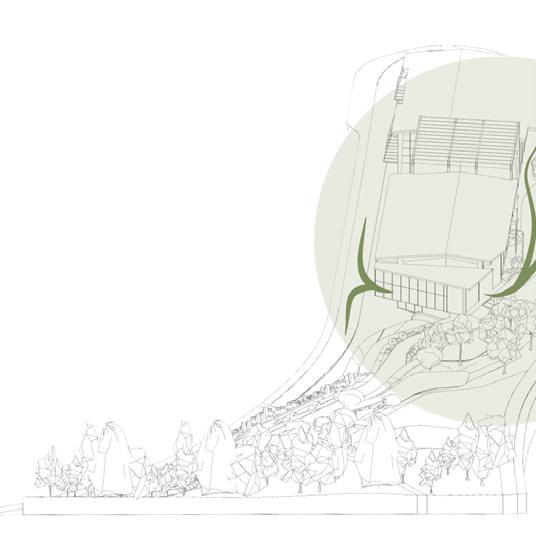

With a maker space, testing areas, and residency program, The Commodore Step creates a foundation for temporal projects that highlight the ongoing potential of the maritime industry.

This was a group project in which there were two landscape architecture student and one architecture student. The site design and building programing were conceptualized as a group. The site design and connections to the architecture and rest of the campus were designed by Cyrus Deloye and myself. I drafted the site plan in AutoCAD and rendered our group’s site model, created by Cyrus, in Enscape. Bryant Callahan was the lead designer for our residences and maker space, collaborating with Cyrus and me on integrating the architecture into the landscape.

Group Members: Bryant Callahan and Cyrus Deloye | 09 |

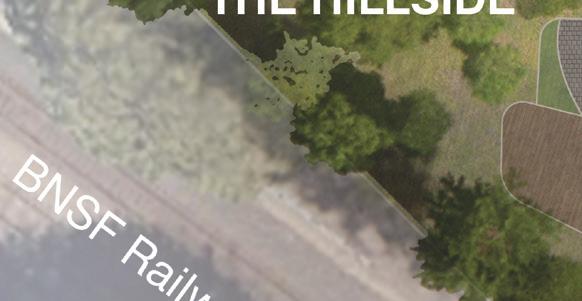

| 10 |

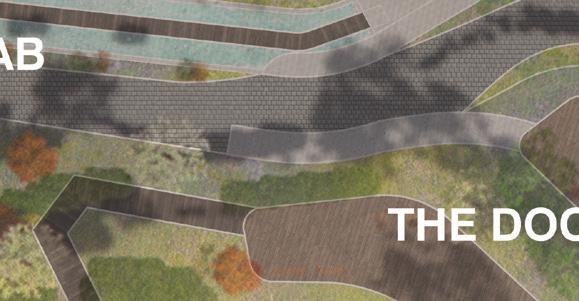

NE view: Strolling down the promenade

SE view: Searching the hillside for the perfect view

NW view: Shortcut to the waterfront

D

C

SW view: The daily commute | 11 |

C

A

B

D

A

B

| 12 |

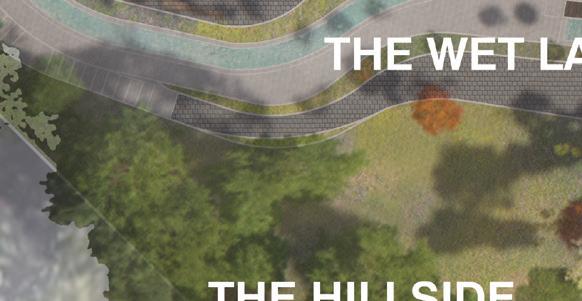

HARDSCAPE MATERIALS

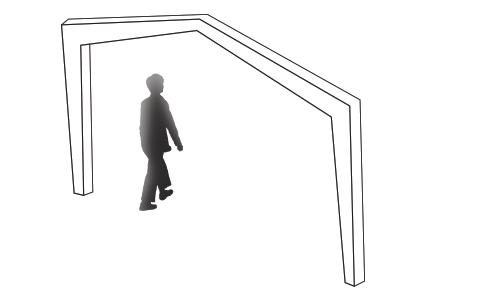

LIT ARCHES aluminum butler truss style arches, with lighting, at ramp entrances

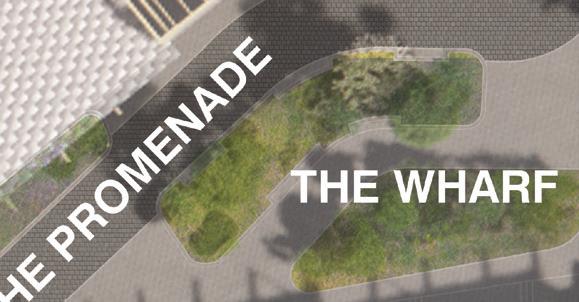

SEATWALL concrete seatwalls in ‘the wharf’ and ‘the promenade’

RAMP concrete ramps to ‘the wet lab’ and terraces

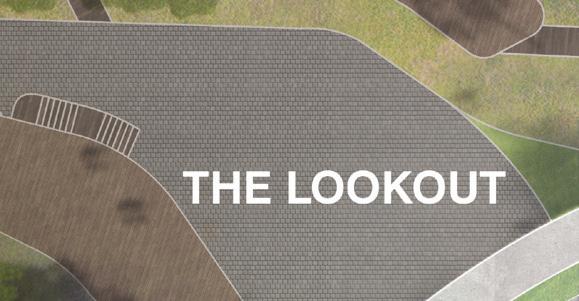

PLATFORM wooden platform at ‘the wet lab’ and ramps to ‘the lookout’

PLANT MATERIALS TREES STATEMENT Hamamelis virginiana Cotinus coggygria PUNCTUATION Pseudotsuga menziesii Pinus monticola Tsuga heterophylla

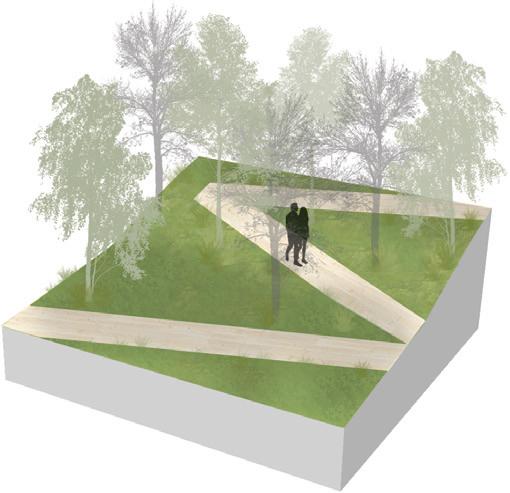

HILLSIDE ZONES

FILLER Betula papyrifera Populous tremuloides Alnus rubra MID STORY PLANTS STATEMENT Mahonia x media Arc. columbiana Pittosporum tenuifolium Choisya ternata Ceanothus thyrsiflorus Tasmannia lanceolata

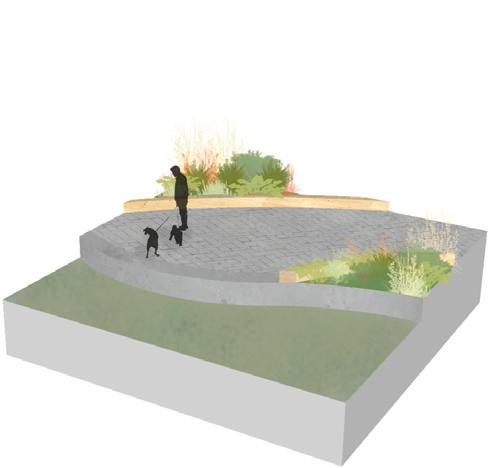

PLAZA PLANTERS

PUNCTUATION Gillenia trifoliata Fatsia japonica Cornus sanguinea ‘midwinter fire’ FILLER Pennisetum alopecuroides Rudbeckia spp.

Echinacea spp.

Myrtus communis GROUNDCOVER

ORNAMENTAL TERRACE

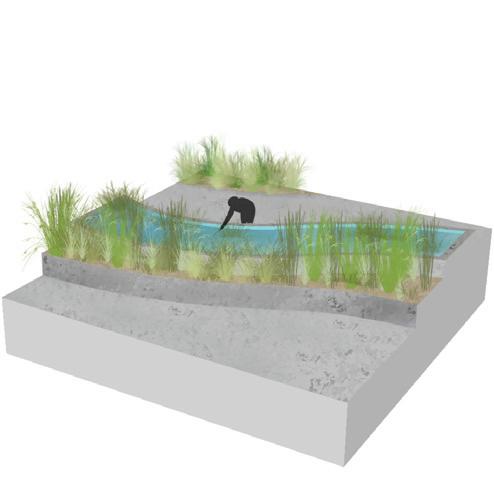

WETLAND TERRACE | 13 |

STATEMENT Blechnum spicant Dryopteris filix-mas Adiantum aleuticum PUNCTUATION Arc. x media Arc. nevadensis Impatiens glandulifera Dryopteris expansa Asplenium scolopendrium FILLER Astrantia spp.

Salvia patens Verbena bonariensis Cotoneaster horizontalis Erysimum spp.

Achillea millefolium

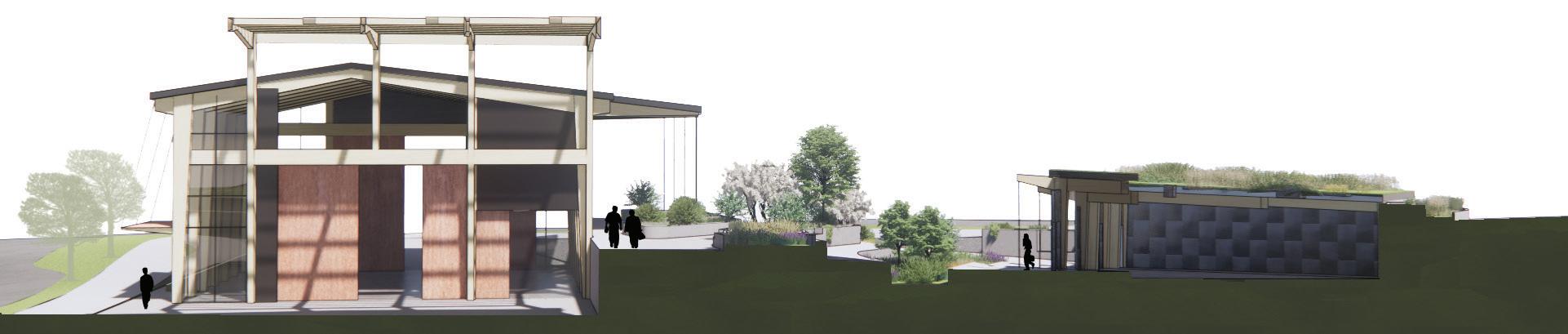

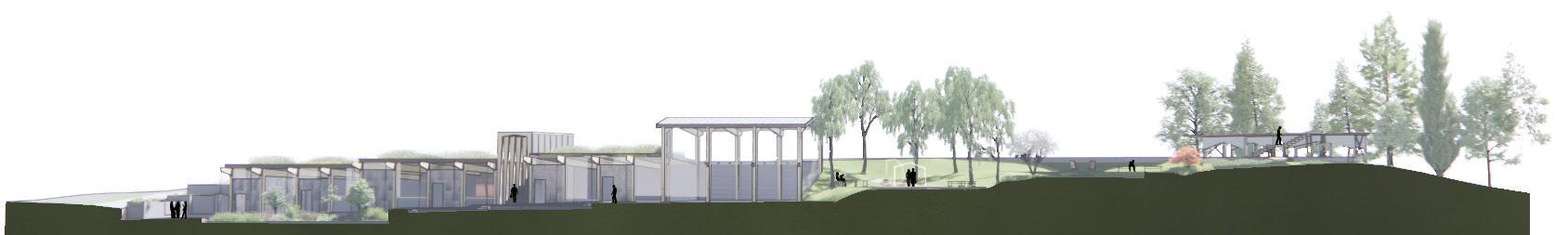

SECTION D - D West to East cut through the wharf, the docks, and the hillside. Showing connections to residences and layers of steps through out.

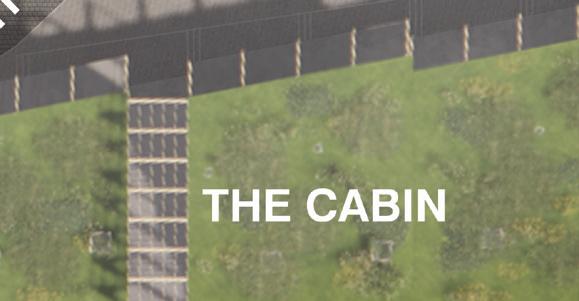

SECTION A - A North to South cut through the shipyard, the promenade and the cabin. Steps allow for privacy to the residences and a break from a live/work space.

| 14 |

recognition + participation = expansion

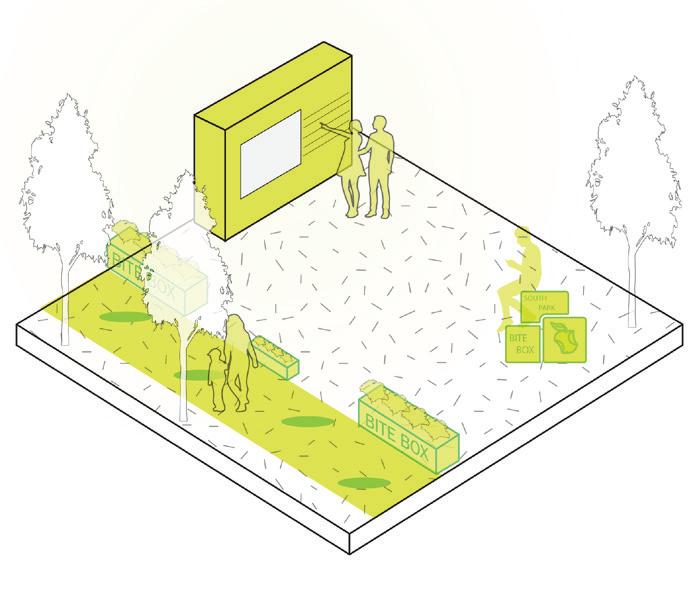

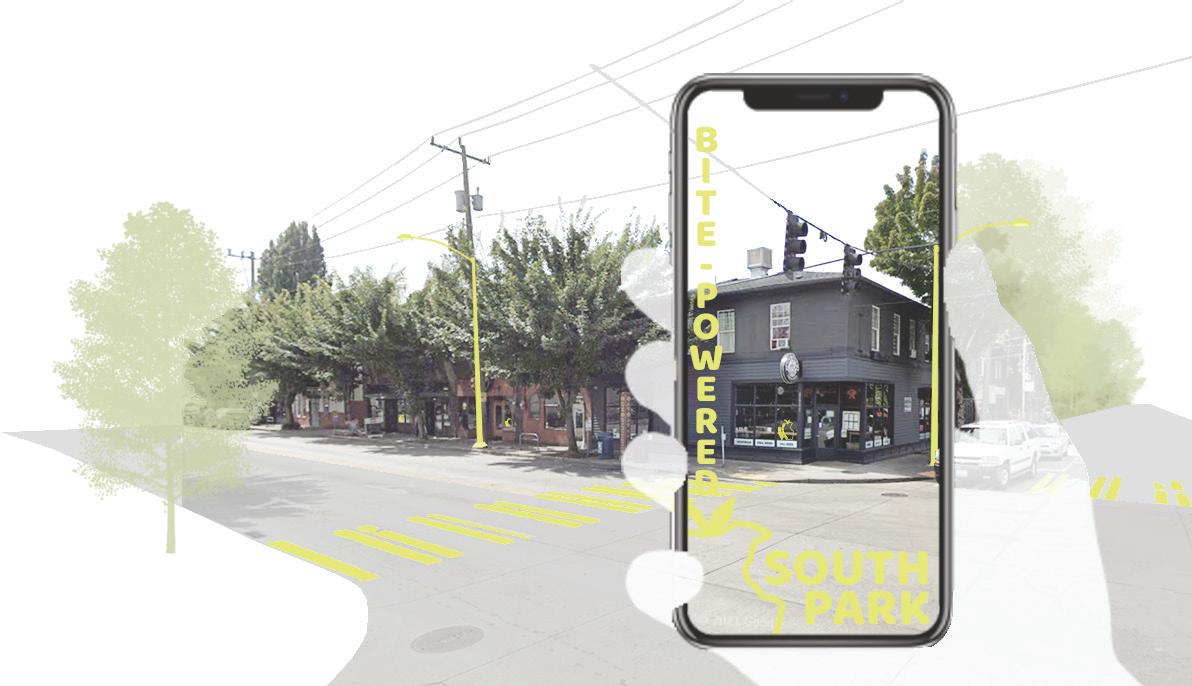

Se a ttl e, WA | South Park Wa ste Sy ste m s Stud io | 2022 Bite-Powered South Park is exploring the various possibilities of creating food waste into food opportunity. We believe that through recognition and participation it can lead to expansion of this system, all while improving everyday journeys.

By implementing a series of strong and recognizable interventions throughout the South Park neighborhood that educates the community on what the biodigestor is, how to get involved, and how this is benefiting South Park as whole; our pilot program will not only divert food waste but give South Park the opportunity to become a waste to resource community. Through our various design interventions South Park becomes a connected neighborhood powered by their own food, or their “bites.”

This was a group project in an advanced landscape architecture studio. The site design, design interventions, and programming were conceptualized as a group. I focused on determining and programming the sites, and creating the vignettes of our proposed “Hubs.” Rhys Coffee focused on research and development of the biodigestor program. Matt Olszewski focused on developing our toolkit and concept diagram.

Group Members: Rhys Coffee and Matt Olszewski

| 15 |

| 16 |

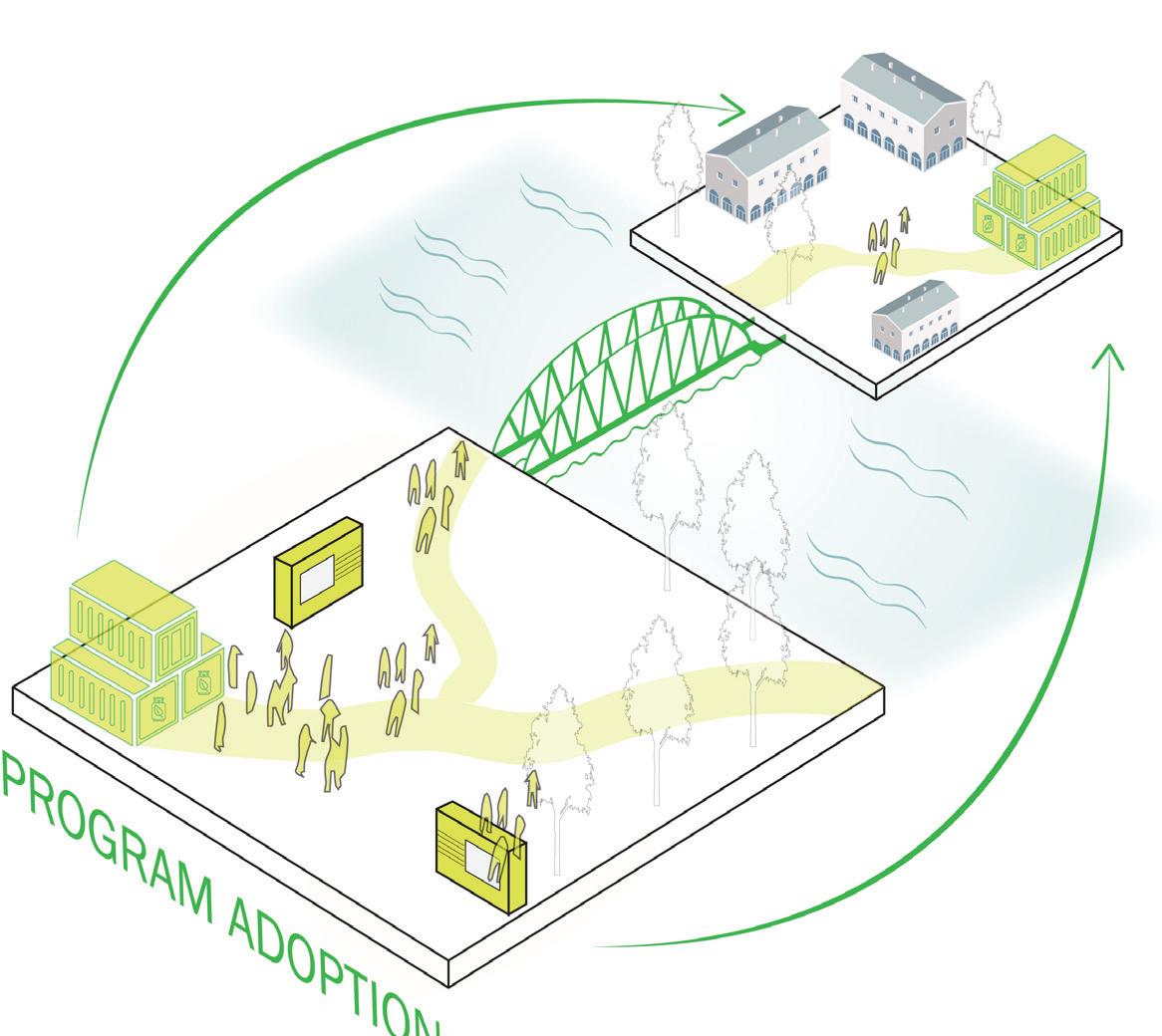

APPROACH

PARTICIPATION

RECOGNITION

Being a participant can be shown on a community level and individual level; as a community the current contributors will be highlighted, as an individual you can be apart of the Bite Box program and interact with the tools found around town.

Recognizable elements, displayed throughout South Park, help grassroots community programs build recognition through an identifiable toolkit to spark curiosity and lead to further participation in the neighborhood.

EXPANSION As we continue to receive food waste and gain recognition, participation will increase and expansion would be necessary. More biodigestor sites, collection hubs, and contributors will be implemented into the process. These future connections will be key identifiers in creating a community brand for all of South Seattle.

COMMUNITY INPUT

Collage imagery from our community charrette with youth of South Park and Georgetown. | 17 |

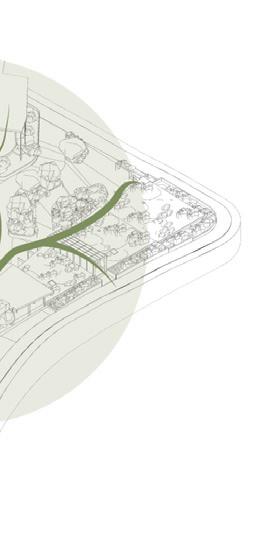

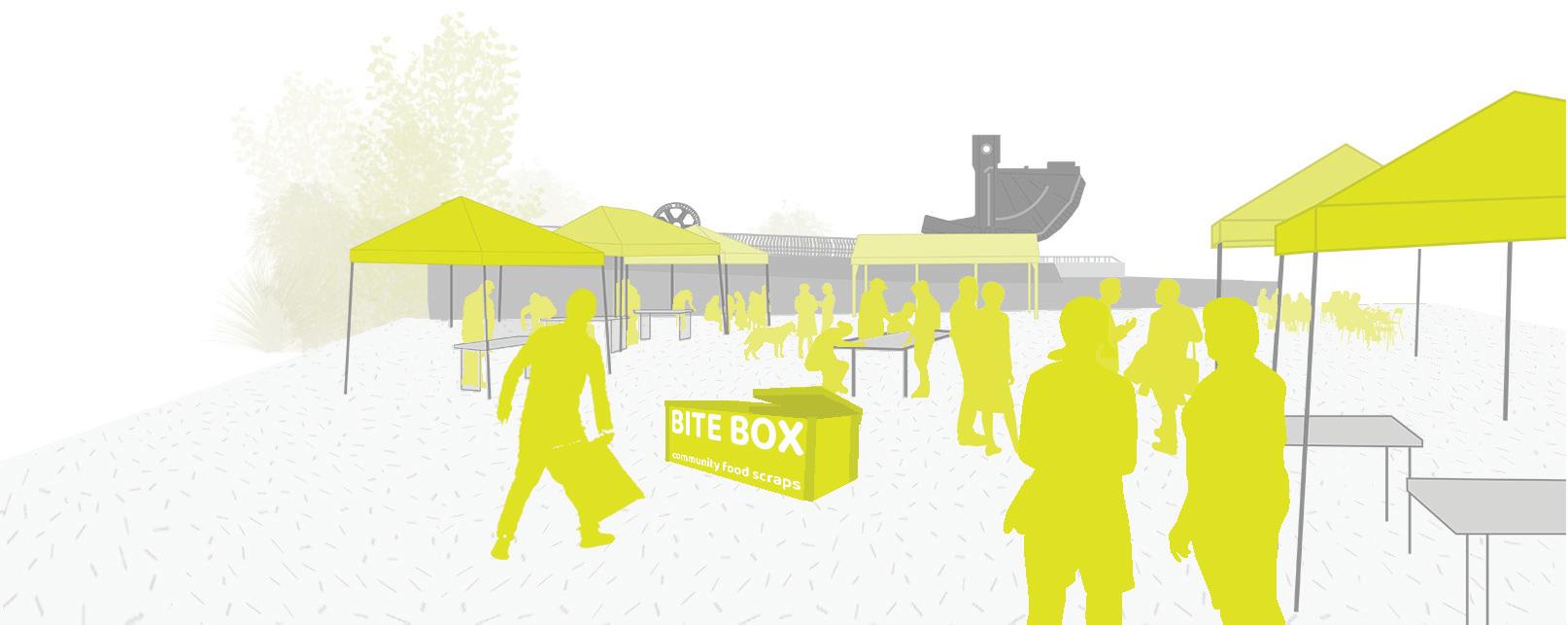

DESIGNATED HUBS SOUTH PARK PLAZA

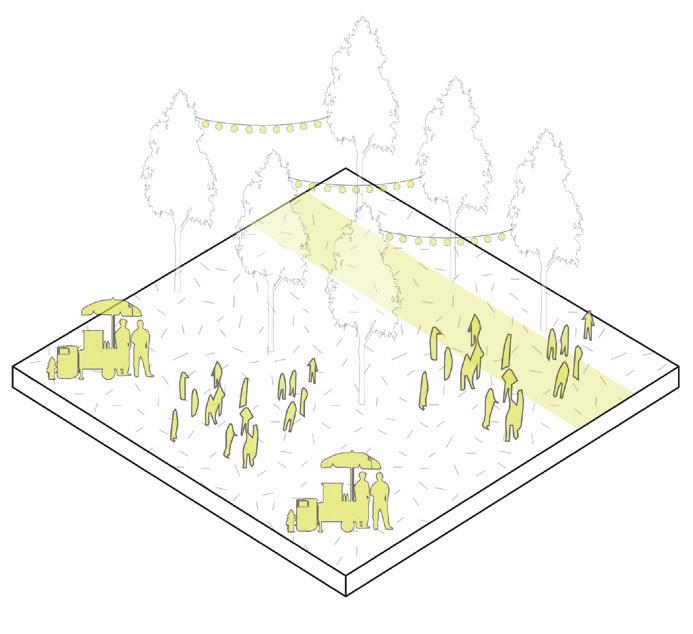

Food Celebration + Gathering Hub With similar programing already happening in this space, like El Mercadito, South Park Plaza becomes the main gathering space for the Pilot Program

DUWAMISH RIVER COMMUNITY HUB

Community Planning + Participation Hub Already a prominent component for community groups in South Park, the Duwamish River Community Hub is for contributors and participants to plan for the present and future of the program

FOOD LIFELINE

Demonstrational + Educational Hub The site of the biodigestor, Food Lifeline will bring in various groups to learn about the program from South Park contributor maps to an educational walk

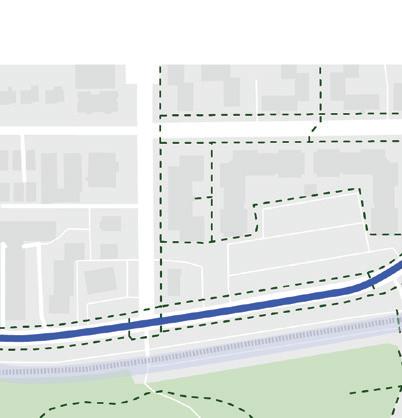

CONNECTORS

Interventions include recognition tools, in which pedestrians can find as they move through South Park. They promote our program while also speaking a universal language to passersby.

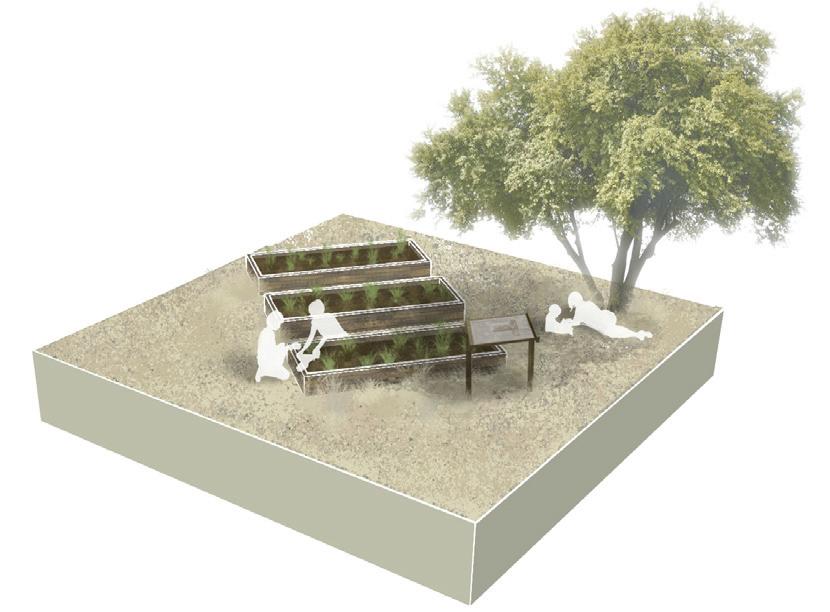

Our design interventions include participation tools. South Park residents are able to learn about and contribute to the program. | 18 |

creating fluidity of people and place through activating trail space

Sa nta Cl a rita , CA | Sant a Clara River Se nior Ca pstone | 20 19 Santa Clarita if the third largest city in Los Angeles County and is home to the Santa Clara River; which is the last natural river in Southern California, at least in the lower watershed in Ventura County.

Although it is dry most of the year, the river “flows” right through the middle of the city. Do not be mistaken by the name and blue line shown on maps, this is not an actual body of water; do not come to Santa Clarita expecting to kayak down the river and through the city.

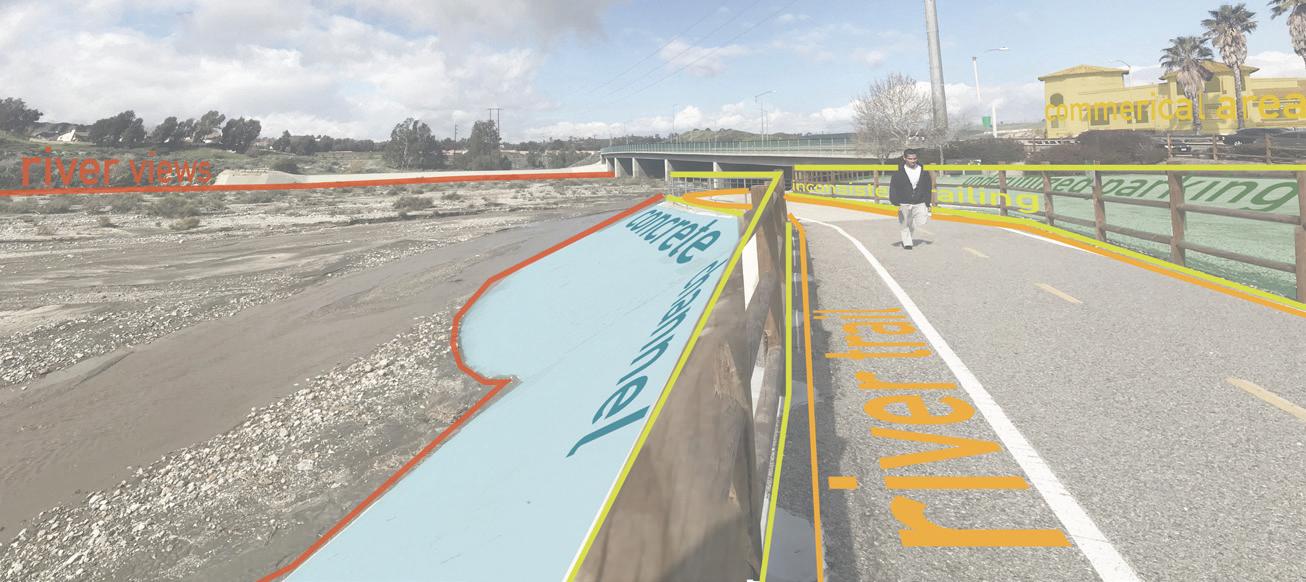

The Santa Clara River Trail runs along multiple parts of the river, certain parts of the trail are more developed than others, and the whole trail system in Santa Clarita lacks proper connections. The river is prone to flash flooding, which affects the trail and the people who currently use this space.

The design decisions made were based on research for the are of Canyon Country, within Santa Clarita. This part of town is lacking the most in connections to the river and the rest of Santa Clarita. These proposed designs tackle different spaces that would positively affect the people around them, focusing on educational, residential, and commercial areas.

| 19 |

| 20 |

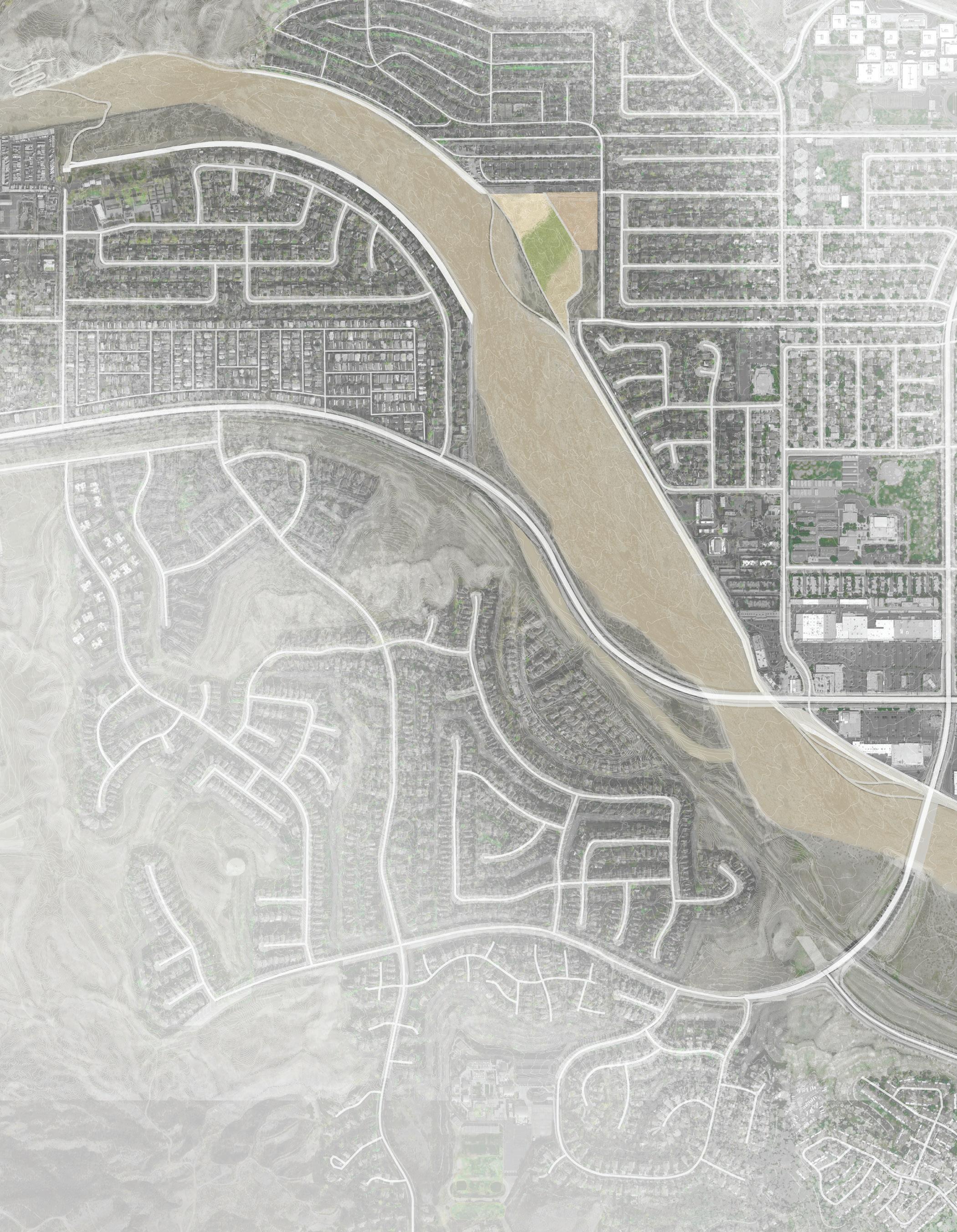

ed

ucation

santa clara river

al

extension over river

observation areas connection for school to river

res

rio vista elementary school

idential

rio vista learning lab

canyon view dr

open lawn trail extensions

santa clara river geology/flora learning

camp plenty rd

parking

area for slopes/play

delight st

discovery park

sole

can

yon

rd

ad

ed

sol yon

can

camp plenty rd

whites canyon rd

dad

stillmore st

rd

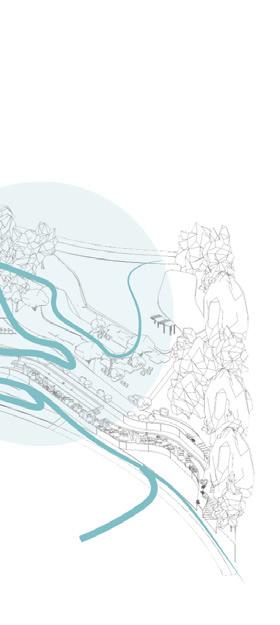

With three different, carefully selected river-side sites, “flowing” looks at the river and its connections, or lack thereof, to the city of Santa Clarita. It addresses these issues, that can be found in the existing city trails, as well as the minimal amount of knowledge and attention the Santa Clara River receives.

Flowing creates connections and programs in areas that are in need of them. Looking at existing educational, residential, and commercial areas, “flowing” introduces site-specific connections and programs to activate connection between user and landscape.

| 21 |

santa clara river

soledad canyon rd

existing parking

trail extensions

canyo n rd

Flowing proposes a series of design interventions that reinvent the idea and flow of the Santa Clara River. Interventions that allow visitors to utilize the space in any condition, rain or shine.

multi-functional event space

mmercial

canyon center trail

white s

abstract

co

via p

rinc

essa

scale 1” = 1000’

RIO VISTA ELEMENTARY

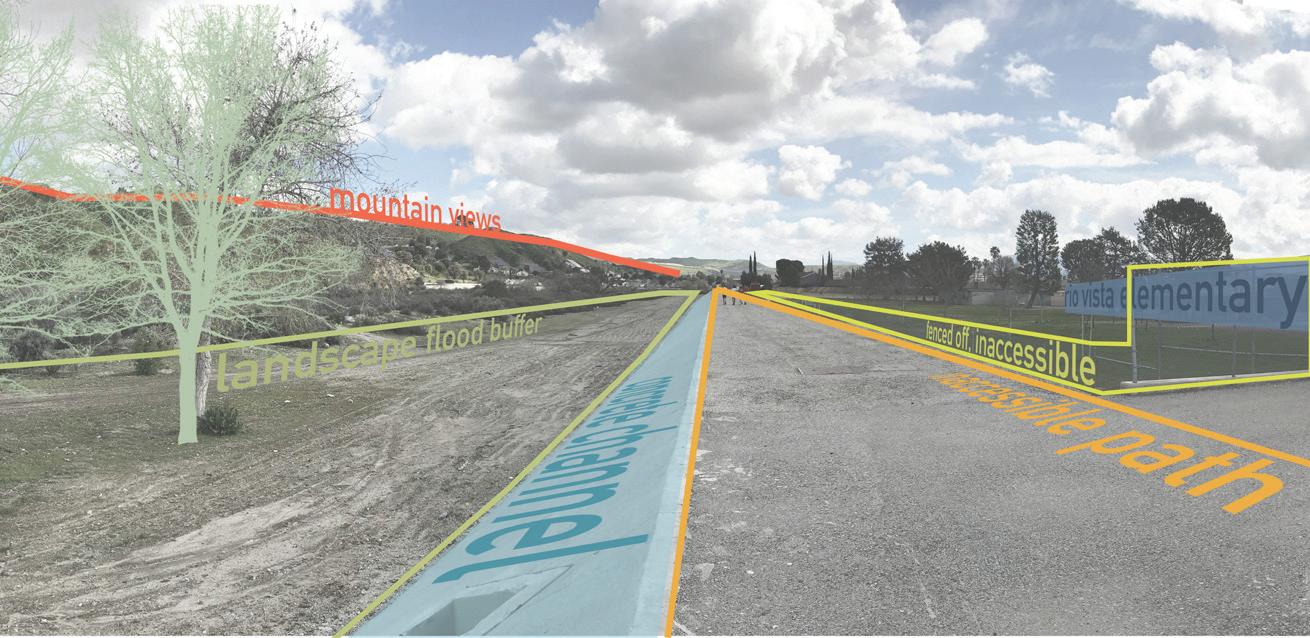

Rio Vista has what its name implies, a river view. This elementary school sits alongside the river but has no access or connection to it. It is fenced off, and has a concrete buffer, protecting the school in the event of a flood. The river is used by a variety of animals as a wildlife corridor, and while there is a mountain view, the existing path is inaccessible to the public.

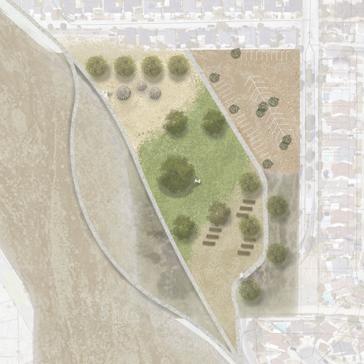

DISCOVERY PARK

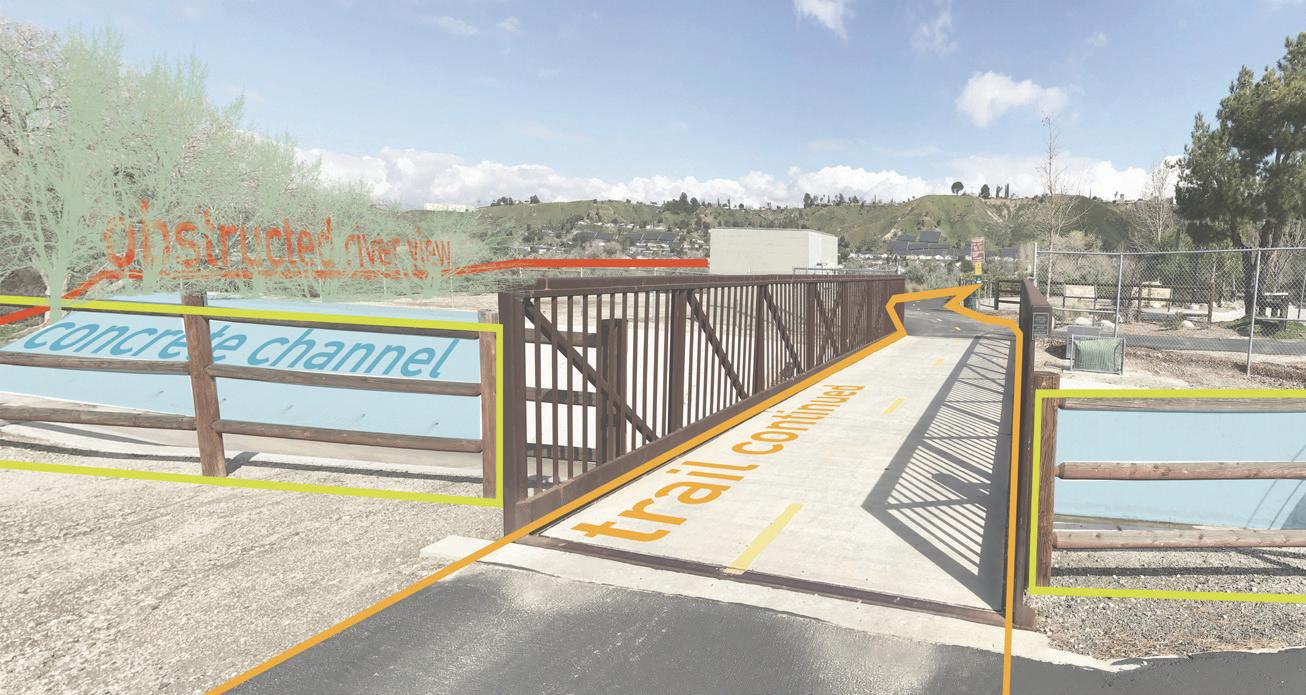

Discovery Park is and underutilized park at the eastern portion of the Santa Clara River Trail. Although it is right along the Santa Clara River, there is not an accessible view of it. This blank canvas in the middle of a residential area could be used for the local community members to discover Santa Clarita by extending the trail to connect back to the western portion of the trail.

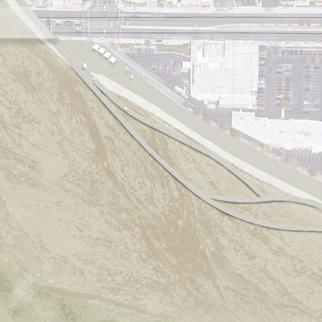

CANYON CENTER SHOPPING PLAZA

Canyon Center is the largest shopping center on the eastern side of Santa Clarita. The shopping center is divided

by Soledad Canyon Road and is a trail head for the Santa Clara River Trail and the Commuter Trail. This river-side trail is underutilized and has the potential for programing and extensions. | 22 |

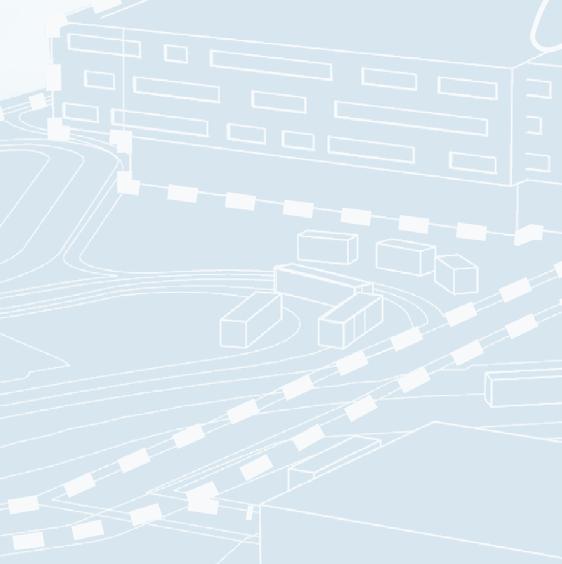

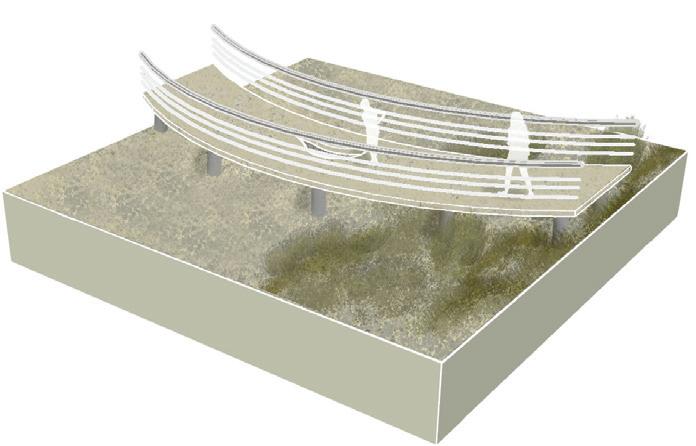

RIO VISTA ELEMENTARY

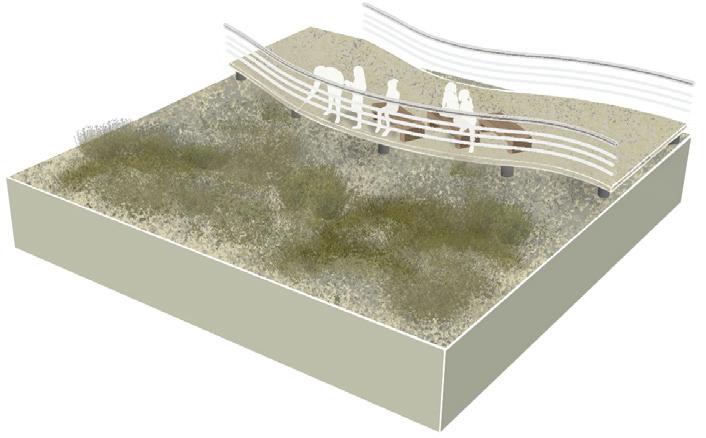

activated by observation areas and a learning lab

trail

golden valley mountains

santa clara river | flood zone | corridor

santa clara river works as a wild life corridor for endangered animals coming from the angeles national forest

ringtail cat

ca condor

trail

concrete buffer

flood buffer

rio vista elementary school

ca red-legged frog

DISCOVERY PARK

activated by history and river accessibility

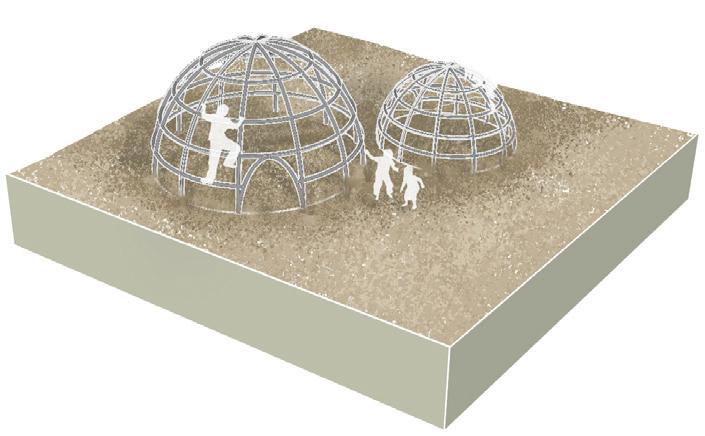

tataviam play structure

trail

trail

santa clara river | flood zone

inspired by the homes of tataviam native americans: discovery park people of the slopes

flood buffer

spanish settlers came to santa clarita because of the once wild, but small, river.

trail

historical | native planting

the first noted discovery of gold found in oak understory by francisco lopez

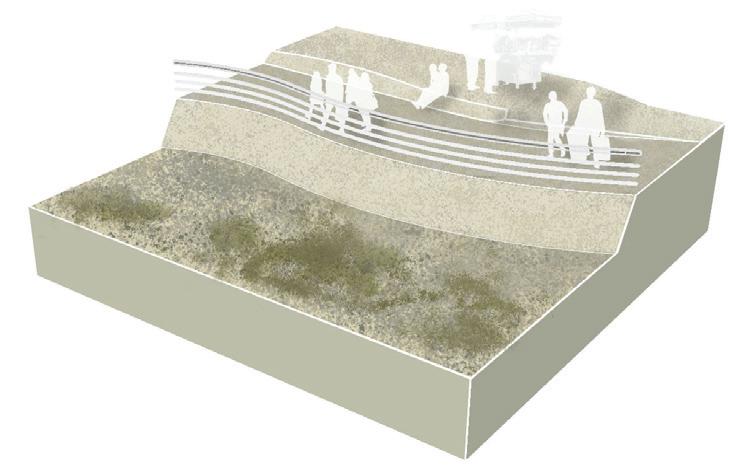

CANYON CENTER SHOPPING PLAZA

activated by flex spaces and trail extensions

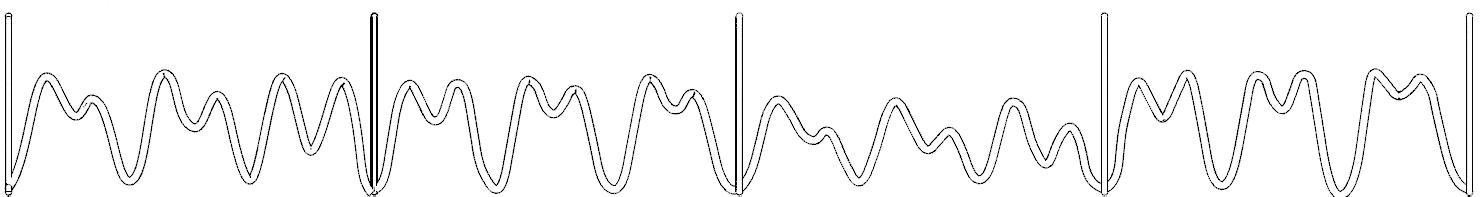

external pattern

section detail

trail

santa clara river | flood zone | debris collection

portions of the new river trail will have protruding filtration devices. design based on sediment patterns left behind after a flood.

| 23 |

trail

concrete buffer

trail

multi-functional space

under-utilized parking turns into open space that can be used for events. ex: farmer’s market

canyon center shopping plaza

transitions for students to observe transitioning areas of their landscape

discovering slopes tribute to 1st settlers, the tataviam tribe: people of the slopes

filtration protrusions collect flood debris, showing affects of pollution

observations for students to watch and experience the native flora and fauna

discovering gold allows the community to learn about native plants and geology

extensions allows for leisure and lingering in this commercial area

| 24 |

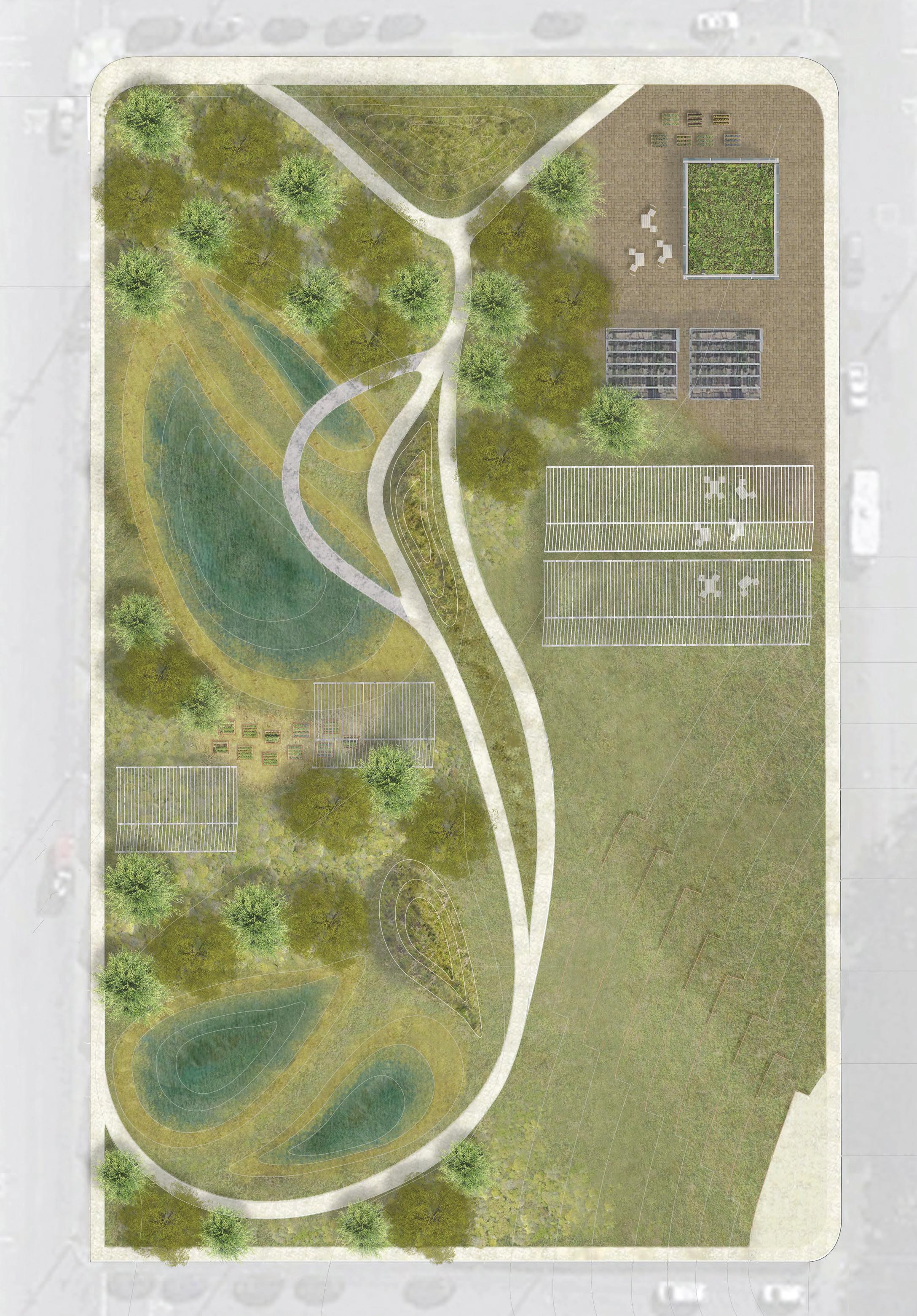

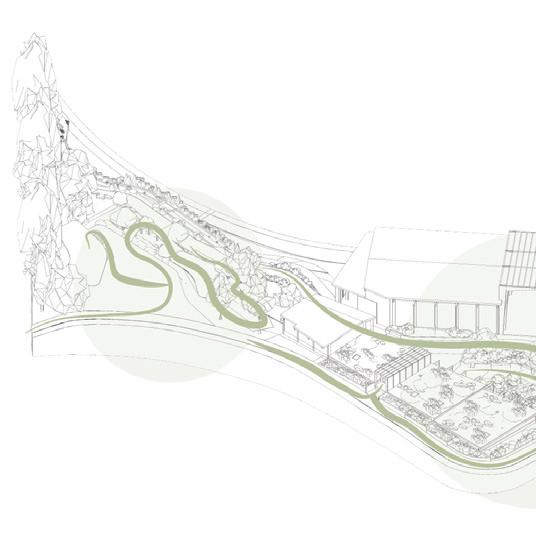

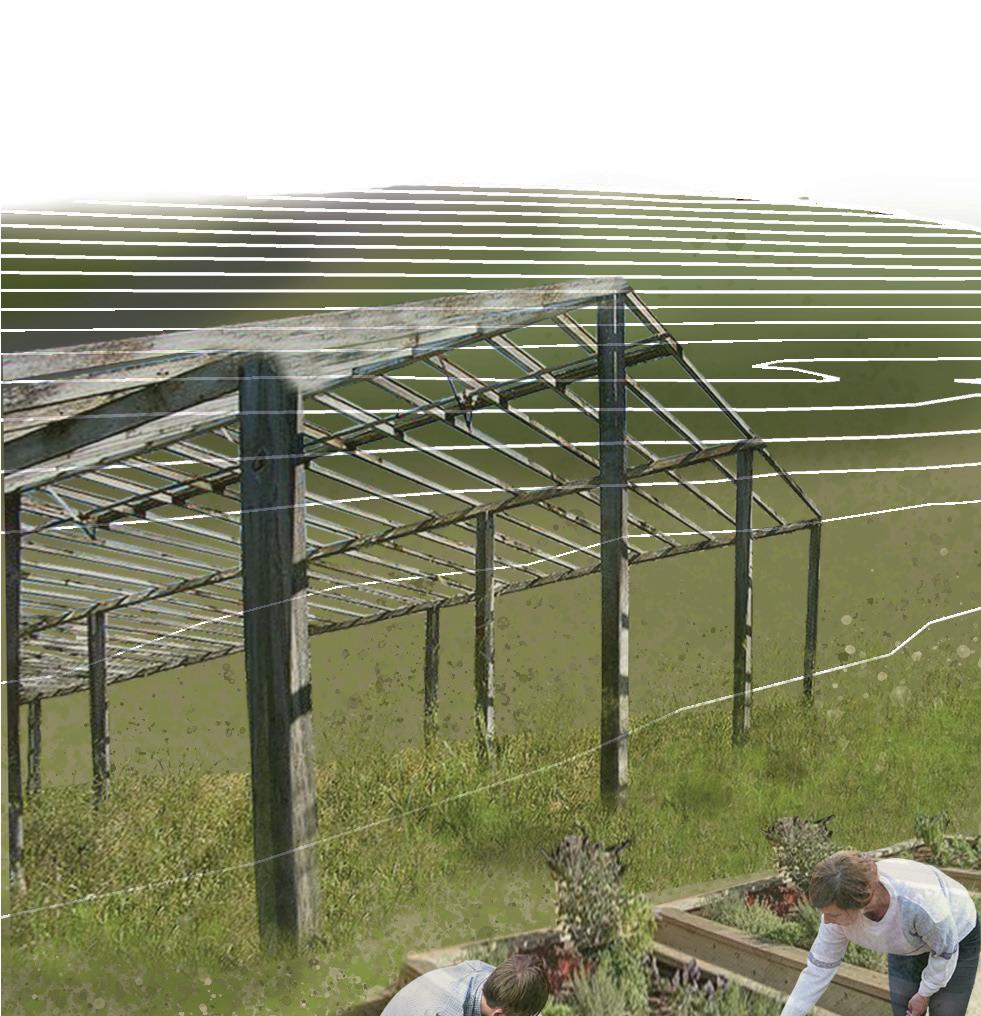

re v i v i n g a n e i g h b o r h o o d ’s o n c e flourishing rose nursery

Por tol a , Sa n Fra ncisco | Universit y Mound Na tura l E nvironm e nts Foc us S t udio | 2017 University Mound is a small, fenced off area in Portola, San Francisco. It is known to locals as the Rose Factory, as this spot was once a thriving rose nursery.

Now abandoned by the family who once owned it, passers by often admire and think of what once was, and what could be.

It is an area with potential to create a space for the community to be proud of, and has potential for positive environmental impacts on the watershed it sits upon.

University Mound is a sought after site, with ideas of breweries and housing coming from developers. Locals worry about loss of history and character to their neighborhood. Locally Grown seeks to revive the site while maintaining its unique and vibrant roots, with a new community green space and opportunities for local economic growth.

| 25 |

| 26 |

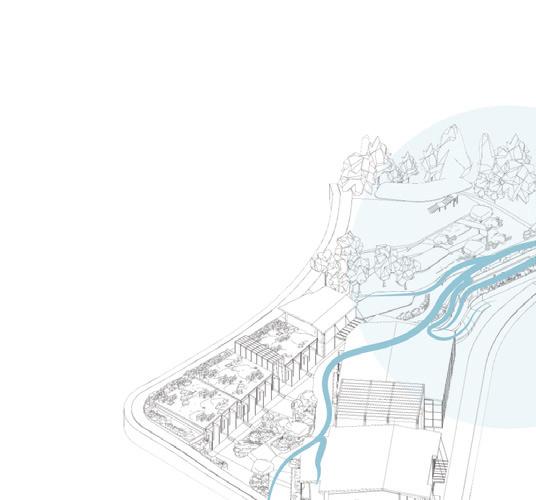

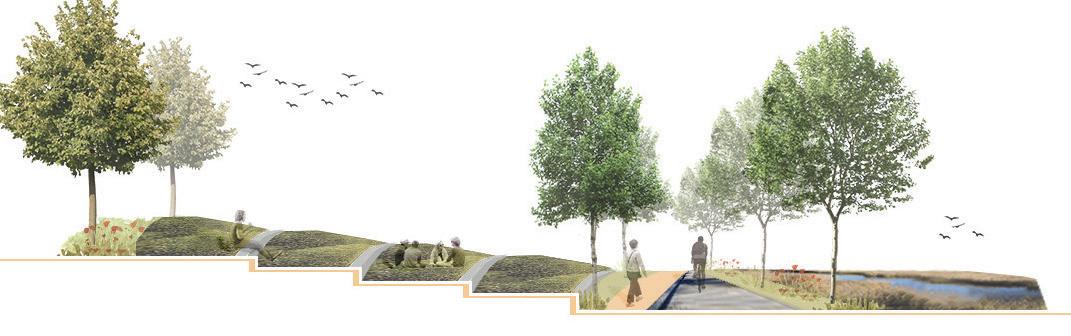

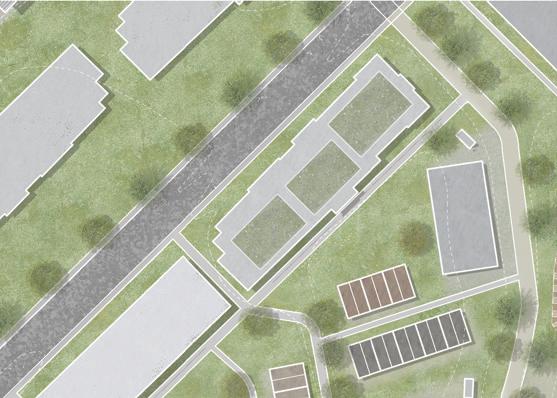

With revived nurseries, community gardens and opportunities for local vendors to take part, the concept of having things locally grown comes to life. The local watershed is utilized for collection throughout the site; with detention ponds addressing flooding.

| 27 |

detention ponds

retail area

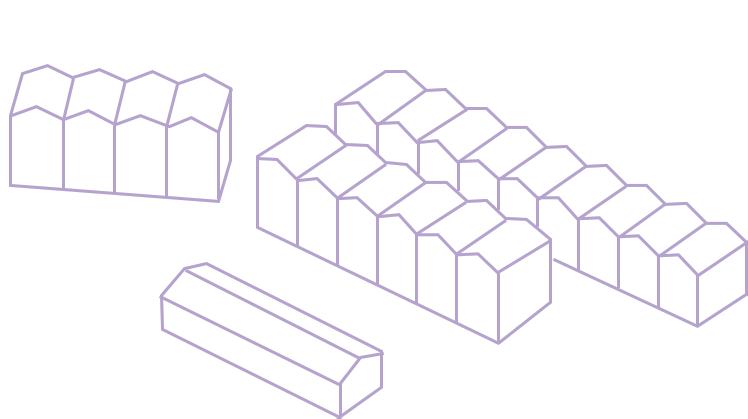

greenhouses

community gardens

terraced steps

| 28 |

drafting + bim

Pl a nting + De sign | S eat t le, WA Adva nce d Pl a nting Design | 2022 Utilizing AutoCAD and LandFX, projects for residential and urban spaces were the focus of this course. I gained a greater awareness of tools and resources for assessing plant availability, increased knowledge of contemporary issues in urban horticulture, and a greater understanding of different planting styles and typologies.

Mode l ing + De sign | S eat t le, WA Founda m e nta l s of B IM | 2023 Course allowed students to learn the fundamentals of working in Revit by developing a project, using both 3D parametric modeling and the 2D documentation skills essential to communicating ideas effectively in professional practice. The main project in this course was the design and documentation of a fire station.

| 29 |

3" ON GR 1" NOSING REBAR 6"

24" O.C. AT SLAB ON GRADE

3

3" SLAB ON GRADE

6" MIN

4" CLEAR 11"

10"

| 30 |

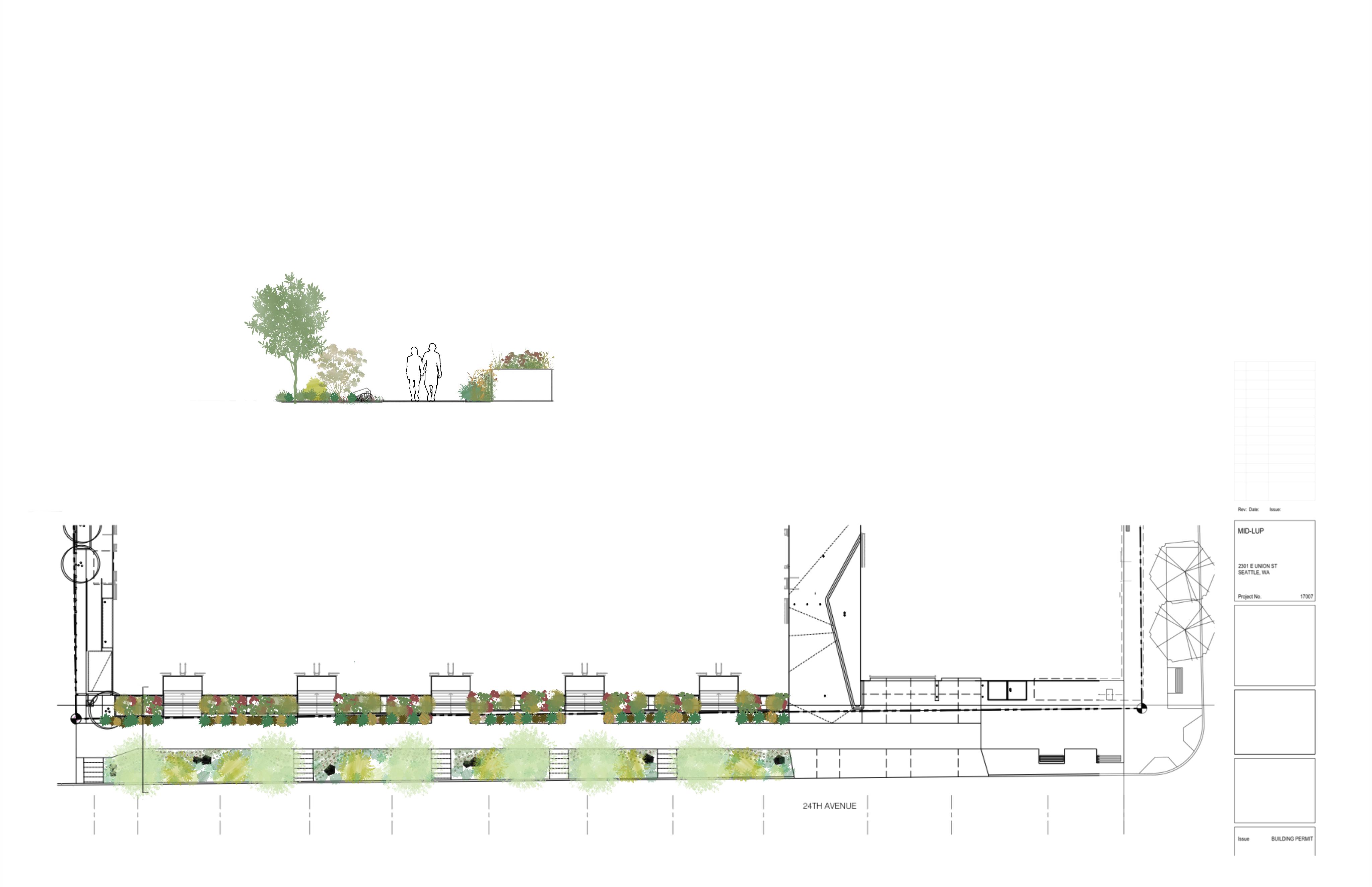

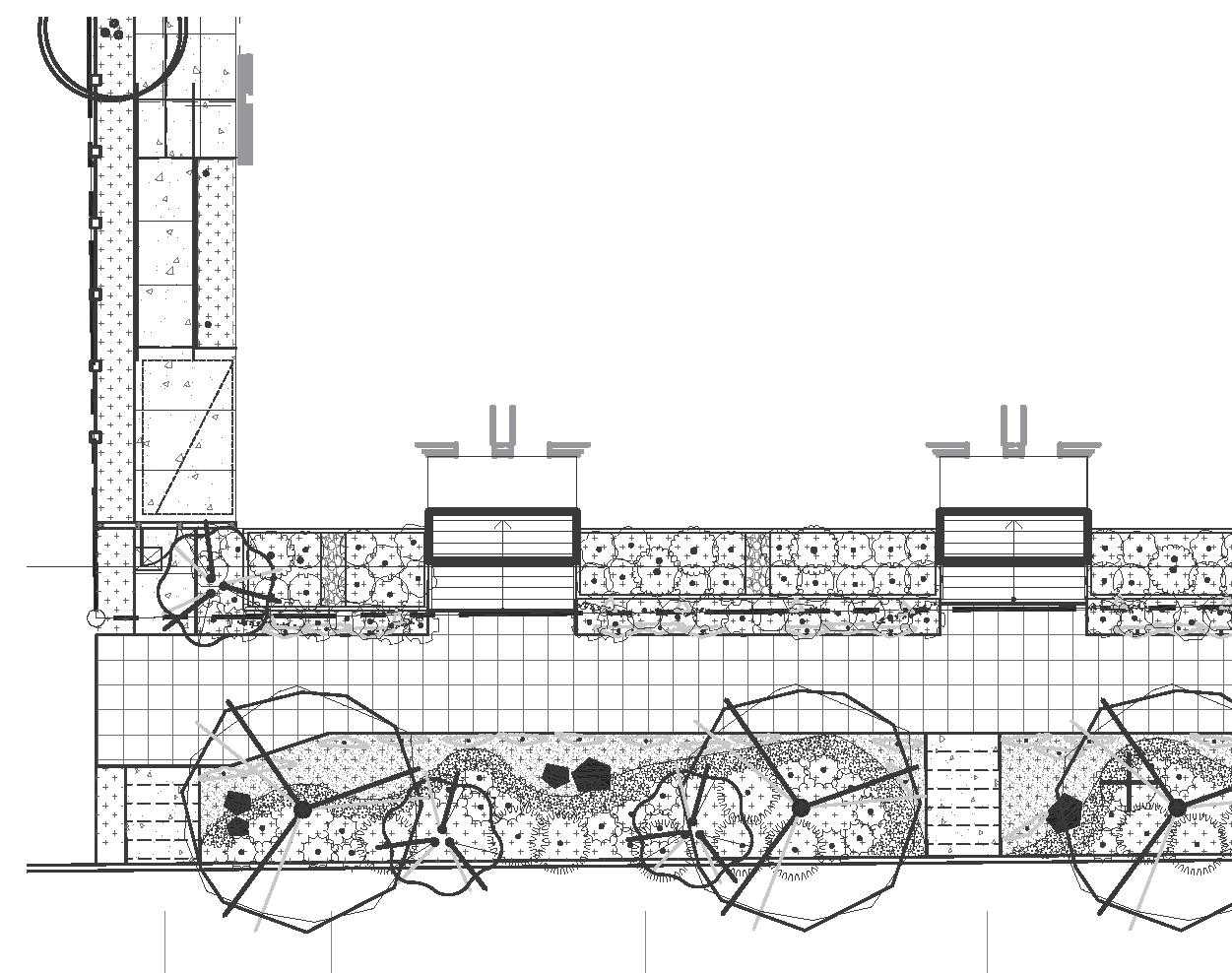

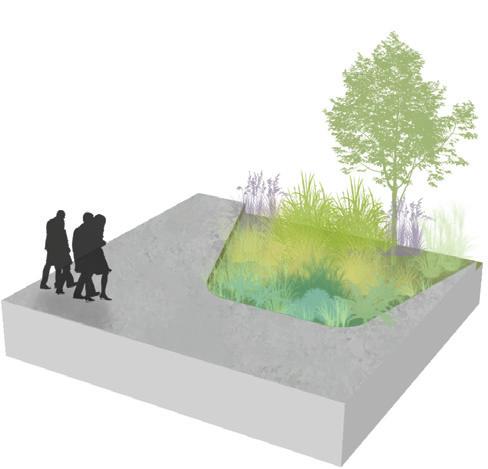

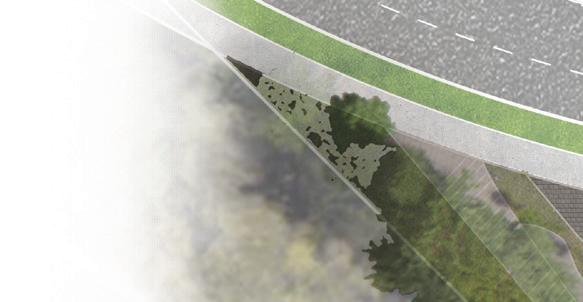

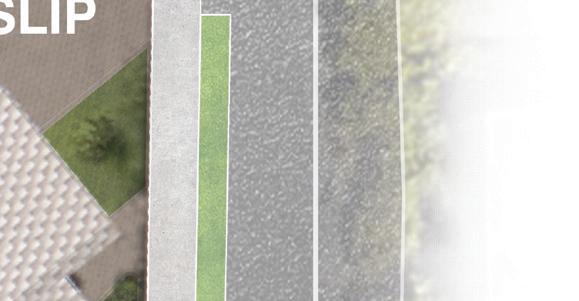

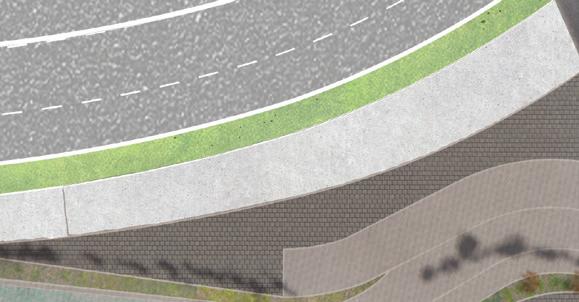

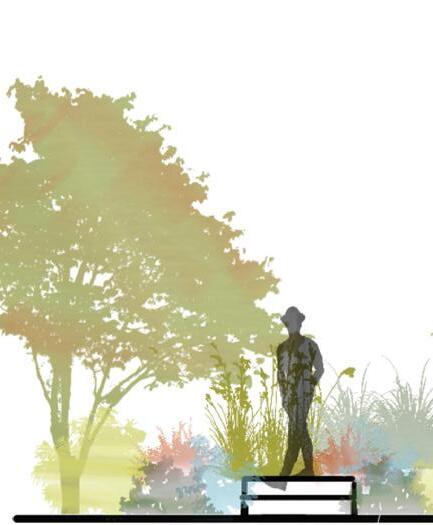

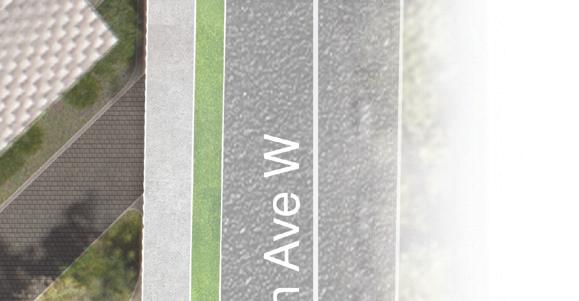

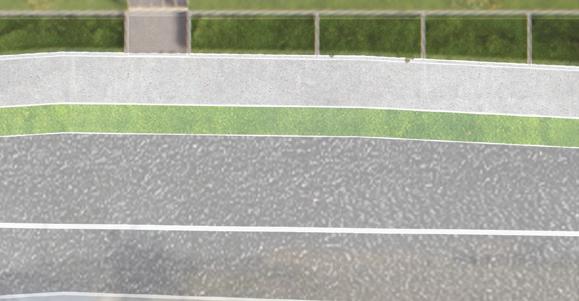

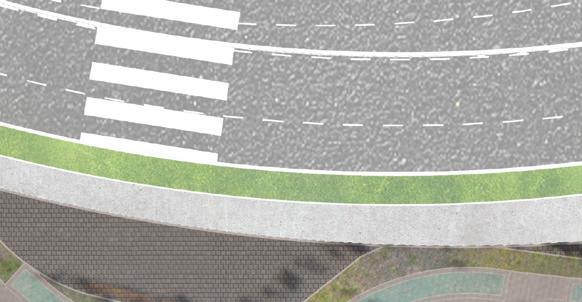

Na tive Stre e tsca pe | S eat t le, WA This streetscape focuses on Pacific Northwest natives. All aspects of the design, the biorentention planters, the sidewalk planting, and street facing planting will consist of natives. Facing residential and being in a mostly shaded area, natives that are shade tolerant are being considered. Also considering area and the creatures that we should anticipate also using the space I have included a gravel buffer for the street facing and what I have seen to be urine resistant plants on the sidewalk strip. Being from, and studying in Southern California, I wanted to explore more planting options that I am not so accustomed to.

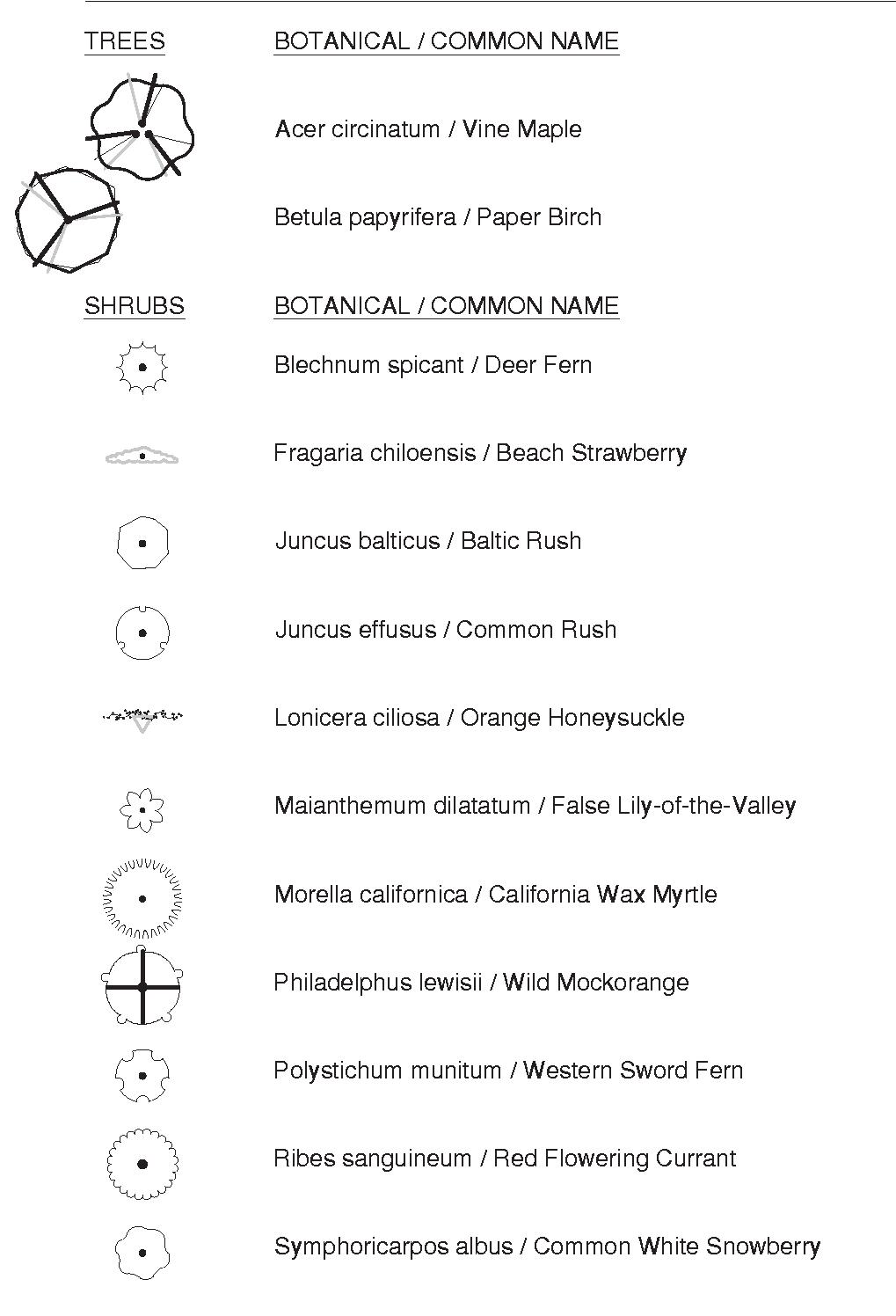

PLANT SCHEDULE

| 31 |

P R O C E S S C O N C E P T A N D PA L E T T E

| 32 |

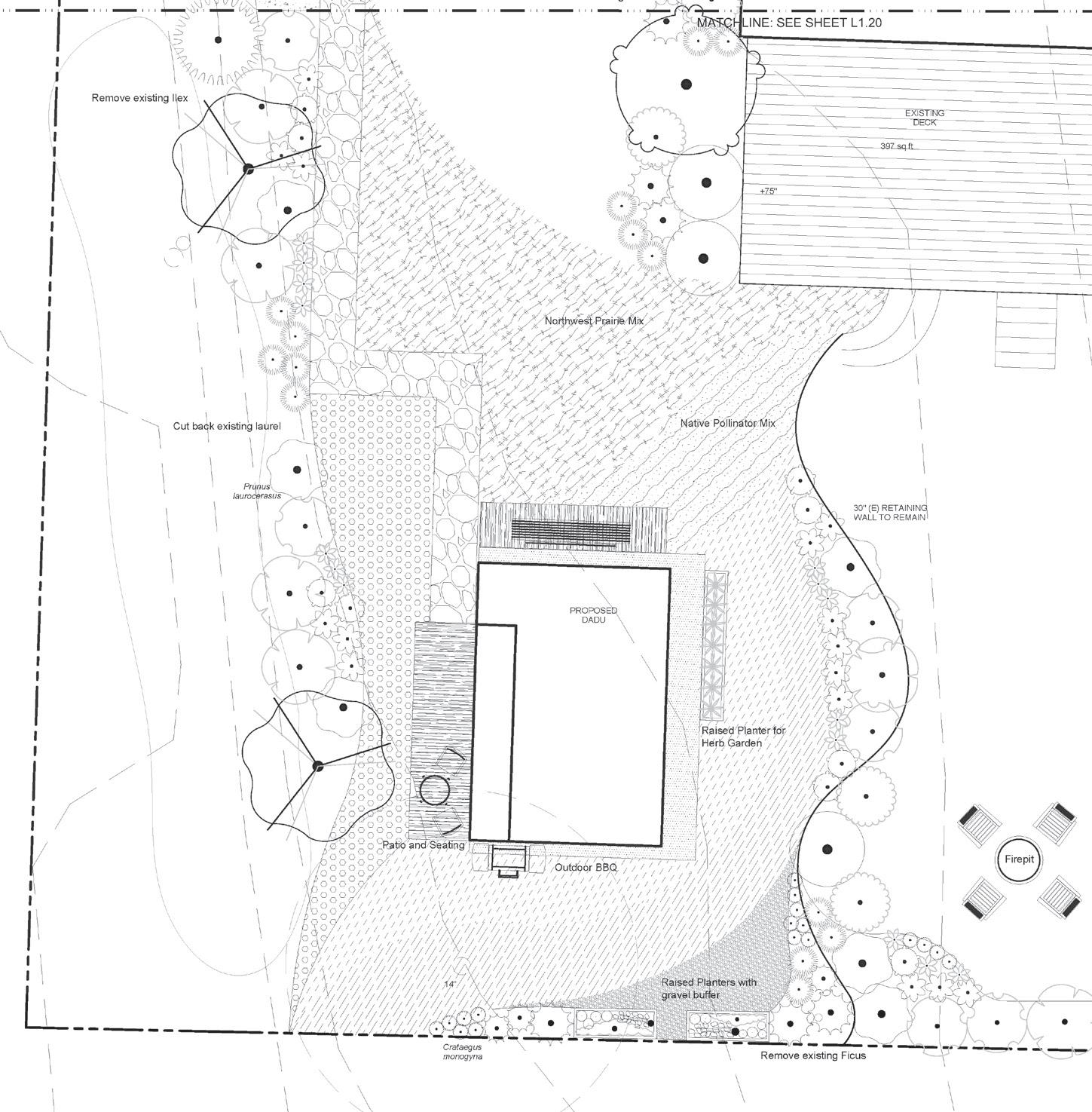

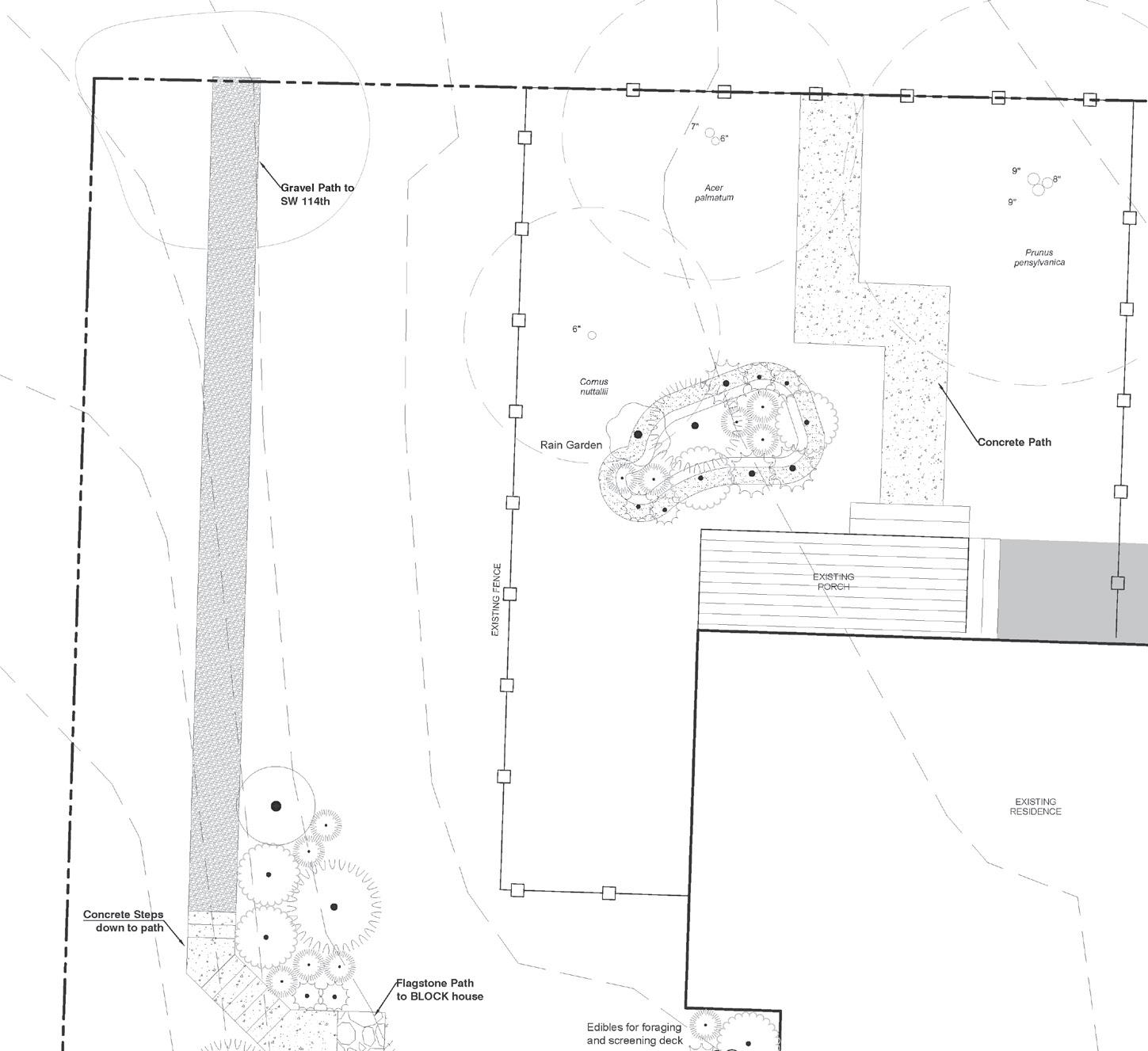

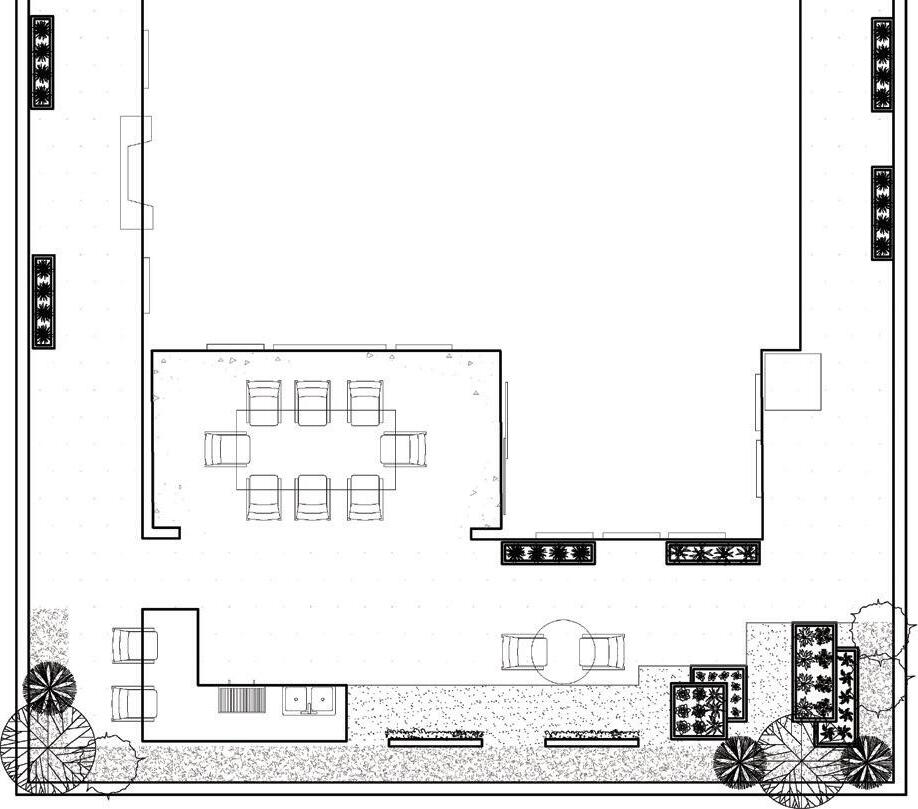

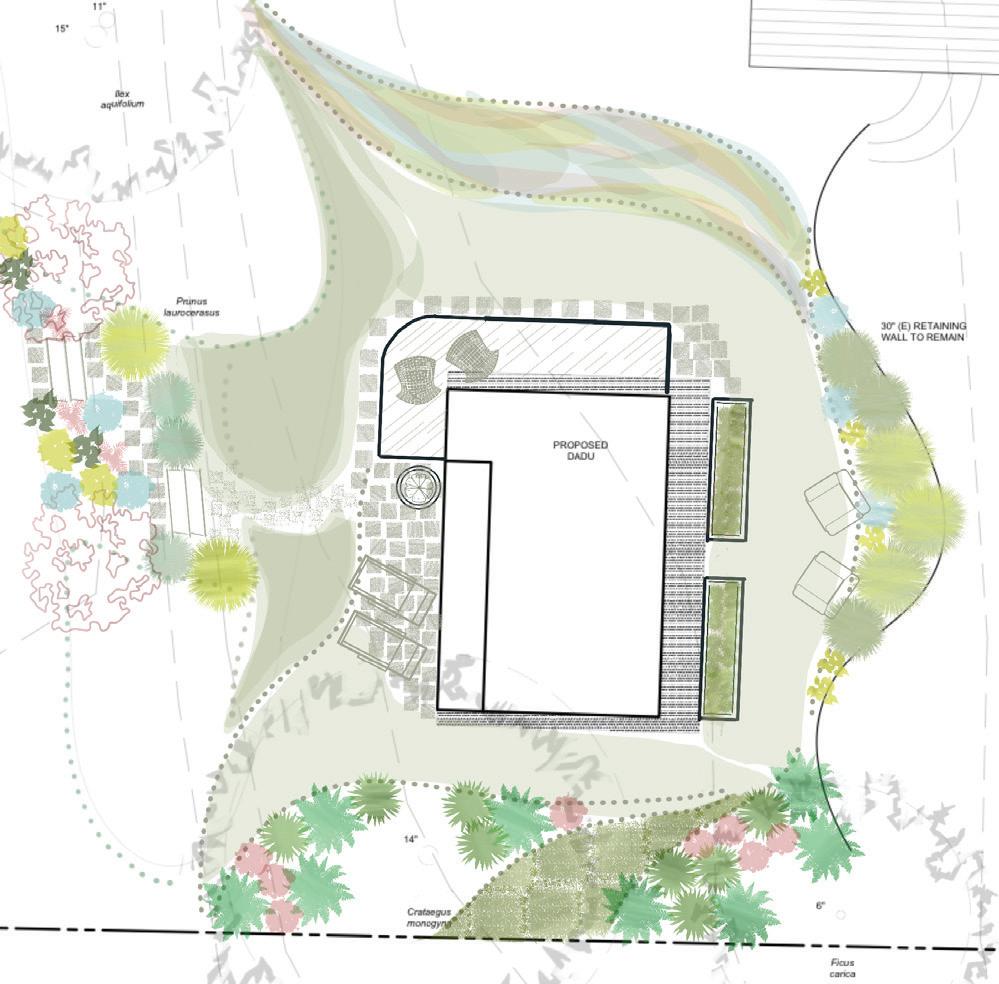

B LO CK House | B urien, S eat t le, WA Creating a feeling of privacy and ownership.

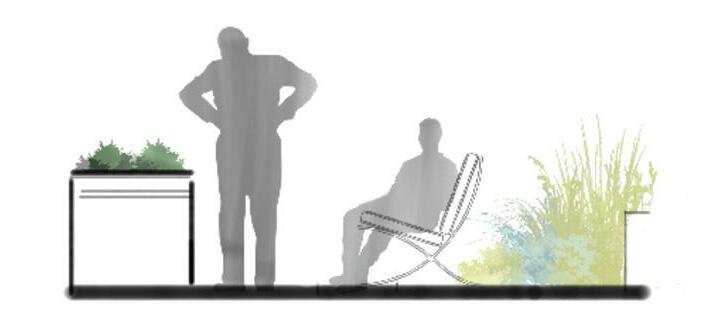

The design cuts through some of the existing Prunus laurocerasus to create a private entrance that is colorful and wild, leading in to a patio space with loungers and container plants.

The south end of the residence includes a variety of shade tolerant northwest natives.

The deck wraps around the north side of the residence to give space for enjoying the morning sun. The deck looks out onto seeded meadow mix, giving seasonal variety and interest year-round.

Raised planters sit along the east side of the residence, where there is a small space to relax, screened by tall grasses and colorful perennials.

P R O C E S S C O N C E P T A N D PA L E T T E | 33 |

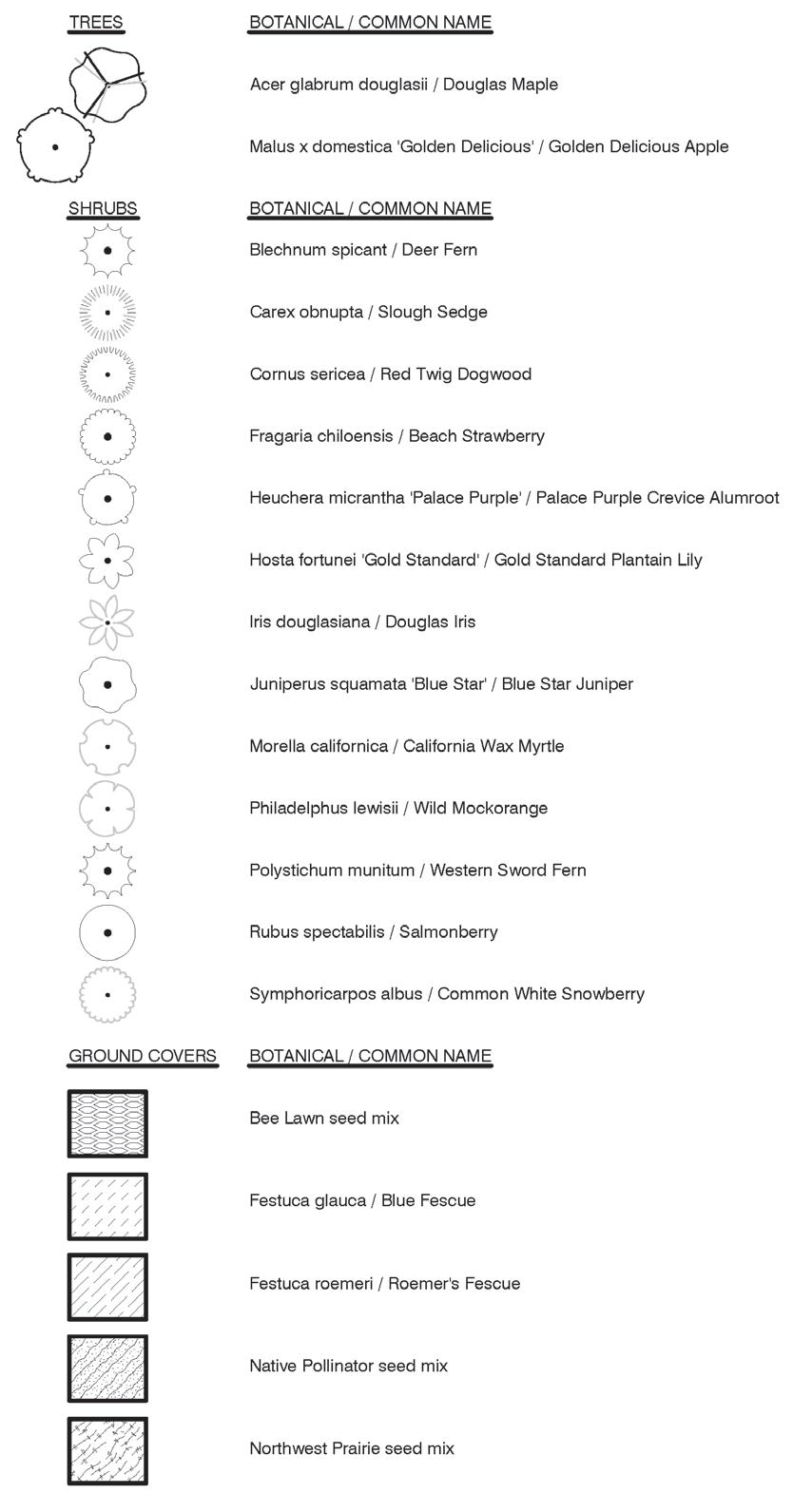

PLANT SCHEDULE

| 34 |

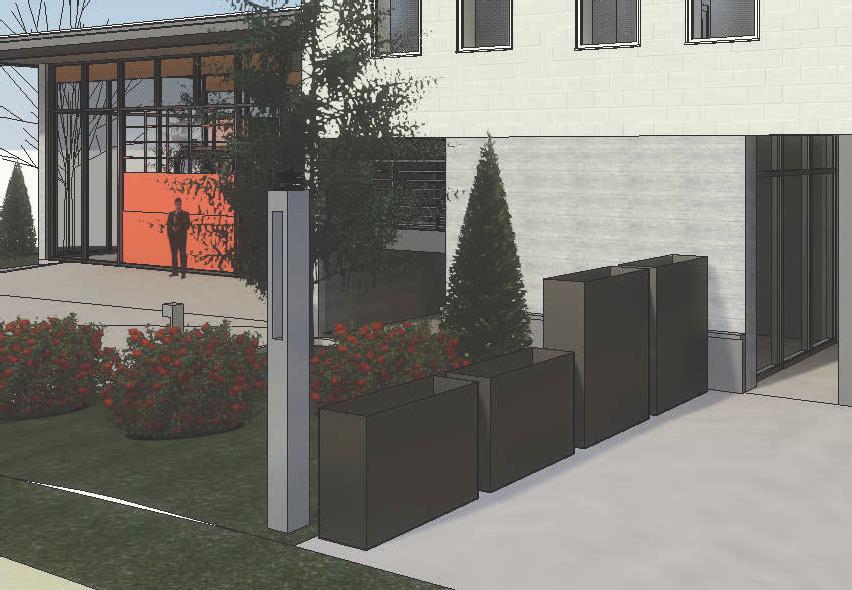

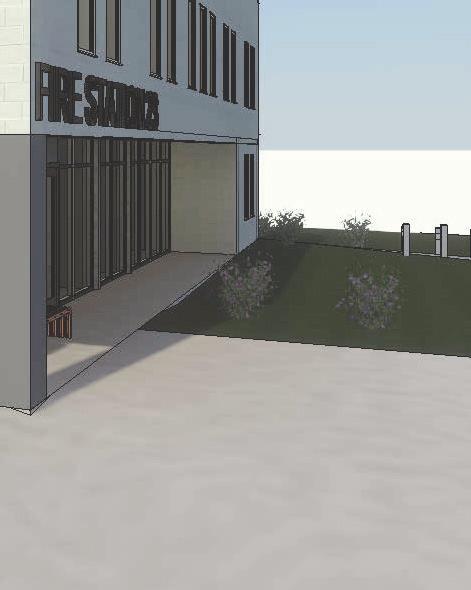

Fire Sta tion | Se a t t le, WA This fire station was a collaboration between two architecture and two landscape architecture students. Concept and programming was done as a group. Design was distributed by programmatic spaces, my main focus was the App Bay. I also managed document revisions and set organization.

Group Members: Seyyada Burney, Kayla Richmond and Bella Septianti

| 35 |

Number

1

2

3

4

5

6

7

8

9' - 6" 17' - 6"

19' - 0"

10' - 0"

10' - 0"

11' - 0"

1

11' - 0"

1 A-104

A-107 1

APP BAY UNISEX REST AB13 64 SF

4' - 9"

15' - 6" APP. EQ. STOR. AB10 103 SF

JANITOR APP BAY AB12 36 SF

12' - 0" 4' - 0" 6' - 0"

E 9' - 1 7/8"

2

13' - 0"

73' - 6 5/8"

8' - 0"

F

MAJOR DIS, STOR. AB11 81 SF

C

1

2

A-110

A-110

APP BAY AND SUPPORT AB1 2060 SF

26' - 9 1/8"

1 A-109

REPORT/DISPATCH AB3 25 SF

BATT. CHARGE ALCOVE AB4 25 SF

COMPRESSOR AB7 21 SF

5' - 3"

4' - 10"

9' - 2"

EQ 5' - 10"

EQ

5' - 10"

D

9' - 0"

4' - 6"

A-111

G

22' - 6 7/8"

20' - 3"

DECOM/CLEAN RM AB5 221 SF

22' - 3 5/8"

MAIN. WORK AREA EMS STOR 108 AB9 106 SF 81 SF

EQ

BUNKER GEAR RM AB8 264 SF

-

STAIR 2 CR2 113 SF

EQ

2

UP

UP

EQ

A-105

-

EQ

STAIR 1 CR1 167 SF

13' - 5 1/8"

2

OFFICER BUNK ADMIN A5 136 SF

H

EQ

LAN/UTIL C13 78 SF

A-104

LOBBY A1 OFFICER OFFICE OFFICER ADMIN 199 SF A3 A4 107 SF 107 SF HALL JANITOR ADMIN CR4 A8 137 SF 30 SF OFFICER REST. ADMIN UNISEX REST. ELEV. A6 A7 CR3 77 SF 52 SF 44 SF STATION OFFICE A2 217 SF

13' - 5 1/8"

DAY RM C3 172 SF

J

5' - 0"

A-108

HOSE DRY/STOR AB2 121 SF

ADMIN A1 A2 A3 A4 A5 A6 A7 A8 APP BAY AB1 AB2 AB3 AB4 AB5 AB7 AB8 AB9 AB10 AB11 AB12 AB13 108 CIR CR1 CR2 CR3 CR4 CREW C1 C2 C3 C4 C5 C6 C7 C8 C9 C10 C11 C12 C13 C14 SHARED SP 106 Grand total:

B A

L E V E L 1 F LO O R P L A N 6' - 0" STEEL RODS

STEEL RODS

CHERRY WOOD SLATS

CHERRY WOOD SLATS

2' - 1"

2' - 1"

6' - 0"

CURVED WOOD BENCH PLAN

1' - 6"

2' - 3"

1' - 6"

0' - 9"

CURVED WOOD BENCH WITH ARMREST PLAN

CURVED WOOD BENCH WITH ARMREST ELEVATIONS

CURVED WOOD BENCH ELEVATIONS

BENCH FAMILY - CURVED WOOD BENCH WITH ARMREST

BENCH FAMILY - CURVED WOOD BENCH WITH ARMREST

C U R V E D W O O D B E N C H FA M I LY | 36 |

A

0' - 8 3/8"

0' - 8 3/8"

B

APP BAY ROOF 84' - 0"

3' - 11 1/4"

3' - 11 1/4"

1' - 4"

CW 1

W1

W1

CW 1

3

15' - 11 1/4"

LEVEL 2 78' - 0"

W1

14' - 5 3/8"

14' - 5 3/8"

CURTAIN 1 1/2" = 1'-0" 3

12' - 0"

12' - 0"

11' - 9 1/2"

13' - 6 1/2"

11' - 9 1/2"

13' - 6 1/2"

15' - 11 1/4"

LEVEL 2 78' - 0"

W1

APP BAY ROOF 84' - 0"

3 A-109

0' - 2 1/2"

1' - 6 1/2"

2' - 3" 1' - 4"

1' - 6 1/2"

C1

0' - 2 1/2"

C1

3 A-109

R3

2' - 3"

R3

B

R3

R3

C1 - APP BAY CEILIN

CW 1

CW 1

4 A-109

LEVEL 1 68' - 0"

1' - 0"

1' - 0"

2' - 7 7/8"

2' - 7 7/8"

W1 - CAST IN PLACE

LEVEL 1 68' - 0"

4 A-109

F4 - CONCRETE SLA

1

APP CURTAIN APP CURTAIN APP BAY ELEVATION A P PBAY B1 AY C UBAY R T AWALL I N W SECTION A L LWALL S E C TSECTION I O N 2 APP BAY A2P PEAST B AY E AEAST S T E ELEVATION L E VAT I O N 3/4" = 1'-0" 3/4" = 1'-0" 3/4" = 1'-0" 3/4" = 1'-0"

R3R3 ROOF PER ROOF PER A-111.3 ASSEMBLY A-111.3 ASSEMBLY BACKER BACKER ROD ROD AND AND SEALANT SEALANT TONGUE AND GROVE TONGUE AND GROVE WOOD DECKING WOOD DECKING

F "

2 "

A

PLYWOOD SHEATHING PLYWOOD SHEATHING

APP APP BAY BAY ROOF ROOF 84'84' - 0" - 0" WOOD SHIM WOOD SHIM ALUMINUM STOREFRONT ALUMINUM STOREFRONT GLAZING SYSTEM GLAZING SYSTEM MULLION BEYOND MULLION BEYOND

BOARD FORMED BOARD FORMED CONCRETE WALL BEYOND CONCRETE WALL BEYOND MULLION BEYOND MULLION BEYOND ALUMINUM STOREFRONT ALUMINUM STOREFRONT GLAZING SYSTEM GLAZING SYSTEM WOOD SHIM WOOD SHIM BACKER BACKER ROD ROD AND AND SEALANT SEALANT CONCRETE SLAB ONON GRADE CONCRETE SLAB GRADE

GLULAM BEAM GLULAM BEAM

LEVEL LEVEL 11 - 0" 68'68' - 0"

BOARD FORMED BOARD FORMED CONCRETE WALL BEYOND CONCRETE WALL BEYOND

C UCURTAIN R T A I N W AWALL L L H EHEADING AHEADING DING CURTAIN WALL 33 1 1/2" 1 1/2" == 1'-0" 1'-0" | 37 |

CCURTAIN UCURTAIN R T A I N WWALL A L L S ISILL LSILL L WALL 44 1 1/2" 1 1/2" == 1'-0" 1'-0"

DD - ASSE

A

B

C

D

E

F

G

H

J

2 A-104 1 A-110 1

ROOF PLAN 90' - 0"

C

D

E

F

4'

H

J

H

J

2

1/8" = 1'-0" 0'

LEVEL 2 78' - 0"

LEVEL 1 68' - 0"

G

WEST SECTION

APP BAY ROOF 84' - 0"

10' - 0"

LOBBY A1 199 SF

W E S T S E C T I O N A P P B A Y I N T EAR I BO R 1

6' - 0"

APP BAY AND SUPPORT AB1 2060 SF

PHYSICAL TRAIN C4 316 SF

24' - 0 1/8"

HALL 106 491 SF

6' - 0"

A-109

A-104

8'

16'

A

1 A-109

B

C

D

E

F

G

1

ROOF PLAN 90' - 0"

A-110 2

A-109

7

6

2 A-109

5

1

4

3 A-110

2

1 12' -10' 0" - 0"

8

1 A-104

2 A-109

APP BAY ROOF 84' - 0"

24' - 0 1/8"

1

LEVEL 2 ROOF78' PLAN - 0" 90' - 0"

---

24' - 0 1/8"

12' - 0"

A-104

APP BAY ROOF 84' - 0" LEVEL 1 68' - 0" LEVEL 2 78' - 0"

---

10' - 0"

ROOF PLAN 90' - 0" 12' - 0"

DINING (BEANERY) C2 214 SF

EAST ELEVATION

E A S T E 8L E V A T I O N 6S T A T5I O N +4 A P P B A Y3 E X T E R I2O R LAN/UTIL C13 78 SF

1

LEVEL 1 68' - 0"

EAST ELEVATION LOBBY A1 199 SF

OFFICER ADMIN A4 J 107 SF

1

OFFICER OFFICE H A3 107 SF

G 1

F

E

A-108

A-104

STAIR 1 CR1 D 1671 SF

C

B

A

C

B

A

A-107

SOUTH SECTION 8'

G

F

E

D

16'

6' - 0"

4'

H

ROOF PLAN 90' - 0" APP BAY ROOF 84' - 0" LEVEL 2 78' - 0"

10' - 0"

0'

J

24' - 0 1/8"

1/8" = 1'-0"

6' - 0"

2

16' - 0"

LEVEL 1 68' - 0"

1

2 A-107

2 A-108

NORTH ELEVATION

---

ROOF PLAN 90' - 0"

6' - 0"

1/8" = 1'-0"

24' - 0 1/8"

1

STATION OFFICE A2 217 SF

LEVEL 2 78' - 0"

6' - 16' 0" - 0"

OFFICER BUNK ADMIN 7 A5 136 SF

24' - 0 1/8"

1/8" = 1'-0"

LEVEL 1 68' - 0"

APP BAY ROOF 84' - 0"

10' - 0"

1

HALL 106 491 SF

24' - 0 1/8"

PHYSICAL TRAIN C4 316 SF

APP BAY ROOF 84' - 0" LEVEL 2 ROOF78' PLAN - 0" 90' - 0" APP BAY ROOF 84' - 0" LEVEL 1 68' - 0" LEVEL 2 78' - 0"

LEVEL 1 68' - 0"

1/8" = 1'-0"

W E ST E L E VAT I O N STAT I O N + A P P B AY E XT E R I O R 2

WEST ELEVATION 1/8" = 1'-0"

1

2

2

3

4

5

6

7

8

WEST ELEVATION 1/8" = 1'-0"

1

1

1

A-107

A-108

A-104

12' - 0"

APP BAY ROOF 84' - 0" LEVEL 2 78' - 0"

10' - 0"

24' - 0 1/8"

ROOF PLAN 90' - 0"

LEVEL 1 68' - 0"

P

S O U T H E L E VAT I O N A P P B AY E XT E R I O R

D

D

C

2

SOUTH ELEVATION 1/8" = 1'-0"

| 38 |

| 39 |

SELECTED WORKS

design internships public art competition sustainability initiatives design guidance media exploration

| 40 |

design internships Por t of S eat t le | S eat t le, WA Arc hit ec t ural Des ign Int ernship | 202 2 Summer and Fall of 2022 with the Architecture Team at SEA-TAC. The team acquired a variety of projects that required landscape consultants. I worked closely with our consultants to update the Port’s Landscape Standards. I also worked with the Port’s Environmental Team to review and update the existing Plant List.

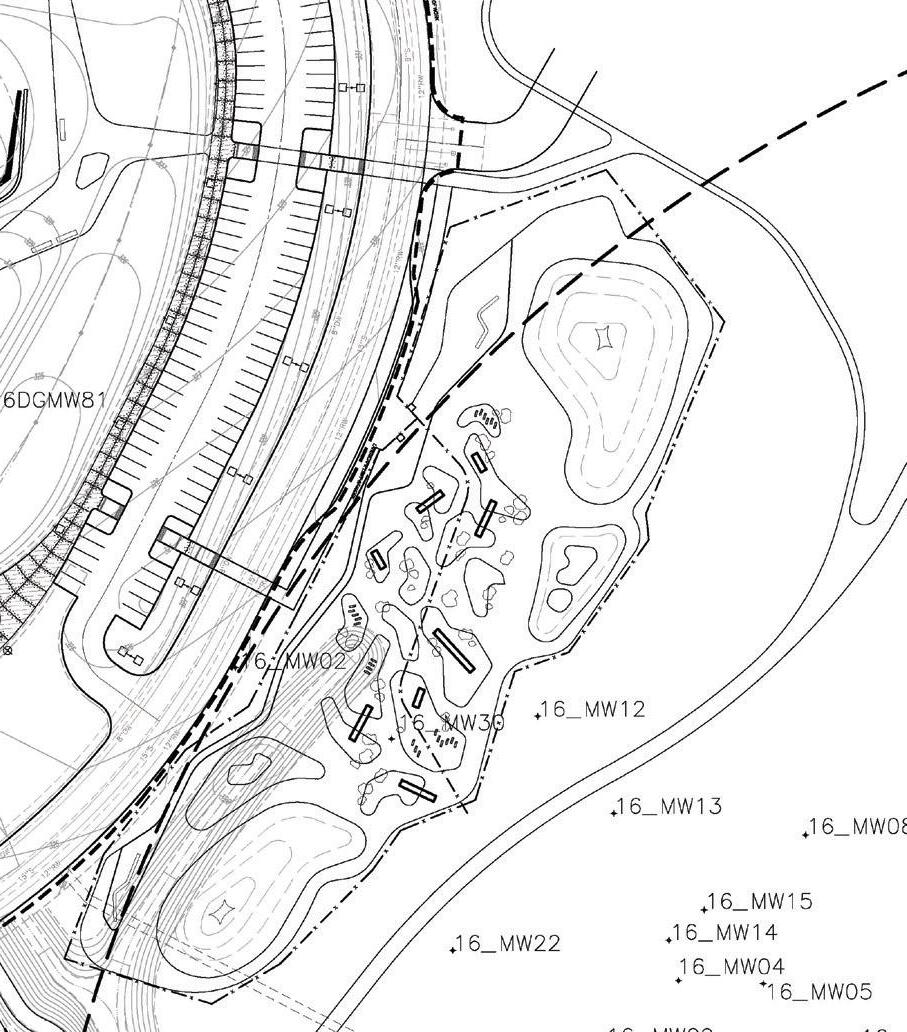

Design work included conceptual floor and material plans for a meeter-greeter space remodel, and planting of a pet relief area.

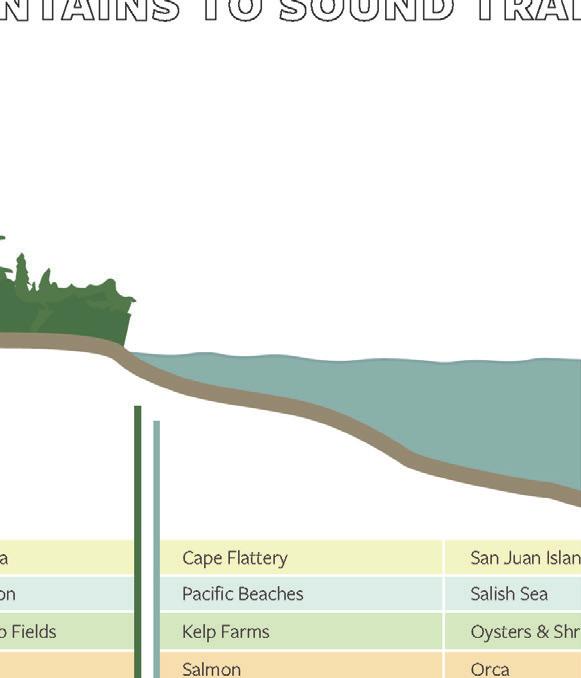

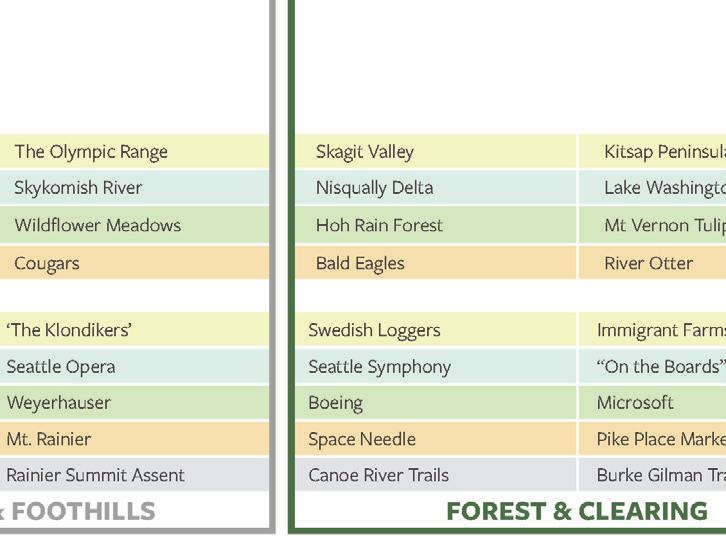

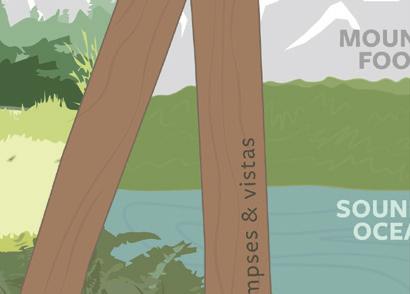

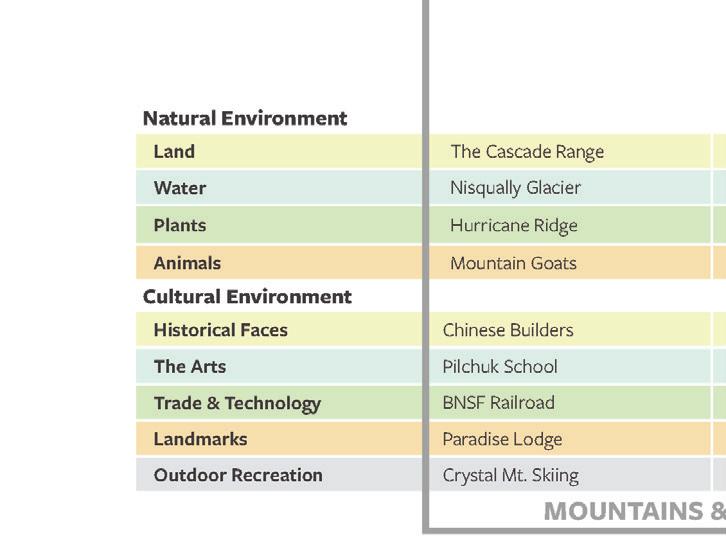

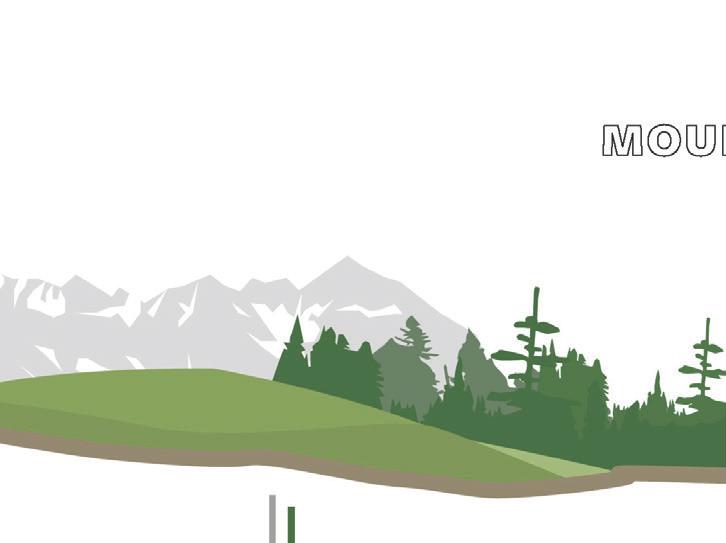

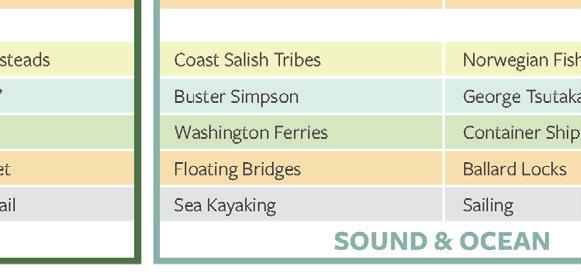

L A N D S C A P E STA N DA R D S T H E M AT I C C O N C E PT + M O U N TA I N TO S O U N D T R A N S E CT

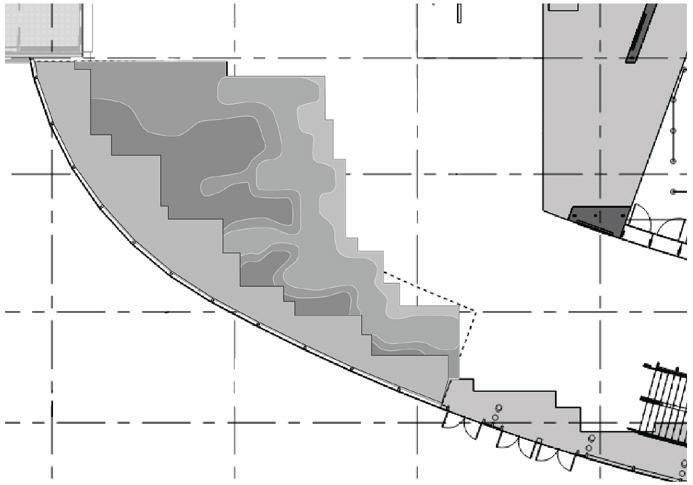

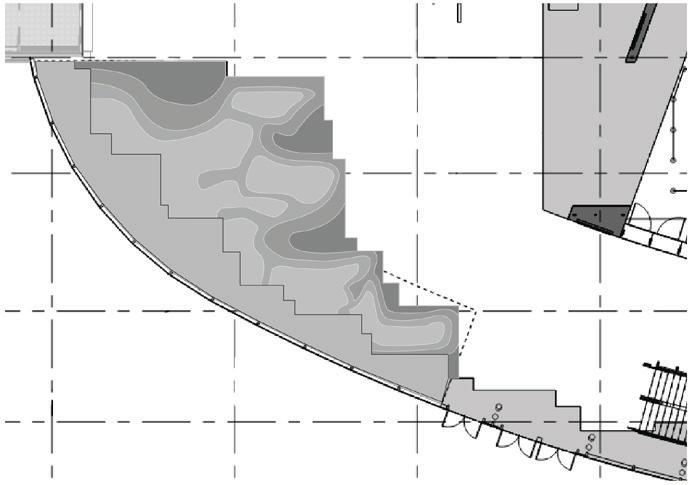

MEETER GREETER UPGRADES TERRAZZO DESIGNS | 41 |

BrightView Design Group | Irvine, CA Design Int ernship | 2017 Summer of 2017 was spent working on a large variety of projects in Southern California.

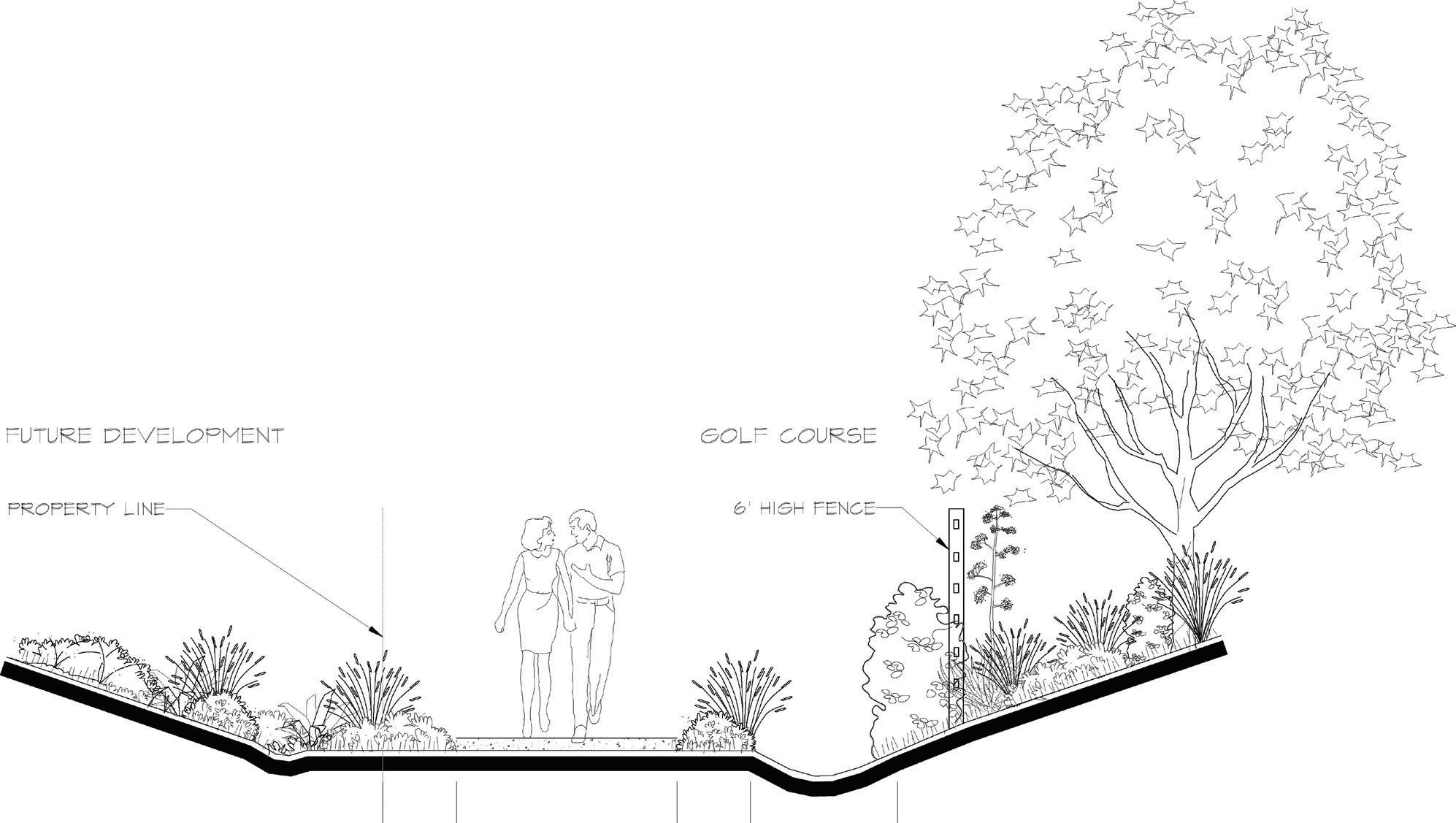

The teams I worked with had focus areas of housing development and large scale public space. I helped with conceptual design phases and assisted their planting design specialist on a large housing community project, Skyline in Santa Clarita. I also contributed drawings and details for a golf course, and the design for a dog park and the conceptual phases for a portion of the Orange County Great Park.

| 42 |

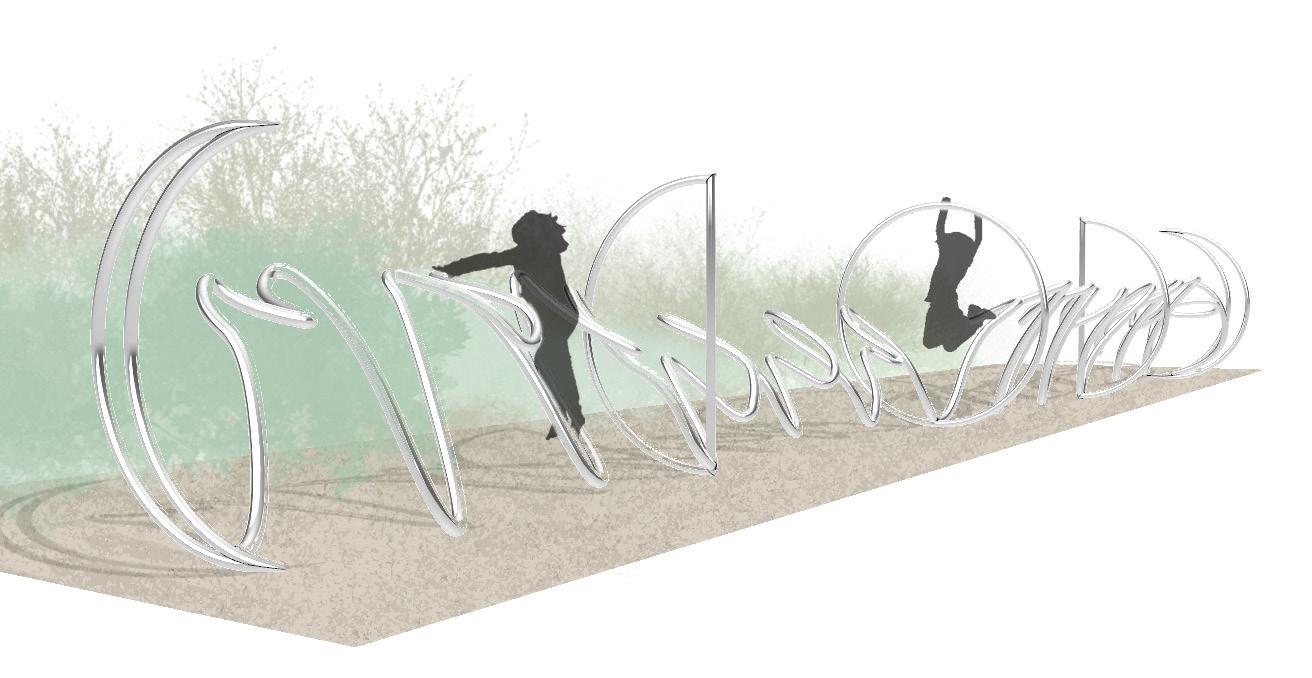

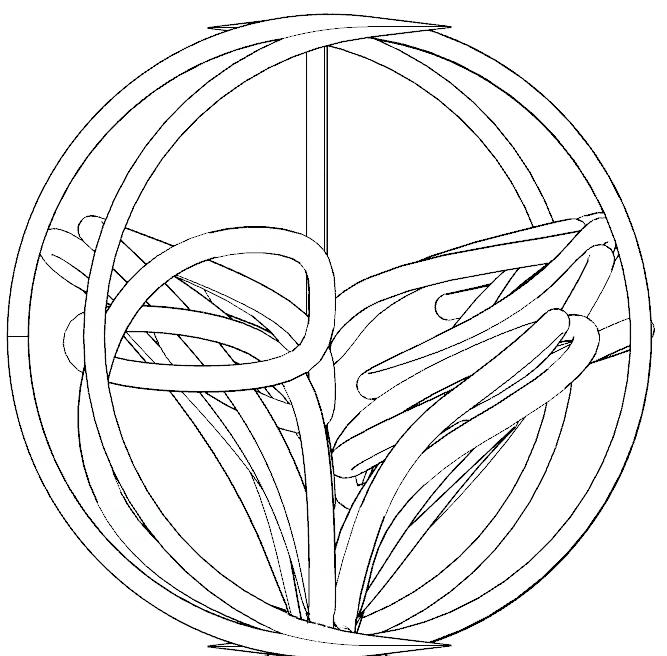

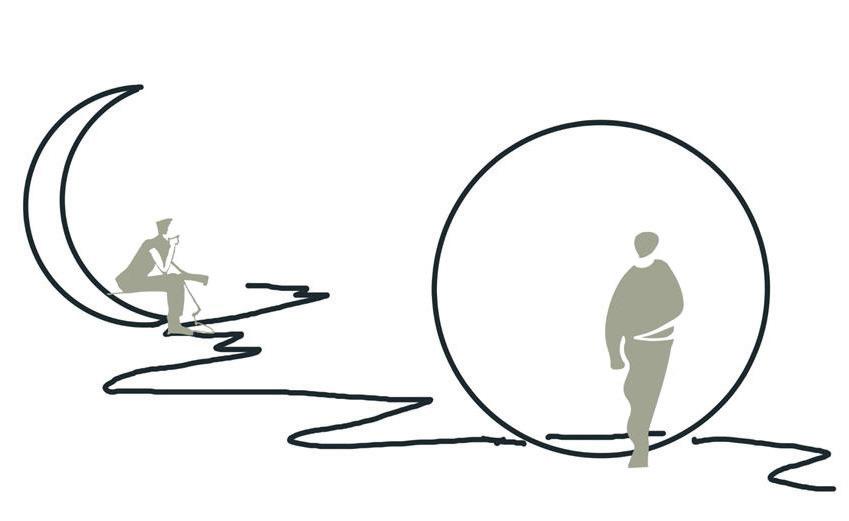

public art competition Moonwalk | Bellingham, WA Pa per Whale Wat erfront Proposal | 2022 Within the (Re)working Waterfront site, this public art submission was inspired by our Scandinavian travels and experiences. Moonwalk is an interactive play structure and public art piece, focusing on the relationship between the tides and the moon. Its sculptural design provides both visual interest while bringing movement and enjoyment to the waterfront.

The design plays into a whimsical connection to natural systems, reminding us of the interconnected nature of local systems to planetary systems.

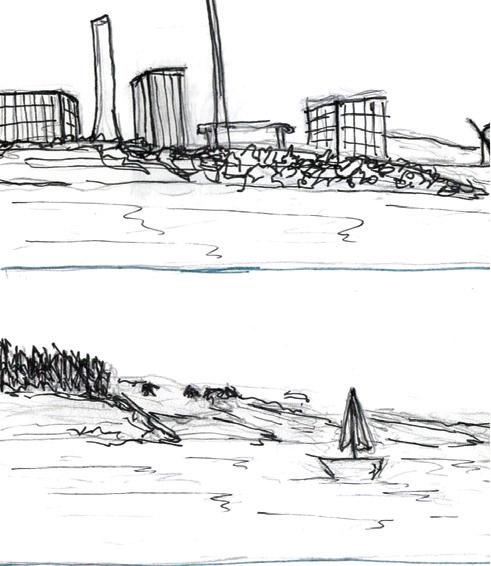

PROCESS

Moonwalk is Paper Whale selected finalist, and has been submitted to the Port of Bellingham for consideration.

B A

PLAN

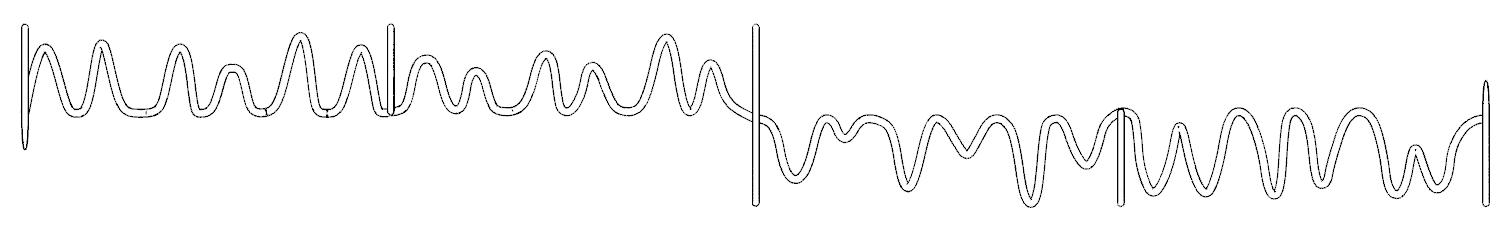

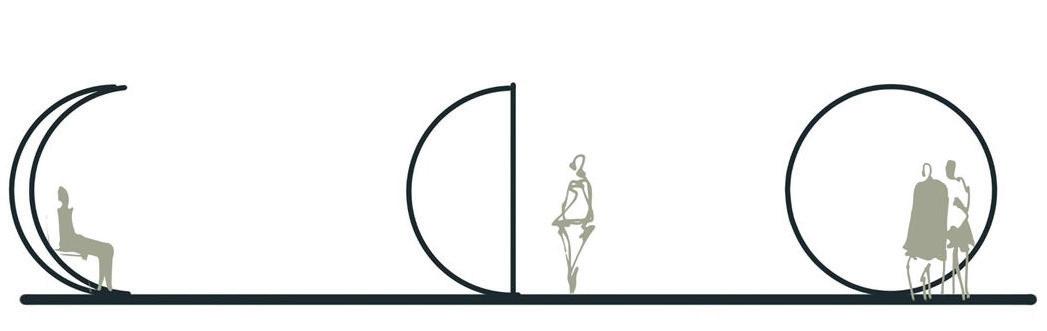

SECTION B  ‘MOONS’

| 43 |

SECTION A  ‘TIDES’

sustainability initiatives Zero Was t e Kit | S an Luis Obispo, CA Environment al Design | 2019 Designed for a sustainable principles class, the intent of the project was to promote sustainable ideas and practices into our local community. My idea was to create a zero waste kit that could be personalized and very inexpensive. My group presented our ideas to a panel of stakeholders to potentially get this kit in the hands of Cal Poly students.

We proposed to sell a jar with a 3D printed utensil, reusable straw, and a “how to” guide for making the following items: - reusable and packable tote - reusable produce bag - reusable napkins

| 44 |

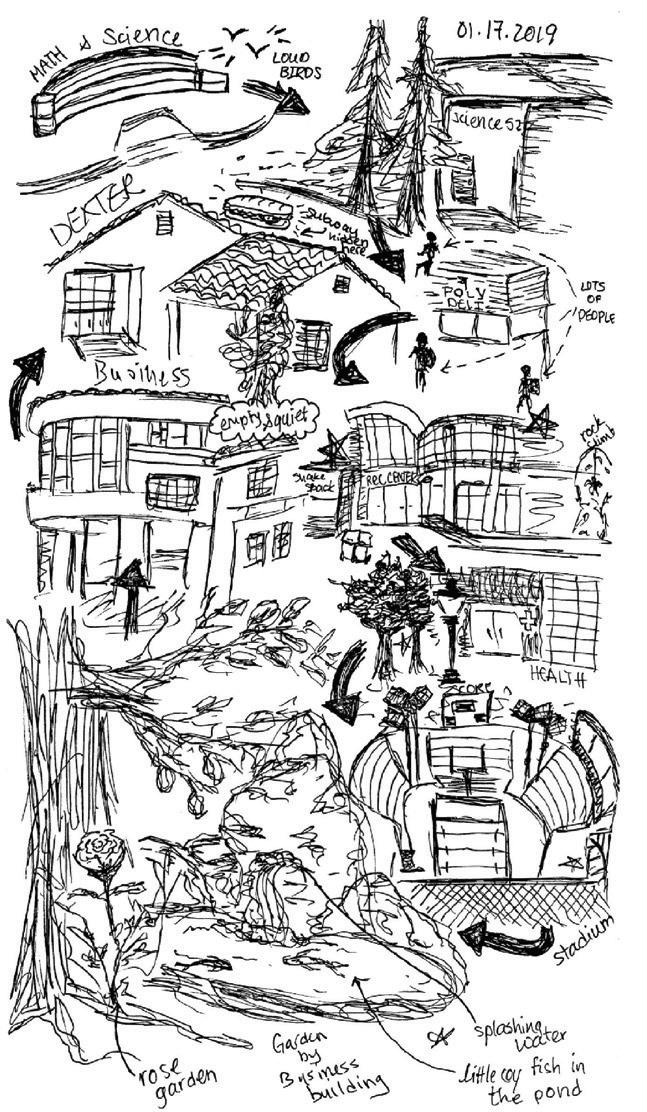

design guidance Environment al Des ign | S an Luis Obispos, CA I n st ruc t ional S t udent As sist ant | 2018 - 20 1 9 As an instructional student assistant I lead the activity section for an Introduction to Environmental Design class. The following projects are some of the activities I instructed my students in.

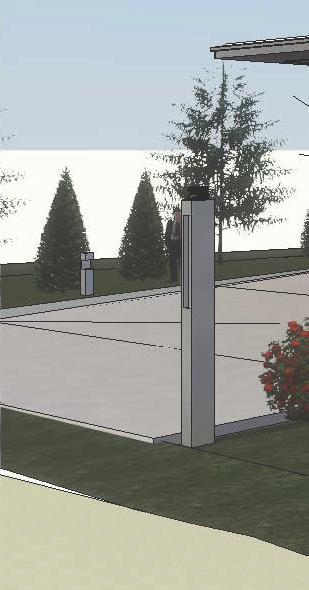

Digit al Design | S eat t le, WA Teac hing Assist ant | 2023 As a teaching assistant I led lectures and lab sessions, through demos of various digital design programs: Adobe Creative Suite and SketchUp. The following are examples of demo projects I instructed my students in.

| 45 |

media exploration S ant a C hiara S t udy Cent er Cast iglion Fiorent ino, It aly | 2017 Exploring the textural possibilities of watercolor, shown through moments captured in Italy.

S can|Des ign Foundat ion Tour Copenhagen, Denmark | 2022 Sketches and watercolors look at spaces of intrigue and investigation in Sweden and Denmark.

| 46 |

Dominique De Gracia

domdegra@uw.edu 206.595.1654
