DokaXdek panel

DokaXdek

floor formwork. The new dimension in slab construction. length width flexibility

panel

DokaXdek. The new dimension in slab construction.

DokaXdek panel floor formwork. length x width x flexibility

The DokaXdek panel floor formwork is a lightweight and fast 2-man element system that can be safely assembled and dismantled from the ground. The support head can be mounted very flexibly in any position on the frame. Since the safety of the user is very important, the DokaXdek panel floor formwork has a smart up-lift protection. In combination with the DokaXdek-I frame and the DokaXdek table, this results in a system family that can be used and combined in many different ways.

Versatile

ƒ Reduced fitting areas thanks to flexible assembly of the panels lengthwise and crosswise

ƒ Can be used in all height areas by the use of slab props and load-bearing towers

ƒ Flexible use from residential buildings to shopping centres

ƒ Can be seamlessly combined with Dokaflex

ƒ Slab thicknesses up to 65 cm

Economical

ƒ Fast thanks to 2 m2 large main panel

ƒ Simple planning and logistics thanks to 2 panel sizes (1 x 2 m or 0.75 x 2 m) and few system components

ƒ Durable Xlife sheet and robust, powder-coated frame in Doka quality

ƒ Easy cleaning thanks to frame geometry with drip nose and Xlife sheet

Safe

ƒ Safe assembly and disassembly from below

ƒ Safety during handling and windy conditions thanks to smart up-lift protection, can be deactivated if necessary

Ergonomic

ƒ Lightweight handling in 2-man operation – only 16.5 kg per person

ƒ Easy and safe forming thanks to ergonomically shaped grips

Michael Lamperstorfer

Site Manager DYWIDAG Linz, Austria

“With

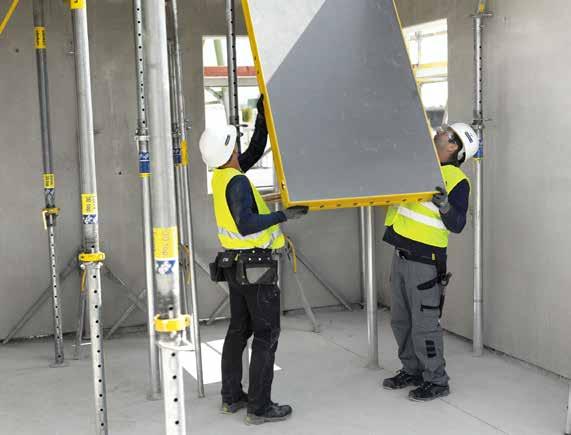

The DokaXdek panel floor formwork can be safely assembled from the ground.

Good concrete result

Smart up-lift protection

the DokaXdek panel floormwork, a flexible slab formwork can be erected with just a few components.”
