Example Project for Flat Division

Special Drawings

Project : 2A Dale Avenue. Edgware HA8

6AE

Drawing : Title Sheet- Special Drawings

Scale : Date : 12/05/2026

Status : Construction

Rev :

Dwg No : NC-GR6G

DESIGNLABS LONDON

ARCHITECTURE / INTERIOR / MANAGEMENT / PLANNING T: 07870661614 / 07888831314 E: info@designlabslondon.com W: www.designlabslondon.com © THIS DRAWING IS THE COPYRIGHT OF DESIGNLABS LONDON LTD (DLL). It shall not be in any way used or reproduced or construct without their prior written consent. All dimensions are to be checked on site by client or contractor prior to commencing any work. Work only to figured dimensions. Any discrepancies are to be reported to the DLL in writing and DLL shall not take responsiblity for site failing to inform discrepancies.

Plumbing & Drainage

Project : 2A Dale Avenue. Edgware HA8

6AE

Drawing : Title Sheet - Plumbing &

Drainage

Scale : Date : 12/05/2026

Status : Construction

Rev :

Dwg No : NC-GR6H

DESIGNLABS LONDON

ARCHITECTURE / INTERIOR / MANAGEMENT / PLANNING T: 07870661614 / 07888831314 E: info@designlabslondon.com W: www.designlabslondon.com © THIS DRAWING IS THE COPYRIGHT OF DESIGNLABS LONDON LTD (DLL). It shall not be in any way used or reproduced or construct without their prior written consent. All dimensions are to be checked on site by client or contractor prior to commencing any work. Work only to figured dimensions. Any discrepancies are to be reported to the DLL in writing and DLL shall not take responsiblity for site failing to inform discrepancies.

40 mmø SWP Vent Pipe to Roof 100 mmø SWP

WC

152 mmø SWP

Hallway Slope

Existing Manhole

152 mmø SWP

40 mmø SWP

40 mmø SWP

Slope

Flat 2 Storage

Slope

Slope

Flat 3 Drainage Pipe from First Floor

100 mmø SWP

40 mmø SWP

Bathroom

Bathroom

Slope

Flat 1

152 mmø SWP

Storage W D

Living + Kitchen + Dining

Slope

Bedroom 1 Slope

Storage REF.

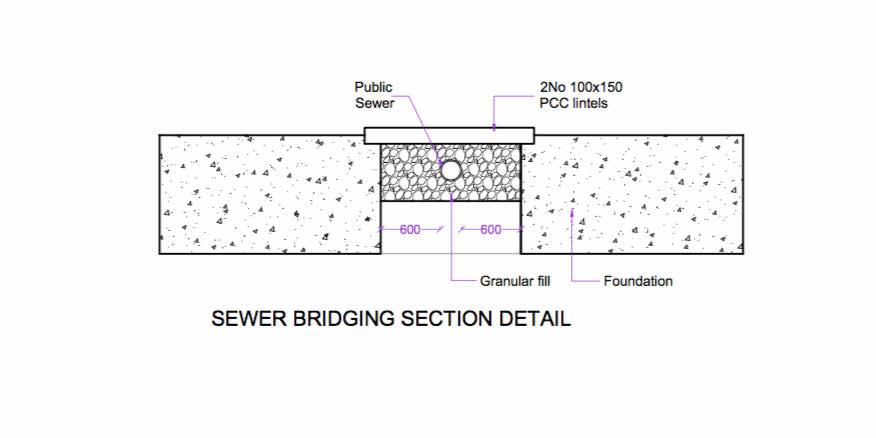

PIPE NOMENCLATURE Bridge over sewer pipe/ gap in foundation for soil pipe to pass through over cavity wall. Pair of 150x100mm PCC lintels as void bridge.

Bedroom 40 mmø SWP

SWP

Soil Wastewater Pipe

RWP

Rain Water Pipe

VP

Vent Pipe

WDP

Water Distribution Pipe

100 mmø SWP

Drainage Pipe from First Floor

Slope

Gully Trap 152 mmø SWP

D

Slope

Living + Kitchen + Dining

1713

New Manhole 1

Slope

1720 mm

Gap in Foundation

New Manhole 2

Slope

Bedroom 2

1376

E proprietary precast lintel 150mm deep x 100mm wide

proprietary precast lintel 150mm deep x 100mm wide New foundation Footing

GROUND F.F.L

150mm BEAM AND BLOCK VOID AT LEAST 150mm CLEAR CAVITY DEPTH

Project : 2A Dale Avenue. Edgware HA8

250

REF.

6AE

Drawing : Plumbing & Drainage Plans -

PIPE LEGEND Sewer

PLUMBING NOTES

600 600

Section E-E (scale:1/20)

1

Section D-D (scale:1/20)

600

New Footing pea shingle fill as per thames water requirment

Plumbing & Drainage Plans - Proposed Ground Floor Plan 1 : 25

TOILET CONNECTED WITH 110MM SOIL PIPE WITH P TRAP AND RODDING EYE AT BASE. WASH HAND BASIN CONNECTED WITH 38MM WASTE WITH P TRAP. LOW LEVEL WASH HAND BASIN CONNECTED WITH 50MM WASTE WITH ANTI SYPHONIC TRAP. ALL WASTE FALLS MIN 1:40. ALL SOILPIPE TO FALL MINIMUM 1:100

COLD WATER PIPE HOT WATER PIPE DRAINAGE PIPE DRAINAGE UNDER FLOOR PIPE RAIN WATER PIPE

Proposed Ground Floor Plan

Scale : As indicated Date : 12/05/2026

Status : Construction

Rev :

Dwg No : NC-GR6H-DR-00-71

DESIGNLABS LONDON

ARCHITECTURE / INTERIOR / MANAGEMENT / PLANNING T: 07870661614 / 07888831314 E: info@designlabslondon.com W: www.designlabslondon.com © THIS DRAWING IS THE COPYRIGHT OF DESIGNLABS LONDON LTD (DLL). It shall not be in any way used or reproduced or construct without their prior written consent. All dimensions are to be checked on site by client or contractor prior to commencing any work. Work only to figured dimensions. Any discrepancies are to be reported to the DLL in writing and DLL shall not take responsiblity for site failing to inform discrepancies.

100mm ⌀ Vent Pipe

Down Pipe to Ground Level

40 mmø SWP

100 mmø SWP

40 mmø SWP 40 mmø SWP

Ensuite Bedroom 2 40 mmø SWP

Bedroom 1

Bedroom 3

100 mmø SWP

Storage

40 mmø SWP

Bedroom 4

100 mmø SWP

100 mmø BathroomSWP

40 mmø SWP

Down Pipe to Ground Level

Slope 100 mmø SWP

PIPE NOMENCLATURE 675

Drainage Pipe from Loft Level

SWP

Soil Wastewater Pipe

RWP

Rain Water Pipe

VP

Vent Pipe

WDP

Water Distribution Pipe

Project : 2A Dale Avenue. Edgware HA8

6AE

Drawing : Plumbing & Drainage Plans -

PIPE LEGEND PLUMBING NOTES

1

Plumbing & Drainage Plans - Proposed First Floor Plan 1 : 25

TOILET CONNECTED WITH 110MM SOIL PIPE WITH P TRAP AND RODDING EYE AT BASE. WASH HAND BASIN CONNECTED WITH 38MM WASTE WITH P TRAP. LOW LEVEL WASH HAND BASIN CONNECTED WITH 50MM WASTE WITH ANTI SYPHONIC TRAP. ALL WASTE FALLS MIN 1:40. ALL SOILPIPE TO FALL MINIMUM 1:100

COLD WATER PIPE HOT WATER PIPE DRAINAGE PIPE DRAINAGE UNDER FLOOR PIPE RAIN WATER PIPE

Proposed First Floor Plan

Scale : As indicated Date : 12/05/2026

Status : Construction

Rev :

Dwg No : NC-GR6H-DR-01-72

DESIGNLABS LONDON

ARCHITECTURE / INTERIOR / MANAGEMENT / PLANNING T: 07870661614 / 07888831314 E: info@designlabslondon.com W: www.designlabslondon.com © THIS DRAWING IS THE COPYRIGHT OF DESIGNLABS LONDON LTD (DLL). It shall not be in any way used or reproduced or construct without their prior written consent. All dimensions are to be checked on site by client or contractor prior to commencing any work. Work only to figured dimensions. Any discrepancies are to be reported to the DLL in writing and DLL shall not take responsiblity for site failing to inform discrepancies.

Bedroom

Living+Dining+Kitchen

40 mmø SWP

Vent Pipe going up

PIPE NOMENCLATURE

Down Pipe to First Floor Level

SWP

Soil Wastewater Pipe

RWP

Rain Water Pipe

VP

Vent Pipe

WDP

Water Distribution Pipe

Project : 2A Dale Avenue. Edgware HA8

6AE

Drawing : Plumbing & Drainage Plans -

PIPE LEGEND PLUMBING NOTES

1

Plumbing & Drainage Plans - Proposed Loft Floor Plan 1 : 25

TOILET CONNECTED WITH 110MM SOIL PIPE WITH P TRAP AND RODDING EYE AT BASE. WASH HAND BASIN CONNECTED WITH 38MM WASTE WITH P TRAP. LOW LEVEL WASH HAND BASIN CONNECTED WITH 50MM WASTE WITH ANTI SYPHONIC TRAP. ALL WASTE FALLS MIN 1:40. ALL SOILPIPE TO FALL MINIMUM 1:100

COLD WATER PIPE HOT WATER PIPE DRAINAGE PIPE DRAINAGE UNDER FLOOR PIPE RAIN WATER PIPE

Proposed Loft Floor Plan

Scale : As indicated Date : 12/05/2026

Status : Construction

Rev :

Dwg No : NC-GR6H-DR-02-73

DESIGNLABS LONDON

ARCHITECTURE / INTERIOR / MANAGEMENT / PLANNING T: 07870661614 / 07888831314 E: info@designlabslondon.com W: www.designlabslondon.com © THIS DRAWING IS THE COPYRIGHT OF DESIGNLABS LONDON LTD (DLL). It shall not be in any way used or reproduced or construct without their prior written consent. All dimensions are to be checked on site by client or contractor prior to commencing any work. Work only to figured dimensions. Any discrepancies are to be reported to the DLL in writing and DLL shall not take responsiblity for site failing to inform discrepancies.

Roof 7300

Vent Pipe 40 mmø SWP

Loft Level 5380 First Floor Ceiling 5100

40 mmø SWP

40 mmø SWP 100 mmø SWP

40 mmø SWP

40 mmø SWP

First Floor 2700

100 mmø SWP 40 mmø SWP

100 mmø SWP

100 mmø SWP

Existing Manhole

40 mmø SWP

New Manhole 2 40 mmø SWP

100 mmø SWP 40 mmø SWP

40 mmø SWP

40 mmø SWP 40 mmø SWP

152 mmø SWP

40 mmø SWP

40 mmø SWP

40 mmø SWP

Ground Floor 0

100 mmø SWP

152 mmø SWP

Garden LVL -600

Slope 152 mmø SWP

1:150

New Manhole 1

Slope 152 mmø SWP

1

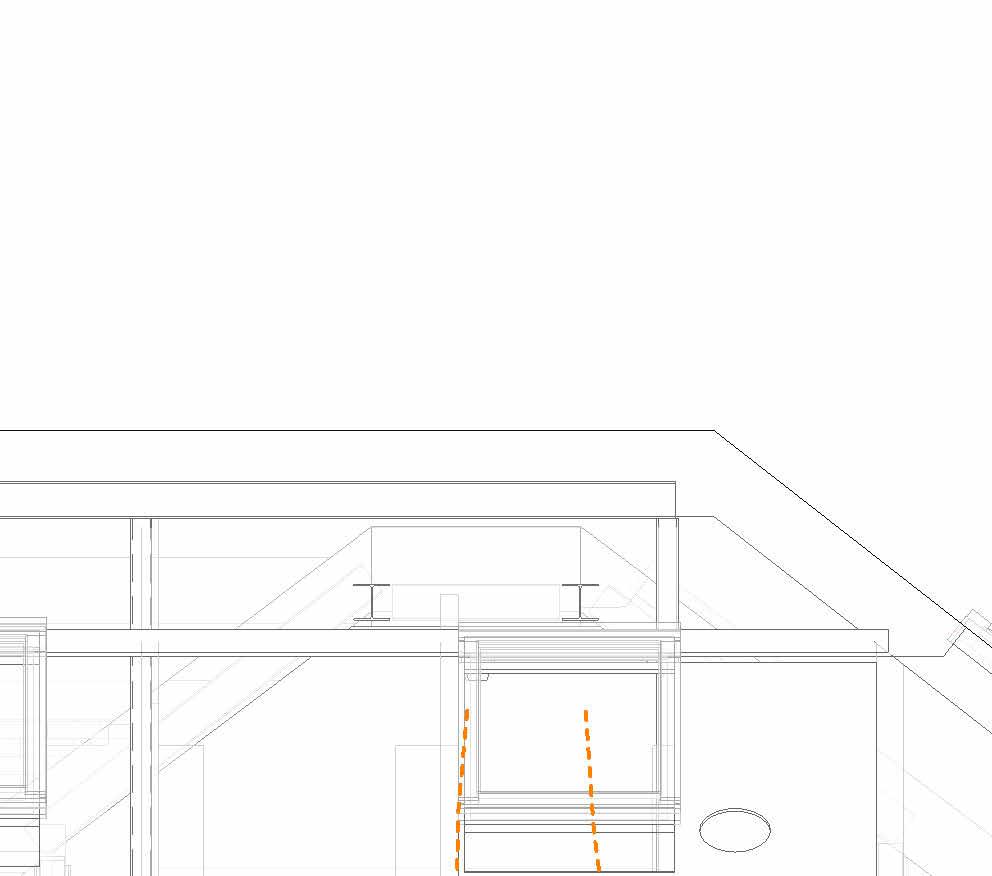

Plumbing & Drainage - Proposed Section

Project : 2A Dale Avenue. Edgware HA8

6AE

1 : 25

Drawing :

PIPE LEGEND PIPE NOMENCLATURE

COLD WATER PIPE

SWP

Soil Wastewater Pipe

HOT WATER PIPE

RWP

Rain Water Pipe

DRAINAGE PIPE

VP

Vent Pipe

DRAINAGE UNDER FLOOR PIPE

WDP

Water Distribution Pipe

RAIN WATER PIPE

Plumbing & Drainage Proposed Section

Scale : As indicated Status : Construction Date : 12/05/2026

Rev :

Dwg No : NC-GR6H-DR-02-74

DESIGNLABS LONDON

ARCHITECTURE / INTERIOR / MANAGEMENT / PLANNING T: 07870661614 / 07888831314 E: info@designlabslondon.com W: www.designlabslondon.com © THIS DRAWING IS THE COPYRIGHT OF DESIGNLABS LONDON LTD (DLL). It shall not be in any way used or reproduced or construct without their prior written consent. All dimensions are to be checked on site by client or contractor prior to commencing any work. Work only to figured dimensions. Any discrepancies are to be reported to the DLL in writing and DLL shall not take responsiblity for site failing to inform discrepancies.

Vent Pipe 40 mmø SWP

PIPE LEGEND

40 mmø SWP

COLD WATER PIPE HOT WATER PIPE

40 mmø SWP

DRAINAGE PIPE DRAINAGE UNDER FLOOR PIPE RAIN WATER PIPE

PIPE NOMENCLATURE

100 mmø SWP

40 mmø SWP

SWP

Soil Wastewater Pipe

RWP

Rain Water Pipe

VP

Vent Pipe

WDP

Water Distribution Pipe

100 mmø SWP

100 mmø SWP

Vent Pipe

152 mmø SWP

100 mmø SWP

40 mmø SWP 40 mmø SWP

40 mmø SWP

40 mmø SWP

40 mmø SWP

40 mmø SWP

40 mmø SWP

40 mmø SWP

40 mmø SWP 100 mmø SWP

40 mmø SWP

40 mmø SWP

40 mmø SWP

100 mmø SWP

100 mmø SWP

152 mmø SWP

Project : 2A Dale Avenue. Edgware HA8

6AE

40 mmø SWP

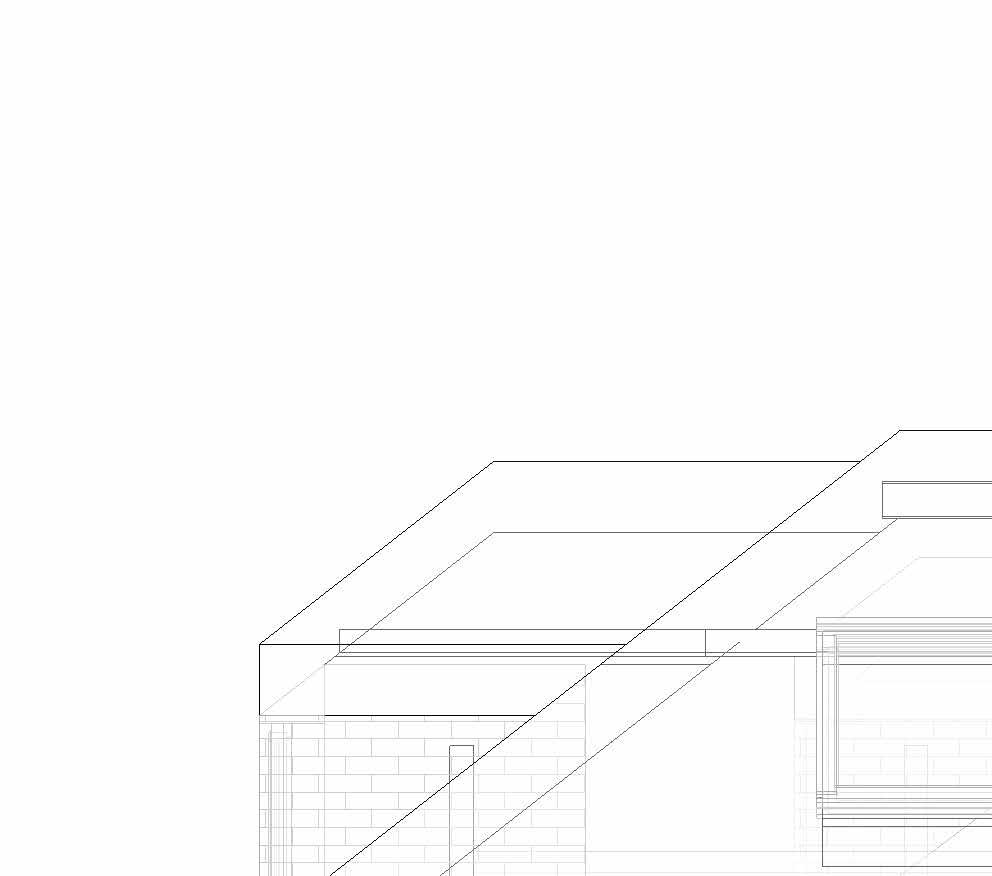

Drawing : Drainage 3D

152 mmø SWP

152 mmø SWP

Scale : As indicated Date : 12/05/2026

Status : Construction

Rev :

Dwg No : NC-GR6H-DR-02-75

DESIGNLABS LONDON

ARCHITECTURE / INTERIOR / MANAGEMENT / PLANNING T: 07870661614 / 07888831314 E: info@designlabslondon.com W: www.designlabslondon.com © THIS DRAWING IS THE COPYRIGHT OF DESIGNLABS LONDON LTD (DLL). It shall not be in any way used or reproduced or construct without their prior written consent. All dimensions are to be checked on site by client or contractor prior to commencing any work. Work only to figured dimensions. Any discrepancies are to be reported to the DLL in writing and DLL shall not take responsiblity for site failing to inform discrepancies.

Fire Safety Drawings

Project : 2A Dale Avenue. Edgware HA8

6AE

Drawing : Title Sheet- Fire Safety

Drawings

Scale : Date : 12/05/2026

Status : Construction

Rev :

Dwg No : NC-GR6I

DESIGNLABS LONDON

ARCHITECTURE / INTERIOR / MANAGEMENT / PLANNING T: 07870661614 / 07888831314 E: info@designlabslondon.com W: www.designlabslondon.com © THIS DRAWING IS THE COPYRIGHT OF DESIGNLABS LONDON LTD (DLL). It shall not be in any way used or reproduced or construct without their prior written consent. All dimensions are to be checked on site by client or contractor prior to commencing any work. Work only to figured dimensions. Any discrepancies are to be reported to the DLL in writing and DLL shall not take responsiblity for site failing to inform discrepancies.

0.5

0

0.5

1

1.5

SCALE 1: 50

e SD

FD 60s

7800 mm

E

Hallway

E

FIRE EXIT

Escape Route

E

SD

FIRE EXIT

Flat 2

FIRE EXIT

SD FIRE EXIT

C

E

Storage Es

2265 mm FIRE EXIT

FD 60s

Flat 1

FAP

Final Exit

Flat 3

E

5

ca

Bathroom

Bathroom

Escape Route E

48 61

pe

FIRE EXIT

m m

Alternative Exit

Ro ut

e HD

SD

Living + Kitchen + Dining

Storage

FD 30s

FE

FD 30s

4257 mm

B 4297 mm

93

E

Bedroom Escape Route 2

FIRE EXIT

AE

Storage

FIRE EXIT

m

FD 30s

m

te

Ro u

43

pe

sc a

E

Escape Route

Bedroom 1

AE

Bedroom 1

FIRE EXIT

FD 60s

m

FD 30s

FIRE EXIT

PE

2.5

7907 mm

nc Escape Dista

WC

2

C

5

Fire Assembly Point

Bedroom

SD

4872 mm

C

FD 30s

HD

5

ute

12

63

e

ap

Es c m

m

e

Ro ut

Living + Kitchen + Dining

AE

FIRE EXIT

m

Ro

HD

te FIRE EXIT

Wire going to 1st Floor

0m

pe

ca

0 18

Es

B

Escape Ro u

FIRE EXIT

FD 30s

Alternative Exit

3900 mm Escape Route

FIRE EXIT

AE

Bedroom 2

NOTES: Refer to Architect's Flat Type Services Layout drawings xxx series for fire detection within flats.

Fire Strategy - Extended Fire Symbols:

AOV

Roof Light Automatic Venting

C

MV

Roof Light Manual Venting

F

AV

Roof Ventilator Automatic Venting

P

MV

Roof Ventilator Manual Venting

W

5 6 5 6

Drawing to be read in conjunction with latest M&E drawings for fire detection and alarm systems.

Fire Extinguisher Co2 - 5Kgs

! A

Hazard A Description of Hazard

Fire Extinguisher Foam - 6L

! B

Hazard B Description of Hazard

Fire Strategy - Protected corridor/stairway (Communal)

Fire Extinguisher Powder - 5Kgs

B

Fire Blanket

Apartment exit route protected by sprinkler supression system

Fire Extinguisher Water - 6L

Hose Reel

6060m length

Fire Symbology: Emergency Egress

Dry Riser pipe overhead

Travel Distance (Escape Route) PE

FAP FARP DRI

Push to exit button

HD

Heat Detector with built in Sounder & Flashing Beacon

SD

Smoke Detector with built in Sounder & Flashing Beacon

Manual Call Point (Break Glass)

HD

Heat Detector

Fire Alarm Master Panel

SD

Smoke Detector

HD

Heat Detector with built in Sounder

FE

Final Exit

SD

Smoke Detector with built in Sounder

SE

Storey Exit

Additional Sounder

AE

Alternative Exit

E

Emergency Light

Fire Alarm Remote Panel Dry Riser Inlet

DRO

Dry Riser Outlet

MAG

Megnatic Lock with Fire over Ride

Fire Exit Direction signage: All signs to conform with BS 5499 Part 1 FIRE EXIT

FIRE EXIT

FIRE EXIT

Fire Cavity Barrier:

Smoke vent shaft with automated opening louvres connected to smoke alarm system serving this floor

Partition Ratings:

Fire Door Ratings:

30 Minutes Fire Rated Construction

FD30

Fire Rated Doors - 30 mins.

60 Minutes Fire Rated Construction

FD60

Fire Rated Doors - 60 mins.

90 Minutes Fire Rated Construction

S

Fire Rated Doors with intumescent smoke seals

SC

Fire Rated Doors with self closing device

120 Minutes Fire Rated Construction 240 Minutes Fire Rated Construction

Legend

Sprinkler Suppression

FD 30s

30 Minute Fire Rated Door with Smoke Seal

FD 60s

60 Minute Fire Rated Door with Smoke Seal

Fire Door signage: All signs to conform with BS 5499 Part 1

FIRE EXIT

KS

Provide 'Fire Door - Keep Shut' signage

FIRE EXIT

KL

Provide 'Fire Door - Keep Locked' signage

EE

Emergency Egress window provided for means of escape. Minimum clear opening to be 0.33sqm (450(w) x 450(h)mm) and cill/transom height no greater than 1100.

FIRE EXIT

Room Area Designation:

30 minute Fire Cavity Barriers installed vertically within the external wall cavity providing 30 minute integrity & 15 minute insulation. Refer to NBS Specification.

For Postion of Fire Cavity Barrier Refer to Setting Out Plans & Elevations: - For Ground Floor Cavity Barriers Refer to drawings CHU-CA-A-DR-GF-2030 to 2032 - For First Floor Cavity Barriers Refer to drawings CHU-CA-A-DR-01-2033 to 2035 - For First Floor Cavity Barriers Refer to drawings CHU-CA-A-DR-02-2036 to 2038 - For Position of Cavity Barriers in Elevations Refer to drawings CHU-CA-A-DR-XX-3030 to 3039 Masonry Cavity Walls- Fire Stopping will be provided horizontally at compartment floor locations fixed back to RC slab edge.

All services passing through 30 minute & 60 minute compartment floors/ ceilings & walls including protected fire escape routes to have the appropriate fire collar, damper, pillows, sealant etc. fitted around them to the same fire resistance as the floor/ ceiling or wall it is passing through. Refer to NBS Specification.

All vertical & horizontal cavity barriers to rainscreen cladded external walls to be vented intumescent cavity barrier.

30min. cavity closers to be used around all window, screen & doors set in all external wall constructions.

Project : 2A Dale Avenue. Edgware HA8

6AE

Drawing : Fire Safety Plans'- Proposed

Ground Floor Plan

Scale : As indicated Date : 12/05/2026

Status : Construction

Rev :

Dwg No : NC-GR6I-DR-00-81

DESIGNLABS LONDON

ARCHITECTURE / INTERIOR / MANAGEMENT / PLANNING T: 07870661614 / 07888831314 E: info@designlabslondon.com W: www.designlabslondon.com © THIS DRAWING IS THE COPYRIGHT OF DESIGNLABS LONDON LTD (DLL). It shall not be in any way used or reproduced or construct without their prior written consent. All dimensions are to be checked on site by client or contractor prior to commencing any work. Work only to figured dimensions. Any discrepancies are to be reported to the DLL in writing and DLL shall not take responsiblity for site failing to inform discrepancies.

0.5

0

0.5

1

1.5

2

SCALE 1: 50

2.5 m

989

Sloping Roof

1 538

Rou

mm

te

Ensuite

ape

SD

Esc

Wires going to F.A.P. on Ground Floor

Flat Roof

Bedroom 2

E

EE

Escap

e Rou

te

983 m

m

Wire going to Loft Floor

Non Combustible Construction Materials in Roof 1 meter from the Boundary

FD 30s

FIRE EXIT

FD 30s

Esca

pe Ro

ute

m

m

4944

ute

2485 mm

Escape Ro

47

mm

Bedroom 3 EE

FD 30s

Bedroom 1

0

ca

0 22

Es

SD

e

ut

Ro

m

m

pe

NOTES: Refer to Architect's Flat Type Services Layout drawings xxx series for fire detection within flats.

Fire Strategy - Extended Fire Symbols:

FD 30s

Storage

AOV

Roof Light Automatic Venting

C

MV

Roof Light Manual Venting

F

AV

Roof Ventilator Automatic Venting

P

MV

Roof Ventilator Manual Venting

W

FD 30s

F EX IRE IT

te

Ro u

40

e

ap

Es c

Emergency Egress window

E

5 6 5 6

Drawing to be read in conjunction with latest M&E drawings for fire detection and alarm systems.

Fire Extinguisher Co2 - 5Kgs

! A

Hazard A Description of Hazard

Fire Extinguisher Foam - 6L

! B

Hazard B Description of Hazard

Fire Strategy - Protected corridor/stairway (Communal)

Fire Extinguisher Powder - 5Kgs

B

Fire Blanket

Apartment exit route protected by sprinkler supression system

Fire Extinguisher Water - 6L

Room Area Designation:

Smoke vent shaft with automated opening louvres connected to smoke alarm system serving this floor

Hose Reel

6060m length

Partition Ratings:

Fire Door Ratings: FD30

Fire Rated Doors - 30 mins.

60 Minutes Fire Rated Construction

FD60

Fire Rated Doors - 60 mins.

90 Minutes Fire Rated Construction

S

Fire Rated Doors with intumescent smoke seals

SC

Fire Rated Doors with self closing device

sc a

E

30 Minutes Fire Rated Construction

Emergency Egress

m

m

te

ou

R

88 6

4

pe

Fire Symbology:

120 Minutes Fire Rated Construction

Dry Riser pipe overhead

240 Minutes Fire Rated Construction

Travel Distance (Escape Route)

Bedroom 4

PE

Bathroom FAP FARP DRI

Push to exit button

HD

Heat Detector with built in Sounder & Flashing Beacon

SD

Smoke Detector with built in Sounder & Flashing Beacon

Manual Call Point (Break Glass)

HD

Heat Detector

Fire Alarm Master Panel

SD

Smoke Detector

HD

Heat Detector with built in Sounder

FE

Final Exit

SD

Smoke Detector with built in Sounder

SE

Storey Exit

Additional Sounder

AE

Alternative Exit

E

Emergency Light

Fire Alarm Remote Panel Dry Riser Inlet

DRO

Dry Riser Outlet

MAG

Megnatic Lock with Fire over Ride

Fire Exit Direction signage: All signs to conform with BS 5499 Part 1 FIRE EXIT

FIRE EXIT

FIRE EXIT

Fire Cavity Barrier:

Fire Door signage: All signs to conform with BS 5499 Part 1

FIRE EXIT

KS

Provide 'Fire Door - Keep Shut' signage

FIRE EXIT

KL

Provide 'Fire Door - Keep Locked' signage

EE

Emergency Egress window provided for means of escape. Minimum clear opening to be 0.33sqm (450(w) x 450(h)mm) and cill/transom height no greater than 1100.

FIRE EXIT

Legend

Sprinkler Suppression

30 minute Fire Cavity Barriers installed vertically within the external wall cavity providing 30 minute integrity & 15 minute insulation. Refer to NBS Specification.

For Postion of Fire Cavity Barrier Refer to Setting Out Plans & Elevations: - For Ground Floor Cavity Barriers Refer to drawings CHU-CA-A-DR-GF-2030 to 2032 - For First Floor Cavity Barriers Refer to drawings CHU-CA-A-DR-01-2033 to 2035 - For First Floor Cavity Barriers Refer to drawings CHU-CA-A-DR-02-2036 to 2038 - For Position of Cavity Barriers in Elevations Refer to drawings CHU-CA-A-DR-XX-3030 to 3039 Masonry Cavity Walls- Fire Stopping will be provided horizontally at compartment floor locations fixed back to RC slab edge.

All services passing through 30 minute & 60 minute compartment floors/ ceilings & walls including protected fire escape routes to have the appropriate fire collar, damper, pillows, sealant etc. fitted around them to the same fire resistance as the floor/ ceiling or wall it is passing through. Refer to NBS Specification.

All vertical & horizontal cavity barriers to rainscreen cladded external walls to be vented intumescent cavity barrier.

30min. cavity closers to be used around all window, screen & doors set in all external wall constructions.

FD 30s

30 Minute Fire Rated Door with Smoke Seal

FD 60s

60 Minute Fire Rated Door with Smoke Seal

Project : 2A Dale Avenue. Edgware HA8

6AE

Drawing : Fire Safety Plans'- Proposed

First Floor Plan

Scale : As indicated Date : 12/05/2026

Status : Construction

Rev :

Dwg No : NC-GR6I-DR-01-82

DESIGNLABS LONDON

ARCHITECTURE / INTERIOR / MANAGEMENT / PLANNING T: 07870661614 / 07888831314 E: info@designlabslondon.com W: www.designlabslondon.com © THIS DRAWING IS THE COPYRIGHT OF DESIGNLABS LONDON LTD (DLL). It shall not be in any way used or reproduced or construct without their prior written consent. All dimensions are to be checked on site by client or contractor prior to commencing any work. Work only to figured dimensions. Any discrepancies are to be reported to the DLL in writing and DLL shall not take responsiblity for site failing to inform discrepancies.

0.5

0

0.5

1

1.5

2

SCALE 1: 50

2.5 m

automatic opening vent (AOV) for smoke clearance in event of fire. To be connected to the Fire Alarm Panel for automatic operation

Wires going to F.A.P. on Ground Floor

Store Es

m

Ro

e ut FD 30s

Ro

m

pe

23

06

20

Es ca

pe ca

FIRE EXIT

44

E

mm ute

FD 30s

Bedroom

SD

1 625

5

te

Rou

mm

ape

Esc

C

NOTES: Refer to Architect's Flat Type Services Layout drawings xxx series for fire detection within flats.

Fire Strategy - Extended Fire Symbols:

HD

AOV

Roof Light Automatic Venting

C

MV

Roof Light Manual Venting

F

AV

Roof Ventilator Automatic Venting

P

MV

Roof Ventilator Manual Venting

W

B

5 6 5 6

Drawing to be read in conjunction with latest M&E drawings for fire detection and alarm systems.

Fire Extinguisher Co2 - 5Kgs

! A

Hazard A Description of Hazard

Fire Extinguisher Foam - 6L

! B

Hazard B Description of Hazard

Fire Strategy - Protected corridor/stairway (Communal)

Fire Extinguisher Powder - 5Kgs

B

Fire Blanket

Apartment exit route protected by sprinkler supression system

Fire Extinguisher Water - 6L

Room Area Designation:

Smoke vent shaft with automated opening louvres connected to smoke alarm system serving this floor

Hose Reel

6060m length

Partition Ratings:

Fire Symbology:

Living+Dining+Kitchen

Emergency Egress

FAP FARP DRI

Push to exit button

HD

Heat Detector with built in Sounder & Flashing Beacon

SD

Smoke Detector with built in Sounder & Flashing Beacon

Manual Call Point (Break Glass)

HD

Heat Detector

Fire Alarm Master Panel

SD

Smoke Detector

HD

Heat Detector with built in Sounder

FE

Final Exit

SD

Smoke Detector with built in Sounder

SE

Storey Exit

Additional Sounder

AE

Alternative Exit

E

Emergency Light

Fire Alarm Remote Panel Dry Riser Inlet

DRO

Dry Riser Outlet

MAG

Megnatic Lock with Fire over Ride

Fire Exit Direction signage: All signs to conform with BS 5499 Part 1 FIRE EXIT

FIRE EXIT

FIRE EXIT

FIRE EXIT

KS

Provide 'Fire Door - Keep Shut' signage

FIRE EXIT

KL

Provide 'Fire Door - Keep Locked' signage

EE

Emergency Egress window provided for means of escape. Minimum clear opening to be 0.33sqm (450(w) x 450(h)mm) and cill/transom height no greater than 1100.

FIRE EXIT

Fire Cavity Barrier:

30 minute Fire Cavity Barriers installed vertically within the external wall cavity providing 30 minute integrity & 15 minute insulation. Refer to NBS Specification.

For Postion of Fire Cavity Barrier Refer to Setting Out Plans & Elevations: - For Ground Floor Cavity Barriers Refer to drawings CHU-CA-A-DR-GF-2030 to 2032 - For First Floor Cavity Barriers Refer to drawings CHU-CA-A-DR-01-2033 to 2035 - For First Floor Cavity Barriers Refer to drawings CHU-CA-A-DR-02-2036 to 2038 - For Position of Cavity Barriers in Elevations Refer to drawings CHU-CA-A-DR-XX-3030 to 3039 Masonry Cavity Walls- Fire Stopping will be provided horizontally at compartment floor locations fixed back to RC slab edge.

All services passing through 30 minute & 60 minute compartment floors/ ceilings & walls including protected fire escape routes to have the appropriate fire collar, damper, pillows, sealant etc. fitted around them to the same fire resistance as the floor/ ceiling or wall it is passing through. Refer to NBS Specification.

All vertical & horizontal cavity barriers to rainscreen cladded external walls to be vented intumescent cavity barrier.

30min. cavity closers to be used around all window, screen & doors set in all external wall constructions.

FD30

Fire Rated Doors - 30 mins.

60 Minutes Fire Rated Construction

FD60

Fire Rated Doors - 60 mins.

90 Minutes Fire Rated Construction

S

Fire Rated Doors with intumescent smoke seals

SC

Fire Rated Doors with self closing device

240 Minutes Fire Rated Construction

Legend

Sprinkler Suppression

Fire Door signage: All signs to conform with BS 5499 Part 1

30 Minutes Fire Rated Construction

120 Minutes Fire Rated Construction

Dry Riser pipe overhead

Travel Distance (Escape Route) PE

Fire Door Ratings:

FD 30s

30 Minute Fire Rated Door with Smoke Seal

FD 60s

60 Minute Fire Rated Door with Smoke Seal

Project : 2A Dale Avenue. Edgware HA8

6AE

Drawing : Fire Safety Plans'- Proposed

loft Floor Plan

Scale : As indicated Date : 12/05/2026

Status : Construction

Rev :

Dwg No : NC-GR6I-DR-02-83

DESIGNLABS LONDON

ARCHITECTURE / INTERIOR / MANAGEMENT / PLANNING T: 07870661614 / 07888831314 E: info@designlabslondon.com W: www.designlabslondon.com © THIS DRAWING IS THE COPYRIGHT OF DESIGNLABS LONDON LTD (DLL). It shall not be in any way used or reproduced or construct without their prior written consent. All dimensions are to be checked on site by client or contractor prior to commencing any work. Work only to figured dimensions. Any discrepancies are to be reported to the DLL in writing and DLL shall not take responsiblity for site failing to inform discrepancies.

200

0

200

SCALE 1: 25

400

600

800 1000 mm

Sloping Roof

HD

Roof

SD

7300

Non Combustible Construction withing 1 meter of boundry

Loft Level 5380 First Floor Ceiling 5100

SD

SD

EE

Emergency Egress window

Flat Roof

First Floor 2700 SD

HD

SD

WC

Living + Kitchen + Dining

Bedroom 1

Hallway

Hallway FAP

Flat 2

Ground Floor 0

Fire Exit Direction signage: All signs to conform with BS 5499 Part 1 FIRE EXIT

FIRE EXIT

AOV

Roof Light Automatic Venting

C

MV

Roof Light Manual Venting

F

AV MV

Roof Ventilator Automatic Venting Roof Ventilator Manual Venting

P W

5 6 5 6

Fire Extinguisher Co2 - 5Kgs

! A

Hazard A Description of Hazard

Fire Extinguisher Foam - 6L

B

Hazard B Description of Hazard

Fire Extinguisher Powder - 5Kgs Fire Extinguisher Water - 6L

!

B

Emergency Egress

Hose Reel

1

1 : 25

Dry Riser pipe overhead

Travel Distance (Escape Route) PE

Fire Blanket

6060m length

FIRE EXIT

FAP

Fire Strategy - Protected corridor/stairway (Communal)

Push to exit button

HD

Heat Detector with built in Sounder & Flashing Beacon

Smoke vent shaft with automated opening louvres connected to smoke alarm system serving this floor

SD

Smoke Detector with built in Sounder & Flashing Beacon

Apartment exit route protected by sprinkler supression system

Manual Call Point (Break Glass)

HD

Heat Detector

Fire Alarm Master Panel

SD

Smoke Detector

Fire Alarm Remote Panel

HD

Heat Detector with built in Sounder

FE

Final Exit

SD

Smoke Detector with built in Sounder

SE

Additional Sounder

AE

Dry Riser Inlet

Fire Cavity Barrier:

Room Area Designation:

DRO

Dry Riser Outlet

MAG

Megnatic Lock with Fire over Ride

Sprinkler Suppression

Partition Ratings:

Fire Door Ratings:

30 Minutes Fire Rated Construction

FD30

Fire Rated Doors - 30 mins.

Storey Exit

60 Minutes Fire Rated Construction

FD60

Fire Rated Doors - 60 mins.

Alternative Exit

90 Minutes Fire Rated Construction

S

Fire Rated Doors with intumescent smoke seals

120 Minutes Fire Rated Construction 240 Minutes Fire Rated Construction

SC

Fire Rated Doors with self closing device

FIRE EXIT

KS

Provide 'Fire Door - Keep Shut' signage

FIRE EXIT

KL

Provide 'Fire Door - Keep Locked' signage

EE

Emergency Egress window provided for means of escape. Minimum clear opening to be 0.33sqm (450(w) x 450(h)mm) and cill/transom height no greater than 1100.

FIRE EXIT

Drawing to be read in conjunction with latest M&E drawings for fire detection and alarm systems.

FARP DRI

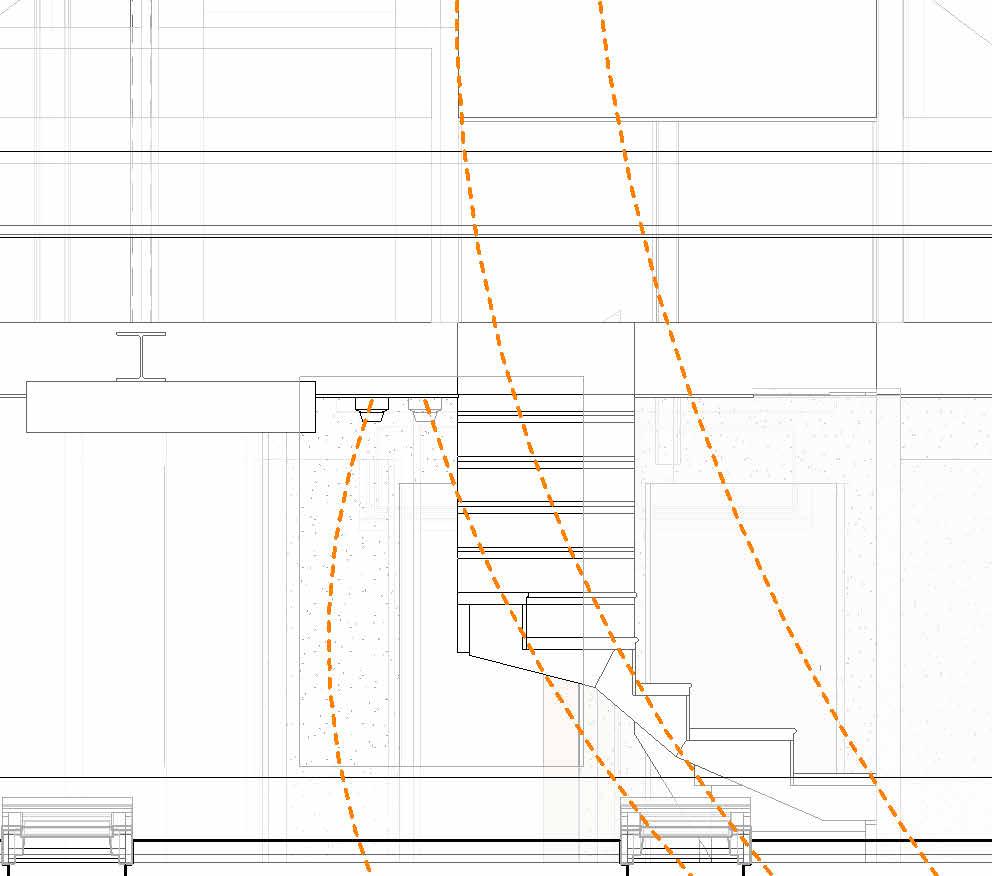

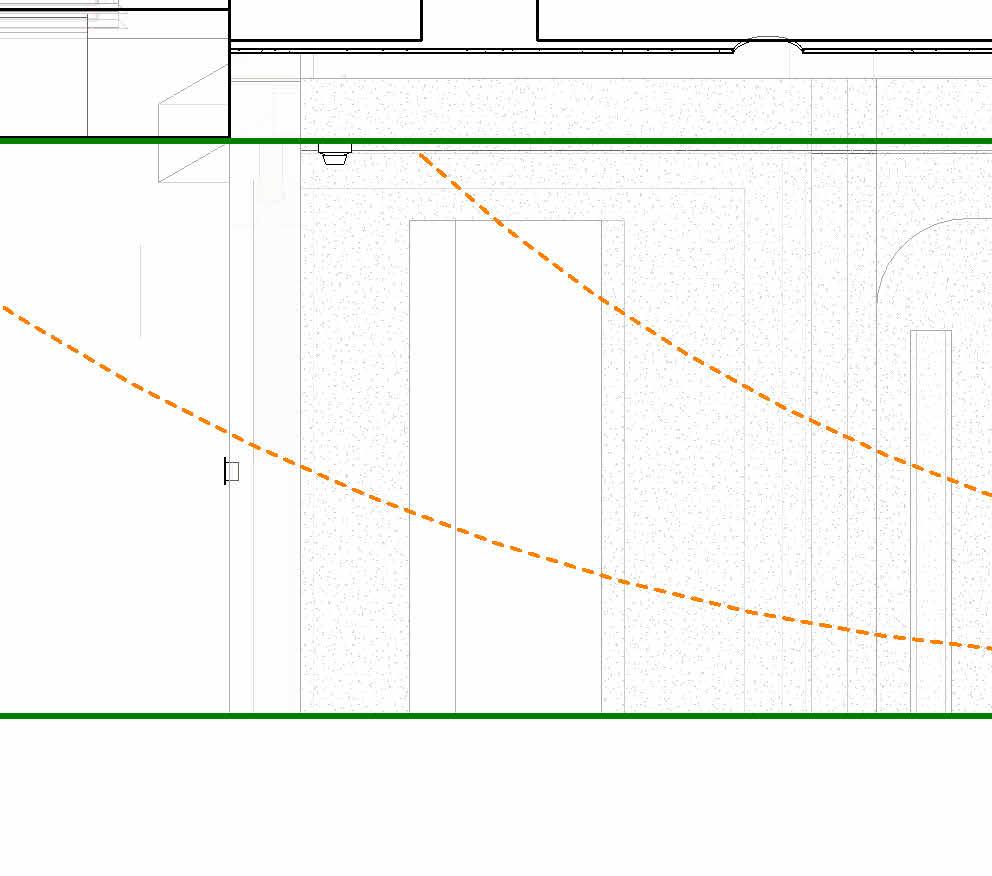

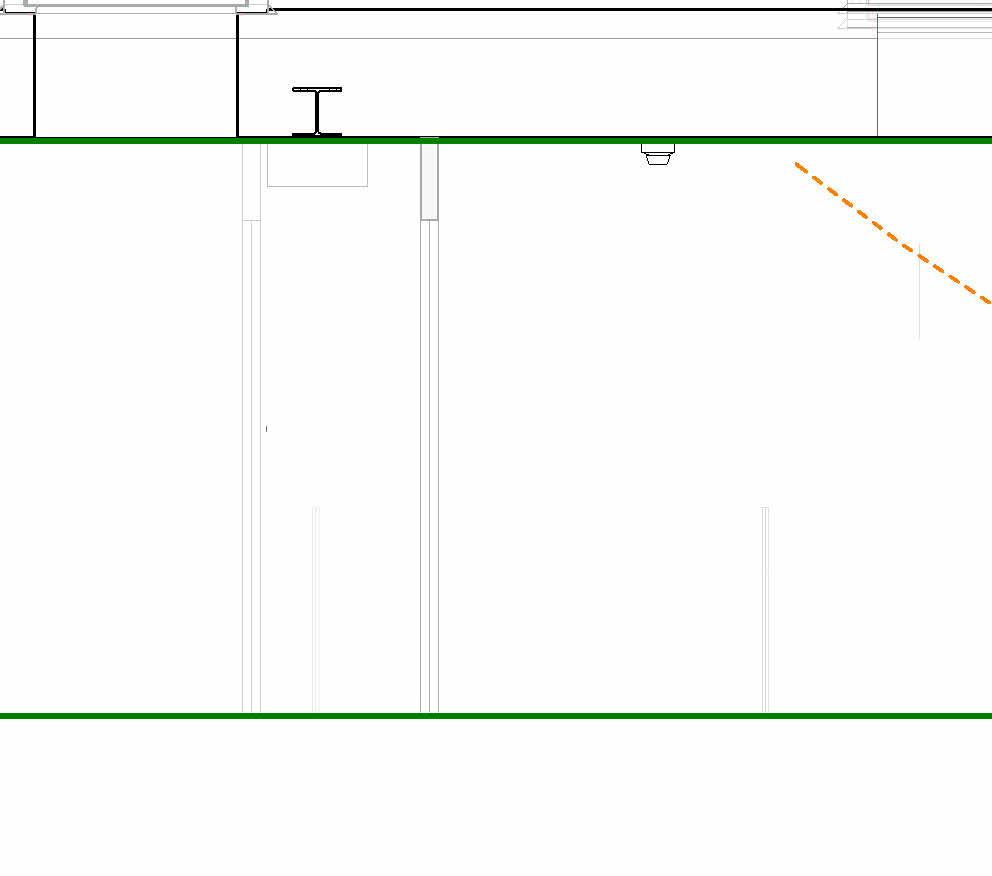

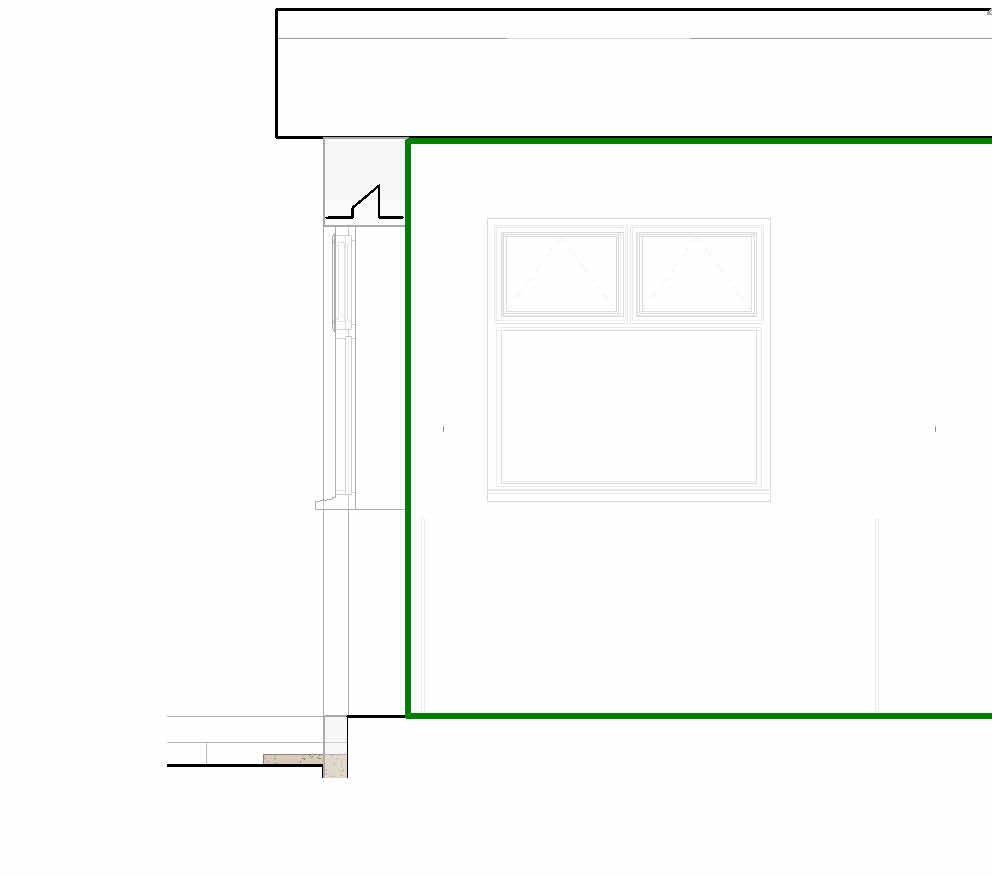

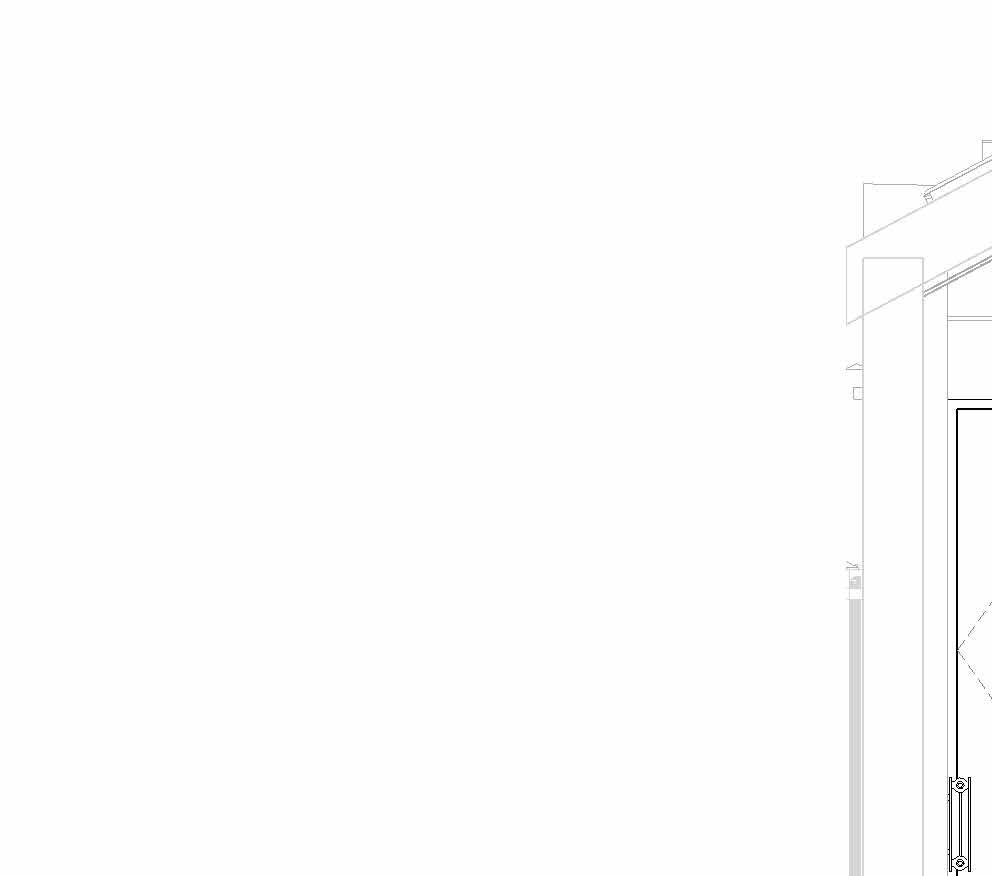

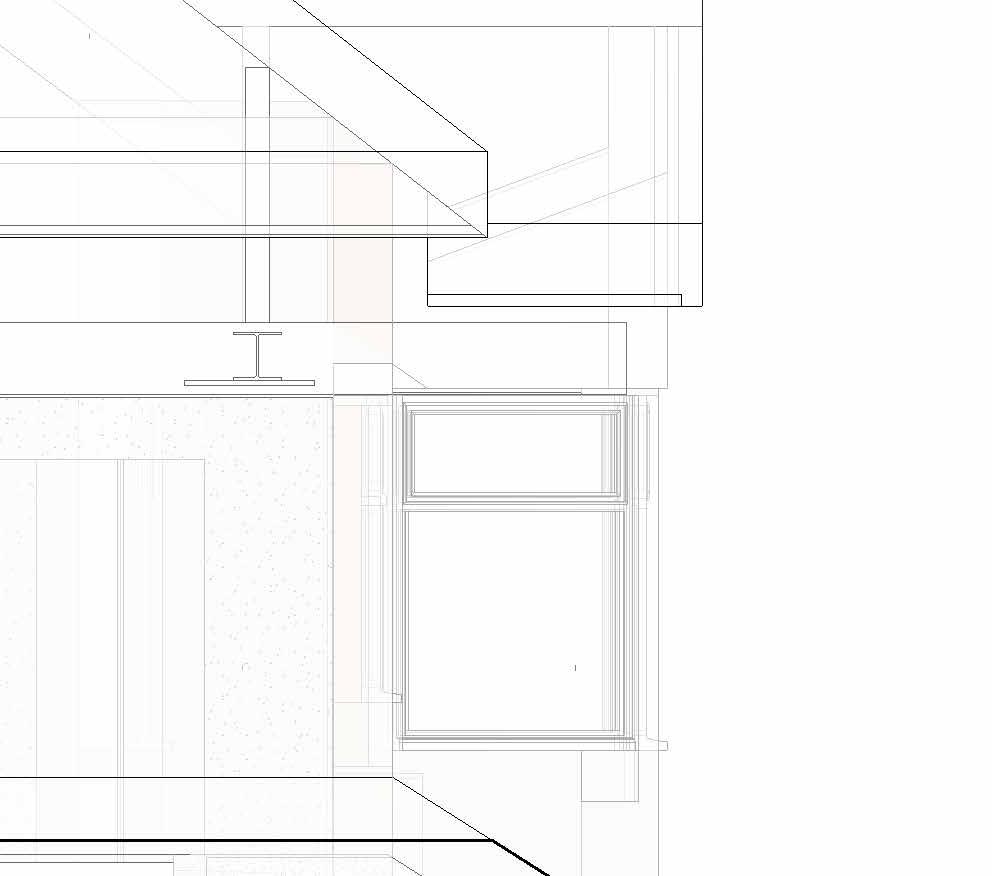

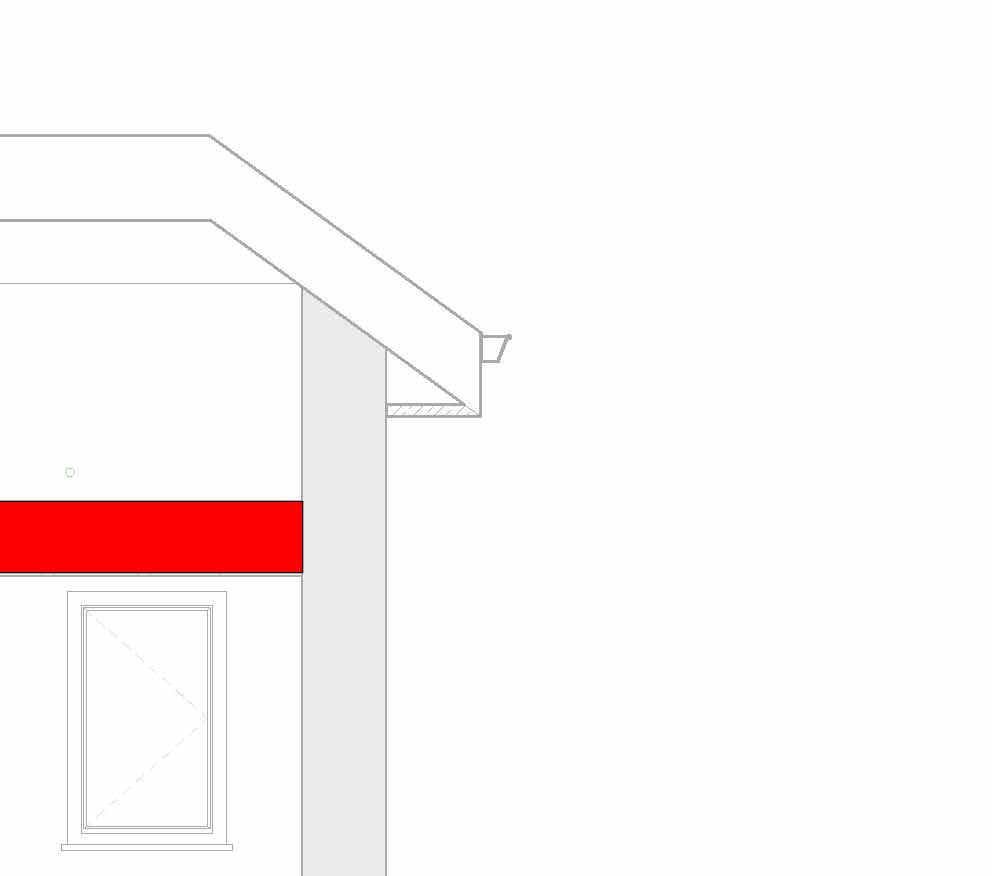

Fire Safety Section-1

NOTES: Refer to Architect's Flat Type Services Layout drawings xxx series for fire detection within flats.

Fire Symbology:

Fire Strategy - Extended Fire Symbols:

Fire Door signage: All signs to conform with BS 5499 Part 1

30 minute Fire Cavity Barriers installed vertically within the external wall cavity providing 30 minute integrity & 15 minute insulation. Refer to NBS Specification.

For Postion of Fire Cavity Barrier Refer to Setting Out Plans & Elevations: - For Ground Floor Cavity Barriers Refer to drawings CHU-CA-A-DR-GF-2030 to 2032 - For First Floor Cavity Barriers Refer to drawings CHU-CA-A-DR-01-2033 to 2035 - For First Floor Cavity Barriers Refer to drawings CHU-CA-A-DR-02-2036 to 2038 - For Position of Cavity Barriers in Elevations Refer to drawings CHU-CA-A-DR-XX-3030 to 3039 Masonry Cavity Walls- Fire Stopping will be provided horizontally at compartment floor locations fixed back to RC slab edge.

All services passing through 30 minute & 60 minute compartment floors/ ceilings & walls including protected fire escape routes to have the appropriate fire collar, damper, pillows, sealant etc. fitted around them to the same fire resistance as the floor/ ceiling or wall it is passing through. Refer to NBS Specification.

All vertical & horizontal cavity barriers to rainscreen cladded external walls to be vented intumescent cavity barrier.

30min. cavity closers to be used around all window, screen & doors set in all external wall constructions.

Project : 2A Dale Avenue. Edgware HA8

6AE

Drawing :

Fire Safety Plans- Proposed Sections

Scale : As indicated Status : Construction Date : 12/05/2026

Rev :

Dwg No : NC-GR6I-DR-02-84

DESIGNLABS LONDON

ARCHITECTURE / INTERIOR / MANAGEMENT / PLANNING T: 07870661614 / 07888831314 E: info@designlabslondon.com W: www.designlabslondon.com © THIS DRAWING IS THE COPYRIGHT OF DESIGNLABS LONDON LTD (DLL). It shall not be in any way used or reproduced or construct without their prior written consent. All dimensions are to be checked on site by client or contractor prior to commencing any work. Work only to figured dimensions. Any discrepancies are to be reported to the DLL in writing and DLL shall not take responsiblity for site failing to inform discrepancies.

200

0

200

SCALE 1: 25

400

600

800 1000 mm

Roof 7300

Flat 3 Loft Level 5380 First Floor Ceiling 5100

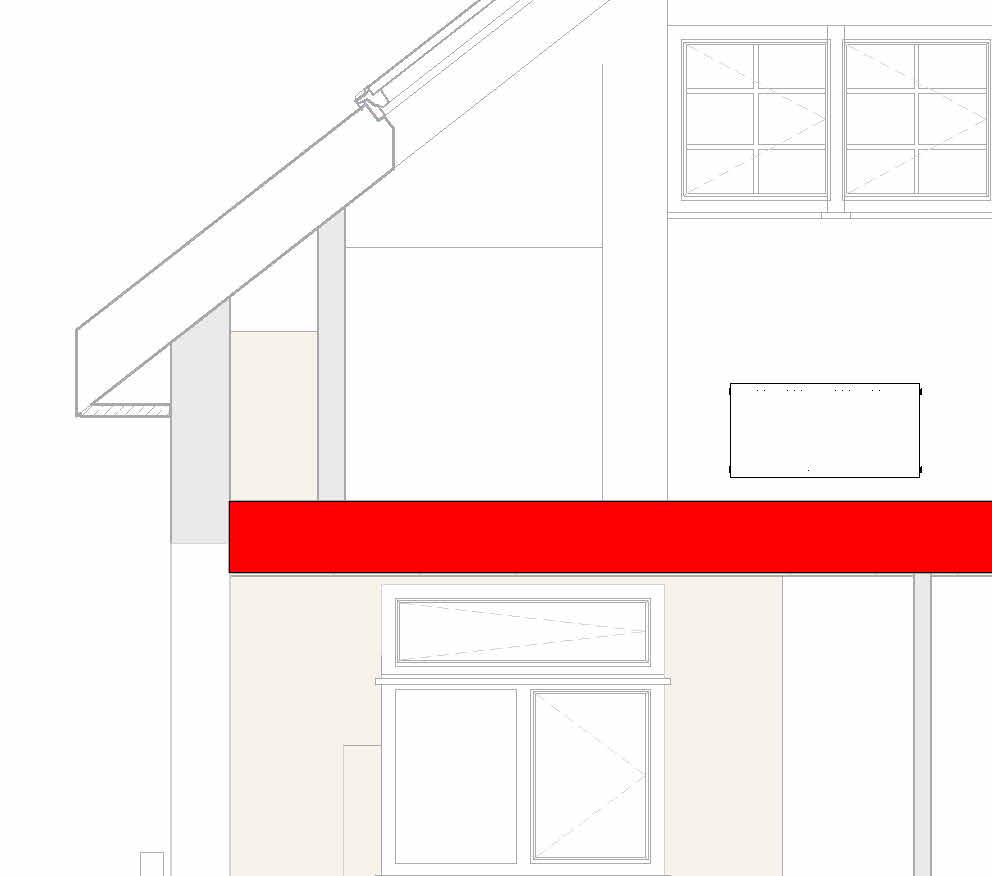

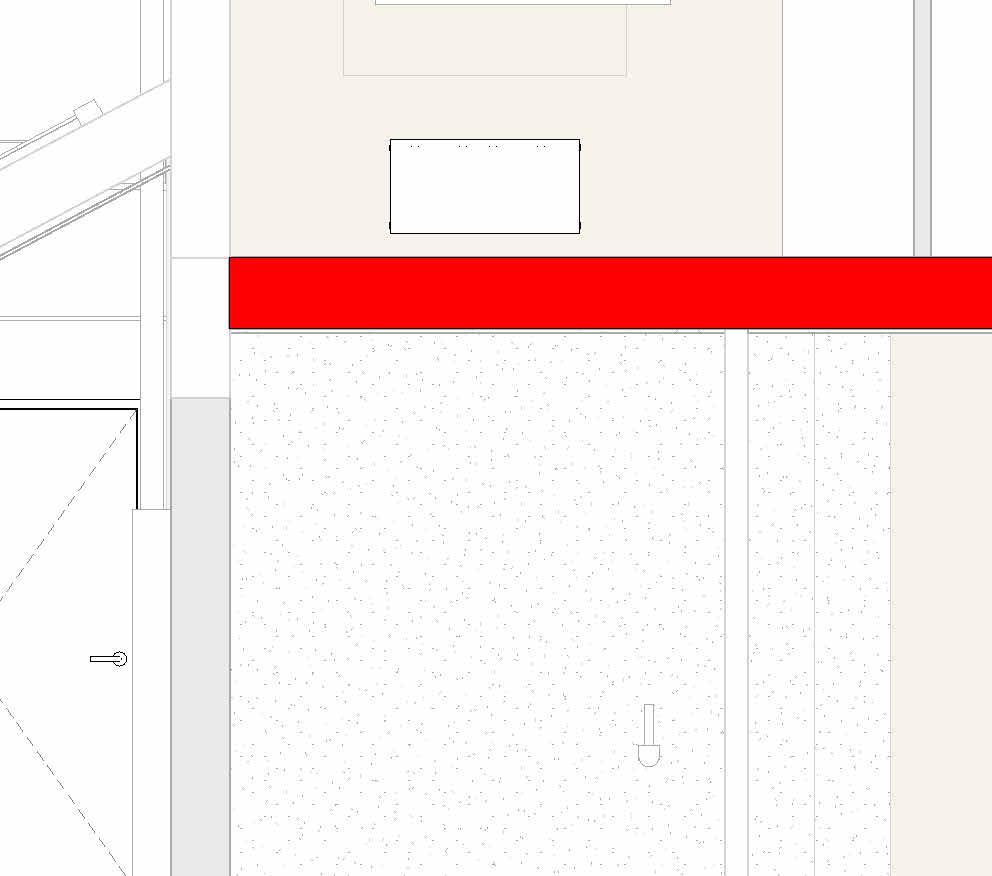

60 min Fire Rated Floors

Flat 3 First Floor 2700 SD

Flat 2

Flat 1 Ground Floor 0

Garden LVL -600

Project : 2A Dale Avenue. Edgware HA8

6AE

Drawing :

1

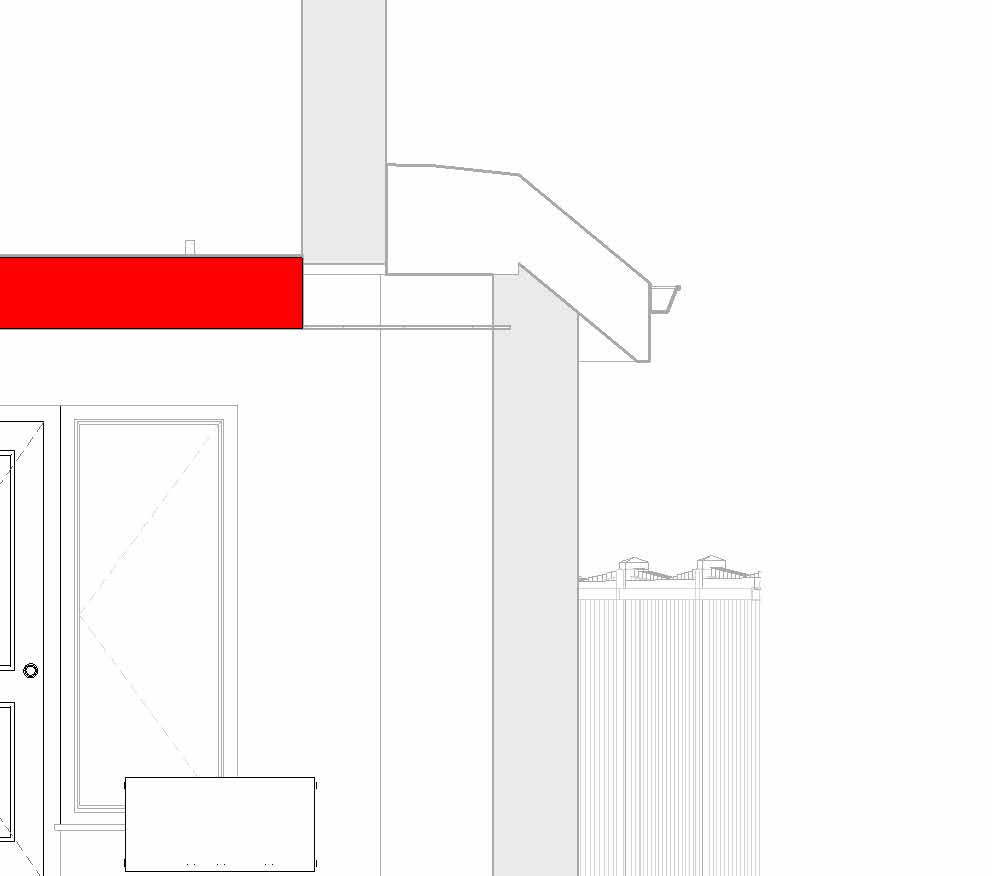

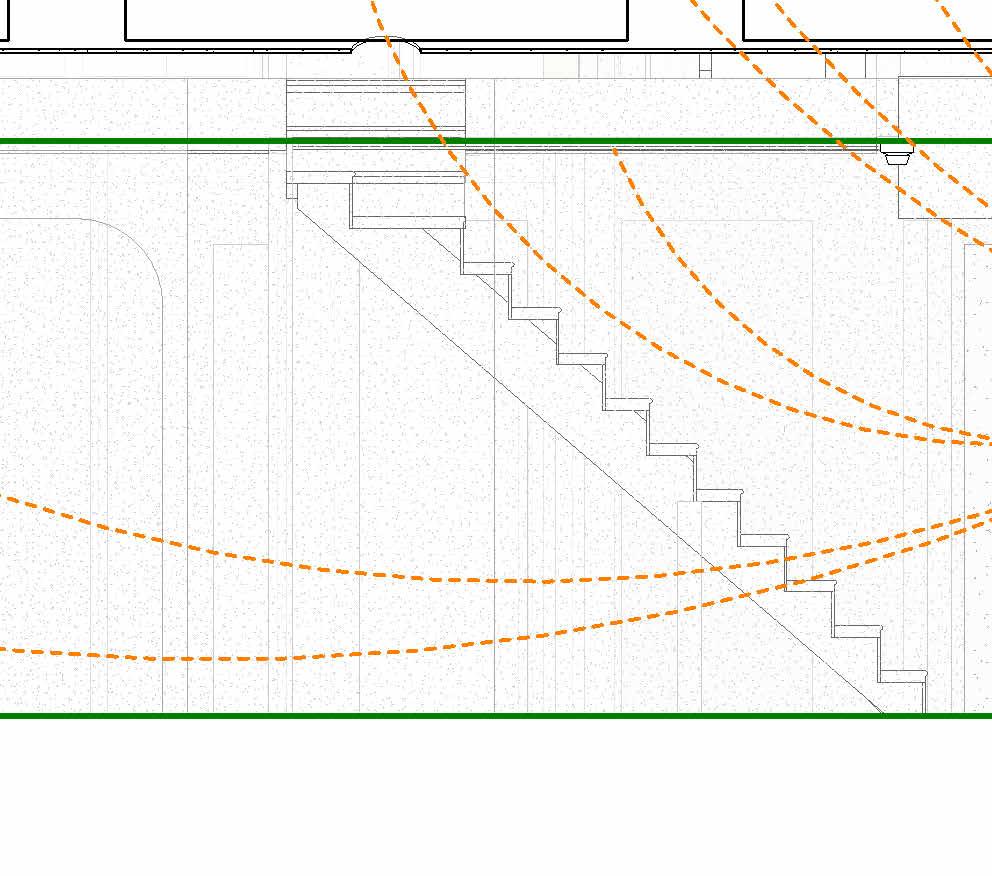

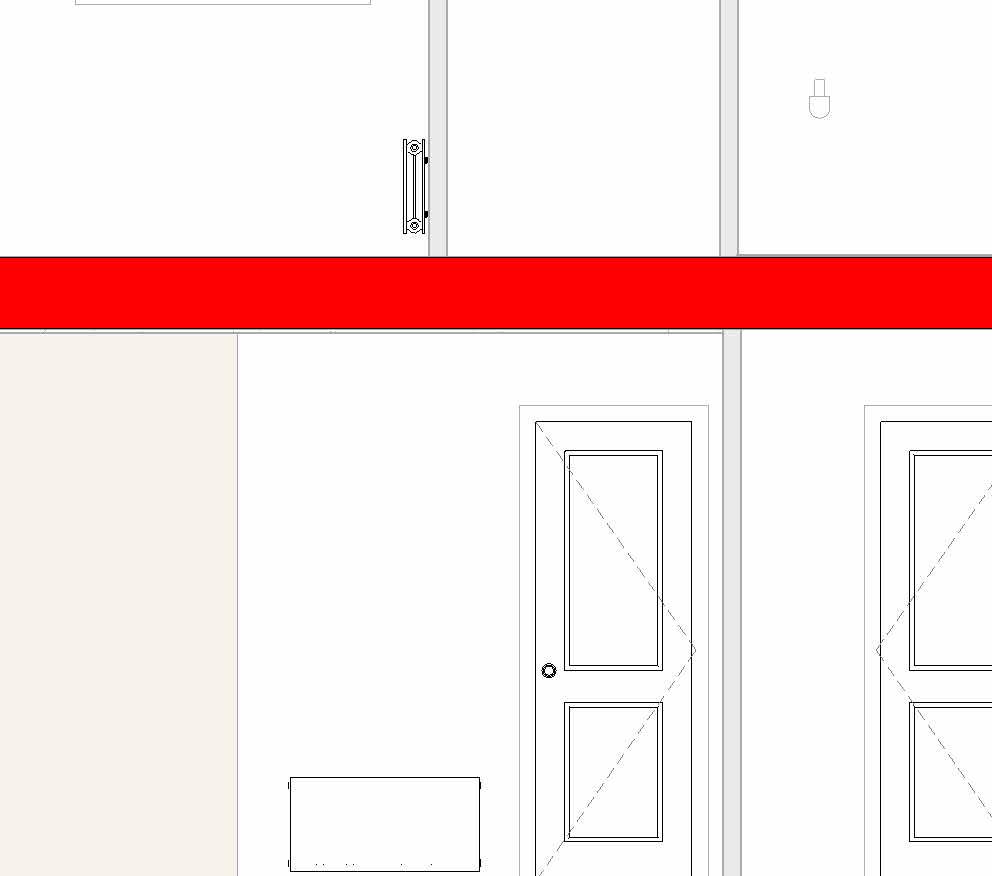

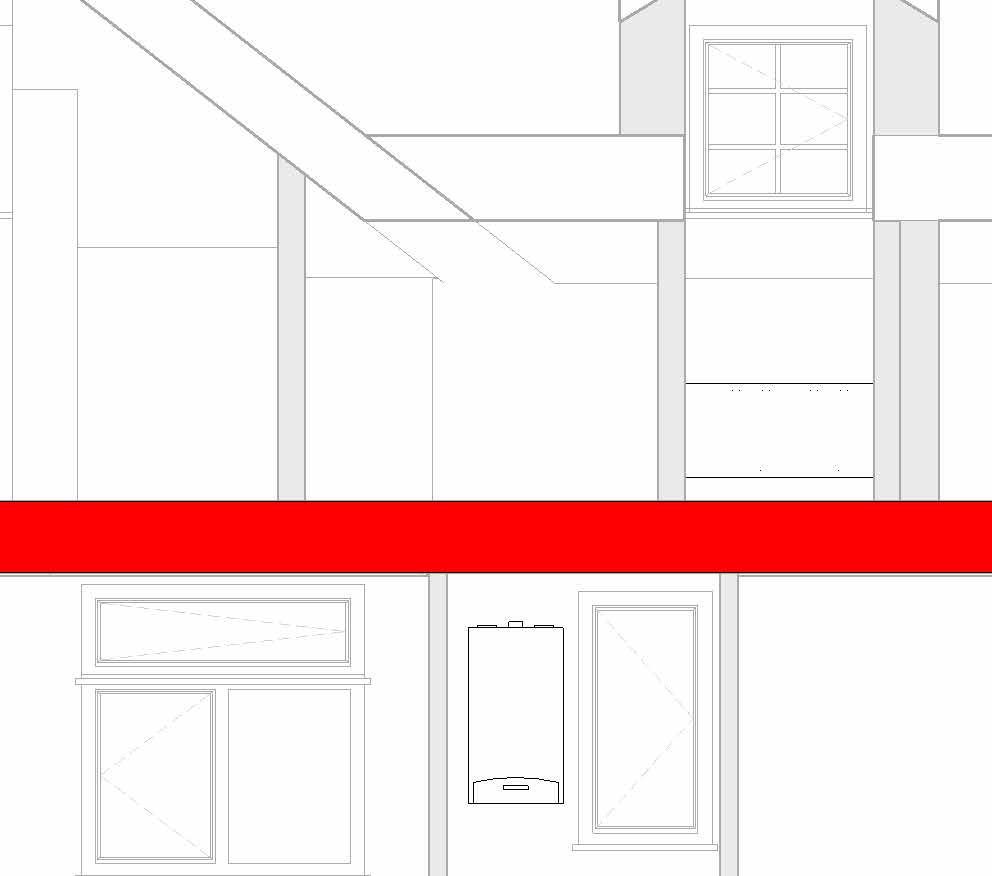

Proposed Fire Safety Section-2 1 : 25

Fire Safety Plans- Proposed Sections

Scale : 1 : 25

Status : Construction

Date : 12/05/2026

Dwg No : NC-GR6I-DR-02-85

Rev :

DESIGNLABS LONDON

ARCHITECTURE / INTERIOR / MANAGEMENT / PLANNING T: 07870661614 / 07888831314 E: info@designlabslondon.com W: www.designlabslondon.com © THIS DRAWING IS THE COPYRIGHT OF DESIGNLABS LONDON LTD (DLL). It shall not be in any way used or reproduced or construct without their prior written consent. All dimensions are to be checked on site by client or contractor prior to commencing any work. Work only to figured dimensions. Any discrepancies are to be reported to the DLL in writing and DLL shall not take responsiblity for site failing to inform discrepancies.

Fresh Air Exchange and Mechanical Ventilation

Project : 2A Dale Avenue. Edgware HA8

6AE

Drawing : Title Sheet - Fresh Air

Exchange and Mechanical Ventilation

Scale : Date : 12/05/2026

Status : Construction

Rev :

Dwg No : NC-GR6J

DESIGNLABS LONDON

ARCHITECTURE / INTERIOR / MANAGEMENT / PLANNING T: 07870661614 / 07888831314 E: info@designlabslondon.com W: www.designlabslondon.com © THIS DRAWING IS THE COPYRIGHT OF DESIGNLABS LONDON LTD (DLL). It shall not be in any way used or reproduced or construct without their prior written consent. All dimensions are to be checked on site by client or contractor prior to commencing any work. Work only to figured dimensions. Any discrepancies are to be reported to the DLL in writing and DLL shall not take responsiblity for site failing to inform discrepancies.

100mm Vent Pipe

0.5

Discharge to Roof

100mm Vent Pipe

0

0.5

1

1.5

SCALE 1: 50

2

2.5 m

FAN

WC

Hallway

Bedroom 1

Flat 2 Storage

Flat 3

FAN

L K

Bathroom

FAN

Flat 1

FAN

L

Bathroom Storage W

Living + Kitchen + Dining

Bedroom 1

Bedroom 2

Storage REF.

MECHANICAL VENT LEGEND

Bedroom

MECH. FAN TO GIVE 15 L / S EXTRACTION WITH 15 MIN. OVERRIDE AND DUCTED TO EXTERNAL AIR THROUGH CEILING/ROOF. PROVIDE 10 MM GAP UNDER BATH DOOR FOR VENTILATION WALL MOUNTED GRILL

RETURN GRILL

125mm Vent Pipe

SPRINKLER FIRE PUMP IMIST SPRINKLER

IS

Living + Kitchen + Dining

ISOLATING SWITCH FOR VENTILATION FAN

Bedroom 2 TRICKLE VENT TO OPENINGS MINIMUM AREA OF VENT @ 4000 MM2

K FAN

MECHANICAL VENT LEGEND MECH.EXTRACTOR FAN TO GIVE 15 L / S EXTRACTION WITH 15 MIN. OVERRIDE AND DUCTED TO EXTERNAL AIR THROUGH CEILING/ROOF.

FAN 100mm Vent Pipe REF.

FAN

FAN

1

Fresh Air Exchange and Mechanical VentilationGround Floor Plan 1 : 25

FAN

K MECH.EXTRACTOR FAN FOR KITCHEN TO GIVE 15 L / S EXTRACTION WITH 15 MIN. OVERRIDE AND DUCTED TO EXTERNAL AIR THROUGH CEILING/ROOF.

VOLTAGE FAN WITH TIMER TO GIVE 15 L / S L MECH.EXTRACTORLOW EXTRACTION WITH 15 MIN. OVERRIDE AND DUCTED TO EXTERNAL AIR THROUGH CEILING/ROOF.

T

MECH.EXTRACTOR FAN WITH TIMER TO GIVE 15 L / S EXTRACTION WITH 15 MIN. OVERRIDE AND DUCTED TO EXTERNAL AIR THROUGH CEILING/ROOF. PROVIDE 10 MM GAP UNDER BATH DOOR FOR VENTILATION

Project : 2A Dale Avenue. Edgware HA8

6AE

Drawing : Fresh Air Exchange and

Mechanical VentilationGround Floor Plan

Scale : As indicated Date : 12/05/2026

Status : Construction

Rev :

Dwg No : NC-GR6J-DR-00-91

DESIGNLABS LONDON

ARCHITECTURE / INTERIOR / MANAGEMENT / PLANNING T: 07870661614 / 07888831314 E: info@designlabslondon.com W: www.designlabslondon.com © THIS DRAWING IS THE COPYRIGHT OF DESIGNLABS LONDON LTD (DLL). It shall not be in any way used or reproduced or construct without their prior written consent. All dimensions are to be checked on site by client or contractor prior to commencing any work. Work only to figured dimensions. Any discrepancies are to be reported to the DLL in writing and DLL shall not take responsiblity for site failing to inform discrepancies.

0.5

0

0.5

1

1.5

SCALE 1: 50

2

2.5 m

100mm Vent Pipe

FAN

Ensuite Bedroom 2

Hallway

Bedroom 3

Bedroom 1

MECHANICAL VENT LEGEND MECH. FAN TO GIVE 15 L / S EXTRACTION WITH 15 MIN. OVERRIDE AND DUCTED TO EXTERNAL AIR THROUGH CEILING/ROOF.

Storage

PROVIDE 10 MM GAP UNDER BATH DOOR FOR VENTILATION WALL MOUNTED GRILL

RETURN GRILL SPRINKLER FIRE PUMP

Bedroom 4

IMIST SPRINKLER

Bathroom

IS

ISOLATING SWITCH FOR VENTILATION FAN

TRICKLE VENT TO OPENINGS MINIMUM AREA OF VENT @ 4000 MM2

FAN 100mm Vent Pipe

MECHANICAL VENT LEGEND MECH.EXTRACTOR FAN TO GIVE 15 L / S EXTRACTION WITH 15 MIN. OVERRIDE AND DUCTED TO EXTERNAL AIR THROUGH CEILING/ROOF.

FAN

FAN

FAN

FAN

K MECH.EXTRACTOR FAN FOR KITCHEN TO GIVE 15 L / S EXTRACTION WITH 15 MIN. OVERRIDE AND DUCTED TO EXTERNAL AIR THROUGH CEILING/ROOF.

VOLTAGE FAN WITH TIMER TO GIVE 15 L / S L MECH.EXTRACTORLOW EXTRACTION WITH 15 MIN. OVERRIDE AND DUCTED TO EXTERNAL AIR THROUGH CEILING/ROOF.

T

MECH.EXTRACTOR FAN WITH TIMER TO GIVE 15 L / S EXTRACTION WITH 15 MIN. OVERRIDE AND DUCTED TO EXTERNAL AIR THROUGH CEILING/ROOF. PROVIDE 10 MM GAP UNDER BATH DOOR FOR VENTILATION

Project : 2A Dale Avenue. Edgware HA8

6AE

Drawing : Fresh Air Exchange and

Mechanical Ventilation- First Floor Plan

Scale : As indicated Date : 12/05/2026

Status : Construction

Rev :

Dwg No : NC-GR6J-DR-01-92

DESIGNLABS LONDON

ARCHITECTURE / INTERIOR / MANAGEMENT / PLANNING T: 07870661614 / 07888831314 E: info@designlabslondon.com W: www.designlabslondon.com © THIS DRAWING IS THE COPYRIGHT OF DESIGNLABS LONDON LTD (DLL). It shall not be in any way used or reproduced or construct without their prior written consent. All dimensions are to be checked on site by client or contractor prior to commencing any work. Work only to figured dimensions. Any discrepancies are to be reported to the DLL in writing and DLL shall not take responsiblity for site failing to inform discrepancies.

0.5

0

0.5

1

1.5

SCALE 1: 50

2

2.5 m

MECHANICAL VENT LEGEND MECH. FAN TO GIVE 15 L / S EXTRACTION WITH 15 MIN. OVERRIDE AND DUCTED TO EXTERNAL AIR THROUGH CEILING/ROOF. PROVIDE 10 MM GAP UNDER BATH DOOR FOR VENTILATION WALL MOUNTED GRILL

RETURN GRILL SPRINKLER FIRE PUMP FAN

IMIST SPRINKLER

IS

ISOLATING SWITCH FOR VENTILATION FAN

TRICKLE VENT TO OPENINGS MINIMUM AREA OF VENT @ 4000 MM2

MECHANICAL VENT LEGEND

100mm Vent Pipe

MECH.EXTRACTOR FAN TO GIVE 15 L / S EXTRACTION WITH 15 MIN. OVERRIDE AND DUCTED TO EXTERNAL AIR THROUGH CEILING/ROOF.

FAN

FAN

1

Fresh Air Exchange and Mechanical Ventilation- Loft Floor Plan 1 : 25

FAN Outlet to Wall Below Soffit

FAN

K MECH.EXTRACTOR FAN FOR KITCHEN TO GIVE 15 L / S EXTRACTION WITH 15 MIN. OVERRIDE AND DUCTED TO EXTERNAL AIR THROUGH CEILING/ROOF.

VOLTAGE FAN WITH TIMER TO GIVE 15 L / S L MECH.EXTRACTORLOW EXTRACTION WITH 15 MIN. OVERRIDE AND DUCTED TO EXTERNAL AIR THROUGH CEILING/ROOF.

T

MECH.EXTRACTOR FAN WITH TIMER TO GIVE 15 L / S EXTRACTION WITH 15 MIN. OVERRIDE AND DUCTED TO EXTERNAL AIR THROUGH CEILING/ROOF. PROVIDE 10 MM GAP UNDER BATH DOOR FOR VENTILATION

Project : 2A Dale Avenue. Edgware HA8

6AE

Drawing : Fresh Air Exchange and

Mechanical Ventilation- Loft Floor Plan

Scale : As indicated Date : 12/05/2026

Status : Construction

Rev :

Dwg No : NC-GR6J-DR-02-93

DESIGNLABS LONDON

ARCHITECTURE / INTERIOR / MANAGEMENT / PLANNING T: 07870661614 / 07888831314 E: info@designlabslondon.com W: www.designlabslondon.com © THIS DRAWING IS THE COPYRIGHT OF DESIGNLABS LONDON LTD (DLL). It shall not be in any way used or reproduced or construct without their prior written consent. All dimensions are to be checked on site by client or contractor prior to commencing any work. Work only to figured dimensions. Any discrepancies are to be reported to the DLL in writing and DLL shall not take responsiblity for site failing to inform discrepancies.
