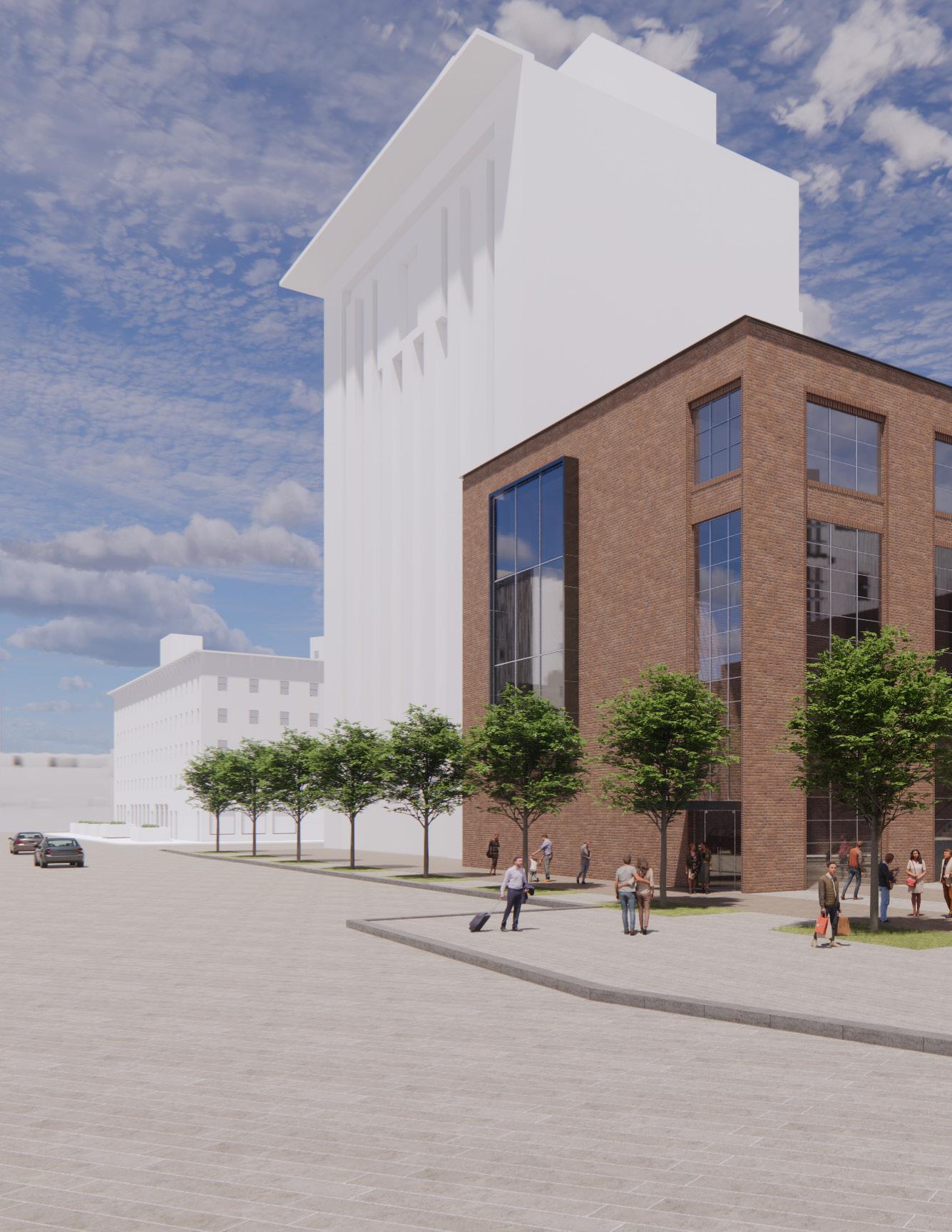

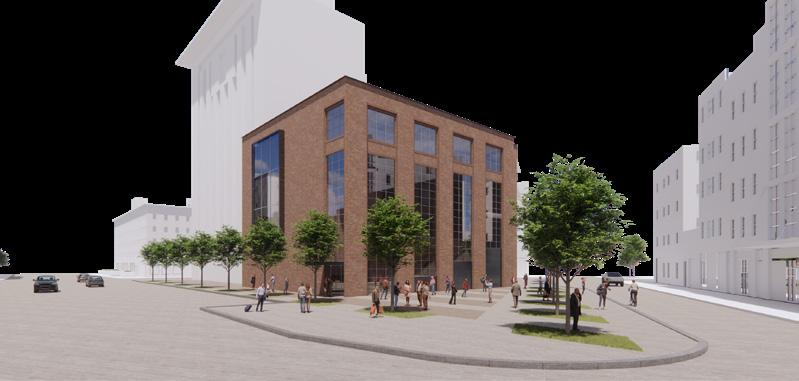

Named after the former meat packing company which used to occupy the site, the Ottman Theater sits on the dividing line between New York’s historic Meatpacking and Chelsea districts. Due to the site’s location in a historic neighborhood I wanted the project to blend in and respect the surrounding context rather than act as a juxtaposing icon. Through the usage of brick and steel paneling I was able to pay homage to the surrounding architecture while still maintaining a contemporary feel.

The building also puts the act of procession on full display by creating a secondary performance through a series of framing moments. These layers of framed arches and windows will allow pedestrians in the adjacent plaza a view of the audience as they enter the building and climb the grand staircase and make their way to the auditorium.

5

A

A

Ground Floor

Procession 6

Regulating Lines

Framing Moments

Fourth Floor

Third Floor

Second Floor 7

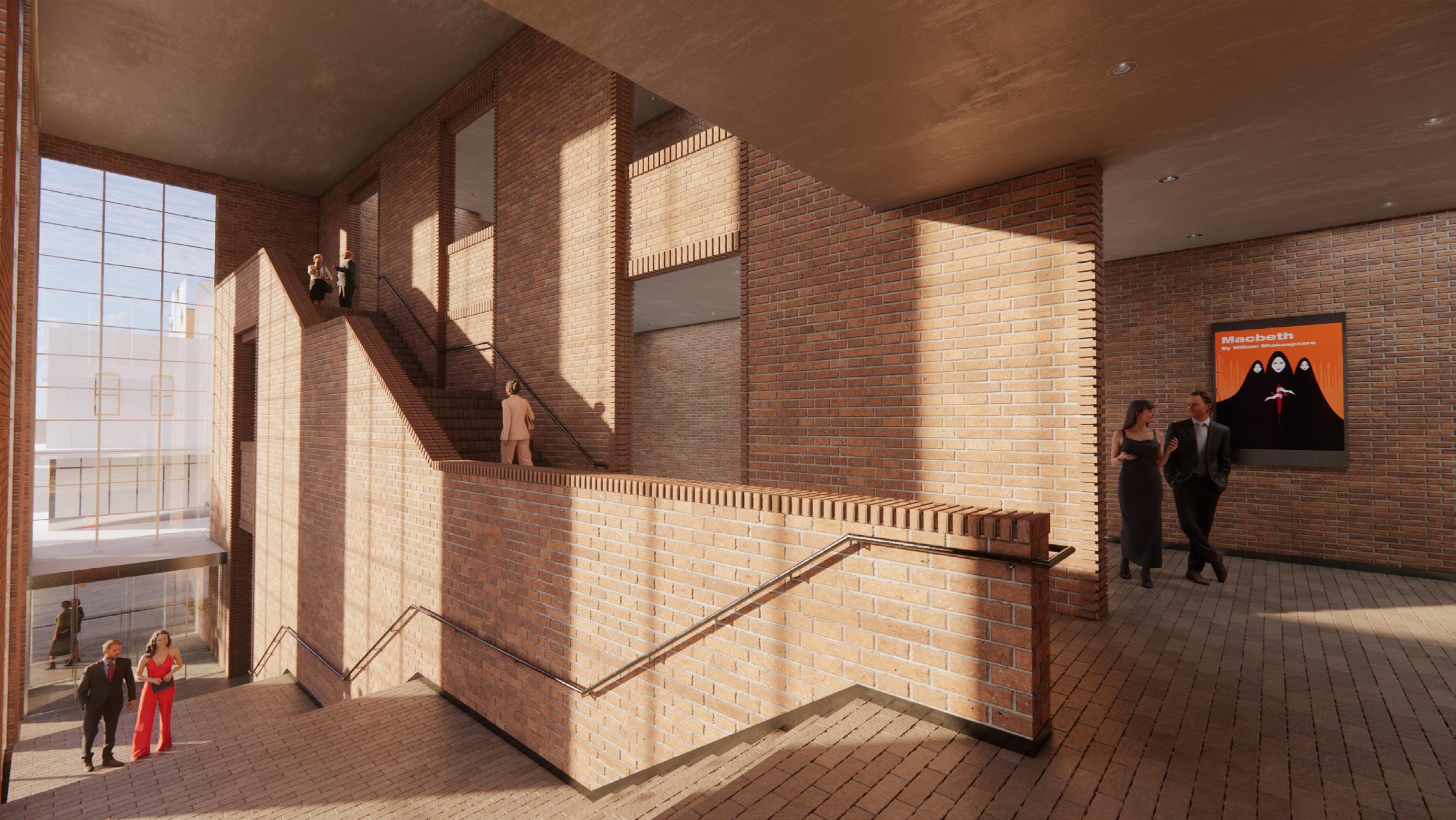

Lobby Grand Stair

2nd Floor Sub-Lobby 8

Section AA

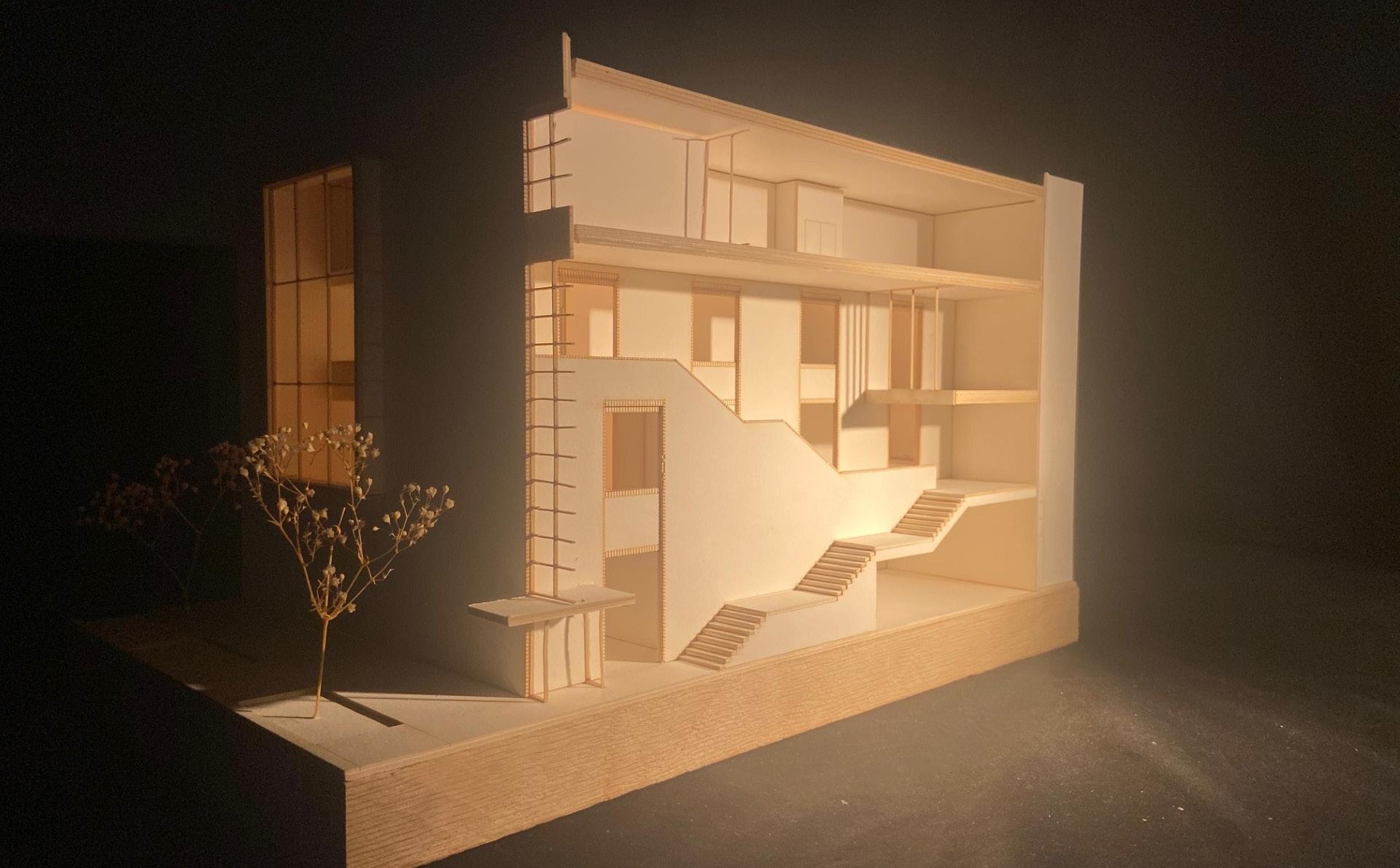

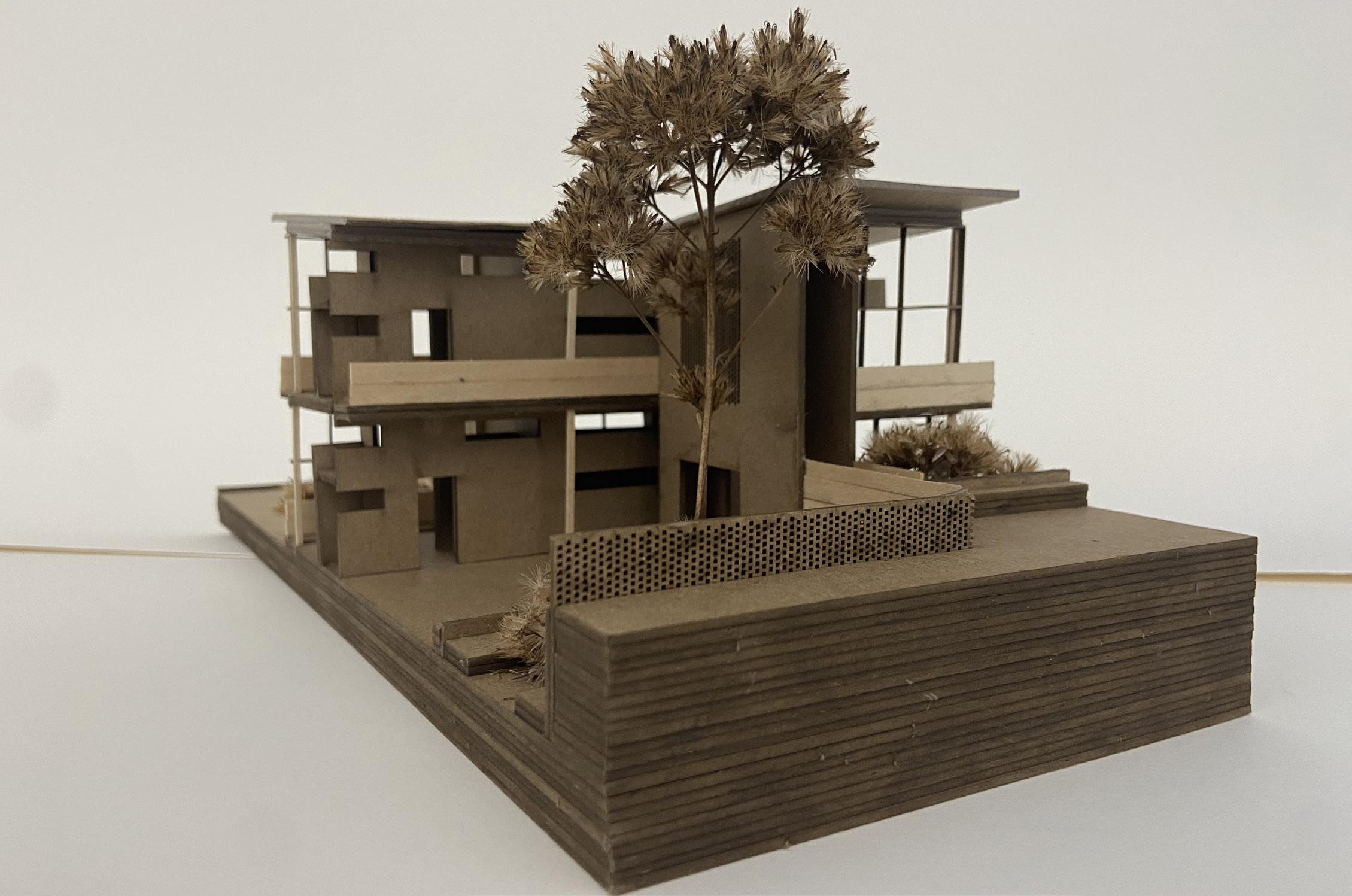

Model 9

Creekside Retreat Fall 2023

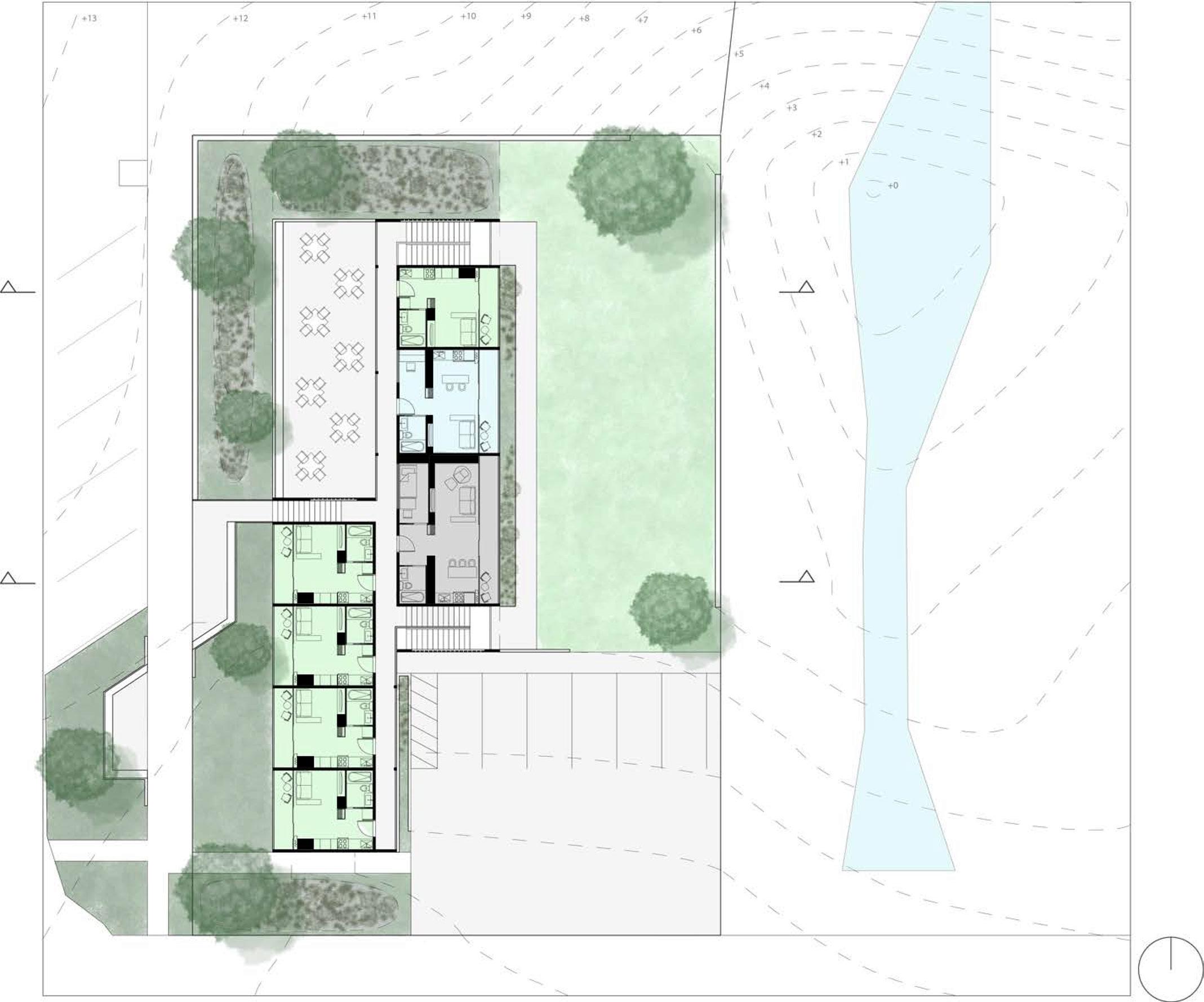

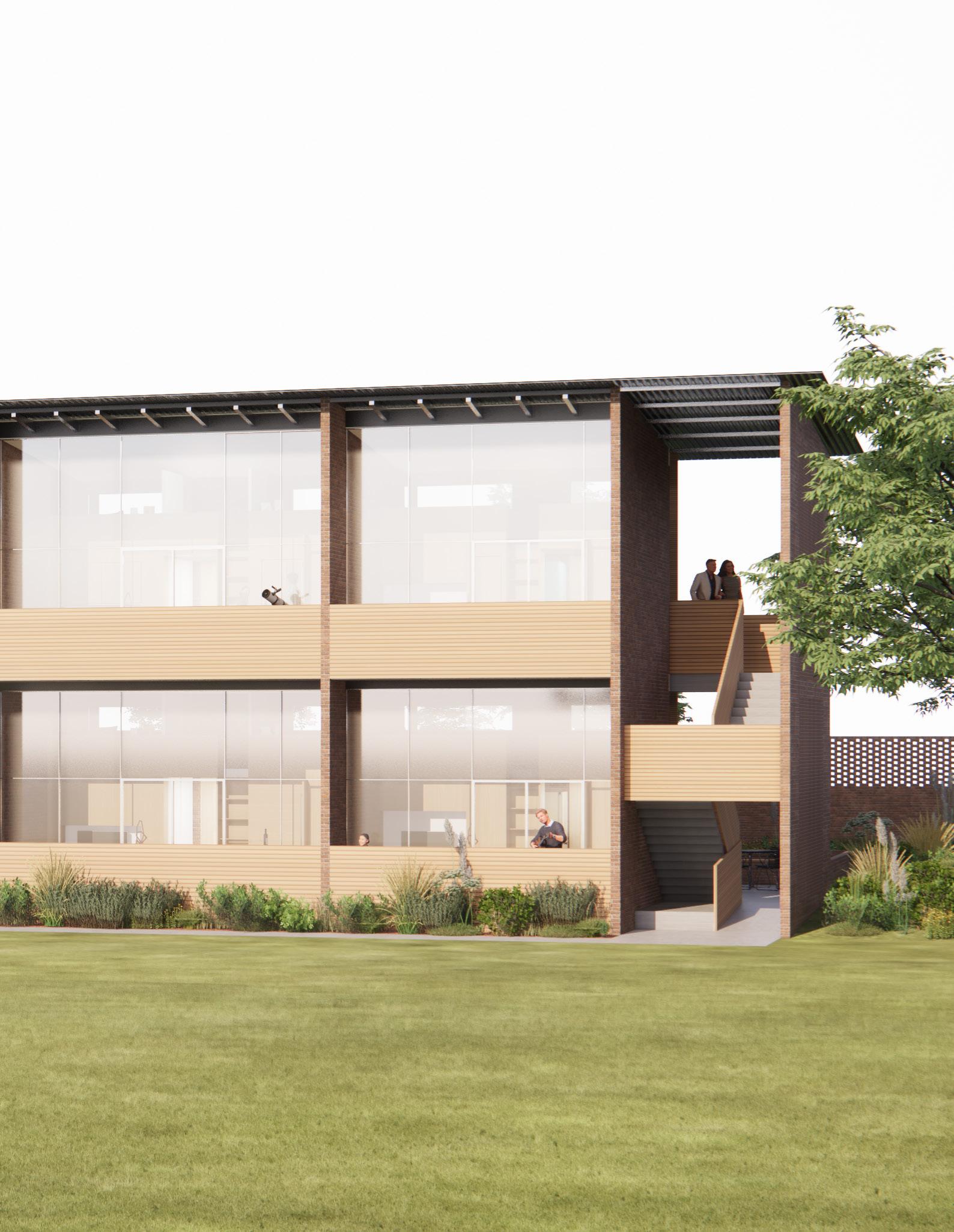

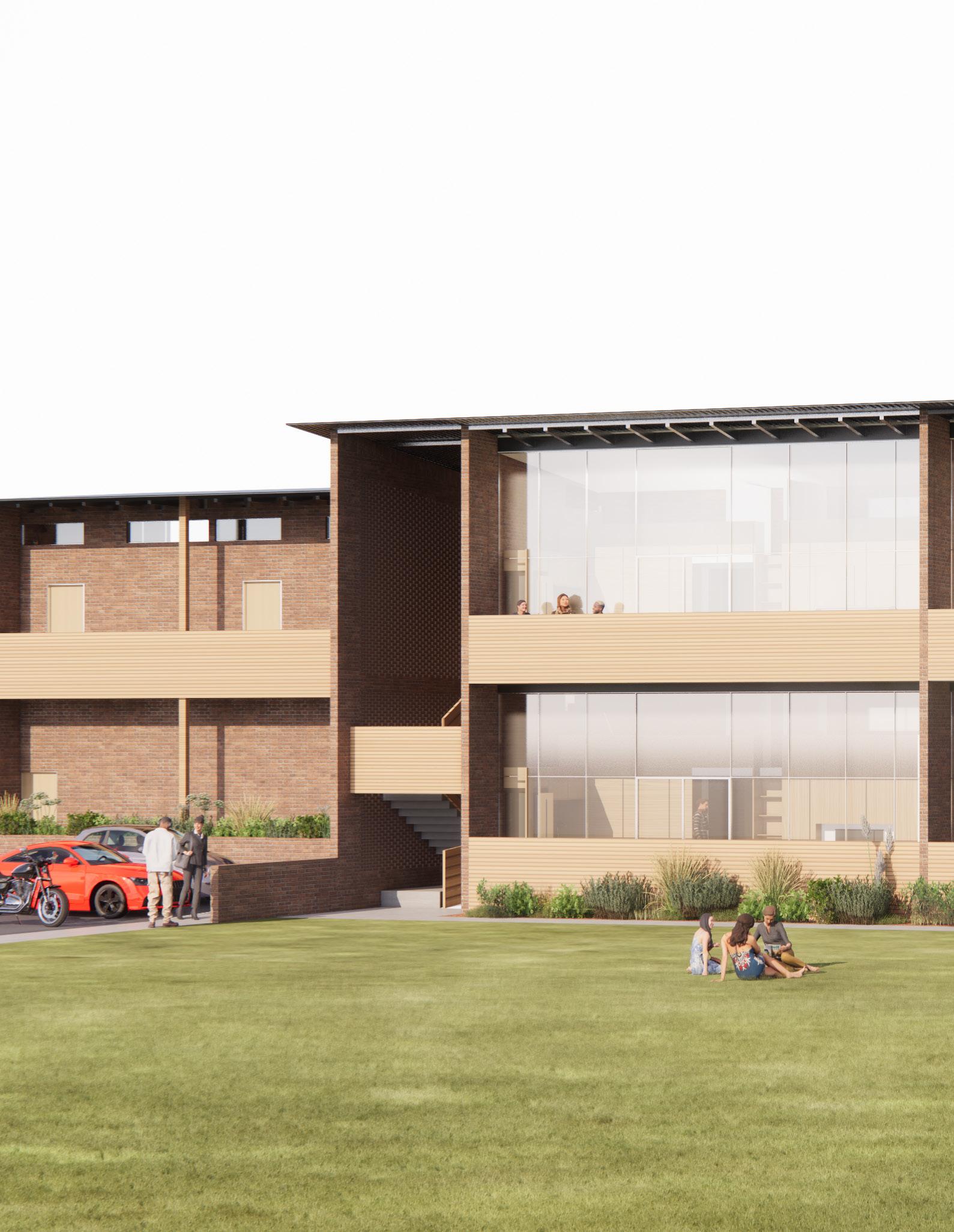

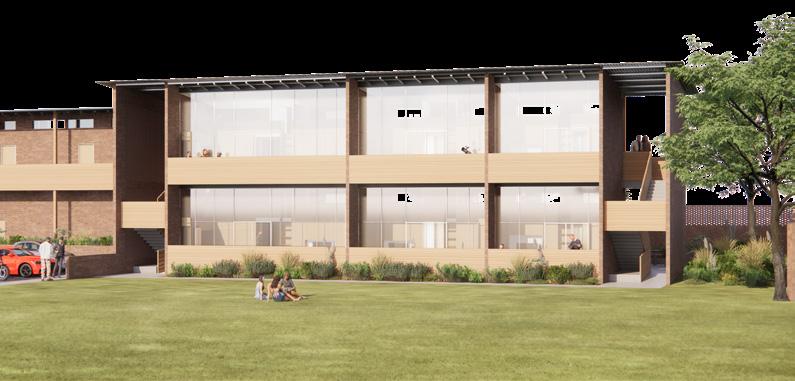

Due to a housing shortage in Eureka, Ks. the local hospital is currently facing problems bringing in new nurses, and because of the stressful nature of medical jobs the residents would need a calm and private space away from work. Locating the complex directly located on Main St. gives residents easy access to local businesses and Founders Park, while pulling the building back from the street creates a green barrier which residents bridge over to enter the building and gives the complex a sense of privacy while also allowing for the creation of outdoor community spaces.

The complex contains one-, two-, and three-bedroom units which are divided in two with the front being zoned for either private or service space with sleeping quarters lofted above and the back of the units being given over to public spaces. Units also contain plenty of storage as storage walls are used to separate private and public spaces within units.

10

11

A

A

Studio 2 Bed 3 Bed

Upper Floor

12

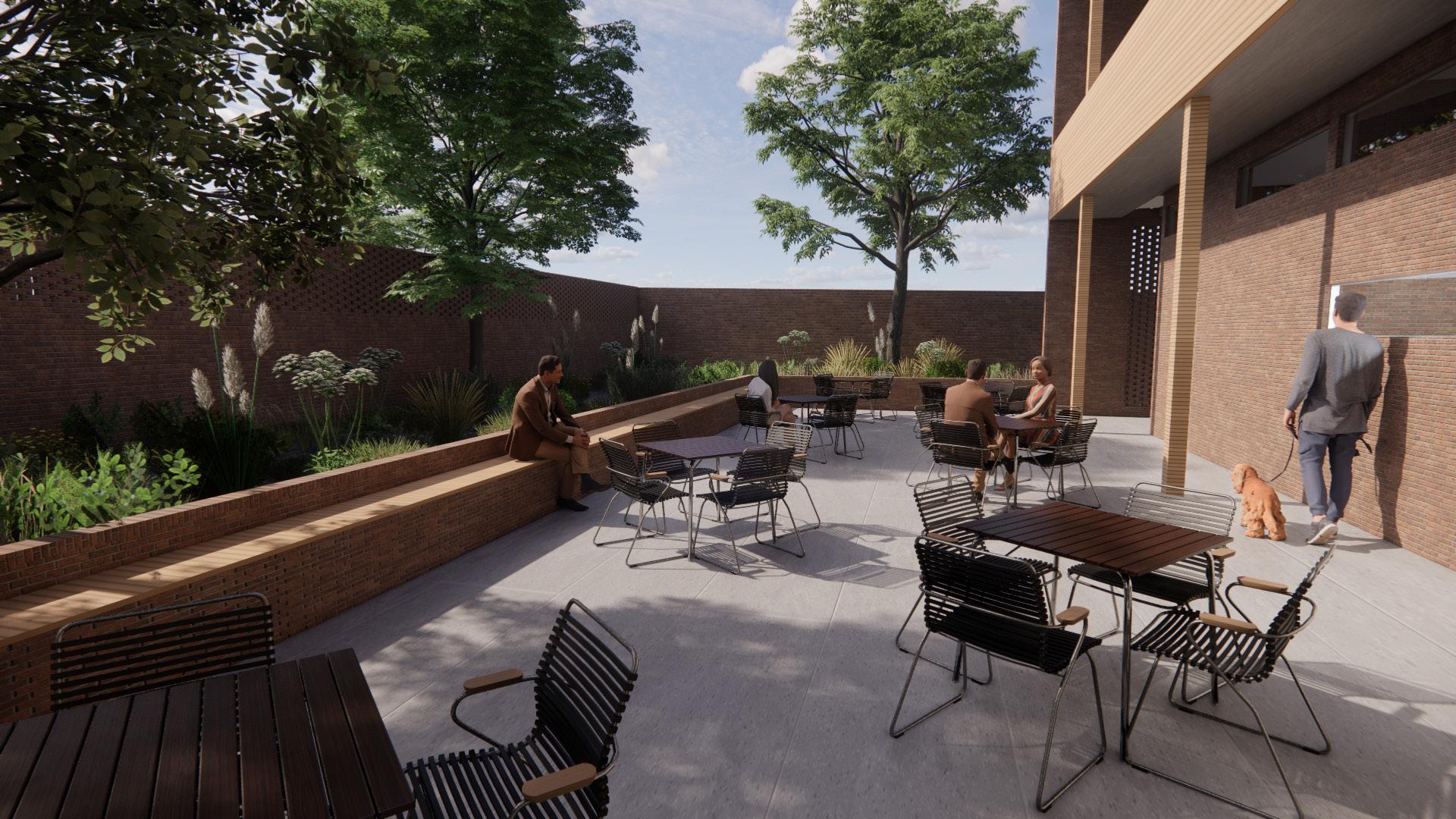

Communal Courtyard

13

Sleeping Loft/ workspace

Bathroom

Kitchen

Living

Dining

Open to Below

Studio Plans

Sleeping Loft

Sleeping Loft Bathroom

Workspace

Kitchen/ Dining Living

Open to Below

2 Bedroom Plans

Sleeping Loft/ workspace

Sleeping Loft/ workspace

Bathroom

Kitchen/ Dining

Open to Below

3 Bedroom Plans 14

Bedroom/ workspace

Living

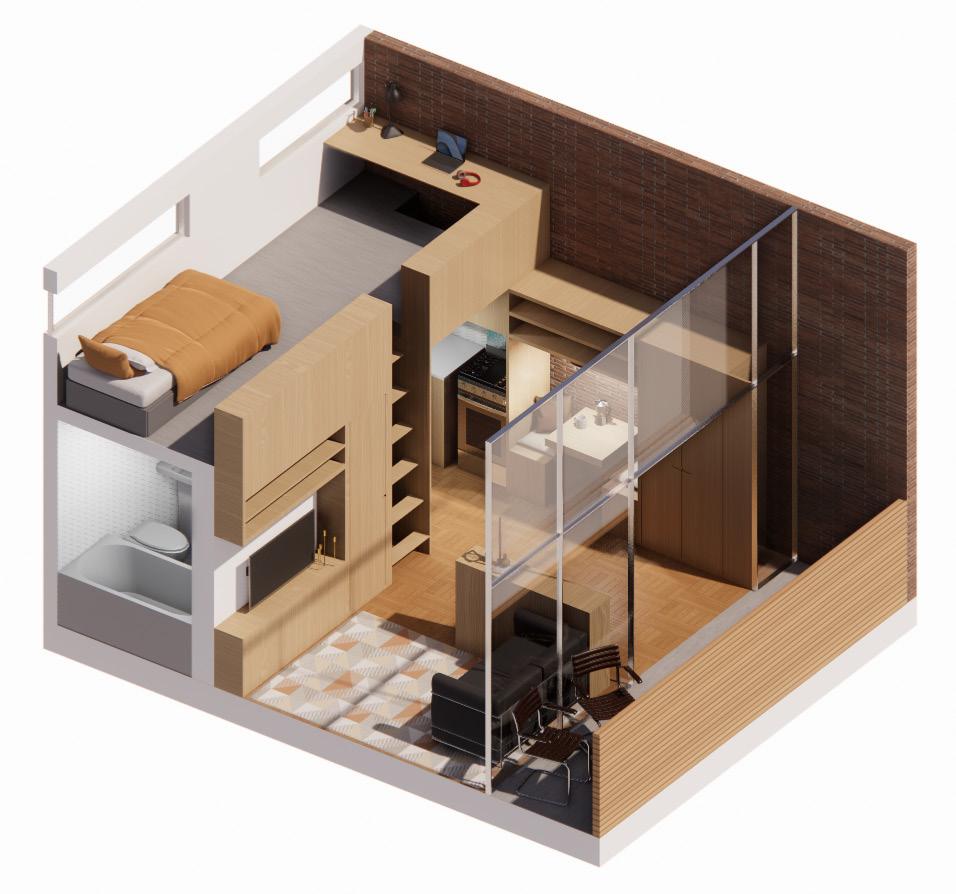

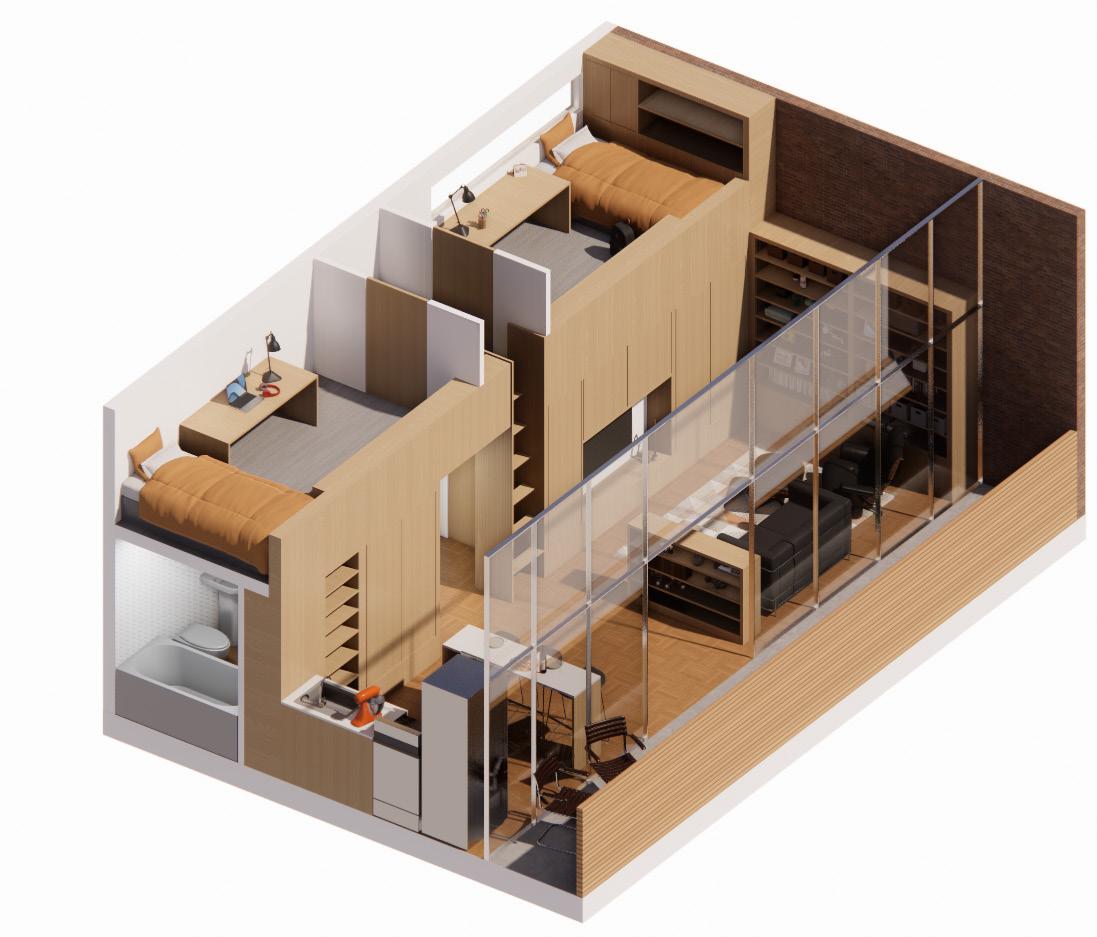

Studio Axon

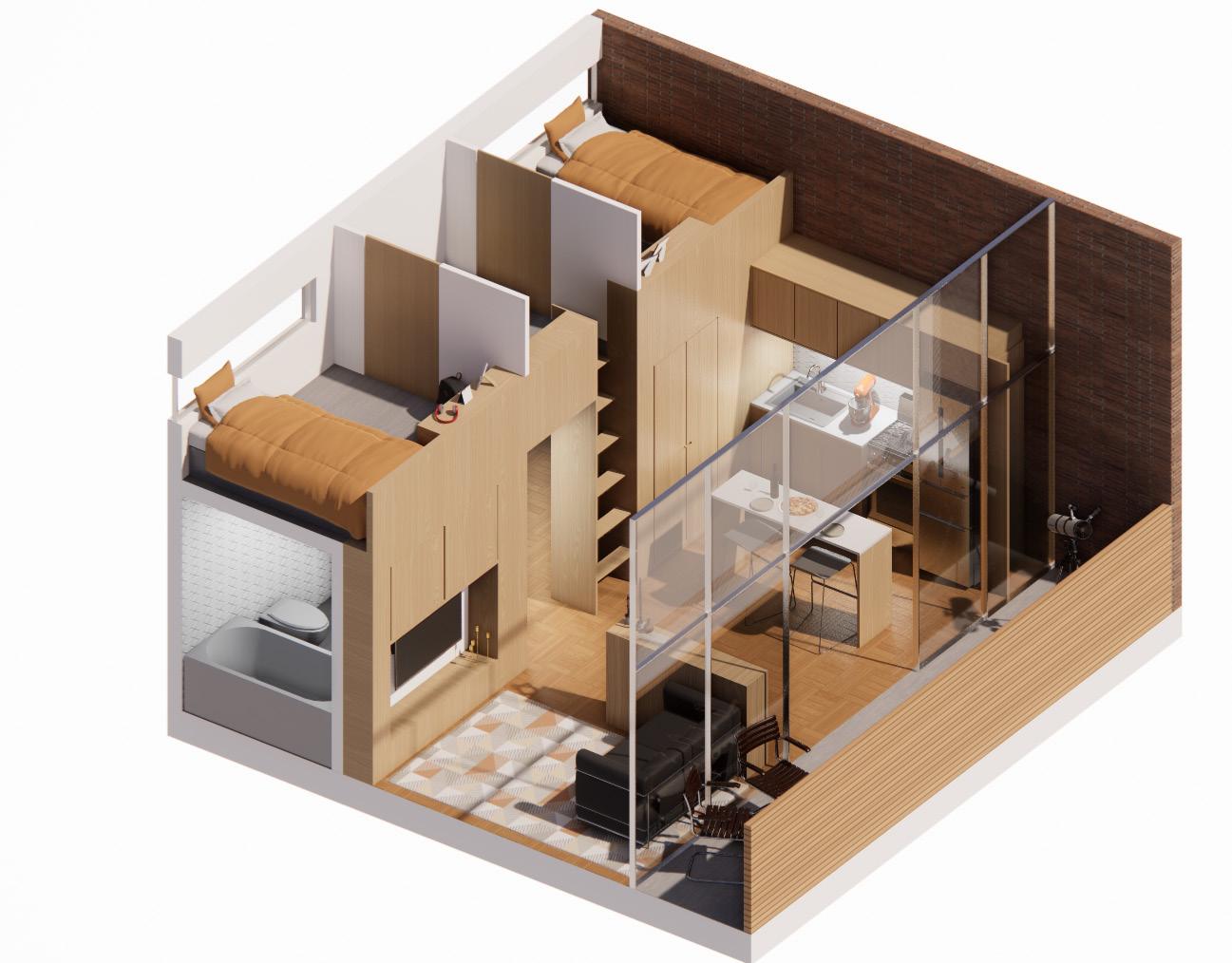

2 Bedroom Axon

3 Bedroom Axon 15

16

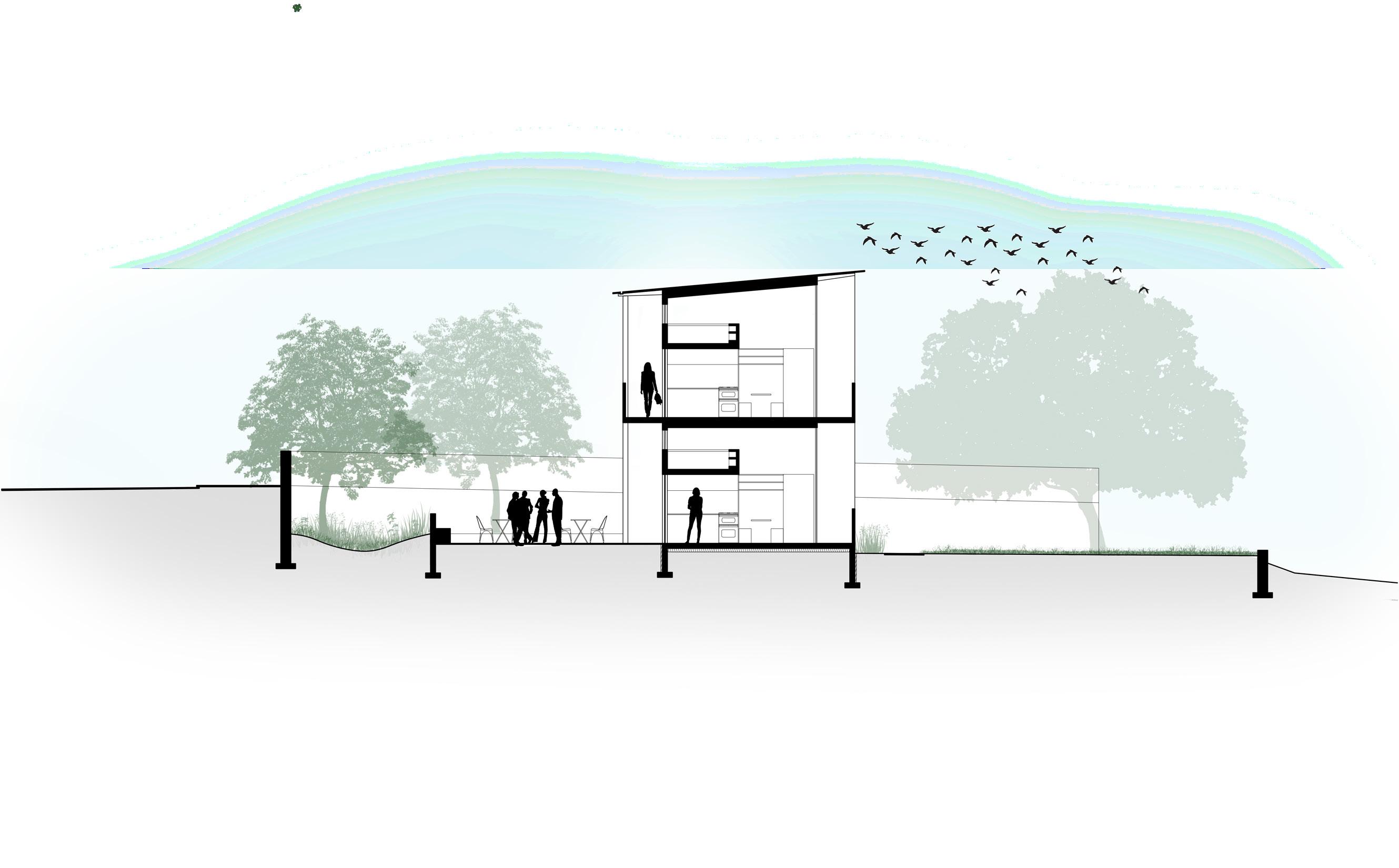

Section AA

17

Council Grove Public Library

Spring 2023

18

With the rise of the internet in the last 30 years the role Libraries play in society has changed. Libraries are starting to shift away from just being collections of books and are reinventing themselves as community centers where people can come together. For this project I wanted the library to not only be a space for the local community, but be a part of it as well.

Located just one block off mainstreet the site and surrounding area were quite barren so I split the building in two in order to create a central courtyard and bring some much needed green-space onto the site. The two halves of the building also reference the architecture of Council Grove, with the east wing referencing the typology of mainstreet storefronts and the west wing referencing agricultural and industrial buildings on the outskirts of town.

19

1.

4.

Operations

Section CC

20

3.

2.

5.

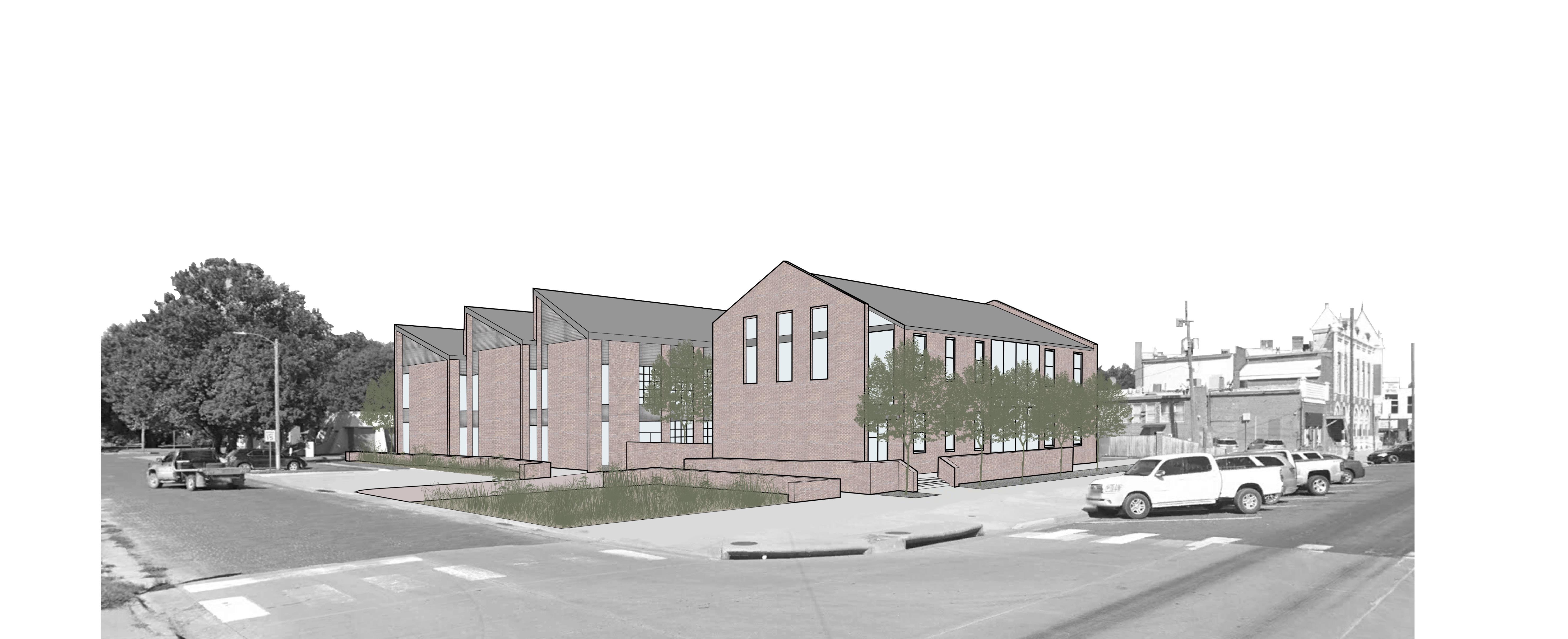

Council Grove Public Library

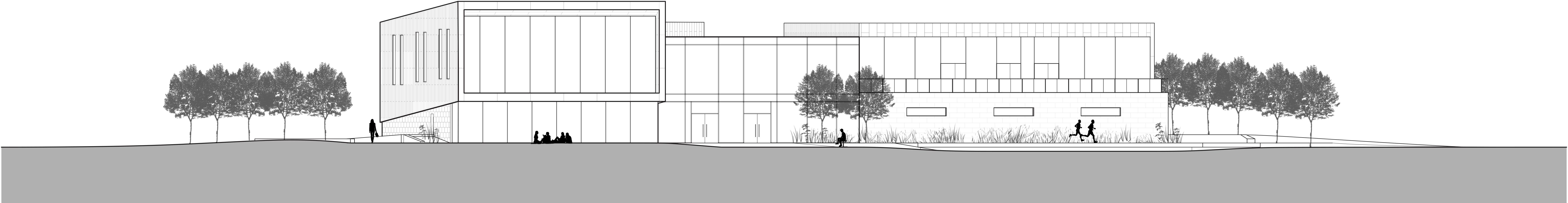

East Elevation

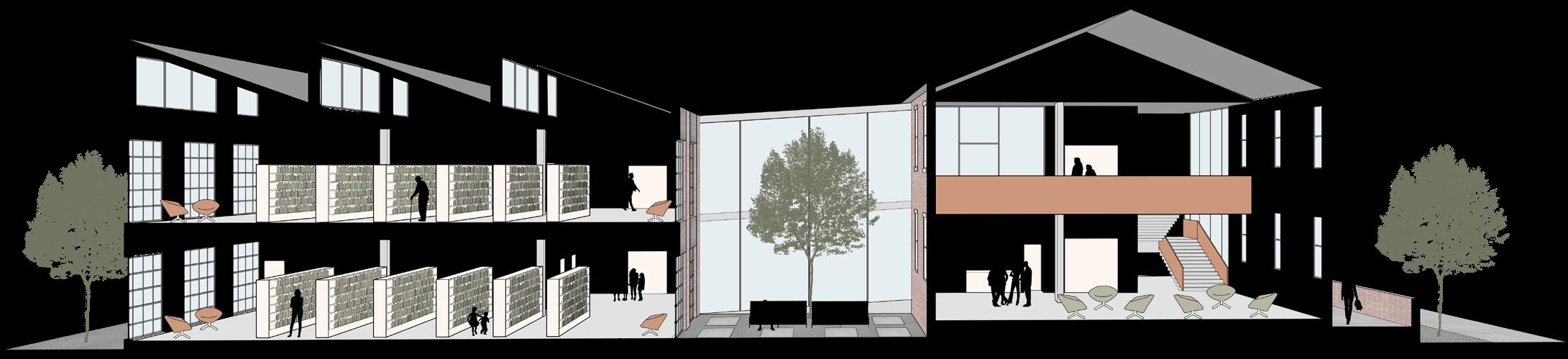

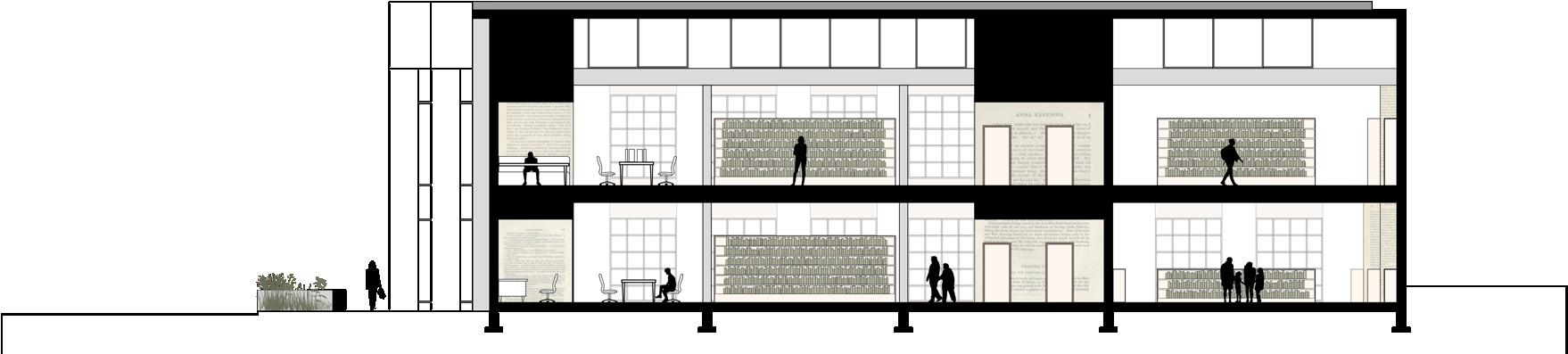

Section AA

Section BB

21

A

B Children’s Collection

Dock

Admin

Lobby

C

C Stacks

22

A

B

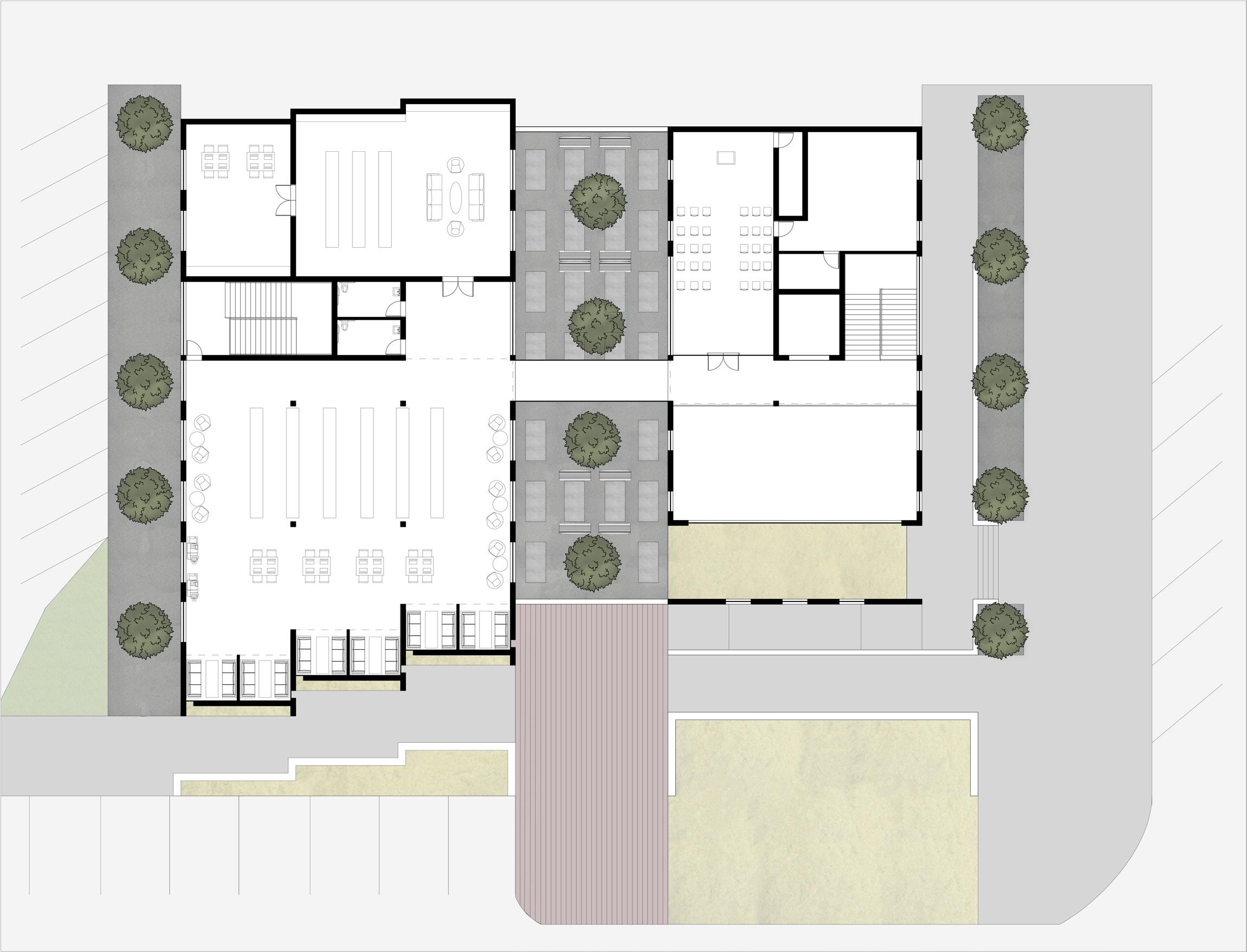

Ground Floor

Teen Collection Mechanical Teen Media Room

Community Room Stacks

Open to Below

Computer Stations

Second Floor

23

Kaw River Cultural Center Fall 2023

24

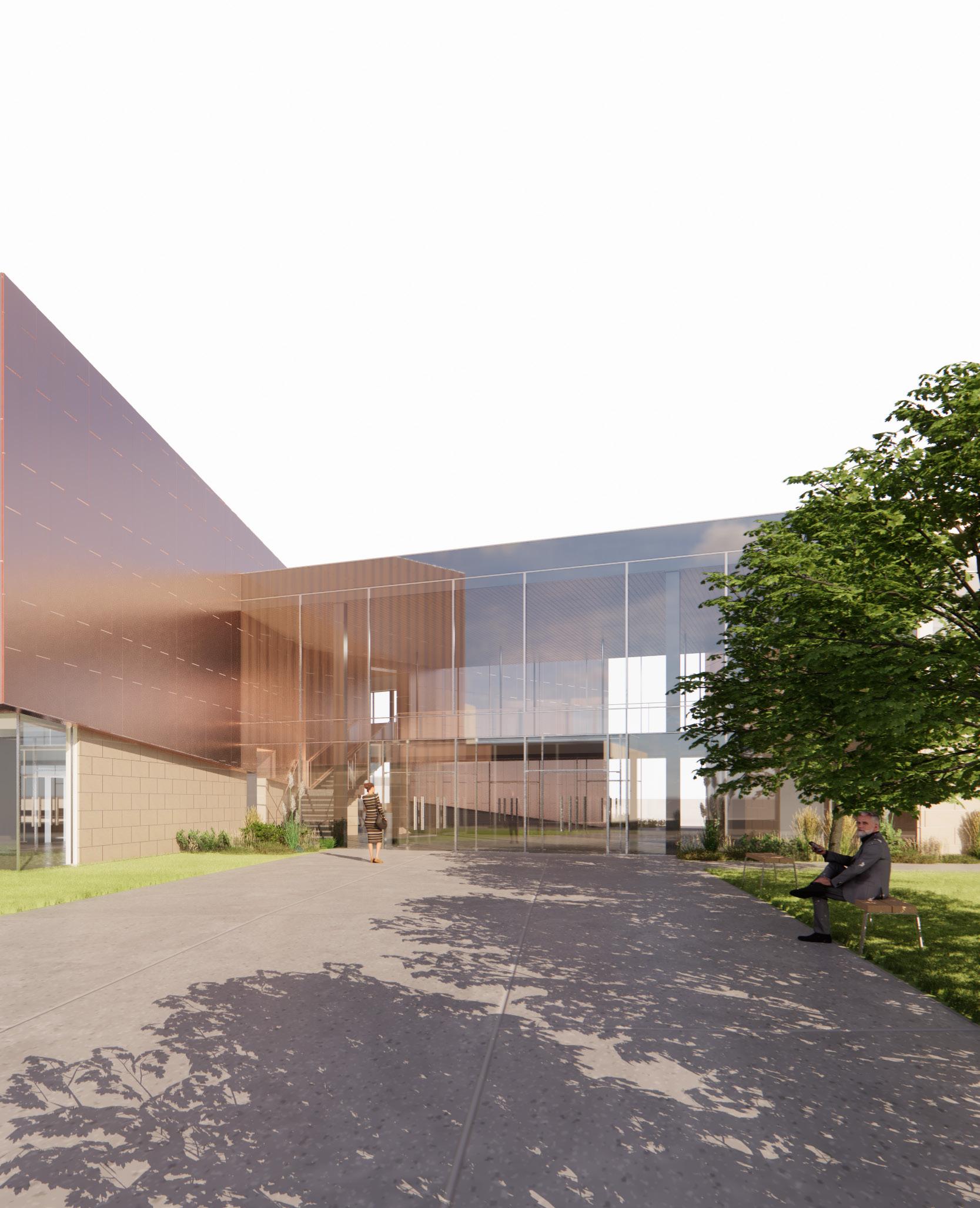

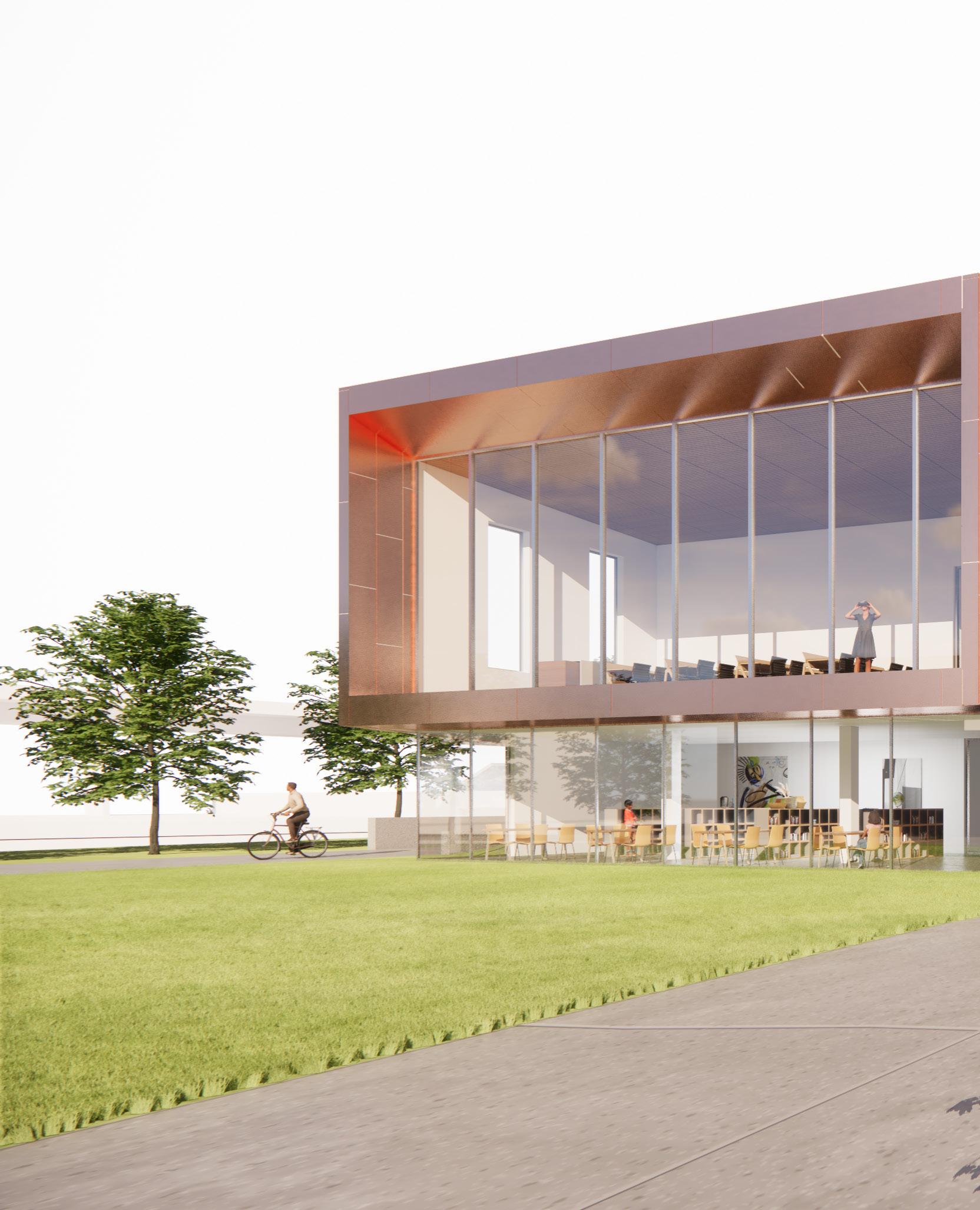

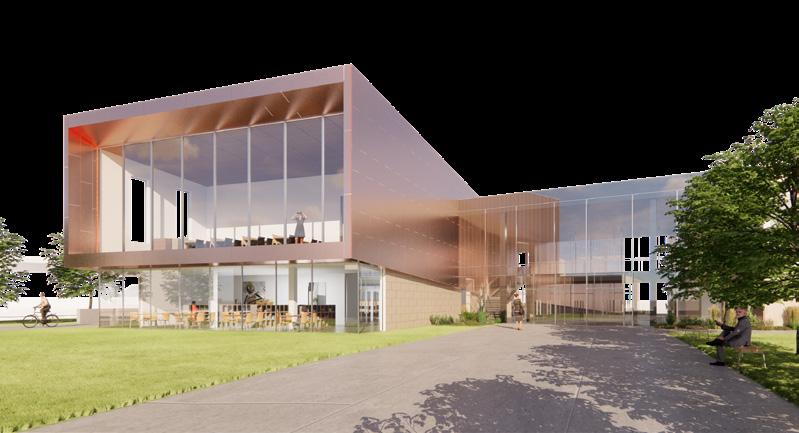

The Kaw River Cultural Center serves to reconnect the city of Topeka with the Kansas River as well as acknowledge the continued existence and perseverance of the six indigenous tribes who have called the region home. The museum gallery is purposefully angled to create a framed view of the river. Meanwhile the Cafe and second floor outlook utilize surface views to provide long expansive views of the river. The center’s lobby also serves as a bridge between the city and the river, connecting them with both views and access points.

The facade of the building uses both mechanically fastened limestone and copper panels which will be allowed to age with time. The decision to use these two materials is important as they are the same ones used on the State Capitol building, thus stating that the center is also a capitol building in its own right. This oxidation also allows the building to root itself into the landscape over time and is symbolic of the reestablishment of the tribes’ presence on the landscape.

25

Ope nt Belo o w

Art S t

udio

Open to Below

Admin

l Counci

A

Second Floor

Cafe

Galle

ry

ation Conserv

ce rman Perfo all H

Lobby

Ground Floor 26

A

Library

Aging Over 30 Years

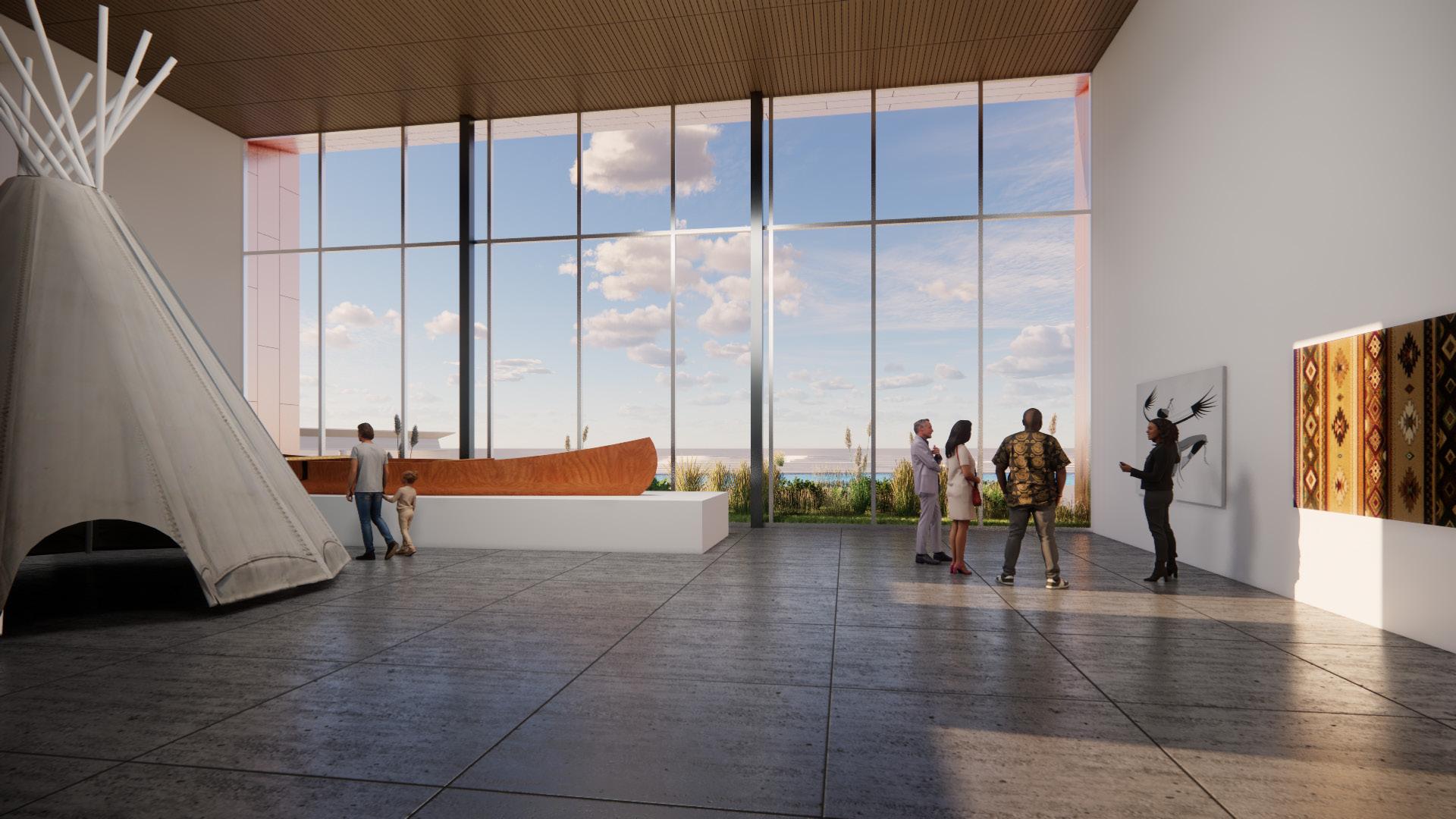

View of Gallery 27

Section Perspective

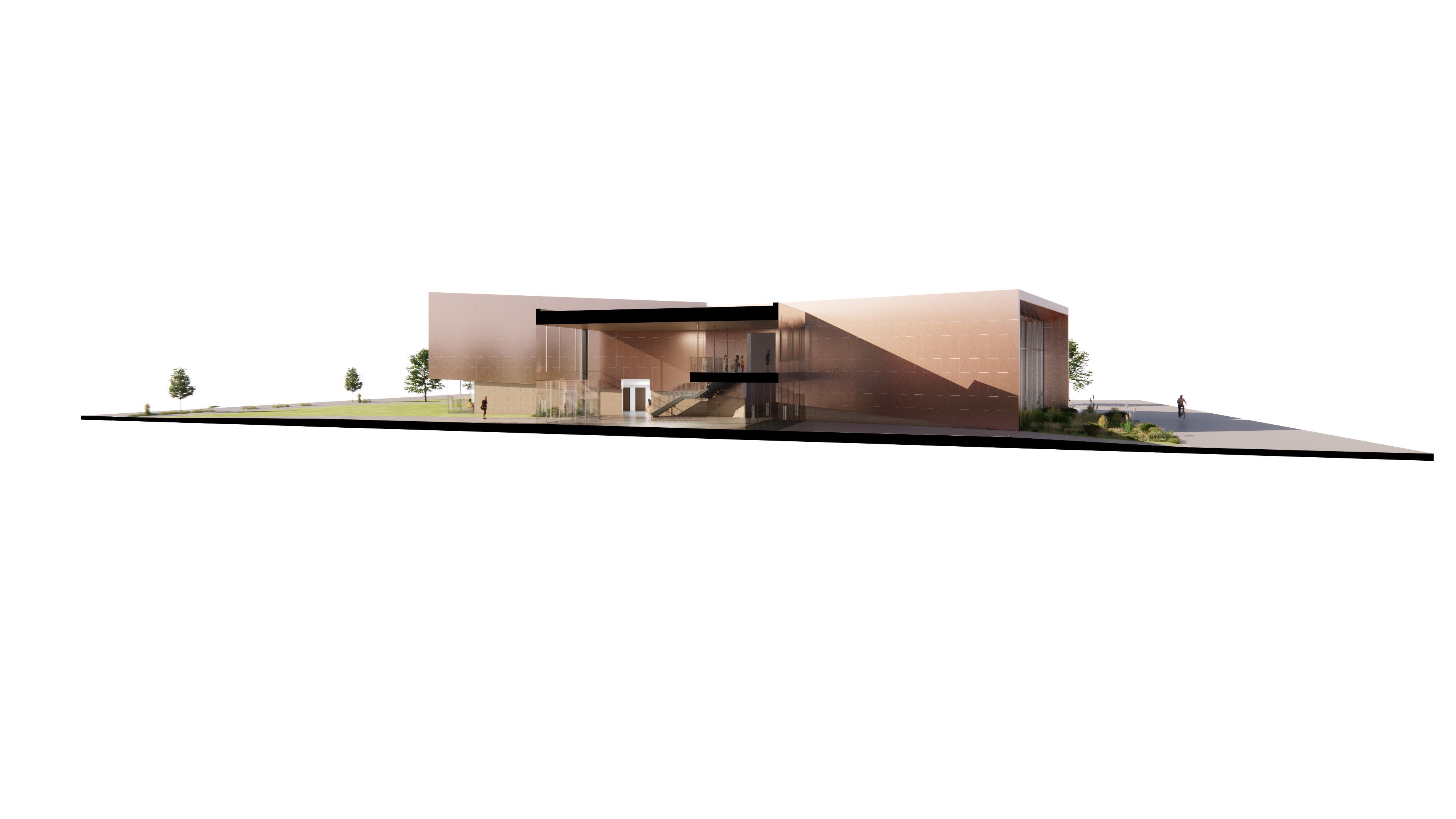

South Elevation

28

29

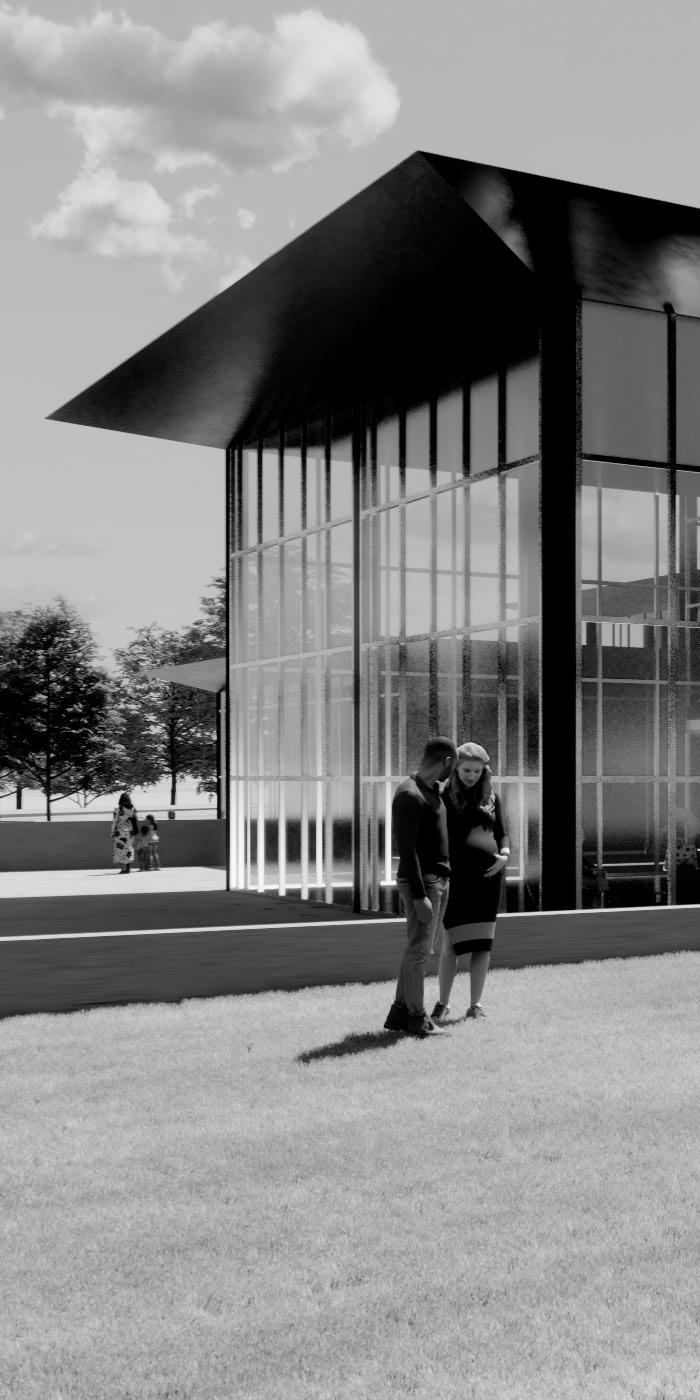

Aztec Theater Spring 2024

The Aztec Theater located in Shawnee Kansas is interested in opening another location in Topeka and has chosen a site directly across the street from the State Capitol building. The primary space of the theater is a large public atrium which serves to eliminate the labyrinthine corridors found in typical suburban theaters. The atrium’s proximity to the theater bar also means it can double as an event space for events such as film festivals and movie premieres.
