UNDERGRADUATE ARCHITECTURE PORTFOLIO by Diya Makanur WCFA

UNDERGRADUATE ARCHITECTURE

PORTFOLIO

SELECTED WORKS I 2019 - 2023

DIYA MAKANUR

Education

UNDERGRADUATE B.ARCH

Wadiyar Center For Architecture, Mysore – Present

PRE UNIVERSITY, SCIENCE

Vikaas Pu College, Mangalore

PRIMARY AND SECONDARY

Sri Taralabalu Central School, Davangere

Skills

SOFTVWARE SKILLS

DRAFTING

Autodesk AutoCad

BIM

Autodesk Revit

MODELLING

Trimble Sketchup

OTHER SKILLS

Hand Drafting

Sketching

Model making

Diagramming

Measure drawing

Phone

E - Mail

Languages Address

About--

8861138243

2019_diya.m@wcfa.ac.in

Kannada, Hindi, English, Telugu

#2414,2nd Main, 10th Cross, MCC A Block

Davangere, Karnataka, India

Rhinoceros 3D

ADOBE SUITE

Adobe Illustrator

Adobe Photoshop

Adobe InDesign

RENDERING

Lumion

Enscape

V Ray

01 02 03 04 05 06 07

URBAN DESIGN

REVITALIZING MADIKERI I MARKET DESIGN I SEM 8

INDUSTRY

WEAVING CENTER I SEM 7

INSTITUTION DESIGN CULINARY INSTITUTE I SEM 6

PUBLIC BUILDING CULTURAL CENTER I SEM 5

HOUSING CO – LIVING I SEM 4

WORKING DRAWINGS STUDENT HOUSING I SEM 5

CULTURAL CENTER I SEM 6

INTERIOR DESIGN RE – IMAGINING SPACES I SEM 7

MISCELLANEOUS

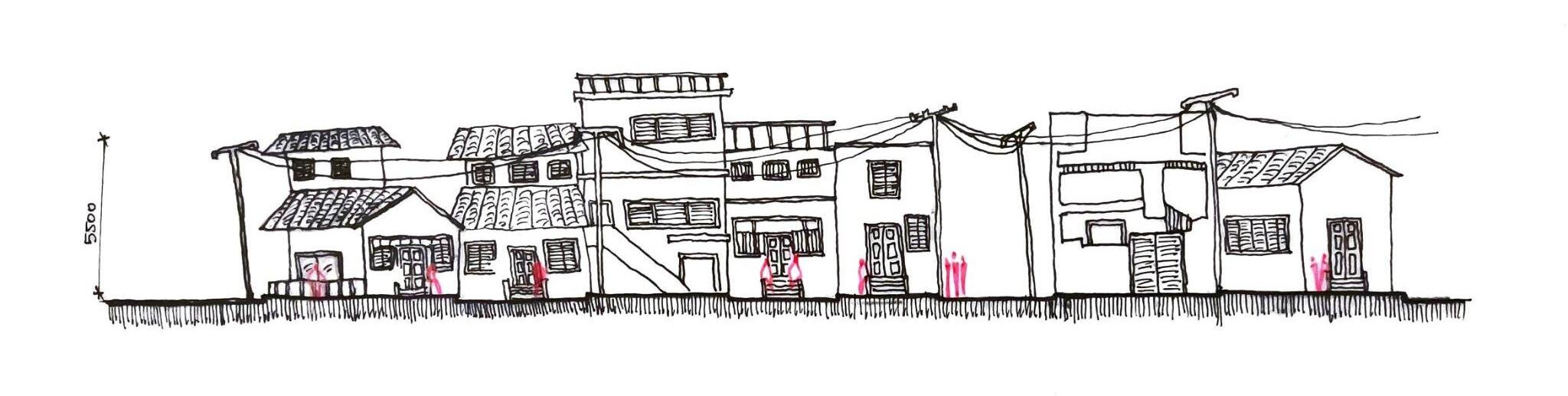

SRIRANGAPATNA CITY FABRIC I SEM 5

KANCHIPURAM CITY FABRIC I SEM 7

CONTENT 08

URBAN DESIGN

SEM 08 I 4TH YEAR

STUDIO GUIDE – Adj. Prof. Anand Chalwadi

Prof. Prashant Pole

Prof. Nelson Pais

Asst. Prof. Ryan Thomas

Asst. Prof. Shreyas Baindur

Studio Brief And Intent

REVITALIZING MADIKERI

Urban design project in Madikeri with five students collaborating on a shared vision. Each student selects one of eight sites to develop cohesive design proposals, integrating individual concepts into a unified urban vision that enhances the city’s aesthetic, functionality, and sustainability.

MARKET DESIGN

PROGRAMINFORMATION BOOTH ATM

PARKING

OPEN AIR THEATRE

HAWKER STALLS

SHOPS - MEAT, HANDICRAFT, COFFEE, SPICES, HONEY, CHOCOLATES, CLOTHING, ETC

RESTAURANT AND CAFE

MILK BOOTH

STATIONARY

BUS STOP PARK

PUBLIC TOILETS

BANK

Site location - Madikeri

Site area – 20600m²

A persons usual or preferred surrounding.

Energy to someone or something

Interaction between people and build environment into something even deeper

Perceived

Incapable of being touched

Revitalisation of Madikeri's habitat to encompass the tangible and intangible aspects, to regenerate a sensory environment for residents and visitors

TANGIBL

Since the site is raising up, inhabitants will not feel vulnerable to eye -level pedestrian and vehicular traffic and is suitable to locate residences with uninterrupted lines of sight.

Due to the site's quality as an existing landmark and holy space underground, it provides to sensitively connect the past and present, which influences and educates people.

The site was an important node not defined properly and the interconnection between levels was missing, by connecting which the commuting can be at ease between commercial tourist and residents

The "eat" programme works well for the location because it is in a busy business area, which brings more people into the area. It is easier for people to walk around on flat territory.

A site strategically located at a prime destination, attracting a steady stream of visitors and serving as a welcoming and accessible hub for the community.

VISION

E TERRAIN VEGETATION BUILT CLIMATE FOOD INTANGIBLE HISTORY CULTURE COMMUNITY PATRIOTISM IDENTITY LIFE STYLE LIVE LEARN CONNECT EAT\PLAY Work

Tourists Residents (Linked) Residents (Unlinked) SPACES FOR PEOPLE USERGROUP Site 1 Site 2 Site 3 Site 5 Site 6 LIVE LEARN EAT/PLAY CONNECT

by sense of touch

LEARN LIVE CONNECT EAT/PLAY WORK WORK

SITE 6

SITE 1 - CULTURAL CENTER

SITE 2 - ADMINISTRATIVE BUILDINGS

SITE 3 - MARKET

SITE 5 - MEMORIAL

SITE 6 - HOUSING

SITE 1

SITE 3

SITE 5 SITE 2

1 13 13 12 11 10 8 9 6 7 4 3 2 2 5 14 15 SERVICE ENTRY PEDESTRIAN ENTRY PARKINGENTRY PEDESTRIANENTRY PEDESTRIANENTRY EVANDTWOWHEELER 5 UP UP UP UP UP UP UP UP UP UP 5 UP WALKWAY EV CYCLE VEGETATION RL + 750 RL + 1350 RL + 2100 RL + 2550 RL + 1800 RL 300 RL + 600 RL + RL + 0 RL + 1950 RL 1950 RL + 2100 RL 1500 UP RL 450 DOWN RL + 0 RL + 150 RL + 150 D D C C A B 0 5M 10M 20M AD VIII URBAN DESIGN I PLAY I EAT _ MARKET SECTION BB SCALE - 1 : 200 SECTION AA SCALE - 1: 200 PLAN @ 3200M SCALE - 1: 250 0 5M 10M 20M

BIOSWALE

Bioswale can help reduce heat stress in a locality. Bioswales recharge aquifers and facilitate water purification and distribution. Bioswales increase the biodiversity of plant and insect species.

SEATING

Integrating seating along the pedestrian pathway using the retaining wall offers a functional and aesthetic solution. It provides rest areas for pedestrians while maximizing space efficiency. This architectural approach enhances the urban environment, encourages social interaction

STREET LIGHT Street light harnesses solar energy to power the light, providing ecofriendly illumination. It also integrates USB charging ports for convenient device charging. The seating feature offers comfort to pedestrians, while the WiFi connectivity enhances connectivity and access to information in public spaces.

VIEW

Underground infrastructure powers our urban landscapes, providing essential services seamlessly. Electric cables pulse with energy, lighting up our cities, while gas pipelines fuel homes and businesses. Fiber-optic networks facilitate lightning-fast communication, ensuring our digital world thrives. Hidden below, these lifelines keep our urban hubs connected, vibrant, and alive.

STREET

DRAIN TUBE AGGREGATE GROUND IMPROVEMENT GLUTTON Surface Runoff Rainwater PLAN SECTION

WATER DISTRIBUTION DRAW PIT CABLE DRAW PIT SEWER LINE 300DIA STORM WATER 600DIA TELEPHONE ELECTRICAL WATER LINE 150 DIA GAS LINE 100 DIA 1 - ENTRANCE PLAZA 2 - HAWKERS FRUITS / VEGETABLES 3 - INFORMATION BOOTH / WAITING ROOM / AADHAR SEVA KENDRA 4 - ATM 5 - PARKING 6 - MEAT 7 - COLD STORAGE 8 - COFFEE + CAFE 9 - HONEY / CHOCOLATE / SPICES 10 - SPORTS EQUIPMENTS 11 - HANDICRAFTS 12 - OAT 13 - CAFE 14 - BUS STOP 15 - PARK 5 RL + 0 B A DIYA MAKANUR 4CM19AT021 SEC B, BATCH 2019 WCFA, MYSURU

22 17 16 DOWN 19 20 21 RL + 5250 RL + 4650 18 RL + 5250 RL + 5250 D D C C A B AD VIII URBAN DESIGN I PLAY I EAT _ MARKET PLAN @ 7200M SCALE - 1: 250 0 5M 10M 20M 0 5M 10M 20M SECTION DD SCALE - 1 : 200 SECTION CC SCALE - 1: 200 PLAN @ 10200M SCALE - 1: 250

TILED ROOF WOODEN RAFTERS

CHARGING FACILITY

Phone charge points offer convenience, emergency preparedness, productivity, connectivity, and support for tourism. They also contribute to digital inclusion.

SEATING

the strategic placement and design of seating in urban nodes contribute to the functionality, social vibrancy, and overall user experience within these spaces.

WATER DISPENSERS

Water dispensers provide a readily available source of clean and safe drinking water. They serve as gathering points and helps promote social equity.

DIGITAL SIGNAGE

Digital signage can serve as interactive information kiosks, providing visitors with maps, directions, event schedules, and other relevant information.

EV STAND

These stands contribute to creating greener, more accessible and clean urban environments while promoting the use of electric bicycles as a viable option.

DUSTBINS

The use of dustbins plays a critical role in maintaining cleanliness, preventing pollution, and enhancing the overall aesthetics and livability

The urban kiosk integrates essential elements for pedestrian comfort and sustainability. It features ample seating, providing a resting spot for weary pedestrians. Additionally, it offers drinking water facilities, promoting hydration and reducing plastic waste. The presence of dustbins ensures proper waste disposal, maintaining cleanliness. Furthermore, the kiosk includes EV charging points, supporting the transition to electric vehicles and fostering eco-friendly transportation.

KIOSK

ARCHES DUSTBINS SEATING EV STAND DIGITAL SIGNAGE WATER DISPENSER

16 - ENTRANCE PLAZA 17 - CLOTHING / JEWELLERY / MULTI - PURPOSE 18 - BANK 19 - WASHING AREA 20 - TOILETS 21 - KITCHEN 22 - RESTAURANT 23 - STATIONARY / XEROX 24 - MILK BOOTH B A 24 23 DOWN RL + 9000 RL + 9450 RL + 9150 E E DIYA MAKANUR I 4CM19AT021 SEC B, BATCH 2019 WCFA, MYSURU

EXPLODED ISOMETRIC VIEW FUNCTIONS

INDUSTRY BUILDING

SEM 07 I 4TH YEAR

STUDIO GUIDE – Prof. Shrutie Shah

Asst. Prof. Asijit Khan

Prof. Anand Krishnamurthy

Prof. Prashant Pole

Asst. Prof. Surendran Aalone

Prof. Shrutie Shah

Studio Brief And Intent

WEAVING CENTER

The typology with which we were dealing was a industry. Through the semester we understood how silk weaving works mainly in Kanchipurum (since our site was based in Kanchipuram) and designed a industry for the weavers, to bring them together under one roof which orelse would be taking place in their individual houses. The aim was to create a place comfortable for these weavers to work and a sustainable building for future.

PROGRAM

Manufacturing – looms

Design unit

Dyeing + drying

Retail Exhibition

Pantry

Dining

Rest rooms for workers

Admin

Site location - Kanchipuram

Site area – 11000m²

TWO MASSES SMALLER VOLUME - FOR PUBLIC ACTIVITIES - CONNECTION TO THE ROAD LARGER VOLUME - FOR WORKSPACE

TWO MASSES - SMALLER VOLUME ( PUBLIC ) AND LARGER VOLUME ( WORKSPACE)

CONNECTING THE ROADS - PUBLIC ACCESS THAT PORTION OF SITE BECOMES COMPLETELY PUBLIC

CONNECTING THE TWO ROADS - PUBLIC ACCESS

TWO MASSES SMALLER VOLUME - FOR PUBLIC ACTIVITIES - CONNECTION TO THE ROAD LARGER VOLUME - FOR WORKSPACE

VEHICAL ENTRY

CONNECTING THE ROADS - PUBLIC ACCESS THAT PORTION OF SITE BECOMES COMPLETELY PUBLIC

BREAKING DOWN THE MASS TO ACCENTUATE THE ENTRANCE

CONNECTING THE ROADS - PUBLIC ACCESS THAT PORTION OF SITE BECOMES COMPLETELY PUBLIC

PEDESTRIAN ENTRY

BREAKING DOWN THE MASS FURTHER TO CREATE OPEN SPACES

VEHICAL ENTRY

BREAKING DOWN THE MASS TO ACCENTUATE THE ENTRANCE

BREAKING DOWN THE MASS FURTHER TO CREATE OPEN SPACES

PEDESTRIAN ENTRY

BREAKING DOWN THE MASS FURTHER TO CREATE OPEN SPACES

VEHICAL ENTRY

BREAKING DOWN THE MASS FURTHER TO CREATE COURTYARDS

CONNECTING THE ROADS - PUBLIC ACCESS THAT PORTION OF SITE BECOMES COMPLETELY PUBLIC BREAKING

FURTHER

DOWN THE MASS

TO CREATE OPEN SPACES

AA’

SECTION DD’ UP UP DOWN UP UP UP UP UP UP RL 750 RL 450 RL + 600 RL - 1500 RL 300 RL + 600 RL + 600 RL + 600 RL + 600 RL + 0 P U B L I C S T R E E T UP FLOOR PLAN A A’ B B’ C C’ D D’ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1 - RETAIL STORE 2 - RETAIL STORAGE 3 - CAFE 4 - LOBBY 5 - CONFERENCE ROOM 6 - ADMIN 7 - EXHIBITION 8 - WEAVING WORKSHOP 9 - DINING 10 - REST ROOM 11 - KITCHEN 12 - DYEING 13 - DRYING 14 - STORAGE 15 - PARKING RL + 4200 RL + RL 450 RL + 4200 RL + 0 RL 450 RL 1500 RL + 4200 RL + RL 450 RL 1500

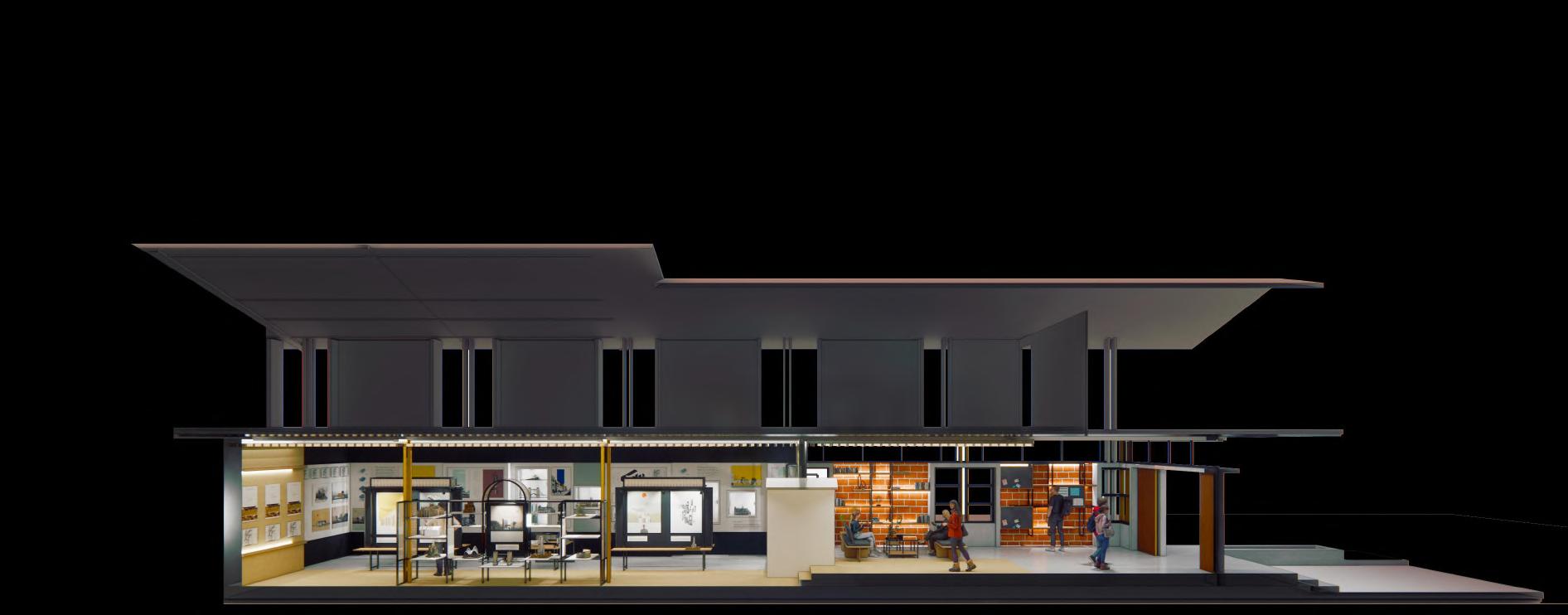

SECTION

SECTION BB’

DESIGN UNIT

SECTION CC ’

- The intent behind the design was to involve public and make the building accessible to the public. The first step involved in this was done by connecting the two roads and creating a pedestrian - Since Kanchipuram is located in hot and humid zone, maximum air circulation is very important and shading devices appropriate to keep the harsh sun out - thermal comfort. To induce in the south facing high rise walls and courtyards. Operable openings also play a main role in controlling air movement according to different days in a year.

VERTICAL FINS LIGHT SHELFMETAL PROJECTION FOR SEATING VSA - 40 ° 40° STEEL PURLINS STEEL FRAMES RCC GUTTER TOP CHANNEL BRACING 50 X 100 STEEL TIES BOTTOM CHANNEL BRACING 50 X 100 BASE PLATE 60° 60° 60° VERTICAL FINS HSA 60 ° 60° STRUCTURAL BAY DETAIL VERTICAL FINS LIGHT SHELFMETAL PROJECTION FOR SEATING VSA - 40 ° 40° METAL LOUVERS TO REMOVE THE HOT AIR FROM THE SPACE THIN WALL TO LET IN MORE HEAT - FACING SOUTH RCC BEAM BLACK SURFACE TO TRAP MORE HEAT FROM SUN THICK WALL TO HOLD MORE HEAT STEEL 60° 60° 60° VERTICAL FINS HSA - 60 ° 60° AD VII WEAVING CENTER I PROCESS DESIGN UNIT SECTION FF' MEZZANINE FOR DESIGN UNIT

EAST FACADE - OPENING DETAIL METAL LOUVERS TO REMOVE THE HOT AIR FROM THE SPACE THIN WALL TO LET IN MORE HEAT - FACING SOUTH RCC BEAM BLACK SURFACE TO TRAP MORE HEAT FROM SUN THICK WALL TO HOLD MORE HEAT

60°

pedestrian path for the people.

induce more air circulation low pressure is created

F' F STORAGE SEATING UP 8 UP DOWN UP RL - 750 RL - 300 RL + 600 RL + 600 NEEM TREES SHADING THE EAST FACADE OPERABLE OPENINGS TO FACILITATE MAXIMUM AIR CIRCULATION DURING MONSOON WHEN THERE IS ABSENCE OF HEAT FROM SUN TO HEAT THE SOUTH WALL SEATING BREAK OUT SPACE FOR WEAVERS / PUBLIC CONNECTION WITH THE COURTYARD Z' Z Y TO DINING AND RESTROOM HOT AIR HOT AIR FRESH AIR SOUTH FACING WALL HEAT LOW PRESSURE HIGH PRESSURE HIGH PRESSURE LOW PRESSURE HEAT METAL LOUVERS BLACK SURFACE USING PRESSURE DIFFERENCE TO IMPROVE AIR CIRCULATION WINTER SOLSTICE SUMMER SOLSTICE SCALE - 1 : 100 AD VII WEAVING CENTER I WORKSPACE_WEAVING DIYA MAKANUR 4CM19AT021 SECTION ZZ' WORKSPACE PLAN DETAIL - WEAVING SECTION ZZ’ VERTICAL FINS LIGHT SHELF METAL PROJECTION FOR SEATING VSA - 40 ° 40° STEEL TIES BOTTOM CHANNEL BRACING 50 X 100 BASE PLATE 60° 60°

VERTICAL FINS HSA - 60 °

60°

THICK WALL TO HOLD MORE HEAT

BLACK SURFACE TO TRAP MORE HEAT FROM SUN

RCC BEAM

THIN WALL TO LET IN MORE HEAT - FACING SOUTH

METAL LOUVERS TO REMOVE THE HOT AIR FROM THE

WALL SECTION

SPACE PHYSICAL MODELS

INSTITUTE DESIGN

SEM 06 I 3RD YEAR

STUDIO GUIDE – Assoc. Prof. R Kiran Kumar

Asst. Prof. Surendran Aalone

Prof. S G Srinivas

Asst. Prof. Kavana Kumar

Prof. Ryan Thomas

Asst. Prof. Akash Rai

Studio Brief And Intent

CULINARY INSTITUTE

The client is a third-generation farming family, who passed out from Centre For Food, Durham College, Canada and wants to build an institution from nature’s point of view. The program is a cooking school and would be based on “field-to-fork concept”. It will include harvest, storage, processing, packaging, sale and consumption of food, with a strong focus on the production of local food for local consumers.

PRECONDITIONS

1. Place of learning needs to be physically connected to place of growing

2. Pavilion in the garden

3. Spatial grid needs to be articulated

PROGRAM

Cooking School

Kitchen work area

Skill test kitchen

Processing + Packing + Storage

Demonstration room + lecture rooms

Research lab

Administration + Staff

Library + computer lab

Dining + kitchen + storage

Student lounge

Locker rooms + shower

Multipurpose hall

Accommodation

Restaurant

Greenhouse + farming

Site location - Crescent University, Chennai

Site area – 8092m²

MODIFYING THE MASSING TO CREATE A BRIDGE

ORIENTATION WITHIN THE SITE AND CREATING SPACES

COOKING

DIYA MAKANUR 4CM19AT021 SEC B, BATCH WCFA, MYSURU SCHOOL I MASSING MASSING COOKING SCHOOL I MASSING DIYA MAKANUR 4CM19AT021 SEC B, BATCH 2019 WCFA, MYSURU INITIAL MASSING

AD VI

SCHOOL I MASSING

FINAL MASSING

MULTI - PURPOSE HALL

The activities from the multi - purpose hall spill out into the open

10 11 10 - RESTAURANT 11 - KITCHEN 12 - RECORD ROOM 13 - ADMIN 14 - TEACHERS CABIN 15 - PRINCIPAL CHAMBER A B C D E F 1 2 3 4 5 6 7 8 F A B G H E 13 12 11 10 9 I J 25 26 25 - INCUBATION ROOM 26 - TASTING / RESEARCH 27 - COMPUTER LAB READING 28 - LECTURE ROOM 29 - LOCKER ROOM 13 12 11 10 9 18 - RESTAURANT 19 - STUDENT DINING 20 - KITCHEN 21 - DRY STORAGE 22 - VEGETABLE FRUIT STORAGE 23 - UTENSIL STORAGE 24 - COLD STORAGE 23 24 F 1 2 3 4 5 6 7 8 F A B G H E 13 12 11 10 9 UP LEVEL 2 LEVEL 3 10 11 12 13 14 15 16 10 - RESTAURANT 11 - KITCHEN 12 - RECORD ROOM 13 - ADMIN 14 - TEACHERS CABIN 15 - PRINCIPAL CHAMBER 16 - HOD CABIN 17 - LOUNGE 17 LEVEL 2 +1500 LEVEL 2' +3750 A B C D E F 1 2 3 4 5 6 7 8 F A B G H E 13 12 11 10 9 I J K L M N O P Q UP DOWN UP L L L L L 25 25 - INCUBATION ROOM 26 - TASTING / RESEARCH 27 - COMPUTER LAB READING 28 - LECTURE ROOM 29 - LOCKER ROOM 13 12 11 10 9 DOWN 18 - RESTAURANT 19 - STUDENT DINING 20 - KITCHEN 21 - DRY STORAGE 22 - VEGETABLE FRUIT STORAGE 23 - UTENSIL STORAGE 24 - COLD STORAGE A B C D E F 1 2 3 4 5 6 7 8 F A B G H E 13 12 11 10 9 UP 30 - LIBRARY 31 - DEMONSTRATION SPACE 32 - LECTURE ROOM MULTI PURPOSE HALL KITCHEN DETAIL PLAN

KEY SECTION UTENSIL STORAGE FRUIT / VEGETABLE STORAGE DRY STORAGE COLD STORAGE AD VI COOKING SCHOOL I KITCHEN 0 KEY PLAN MULTI - PURPOSE HALL

open space PLACE OF GROWING DIYA MAKANUR 4CM19AT021 SEC B, BATCH 2019 WCFA, MYSURU SCALE 1 50 1M 3M

CONNECTION BETWEEN VARIOUS FLOORS THROUGH ATRIUMS AND INTERLOCKING VOLUMES

LEVEL 2 +1500 LEVEL 3 +4500 LEVEL 4 +9300 LEVEL 5 +13350 LEVEL 6 +17400 LEVEL 7 +21450 LEVEL 1 -1500 LEVEL 2 +1500 LEVEL 3 +4500 LEVEL 4 +9300 LEVEL 5 +13350 LEVEL 6 +17400 LEVEL 7 +21450 LEVEL 1 -1500 ACCOMMODATION ACCOMMODATION ACCOMMODATION ACCOMMODATION ADMINS ROOM PRINCIPAL ROOM MULTIPURPOSE HALL LEVEL 2 +1500 LEVEL 3 +4500 LEVEL 4 +9300 LEVEL 5 +13350 LEVEL 6 +17400 LEVEL 7 +21450 LEVEL 1 -1500 LEVEL 1' +150 LEVEL 2' +3750 LEVEL 3' +7200 LEVEL 4' +10950 LEVEL 5' +14700 PROCESSING PACKING COLD STORAGE RETAIL ACCOMMODATION ACCOMMODATION LECTURE ROOM LECTURE ROOM LECTURE ROOM MULTI - PURPOSE ROOM STORAGE KITCHEN SECTION AA’ SECTION

SECTION CC’ AD VI COOKING SCHOOL VERTICAL GARDENING

BB’

LIBRARY COMPUTER LAB CENTRAL ATRIUM SECTION DETAIL SOIL WATERPROOFING DRAINAGE LAYER GEOTEXTILE FILTER RCC COLUMNS STEEL HOLLOW BOX SECTION VERTICAL MEMBERS STEEL HOLLOW BOX SECTION HORIZONTAL MEMBERS Clitoria ternatea VERTICAL STEEL HOLLOW BOX SECTIONS SOIL WATERPROOFING DRAINAGE LAYER GEOTEXTILE FILTER HORIZONTAL STEEL HOLLOW BOX SECTION RCC COLUMNS SCHOOL I VERTICAL GARDENING DIYA MAKANUR 4CM19AT021 SEC B, BATCH 2019 WCFA, MYSURU GARDENING

PUBLIC BUILDING

SEM 05 I 3RD YEAR

STUDIO GUIDE –Prof. Anand Krishnamurthy

Asst. Prof. Shashank Satish

Asst. Prof. Shreyas Baindur

Asst. Prof. Akash Rai

Assoc. Prof. R Kiran Kumar

Asst. Prof. Asijit Khan

Studio Brief And Intent

CULTURAL CENTER

The vision of development at any waterfront is rooted in the everyday life and the local usage of space. The use of leisure as an appropriate public use of the waterfront, giving rise to a rich narrative of spatial experience of built architecture with a reference to the solemn flow of the river. And to give back to the people of the city.

The studio is a typology based design while designing in the public domain. The primary aim of the semester will be to resolve the given public nature of the building design that would serve the community.

The project will look at designing a Cultural Centre, designed to utilize covered, open spaces and interface to the river.

PROGRAM

Metal Craft Heritage Along River Kaveri

Workshops

Demonstration spaces

Exhibition

Lecture rooms

Library Café

Admin

Site location - Srirangapatna

Site area – 1900m²

The vault systems and the materials are based on the context study. The three forms are oriented perpendicular to the river. The people are allowed to access the river through the ghat

ROAD + 0 LOBBY + 1450 ROOM FOR STAPATHIS ELECTRICAL ADMINISTRATION 1300 1150 1300 DOWN UP EXHIBITION - 1550 CAFE 1250 PLAN @ -1500 0 1m 5m 15m PLAN @ +2200 0 1m 5m 15m PLAN @ -1500 PLAN @ +2200 R + 1450 R + 4600 R + 7750 R + 2650 R 1550 SECTION AA’ SECTION BB’

R + 1450 R + 4600 R + 7750 R + 1450 R + 4600 R + 7750

- by this more people are aware of the cultural center - public building

ghat inside the facility

R + 2650 R 1550 WORKSHOP 4600 LIBRARY 4600 LECTURE ROOM 1650 ROAD PLAN @ +5200 0 1m 5m 15m ROOF PLAN 01m 10m 30m PLAN @ +5200 ROOF PLAN R + 9100 R 1550 SECTION CC’ A A’ B B’ C C’

R=3.3m SPRINGING LINE BRICK VAULT RCC GUTTER RCC SLAB AND BEAM BRICK WALL LINTEL SILL FLAGGING COURSE 1700 30000 300 230 1000 25000 3000 EXPLODED VIEW OF MASSING FLOOR PLATES FIRSTFLOOR GROUNDFLOOR VAULTEDROOF RCCFLATROOF WALL SECTION BASEMENT

NTFLOOR

HOUSING

SEM 04 I 2nd YEAR

STUDIO GUIDE – Adj. Prof. Anand Chalwadi

Asst. Prof. Akash Rai

Adj. Prof. Umesh Nuchin

Adj. Prof. Kukke Subramanya

Adj. Prof. Anand Prakash

Asst. Julie Ann Tharakan

Studio Brief And Intent

CO – LIVING

The new way of intervening the community.

A catalyst for the lost social interactions in the community.

The “In between” – the so called community space to be the thread holding the entire premises.

PROGRAM

User group – Sports students

Studio

Single bed

Double bed

Café

Gymnasium

Meditation

Laundry

Site location - Mysore

Site area – 3600m²

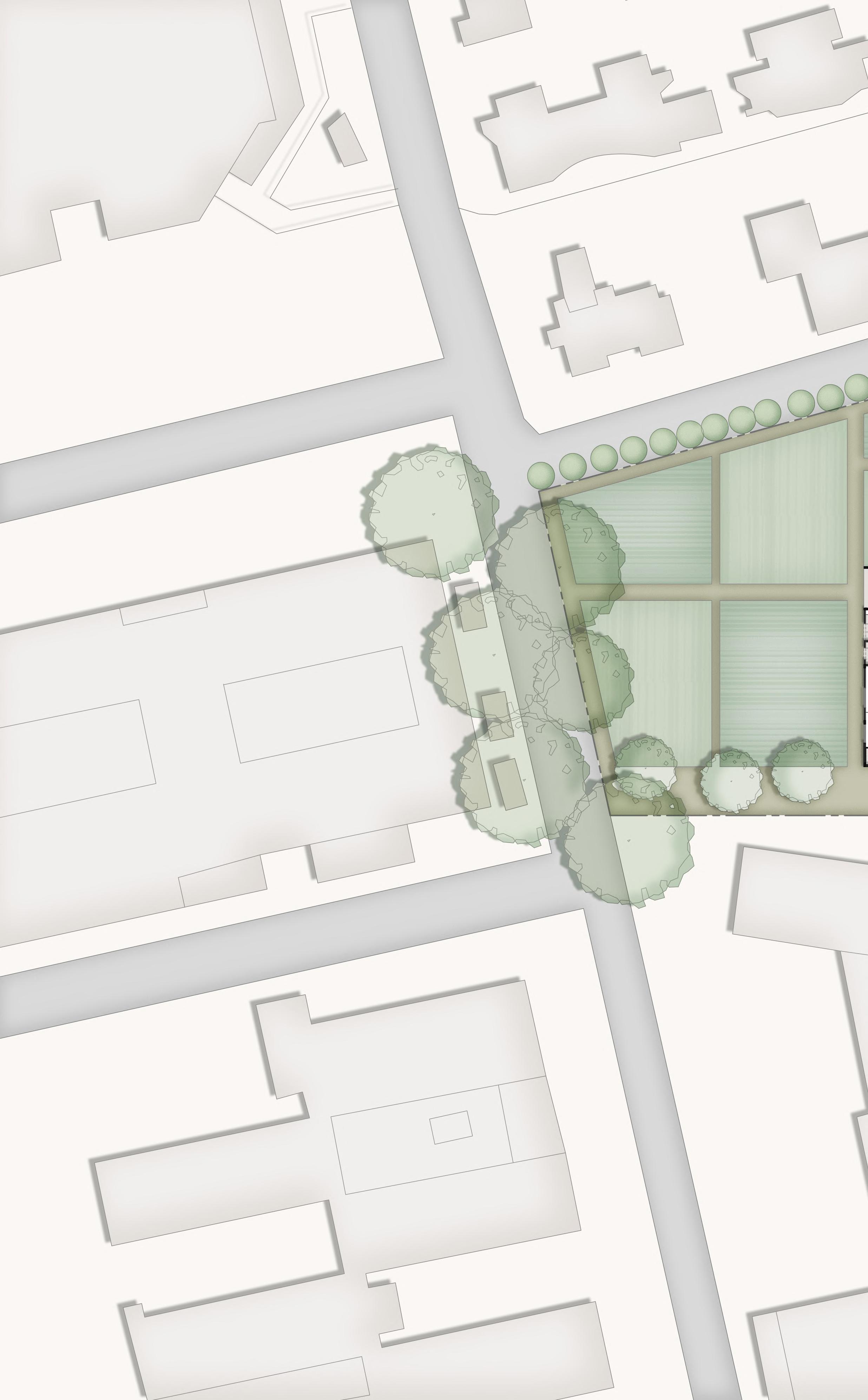

SITE MAP

SITE LOCATION - RAMASWAMY CIRCLE MYSORE, KARNATAKA

THE BASE MAP SHOWS THAT THE TWO TRIANGULAR SITES ARE LOCATED ADJACENT TO THE RAMASWAMY CIRCLE WHICH IS IN THE HEART OF THE CITY

THE SITE CHOSEN FOR THE TASK IS SITE A WITH SITE AREA 3600M².

A A’ B’

GROUND FLOOR PLAN

A B

STUDIO UNIT ONE BEDROOM UNIT TWO BEDROOM UNIT

WORKING DRAWING 1

SEM 05 I 3RD YEAR

STUDIO GUIDE – Prof. Manoj Ladhad and Prof. Kousalya

STUDENT HOUSING

The aim of the semester was to choose a housing project from the previous semester to produce working drawings in readable format and detailed enough to help in construction.

Site location - Mysore, Karnataka

Site area - 3600M²

WORKING DRAWING 2

SEM 06 I 3TH YEAR

STUDIO GUIDE – Prof. Manoj Ladhad

CULTURAL CENTER

The aim of the semester was to choose a housing project from the previous semester to produce working drawings in readable format and detailed enough to help in construction.

Toilet drawings, staircase detailing, door and window schedule is also included as a part of the semester

134.66° 92.42° 91.00° 91.00° 130.92° 103631 76994 79585 3963 8000 -1550 -1450 -1350 -1250 -1150 -1050 -950 -850 -750 -650 -550 -450 -350 -250 -150 -50 -1600 -600 -500 0 Site Plan 12° 76° FIRST FLOOR PLAN SITE PLAN DN UP DN UP UP DN A B C D E F G H J K L M N P Q R S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 D2 D1 D1 D2 D1 D1 D1 D2 D2 2 2 D1 D1 D1 D1 D2 D3 D3 D3 W1 W1 W1 W1 W1 W2 W2 W2 W1 7 D3 D2 W1 W1 W1 3075 3115 3150 9800 2500 6800 2500 2500 2200 3600 3600 3600 3600 3600 3600 3599 3600 3500 4200 5800 3600 3600 1800 1800 3600 3600 3600 3600 3600 3600 3600 3600 2800 800 1700 1900 600 3000 1800 2000 2500 200 200 300 200 200 200 1000 395 200 300 300 2700 2000 712 1500 1495 1500 1109 3300 2000 3000 1238 3000 100 200 910 300 445 950 900 Firﬆ Floor Plan

Sheet No. Faculty :- Manoj Ladhad & Kousalya Signature :WCFA_2022_WD-01 Sheet Detatils :Drawn by :- Diya Makanur Neeraj M Harsha M K Sooraj R M (4CM19AT021) (4CM19AT044) (4CM19AT035) (4CM19AT070) Date :- 16/01/2022 North N Scale :Project Details:Student Housing Ramaswamy Circle, Mysuru Notes:1 : 200 A1_01 Site Plan All dimension in mm 0 -1600 12° 18.141' N 76° 38.586' E 12° 18.102' N 76° 38.580' E Concrete Legends Screed Earth Gypsum plaﬆer Brick Sheet No. Signature :WCFA_2022_WD-01 Sheet Detatils :Drawn by :- Diya Makanur Neeraj M Harsha M K Sooraj R M (4CM19AT021) (4CM19AT044) (4CM19AT035) (4CM19AT070) Date :- 16/01/2022 North N Scale :Project Details:Student Housing Ramaswamy Circle, Mysuru Notes:1 : 200 A1_05 Firﬆ Floor Plan All dimensions in mm LEGEND STUDIO UNITS ONE BEDROOM UNITS TWO BEDROOM UNITS OFFICE CAFE ELECTRICAL ROOM STORE ROOM YOGA ROOM GENERAL STORE 10 LAUNDRY D3 W1 W2 D2 D1 DIMENSIONS SILL HEIGHT LINTEL HEIGHT 910 X 2110_SINGLE SHUTTER 810 X 2110_SINGLE SHUTTER 1510 X 2110_DOUBLE SHUTTER 1500_SLIDDING SHUTTER 1000_SLIDING SHUTTER 900MM From FFL 900MM From FFL 2110MM From FFL 2110MM From FFL-Concrete Legends Screed Earth Gypsum plaﬆer Faculty :- Manoj Ladhad & Kousalya 22 21 19 17 15 13 12 11 10 9 8 7 6 5 3 2 1 A B C D E 18 16 14 20 F G H J K L M N P Q R S 4 5800 4200 3500 3600 3600 3600 3600 3600 3600 3600 3600 2200 2500 2500 6800 2500 3600 3600 1800 1800 3600 3600 3600 3600 3600 3600 3600 3600 2800 800 1700 1900 600 3000 1800 2000 2500 Sheet No. Signature :WCFA_2022_WD-01 Sheet Detatils :Drawn by :- Diya Makanur Neeraj M Harsha M K Sooraj R M (4CM19AT021) (4CM19AT044) (4CM19AT035) (4CM19AT070) Date :- 16/01/2022 North N Scale :Project Details:Student Housing Ramaswamy Circle, Mysuru Notes:1 : 200 Scale :- 1 10 A1_03 Column Footing Plan All dimension in mm C1 C1 C2 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C2 C3 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C3 C3 C4 C4 C3 C3 C3 C4 C4 C3 C3 C3 C4 C4 C3 C3 C3 C4 C4 C3 C3 C3 C4 C4 C3 C3 C3 C4 C4 C3 C3 C3 C4 C4 C3 C3 C3 C4 C4 C3 C3 C3 C4 C4 C3 C4 C4 C3 C4 C4 C4 C4 Column Footing Plan C1 Column Size 200*300 Footing Size - 2000*2000 C1 - Column that is North aligned C1 C2 C3 C4 C2 - Column that is South aligned C3 - Column that is Weﬆ aligned C4 - Column that is Eaﬆ aligned C2 C2 100 100 100 200 100 100 100 200 100 100 100 200 100 100 100 200 Concrete Legends Screed Earth Gypsum plaﬆer Brick Faculty :- Manoj Ladhad & Kousalya 22 21 19 17 15 13 12 11 10 9 8 7 6 5 3 2 1 A B C D E 18 16 14 20 F G H J K L M N P Q R S 4 5800 4200 3500 3600 3600 3600 3600 3600 3600 3600 3600 2200 2500 2500 6800 2500 3600 3600 1800 1800 3600 3600 3600 3600 3600 3600 3600 3600 2800 800 1700 1900 600 3000 1800 2000 2500 Sheet No. Signature :WCFA_2022_WD-01 Sheet Detatils :Drawn by :- Diya Makanur Neeraj M Harsha M K Sooraj R M (4CM19AT021) (4CM19AT044) (4CM19AT035) (4CM19AT070) Date :- 16/01/2022 North N Scale :Project Details:Student Housing Ramaswamy Circle, Mysuru Notes:1 : 200 Scale :- 1 10 A1_03 Column Footing Plan All dimension in mm C1 C1 C2 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C2 C3 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C3 C3 C4 C4 C3 C3 C3 C4 C4 C3 C3 C3 C4 C4 C3 C3 C3 C4 C4 C3 C3 C3 C4 C4 C3 C3 C3 C4 C4 C3 C3 C3 C4 C4 C3 C3 C3 C4 C4 C3 C3 C3 C4 C4 C3 C4 C4 C3 C4 C4 C4 C4 Column Footing Plan C1 Column Size - 200*300 Footing Size - 2000*2000 C1 - Column that is North aligned C1 C2 C3 C4 C2 - Column that is South aligned C3 - Column that is Weﬆ aligned C4 - Column that is Eaﬆ aligned C2 C2 100 100 100 200 100 100 100 200 100 100 100 200 100 100 100 200 Concrete Legends Screed Earth Gypsum plaﬆer Brick Faculty :- Manoj Ladhad & Kousalya DN UP DN DN A B C D E F G H J K L M N P Q R S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 3 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 D2 D2 D2 D2 D2 D2 D2 D2 D3 D3 D3 D3 D3 D3 D1 D1 D1 D1 D1 D1 D1 D1 D1 D1 D1 D1 D1 D1 D1 D3 W1 W2 W2 W2 W2 W2 W2 W2 W2 2 3 6225 6300 2500 6800 2500 2500 2200 3600 3600 3600 3600 3600 3600 3599 3600 3500 4200 5800 300 2200 300 4000 200 2300 200 2500 1510 1000 200 200 1000 32500 6225 2000 395 800 4800 4220 5780 100 100 100 200 100 950 910 7000 2640 860 1500 Sheet No. Signature :WCFA_2022_WD-01 Sheet Detatils :Drawn by :- Diya Makanur Neeraj M Harsha M K Sooraj R M (4CM19AT021) (4CM19AT044) (4CM19AT035) (4CM19AT070) Date :- 16/01/2022 North N Scale :Project Details:Student Housing Ramaswamy Circle, Mysuru Notes:1 : 200 A1_06 Second Floor Plan All dimensions in mm Second Floor Plan LEGEND 1 STUDIO UNITS 2 ONE BEDROOM UNITS 3 TWO BEDROOM UNITS 4 OFFICE 5 CAFE 6 ELECTRICAL ROOM 7 STORE ROOM 8 YOGA ROOM 9 GENERAL STORE 10 LAUNDRY D3 W1 W2 D2 D1 DIMENSIONS SILL HEIGHT LINTEL HEIGHT 910 X 2110_SINGLE SHUTTER 810 X 2110_SINGLE SHUTTER 1510 X 2110_DOUBLE SHUTTER 1500_SLIDDING SHUTTER 1000_SLIDING SHUTTER 900MM From FFL 900MM From FFL 2110MM From FFL 2110MM From FFL 2110MM From FFL-Concrete Legends Screed Earth Gypsum plaﬆer Brick Faculty :- Manoj Ladhad & Kousalya SECOND FLOOR PLAN

DN UP DN DN A B C D E F G H J K L M N P Q R S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 D2 D2 D2 D2 D2 D2 D2 D2 D2 D3 D3 D3 D3 D3 D3 D3 D1 D1 D1 D1 D1 D1 D1 D1 D1 W2 W2 2 3 10 6225 6300 2500 6800 2500 2500 2200 3600 3600 3600 3600 3600 3600 3599 3600 3500 4200 5800 3600 3600 1800 1800 3600 3600 3600 3600 3600 3600 3600 3600 2800 800 1700 1900 600 3000 1800 2000 2500 345 200 1000 200 6225 910 395 200 300 910 910 910 800 38100 300 7000 400 Sheet No. Signature :WCFA_2022_WD-01 Sheet Detatils :Drawn by :- Diya Makanur Neeraj M Harsha M K Sooraj R M (4CM19AT021) (4CM19AT044) (4CM19AT035) (4CM19AT070) Date :- 16/01/2022 North N Scale :Project Details:Student Housing Ramaswamy Circle, Mysuru Notes:1 : 200 A1_06 Second Floor Plan All dimensions in mm Second Floor Plan LEGEND 1 STUDIO UNITS 2 ONE BEDROOM UNITS 3 TWO BEDROOM UNITS 4 OFFICE 5 CAFE 6 ELECTRICAL ROOM 7 STORE ROOM 8 YOGA ROOM 9 GENERAL STORE 10 LAUNDRY D3 W1 W2 D2 D1 DIMENSIONS SILL HEIGHT LINTEL HEIGHT 910 X 2110_SINGLE SHUTTER 810 X 2110_SINGLE SHUTTER 1510 X 2110_DOUBLE SHUTTER 1500_SLIDDING SHUTTER 1000_SLIDING SHUTTER 2110MM From FFL 2110MM From FFL 2110MM From FFL-Concrete Legends Screed Earth Gypsum plaﬆer Brick Faculty :- Manoj Ladhad & Kousalya DN UP DN DN A B C D E F G H J K L M N P Q R S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 D2 D2 D2 D2 D2 D2 D2 D2 D2 D2 D3 D3 D3 D3 D3 D3 D3 D3 D3 D1 D1 D1 D1 D1 D1 D1 D1 D1 D1 W1 W2 W2 W2 W2 W2 W2 2 2 3 10 6225 6300 2500 6800 2500 2500 2200 3600 3600 3600 3600 3600 3600 3599 3600 3500 4200 5800 3600 3600 1800 1800 3600 3600 3600 3600 3600 3600 3600 3600 2800 800 1700 1900 600 3000 1800 2000 2500 200 345 345 950 1500 950 200 1510 3451000345 950 1500 950 3451000345 1510 200200 1510 3451000345 600 1500 1300 3451000395 1510 150200 1510 3451000345 950 1500 950 1300 1500 600200 1510 3451000345 1300 1500 600 900 1500 1000 1050 1500 1050 380 1500 420 345 200 1000 200 6225 1800 910 395 200 300 910 910 910 800 38100 300 200 890 1400 200 2500 200445 910 910590 2500 950 300 200 100 Sheet No. Signature :WCFA_2022_WD-01 Sheet Detatils :Drawn by :- Diya Makanur Neeraj M Harsha M K Sooraj R M (4CM19AT021) (4CM19AT044) (4CM19AT035) (4CM19AT070) Date :- 16/01/2022 North N Scale :Project Details:Student Housing Ramaswamy Circle, Mysuru Notes:1 : 200 A1_06 Second Floor Plan All dimensions in mm LEGEND 1 STUDIO UNITS 2 ONE BEDROOM UNITS 3 TWO BEDROOM UNITS 4 OFFICE 5 CAFE 6 ELECTRICAL ROOM 7 STORE ROOM 8 YOGA ROOM 9 GENERAL STORE 10 LAUNDRY D3 W1 W2 D2 D1 DIMENSIONS SILL HEIGHT LINTEL HEIGHT 910 X 2110_SINGLE SHUTTER 810 X 2110_SINGLE SHUTTER 1510 X 2110_DOUBLE SHUTTER 1500_SLIDDING SHUTTER 1000_SLIDING SHUTTER 2110MM From FFL 2110MM From FFL-Legends

COLUMN FOOTING PLAN

Student Housing

A1_04

Ground Floor Plan

WCFA_2022_WD-01

A1_04

Ground Floor

WCFA_2022_WD-01

Ground Floor Plan

DN DN UP DN DN UP UP DN DN DN DN DN DN DN A B C D E F G H J K L M N P Q R S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 D1 D1 D1 D1 D2 D2 1 1 W1 W1 D1 2 W1 D2 D1 W2 W1 W1 W1 D1 D1 W1 W1 D2 D2 D1 3 4 W1 W1 W1 W1 W1 D1 D1 D2 D2 D2 D1 D1 D1 2 DN DN 5 D3 D1 D1 D1 DN DN -375 -75 -975 -75 ENTRY 3600 3600 1800 1800 3600 3600 3600 3600 3600 3600 3600 3600 2800 800 1700 1900 600 3000 1800 2000 2500 2500 6800 2500 2500 2200 3600 3600 3600 3600 3600 3600 3599 3600 3500 4200 5800 200 2300 300 2200 300 2300 100 1600 200 9500 200 1500 100 1800 200 1800 100 1500 200 200 800 100 2500 168 3432 200 5100 100 1800 200 800 100 3800 200 19500 9500 200 2300 300 2200 300 4200 9500 18200 200 5600 200 1500 2500 200 10200 300 4400 300 4200 300 9500 200 800 100 2500 200 3540 1500 950 910 100 200 800 100 2500 200 298 1500 592 910 300 3800 1655 6300 8700 2700 200 300 1700 300 200 -525 -825 5980 4800 200 950 1500 950 200 950 1500 950 200 3400 200 1500 950 200 3400 200 4500 18200 300 2200 300 4200 7000 2000 600 1000 1800 1800 4700 4220 200 1600 100 2300 300 2200 300 7000 200 1600 100 2300 300 2200 300 950 2006381000 200 200 295 295 19500 1500 3000 1200 3000 600 200 2300 300 2200 300 5200 1200 300 200 3400 200 3400 200 12000 1000 5000 200300 1500 590 910 400 910 590 1500300 200 7400 2500 -375

Signature :-

Sheet Detatils :Drawn by :- Diya Makanur Neeraj M Harsha Sooraj R Date :- 16/01/2022 Scale

Sheet No.

Notes:-

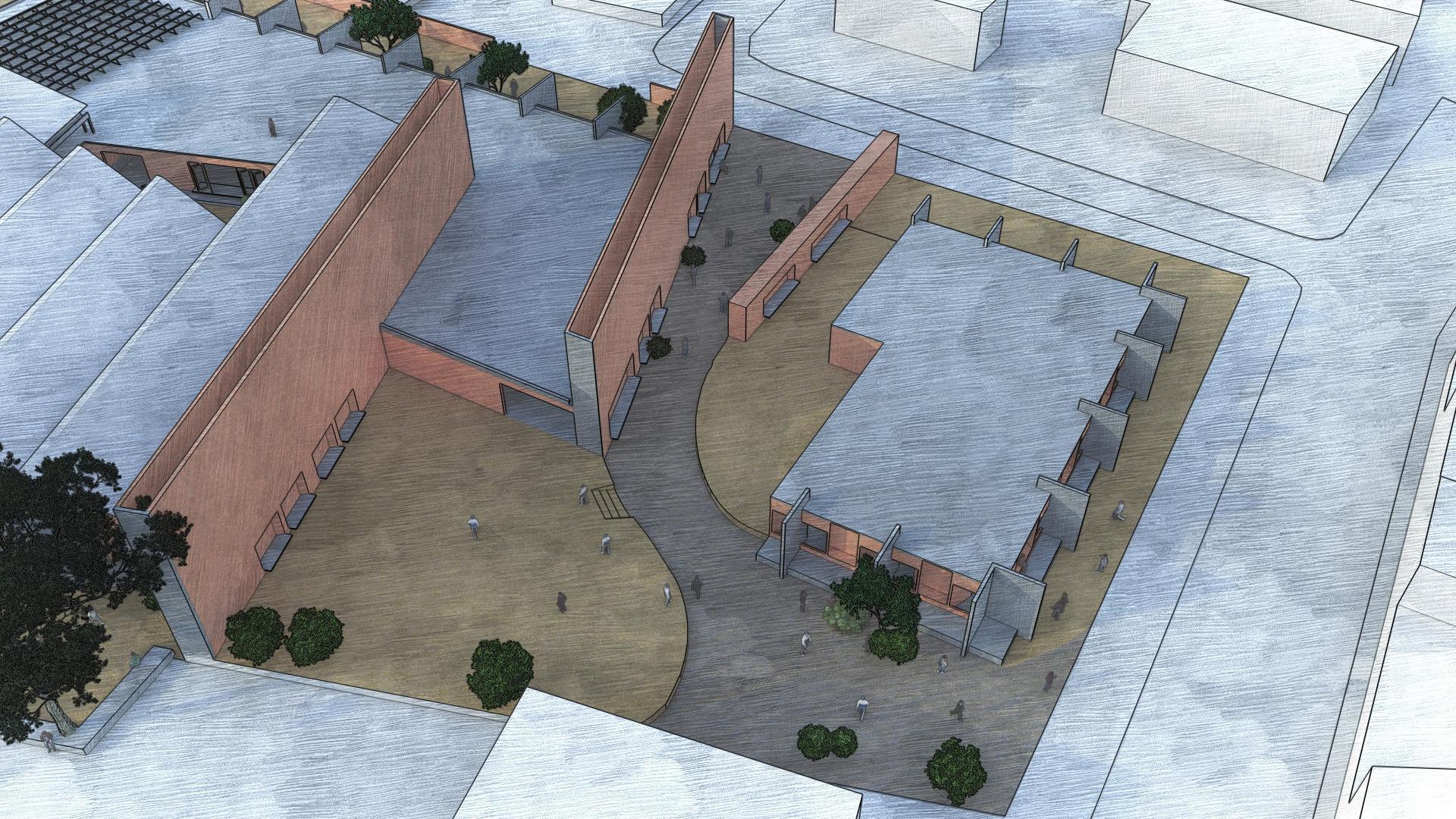

Project Details:Student Housing Ramaswamy Circle,

DN PARKING LEGEND 1 - STUDIO UNITS 2 - ONE BEDROOM UNITS 3 - TWO BEDROOM UNITS 4 - OFFICE 5 - CAFE 6 - ELECTRICAL ROOM 7 - STORE ROOM 8 - YOGA ROOM 9 - GENERAL STORE 10 - LAUNDRY D3 W1 W2 D2 D1 DIMENSIONS 910 X 2110_SINGLE SHUTTER 810 X 2110_SINGLE SHUTTER 1510 X 2110_DOUBLE SHUTTER 1500_SLIDDING SHUTTER 1000_SLIDING SHUTTER ENTRY ENTRY EXIT Concrete Legends Screed Earth Gypsum plaﬆer Brick Faculty DN DN UP DN DN UP UP DN DN DN DN DN DN DN A B C D E F G H J K L M N P Q R S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 D1 D1 D1 D1 D2 D2 1 1 W1 W1 D1 2 W1 D2 D1 W2 W1 W1 W1 D1 D1 W1 W1 D2 D2 D1 W1 W1 W1 W1 W1 D1 D1 D2 D2 D2 D1 D1 D1 2 DN DN 5 D3 D1 D1 D1 DN DN -375 -75 -975 -75 ENTRY 3600 3600 1800 1800 3600 3600 3600 3600 3600 3600 3600 3600 2800 800 1700 1900 600 3000 1800 2000 2500 2500 6800 2500 2500 2200 3600 3600 3600 3600 3600 3600 3599 3600 3500 4200 5800 200 2300 300 2200 300 2300 100 1600 200 9500 200 800 100 2500 168 3432 200 5100 100 1800 200 800 100 3800 200 19500 9500 200 2300 300 2200 300 4200 200 5600 200 1500 2500 200 10200 300 4400 300 4200 300 9500 200 800 100 2500 200 3540 1500 950 100 200 100 2500 200 298 1500 592 910 300 3800 1655 8700 2700 200 300 1700 300 200 -525 -825 5980 4800 950 950 950 950 950 950 300 2200 300 4200 7000 2000 600 1000 1800 4700 4220 7000 200 1600 100 2300 300 2200 300 200 1500 950 6381000 752 910 1250 1500 950 950 1500 950 950 1500 950 910 19500 1500 3000 1200 3000 600 200 300 200 3400 200 3400 200 1000 300 590 400 590 300 2500 -375

Sheet No. Signature :-

Sheet Detatils :Drawn by :- Diya Makanur Neeraj M Harsha M K Sooraj R M (4CM19AT021) (4CM19AT044) (4CM19AT035) (4CM19AT070) Date :- 16/01/2022 North N Scale :Project Details:-

Ramaswamy Circle, Mysuru Notes:1 : 200

All dimensions in mm

DN PARKING LEGEND 1 - STUDIO UNITS 2 - ONE BEDROOM UNITS 3 - TWO BEDROOM UNITS 4 - OFFICE 5 - CAFE 6 - ELECTRICAL ROOM 7 - STORE ROOM 8 - YOGA ROOM 9 - GENERAL STORE 10 LAUNDRY D3 W1 W2 D2 D1 DIMENSIONS SILL HEIGHT LINTEL HEIGHT 910 X 2110_SINGLE SHUTTER 810 X 2110_SINGLE SHUTTER 1510 X 2110_DOUBLE SHUTTER 1500_SLIDDING SHUTTER 1000_SLIDING SHUTTER 900MM From FFL 900MM From FFL 2110MM From FFL 2110MM From FFL 2110MM From FFL 2110MM From FFL 2110MM From FFL-ENTRY ENTRY EXIT Concrete Legends Screed Earth Gypsum plaﬆer Brick Faculty :- Manoj Ladhad & Kousalya

FLOOR PLAN 00 Base point Level 0 00 Base point Level 0 02 3075 01 -75 04 9375 03 6225 00 -3075 00 Base point Level 0 1 : 200 Section 2 1 : 200 Section 1 1 : 200 Section 3 SECTION 3 SECTION 1 SECTION 2

GROUND

02 Firﬆ Floor 3075 01 Ground Floor -75 04 Terrace 9375 03 Second Floor 6225 00 Basement Floor -3075 A B C D E F G H J K L M N P Q R S 3150 3150 3150 3000 75 2950 6140 2990 2990 2840 02 Firﬆ Floor 3075 01 Ground Floor -75 04 Terrace 9375 03 Second Floor 6225 00 Basement Floor -3075 A B C D E F G H J K L M N P Q R S 3150 3150 3150 3000 75 2840 2990 2950 2950 1020 190 200 200 160 02 Firﬆ Floor 3075 01 Ground Floor -75 04 Terrace 9375 03 Second Floor 6225 00 Basement Floor -3075 A B C D E F G H J K L M N P Q R S 3150 3150 3150 3000 2950 2950 2950 2840 160 160 200 190 - -Sheet No. Signature :-

Sheet Detatils :Drawn by :- Diya Makanur Neeraj M Harsha M K Sooraj R M (4CM19AT021) (4CM19AT044) (4CM19AT035) (4CM19AT070) Date :- 16/01/2022 North N Scale :-

WCFA_2022_WD-01

Ramaswamy Circle, Mysuru Notes:1:200 A1_13

All dimensions Common Balcony Living Unit Living Unit Parking Common Longue Parking Living Unit Courtyard Terrace Terrace Terrace Living Unit Living Unit Parking Courtyard View Range of all the sections is 10000mm 1 2 3 Scale :- 1:1000 Key Plan Faculty :- Manoj Ladhad Concrete Legends Screed Earth Gypsum plaﬆer Brick Firﬆ Floor Ground Floor Terrace Second Floor Basement Floor A B C D E F G H J K L M N P Q R S 3150 3150 3150 3000 75 2950 6140 2990 2990 2840 Floor Ground Floor Terrace Second Floor Basement Floor A B C D E F G H J K L M N P Q R S 3150 3150 3150 3000 75 2840 2990 2950 2950 1020 190 200 200 160 Firﬆ Floor Ground Floor Terrace Second Floor Basement Floor A B C D E F G H J K L M N P Q R S 3150 3150 3150 3000 2950 2950 2950 2840 160 160 200 190 - -Sheet No. Signature :WCFA_2022_WD-01 Sheet Detatils :Drawn by :- Diya Makanur Neeraj M Harsha M K Sooraj R M (4CM19AT021) (4CM19AT044) (4CM19AT035) (4CM19AT070) Date :- 16/01/2022 North N Scale :Project Details:Student Housing Ramaswamy Circle, Mysuru Notes:1:200 A1_13

01 All dimensions in mm Common Balcony Living Unit Living Unit Parking Common Longue Parking Living Unit Courtyard Terrace Terrace Terrace Living Unit Living Unit Parking Courtyard View Range of all the sections is 10000mm 1 2 3 Scale :- 1:1000 Key Plan Faculty :- Manoj Ladhad & Kousalya Concrete Legends Screed Earth Gypsum plaﬆer Brick

Project Details:Student Housing

Sections 01

Sections

1250 50 1065 1250 1515 1065 50 1165 600 1165 1250 1250 1250 1050 1250 1065 1250 1065 1065 1765 4395 600 2000 830 8470 SLOPE 100 SLOPE 1 100 CERAMIC TILES 800 X 800 X 8MM ..\..\..\Desktop\WCFA logo.png SIGNATUREMANOJ LADHAD STUDENT DETAILSDRAWN

DATE

- 2022 SHEET NO.

WCFA_2022_WD_02 TOILET DETAILS PROJECT DETAILSPUBLIC BUILDING CULTURAL CENTER N TOILET PLAN SCALE - 1 : 50 ELECTRICAL LAYOUT SCALE - 1 : 50 PLUMBING LAYOUT SCALE - 1 : 50 ONE WAY SWITCH PLUG POINT MIRROR LIGHT LEGEND 1 2 3 4 SL NO SYMBOL DESCRIPTION HEIGHT FROM F.F.L 1200mm 1200mm 2500mm CEILING LIGHT FLOORING LAYOUT SCALE - 1 : 50 1200 4000 1200 1080 4000 925 925 925 925 60 60 60 60 60 925 925 925 925 100 100 150 1200 1200 1080 2000 910 910 60 60 910 910 100 60 150 100 60 12 80 60 20 20 W1 - TIMBER AND GLASS CASEMENT FOUR SHUTTER 925MM EACH 4000 X 1200 SILL - 900mm LINTEL - 2100mm PLAN SCALE - 1 25 ELEVATION SCALE - 1 : 25 SECTION SCALE - 1 : 25 PLAN SCALE - 1 25 ELEVATION SCALE - 1 : 25 SECTION SCALE - 1 : 25 W2 - TIMBER AND GLASS CASEMENT TWO SHUTTER 910MM EACH 2000 X 1200 SILL - 900mm LINTEL - 2100mm TIMBER FRAME PROFILE 2100 2040 4000 4000 970 970 970 970 STEEL CHANNEL TIMBER FRAME SHUTTER LINTEL BOTTOM GUIDE C CHANNEL TIMBER FRAME GLASS 6MM ..\..\..\Desktop\WCFA logo.png SIGNATUREMANOJ LADHAD STUDENT DETAILSDRAWN BY - DIYA MAKANUR (4CM19AT021) DATE - 24 - 06 - 2022 SHEET NO. A3_21 WCFA_2022_WD_02 DOOR WINDOW SCHEDULE PROJECT DETAILSPUBLIC BUILDING CULTURAL CENTER N DIMENSIONS SILL HEIGHT LINTEL HEIGHT (FROM FFL) (FROM FFL) D1 4000 X 2100 - 2100 SLIDING FOLDING D2 2000 X 2100 - 2100 SINGLE SHUTTER D3 - 2100 D4 3000 X 2100 - 2100 SLIDING FOLDING 5650 X 2100 SLIDING FOLDING D5 870 X 2100 - 2100 D6 1020 X 2100 - 2100 SINGLE SHUTTER SINGLE SHUTTER W1 4000 X 1500 2100 CASEMENT 600 W2 2000 X 1500 2100 CASEMENT 600 W3 1000 X 1500 2100 CASEMENT 600 W4 3000 X 1500 2100 CASEMENT 600 D1 - TIMBER AND GLASS SLIDING FOLDING DOOR FOUR SHUTTER 970MM EACH 4000 X 2100 LINTEL - 2100mm D7 7200 X 2100 - 2100 SLIDING FOLDING PLAN SCALE - 1 : 20 ELEVATION SCALE - 1 : 20 SECTION SCALE - 1 : 20 TOP GUIDE BOTTOM GUIDE 460 960 2130 1600 300 500 215 SECTION AA' SCALE - 1 : 30 SECTION BB' SCALE - 1 : 30

BY - DIYA MAKANUR (4CM19AT021)

- 24 - 06

A3_18

40 60 ..\..\..\Desktop\WCFA logo.png SIGNATUREMANOJ LADHAD STUDENT DETAILSDRAWN BY - DIYA MAKANUR (4CM19AT021) DATE - 24 - 06 - 2022 SHEET NO. A3_23 WCFA_2022_WD_02 DOOR WINDOW SCHEDULE PROJECT DETAILSPUBLIC BUILDING CULTURAL CENTER N DIMENSIONS SILL HEIGHT LINTEL HEIGHT (FROM FFL) (FROM FFL) D1 4000 X 2100 - 2100 SLIDING FOLDING D2 2000 X 2100 - 2100 SINGLE SHUTTER D3 - 2100 D4 3000 X 2100 - 2100 SLIDING FOLDING 5650 X 2100 SLIDING FOLDING D5 870 X 2100 - 2100 D6 1020 X 2100 - 2100 SINGLE SHUTTER SINGLE SHUTTER W1 4000 X 1200 2100 CASEMENT 900 W2 2000 X 1200 2100 CASEMENT 900 W3 1000 X 1200 2100 CASEMENT 900 W4 3000 X 1200 2100 CASEMENT 900 CASEMENT WINDOW D7 7200 X 2100 - 2100 SLIDING FOLDING CASEMENT WINDOW 1115 560 B A CERAMIC FLOOR TILES 800 X 800 X 8MM DPC PCC BED CINDER FILLING RCC SLAB CEMENT SLURRY PLASTER 12MM ..\..\..\Desktop\WCFA

SIGNATURE

STUDENT

DRAWN

DATE

SHEET

WCFA_2022_WD_02 TOILET DETAILS PROJECT DETAILSPUBLIC BUILDING CULTURAL CENTER N 30 KEY PLAN 1500 300 950 1500 430 1100 300 300 300 150 STRINGER BEAM RECTANGULAR BOX SECTION 120 X 60 HANDRAIL RECTANGULAR BOX SECTION 60 X 120 ) BALUSTRADE STEEL PLATE 60 X 6 BALUSTRADE STEEL PLATE 60 X 6 TIMBER TREAD 40mm 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 RAILING RECTANGULAR BOX SECTION (60 X 120) STEEL PLATE 4MM 300 1500 300 STEEL PLATE 6mm RECTANGULAR BOX STEEL SECTION 120 X 60 TIMBER TREAD 40mm STEEL PLATE 60 X 6 RECTANGULAR BOX STEEL SECTION 60 X 120 ..\..\..\Desktop\WCFA logo.png SIGNATUREMANOJ LADHAD STUDENT DETAILSDRAWN BY - DIYA MAKANUR (4CM19AT021) DATE - 24 - 06 - 2022 SHEET NO. A3_17 WCFA_2022_WD_02 STAIRCASE DETAIL PROJECT DETAILSPUBLIC BUILDING CULTURAL CENTER N PLAN SCALE - 1:30 ELEVATION SCALE - 1:30 BALUSTRADE CONNECTION TO STRINGER THREAD TO STRINGER CONNECTION STIFFNER 450 150 2850 150 300 600 100 300 450 PLINTH BEAM BRICK WALL 230MM SILL 100MM CASEMENT WINDOW 4000 X 1200 LINTEL 150MM RCC BEAM SILL 100MM FIXED WINDOW RCC DRAIN BRICK VAULT 230MM GRANITE FLOORING 20MM SCREED 40MM BITUMEN WATERPROOFING 3MM MEMBRANE ..\..\..\Desktop\WCFA logo.png SIGNATUREMANOJ LADHAD STUDENT DETAILSDRAWN BY - DIYA MAKANUR (4CM19AT021) DATE - 24 - 06 - 2022 SHEET NO. A3_24 WCFA_2022_WD_02 WALL SECTION PROJECT DETAILSPUBLIC BUILDING CULTURAL CENTER N SLOPE 1 100 SLOPE 1 100 CERAMIC TILES 800 X 800 X 8MM ..\..\..\Desktop\WCFA logo.png SIGNATUREMANOJ LADHAD STUDENT DETAILSDRAWN BY - DIYA MAKANUR (4CM19AT021) DATE - 06 - 2022 SHEET NO. A3_18 WCFA_2022_WD_02 TOILET DETAILS PROJECT DETAILSPUBLIC BUILDING CULTURAL CENTER N PLUMBING LAYOUT SCALE - 1 : 50 ONE WAY SWITCH PLUG POINT MIRROR LIGHT LEGEND 1 2 3 4 SL NO SYMBOL DESCRIPTION HEIGHT FROM F.F.L 1200mm 1200mm 2500mm CEILING LIGHT FLOORING LAYOUT SCALE - 1 : 50 450 150 2850 150 300 600 100 300 450 PLINTH BEAM BRICK WALL 230MM SILL 100MM CASEMENT WINDOW 4000 X 1200 LINTEL 150MM RCC BEAM SILL 100MM FIXED WINDOW RCC DRAIN BRICK VAULT 230MM GRANITE FLOORING 20MM SCREED 40MM BITUMEN WATERPROOFING 3MM MEMBRANE ..\..\..\Desktop\WCFA logo.png SIGNATUREMANOJ LADHAD STUDENT DETAILSDRAWN BY - DIYA MAKANUR (4CM19AT021) DATE - 24 - 06 - 2022 SHEET NO. A3_24 WCFA_2022_WD_02 WALL SECTION PROJECT DETAILSPUBLIC BUILDING CULTURAL CENTER N 1500 300 950 1500 430 1100 300 300 300 150 STRINGER BEAM RECTANGULAR BOX SECTION 120 X 60 HANDRAIL RECTANGULAR BOX SECTION ( 60 X 120 BALUSTRADE STEEL PLATE ( 60 X 6 ) BALUSTRADE STEEL PLATE 60 X 6 TIMBER TREAD 40mm 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 RAILING RECTANGULAR BOX SECTION (60 X 120) STEEL PLATE 4MM 300 1500 300 STEEL PLATE 6mm RECTANGULAR BOX STEEL SECTION 120 X 60 TIMBER TREAD 40mm STEEL PLATE 60 X 6 RECTANGULAR BOX STEEL SECTION ( 60 X 120 ..\..\..\Desktop\WCFA logo.png SIGNATUREMANOJ LADHAD STUDENT DETAILSDRAWN BY - DIYA MAKANUR (4CM19AT021) DATE - 24 - 06 - 2022 SHEET NO. A3_17 WCFA_2022_WD_02 STAIRCASE DETAIL PROJECT DETAILSPUBLIC BUILDING CULTURAL CENTER N PLAN SCALE - 1:30 ELEVATION SCALE - 1:30 BALUSTRADE CONNECTION TO STRINGER THREAD TO STRINGER CONNECTION STIFFNER CHANNEL SHUTTER LINTEL GUIDE CHANNEL FRAME 6MM ..\..\..\Desktop\WCFA logo.png SIGNATUREMANOJ LADHAD STUDENT DETAILSDRAWN BY - DIYA MAKANUR (4CM19AT021) DATE - 24 - 06 - 2022 SHEET NO. A3_21 WCFA_2022_WD_02 DOOR WINDOW SCHEDULE PROJECT DETAILSPUBLIC BUILDING CULTURAL CENTER N DIMENSIONS SILL HEIGHT LINTEL HEIGHT (FROM FFL) (FROM FFL) D1 4000 X 2100 - 2100 SLIDING FOLDING D2 2000 X 2100 - 2100 SINGLE SHUTTER D3 - 2100 D4 3000 X 2100 - 2100 SLIDING FOLDING 5650 X 2100 SLIDING FOLDING D5 870 X 2100 - 2100 D6 1020 X 2100 - 2100 SINGLE SHUTTER SINGLE SHUTTER W1 4000 X 1500 2100 CASEMENT 600 W2 2000 X 1500 2100 CASEMENT 600 W3 1000 X 1500 2100 CASEMENT 600 W4 3000 X 1500 2100 CASEMENT 600 D7 7200 X 2100 - 2100 SLIDING FOLDING GUIDE


MANOJ LADHAD

DETAILS -

BY - DIYA MAKANUR (4CM19AT021)

- 24 - 06 - 2022

NO. A3_19

STUDIO GUIDE – Asst. Prof. Anna Cheriyan

INTERIOR DESIGN RE - IMAGINING THE SPACES

The task was to re - design the existing exhibition, lobby in the campus so as to articulate the spaces better. The girls room to be converted into a pantry serving the students/faculty and the parents visiting the campus.

INTENT

The aim was to match with the language of the campus itself - material, colour palette, grid, geometry.

1.Centralised approach

2.Rattan as a core material - Art of weaving

3.Arches - Arches can be seen as a common typology in Mysore. In the project essence of the arches is being used at different parts.

4.Grid - making and breaking of grid

Site location - Wadiyar Center for Architecture, Mysore, Karnataka

EXHIBITION

SECTION - EXHIBITION AND LOBBY 07

PLAN -

AND LOBBY

SEM 07 I 4TH YEAR

PANEL BOARD CENTER A C C’

EXHIBITION

RATTAN PLYWOOD AND LAMINATE

CENTER MODEL SPACE WALL EXHIBITS OPEN MODEL SPACE A’ B B’ STEEL BOX SECTION PINE WOOD

LOBBY ID EXHIBITION – NORTH WALL AND PANEL BOARDS ID LOBBY VIEWS - SEATING ID LOBBY VIEWS ID EXHIBITION EXHIBITION – NORTH WALL VIEWS - EXHIBITION AND LOBBY

SECTION AA’

ENTRANCE

PANTRY VIEWS PLAN - PANTRY

GRANITE COUNTER TOP RATTAN SCREEN

MINMAL SEATING AREA

EXPLODED VIEW - CENTRAL EXHIBITION SPACE

EXPLODED VIEW - WALL BETWEEN LOBBY AND EXHIBITION

The modular concept from the exhibition is carried here as well – rectangular boxes.

STORAGE SPACE ID PANTRY

VIEW -

PANTRY EXPLODED VIEW - PANEL BOARD

STEEL FRAMEWORK RATTAN COVERING WOODEN FRAME STEEL FRAMEWORK TO SUPPORT THE SHEETS STEEL FRAMEWORK WOODEN PLANK FOR MODEL RATTAN COVERING EXTENSION OF THE STEEL FRAMEWORK FOR INSTALLING LIGHTS RATTAN COVERING STEEL FRAMEWORK PLYWOOD PLANKS WITH LAMINATE COVERING FOR KEEPING MODELS. BOARD FOR DISPLAYING SHEETS EXHIBITION LOBBY PINE BATTENS FALSE CEILING DECLING SHEET SLAB PANEL BOARDS CENTER PIECE EXPLODED VIEW - LOBBY AND EXHIBITION SLAB DECKING SHEET FALSE CEILING PINE BATTEN CENTER PIECE PANEL BOARDS EXHIBITION LOBBY

MISCELLANEOUS

1. SRIRANGAPATNA CITY FABRIC

SEM 05 I 3RD YEAR

The intent was to document and understand the fabric of the heritage city which is famous for its ghats, temples.

The whole documentation included study of streets, temples, ghats, museum, library, historical monuments like Gumbaz, Dariya Daulat Bagh, Jumma Masjid, Srirangapatna

2. KANCHIPURAM CITY FABRIC

SEM 07 I 4TH YEAR

The intent was to document and understand the fabric of the heritage city which is famous for its sarees.

The whole documentation included study of the streets, temples, houses - how weaving and the residential spaces work hand in hand, dyeing and drying spaces.

Location - Kanchipuram, Tamil Nadu 5th

SRIRANGAPATNA CITY FABRIC

Srirangapatna Ghat – Walk Through

The gopuram faces towards east There are three orthogonal entrance of the Gopuram The road in front is 315m Ranganathaswamy park in the eastern side of temple is covered shops All the stalls are of almost same height The path towards circle is intimate due to presence of the stalls along the path

Srirangapatna Ghat is one of the biggest ghats in the town It is a part of Uttara Kaveri and flows towards the East

The Ghat is connected to the town in an interesting way – through a bridge over the river’s mushy valley One doesn’t realise the vastness of the river from the bridge The Ghat and the river become an element of surprise, visually, at the end of the bridge

From one end of the bridge is a series of steps leading down and opening up to the river On these simple series of steps, a variety of activities take place This sort of opening towards the river, welcomes the people into the ghat, making it a public space for all

As one walks down, to the left are a couple of kattes and trees where auspicious ceremonies take place People bathe in the holy river, light diyas and offer flowers to river goddess Kaveri On the other side of the entrance is mostly a resting space with pavilions and bigger steps

FLOOR PLAN

Reference Map

ISOMETRIC VIEW

Isometric view of the house Scale 1:100

Hierarchy

SRIRANGAPATNA GHAT

Entering the Ghat from the town through a bridge Series of steps leading to the river

Plan Scale 1:100

Architectural Design AD 05

The gopuram faces towards east There are three orthogonal roads connecting near the entrance of the Gopuram The road in front is 315m The compound wall of Ranganathaswamy park in the eastern side of temple is covered by a series of stalls and shops All the stalls are of almost same height The path towards the temple from the circle is intimate due to presence of the stalls along the path

Leading to the living, dining and kitchen which becomes semi private, opening up to a backyard which can be shared by few houses. All the bedrooms are shifted to the next floor making it the most private realm.

CIRCULATION

Section Scale 1:100

Circulation

Transitional spaces and paths within Temple function both as necessary environmental and spatial transitions but can also have symbolic as an airlock between outside and inside, to reduce sound transmission or mitigate a change in direction, to underscore degrees of sacredness and help increase privacy between zones

Front Elevation Scale 1:100

2019 Batch Srirangapatna

– Town Study characteristics of it public. semi private, houses. the most private Plan Front Elevation

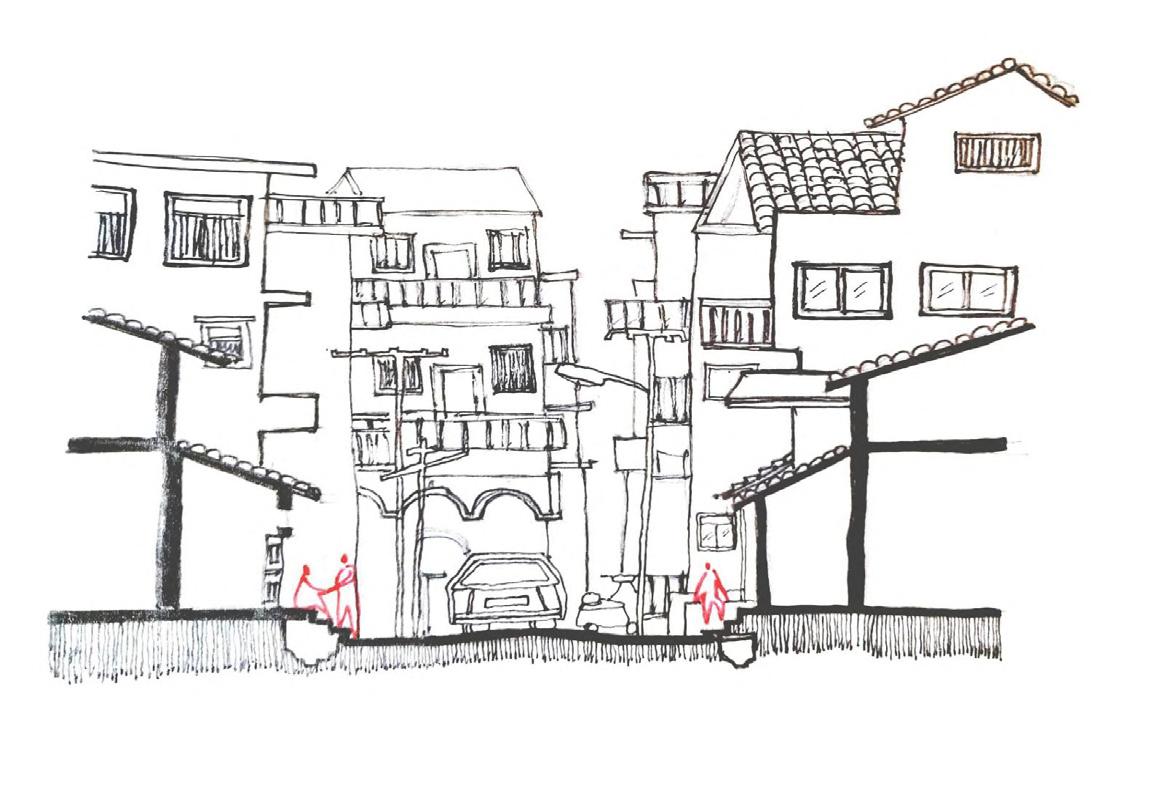

Street Section Street Plan STREET SECTION

semester, 2019

October 2021

semester,

Scale 1:100 This street runs along an axis that goes through the temple, allowing its residents easier access to the temple. Making the

5th

Batch

Elevation AA’

Reference Map Street

REFERENCE MAP Batch numerous intricately carved pillars that lead to the main shrine. The temple complex also consists of two more halls, one of which is the The main shrine possesses divine idol of Lord Vishnu reclining on the coils of Adishesha Naag

canopying the Lords idol. Lakshmi is seen

feet idols of some other deities

the Idol of Lord Oc ober 2021 RANGANATHASWAMY TEMPLE

with its

at his

around

SECTION

Arch tectura Des gn AD 05 5th semester 2019 Batch SRIRANGAPATNA

Ghat 2.7m 2.3m A Public to the October 2021 2.3M

Section through the entrance of Srirangapatna

Private Semi Public Public Enclosed Semi Enclosed Open Axis

RANGANATHASWAMY TEMPLE Hierarchy
