[Utopia)andundesiredstates [Dystopia). Nocity functionsasonly white [Utopian)or black [dystopian)
but always as bands of grey.The studyof the two conceptsled to create a pattern for my hypothesis.

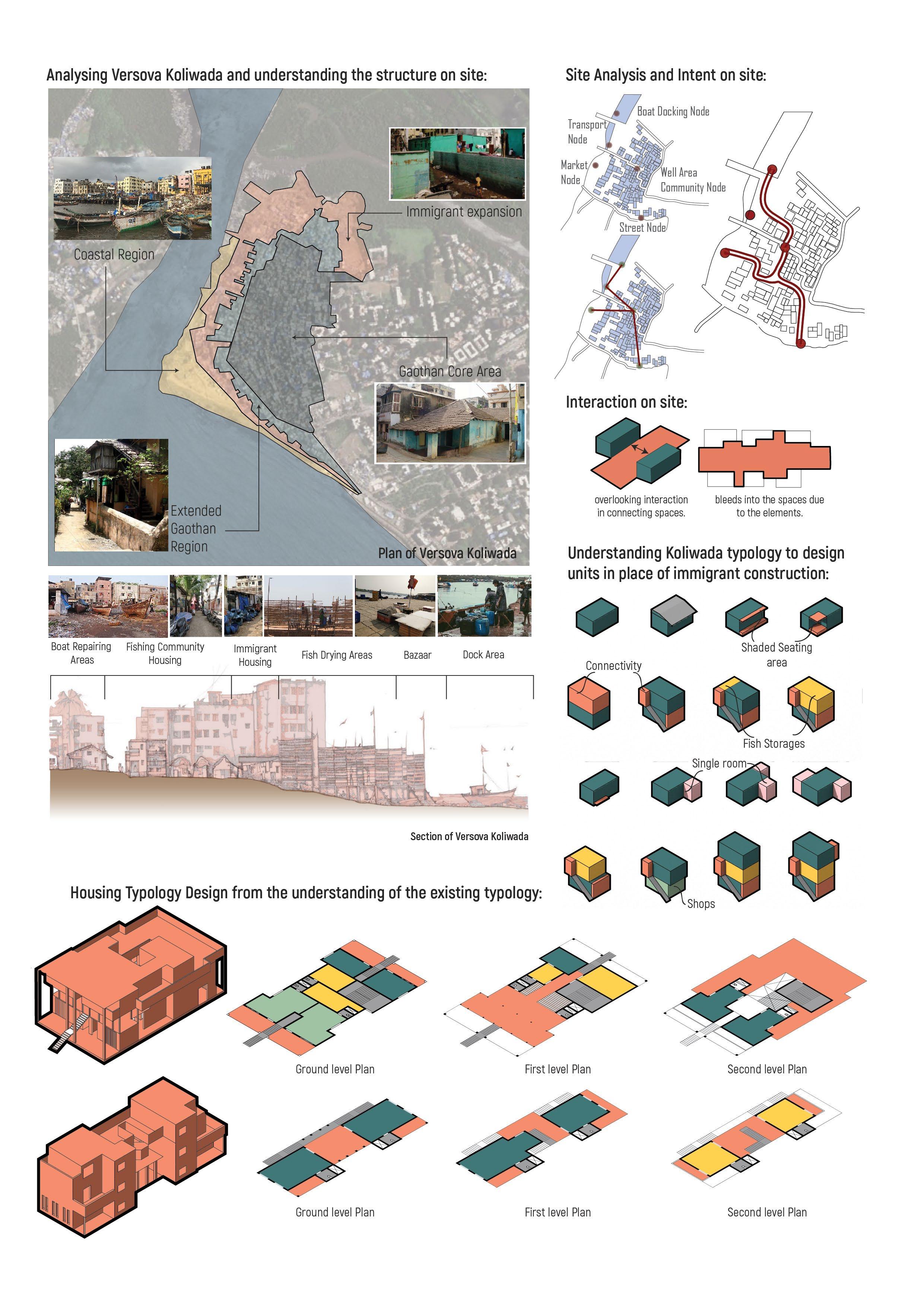

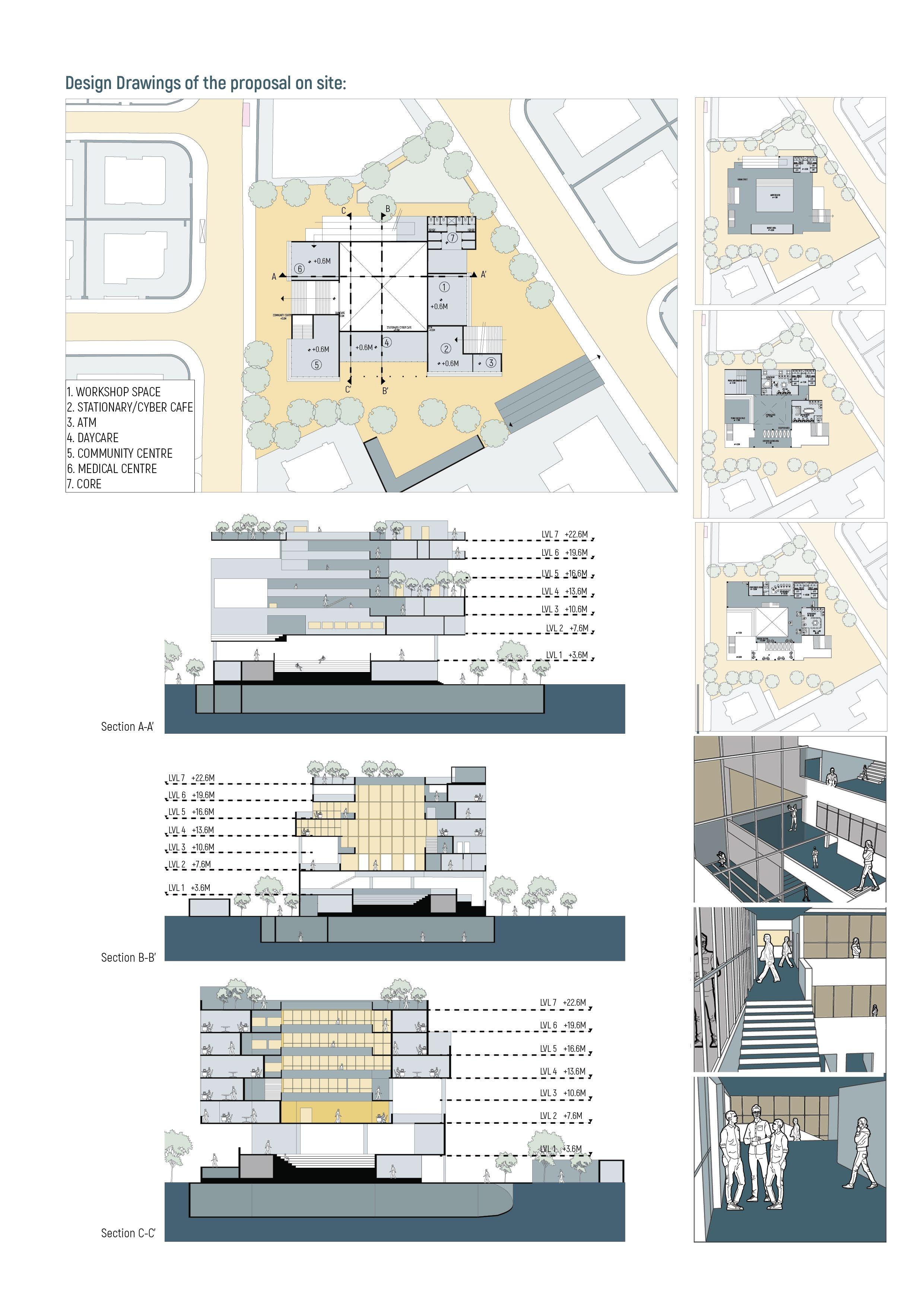

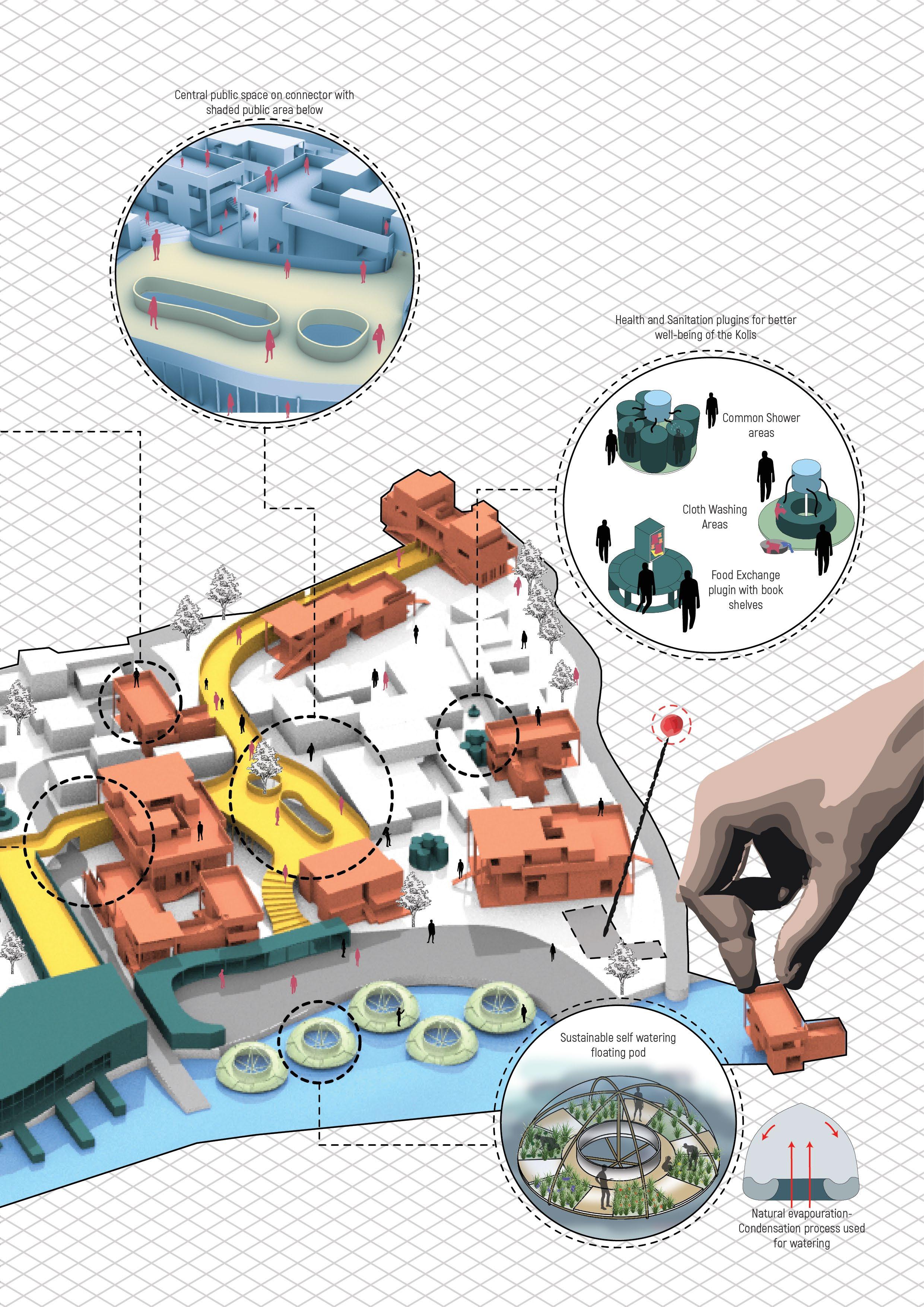

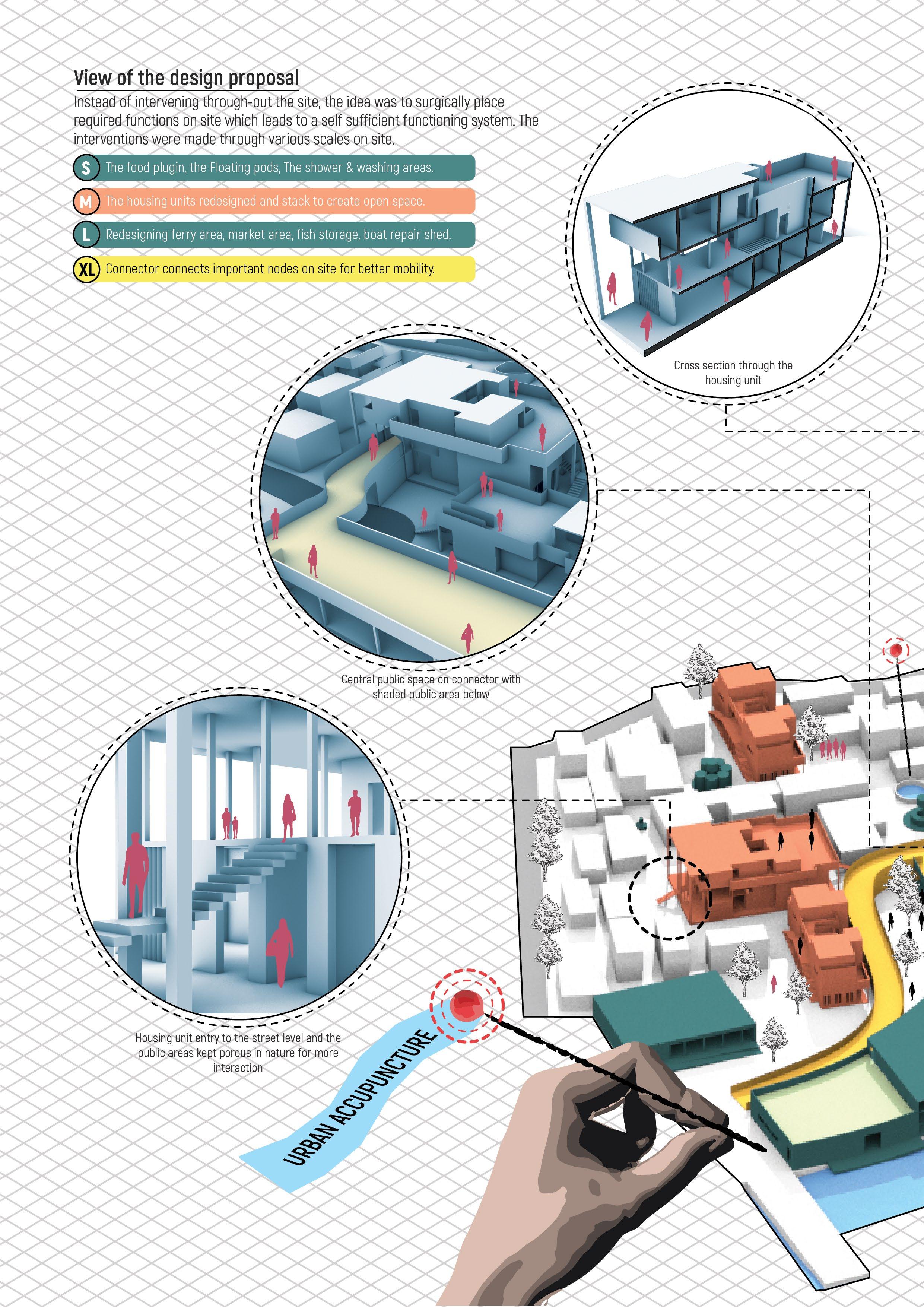

The world of tomorrow has more than 50% of the buildings and infrastructure that exist today. Therefore, a surgical approach at various scales from small to large was the way forward. To test out the theory, the idea of revamping dilapidated neighbourhoodsin a way that they efficiently function in the society, thuscreating a handbookfor the future to form a sustainable city of tomorrow.

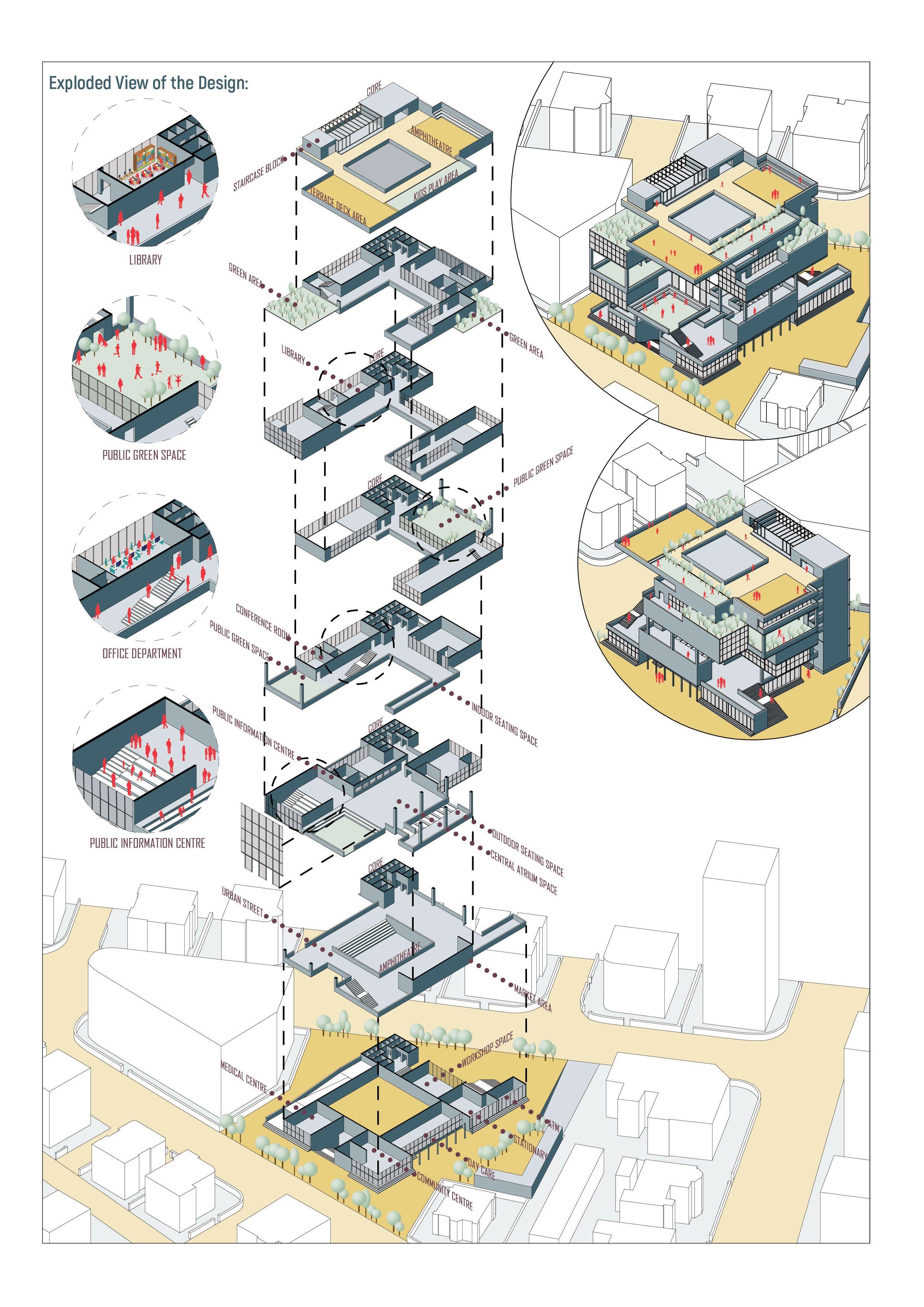

01. CITYAND MOBILITYOFTHEFUTURE Site: Kurla, Mumbai Semester IX, Year 5 Mentor: Ar. Jagdish Jani Status: Design Dissertation > t(.) LLI ::c
1-
�
u,
A holistic idea of a city's transformation from the three wavesdirected the study towards the desired
LLI Buckminister Fuller Andrea Branzi [Archizoom) The Urban Utopias in the twentieth century [LeCorbusier, Ebezner Howard, FrankLloydWright) Retro 1920's FutureWhat The Future Will Look Like! Exhibitions [AndyCouncil- DinoCity& Javier Mariscal-Metropolis) Frank R Paul 111ustrations Other Illustrations [GMMotors,Grey's Cigarette,FrankR Paul) How would a Future City look like? -Technology -People oriented -Self sufficient • -Mass production -Open spaces -Technology -New typologies -Virtual/ / IIIM Pollutionallaround' Jll1H'II �-,.�rMOVE � ��ONNECT � .. . � . PERMANENCE < IMPERMANENCE ,0 MOBILITY < CONNECTIVITY/ ACCESSIBILITY ISOLATION < Hyper-density Mobility Congestion Manufactured Landscapes Inequality Isolation FUNCTIONALISM COMMUNITY
05. WORKING
DRAWINGS

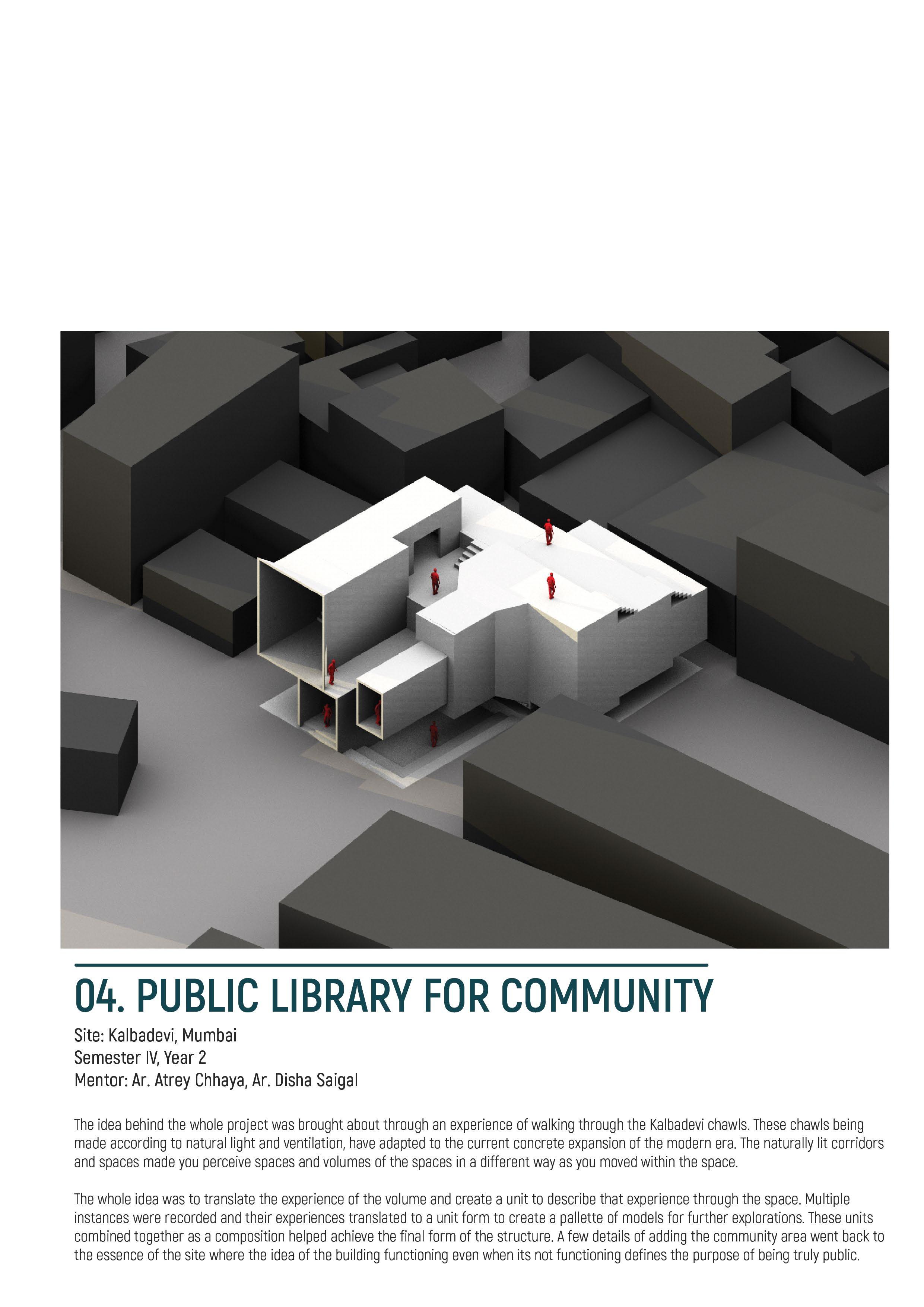

Drawings of the Semester IV, Year 2 Design project
Semester V-VI, Year 3
Mentor: Ar. Durvesh Mhatre, Ar. Ajit Prabhu, Ar. Manish Manjrekar

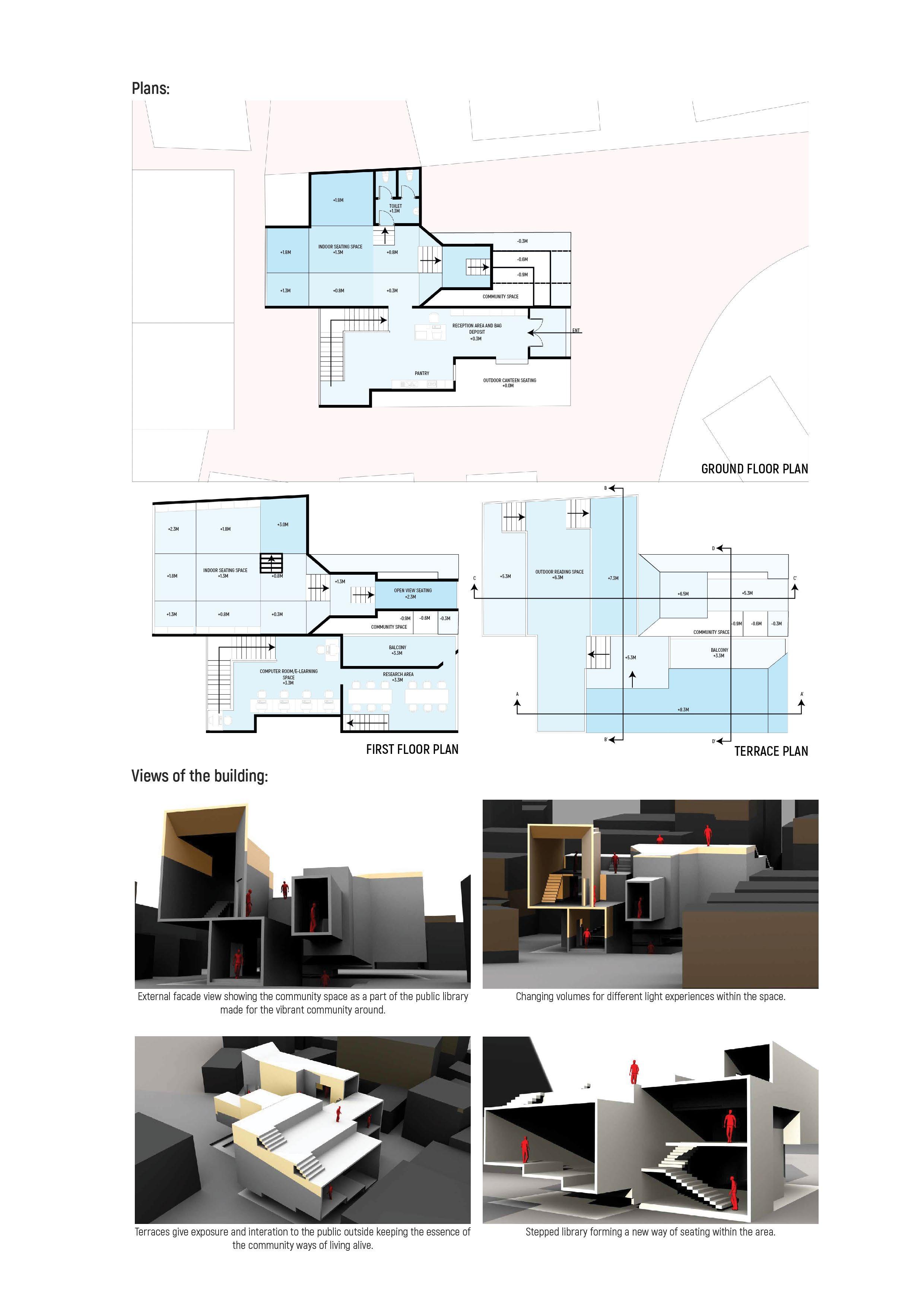

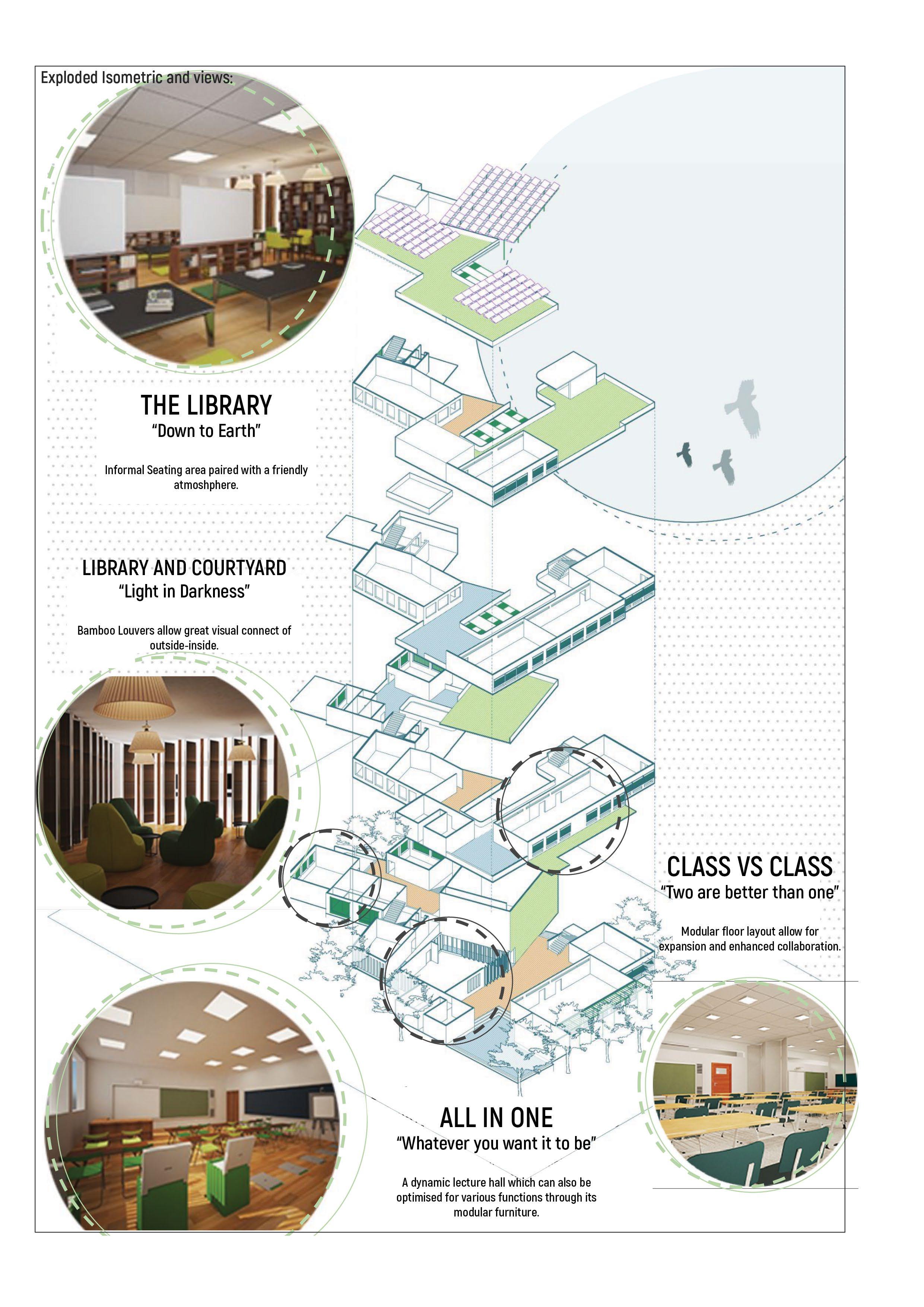

The conceptual design translated to a building on site was away from the realms of reality. The resolving of design led to create an outcome of detailed level drawings where translation of concepts to reality was understood. Understanding the process of construction, services and materiality to come to a final design detailed working drawing helped change the designing outlook. Structural aspects were also kept in mind while re-iterating the design. Plan and section drawings helped create a holistic image of how the building will turn into reality and the detailed drawings of the toilet helped dive into the intricate details of the building.
NOTES 1. THIS DRAWING IS A PROPERTY OF DIVY VORA AND SHALL NOT BE REPRDUCED WITHOUT WRITTEN PERMISSION THE COMMENCEMENT OF CONSTRUCTION SUBJECT TO APPROVALS FROM ALL COMPETENT AUTHORITIES. KEY
PROJECT NORTH CONSTRUCTION OF PUBLIC LIBRARY AND AN E-LEARNING SPACE FOR THE COMMUNITY IN THE SURROUNDING LOCATIONS OF THE KALBADEVI REGION. EXECUTION NOTES 1. ALL EXISTING GROUND LEVELS TO BE VERIFIED BY THE CONTRACTOR BEFORE COMMENCING THE WORK ON SITE. 2. ALL DIMENSIONS ARE UNFINISHED AND ARE IN MM UNLESS OTHERWISE SPECIFIED. ALL DIMENSIONS SHOULD BE VERIFIED AT SITE. 3. THIS DRAWING IS TO BE READ IN CONJUNCTION WITH RELEVANT ARCHITECTURAL, STRUCTURAL AND SERVICES DRAWINGS. 4. DISCREPANCY IF ANY SHOULD BE BROUGHT TO THE ARCHITECTS NOTICE BEFORE COMMENCING THE WORK. 5. DO NOT SCALE THE DRAWING. ONLY WRITTEN DIMENSIONS TO BE FOLLOWED ON SITE. 6. INTERNAL PLASTER IS 15MM EXTERNAL PLASTER IS 25MM 7. ALL BRICK WORK IS ENGLISH BOND. 8. FOR DOORS AND WINDOWS REFER TO THE RESPECTIVE DOOR-WINDOW SCHEDULE. 9. FOR FINISHES REFER TO THE FINISHES TABLE. GROUND FLR PLAN WORKING DRAWING NAME: DIVY VORA YEAR: III SEM:V ROLL NO: 36 SCALE:VARIED DATE: 15/11/19 BSSA PL NO:03 DESCRIPTION SPECIFICTION TOTAL D1 HINGES: MAGNUM HINGES FINISH: STAINLESS STEEL YALE MORTICE LOCK 50MM THK FLUSH DOOR WITH BOTH SIDE LAMINATE, DOUBLE 1000 2100 HINGES: MAGNUM HINGES FINISH: BRUSHED STEEL ARCHIES CYLINDRICAL LOCK 40MM THK FLUSH DOOR WITH BOTH SIDE LAMINATE, SINGLE SWING 1800 2100 SCHEDULE FOR DOOR D3 HINGES: RADIANT HINGES FINISH: CHROME STEEL VISUR FLOOR RECESSED LOCKING UNIT D4 40MM THK FLUSH DOOR WITH BOTH SIDE LAMINATE, SINGLE SWING HINGES: MAGNUM HINGES 1200 2100 30MM THK FLUSH DOOR WITH BOTH SIDE LAMINATE, SINGLE SWING SYMBOL DIMENSION DESCRIPTION LINTEL HGT SPECIFICTION SR. NO. SCHEDULE FOR WINDOWS SILL HGT 75MM T.W FRAME WITH 8MM THK FIXED GLASS W1 2100 W2 75MM T.W FRAME WITH 5MM THK LOUVERED GLASS PANELS FROSTED GLASS (TOUGHENED) 600 900 CLEAR GLASS (TOUGHENED) WITH UV PROTECTING FILM TABLE OF FINISHES C1 NEERU FINISHED PLASTERED AND PAINTED S1 100 MM GRAY MARBLE SKIRTING S2 75 MM SHERA SKIRT BOARD (VENEERED) F2 25 100 1200 T.W BOARDING F3 600 600 20 CERAMIC TILES NEERU FINISHED PLASTERED AND PAINTED F4 900 900 ITALIAN MARBLE TILES W2 300 300 20 CERAMIC WALL TILES C2 C3 C4 C5 C6 C7 C8 C9 C10 C14 C15 C16 C18 C19 C13 C11 C16 C17 C12 WEST ELEVATION NORTH ELEVATION W1 PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION DIVY VORA DIVY VORA BMC WARD OFFICE, MATUNGA DIVY VORA DIVY VORA BMC WARD OFFICE, MATUNGA WHITE BATHROOM NOTES SHALL NOT BE REPRDUCED WITHOUT WRITTEN PERMISSION 2. THE COMMENCEMENT OF CONSTRUCTION SUBJECT TO APPROVALS FROM ALL COMPETENT AUTHORITIES. KEY PLAN PROJECT NORTH CONSTRUCTION OF PUBLIC THE SURROUNDING LOCATIONS EXECUTION NOTES BY THE CONTRACTOR BEFORE COMMENCING THE WORK ON SITE. ALL DIMENSIONS ARE UNFINISHED AND ARE IN DIMENSIONS SHOULD BE VERIFIED SITE. WITH RELEVANT ARCHITECTURAL, STRUCTURAL DISCREPANCY IF ANY SHOULD BROUGHT TO COMMENCING THE WORK. DIMENSIONS TO BE FOLLOWED ON SITE. INTERNAL PLASTER 15MM ALL BRICK WORK IS ENGLISH BOND. FOR DOORS AND WINDOWS REFER TO THE FOR FINISHES REFER TO THE FINISHES TABLE. FIRST FLR STR PLAN WORKING DRAWING NAME: DIVY VORA YEAR: III SEM:V ROLL NO: 36 SCALE:VARIED DATE: 15/11/19 BSSA PL NO:04 1434 3288 1313 694 2247 1421 3403 468 C/C 370MM 75 150 T.W BRIDGING JOISTS C/C 370MM C/C 330MM NOTES 1. THIS DRAWING IS A PROPERTY OF DIVY VORA AND SHALL NOT BE REPRDUCED WITHOUT WRITTEN PERMISSION 2. THE COMMENCEMENT OF CONSTRUCTION SUBJECT TO APPROVALS FROM ALL COMPETENT AUTHORITIES. KEY PLAN PROJECT NORTH CONSTRUCTION OF PUBLIC LIBRARY AND AN E-LEARNING SPACE FOR THE COMMUNITY IN THE SURROUNDING LOCATIONS OF THE KALBADEVI REGION. EXECUTION NOTES 1. ALL EXISTING GROUND LEVELS TO BE VERIFIED BY THE CONTRACTOR BEFORE COMMENCING THE WORK ON SITE. 2. ALL DIMENSIONS ARE UNFINISHED AND ARE IN MM UNLESS OTHERWISE SPECIFIED. ALL DIMENSIONS SHOULD BE VERIFIED AT SITE. 3. THIS DRAWING IS TO BE READ IN CONJUNCTION WITH RELEVANT ARCHITECTURAL, STRUCTURAL AND SERVICES DRAWINGS. 4. DISCREPANCY IF ANY SHOULD BE BROUGHT TO THE ARCHITECTS NOTICE BEFORE COMMENCING THE WORK. 5. DO NOT SCALE THE DRAWING. ONLY WRITTEN DIMENSIONS TO BE FOLLOWED ON SITE. 6. INTERNAL PLASTER IS 15MM EXTERNAL PLASTER IS 25MM 7. ALL BRICK WORK IS ENGLISH BOND. 8. FOR DOORS AND WINDOWS REFER TO THE RESPECTIVE DOOR-WINDOW SCHEDULE. 9. FOR FINISHES REFER TO THE FINISHES TABLE. SECTIONS WORKING DRAWING NAME: DIVY VORA YEAR: III SEM:V ROLL NO: 36 SCALE:VARIED DATE: 15/11/19 BSSA PL NO:10 COMPACTED EARTH BED CC 1:3:6 230 DRY RUBBLE SOLING 100 RCC LINTEL IN CC 1:2:4 25 EXT. PLASTER IN CM 1:4 (SANDFACE) 100 75 TW FRAME NIGHT LATCH TW PANEL 150 THK TRUSS 25MM LADDI 50MM SCREEDING CHINA MOSAIC +4.0M +5.8M +3.3M 7 6 SECTION AA' D3 D4 +7.8M +1.2M +9.0M -0.6M +2.2M +6.8M +5.8M C G J 250 500 GIRDER 100 150 BRIDGING JOISTS SECTION BB' A' NOTES 1. THIS DRAWING IS A PROPERTY OF DIVY VORA AND SHALL NOT BE REPRDUCED WITHOUT WRITTEN PERMISSION 2. THE COMMENCEMENT OF CONSTRUCTION SUBJECT TO APPROVALS FROM ALL COMPETENT AUTHORITIES. KEY PLAN PROJECT NORTH CONSTRUCTION OF PUBLIC LIBRARY AND AN E-LEARNING SPACE FOR THE COMMUNITY IN THE SURROUNDING LOCATIONS OF THE KALBADEVI REGION. EXECUTION NOTES 1. ALL EXISTING GROUND LEVELS TO BE VERIFIED BY THE CONTRACTOR BEFORE COMMENCING THE WORK ON SITE. 2. ALL DIMENSIONS ARE UNFINISHED AND ARE IN MM UNLESS OTHERWISE SPECIFIED. ALL DIMENSIONS SHOULD BE VERIFIED AT SITE. 3. THIS DRAWING IS TO BE READ IN CONJUNCTION WITH RELEVANT ARCHITECTURAL, STRUCTURAL AND SERVICES DRAWINGS. 4. DISCREPANCY IF ANY SHOULD BE BROUGHT TO THE ARCHITECTS NOTICE BEFORE COMMENCING THE WORK. 5. DO NOT SCALE THE DRAWING. ONLY WRITTEN DIMENSIONS TO BE FOLLOWED ON SITE. 6. INTERNAL PLASTER IS 15MM EXTERNAL PLASTER IS 25MM 7. ALL BRICK WORK IS ENGLISH BOND. 8. FOR DOORS AND WINDOWS REFER TO THE RESPECTIVE DOOR-WINDOW SCHEDULE. 9. FOR FINISHES REFER TO THE FINISHES TABLE. MEZZANINE STR PLN WORKING DRAWING NAME: DIVY VORA YEAR: III SEM:V ROLL NO: 36 SCALE:VARIED DATE: 15/11/19 BSSA PL
100 200 T.W BRIDGING JOISTS 480 225 150 TEMPLATE BEDBLOCK 160 320 BINDER C/C 330MM 75 150 T.W BRIDGING JOISTS C/C 310MM 100 THK BRACKET 20MM THK MS PLATE 200 x 400 BINDER B K C D 1434 3288 1313 694 2247 1421 3403 25MM THK FACEA BOARD NOTES SHALL NOT BE REPRDUCED WITHOUT WRITTEN PERMISSION TO APPROVALS FROM ALL COMPETENT AUTHORITIES. KEY PLAN PROJECT NORTH LIBRARY AND AN E-LEARNING OF THE KALBADEVI REGION. EXECUTION NOTES THE CONTRACTOR BEFORE COMMENCING ALL DIMENSIONS ARE UNFINISHED AND ARE IN DIMENSIONS SHOULD BE VERIFIED AT SITE. WITH RELEVANT ARCHITECTURAL, STRUCTURAL DISCREPANCY ANY SHOULD BE BROUGHT TO COMMENCING THE WORK. DIMENSIONS TO BE FOLLOWED ON SITE. EXTERNAL PLASTER 25MM MEZZANINE STR PLN WORKING DRAWING NAME: DIVY VORA YEAR: III SEM:V ROLL NO: 36 SCALE:VARIED DATE: 15/11/19 BSSA PL NO:06 160 320 BINDER C/C 330MM C/C 310MM 20MM THK MS PLATE 200 400 BINDER 25MM THK FACEA BOARD NOTES SHALL NOT BE REPRDUCED WITHOUT WRITTEN TO APPROVALS FROM ALL COMPETENT AUTHORITIES. KEY PLAN PROJECT NORTH CONSTRUCTION OF PUBLIC SPACE FOR THE COMMUNITY EXECUTION NOTES ALL EXISTING GROUND LEVELS TO BE VERIFIED BY THE CONTRACTOR BEFORE COMMENCING ALL DIMENSIONS ARE UNFINISHED AND ARE DIMENSIONS SHOULD BE VERIFIED AT SITE. WITH RELEVANT ARCHITECTURAL, STRUCTURAL AND SERVICES DRAWINGS. THE ARCHITECTS NOTICE BEFORE DO NOT SCALE THE DRAWING. ONLY WRITTEN INTERNAL PLASTER 15MM ALL BRICK WORK IS ENGLISH BOND. RESPECTIVE DOOR-WINDOW SCHEDULE. TERRACE STR PLAN WORKING DRAWING NAME: DIVY VORA YEAR: III SEM:V ROLL NO: 36 SCALE:VARIED DATE: 15/11/19 BSSA PL NO:08 1434 3288 1313 694 2247 1421 3403 1434 3288 1313 694 2247 1421 3403 SECTION AA' SECTION BB' NOTES THIS DRAWING PROPERTY OF DIVY VORA AND KEY PLAN PROJECT NORTH EXECUTION NOTES THE WORK ON SITE. ALL DIMENSIONS ARE UNFINISHED AND ARE IN UNLESS OTHERWISE SPECIFIED. ALL DIMENSIONS SHOULD BE VERIFIED SITE. THIS DRAWING TO READ CONJUNCTION WITH RELEVANT ARCHITECTURAL, STRUCTURAL AND SERVICES DRAWINGS. FOUNDATION PLAN WORKING DRAWING NAME: DIVY VORA YEAR: SEM:V ROLL NO: 36 SCALE:VARIED DATE: 15/11/19 BSSA PL NO:02 SECTION CC'
PLAN
NO:06

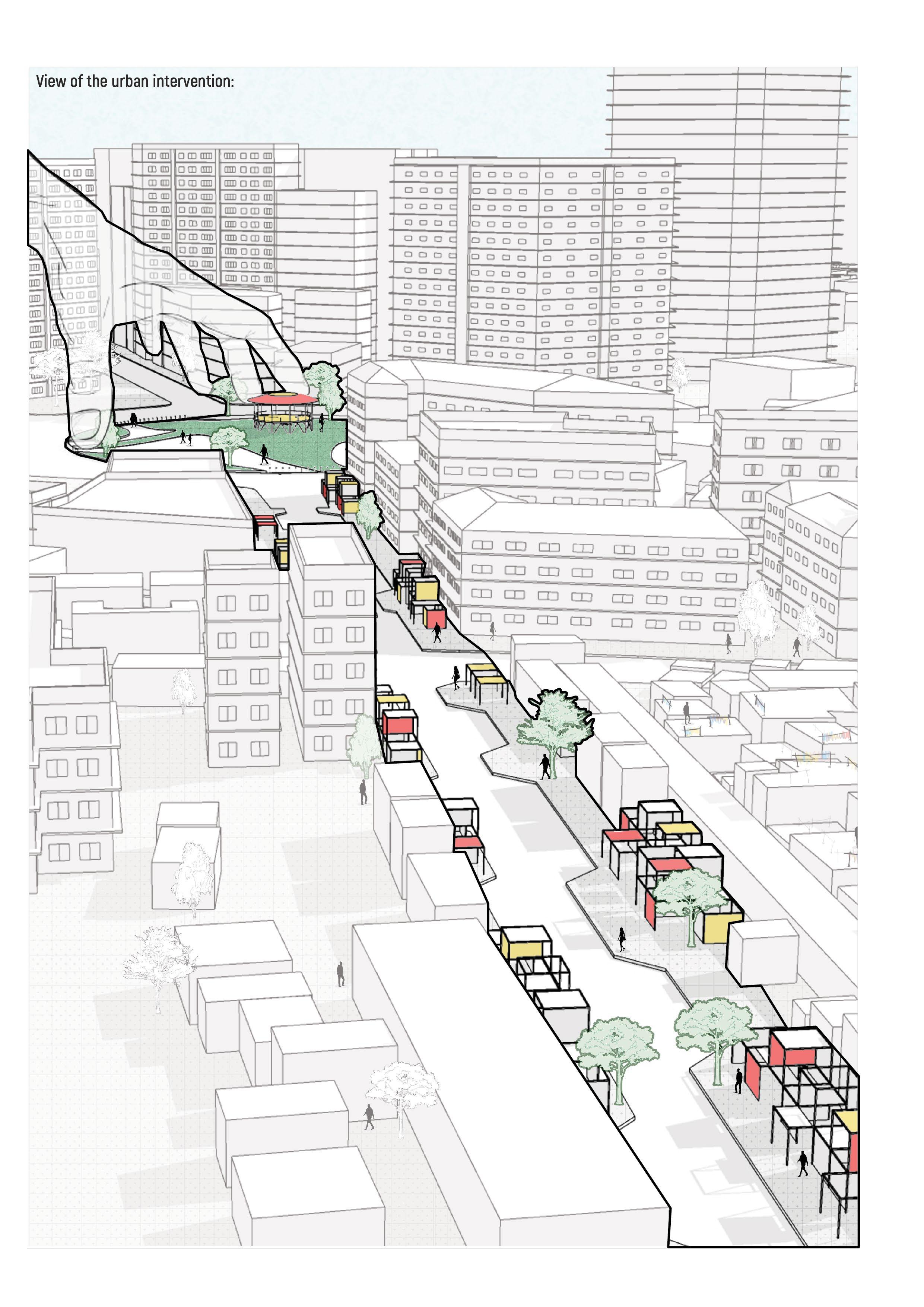

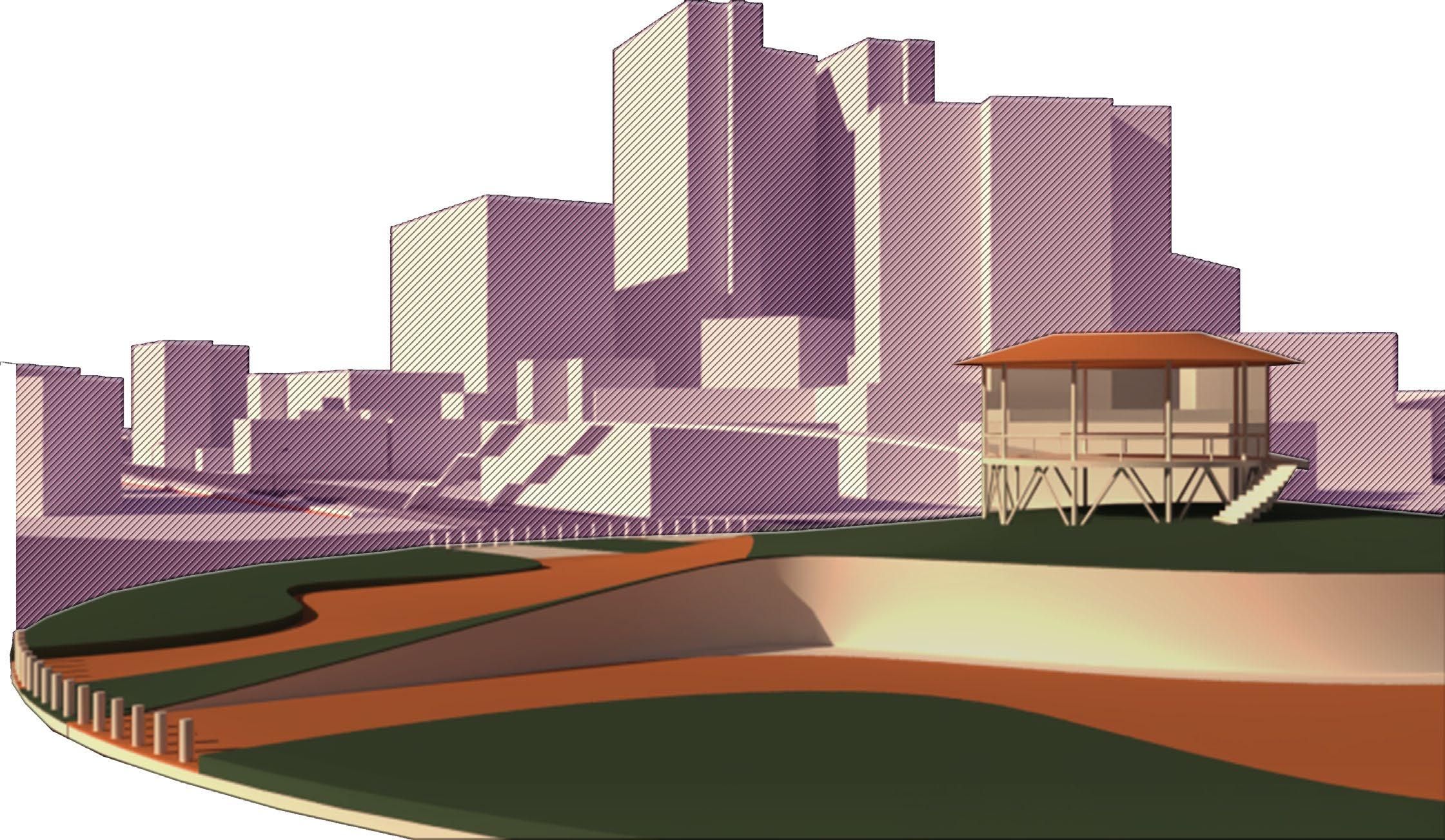

06. URBAN STREETSCAPE: JACOB CIRCLE
Site: Jacob Circle
Semester VIII, Year 4
Mentor: Ar. Atrey Chhaya, Ar. Ritu Mohanty, Ar. Nishant Modi, Ar. Prachi Donde, Ar. Prakriti Mehta
Team Members: Stavan Gang, Harshiv Vaghela, Rushil Patel, Aditya Shroff, Kaushal Suthar

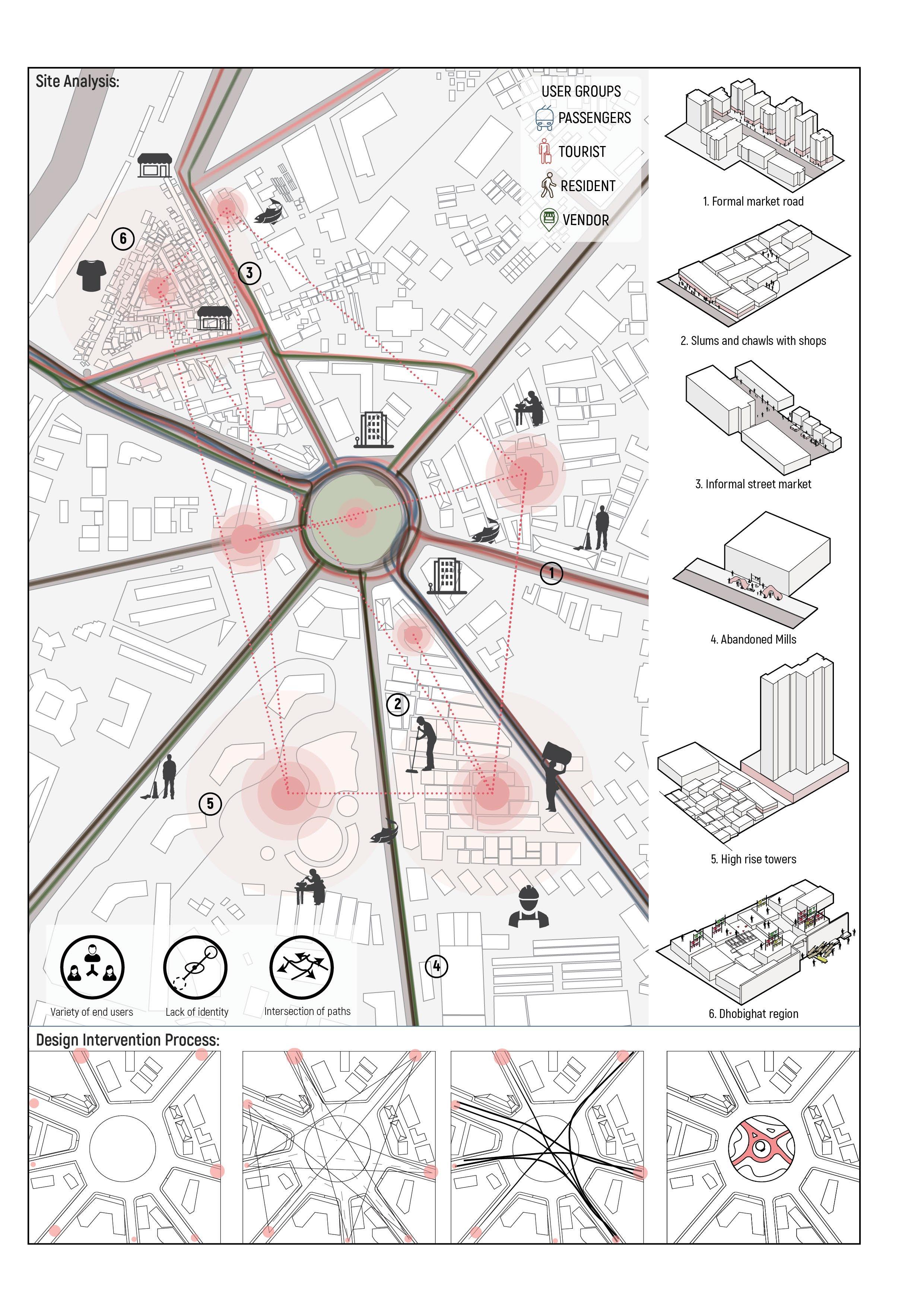

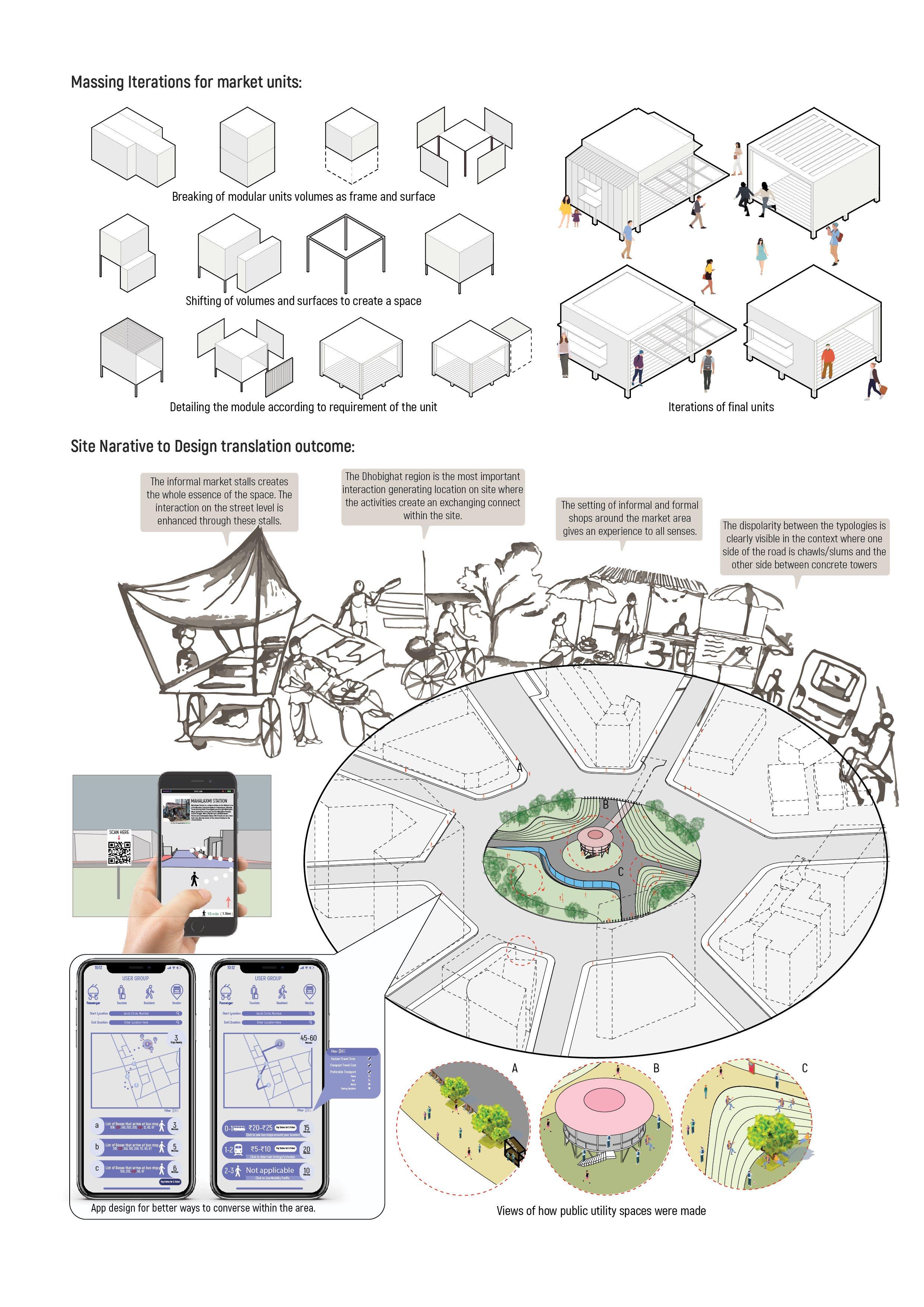

The intent of this project was to look at micro inserts at urban scale which would activate or redefine the exisiting fabric of the neighbourhood. Jacob Circle is a conjuction of seven roads and each road exhibits a unique character. We analysed the movement of people throughout different time periods and according to that the proposal aimed at easing out the tension on the streets. We studied the multifunctional use of space from the dhobi ghat vicinity which was the key inspiration for designing the informal market on that very street. The design of the circle was derived from the forces on site.
13. NOMADIC FORMS: WAVES

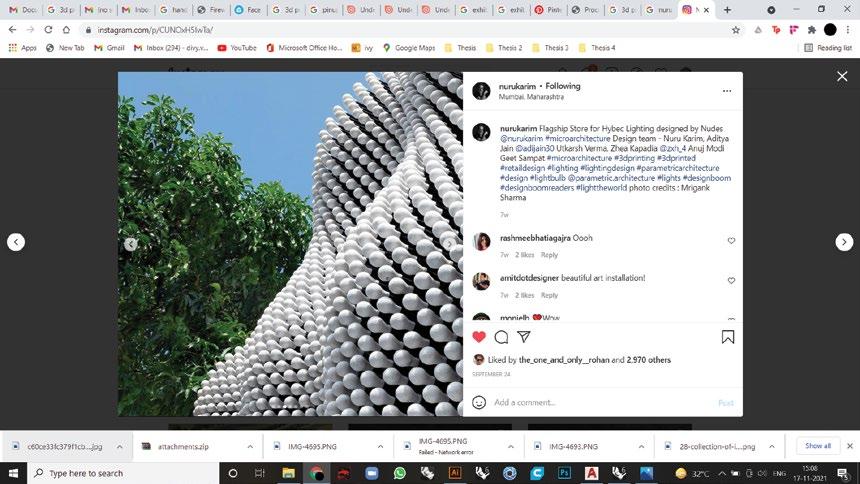

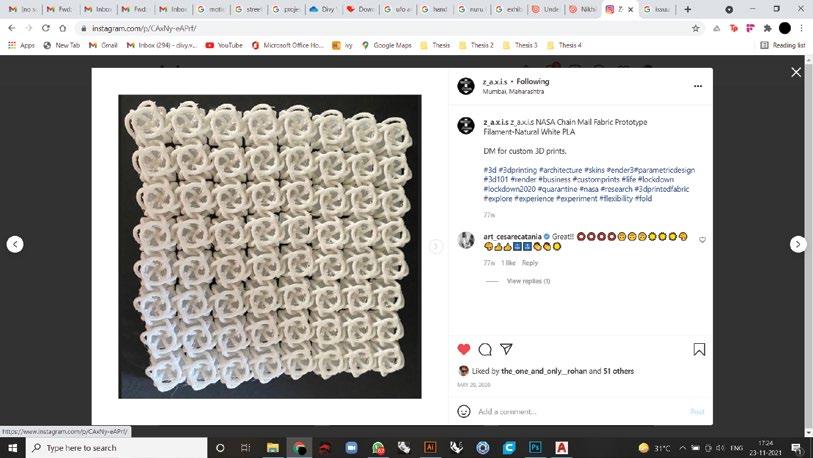

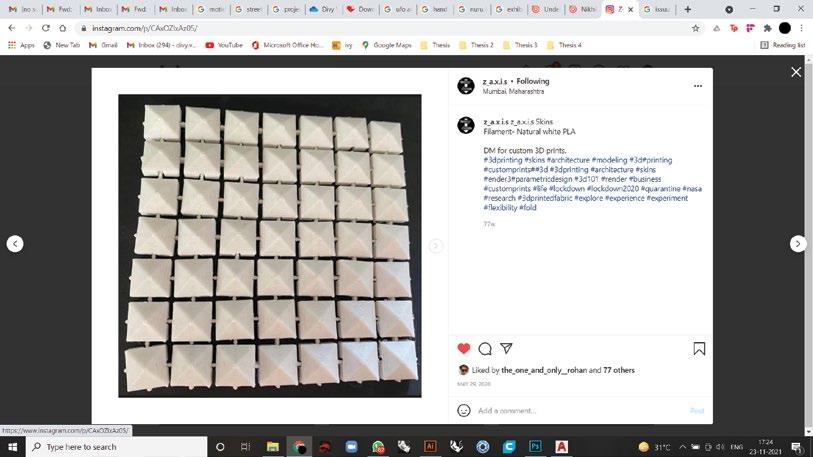

ur mission is to look at modelling and architecture through the lens of the future applications of 3D printing.To provide a platform for all

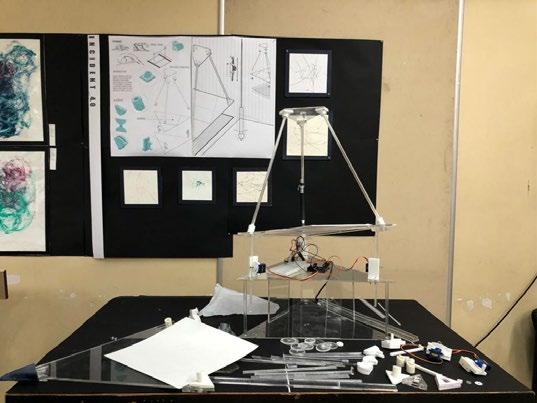

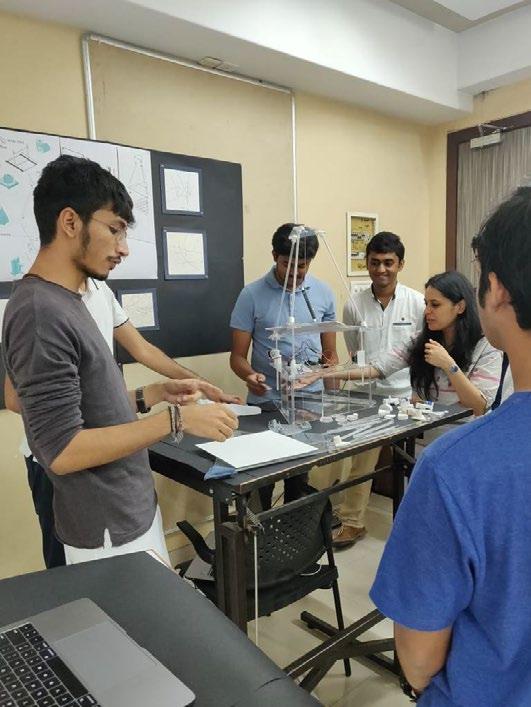

The concept behind motion of the waves was translated as a design medium through exploration of models. The whole idea of the studio was to create a dynamic model that can replicate the simulations of these wave motions to articulate some patterns as drawings. Using linear actuators and arduino coding we managed to create a motion of a stationary plate as if it were the surface of water. The suspended pen/pencil being at rest and the paper being set in motion creates a set of drawings that are recorded and the eventual outcome was put forth as an exhibition display within college premise.
In collaboration with Boson Machines Design Credits: Ar. Nuru Karim Chess Piece Re-design Prototype Design Credits: Rooshad Shroff Dining room 3D-printing Design Credits: Rooshad Shroff Exhibition Set-up for the studio work. Showcasing the working set-up of the model Explaining the concept of wave
motion. Study: Drawings of motion of waves achieved through physical model simulations Semester V, Year 3 Mentor: Ar. Bhavleen Kaur, Ar. Dhruv Seth Group: Harshiv Vaghela, Stavan Gang, Tirth Gajra
M A C H I N E D R A W I
N G S

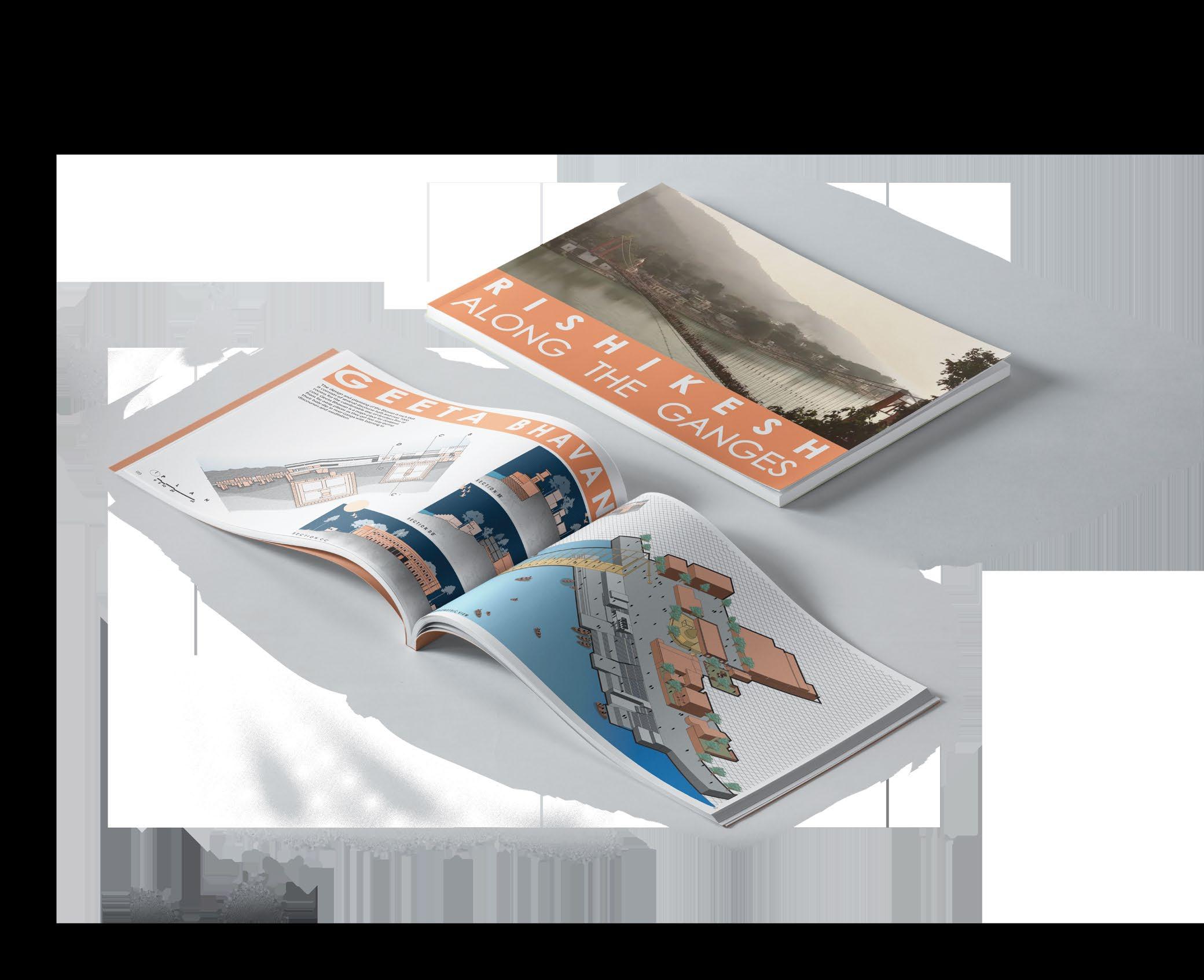

14.TRIP PUBLICATIONS
Publications of drawings made during the study tours.
Period: 2017 - 2019
A series of compilation published under the name of BSSA editorial showcases plans, sections, elevations and isonometric drawings made during the visits to Aurangabad (2017), Jodhpur & Jaisalmer (2018), Rishikesh (2018), Ahmedabad (2019) and Bhutan (2019).
