SUSTAINABLE GRP SOLUTIONS AND SERVICES IN THE MIDDLE EAST British operated company

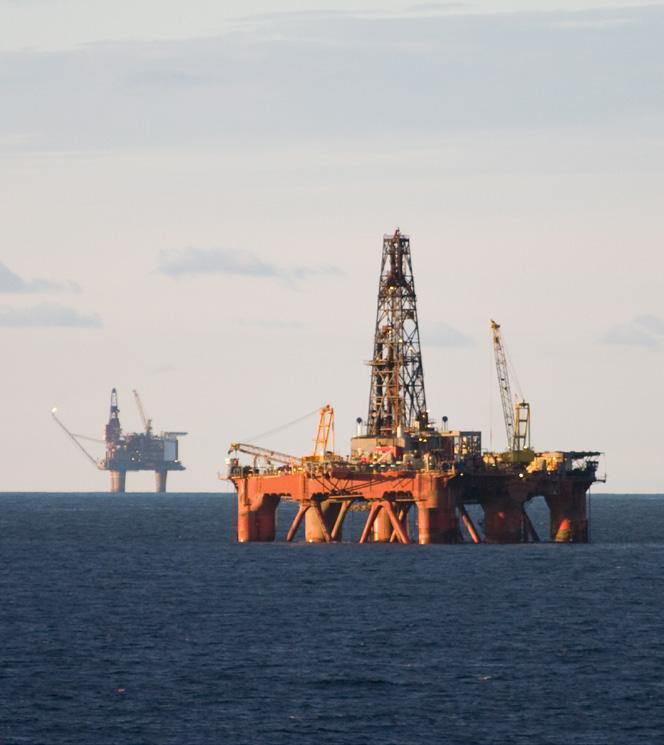

Offshore

Marine & Harbour

Aviation

Utility

Construction

Rail Brand of

+971 54 589 1971 | sales@decksafe.ae | decksafe.ae

Contact + 971 54 589 1971 sales@decksafe.ae www.decksafe.ae @decksafe-middle-east @decksafeme

Service Options Full Design-Build-Install Service We take care of everything from site survey to completed installation Design-Build Service We provide you fully or part fabricated modules for your teams to install Materials Supply We’re happy to supply the materials and fixings needed for your own projects Advise/Supervise We are here to support your teams with their GRP questions Training We provide specialist GRP training courses to enable your teams to understand its unique properties

2

Providing Anti-Slip GRP Access Solutions WORLDWIDE

Working with businesses of all sizes across the globe

www.decksafe.ae

+ 971 54 589 1971

sales@decksafe.ae

3

Why choose GRP?

What is GRP? GRP stands for Glass Reinforced Plastic (or polymer).

It’s also known as FRP (Fibre Reinforced Plastic) or fibreglass. They are all a blend of recycled plastic, recycled glass and a tough, waterproof resin to bond it all together. The materials inherent strength and longevity make it the ideal alternative to steel or aluminium.

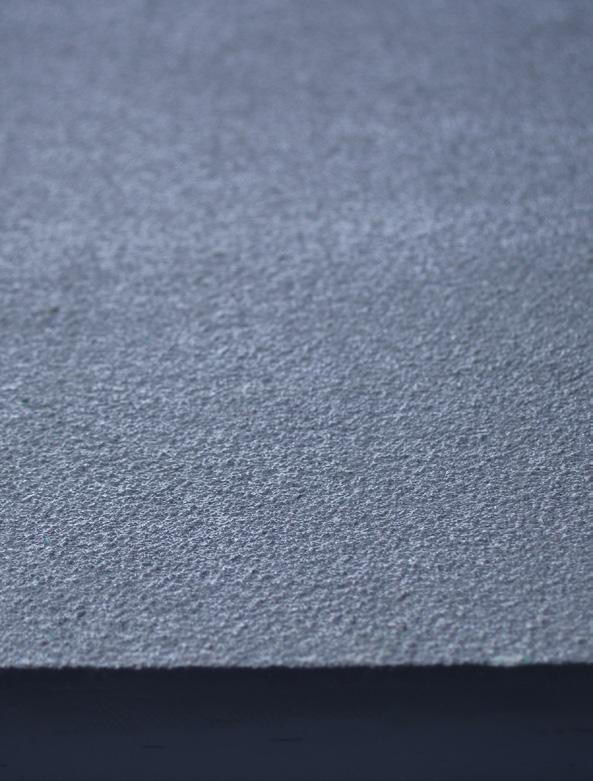

Material Characteristics Slip-resistant QuartzGrip® moulded fibreglass grating has an integral, angular quartz gritted surface tested in accordance with BS 7976-2. It provides an exceptional level of slip-resistance in all directions. Lifespan depends on frequency of use.

Chemical resistant GRP is resistant to a wide range of chemicals, across a wide temperature spectrum. It can also be made using different resin systems to achieve specific chemical resistance properties.

Fire resistant All products contain a fire resistant additive and comply with Euro Class 1 and ISO 11952-2. Perfomance is equivalent to ASTM E84 Class 1 and BS 476 part 7 Class 2 flame spread to give a 30 minute burn time.

Quality assured Manufactured in accordance with our ISO 9001 accredited Quality Management System, the structural integrity of the material is high grade. A suggested lifespan of 25 years can be expected based on a number of variables: environmental, installation process, maintenance, loading and traffic conditions.

4

Non-conductive GRP has zero metal content so is non-conductive.

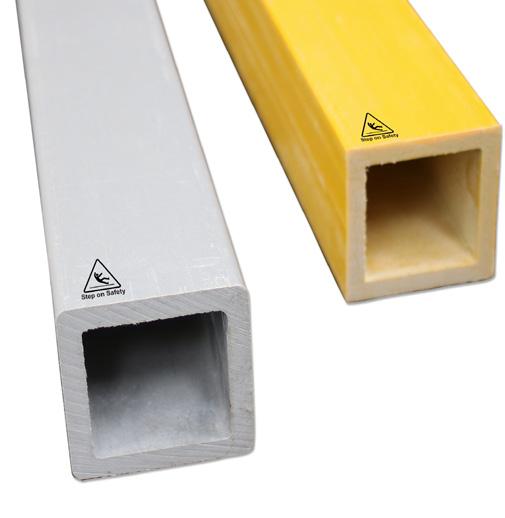

Self-coloured All QuartzGrip® moulded fibreglass grating and GRP Profiles are pigmented throughout during manufacture and do not require any secondary treatments such as powder coating or paint spraying.

KG

Lightweight & Durable

Weighing a fraction of the steel equivalents, GRP is lightweight in comparison and can be manoeuvred into place without mechanical assistance.

It is exceptionally durable and has the ability to withstand impact, reducing the risk of permanent buckling or deformation.

UV Stable All products are manufactured with a high quality UV inhibitor to prevent colour degradation.

£ Economical

In most cases, GRP equivalents to steel components are much cheaper to buy. Add to that the reduction in handling and maintenance costs and GRP is the smart choice.

Providing Anti-Slip GRP Access Solutions WORLDWIDE

About Us

Decksafe is a brand under Step On Safety Ltd and has been at the forefront of GRP Innovation since its establishment in 2010. We recognized the unique requirements of water-based industries and have been providing innovative, sustainable solutions and specialist expertise. Decksafe now operates in the Marine, Offshore, Aviation, and Utilities industries (water, gas, electric, and nuclear).

We work closely with end customers, designers, engineers, and contractors globally. Our insight and expertise help improve the safety and wellbeing of everyone in the high-risk, industrial environments we specialize in. By consistently turning creative thinking into practical, real-world solutions that maintain the highest standards of safety and durability, DeckSafe Solutions has become synonymous with quality.

GRP has been a staple of the boating industry for years, providing a lightweight, rot-proof alternative to wooden or steel hull construction. The growth now extends to marinas themselves; the same qualities that make GRP ideal for use on boats make it suitable for creating safe, strong, and slip-proof pontoons, jetties, ramps, and waterside decks. GRP is impervious to salt water, will never fade, warp, or corrode, and never needs painting or staining.

We understand the safety challenges presented when working in some of the world’s most dangerous environments. Wherever you are in the world – including mid-ocean – we are here to help. Our products and services are available worldwide.

www.decksafe.ae www.decksafe.ae

++971 97154 54589 5891971 1971

sales@decksafe.ae

5 5

Designed for Safety. Made for People.

8

Providing Anti-Slip GRP Access Solutions WORLDWIDE

OUR SOLUTIONS

www.decksafe.ae

+ 971 54 589 1971

sales@decksafe.ae

9

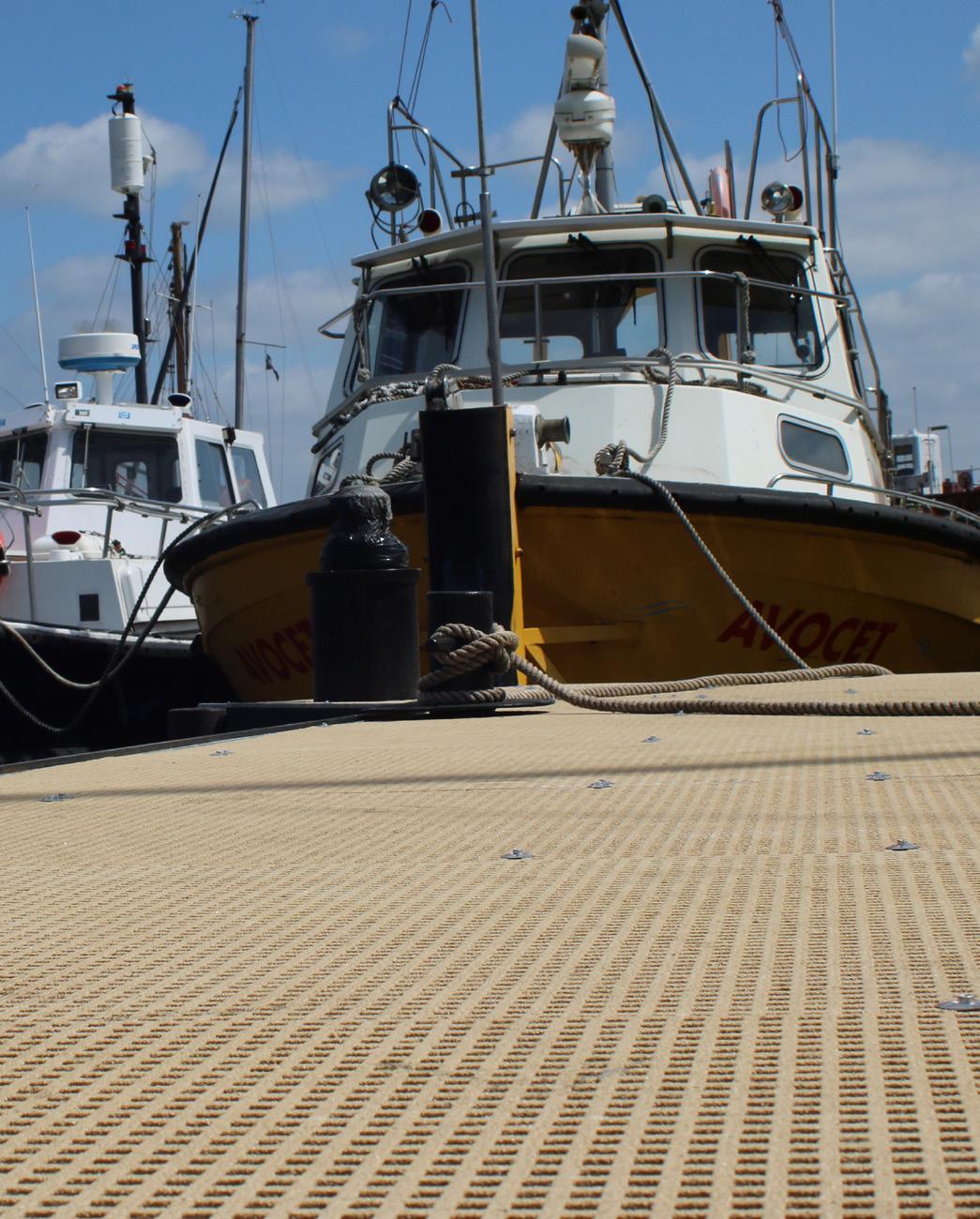

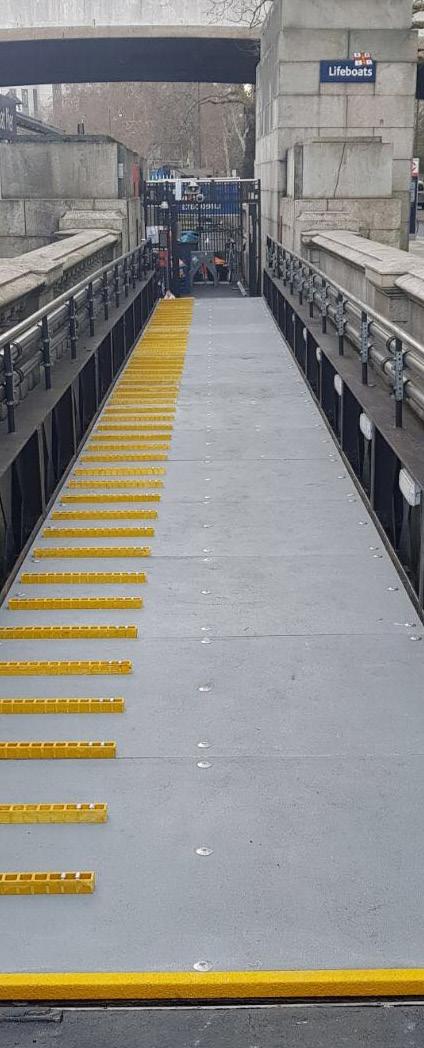

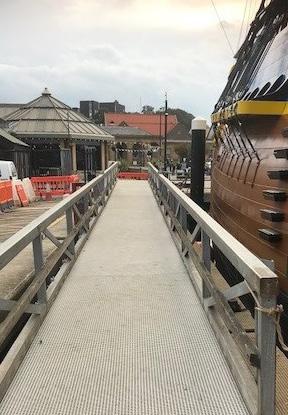

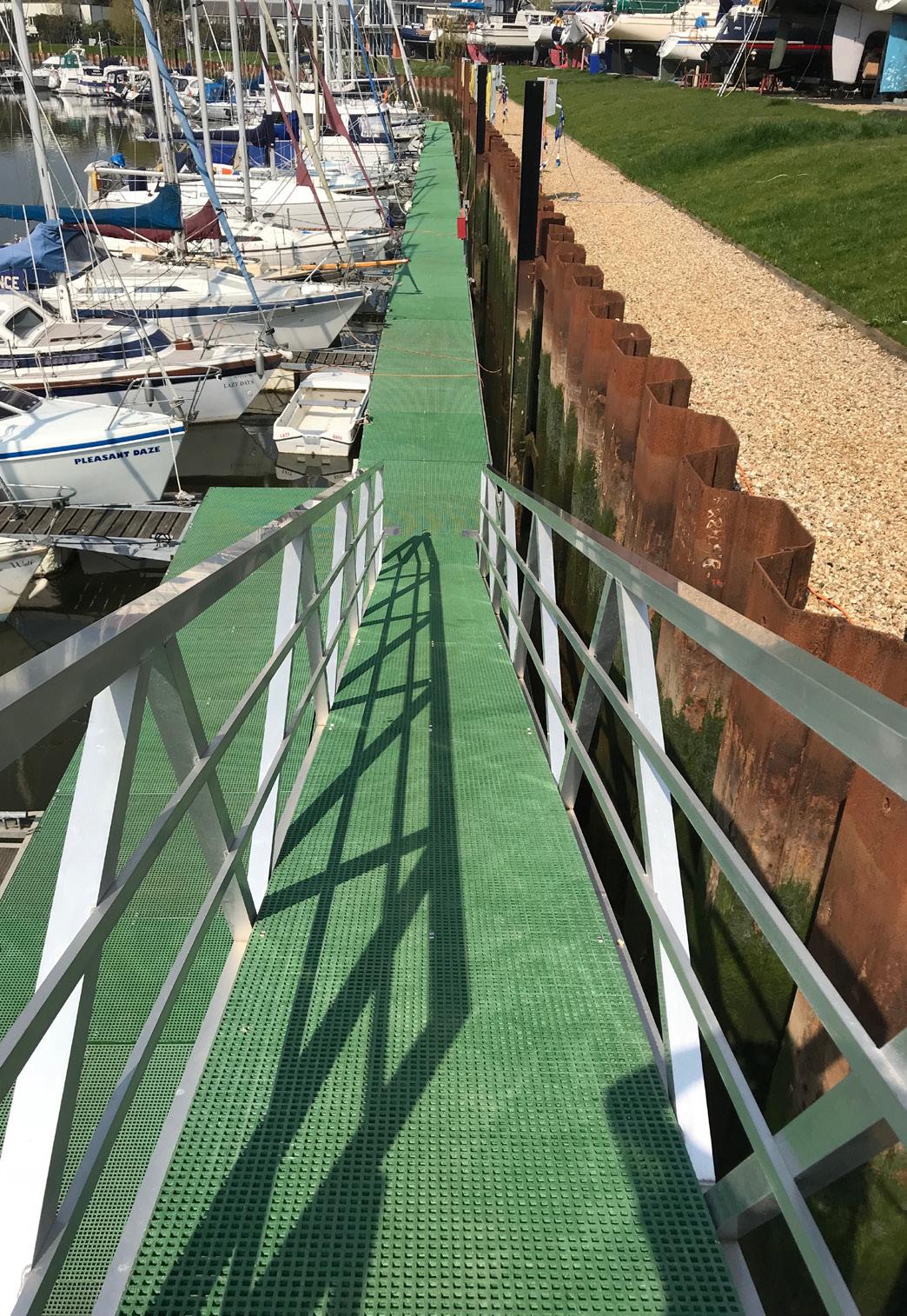

Ports & Harbours

Providing an anti-slip waterside walkway is essential for reducing unnecessary slips while accessing boats of all sizes, especially in poor weather when the vessel is moving and the ground is wet. We can rebuild or rejuvenate your pontoons and jetties by replacing rotten or corroded structural beams with GRP Profiles, improving surfaces with GRP Mini Mesh Grating and adding GRP Handrails.

GRP is impervious to fresh and saltwater, it won’t rot or corrode and resists algae, ensuring the pontoon remains smart and slip-free for decades. If you want to install it yourself we can help by cutting it to size.

For a less industrial look, choose WPC decking boards.

See our website for more information.

10

Providing Anti-Slip GRP Access Solutions WORLDWIDE

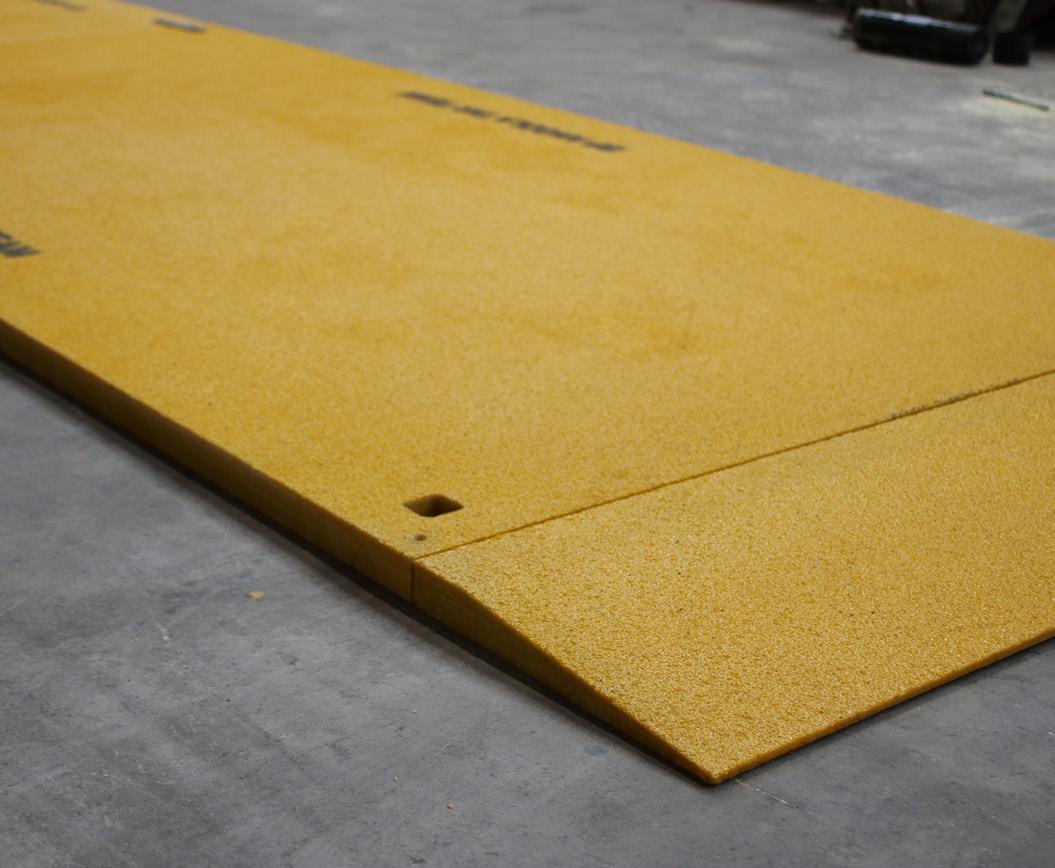

Access Ramps

A smooth Access Ramp will make life a whole lot easier for anyone on wheels – from child buggies, wheelchairs and mobility scooters to wheeled luggage, tool boxes, trollies, trailers or even road vehicles.

Adding a ramp to improve access into and around ports, marinas and waterside exhibits can be done with mobile or permanent solutions. Whether it’s building a ramp from scratch or improving an existing one with anti-slip flooring or handrail, DeckSafe has the solution you need. Whichever solution suits your situation the best, we guarantee that the GRP element will be long-lasting and low-maintenance.

Choose from Standard or Mini Mesh Grating, Solid-Top or Anti-Slip Flat Plate to create the surface to suit your needs.

www.decksafe.ae

+ 971 54 589 1971

sales@decksafe.ae

11

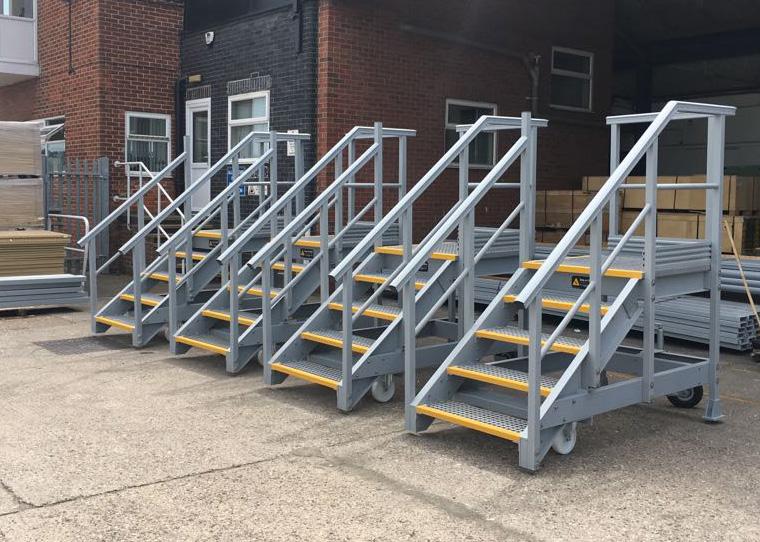

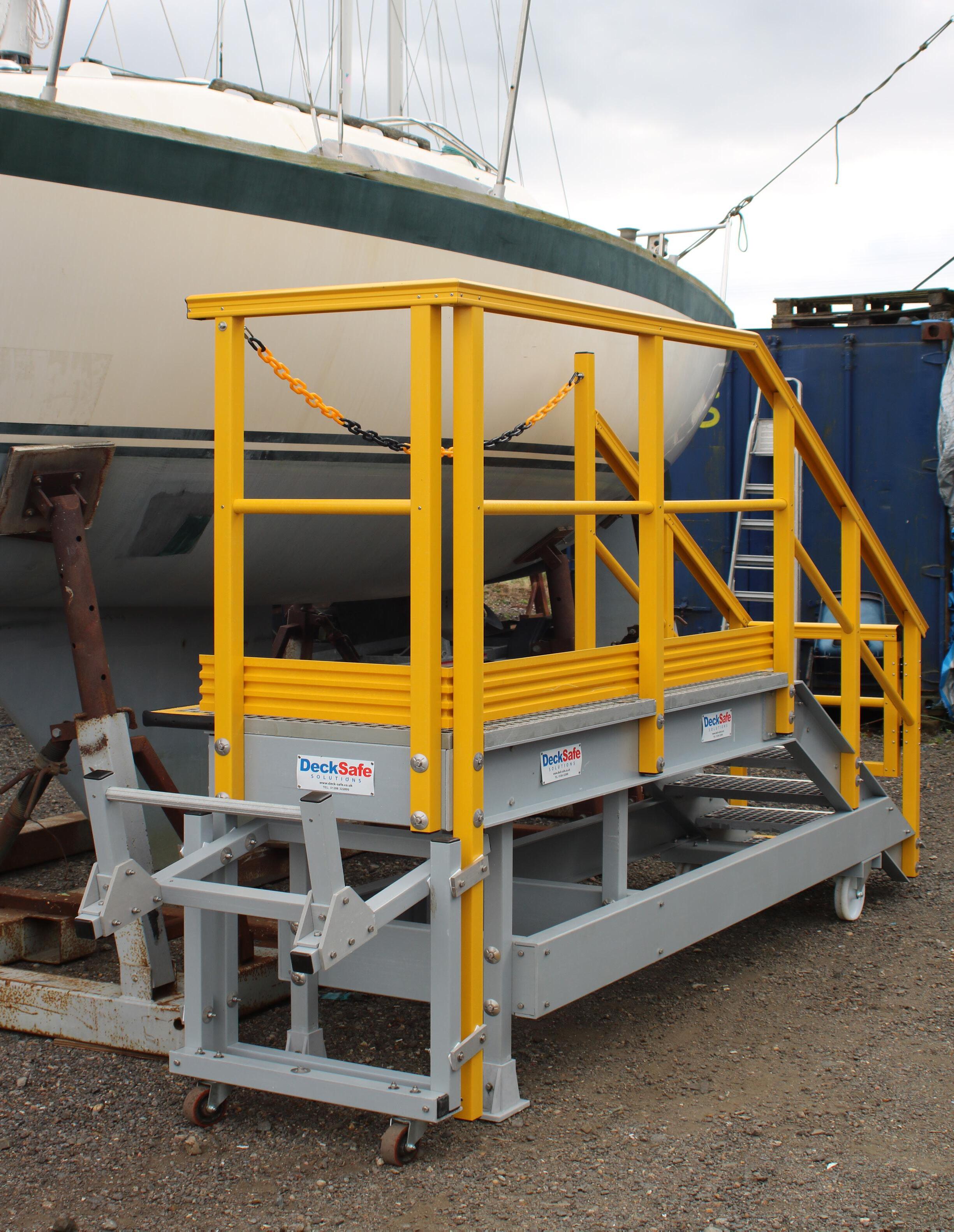

Mobile Access Platforms

Typically seen at household waste & recycling centres, a Mobile Access Platform allows people to safely throw their refuse into containers while allowing operatives to move the steps easily from one container to another as they fill up.

reduce noise on site.

It’s not just recycling centres that can benefit from a Mobile Access Platform. They can be built to any size so are ideal for providing flexible cleaning or maintenance access to boats, machinery, lighting, ventilation systems or windows. Wheels are braked so while they’re in use they won’t move around.

• Braked wheels hold them in position while in use

GRP is much lighter than the steel equivalents, making the MAPs easier to manoeuvre while maintaining strength. It’s also anti-slip – even when wet, impact-resistant and won’t rust, so will last longer with little to no maintenance. All the materials used are self coloured and UV-stable so won’t chip or fade.

DeckSafe’s Mobile Access Platforms (MAPs) are: • Designed to BS standards with 5kn/m2 loading • GRP Grating and Stair Nosing remains anti-slip even when wet or oily • Non-corrosive, non-conductive and long-lasting • Lightweight, making them easy to manoeuvre into position • Allows safe access for cleaners, engineers and pedestrians • Easy to install and modular in design – can be supplied as full fabrication or in modules • Bespoke designs can include anti-climb mesh and safety gates

It’s also much quieter to walk on too, helping to

12

Providing Anti-Slip GRP Access Solutions WORLDWIDE

www.decksafe.ae

+ 971 54 589 1971

sales@decksafe.ae

13

14 14

Providing Providing Anti-Slip Anti-Slip GRP GRP Access Access Solutions Solutions WORLDWIDE WORLDWIDE

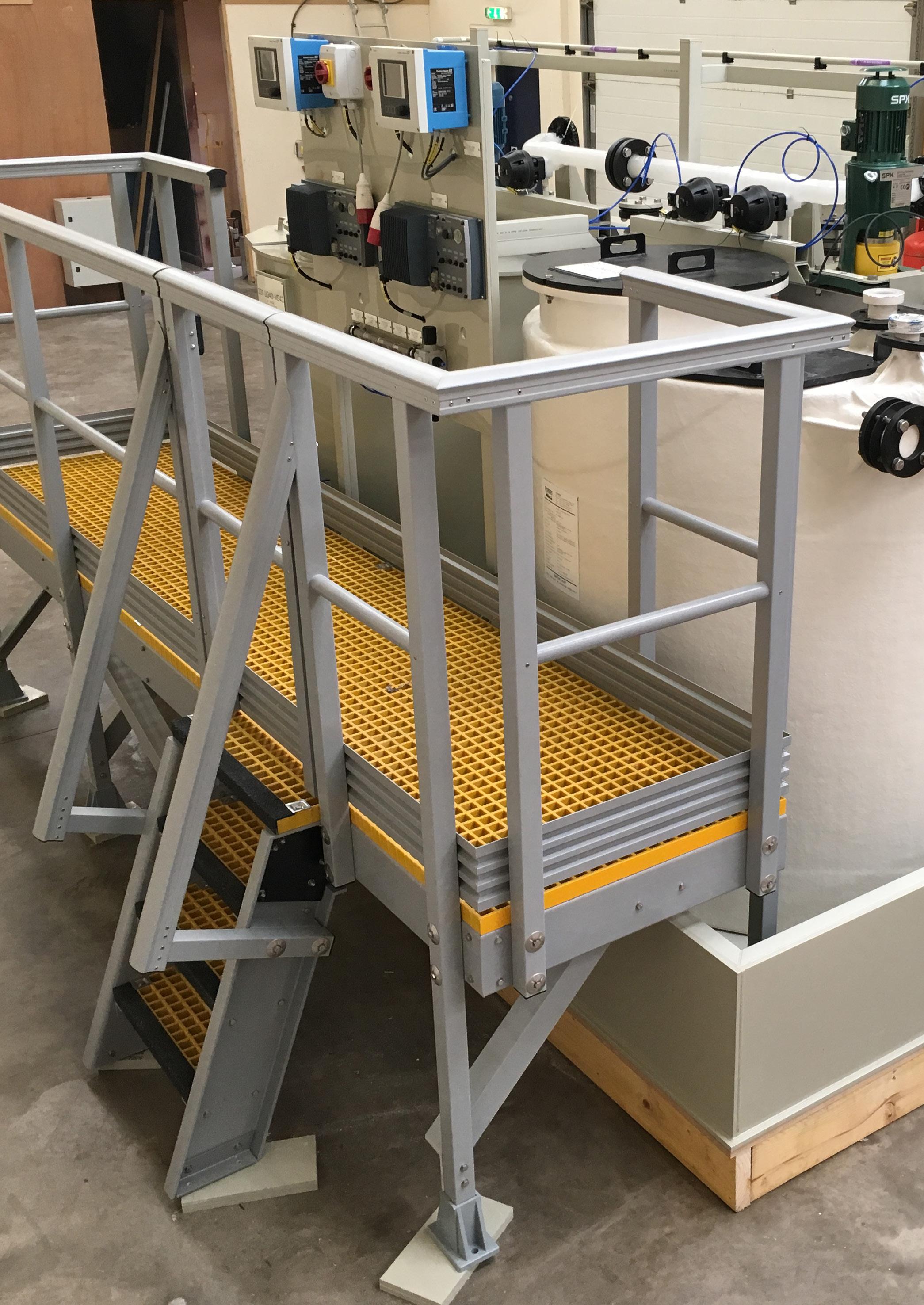

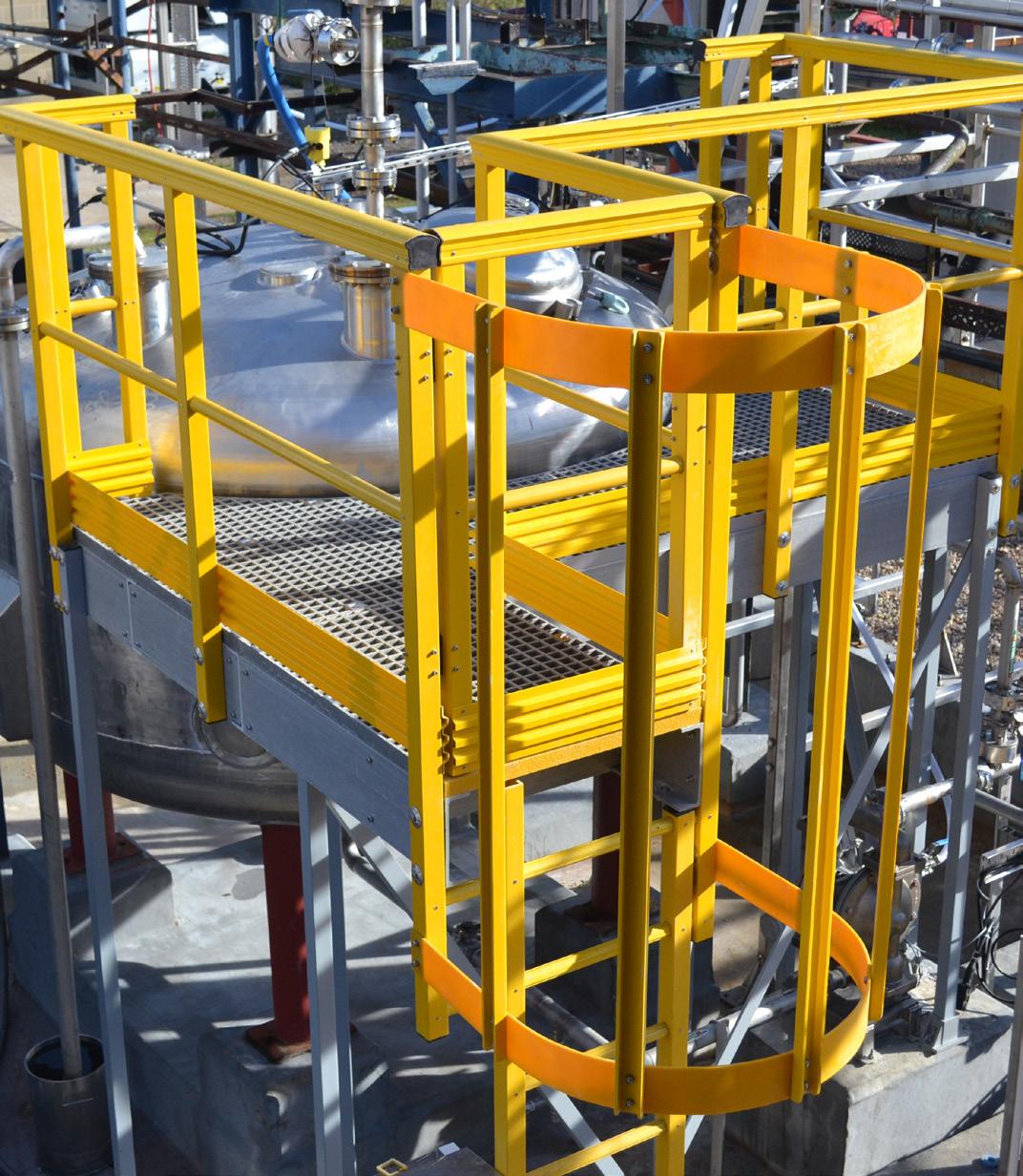

Maintenance Platforms Whether you need to reach the top of a storage tank, or the top of a truck or simply need to reach a machine access hatch or panel to work comfortably and safely our designers will create a solution that meets all your requirements.

GRP Fabrications don’t usually need heavy lifting equipment to manoeuvre into position so are quicker and more economical to install.

From hi-vis solid top fibreglass panels allowing wheeled and foot traffic to move easily into position, to raised open mesh gantries that allow maintenance workers to simply walk over pipes rather than between them.

For multi-floor machinery or control panels and maintenance hatches that are installed in hard-to-reach places, gaining access safely can be a challenge.

We can design, supply and install a wide variety of GRP Stairs, Gantries and Access Platforms, ranging in size from simple threshold steps to more intricate high-level platforms that ensure operational and maintenance crews remain safe at all times.

We incorporate Tread Grating in the design of all our fibreglass Stairs and Access platforms. This stair tread is manufactured from 38mm thick grating with an integral solid reinforced nosing for optimal slip resistance.

www.decksafe.ae

+ 971 54 589 1971

sales@decksafe.ae

15

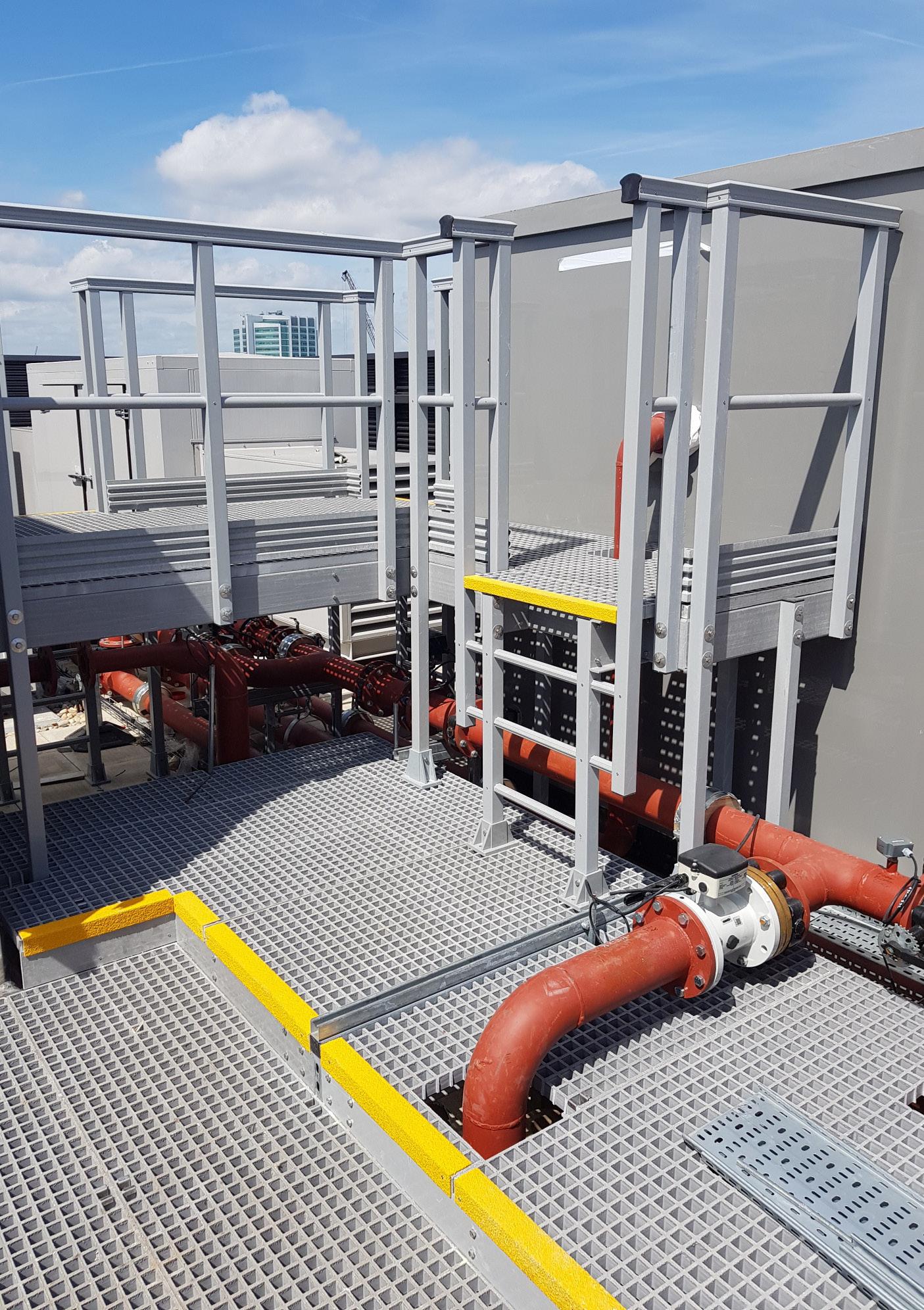

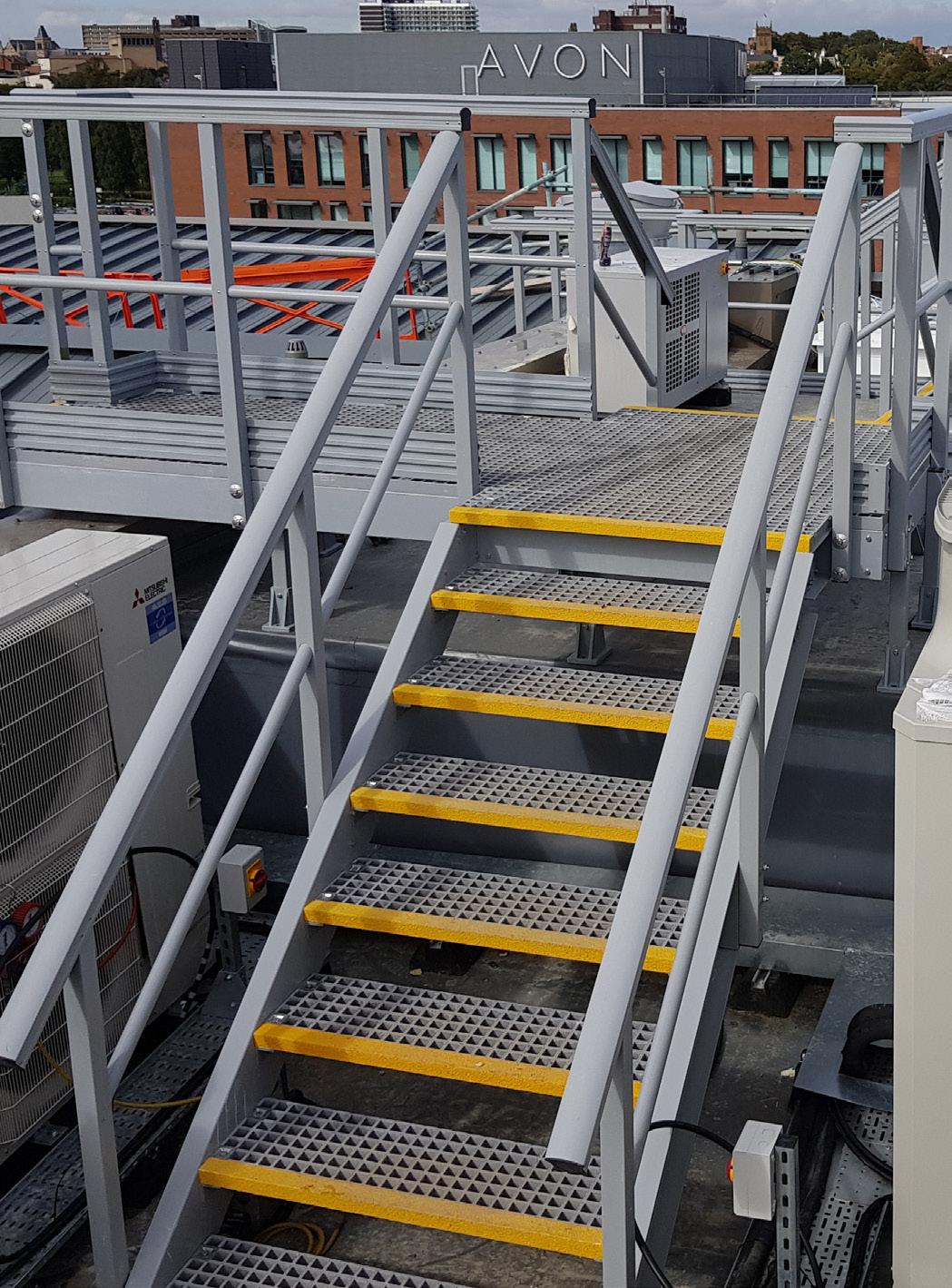

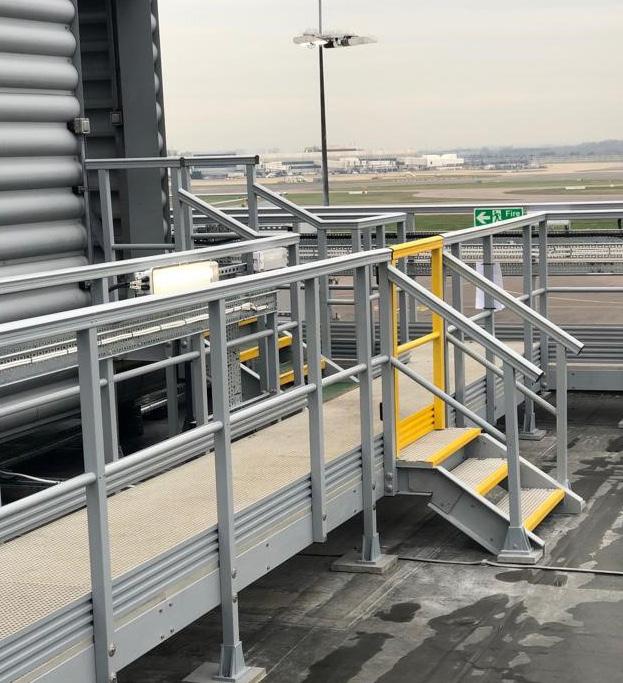

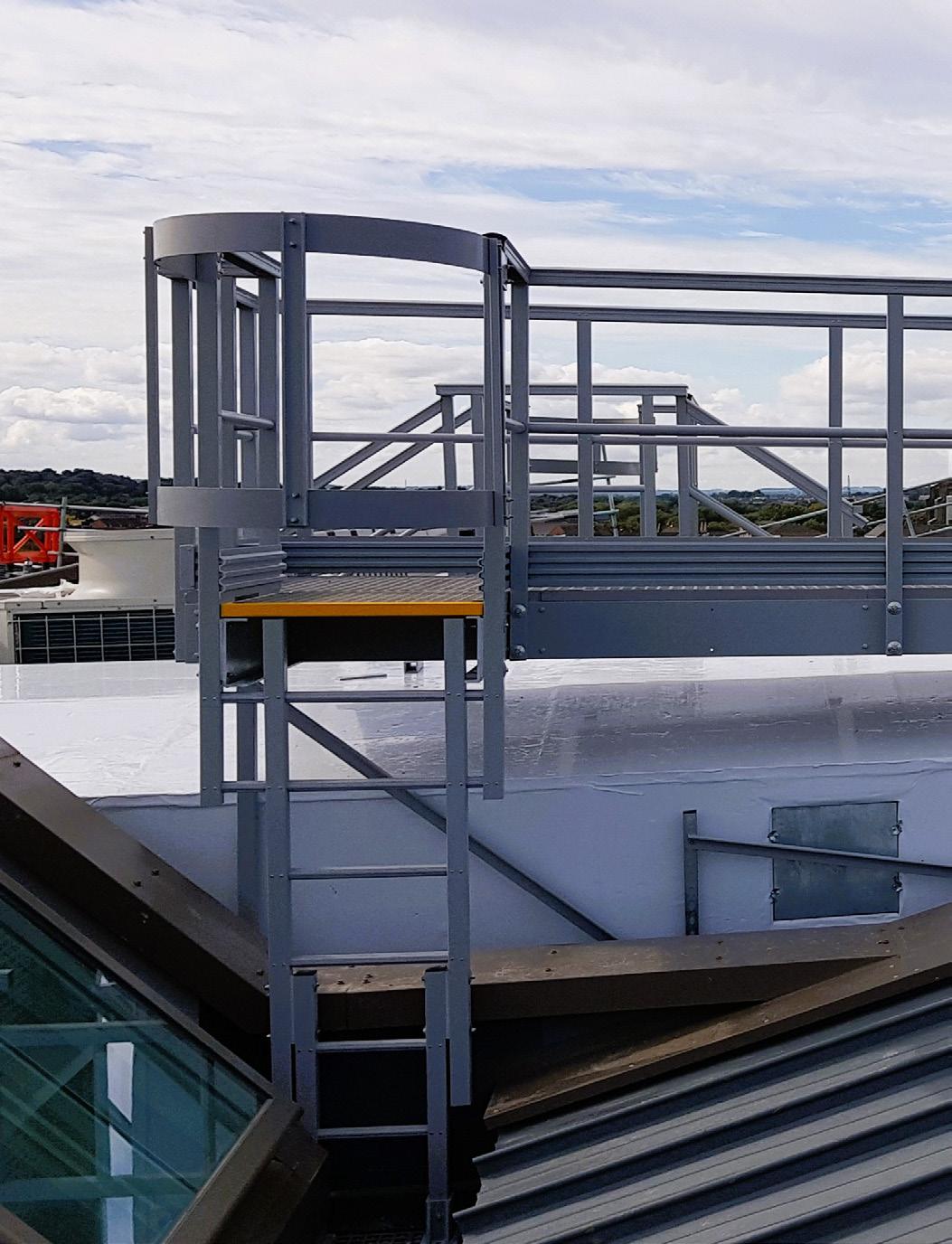

Rooftop Access From building a Staircase to reach the roof, to adding Platforms, Gantries and Walkways that smooth the surface allowing maintenance teams to navigate safely, roof-top access can be as simple as adding a Hop Over or as extensive as resurfacing the whole area.

The DeckSafe Solutions team can help you assess how much or how little is required to assure HVAC engineers safety and allowing easy access to the control units, ducting and vents on your building All our stairs and platforms are constructed using QuartzGrip® anti-slip GRP grating with edges highlighted with hi-vis yellow nosing to help reduce trips and falls. Platforms and steps more than 400m high are fitted with handrailing, and self-closing gates can be installed where necessary.

Glass reinforced plastic is a fraction of the weight of steel equivalents making it an obvious choice for roof installations. It's also easier to handle, reducing the need for lifting equipment and quicker to install.

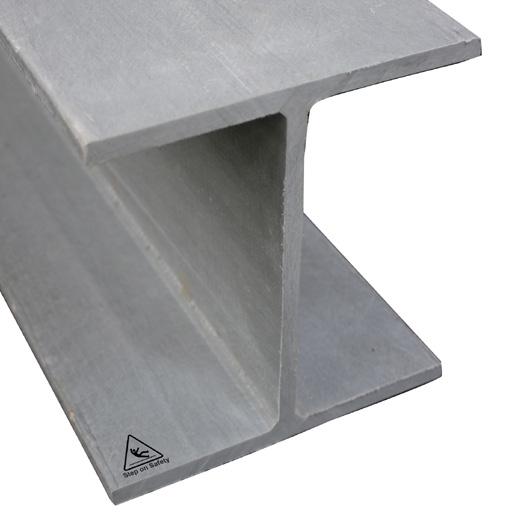

Once in place GRP Grating and Structural GRP Profiles are long-lasting and require little to no maintenance.

They are UV stable and non-corrosive so won’t fade or rust.

16 Anti-Slip GRP Access Solutions WORLDWIDE 16 Providing Providing Anti-Slip GRP Access Solutions WORLDWIDE

www.decksafe.ae

+ 971 54 589 1971

sales@decksafe.ae

17

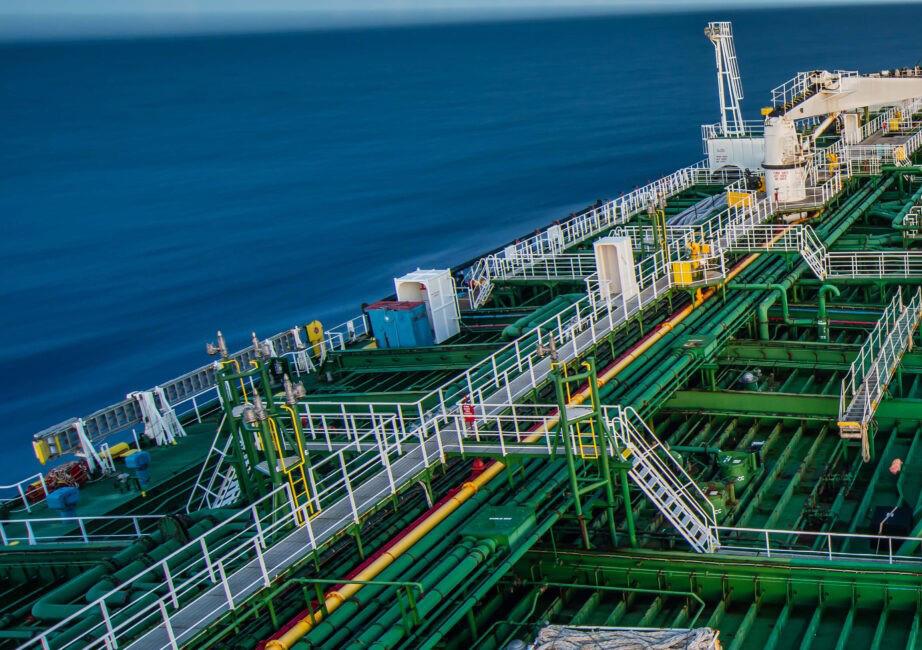

Oil Tanker Walkways After working closely with our client Barr and Wray for 13 months, DeckSafe Solutions was contracted to design a GRP Raised Walkway on board the deck of an oil tanker being refitted in Scotland. The new layout of services left the deck heavily populated with no safe walking routes or maintenance accessibility.

DeckSafe’s collaborated design provides the safe walking routes for crew members in the most hazardous weather environments. Considerably reducing injury from slips, trips and falls, the maintenance walkways will also ensure M&E services are not damaged by occupants clambering over pipes and conduits.

The substructure boasts a subframe and handrailing system that is both non-corrosive, non-conductive, fire resistant and anti-sparking which is ideal for international sea bearing vessels such as this. The meshed floor panels are also designed in GRP Open Mesh Anti-Slip Grating with DDA and Equality Act Compliant Nosing’s, which hosts the highest anti-slip certification available in the BS and EN standards.

18

Providing Anti-Slip GRP Access Solutions WORLDWIDE

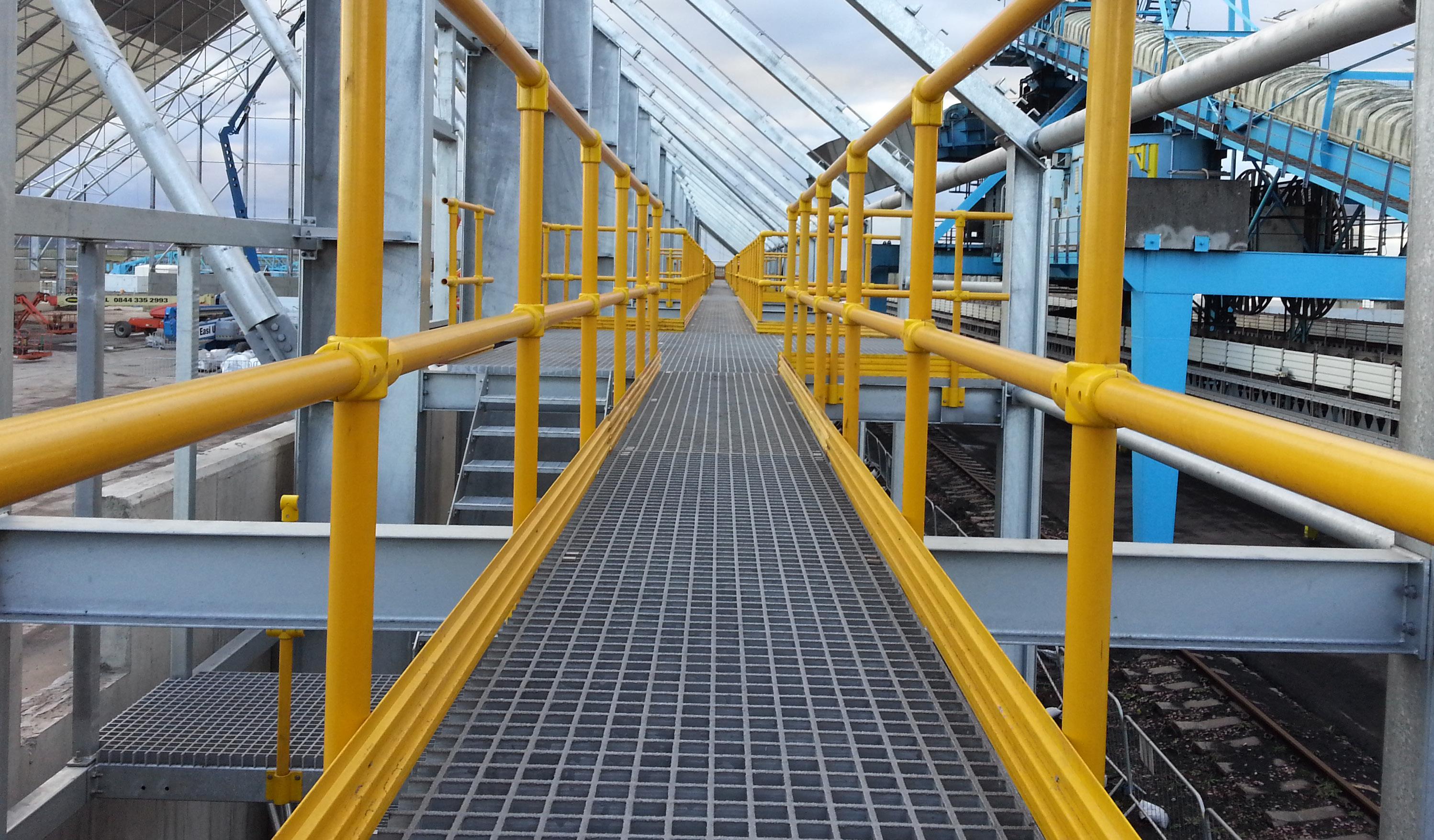

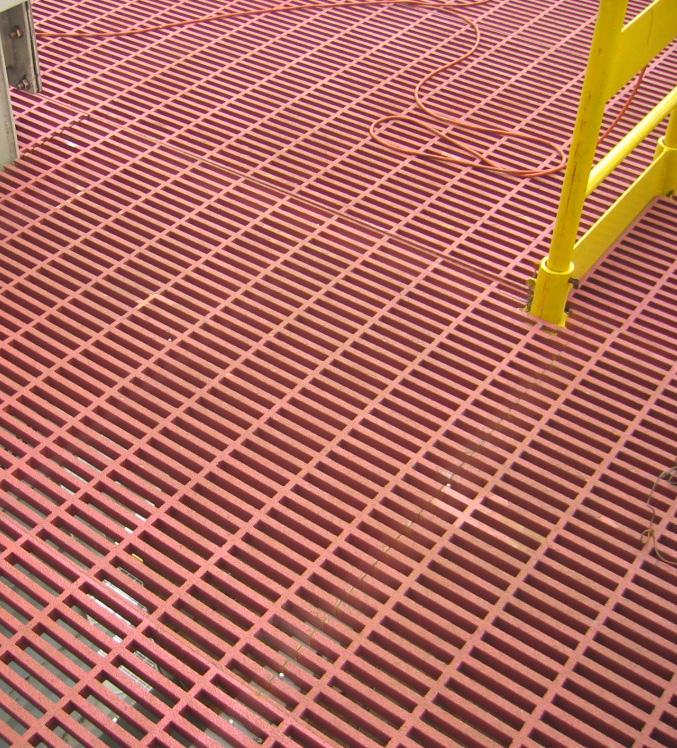

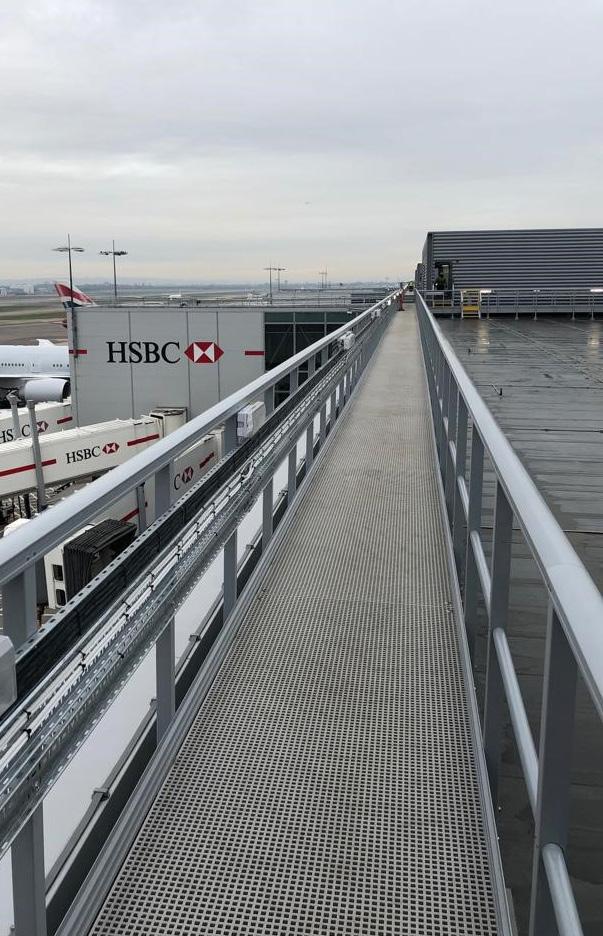

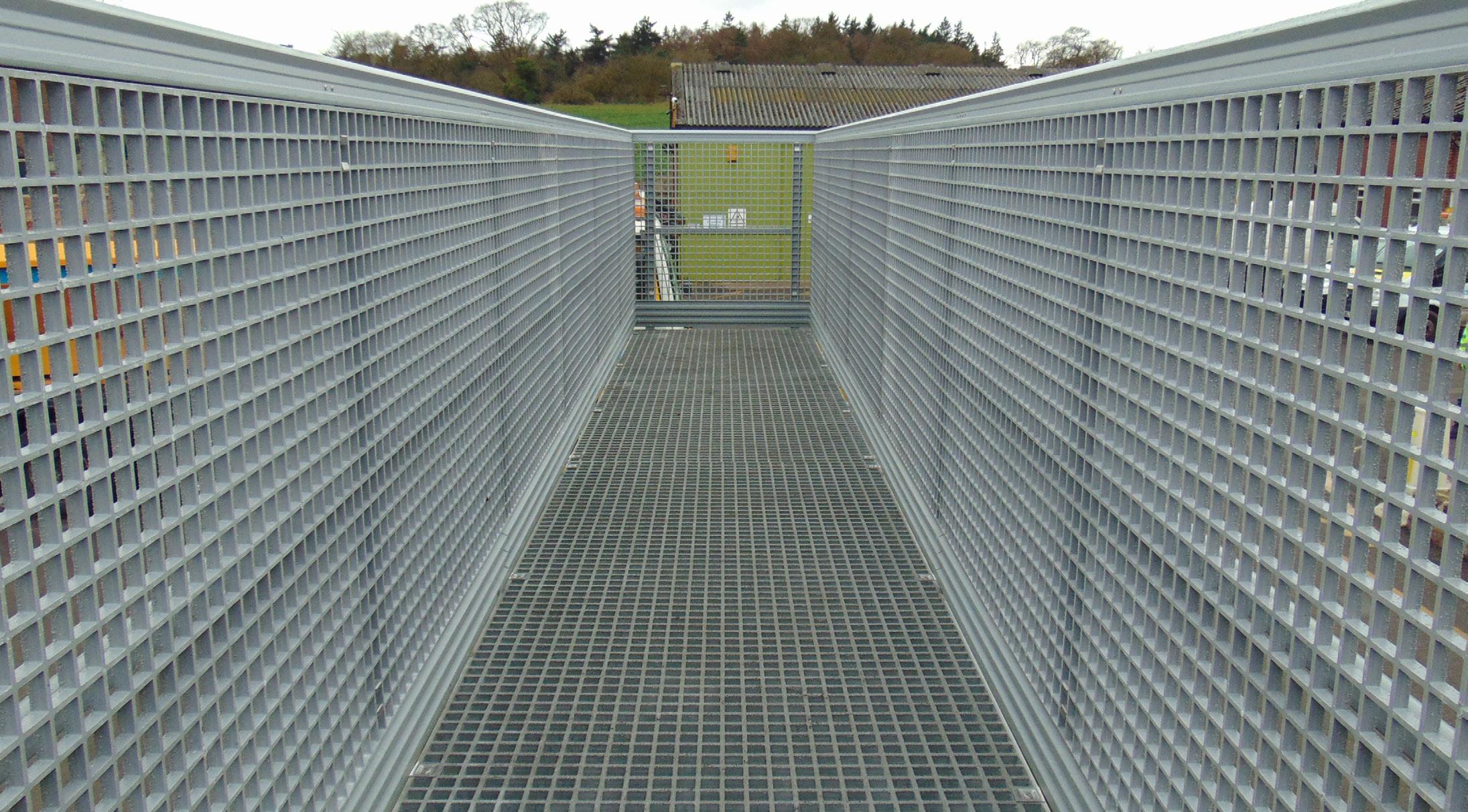

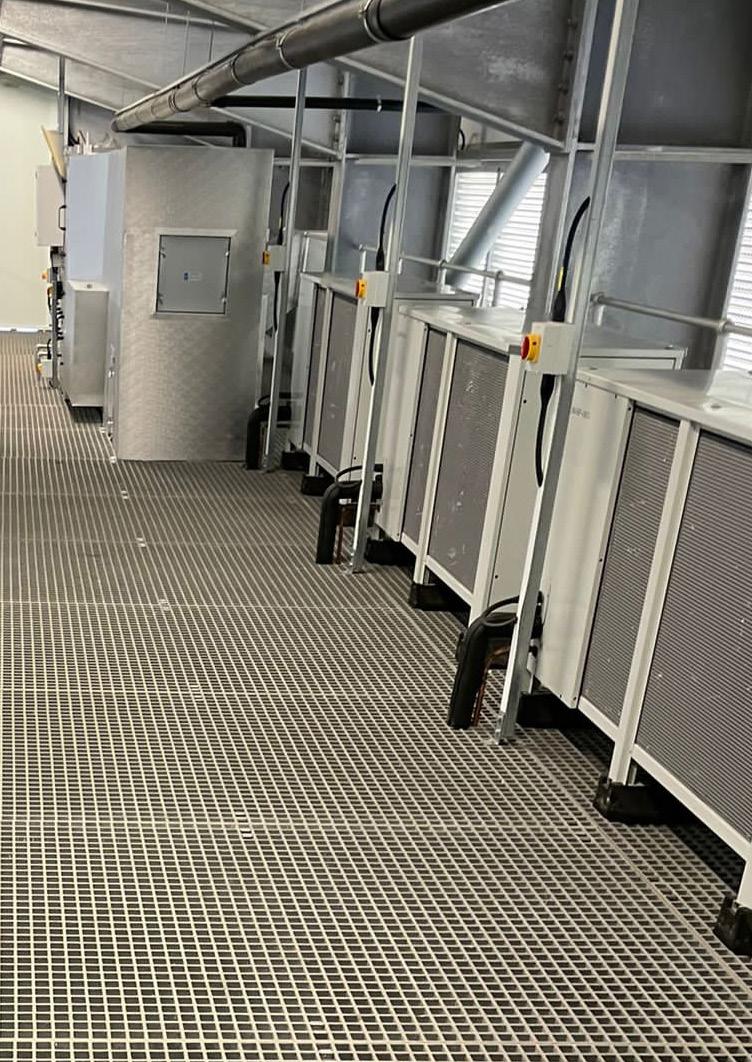

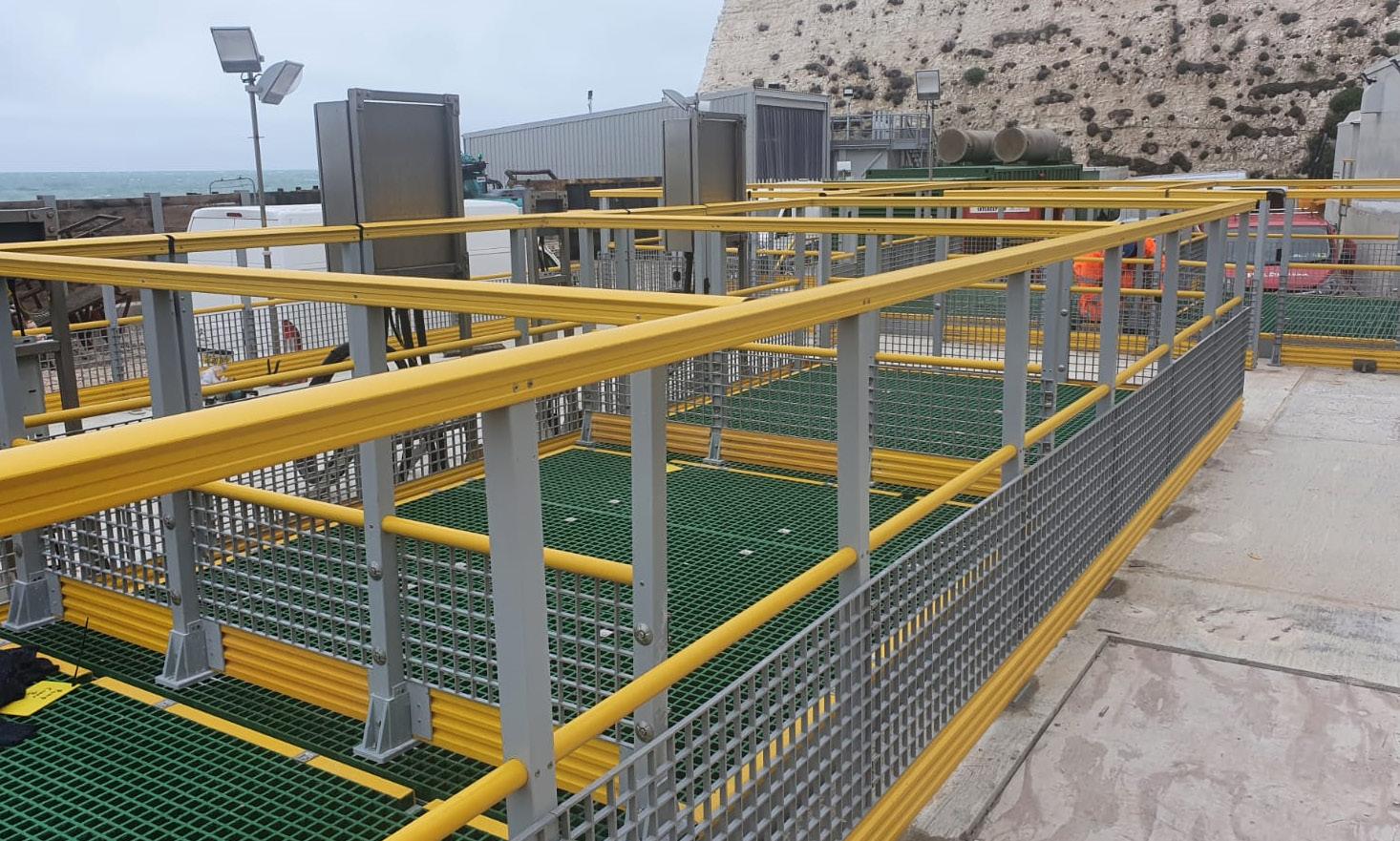

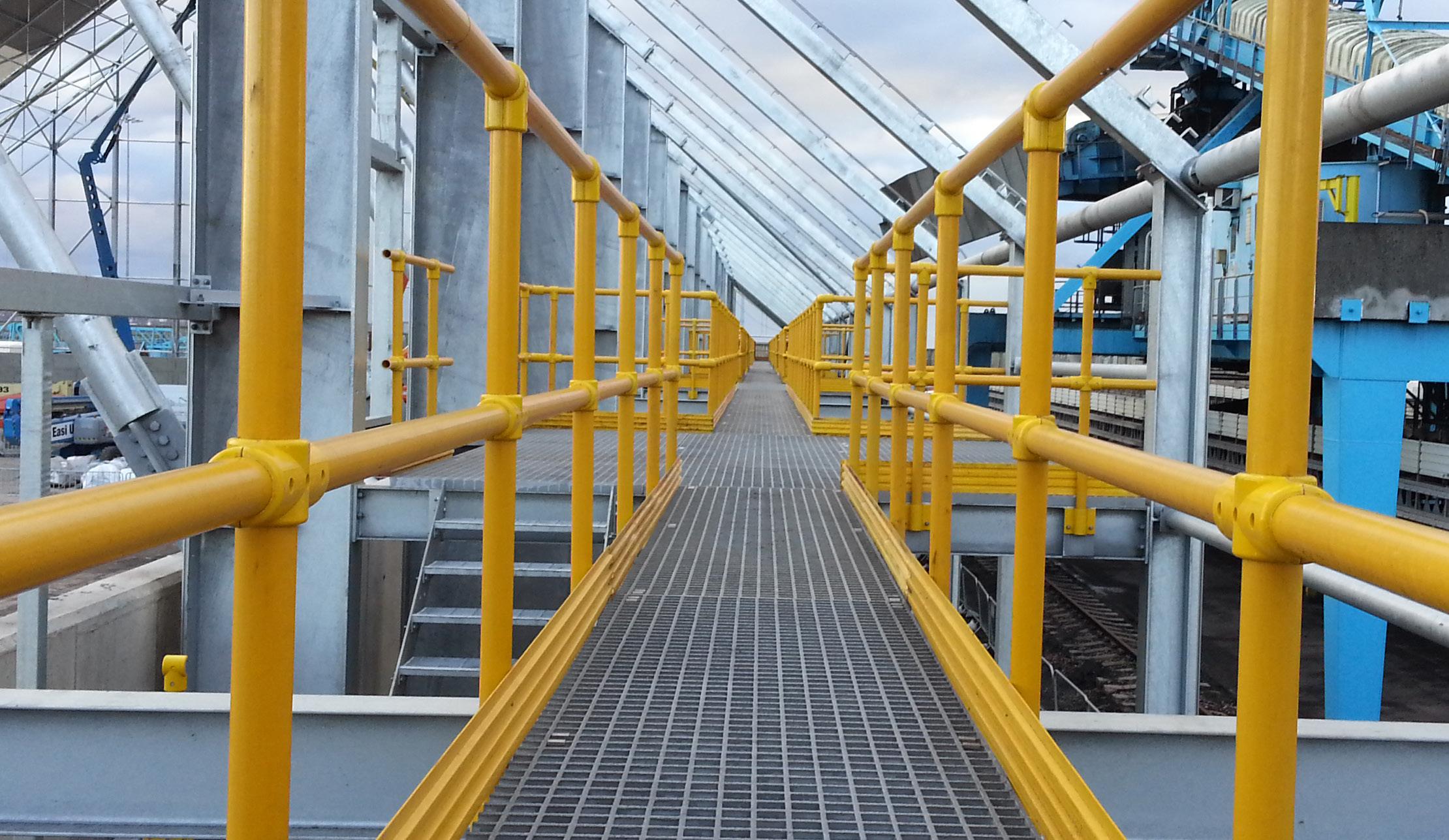

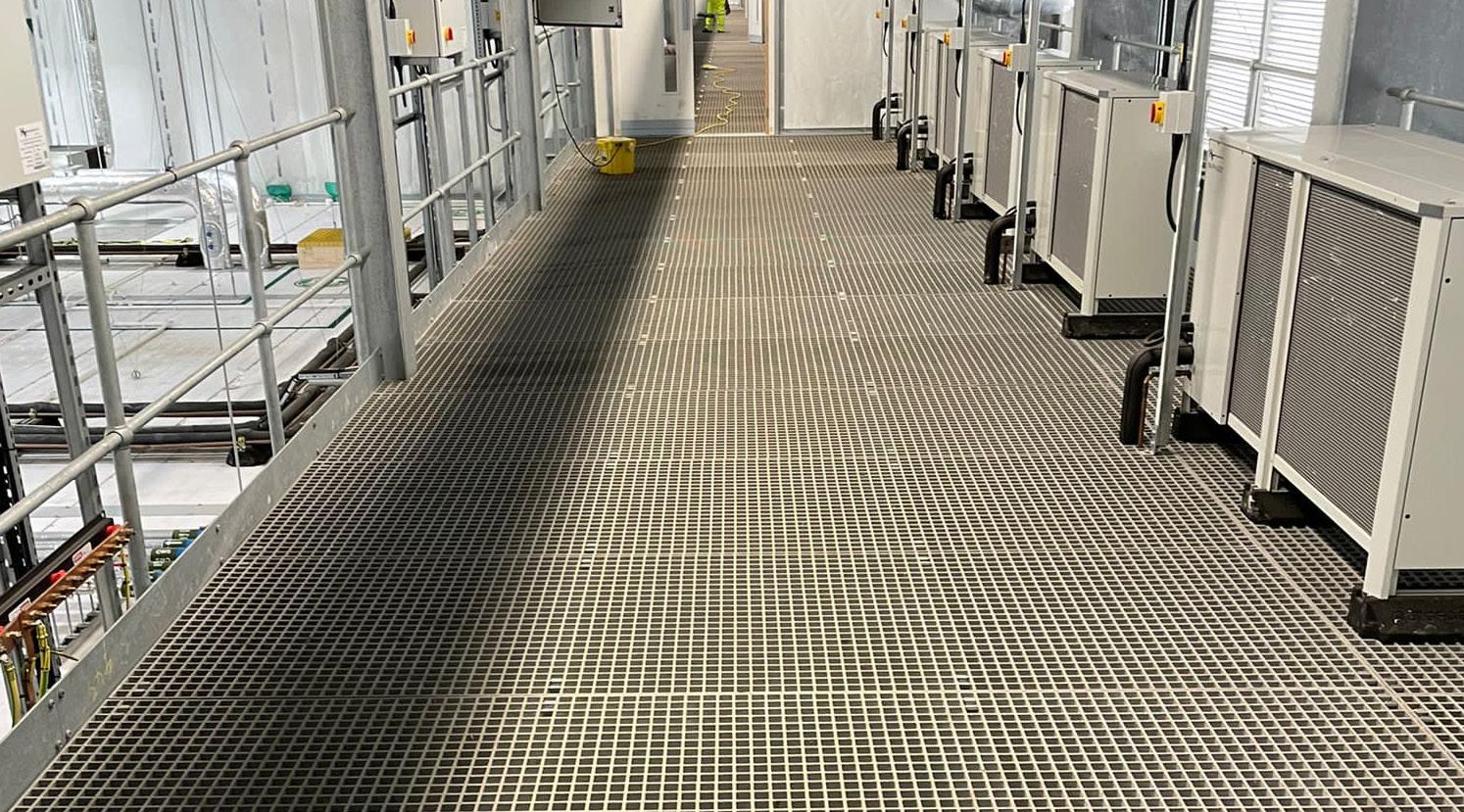

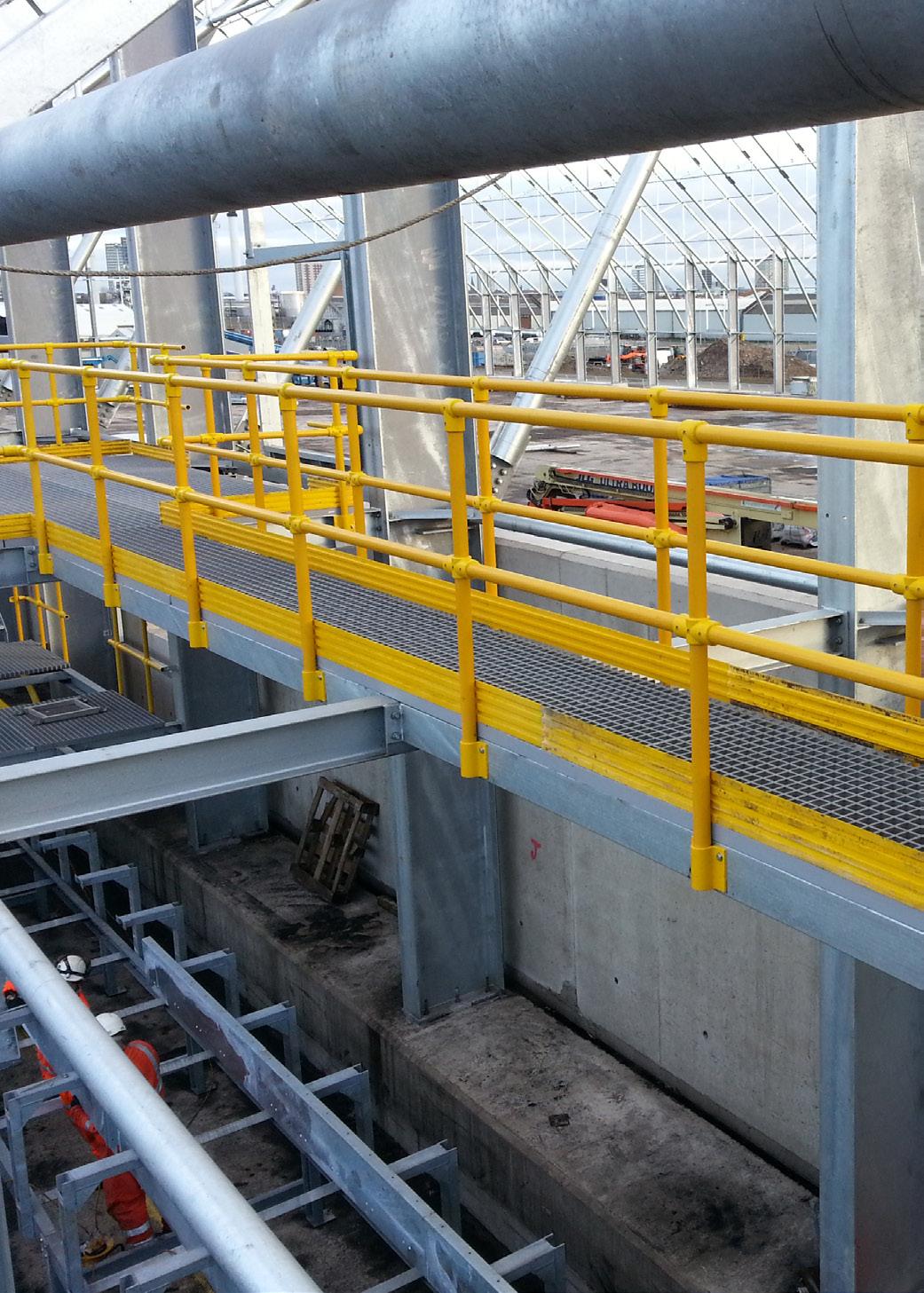

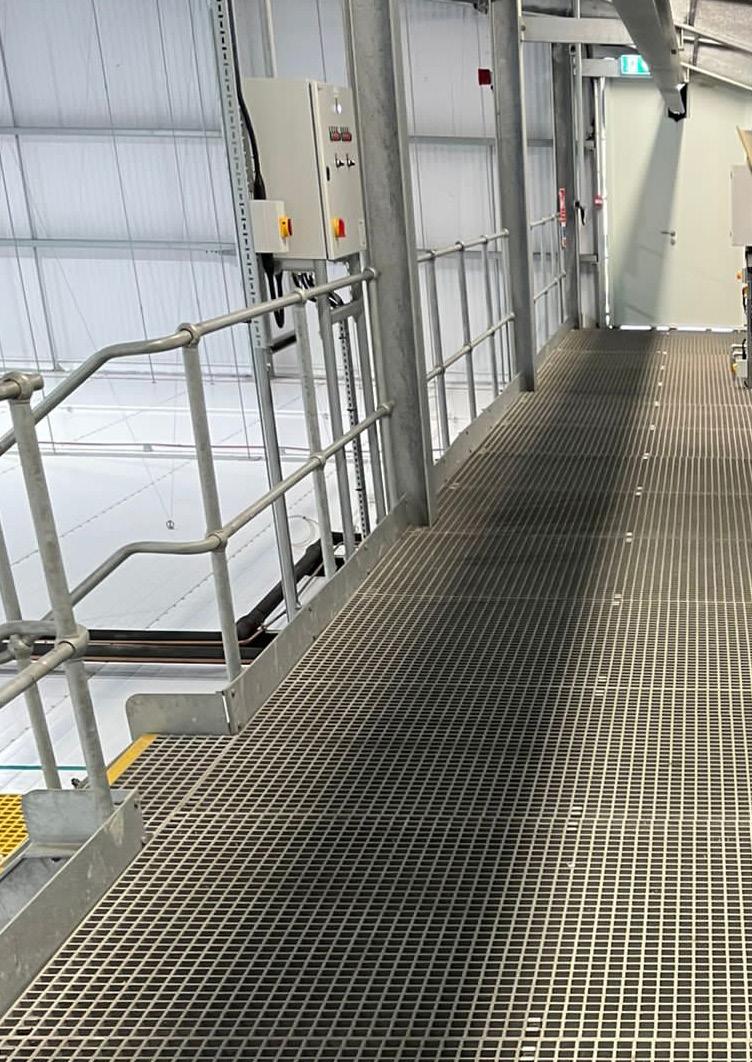

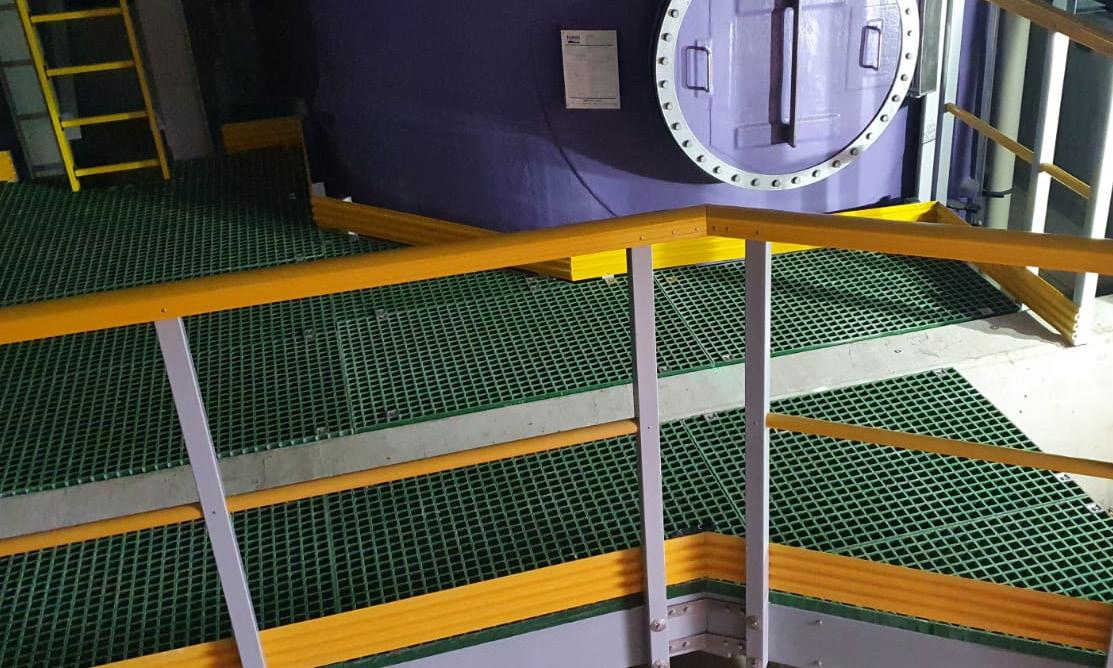

Access Walkways

Getting from A to B around a busy plant, dock or ship is often easier via a raised walkway or gantry – taking you over and around the main hazards – whether those are cables, pipes, chains, gullies or even vehicles. An Access Walkway, built using GRP Profiles, Anti-Slip GRP grating and GRP Handrails will ensure navigation is quick and easy with access points wherever required.

DeckSafe Gantries and Walkways are usually constructed using 38mm QuartzGrip® Anti-Slip GRP Grating supported by GRP structural profiles.

Staircases or Ladders can be added at each end or at mid-points providing access with self-closing safety gates and safety hoops where required. Handrails come complete with kick plates to prevent items being dropped over the edge.

GRP Fabrications don’t usually need heavy lifting equipment to manoeuvre into position so are quicker and more economical to install. Once in place, the GRP will never rust or rot, it’s UV stable ,so won’t fade or need painting and is impact resistant so won’t get dented by knocks or dropped equipment, whatever gets thrown at it.

www.decksafe.ae

+ 971 54 589 1971

sales@decksafe.ae

19

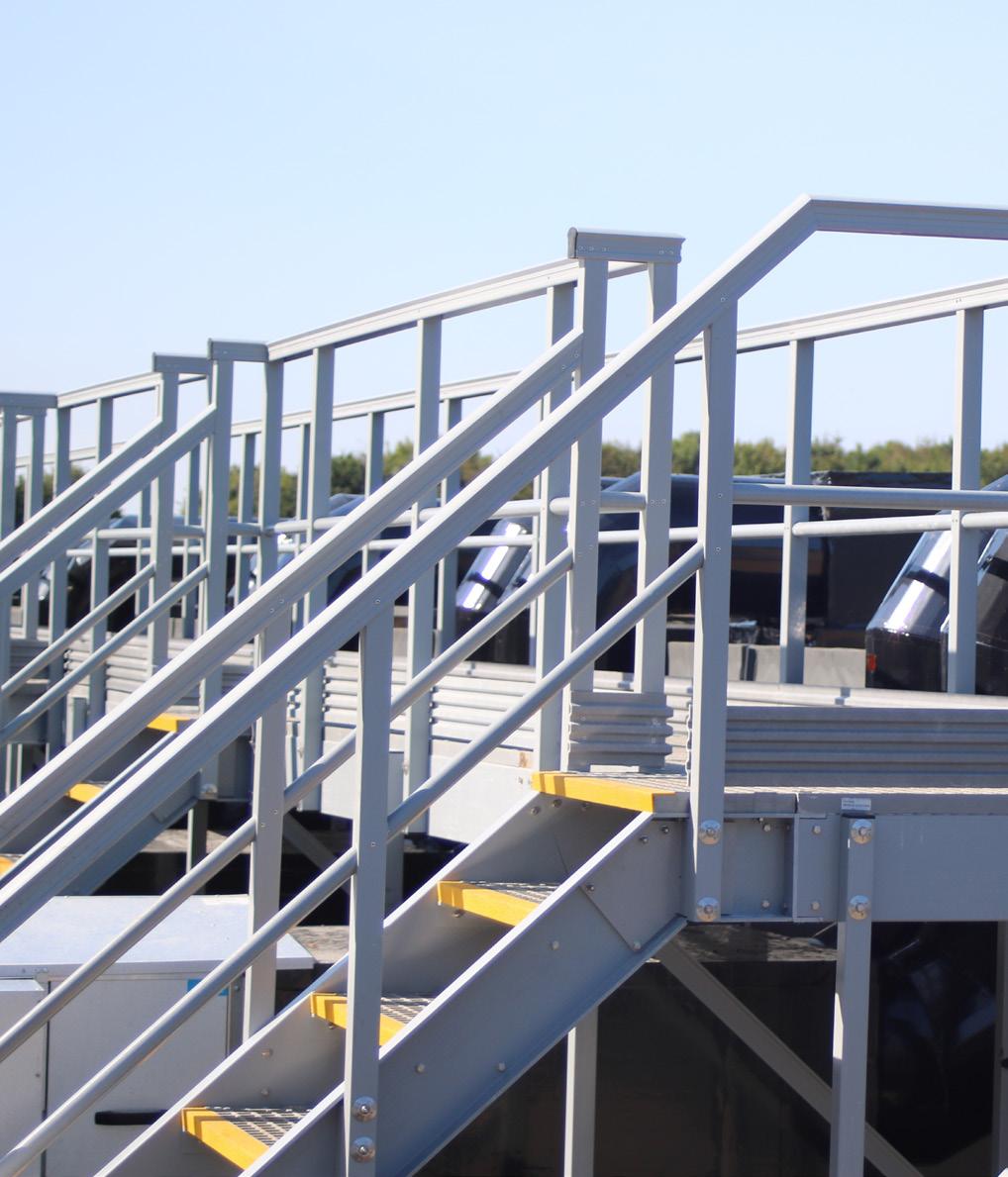

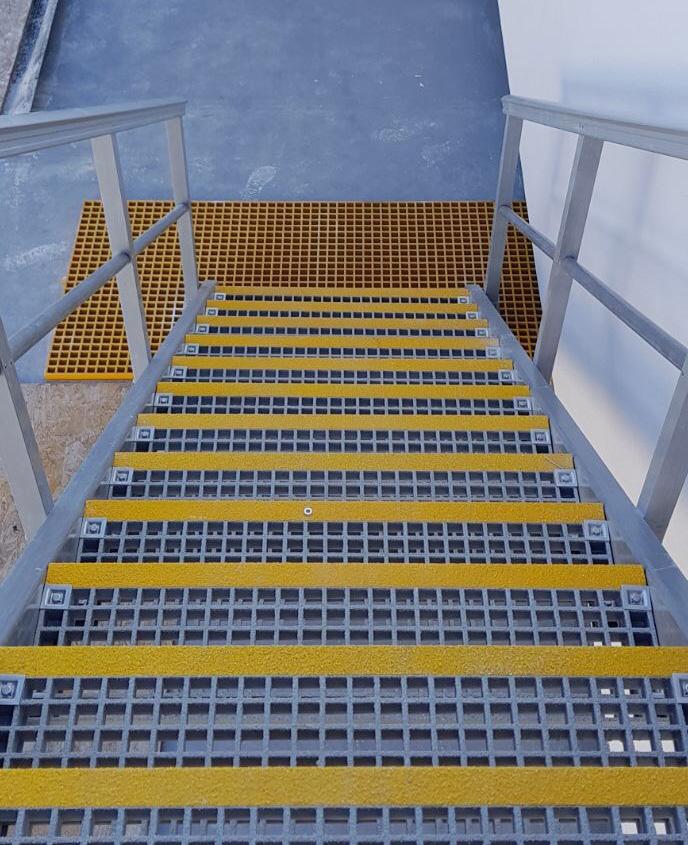

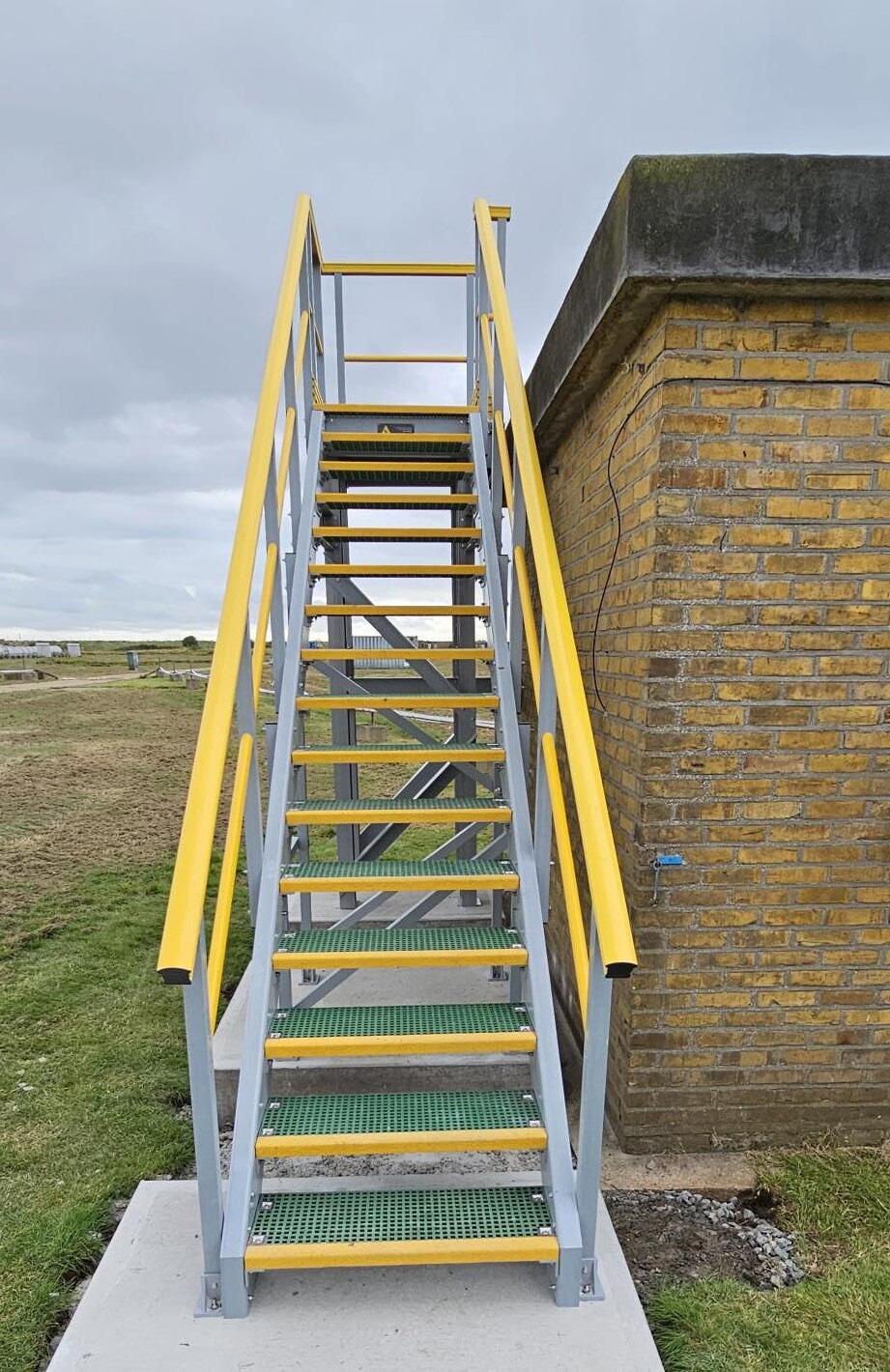

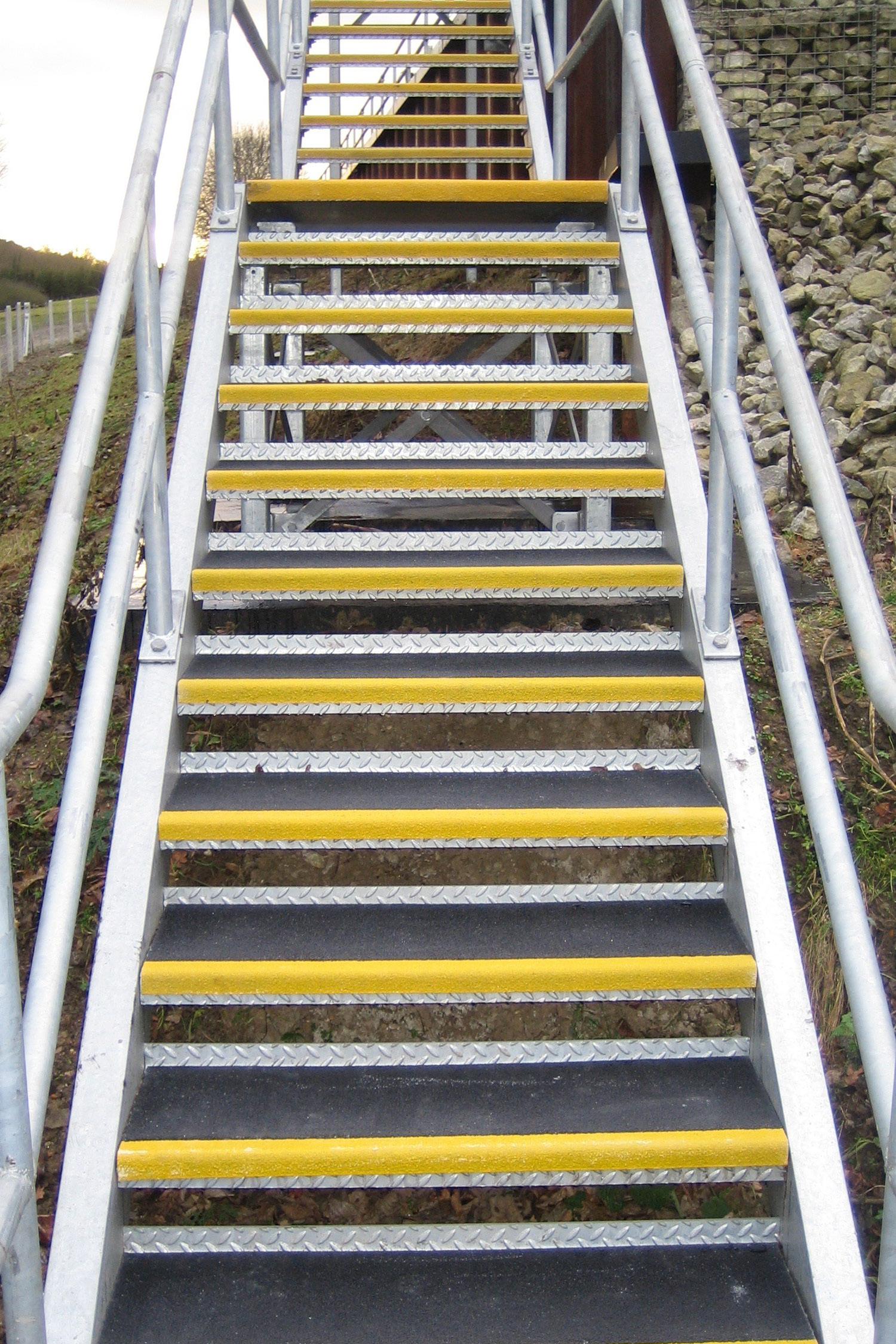

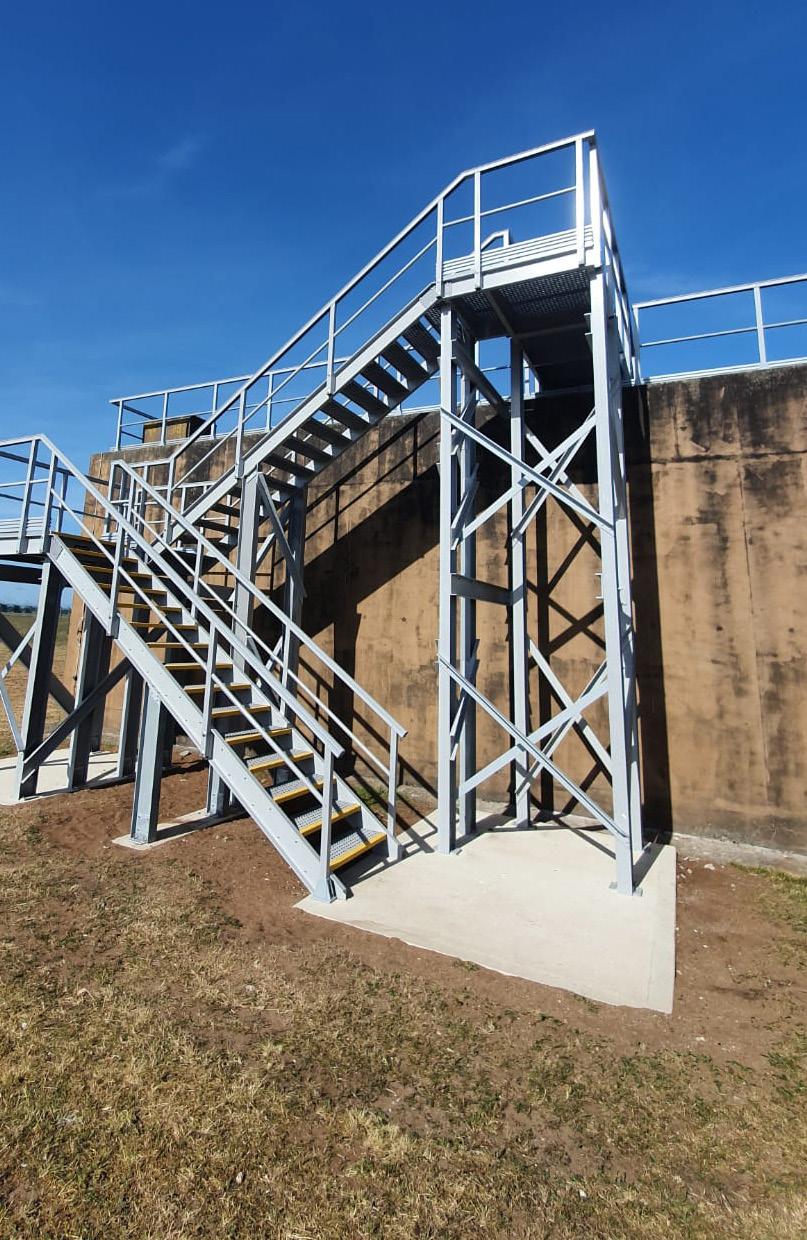

Access Staircases

Whether you need one or two steps to a doorway or platform or a multi-storey staircase to reach a rooftop or mezzanine floor, DeckSafe Solution’s GRP staircases offer an anti-slip, low-maintenance and low-noise solution.

Ideal for replacing slippery metal or rotten wooden steps, the fibreglass treads, handrailing and structural profiles are non-corrosive and UV stable; they’ll never go rusty, they’ll never fade and they’ll never need painting.

Each staircase is designed to meet your specific requirements ensuring all health & safety guidelines are adhered to. It’s then built at our headquarters in Suffolk before being shipped in sections to your site for quick and easy installation – by us or by your own teams.

Staircases that rise 3.5m or more will automatically be designed with a mid point landing

20

Providing Anti-Slip GRP Access Solutions WORLDWIDE

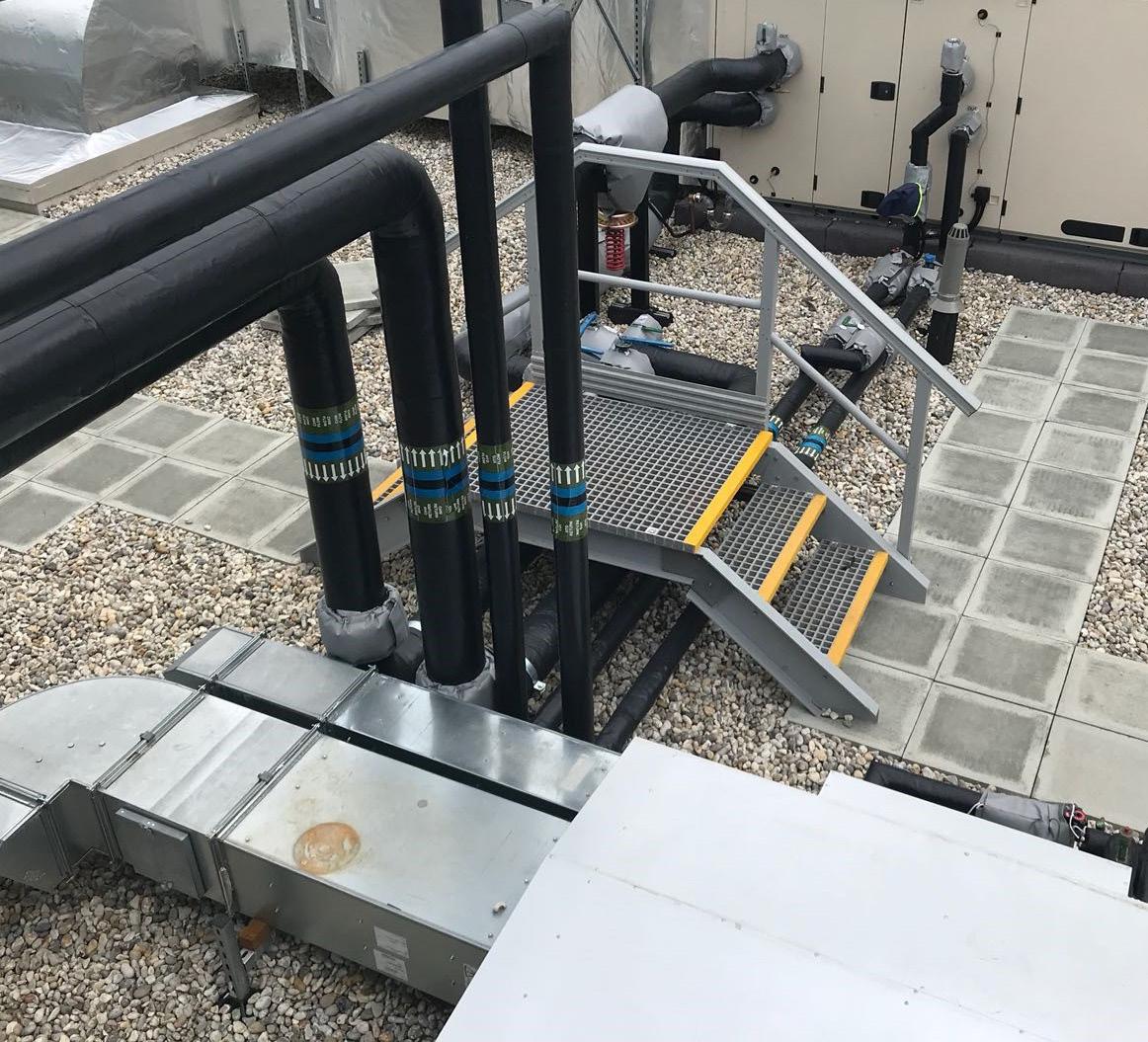

Step Overs

Whether maintenance crews need to climb over a single pipe, a boundary wall or a whole network of cables and ducting, a non-slip Step Over will ensure that they stay safe while preventing the pipes, walls & cables from getting kicked, stepped on and damaged.

Built to suit each site, a Step Over can be made any height, width or length and is usually supplied readymade. GRP is less than half the weight of the steel equivalent, so most Step Overs can be placed manually – no heavy lifting equipment is required. It is also longlasting and low-maintenance.

Typically constructed using QuartzGrip® Standard Mesh Grating and stairs with a SafeRail™ ergonomic handrail, they can be made to your own specifications.

www.decksafe.ae

+ 971 54 589 1971

sales@decksafe.ae

21

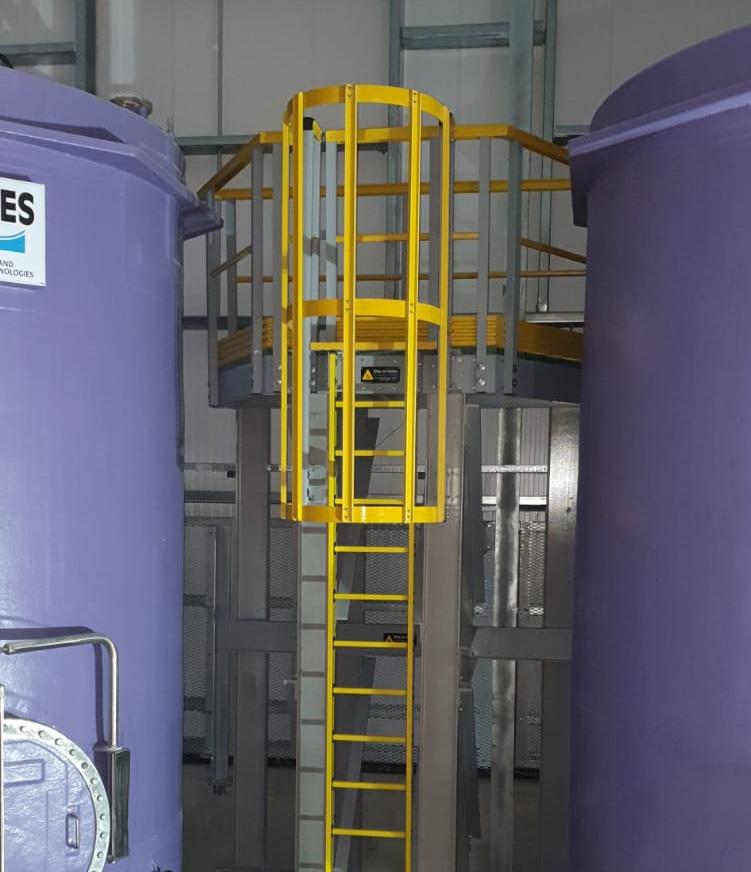

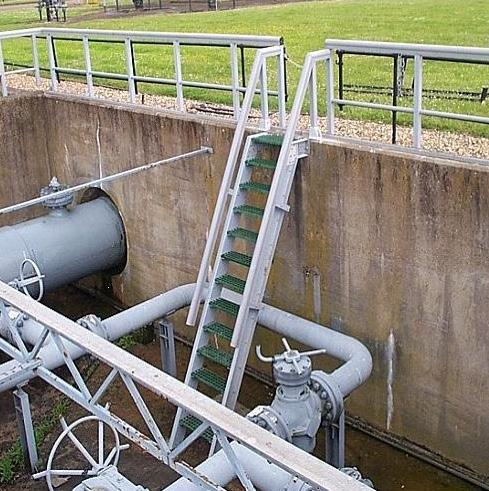

Access Ladders

If a staircase isn’t a viable option, a fixed GRP Access Ladder made to suit your exact requirements, may be the solution you are looking for. Choose from an upright Cat Ladder with optional safety hoops or a Ships’ ladder complete with handrail. Ideal for piers and harbour walls.

Access Ladders Benefits: • Manufactured from pultruded structural sections • Resistant to corrosion, non-conductive and nonmagnetic • Anti-slip surface • Suited for use in typically corrosive environments, including salt and fresh water marinas • Manufactured in accordance with BS 4211 and BS 5395.

• Ideal to provide sawfe access to raised or underground areas • Can be designed and built to suit specific requirements

22

Providing Anti-Slip GRP Access Solutions WORLDWIDE

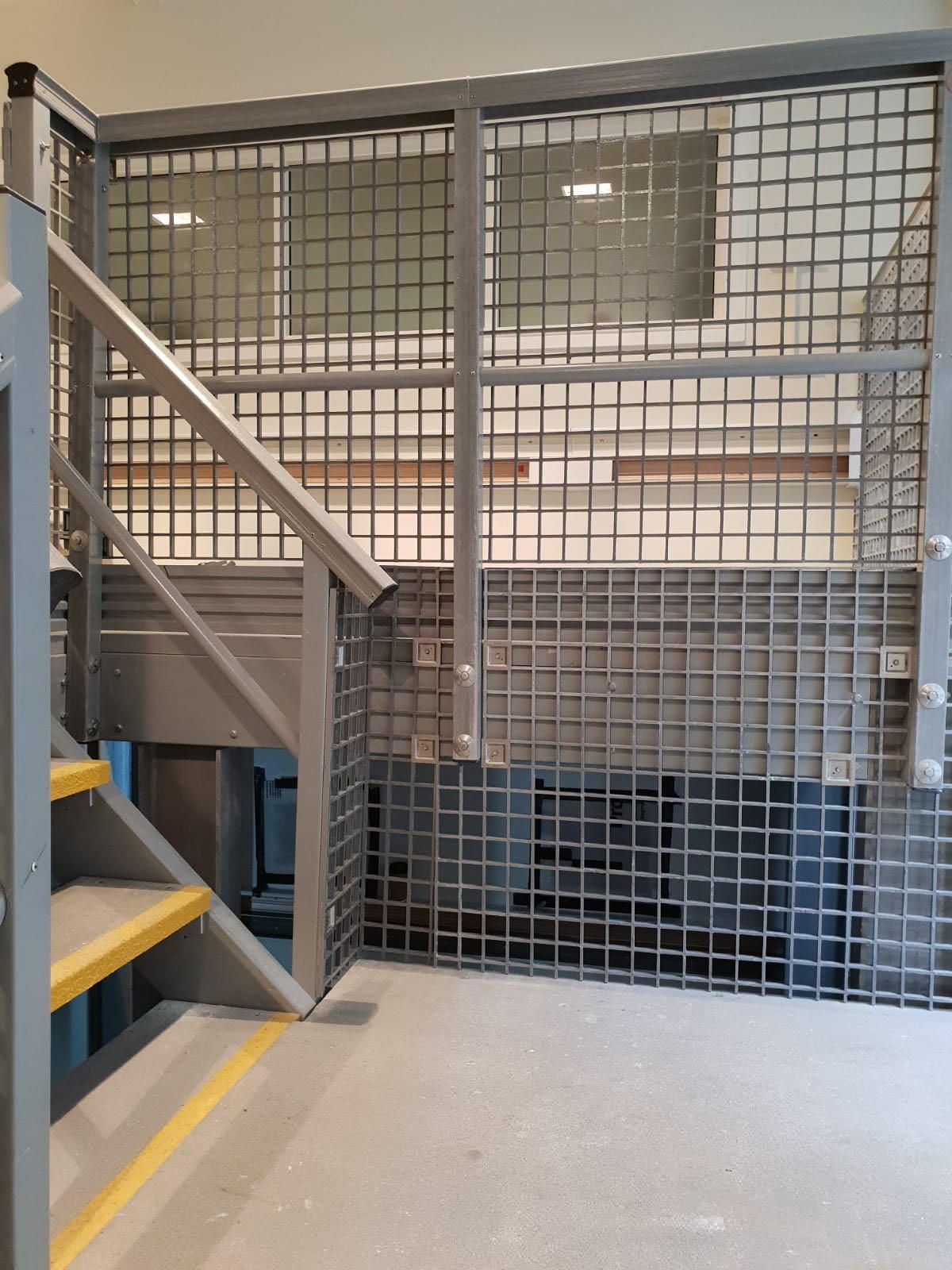

Machine Guards

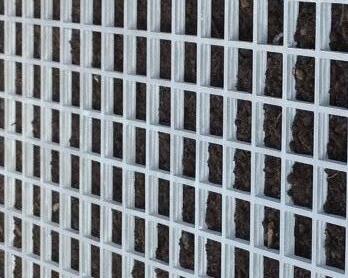

DeckSafe’s ScreenGuard™ GRP Mesh is just 12mm thick and has a smooth finish, making it ideal to use as a screen to protect operatives from moving machinery. It can be used to create security screens or storage cages, it can be added to handrailing to prevent items falling through, or used as fencing to keep unauthorised people out.

Lighter than steel equivalents, it’s quicker and cheaper to install. It’s also non-conductive and has zero scrap value. GRP does not rust, never needs painting and is impact-resistant so maintenance is minimal.

www.decksafe.ae

+ 971 54 589 1971

sales@decksafe.ae

23

Bund Floors

Bunded floors are essential to contain spills or leaks from containment tanks but can pose an access challenge for maintenance engineers and will collect debris – especially if outside. Adding a GRP Bund Floor that is level with the surrounding walls creates a trip and slip-free working platform; Access Stairs and Handrails make it even safer.

DeckSafe’s Bund Floors are fabricated using QuartzGrip® Anti-slip Mesh Grating, that sits on a ‘free-standing’ framework made using Universal GRP Structural Profiles. Nothing is drilled into the bund walls potentially compromising their integrity. GRP is waterproof and chemicalresistant so it won’t be damaged in the event of a spill.

Every bespoke floor is made to the exact shape and size of your bund and our expert installation teams will ensure a seamless finish.

24

Providing Anti-Slip GRP Access Solutions WORLDWIDE

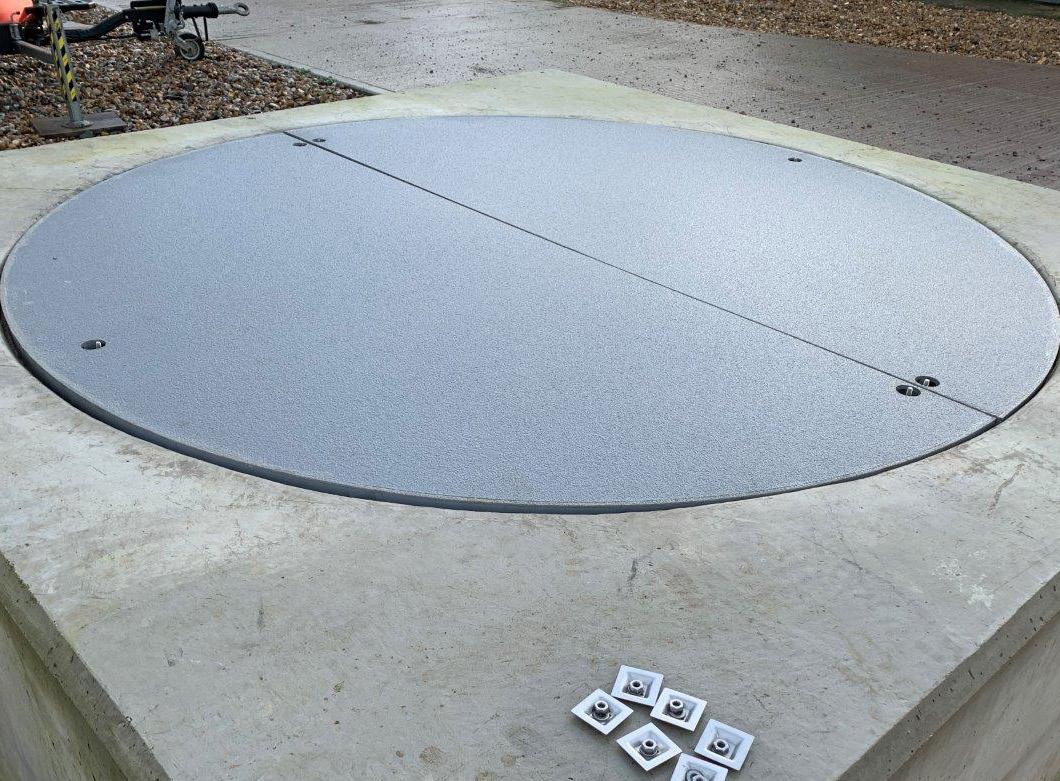

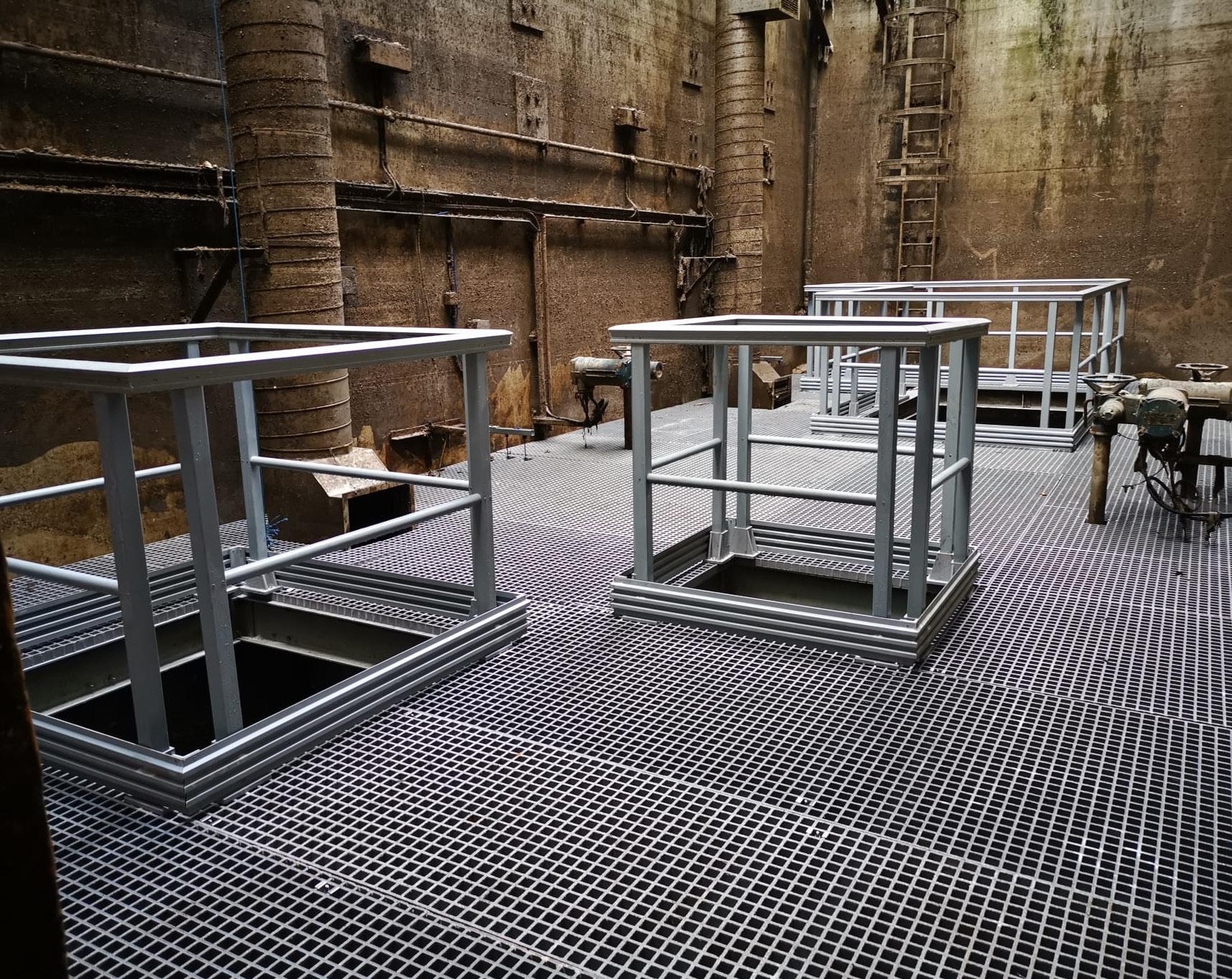

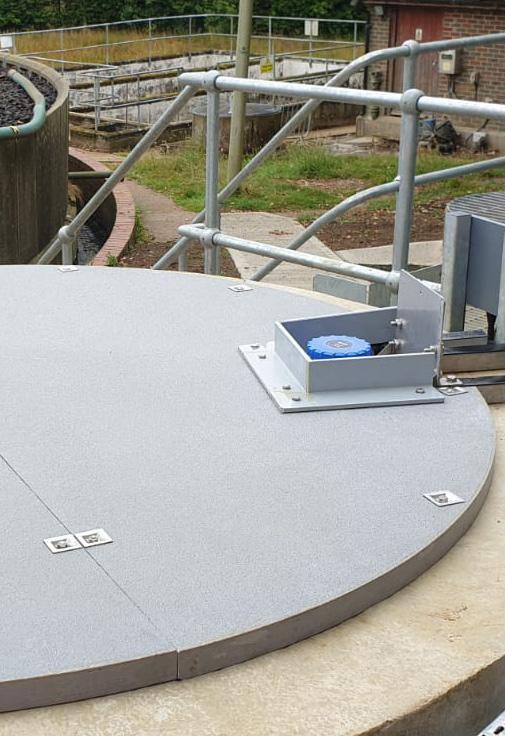

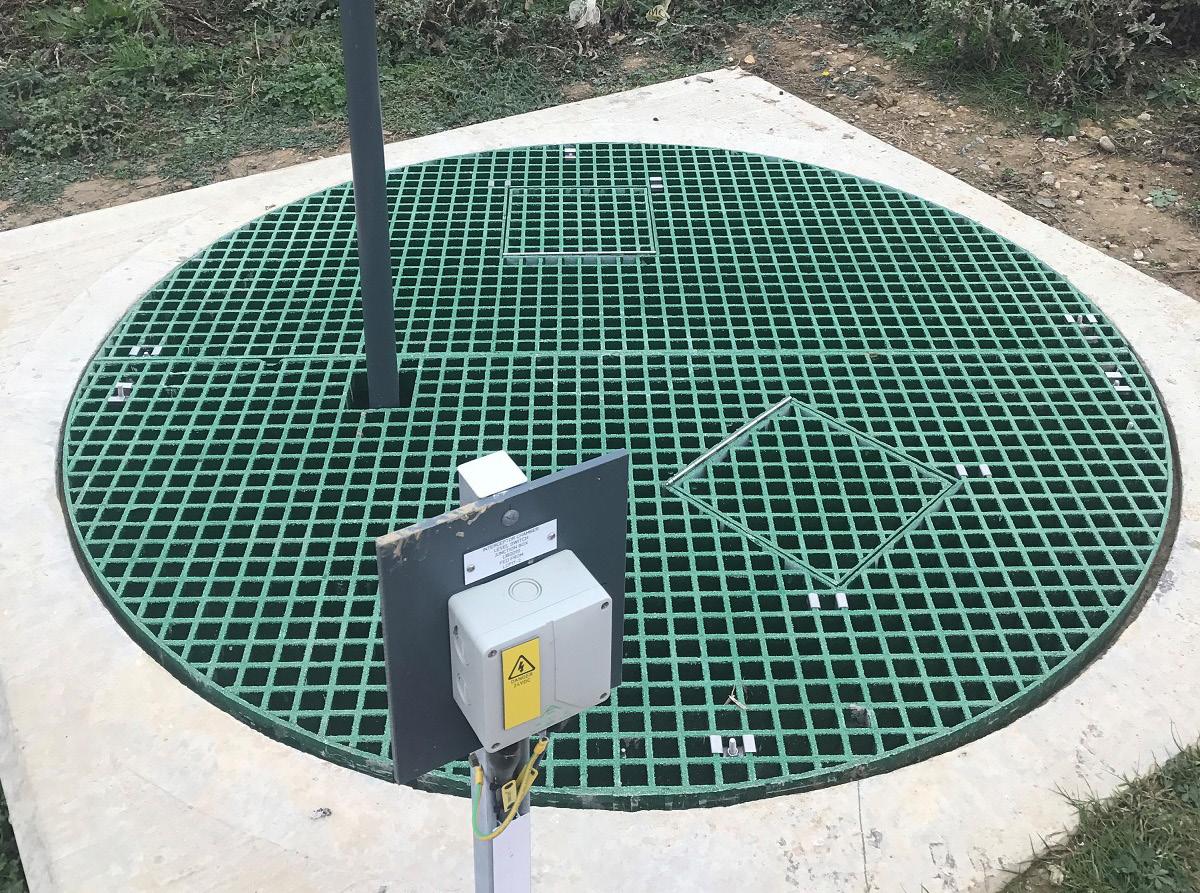

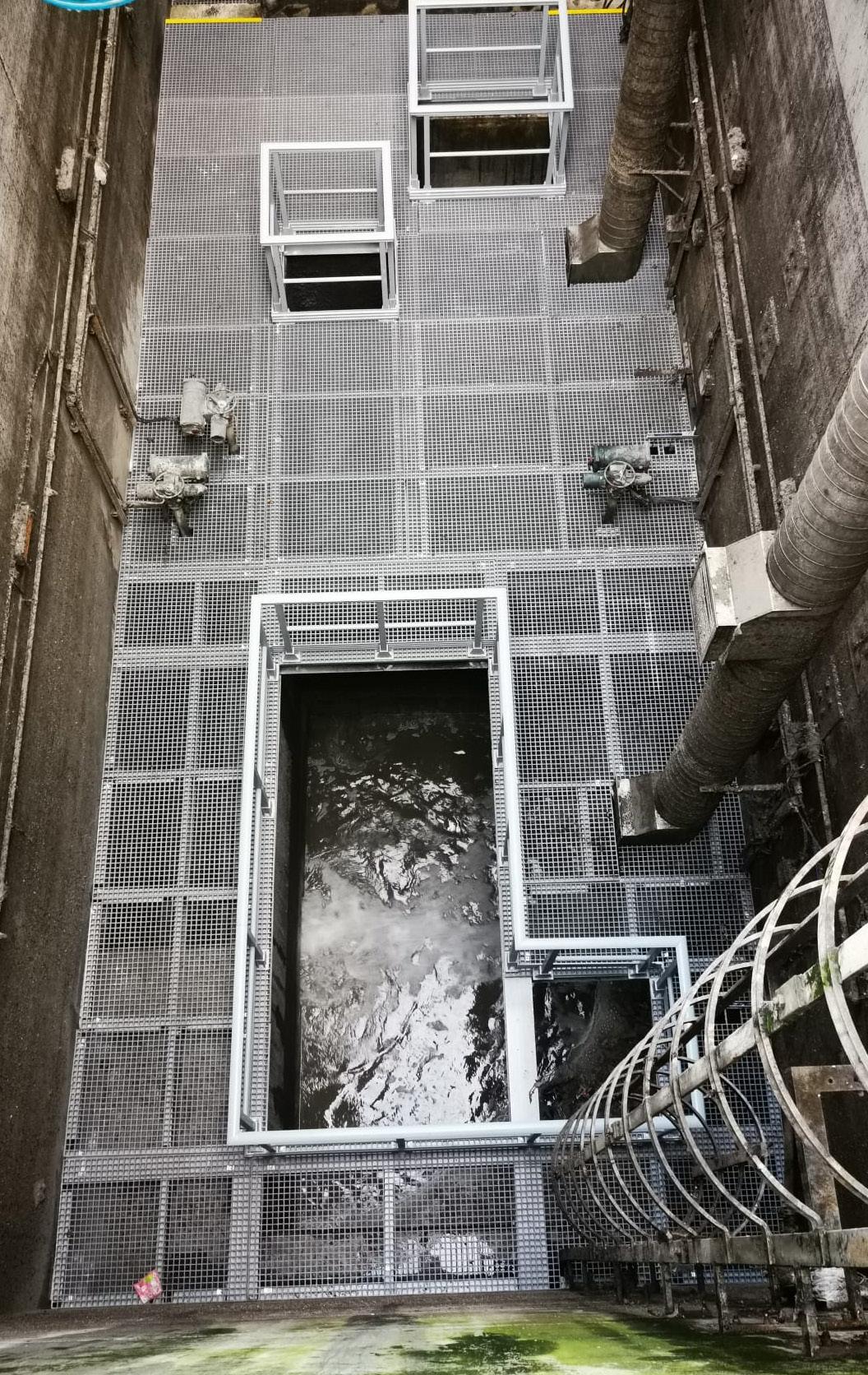

Sump & Chamber Covers Ideal for covering sumps, tanks, drains, manholes, trenches and pits, GRP Mesh – open or solid top – is corrosion-free, chemical and impact resistant and remains anti-slip even in wet or oily conditions. It’s also less than half the weight of the equivalent metal or concrete covers, making lifting it for maintenance access so much easier.

We can cut mesh to any shape or size and can add access hatches or hinges so it can be folded back. Standard or mini mesh versions will allow water to flow through whilst filtering litter and plant debris; solid top versions will keep all dirt and debris out and can also be made water-tight.

Our QuartzGrip® Grating is stocked in green, yellow or grey but can be produced in any RAL colour you require.

We can produce covers to your own specification for you to install, or we can install them for you.

www.decksafe.ae

We can cut mesh to any shape or size and can add access hatches or hinges so it can be folded back.

+ 971 54 589 1971

sales@decksafe.ae

25

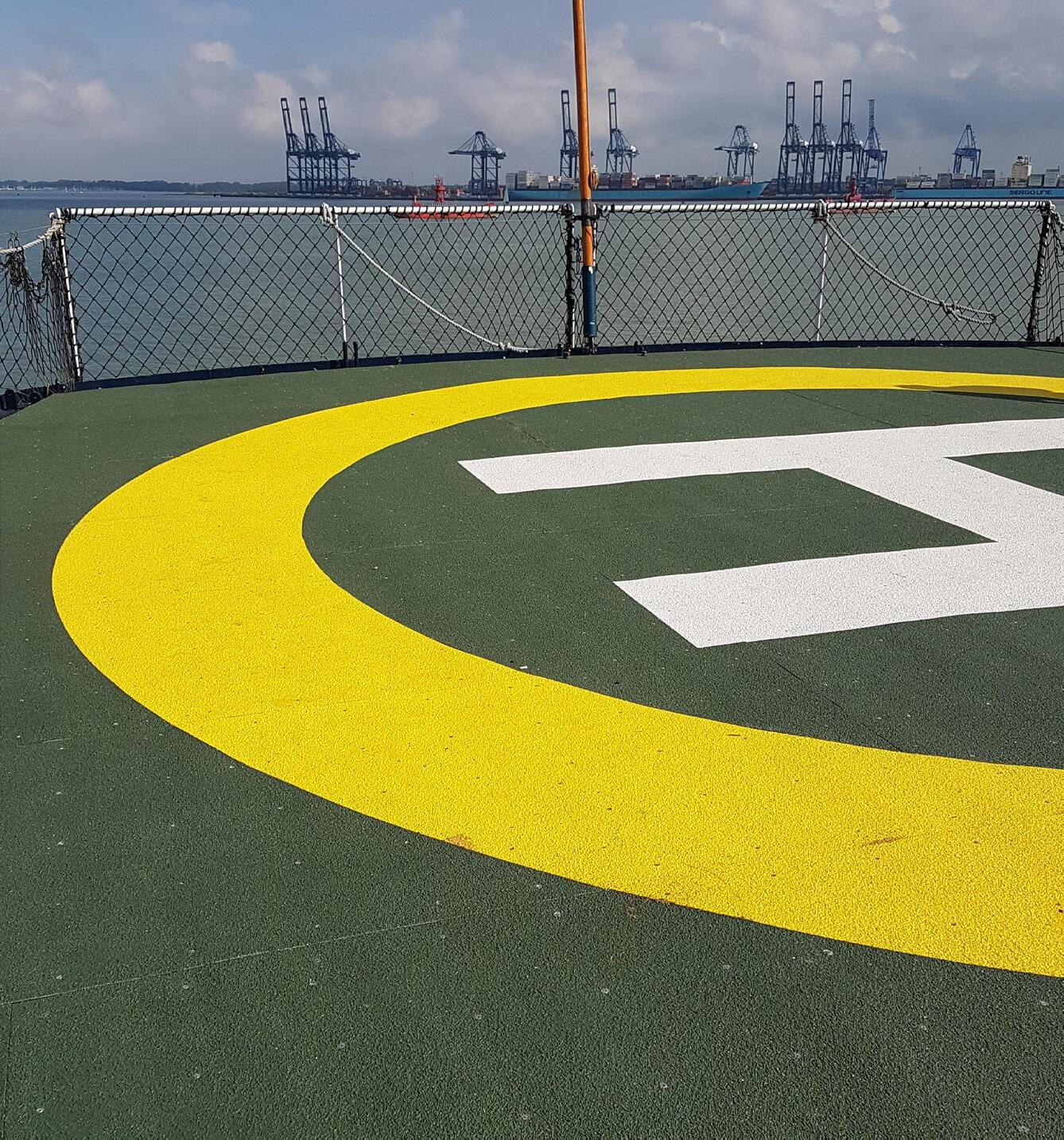

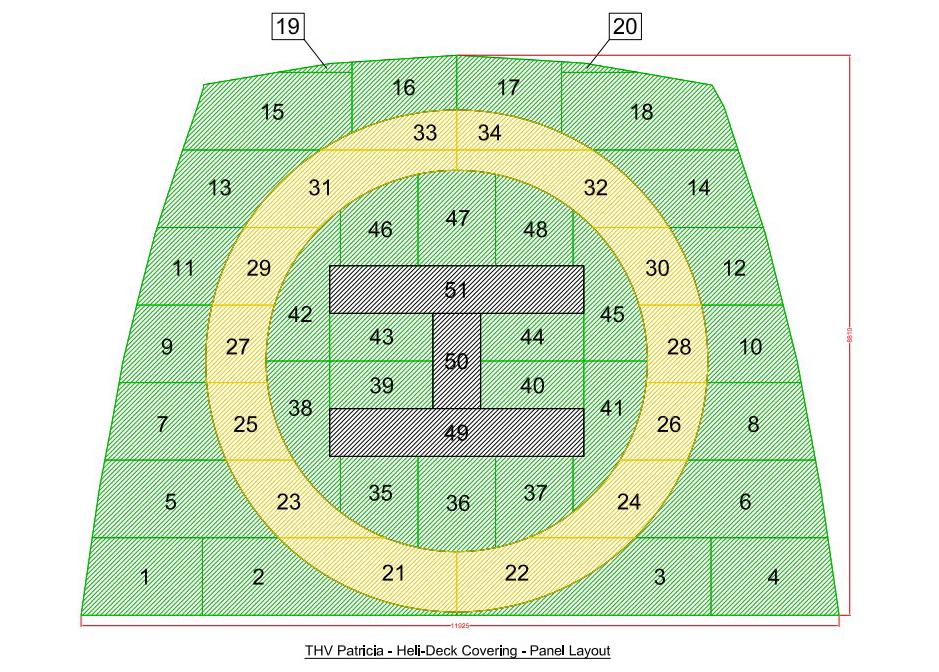

Helipads Our QuartzGrip® Anti-Slip Flat Plate can be cut into quite intricate shapes enabling us to build symbols into a surface. Creating a bold H to indicate a helicopter landing pad on an offshore platform or ship’s deck is a fairly simple process. What’s more, the fibreglass sheeting remains non-slip in all weather conditions and is UV stable so won’t fade over time. The material itself is coloured throughout so the design won’t wear off, ensuring safer landings for years.

Our CAD team can design the landing site to suit your location and our installation teams will ensure it’s fitted correctly.

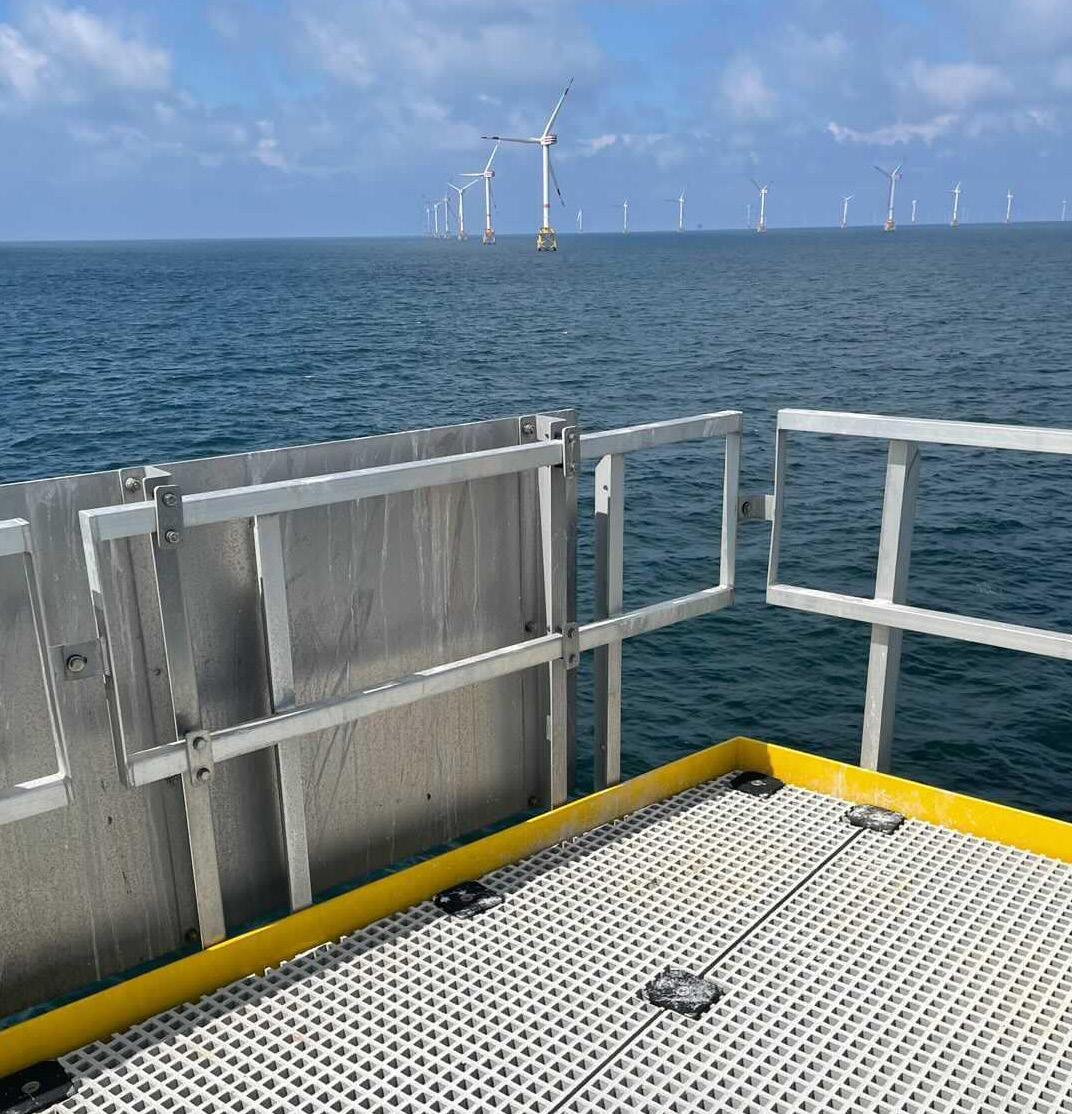

Offshore Wind Farms As with any marine environment, accessing an offshore wind farm for even routine maintenance can be difficult – especially in poor weather.

DeckSafe’s anti-slip GRP solutions help you do everything you can to keep your crews safe from slips, trips and falls, whether that’s on board the maintenance vessel, transferring from vessel to base or at the base of the turbine itself.

Using GRP mesh panels, structural profiles and handrail systems, we can design, build and install walkways, jetties, pontoons and maintenance platforms to suit your unique requirements. GRP offers many advantages over steel equivalents – it’s lighter, will never rust or rot, won’t fade and remains non-slip in wet and oily conditions. The colours never fade so hi-vis yellow options remain hi-vis for years with zero upkeep.

26

Providing Anti-Slip GRP Access Solutions WORLDWIDE

Bespoke Surfaces

We developed unique floor panels for BP to use on their offshore platforms and are now their specified supplier for GRP

In isolated offshore locations reducing the risk of trips and falls by using the right surface is critical. In addition to sourcing specialist Phenolic and Vinyl Ester grating and solid top, we are also happy to work closely with our clients to find highly bespoke solutions to suit their specific requirements.

That could include special colours, thicknesses, mesh designs, panel shapes or sizes. It could be pre-cutting, pre-drilling or applying branding, directional arrows or warning text. Whatever the situation, we are confident that a solution can be found.

Phenolic Grating Grating made from Phenolic GRP is the latest and strongest version of GRP to date and is now routinely used in the most hostile of working environments, including oil refineries, oil platforms, underground mining, railways and in shipping. It has the maximum fire resistance and emits little smoke or toxic fumes when burning – critical in enclosed spaces. Its reinforced structure can take exceptional loads – useful where large, uninterrupted spans need to be bridged.

As an offshore solution it has the added benefit of being immune to the effects that saltwater has on many materials. It’s also much lighter than steel equivalents making it easier, quicker and therefore cheaper to install.

www.decksafe.ae

+ 971 54 589 1971

sales@decksafe.ae

27

28

Providing Anti-Slip GRP Access Solutions WORLDWIDE

OUR PRODUCTS Comprehensive product range from stock for fast delivery

www.decksafe.ae

+ 971 54 589 1971

sales@decksafe.ae

29

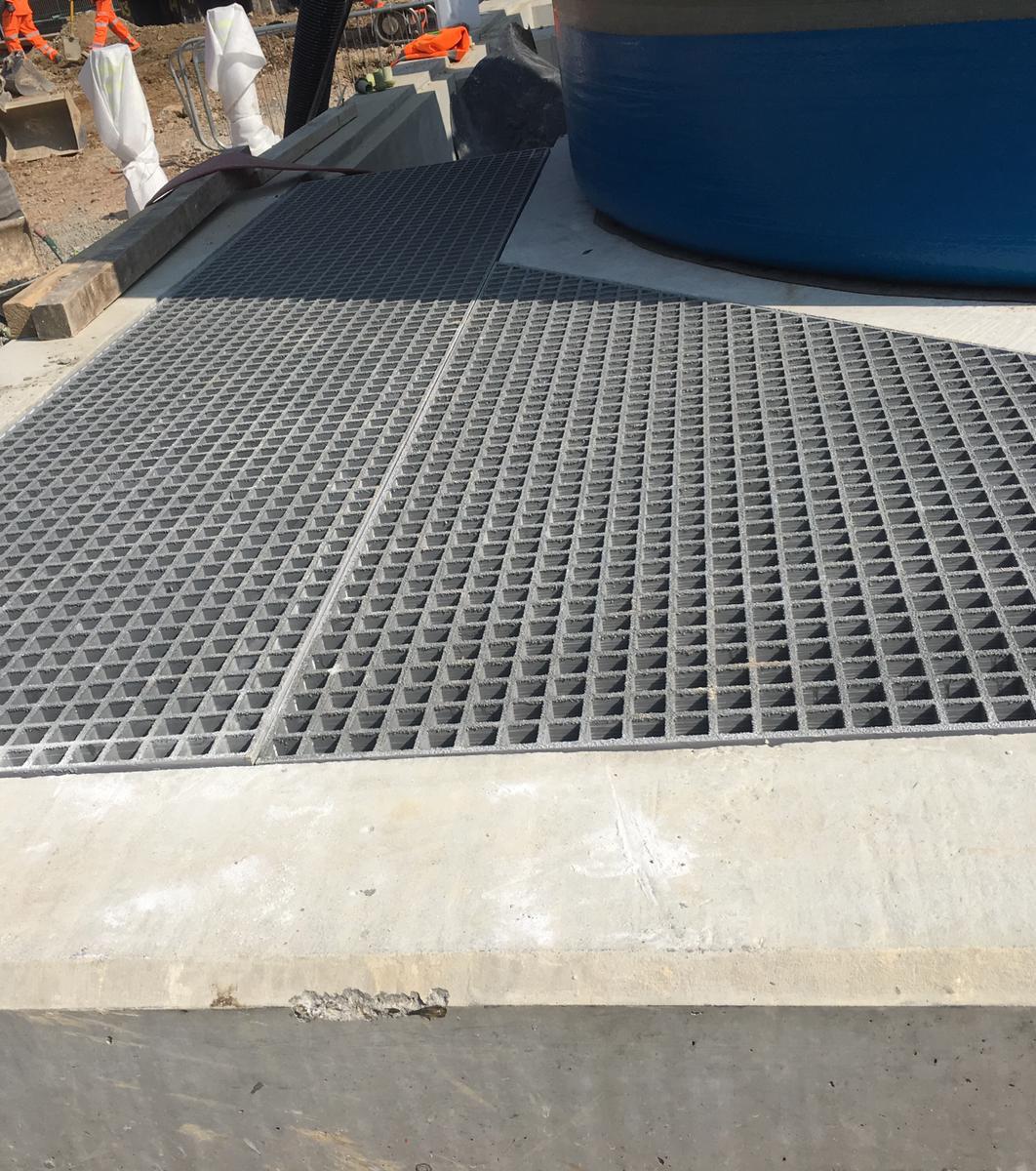

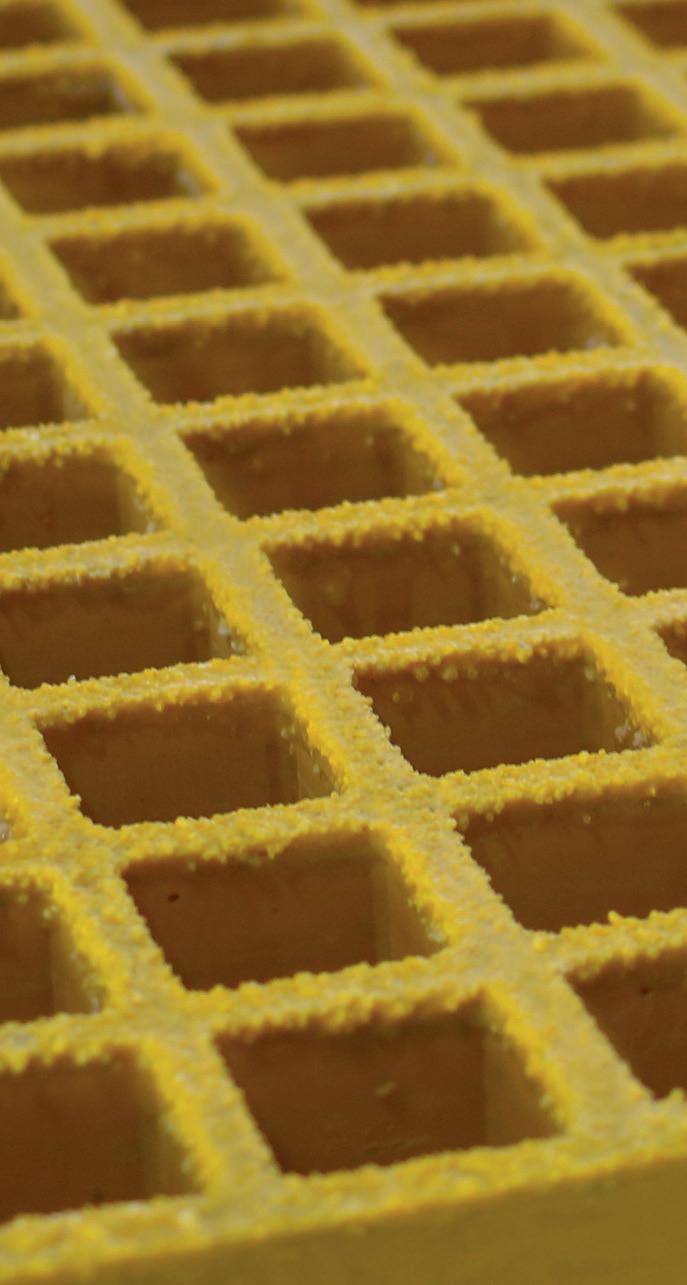

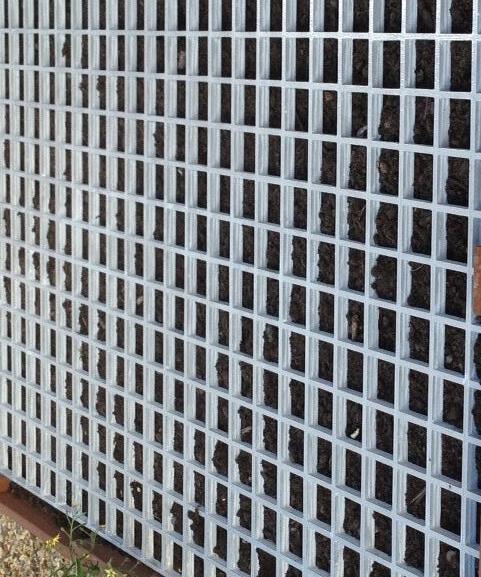

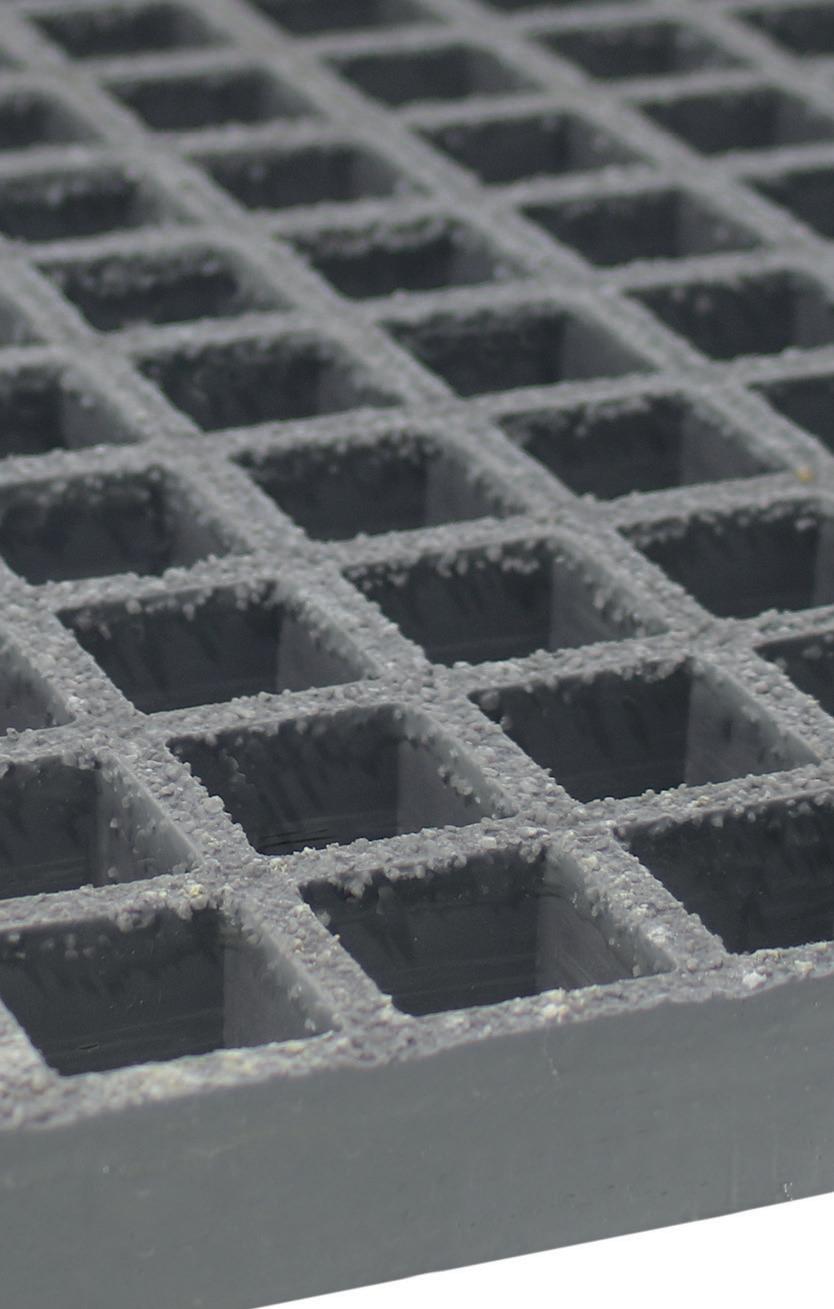

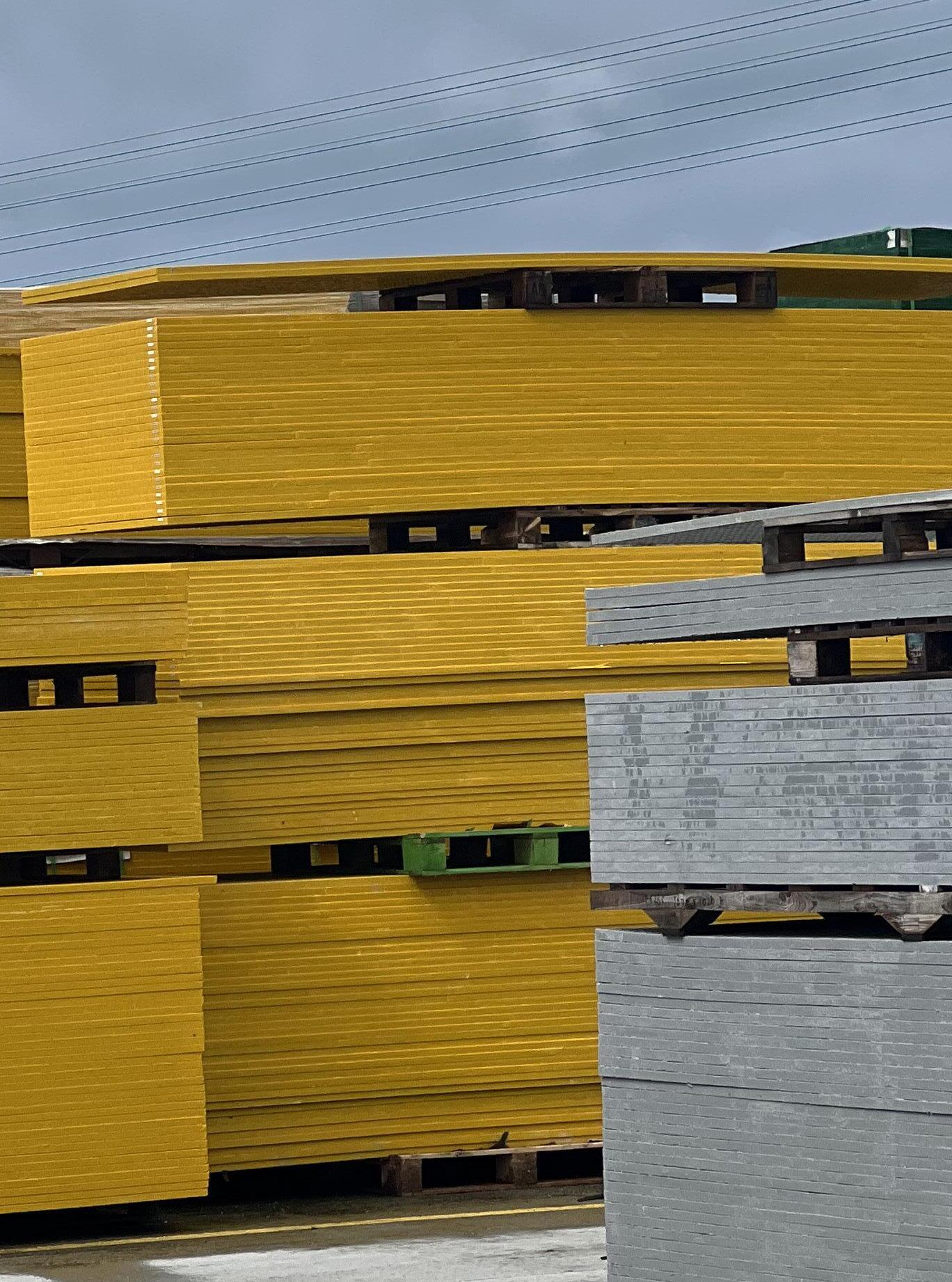

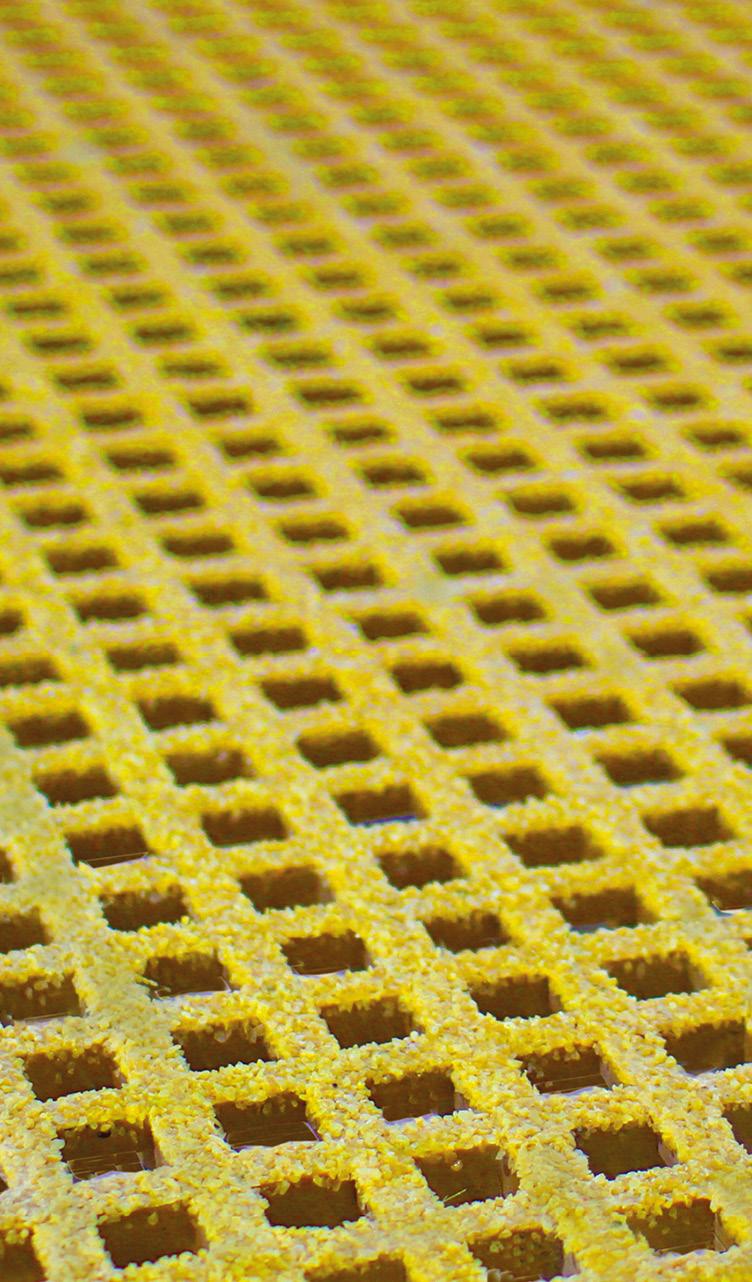

GRP Standard Mesh Grating

QuartzGrip® GRP Open Mesh Grating helps prevent slips, trips, and falls in hazardous industrial, commercial and public areas. QuartzGrip® fibreglass provides greater corrosion resistance than galvanised steel products and lower costs than stainless steel products.

Why QuartzGrip® GRP Open Mesh Grating?

DeckSafe’s moulded QuartzGrip® GRP Open Mesh Grating is a superior anti-slip alternative to conventional galvanised and stainless steel grating.

QuartzGrip® GRP Open Mesh Grating is: • Corrosion-resistant

Alternatively, if you require a smooth surface, concave, or conductive carbon-gritted surface, this can be supplied upon request.

Functions of QuartzGrip® GRP Open Mesh Grating •

Is suitable for use in commercial and industrial environments, including walkways, platforms, wash bays, work stations, drains, gullies, stairs, ramps and pontoon decking.

•

Can also be used for sump-covers, pit, pond and well covers as well as service riser covers and machine guards.

• Maintenance-free • High-strength and durable • Lightweight and easy to install

We also offer Mini Mesh Grating, ideal for Access Bridges, Berthing Stations, Marinas and Tidal Brows.

• Anti-slip, even in wet or icy conditions

Quality Guaranteed

• Long-lasting

All QuartzGrip® Fibreglass Open Mesh Gratings are manufactured to ISO 9001 quality standards, with a high glass content for superior load-bearing capabilities and corrosion resistance.

• Fire-resistant Our QuartzGrip® GRP Open Mesh Grating can be cut to any size and is finished as standard with a durable and hard-wearing angular quartz grit that provides an excellent level of slip resistance in wet, oily and icy conditions.

30

Providing Anti-Slip GRP Access Solutions WORLDWIDE

Standard Open Mesh Grating • Mesh bar centres 38 x 38mm • Open hole size 32 x 32mm • Isophthalic resin • Standard grit finish THICKNESS

DIMENSIONS

COLOUR

25mm

1984 x 997mm

Green/Grey/Yellow

25mm

3012 x 997mm

Blue/Green/Grey/Yellow

25mm

3660 x 1220mm

Green/Grey/Yellow

38mm

1987 x 997mm

Green/Grey/Yellow

38mm

3012 x 997mm

Grey/Yellow

38mm

3660 x 1220mm

Blue/Green/Grey/Yellow

50mm

1990 x 1024mm

Green/Grey/Yellow

50mm

3012 x 997mm

Green/Grey/Yellow

50mm

3660 x 1220mm

Green/Grey/Yellow

Open Mesh Grating Stair Treads • Mesh bar centres 38 x 38mm • Open hole size 32 x 32mm • 55mm DDA Nosing • Isophthalic resin • Standard grit finish THICKNESS

DIMENSIONS

COLOUR

38mm

1000 x 272mm

Black/Black&Yellow/Green/Grey/ Grey&Yellow/Yellow

38mm

1220 x 272mm

Black/Black&Yellow/Green/Grey/ Grey&Yellow/Yellow

Edging Ramps • Mesh bar centres 38 x 38mm • Open hole size 32 x 32mm • Orthophthalic resin • Standard grit finish THICKNESS

DIMENSIONS

COLOUR

25mm

2000 x 120mm

Yellow

38mm

2000 x 120mm

Yellow

www.decksafe.ae

+ 971 54 589 1971

sales@decksafe.ae

31

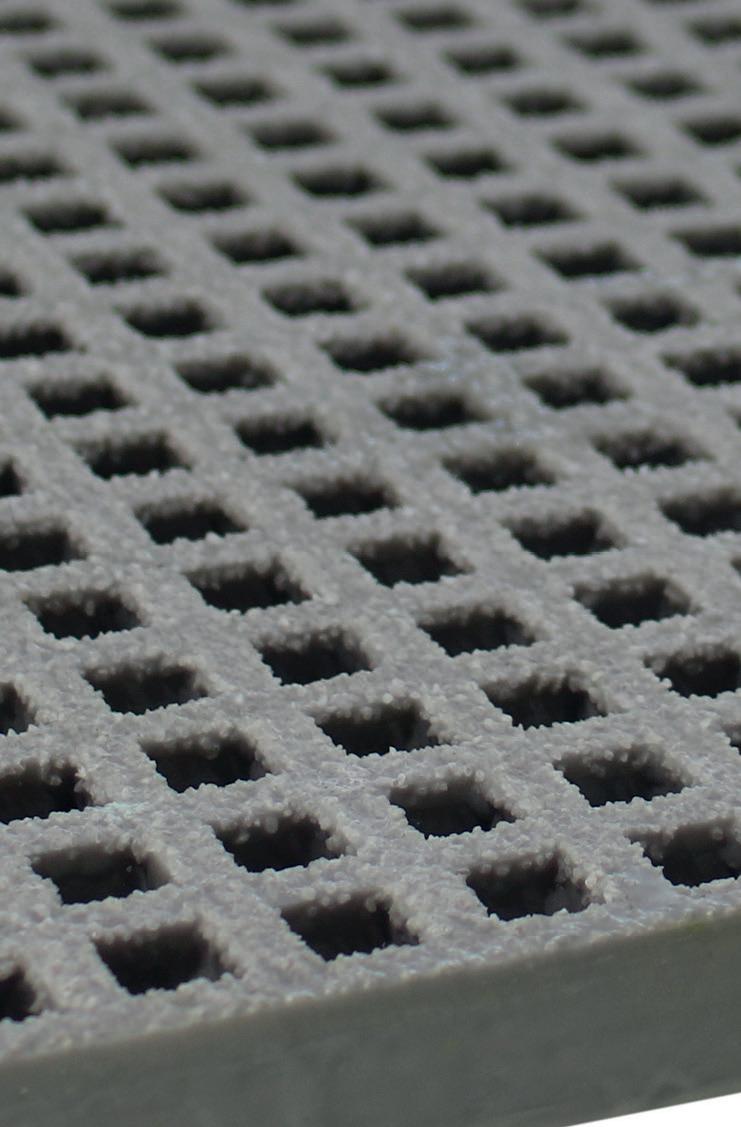

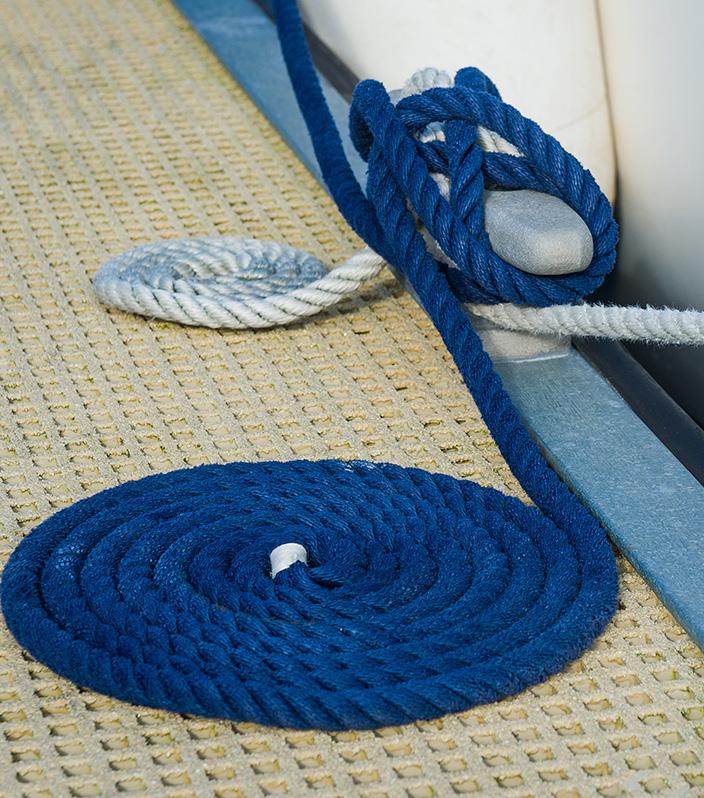

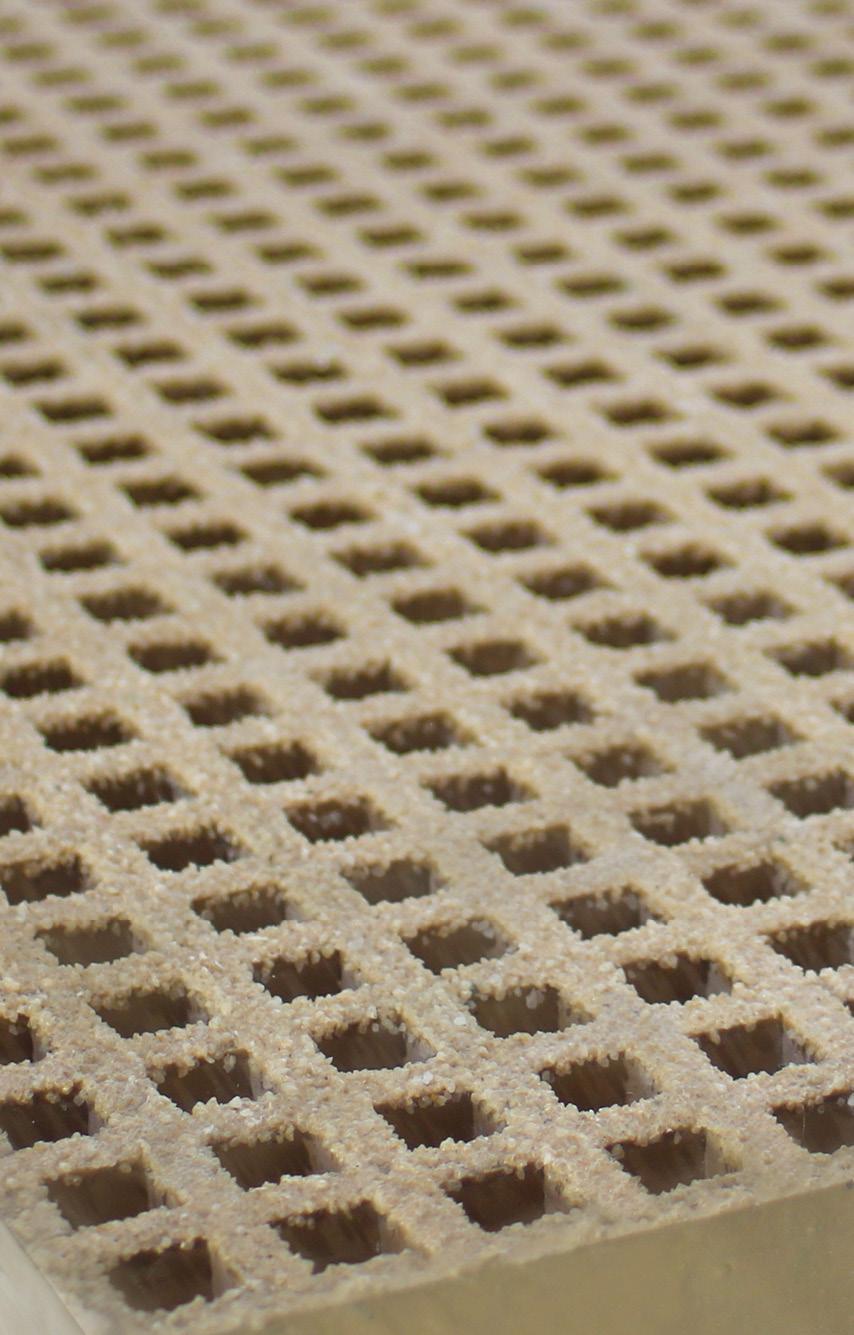

GRP Mini Mesh Grating QuartzGrip® GRP Mini Mesh Grating is a modern alternative to conventional timber, steel or plastic flooring, providing an anti-slip surface underfoot that helps prevent slips, trips and falls in naturally hazardous areas.

The holes are just 12mm x 12mm conforming to the industry standard ball test, while preventing water from pooling on the surface. Ideal for maintenance platforms and trough covers.

Benefits of GRP Mini Mesh Grating With greater corrosion resistance than galvanised steel products and lower costs than stainless steel, Mini Mesh Grating is both long-lasting and cost-effective.

QuartzGrip® GRP Mini Mesh Grating is: • Anti-slip, even when icy or wet • Simple to install • Lightweight • Maintenance-free • Corrosion-resistant • High-strength • Impact-resistant • Fire-resistant

GRP Mini Mesh Applications QuartzGrip® GRP Mini Mesh has been successfully installed in station, depot and trackside environments, including: • Access gantries • Station ramps • Trench covers • Access stairs • Step Overs • Debris screens

Anti-Slip Mini Mesh Grating The integral gritted non-slip surface of our QuartzGrip® Mini Mesh has been tested in accordance with BS 7976-2 (Coefficient of Friction Test). It provides exceptional traction on walkways exposed to the elements and is also algae and moss-resistant.

32

Providing Anti-Slip GRP Access Solutions WORLDWIDE

Mini Mesh Grating • Mesh bar centres 20 x 20mm • Open hole size 12 x 12mm • Orthophthalic resin • Standard grit finish THICKNESS

DIMENSIONS

COLOUR

14mm

3007 x 1007mm

Beige/Black

14mm

3687 x 1247mm

Beige/Black/Green/Yellow

22mm

3007 x 1007mm

Beige/Green/Grey

22mm

3687 x 1247mm

Grey

22mm

4047 x 1247mm

Beige/Green/Grey

22mm

4047 x 1527mm

Beige/Grey

30mm

3007 x 1007mm

Beige/Green/Grey

30mm

4047 x 1247mm

Beige/Green/Grey

38mm

3007 x 1007mm

Beige/Green/Grey

38mm

3687 x 1247mm

Beige/Green/Grey

38mm

4047 x 1247mm

Beige/Green/Grey/Yellow

38mm

4047 x 1527mm

Beige/Green/Grey

Micro Mesh Grating • Mesh bar centres 16 x 16mm • Open hole size 8 x 8mm • Orthophthalic resin • Fine grit finish

THICKNESS

DIMENSIONS

COLOUR

22mm

3007 x 1007mm

Beige/Grey

22mm

4047 x 1247mm

Beige/Grey

30mm

3007 x 1007mm

Beige/Grey

30mm

4047 x 1247mm

Beige/Grey

www.decksafe.ae

+ 971 54 589 1971

sales@decksafe.ae

33

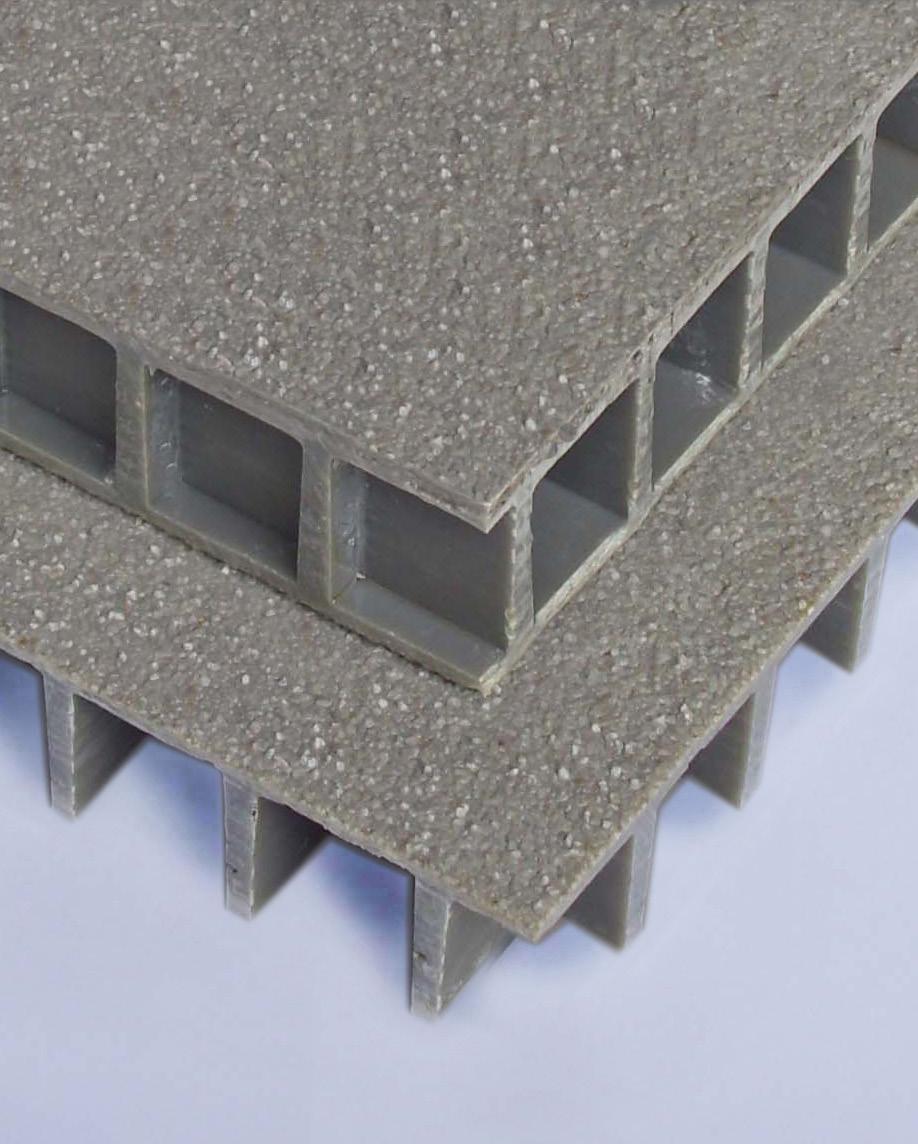

Solid Top Mesh Grating QuartzGrip® Solid Top Flooring is suitable for a variety of industrial applications. The solid surface allows smoother movement of wheeled traffic, prevents objects falling through to the level below, and when used as a cover or lid, provides odour retention for storage tanks etc.

Lightweight panels can also be supplied as manhole covers or access hatches, complete with lifting slots, stainless steel hinges or handles which can be manufactured to suit 1 or 2 man material handling limits.

• Solid top, mesh bottom • Isophthalic resin • Standard grit finish • Fire-resistant

THICKNESS

DIMENSIONS

COLOUR

29mm

2007 x 1007mm

Green/Grey

29mm

3007 x 1007mm

Green/Grey

29mm

3660 x 1220mm

Green/Grey

42mm

2007 x 1007mm

Grey

42mm

3007 x 1007mm

Grey

42mm

3660 x 1220mm

Grey

54mm

3007 x 1007mm

Grey

54mm

3660 x 1220mm

Grey

Sandwich Panels • Solid top, solid bottom • Isophthalic resin • Standard grit finish • Fire-resistant

34

THICKNESS

DIMENSIONS

COLOUR

18mm

2440 x 1220mm

Black/Grey

46mm

2007 x 1007mm

Grey

46mm

3007 x 1007mm

Grey

Providing Anti-Slip GRP Access Solutions WORLDWIDE

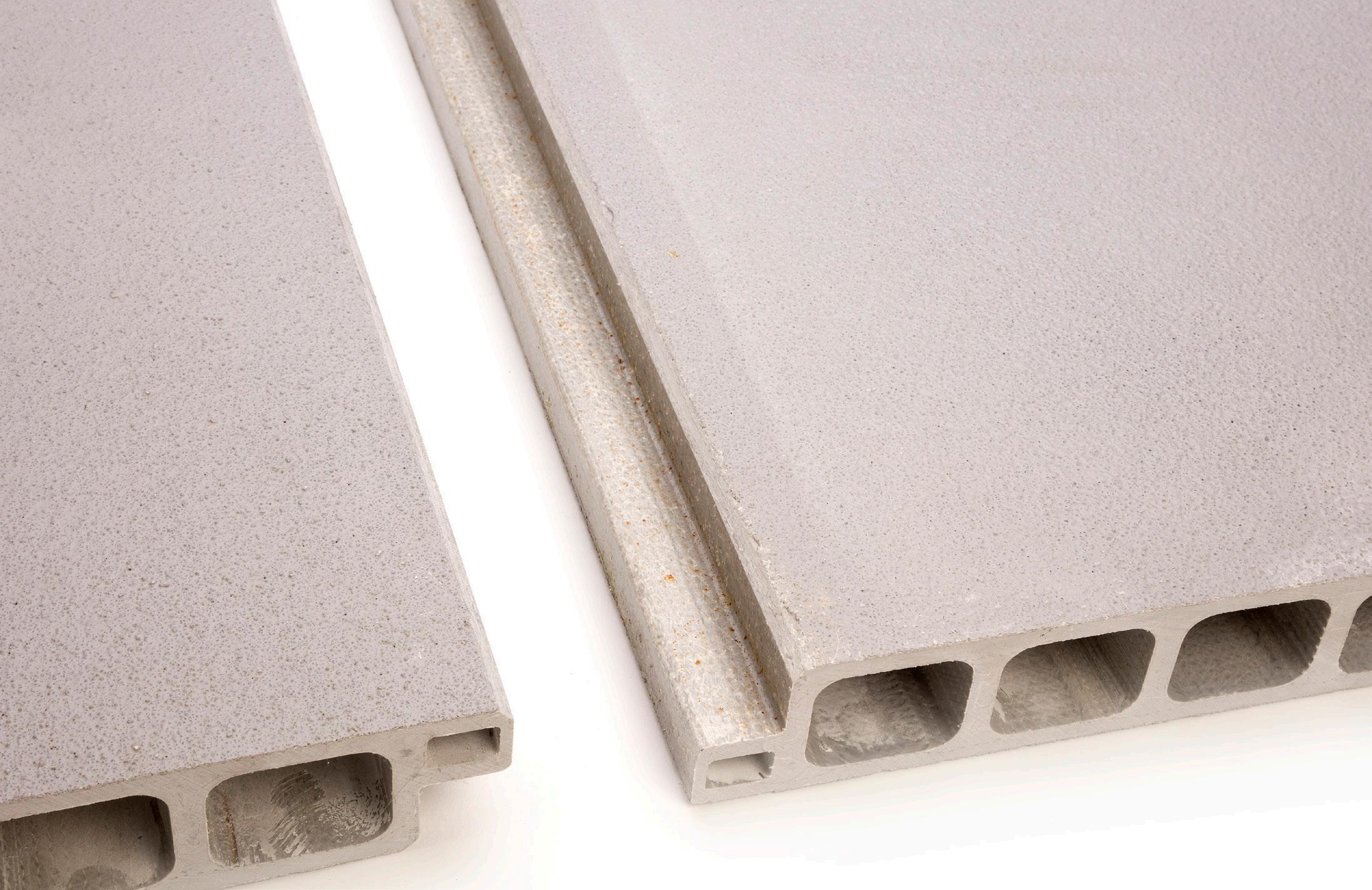

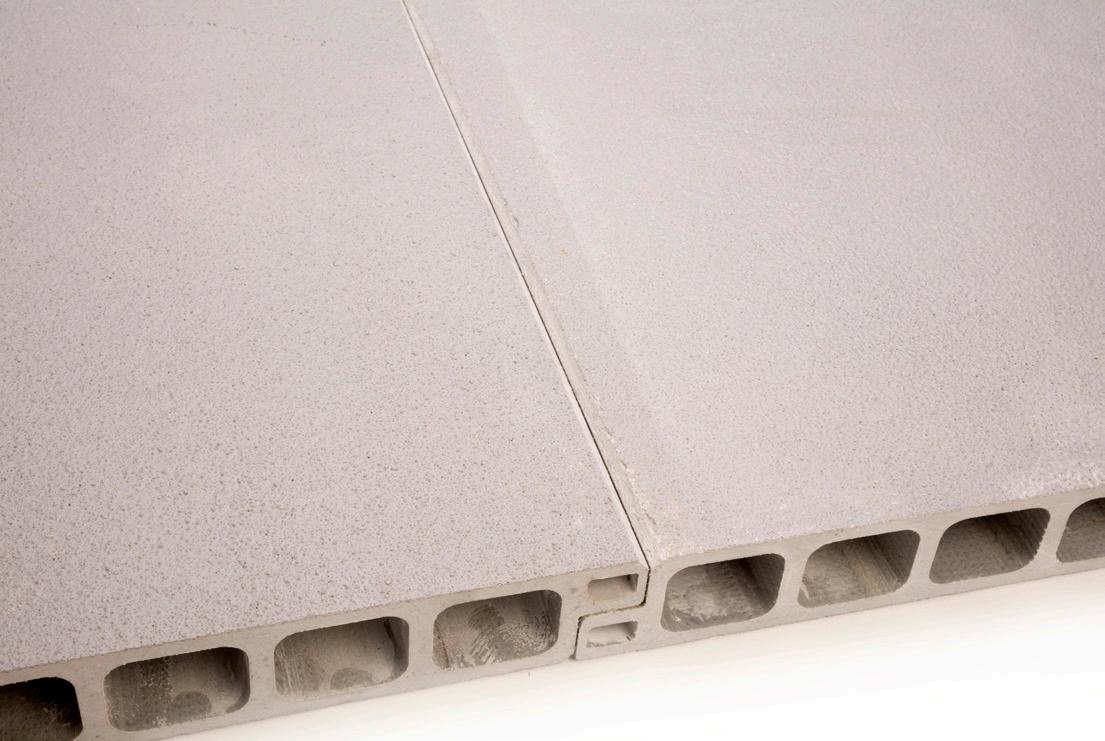

Interlocking Solid Top Mesh Grating

Interlocking Solid Top Panels Advanced Pultruded Structural Panels are fast becoming the cost effective solution for heavyduty environments that require a solid finish.

A range of highly engineered Pultruded Panels are available to suit a variety of commercial, industrial, marine and rail applications and can be manufactured to suit BS 124 specifications (Class B125 and C250 vehicular ratings) Why choose SafeSlab™?

•

Extra strong - suitable for vehicular access

•

Can be used with a neoprene gasket to create a water-resistant covering

•

Panels are designed to interlock providing an almost seamless finish.

THICKNESS

DIMENSIONS

COLOUR

•

Gritted anti-slip finish

50mm

3660 x 475mm

Grey - Top Grit

•

Solid top and bottom - one side with the antislip finish

50mm

3660 x 475mm

Grey - Bottom Grit

www.decksafe.ae

+ 971 54 589 1971

sales@decksafe.ae

35

Mesh Grating Fixings Any GRP installation is only as good as the fixings used which is why we only use 316/A4 quality stainless steel nuts, bolts, clips, clamps and washers.

They may not last as long as the mesh panels or structural profiles but they are guaranteed for 10 years and can be replaced if they start to show signs of corrosion.

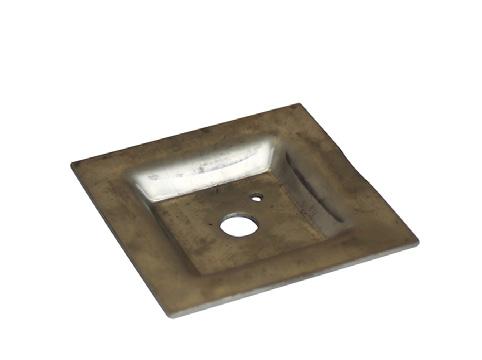

Square Clips • Grade 316/A4 • Secure Standard Mesh Panels to solid surfaces PANEL TYPE

THICKNESS

MESH BAR CENTRES

Standard Mesh

25-38mm

38 x 38mm

Standard Mesh

50mm

50 x 50mm

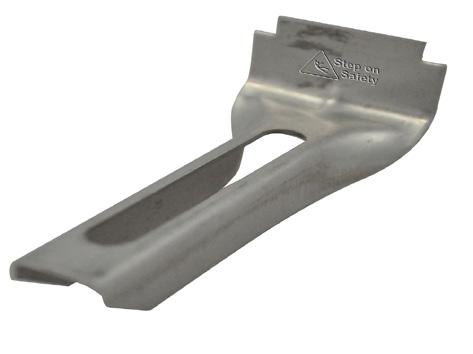

M-Clips

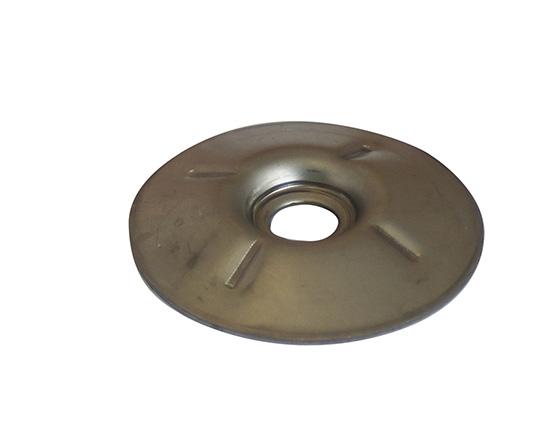

Dome Washers

• Grade 316/A4

• Grade 316/A4

• Designed to secure open mesh grating to GRP Profile

• Use with bolts • For use with Solid Top Panels and Flat Plate

PANEL TYPE

THICKNESS

MESH BAR CENTRES

PANEL TYPE

DIAMETER

MESH SIZE

Standard Mesh

25mm

38 x 38mm

Standard/Mini/Solid

40mm

20/38mm

Standard Mesh

38mm

38 x 38mm

Mini Mesh/Solid

30mm

20/38mm

Standard Mesh

50mm

50 x 50mm

Mini Mesh

14-22mm

20 x 20mm

Mini Mesh

30-38mm

20 x 20mm

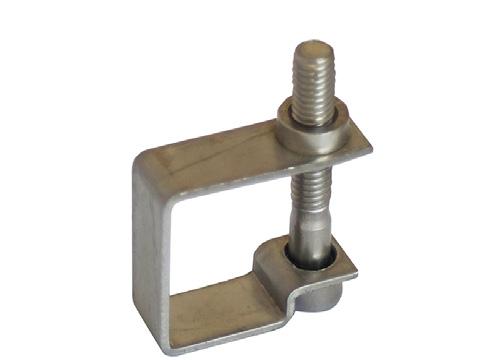

G-Clamps • Grade 316/A4 • Secure two mesh panels side-by-side • Supplied with hex bolt

J-Clamps • Grade 316/A4 • Clamp panels securly to profiles that can’t be drilled PANEL TYPE

THICKNESS

MESH SIZE

Standard/Mini/Solid

22-38mm

20/38mm

Standard/Solid

50mm

50 x 50mm

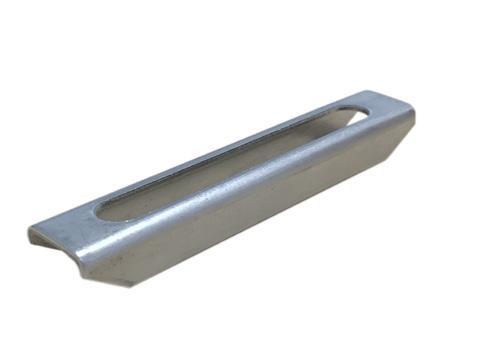

Joining Bars

PANEL TYPE

THICKNESS

MESH BAR CENTRES

Standard Mesh

25mm

38 x 38mm

Standard Mesh

38mm

38 x 38mm

Standard Mesh

50mm

38 x 38mm

Mini Mesh

22mm

20 x 20mm

PANEL TYPE

LENGTH

Mini Mesh

30mm

20 x 20mm

ALL Panels

SIngle

Mini Mesh

38mm

20 x 20mm

ALL Panels

Double

36

• Grade 316/A4 • Join two panels edge to edge

Providing Anti-Slip GRP Access Solutions WORLDWIDE

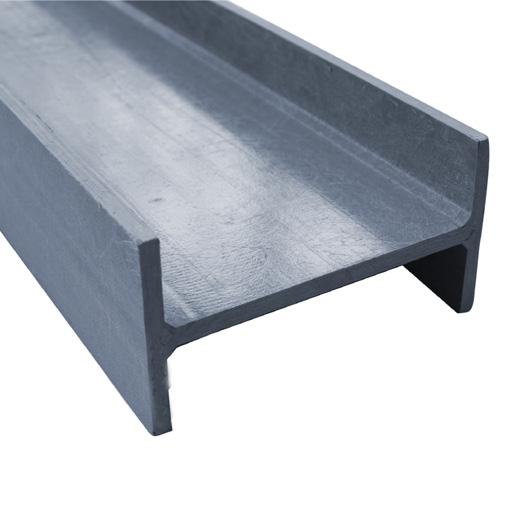

GRP Structural Profile Structural Profiles Our GRP Profiles come in a variety of forms, including Angle, Tube, Box, C-Section, I-Beam and H-beam sections. Their strength and mechanical properties match or exceed traditional steel equivalents.

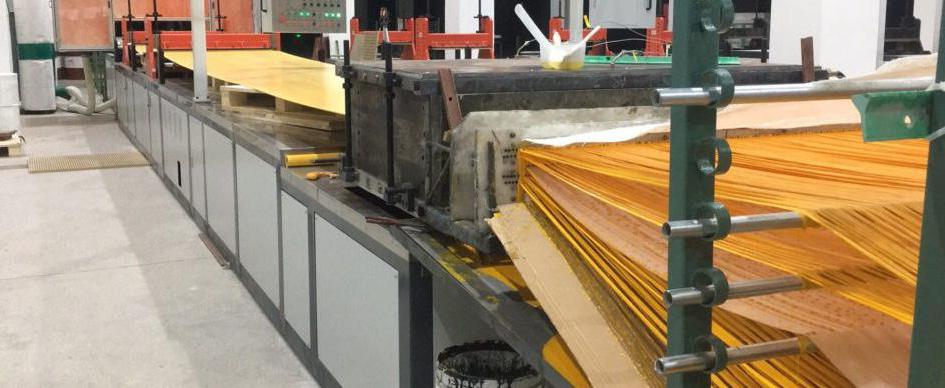

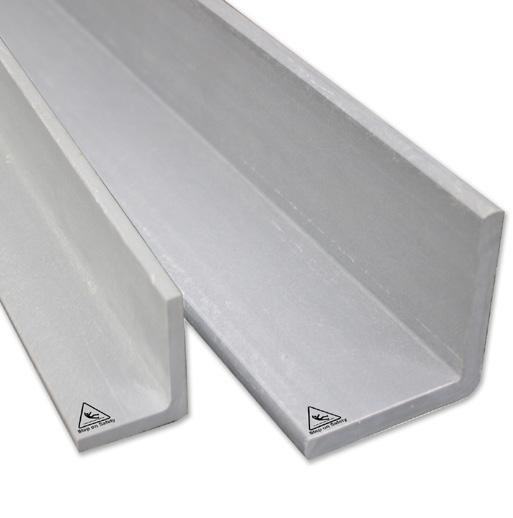

ANGLE All our Pultruded Profiles are manufactured from glass-reinforced polyester resin (fibreglass) and include a continuous strand mat and a polyester surface veil on the exterior. This combination provides exceptional corrosion resistance and weather resistance, which makes our profiles low-maintenance and incredibly durable.

BOX

Our GRP profiles with a wall thickness of more than 5mm are highperformance (E23 grade), while those at 3-5mm are E17 grade.

Pultruded Profiles are supplied directly from stock in 6m lengths as standard. Profile can be cut to your required size for a small additional fee. Please let us know when you order.

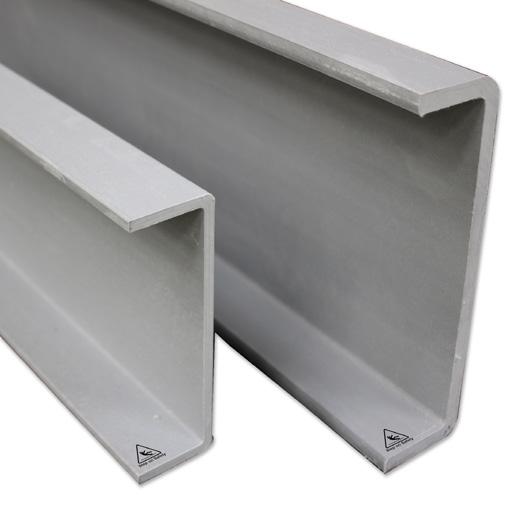

C-SECTION

I-BEAM

PROFILE TYPE

DIMENSIONS

COLOUR

Angle

50 x 40 x 6mm

Grey

Angle

50 x 50 x 6mm

Grey

Angle

75 x 75 x 10mm

Grey

Angle

100 x 100 x 8mm

Grey

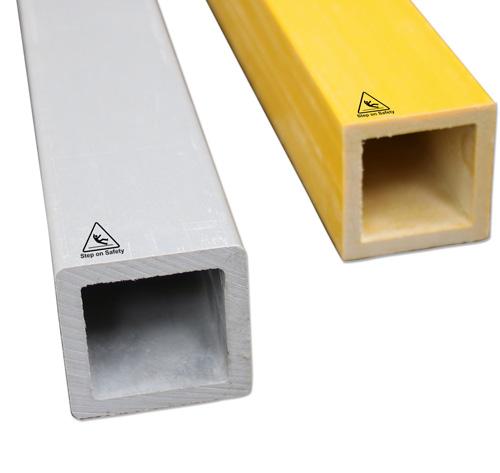

Box

51 x 51 x 6mm

Grey/Yellow

Box

76 x 76 x 6.35mm

Grey

C-Section

100 x 40 x 5mm

Grey

C-Section

150 x 50 x 6mm

Grey

C-Section

200 x 60 x 8mm

Grey

I-Beam

200 x 100 x 9.5mm

Grey

H-Beam

200 x 200 x 10mm

Grey

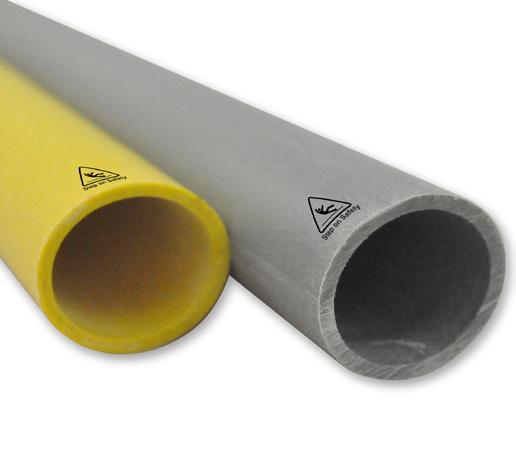

Tube

50 x 50mm

Grey/Yellow

H-BEAM

Tube www.decksafe.ae

+ 971 54 589 1971

sales@decksafe.ae

37

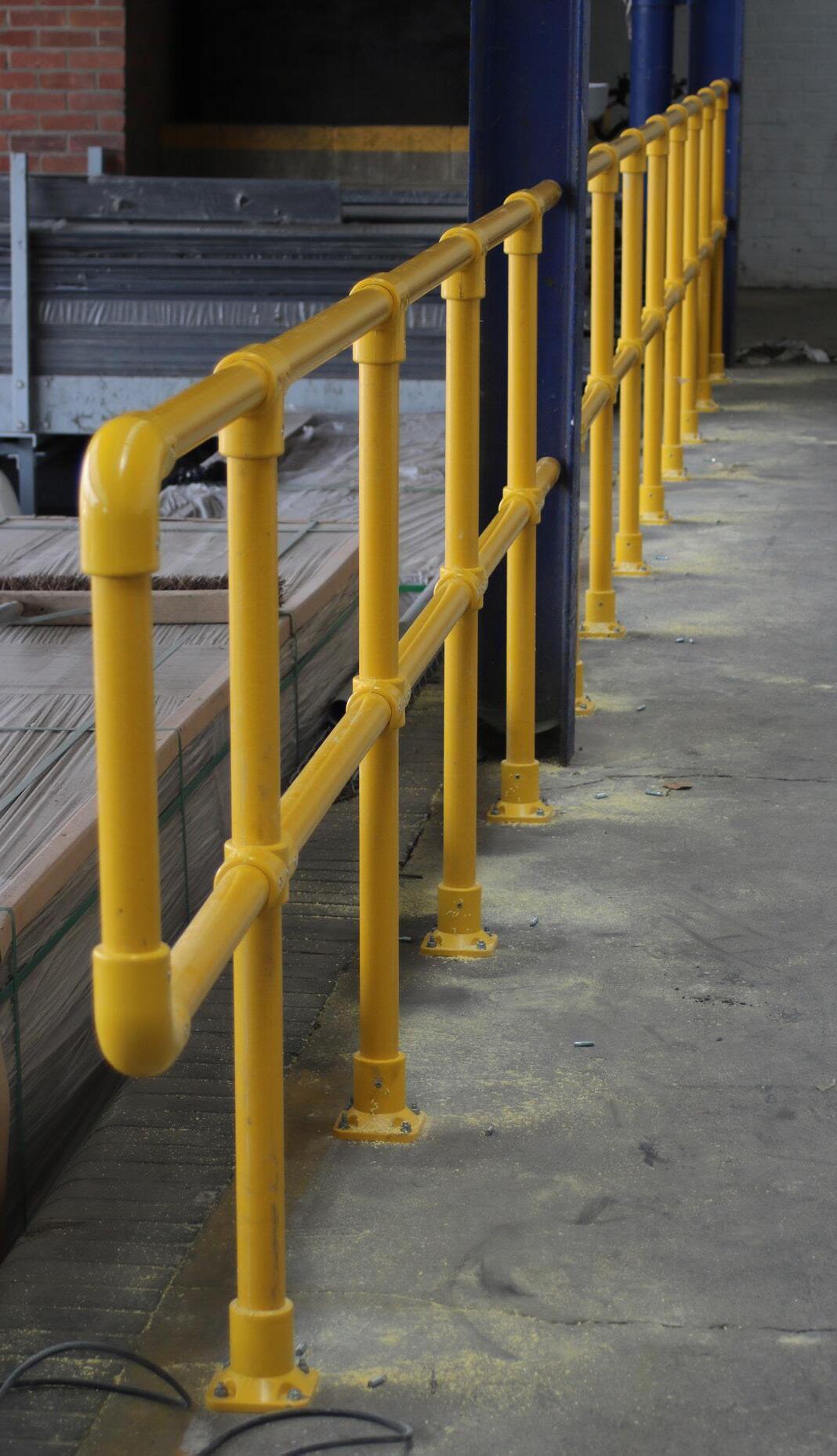

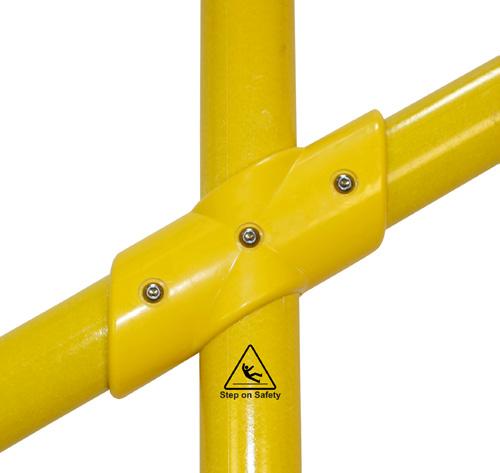

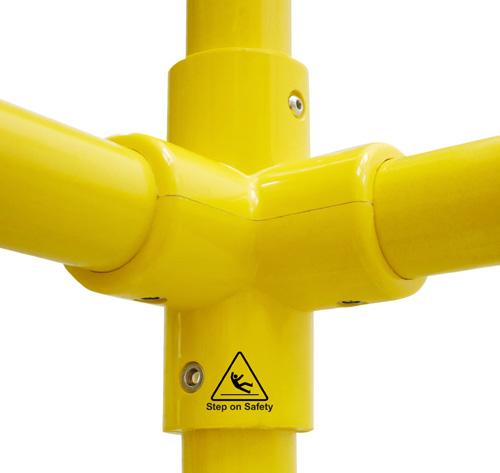

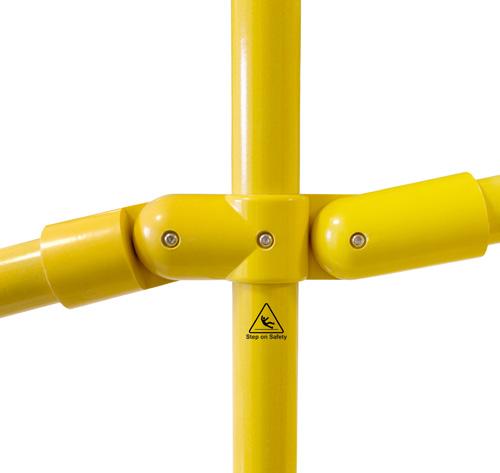

Key-Clamp Handrail

SafeClamp® GRP Handrails are a modern composite alternative to conventional galvanised key-clamp style handrail systems, offering complete flexibility.

The SafeClamp® GRP Handrailing System is based on a 50mm diameter pultruded tube - 5mm thick for real strength and toughness - and joined together by a range of specifically designed GRP moulded fittings to create the complete handrail system.

Why Choose SafeClamp® GRP Handrails?

1. Lightweight Easily transported to hard to access locations 2. Tough and strong Well suited to the aggressive service conditions of commercial and industrial environments 3. Flexible Excellent weatherability and resistance to most industrial chemicals, GRP Handrails are extremely lowmaintenance 4. Warning yellow Pigmented throughout, ensuring any surface scratches are less visible.

5. Warm to the touch The low thermal conductivity of GRP makes it ideal for use in public areas, especially ramps and other areas designed for disabled access.

38

Providing Anti-Slip GRP Access Solutions WORLDWIDE

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

COMPONENT

COLOUR

A

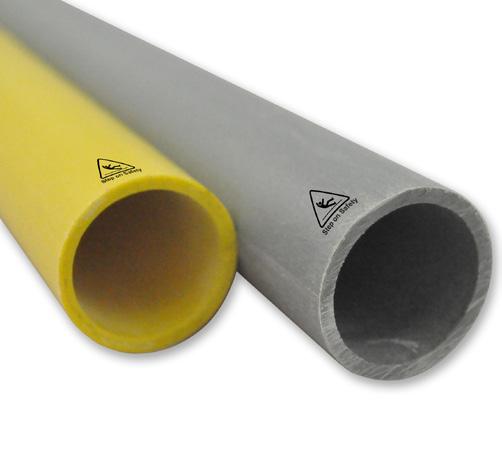

6000mm Handrail Tube

Yellow

B

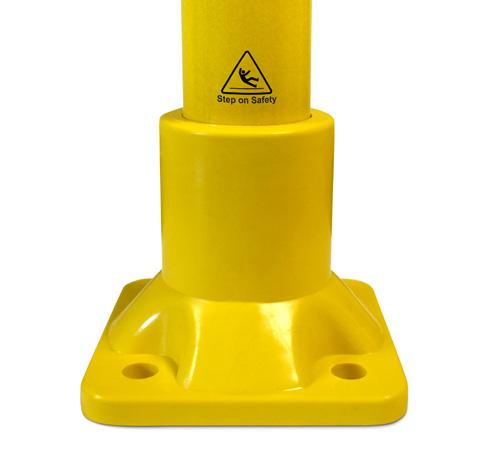

Base Foot

Yellow

C

Side Mount

Yellow

D

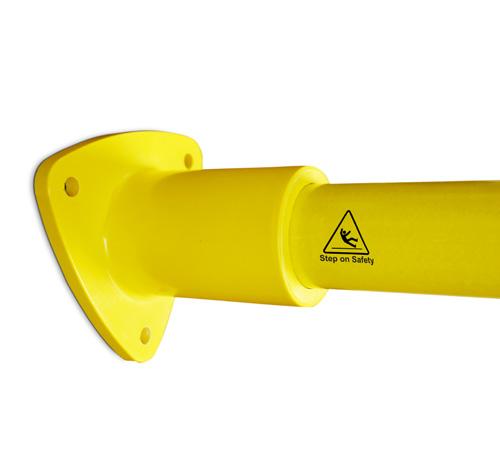

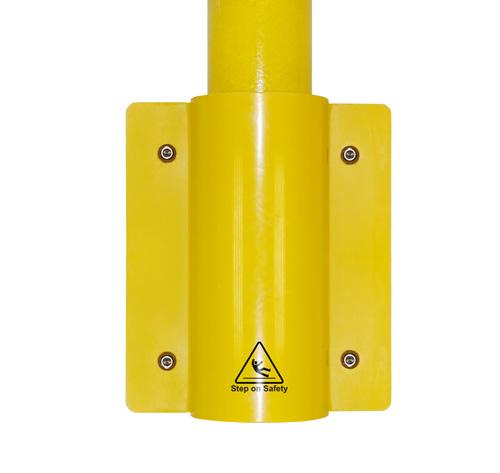

Wall Mount

Yellow

E

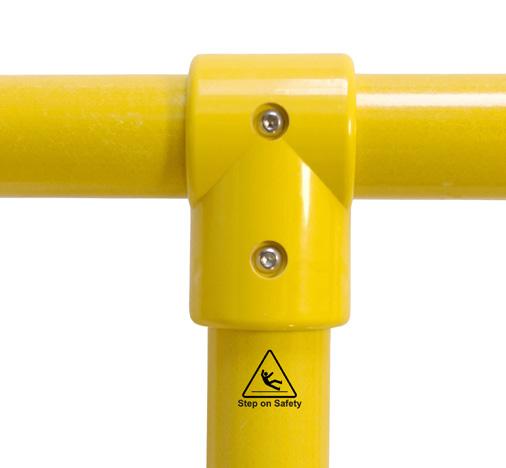

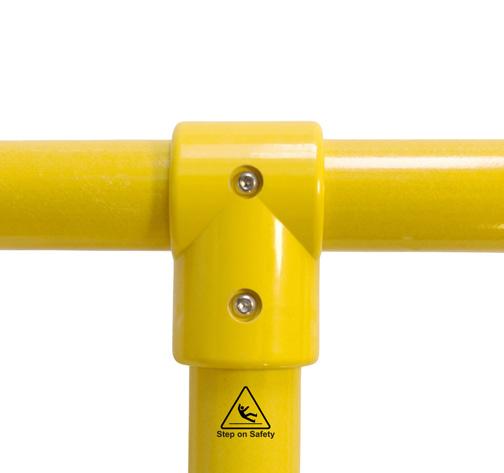

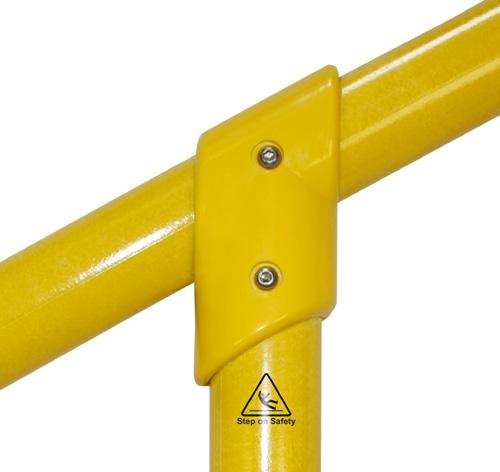

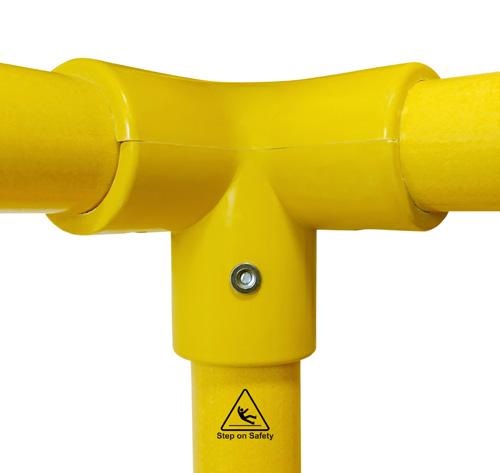

3-Way Connector

Yellow

F

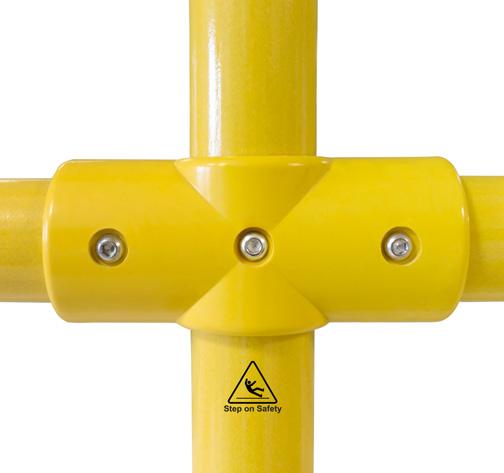

4-Way Connector

Yellow

G

3-Way Corner Connector

Yellow

H

4-Way Corner Connector

Yellow

I

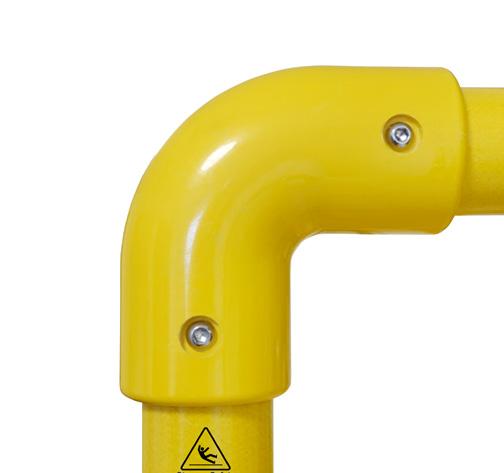

90° Elbow Connector

Yellow

J

Universal Connector

Yellow

K

Universal 3-Way Connector

Yellow

L

Universal 4-Way Connector

Yellow

M

3-Way Long Connector

Yellow

N

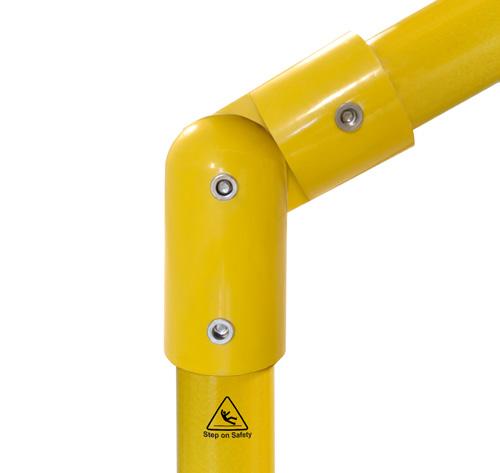

120° Elbow Stair Connector

Yellow

O

3-Way 60° Stair Connector

Yellow

P

4-Way 60° Stair Connector

Yellow

Q

Kick Plate

Yellow

R

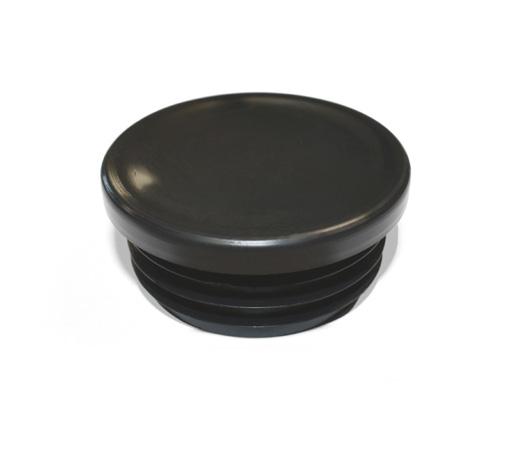

Tube End Cap

Black

www.decksafe.ae

+ 971 54 589 1971

sales@decksafe.ae

39

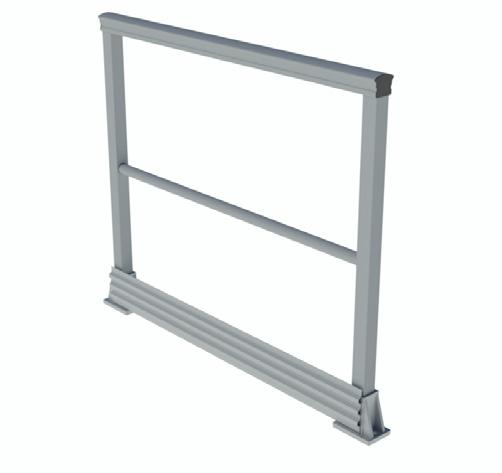

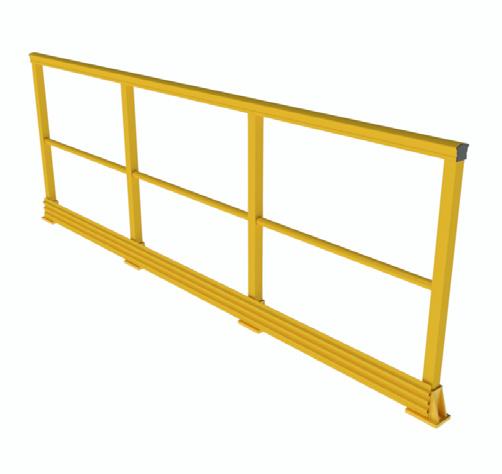

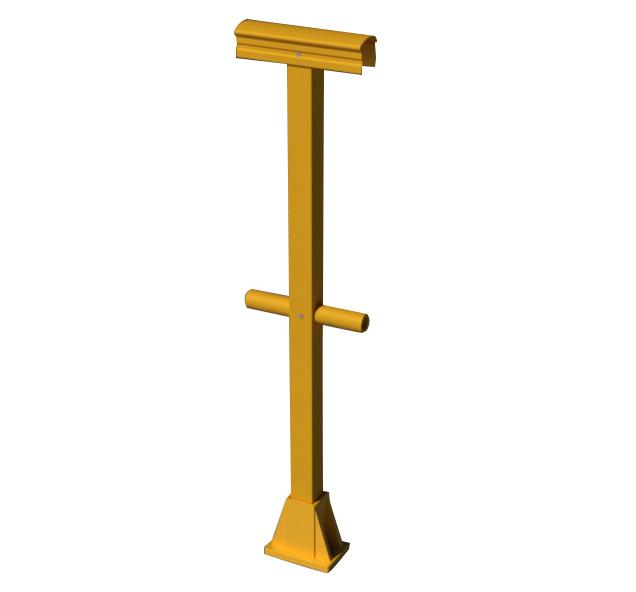

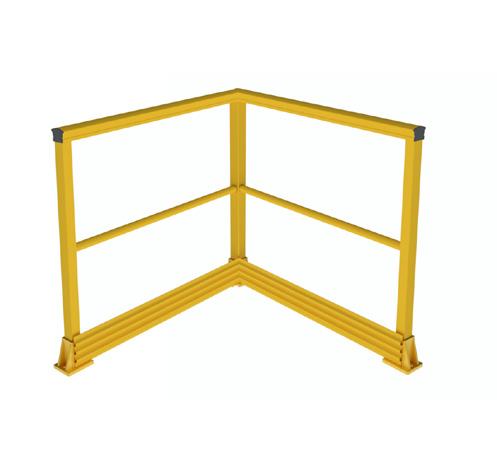

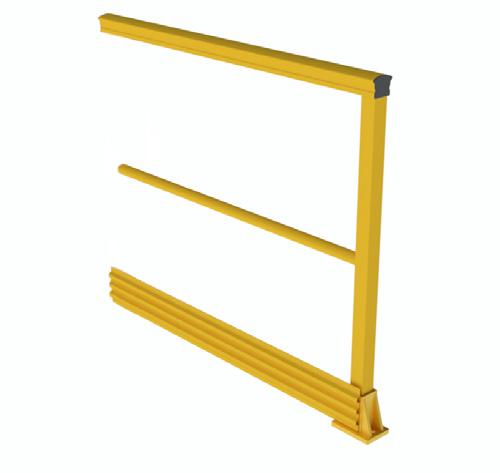

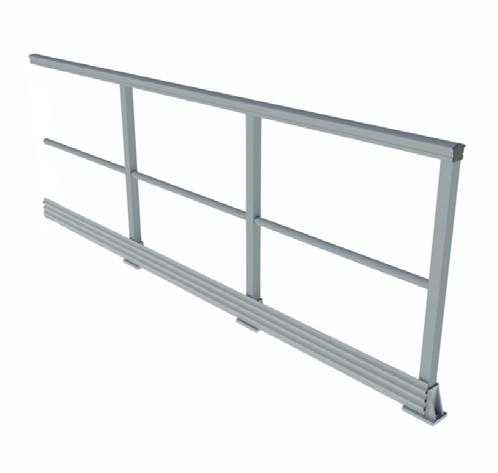

Modular Handrail

SafeRail™ GRP Modular Handrail is available in a range of standard, 1100mm tall, pre-fabricated sections that can be assembled quickly onsite. We can also create bespoke sections or supply the components directly to you to build your own.

Why Choose SafeRail™ GRP Handrail?

Instant solution - pre-fabricated sections can be installed quickly for a less disruptive solution - ideal for platforms

Tough and strong - well suited to the aggressive service conditions of commercial and industrial environments Mesh option - adding mesh infill panels deters queuehopping and prevents debris from drifting too far Choice of colours - highlight danger zones with yellow or simply control pedestrian movement with the smart grey Warm to the touch - the low thermal conductivity of GRP makes it ideal for use in public areas

40

Providing Anti-Slip GRP Access Solutions WORLDWIDE

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

PRE-FABRICATED SECTIONS

LENGTH COLOUR

A

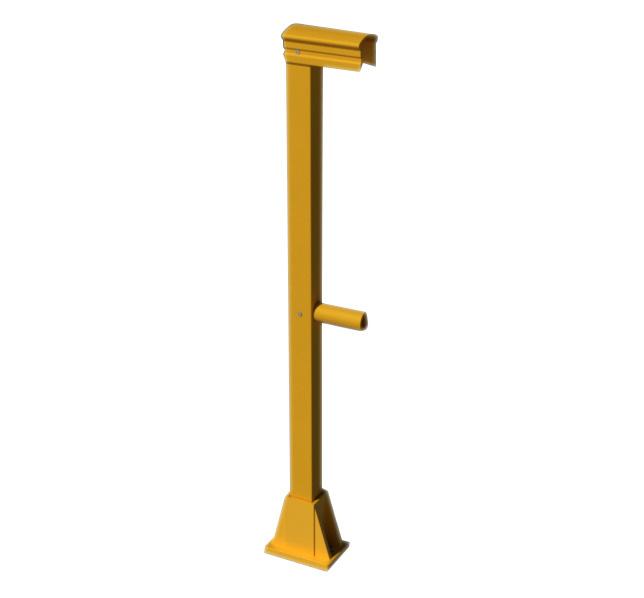

Start/Stop Post

-

Grey/Yellow

B

Intermediate Post

-

Grey/Yellow

C

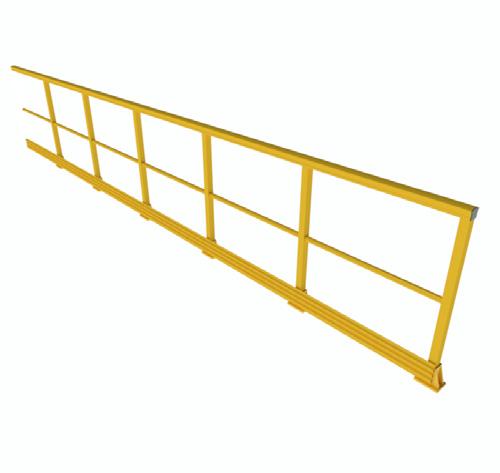

Complete Section

1200mm

Grey/Yellow

D

Add-On F-Section

1200mm

Grey/Yellow

E

Complete Section

3000mm

Grey/Yellow

F

Add-On F-Section

3000mm

Grey/Yellow

G

Complete Section

6000mm

Grey/Yellow

H

Add-On F-Section

6000mm

Grey/Yellow

N

I

90° Corner Section

1200mm

Grey/Yellow

O

www.decksafe.ae

COMPONENTS

J

K

50mm Stanchion Post Box Profile 38mm Mid Rail Tube Profile

LENGTH

COLOUR

6000mm

Grey/Yellow

6000mm

Grey/Yellow

L

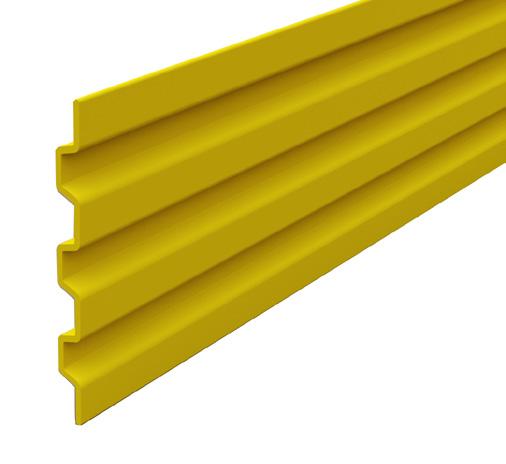

150mm Kick Plate Profile

6000mm

Grey/Yellow

M

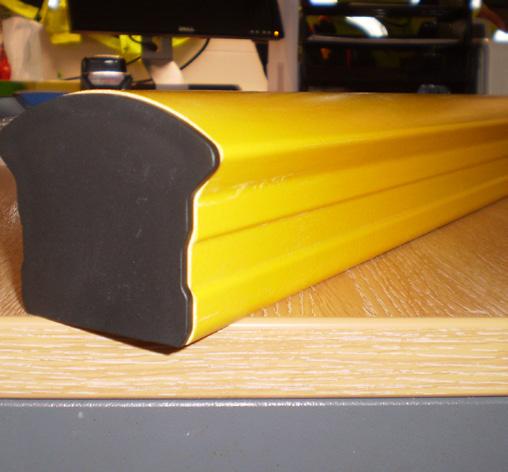

Top Rail Profile

6000mm

Grey/Yellow

3660mm

Grey

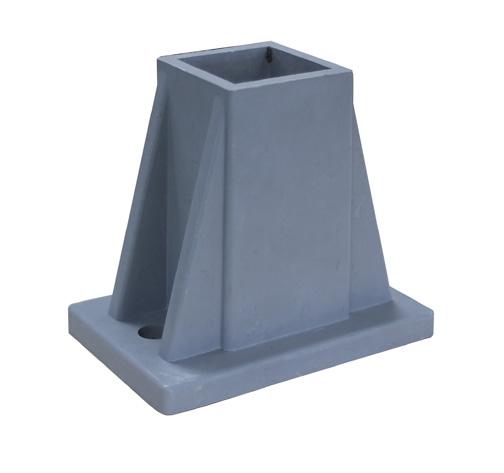

Base Box Foot

-

Grey/Yellow

Blind Rivets

-

Silver

Through-Bolts

-

Silver

ScreenGuard Mesh Panels

+ 971 54 589 1971

sales@decksafe.ae

41

GRP Security/Debris Screen

SCREEN GUARD Smooth finish makes it ideal for use in fencing as it won’t snag on pedestrian clothing.

Machine Guarding is made from smooth GRP. The mesh hole size is 50.8mm x 50.8mm and is specifically manufactured to provide the ideal safety barrier that is non-conductive, corrosion-resistant and low-maintenance. This product is durable, strong and made from premium grade materials.

SafeScreen™ Applications • Handrail infill panels • Debris screens • Machine guard • Trough covers • Security partitions • Cages

THICKNESS

DIMENSIONS

COLOUR

12mm

2440 x 1220mm

Grey

12mm

3660 x 1220mm

Grey

42

Providing Anti-Slip GRP Access Solutions WORLDWIDE

GRP Anti-Slip Flooring TACTILE FLOORING TILES Tactile flooring is designed to warn visually impaired pedestrians when approaching a change in floor level or hazardous areas such as railway platforms, pedestrian crossings and stairs.

Why choose Anti-Slip Tactile Flooring?

•

QuartzGrip® Anti-Slip Tactile Flooring is available in a variety of designs to suit various applications.

•

The tiles can be used internally or externally to provide a warning in the change of surface or to denote a hazard that has been approached.

Types of Tactile Flooring ANTI-SLIP FLAT PLATE QuartzGrip® Anti-Slip GRP Flooring Sheets are a great solution to safeguarding employee and public safety by reducing slips, trips and falls in hazardous environments in constant use.

Benefits of Anti-Slip Flooring Sheets •

Designed specifically to create grip underfoot, this effective gritted surface performs well in wet, icy or greasy conditions, transforming walkways and maintaining a steady grip. The surface meets BS 7976-2 for slip-resistance.

•

Flooring sheets are a great option if you have worn or uneven flooring where slips are more likely to occur.

•

The flooring is also easy to install and is more durable than anti-slip paint or tape, making it an especially cost-effective solution.

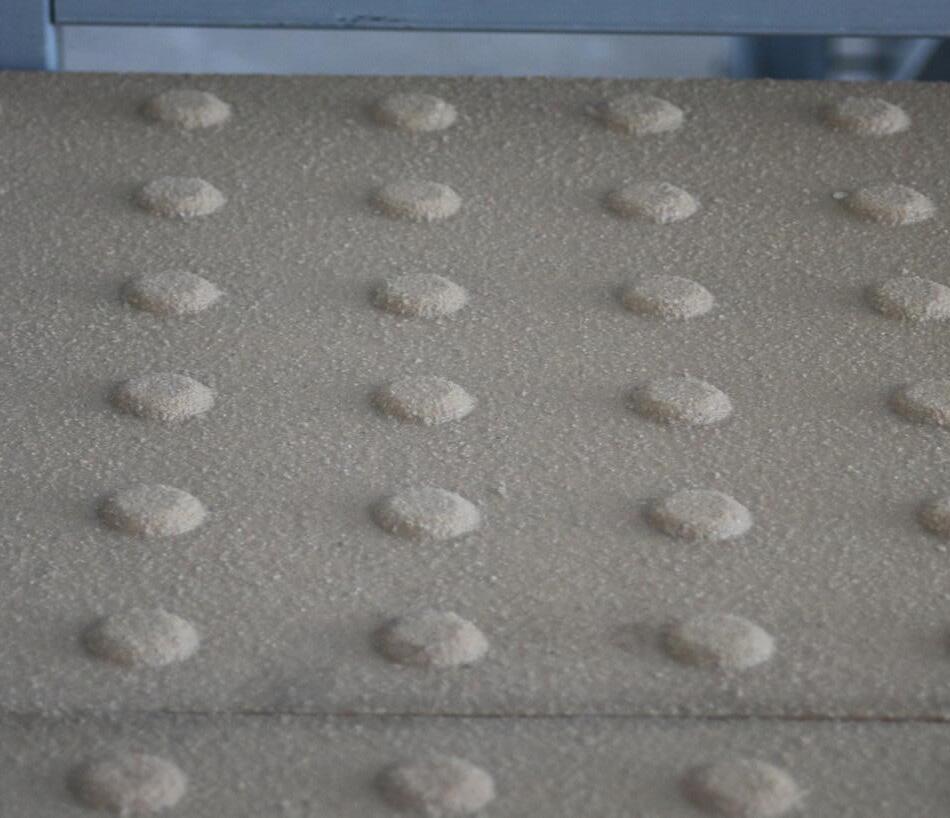

In-line Blister Tactiles provide warnings in the absence of a curb less than 25mm high. The surface is an essential safety feature as its terrain differentiates where a footway ends and where the carriageway begins. The tiles also allow wheelchair users to cross roads with ease.

Off-Set Blister Tactiles have flat-topped domes set in even rows, for use on platform edges, parallel to the direction of travel to the train. The surface can be any colour (apart from red) to provide a contrast to assist partially sighted people.

Corduroy Tactiles warn of the approach of specific hazards including steps, level crossings, or the approach of streetlight rapid transit (LRT) platforms.

DIMENSIONS

COLOUR

DIMENSIONS

PATTERN

2000 x 1000mm

Beige/Black/Grey/Yellow

400 x 400mm

Off-Set Blister

2440 x 1220mm

Beige/Black/Grey/Yellow

400 x 400mm

In-Line Blister

3000 x 1220mm

Black

400 x 400mm

Corduroy

QUARTZGRIP ADHESIVE • Bonds GRP to concrete, timber or steel • Long-lasting • Water-resistant • Easy to use

PANEL TYPE

ML

Flat Plate/Tread/Nosing

310ml

www.decksafe.ae

+ 971 54 589 1971

sales@decksafe.ae

43

GRP Anti-Slip Stair Tread Covers

QuartzGrip® GRP Stair Tread Covers are designed to cover the entire stair tread and provide a firmer grip underfoot, complying with Equalities Act Guidelines. Our AntiSlip Stair Treads work well in wet, icy or oily conditions and can transform tired looking staircases whilst minimising the risk of slips, trips and falls.

QuartzGrip® is manufactured from premium grade slip-resistant fibreglass to maximise quality, durability and lifespan, and can be cut to any size.

Quality Guaranteed All our GRP Anti-Slip Stair Treads adhere to ISO 9001 standards and are made with premium-grade, slip and corrosion resistant fibreglass.

Installing our GRP Stair Tread Covers is easy.

Simply glue and screw to timber, concrete or chequer plate steps or stairs. It pairs nicely with GRP Anti-Slip Stair Nosing and Anti-Slip GRP Flooring Strips.

44

DIMENSIONS

COLOUR

1000 x 345mm

Black & White/Black & Yellow/Beige/Grey/ Yellow

1216 x 345mm

Black & White/Black & Yellow/Beige/Grey/ Yellow

3000 x 345mm

Black & White/Black & Yellow/Beige/Grey/ Yellow

3660 x 345mm

Black & White/Black & Yellow/Beige/Grey/ Yellow

2440 x 1220mm

Landing Cover - Black & Yellow only

Providing Anti-Slip GRP Access Solutions WORLDWIDE

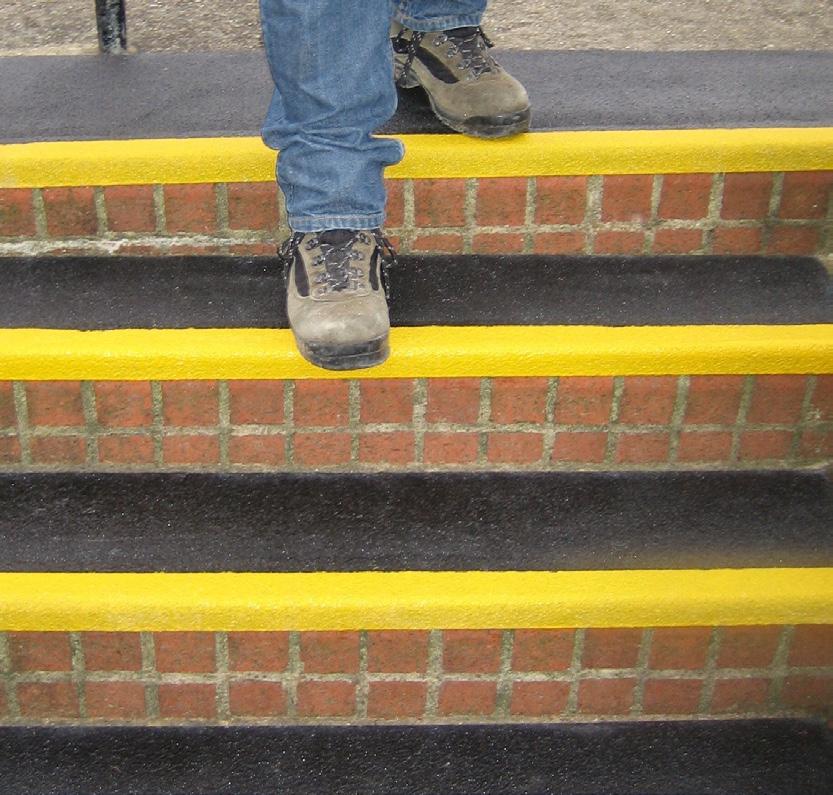

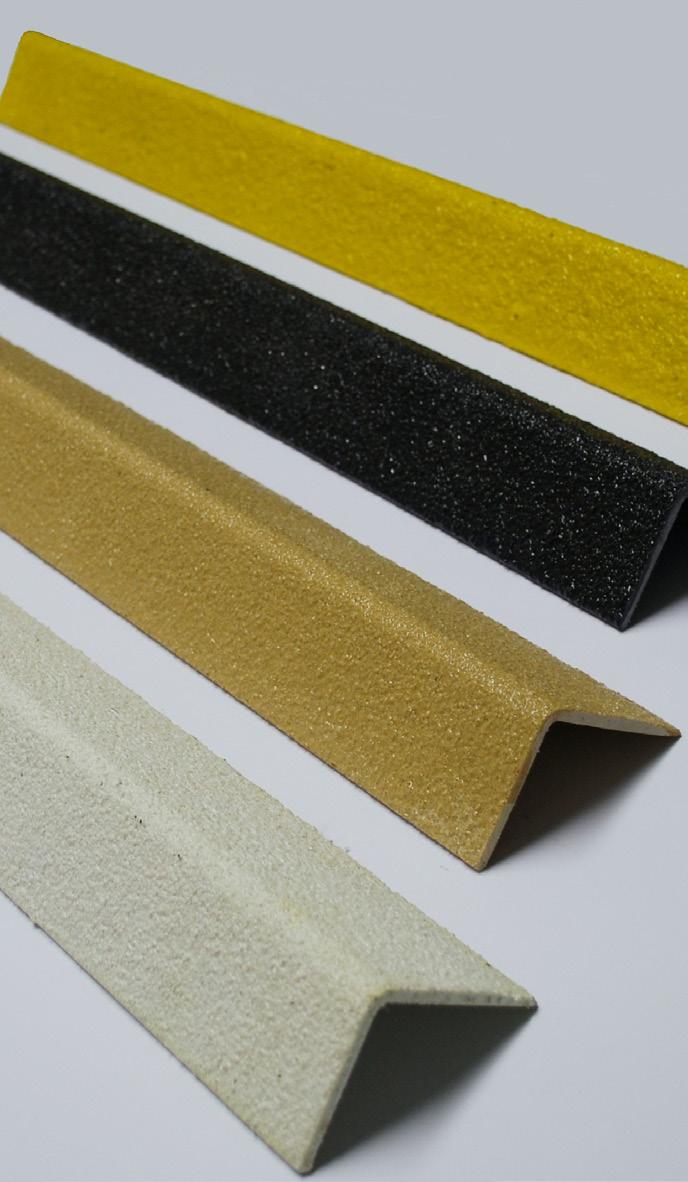

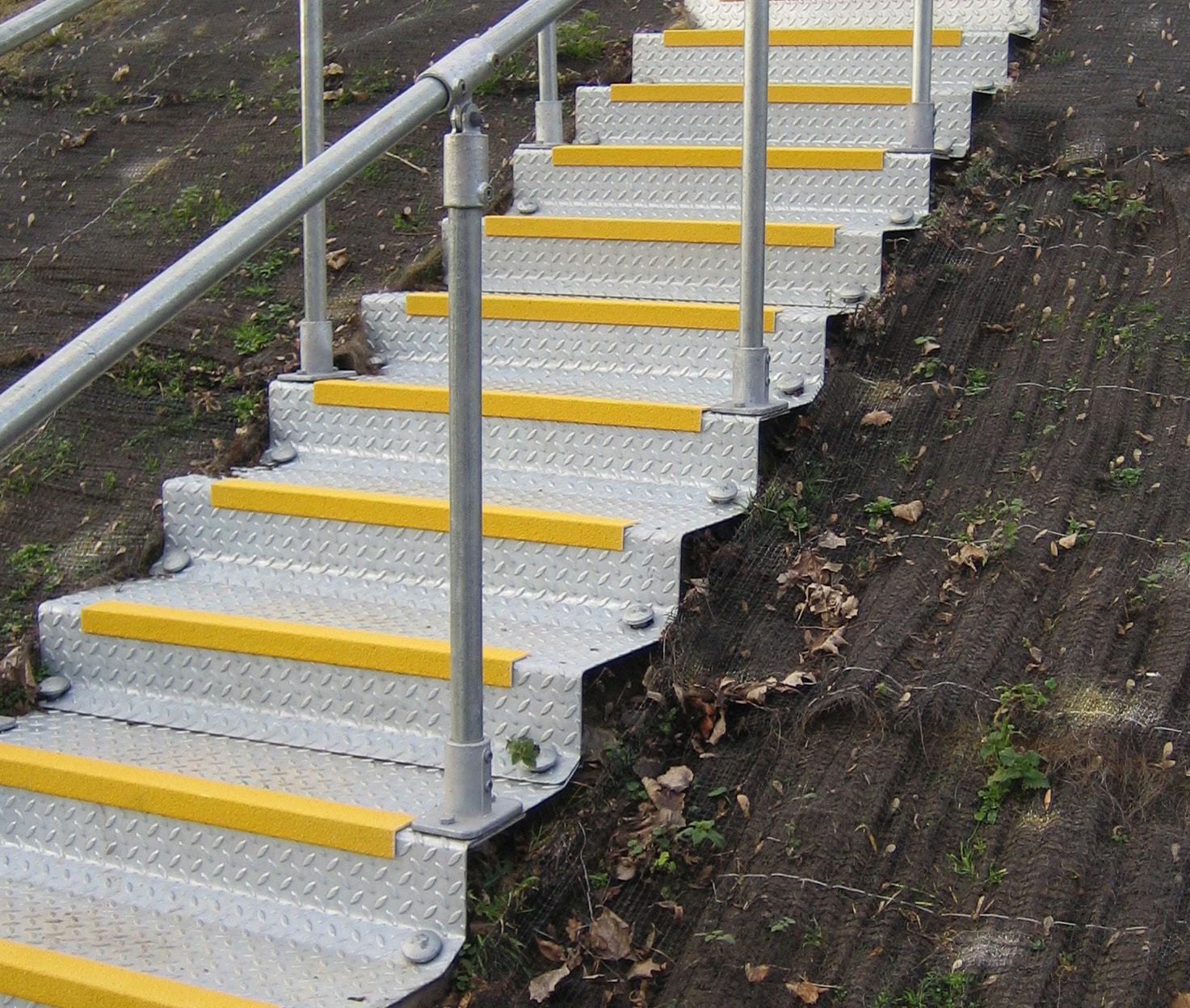

GRP Anti-Slip Stair Nosing

QuartzGrip® GRP Anti-Slip Stair Nosing is the ideal product if you are looking for an affordable solution to minimise the risk of slips, trips and falls.

• Maintenance-free • Anti-slip in oily or wet conditions

All our Anti-Slip Stair Nosings are manufactured from premium fibreglass to ensure durability and quality, with a textured finish to provide greater resistance underfoot in poor weather conditions.

Why QuartzGrip® GRP Anti-Slip Stair Nosing?

Step on Safety’s QuartzGrip® GRP Anti-Slip Stair Nosing is a brilliant solution for safeguarding industrial, commercial and public spaces.

• Easy to fit

Our QuartzGrip® GRP Anti-Slip Stair Nosing is manufactured from premium grade, slip-resistant fibreglass to maximise quality, durability and lifespan, plus it can easily be cut to any size and pre-drilled for faster installation. Not only does stair nosing add an extra anti-slip surface, but it also highlights the attention to the edge of a stair, which can often be missed in low lighting, particularly outdoors or in a poorly lit stairwell.

Easy to Install Our QuartzGrip® GRP Anti-Slip Stair Nosing is easy to install. Simply glue and screw your stair nosing to timber, concrete, chequer plate steps or stairs.

• Cost-effective • Durable, with a long lifespan • DDA/Equalities Act compliant

Standard Grit Finish

Fine Grit Finish

DIMENSIONS

COLOUR

DIMENSIONS

COLOUR

600 x 55 x 55mm

Black/White/Yellow

600 x 70 x 55mm

Beige/Black/Grey/White/Yellow

1000 x 55 x 55mm

Black/White/Yellow

1000 x 70 x 55mm

Beige/Black/Grey/White/Yellow

1200 x 55 x 55mm

Black/White/Yellow

1200 x 70 x 55mm

Beige/Black/Grey/White/Yellow

3000 x 55 x 55mm

Black/White/Yellow

3000 x 70 x 55mm

Beige/Black/Grey/White/Yellow

3600 x 55 x 55mm

Black/White/Yellow

3600 x 70 x 55mm

Beige/Black/Grey/White/Yellow

www.decksafe.ae

+ 971 54 589 1971

sales@decksafe.ae

45

Grating Tech Specs GRP Mesh Mechanical Data • Elastic Modulus 27 GPa • Flexural Strength 2.8 GPa • Tensile Strength 650 MPa • Compressive Strength 90 MPa • Dielectric Strength 18 KW/mm • Specific Gravity 1.5 ÷ 1.7 • Thermal Expansion Factor 13 x 10-6 mm/mm ºC • Water Absorption 0.1% + 0.3% x 24 hours (ISO R62) • Operating Temperature -100ºC to +180ºC

Manufacturing Tolerances • Standard Panel Size = +2mm, -0mm • Cut Panel Size = ±3mm • Thickness = ±1mm • Mesh Pattern = ±0.5mm

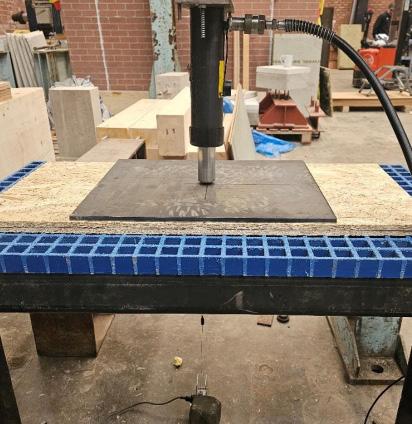

Standard Mesh Load & Deflection Data Unsupported Span (unfixed) over 1000mm width (kg) Grating Depth (mm)

Weight kg/m2

25mm

12

30mm

14.2

38mm

19

50mm

21.7

Span

300

500

600

750

1000

1200

1500

Point Load

2390

855

590

375

205

135

80

UDL

3830

1375

950

605

335

225

135

Point Load

3795

1360

940

595

330

220

135

UDL

6075

2180

1510

960

535

365

225

Point Load

8220

2950

2045

1300

725

495

305

UDL

13155

4730

3280

2090

1165

800

500

Point Load

16445

5910

4100

2615

1460

1005

630

UDL

26315

9465

6565

4195

2350

1620

1025

Standard Mesh Physical Data Grating Pitch (mm)

Top

25

38

30

46

Per 300mm of Width

Bar Thickness

Grating Depth (mm)

Bottom

2

cm

cm

cm

6.5

5.5

11.5

4.91

6.24

38

6.5

5.5

13.3

6.6

9.9

38

38

6.5

5.5

17.6

10.64

21.38

50

50.8

7.9

6.4

20.1

16.8

42.8

3

4

El kg/ m2

No. of bars per 300mm

% Glass Content

Weight (kg/m2)

% Open Area

8

32

12

69

8

32

14.2

69

8

32

18.2

69

6

32

21.7

71

119

275

Providing Anti-Slip GRP Access Solutions WORLDWIDE

Mini Mesh Load & Deflection Data Unsupported Span (unfixed) over 1000mm width (kg) Grating Depth (mm)

Weight kg/m2

14mm

10

22mm

16

30mm

18.8

38mm

23.1

Span

300

500

600

750

1000

1200

1500

Point Load

650

230

155

95

50

30

10

UDL

1025

365

250

155

80

50

25

Point Load

2885

1030

715

450

245

165

95

UDL

5945

2135

1480

960

520

355

215

Point Load

6710

2410

1670

1060

585

400

245

UDL

10740

3860

2675

1705

950

650

405

Point Load

11825

4245

2945

1875

1045

715

445

UDL

18920

6805

4720

3010

1685

1160

725

Mini Mesh Physical Data Per 300mm of Width

Bar Thickness

Grating Depth (mm)

Grating Pitch (mm)

Top

Bottom

14

20

7

5

22

20

7

5

14.8

4.2

5.5

38

20

7

5

21.2

14.7

30.8

cm

2

cm

3

cm

4

No. of bars per 300mm

% Glass Content

15

32.3

78.1

15

32.3

16

42

448

15

32.3

25.5

42

El kg/ m2

Weight (kg/m2)

% Open Area 42

Solid Top Load & Deflection Data Unsupported Span (unfixed) over 1000mm width (kg) Grating Depth (mm)

Weight kg/m2

29mm

18

42mm

24

54mm

28

Span

300

500

600

750

1000

1200

1500

Point Load

8425

3025

2095

1335

740

505

315

UDL

13485

4850

3360

2145

1195

825

515

Point Load

22975

8260

5730

3660

2045

1410

890

UDL

36765

13225

9180

5865

3590

2275

1440

Point Load

33745

12140

8420

5380

3015

2080

1315

UDL

53995

19430

13485

8620

4835

3345

2125

Solid Top Physical Data Grating Depth (mm)

Grating Pitch (mm)

29

Per 300mm of Width

Bar Thickness

No. of bars per 300mm

% Glass Content

Weight (kg/m2)

% Open Area

Top

Bottom

cm

cm

cm

El kg/ m2

38.1

6.5

5

23.7

15.1

22

615

8

32

18.5

0

42

38.1

6.64

5.02

29.8

28.5

60

1857

8

32

25.3

0

54

50.8

7.9

6.4

20.1

16.8

42.8

6

32

34

0

2

3

4

www.decksafe.ae

+ 971 54 589 1971

sales@decksafe.ae

47

COSHH Safety Info for GRP

Material Identification & Use • Chemical name - Floor Grating, Flat Plate and Construction Profile made of Fibreglass Reinforced Polyester • Common name - Glass Reinforced Plastic Grates.

(Fibreglass Grating) • Appearance - Solid, flat panels with grid pattern. Green, grey and yellow are standard colours.

Sharp edges or grit applied to top surface. Nil odours. Not soluble in water. Specific Gravity 1.6

• First Aid Procedures – Eyes - Flush at once with a sterile eye wash solution for 15 minutes

Fire Fighting Measures • Product will burn. Avoid direct fire source • Flash point: none

Step on safety training courses GRP has a set of unique properties that make it very

• Flammability limits: none

different to working with

• Extinguishing media: water, foam, A, B or C fire extinguishers

steel or timber. With that in mind, all our fabricators

Constituent Parts

• Heavy, black smoke, carbon particles. Use air respirator

comprehensive training to

• Silicon Carbide Grit (Silica 1%)

Waste Disposal

• Fibrous Glass, Polyester Resin

• Handling - Abide by local laws and procedures. Product is not considered a hazardous waste

courses are fully accredited

Personal Protection

our knowledge to enable

• Use - Floor, wall

• Catalyst (Peroxyester) • Styrene • Aluminium Oxide • Pigments Ingredients are chemically cured and bonded together.

Hazard Identification • Acute effect - None by contact.

Dust produced by cutting or grinding can penetrate the pores of the skin causing itching (Irritant). Avoid breathing dust (hazardous) • Routes of entry - Skin contact or inhalation of dust when cutting • Medical note - People who have a condition that could be aggravated by dust should avoid cutting or grinding

48

• First Aid Procedures - Skin Remove person from dust area and shower with soap and water until itching stops. Seek medical advice

• Use LEV systems or vacuum extraction with ‘M’ class filtration • Use a face mask with FFP3 filter

and installers receive ensure they know how to get the best results.

Our CPD and NVQ training and we are happy to share you to develop your own teams.

Courses can be run online, at our headquarters in

• Eye protection to EN166–grade B standard

Brantham or at your own

• Wear gloves for manual handling operations

To find out more please get

• Wear overalls and cover exposed body parts • Health Surveillance - It is recommended that Level 1 Health Surveillance is conducted/ completed annually

Providing Anti-Slip GRP Access Solutions WORLDWIDE

premises. in touch on 01206 396 446.

A business you can trust

SGS ISO 9001:2015

Composites UK

Cut, supply, distribute & install fibreglass gratings, safety flooring, access structures for public and private sector clients

Staying on the cutting edge of the developments in the Composites Industry

GQA Approved Centre

CIRAS Membership

Safe Contractor

Approved to offer GQA Qualifications

Member of Confidential Reporting for Safety

Certificate Number:

Centre No: AC/00482

Reg No: 6203390

www.decksafe.ae

Railway Industry Supplier Qualification Scheme Supplier ID: 2498

MD4056

+ 971 54 589 1971

sales@decksafe.ae

49

Talk to us today + 971 54 589 1971 sales@decksafe.ae ww.decksafe.ae

@decksafe-middle-east @decksafeme @decksafeME

50

Providing Anti-Slip GRP Access Solutions WORLDWIDE
