An Overview of the DMC Permaswage® fitting system

The DMC Permaswage® tube connection system is used tojoinaircraft hydraulic, fuel, pneumatic and ECS tube lines.

Used for 20 years, the DMC Permaswage®system has a verysuccessful"recordfor leaktightperformance on corporate and commercial aircraft as well as military and special missionaircraft.

DMC Permaswage®fittings are available in virtually any configuration required. Fittings have also been madein a. variety of fitting materials, pressure ratingsand sizes up to 1-1/2".

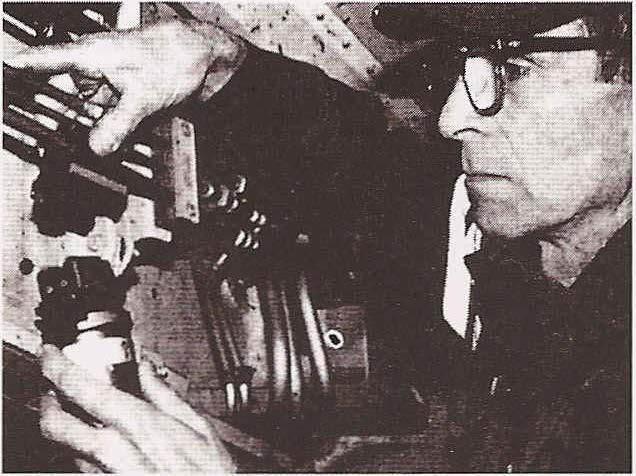

Theinstallationtechnigueis simple: Fittings are positioned on an applied mark located on the tubing. Compression tools, like the DLT series, are assembled around the fitting and the toolpressureis actuated.

The result is a mechanical swaging of the materials, joining the two elements.

A simple visual verificationand completes the installation.

DMC introducted the DLT series installation tooling in the mid 1980s because aircraft compartments and spaces were becoming smallerand toolingaccess was very important.

As a result, the DLT series tooling reduced size and weight by as much as 72% over the previous tooling series (called the D12000 series).

Other features incorporated into the DLT series tools help improve tube fabrication production by50% and dramatically reduces tool maintenance requirements.

PROVEDEND PLATEDESIGN.

KNURLEDSURFACE. Ensures the correct assembly of the head assembly and powerunit.

DESIGNED BY COMPUTER, --� TESTED BY DUR MOST DEMANDING CUSTOMERS. Tool is manufactured from durable "SuperAlloy" materials.

SWIVELSARESTANDARDEQUIPMENT.----.::! Providesgreateraccessinconfinedareas.

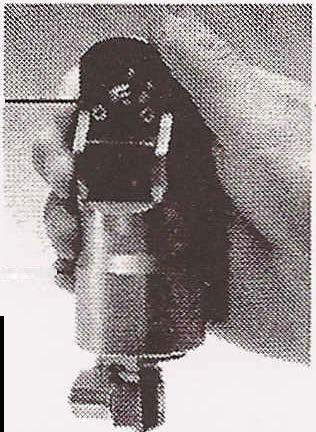

TOOLSSNAPTOGETHER. Quickandsimpleone handoperation.

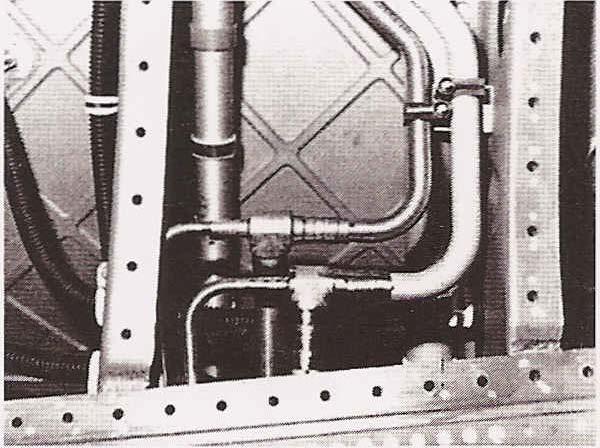

DMC Permaswage® fittings are widely accepted as the system to repair and fabricate aircraft hydraulic and fluid line tubing.

TONGUE and GROOVEFEATURE. Positions dies correctly.

The basic threestep installation sequence for DLT series tools

Using the DMC Permaswage® DLT series tooling is as simple as your ABC's. DMC field engineers and area managers can arrange brief training sessions at your facility, teaching directly to your technicians or personnel in your training department.

A. Positionfittingon markappliedontube.

In addition to training, we can also provide helpful tips in maintaining and generalcleaning procedures to ensure your DLT series tools endure years of reliable use.

All users should possess the DMC Level A tooling training card. Basic

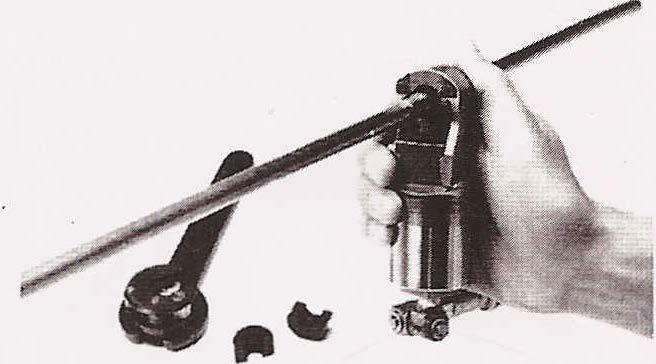

B. Positiontoolon fittingandactuate toolpressure.

C. Verifyswage.

AandBdimensioninInches

For a complete training and operations manual, contact DMC.

Comprehensive FieldRepair Kits

DMC Field Repair Kits offer allthe tools and accessories required to repair aircraft tubing lines in one kit, including the manual pump (DLT05MAPM1000). The case features tote strap and wheels for portability.
