Trailers High Pressure Cleaners #CleanGREEN! #SteamGREEN! The green power.
HIGH PRESSURE CLEANERS - Trailers
Suitable for cleaning according to the indicated number of hours.
AND COMPACT
SPECIFICATIONS:
● Stage 5 Ready
● 70 kW GreenBoiler
● Motor with heat recovery system
● Start/Stop system with auto-stop after 30 min
● Optimum load distribution and a weight of < 750 kg
GREENER
ADVANTAGES:
● Lower emissions
● Up to 18 % Fuel savings
● Fewer maintenance costs
● No special driver's license is required

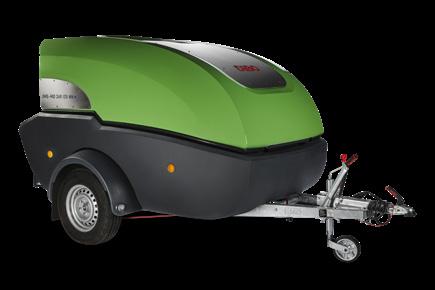

(BIO) DIESEL EXTREMELY POWERFULL FOR HEAVY DUTY CLEANING
SPECIFICATIONS:
● Stage 5 Ready
● 110 kW GreenBoiler
● 2-stage automatic fuel pump (90kW/110kW)
● Motor with heat recovery system
● Start/stop system with auto-stop after 30 min.
● Specially developed motor
ENVIRONMENTAL FRIENDLY
SPECIFICATIONS:
● CNG powered
● 70 kW GreenBoiler-CNG
● Motor with heat recovery system
● Start/stop system with auto-stop after 30 min.
● Specially developed motor
ADVANTAGES:
● Lower emissions
● Even 10% more fuel savings and less maintenance
● A longer working life
● Very powerfull with high temperature
ADVANTAGES:
● Even lower emissions
● Even lower fuel costs
● Fewer maintenance costs
● A longer working life

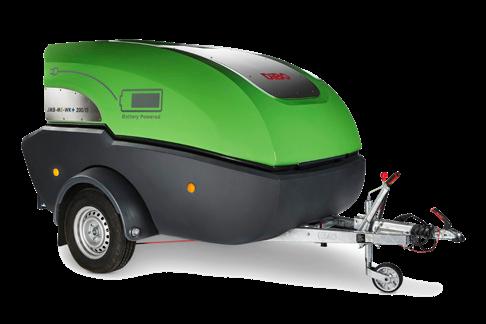

A specially developed battery pack is connected to an industrial electric motor that allows operation for a full working day on one charge.
SPECIFICATIONS:
● Battery powered
● 70 kW
● Very low noise level of < 75dB
● Start/stop system with auto-stop after 30 min.
● Specially developed battery and motor
ADVANTAGES:
● Lowest emissions
● Lowest fuel costs
● Low-noise
● Fewer maintenance costs
● A longer working life
● Operating reliability
GREENEST

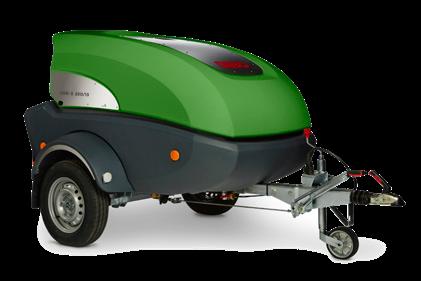

www.dibo.com JMB-S

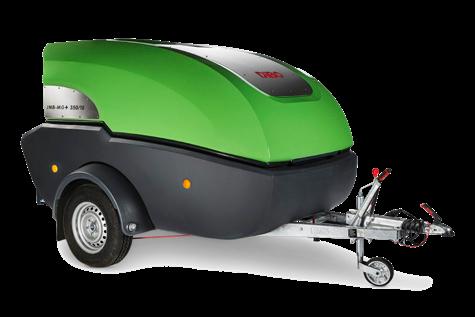

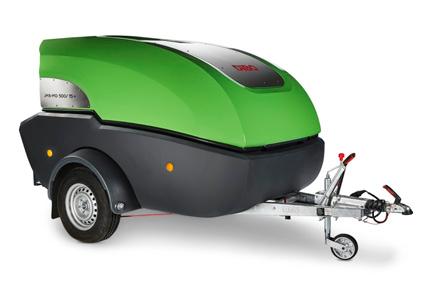

JMB-MG CNG JMB-MD
POWERFUL
GREEN
(BIO) DIESEL

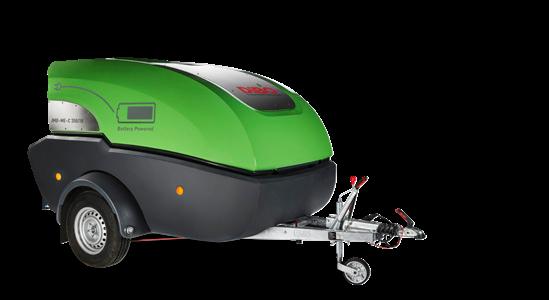

JMB-ME LI-ION BATTERY THE GREEN POWER: ALLROUND CLEANING WITH LOW TO ZERO EMISSION
GreenBoiler-CNG
Radial highpressure pump Modern design Motor pump coupling using reduction gearbox High quality materials Heatexchanger not on JMB-ME-C 5 year warranty 2 STAGE Compressed Natural Gas Compressed Natural Gas Why choose a DiBO?
Professional - intensive use 12h use
HIGH PRESSURE CLEANERS - Trailers
Professional - intensive use
JMB-S / JMB-MD / JMB-MG / JMB-ME / JMB-ME-C

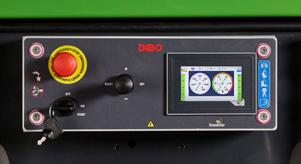

CONTROL
Digital display with joystick
SPECIFICATIONS:
ADVANTAGES:
● One joystick and digital screen for all settings
● Immediate view of all parameters, e.g., fuel/water/ temperature/pressure/working hours
● Digital display of info and instructions in four different languages
OPTIONAL VERSIONS
● User-friendly and simple
● Clear and easy to navigate
● Clear messages and easy to set, understandable for everyone
MAIN OPTIONS
Transfer pump
Pumps water from an external vessel to the high-pressure trailer => carry on working without filling up again
BODY (Limited colors for JMB-S)
SPECIFICATIONS:

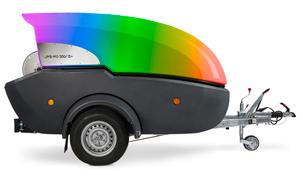

POLYESTER GUARD (not for JMB-S)
● Guard protection
● Available in RAL colour as desired
● Easy to apply stickers
● Double-walled
ADVANTAGES:
● Safety: the machine stops when the guard opens during operation
● Trailer in your own corporate colour
● Company logo, address, phone number, etc.
● Very strong and sturdy
● Noise-insulating
WATER TANK
● 200 l
● 450 l
● Water always available
LARGE STORAGE COMPARTMENT FOR LANCES AND ACCESSORIES
A unique storage system integrated in the trailer design
SPECIFICATIONS:
● Extendable from the bottom of the trailer, also during operation
● Exceptionally large
● Lockable
Track & Trace system:
● Exact machine position-finding
● History of faults and service messages
ADVANTAGES:
● Practical and space-saving
● Lances, gloves, couplings, etc. easily fit inside
● Safe and anti-theft
Two-man operation (not for JMB-S)
● High pressure function for two persons
● Steam function for two persons
www.dibo.com EN SteamGREEN
high
low pressure
Why choose a DiBO?
=
temperature (140° C) +
(30 bar)
Please note that the trailers shown are versions with different options
Built-in Trailer Skid
HIGH PRESSURE CLEANERS - Trailers
www.dibo.com JMB-MG JMB-MG 249/15 30 - 249 bar 900 l/h 18 kW 2 x 75 l 450 l max 110° C 70 kW JMB-MG 249/25 30 - 249 bar 1500 l/h 18 kW 2 x 75 l 450 l max 110° C 70 kW JMB-MG 350/15 30 - 350 bar 900 l/h 18 kW 2 x 75 l 450 l max 110° C 70 kW JMB-ME JMB-ME 170/18 30 - 170 bar 1080 l/h 0,5 tot 6 kW 48V - 25 kWh (+ BMS) 2 x 75 l 450 l max 110° C 70 kW JMB-ME 200/15 30 - 200 bar 900 l/h 0,5 tot 6 kW 48V - 25 kWh (+ BMS) 2 x 75 l 450 l max 110° C 70 kW JMB-ME 249/13 30 - 249 bar 780 l/h 0,5 tot 6 kW 48V - 25 kWh (+ BMS) 2 x 75 l 450 l max 110° C 70 kW JMB-ME-C JMB-ME-C 150/50 30 - 150 bar 3000 l/h 0,5 tot 15 kW 48V - 29 kWh (+ BMS) 450 l JMB-ME- C 249/25 30 - 249 bar 1500 l/h 0,5 tot 15 kW 48V - 29 kWh (+ BMS) 450 l JMB-ME-C 350/18 30 - 350 bar 1080 l/h 0,5 tot 15 kW 48V - 29 kWh (+ BMS) 450 l JMB-ME-C 500/15 30 - 500 bar 900 l/h 0,5 tot 15 kW 48V - 29 kWh (+ BMS) 450 l JMB-S STAGE 5 READY JMB-S 200/18 30 - 200 bar 1080 l/h 11.7 kW ☑ 50 l 200 l max 110° C 70 kW JMB-S 250/15 30 - 250 bar 900 l/h 11.7 kW ☑ 50 l 200 l max. 110 °C 70 kW JMB-MD STAGE 5 READY JMB-MD 200/18 30 - 200 bar 1080 l/h 11.5 kW ☑ 80 l 450 l max. 110 °C 110 kW
200/30 30 - 200 bar 1800 l/h 18.5 kW ☑ 80 l 450 l max. 110 °C 110 kW JMB-MD 249/25 30 - 249 bar 1500 l/h 18.5 kW ☑ 80 l 450 l max. 110 °C 110 kW JMB-MD 350/18 30 - 350 bar 1080 l/h 18.5 kW ☑ 80 l 450 l max. 110 °C 110 kW JMB-MD 500/15 30 - 500 bar 900 l/h 18.5 kW ☑ 80 l 450 l max. 110 °C 110 kW Compressed Natural Gas Compressed Natural G 2 STAGE CNG BATTERY POWERED
JMB-S JMB-MG JMB-ME JMB-ME-C JMB-MD
JMB-MD
Professional - intensive use
