BreathEasyStation

WUP 2022 / 23 Drawing 3D CAD 1 and 2 Natural Skin • BreathEasyStation

REATH ASY TATION Diana Del Longo SS 2023

WUP 2022 / 23 Drawing 3D CAD 1 and 2 BreathEasyStation • concept

The visionary design of BreathEasyStation brings a new perspective to traditional bus stops, incorporating sustainable elements that enhance both environmental protection and commuter comfort. This innovative approach aligns with the demands of technological advancements and the pressing need to preserve our planet.

Diana Del Longo SS 2023

WUP 2022 / 23 Drawing 3D CAD 1 and 2 BreathEasyStation • roof

dark stained oak wood

The special moss cultures in the roof of the bus stop filter fine dust from the air, create a pleasant cooling effect and compensate for CO₂ and CO₂ equivalents.

plant sealing

Diana Del Longo SS 2023

wooden frame

WUP 2022 / 23 Drawing 3D CAD 1 and 2 BreathEasyStation • logo

The logo is reflected in the right side, which can also be seen from afar due to the bright green colour. High-quality materials were used for this site, which are also environmentally friendly and sustainably degradable.

Diana Del Longo SS 2023

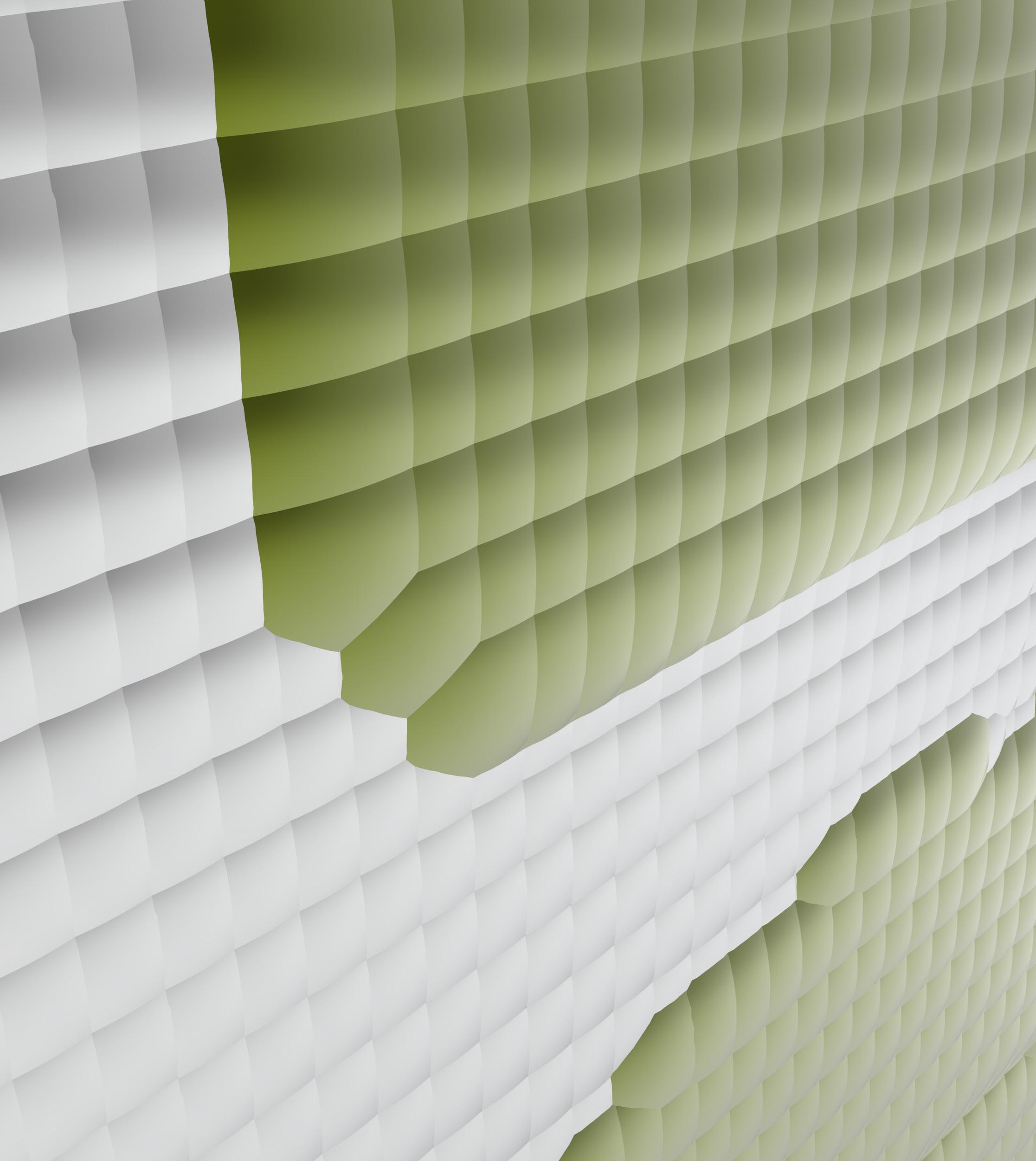

WUP 2022 / 23 Drawing 3D CAD 1 and 2 BreathEasyStation • left wall

The pattern on the left side of the bus stop serves not only as a beautiful exterior façade but also as sun protection for the waiting bus passengers.

Diana Del Longo SS 2023

WUP 2022 / 23 Drawing 3D CAD 1 and 2 BreathEasyStation • display frame

The integrated display is intended to provide bus passengers with quick information without wasting time. A nature-inspired aspect has been integrated into the frame.

Diana Del Longo SS 2023

WUP 2022 / 23 Drawing 3D CAD 1 and 2 BreathEasyStation • bench

The seating surface of the ecological bus stop has been designed to allow people to lean as ergonomically as possible while waiting. Thus, the shape of the bench was adapted to that of the human body.

Diana Del Longo SS 2023

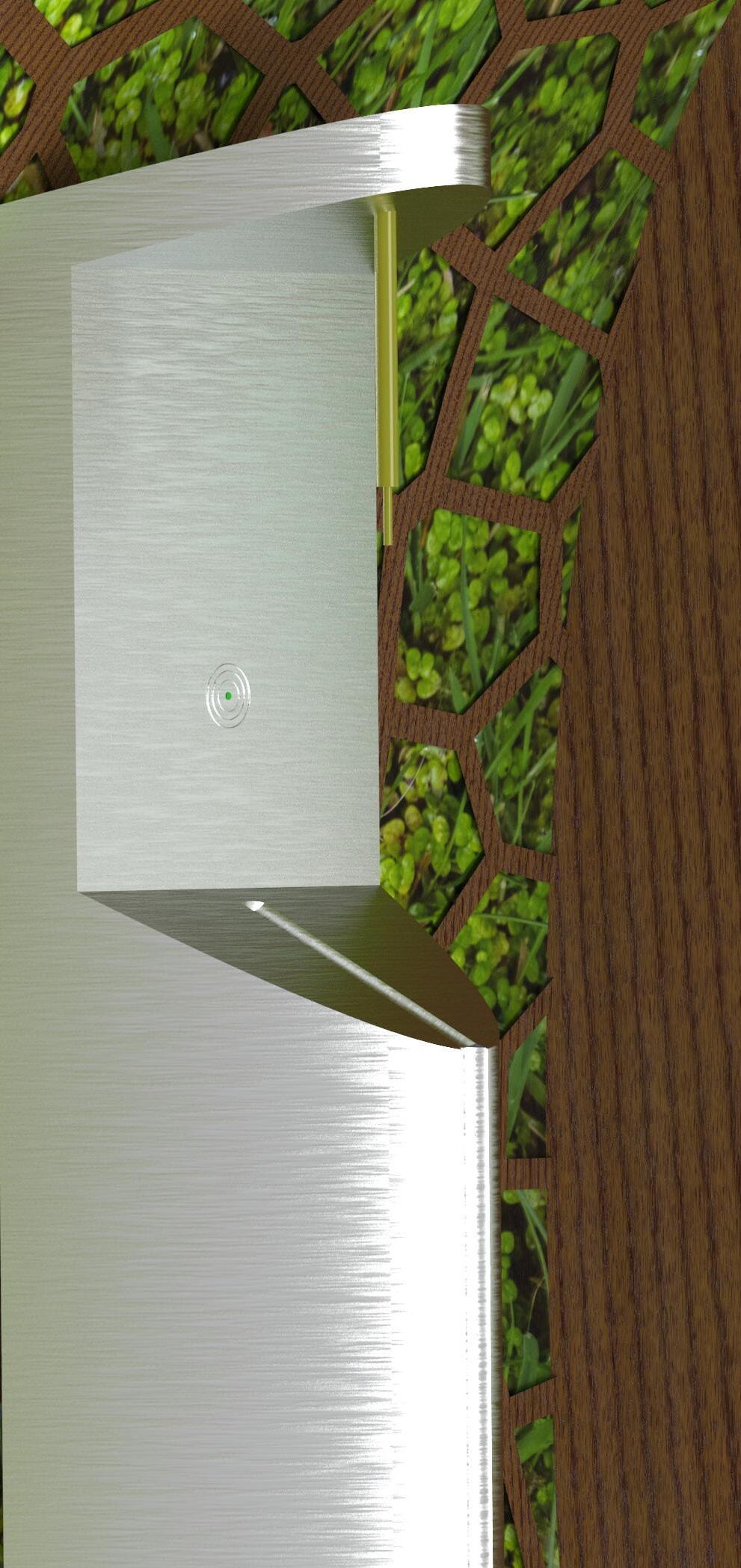

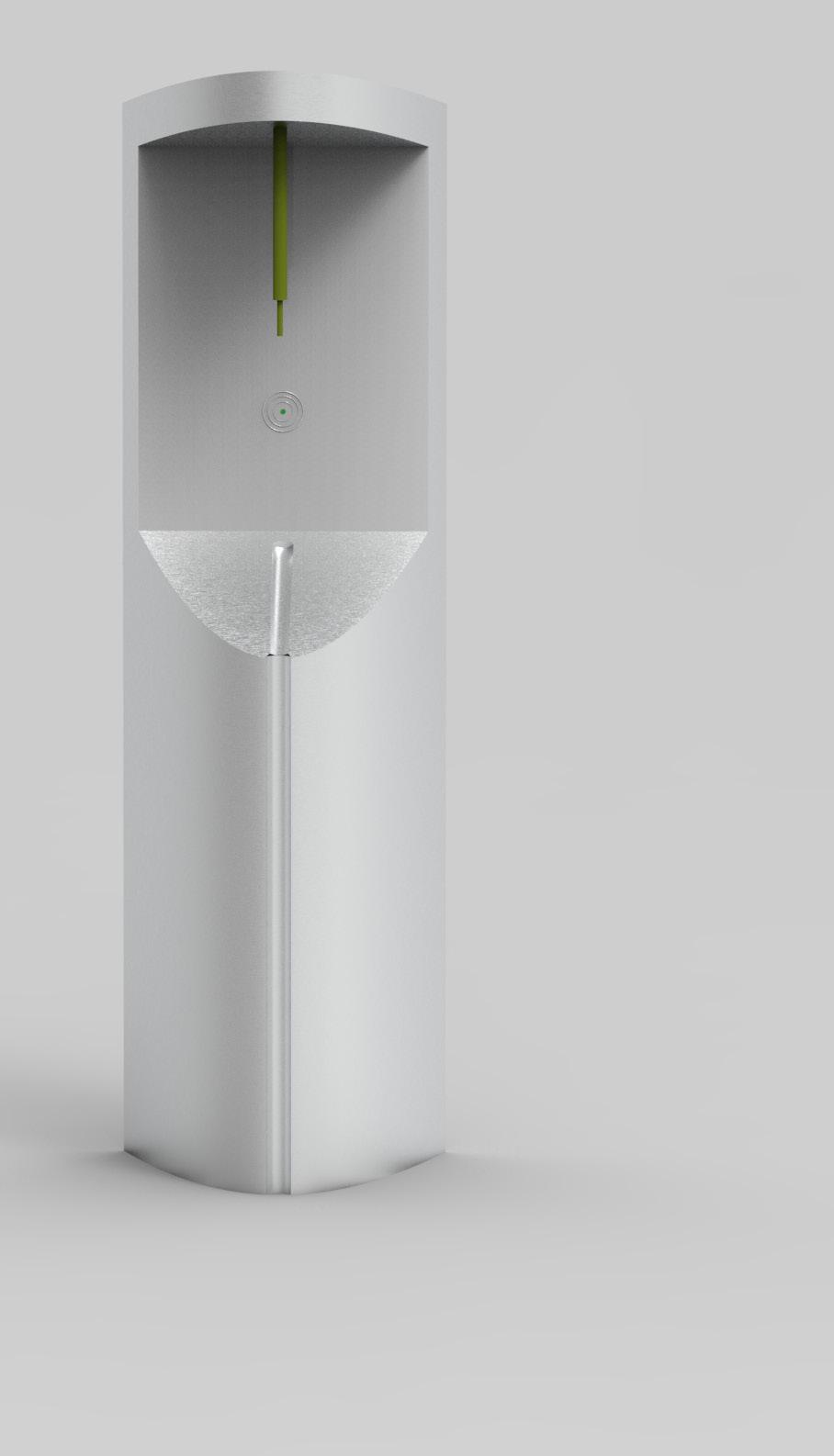

WUP 2022 / 23 Drawing 3D CAD 1 and 2 BreathEasyStation • drinking water station

The integrated drinking water station is intended to provide drinkable water at all times and to reduce the consumption of disposable plastic bottles.

Diana Del Longo SS 2023

WUP 2022 / 23 Drawing 3D CAD 1 and 2 BreathEasyStation • drinking water station

Diana Del Longo SS 2023

WUP 2022 / 23 Drawing 3D CAD 1 and 2 BreathEasyStation • exploded view

wooden frame bench

plant sealing

left side with pattern wooden bottom

Diana Del Longo SS 2023

WUP 2022 / 23 Drawing 3D CAD 1 and 2 BreathEasyStation • exploded view

logo wooden board

display display frame drinking water station Diana Del Longo SS 2023

glass

WUP 2022 / 23 Drawing 3D CAD 1 and 2 BreathEasyStation • technical drawings Scale 1 : 10 top view

1500 mm

3500 mm

front view

1000 mm

1200 mm

1300 mm

270 mm

400 mm

1500 mm

Diana Del Longo SS 2022 / 23

1700 mm

2000 mm

left view

460 mm

WUP 2022 / 23 Drawing 3D CAD 1 and 2 Natural Skin • BreathEasyStation

REATH ASY

TATION

Diana Del Longo SS 2023
