21 minute read
GIPOKOMBI
GIPO offers a versatile range of processing systems with world-class quality and performance.
In the field of treatment systems GIPO sets standards of unsurpassed quality, reliability and performance throughout the world. The GIPO engineers decisively contribute tot he advancement of components and machine types.
Advertisement
For over 40 years, GIPO has been implementing technical innovations in their machines and concepts on an ongoing basis and in the shortest possible time.
GIPOKOMBI RC 130 FDR DA
GIPOREC R 131 FDR GIGA
GIPOKOMBI RC MAG 2400 FDR
IMPACT CRUSHERS
GIPOREC
Weight: 26.000 – 90.000kg Length: 12,6m – 17,15m Width: 2,5m – 3,6m Height: 3,12m – 4,0m Hopper capacity: 4m3 – 13m3
GIPOKOMBI RC 130 FDR DA
GIPOREC GIGA
Weight: 27.000kg – 91.000kg Length: 15m – 25,1m Width: 2,5m – 3,5m Height: 3,12m – 3,88m Hopper capacity: 4m3 – 8m3
GIPOKOMBI
Weight: 52.000kg – 140.000kg Length: 18,2m – 24m Width: 3,0m – 3,6m Height: 3,75m – 4,1m Hopper capacity: 4m3 – 14m3
GIPOKOMBI RC 130 FDR DA
SCALPING SCREENS
GIPOSCREEN RR100
Weight: 40.000kg Length: 12,5m Width: 2,5m Height: 3,5m Screen: 2 x 8 rolls, width 1m Production: 300 t/h
GIPOSCREEN RR130
Weight: 50.000kg Length: 16,3m Width: 3,0m Height: 3,6m Screen: 2 x 8 rolls, width 1,3m Production: 500 t/h
With a rich heritage of design and manufacturing excellence, Powerscreen is a leading force in the crushing and screening heavy plant sector. Powerscreen machines cover the full range of material processing requirements with mining equipment, quarrying equipment and mobile crushing and screening machines for the mining, quarrying, demolition and recycling industries.
Powerscreen dealers provide continuing customer support for machines, parts and service to ensure optimum performance from all Powerscreen equipment.
From the Warrior 600 mobile screen through to some of the largest mobile crushing plant – the Premiertrak 600 jaw crusher, 1500 Maxtrak cone crusher, and Trakpactor 550SR, Powerscreen has a wide range of plant to work in most applications.
TRAKPACTOR 230
TRAKPACTOR 320SR
TRAKPACTOR 320
IMPACT CRUSHERS
TRAKPACTOR 230 & 230SR
Weight: 24.450kg & 29.300kg Length: 9,3m & 13,3m Width: 2,5m & 2,54m Height: 3m Hopper capacity: 2,6m3 Production: 250 t/h
TRAKPACTOR 290 & 290SR
Weight: 28.700kg & 34.200kg Length: 9,97m & 14,76m Width: 2,55m & 2,9m Height: 3,16m & 3,18m Hopper capacity: 3,3m3 Production: 290 t/h
TRAKPACTOR 290SR

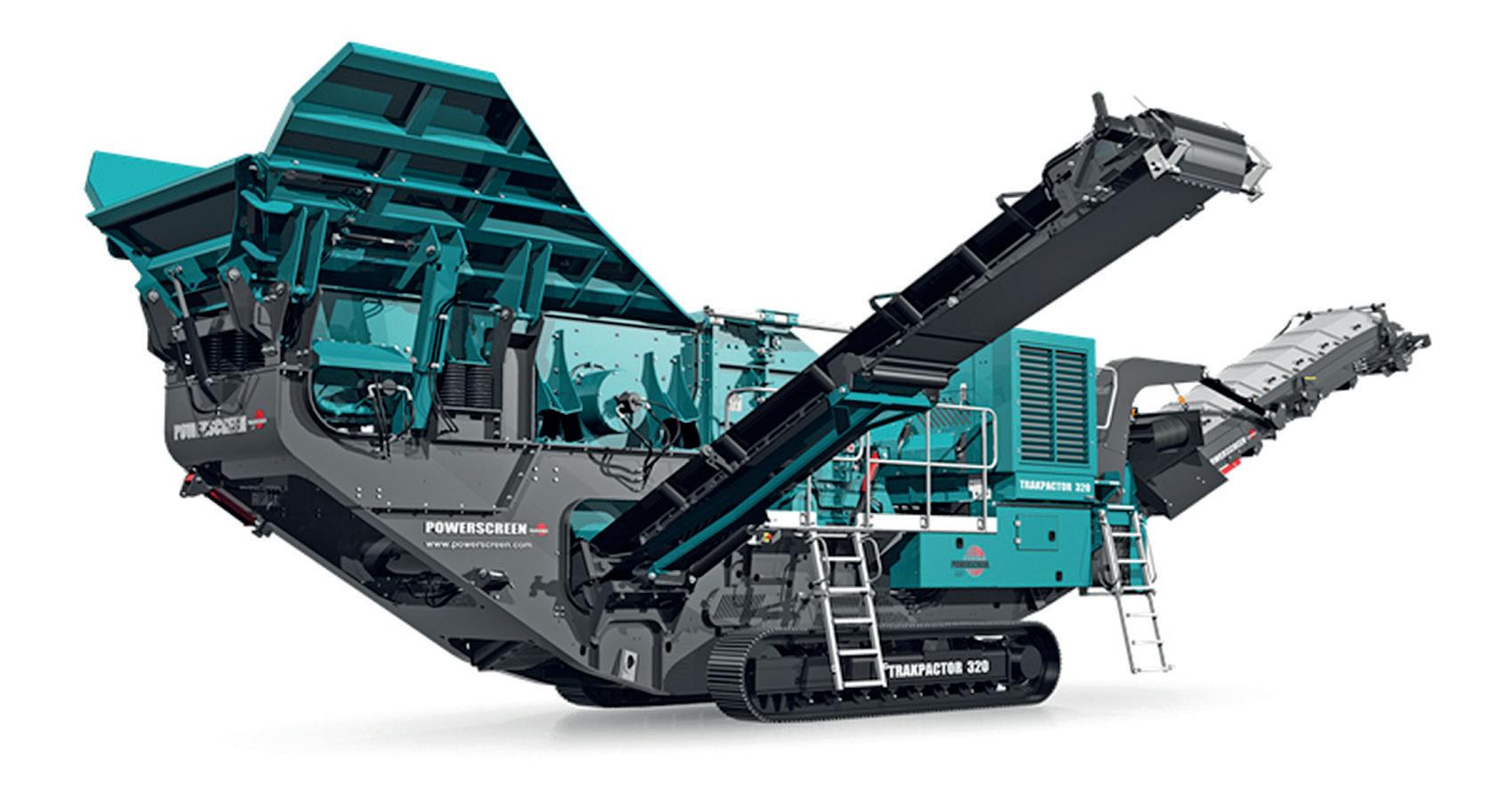

TRAKPACTOR 320 & 320SR
Weight: 35.280kg & 46.240kg Length: 14,78m & 17,58m Width: 2,55m & 3,1m Height: 3,46m & 3,4m Hopper capacity: 3,6m3 Production: 320 t/h
TRAKPACTOR 550SR
TRAKPACTOR 550 TRAKPACTOR 320SR
XV350
TRAKPACTOR 550
Weight: 54.850kg Length: 17,46m Width: 3m Height: 3,8m Hopper capacity: 7m3 Production: 500 t/h
XV350
TRAKPACTOR 550SR
Weight: 71.000kg Length: 21,1m Width: 3,45m Height: 3,8m Hopper capacity: 7m3 Production: 500 t/h

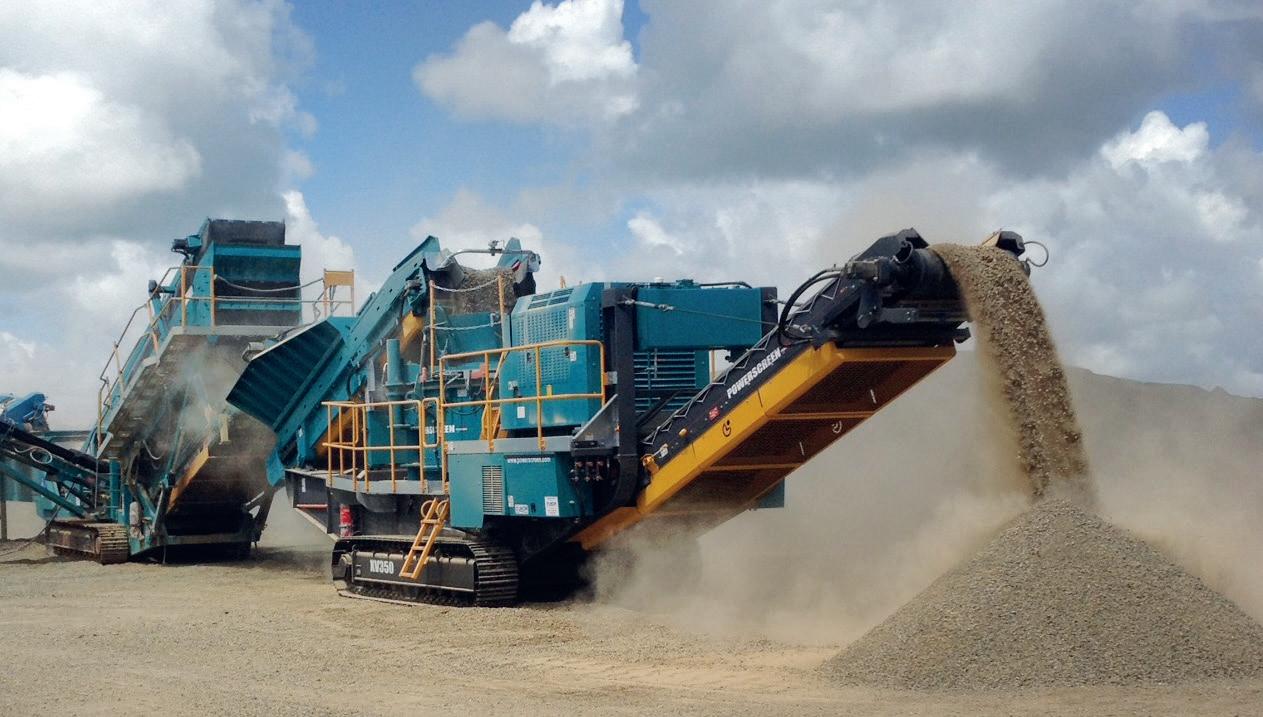

XV350
Weight: 36.900kg Length: 15,45m Width: 3m Height: 3,85m Hopper capacity: 7m3 Production: 350 t/h
METROTRAK
PREMIERTRAK 300
JAW CRUSHERS
METROTRAK
Weight: 28.200kg Length: 12,4m Width: 2,4m Height: 3,2m Hopper capacity: 3,6m3 Production: 200 t/h

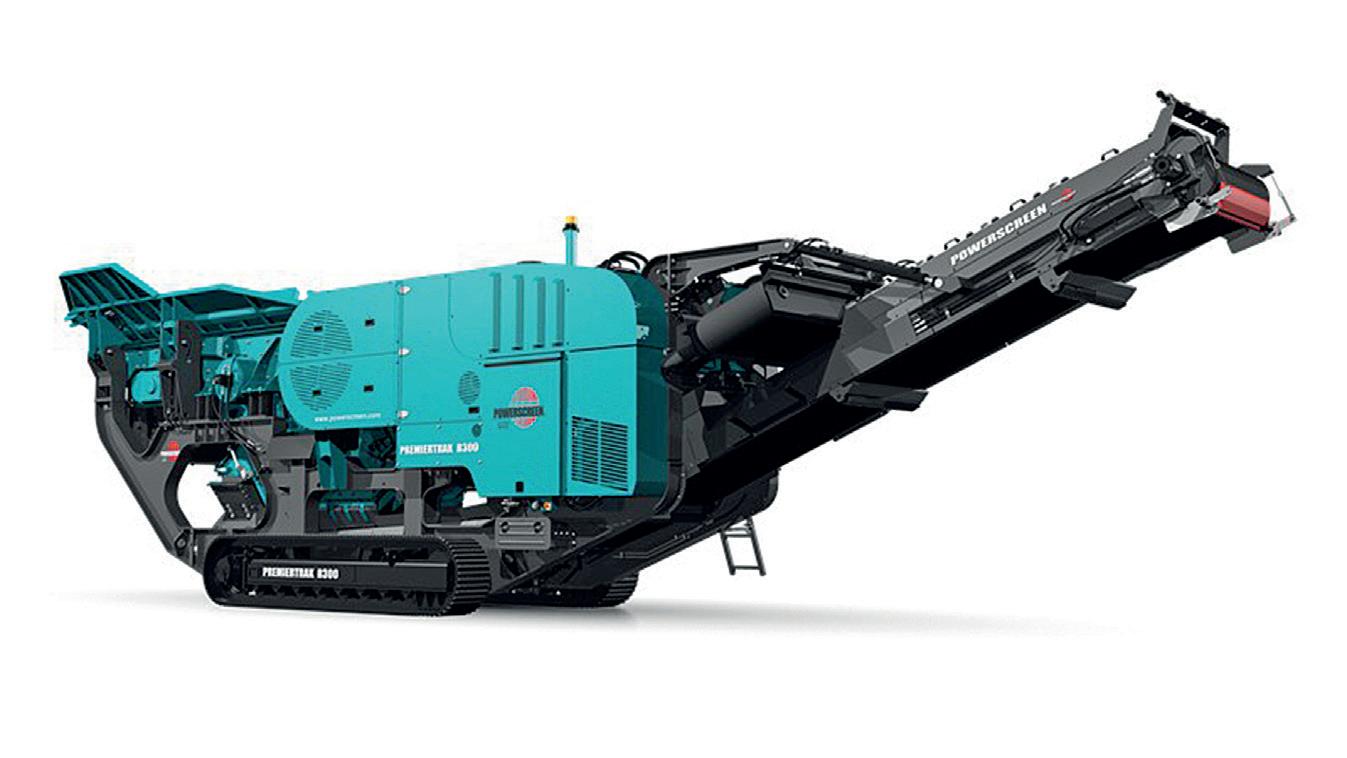

PREMIERTRAK 300 & R300
Weight: 35.000kg & 36.580kg Length: 14,1m & 14,6m Width: 2,85m & 2,55m Height: 3,4m & 3,2m Hopper capacity: 5m3 Production: 280 t/h
PREMIERTRAK R400X
PREMIERTRAK 330
Weight: 34.860kg Length: 15,7m Width: 2,6m Height: 3,4m Hopper capacity: 5m3 Production: 280 t/h
PREMIERTRAK 400X & R400X
Weight: 46.500kg Length: 15,02m Width: 2,8m Height: 3,4m Hopper capacity: 10m3 Production: 400 t/h
PREMIERTRAK 600 & 600E
Weight: 68.875kg & 72.725kg Length: 17,1m Width: 3m Height: 3,8m Hopper capacity: 14,2m3 Production: 600 t/h
CONE CRUSHERS
1000 MAXTRAK
Weight: 30.440kg Length: 14,6m Width: 2,8m Height: 3,46m Hopper capacity: 4,4m3 Production: 230 t/h

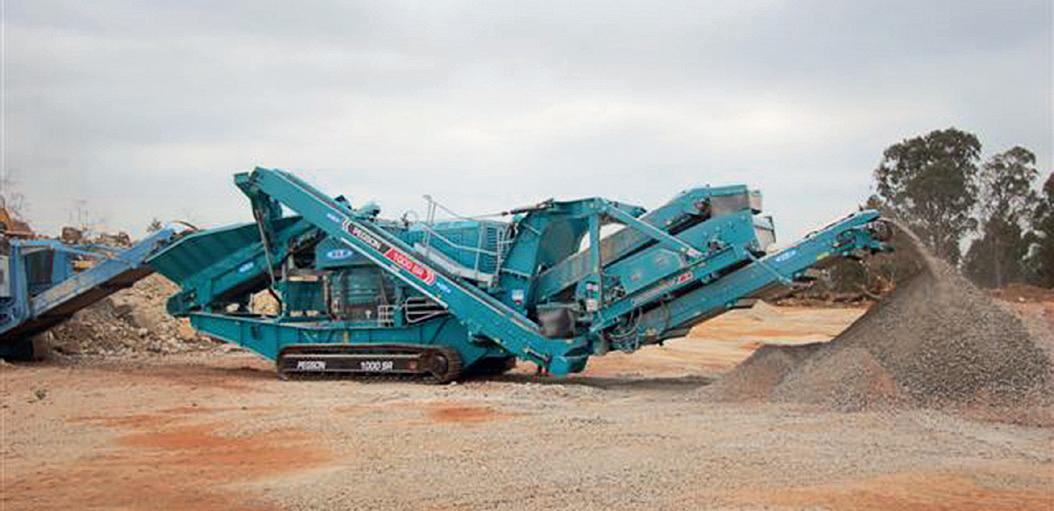

1000SR MAXTRAK
Weight: 39.640kg Length: 16,9m Width: 3,1m Height: 3,45m Hopper capacity: 4,4m3 Production: 230 t/h
1150 MAXTRAK
Weight: 42.900kg Length: 16,9m Width: 3m Height: 3,6m Hopper capacity: 6m3 Production: 300 t/h
1150 MAXTRAK PRE-SCREEN
Weight: 51.020kg Length: 17,7m Width: 3m Height: 3,8m Hopper capacity: 6m3 Production: 330 t/h

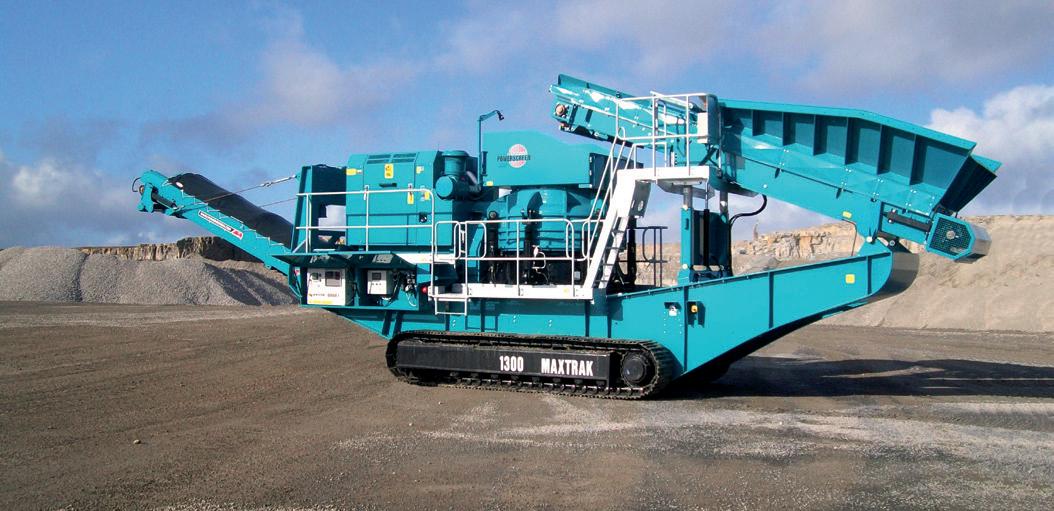

1300 MAXTRAK
Weight: 47.880kg Length: 15,35m Width: 3m Height: 3,85m Hopper capacity: 7m3 Production: 350 t/h
1500 MAXTRAK
Weight: 89.000kg Length: 22m Width: 3,5m Height: 3,85m Hopper capacity: 9m3 Production: 950 t/h
1000 MAXTRAK
1150 MAXTRAK
1300 MAXTRAK 1000SR MAXTRAK
1150 MAXTRAK PRE-SCREEN
1500 MAXTRAK
CHIEFTAIN 1700 2 DECK
CHIEFTAIN 600
CHIEFTAINS
CHIEFTAIN 600 2deck
Weight: 15.200kg Length: 12,48m Width: 2,63m Height: 3,28 Screenbox: 2,44m x 1,22m Hopper capacity: 7m3 Production: 200 t/h
CHIEFTAIN 1400 2deck
Weight: 24.900kg Length: 15,4m Width: 2,75m Height: 3,2m Screenbox: 3,3m x 1,53m Hopper capacity: 7,5m3 Production: 400 t/h

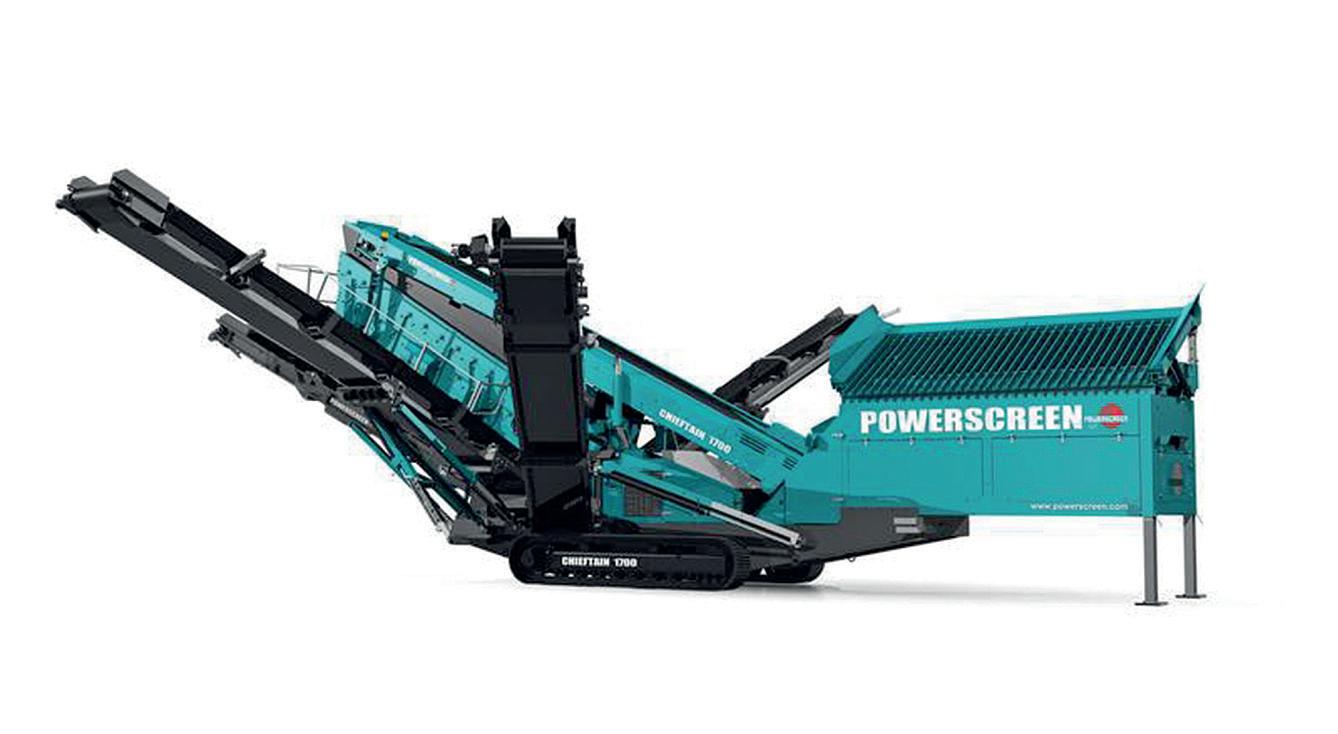

CHIEFTAIN 1700 3 DECK
CHIEFTAIN 1700 2deck
Weight: 26.900kg Length: 16,53m Width: 3m Height: 3,4m Screenbox: 4,8m x 1,5m Hopper capacity: 7,5m3 Production: 500 t/h
CHIEFTAIN 1700 3deck
Weight: 28.800kg Length: 16,53m Width: 3m Height: 3,5m Screenbox: 4,8m x 1,5m Hopper capacity: 7,5m3 Production: 500 t/h

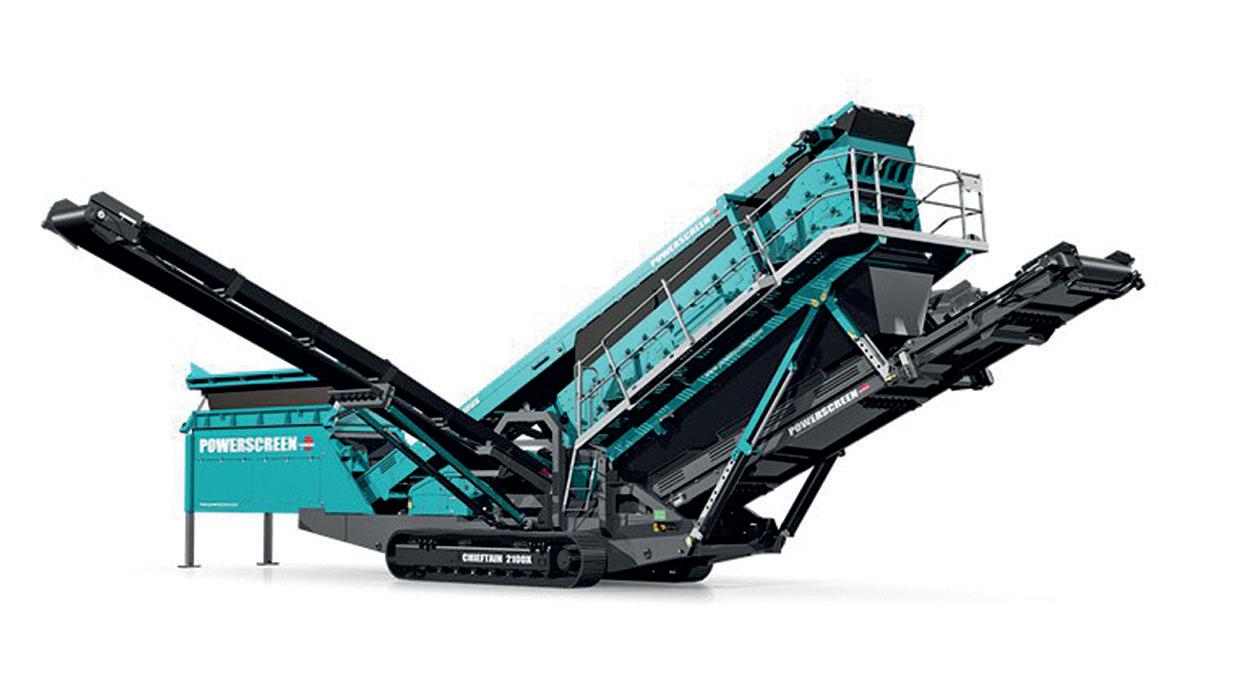

CHIEFTAIN 2100X
CHIEFTAIN 2100X
CHIEFTAIN 2200
CHIEFTAIN 2100X BIVITEC 2deck
Weight: 35.500kg Length: 18,23m Width: 3m Height: 3,47m Screenbox: 5,88m x 1,55m Hopper capacity: 8m3 Production: 400 t/h
CHIEFTAIN 2100X 2deck - 3deck
Weight:
34.700 – 37.400kg Length: 19,01 – 19,06m Width: 3m
Height:
3,47m Screenbox: 6,1m x 1,53m Hopper capacity: 8m3 Production: 600 t/h

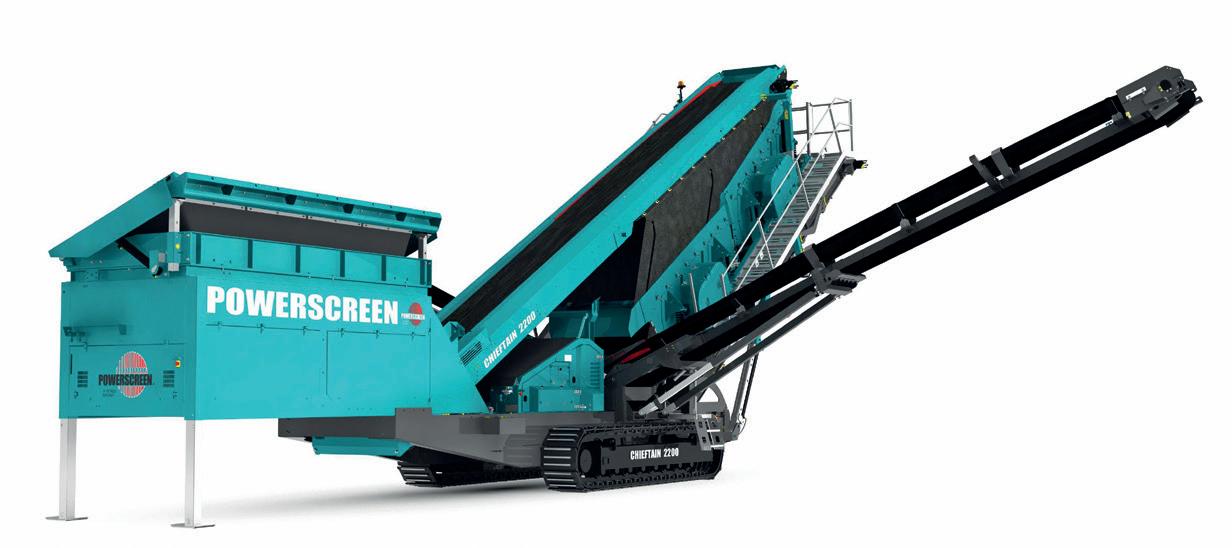

CHIEFTAIN 2200 2deck
Weight: 35.350kg Length: 19,79m Width: 3m Height: 3,55m Screenbox: Top: 2 boxes of 3,3m x 1,55m Bottom: 2 boxes of 3m x 1,55m Hopper capacity: 8m3 Production: 650 t/h
CHIEFTAIN 2200 3deck
Weight: 39.400kg Length: 19,77m Width: 3m Height: 3,6m Screenbox: Top: 2 boxes of 3,3m x 1,55m Middle: 2 boxes of 3,3m x 1,55m Bottom: 2 boxes of 3,0m x 1,55m Hopper capacity: 8m3 Production: 700 t/h
WARRIOR 600
WARRIOR 800
WARRIOR 1200
WARRIORS
WARRIOR 600
Weight: 12.000kg Length: 10,98m Width: 2,25m Height: 2,55m Screenbox: 2,34m x 1,17m Hopper capacity: 3m3 Production: 280 t/h
WARRIOR 1400X
WARRIOR 800
Weight: 16.700kg Length: 9,22m Width: 2,5m Height: 3,09m Screenbox: 2,77m x 1,22m Hopper capacity: 2,9m3 Production: 280 t/h
WARRIOR 1200
Weight: 16.800kg Length: 10,96m Width: 2,25m Height: 2,51m Screenbox: 3,6m x 1,17m Hopper capacity: 5m3 Production: 300 t/h

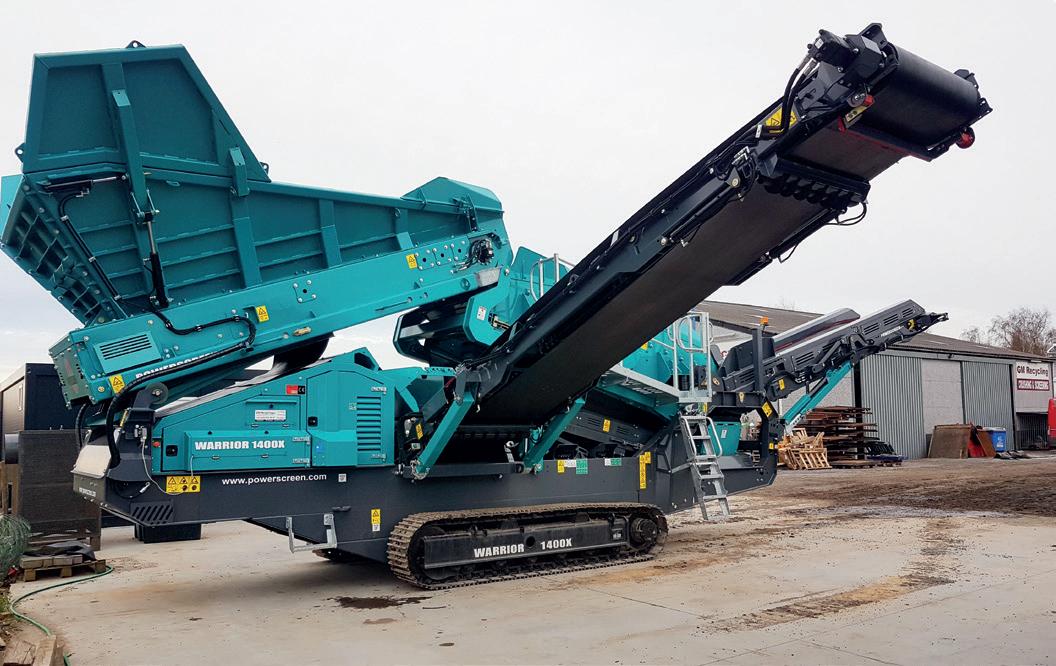

WARRIOR 1400X & 1400XE
Weight: 27.600kg & 30.000kg Length: 14,17m Width: 2,75m Height: 3,2m Screenbox: 3,6m x 1,25m Hopper capacity: 7m3 Production: 500 t/h
WARRIOR 2100
WARRIOR 2400
WARRIOR 1800
WARRIOR 1800
Weight: 29.000kg Length: 15,38m Width: 2,96m Height: 3,39m Screenbox: 4,8m x 1,5m Hopper capacity: 6,8m3 Production: 600 t/h
WARRIOR 2100
Weight: 34.800kg Length: 16,02m Width: 3m Height: 3,4m Screenbox: 4,88m x 1,5m Hopper capacity: 7m3 Production: 700 t/h
WARRIOR 2100 SPALEC
Weight: 34.300kg Length: 16,02m Width:
3m Height: 3,4m Screenbox: 4,88 x 1,55m Hopper capacity: 7m3 Production: 700 t/h
WARRIOR 2400
Weight: 46.200kg Length: 17,3m Width: 3m Height: 3,6m Screenbox: 6,1 x 1,93m Hopper capacity: 10m3 Production: 800 t/h
H6203R
H-RANGE SCREENS
H6203
Weight: 46.700kg Length: 19,6m Width: 3,2m Height: 3,6m Screenbox: 6,1m x 1,93m Hopper capacity: 8,2m3 Production: 800 t/h
POWERTRAK 750
H6203R
Weight: 45.000kg Length: 18,99m Width: 3,2m Height: 3,6m Screenbox: 6,1m x 1,93m Hopper capacity: 4,33m3 Production: 800 t/h
SCALPING SCREEN

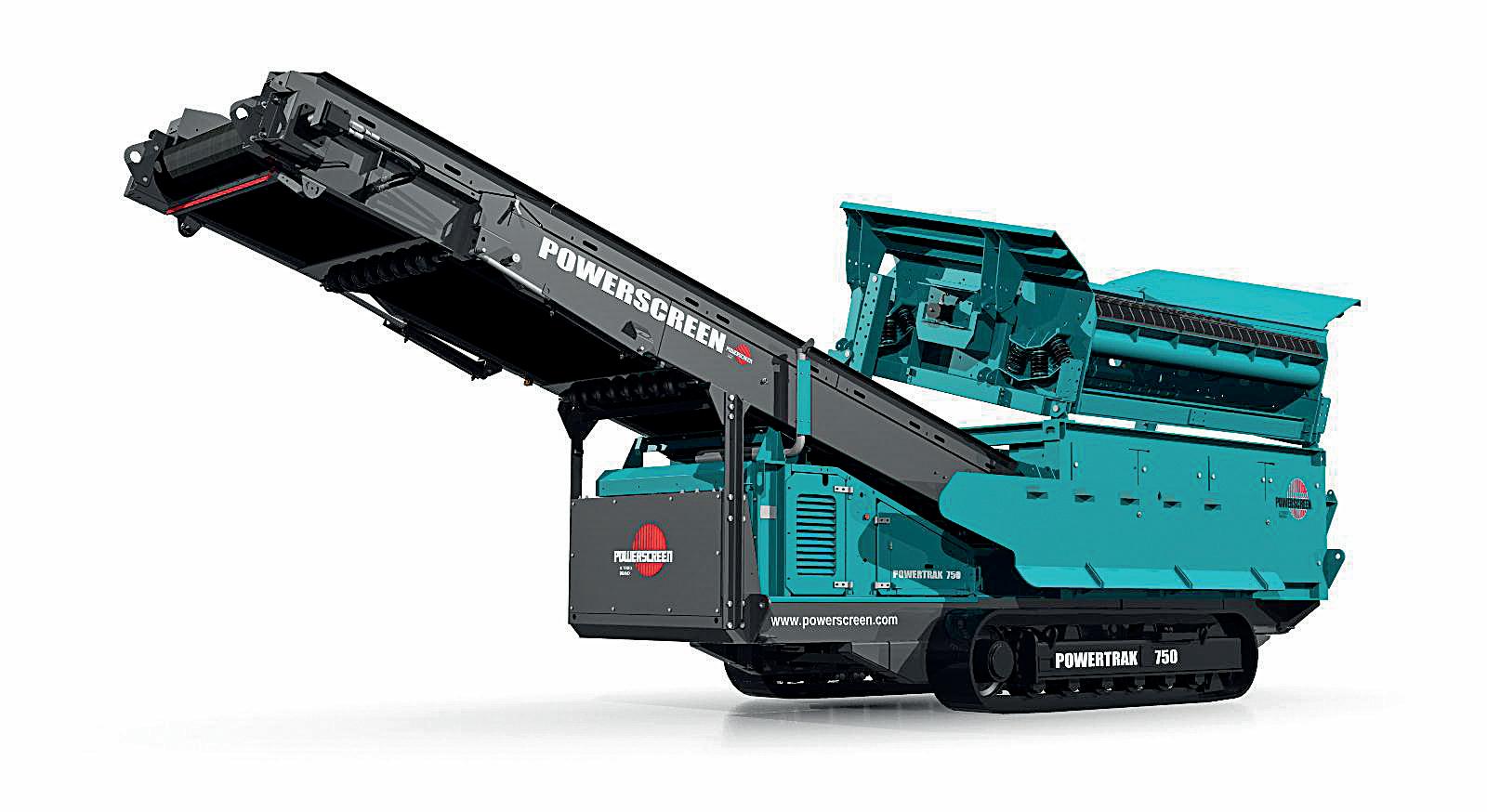

POWERTRAK 750
Weight: 19.000kg Length: 9,43m Width: 2,82m Height: 3,2m Screenbox: 4,5m x 2,75m Hopper capacity: 5m3 Production: 600 t/h
CT65
CT80
CT 75R CT100
HL75
CONVEYORS
CT65
Weight: 12.750kg Length: 20m Belt width: 1,05m Discharge height: 10m max Capacity: 400 t/h
CT80
Weight: 16.000kg Length: 23,5m Belt width: 1,05m Discharge height: 10,1m max Capacity: 400 t/h
CT100
Weight: 24.000kg Length: 30m Belt width: 1,05m Discharge height: 14,3m max Capacity: 600 t/h

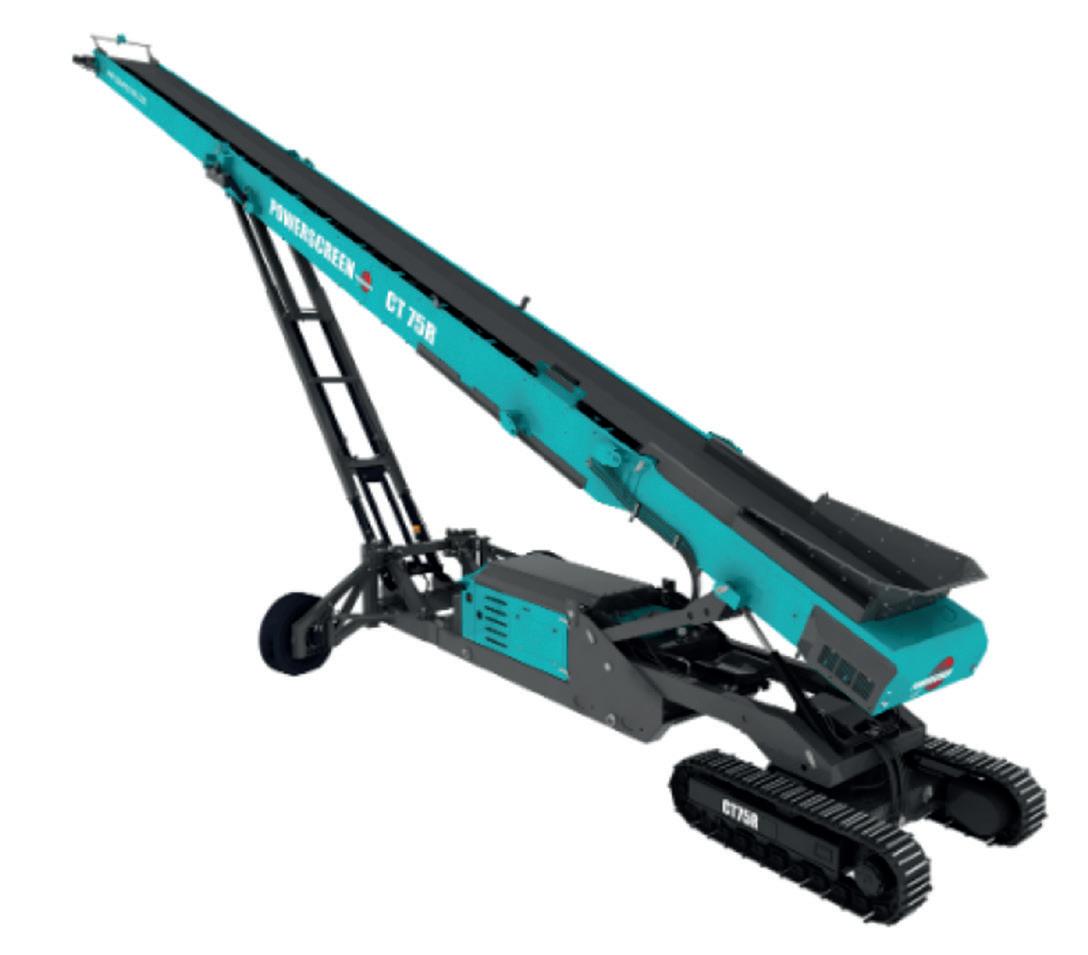

CT75R
Weight: 19.500kg Length: 22,9m Belt width: 1,05m Discharge height: 10,9m max Capacity: 600 t/h

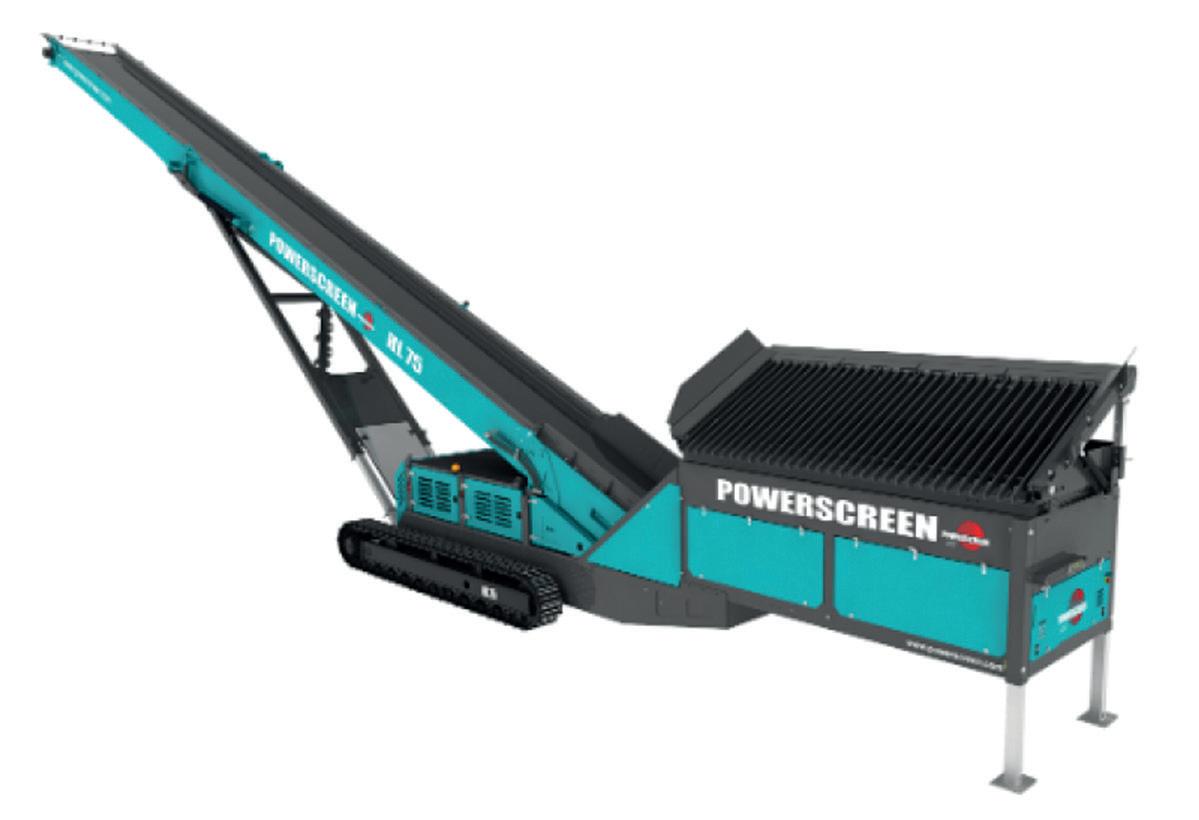

HL75
Weight: 25.000kg Length: 22,6m Belt width: 1,2m Discharge height: 9,8m max Capacity: 500 t/h
LL75
Weight: 24.000kg Length: 22,6m Belt width: 1,2m Discharge height: 9,8m max Capacity: 500 t/h
Terex Ecotec is an industry leader in the design and manufacture of wood processing, biomass and recycling equipment. Having developed a world class range of mobile equipment that will shape the industry for years to come, today the comprehensive product portfolio includes slow, medium and high speed shredders, trommel and recycling screens, and conveyors. The range of innovative machines available provide efficient production, low operational costs and ease of maintenance, so end users are sure to find the correct machine for their application.
PHOENIX 2100
RECYCLING SCREEN
TRS550 (Tracks)
Weight: 30.500kg Length: 14,8m Width: 3m Height: 3,4m Screenbox: 4,8m x 1,53m Hopper capacity: 7m3
TRS 550
TROMMEL SCREENS
TTS620 (Wheels)
Weight: 19.000kg Length: 12m Width: 2,5m Height: 4m Drum length: 5,5m Drum diameter: 2,0m Hopper capacity: 5,5m3
TTS620T (Tracks)
Weight: 24.000 kg Length: 10,5m Width: 3m Height: 3,4m Drum length: 5,5m Drum diameter: 2,0m Hopper capacity: 5,5m3
PHOENIX 3300
PHOENIX 1600 (Wheels)
Weight: 18.000kg Length: 16,9m Width: 2,7m Height: 4m Drum length: 4,9m Drum diameter: 1,54m Hopper capacity: 4,3m3
PHOENIX 1600T (Tracks)
Weight: 21.100kg Length: 16,1m Width: 2,6m Height: 4,1m Drum length: 4,9m Drum diameter: 1,54m Hopper capacity: 4,3m3
TTS 620T
PHOENIX 2100 (Wheels)
Weight: 27.500kg Length: 17,9m Width:
2,6m Height: 4m Drum length: 6,45m Drum diameter: 1,94m Hopper capacity: 5,6m3
PHOENIX 3300 (Wheels)
Weight: 37.500kg Length: 21,1m Width: 3,0m Height: 4,1m Drum length: 9,31m Drum diameter: 2,32m Hopper capacity: 7,8m3
TBG 620
TBG 630
TDS V20
TDS 820
TDS 825
SHREDDERS HIGH SPEED

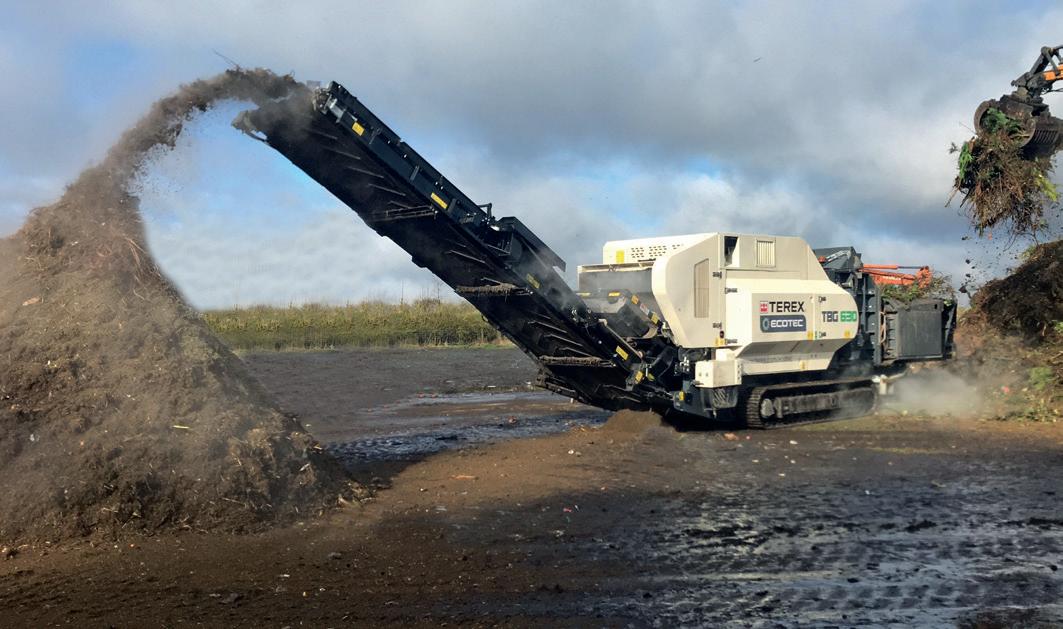

TBG 620 (Wheels)
Weight: 20.000kg Length: 9,85m Width: 2,55m Height: 3,7m Feed intake width: 1,45m Rotor dimensions: diameter 1,04m x 1,53m Number of hammers: 28
TBG 630 (Tracks)
Weight: 35.600kg Length: 13,58m Width: 3,00m Height: 3,35m Feed intake width: 1,7m Rotor dimensions: diameter 1,1m x 1,75m Number of hammers: 36
TSS 390T
MEDIUM SPEED

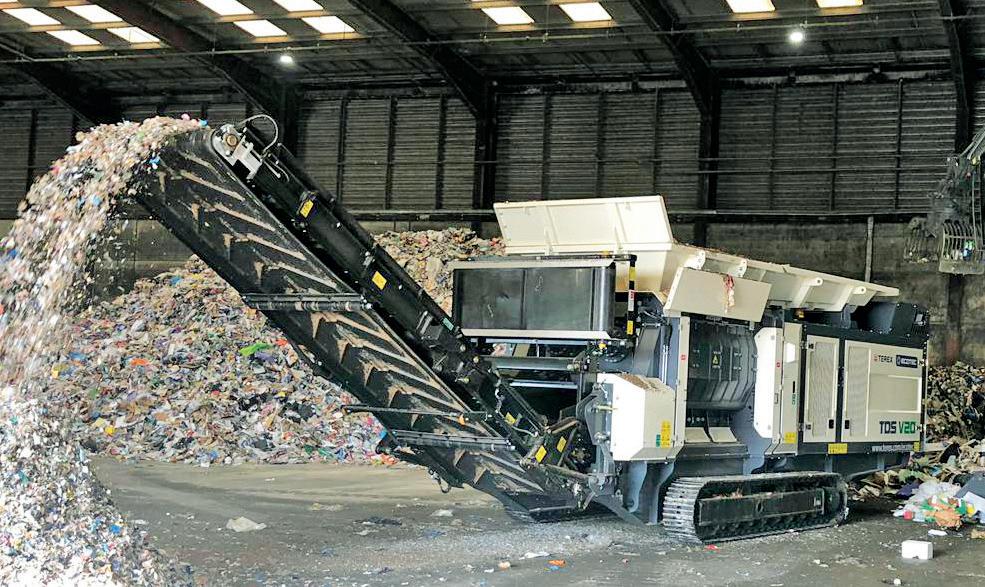

TDS V20 (Tracks)
Weight: 37.000kg Length: 10,545m Width: 2,8m Height: 3,4m Shaft dimensions: diameter 0,63m x 2,0m
SLOW SPEED

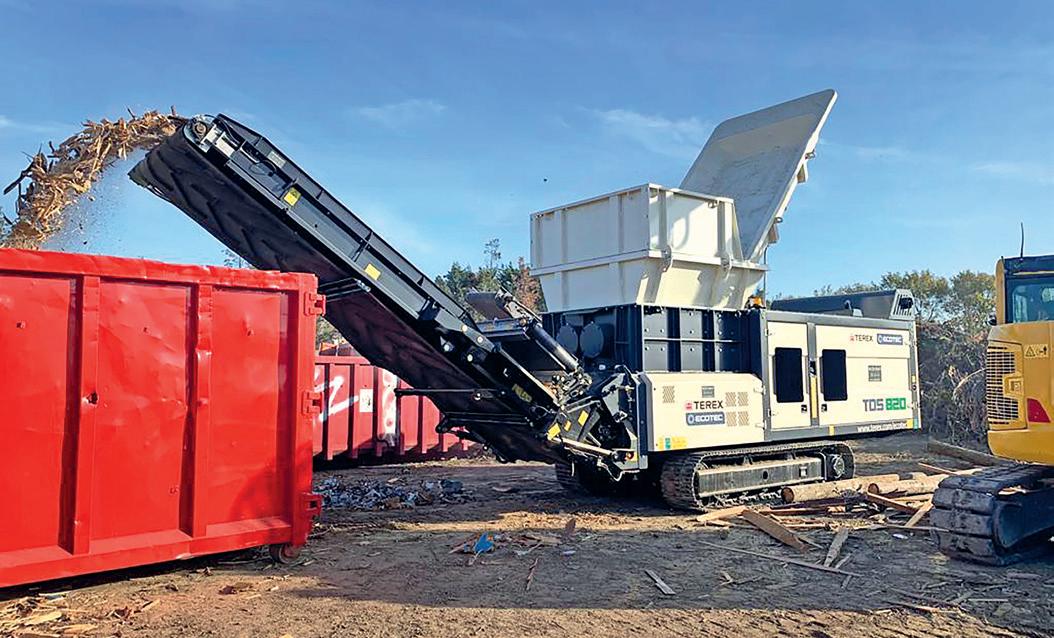

TDS 820 (Tracks)
Weight: 27.500kg Length: 9,10m Width: 2,50m Height: 3,20m Shaft dimensions: diameter 0,70m x 2,0m
TSC 100T
TRC 75 TSC 65T
TSC 80T
TFC 75 ORGANICS
TFC 75
TDS 825 (Tracks)
Weight: 46.500kg Length: 9,7m Width: 3,00m Height: 3,40m Shaft dimensions: diameter 0,87m x 2,5m
TFC 75L
TSS 390 (Wheels)
Weight: 32.000kg Length: 10,18m Width: 2,525m Height: 3,85m Shaft dimensions: diameter 0,99m x 3,0m
TSS 390T (Tracks)
Weight: 32.000kg Length: 10,18m Width: 2,525m Height: 3,40m Shaft dimensions: diameter 0,99m x 3,0m

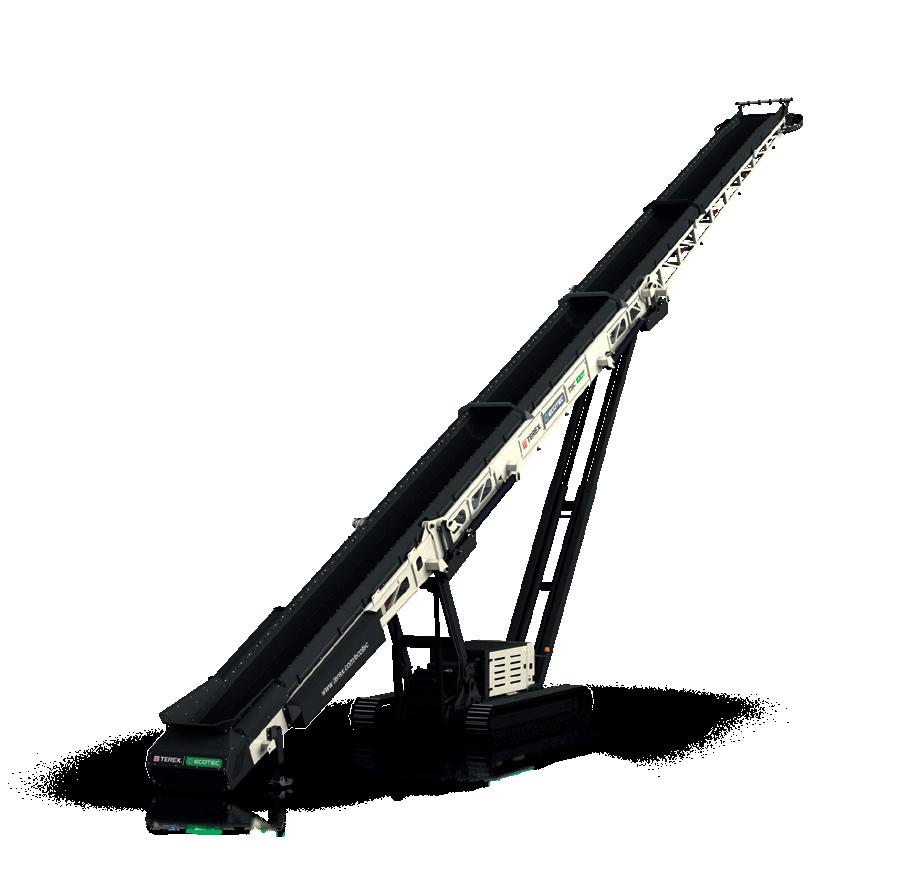

CONVEYORS
TSC 65T
Weight: 12.750kg Length: 20m Belt width: 1,05m Discharge height: 10m max Capacity: 400 t/h
TSC 80T
Weight: 16.000kg Length: 23,5m Belt width: 1,05m Discharge height: 10,1m max Capacity: 400 t/h
TSC 100T
Weight: 24.000kg Length: 30m Belt width: 1.05m Discharge height: 14,3m max Capacity: 600 t/h
TRC 75
Weight: 19.500kg Length: 22,9m Belt width: 1.05m Discharge height: 10,9m max Capacity: 600 t/h
TFC 75
Weight: 25.000kg Length: 22,6m Belt width: 1.20m Discharge height: 9,8m max Capacity: 500 t/h
TFC 75L
Weight: 24.000kg Length: 22,6m Belt width: 1.20m Discharge height: 9,8m max Capacity: 500 t/h
TFC 75 ORGANICS
Weight: 24.350kg Length: 25,5m Belt width: 1,40m Discharge height: 9,8m max Capacity: 500 t/h
Screenpod is a design and manufacture specialist of screening, recycling and dust suppression solutions for the global market. With a unique range of products from the Screenpod AirVac to the S series Dust cannons, the company provides a cost effective and practical solution to all its customer requirements.
Each product is designed to solve the customer’s problems and save money. Plus Screenpod builds its products to last.
With an innovative range of optional extras, Screenpod ensures that the products are versatile and meet the customer’s specific needs on varying applications.
Screenpod makes it a priority to understand the needs and demands of the customers and we respond accordingly with innovative solutions. New concepts are being continually developed so that Screenpod can go even further to streamline the way material is handled and processed for their clients.

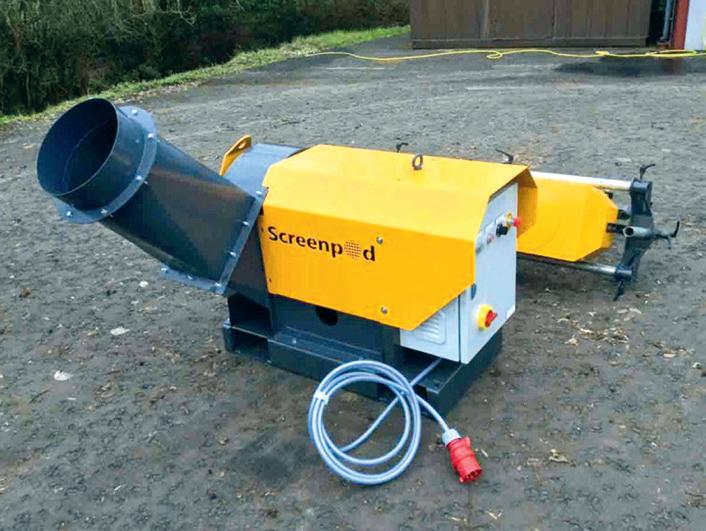

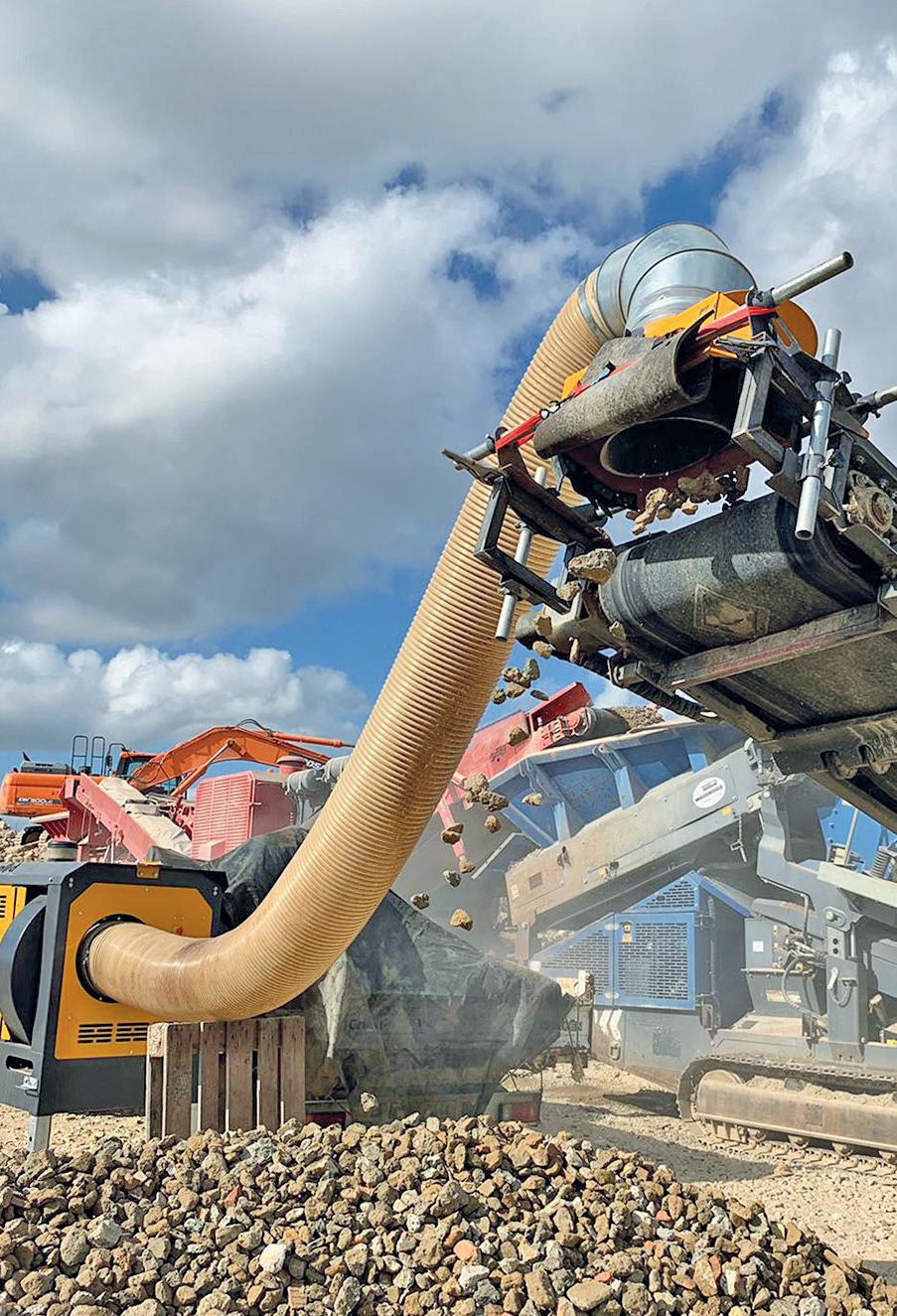

AIR-VAC WINDSHIFTERS
AV1200 E
Weight: 412kg Length: 1,32m Width: 1,25m Height: 1,07m Elektric driving (15kW) Adjustable suction power
AV1200 H
Weight: 398kg Length: 1,28m Width: 1,25m Height: 1,07m Hydraulic driving (15kW) Adjustable suction power
AV 1600 E
Weight: 550kg Length: 1,61m Width: 149m Height: 1,17m Elektric driving (30kW) Adjustable suction power
AV1600 D S
Weight: 1.610kg Length: 2,18m Width: 1,70m Height: 1,55m Diesel single (38kW)
AV1600 D D
Weight: 2.900kg Length: 2,36m Width: 2,36m Height: 2,22m Diesel dual (46kW)
HYDRA FS1400
FLOTATION SEPARATORS
HYDRA FS1400 (Static)
Weight: 6.500kg Length: 6,663m Width: 3,243m Height: 2,668m
HYDRA TFS1400 (Tracks)
Weight: 16.700kg Length: 8,381m Width: 3,251m Height: 3,839m

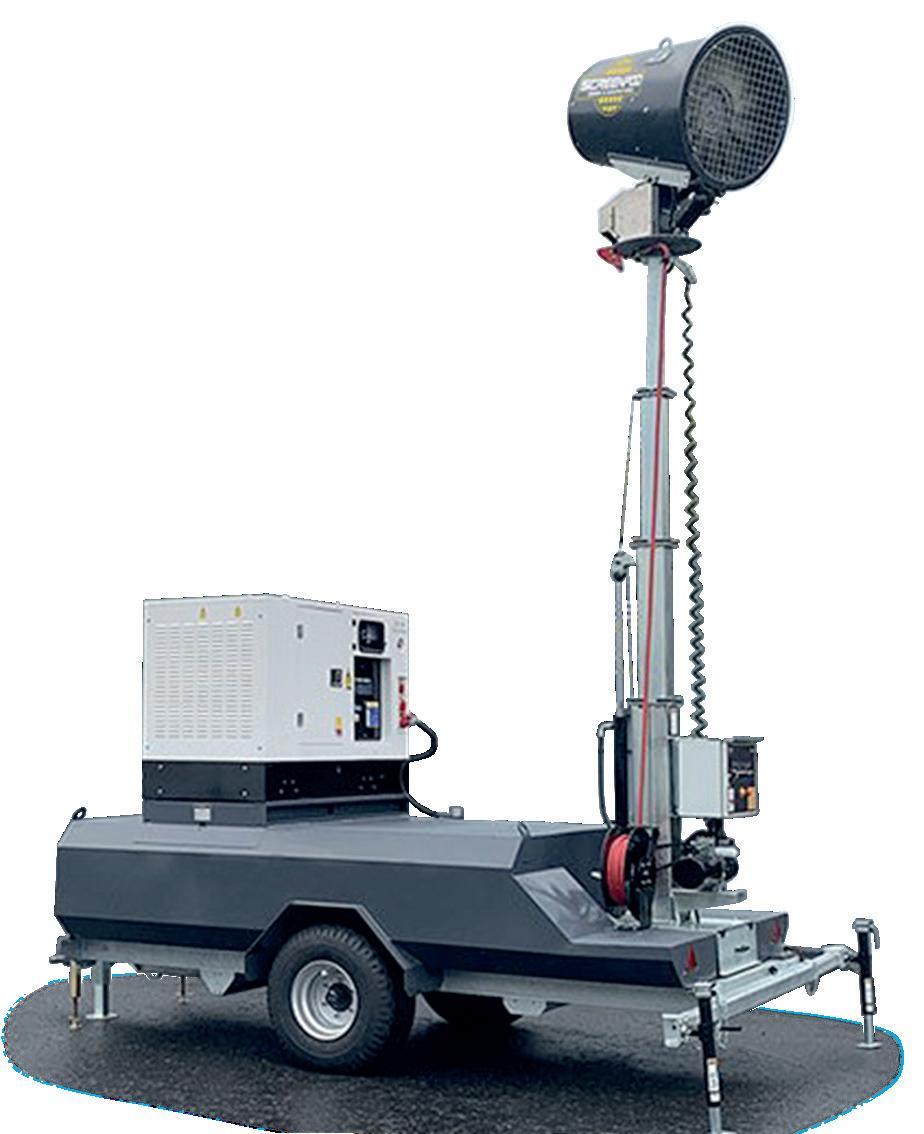

DUST CANNONS
S35 (available on skid/ wheels/trailer)
Dry weight: 225kg Length: 0,91m Width: 0,93m Height: 2,10m Fan motor: 3kW Throw: 35 - 40m
S45 (available on skid/wheels/ tracks/trailer and telescopic)
Dry Weight: 465kg Length: 1,40m Width: 1,30m Height: 1,90m Fan motor: 7,5kW Throw: 45 - 50m
S65 (available on wheels/ tracks/trailer and telescopic)
Dry Weight: 690kg Length: 1,40m Width: 1,30m Height: 1,90m Fan motor: 11kW Throw: 65 - 80m
TrommALL designs and manufactures a range of compact screening equipment for the world.
TrommALL screens are all high-performance, affordable and compact and can handle a extensive range of material from rock, top soil, wood chips, gravel, sand, stone, compost, asphalt, fertiliser to waste.

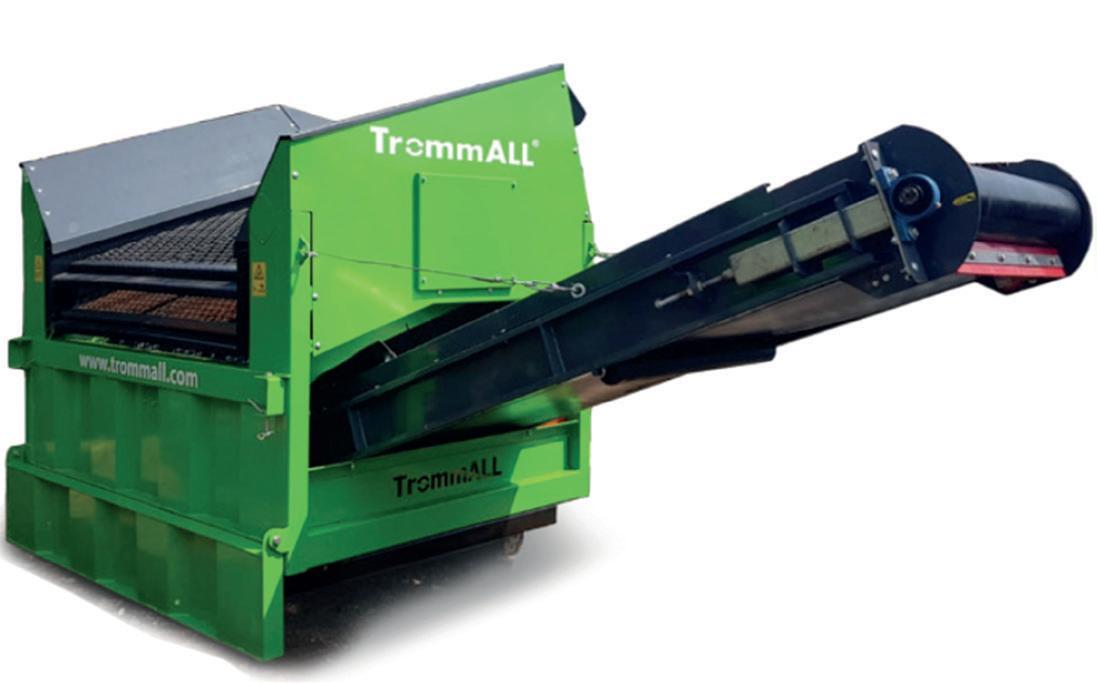

2500GTR
3500TR
3500TR+
5800TR
SCREENS
2500GTR (Tracks)
Weight: 3.500kg Length: 5,8m Width: 2,1m Height: 2,56m Screenbox: 1,8m x 1,8m
5800TR

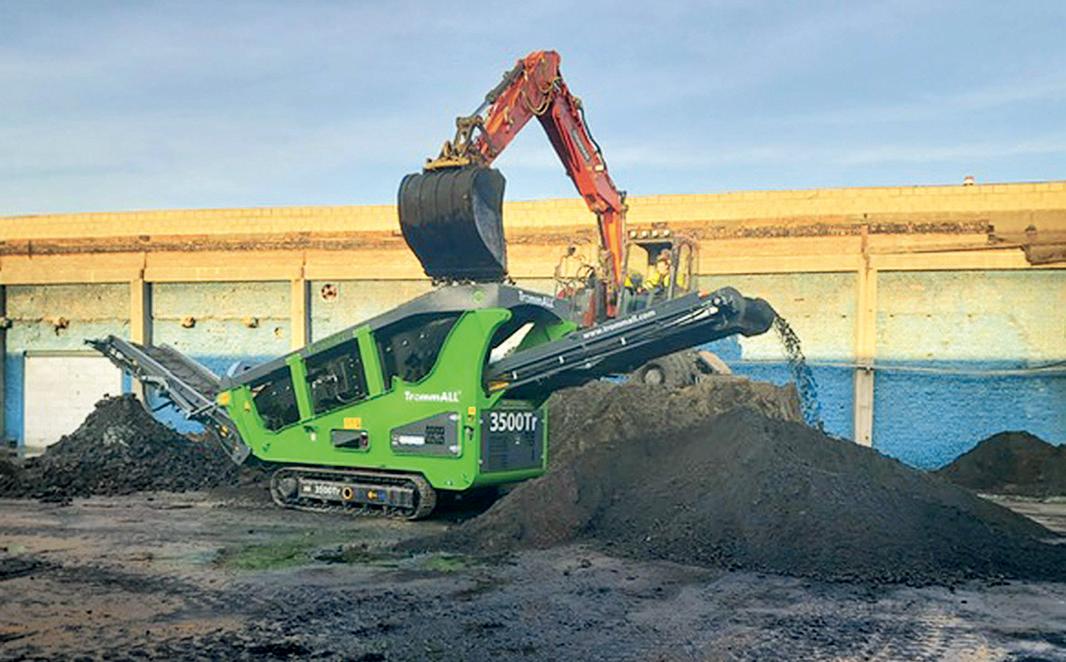

3500TR (Tracks)
Weight: 8.500kg Length: 9,91m Width: 2,27m Height: 3,03m Screenbox: 3,0m x 1,2m
3500TR+ (Tracks + extra side conveyor)
Weight: 9.500kg Length: 10,06m Width: 2,49m Height: 3,03m Screenbox: 3,0m x 1,2m
3500TR
TROMMEL SCREEN

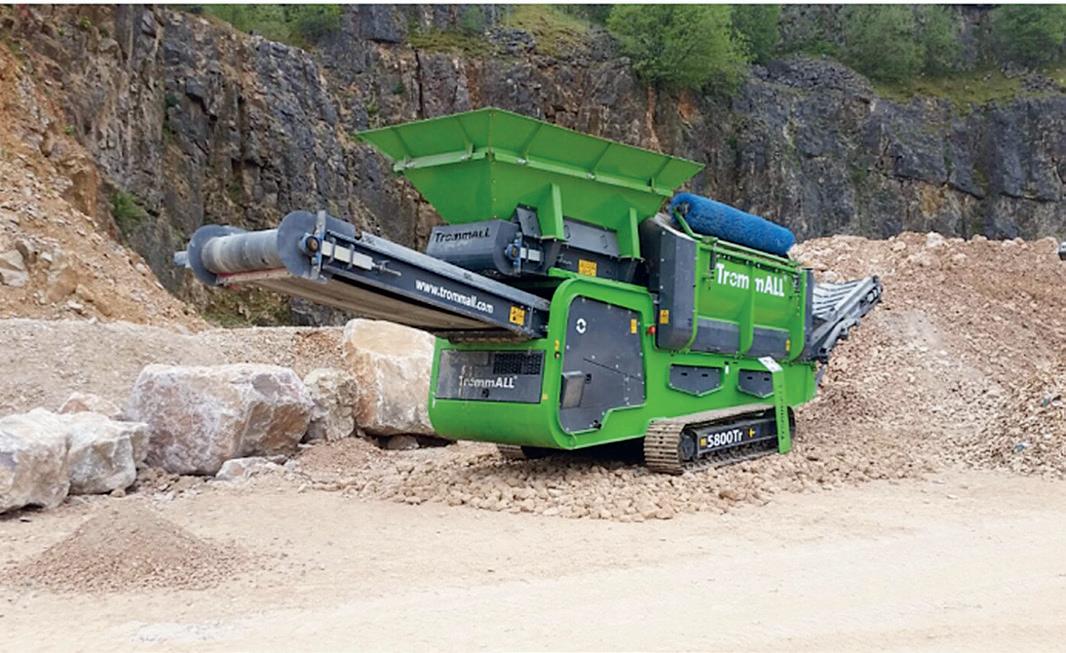

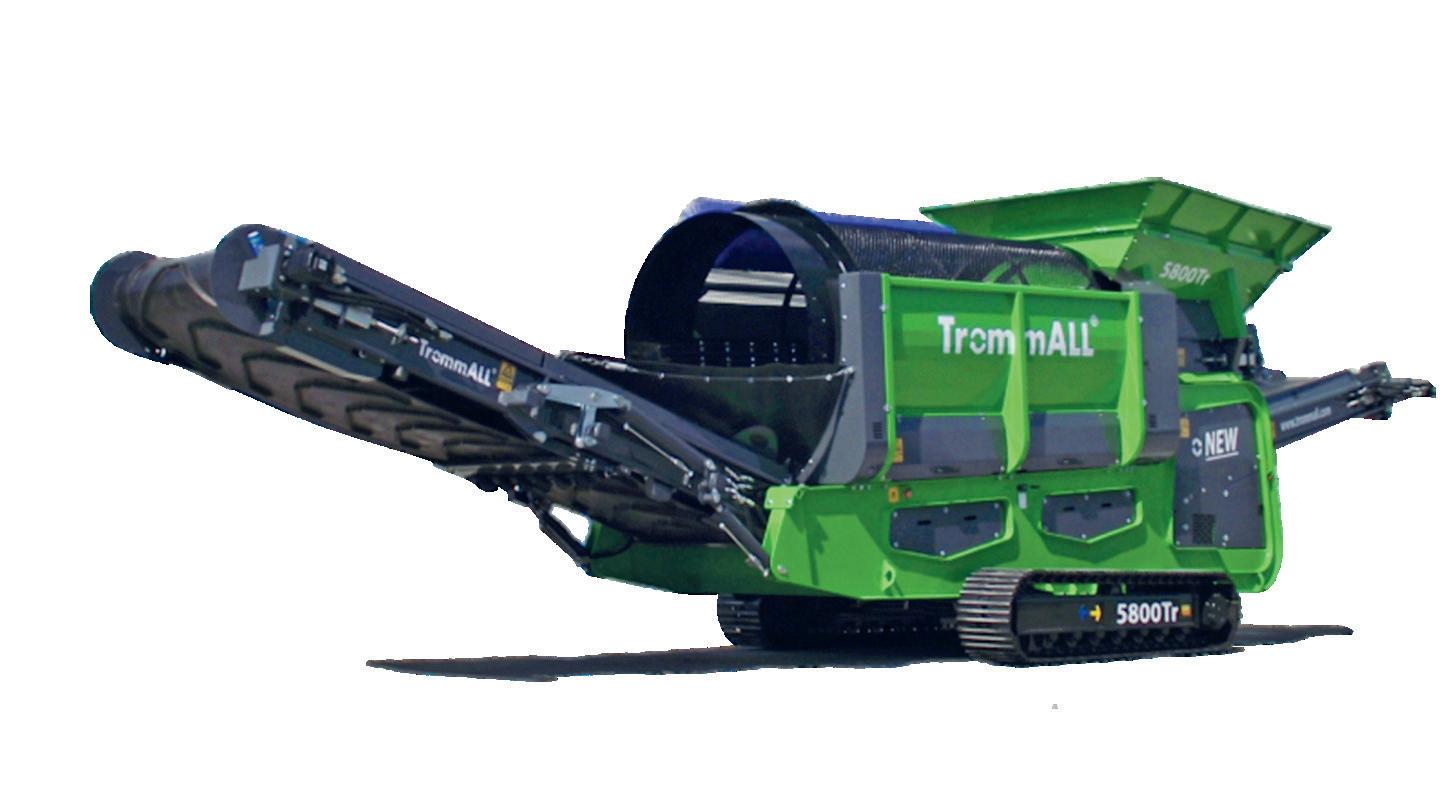

5800TR (Tracks)
Weight: 12.500kg Length: 10,0m Width: 2,5m Height: 3,15m Drum length: 3,685m Drum diameter: 1,565m
KOMPLET is leader in the world of construction of treatment systems and waste recycling equipment.
KOMPLET develops easy to use machines and modular systems that are easy to transport as well, in this way offering customers the option to choose between widening and/or upgrading an existing system. The peculiarity of the KOMPLET standards has made the brand well known and appreciated throughout the world. KOMPLET cares about protecting the environment and people and for the future plans to continue to widen their business and equipment offers with progressive solutions.
For KOMPLET the protection of the planet is a challenge that is renewed every day, a challenge that Komplet will never tire to face and win.
KJC503
KJC704
KJC805
CITYCRUSHER 704
LEM 4825
JAW CRUSHERS
KJC503
Weight: 3.400kg Length: 4,54m Width: 1,5m Height: 1,9m Hopper capacity: 0,6m3 Production: 5-30 t/h
KJC704
Weight: 11.500kg Length: 8,15m Width: 2,25m Height: 2,69m Hopper capacity: 2,3m3 Production: 10-80 t/h
KJC805
Weight: 18.000kg Length: 10,50m Width:
2,20m Height: 2,90m Hopper capacity: 3,0m3 Production: 200 t/h
CITYCRUSHER 704
Weight: 9.500kg Length: 6,33m Width: 2,19m Height: 2,76m Hopper capacity: 2,3m3 Production: 80 t/h
LEM 4825
Weight: 2.100kg Length: 6,30m Width: 1,15m Height: 2,42m Hopper capacity: 0,5m3 Production: 5-30 t/h
SHREDDER
KROKODILE
Weight: 14.000kg Length: 8,0m Width:
2,20m Height: 3,28m Hopper capacity: 2,3m3 Production: 180 t/h
KROKODILE
MT5000
HAMMER MILLS

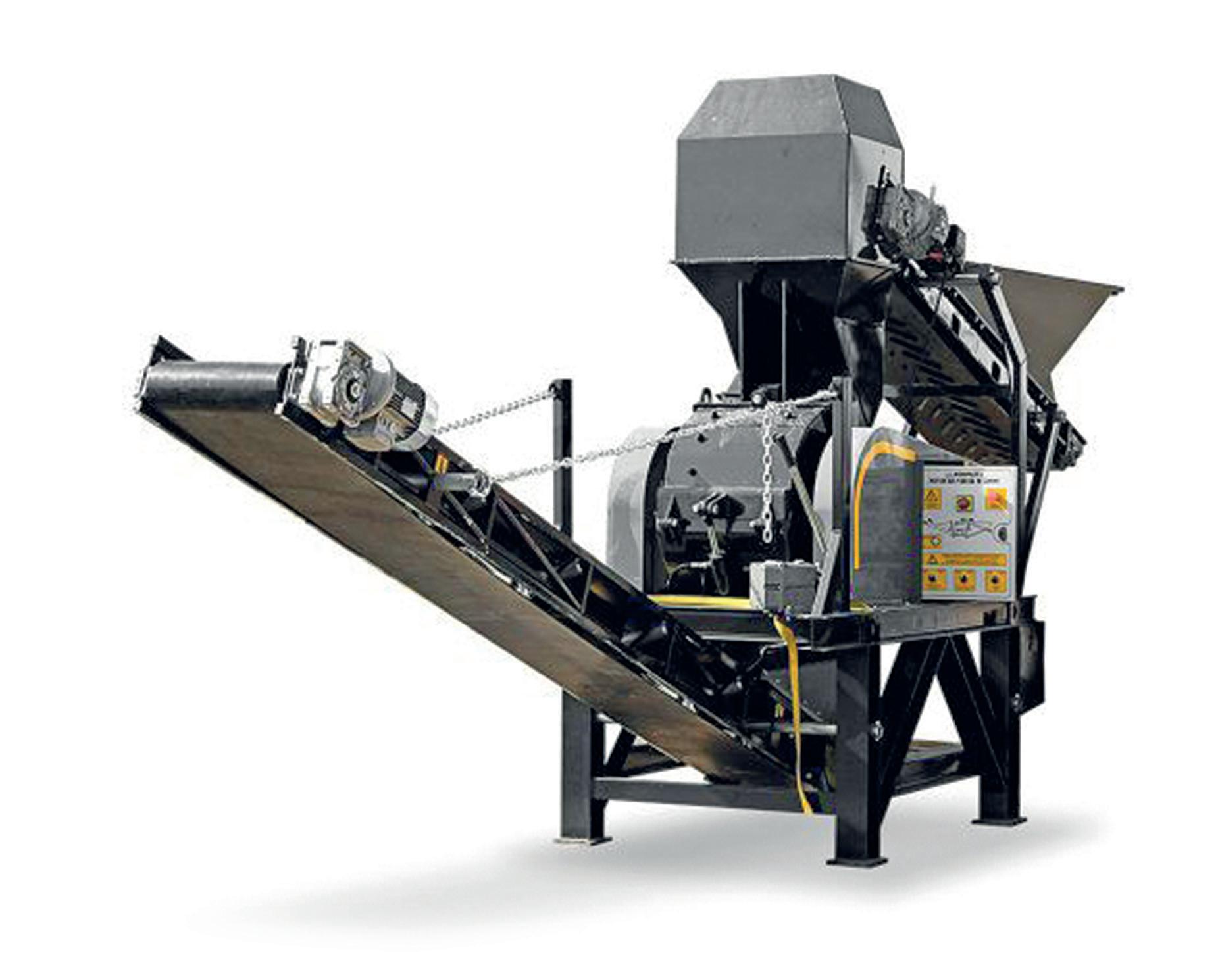

MT5000
Weight: 3.400kg Length: 4,70m Width:
1,50m Height: 1,88m Hopper capacity: 0,6m3 Production: 5-25 t/h
M5000
Weight: 1.900kg Length: 6,20m Width: 1,30m Height: 1,60m Hopper capacity: 0,5m3 Production: 20 t/h
KOMPATTO 221
KOMPATTO 104
SCREENS
KOMPATTO 221
Weight: 3.200kg Length: 3,83m Width: 1,45m Height: 2,235m Production: 80 t/h
KOMPATTO 104
Weight: 7.000kg Length: 7,77m Width: 2,24m Height: 3,00m Hopper capacity: 2,5m3 Production: tot 200 t/h
WV20-80
KOMPATTO 5030
Weight:
12.000kg Length: 9,86m Width:
2,25m Height: 2,50m Hopper capacity: 2,5m3 Production: 50-350 t/h
WV20-80
Weight: 520kg Length: 2,65m Width: 1,55m Height: 1,93m Production: 10-40 t/h
KOMPATTO 5030
DST1020
TB3400

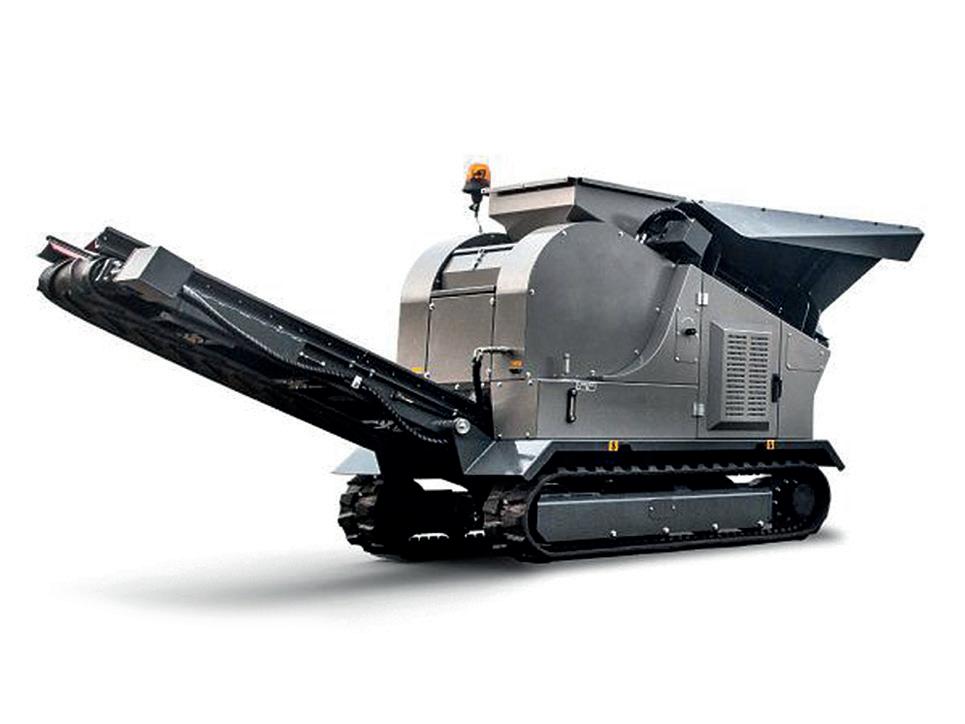

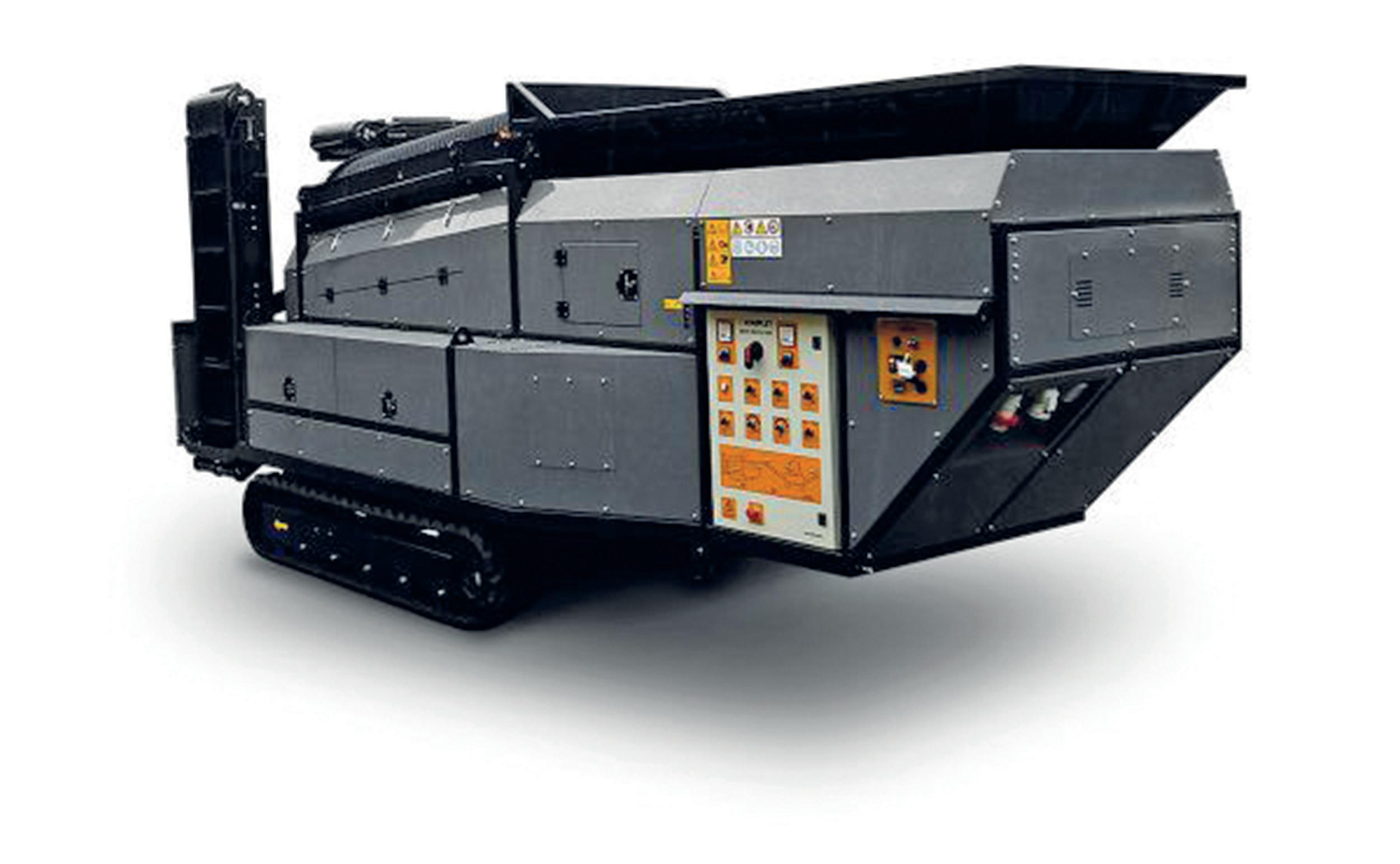

TROMMEL SCREEN
DST1020
Weight: 3.400kg Length: 5,50m Width:
2,00m Height: 2,565m Drum length: 2,0m Drum diameter: 1,0m Hopper capacity: 1,3m3 Production: 60 t/h

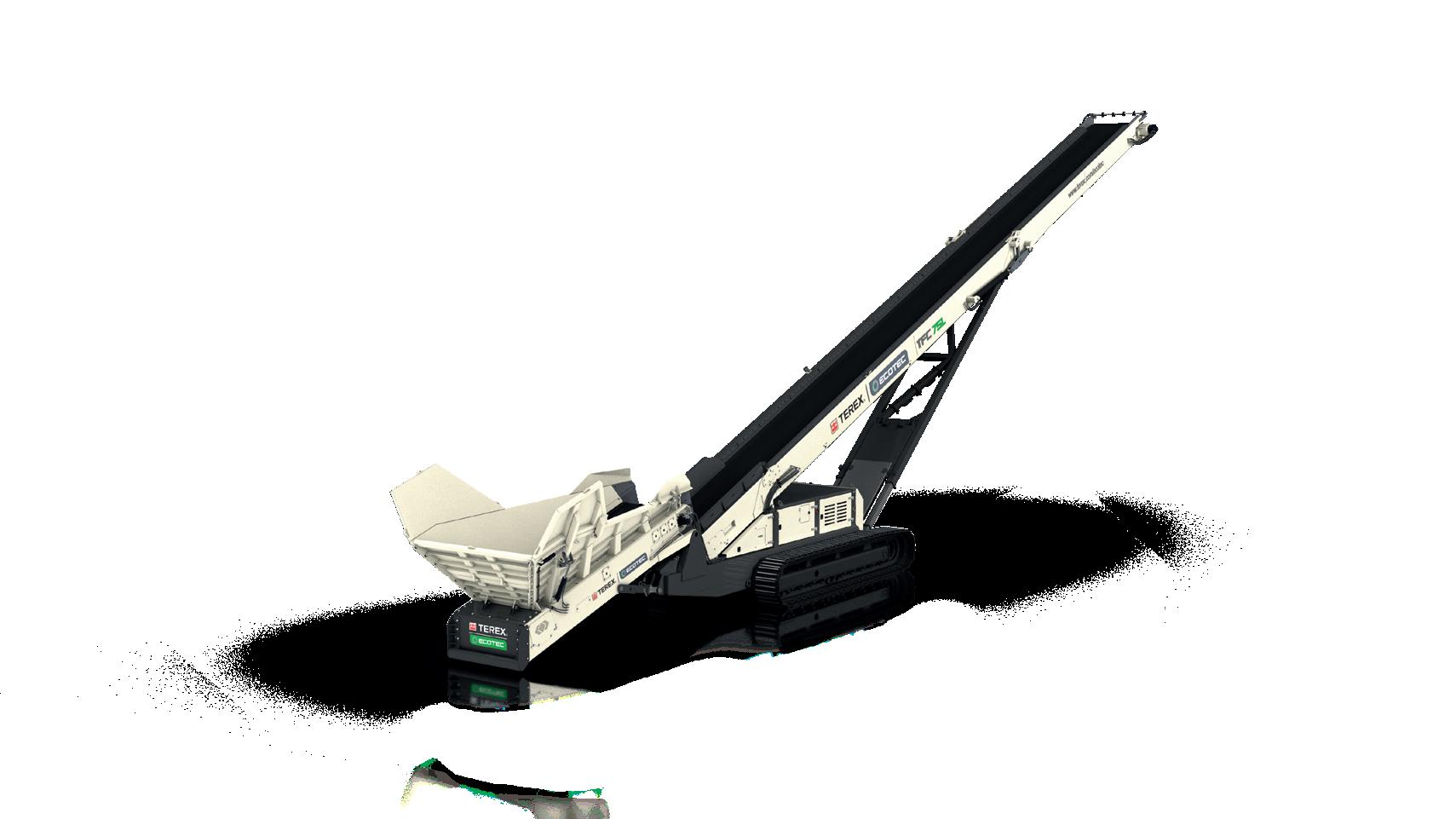

CONVEYOR
TB3400
Weight: 2.600kg Length: 6,4m Belt width: 0,6m Discharge height: 3,20m
MDS is dedicated in designing and manufacturing state of the art trommels. MDS is committed to innovation and is always developing new products and solutions and modifies its machines to meet the requirements of the customers.
MDS Trommels provide unparalleled productivity and can screen rocks as large as 1,25m, way bigger than any other trommels out there. MDS also has the biggest trommels packed with features that are unmatched such as remote controlled use, modular drums, drum cleaners and electronic systems to monitor and control aspects of the trommel. The MDS trommels provide an advantage in screening as they can handle large rocks for sea defence and Rip Rap and they are also effective in cleaning clay bound rock and rocks mixed with other sticky materials. MDS trommels are built for tough conditions and built to last.
M412
TROMMEL SCREENS
M412
Weight: 21.500kg Length: 12,836m Width: 2,50m Height: 3,00m Capacity: 300 t/h Drum length: 4m Drum diameter: 1,25m Hopper capacity: 4m3
M515
Weight: 48.000kg Length: 17,047m Width: 2,98m Height: 3,497m Capacity: 350-450 t/h Drum length: 5,5m Drum diameter: 1,5m Hopper capacity: 12,6m3
M515
M615
Weight: 35.000kg Length: 12,130m Width: 2,496m Height: 2,99m Capacity: 350-450 t/h Drum length: 6m Drum diameter: 1,5m Hopper capacity: 15m3
M820
M825
M820
Weight: 75.000kg Length: 14,923m Width: 3,884 Height: 3,837m Capacity: 650-750 t/h Drum length: 8m Drum diameter: 2m Hopper capacity: 70m3
M615
M825
Weight: 125.000kg Length: 16,420m Width: 4,542m Height: 4,440m Capacity: 1.000 t/h Drum length: 8m Drum diameter: 2.5m Hopper capacity: 145m3
CONTACT GM Recycling BV BE 0423.230.992
Krommeveldstraat 1 B - 9971 Lembeke
+32 9 378 39 47
info@gmrecycling.be
