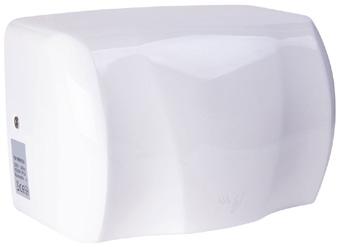

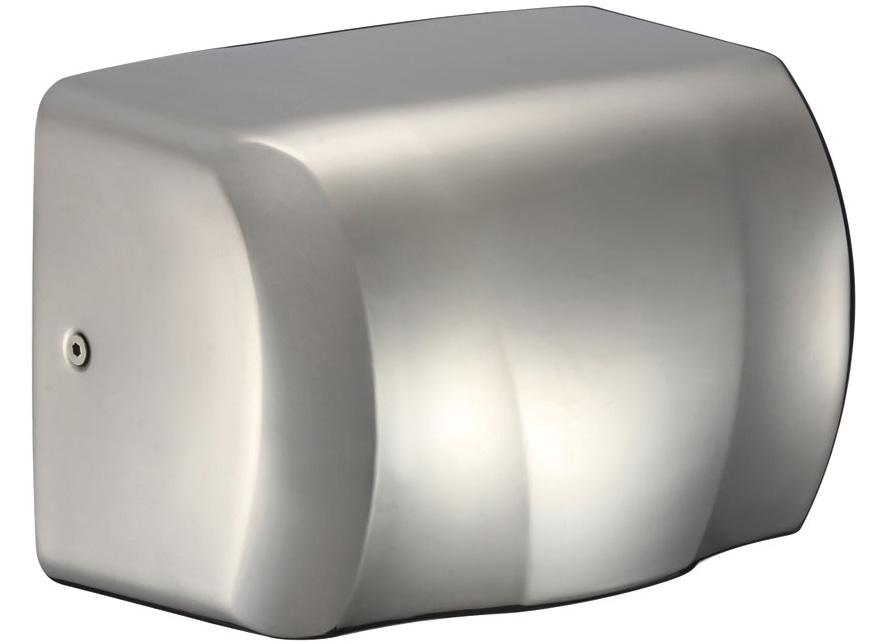

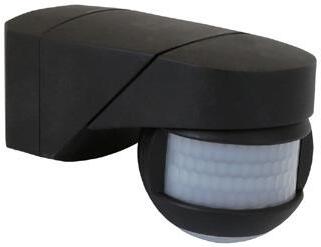

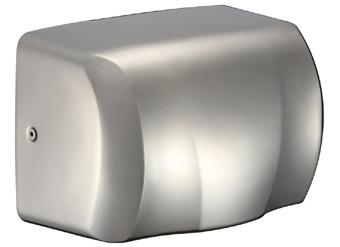

WIRING ACCESSORIES | VENTILATION HAND DRYERS | MOTION SENSORS

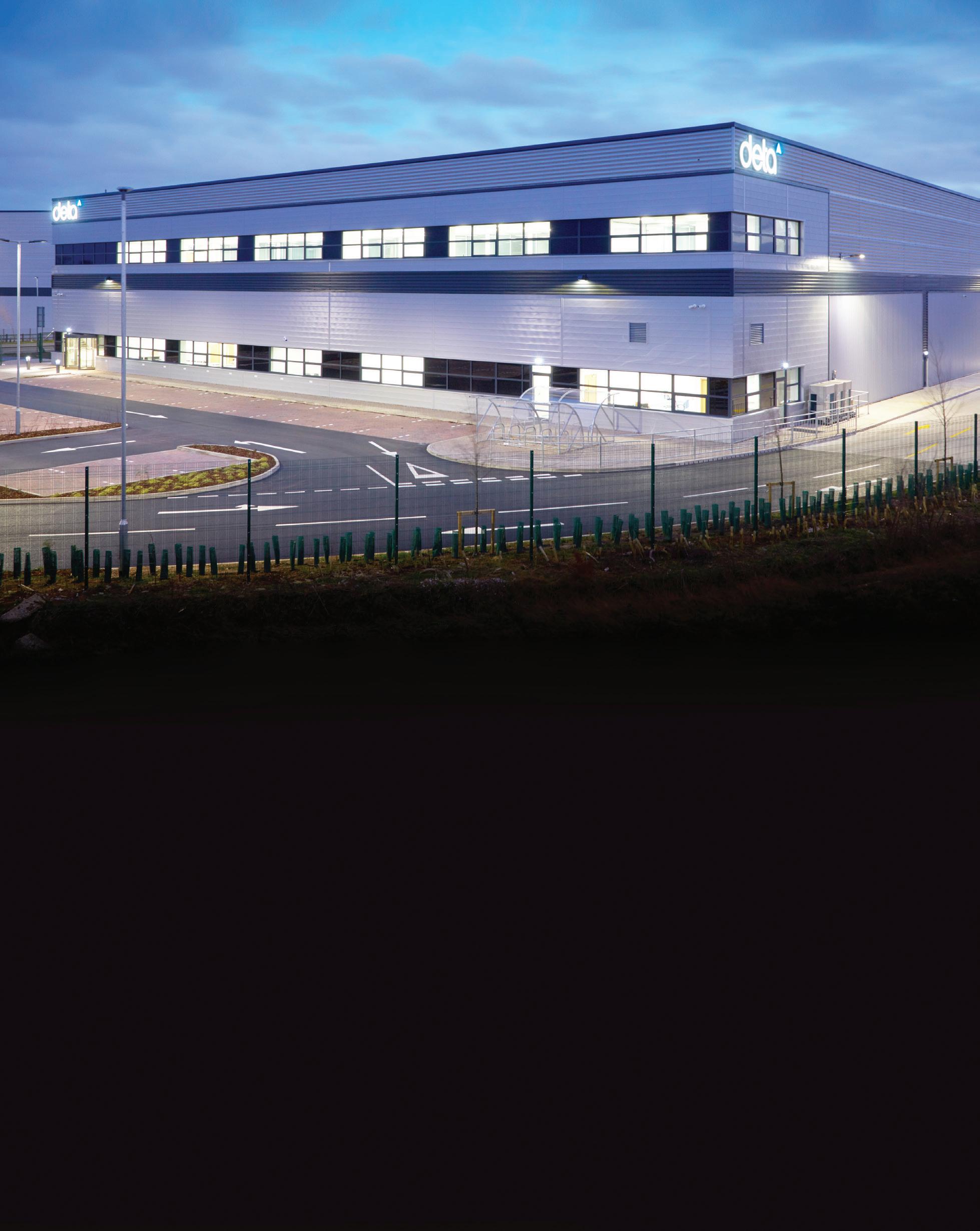

Introducing Deta Electrical Deta Electrical is a market leading manufacturer and distributor of wiring, lighting, cable management and electrical installation accessories, with a reputation for unrivalled quality, reliability, service and value for money.

Steeped in over 25 years of history, Deta Electrical’s long established Vimark brand holds a reputation for the supply of high quality, value for money electrical and wiring accessories. Offering a wide portfolio of products, including wiring accessories, ventilation, hand dryers and motion sensors, Vimark is a long established and trusted brand that supports electrical contractors with their everyday installation requirements.

Mission & Core Values Deta’s mission is to use its passion and expertise to provide best-in-class products that meet and exceed ever-changing customer needs.

Trusted

A brand trusted by customers, Deta is synonymous with high product quality, extensive product knowledge and exceptional customer service. Robust quality control throughout the development and manufacturing stages are key to delivering quality products.

Progressive

Focused on continuous progression, Deta is committed to investment in innovation, product design and ease of installation. Digitalisation is at the heart of Deta’s strategy, supporting stakeholder requirements and maximising its value chain.

Sustainable

Deta is committed to protecting the environment for future generations, to building an inclusive community and to ensuring it acts in the best interests of society.

E

Pr

ers D iv i t y

SU Social

BL

TR

Service

NA

US

TE

AI ST

D

Pro d

ct Knowl

ge ed

u

Contents

ironmen nv

t

i ty

uct Qual od

2 12 22 30 38 48 52

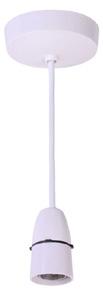

Deta Gridswitch Euro Modules Ceiling Accessories

54 62 64

Tower Boxes

66

Technical

68

E

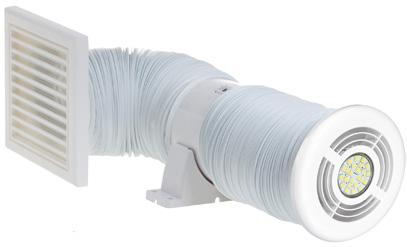

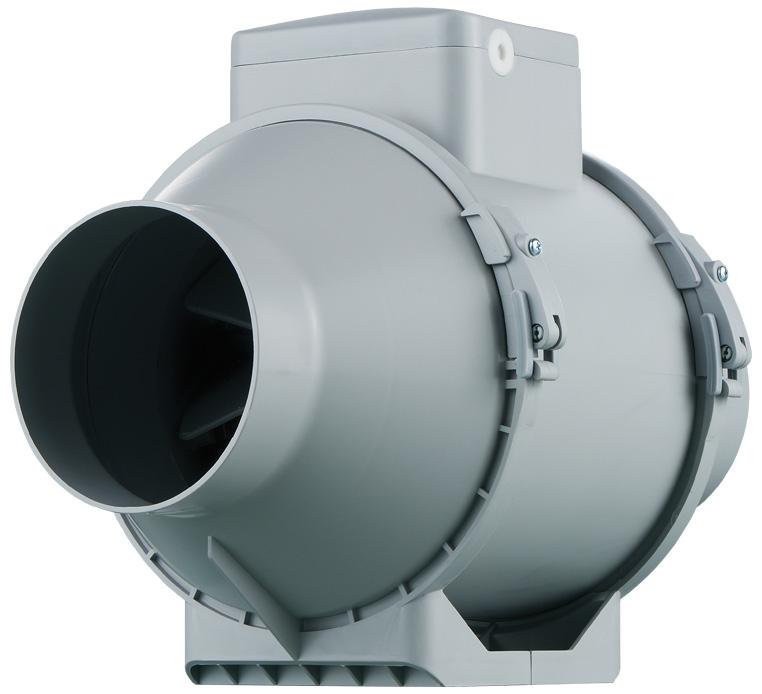

Vimark Square Pro Pro Décor Metalclad Ventilation Hand Dryers Motion Sensors

In

Develop

D

alisatio

n

t igi

fra

structu

re

ct

nt me

Prod u

PROGRESSIVE

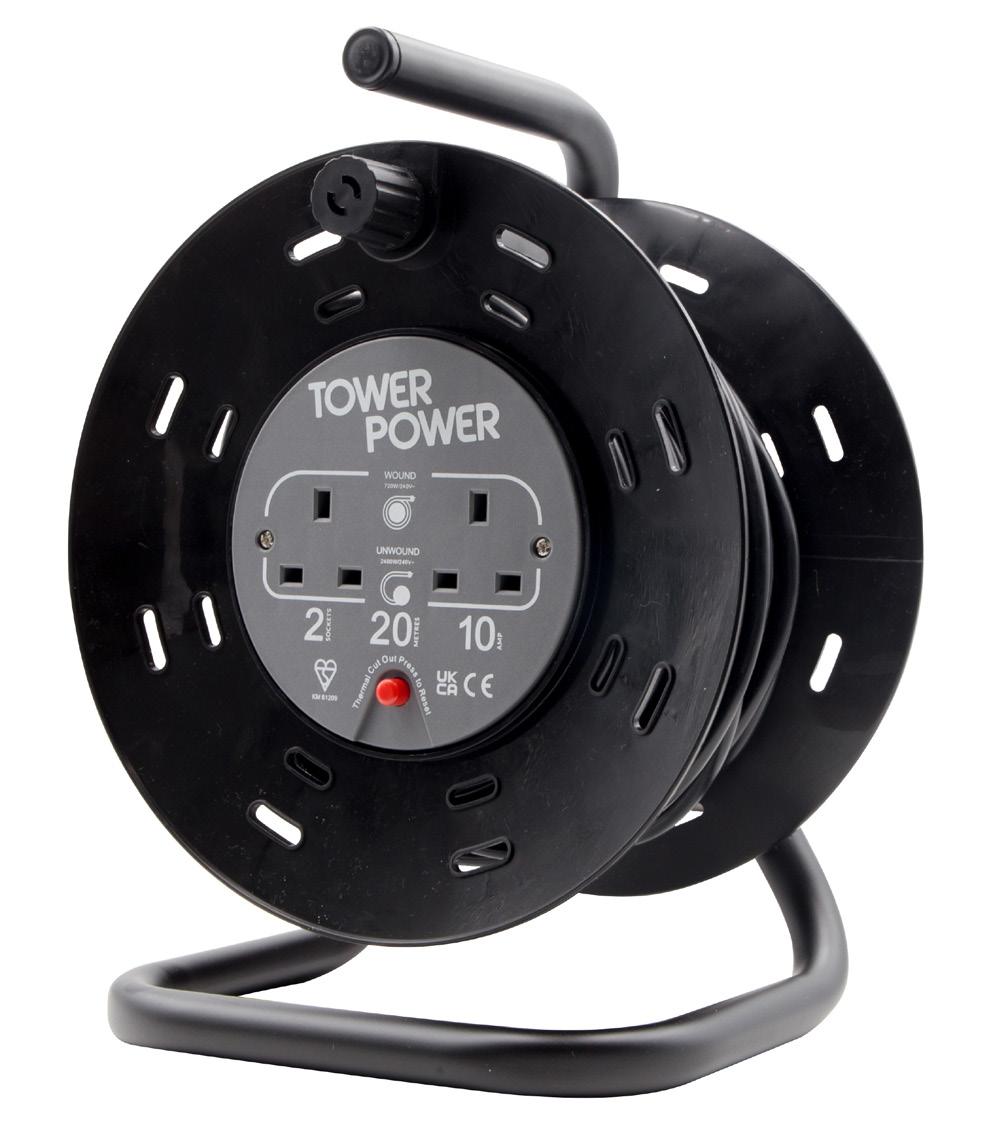

VIMARK | TTE | TOWER | BRACKENHEATH BRITICENT | CHANNEL | DETA.E | TIMEGUARD vimark.uk

1

Square A square-edged white moulded range of wiring accessories, offering a comprehensive range of switches and sockets engineered with precision and high end quality.

Setting a new standard in functionality, durability and style, Square is an ideal choice for electrical professionals seeking excellence and ease of installation. It combines style and simplicity to blend seamlessly into the décor of any residential or commercial building.

25-YEAR GUARANTEE

(unless otherwise stated)

2

#WiredForPerfection

Contents Socket Outlets 6 USB Charging Socket Outlets 6 10 Amp Switches 7 Dimmer Switches 7 Connection Units 8 20 Amp Double Pole Switches 8 50 Amp Double Pole Switches 9 Cooker Control Units 9 Shaver Socket 9 Telephone Outlets 10 TV Outlet 10 Blank & Flex Connection Plates 10 Data Plates 10 Gridplates 11 Pattress Boxes 11

3

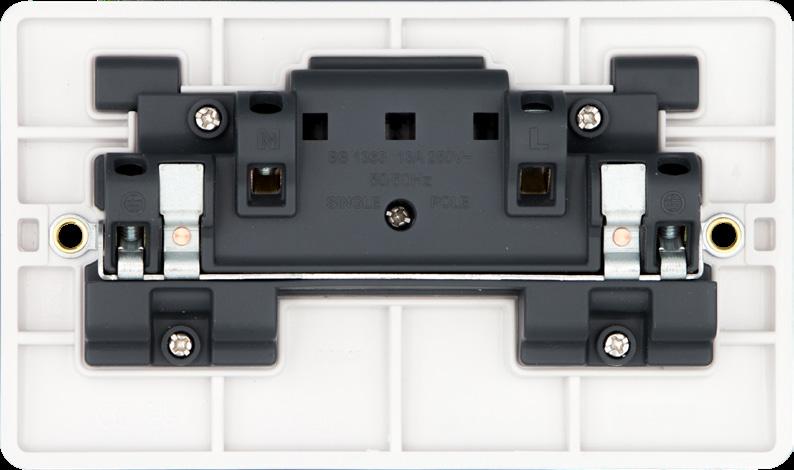

SP and DP Switch Options

Heat Resistant Urea Frontplate

Dual Earth Terminals

Earth Pin Operated Shutters

Captive, Backed Out Terminal Screws

4

Recessed Earth Bar

#WiredForPerfection

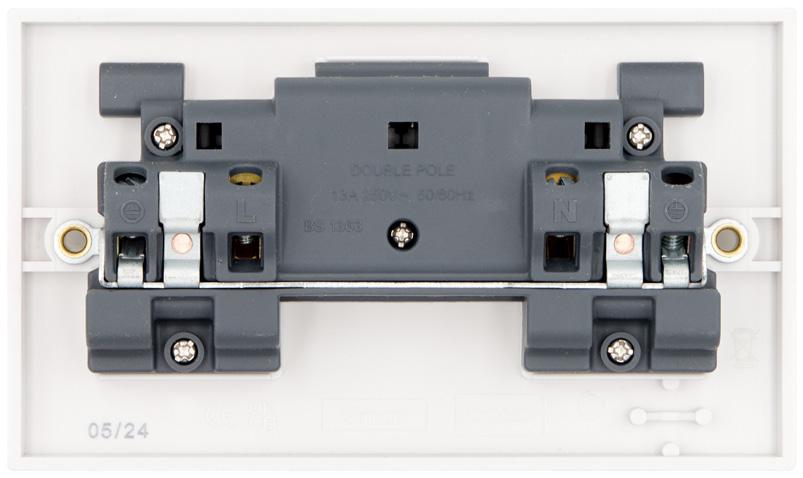

Features Square is manufactured from heat resistant urea and under strict production control conditions.

Sockets are available with either single or double pole switches. Live and neutral plug pin contacts on sockets are shielded by earth pin operated safety shutters.

To ensure safe installation, the earth bar on the sockets is recessed, preventing accidental contact.

5

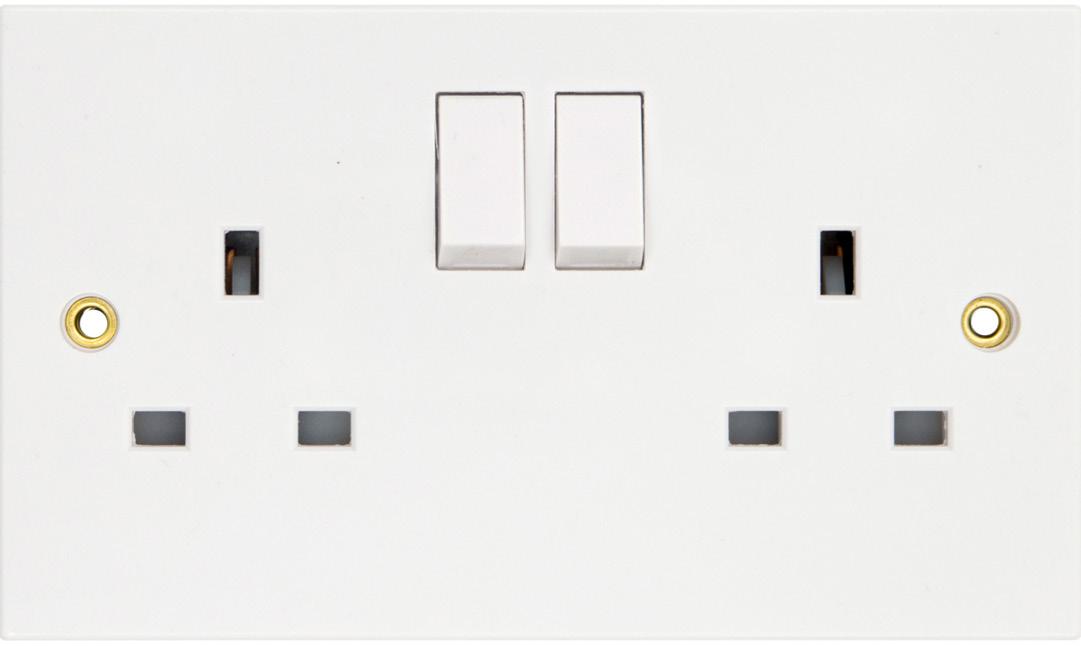

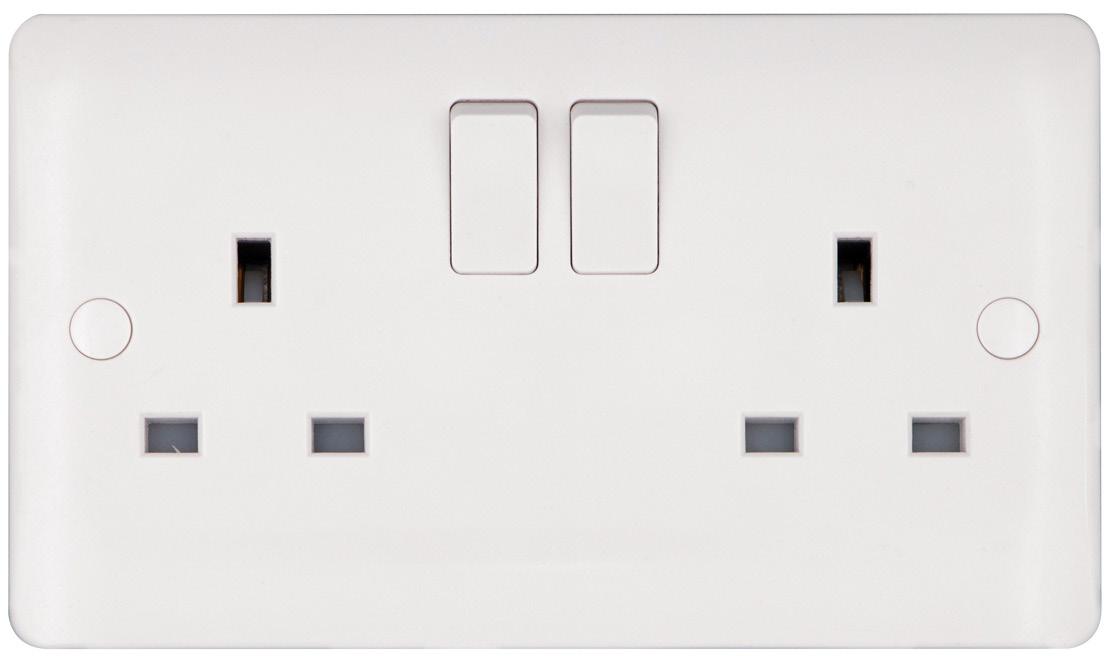

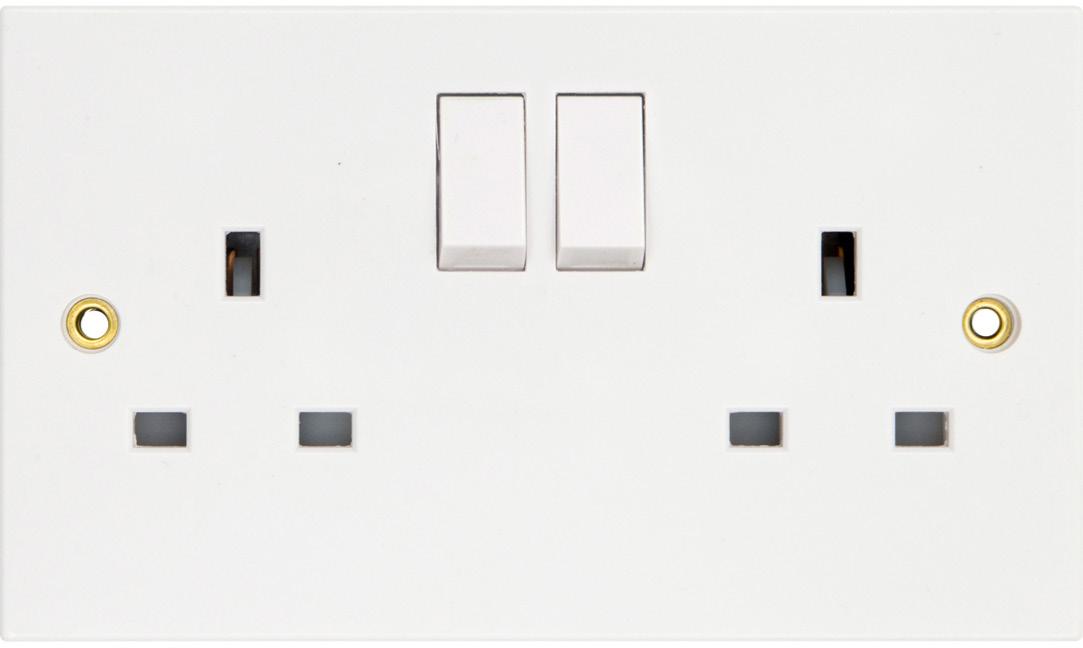

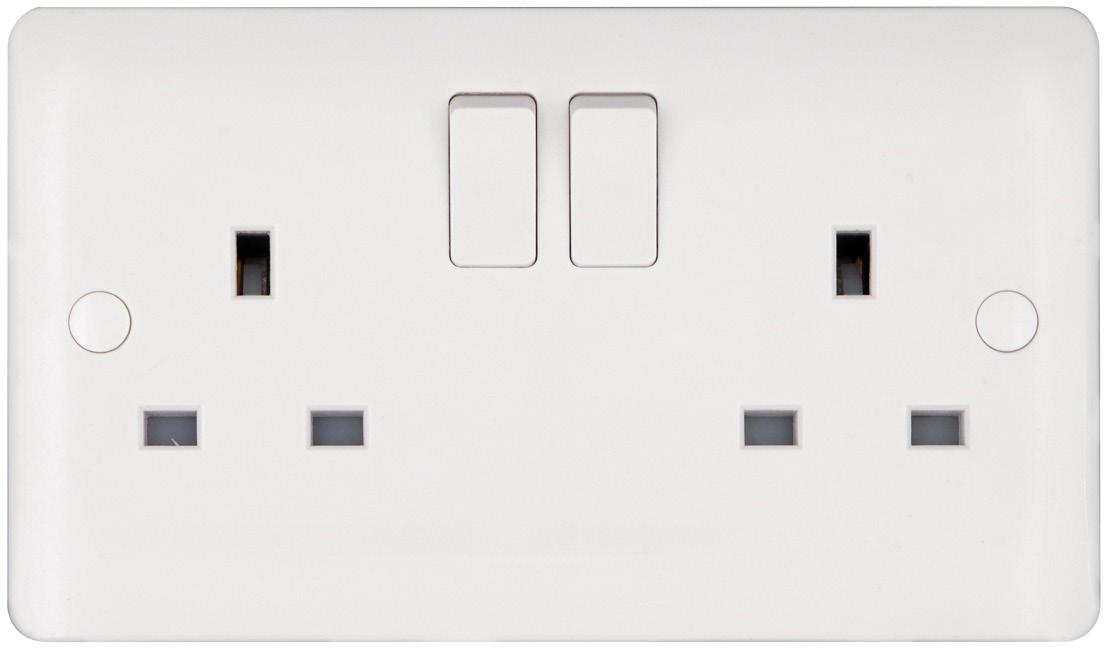

Socket Outlets • Twin earth terminals on 2 gang switched sockets • In compliance with BS 1363-2 and BS 546

VS1206

VS1207SP

VS1207DP

VS1331

1 Gang

VS1206 VS1207SP VS1207SPR VS1207DP VS1331

VS1207SPR

VS1208

VS1209SP

VS1209SPR

13A Unswitched 13A Switched Single Pole 13A Recessed Switched Single Pole 13A Switched Double Pole 5A Unswitched Round Pin

2 Gang

VS1208 VS1209SP VS1209SPR VS1209DP

13A Unswitched 13A Switched Single Pole 13A Recessed Switched Single Pole 13A Switched Double Pole

Back Boxes minimum recommended depth: 1g 2g

Flush 25mm DB162 25mm DB163

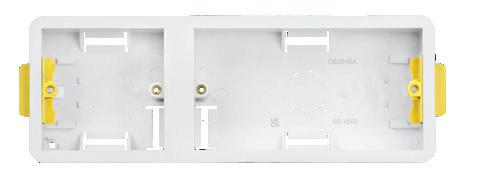

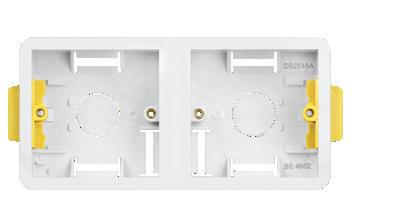

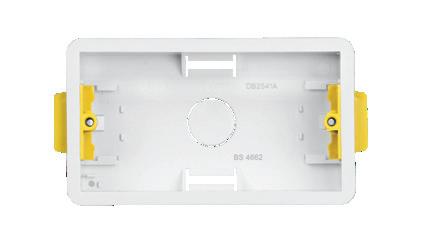

Dry Lining 35mm DB2540 35mm DB2541

Surface 25mm V1221 25mm V1223

USB Charging Socket Outlet • USB ports deliver up to 3.1A simultaneous charging current across 2 ports • Detects connected devices and provide optimised high-speed charging • Captive, backed out and top facing terminals with large cable lead-ins and clear embossed markings • In compliance with BS 1363-2 • 2-year guarantee

VS1286

2 Gang VS1286

13A Switched Single Pole 15W/3.1A USB 2 x Type A

Back Boxes minimum recommended depth: 2g

Flush‡ 25mm DB163

Dry Lining 35mm DB2541

Restricted cable entry.

‡

6

Surface 25mm V1223

#WiredForPerfection 10 Amp Switches • All plate switches are X-rated and can be used for switching inductive or fluorescent loads without de-rating • In compliance with BS EN 60669-1

VS1203

VS1244

VS1204

VS1205

VS1246

VS1321 VS1323

VS1249

10 Amp Plate Switches VS1202 VS1203 VS1204 VS1205 VS1244 VS1246 VS1249

VS1247

Square

VS1202

10 Amp Isolator Switches VS1247

1 Gang 1-way 1 Gang 2-way 2 Gang 2-way 3 Gang 2-way 4 Gang 2-way 1 Gang Intermediate 1 Gang 2-way Press

3 Pole Fan Isolator

10 Amp Architrave Switches VS1321 VS1323

1 Gang 2-way 1 Gang 2-way Press

Back Boxes minimum recommended depth: Plate 1-3g 4g

Flush 16mm DB152 25mm DB163

Dry Lining 35mm DB2540 35mm DB2541

Surface 16mm V1220E 25mm V1223

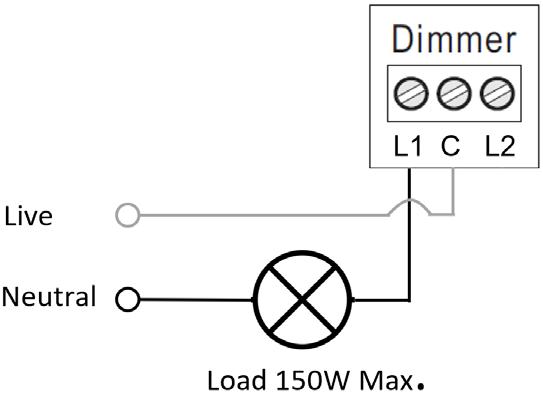

Dimmer Switches • Universal dimmers suitable for use with dimmable LED lamps (requiring leading or trailing edge control), incandescent and halogen lamps or low voltage lighting • Suitable for loads up to 150W LED trailing edge (100W LED leading edge), 250W incandescent/halogen • Push on/push off dimmers are suitable for 2-way switching • Clear terminal markings • 2-year guarantee

VS1414

Universal VS1414 VS1415

VS1415

1 Gang 2-way Switching 2 Gang 2-way Switching

Back Boxes minimum recommended depth: 1g

Flush 35mm DB164

Dry Lining 35mm DB2540

Surface 33mm V1222

vimark.uk

7

Connection Units • Captive fuse carrier for safety isolation • Engraving available to order • Optional flex outlet on bottom edge • 2 earth terminals • In compliance with BS 1363-4

VS1360

VS1361

VS1365

VS1366

VS1364

VS1370

VS1374

VS1375

Unswitched VS1360 VS1361 VS1364 VS1365* VS1366*

VS1371

13A Unswitched Spur 13A Unswitched Spur with Neon 13A Unswitched Spur with Bottom Flex Outlet 3A Unswitched Spur 3A Unswitched Spur with Neon

Switched VS1370 VS1371 VS1374 VS1375

13A Switched Spur 13A Switched Spur with Neon 13A Switched Spur with Bottom Flex Outlet 13A Switched Spur with Neon and Bottom Flex Outlet

VS1392

VS1392WH

Back Boxes minimum recommended depth: 1g

Flush 25mm DB162

Dry Lining 35mm DB2540

Surface 25mm V1221

20 Amp Double Pole Switches • Engraving available to order • Twin brass earth terminals • In compliance with BS EN 60669-1

VS1218N

20 Amp

VS1218N VS1390 VS1390WH VS1391 VS1392 VS1392WH VS1393

VS1390

VS1390WH

VS1391

Dual Bath/Sink Switch Neon Switch Switch ‘WATER HEATER’ Switch with Neon Switch with Flex Outlet Switch and Flex Outlet ‘WATER HEATER’ Switch with Neon and Flex Outlet

Back Boxes minimum recommended depth: 1g

Flush 25mm DB162

Dry Lining 35mm DB2540

Surface 25mm V1221

*Special order product, minimum order quantity and lead time applies.

8

VS1393

#WiredForPerfection 50 Amp Double Pole Switches • Twin brass earth terminals • In compliance with BS EN 60669-1

VS1300N

VS1301

50 Amp VS1300 VS1300N

Switch with Red Rocker Switch with Red Rocker and Neon

VS1301N

50 Amp Tall VS1301 VS1301N

Tall switch with Red Rocker Tall switch with Red Rocker and Neon

Back Boxes minimum recommended depth: 1g 2g

Flush 47mm DB167 47mm DB168

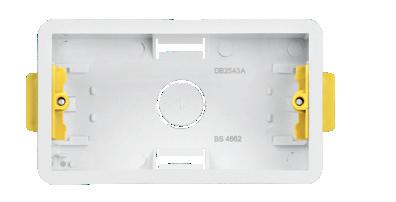

Dry Lining 47mm DB2542 47mm DB2543

Surface 47mm V1228 47mm V1229

Cooker Control Units

Shaver Socket

• Neon versions available • 2 earth terminals • In compliance with BS 4177

• Dual voltage outlet 230V/115V • Neon indicator • In compliance with BS 61558-2-5

VS1302

Square

VS1300

VS1302N

VS1305

VS1217

Cooker Control

Shaver Socket

VS1302N

Back Boxes minimum recommended depth:

VS1302

45A Switch with Red Rocker + 13A Switched Socket 45A Switch with Red Rocker + 13A Switched Socket with Neon

Cooker Cable Outlet VS1217

VS1305

Dual Voltage with Neon

Flush 2g 47mm DB168

Dry Lining 47mm DB2543

Surface 47mm V1229

45A Cooker Cable Outlet

Back Boxes minimum recommended depth: 1g 2g

Flush 47mm DB167 47mm DB168

Dry Lining 47mm DB2542 47mm DB2543

Surface 47mm V1228 47mm V1229

vimark.uk

9

Telephone Outlets

TV Outlet

• Screw terminals

• Suitable for standard coaxial BS 3041 plug

VS1352

VS1264

VS1353

Telephone Outlets VS1352 VS1353

TV Outlets VS1264

Single Master Single Secondary

Back Boxes minimum recommended depth:

Back Boxes minimum recommended depth: 1g

Flush 25mm DB162

Dry Lining 35mm DB2540

Single Coaxial Isolated

Surface 25mm V1221

1g

Flush 25mm DB162

Dry Lining 35mm DB2540

Surface 25mm V1221

Blank & Flex Connection Plates Data Plates • Dual terminals of live, neutral and earth on 20A/25A flex connection plates • In compliance with BS 5733

• Accepts standard 50x25mm modules • Full range of Euro Modules, see page 63

VS1200

VS1201

VS1422

VS1216

VS1217

Blank Plates

Data Plates

Flex Connection Units

Back Boxes minimum recommended depth:

VS1200 VS1201 VS1216 VS1217

VS1422 VS1424

1 Gang 2 Gang

25A Flex Outlet Plate 45A Cooker Cable Outlet

Back Boxes minimum recommended depth: 1g 2g

10

VS1424

Flush 25mm DB162 25mm DB163

Dry Lining 35mm DB2540 35mm DB2541

Surface 25mm V1221 25mm V1223

Two Module Four Module

Flush Two 35mm DB164 Four 35mm DB165

Dry Lining 35mm DB2540 35mm DB2541

Surface 35mm V1222 35mm V1224

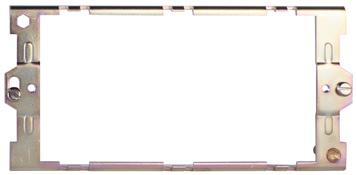

#WiredForPerfection Gridplates • 1 gang to 8 gang • In compliance with BS 5733 • Grid frames supplied separately, see page 60 • Full range of Grid Modules, see page 58

VS2702

VS2703

VS2704

Square

VS2701

VS2706

Gridplates VS2701 VS2702 VS2703 VS2704 VS2706 VS2708

VS2708

1 Gang 2 Gang 3 Gang 4 Gang 6 Gang 8 Gang

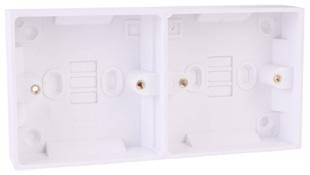

Pattress Boxes • Surface mounted • Urea moulded pattress boxes • Square corners to match Square accessories • In compliance with BS 5733 • 2 gang pattress boxes can be used as single flush to 2 gang surface conversion box

VS1220E

VS1221

VS1228

VS1324

1 Gang V1220E V1221 V1222 V1228 V1324

1+1Gang V1225

VS1222

VS1225

16mm Deep with Earth Terminal 25mm Deep 33mm Deep 45mm Deep 16mm Deep Architrave with Earth Terminal

VS1223

VS1224

VS1229

2 Gang V1223 V1224 V1229

25mm Deep 33mm Deep 45mm Deep

25mm Deep

vimark.uk

11

Pro A range of switches and sockets engineered with precision and superior quality. Setting a new standard in functionality, durability and style, it is an ideal choice for electrical professionals seeking excellence and ease of installation.

Carefully designed to withstand the demands of daily use and ensuring longevity without compromise, the Pro range features a contemporary curved edge profile that combines style and simplicity to blend seamlessly into the décor of any residential or commercial building.

Whether you’re upgrading existing installations or embarking on new projects, the Pro range adds a touch of elegance to any environment.

25-YEAR GUARANTEE

(unless otherwise stated)

12

#WiredForPerfection

Contents Socket Outlets 16 USB Charging Socket Outlets 16 10 Amp Switches 17 Dimmer Switches 17 Connection Units 18 20 Amp Double Pole Switches 18 50 Amp Double Pole Switches 19 Cooker Control Units 19 Shaver Socket 19 Telephone Outlets 20 TV Outlet 20 Blank & Flex Connection Plates 20 Data Plates 20 Gridplates 21 Pattress Boxes 21

13

SP and DP Switch Options

Curved Rockers

Fixing Screw Caps Colour Matched to Plate

Heat Resistant Urea Frontplate

Earth Pin Operated Shutters

Captive, Backed Out Terminal Screws

14

Dual Earth Terminals

Recessed Earth Bar

#WiredForPerfection

Features Pro is designed with multiple features to make installation easy for electricians. Bold terminal markings make terminal identification easier, and top-facing terminals on sockets have large lead-ins with captive and backed out screws to further help with cable installation.

The recessed earth bar helps prevent accidental contact during installation, and the soft plate edges mitigates damage during cable insulation.

All accessories are supplied with fixing screw caps that are colour-matched to the front plate, providing a neat presentation after installation.

15

Socket Outlets • Twin earth terminals on 2 gang switched sockets • In compliance with BS 1363-2

VP1206

VP1207SP

VP1208

VP1209SP

VP1207DP

VP207DPN

VP1209DP

VP1209DPN

1 Gang

VP1206 13A Unswitched VP1207SP 13A Switched Single Pole VP1207DP 13A Switched Double Pole VP1207DPN 13A Switched Double Pole with Neon

2 Gang

VP1208 13A Unswitched VP1209SP 13A Switched Single Pole VP1209DP 13A Switched Double Pole VP1209DPN 13A Switched Double Pole with Neon

Back Boxes minimum recommended depth: 1g 2g

Flush 25mm DB162 25mm DB163

Dry Lining 35mm DB2540 35mm DB2541

Surface 25mm VP1221 25mm VP1223

USB Charging Socket Outlet • USB ports deliver up to 4.8A simultaneous charging current across 2 ports • Detects connected devices and provide optimised high-speed charging • Captive, backed out and top facing terminals with large cable lead-ins and clear embossed markings • In compliance with BS 1363-2 • 2-year guarantee

VP1289

2 Gang VP1289

13A Switched Single Pole 24W /4.8A USB 1 Type A + 1 Type C

Back Boxes minimum recommended depth: 2g

Flush‡ 25mm DB163

Dry Lining 35mm DB2541

Restricted cable entry.

‡

16

Surface 25mm VP1223

#WiredForPerfection 10 Amp Switches • All plate switches are X-rated and can be used for switching inductive or fluorescent loads without de-rating • In compliance with BS EN 60669-1

VP1204

VP1244

VP1205

VP1247

VP1246

VP1249

10 Amp Plate Switches VP1203 VP1204 VP1205 VP1244 VP1246 VP1249

10 Amp Isolator Switches VP1247

1 Gang 2-way 2 Gang 2-way 3 Gang 2-way 4 Gang 2-way 1 Gang Intermediate 1 Gang 2-way Press

Pro

VP1203

3 Pole Fan Fan Isolator

Back Boxes minimum recommended depth: Plate 1-3g 4g

Flush 16mm DB152 25mm DB163

Dry Lining 35mm DB2540 35mm DB2541

Surface 16mm VP1220E 25mm VP1223

Dimmer Switches • Universal dimmers suitable for use with dimmable LED lamps (requiring leading or trailing edge control), incandescent and halogen lamps or low voltage lighting • Suitable for loads up to 150W LED trailing edge (100W LED leading edge), 250W incandescent/halogen • Push on/push off dimmers are suitable for 2-way switching • Clear terminal markings • 2-year guarantee

VP1414

Universal VP1414 VP1415

VP1415

1 Gang 2-way Switching 2 Gang 2-way Switching

Back Boxes minimum recommended depth: 1g

Flush 35mm DB164

Dry Lining 35mm DB2540

Surface 33mm VP1222

vimark.uk

17

Connection Units • Lockable, captive fuse carrier for safety isolation • Engraving available to order • Optional flex outlet on bottom edge • 2 earth terminals • In compliance with BS 1363-4

VP1360

VP1361

VP1364

VP1370

Unswitched VP1360 VP1361 VP1364

13A Unswitched Spur 13A Unswitched Spur with Neon 13A Unswitched Spur with Bottom Flex Outlet

Back Boxes minimum recommended depth: 1g

Flush 25mm DB162

Dry Lining 35mm DB2540

Surface 25mm VP1221

20 Amp Double Pole Switches • Engraving available to order • Twin brass earth terminals • In compliance with BS EN 60669-1

VP1390

20 Amp VP1390 VP1391 VP1392 VP1393

VP1391

VP1392

VP1393

Switch Switch with Neon Switch with Flex Outlet Switch with Neon and Flex Outlet

Back Boxes minimum recommended depth: 1g

18

Flush 25mm DB162

Dry Lining 35mm DB2540

Surface 25mm VP1221

Switched VP1370 VP1371 VP1374 VP1375

VP1371

VP1374

VP1375

13A Switched Spur 13A Switched Spur with Neon 13A Switched Spur with Bottom Flex Outlet 13A Switched Spur with Neon and Bottom Flex Outlet

#WiredForPerfection 50 Amp Double Pole Switches • Twin brass earth terminals • In compliance with BS EN 60669-1

VP1300N

VP1301

50 Amp VP1300 VP1300N

Switch with Red Rocker Switch with Red Rocker and Neon

VP1301N

50 Amp Tall VP1301 VP1301N

Tall Switch with Red Rocker Tall Switch with Red Rocker and Neon

Back Boxes minimum recommended depth: 1g 2g

Flush 47mm DB167 47mm DB168

Dry Lining 47mm DB2542 47mm DB2543

Surface 47mm VP1228 47mm VP1229

Cooker Control Units

Shaver Socket

• Neon versions available • 2 earth terminals • In compliance with BS 4177

• Dual voltage outlet 230V/115V • Neon indicator • In compliance with BS 61558-2-5

VP1302

Pro

VP1300

VP1302N

VP1305

VP1217

Cooker Control

Shaver Socket

VP1302N

Back Boxes minimum recommended depth: Flush Dry Lining Surface 2g 47mm DB168 47mm DB2543 47mm VP1229

VP1302

45A Switch with Red Rocker + 13A Switched Socket 45A Switch with Red Rocker + 13A Switched Socket with Neon

Cooker Cable Outlet VP1217

VP1305

Dual Voltage with Neon

45A Cooker Cable Outlet

Back Boxes minimum recommended depth: 1g 2g

Flush 47mm DB167 47mm DB168

Dry Lining 47mm DB2542 47mm DB2543

Surface 47mm VP1228 47mm VP1229

vimark.uk

19

Telephone Outlets

TV Outlet

• Screw terminals

• Suitable for standard coaxial BS 3041 plug

VP1352

VP1264

VP1353

Telephone Outlets - Flush Mounted VP1352 VP1353

Single Master Single Secondary

TV Outlets VP1264

Back Boxes minimum recommended depth:

Back Boxes minimum recommended depth: 1g

Flush 25mm DB162

Dry Lining 35mm DB2540

Single Coaxial Isolated

Surface 25mm VP1221

1g

Flush 25mm DB162

Dry Lining 35mm DB2540

Surface 25mm VP1221

Blank & Flex Connection Plates Data Plates • Dual terminals of live, neutral and earth on 25A flex connection plates • In compliance with BS 5733

• Accepts standard 50x25mm modules • Full range of Euro Modules, see page 63

VP1200

VP1421

VP1201

VP1216

Blank Plates VP1200 VP1201

VP1421 VP1422 VP1424

25A Flex Outlet Plate

20

Flush 25mm DB162 25mm DB163

Dry Lining 35mm DB2540 35mm DB2541

One Module Two Module Four Module

Back Boxes minimum recommended depth:

Back Boxes minimum recommended depth: 1g 2g

VP1424

Data Plates

1 Gang 2 Gang

Flex Connection Units VP1216

VP1422

Surface 25mm VP1221 25mm VP1223

Flush One 35mm DB164 Two 35mm DB164 Four 35mm DB165

Dry Lining 35mm DB2540 35mm DB2540 35mm DB2541

Surface 35mm VP1222 35mm VP1222 35mm VP1224

#WiredForPerfection Gridplates • 1 gang to 8 gang • In compliance with BS 5733 • Grid frames supplied separately, see page 60 • Full range of Grid Modules, see page 58

VP2702

VP2703

VP2704

Pro

VP2701

VP2706

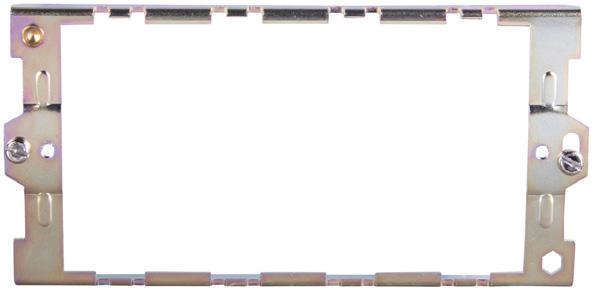

Gridplates VP2701 VP2702 VP2703 VP2704 VP2706 VP2708

VP2708

1 Gang 2 Gang 3 Gang 4 Gang 6 Gang 8 Gang

Pattress Boxes • Surface mounted • Urea moulded pattress boxes • Square corners to match Vimark and Slimline accessories • In compliance with BS 5733 • 2 gang pattress boxes can be used as single flush to 2 gang surface conversion box

VP1220E

VP1221

VP1222

VP1228

1 Gang

VP1220E VP1221 VP1222 VP1228

VP1223

VP1224

VP1229

16mm Deep with Earth Terminal 25mm Deep 33mm Deep 45mm Deep

2 Gang VP1223 VP1224 VP1229

25mm Deep 33mm Deep 45mm Deep

vimark.uk

21

Pro Décor Pro Décor provides a low profile range of screwed metal plate wiring accessories.

Available in Chrome, Stainless Steel and Matt Black finishes and with matching metal rocker on all switched accessories, Pro Décor provides elegance and sophistication to any modern residential or commercial building.

25-YEAR GUARANTEE

(unless otherwise stated)

22

#WiredForPerfection

Contents Socket Outlets USB Charging Socket Outlets 10 Amp Switches Dimmer Switches Connection Units 20 Amp Double Pole Switches 50 Amp Double Pole Switches Cooker Control Unit Shaver Socket Blank Plates Data Plates Gridplates

26 26 27 27 28 28 28 28 29 29 29 29

23

SP and DP Switch Options

Curved Rockers

Top Access Terminals

Earth Pin Operated Shutters

Gasket to Protect Product from Damp Plaster

Captive, Backed Out Terminal Screws

24

Dual Earth Terminals

Recessed Earth Bar

#WiredForPerfection

Features Pro Décor adds elegance and sophistication to both commercial and residential buildings, with a sleek metal front plate available in multiple finishes to match a project’s aesthetic. Multiple features keeps installation simple and straightforward without compromising the quality.

The protective gasket safeguard from damp plaster and captive, backed-out terminal screws and top access to further aid electricians during installation. The recessed earth bar also minimises accidental contact.

Finishes Chrome CH

Inserts* Stainless Steel SS

Matte Black MB

White W

Black B

*Chrome and Stainless Steel finishes available with White inserts. Matte Black finish available with Black inserts.

25

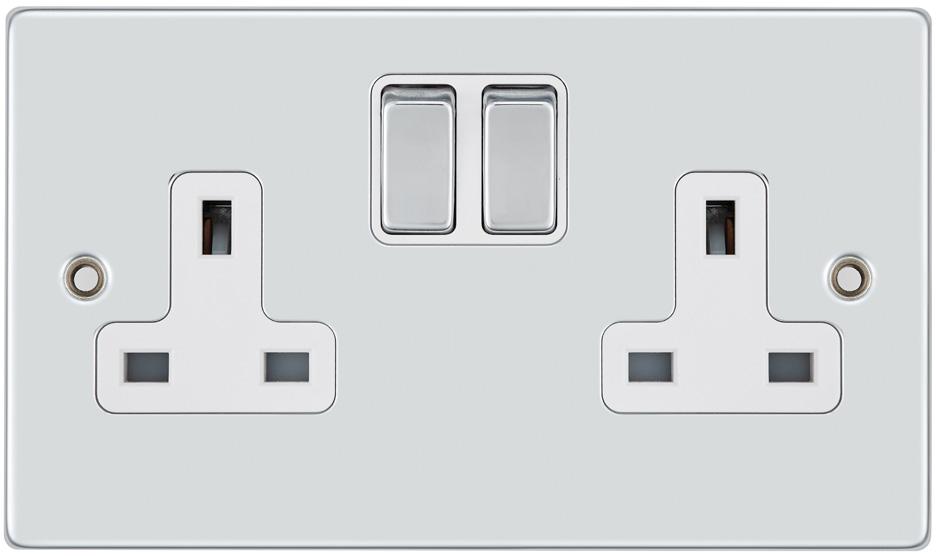

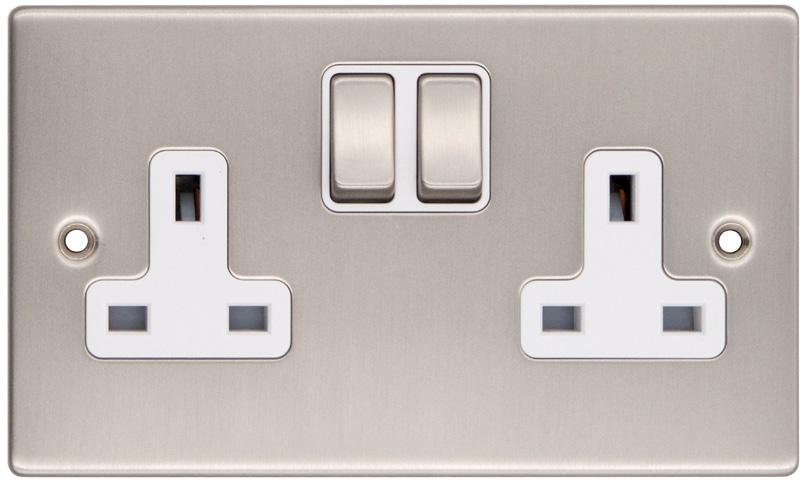

Socket Outlets • Twin earth terminals on 2 gang switched sockets • In compliance with BS 1363-2

VPD1207DPCHW

VPD1207DPSSW

VPD1209CHW

VPD1207DPMBB

VPD1209MBB

1 Gang

2 Gang

VPD1207DP 13A Switched Double Pole

VPD1209SSW

VPD1209DP 13A Switched Double Pole

Back Boxes minimum recommended depth: 1g 2g

Flush 25mm DB162 25mm DB163

Dry Lining 35mm DB2540 35mm DB2541

USB Charging Socket Outlet • USB ports deliver up to 4.8A simultaneous charging current across 2 ports • Detects connected devices and provide optimised high-speed charging • Captive, backed out and top facing terminals with large cable lead-ins and clear embossed markings • In compliance with BS 1363-2 • 2-year guarantee

VPD1289CHW

2 Gang

VPD1289

VPD1289SSW

13A Switched Single Pole 24W/4.8A USB 1 Type A + 1 Type C

Back Boxes minimum recommended depth: 2g

Flush‡ 25mm DB163

Dry Lining 35mm DB2541

Restricted cable entry.

‡

26

VPD1289CHW

#WiredForPerfection 10 Amp Switches • All plate switches are X-rated and can be used for switching inductive or fluorescent loads without de-rating • In compliance with BS EN 60669-1

VPD1204SSW

VPD1244CHW

VPD1205MBB

VPD1247CHW

VPD1246SSW

VPD1247MBB

10 Amp Plate Switches VPD1203 VPD1204 VPD1205 VPD1244 VPD1246

VPD1247SSW

Pro Décor

VPD1203CHW

10 Amp Isolator Switches VPD1247

1 Gang 2-way 2 Gang 2-way 3 Gang 2-way 4 Gang 2-way Intermediate

3 Pole Fan Isolator

Back Boxes minimum recommended depth: Plate 1-3g 4g

Flush 16mm DB152 25mm DB163

Dry Lining 35mm DB2540 35mm DB2541

Dimmer Switches • Universal dimmers suitable for use with dimmable LED lamps (requiring leading or trailing edge control), incandescent and halogen lamps or low voltage lighting • Suitable for loads up to 150W LED trailing edge (100W LED leading edge), 250W incandescent/halogen • Push on/push off dimmers are suitable for 2-way switching • Clear terminal markings • 2-year guarantee

VPD1414CH

Universal VPD1414 VPD1415

VPD1414SS

VPD1414MB

VPD1415CH

VPD1415SS

VPD1415MB

1 Gang 2-way Switching 2 Gang 2-way Switching

Back Boxes minimum recommended depth: 1g

Flush 35mm DB164

Dry Lining 35mm DB2540

vimark.uk

27

Connection Units

20 Amp Double Pole Switches

• Captive fuse carrier for safety isolation • 2 earth terminals • In compliance with BS 1363-4

• 2 earth terminals • In compliance with BS EN 60669-1

VPD1360CHW

VPD1390CHW

VPD1370SSW

VPD1371MBB

Unswitched VPD1360

Switched VPD1370 VPD1371

13A Unswitched Spur

13A Switched Spur 13A Switched Spur with Neon

Back Boxes minimum recommended depth: 1g

Flush 25mm DB162

20 Amp VPD1390 VPD1391

VPD1391SSW

VPD1391MBB

Switch Switch with Neon

Back Boxes minimum recommended depth: 1g

Flush 35mm DB164

Dry Lining 35mm DB2540

Dry Lining 35mm DB2540

50 Amp Double Pole Switches

Cooker Control Unit

• Grey font marking • 2 earth terminals • In compliance with BS EN 60669-1

• Grey font marking • 2 earth terminals • In compliance with BS 4177

VPD1300CHW

VPD1302NCHW

VPD1300SSW

VPD1300MBB

VPD1302NSSW

VPD1302NMBB

VPD1301CHW

50 Amp VPD1300

VPD1301MBB

Cooker Control VPD1302N

Switch

45A Switch with Neon

50 Amp Tall

Back Boxes minimum recommended depth:

Back Boxes minimum recommended depth:

1g 2g

VPD1301

1g 2g

28

VPD1301SSW

Tall Switch

Flush 25mm DB162 25mm DB163

Dry Lining 35mm DB2540 35mm DB2541

Flush 47mm DB167 47mm DB168

Dry Lining 46mm DB2542 46mm DB2543

#WiredForPerfection Shaver Socket

Blank Plates

• Dual voltage outlet 230V/115V • Grey font marking • 2 earth terminals • In compliance with BS 61558-2-5

• In compliance with BS 5733

VPD1200CH

VPD1305SSW

VPD1305MBB

VPD1201CH

Shaver Socket VPD1305

Dual Voltage

Back Boxes minimum recommended depth: Flush 2g 47mm DB168

VPD1200MB

Dry Lining 47mm DB2543

VPD1201MB

Blank Plates VPD1200 VPD1201

1 Gang 2 Gang

Back Boxes minimum recommended depth: 1g 2g

Flush 25mm DB162 25mm DB163

Dry Lining 35mm DB2540 35mm DB2541

Data Plates

Gridplates

• Accepts standard 50x25mm modules • Full range of Euro Modules, see page 63

• 1 gang to 8 gang • In compliance with BS 5733 • Grid frames supplied separately, see page 60 • Full range of Grid Modules, see page 58

VPD1422CHW

VPD2701CH

VPD1424CHW

Pro Décor

VPD1305CHW

VPD1200SS

VPD2702SS

VPD2706MB

VPD1422SSW

VPD1424SSW

VPD1422MBB

VPD1424MBB

Data Plates VPD1422 VPD1424

Two Module Four Module

Back Boxes minimum recommended depth: Flush Two 35mm DB164 Four 35mm DB2540

Dry Lining 35mm DB165 35mm DB2541

VPD2703SS

VPD2704MB

Gridplates VPD2701 VPD2702 VPD2703 VPD2704 VPD2706 VPD2708

VPD2708MB

1 Gang 2 Gang 3 Gang 4 Gang 6 Gang 8 Gang

vimark.uk

29

Metalclad Metalclad offers a tough and impact resistant range of accessories with frontplates that fit flush to the back box, gently curving rockers and discrete neon indicators.

With a durable finish and protective coating, accessories are designed to stand up to arduous duty in virtually any environment.

Ideal for use in all commercial and light industrial applications including workshops, factories, warehouses, laboratories and hospitals as well as residential applications in lofts and garages.

25-YEAR GUARANTEE

(unless otherwise stated)

30

#WiredForPerfection

Contents Socket Outlets USB Charging Socket Outlets 10 Amp Switches Connection Units 20 Amp Double Pole Switches 50 Amp Double Pole Switch Gridplates Blank Plates Back Boxes

34 34 35 35 36 36 37 37 37

31

Durable Finish with Protective Coating

Curved Rockers

Top Access Terminals

Earth Pin Operated Shutters

Flush Fitting Frontplate

Captive, Backed Out Terminal Screws

32

Large Lead-In Terminals

Recessed Earth Bar

#WiredForPerfection

Features Metalclad installation could not be simpler with clear markings, large cable lead-ins and captive backed out terminal screws.

Back boxes are supplied with all products (except blank plates) and incorporate 20mm knockouts on all sides and the rear, providing maximum flexibility.

Frontplates are packaged in a separate polybag to provide additional protection prior to second fix.

33

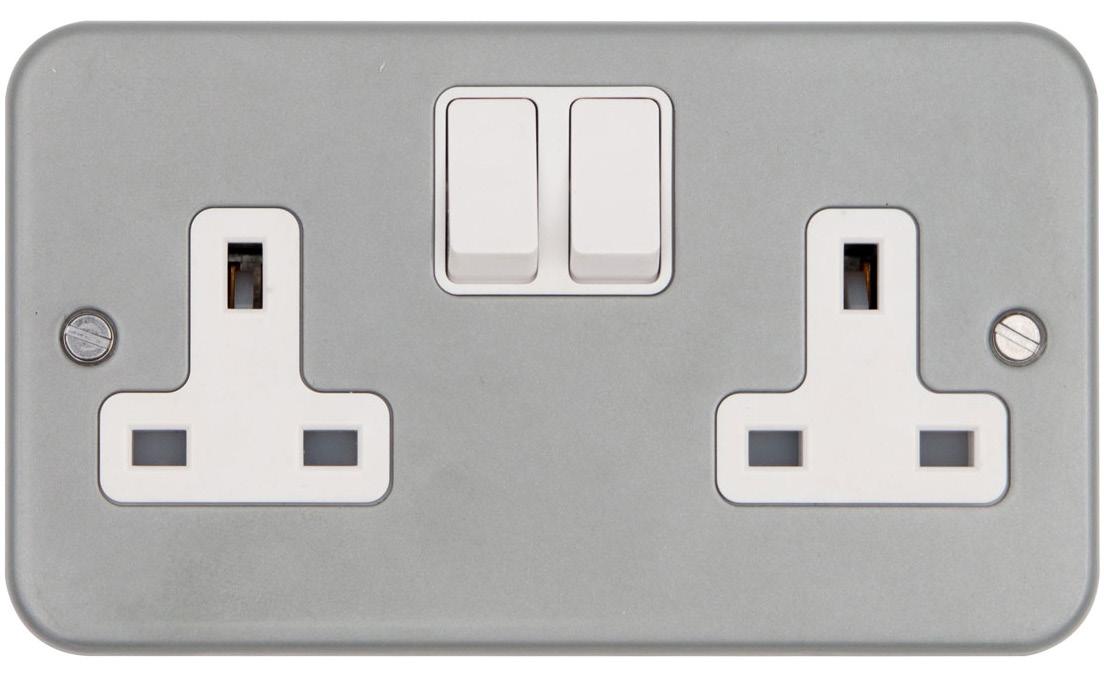

Socket Outlets • Complete with surface mounting box • Red flagged switch indicator • Captive and backed out, top facing terminals with large cable lead-ins • Recessed earth bar • In compliance with BS 1363: Part 2

VM1207SP

1 Gang

VM1207SP VM1207DP Knockouts 1g 2g

VM1207DP

13A Switched Single Pole 13A Switched Double Pole Side 5 8

VM1209SP

2 Gang

VM1209SP VM1209DP

VM1209DP

13A Switched Single Pole 13A Switched Double Pole

Rear 1 1

USB Charging Socket Outlet • USB ports deliver up to 4.8A simultaneous charging current across 2 ports • Detects connected devices and provide optimised high-speed charging • Captive, backed out and top facing terminals with large cable lead-ins and clear embossed markings • In compliance with BS 1363-2 • 2-year guarantee

VM1289

2 Gang VM1289

Knockouts 2g

34

13A Switched Single Pole 24W/4.8A USB 1 Type A + 1 Type C Side 8

Rear 1

#WiredForPerfection 10 Amp Switches • All plate switches are X-rated and can be used for switching inductive or fluorescent loads without de-rating • Complete with surface mounting box • Captive and backed out, top facing terminals with large cable lead-ins • In compliance with BS EN 60669-1

VM1203

VM1204

VM1205

VM1203 VM1204 VM1205

1 Gang 2-way 2 Gang 2-way 3 Gang 2-way

Knockouts 1g 2g

Side 5 8

Metalclad

10 Amp Plate Switches

Rear 1 1

Connection Units • Complete with surface mounting box • Switched with concave rocker and red flagged switch indicator • Captive and backed out, top facing terminals with large cable lead-ins • Captive fuse carrier for safety isolation • Neon leads enclosed • 2 earth terminals • In compliance with BS 1363-4

VM1360

VM1361

Unswitched

VM1362

VM1360 VM1361 VM1362

13A Unswitched Spur 13A Unswitched Spur with Neon 13A Unswitched Spur with Flex Outlet

Knockouts 1g

Side 5

Rear 1

VM1370

Switched VM1370 VM1371 VM1372 VM1373

VM1371

VM1372

VM1373

13A Switched Spur 13A Switched Spur with Neon 13A Switched Spur with Flex Outlet 13A Switched Spur with Neon and Flex Outlet

vimark.uk

35

20 Amp Double Pole Switches • Complete with surface mounting box • Red flagged switch indicator • Captive and backed out colour coded terminals with large cable lead-ins • 2 earth terminals • Neon leads enclosed • In compliance with BS EN 60669-1

VM1391

20 Amp VM1391 VM1393

Knockouts 1g

VM1393

Switch with Neon Switch with Neon & Flex Outlet Side 5

Rear 1

50 Amp Double Pole Switch • Complete with surface mounting box • Terminals have clear embossed markings • Colour coded terminals with large cable lead-ins • Neon leads enclosed • 2 earth terminals • In compliance with BS EN 60669-1

VM1300N

50 Amp

VM1300N Knockouts 1g

36

Switch with Red Rocker and Neon Side 5

Rear 1

#WiredForPerfection Gridplates • 1 gang to 8 gang • Grid frames supplied separately, see page 60 • In compliance with BS 5733

VM2702

VM2703

VM2704

Metalclad

VM2701

VM2706

Gridplates VM2701 VM2702 VM2703 VM2704 VM2706 VM2708

VM2708

1 Gang 1 Gang 3 Gang 4 Gang 6 Gang 8 Gang

Blank Plates

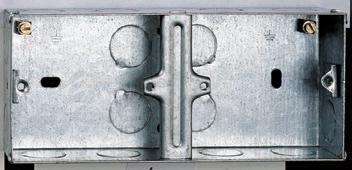

Back Boxes

• 1 gang to 8 gang • In compliance with BS 5733 • Grid frames supplied separately, see page 60

• Back boxes with knockouts have 20mm knockouts on side and rear • Back boxes without knockouts have 1x20mm knockout in rear • Fitted with brass earth terminals

VM1200

VM2801

VM1201

VM2801

VM2803

Blank Plates VM1200 VM1201

1 Gang 2 Gang

Back Boxes VM2801 VM2802 VM2803

1 Gang Back Box 2 Gang Back Box Back Box (for 6 Gang and 8 Gang Grid)

vimark.uk

37

Ventilation Ventilation includes an extensive range of 4” and 6” extractor fans and accessories that are designed to seamlessly blend into the environment and are suitable for various applications, including kitchens, bathrooms and utility rooms.

Slim profile fans are designed to be highly energy efficient and quiet to meet ventilation requirements. User adjustable timer and humidistat options provide an extra level of automation and effectiveness.

The new Zone One Axial fans offer even more efficient bathroom extraction due to their closer proximity to bath or shower trays.

3-YEAR GUARANTEE

(unless otherwise stated)

38

#WiredForPerfection

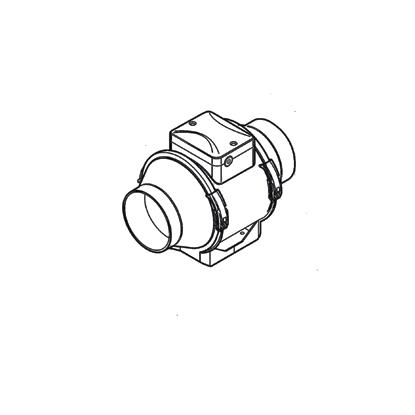

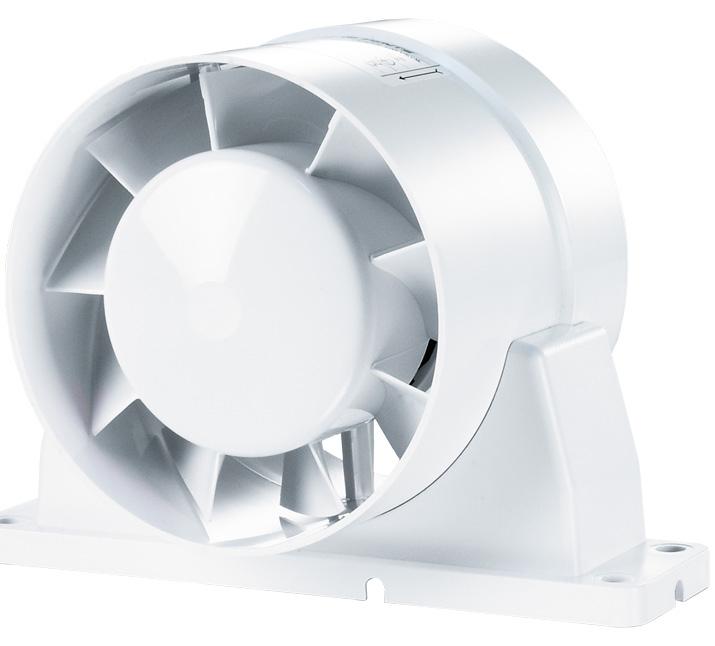

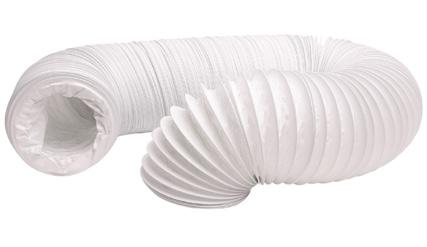

Contents Axial Fans Shower Fans Zone 1 Fans Inline Fans Flexible Ducting Wall Fixing Kits Back Draught Shutter Quick Lock Clamp Installation Tape External Grilles External Hoods

40 41 42 44 46 46 46 46 46 47 47

39

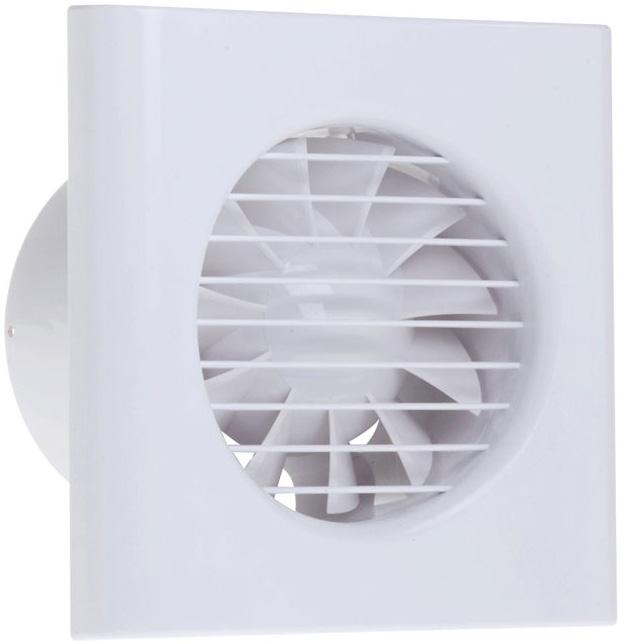

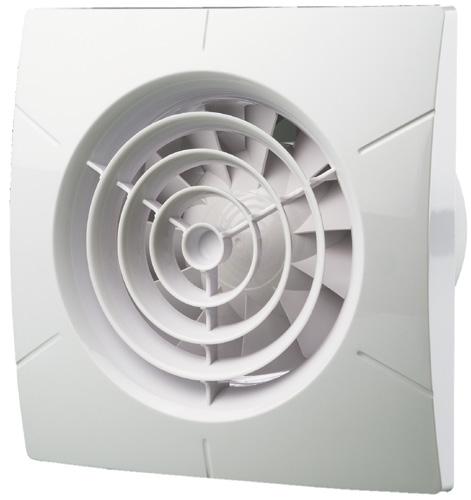

Axial Fans • Overrun time delay, user settable between 2 and 30 mins • Humidistat user settable between 60-90% RH • In compliance with BS EN 60335-2-80

150mm (6”)

148 148

205 205

Extraction Rate

Axial Fans 4”

24l/s (87m³/hr)

Axial Fans 6”

63l/s (227m/hr)

205 205

Specific Fan Power

99 99

99 99

150 150

79 19 19 79

150 150

Standard Pullcord Timer Timer and Pullcord Humidistat7979 and1919 Shutter

148 148

4660 4660P 4661 4661P 4666* 150 150

Standard Pullcord Timer Timer and Pullcord Timer and Humidistat

150 150

4600 4600P 4601 4601P 4603

205 205

100mm (4”)

205 205

Sound Power Pressure Consumption Level (at 3m)

Supply Voltage (At 50Hz)

4600 (4”) / 4660 (6”)

99 99 22 22

Insulation Class

IP Rating

Maximum Running Temperature

Thermal Protection

0.29W (l/s)

26dB

8W

240Vac

IP44

40°C

Thermal Fuse

0.4W (l/s

35dB

18W

240Vac

IP44

40°C

Thermal Fuse

99 22 22 99

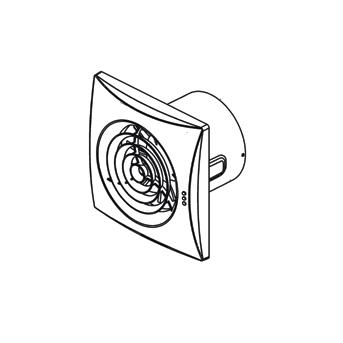

Flat Fascia Axial Fans 100mm (4”) • Overrun time delay, user settable between 2 and 30 mins • Ideal for through wall applications or with ducting lengths under 2m • Supplied with a one shot thermal fuse • In compliance with BS EN 60335-2-80

100mm (4”) 4720Z 4720ZT

Standard Timer

4720Z

160

136

38

Flat Fascia Fans 4”

79

Extraction Rate

Specific Fan Power

23l/s (83m³/hr)

0.32W (l/s)

Sound Power Pressure Consumption Level (at 3m) 29dB

8W

*Special order product, minimum order quantity and lead time applies.

40

Supply Voltage (At 50Hz) 240Vac

Insulation Class

IP Rating

Maximum Running Temperature

Thermal Protection

IP44

40°C

Thermal Fuse

#WiredForPerfection Low Voltage Axial Fans 100mm (4”) • Overrun time delay, user settable between 2 and 30 mins • Humidistat user settable between 60-90% RH • In compliance with BS EN 60335-2-80

100mm (4”) 4616 4617

12V Low Voltage Fan and Timer 12V Low Voltage Fan and Timer and Humidistat

60

79 19 19 79

Extraction Specific Fan Rate 99 99 22 22Power

205 205

Low Voltage Axial Fans 4”

80

162

148 148

205 205

150 150

4616

Ventilation

99 99

150 150

Transformer dimensions

24l/s (85m³/hr)

Sound Power Pressure Consumption Level (at 3m)

0.34W/l/s

28dB

Supply Voltage (At 50Hz)

Insulation Class

240Vac to transformer 12Vac to fan

8W

IP Rating

Maximum Running Temperature

Thermal Protection

IP24

40°C

Thermal Fuse

IP Rating

Maximum Running Temperature

Thermal Protection

IPX4

40°C

Thermal Fuse

Shower Fans 100mm (4”) • Overrun time delay user settable between 2 and 30 minutes (timer versions) • 3m (extended) flexible ducting • Internal/external fixed louvres grilles • In compliance with BS EN 60335-2-80 154

100mm (4”) 4640 4641

45

30

128

4640

99

99

Shower Fan Kit and Timer Shower Fan Kit with Timer and LED Light White and Chrome Cover Supplied 15

154 154

45

5

Internal grille

External grille

30

45

30

Internal grille with light

128 128

105

141

15

5

15

99

99

99

99

99

4641

105 105

Shower Fans 4”

141 141

Specific Fan Power

99

99

Extraction Rate

16

5

30l/s (107m³/hr)

0.47W/l/s

16

16

Sound Power Pressure Consumption Level (at 3m) 33dB

14W

Supply Voltage (At 50Hz) 240Vac

Insulation Class

vimark.uk

41

42

#WiredForPerfection Zone 1 Axial Fans 100mm (4”) • Overrun time delay, user settable between 2 and 30 mins • Humidistat user settable between 60-90% RH • Supplied with a one shot thermal fuse • Ideal for through wall applications or with ducting lengths under 2m • In compliance with BS EN 60335-2-80

100mm (4”) 4700ZT 4700ZTH

Timer Timer and Humidistat

158

136

4700ZT

26

Zone 1 Axial Fans 4”

81

Extraction Rate

Specific Fan Power

24l/s (88m³/hr)

0.31W (l/s)

Sound Power Pressure Consumption Level (at 3m) 26dB

8W

Supply Voltage (At 50Hz) 240Vac

Insulation Class

IP Rating

Maximum Running Temperature

Thermal Protection

IP45

40°C

Thermal Fuse

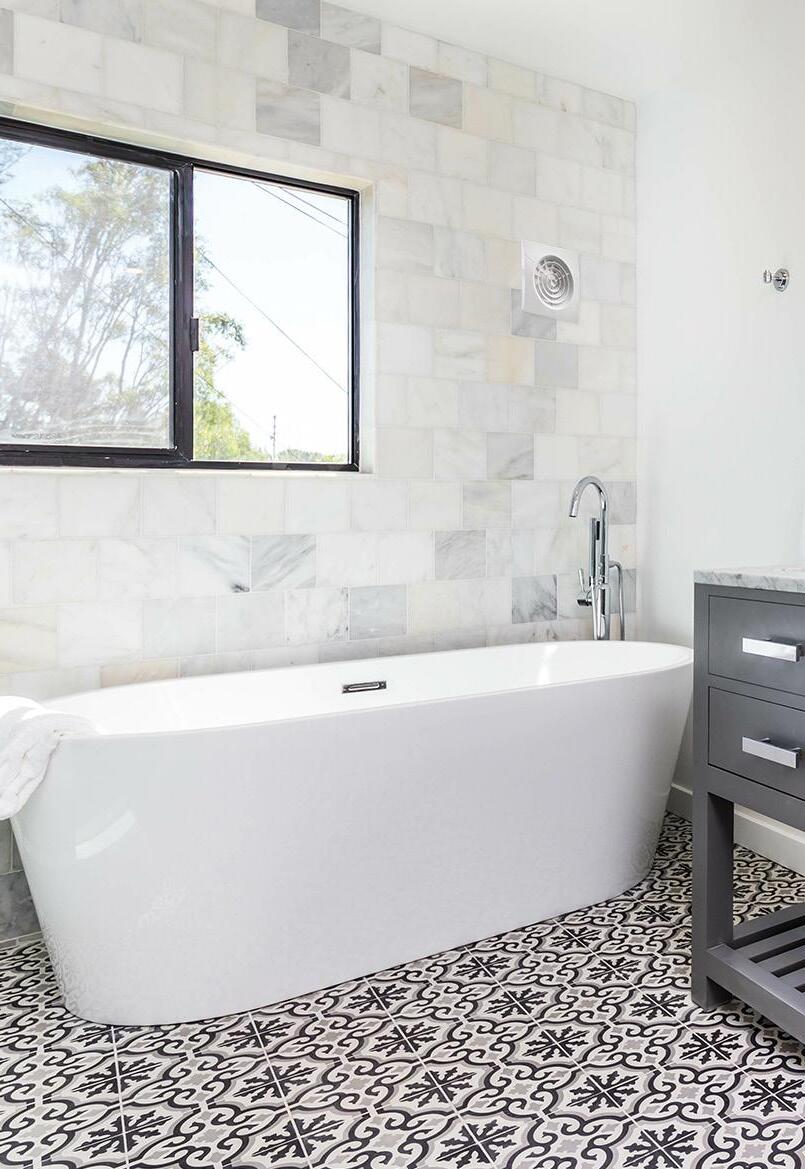

Zone 1 Fans Zone 1 Fans require a minimum IPX5 rating or higher to be considered suitable for this area.

The additional water protection means they can be placed in Zone 1 areas closer to bathtubs, shower trays, and wetroom drains for more efficient extraction.

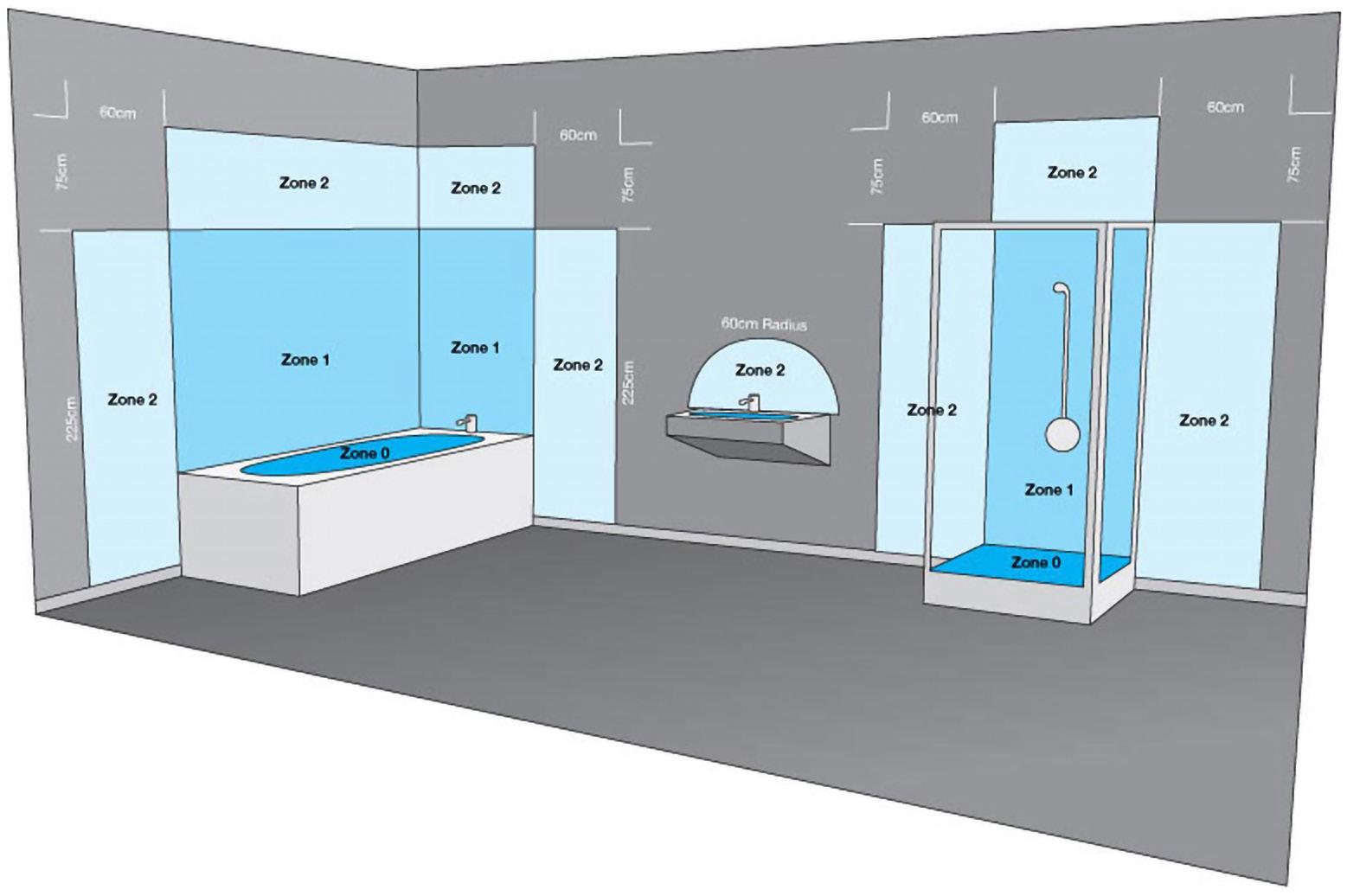

Bathroom Zones Explained Zone 0 - Inside of the bath or shower tray that physically holds or contains water.

Zone 1 - The SPLASH ZONE – directly above Zone 0, limited to a height of 2.25m from floor.

Minimum IPX5 rated.

Zone 2 - Area beyond Zones 0 and 1, continuing 0.6m horizontally and up to 2.25m vertically.

Minimum IPX4 rated.

Please refer to Technical section on page 79 for further information on Bathroom Zones.

43

Inline Fans Inline fans are installed in the ducting of bathrooms, kitchens or any rooms that are susceptible to moisture. They are designed to bring air from inside to the outside of homes in an efficient fashion, which provides discrete results at a cost-effective price.

• Powerful yet discreet for superior ventilation • Easy installation into ducting • Cost-effective solution

Inline Fans Explained Inline Axial Flow Fans are designed for supply and exhaust ventilation of premises requiring high pressure, powerful air flow and low noise level.

Inline Mixed Flow Fans are the best solution for ventilation of bathrooms and kitchens and other humid premises as well as ventilation of flats, cottages, shops, cafes, etc.

44

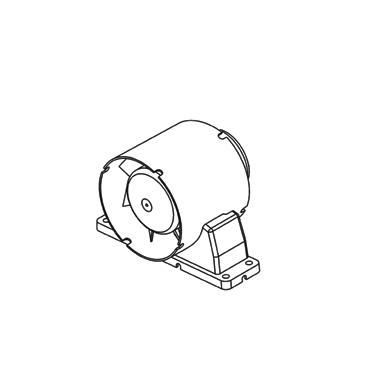

#WiredForPerfection Inline Axial Fans 100mm (4”) • Overrun time delay, user settable between 2 and 30 mins • Equipped with a fixing bracket for flat or horizontal surface mounting • Designed for PVC ducting systems or flexible ducts • In compliance with BS EN 60335-2-80

100mm (4") 4750S 4751T

Standard Timer 160

4750S

110

160

160

100

Inline Axial Fans 4”

79

Extraction Rate

Specific Fan Power

24l/s (87m³/hr)

0.31W/l/s

Sound Power Pressure Consumption Level (at 3m) 25dB

8W

Supply Voltage (At 50Hz)

Insulation Class

240Vac

IP Rating

Maximum Running Temperature

Thermal Protection

IPX4

40°C

Thermal Fuse

IP Rating

Maximum Running Temperature

Thermal Protection

IPX4

40°C

Thermal Fuse

Inline Mixed Flow Fans 100mm (4”) • Overrun time delay, user settable between 2 and 30 mins • Suitable for mounting at any angle and point of the ventilation system • Designed for PVC ducting systems or flexible ducts • In compliance with BS EN 60335-2-80

100mm (4”) 4755MF 4755MFT

Standard Timer

160

160

100

4755MF

79

Extraction Rate

Specific Fan Power

Inline Mixed 62.5l/s 0.448W/l/s Flow Fans 4” (160-225m³/hr)

Sound Power Pressure Consumption Level (at 3m) 27/32dB

26/28W

Supply Voltage (At 50Hz) 240Vac

Insulation Class

45

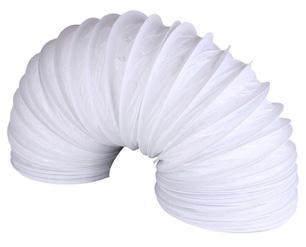

Flexible Ducting • PVC reinforced with spiral-wound steel wire

4820

4827

100mm (4”)

150mm (6”)

Wall Fixing Kits

Back Draught Shutter

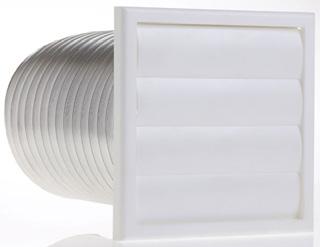

• For through wall applications, includes gravity grille to prevent back draughts • Rigid ducting extendable from 20cm to 50cm

• Inline back draught shutter to prevent cold air entering the duct system and room without pressure loss • Casing manufactured from ABS plastic and membrane manufactured from special light polymer • Does not disturb passive indoor ventilation

4824

4845

4820 4827 4828

100mm (4”) 3m Length 100mm (4”) 6m Length 100mm (4”) 10m Length

4884

4880 4887

150mm (6”) 3m Length 150mm (6”) 6m Length

100mm (4’) and 150mm (6”)

100mm (4’)

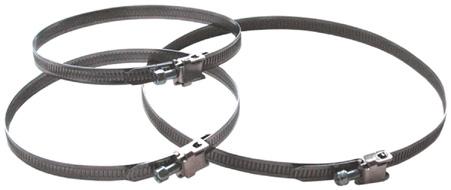

Quick Lock Clamp

Installation Tape

• Provides for quick and reliable mounting and connection of round ducting • Facilitates the installation and removal of fans for maintenance and cleaning • Clamp and swing screw manufactured from stainless steel

• Insulating material for construction, repair and mounting operations associated with ventilation and air conditioning systems • To support the insulation and protection of pipeline butt joints, air ducts, casings and assembly units • Reliable protection of equipment components against vapour, dirt and dust penetration

4848

4849

4824 4884

100mm (4”) Wall Fixing Kit 150mm (6”) Wall Fixing Kit

100-150mm (4-6”) 4846

46

4880

100-150mm (4-6") Quick Lock Clamp

4845

100mm (4") Back Draught Shutter

Flexi Duct Tape 4849

Aluminum+PET 10m

#WiredForPerfection External Grilles • Fixed grilles - may be installed in horizontal or vertical planes and in exposed locations where gravity grilles may be affected by turbulent wind conditions • Gravity grilles - for horizontal mounting only, to prevent back draughts • Should not be installed in exposed locations

4821BR

4822WH

4881WH

4881BR

4882WH

4882BR

Ventilation

4821WH

4822BR

100mm (4’) 4821WH 4821BR

100mm (4”) Gravity Grille - White 100mm (4”) Gravity Grille - Brown

150mm (6”) 4881WH 4881BR

150mm (6”) Gravity Grille - White 150mm (6”) Gravity Grille - Brown

4822WH 4822BR

100mm (4”) Fixed Grille - White 100mm (4”) Fixed Grille - Brown

4882WH 4882BR

150mm (6”) Fixed Grille - White 150mm (6”) Fixed Grille - Brown

External Hoods • Suitable for decoration of supply and exhaust vents used in public, residential and industrial ventilation systems • Provides additional protection against wind and rain as well as birds and rodents • Manufactured from high-quality, durable plastic • Two-element structure for easy maintenance

4831WH

4831BR 4891WH

100mm (4”) 4831WH 4831BR

100mm (4”) External Hood - White 100mm (4”) External Hood - Brown

4891BR

150mm (6”) 4891WH 4891BR

150mm (6”) External Hood - White 150mm (6”) External Hood - Brown

vimark.uk

47

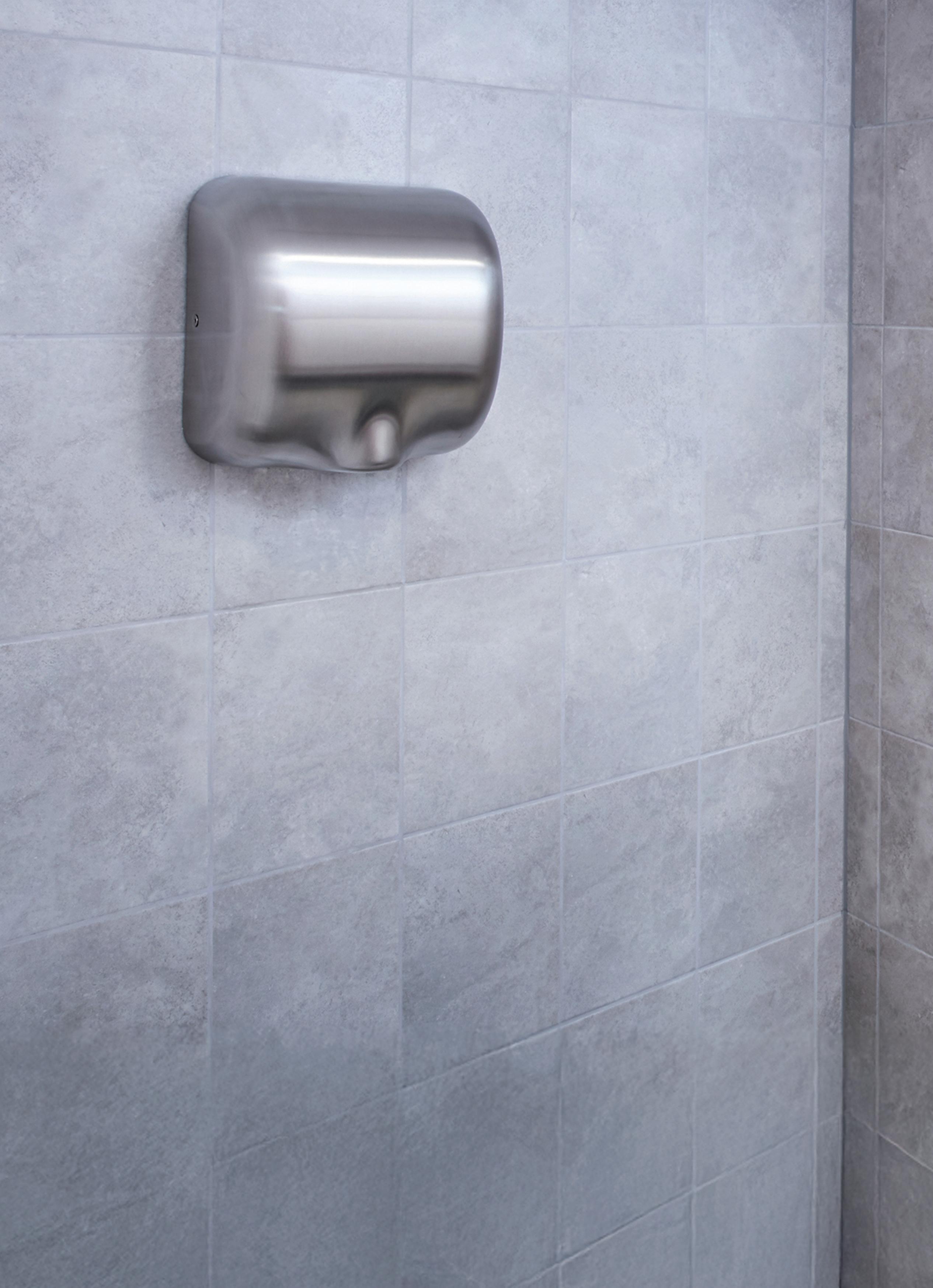

Hand Dryers Improve hygiene and reduce energy consumption with Vimark Hand Dryers. High speeds ensure faster hand drying than conventional models.

UP TO

3-YEAR GUARANTEE

48

#WiredForPerfection

Contents Kestrel Compact Dryer Hawk Low Energy Dryer Harrier Low Energy Dryer Falcon Low Energy Dryer Eagle Heavy Duty Dryer

50 50 51 51 51

49

Kestrel Compact Dryer • High-quality, low maintenance hand dryer for commercial applications, e.g. offices and shops • Constructed with sound and vibration reducing blocks to reduce noise level • Automatic shut-off after 60 seconds when in use • Self-resetting overheat thermostat provides protection from overheating if hand dryer becomes blocked • 1-year guarantee

2.3kW AUTOMATIC 20 SECONDS DRYING TIME 1001WH

White

1001WH

2.3kW Compact Automatic

Height

Width

Depth

265mm

245mm

207mm

Hawk Low Energy Dryer • For use in schools, kitchens, restaurants and places where high levels of hygiene are required • A high-speed, low power motor dries hands quickly to reduce energy consumption • Changeable heat settings to suit environment • Standby/Power-On LED indicator • Provides 10 to 15 seconds drying time • 2-year guarantee

1.1KW AUTOMATIC 10-15 SECONDS DRYING TIME 1016WH

1016SL

White/Silver 1016WH 1016SL

50

1.1kW High-speed - White 1.1kW High-speed - Silver

Height

Width

Depth

265mm

250mm

180mm

#WiredForPerfection Harrier Compact Low Energy Dryer • Tough and compact model ideal for use in washrooms with limited wall space • Manufactured from 1.2mm grade 304 stainless steel to protect against corrosion and vandalism • Features a High-Efficiency Particulate Air (HEPA) filter for enhanced hygiene • Advanced water-blasting technology delivering high-speed airflow • 3-year guarantee

1.0KW AUTOMATIC

1011WH

1011SS

White/Stainless Steel 1011WH 1011SS SP1011

1.0kW Compact HEPA - White 1.0kW Compact HEPA - Stainless Steel Replacement HEPA Filter

SP1011

Height

Width

Depth

180mm

275mm

135mm

Hand Dryers

10-12 SECONDS DRYING TIME

Falcon Low Energy Dryer • Robust and high-quality, ideal for medium usage commercial settings e.g. offices, shops, etc.

• Manufactured from 1.2mm grade 304 stainless steel to protect against corrosion and vandalism • Advanced water-blasting technology delivering high-speed airflow • Thermometer detects ambient temperature and auto-adjusts airflow temperature to reduce running costs • Automatic shut off after 60 seconds to avoid wasted energy • Self-resetting overheat thermostat provides protection from overheating if hand dryer becomes blocked • 3-year guarantee

1.5KW AUTOMATIC 10-12 SECONDS DRYING TIME 1012WH

1012SS

White/Stainless Steel 1012WH 1012SS

1.5kW High-speed - White 1.5kW High-speed - Stainless Steel

Height

Width

Depth

320mm

290mm

170mm

Eagle Heavy Duty Dryer • For use in schools, kitchens, restaurants and places where high levels of hygiene are required • Standby/Power-On LED indicator • Manufactured from grade 304 stainless steel • Durable, vandal-resistant casing with tamper proof fixings included • A high-speed, low power motor dries hands quickly to reduce energy consumption • Adjustable heat settings to suit environment • 3-year guarantee

1.8KW AUTOMATIC 10-15 SECONDS DRYING TIME 1019WH

1019CH

White/Chrome 1019WH 1019CH

1.8kW High-speed Heavy Duty - White 1.8kW High-speed Heavy Duty - Chrome

Height

Width

Depth

1320mm

280mm

170mm

vimark.uk

51

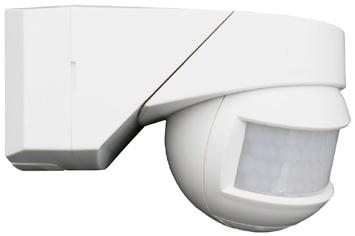

Motion Sensors Standalone Motion Sensors designed for automatic control of lighting. Suitable for surface and flush mounting, and indoor and outdoor applications.

52

#WiredForPerfection 3-in-1 Outdoor

• Indoor/outdoor – suitable for surface or flush ceiling mounting • Adjustable detection distance: 2m to 20m • Ceiling mount height 2.2m - 4.0m approx.

• Maximum load 1000W (LED)/2000W (Incandescent) • Adjustable lux levels (<10 to 2000 lux) and adjustable time setting (10sec ±3sec, 15min ±2min)

• Outdoor multi purpose motion sensor suitable for wall, ceiling or corner mounting • Bidirectional detection angle up to 12m • Mounting height - Walls (1.8m - 2.5m approx.), Ceiling (2.2m - 4.0m approx.)

• Maximum load 1000W (LED)/2000W (Incandescent) • Adjustable lux levels (<10 to 2000 lux) and adjustable time setting (10sec ±3sec, 15min ±2min)

L2352

L2353BK

Motion Sensors

2-in-1 Universal

L2353WH

3-in-1 Universal

3-in-1 Outdoor

Indoor Flush Mounted

Indoor Surface Mounted

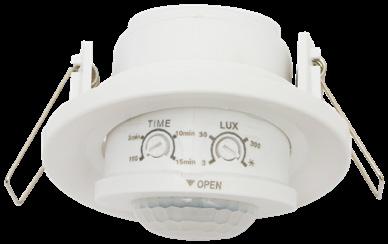

• Indoor – suitable for flush ceiling mounting • Detection distance up to 8m • Ceiling mounting height 2.2m - 4.0m approx.

• Maximum load 300W (LED)/1200W (Incandescent) • Adjustable lux levels (<3 to 2000 lux) and adjustable time setting (10sec ±3sec, 15min ±2min) • Time delay and lux level adjustment controls are accessible via a concealed lid on the front of the fitting

• Indoor – suitable for surface ceiling mounting • Detection distance up to 6m • Ceiling mounting height 2.2m - 4.0m approx.

• Maximum load 1000W (LED)/2000W (Incandescent) • Adjustable lux levels (<10 to 2000 lux) and adjustable time setting (10sec ±3sec, 15min ±2min)

L2354

L235

L2352

2-in-1 Universal Motion Sensor

Indoor Flush Mounted L2354

Indoor Flush Mounted Motion Sensor

L2353BK L2353WH

3-in-1 Outdoor Motion Sensor - Black 3-in-1 Outdoor Motion Sensor - White

Indoor Surface Mounted L2355

Indoor Surface Mounted Motion Sensor

vimark.uk

53

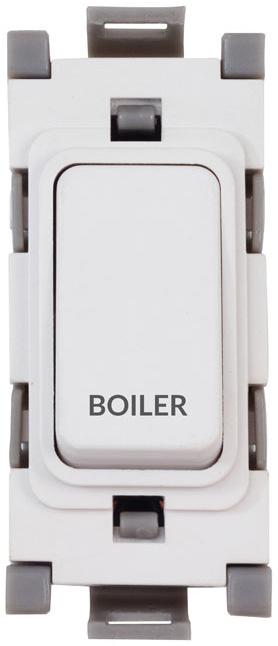

Gridswitch Gridswitch offers a flexible switch management solution for commercial and residential applications.

Frontplates are available in all Deta wiring accessory ranges and finishes, with sizes ranging from 1 gang up to 24 gang, providing a versatile solution for the most demanding projects.

An extensive range of modules including switches (10A, 20A, double pole, key and marked), dimmers, fuses, neons and accessories, available in plastic and metal finishes.

25-YEAR GUARANTEE

(unless otherwise stated)

54

Contents 10A and 20A Single Pole Key Switches 20A Double Pole Modules Dimmers Accessories Neons Frames Gridswitch Selection Chart

58 58 59 60 60 60 60 61

55

Frontplates Available in all Vimark Wiring Accessory Ranges in a Choice of Finishes Frontplates From 1 Gang to 8 Gang Sizes Extensive Range of Modules

Front Loading Snap-in Modules

Modules Available in a Wide Range of Finishes to Match the Frontplate, and Have an Option of Black or White Inserts

56

Captive Grid Frame Screws

Features Gridswitch offers a wealth of features across the range to ensure that installation is carried out with the minimum of effort.

All modules have clear terminal markings and are front loading so they simply clip in place, which means they can easily be upgraded or replaced without the need to remove the mounting grid frame.

Finishes White WH

Inserts Chrome CH

Stainless Steel SS

Matte Black MB

White W

Black B

White and Black finishes only available with matching inserts (Black available as a special order product - minimum order quantity and lead time applies). Chrome and Stainless Steel finishes available with either White or Black inserts.

When ordering products, please indicate finish and insert preference by adding suffixes as above.

57

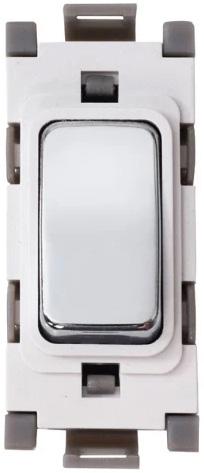

10A and 20A Single Pole • Curved rockers • Front loading into grid frame • Switches are X-rated and can be used for switching inductive or fluorescent loads without de-rating • Clear terminal markings • Grey font marking • Only one size 4mm screwdriver needed • In compliance with BS EN 60669-1

G3501

G3501BK

G3501CHW G3501CHB

G3503

G3503RD

G3503RDB

10 Amp G3501 G3502 G3503 G3506

G3502SSW

G3506

G3502SSB

G3511

G3512BK

G3525

G3513SSB

G3516

G3517CHW

G3512RD

G3512RDB

20 Amp G3511 G3512 G3525* G3513 G3516 G3517

1-way 2-way 2-way ‘PRESS’ Push to Make

1-way 2-way 2 way Integral Neon Locator Intermediate 2-way and Off Retractive 2-way and Off Latching

Key Switch • Every switch supplied with a key • ‘Emergency Lighting Test’ modules • Front loading into grid frame • Only one size 4mm screwdriver needed • Switches are X-rated and can be used for switching inductive or fluorescent loads without de-rating • Grey font marking • In compliance with BS EN 60669-1

G3532

G3532BK

Single Pole G3532 G3533 G3536 G3537

G3533CH

G3536

20A 2-way 20A Intermediate 20A 2-way “Emg Lgt Test” 20A 2-way Biased 1-way

G3537

G3534

Double Pole G3534 G3538*

*Special order product, minimum order quantity and lead time applies For red rocker, when ordering, please add suffix RD to catalogue no e.g. G3503RD

58

G3538

20A Double Pole 20A Double Pole “Emg Lgt Test”

20A Double Pole • Curved rockers • Front loading into grid frame • Switches are X-rated and can be used for switching inductive or fluorescent loads without de-rating • Clear terminal markings • Only one size 4mm screwdriver needed • In compliance with BS EN 60669-1

G3514BK

20 Amp G3514 G3515* G3519 G3520

G3514CHW G3514CHB

G3514SSB

G3555

G3556

G3515

G3519

G3520

G3514RD

G3514RDB

Double Pole Neon in Rocker Push to Make Push to Break

G3551

G3552BK

G3553

G3554

G3557

G3558

G3559

G3560

G3563

G3564

G3565

G3566SSW

20 Amp Marked G3551 G3552 G3553 G3554 G3555 G3556 G3557 G3558 G3559 G3560 G3561 G3562 G3563 G3564 G3565 G3566 G3567

G3514SSW

Gridswitch

G3514

Oven Hob Extractor Fan Washing Machine Tumble Dryer Dishwasher Fridge Freezer Boiler Cooker Hood Microwave Fridge Freezer Heater Waste Disposal Fan Boost Warming Drawer Wine Cooler

G3571

G3572

G3573

G3574

G3575

G3576

G3561CHW G3562CHB

G3577

G3578

G3579

G3580

G3581

G3582

G3567SSB

G3583

G3584

G3585

G3586

G3587

20 Amp Marked with Neon G3571 G3572 G3573 G3574 G3575 G3576 G3577 G3578 G3579 G3580 G3581 G3582 G3583 G3584 G3585 G3586 G3587

Oven Hob Extractor Fan Washing Machine Tumble Dryer Dishwasher Fridge Freezer Boiler Cooker Hood Microwave Fridge Freezer Heater Waste Disposal Fan Boost Warming Drawer Wine Cooler

Custom Markings to support project requirements, Deta can provide a custom marking service to match stocked modules to cater to any requirement.

To order custom marked products, please contact the sales office who will be able to share details regarding lead time and minimum order quantities. *Special order product, minimum order quantity and lead time applies For red rocker, when ordering, please add suffix RD to catalogue no e.g. G3514RD

deta.co.uk

59

Dimmers

Accessories

• Universal dimmers for use with dimmable LED, incandescent and halogen lamps • Suitable for loads up to 250W LED, 350W incandescent and halogen • Rotary push on/push off dimmers for multiway dimming • Electronic programming with EPROM memory chip • Clear terminal markings • Spare dimmer knobs available • In compliance with BS EN 60669-2-1

• Front loading into grid frame • Clear terminal markings • Only one size 4mm screwdriver needed • In compliance with BS 5733 and BS 1362

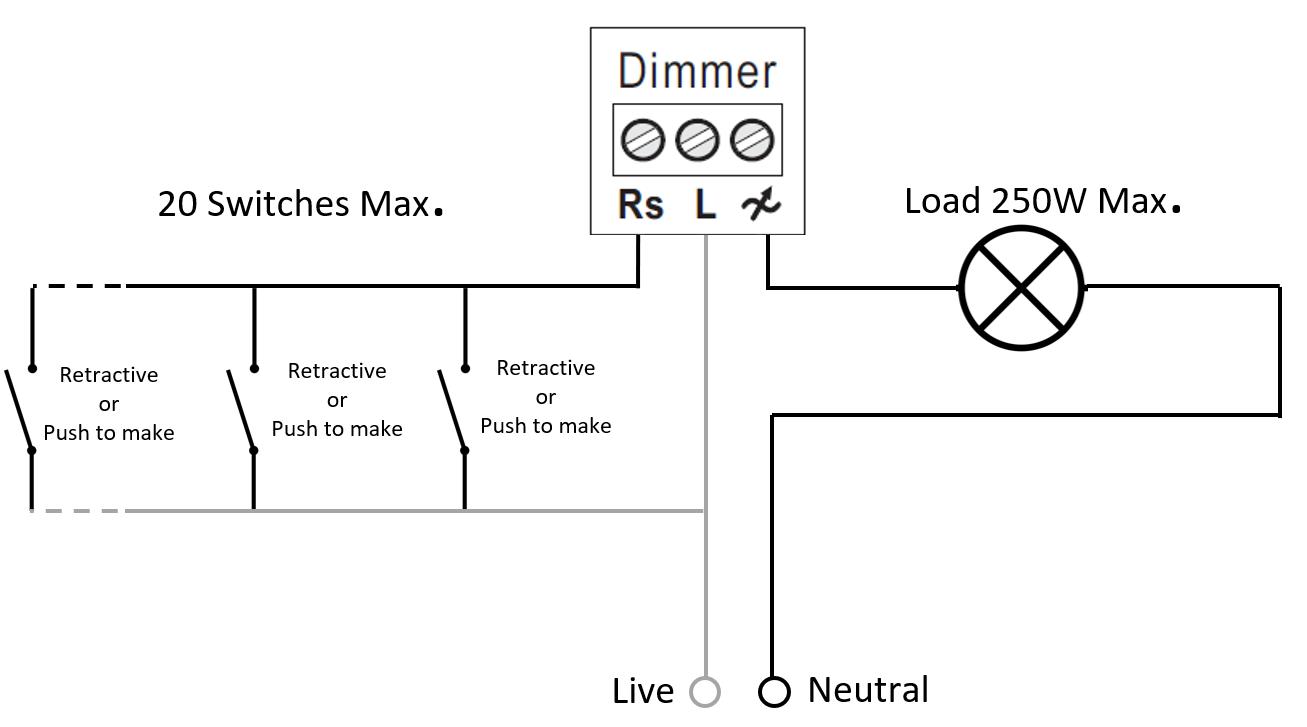

Multiway Dimming

using G3506 Push To Make Switch

G3526

Dimmer G3526

Multiway Dimming

Dimmer Modules The quantity and maximum rating of dimmers fitted into a frontplate has to be limited to allow for heat dissipation.

G3541

G3542

Flex Outlet G3541

G3544

Flex Outlet

Grid Fuse Outlet G3542

Blank G3544

Fuse Unit - 13 Amp

Blank

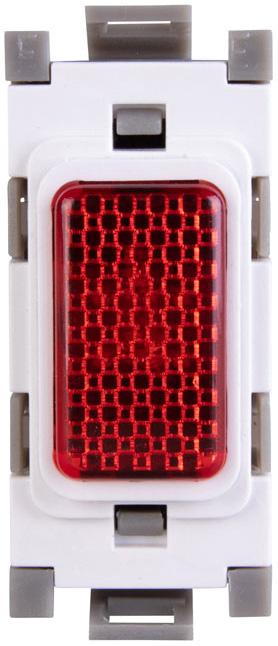

Neons

Frames

• Front loading into grid frame • Clear terminal markings • Only one size 4mm screwdriver needed • In compliance with BS 5733

• 1, 2, 3, and 4 gang • 415V warning label is supplied with 3, and 4 gang grid frames • All grid frames have large earth terminals

G35432RD

Neons

G35432AM G35432GR

G3543RD G3543AM G3543GR

G3401

G3402

Red, Mains Voltage Amber, Mains Voltage Green, Mains Voltage G3403

G3404

Frames G3401 G3402 G3403 G3404

Please refer to Technical Section page 74 for further information on Dimming Loads. *Special order product, minimum order quantity and lead time applies

60

1 Module 2 Modules 3 Modules 4 Modules

Modules 10A Switch Modules 10AX SP 2w 10AX SP 2w Marked "Press" 10AX SP 2w Red Switch Marked "Press" 10A Intermediate 10A SP Push to Make 20A Single Pole Switch Modules 20A SP 2w 20A SP 2w Red Switch 20A SP 2w Neon 20A SP Intermediate 20A SP Retractive 20A SP Latch 2w Off 20A Double Pole Switch Modules 20A DP 20A DP Red Switch 20A DP Neon 20A DP Push to Make 20A DP Push to Break 20A DP Marked "Oven" 20A DP Marked "Hob" 20A DP Marked "Extractor Fan" 20A DP Marked "Washing Machine" 20A DP Marked "Tumble Dryer" 20A DP Marked "Dishwasher" 20A DP Marked "Fridge" 20A DP Marked "Freezer" 20A DP Marked "Boiler" 20A DP Marked "Cooker Hood" 20A DP Marked "Microwave" 20A DP Marked "Fridge Freezer" 20A DP Marked "Heater" 20A DP Marked "Waste Disposal" 20A DP Marked "Fan Boost" 20A DP Marked "Warming Drawer" 20A DP Marked "Wine Cooler" Dimmer Module 250W Universal Multiway Key Switch Modules 20A 2w 20A Intermediate 20A DP 20A DP Red 20A 2w Marked "Emg Lgt Test" 20A 2w 1w Bias 20A DP Marked "Emg Lgt Test" Neon Indiactor Modules Amber Neon Green Neon Red Neon Accessories Flex Outlet Grid Fuse Outlet Blank

White

Black

Chrome1

Stainless Steel1

G3502 G3503 G3503RD* G3505* G3506

G3502BK G3503BK* G3503RDB*

G3502CH G3503CH*

G3502SS G3503SS*

G3506BK*

G3506CH

G3506SS

G3512 G3512RD G3525* G3513 G3516 G3517

G3512BK G3512RDB*

G3512CH

G3512SS

G3513BK G3516BK G3517BK

G3513CH G3516CH

G3513SS G3516SS

G3514 G3514RD* G3515 G3519 G3520 G3551 G3571' G3552 G3572' G3553 G3573' G3554 G3574' G3555 G3575' G3556 G3576' G3557 G3577' G3558 G3578' G3559 G3579' G3560 G3580' G3561 G3581' G3562 G3582' G3563 G3583' G3564 G3584' G3565 G3585' G3566 G3586' G3567 G3587'

G3514BK G3514RDB* G3515BK G3519BK G3520BK G3551BK G3552BK G3553BK G3554BK G3555BK G3556BK G3557BK G3558BK G3559BK G3560BK G3561BK G3562BK G3563BK G3564BK G3565BK G3566BK G3567BK

G3514CH

G3514SS

G3515CH*

G3515SS

G3551CH G3552CH G3553CH G3554CH G3555CH G3556CH G3557CH G3558CH G3559CH G3560CH G3561CH G3562CH G3563CH G3564CH G3565CH G3566CH G3567CH

G3551SS G3552SS G3553SS G3554SS G3555SS G3556SS G3557SS G3558SS G3559SS G3560SS G3561SS G3562SS G3563SS G3564SS G3565SS G3566SS G3567SS

G3526

G3526BK

G3532 G3533 G3534 G3534RD* G3536 G3537* G3538

G3532BK* G3533BK* G3534BK*

G3543AM G3543GR G3543RD

G3543AMB* G3543GRB* G3543RDB*

G3541 G3542 G3544

G3541BK G3542BK G3544BK

G3526VAR1

G3536BK* G3537BK* G3538BK*

G3542CH G3544CH

G3542SS G3544SS

1G G3401

Square Square Grid Plate Pattress Box VS2701 V1222

Pro Grid Plate VP2701

Pro Pattress Box VP1222

Pro Décor1 Grid Plate VPD2701

Metalclad Grid Plate VM2701

Metalclad Back Box VM2801

Metal Back Box DB164

2G G3402

VS2702

V1222

VP2702

VP1222

VPD2702

VM2702

VM2801

DB164

3G G3403

VS2703

V1224

VP2703

VP1224

VPD2703

VM2703

VM2802

DB165

4G

4G G3404

VS2704

V1224

VP2704

VP1224

VPD2704

VM2704

VM2802

DB165

6G

2x 3G G3403

VS2706

VP2706

VPD2706

VM2706

VM2803

DB171

8G

2x 4G G3404

VS2708

VP2708

VPD2708

VM2708

VM2803

DB171

Plate

Frame

1G 2G 3G

Gridswitch

Gridswitch Selection Charts

*Special order product, minimum order quantity and lead time applies 1 Add suffix SS for Stainless Steel, MB for Matte Black, CH for Chrome ‘ With Neon

deta.co.uk

61

Euro Modules Euro Modules provide the flexible platform that caters for bespoke installation requirements.

Power, Telephone, Data and TV modules are available in white or black finishes with accompanying media plates supplied across all Deta wiring accessory ranges.

Euro modules are easy to install and simply push fit into media plates, providing a versatile solution for residential, commercial or industrial applications.

2-YEAR GUARANTEE

(unless otherwise stated)

62

Modules • 2-year guarantee for USB charging, telephone, data and TV modules • 25-year guarantee for power modules

S1430BK

S1438

S1444

S1431

S1432

S1439

S1446BK

S1433

S1434

S1440BK

USB Charging Modules† S1443

USB Charging Outlet 2 x 3A (1 Type A + 1 Type C)

Power Modules† S1444* S1446* S1447* S1448* S1449*

13A Socket 45 Degrees 13A Socket 16A 250V German Socket 15A 125V American Socket 16A 250V French Socket

Telephone Modules S1430 S1431 S1432

Single Master Single Secondary RJ11

S1447

S1435

S1448

S1436

S1442

S1449

Euro Modules

S1443

S1438BK

S1426

S1425

S1428

S1429

TV Modules S1435 S1436 S1442 S1437 S1438 S1439 S1440 S1426

Co-axial Male Co-axial Female “Return” Co-axial Female “TV” F Type TV/FM (DAB) Diplexer TV/FM (DAB)/Satellite Triplexer TV/FM (DAB)/Satellite Quadplexer HDMI (4K HD)

Blank and Brush Modules S1425 S1428 S1429

Brush Cable Outlet - 2 Module Blank - 1/2 Module Blank - 1 Module

Data Modules S1433 S1434

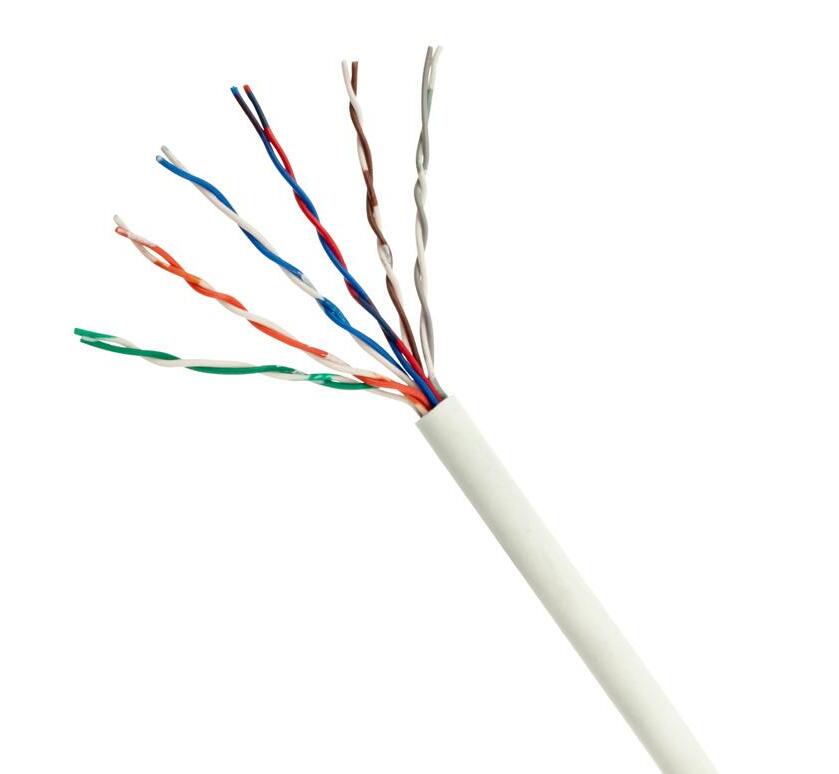

RJ45 Cat 6

Power Modules need to be installed in accordance with the current edition of the wiring regulations (BS7671 IET Wiring Regulations).

ELV Modules and Power Modules must not be mixed in the same compartment.

†

Back Boxes must be 35mm deep. *Special order product, minimum order quantity and lead time applies.

Data modules also available in black. Please add suffix BK to catalogue no. e.g. S1428BK.

deta.co.uk

63

Ceiling Accessories Ceiling Accessories include a wide range of high quality pendants, battens, lamp holders and ceiling switches, offering durability, reliability and ease of installation for any residential or commercial application.

10-YEAR GUARANTEE

64

Pendants & Battens Pendants & Battens with Decorators Cover only: • Contact pins retractable when lamp is removed • All battens supplied with home office skirt • B22 bayonet lamp holder • 3 terminals in ceiling rose

V1289 V1280

V1283

V1278

98HOT2

S96HOT2

S97HOT2

S1066T2

Standard Pendants

Batten Holder with Decorator Cover

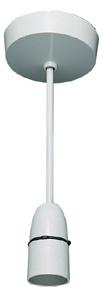

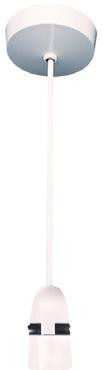

Pendant and Decorator Cover

Safety Batten Holder with Decorator Cover

V1280 V1283 V1278

6” Pendant 9” Pendant

6” Pendant

Safety Pendant and Decorator Cover

V1289 97HOT2

Straight Batten Holder - Home Office Skirt Angled Batten Holder - Home Office Skirt

Ceiling Accessories

• T2 rated lamp holder with short skirt • In compliance with BS EN 61184, BS 67

S96HOT2 Safety Straight Batten Holder S97HOT2 Safety Angled Batten Holder

S1066T2 6” Safety Pendant

Ceiling Switches

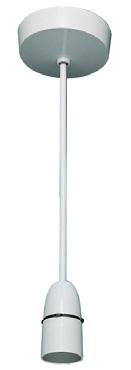

Ceiling Rose & Lamp Holder

• 1.5m cord drop • In compliance with BS EN 60669-1

• 3 in-line terminals and earth terminal in ceiling rose • T2 rated lamp holder with short skirt • In compliance with BS EN 61184, BS 67

V1299 V1297

V1298

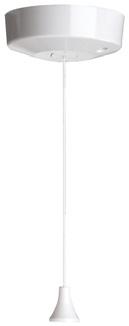

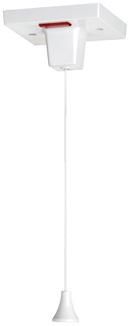

Ceiling Switches V1297 V1298

91WSTT2

10A 2-way 50A Double Pole with Neon

Ceiling Rose V1299

Ceiling Rose

Lamp Holder 91WSST2

Lamp Holder

deta.co.uk

65

Where quality matters...

INSTALLATION MATERIALS | PORTABLE POWER | LOW VOLTAGE CABLE

66

Visit tower-tower.co.uk to find out more

Tower Dry Lining Boxes

25-YEAR GUARANTEE

• Flush mounting • Suitable for plaster board thickness of 4-20mm • DB2547 & DB2548 feature unique lipless design for flush fitting • In compliance with BS 4662

DB2544

DB2545

1 Gang DB2540 DB2542 DB2544 DB2545

DB2541

DB2547

DB2546

35mm 47mm Round 34mm deep, 62mm Diameter 1+1 Gang 35mm

1 Gang - Flush Fitting DB2547

DB2542

2 Gang DB2541 DB2543 DB2546

Boxes

DB2540

DB2548

35mm 47mm 2+1 Gang 35mm

2 Gang - Flush Fitting DB2548

35mm

35mm

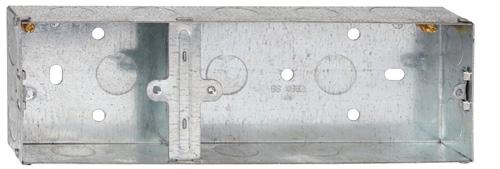

Tower Metal Boxes

25-YEAR GUARANTEE

• Flush mounting • Adjustable lug • DB169 has 16mm knockouts • 25mm deep boxes have 20mm knockouts • 35mm and 47mm deep boxes have 20mm and 25mm knockouts • In compliance with BS 4662

DB152

DB166

1 Gang DB152 DB162 DB164 DB166 DB167

Architrave DB169

DB162

DB164

DB167

16mm 25mm 35mm 1+1 Gang 35mm 47mm

DB163

DB169

DB165

DB170

2 Gang DB163 DB165 DB168 DB170

25mm 35mm 47mm 2+1 Gang 35mm

27mm Architrave Fixed Lugs

tower-tower.co.uk

67

Technical

68

#WiredForPerfection

Contents Back Box Cross Reference Table Mounting Back Box Knockouts Terminal Capacity Engraving Lampholder ‘T’ Rating Dimmers TV Systems Wiring Circuits IP Ratings Bathroom Zones

70 70 73 73 73 74 76 77 78 79

69

Back Box Cross Reference Table FLUSH MOUNTING

• Vimark Square, Pro, Pro Décor Depth 16mm SOCKETS 1 gang 13A 2 gang 13A Round Pin Sockets Shaver Sockets USB Charging Sockets (2 Port)* USB Charging Sockets (3 Port)* PLATE SWITCHES 1, 2 and 3 Gang DB152 4 and 6 Gang Intermediate 3 Pole Fan Isolator DB152 DIMMER SWITCHES 1 and 2 Gang 3 and 4 Gang CONNECTION UNITS Fused/Unfused HIGH CURRENT SWITCHES 1 Gang 20A 1 Gang 50A 1 Gang Tall 50A Cooker Control Unit 45A Outlet MULTIMEDIA OUTLETS Telephone Outlets TV Outlets FLEX CONNECTION/BLANK PLATES Flex Connection Plate 1 Gang Blank Plate DB152 2 Gang Blank Plate CEILING SWITCHES

METAL BOXES 25mm 35mm DB162 DB163 DB162

47mm

DRY LINING BOXES 35mm 47mm

DB164 DB165 DB164

DB167 DB168 DB167 DB168

DB2540 DB2541 DB2540

DB2542 DB2543 DB2542 DB2543

DB165*

DB168

DB2541

DB2543

DB163*

DB165

DB168

DB2541

DB2543

DB162 DB163 DB162 DB162

DB164 DB165 DB164 DB164

DB167 DB168 DB167 DB167

DB2540 DB2541 DB2540 DB2540

DB2542 DB2543 DB2542 DB2542

DB162 DB163

DB164 DB165

DB167 DB168

DB2540 DB2540

DB2542 DB2543

DB162

DB164

DB167

DB2540

DB2542

DB162

DB164

DB167 DB167 DB168 DB168 DB167

DB2540

DB2542 DB2542 DB2543 DB2543 DB2542

DB162

DB164 DB164

DB167 DB167

DB2540 DB2540

DB2542 DB2542

DB164 DB164 DB165

DB167 DB167 DB168

DB2540 DB2540 DB2541

DB2542 DB2542 DB2543

DB167

DB2540

DB2542

DB172 5 5 132x192x42

DB173 7 7 192x192x60

DB174 8 8 192x250x60

DB162 DB163

DB2544 (34mm)

10A 50A

Mounting Back Box Knockouts METAL BOXES Knockouts 20mm 25mm Dimensions (mm)

DB164 6 2 72x72x35

*Limited cable entry positions at bottom of the box

70

DB165 8 4 132x72x35

DB171 4 4 132x132x42

#WiredForPerfection Back Box Cross Reference Table SURFACE MOUNTING • Vimark

16mm

V1220E V1220E V1220E

PATTRESS BOXES 25mm 35mm

47mm

V1221 V1223 V1221

V1222 V1224 V1222

V1223

V1224

V1228 V1229 V1228 V1229 V1229

V1221 V1223 V1221 V1221

V1222 V1224 V1222 V1222

V1228 V1229 V1228 V1228

V1221 V1223

V1222 V1224

V1228 V1229

V1221

V1222

V1228

V1221

V1222

V1228 V1228 V1229 V1229 V1228

V1221

V1222 V1222

V1228 V1228

V1222 V1222 V1224

V1228 V1228 V1229

Technical

Depth SOCKETS 1 gang 13A 2 gang 13A Round Pin Sockets Shaver Sockets USB Charging Sockets (3 Port)* PLATE SWITCHES 1, 2 and 3 Gang 4 and 6 Gang Intermediate 3 Pole Fan Isolator ARCHITRAVE SWITCHES 1 Gang 2 Gang DIMMER SWITCHES 1 and 2 Gang 3 and 4 Gang CONNECTION UNITS Fused/Unfused HIGH CURRENT SWITCHES 1 Gang 20A 1 Gang 50A 1 Gang Tall 50A Cooker Control Unit 45A Outlet MULTIMEDIA OUTLETS Telephone Outlets TV Outlets FLEX CONNECTION/BLANK PLATES Flex Connection Plate 1 Gang Blank Plate 2 Gang Blank Plate CEILING SWITCHES 10A 50A

V1324 V1325*

V1220E

V1221 V1223

V1228

*Limited cable entry positions at bottom of the box

vimark.uk

71

Back Box Cross Reference Table SURFACE MOUNTING • Vimark Pro

Depth SOCKETS 1 gang 13A 2 gang 13A Round Pin Sockets Shaver Sockets USB Charging Sockets (3 Port)* PLATE SWITCHES 1, 2 and 3 Gang 4 and 6 Gang Intermediate 3 Pole Fan Isolator ARCHITRAVE SWITCHES 1 Gang 2 Gang DIMMER SWITCHES 1 and 2 Gang 3 and 4 Gang CONNECTION UNITS Fused/Unfused HIGH CURRENT SWITCHES 1 Gang 20A 1 Gang 50A 1 Gang Tall 50A Cooker Control Unit 45A Outlet MULTIMEDIA OUTLETS Telephone Outlets TV Outlets FLEX CONNECTION/BLANK PLATES Flex Connection Plate 1 Gang Blank Plate 2 Gang Blank Plate CEILING SWITCHES 10A 50A

*Limited cable entry positions at bottom of the box

72

16mm

VP1220E VP1220E VP1220E

PATTRESS BOXES 25mm 35mm

47mm

VP1221 VP1223 VP1221

VP1222 VP1224 VP1222

VP1223

VP1224

VP1228 VP1229 VP1228 VP1229 VP1229

VP1221 VP1223 VP1221 VP1221

VP1222 VP1224 VP1222 VP1222

VP1228 VP1229 VP1228 VP1228

VP1221 VP1223

VP1222 VP1224

VP1228 VP1229

VP1221

VP1222

VP1228

VP1221

VP1222

VP1228 VP1228 VP1229 VP1229 VP1228

VP1221

VP1222 VP1222

VP1228 VP1228

VP1222 VP1222 VP1222

VP1228 VP1228 VP1229

VP1324 VP1325*

VP1220E

VP1221 VP1223

VP1228

#WiredForPerfection Terminal Capacity 1.0mm2

3

5 5

No. and Size of Conductors Accomodated 1.5mm2 2.5mm2 4.0mm2 6.0mm2 4 2 2 4 2 2 2 1 3 2 4 3 1 4 2 1 4 2 2 4

10.0mm2 1 1

1

2

1

Technical

Product 13A Sockets Connection Units 2A Round Pin Sockets 5A Round Pin Sockets 15A Round Pin Sockets Plate Switches 20A Switch Shaver Socket Outlet 50A Switch

Engraving An engraving service is available for a limited range of wiring accessories. Products can be engraved in an upper and lower case standard font.

Engraved products must be ordered in multiples of 10, and are available with a 14 day lead time for stock items, with delivery subject to normal terms.

To order engraved products, please contact the sales office.

Lampholder ‘T’ Rating Bayonet (B22) lampholders without a T marking or marked T1 are suitable for temperatures on the cap up to and including 165°C. Bayonet (B22) lampholders with a T2 marking are suitable for temperatures on the cap up to and including 210°C. Alternatively T ratings may state the operating temperature, e.g. T190 would equate to 190°C. Lamp cap temperatures will depend on the lampholder orientation, lampshade or enclosure used and lamp rating.

Refer to the IET Wiring Regulation (BS7671) for the use of T2 rated lampholders.

vimark.uk

73

Dimmers UNIVERSAL DIMMERS Universal dimmer switches are suitable for controlling LED and incandescent bulbs. They automatically change the dimming mode to either Leading Edge (LE) or Trailing Edge (TE) to suit the type of load connected.

Universal Dimmers can operate loads from 3W up to 150W (TE Mode), 100W (LE Mode) of dimmable LED lamps, and up to 250W for incandescent loads. Whilst the dimming mode changes automatically to suit the load, it can be manually reprogrammed from Leading Edge (LE) to Trailing Edge (TE) mode if compatibility issues are found when dimming LED lamps. In addition to this, the minimum dimming level can be set – see the instruction leaflet.

The maximum and minimum load, as well as the maximum number of lamps the dimmer can control will vary according to the make and type of LED lamp. Compatibility between the load and dimmer should be checked before installation.

Dimmer switches are available in the Vimark and Vimark Curve ranges, in both 1g and 2g, and as a Gridswitch Module.

1-WAY CIRCUIT WIRING

2-WAY CIRCUIT WIRING

UNIVERSAL GRIDSWITCH DIMMERS Dimmer switch modules in the Gridswitch range need to be de-rated when installed in multiple gang frontplates. Also, the dimmer switches must be installed in the lower rows of the frontplate. It is recommended that back boxes for dimmer switches are at least 40mm deep.

Dimmers in the bottom row should be de-rated to 75% of their maximum load. Dimmers in the second from bottom row should be de-rated to 50% of their maximum load, and dimmers in the third from bottom row should be de-rated to 50%. It is not advisable to install dimmers in the top row.

74

#WiredForPerfection Dimmers MULTIWAY DIMMERS Deta multiway dimmer switches are suitable for 1-way or multiway lighting circuits. There are three terminals per module.

FIGURE 1

MULTIWAY CIRCUITS Multiway lighting circuits have two or more switches to dim and turn on/ off the same lamps from two or more locations (e.g. at the top and bottom of the stairs), however only one of these can be a dimmer switch, the other locations can be a push to make switch, up to a maximum of 20. Follow the wiring in Figure 2.

FIGURE 2

Technical

1-WAY CIRCUITS In 1-way lighting circuits each load is controlled by one dimmer switch.

Follow the wiring in Figure 1.

DIMMER COMPATIBILITY The compatibility between the universal dimmer and load must be checked before installation. The number of light fittings as well as the total wattage will affect how well the dimmer performs. Therefore, the total number of light fittings that are planned to be controlled by the dimmer must be checked for compatibility. For optimum performance, all the LED lamps connected to the dimmer must be of the same brand and wattage.

vimark.uk

75

TV Systems

TVTV TV Outlets Outlets TV Outlets TVOutlets Outlets

•are TV Outlets or modules must not be installed enclosure aswill mains voltage systems There There There There are There are various are various are various various various types types types types of types of TV ofTV of TV systems ofsystems TV systems TVsystems systems and and and therefore and and therefore therefore therefore therefore ainsuitable athe asuitable suitable aasame suitable suitable system system system system system willwill will be be will be subject subject be subject besubject subject to to the tothe to the to requirements the requirements the requirements requirements requirements of of the ofthe of the of installation. the installation. the installation. installation. installation.

A basic AAbasic basic AAsystem basic basic system system system system may may may have may may have have one have have one one satellite one one satellite satellite satellite satellite dish dish dish ordish dish or aerial oraerial or aerial oraerial feeding aerial feeding feeding feeding feeding a single aasingle single aasingle TV single TV TV connection connection TV connection TVconnection connection There are different AV distribution systems available, each of which have different cabling and termination requirements. point. point. point. point. point.

However, However, However, However, where where where where where multiple multiple multiple multiple multiple TVTV TV outlets TV outlets TV outlets outlets arefeeding are are required, are required, are required, required, thethe the signal the signal the signal signal will signal will will need will need will need to need need to be topoint. A be to be distributed todistributed be distributed bedistributed distributed accordingly, accordingly, accordingly, accordingly, accordingly, A However, terrestrial system may have anoutlets aerial arequired, single coax TV connection slightly complex system may and and and may and and may may involve may may involve involve involve thethe the use the use the use ofuse of use splitters ofofsplitters of splitters of splitters splitters orsatellite, or amplifiers. oramplifiers. or amplifiers. oramplifiers. amplifiers. include ainvolve combination aerial, broadband and radio inputs which are fed to their corresponding AV equipment such as a TV, a satellite receiver box or a radio set. Where multiple AV outlets are required multi-switches, splitters and

amplifiers are used to distribute signal. isolation isolation isolation isolation isolation (rated (rated (rated (rated (rated at at 2kV) at2kV) 2kV) at atis2kV) 2kV) required isisrequired required isisrequired required to to provide toprovide to provide toprovide provide Isolated Isolated Isolated Isolated Isolated sockets sockets sockets sockets sockets are are are intended are intended are intended intended intended forfor for usefor use for use where use where use where where where safety safety safety safety safety protection protection protection protection protection against against against against against faults faults faults faults within faults within within within within any any any mains any any mains mains mains mains powered powered powered powered powered product product product product product used used used on used used on on different different on different on different different parts parts parts of parts parts of the of the of the of distribution the distribution the distribution distribution distribution Isolated sockets are intended for use where safety isolation (rated at 2kV) is required to provide protection against faults system. system. system. system. system.

Therefore, Therefore, Therefore, Therefore, Therefore, isolated isolated isolated isolated isolated sockets sockets sockets sockets sockets areare are toare to are be tobe to be installed toon installed be installed be installed installed where where where where where multiple multiple multiple multiple multiple co-axial co-axial co-axial co-axial co-axial socket socket socket socket socket outlets outlets outlets outlets outlets areare are required. are required. are required. required. required. within any mains powered product used different parts of the distribution system.

Therefore, isolated sockets are to be installed where multiple coaxial socket outlets are required.

Diplexer Diplexer Diplexer Diplexer Diplexer outlets outlets outlets outlets outlets areare are intended are intended are intended intended intended forfor for usefor use for use where use where use where where where both both both TV both both TV TV and and TV and TV FM/DAB and and FM/DAB FM/DAB FM/DAB FM/DAB signals signals signals signals signals areare are combined are combined are combined combined combined onon on a single aon aon single single aasingle single Diplexer outlets are intended for use where both TV and FM/DAB signals are combined on a single downlead. The filter downlead. downlead. downlead. downlead. downlead.

The The The filter The The filter filter within filter filter within within within within the the the diplexer the diplexer the diplexer diplexer diplexer separates separates separates separates separates the the the appropriate the appropriate the appropriate appropriate appropriate signal signal signal signal and signal and and feeds and and feeds feeds feeds them feeds them them them to them to the to the to the to relevant the relevant the relevant relevant relevant within the diplexer separates the appropriate signal and feeds them to the relevant output connection. output output output output output connection. connection. connection. connection. connection.

Triplexer outlets are intended for use where TV, FM/DAB and satellite signals are combined on a single downlead.

The filter within the triplexer separates the appropriate signal and feeds them to the relevant output connection. The

Triplexer Triplexer Triplexer Triplexer Triplexer outlets outlets outlets outlets outlets areare are intended are intended are intended intended intended forfor for usefor use for use where use where use where where where TV,TV, TV, FM/DAB TV, FM/DAB TV, FM/DAB FM/DAB FM/DAB and and and satellite and and satellite satellite satellite satellite signals signals signals signals signals areare are combined are combined are combined combined combined onon on a single aon aon single single aasingle single triplexer provides a DC control path in the SAT signal path. downlead. downlead. downlead. downlead. downlead.

The The The filter The The filter filter within filter filter within within within within thethe the triplexer the triplexer the triplexer triplexer triplexer separates separates separates separates separates thethe the appropriate the appropriate the appropriate appropriate appropriate signal signal signal signal and signal and and feeds and and feeds feeds feeds them feeds them them them to them to the tothe to the to relevant the relevant the relevant relevant relevant Quadplexer outlets contain TV, FM/DAB and two satellite outlets and are intended output output output output output connection. connection. connection. connection. connection.

The The The triplexer The The triplexer triplexer triplexer triplexer provides provides provides provides provides a DC aaDC DC control aaDC control DC control control control path path path in path path in the in the the in SAT inthe SAT the SAT signal SAT SAT signal signal signal path. signal path. path. path. path.for use with Sky+, or more complex installations.

Quadplexer Quadplexer Quadplexer Quadplexer Quadplexer outlets outlets contain contain contain contain contain TV,in TV, TV, FM/DAB TV, FM/DAB TV, FM/DAB FM/DAB FM/DAB and and and two and and two two satellite two two satellite satellite satellite outlets outlets outlets outlets outlets and and and are and and are are intended are intended are intended intended intended forfor for use for use for use with use with use with Sky+, with with Sky+, Sky+, Sky+, or Sky+, or or or or Sky Qoutlets –outlets foroutlets installation single dwellings, use twosatellite F-Type modules.

For communal areas, the installation can be completed using a combination of a dSCR multi-switch and triplexer/quadplexer module. more more more more complex more complex complex complex complex installations. installations. installations. installations. installations.

A range of data plates and modules are also available, which allow the use of additional modules such as coaxial return

available available available available available in in all inall Deta all ininDeta all Deta allranges, Deta Deta ranges, ranges, ranges, ranges, which which which which which allow allow allow allow the allow the the use the use the use ofuse of use of of of A range AArange range AAsockets range of range of data ofdata of data ofplates data data plates plates plates plates and and and modules and and modules modules modules modules are are also are also are also also also and telephone outlets forare interactive TV applications. additional additional additional additional additional modules modules modules modules modules such such such as such such as co-axial asco-axial as co-axial asco-axial co-axial return return return return return sockets sockets sockets sockets sockets and and and telephone and and telephone telephone telephone telephone outlets outlets outlets outlets outlets forfor for interactive for interactive for interactive interactive interactive TVTV TV applications. applications.

TV applications.

TVapplications. applications.

TYPICAL INSTALLATIONS

Typical Typical Typical Typical Typical Installations Installations Installations Installations Installations

Amplifier Amplifier Amplifier Amplifier Amplifier

Basic Basic Basic domestic Basic Basic domestic domestic domestic domestic installation installation installation installation installation where where where where where a non-isolated aanon-isolated non-isolated aanon-isolated non-isolated co-axial co-axial co-axial co-axial co-axial outlet outlet outlet is outlet outlet isis isis connected connected connected connected connected directly directly directly directly directly to to the tothe the aerial. totoaerial. the aerial. theaerial. aerial.

Communal Communal Communal aerial aerial system, aerial system, system, i.e.i.e. flats, i.e. hotels flats, hotels hotels Communal Communal aerial aerial system, system, i.e.flats, flats, i.e. flats, hotels hotels etc.etc. where etc. where where isolated isolated isolated co-axial co-axial co-axial outlets outlets outlets areare etc. etc. where where isolated isolated co-axial co-axial outlets outlets areare are wired wired separately wired separately separately to to an amplifier. totoamplifier. an wired wired separately separately toan an amplifier. anamplifier. amplifier.

TV Dist.

TV TVDist.

Dist.

TV TVDist.

Dist.

Amplifier Amplifier Amplifier Amplifier Amplifier

Domestic installation with satellite, Domestic installation with satellite, Domestic Domestic installation installation with with satellite, satellite, Domestic installation with satellite, including return feed forfeed distribution including return feed fordistribution distribution including including return return feed for for including return feed fordistribution distribution to to outlets in other tooutlets outlets other rooms. totooutlets ininother ininrooms. other rooms. rooms. outlets other rooms.

145 1111 145 Telesales Telesales Telesales Telesales Telesales Hotline Hotline Hotline Hotline Hotline 01582 01582 01582 01582 01582 544 544 544 544 544 544 544 544 544 544

76

Wiring Circuits #WiredForPerfection Wiring Circuits FINAL RING CIRCUITS Final Ring Circuits

Unfused spur

Spur using a FCU connected directly to the ring. Number of sockets is dependent upon load characteristics, and taking diversity into account

Fixed equipment

1.5mm2 Fused connection unit

1 gang socket 2.5mm2 conductors forming the ring

Technical

Floor area 100m2 max Unfused spur

2 gang socket (each socket counts as one)

Consideration must be given to the need for protection by an RCD

Distribution Board 32A MCB or 30A fuse for ring circuit

Final Radial Circuits 2g socket

1g socket

2g socket

2g socket

Distribution Board

Final Circuits Using BS 1363 Socket-Outlets Minimum conductor size*

FINAL CIRCUITS USING BS 1363 SOCKET-OUTLETS Copper conductor Copper conductor Maximum floor Type of circuit

Overcurrent protective device

Rating Amps

Thermo-setting or mineral insulated area served Minimum Conductor Size* PVC insulation cables mm2 mm2 m2

Type Overcurrent Protective Device Any 2.5

Copper Conductor 1.5 Thermo-setting or Cartridge fuse or PVC Insulation 2 Radial 30 or 32 4 2.5 circuit breaker Rating Amps Type mm2 A3 Radial 20 Any 2.5 1.5 A1 Ring 30 or 32 Any 2.5 *The tabulated values of conductor size may be reduced for fused spurs A1 Ring Type of Circuit 30 or 32

138

Copper Conductor 100 Insulated Mineral Cables 75 mm2 50 1.5

Maximum Floor Area Served m2 100

Cartridge Fuse or Refer2toRadial the IEE Wiring Regulations arrangements.

30 or 32 (BS 7671) for a complete description of 4 conventional circuit2.5 Circuit Breaker

75

A3 Radial 20 Any 2.5 Technical Hotline 01582 544 548

50

1.5

*The tabulated values of conductor size may be reduced for fused spurs Refer to the IET Wiring Regulations (BS 7671) for a complete description of conventional circuit arrangements.

vimark.uk

77

IP Ratings The IP (international protection) rating given to an enclosure states the degree of protection it offers by means of two digits.

A summary of these is shown below; for a more detailed definition, see IEC 529: 1989, BS EN 60529: 1992.

FIRST DIGIT

SECOND DIGIT

The first digit covers protection against penetration by solid objects, which includes hands and tools such as screwdrivers.

At the lowest of seven levels, 0, no protection is offered, either of the equipment itself from damage by intrusion or of a person contacting live or moving parts. At the highest, 6, there shall be no entry of dust.

The second digit covers the degree of protection against the entry of water, on a progressive scale. For example, number 1 indicates that dripping water shall have no harmful effect.

Alternatively, number 6 indicates water projected in powerful jets against the enclosure from any direction shall have no harmful effects.

Protection against solid foreign objects and access to hazardous parts

IP

Protection against ingress of water

IP

0

No protection

0

No protection

1

Protected against solid objects up to 50mm, e.g. accidental touch by hands

1

rotected against vertical falling drops of water, P e.g. condensation

2

rotected against solid objects up to 12mm, P e.g. fingers

2

Protected against direct sprays of water up to 15º from the vertical

3

rotected against solid objects over 2.5mm, P e.g. tools and wires

3

Protected against sprays of water up to 60º from the vertical

4

rotected against solid objects over 1mm, P e.g. tools, wires and small wires

4

Protected against water splashed from all directions - limited ingress permitted

5

rotected against dust P - limited ingress, no harmful deposits

5

rotected against low pressure jets of water from all P directions - limited ingress permitted

6

Totally protected against dust

6

Protected against strong jets of water, e.g. for use on ship decks - limited ingress permitted

The letter X can be used in place of the first or second digit to indicate that tests have either not been made or are not applicable.

NOTE: In the event of additional holes being drilled/pierced or knockouts removed, suitable measures should be taken to restore the products to the original ratings.

IEC 529, BS EN 60529 does not apply to protection against the risk of explosion or conditions such as humidity, corrosive gases, fungi or vermin. In certain cases equipment designed to be mounted in an enclosure will contribute towards the stated IP rating (e.g. pushbuttons mounted in an enclosure). Different parts of enclosures can have different degrees of protection and still conform to the standard (e.g. enclosures with pre-drilled conduit entry).

78

#WiredForPerfection Bathroom Zones Bathroom zones are areas where electrical equipment must offer a certain degree of protection against water. The bathroom zone number refers to the amount of water likely to be present. The lower the zone number, the higher the IP rating needs to be.

ZONE 0

ZONE 1

Zone 1 in simple terms, is the area directly above Zone 0 to the highest fixed shower head or a height of 2.25m from the finished floor level whichever is higher. Any fitting or appliance in Zone 1 must: • have a minimum ingress protection rating of IPX4 (splash-proof) or IPX5 if equipment is likely to be exposed to water jets, for example, during cleaning • be protected by SELV at a voltage not exceeding 25 V AC, with its source outside of zones 0, 1 and 2 • be declared suitable for use in that zone by the manufacturer • fixed and permanently connected. Zone 1 does not include Zone 0

Technical

Zone 0 is anywhere inside a bathtub or shower tray itself that can hold water. For a shower without a basin, zone 0 extends to a height of 0.10 m to the full extent of the horizontal footprint of zone 1. Any current-using equipment used within zone 0 must be: • protected by SELV at a voltage not exceeding 12 V AC, with its source outside of zones 0, 1 and 2 • protected against both partial and total immersion in water (minimum ingress protection rating of IPX7) • be declared suitable for use in that zone by the manufacturer • be installed fixed and permanently connected

ZONE 2

Zone 2 is the area stretching to 600mm outside of the boundary of zone 1 to the highest fixed shower head or a height of 2.25m from the finished floor level whichever is higher. Any current-using equipment within Zone 2 must: • have an ingress protection rating of at least IPX4 (splash-proof) or IPX5 if equipment is likely to be exposed to water jets, for example, during cleaning • be protected by SELV at a voltage not exceeding 50 V AC, with its source outside of zones 0, 1 and 2 • Shaver supply units conforming to BS 61558-2-5 may be installed

ZONE 3

Zone 3 is anywhere outside zones 0, 1, and 2 (subject to specific limits) and where no water jet is likely to be used. No IP rating is required. However, if there is a likelihood of water jets being used for cleaning purposes in zones 1, 2 and 3, a fitting rated a minimum IP65 must be used.

Low voltage socket-outlets and fused connection units (fused spurs) may be installed at a distance exceeding 2.5 m horizontally from the boundary of zone 1.

vimark.uk

79

Index Product Code 1001WH 1011SS 1011WH 1012SS 1012WH 1016SL 1016WH 1019CH 1019WH 4600 4601 4603 4616 4617 4640 4641 4660 4661 4820 4824 4827 4828 4845 4846 4849 4880 4884 4887 4600P 4601P 4660P 4661P 4666 4700ZT 4700ZTH 4720Z 4720ZT 4750S 4751T 4755MF 4755MFT 4821BR 4821WH 4822BR 4822WH 4831BR 4831WH 4881BR 4881WH 4882BR 4882WH 4891BR 4891WH 91WSST2 97HOT2 DB152

80

Page No. 50 51 51 51 51 50 50 51 51 40 40 40 41 41 41 41 40 40 46 46 46 46 46 46 46 46 46 46 40 40 40 40 40 43 43 40 40 45 45 45 45 47 47 47 47 47 47 47 47 47 47 47 47 65 65 67

Product Code DB162 DB163 DB164 DB165 DB166 DB167 DB168 DB169 DB170 DB2540 DB2541 DB2542 DB2543 DB2544 DB2545 DB2546 DB2547 DB2548 G3401 G3402 G3403 G3404 G3501 G3502 G3503 G3506 G3511 G3512 G3513 G3514 G3515 G3516 G3517 G3519 G3520 G3525 G3526 G3532 G3533 G3534 G3536 G3537 G3538 G3541 G3542 G3543AM G3543GR G3543RD G3544 G3551 G3552 G3553 G3554 G3555 G3556 G3557

Page No. 67 67 67 67 67 67 67 67 67 67 67 67 67 67 67 67 67 67 60 60 60 60 58 58 58 58 58 58 58 59 59 58 58 59 59 58 60 58 58 58 58 58 58 60 60 60 60 60 60 59 59 59 59 59 59 59

Product Code G3558 G3559 G3560 G3561 G3562 G3563 G3564 G3565 G3566 G3567 G3571 G3572 G3573 G3574 G3575 G3576 G3577 G3578 G3579 G3580 G3581 G3582 G3583 G3584 G3585 G3586 G3587 L2352 L2353BK L2353WH L2354 L2355 S1066T2 S1425 S1426 S1428 S1429 S1430 S1431 S1432 S1433 S1434 S1435 S1436 S1437 S1438 S1439 S1440 S1442 S1443 S1444 S1446 S1447 S1448 S1449 S96HOT2

Page No.

Product Code

Page No.

59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 59 53 53 53 53 53 65 63 63 63 63 63 63 63 63 63 63 63 63 63 63 63 63 63 63 63 63 63 63 65

S97HOT2 SP1011 V1220E V1221 V1222 V1223 V1224 V1225 V1228 V1229 V1278 V1280 V1283 V1289 V1297 V1298 V1299 V1324 VM1200 VM1201 VM1203 VM1204 VM1205 VM1207DP VM1207SP VM1209DP VM1209SP VM1289 VM1300N VM1360 VM1361 VM1362 VM1370 VM1371 VM1372 VM1373 VM1391 VM1393 VM2701 VM2702 VM2703 VM2704 VM2706 VM2708 VM2801 VM2802 VM2803 VP1200 VP1201 VP1203 VP1204 VP1205 VP1206 VP1207DP VP1207DPN VP1207SP

65 51 11 11 11 11 11 11 11 11 65 65 65 65 65 65 65 11 37 37 35 35 35 34 34 34 34 34 36 35 35 35 35 35 35 35 36 36 37 37 37 37 37 37 37 37 37 20 20 17 17 17 16 16 16 16

#WiredForPerfection

Product Code

Page No.

Product Code

Page No.

Product Code

Page No.

VP1208 VP1209DP VP1209DPN VP1209SP VP1216 VP1217 VP1220E VP1221 VP1222 VP1223 VP1224 VP1228 VP1229 VP1244 VP1246 VP1247 VP1249 VP1264 VP1289 VP1300 VP1300N VP1301 VP1301N VP1302 VP1302N VP1305 VP1352 VP1353 VP1360 VP1361 VP1364 VP1370 VP1371 VP1374 VP1375 VP1390 VP1391 VP1392 VP1393 VP1414 VP1415 VP1421 VP1422 VP1424 VP2701 VP2702 VP2703 VP2704 VP2706 VP2708 VPD1200 VPD1201 VPD1203 VPD1204 VPD1205 VPD1207DP

16 16 16 16 20 19 21 21 21 21 21 21 21 17 17 17 17 20 16 19 19 19 19 19 19 19 20 20 18 18 18 18 18 18 18 18 18 18 18 17 17 20 20 20 21 21 21 21 21 21 29 29 27 27 27 26

VPD1209DP VPD1244 VPD1246 VPD1247 VPD1289 VPD1300 VPD1301 VPD1302N VPD1305 VPD1360 VPD1370 VPD1371 VPD1390 VPD1391 VPD1414 VPD1415 VPD1422 VPD1424 VPD2701 VPD2702 VPD2703 VPD2704 VPD2706 VPD2708 VS1200 VS1201 VS1202 VS1203 VS1204 VS1205 VS1206 VS1207DP VS1207SP VS1207SPR VS1208 VS1209DP VS1209SP VS1209SPR VS1216 VS1217 VS1218N VS1244 VS1246 VS1247 VS1249 VS1264 VS1286 VS1300 VS1300N VS1301 VS1301N VS1302 VS1302N VS1305 VS1321 VS1323

26 27 27 27 26 28 28 28 29 28 28 28 28 28 27 27 29 29 29 29 29 29 29 29 10 10 7 7 7 7 6 6 6 6 6 6 6 6 10 10 8 7 7 7 7 10 6 9 9 9 9 9 9 9 7 7

VS1331 VS1352 VS1353 VS1360 VS1361 VS1364 VS1365 VS1366 VS1370 VS1371 VS1374 VS1375 VS1390 VS1390WH VS1391 VS1391WH VS1392 VS1392WH VS1393 VS1414 VS1415 VS1422 VS1424 VS2701 VS2702 VS2703 VS2704 VS2706 VS2708

6 10 10 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 7 7 10 10 11 11 11 11 11 11

Index

Index

vimark.uk

81

Notes

82

#WiredForPerfection

With over 65 years of electrical industry experience, Deta has grown to become a trusted market leading manufacturer and distributor of wiring, lighting, cable management and electrical installation accessories, with a reputation for unrivalled quality, reliability, service and value for money. As the number one electrical brand of choice amongst new build housing developers, Deta’s products are widely specified and installed across the private and social housing sectors, as well as high rise developments, student accommodation and care homes.

TTE is a market leading brand of electrical conduit tube and fittings, combining the former Top Tubes Electrical and Stephen Glover businesses. With more than 50 years’ experience, TTE has been specified and installed on many high-profile projects, including the London 2012 Olympic site, Wembley Stadium, Westfield Shopping Centre, Dubai International Airport and The Louvre Museum Abu Dhabi. TTE offers a reliable and best in class cable management solution that is fully compliant with British Standards.

A long established brand, well regarded for its vast range of high quality installation materials, the trusted Tower brand represents an exciting addition to Deta’s comprehensive brand portfolio. The Tower offer includes its highly acclaimed range of Installation Materials, including the original Tower Cable Clips, an 18th Edition Fire Rated range, Portable Power and Low Voltage Cable.

Established in 1978, Brackenheath is renowned for supplying high quality and competitively priced residential and commercial lighting products.

Through continuous investment in LED and sensing technologies, Brackenheath pioneered the design of its market leading iSpot® range of slim profile, driverless LED Floodlights and continues to lead the way in bringing to market new and innovative LED lighting solutions.

Since its inception in 1908, Briticent Site Electrics has enjoyed more than 100 years of successful trading with a long-standing customer base. Briticent built its reputation on the Gripper® range of handlamps, and over the years has developed a core range of essential site lighting and power distribution products.

Briticent continues to lead the way with new and innovative energy saving products, becoming the site lighting brand of choice amongst electrical installers throughout the UK and Ireland.

Established in 1976, Channel is a leading manufacturer of emergency LED lighting and safety systems and a key distributor of the UK’s leading brands for fire detection solutions. Renowned for the breadth and depth of each product range, Channel has gained a loyal customer base driven by an excellence in technical and customer support. Proud to be affiliated with ICEL, LIA and EDA, Channel are registered with BSI and are members of the Apollo Partner Plus programme.

Deta.e offers products that seamlessly combine Deta Electrical’s core value of environmental preservation with its long established and trusted reputation for delivering high quality electrical products at competitive prices.

Offering a range of smart, safe, and secure EV charge points, Deta.e embraces cutting edge technologies that offer sustainable solutions to assist homeowners and businesses in making an easy transition to a new energy efficient future. (deta-e.co.uk)

A trusted UK industry leader synonymous with quality and innovation, Timeguard has more than 25 years’ experience in the manufacture and sale of time, light, safety, wi-fi and climate control electrical products.

Continuously delivering energy savings that owners and occupiers are looking for, alongside the creation of new designs that offer easy installation, Timeguard has become a favourite among homeowners and installers. (timeguard.com)

83

Deta Electrical Company Limited

Panattoni Park, Luton Road, Chalton, Bedfordshire, LU4 9TT 01582 544 500 sales.ce@deta.co.uk deta.co.uk V 01.25

VIMARK | TTE | TOWER | BRACKENHEATH | BRITICENT | CHANNEL | DETA.E | TIMEGUARD
