Welcome

Welcome to Timeguard, the exciting new addition within the Deta Electrical group of brands, being well known for the supply of high-quality Time, Light, Safety, Climate and Wi-Fi controls to the UK’s electrical trade.

The history of Timeguard is packed with product innovation and this year has been no exception, with many new and innovative products launched to the market. Now, following the company’s recent move into Deta Electricals' modern offices and distribution centre in 2023, Timeguard is working hard to deliver a raft of new product innovations and upgrades for our customers whilst continuously improving its service levels. Always looking to modernise, the company has already transitioned across to the Deta IE9 computer system and is seeing significant improvements for customers in areas such as warehouse despatch times, stock availability levels, order processing and resolution of queries to name just a few.

Like Deta, ‘Quality’ is at the heart of everything we do and remains a core value throughout product development, testing, manufacture, warehousing and logistics, right through to both customer and technical services that are backed up on the company’s BMS ‘business management system’ and our ISO9001:2015 accreditation.

In an ever-changing market, our continuous investment into quality across all areas of the business will help us continue to offer value for money products and services for all our customers, increasing opportunities for growth and future prosperity.

Please take a look through this new catalogue and visit our website for more information. www.timeguard.com

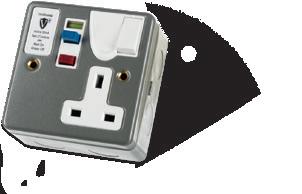

Safety

Time Section

Climate Section

Light Section

New Products

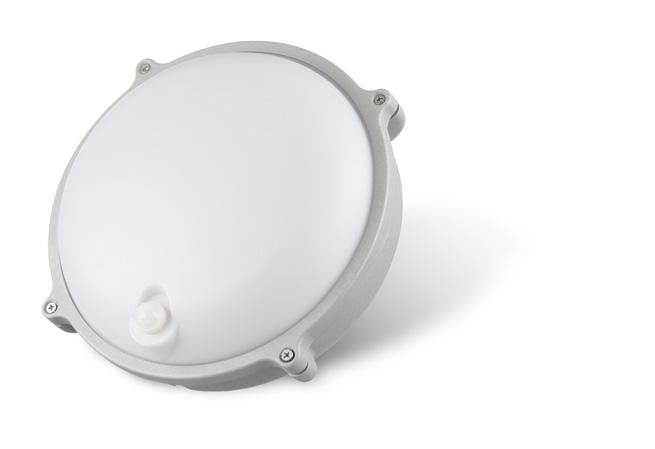

MLSA360NP Page 31

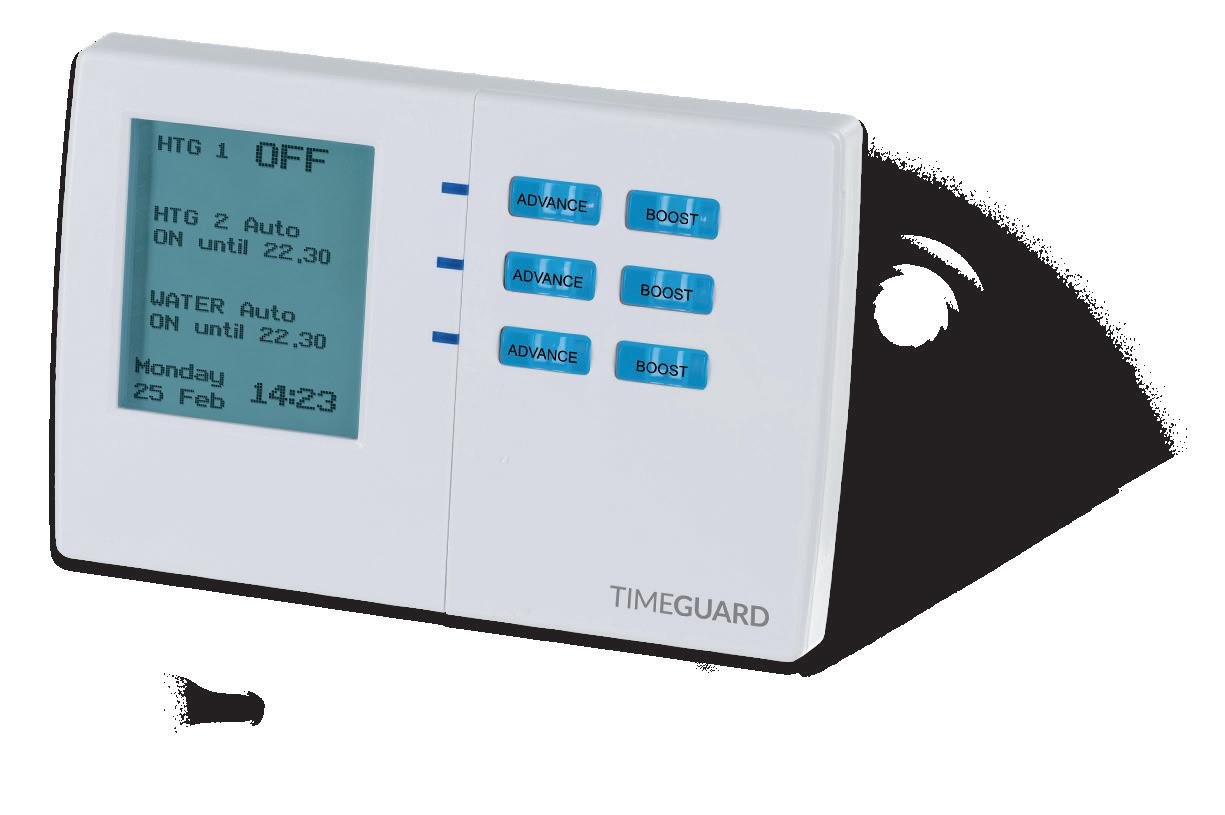

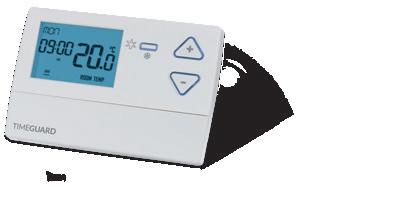

TG6000 Page 44

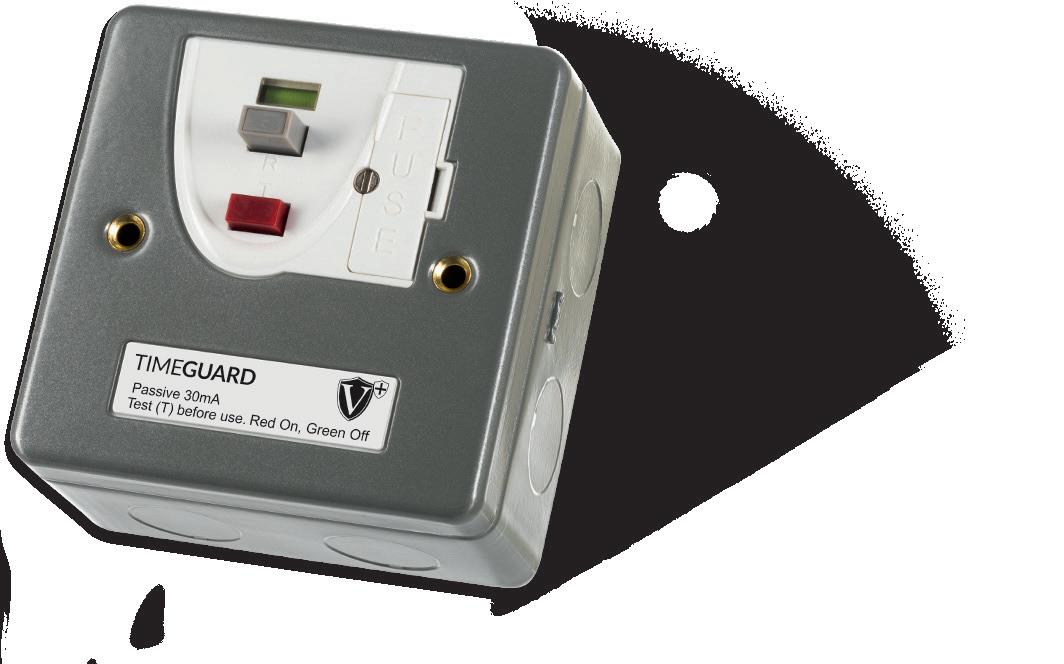

FRD1000 Page 43

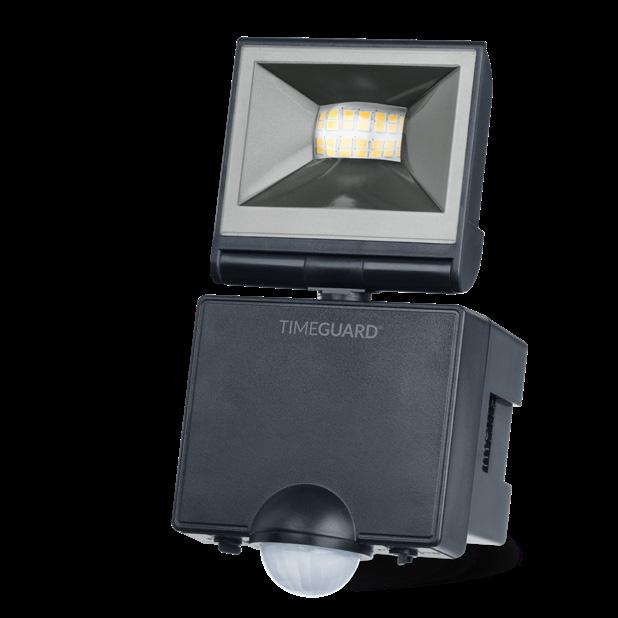

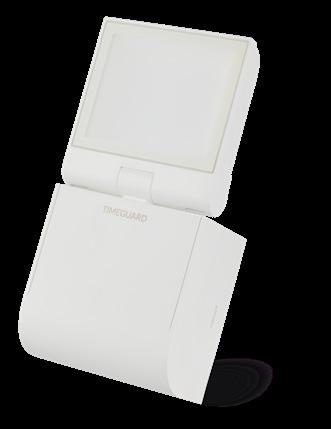

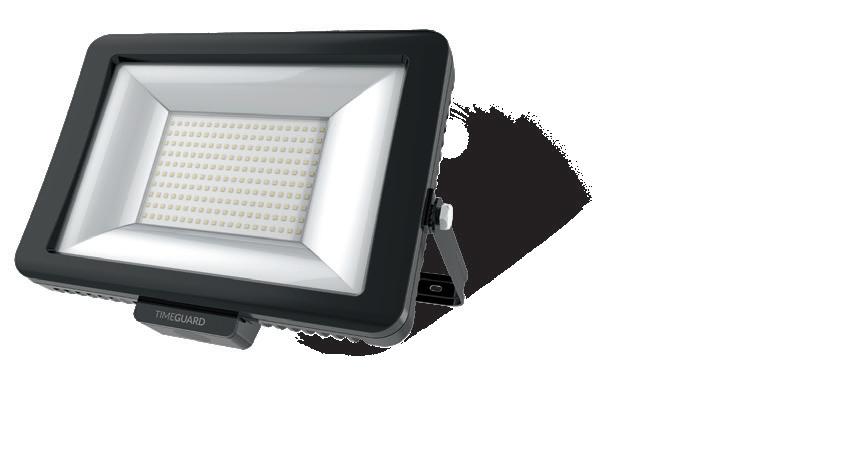

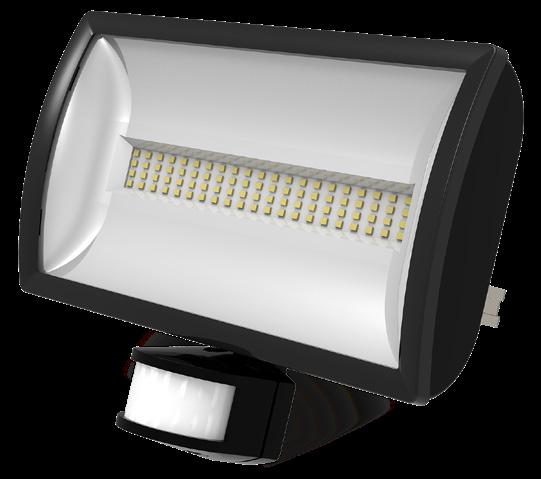

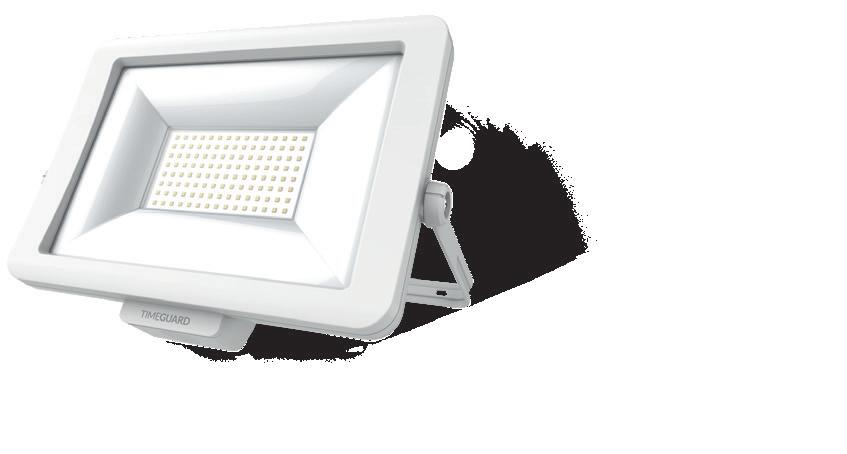

LED10PIRB Page 39

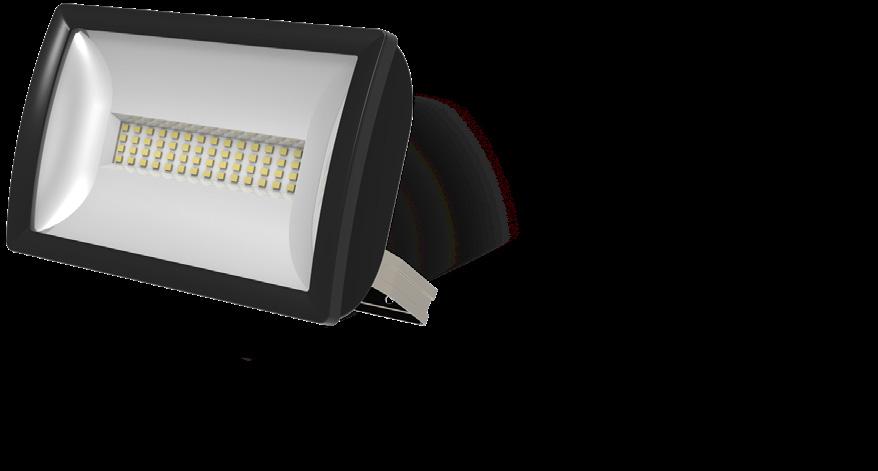

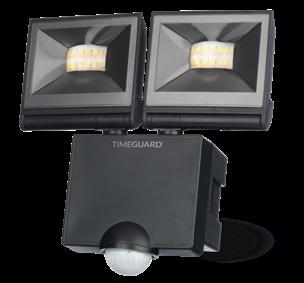

LED20PIRB Page 39

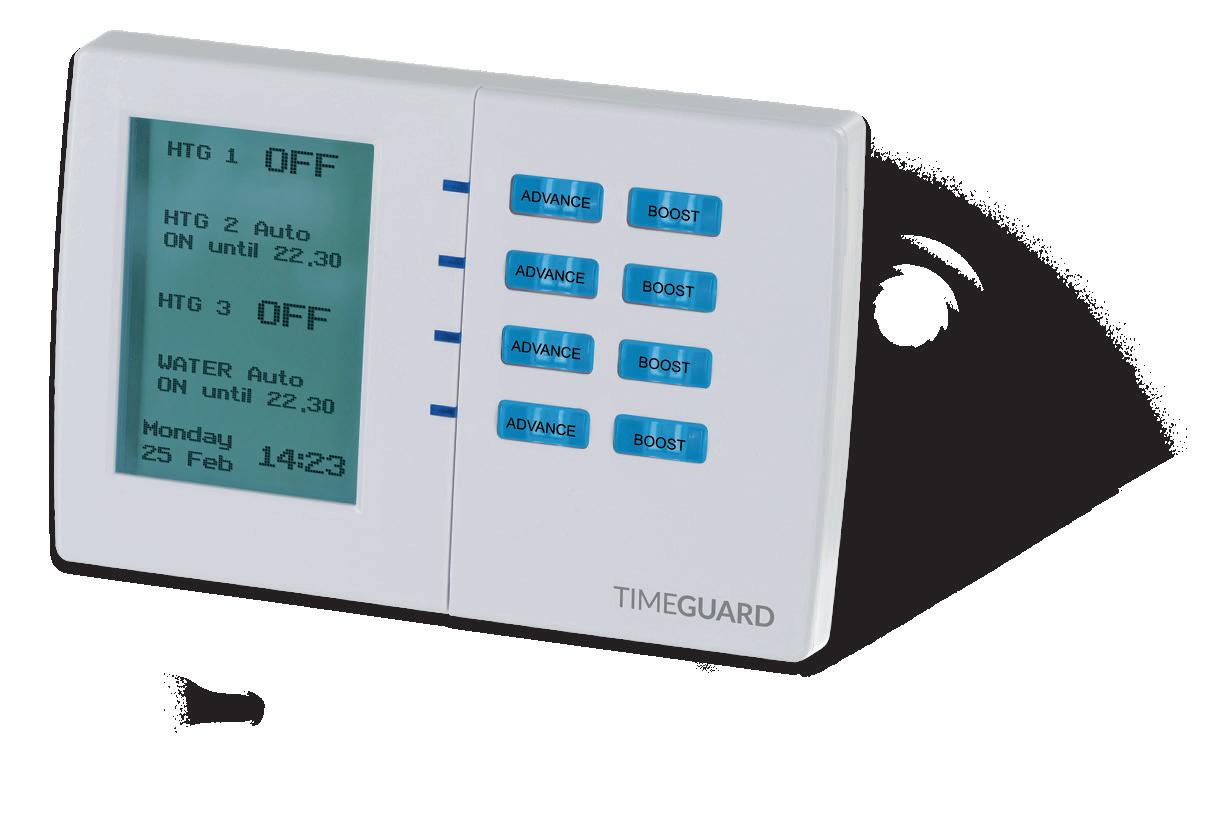

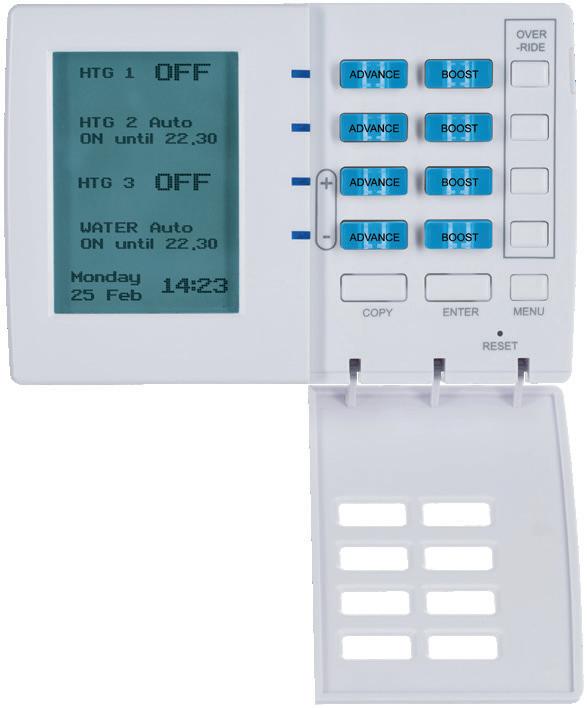

TG6004 Page 44

FRD1001 Page 43

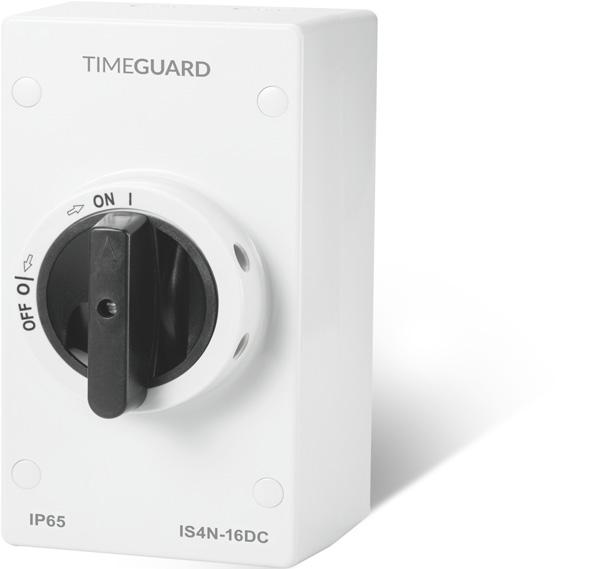

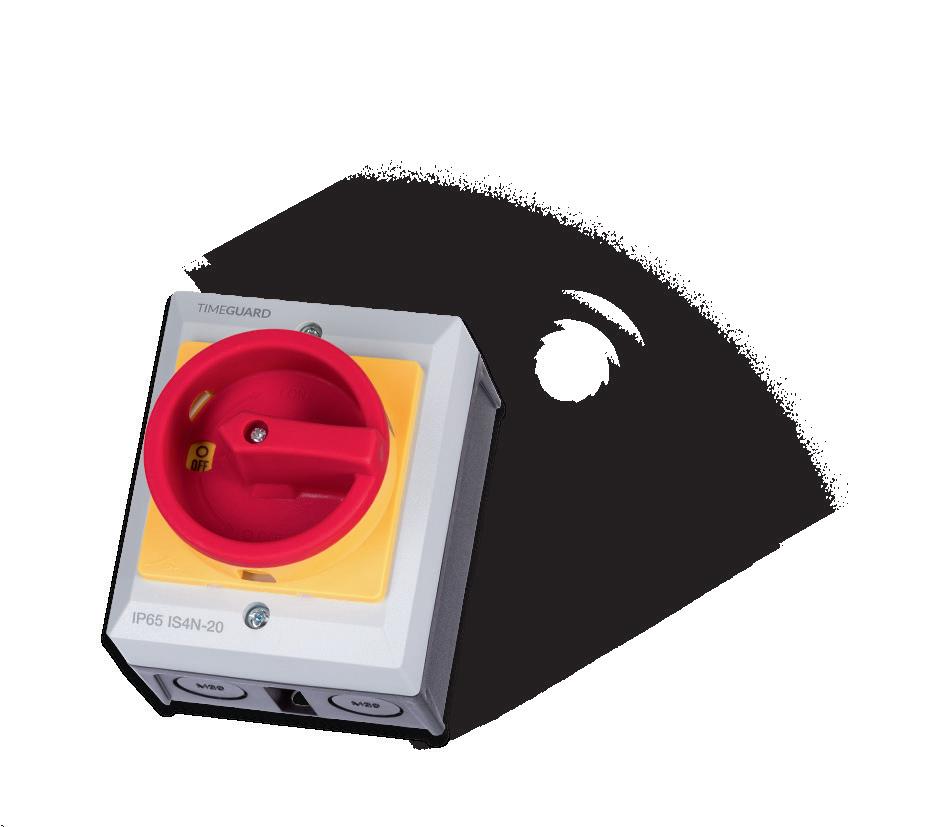

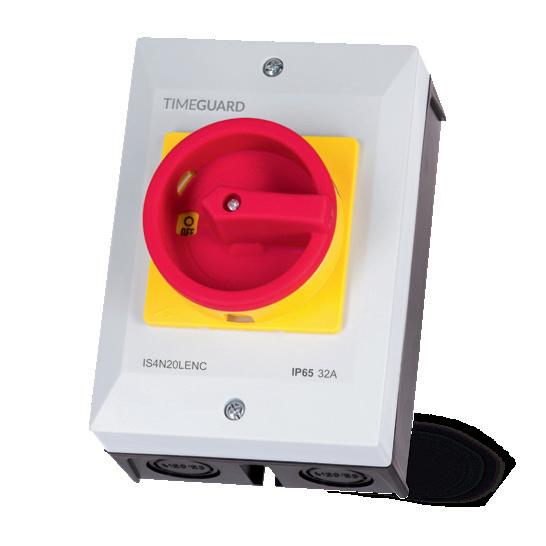

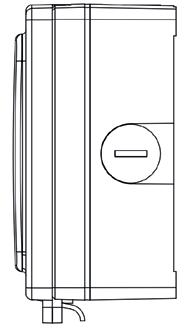

IS4N-16DC Page 61

with all these products!

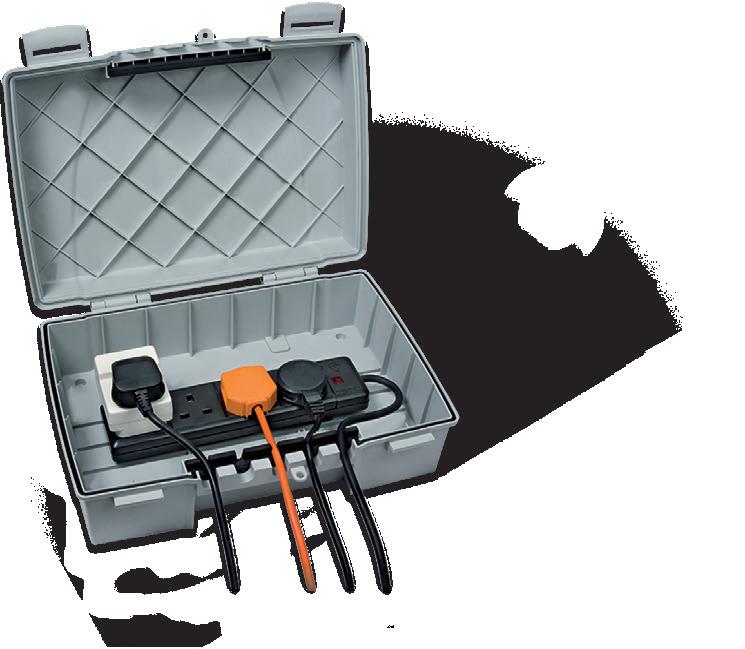

Page 29

Page 44

FST24SL Page 12

IS4N-25DC Page 61

Page 44

FST77SL Page 12

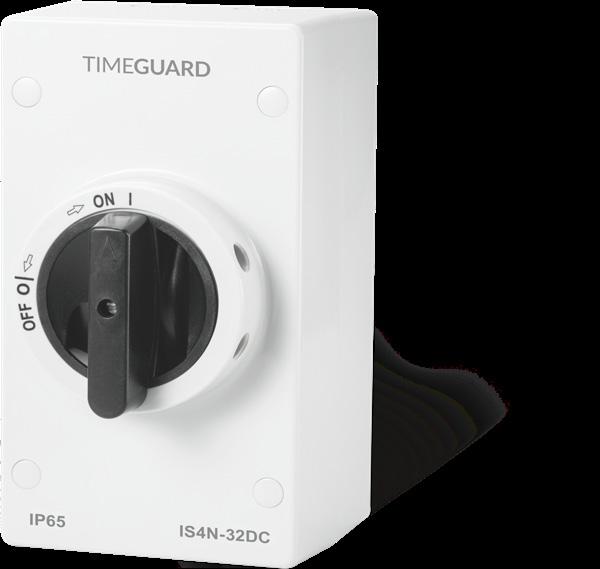

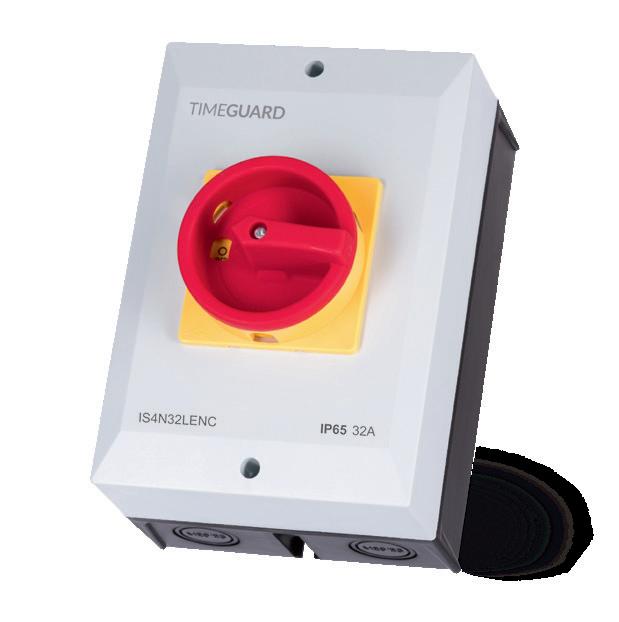

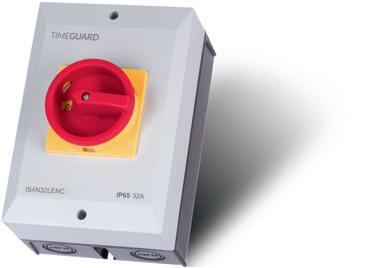

IS4N-32DC Page 61

All these products carry a 3 year guarantee.

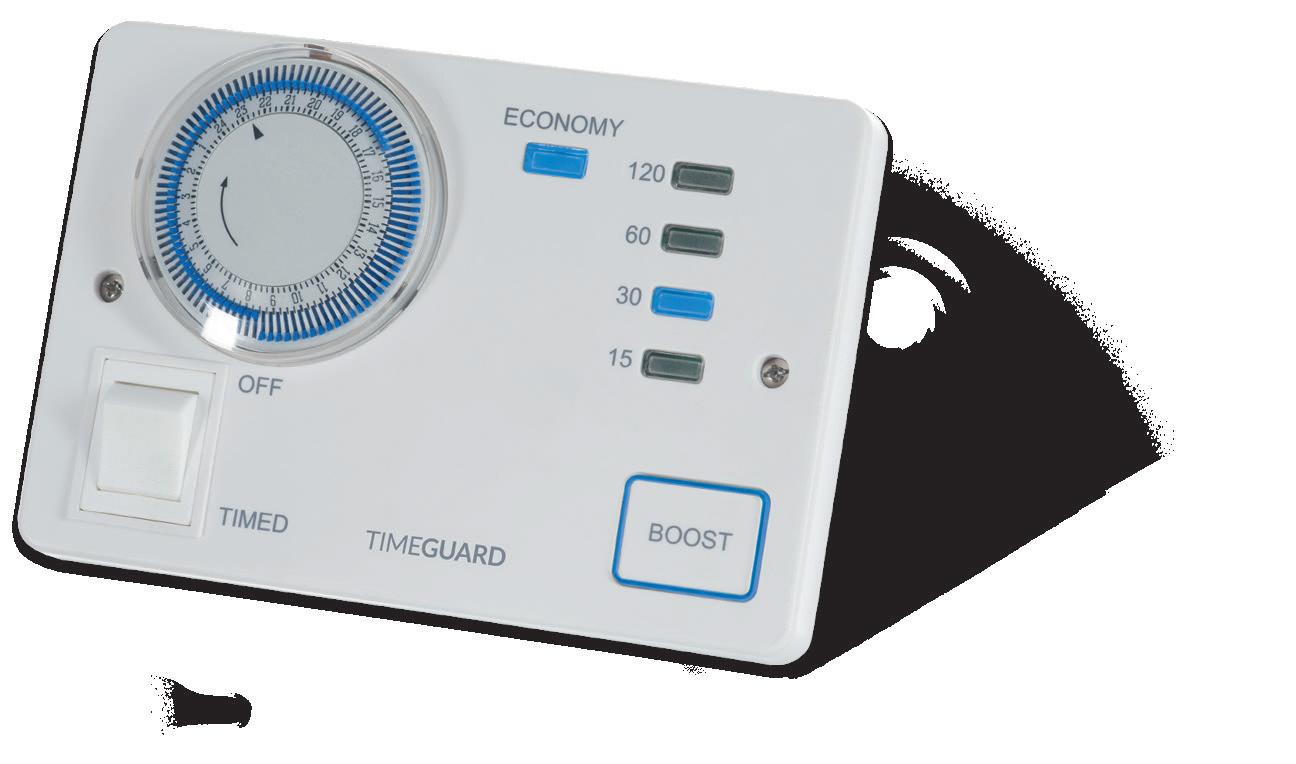

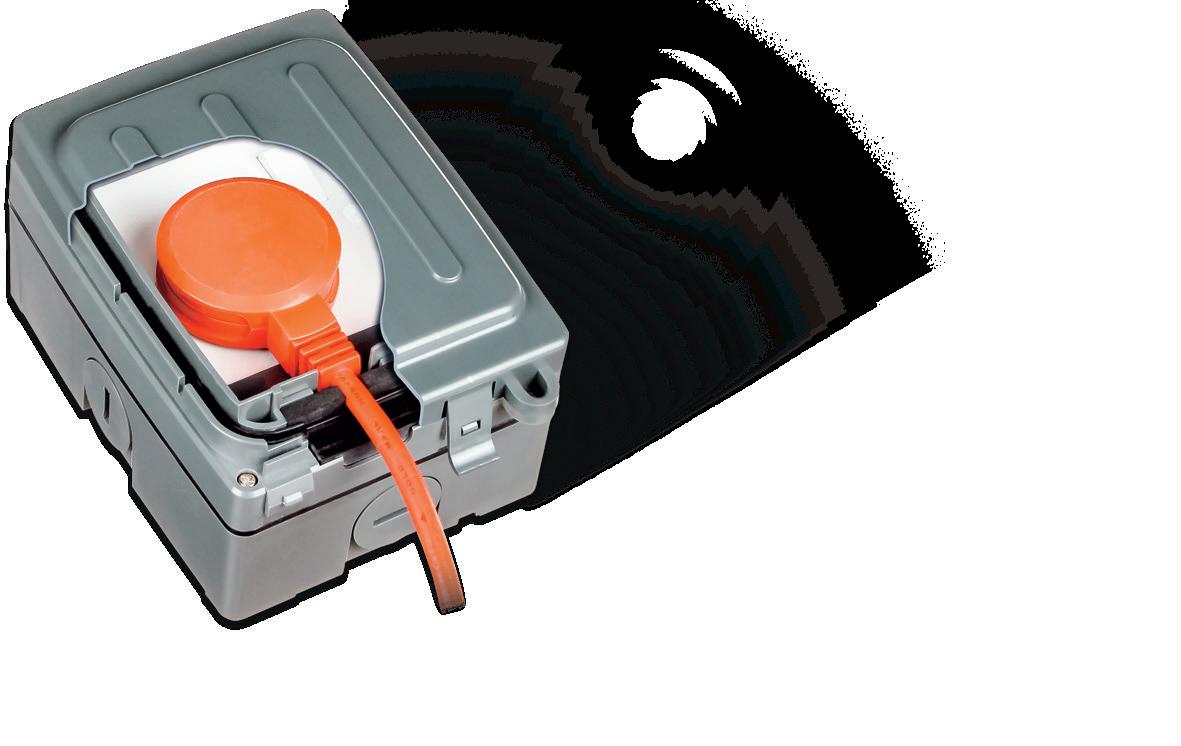

ZV700N
TG6001
TG6005

Wi-Fi Section

Our new range of residential and commercial Wi-Fi products are all controllable through the Tuya Smart mobile app. Simply access your devices remotely through your tablet or smartphone and be in complete control.

As long as your mobile device has Wi-Fi or data connection, you will be able to remotely control all connected appliances with ease, for instance switching lighting or heating on or off. Additionally, you can also program a timing schedule via the app, removing the need to manually set it.

■ Enables users to remotely control all connected appliances via the Tuya Smart mobile app

■ Turn On/Off lighting or other appliances anywhere your phone has Wi-Fi or Data Connection

■ Programable On/Off weekly timing schedule via app

■ Manual On/Off control

■ Countdown & Boost Function

■ Google Home/Alexa Compatible.

■ Tuya Smart App available for Android and IOS only

■ Control of your appliances at any time, from anywhere via a mobile data or Wi-Fi connection using a mobile or tablet device

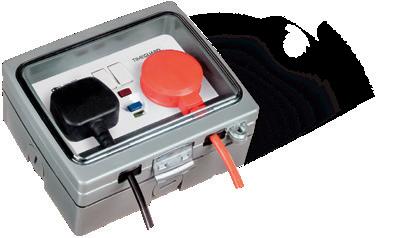

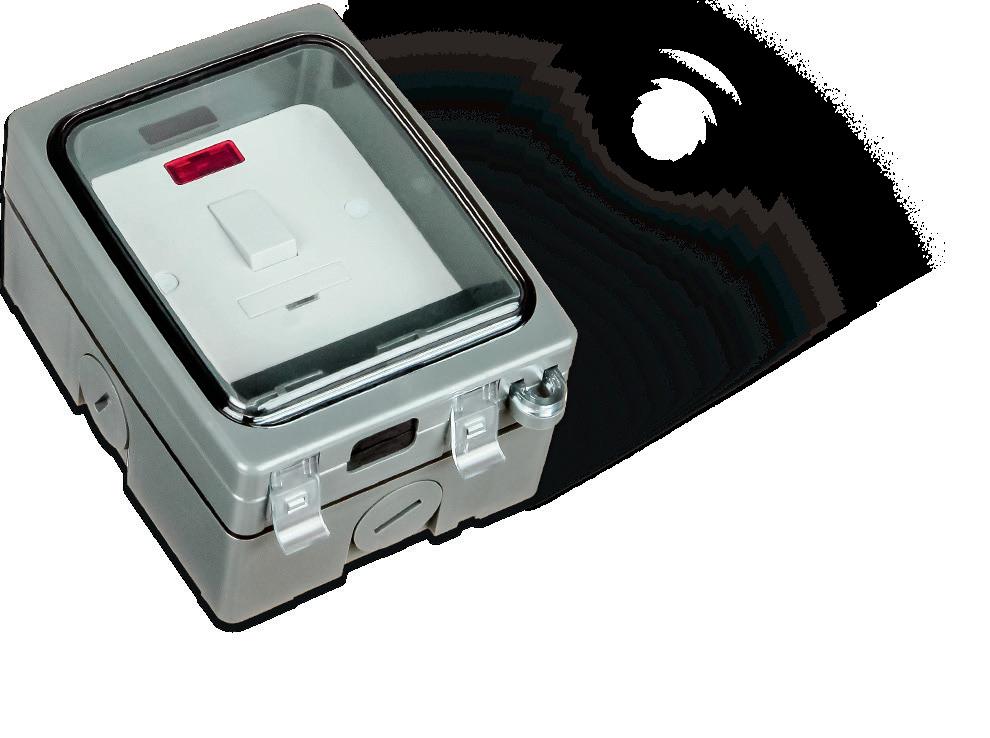

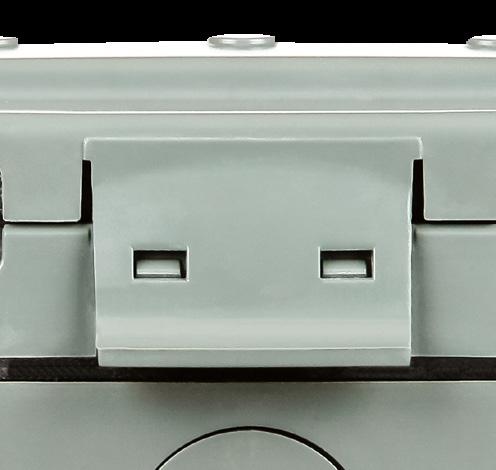

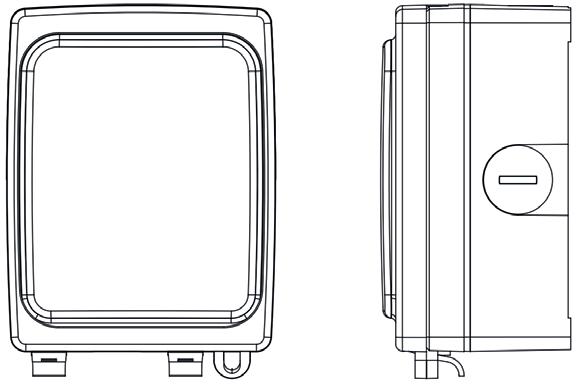

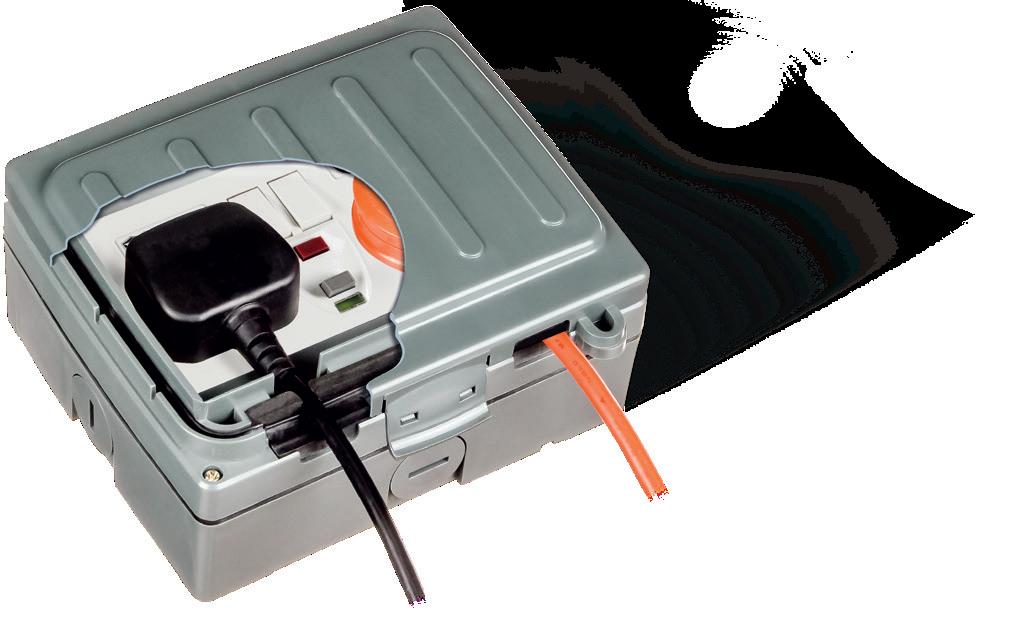

■ IP55 Enclosure with IP68 PG11 Cable Glands. (Captive Locknuts on Cable Glands)

■ Gasket seal protection along the main body and enclosure lid

■ Google Home/Alexa Compatible

■ 24 Hour/7 Day, Boost/Countdown modes

■ Tuya Smart App available for Android and IOS only

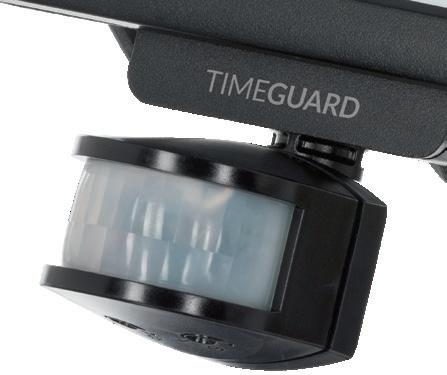

PIR Sensor With Direct/Indirect Switching

■ Up to 12 metres dection range with a detection angle of 140°

■ Pan & Tilt adjustment (50° Tilt Up/Down, 160° Pan Left/Right

■ Smart scenes offer time control, dusk to dawn, presence and absence modes via the Tuya Smart App

■ Adjustable time delay settings in app or offline

■ Supports multiple devices and multiple users

■ Simple and quick to fit terminal block connectors

■ Continues to work offline with loss of a Wi-Fi connection

■ Learn option for custom lux level activation

■ Manual On/Off switching override

■ Google Home/Alexa Compatible

Unlock the Power of Smart Living with Tuya Smart!

All of Timeguard’s Wi-Fi products are controlled via the Tuya Smart App, allowing users to tailor the system to their own homes needs. Your devices can be organised by the room or area of the property e.g. front room, porch or even garden. Landlords can expand even further, adding multiple homes to a single account and create users (housing tenants) to gain access to some or all of the Wi-Fi products associated with the property. Most devices support smart scenes, allowing for custom triggers for your smart home to respond to e.g. a device can trigger each time it rains in your local area, or at dusk, accounting for continuous adjustments around the year, avoiding the need to alter any settings for changing the sunset and sunrise times. Tuya Smart can be integrated with Google Home and Alexa services if required.

FSTWIFITU

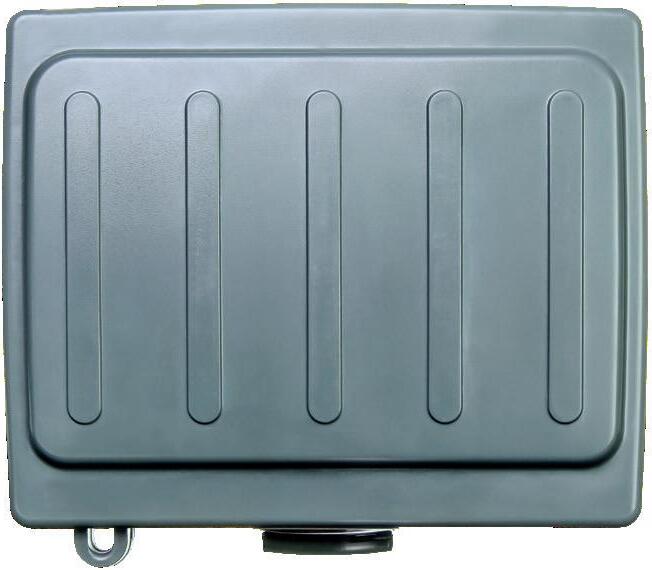

FSTWIFITUTGV

Wi-Fi Smart Control

■ Program settings are all activated via your mobile device or tablet, giving you access to control your installed appliances at any time via Wi-Fi, no matter where you are

■ Permanent ON, Permanent OFF, Boost/Countdown Modes

■ Positive On/Off status, with colour coded LED indicators

■ Replaceable 13 Amp BS1362 fuse

■ Fits standard 25mm deep single wall box

■ Direct retrofit for BS1363 fused connection unit

■ Double pole isolating switch

■ Automatic Summer/Winter changeover

■ Program settings are all activated via your mobile device or tablet, giving you access to control your installed appliances at any time via Wi-Fi, no matter where you are

■ Permanent ON, Permanent OFF, Boost/Countdown Modes

■ Positive On/Off status, with colour coded LED indicators

■ Replaceable 13 Amp BS1362 fuse

■ Multiple M20 knockouts and padlock hole for a more secure tamperproof locking facility

■ Double pole isolating switch

■ Automatic Summer/Winter changeover

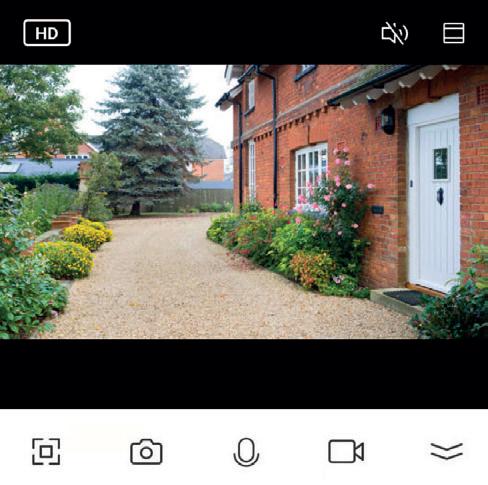

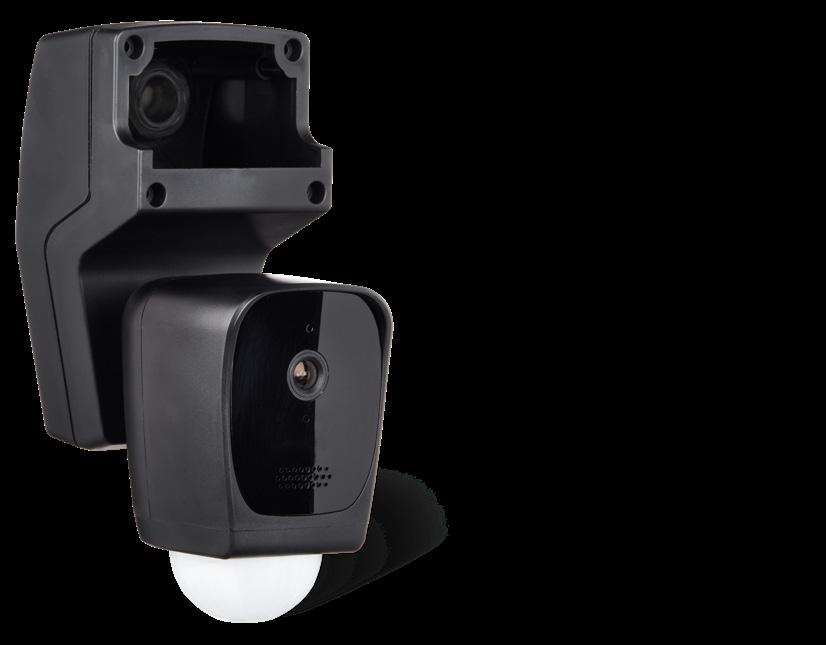

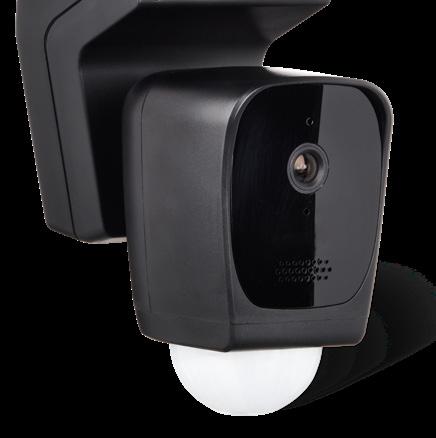

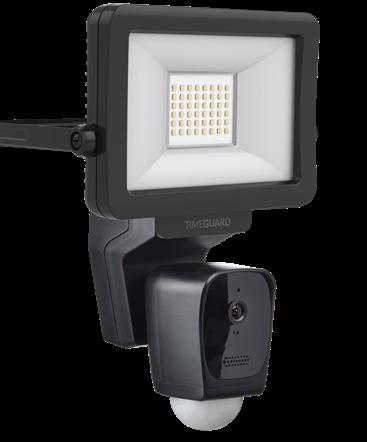

LEDPROCAM - LEDPRO Wi-Fi PIR Camera System

■ Automatically starts recording when presence is detected. Works in tandem with LEDPRO floodlights (sold seperately)

■ Compatible with all existing LEDPRO Floodlights, no extra wiring required

■ 270° PIR with 10 metres detection

■ 1080p full colour camera

■ 150° FHD Lens

■ 2-Way audio

■ Supports SD card 128Gb max. (not included)

■ IP55 (When fitted to LEDPRO Floodlight)

■ Lighting time ON, adjustable via app

■ PIR sensitivity, via app

■ 100dB Siren (can be disabled where required)

■ 2.4GHz Wi-Fi Frequency

■ Google Home/Alexa Compatible

Product Dimensions Height 160, Width 115, Depth 90mm

LEDPROCAM +
Floodlight (Floodlights Sold Seperately)
Google Nest
Alexa Show smart devices around the home.

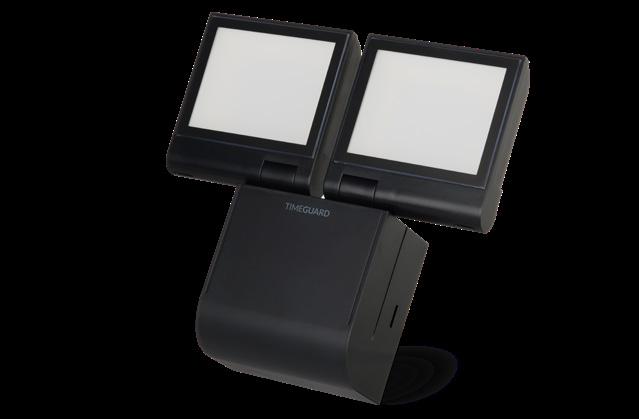

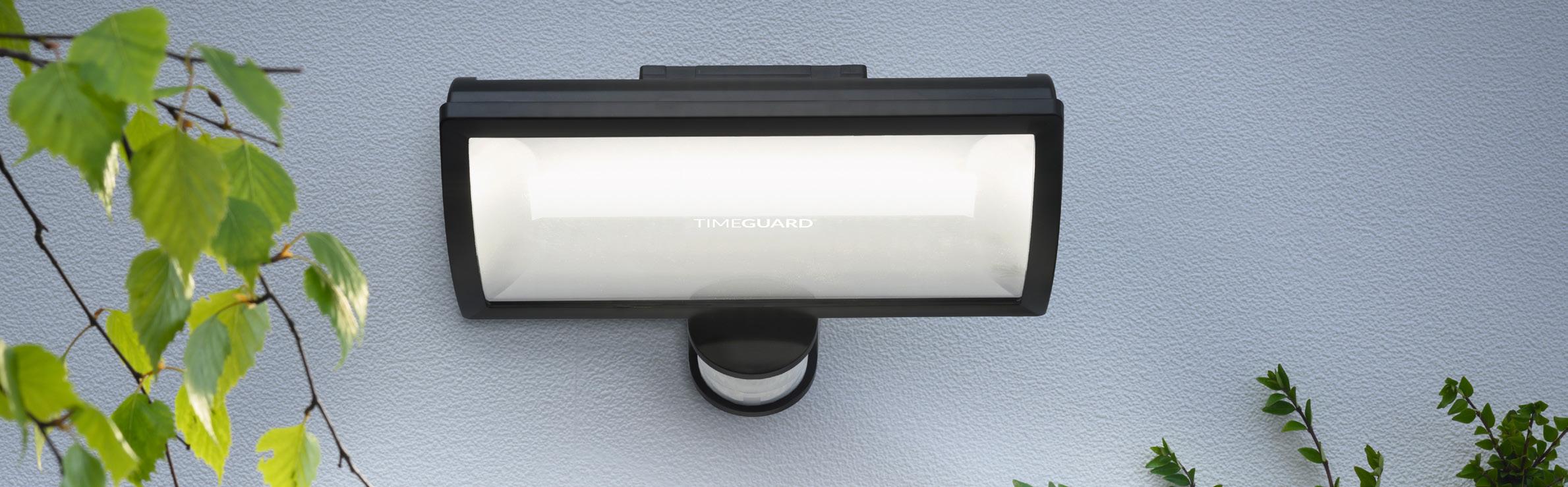

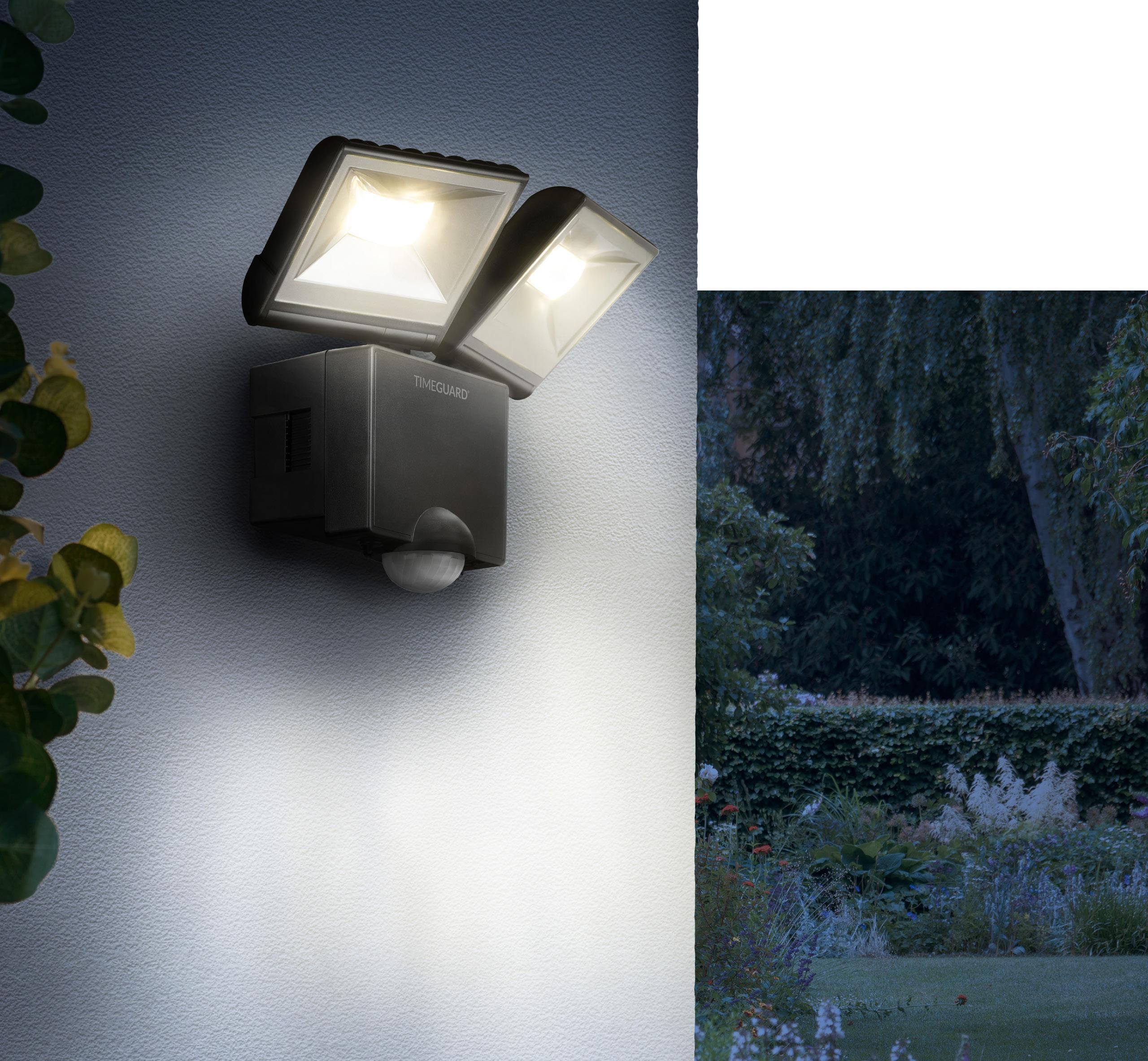

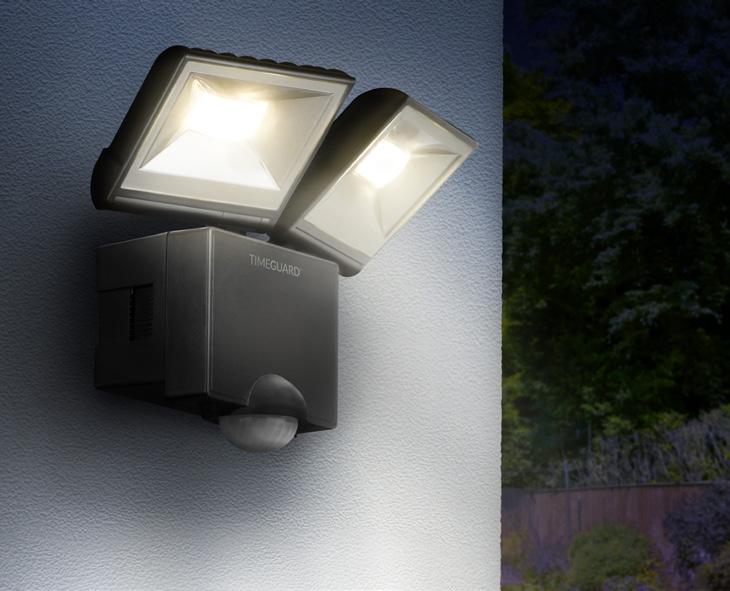

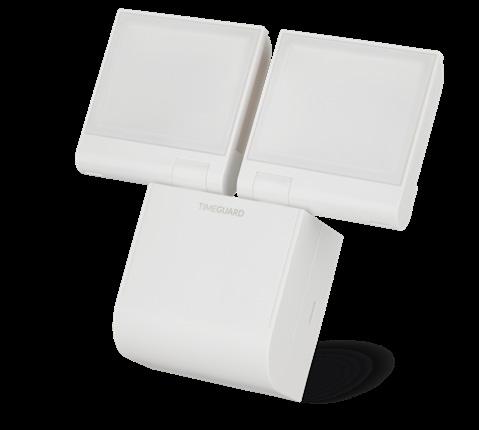

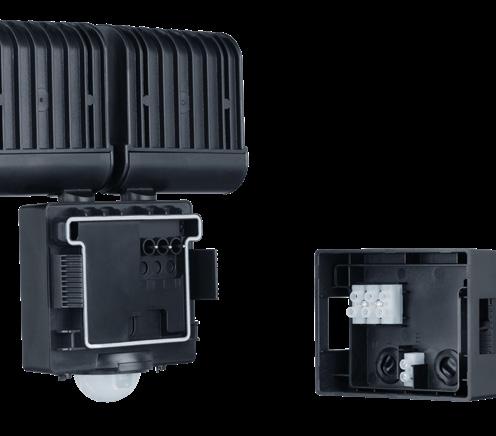

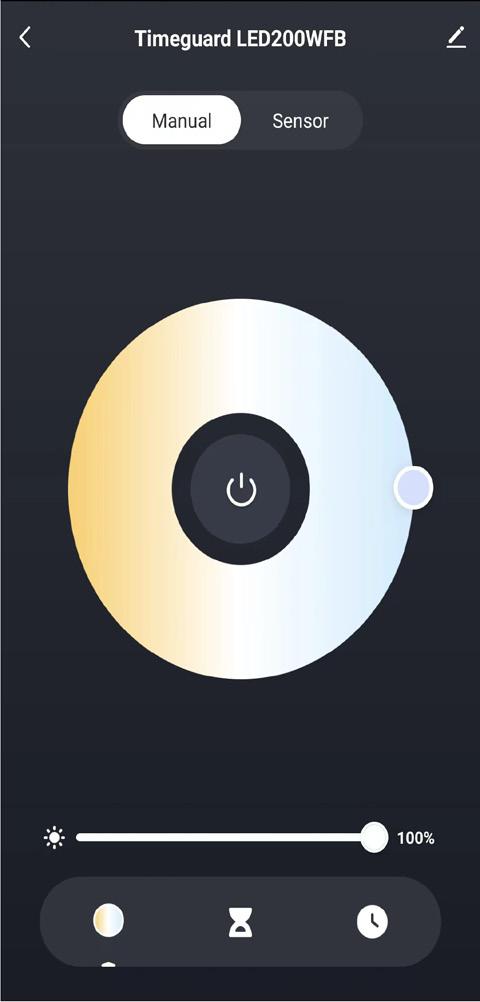

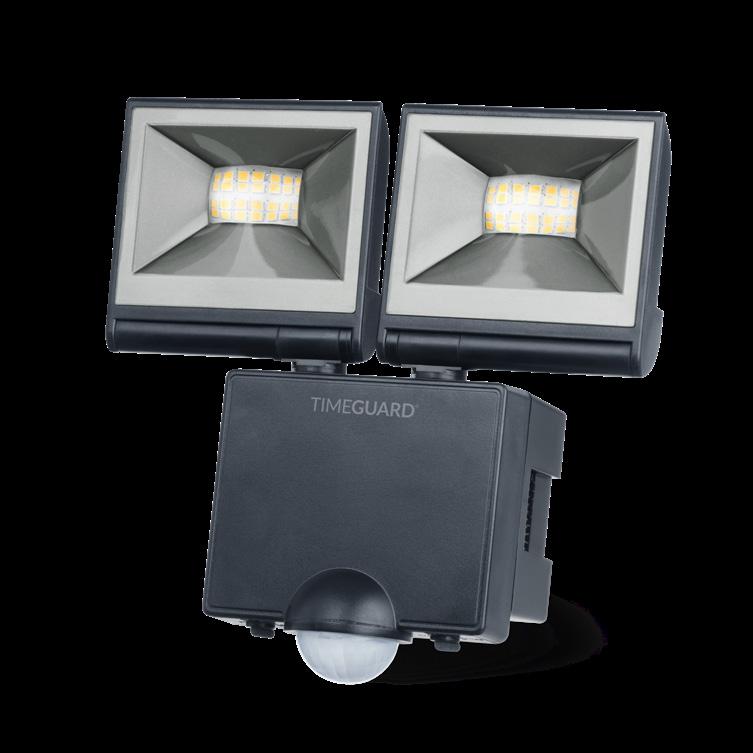

■ Powerful 2000 lumen (2x 10W) twin head, IP55 floodlight with 140° detection angle and 10m range

■ Hi-Lo dimming. Floodlight remains on at a dimmed level and illuminates to full brightness when PIR detects movement. Reverts back to dimmed level when detected movement ends

■ Remote adjustments for the lux, time delay, Hi-Lo dimming, brightness, motion and colour temperature settings direct from the Tuya Smart App

■ Indirect Load Activation: Other compatible Tuya Smart devices can be triggered when the PIR picks up someone in the detection area

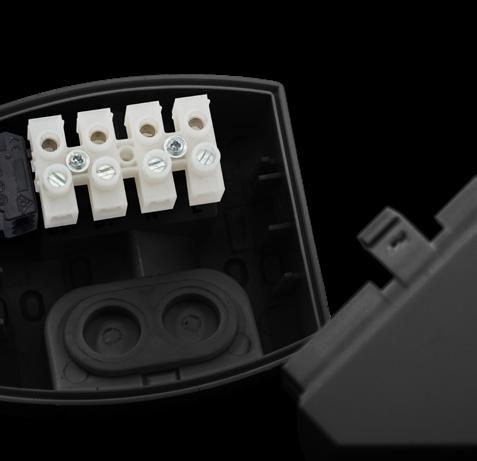

■ Simple, snap in wall plate with fast-fix pin terminal block for quick and easy installation

■ Independent Pan & Tilt light aiming adjustment

■ 3000K to 6500K Colour temperature adjustment

■ 5 Seconds - 60 Minute ON time adjustment

Time Section

and

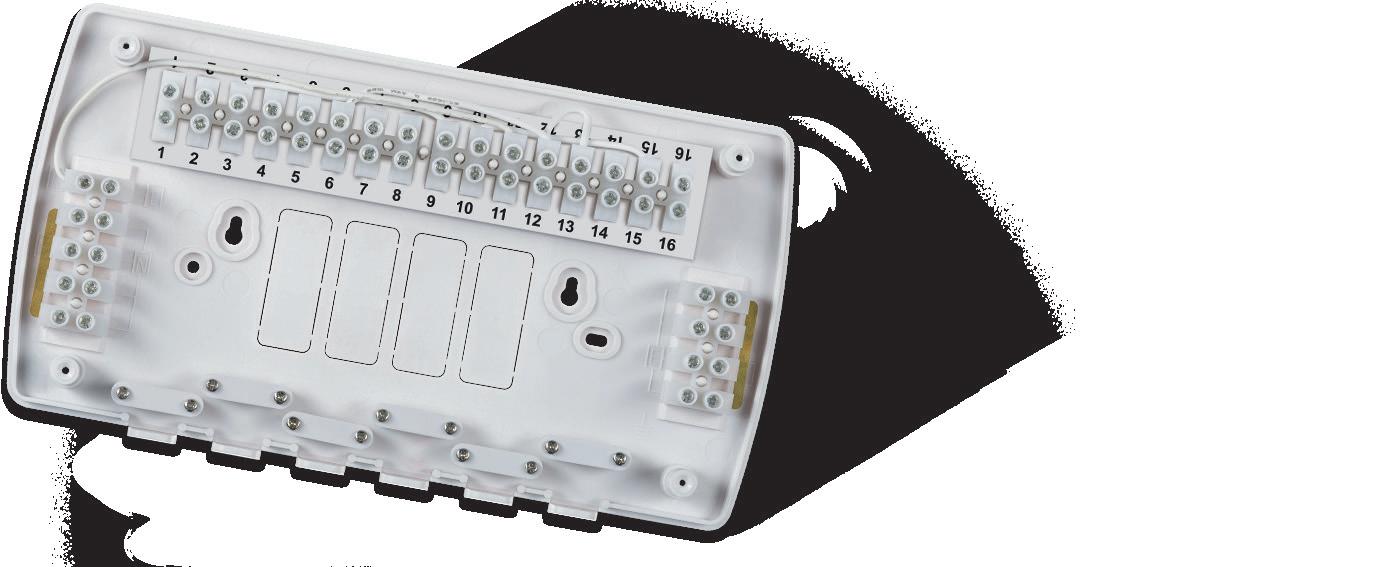

The NTTHD range allows for improved flexibility within your installation, supporting heavier loads of lighting, heating and other electrical appliances. The range is available in surface and OEM module form factors to provide a no-compromise “fit for purpose” installation.

Plug-in Time Controllers

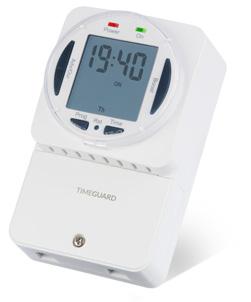

TS800N - 24 Hour Compact Plug-in Time Controller

Effective at controlling a number of convenience, security & economy based applications. Plugging straight into a wall socket, the unit will repeat the same switching patterns over each 24 hour period.

■ Plug-in control for 13 amp (3kW) appliances, filament lamps up to 400W, 100W low energy/ fluorescent and 60W LED lighting.

■ Switches appliances ON & OFF at pre-set times.

■ Easy to use setting pins.

■ 30 minute minimum switching interval which can be increased in 15 minute steps.

■ Up to 24 ON & OFF programs per day (additional pins required).

■ Manual override until next program change.

TG24 - 24 Hour Compact Plug-in Segment Time Controller

Easily set by its captive segment dial this time controller will automatically switch appliances ON & OFF at pre-set times over a 24 hour cycle, with a maximum of 96 ON & OFF programs per day.

■ Easy to use segment setting dial.

■ Plug-in control for 13 amp (3kW) appliances & filament lamps to 400W, 100W CFL and 60W LED lighting.

■ 15 minute minimum switching interval which can be increased in 15 minute steps.

■ Permanent ON override for instant control.

TG77 - 24 Hour/7 Day Compact Plug-in Electronic Timeswitch

Compact multi-functional digital timer with a total of 20 On/Off switching programs and a 24 hour countdown facility.

■ Plug-in control for 13 amp (3kW) appliances, filament lamps up to 400W, 100W low energy/ fluorescent and 60W LED lighting.

■ A total of 20 On/Off switching programs selectable over individual days and various combinations of days.

■ 24 hour LCD display for easy viewing.

■ Up to 24 hour countdown facility

■ Self-cancelling override and permanent On/Off facility.

■ Large 24 hour display for easy viewing.

■ Optional random delay to both start and finish of all programs.

■ Output ON indicator light.

Time Controllers

An unrivalled range of plug-in time controllers with a choice of both electro-mechanical timers in pin and segment dial versions or digital timers for improved accuracy and control.

All Timeguard plug-in timers are perfect for security, convenience and energy saving applications.

See pages 78 & 92 for product specifications. All these products carry a 3 year guarantee.

TS800N
TG24
TG77

Plug-in Time Controllers

ETU17N - 24 Hour/7 Day Slimline Digital Plug-in Time Controller

■ Top side display for ease of viewing when in use.

■ Up to 42 On/Off switchings per week can be used.

■ 7 On/Off programs over a choice of day groups or individual days.

■ Manual Override (Self-cancelling).

■ Optional random switching feature.

■ Rechargeable battery backup: Factory fitted (nonreplaceable) 1000 hours.

■ Switch Rating: 13A (3kW) resisitive, 6A Inductive.

■ 2500W Incandescent/Halogen, 500W Fluorescent/ Low Energy, 100W LED Lighting.

TGBT6 - Plug-in 2 Hour Electronic Boost Timer

The TGBT6 is a simple ‘ready to use’ solution for anything from warming up a room to regulating how long the kids spend on their games consoles. Simply press the button to increase the ON time for up to 2 hours.

■ Automatic timer countdown selection for up to 2 hours – 13A (3kW) loading.

■ Up to 4 ON times can be selected: ¼ hour, ½ hour, 1 hour and 2 hours.

■ Easy push button selection with clear LED output status.

TRT05 - Electronic Plug-in Thermostat with 24 Hour Time Control

The TRT05 is a plug-in electronic thermostat with an in-built 24 hour programable timer. It has 3 programable time periods and 4 operating modes including ON, OFF, Timed and Automatic. The set temperature range is between 0°C and 35°C, and is ideal for controlling radiant, convector and fan heaters as well as oil-filled radiators.

■ 3 ON/3 OFF easy-set programable time periods repeated over 24 hours.

■ Integral temperature sensor with 0°C – 35°C temperature range.

■ 1000 hours integral battery power reserve retains programs and allows out of socket programing.

■ Large LCD information screen.

■ Reset button restores to factory set default programs.

■ 13(2)A load rating, 3kW resistive, 400W filament, 2A inductive.

Maximum Versatility

Simple to use plug-in applications with energy saving benefits. A choice of styles and functionality to suit all applications with multiple timing choices backed by Timeguard’s quality assurance guarantees.

ETU17N

Immersion & General Purpose Timeswitches

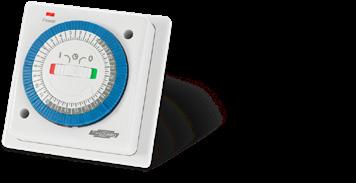

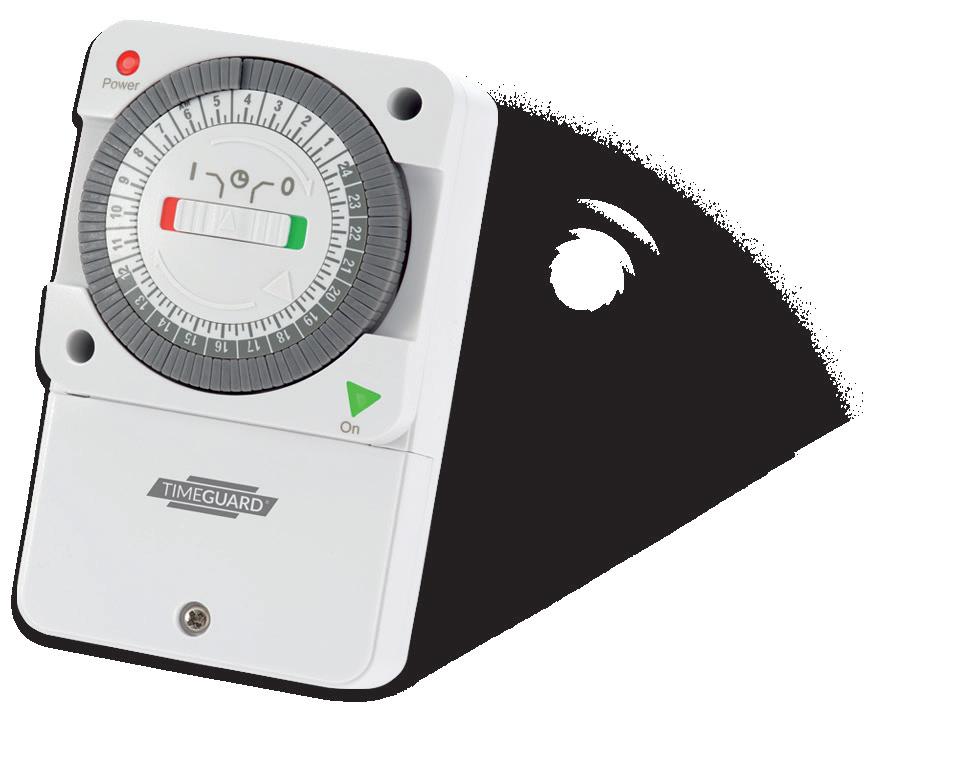

NTT01/NTT02 - 24 Hour Compact Immersion Heater Timeswitch

■ 16(6)A load rating.

■ 96 Quick-set Segments for up to 48 ON/48 OFF programs per 24 hours.

■ Red LED ‘Mains ON’ and green LED ‘Output’ indicators for easy viewing.

■ Special ‘Traffic Light’ slider switch for easy ON (green), Auto (green & red) and OFF (red) mode indication.

■ Switches ON & OFF at pre-set times.

■ Permanent On/Off control.

■ Fits a standard flush or surface mount box min. 32mm deep.

■ NTT02 Shares all the features of NTT01 with the addition of having voltage free contacts. NTT02 is suitable for general purpose applications.

NTT03/NTT04 - 24 Hour/7 Day Compact Electronic Immersion Heater Timeswitch

■ 16(4)A load rating.

■ 4 ON/4 OFF easy-set program periods per day, 28 ON/28 OFF programs per week.

■ Easy view screen with blue LED back lighting.

■ Red LED ‘Mains ON’ and green LED ‘Output’ indicators for easy viewing.

■ Self-cancelling override button to next program change.

■ Optional 1 & 2 hour boost function.

■ Automatic summer/winter changeover.

■ Fits a standard flush or surface mount box min. 32mm deep.

■ NTT04 shares all the features of NTT03 with the addition of having voltage free contacts. NTT04 is suitable for general purpose applications.

Product

NTT05 - 24 Hour Slimline General Purpose Timeswitch

■ 16(8)A load rating.

■ 96 quick-set segments for up to 48 ON/48 OFF programs.

■ Switches up to 750W incandescent or halogen lighting, 750W fluorescent lighting, 100W compact fluorescent lighting (CFLs). Not suitable for discharge lighting.

■ Red LED ‘Mains ON’ and green LED ‘Output’ indicators for easy viewing.

■ Special ‘Traffic Light’ slider switch for easy ON (green), Auto (green & red) and OFF (red) mode indication.

■ Easy to use captive segment dial.

■ Permanent On/Off control.

■ Voltage free contacts.

Product

Immersion & General Purpose Timeswitches Time

NTT06 (24 Hour Version)

■ 16(4)A load rating.

■ 4 ON/4 OFF programs per day. (Daily repeats).

■ Shortest switching time 1 minute.

■ Extra large ‘Easy View’ screen with blue LED back lighting.

NTT07 (7 Day Version)

■ Red LED ‘Mains ON’ and green LED ‘Output’ indicators for easy viewing.

■ Large easy push program buttons.

■ Self-cancelling override to next program change.

■ Optional 1 & 2 hour boost function.

■ Automatic summer/winter changeover.

■ Voltage free contacts.

■ NTT07 shares all the features of NTT06 with the addtion of having 28 ON/28 OFF easy-set program periods per week (7 day programing ).NTT04 is suitable for general purpose applications.

■ 16(4)A load rating.

■ Special ‘easy slide’ program cover to prevent accidental program changes.

■ 4 ON/4 OFF easy-set program periods per day, 28 ON/28 OFF programs per week.

■ Shortest switching time 1 minute.

■ Extra large ‘Easy View’ screen with blue LED backlighting.

■ Red LED ‘Mains ON’ and green LED ‘Output’ indicators for easy viewing.

■ Large easy push program buttons.

■ Self-cancelling override to next program change.

■ Optional 1 and 2 hour boost function.

■ Automatic summer/winter changeover.

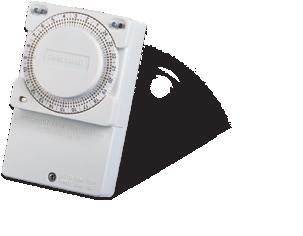

TS900N - 24 Hour Immersion Heater Time Controller

Immersion Heater Controllers

A range of hard-wired electro-mechanical and digital immersion heater time controllers for economical and convenient control of immersion heater systems.

Specially designed for installation with both new and existing immersion heater systems. Up to 24 ON & OFF programs (additional pins required) plus selfcancelling override for instant On/Off switching.

■ 13A (3kW) loading.

■ For total control of your hot water.

■ Switches ON & OFF at pre-set times.

■ Easy to use setting pins.

■ 30 minute minimum switching interval which can be increased in 15 minute steps.

■ Manual override until next program change.

■ Bottom or rear entry for cable.

Product Dimensions (NTT06/NTT07)

Height 120, Width 74, Depth 46mm

NTT08 - 7 Day Slimline Electronic Immersion Heater Timeswitch

Product Dimensions

All Timeguard immersion heater controllers are designed for installation with both new and existing systems for maximum versatility.

email sal e s.ce@deta.co.uk

Product Dimensions

Extra large ‘Easy View’ screen with blue LED backlighting. Special ‘Traffic Light’ slider switch for easy ON (green), AUTO (green & red) and OFF (red) mode indication. NTT06/NTT07 - Compact Immersion Heater Timeswitch

Height 120, Width 74, Depth 42mm

Height 92, Width 92, Depth 59mm

TS900N
NTT08

Fused Spur Timeswitches & Boost Timers

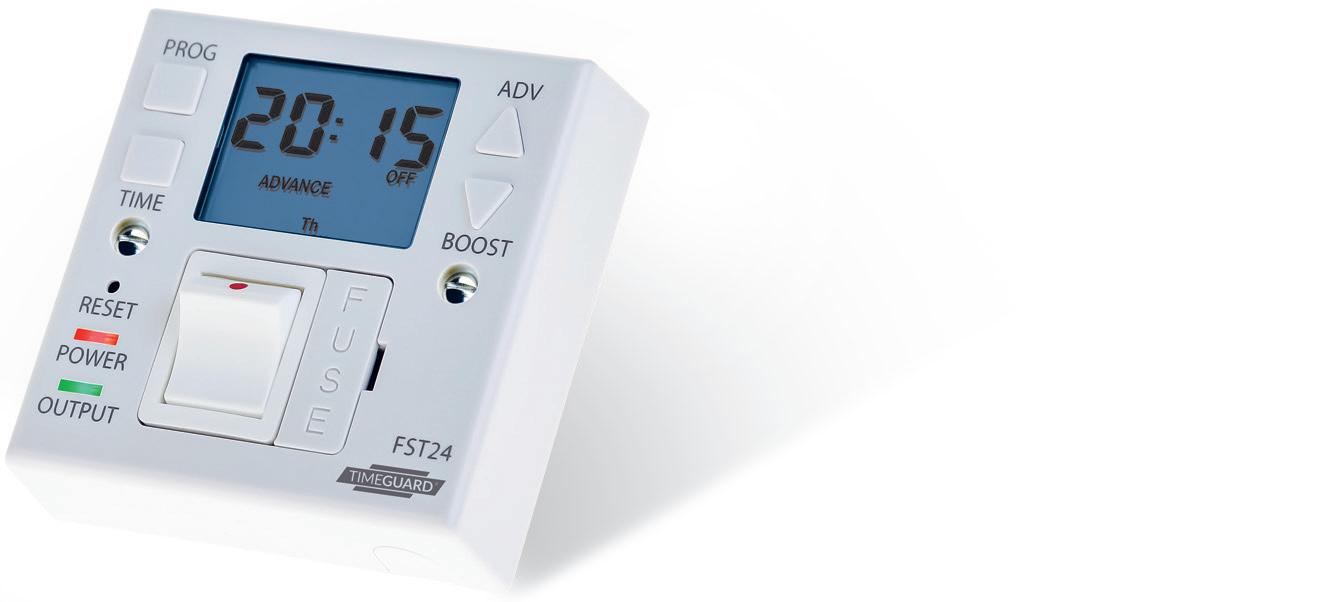

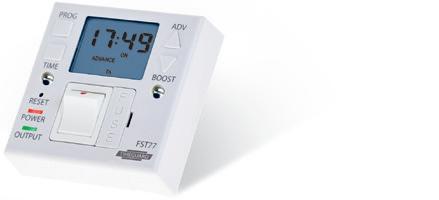

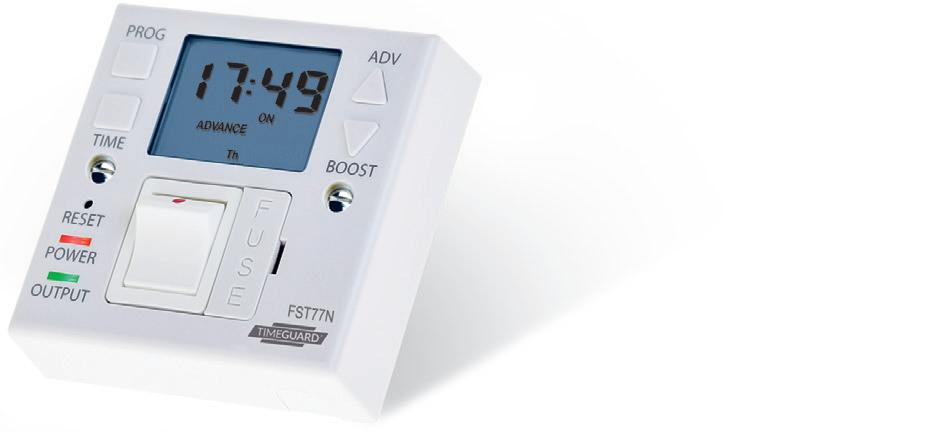

FST24/FST77N - Fused Spur Timeswitches

■ Up to 4 ON & OFF programs available daily (FST24)

■ Suitable for use with up to 3kW immersion heaters

■ Permanent OFF and timed outputs available

■ Easy view 24 hour digital clock/timer display

■ Optional 1 or 2 hour boost facility

■ Automatic summer/winter time changeover

■ Self-cancelling override

■ Shortest switching time 1 minute

■ Program advance and review options

■ BS1362 fuse replaceable from front

■ Double pole switch for ease of control

■ Integral memory back up battery retains programs in event of power failure

■ Ideal for replacing single gang connection unit or fixed appliance outlets

■ Fits a single gang wall box min. 25mm deep

■ FST77N shares all the features of FST24 with the addition of having 8 ON & OFF programs available daily, (5 day plus 2 or 7 day programs) giving up to 56 ON & OFF programs per week.The FST77N also has a 30, 60, 90 and 120 minute enhanced boost facility

Fused Spur Boost Timeswitches

Press that boost button for instant On/Off control and walk away knowing you’re saving energy and money! The SupplyMaster range has been ‘boosted’ and incorporates an optional 1 or 2 hour boost facility (30, 60, 90 & 120 minutes on the FST77N) and automatic summer/winter time changeover.

Product Dimensions (FST24/FST77) Height 85, Width 85, Depth 43mm

See page 79 for product specifications. All these products carry a 3 year guarantee.

FST24 (24 Hour Version)
FST77N (24 Hour/7 Day Version)

Fused Spur Timeswitches & Boost Timers

FST24SL/FST77SL - Fused Spur Timeswitches

■ Up to 4 ON & OFF programs available daily (FST24SL)

■ Suitable for use with up to 3kW immersion heaters

■ Permanent OFF and timed outputs available

FST24SL (24 Hour Version)

■ Easy view 24 hour digital clock/timer display

■ Optional 30, 60, 90 mins or 2 hour boost facility

■ Automatic summer/winter time changeover

■ Self-cancelling override

■ Shortest switching time 1 minute

■ Program advance and review options

■ BS1362 fuse replaceable from front

■ Integral memory back up battery retains programs in event of power failure

■ Ideal for replacing single gang connection unit or fixed appliance outlets

■ Fits a single gang wall box min. 25mm deep (spacer included)

FST77SL (24 Hour/7 Day Version)

■ FST77SL shares all the features of FST24SL with the addition of having 8 ON & OFF programs available daily, (5 day plus 2 or 7 day programs) giving up to 56 ON & OFF programs per week.The FST77SL also has a 30, 60, 90 and 120 minute enhanced boost facility

TGBD2/TGBD4 - Digital Boost Timer With Countdown Display

TGBD2 (2 Hour Version)

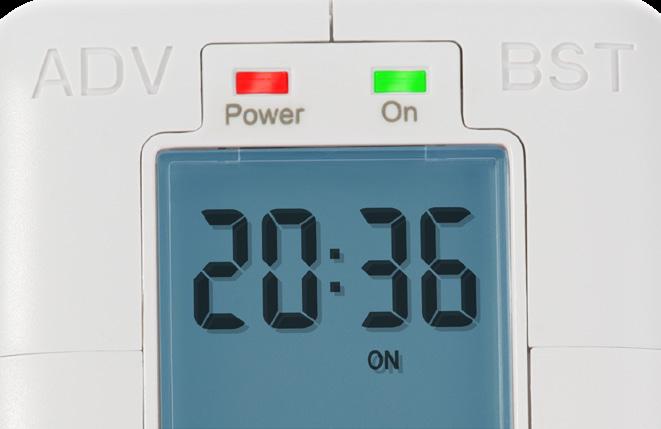

■ Large digital countdown/boost timer display with backlight display

■ Incremental Boost settings which countdown minute by minute

■ Switch rating 13A (3kW) Ideal for immersion heaters, room heaters, towel rails and lighting

■ Replaces existing single gang connection unit fixed appliance outlets

TGBD4 (4 Hour Version)

■ Fits into a 25mm back box

■ Backlight disabling facility

■ TGBD2 features a 15 minute incremental Boost option with a maximum Boost period of 2 hours

■ TGBD4 features a 30 minute incremental Boost option with a maximum Boost period of 4 hours

Product Dimensions (TGBD2) Height 85, Width 85, Depth 36mm

Product Dimensions (TGBD4) Height 85, Width 85, Depth 36mm

Fused Spur Timeswitches & Boost Timers

FBT4N - 4 Hour

Electronic Boost Timer and Fused Spur

■ Boost times: ¼ hour, ½ hour, 1, 2 and 4 hours

■ Automatic timer countdown selection for up to 4 hours – 13A (3kW) loading

■ Easy push button selection with clear LED output status

■ Replaces existing single gang connection unit or fixed appliance outlets

■ Provides timed output protected by a BS1362 fuse switch

■ Typical applications such as immersion heaters, room heaters, towel rails and lighting

■ Fits a standard flush or surface mount BS wall box min. 25mm deep

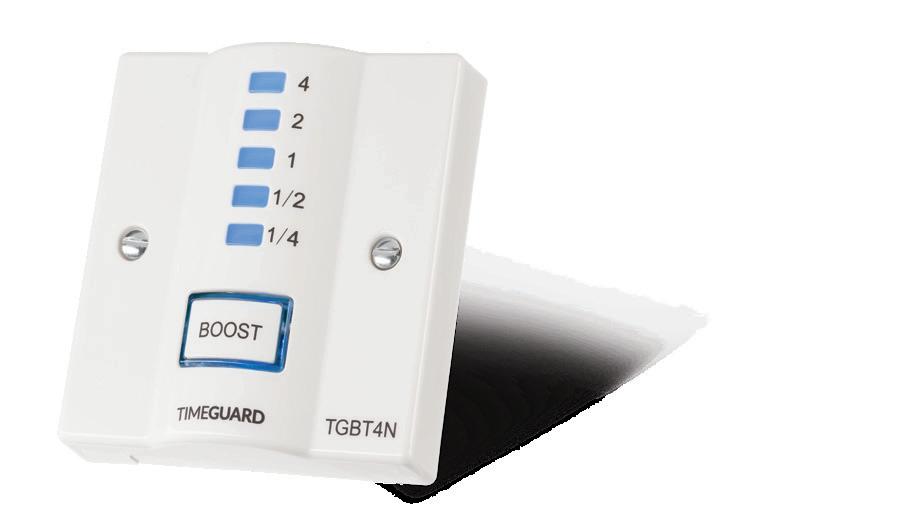

TGBT4N - 4 Hour Electronic Boost Timer

■ Automatic timer countdown selection for up to 4 hours – 13A (3kW) loading

■ Boost times: ¼ hour, ½ hour, 1, 2 and 4 hours

■ Typical applications such as immersionheaters, room heaters, towel rails and lighting

■ Easy push button selection with clear LED output status

■ Fits a standard flush or surface mount BS wall box min. 25mm deep

See page 81 for product specifications. All these products carry a 3 year guarantee.

Countdown to Control

Simply counts down the selected time period you set.

Up to five times can be selected: FBT4 ¼ hour, ½ hour, 1, 2 and 4 hours.

Ideal for immersion heaters, room heaters, heated mirrors, towel rails and lighting.

■ 20(8)A (4.6kW) loading

■ Voltage free changeover contacts

■ 8 ON/8 OFF easy-set programs per day. 56 ON, 56 OFF per week

■ Self cancelling override & boost options

■ Program suspension, loop and override to next program function

■ Red LED “Mains ON” & Green LED “Output” indicators for easy viewing

■ 1000 hours rechargeable memory back-up

■ Automatic Summer/ Winter changeover

Product Dimensions

Height 120, Width 74, Depth 53mm

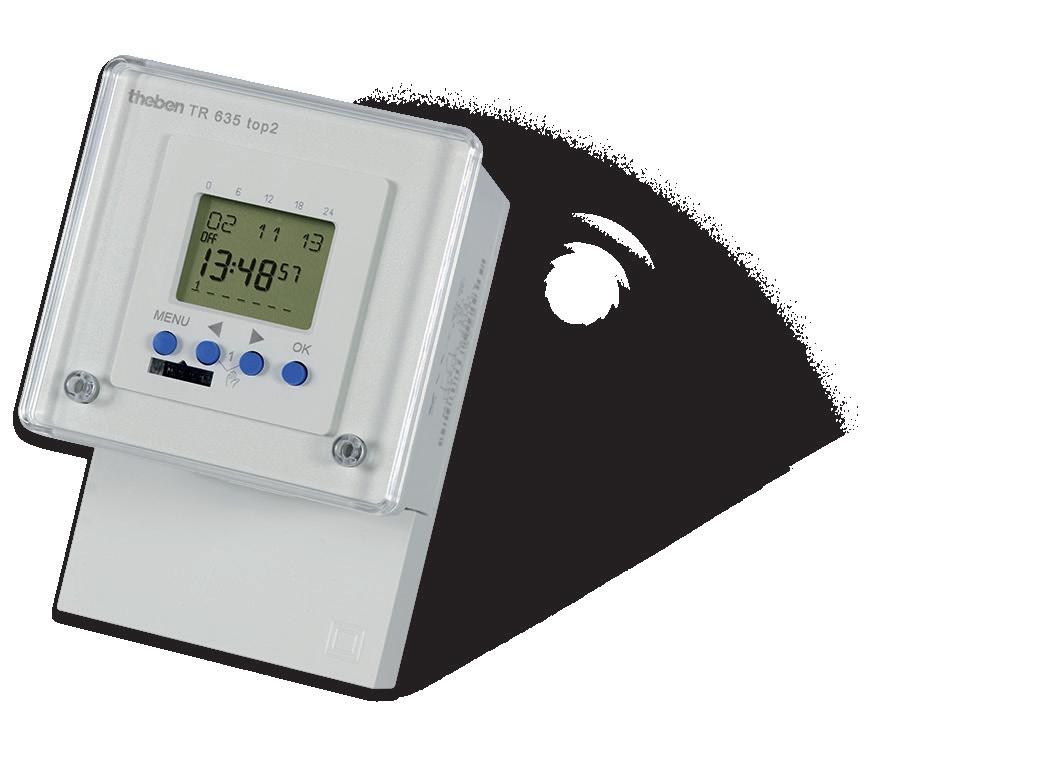

TR 635 top2 - 24 Hour/7 Day/Random/Pulse 16A Electronic Timeswitch

TR 635 top2

■ 16(10)A digital timeswitch with weekly program

■ Text-oriented user guidance in display

■ Pre-set date and time fully operable without mains connection with 84 memory locations

■ 10 year power reserve (lithium battery)

■ Pulse and cycle program

■ Permanent switching On/Off

■ Automatic summer/winter time changeover

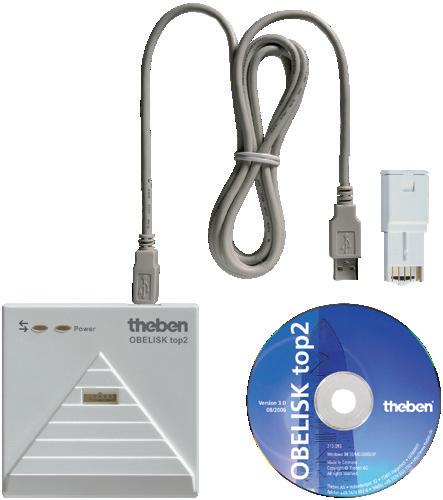

■ Interface for OBELISK top2 memory card (PC programing) with PIN coding

■ Controls LED lighting: <2W = 20W, 2-8W = 50W.

■ 72 x 72mm plug-in base surface mount

■ DIN rail adaptor available – Part No. 907.0.071

Product Dimensions

Height 105, Width 72, Depth 71mm

TR 636 top2 - 24 Hour/7 Day 2 Channel/Pulse 2x6A Electronic Timeswitch

■ Text-oriented user guidance in display

■ DIN rail adaptor available – Part No. 907.0.071 NTTHDS

See page 79 for product specifications.

■ 2x 6(6)A digital timeswitch with weekly program

■ Pre-set date and time fully operable without mains connection with 84 memory locations

■ 2 channels with a total of 21 On/Off programs per week allocated between them in any proportion

■ 10 year power reserve (lithium battery)

■ Pulse and cycle program

■ Permanent switching On/Off

■ Automatic summer/winter time changeover

■ Interface for OBELISK top2 memory card (PC programing) with PIN coding

■ Controls LED lighting: <2W = 20W, 2-8W = 50W

■ 72 x 72mm plug-in base surface mount

Product Dimensions

Height 105, Width 72, Depth 71mm

TR 636 top2

top3 & top2 DIN Rail Timeswitches

TR 610 top3/TR 612 top3 - 24 Hour/7 Day 2 Module Digital Timeswitches

■ 16A digital timeswitch (2x6A for TR 612 top3)

■ Programing by app

■ Safe transfer via the optional Bluetooth Low Energy OBELISK top3

■ Maximum manipulation security, timeswitch programs can only be transferred from the app to the timeswitch when the Bluetooth OBELISK top3 is plugged into the timeswitch

■ 100% compatible with top2

■ 1 channel (TR 610 top3). 2 channel (TR 612 top3)

■ DuoFix spring terminals

■ Text-oriented user guidance in display

■ Preset date and time fully operable without mains connection.

■ 56 memory locations

■ Interface for OBELISK top2 memory card (PC programing)

■ 10 year power reserve (lithium battery)

■ PIN coding

■ Surface mount kit – Part No. 907.0.064

■ TR 612 top3 shares all the features of TR 610 top3 with the addition of having x2 6A rated channels for switching vs a single 16A rated channel

TR 611 top3/TR 622 top3 - 24 Hour/ 7 Day 2 Module Digital Timeswitches with Pulse

■ 16(10)A digital timeswitch with weekly program

■ 1 channel (TR 611 top3). 2 channel (TR 622 top3)

■ Text-oriented user guidance in display

■ Pre-set date and time fully operable without mains connection

■ 84 memory locations

■ Programs stored in EEPROM for highest operational security

■ On/Off times may be repeated over a number of days without using extra memory locations

■ Permanent switching On/Off, Pulse, Random and Cycle switching modes

■ Switching pre-selection

■ Interface for OBELISK top2 memory card (PC programing)

■ Display backlight (can be turned off)

■ PIN coding

■ DuoFix spring terminals for 2 conductors each – wire diameter: 0.5 – 2.5mm²

■ 10 year power reserve (lithium battery)

■ Pulse, cycle and random switching modes

■ Surface mount kit – Part No. 907.0.064

■ TR 611 top3 shares all the features of TR 622 top3 with the addition of having 2 channels for switching a total of 16A vs a single 16A rated channel

See page 80 for product specifications.

top2 becomes top3

Highlights include convenient programing via the app, safe data transfer via the Bluetooth OBELISK top3, as well as LED output of 600W. At the same time, full compatibility with top2 devices is ensured.

Ideal for LEDs

Thanks to the redesigned zero-cross switching, you can keep the high inrush currents of LEDs firmly under control – top3 provides five times more LED output than top2 (max. 600W, 800A/200ms).

Due to the strict testing requirements in our in-house laboratory, our results often surpass industry standards. This quality standard is also confirmed by an external VDE test.

TR 610 top3
TR 611 top3
TR 612 top3
TR 622 top3

SELEKTA 170 top3/SELEKTA 172 top3 - 2 Module Astronomical Timeswitches

170 top3

■ 16(10)A astronomical timeswitch with weekly program

■ Supports programing by app or locally

■ Safe transfer via optional Bluetooth Low Energy OBELISK top3

172 top3

■ Maximum manipulation security, timeswitch programs can only be transferred from the app to the timeswitch when the Bluetooth OBELISK top3 is plugged into the timeswitch

■ 100% compatible with top2

■ 54 memory locations

■ Astronomical timeswitch function (automatic calculation of sunrise and sunset times for the whole year)

■ Offset for adjusting of sunrise and sunset times

■ Position data via coordinates or country/city lists can be programd

■ Fixed On/Off switching times can be programd (e.g. night-time interruption)

■ Simulation of switching times (calculated astronomical times and programd On/Off switching times)

■ Reversible astronomical mode (evenings ON – mornings OFF or evenings OFF – mornings ON) or can be deactivated

■ Zero-cross switching for relay-saving switching and high lamp loads

■ 10 year power reserve (lithium battery)

■ SELEKTA 172 top3 shares all the features of SELEKTA 172 top3 with the addition of having 2 channels for switching a total of 16(10)A vs a single 16(10)A rated channel

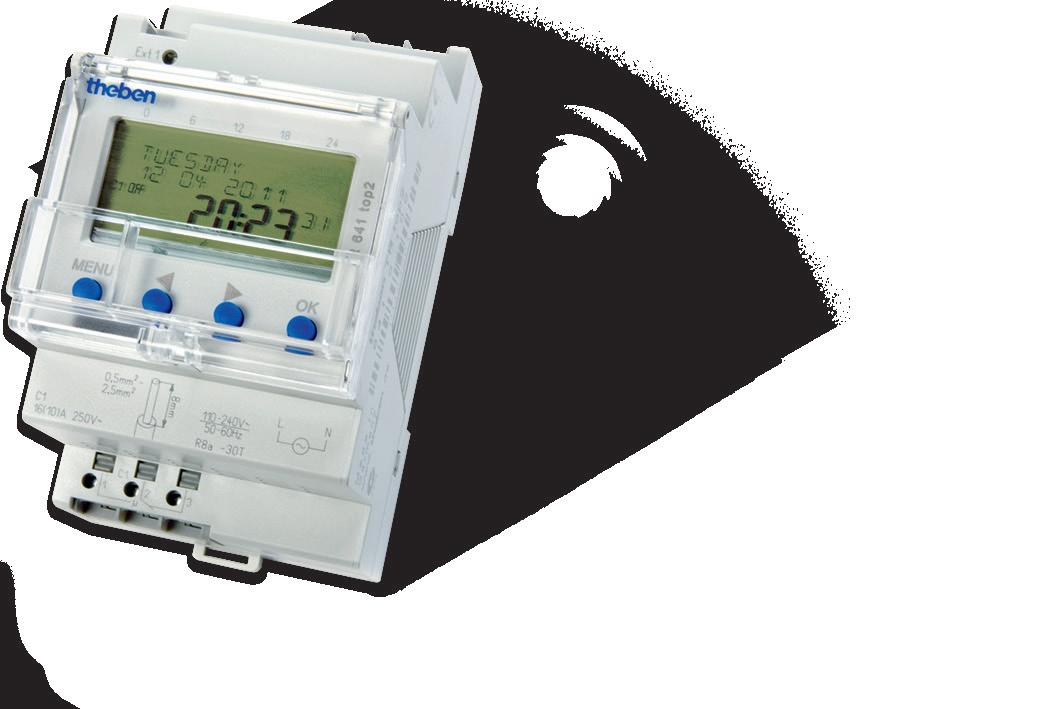

TR 641 top2/TR 644 top2 - 24 Hour/ 7 Day/Yearly 16A Digital Timeswitches

TR 641 top2 (3 Module)

■ 16(10)A 1 channel digital timeswitch with yearly and astronomical time programs (TR 641 top2 only)

■ 2x 16A plus 2x 10A 4 channel digital timeswitch with yearly and astronomical time programs (TR 644 top2 only).

■ Connectible sensors (external selector switch, sequence timer)

■ Connectible switches (ON or OFF permanent switching)

■ 800 memory locations

■ Pulse and cycle program

■ External control input

■ Basic weekly program and 14 different weekly programs with priority levels and date ranges

■ Program simulation on clock display

TR 644 top2 (4 Module)

■ Astronomical timeswitch function (automatic calculation of sunrise and sunset times for the whole year)

■ Zero-cross switching for relay-saving switching and high lamp loads

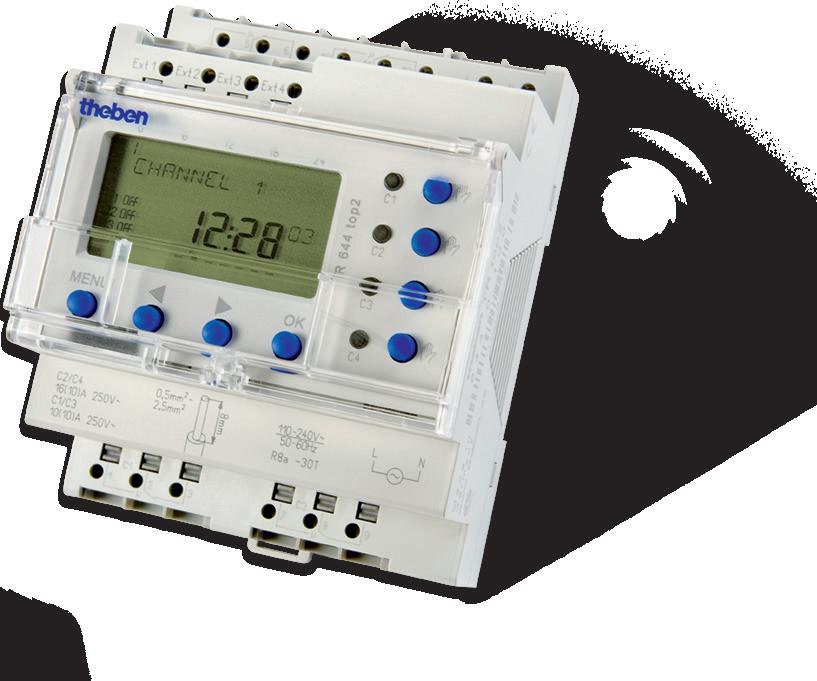

■ Offset for adjusting of sunrise and sunset times

■ Fixed On/Off switching times can be programd (e.g. night-time interruption)

■ PIN coding

■ Interface for OBELISK top2 memory card (PC programing)

■ Surface mount kit – Part No. 907.0.050

■ TR 644 top3 shares all the features of TR 641 top3 with the addition of having 4 channels for switching 2x 16A plus 2x 10A loads via the unit’s x4 channels. TR 644 top3 also has x4 external inputs vs TR 641 top2’s single external input

SELEKTA
SELEKTA

TR 608 top2 S - 24 Hour/7 Day 2 Module Digital Timeswitches

■ 16(4)A 1 channel digital timeswitch with weekly program

■ Text-oriented user guidance in display

■ 56 memory locations

■ On/Off switching times

■ Switching pre-selection

■ Automatic summer/winter time changeover

■ Override to next program change

■ Permanent On/Off control

■ Shortest switching time: 1 minute

■ Interface for OBELISK top2 memory card (PC programing)

■ PIN coding

■ Spring terminals

■ 10 year power reserve (lithium battery)

■ Surface mount kit – Part No. 907.0.065

SYN 160 a/SUL 180 a - 24 Hour 1 Module Segment Timeswitches

■ 16(4)A analogue timeswitch

■ 1 channel without power reserve. (SYN 160 a)

■ 1 channel with power reserve. (SUL 180 a)

■ Daily program

■ 96 switching segments – up to 48 ON & OFF programs per day

■ Shortest switching time: 15 minutes

■ Synchronised with mains

■ Manual switch with 3 positions: Permanent ON/AUTO/continuous OFF

■ Switching status display

■ Voltage free normally open contact

■ Standby consumption <0.9W

■ Surface mount kit – Part No. 907.0.065

■ SUL 180 a shares all the features of SYN 160 a with the addition of having a 72 hour power reserve via a rechargeable NiMH battery

See page 80 for product specifications.

Technical information and more products

For full technical details of each Theben product shown in this catalogue, please visit www.theben.de to download the catalogue or search by unique product code.

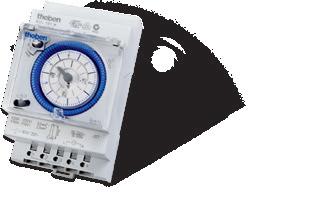

TR 608 top2 S
SYN 160 a (Without Power Reserve)
SUL 180 a (With Power Reserve)

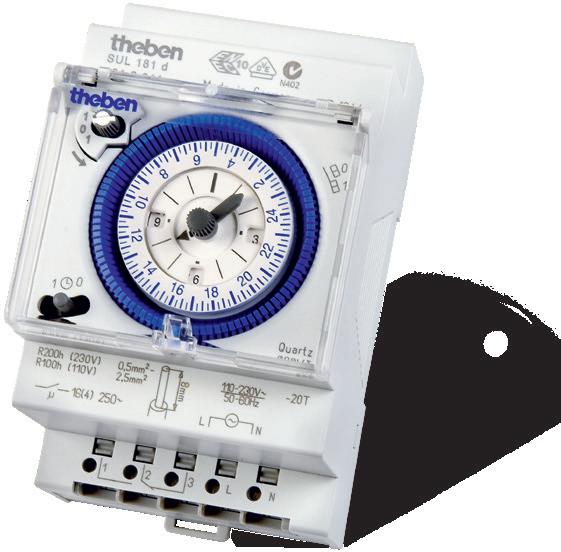

SYN 161 d/ SUL 181 d - 24 Hour 3 Module Segment Timeswitches

■ 16(4)A 1 channel analogue timeswitch

■ Daily programing (24 hour)

■ 96 switching segments – up to 48 ON & OFF programs per day

■ Shortest switching time: 15 minutes

■ Synchonised with mains

■ Manual switch with 3 positions: Continuous ON/AUTO/continuous OFF

■ Clock hands for time display and in addition 12/24 hour recognition

■ Simple summer/winter time correction

■ Time can be changed clockwise or anti-clockwise

■ DuoFix spring terminals for 2 conductors each – wire diameter: 0.5 – 2.5mm²

■ Surface mount kit – Part No. 907.0.050

■ SUL 181 d shares all the features of SYN 161 d with the addition of having a 200 hour power reserve via a rechargeable NiMH battery. The SUL 181 d also features quartz control

SUL 191 w - 7 Day Segment Timeswitch with Power Reserve

■ 16(4)A 1 channel analogue timeswitch

■ Weekly program

■ 84 switching segments – up to 42 ON & OFF programs per week

■ Shortest switching time: 2 hours

■ Quartz controlled

■ Clock hands for time display and in addition 12/24 hour recognition

■ Simple summer/winter time correction

■ Time can be changed clockwise or anti-clockwise

■ Manual switch with 3 positions: Continuous ON/AUTO/continuous OFF

■ DuoFix spring terminals for 2 conductors each – wire diameter: 0.5 – 2.5mm²

■ 200 hour power reserve – NiMH rechargeable battery

■ Surface mount kit – Part No. 907.0.050

ELPA 8 - Electro-Mechanical Staircase Switch

Time Switches

A 17.5mm (1 module) wide 16(10)A delay timeswitch for staircase lighting. The ON time is adjustable from 1 to 7 minutes in 15 second steps. Can switch up to 2300W of incandescent or 1300VA fluorescent lighting. Permanent ON switch

■ 16(10)A staircase switch, electro-mechanical

■ 4 conductor with floor lighting connection (3 conductor without floor lighting)

■ Retriggerable

■ Adjustable from 1 to 7 minutes in 15 second steps

■ Toggle switch for permanent lights ON

■ Reliable with synchronous motor drive

■ Precision mechanics and therefore exact switching period

■ Can switch up to 2300W of incandescent, 1300VA fluorescent lighting

■ Surface mount kit – Part No. 907.0.065

Ideal solutions for controlled switching of street lighting, display window lighting and advertising lighting. Additionally, Time Switches are useful solutions for lighting in public buildings, car parks as well as school bells and ventilation systems.

SYN 161 d (Without Power Reserve)
SUL 181 d (With Power Reserve)
SUL 191 w
ELPA 8

Twilight Switches Time

LUNA 108 Plus - 1 Module Twilight Switch Single Channel

A 17.5mm (1 module) wide 16(10)A twilight switch for controlling street light facilities, external stairways, shop windows etc. Available in flush or surface mount light sensor variations. LUNA 108 Plus EL (Flush mount sensor). LUNA 108 Plus AL (Surface mount sensor).

■ Space saving (single module) installation

■ 16(10)A analogue twilight switch

■ 2 to 100 LUX adjustable range

■ 20/80 second (On/Off) built-in delay prevents nuisance switching

■ Green LED shows switching status

■ Red LED shows light sensor status

■ Switches up to 2300W of filament lighting, 400VA of fluorescent lighting

■ Surface mount kit – Part No. 907.0.065

■ Surface mount light sensor (spare). Part No. 907.0.008

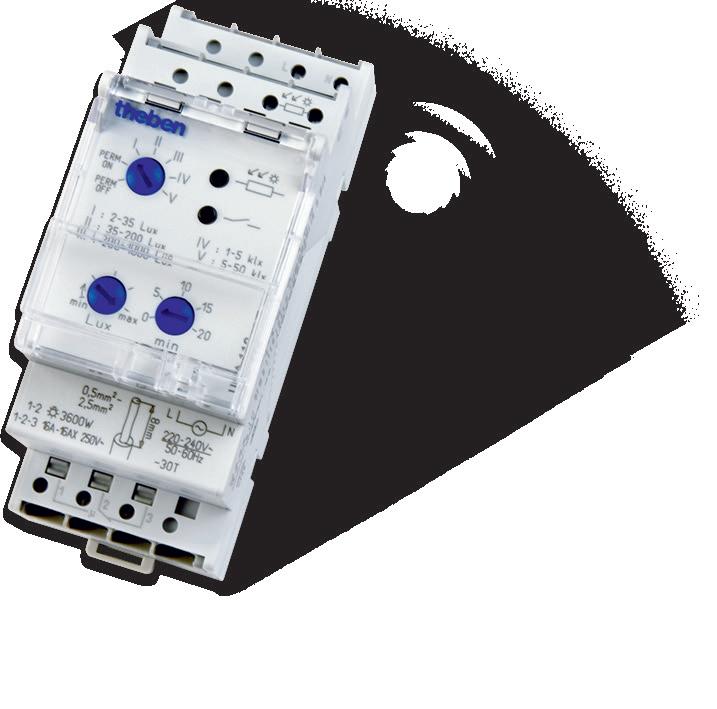

LUNA 110 Plus - 2 Module Twilight Switch Single Channel

A 35mm (2 module) wide switch which comes with an external surface mount light sensor. Available in flush or surface mount light sensor variations. LUNA 110 Plus EL (Flush mount sensor). LUNA 110 Plus AL (Surface mount sensor).

■ 16(10)A light sensor switching capacity (zero point)

■ Five adjustable brightness levels from 2 to 50000 LUX for simple setting of LUX level

Range 1: 2 to 35 LUX;

Range 2: 35 to 200 LUX;

Range 3: 200 to 1000 LUX;

Range 4: 1000 to 5000 LUX;

Range 5: 5000 to 50000 LUX

■ Permanent On/Off control

■ Adjustable delay (0 to 20 minutes) prevents nuisance switching

■ Green LED shows switching status

■ Red LED shows light sensor status

■ Test function

■ DuoFix spring terminals for 2 conductors each

■ Surface mount kit – Part No. 907.0.064

■ Surface mount light sensor (spare). Part No. 907.0.416

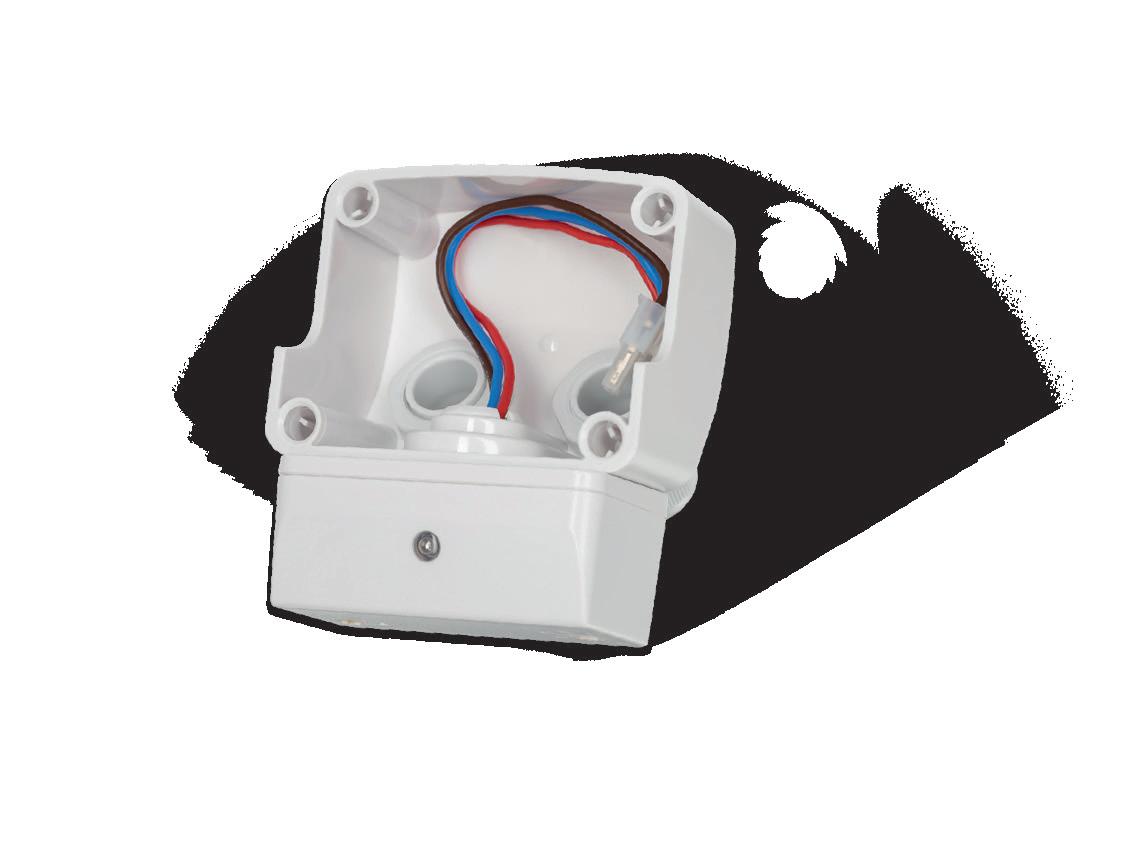

Light Sensors

Suitable for use with the LUNA range of DIN Rail Twilight Switches

There are four light sensors available for the LUNA top3 range, analogue and digital, flush and surface mounting.

907.0.416 Surface Mount – Analogue Sensor.

907.0.415 Surface Mount – Digital Sensor.

907.0.011 Flush Mount – Analogue Sensor.

907.0.456 Flush Mount – Digital Sensor.

Twilight Switches

A twilight switch provides fully automatic control of lighting systems. Supplied with pre-set LUX values and details of current light levels from light sensitive sensors, the twilight switch turns connected lighting ON as soon as it gets dark and OFF again when it becomes light enough.

Ideal for controlled switching of street lighting, display window lighting or advertising lighting or controlling lights in and around public buildings and car parks.

LUNA 108 Plus
LUNA 110 Plus

Twilight Switches Time

LUNA 111 top3 - 2 Module Twilight Switch Single Channel

A 35mm (2 module) wide switch with a digital brightness range selectable between 2 to 99000 LUX. Available in flush or surface mount light sensor variations.

LUNA 111 top3 EL (Flush mount sensor). LUNA 111 top3 AL (Surface mount sensor).

■ 16(10)A light sensor switching capacity (zero point)

■ Digital brightness range from 1 to 99000 LUX

■ Digital switching delay adjustable from 0 to 59 minutes

■ Different settings for ON and OFF switching (different LUX values and different delay times)

■ External input with multiple functions

■ Can be connected to up to 4 digital sensors

■ Up to 10 Luna 111 top2 switches can be connected to one digital sensor

■ Programable via Obelisk top2 memory card Part No. 907.0.404 (not included)

■ LCD backlight

■ DuoFix spring terminals for 2 conductors each

■ PIN coding

■ 10 year power reserve

■ Surface mount kit – Part No. 907.0.064

LUNA 112 top3 - 3 Module Twilight Switch 2 Channel

Shares all the features and benefits of the LUNA 111 top3 plus two channel operation. Available in flush or surface mount light sensor variations.

LUNA 112 top3 EL (Flush mount sensor). LUNA 112 top3 AL (Surface mount sensor).

■ 16(10)A light sensor switching capacity (zero point)

■ Digital brightness range from 1 to 99000 LUX

■ Different settings for ON and OFF switching (different LUX values and different delay times)

■ 2x external input with multiple functions

■ Can be connected to up to 4 digital sensors

■ Up to 10 Luna 112 top2 switches can be connected to one digital sensor

■ 10 year power reserve

■ Surface mount kit – Part No. 907.0.050

Application Options

Twilight switches provide fully automatic control of lighting systems. Supplied with pre-set LUX values and current light levels via sensors they are ideal for security lighting, advertising hoardings, neon signs and internal staircases etc.

3 2 1 See page 80 for product specifications.

LUNA 111 top 3
LUNA 112 top 3

OEM Modules

NTM02 - 24 Hour/7 Day Compact Digital Module

■ 16(4)A load rating

■ 4 ON /4 OFF easy-set program periods per day, 28 ON/28 OFF programs per week

■ Shortest switching time 1 minute

■ Extra large ‘Easy View’ screen with Blue LED backlighting

■ Red LED ‘Mains ON’ and green LED ‘Output’ indicators for easy viewing

■ Self-cancelling override button to next program change

■ Optional 1 and 2 hour boost function

■ Automatic summer/winter time changeover

OEM for the Win!

Timeguard’s OEM timers are suitable for controlling various electrical circuits for scheduling specific actions or events at predetermined times. These modules can help in managing energy consumption on applications where energy conservation is of great importance, for instance lighting systems, HVAC (heating, ventilation and air conditioning) units.

Suitable for domestic, industrial and commercial applications, ensure you check technical load ratings of the timer module before operation.

For detailed product specifications visit: www.timeguard.com

Light Section

Timeguard offers a range of high quality, economical outdoor lighting solutions and PIR controllers that are specifically designed to help you save energy while providing security and convenience.

Introducing the PDRS1500N & PDFM1500N 360° PIR controllers, the perfect solution for protecting your home or business. This easy to install PIR detects presence and motion, alerting the user to any unexpected movement. These PIRs stand as the perfect option for both residential and commercial properties, thanks to its impressive 600W LED rating.

SLW360N/SLFM360N

- 360

°

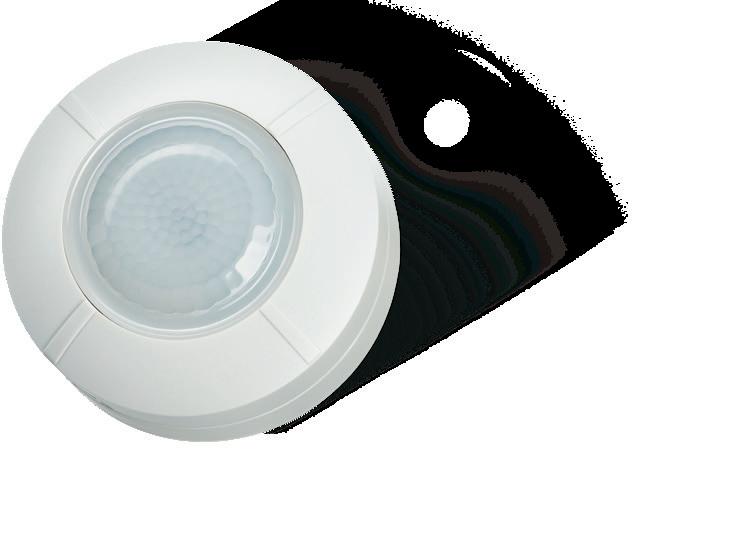

SLW360N (Surface)

Ceiling PIR Presence Detectors

Ideal for energy saving installations in the workplace, corridors, offices, toilets etc.

■ Slimline sensor head design

■ 360° area of detection with up to an 8m detection range for motion and 4m for presence detection at a 3m mounting height

■ IP44 Ingress protection (internal use only)

■ Manual override

■ Adjustable time setting: 3 seconds – 18 minutes

(Flush)

PDRS1500N/PDFM1500N

PDRS1500N (Surface)

■ Adjustable 1 – 1000 LUX setting

■ Total PIR switching – 2000W halogen, 500W fluorescent, 500W LED lighting, 75W fan

■ 75mm diameter ceiling cut-out. (SLFM360N only)

■ SLFM360N Shares all the features of SLW360N with the key difference of being a flush mounted PIR presence detector

Product Dimensions (SLW360N)

Height 105, Width 105, Depth 45mm

Product Dimensions (SLFM360N)

Height 90, Width 90, Depth 60mm

- 360° Surface Mount Ceiling PIR

■ Up to 2000W loading for incandescent, halogen, 600W fluorescent, 150W CFL (Low-loss or electronic ballast), 600W LED or 250W fan

■ Enhanced 360° detection zone with sensitivity adjustment for optimum coverage

■ Switches lights ON when presence and motion are detected in combination with light levels (LUX adjustment) pre-set by user

(Flush)

■ Up to 12m detection range for motion and 6m for presence detection at 3m mounting height

■ User-friendly adjustment for:

■ Time ON: 1 to 30 minutes

■ Light Level: 2 to 2000 LUX

■ Sensitivity adjustment

■ Units can be wired in parallel (not exceeding total load)

■ IP55 Ingress protection rating. (PDRS1500N only)

■ Besa Box Mountable. (PDRS1500N only)

Product Dimensions (PDRS1500N)

Height 103, Width 103, Depth 46mm

■ Requires a 66mm diameter installation hole cut out. (PDFM1500N only)

■ PDFM1500N Shares all the features of PDRS1500N with the key differentiators of being a flush mounted PIR presence detector and having a IP44 ingress protection rating.

Timeguard have a sense for PIRfect detection!

Sensitivity control on the PDRS1500N & PDFM1500N is a welcome addition to the existing range of ceiling PIRs, now with an even flatter lens for that bespoke discreet look homeowners are looking for in their lighting controls. They also boast a respectful 600W capacity for LED loading, making these surface and flush models ideal for commercial grade LED lighting as well as supporting parallel switching for extensive staircase, office room and corridor support for ultimate flexibility on your installation.

Product Dimensions (PDFM1500N)

Height 103, Width 103, Depth 73mm

SLW360N/SLFM360N detection range and coverage.
SLW360N ONLY

Enhanced PIR Presence Detectors

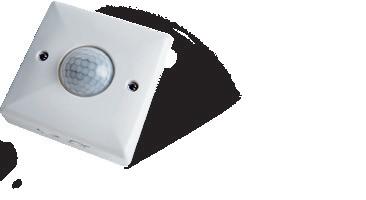

Mount PIR Presence Detectors

■ Up to 1500W loading (6A) for incandescent, halogen, fluorescent and inductive lighting or 250W (1A) fan, 420W LED

■ Enhanced detection zone for optimum coverage

■ Switches lights ON when presence is detected and to light level (LUX ) settings

■ Up to 10m detection range for motion and 3m for presence detection at 3m mounting height

(Wall Mount)

■ User-friendly adjustment for:

■ Time ON: 1 to 30 minutes

■ Light Level: 5 to 1000 LUX

■ Units can be wired in parallel (not exceeding total load)

■ Can also be mounted on a standard BS surface or flush mount box

■ IP55 Ingress protection (internal use only)

■ PDWM1500 Shares all the features of PDSM1500 with the key differentiators of being a wall mounted PIR presence detector with side on coverage for corridors, hallways and staircases etc. The detection zone is 120° and has a 1.8m mounting height

Product Dimensions (PDSM1500)

Height 86, Width 86, Depth 53mm

Product Dimensions (PDWM1500)

Height 86, Width 86, Depth 50mm

00 dete ctio n rang e an d cove ra ge

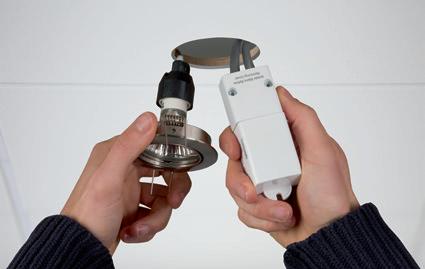

- 360 ° Round (Microwave) Ceiling Presence Detector - Flush Mount

■ High frequency technology for instant reaction

■ Up to 1000W loading for incandescent, 440VA fluorescent, energy saving lamps and 100W LED

■ Enhanced 360° detection zone for optimum coverage

■ Up to 7m diameter detection range (3.5m radius) for motion detection at 3m mounting height

■ HF detects around partitions and through glass, doors and walls

■ User-friendly adjustment for:

■ Time ON: 30 seconds to 30 minutes

■ Light Level: 5 to 1000 LUX

■ Requires a 64mm diameter cut out

■ Not suitable for discharge lighting

■ IP20 Ingress protection (internal use only)

Product Dimensions: Sensor

Height 89.5, Width 89.5, Depth 41mm

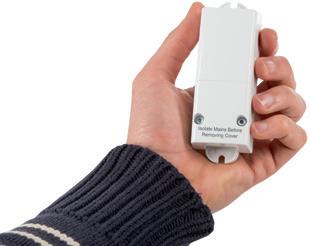

Product Dimensions: Power Box

Height 25, Width 123, Depth 36mm

HF2R
PDSM1500 (Ceiling Mount)
PDWM1500

PIR Absence Detectors

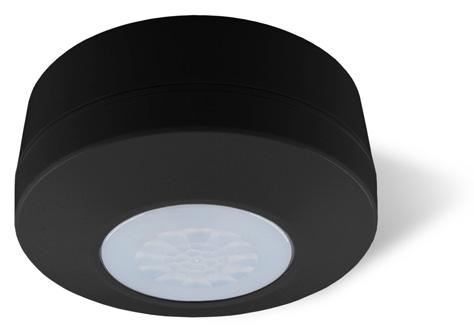

PDSM361ABBLK/PDSM361AB - 360 ° Single Channel PIR Presence/Absence Detectors

PDSM361ABBLK (Black Version)

Ideal for energy saving installations in the workplace, corridors, offices, toilets etc.

■ Presence or Absence detection designed for the automatic control of lighting,heating, ventilation and air conditioning installations

■ Optional IR remote control for remote set-up and adjustment (sold separately)

PDSM361AB (White Version)

See page 81 for product specifications.

PDFM361AB/PDFM362AB

PDFM361AB (Single Channel)

■ Option for manual push button operation

■ Multi sensor parallel wiring capability

■ 360° area of detection using discreet flat PIR lens technology (Lens mask included)

■ IP54 rated, ideal for multi storey carparks

■ Adjustable time delay and lux settings with sensitivity control via remote control

Product Dimensions (PDSM361AB)

Height 105, Width 105, Depth 48mm

Product Dimensions (PDSM361ABBLK)

Height 105, Width 105, Depth 48mm

- 360 ° PIR Presence/Absence Detectors

■ Presence or Absence detection designed for the automatic control of lighting,heating, ventilation and air conditioning installations

■ Optional IR remote control for remote set-up and adjustment (sold separately)

■ Option for manual push button operation

■ Multi sensor parallel wiring capability

PDFM362AB (2 Channel)

See page 81 for product specifications.

■ Up to 600W LED load for commercial lighting installation

■ 360° area of detection using discreet flat PIR lens technology (Lens mask included)

■ IP20 rated flush version, ideal for commercial multi storey carparks

■ Adjustable time delay and lux settings with sensitivity control via remote control

■ PDFM361AB Shares all the features of PDFM362AB with the key differentiators of being a 2 channel PIR for use with both lighting and HVAC controls

■ The PDFM362AB can be converted to a 2 channel surface PIR via the PDSMSB surface mount box with besa box mounting support

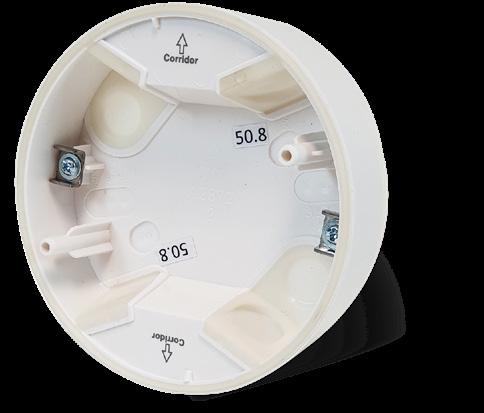

PDSMSB

IP55 Surface Mount Box With Besa Box Mounting Support

■ Spare surface mount box for PDSM361AB. Flush to surface conversion for PDFM361AB & PDFM362AB

Product Dimensions (PDFM361AB)

Height 105, Width 105, Depth 67mm

Product Dimensions (PDFM362AB)

Height 105, Width 105, Depth 67mm

IR10AB

Absence Detector Remote Control

■ For use with PIR PDSM361AB and PDFM361/362AB Range Presence/ Absence Detectors

PIR Presence Detectors Light 27

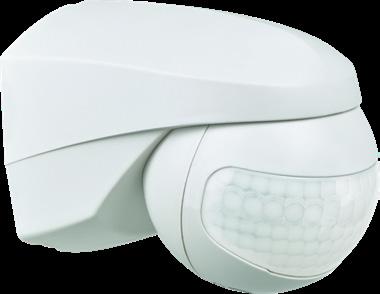

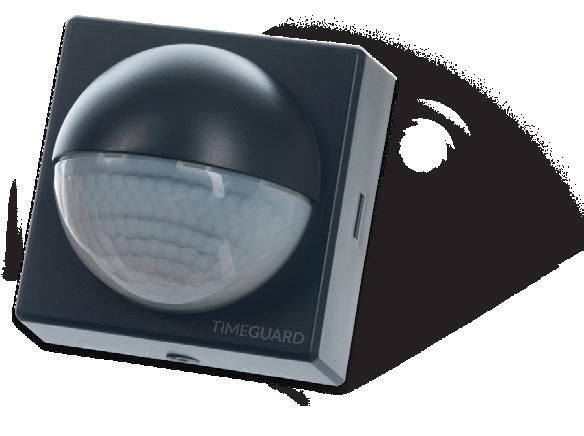

theLuxa S150 BK/theLuxa S150 WH - IP55 Outdoor 150 ° Motion Detectors

■ 150° detection, range up to 12m at 2.5m mounting height

■ Additional creep-under protection

■ Sensor head can be turned by ±90° horizontally and 30° downward

■ Timer adjustment – from 1 second to 20 minutes

■ LUX adjustment – from 5 to 1000 LUX

■ Total switching: 2300W incandescent/halogen, 400W fluorescent, 150W low energy plus 90W LED

■ Pulse function

■ IP55 weatherproof rating

■ White version – Part No. theLuxa S150 WH

■ Black version – Part No. theLuxa S150 BK

theLuxa S150 detection range and coverage.

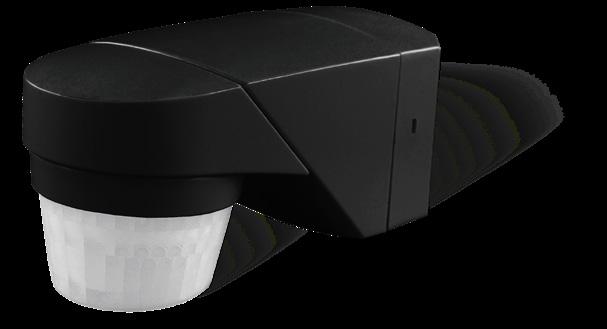

theLuxa S180 BK/theLuxa S180 WH - IP55 Outdoor 180 ° Motion Detectors

■ 180° detection, range up to 12m at 2.5m mounting height

theLuxa

S360 IP55 Outdoor 360° Motion Detectors

■ Additional creep-under protection

■ Sensor head can be turned by ±90° horizontally and 30° downward

■ Timer adjustment – from 1 second to 20 minutes

■ LUX adjustment – from 5 to 1000 LUX

■ Total switching: 2300W incandescent/halogen, 400W fluorescent, 150W low energy plus 500W LED

■ Pulse function

■ IP55 weatherproof rating

■ White version – Part No. theLuxa S180 WH

■ Black version – Part No. theLuxa S180 BK

theMova S360-100 DE WH

PIR Presence DetectorFlush Mount

theLuxa S360 BK (White Version Availaible)

■ theLuxa S360 shares all the features of theLuxa S180 with the addition of having a 360° detection angle, and up to a 16m detection range at a 4m mounting height

■ White version – Part No. theLuxa S360 WH

■ Black version – Part No. theLuxa S360 BK

theLuxa S180 detection range and coverage.

■ 360° circular detection, range up to 7m at 2.5m mounting height

■ Timer adjustment – from 10 seconds to 60 minutes

■ LUX adjustment – from 30 to 3000 LUX

■ Pulse function for staircase lighting

■ IP40 weatherproof rating

■ Optional user remote control theSenda S

■ Optional service remote control theSenda P

theMova S360-100 DE WH detection range and coverage.

theSenda P theSenda S

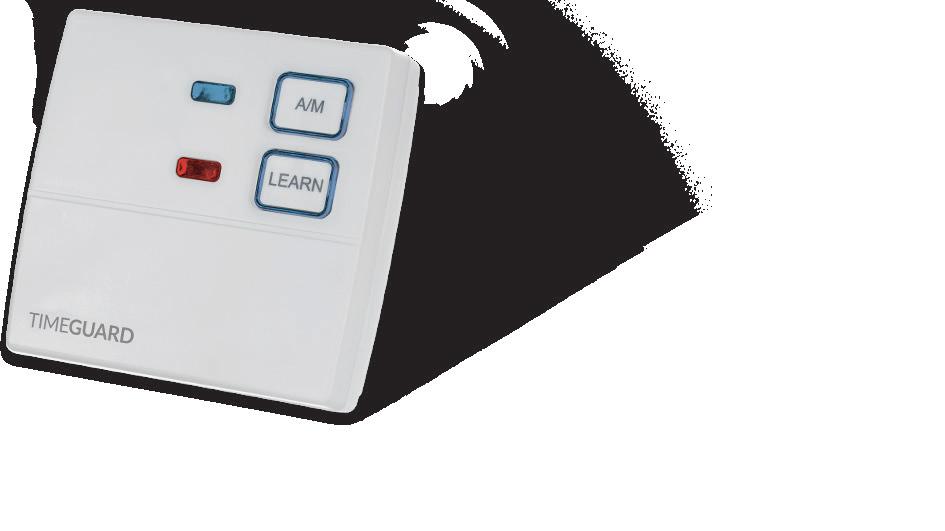

Remote Controls for Theben PIR Presence Detectors

theSenda S

User Remote Control for theMova S360-100 DE WH and thePrema S360-101 UP WH. theSenda P Service Remote ControltheMova S360-100 DE WH and thePrema S360-101 UP WH.

theLuxa S360 detection range and coverage.
theLuxa S150 BK (White Version Availaible)
theLuxa S180 WH (Black Version Availaible)

Linkable Mini PIR Sensors Light

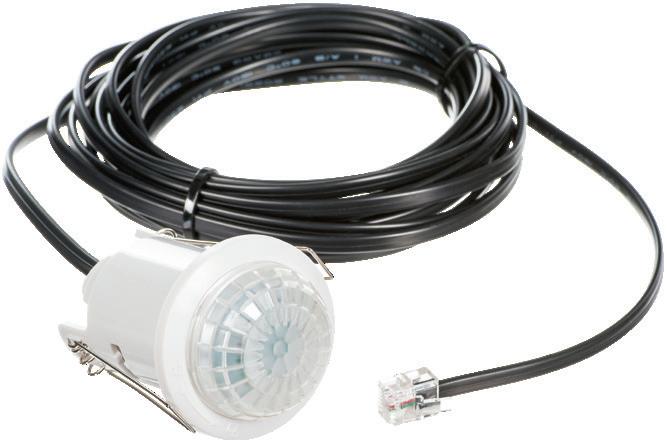

PDFMMINIL - 360 ° Flush Mount Linkable Mini PIR Sensor (Master)

PDFMMINIL

Mini design (30mm diameter) for corridor and multi-zone use with Twist & Lock design for easy access. Linkable pre-wired RJ11 plug-in slave units allow quick installation with up to 5 slaves to one master unit.

■ Designed for corridor and multi-zone use

■ Mini unobtrusive design (30mm diameter)

■ Detection: 360°

■ 3 metre presence detection

■ 8 metre motion detection

■ Twist & Lock design for easy access

■ Pre-wired RJ11 plug-in slave units for quick installation

■ Linkable Master/Slave PIR System

■ Up to 5 slaves can be added to 1 master

■ Load: halogen max. 1000W

■ LED max. 250W

■ LUX adjustment: 5 – 1000 LUX

■ Time adjustment: 30 seconds to 30 minutes (master only)

■ Termination box for ease of wiring

■ Masking kit included

■ LED indication

■ IP40 weatherproof rating

PDFMMINILS - 360 ° Flush Mount Linkable Mini PIR Sensor (Slave)

PDFMMINILS

■ Up to 5 slaves can be added to 1 master PDFMMINIL

■ Imitates the settings of the master PIR (PDFMMINIL)

■ Pre-installed 5 meter lead (RJ11 connectors)

■ Standby power consumption: <0.5W

Automatic Light Switches Light 29

ZV700N - Digital Security Light Switch With Optional Dusk Start

■ 6 time periods (5+2 day or 7 day programing) displayed via the blue illuminated screen

■ Modes include an optional dusk start, turning lights ON at dusk and OFF at a selected time and random mode which uses programe times with up to +/half hour switching difference

■ Automatic summer/winter time changeover.

■ Rated loads: 50W LED, 400W Filament, 18 – 76W Fluorescent No discharge lighting

■ 2-Wire fully compatible LED light switch, no adaptations required

■ Concealed front panel with retaining screw

■ Supplied with 9V battery

Product Dimensions

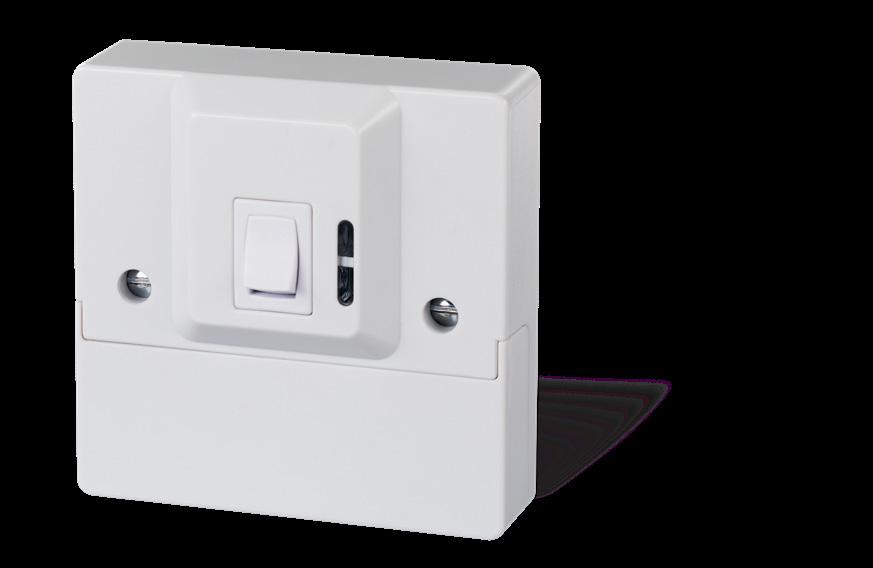

ZV210N - Programable Photocell Security Light Switch - Single Gang

■ Permissible Switching Loads: 2000W Halogen, 250W Fluorescent (Low-loss or Electronic ballast), 250W CFL (Electronic ballast), 400W LED lighting

■ Turns room lights ON at dusk and OFF automatically up to 8 hours later or until dawn (adjustable)

■ Replaces existing One or Two Way light switches – 2 wire

■ Manual On/Off Switch

■ Supplied with 9V battery

■ Concealed front panel with retaining screw

■ Low battery alert LED indication

■ Adjustable lux (Light level) setting

■ Class II double insulated

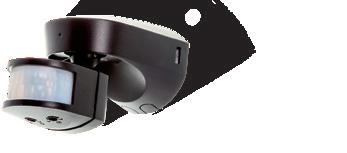

ZV810N - Motion Sensor PIR Light Switch

■ Permissible Switching Loads: 2000W Halogen, 250W Fluorescent (Low-loss or Electronic ballast), 250W CFL (Electronic ballast), 400W LED lighting

■ On/Off/AUTO slide switch function (Switch can be enabled or disabled)

■ 170° detection area with an 8m (front) and 4m (sides) detection range

■ Retrofits existing 1 or 2 Way light switches – 2 wire

■ Supplied with 9V battery

■ Concealed front panel with retaining screw

■ Red LED motion indication

■ Adjustable time ON setting; 10sec to 15min

■ Adjustable lux (Light level) setting

■ Class II double insulated

ZV900 - Automatic Switch Load Controller

Ideal for use with automatic light switches and specifically designed for ZV810N, ZV210N, ZV700 ZV700B, and timed delay switches (DS1N/DS2N/ DSSN/DS4/DS3HDN). 200W LED Uplift

■ Eliminates glow and flicker issues in LED/CFL lamps when used with 2-wire automatic light switches (i.e. timed, PIR, photocell automatic switches)

■ Under 1W power consumption

■ Built-in surge suppression

■ No additional cabling to the switch required

■ Fits in the ceiling through a 50mm hole

Product Dimensions

Product Dimensions

ZV700N
ZV210N
ZV810N
ZV900

PIR Lighting Controllers

SLB2300/SLW2300 - 2300W PIR Light Controllers

■ Powerful PIR controller for new and existing installations

■ Total PIR switching: 2300W incandescent/halogen, 500W fluorescent/low energy plus 250W LED

■ 12m detection range with 180º area of detection

■ Pan and tilt feature

■ Light ON times adjustable from 5 seconds to 15 minutes

■ LUX (light level) adjustment – Day to Night (2 to 1000)

■ Manual On/Off switching override

■ IP55 weatherproof rating

■ Simple and quick to fit terminal block connectors

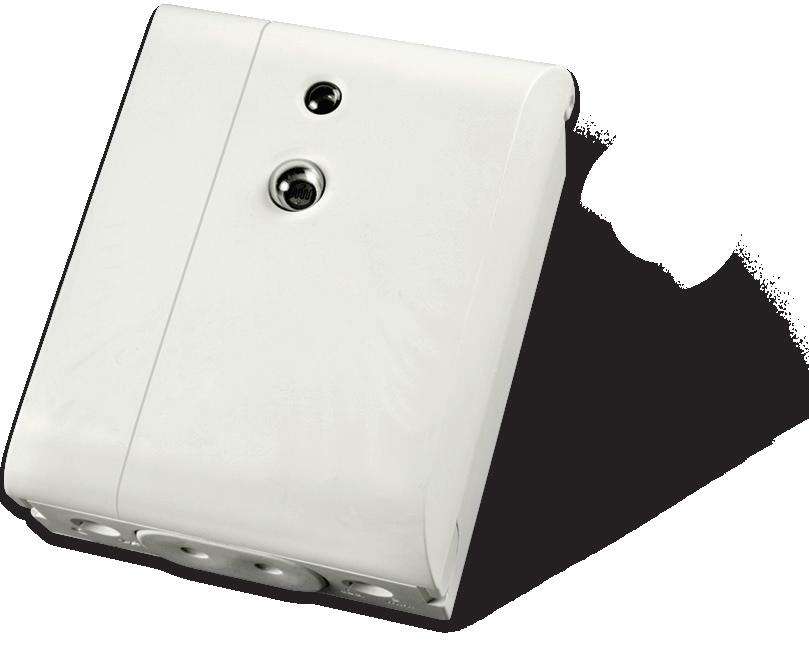

NSLDD1000 - Night Eye 3000W 2 00 ° PIR Light Controllers

IP55 exterior dusk to dawn sensor which automatically switches ON connected lighting at dusk and off again at dawn.

■ Hinged front cover for ease of wiring

■ Dusk light level adjustment

■ Light ON time is adjustable in 5 steps (2, 4, 6, 8 hours or until dawn)

■ IP55 weatherproof rating

■ Switching delay avoids nuisance switching

■ Total light switching: 3000W incandescent/ halogen, 500W fluorescent/low energy plus 80W LED

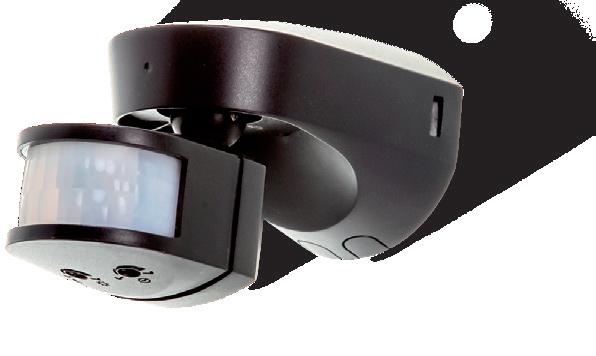

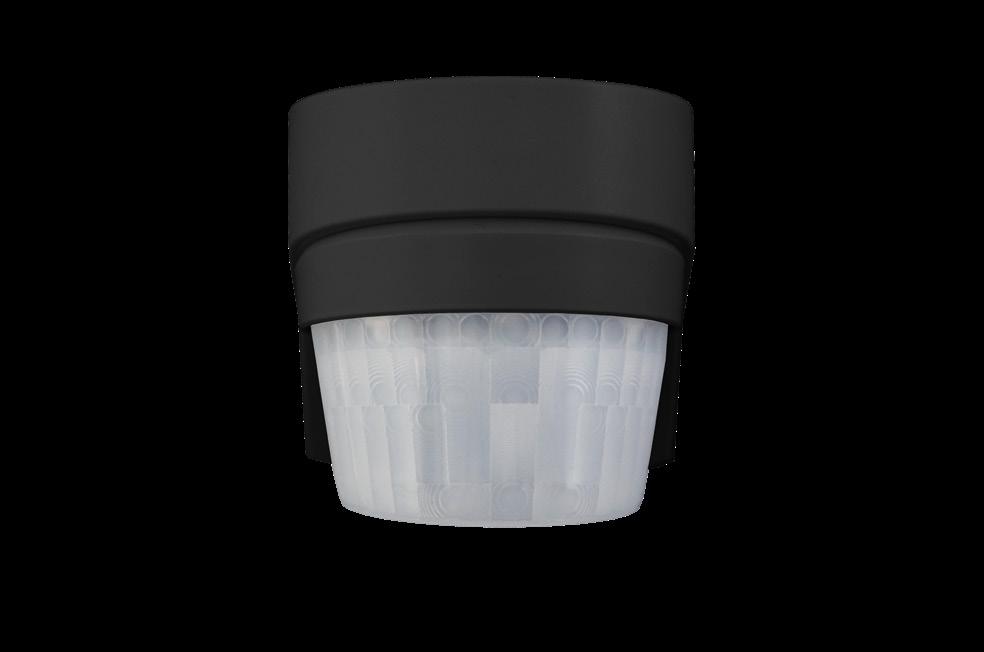

MLSA360NP - 360° PIR Light Controller - Black

■ 200° detection angle/12 meters frontal detection area

■ 360° Anti-creep zone, suitable for installations above entrances

■ Sensor head adjustable by 90° horizontally and 30° downward

■ Multiple mounting options – surface, ceiling or corner mounting

■ Manual override function

Product Dimensions (SLB2300 & SLW2300)

■ Easy install with ‘Fast-fix Terminal Block’ connection

■ Load switching: Incandescent: 2000W, High Voltage Halogen: 1000W, Low Voltage Halogen: 900W, Fluorescent: 900VA/100uF, Energy Saving or LED Lamp: 400W, 10A (at 230VAC, cos φ = 1)

MLSA360NP
Quick and simple adjustment of ‘Time ON, Light Level (LUX) and PIR sensitivity settings.
Multiple mounting options: Surface, ceiling, inner and outer corner mounting.
Adjustable pan & tilt sensor head by 90° horizontally and 30° downward.
Easy installation with ‘Fast-fix Terminal Block’ connection.

PIR Lighting Controllers

■ 12m detection range. (200° MTLW3000), (180° SLW2400)

■ Adjustable light level control

■ Adjustable light ON time 5 seconds to 18 minutes

■ Manual On/Off override

■ Hinged back box for ease of wiring

■ Adjustable tilt option for more control of the detection area

■ SLW2400 Shares all the features of MTLW3000 with the key differentiators of having a 180° dection angle, a 2000W incandescent, halogen rating and an IP44 ingress protection rating. The SLW2400 is not rated for LED loads

■ 12m detection range with 200º area of detection

■ Light ON times adjustable from 5 seconds to 18 minutes

■ Scrolling LED ‘System Live’ status acts as advance deterrent

■ Adjustable light level control

■ Manual On/Off override

■ Optional holiday mode between 1 and 8 hours

■ Direct mount bracketless fixing – contractor quick fit aid supplied

■ IP55 weatherproof rating

■ Total PIR switching: 3000W halogen/incandescent, 500W fluorescent/low energy or 140W LED

MLTP180BK - 200 ° PIR Anti-Tamper Light Controllers

■ Tamper proof design.

■ 200° 12 metre detection from a 2.5m mounting height

■ IP55 weatherproof rating

■ Adjustable time setting – 2 seconds to 30 minutes

■ Adjustable 2 to 1000 LUX setting

■ Standby power consumption: <0.5W

■ Mounting hole centres: 60mm

■ Optional corner bracket

■ Manual override

■ Up to x4 units can be wired in parallel

■ Total PIR switching: 2300W halogen/incandescent, 500W fluorescent/low energy or 500W LED

Product Dimensions (MTLW3000 & SLW2400)

Height 64, Width 86, Depth 119mm

Product Dimensions (MLB3000 & MLW3000)

Height 139, Width 72, Depth 121mm

See page 82 for product specifications. All these products carry a 3 year guarantee.

LEDPRO Linkable LED Lighting Light

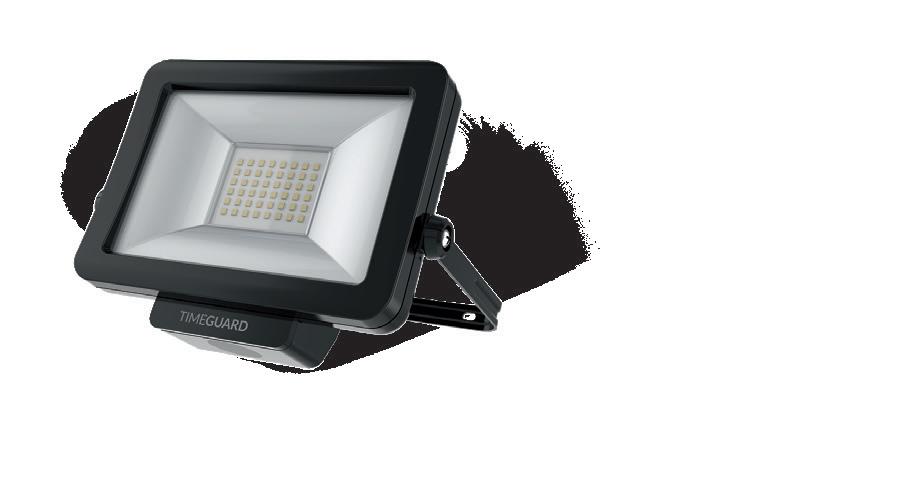

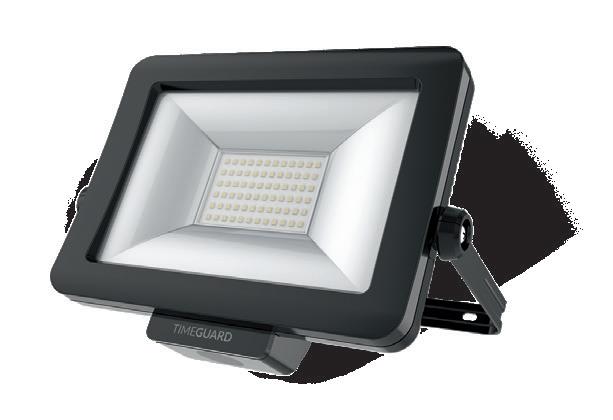

LEDPRO10B/LEDPRO10WH - 10W Professional Rewireble Floodlight - 1160 lumens

■ Rewireable with easy access screw terminals with link terminal for common accessories control

■ Powerful 10W LED energy saving floodlight. 1160 lumens of cool white light (colour 4000k)

■ Fully polycarbonate front lens ideal for food preparation areas and grain stores

■ Plug & Play PIR and photocell option with linkable control (optional extra)

■ Easy install bracket – enables floodlight fixing screws to be pre-fitted

■ Installer friendly captive terminal cover screws 2x PG11 glands supplied, suitable for 1.5mm twin and earth flat cable

■ IP65 weatherproof rating

■ Driverless ACLED technology

■ Long life – up to 30,000 hours for low maintenance

■ UK and European registered design

■ Product Dimensions: Height 110, Width 150, Depth 60mm

LEDPRO20B/LEDPRO20WH - 20W Professional Rewireble Floodlight - 2350 lumens

■ Rewireable with easy access screw terminals with link terminal for common accessories control.

■ Powerful 20W LED energy saving floodlight. 2350 lumens of cool white light (colour 4000k)

■ Fully polycarbonate front lens ideal for food preparation areas and grain stores

■ Plug & Play PIR and photocell option with linkable control (optional extra)

■ Easy install bracket – enables floodlight fixing screws to be pre-fitted

■ Installer friendly captive terminal cover screws 2x PG11 glands supplied, suitable for 1.5mm twin and earth flat cable

■ IP65 weatherproof rating

■ Driverless ACLED technology

■ Long life – up to 30,000 hours for low maintenance

■ UK and European registered design

■ Product Dimensions: Height 145, Width 200, Depth 63mm

LEDPRO30B/LEDPRO30WH - 30W Professional Rewireble Floodlight - 3300 lumens

■ Rewireable with easy access screw terminals with link terminal for common accessories control

■ Powerful 30W LED energy saving floodlight. 3300 lumens of cool white light (colour 4000k)

■ Fully polycarbonate front lens ideal for food preparation areas and grain stores

■ Plug & Play PIR and photocell option with linkable control (optional extra)

■ Easy install bracket – enables floodlight fixing screws to be pre-fitted

■ Installer friendly captive terminal cover screws 2x PG11 glands supplied, suitable for 1.5mm twin and earth flat cable

■ IP65 weatherproof rating

■ Driverless ACLED technology

■ Long life – up to 30,000 hours for low maintenance

■ UK and European registered design

■ Product Dimensions: Height 185, Width 255, Depth 66mm

For the Professional Electrician!

Night Eye Plus Floodlights are a unique Timeguard registered design offering stand alone IP65 Floodlight installation or optional Plug & Play PIR and Photocell linkable controls to fit all variants. The range of 10W, 20W, 30W, 50W & 100W LED Floodlights are completely rewireable with easy accessible screw terminals and link terminal for common accessories control. The polycarbonate front lens has a prismatic centre for enhanced LED lighting control, making them ideal for specific area uses such as food preparation areas or grain control. A truly professional range offering mix and match options to cover all type of installations.

See page 83 for product specifications. All these products carry a 3 year guarantee.

LEDPRO Linkable LED Lighting Light

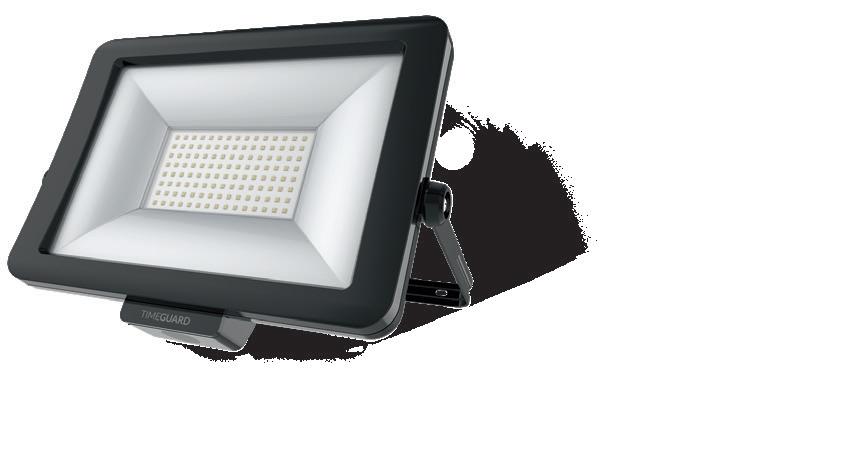

■ Rewireable with easy access screw terminals with link terminal for common accessories control

■ Powerful 50W LED energy saving floodlight. 5300 lumens of cool white light (colour 4000k).

■ Fully polycarbonate front lens ideal for food preparation areas and grain stores

■ Plug & Play PIR and photocell option with linkable control (optional extra)

■ Easy install bracket – enables floodlight fixing screws to be pre-fitted

■ Installer friendly captive terminal cover screws 2x PG11 glands supplied, suitable for 1.5mm twin and earth flat cable

■ IP65 weatherproof rating

■ Driverless ACLED technology

■ Long life – up to 30,000 hours for low maintenance

■ UK and European registered design

■ Product Dimensions: Height 235, Width 330, Depth 69mm

■ Rewireable with easy access screw terminals with link terminal for common accessories control

■ Powerful 100W LED energy saving floodlight. 12,000 lumens of cool white light (colour 4000k)

■ Fully polycarbonate front lens ideal for food preparation areas and grain stores

■ Plug & Play PIR and photocell option with linkable control (optional extra)

■ Easy install bracket – enables floodlight fixing screws to be pre-fitted.

■ Installer friendly captive terminal cover screws 2x PG11 glands supplied, suitable for 1.5mm twin and earth flat cable

■ IP65 weatherproof rating

■ Driverless ACLED technology

■ Long life – up to 30,000 hours for low maintenance

■ UK and European registered design

■ Product Dimensions: Height 235, Width 305, Depth 66mm

LEDPRO Linkable LED Lighting

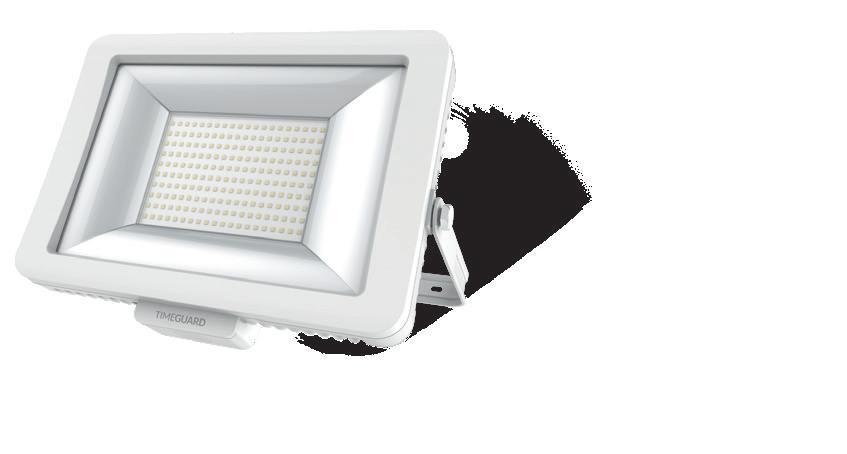

LEDPROSLB/LEDPROSLWH - Dedicated PIR Detector for LEDPRO Range

LEDPROSLB

Simply replaces the terminal cover and plugs into the LEDPRO Floodlight offering a 250W LED PIR with a 180° 12m detection range. Features include tilt and rotate adjustable head, timed ON adjustable control and manual override.

LEDPROSLWH

■ Dedicated 250W LED PIR for use with Timeguard LEDPRO floodlights

■ Maximum Switchable Load: LED lamp – 250W; halogen lamp – 1000W; CFL – 200W; fluorescent tube w/o PF correction – 500W

■ Simply replaces the terminal cover and plugs in to the LEDPRO floodlight – no extra cabling necessary

■ Installer friendly captive terminal cover screws 2x cable entries suitable for PG11 gland (glands not supplied)

■ 12 metre, 180° detection

■ Tilt and rotate adjustable head for accurate reliable detection

■ 3 seconds – 18 minutes timed duration (adjustable)

■ Photocell sensor (adjustable) and manual override function

■ IP55 weatherproof rating.

Product Dimensions

(LEDPROSLB & LEDPROSLWH)

Height 114, Width 78, Depth 108mm

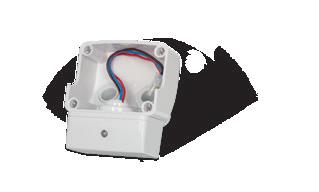

LEDPROPCB/LEDPROPCWH - Dedicated PIR Detector for LEDPRO Range

■ Dedicated 250W LED Photocell for use with Timeguard LEDPRO Floodlights

LEDPROPCB

LEDPROPCWH

■ Maximum Switchable Load: LED lamp – 250W; halogen lamp – 1000W; CFL – 200W; fluorescent tube w/o PF correction – 500W

■ Installer friendly captive terminal cover screws 2x cable entries suitable for PG11 gland (glands not supplied)

■ Simply replaces the terminal cover and plugs in to the LEDPRO floodlight – no extra cabling necessary

■ 2, 4, 6 or 8 hours timed on duration or continuous Dusk to Dawn (adjustable)

■ Adjustable LUX setting

■ IP55 weatherproof rating

Product Dimensions

(LEDPROPCB & LEDPROPCWH)

Height 91, Width 78, Depth 53mm

LEDPROCAM - Dedicated Wi-Fi PIR Camera System for LEDPRO Range

■ Compatible with all existing LEDPRO Floodlights, no extra wiring required

■ 270° PIR with 10 metres detection

■ 1080p full colour camera with 150° Lens

■ 2-Way audio

■ Cloud storage option available in app purchase

■ Supports SD card 128Gb max. (not included)

■ IP55 (When fitted to LEDPRO Floodlight)

■ Time ON, adjustable via app

■ Adjustable PIR sensitivity, via app

■ 100dB Siren

LEDPROCAM

■ 802.11 b/g/n WLAN Standard

■ 2.4GHz Wi-Fi Frequency

■ <6W Power Consumption (not including Luminaire)

Product Dimensions LEDPROCAM

Height 189, Width 80, Depth 140mm

LED Energy Saving Floodlights

LED100FLBP/LED100FLWHP - 8.5W LED Compact Single Floodlight

LED100FLWHP

LED200FLWHP

■ 1x 8.5W Powerful LED compact twin floodight

■ 1000 lumen bright white light

■ Pan and tilt light aiming adjustment

■ Opal Diffuser for a even light distribution

■ Rear & bottom cable entry

■ Full polycarbonate lightweight housing

■ Tilt and rotate adjustable head for accurate reliable light positioning

■ IP55 weatherproof rating

■ 2x 8.5W Powerful LED compact twin floodight

■ 2000 lumen bright white light

■ Pan and tilt light aiming adjustment

■ Opal Diffuser for a even light distribution

■ Rear & bottom cable entry

■ Full polycarbonate lightweight housing

■ Tilt and rotate adjustable head for accurate reliable light positioning

■ Back box or wall mountable

■ IP55 weatherproof rating

Product Dimensions (LED100FLBP/WH)

Height 160, Width 80, Depth 50mm

Product Dimensions (LED200FLBP/WH)

Height 160, Width 167, Depth 50mm

LED100PIRBP/LED100PIRWHP - 8.5W LED Compact Single Floodlight PIR

LED100PIRWHP

The LED100PIRBP & LED100PIRWHP contains the same features and benefits of the LED100FLBP & LED100FLWHP, with the addition of the below.

■ 180° detection angle/10 meter detection area from a 2.5 metre mounting height

■ Standby consumption: <0.4W

■ Switch rating: 100W LED, (8W>LED max. 100W, 2W<LED max. 20W, 2W>, 8W< LED max. 80W)

■ ON time adjustment: 10 Seconds to 30 Minutes

■ Lux level adjustment: 5 too 500, user adjustable

■ Manual Override (pulse activated)

■ Floodlight can be wired in parallel. (4 units max.)

LED200FLBP/LED200FLWHP - 17W LED Twin Head Energy Saver Floodlight LED100FLBP LED100PIRBP LED200FLBP LED200PIRBP

Product Dimensions (LED100PIRBP/WH)

Height 160, Width 80, Depth 50mm

LED200PIRBP/LED200PIRWHP - 8.5W LED Twin Head PIR Energy Saver Floodlight

The LED200PIRBP & LED200PIRWHP contains the same features and benefits of the LED200FLBP & LED200FLWHP, with the addition of the below.

LED200PIRWHP

■ 180° detection angle/10 meter detection area from a 2.5 metre mounting height

■ Standby consumption: <0.4W

■ Switch rating: 100W LED, (8W>LED max. 100W, 2W<LED max. 20W, 2W>, 8W< LED max. 80W)

■ ON time adjustment: 10 Seconds to 30 Minutes

■ Lux level adjustment: 5 too 500, user adjustable

■ Manual Override (pulse activated)

■ Floodlight can be wired in parallel. (4 units max.)

Product Dimensions (LED200PIRBP/WH)

Height 160, Width 167, Depth 50mm

LED Wide Beam Floodlights

LEDX10FLBN - 10W LED Wide Angle Floodlight - Black

LEDX10FLBN

■ Powerful rust resistant 10W LED floodlight

■ 1000 lumens bright white light

■ 316 stainless steel bracket and screws

■ Marine grade aluminium heat sink

■ Polycarbonate body and reflector

■ IP55 weatherproof rating

■ Easy quick fit bracket installation

LEDX20FLBN - 20W LED Wide Angle Floodlight - Black

LEDX20FLBN

LEDX30FLBN - 30W LED Wide Angle Floodlight - Black Product

■ Powerful rust resistant 20W LED floodlight

■ 2000 lumens bright white light

■ 316 stainless steel bracket and screws

■ Marine grade aluminium heat sink

■ Polycarbonate body and reflector

■ IP55 weatherproof rating

■ Easy quick fit bracket installation

LEDX30FLBN

■ Powerful rust resistant 30W LED floodlight

■ 3000 lumens bright white light

■ 316 stainless steel bracket and screws

■ Marine grade aluminium heat sink

■ Polycarbonate body and reflector

■ IP55 weatherproof rating

■ Easy quick fit bracket installation

All these products carry a 3 year guarantee.

See pages 83 & 84 for product specifications.

LED Wide Beam Floodlights

LEDX10PIRBN - 10W LED Wide Angle PIR Floodlight - Black

LEDX10PIRBN

The LEDX10PIRBN contains the same features and benefits of the LEDX10FLBN, with the addition of the below features.

■ 180° PIR detector with up to 12m detection range

■ Adjustable time setting: 5 seconds to 10 minutes

■ Adjustment 2 to 300 lux setting

■ Manual override

■ Slave terminal available for additional lighting loads

■ Parallel switching facility – a maximum of 4x LEDXPIRN floodlights can be wired in parallel to enable any detector to turn ON all the lights connected

LEDX20PIRBN - 20W LED Wide Angle PIR Floodlight - Black

LEDX20PIRBN

The LEDX20PIRBN contains the same features and benefits of the LEDX20FLBN, with the addition of the below features.

■ 180° PIR detector with up to 12m detection range

■ Adjustable time setting: 5 seconds to 10 minutes

■ Adjustment 2 to 300 lux setting

■ Manual override

■ Slave terminal available for additional lighting loads

■ Parallel switching facility – a maximum of 4x LEDXPIRN floodlights can be wired in parallel to enable any detector to turn ON all the lights connected

LEDX30PIRBN - 30W LED Wide Angle PIR Floodlight - Black

LEDX30PIRBN

The LEDX30PIRBN contains the same features and benefits of the LEDX30FLBN, with the addition of the below features.

■ 180° PIR detector with up to 12m detection range

■ Adjustable time setting: 5 seconds to 10 minutes

■ Adjustment 2 to 300 lux setting

■ Manual override

■ Slave terminal available for additional lighting loads

■ Parallel switching facility – a maximum of 4x LEDXPIRN floodlights can be wired in parallel to enable any detector to turn ON all the lights connected

LED Pan/Tilt PIR Floodlights

LED10PIRB - 10W LED Pan & Tilt Single Head PIR Floodlight - Black

■ Powerful 1x 10W LED PIR floodlight - single head flood

■ Lumen output 1000lm. Colour temperature 4000K

■ Rear, bottom & top cable entry points

■ Simple, snap-in wall plate with fast-fix pin terminal block for quick and easy installation

■ Independent Pan & Tilt light aiming adjustment

■ Corner bracket is included

■ 140° PIR with 10m detection range

■ Adjustable time setting 2 seconds to 30 minutes

■ Adjustable 2 - 200 lux setting

■ Parallel switching facility - a maximum of 4x LED10PIRB floodlights can be wired in parallel to enable any detector to turn ON all the lights connected

LED20PIRB - 20W LED Pan & Tilt Twin Head PIR Floodlight - Black

■ Powerful 2x 10W LED PIR floodlight - single head flood

■ Lumen output 2000lm. Colour temperature 4000K

■ Rear, bottom & top cable entry points

■ Simple, snap-in wall plate with fast-fix pin terminal block for quick and easy installation

■ Independent Pan & Tilt light aiming adjustment

■ Corner bracket is included

■ 140° PIR with 10m detection range

■ Adjustable time setting 2 seconds to 30 minutes

■ Adjustable 2 - 200 lux setting

■ Parallel switching facility - a maximum of 4x LED20PIRB floodlights can be wired in parallel to enable any detector to turn ON all the lights connected

All these products carry a 3 year guarantee. See page 84 for product specifications.

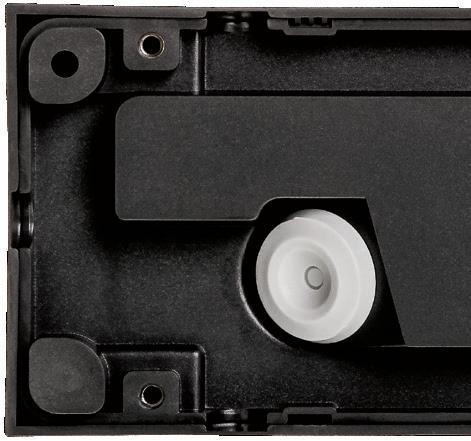

Simple, snap in wall plate with fast-fix pin terminal block for quick and easy installation.
Independent Pan & Tilt light aiming adjustment.
Corner bracket included! Allowing for additional light distribution at multiple angles.
Sleek cooling fin design to prevent excessive heat build-up.
LED10PIRB
LED20PIRB
LED10PIRB in situ
LED20PIRB in situ

LED Energy Saving Wall & Ceiling Lights

LEDSO12B/LEDSO12WH - 12W Slimline LED Energy Saver Oval Wall/Ceiling Light

■ Robust polycarbonate lens and housing suitable for industrial, commercial and home installations

■ 850 lumens of cool white light (colour 4000k)

■ Wide light diffusion pattern for optimum area coverage

■ IP54 Ingress Protection

■ Mounting hole centres 192mm

■ Beam angle 120 °

Product Dimensions (LEDSO12B/WH)

Height 55, Width 105, Depth 230mm

LEDSO12WH

LEDSR12B/LEDSR12WH - 12W Slimline LED Energy Saver Round Wall/Ceiling Light

LEDSR12B

LEDSR12WH

■ Robust polycarbonate lens and housing suitable for industrial, commercial and home installations

■ 850 lumens of cool white light (colour 4000k)

■ Wide light diffusion pattern for optimum area coverage

■ IP54 Ingress Protection

■ Mounting hole centres 192mm

■ Beam angle 120 °

Product Dimensions (LEDSR12B/WH)

Height 211, Width 211, Depth 55mm

LEDMR10WH/LEDMR18WHN - Slimline LED Energy Saver Round Wall/Ceiling Light

LEDMR10WH

Super slim profile ideal for industrial, commercial and home applications. LEDSO12B

■ Robust polycarbonate lens and housing suitable for industrial, commercial and home installations

■ 4000K cool white colour temperature

LEDMR18WHN

■ Wide light diffusion pattern for optimum area coverage

■ IP44 Ingress Protection

■ 850 lumens (LEDMR10WH only)

■ Mounting hole centres 192mm (LEDMR18WHN) & 134mm on (LEDMR10WH)

■ LEDMR18WHN shares the features of LEDMR10WH with the key differentiators being the 18W LED rating and a lumen output of 1500lm. The LEDMR18WHN has mounting hole centres of 200mm

Robust polycarbonate lens and housing for the toughest of environments.

Product Dimensions (LEDMR10WH)

Height 180, Width 180, Depth 55mm

Product Dimensions (LEDMR18WH)

Height 280, Width 280, Depth 55mm

Wide light diffusion pattern for optimum area coverage. Simple terminal block connection for easy installation.

Light 40

LEDBHR7W/LEDBH09WN -

LED Energy Saving Bulkhead Lights

7W 700lm LED Energy Saver Bulkhead Lights

LEDBHR7W

■ A powerful and energy saving alternative to standard bulkhead lights

LEDBHO9WN

LEDBHR15W/LEDBHO15W

LEDBHR15W

■ 7W LED power – instantly bright like halogens but at a fraction of the running costs

■ 700 lumens of cool white light (colour 5000k)

■ Wide light diffusion pattern

■ Robust die cast housing with tough polycarbonate lens, suitable for industrial, commercial and home installations

■ Operating temperature -10°C to 40°C

■ IP65 ingress protection rating

Product Dimensions (LEDBHR7W)

Height 153, Width 153, Depth 59mm

Product Dimensions (LEDBHO9WN)

Height 155, Width 100, Depth 52mm

- 15W 1000lm LED Energy Saver Bulkhead Lights

LEDBHO15W

LEDBHR25W/LEDBHO25W -

LEDBHR25W

■ A powerful and energy saving alternative to standard bulkhead lights

■ 15W LED power – instantly bright like halogens but at a fraction of the running costs

■ 1000 lumens of cool white light (colour 5000k)

■ Wide light diffusion pattern

■ Robust die cast housing with tough polycarbonate lens suitable for industrial, commercial and home installations

■ Operating temperature -10°C to 40°C

■ IP65 ingress protection rating

Product Dimensions (LEDBHR15W)

Height 185, Width 185, Depth 65mm

Product Dimensions (LEDBHO15W)

Height 215, Width 131, Depth 69mm

25W 2000lm LED Energy Saver Bulkhead Lights

LEDBHO25W

■ A powerful and energy saving alternative to standard bulkhead lights

■ 25W LED power – instantly bright like halogens but at a fraction of the running costs

■ 2000 lumens of cool white light (colour 5000k)

■ Wide light diffusion pattern

■ Robust die cast housing with tough polycarbonate lens suitable for industrial, commercial and home installations

■ Operating temperature -10°C to 40°C

■ IP65 ingress protection rating

Product Dimensions (LEDBHR25W)

Height 244, Width 244, Depth 75mm

Product Dimensions (LEDBHO25W)

Height 270, Width 165, Depth 86mm

All these products carry a 3 year guarantee.

LED Bulkhead Lights

A powerful and energy saving alternative to standard bulkhead lights. Consumes less electricity compared to traditional lighting options, resulting in reduced running costs. Super-slim die-cast design with a tough exterior, making them ideal for industrial, commercial and home installations.

LED Energy Saving Bulkhead Lights

LEDBHR25WPIR/LEDBHO25WPIR - 25W 2000lm LED Energy Saver PIR Bulkhead Lights

LEDBHR25WPIR

■ A powerful and energy saving alternative to standard bulkhead lights

LEDBHO25WPIR

■ 25W LED power – instantly bright like halogens but at a fraction of the running costs.

■ 2000 lumens of cool white light (colour 5000k)

■ Wide light diffusion pattern.

■ Robust die cast housing with tough polycarbonate lens, suitable for industrial, commercial and home installations

■ Operating temperature -10°C to 40°C

■ IP65 ingress protection rating

■ 100° detection angle/6 meter detection area from a 3 metre mounting height

■ Beam angle: 120°

■ ON time adjustment: 10 Seconds to 5 Minutes

■ LUX level adjustment: 10 - 2000

■ Manual override

Product Dimensions (LEDBHR25WPIR)

Height 244, Width 244, Depth 75mm

Product Dimensions (LEDBHO25WPIR)

Height 270, Width 165, Depth 86mm

See page 85 for product specifications.

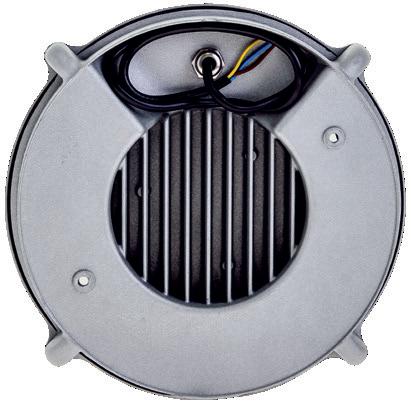

Die cast housing with polycarbonate lens for the toughest of environments.
IP65 cable gland and side cable inlet to aid installation.
Wide light diffusion patterns for optimum area coverage. Anti-tamper and crosshead screws supplied.

LED Energy Saving Step Lights

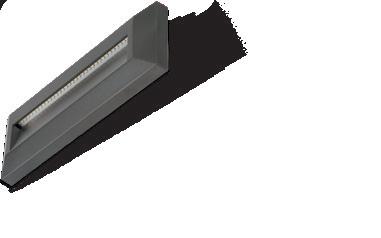

LEDSL1DG - 16W Horizontal LED Step Light - Dark Grey

■ A powerful and energy saving alternative to standard step lights

■ 1.6W LED power.

■ Up to 67 lumens of cool white light (colour 4000K).

■ Surface mount for quick and easy installation

– no back box required

■ Robust polycarbonate construction suitable for industrial, commercial and home installations

■ IP65 ingress protection rating

■ LED light emits downwards, ideal for illuminating steps, passageways and corridors or for decorative lighting

■ Double insulated, no earth required

LEDSL4DG - 11W Square LED Step Light - Dark Grey

All these products carry a 3 year guarantee.

■ A powerful and energy saving alternative to standard step lights

■ 1.1W LED power.

■ Up to 40 lumens of cool white light (colour 4000K)

■ Surface mount for quick and easy installation

– no back box required

■ Robust polycarbonate construction suitable for industrial, commercial and home installations

■ IP65 ingress protection rating

■ LED light emits downwards, ideal for illuminating steps, passageways and corridors or for decorative lighting

■ Double insulated, no earth required

See page 85 for product specifications.

Product Dimensions Height 80, Width 230, Depth 27mm

Product Dimensions Height 125, Width 125, Depth 27mm

Energy Saving LED Step Lights

A versatile range of LED Step Lights available in a choice of styles that prioritise easy installation and energy saving light output.

Four shapely designs with varying light outputs up to 245 lumens (cool white light) in a strong polycarbonate IP65 housing. LED light emits downwards making them ideal for illuminating steps, passageways and corridors or for decorative lighting.

Installation is quick and easy, with no wall channelling required!

LEDSL1DG
LEDSL4DG

LED Step Lights/Up/Down Lights

LEDSL9DG - 38W Horizontal LED Step Light - Dark Grey

■ A powerful and energy saving alternative to standard step lights

■ 3.8W LED power

■ Up to 245 lumens of cool white light (colour 4000K)

■ Surface mount for quick and easy installation

– no back box required

■ Robust polycarbonate construction suitable for industrial, commercial and home installations

■ IP65 ingress protection rating

■ LED light emits downwards, ideal for illuminating steps, passageways and corridors or for decorative lighting

■ Double insulated, no earth required

Product Dimensions

Height 80, Width 220, Depth 36mm

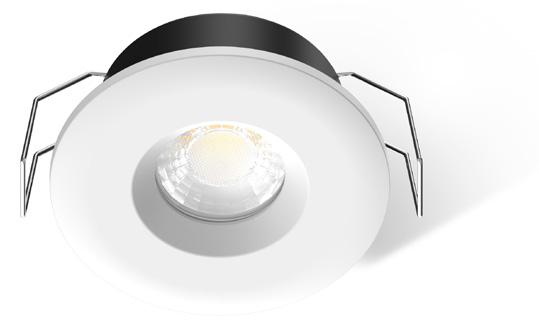

FRD1000/FRD1001

- IP65 6W LED Fire Rated Downlight

■ Selectable 3000K/4000K/6000K colour temperatures

■ 6W LED power

■ 500/540/550 Lumens depending on selected CCT

■ Up to 50,000 hour lifespan

■ IK07 Impact resistance

■ 68mm Hole cut out

■ Detachable driver via 6 pin micro fit Molex connection for easy maintenance

■ 0peratingTemperature: -2O°C - +40°C

■ 0perating Humidity: <70%

■ FRD1001 shares all the features of FRD1000 with the key differentiators being the below

■ 0 - 1000 PIR Lux light level adjustment

■ Time delay from 30 seconds - 15 minutes

■ 360° PIR detector with up to 4m detection range

■ LUX (light level) adjustment (10 to 1000)

■ Up to 25 units can be connected (max. 6x FRD1001)

See page 85 for product specifications.

Product Dimensions (FRD1000)

Height 88, Width 88, Depth 39mm

Product Dimensions (FRD1001)

Height 88, Width 88, Depth 44mm

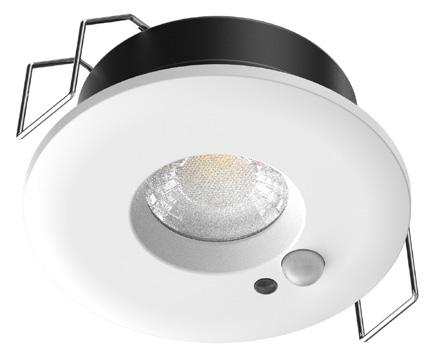

FRD1001
IP65 housing ideal for both indoor and outdoor use.
High output LEDs emit light downwards to the specific area of use.
Surface mount wall plate with quick and easy terminal block connection.
LEDSL9DG

Light 44 LED Ready Energy Saving Up/Down Lights

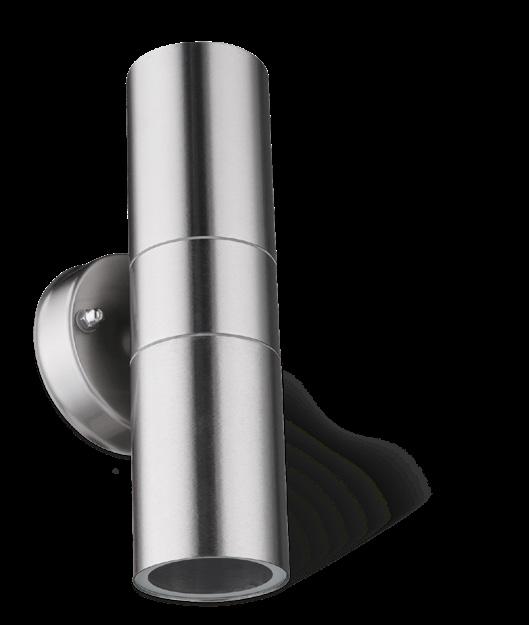

TG6000/TG6004 - IP44 Up/Down Wall Light

■ A powerful and energy saving alternative to standard spotlights (when GU10 LED lamps are installed)

■ Fixed spotlight direction

■ Stylish design with IP44 ingress protection

■ High quality metal Luminaire with superior finish

■ Recommended bulb type: 35W Halogen GU10 or LED equivalent (lamp not supplied)

■ Ideal for indoor and outdoor use

■ Temperature range -10°C to 40°C

■ Simple terminal block connection

TG6001/TG6005 - IP44 PIR Up/Down Wall Lights

■ Ideal for indoor and outdoor use

■ Class I

■ IP44

■ PIR sensor can be adjusted for brightness, sensitivity and illumination time

■ PIR detection range – Up to 8m when mounted at 2.4m high

■ PIR detection angle – 110°

■ Delay time – 10 seconds to 4 minutes

■ Adjustable 10-2000 LUX

■ PIR override

■ Operating temperature range -10°C to 40°C

■ Compatible with GU10 halogen and GU10 LED lamps

■ Max. 2 x 35W Halogen or LED lamps

Product Dimensions

Height 220, Width 92, Diameter 62mm

Product Dimensions

Height 220, Width 115, Depth 60mm

See page 86 for product specifications.

TG6004
TG6000
TG6001
TG6005

LED Energy Saving Bulkheads

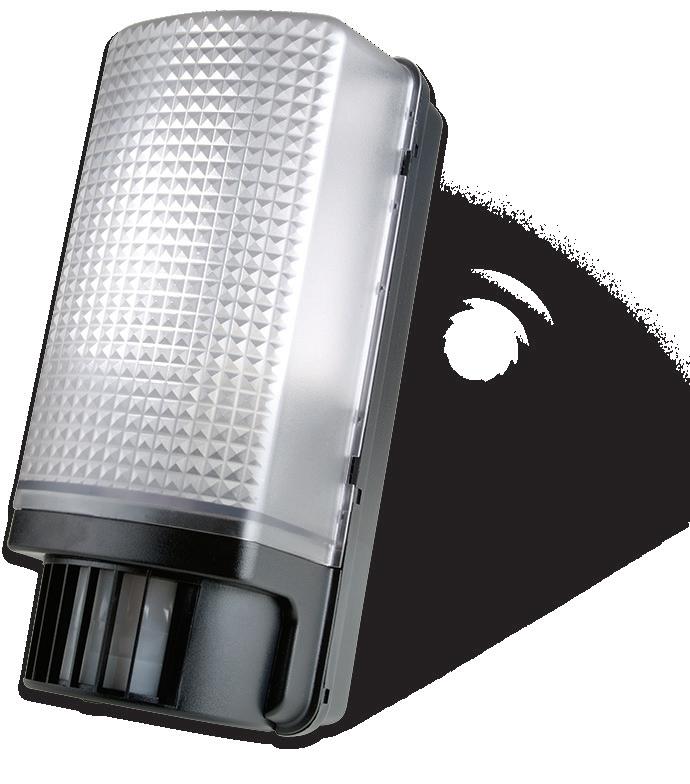

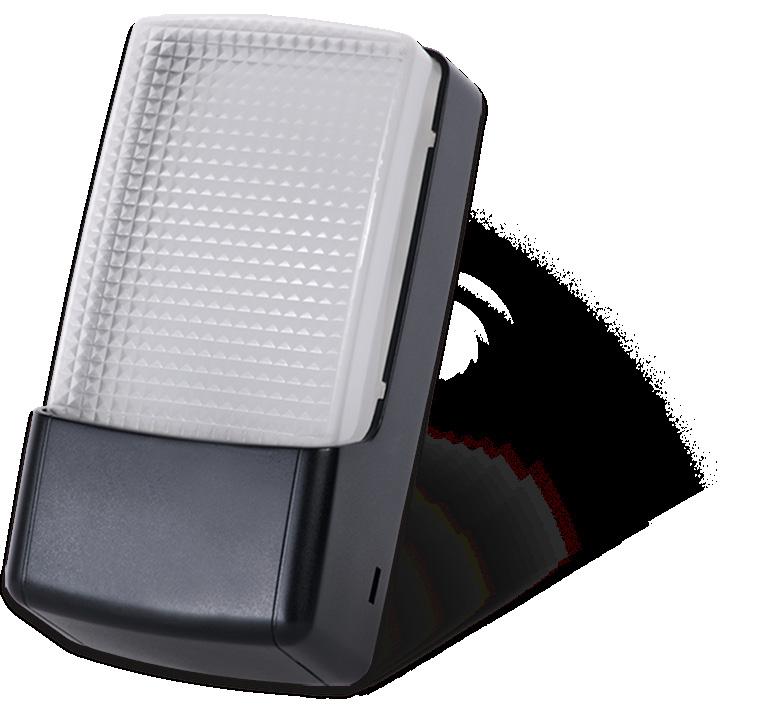

LED88N/LED88PIRN - 5W LED Energy Saver Bulkhead Light

Light 45

■ Powerful 5W LED energy saving PIR bulkhead light

■ Compact and robust design

■ Prismatic lens diffuser

■ Operating temperature: -20°C to +40°C

■ IP55 ingress protection rating

■ LED88PIRN Shares all the features of LED88N with the key differentiators being the below

■ Light on time adjustment 5 seconds to 10 minutes

■ Optional mode settings – Dusk to Dawn and Test mode

■ 140° PIR detector with up to 7m detection range.

■ LUX (light level) adjustment – Day to Night (2 to 200 LUX – permanently ON when at max.)

SLB88 - PIR Bulkhead Light

■ 500W halogen max. (60W internal lamp max, 440W external lamp max.), 100W Fluorescent max. (15W internal lamp max., 85W external lamp max.), 30W LED max. (including external lamps)

■ Bulkhead style light with integral PIR detector

■ 8m range

■ 110° detection area

■ Adjustable light ON times and LUX level control

■ IP44 ingress protection rating

■ Adjustable 2 Seconds – 30 minutes time setting

■ Lamp not included

LED Upgrade

Product Dimensions (LED88N)

Height 205, Width 108, Depth 63.5mm

Product Dimensions (LED88PIRN)

Height 205, Width 108, Depth 73mm

Product Dimensions

Height 253, Width 112, Depth 110mm

We have upgraded our popular SLB88 and SLW89 Bulkhead Lights to a 30W LED rating making them ideal for energy saving applications.

See page 85 for product specifications.

LED88N
LED88PIRN

Light 46 Time Delay Switches

DS1N/DS2N/DSSN - Electronic Time Delay Switches

DS1N

DS1N/DS2N/DSSN

The DS1N, DS2N & DSSN are permanently powered, which is achieved through the switched Live. As such, some LED and CFL lamps may glow or flash whilst this product is in the ‘OFF’ status. This glow/flash can be eliminated by adding the Timeguard ZV900 Automatic Switch Load Controller to the circuit. An FLA01 can also be used for fluorescent lighting. see below.

FLA01

Fluorescent Light Adaptor

■ 2 wire connection – neutral not required

■ Neon button highlights switch in dark areas

■ Adjustable light ON times from 10 seconds to 10 minutes approx. via a tamper-proof potentiometer

■ For use with incandescent lighting up to 1.5kW and 20 – 200W of low voltage lighting (not suitable for fluorescent and low energy lighting)

■ See DSSN for multiple position switching

DSSN

■ Slave unit for DS1N

■ Up to a maximum of 10 DSSN units can be used with a single DS1N unit

■ Mirrors the delay times set by the DS1N unit

DS2N

■ Adjustable light ON times in four ranges (selectable by 2 position DIL switch);

■ 3 seconds to 30 seconds

■ 12 seconds to 2 minutes 4 seconds

■ 1 minute 36 seconds to 16 minutes 31 seconds

■ 12 minutes 26 seconds to 2 hours 12 minutes (all nominal)

■ Note: 3 wire connection – Neutral required

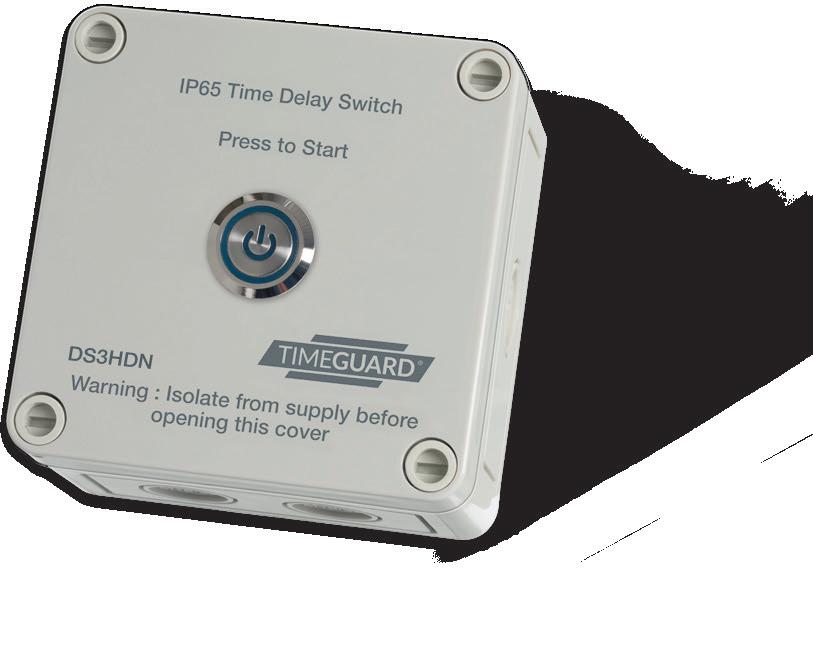

DS3HDN - Electronic IP65 Time Delay Switch

■ Ideal for use with incandescent, fluorescent lighting and heating up to 3.7kW

■ Weatherproof – suitable for loads up to 16(4)A

■ Light ON times selectable from 2 minutes to 3 hours via 3 position DIL switch.

■ Adjustable 2, 5, 10, 30, 60, 90, 120 and 180 minute settings

■ Blue LED flashes 1 minute before end time as prompt to user

■ 3 wire connection – neutral required

Product Dimensions (DS1N)

Height 84, Width 84, Depth 38mm

Product Dimensions (DSSN)

Height 84, Width 84, Depth 38mm

Product Dimensions (DS2N)

Height 84, Width 84, Depth 30mm

Product Dimensions

Height 94, Width 94, Depth 57mm

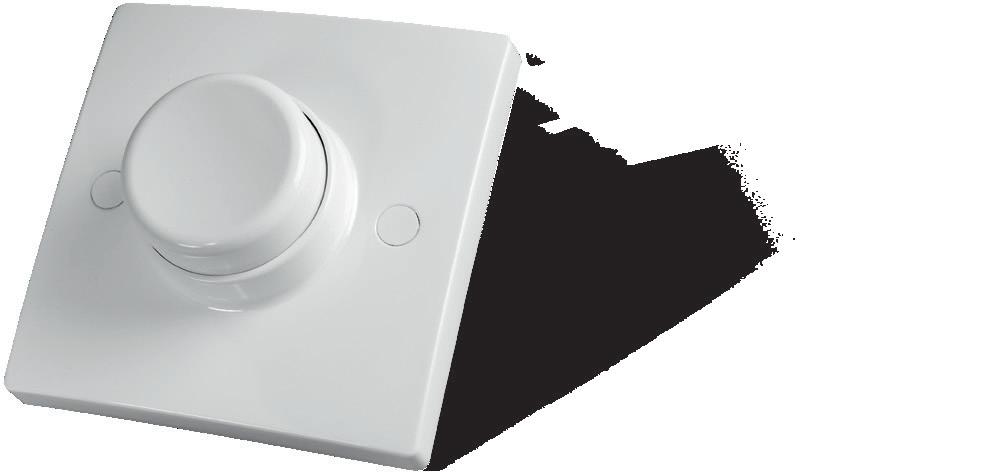

DS41A - Pneumatic Time Delay Switch

Simply push the button and turn the lights ON from 10 seconds to 10 minutes.

■ 6A incandescent and resistive loads

■ 3A fluorescent and inductive loads

■ Replaces existing single gang wall switch

■ Ideal for staircases and corridors

■ Delay time range: 10 seconds to 10 minutes

■ Single pole/neutral not required

■ Compatible with 20mm back boxes

Product Dimensions

Height 82, Width 82, Depth 40mm

DS1N
DSSN
DS2N

Safety Section

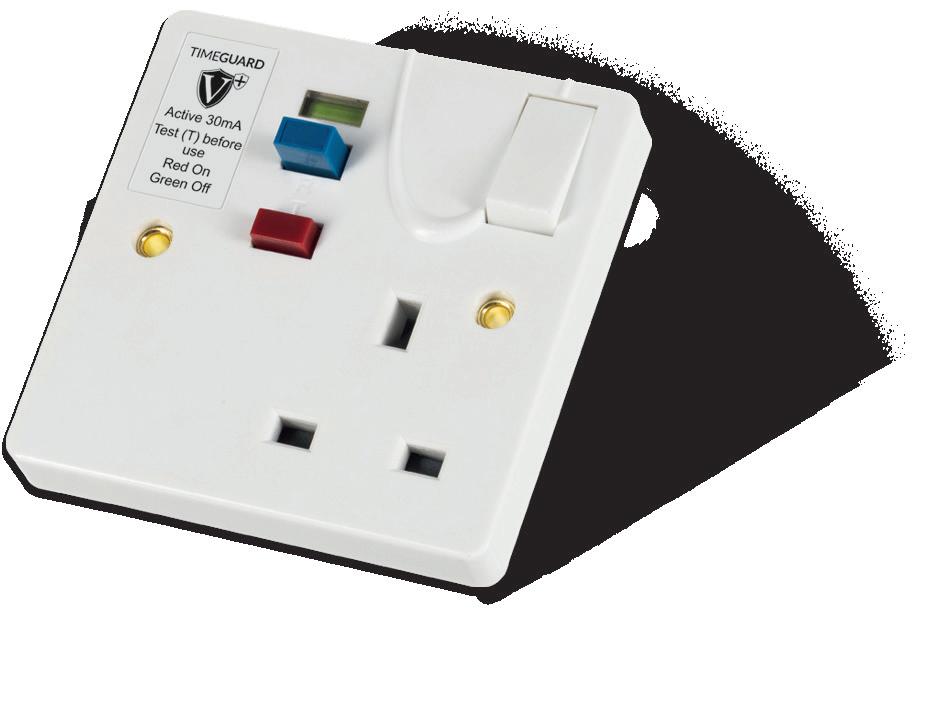

RCD01WAVN - Valiance+ ® RCD Single Gang White Switched Socket - Active

RCD01WAVN

■ Single gang protected switched socket outlet for convenience and extra safety

■ Manual reset and test button for safety checks

■ RCD Class A rated

■ Extra fast action

– trips out within 40 milliseconds (BS7288)

■ New Dual Flag Technology provides added protection against the risks of electrocution

■ Continues to protect with Lost Neutral/pulsating DC earth fault

■ Operational Classification: Non-Latching (Active)

Product Dimensions

Height 85, Width 85, Depth 42mm

RCD02WPVN - Valiance+ ® RCD Single Gang White Switched Socket - Passive

RCD02WPVN

■ Single gang protected switched socket outlet for convenience and extra safety

■ Manual reset and test button for safety checks

■ RCD Class A rated

■ Extra fast action

– trips out within 40 milliseconds (BS7288)

■ New Dual Flag Technology provides added protection against the risks of electrocution

■ Continues to protect with Lost Neutral/pulsating DC earth fault

■ Operational Classification: Latching (Passive)

Product Dimensions

Height 85, Width 85, Depth 43mm

Dual Flag Technology Conforms to BS7288:2016 and BS1363-2

See page 87 for product specifications.

All Valiance+ ® products carry a 3 year guarantee.

Timeguard’s Valiance + RCD accessory range is the first RCD socket and spur range in the UK to fully comply with the BS7288:2016 standard.

(Timeguard Valiance + is designed, tested and certified in the UK)

■ Easy Install. Retrofits into a standard wall box

■ Conforms to BS7288:2016 BS1363-2, and meets latest IET Wiring Regulations

■ Built-in surge protection protects against surges & spikes to EN61000-4

■ High EMC Immunity dramatically reduces nuisance tripping

■ Valiance+ range available in both Active and Passive versions across the range (see products for more information)

Valiance+ ® RCD Protection Safety

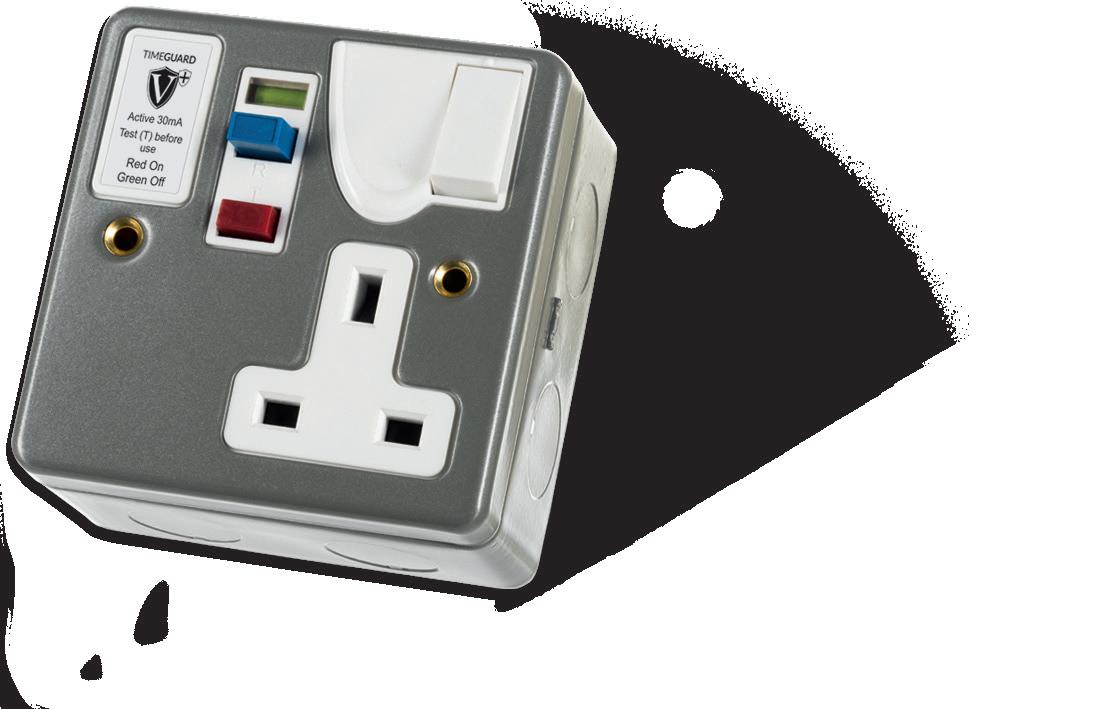

RCD03MAVN - Valiance+ ® RCD Single Gang Metal Switched Socket - Active

RCD03MAVN

■ Single gang protected switched socket outlet for convenience and extra safety

■ Manual reset and test button for safety checks

■ RCD Class A rated

■ Extra fast action

– trips out within 40 milliseconds (BS7288)

■ New Dual Flag Technology provides added protection against the risks of electrocution

■ Continues to protect with Lost Neutral/pulsating DC earth fault

■ Operational Classification: Non-Latching (Active)

■ Supplied with a 40mm BS metal surface wall box

Product Dimensions

RCD04MPVN - Valiance+ ® RCD Single Gang Metal Switched Socket - Passive

■ Single gang protected switched socket outlet for convenience and extra safety

■ Manual reset and test button for safety checks

■ RCD Class A rated

■ Extra fast action

– trips out within 40 milliseconds (BS7288)

■ New Dual Flag Technology provides added protection against the risks of electrocution

■ Continues to protect with Lost Neutral/pulsating DC earth fault

■ Operational Classification: Latching (Passive)

■ Supplied with a 40mm BS metal surface wall box

Product Dimensions

RCD04MPVN

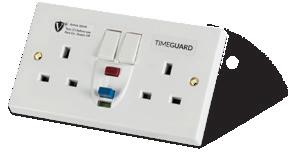

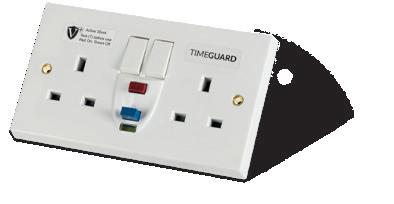

RCD05WAVN - Valiance+ ® RCD Double Gang White Switched Socket - Active

RCD05WAVN

■ Single gang protected switched socket outlet for convenience and extra safety

■ Manual reset and test button for safety checks

■ RCD Class A rated

■ Extra fast action

– trips out within 40 milliseconds (BS7288)

■ New Dual Flag Technology provides added protection against the risks of electrocution

■ Continues to protect with Lost Neutral/pulsating DC earth fault

■ Operational Classification: Non-Latching (Active)

RCD06WPVN - Valiance+ ® RCD Double Gang White Switched Socket - Passive

■ Single gang protected switched socket outlet for convenience and extra safety

RCD06WPVN

■ Manual reset and test button for safety checks

■ RCD Class A rated

■ Extra fast action

– trips out within 40 milliseconds (BS7288)

■ New Dual Flag Technology provides added protection against the risks of electrocution

■ Continues to protect with Lost Neutral/pulsating DC earth fault

■ Operational Classification: Latching (Passive)

Product Dimensions

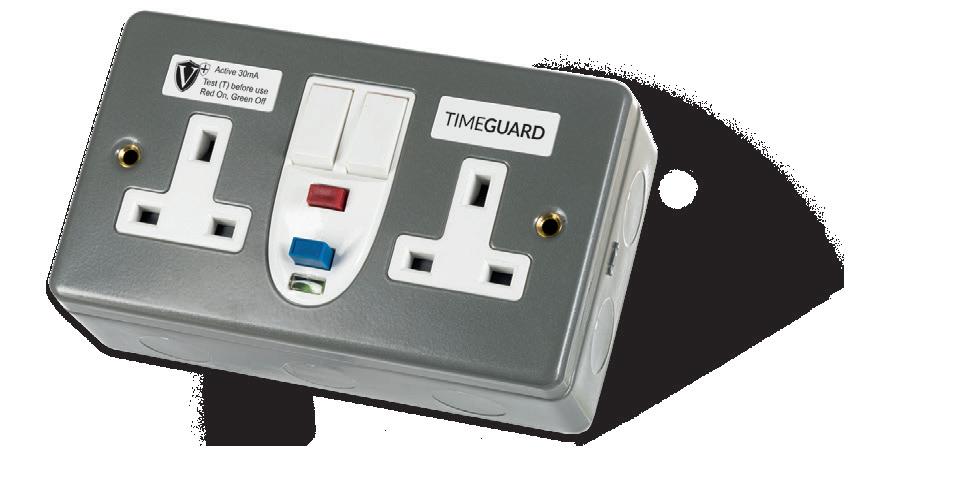

RCD07MAVN - Valiance+ ® RCD Double Gang Metal Switched Socket - Active

■ Single gang protected switched socket outlet for convenience and extra safety

■ Manual reset and test button for safety checks

■ RCD Class A rated

■ Extra fast action

– trips out within 40 milliseconds (BS7288)

■ New Dual Flag Technology provides added protection against the risks of electrocution

■ Continues to protect with Lost Neutral/pulsating DC earth fault

■ Operational Classification: Non-Latching (Active)

■ Supplied with a 40mm BS metal surface wall box

Product Dimensions

Height 88, Width 148, Depth 60mm

RCD08MPVN - Valiance+ ® RCD Double Gang Metal Switched Socket - Passive

■ Single gang protected switched socket outlet for convenience and extra safety

■ Manual reset and test button for safety checks

■ RCD Class A rated

■ Extra fast action

– trips out within 40 milliseconds (BS7288).

■ New Dual Flag Technology provides added protection against the risks of electrocution

■ Continues to protect with Lost Neutral/pulsating DC earth fault.

■ Operational Classification: Latching (Passive)

■ Supplied with a 40mm BS metal surface wall box

Active Vs Passive RCDs

See page 87 for product specifications.

Passive RCDs, also known as Latching RCDs, trip and isolate the circuit they are protecting when power is lost due to a fault. However, they do not trip during power cuts, which makes them suitable for use with appliances like fridges, freezers, and in remote or unmanned areas.

Active RCDs, also referred to as Non-Latching RCDs, not only trip and isolate the circuit in case of faults but also during power cuts. They remain in the off state until manually reset. Consequently, these RCDs are well-suited for power tools, garden tools, and other rotating machinery.

Dual Flag Technology

Conforms to BS7288:2016 and BS1363-2

All Valiance+ ® products carry a 3 year guarantee.

Product Dimensions

Height 88, Width 148, Depth 60mm

RCD07MAVN
RCD08MPVN

Valiance+ ® RCD Protection

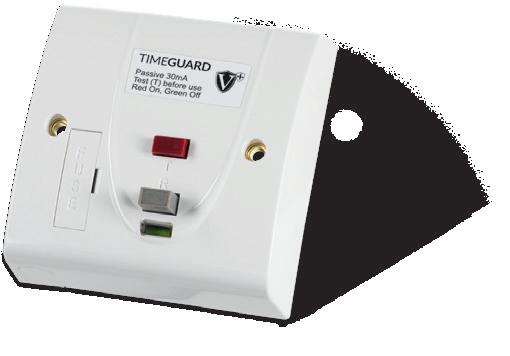

RCD10WPVN/RCD11WPVN - Valiance+ ® RCD White Fused Connection Units - Passive

RCD10WPVN

Timeguard’s RCD fused connection units are latching (passive). If set, this will retain closed contacts if the mains supply is interrupted – essential for applications such as freezers.

RCD11WPVN

■ Manual reset and test button for safety checks

■ RCD Class A rated

■ Extra fast action

– trips out within 40 milliseconds (BS7288)

■ New Dual Flag Technology provides added protection against the risks of electrocution

■ Continues to protect with Lost Neutral/pulsating DC earth fault

■ Operational Classification: Non-Latching (Passive)

■ High EMC Immunity dramatically reduces nuisance tripping

■ Fixed Cable Capacity: 1x 8mm² or 2x 4mm² or 3x 2.5mm²

■ The RCD10WPVN has a greater frontal projection from the wall and a shallower wall box depth in comparison to the RCD11WPVN, which has a lesser frontal projection from the wall and a deeper wall box depth

■ The RCD10WPVN wall box depth is 25mm.The RCD11WPVN wall box depth is 35mm.

Product Dimensions (RCD10WPVN)

Height 85, Width 85, Depth 52mm

Product Dimensions (RCD11WPVN)

Height 85, Width 85, Depth 42mm

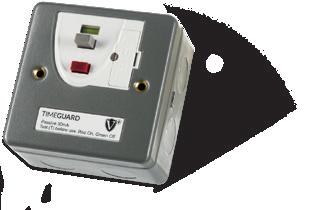

RCD16MLN - Valiance+ ® RCD Metal Fused Connection Unit - Passive

■ Manual reset and test button for safety checks

■ RCD Class A rated

■ Extra fast action

– trips out within 40 milliseconds (BS7288)

■ New Dual Flag Technology provides added protection against the risks of electrocution

■ Continues to protect with Lost Neutral/pulsating DC earth fault

■ Operational Classification: Latching (Passive)

■ Supplied with a 40mm BS metal surface wall box

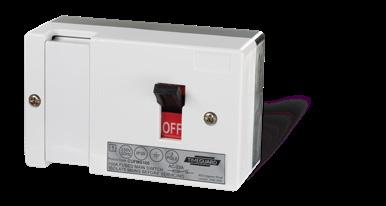

CUFMS100 - 100A Fused Switch Unit

Power up to Timeguard’s 100 Amp Switch Fuse Unit making installations to sub mains or system extensions easier.

■ 100A Surface mount switch unit

■ 230V A/C Protection and isolation of incoming mains electricity

■ Supplied with 1x100A and 1x80A HRC fuses

■ Fully tested to EN 60947-3

Product Dimensions

Height 87, Width 87, Depth 60mm

Product Dimensions

Height 78, Width 128, Depth 62mm

All Valiance+ ® products carry a 3 year guarantee.

See page 87 for product specifications.

RCD16MLN
CUFMS100

Safety 52 Weathersafe Vision Outdoor Power

TGV101N - Weathersafe Vision Single Gang 13A Switched Socket

TGV101N

■ Weathersafe ‘Vision’ see-through clear plastic cover

■ Single gang switched socket – suitable for all 13 amp BS plugs

■ Lockable cover facility

■ Impact resistant housing

■ Easy release lid catch

■ Multiple M20 threaded screw-outs

■ Power ‘ON’ neon indicator clearly visible when lid closed

■ Spacious design allowing full closure of lid with plug in position

■ Complies with BS1363

■ IP66 weatherproof rating

TGV103N - Weathersafe Vision Single Gang 13A Fused Spur

TGV103N

■ Weathersafe ‘Vision’ see-through clear plastic cover

■ Fitted with 13A fuse link

■ Lockable cover facility

■ Impact resistant housing

■ Easy release lid catch

■ Multiple M20 threaded screw-outs

■ Power ‘ON’ neon indicator showing switch status

■ Complies with BS1363

■ IP66 weatherproof rating

FSTWIFITUTGV - Wi-Fi Controlled IP66 Fused Spur

FSTWIFITUTGV

■ Wi-Fi enabled control for all manner of electrical applications, now improved with Google Home and Amazon Alexa Support

■ Programe settings are all activated via your mobile device or tablet, giving you access to control your installed appliances at any time via Wi-Fi, no matter where you are

■ 13A rated suitable for 3kW:

■ Immersion heaters.

■ 5A inductive load.

■ 1000W tungsten.

■ 500W LED.

■ 100W CFL.

■ 500W fluorescent.

■ Permanent ON, Permanent OFF, Boost/Countdown Modes

■ Replaceable 13 Amp BS1362 fuse

■ Multiple M20 knockouts and padlock hole for a more secure tamperproof locking facility

■ Double pole isolating switch

Safe & Dry With Weathersafe

The safest solution for bringing power outdoors. Gone is the need for running extension cables outside as the Weathersafe range features a fully IP66 weaterproof casing with a clear plastic cover and highly visible power indicator as standard. Useable with the lid closed, the range keeps you fully aware of the power status to your lawnmower, power tool or other appliance. For detailed product specifications visit: www.timeguard.com

Weathersafe Vision Outdoor Power

TGV105NP - Weathersafe Vision Single Gang RCD Fused Spur - Passive

■ Dual Flag Technology provides added protection against the risks of electrocution

■ Weathersafe ‘Vision’ see-through clear plastic cover

■ Extra fast action

– trips out within 40 milliseconds (BS7288)

■ Contacts remain latched when power supply is temporarily lost

■ Lockable cover facility

■ Impact resistant housing

■ Easy release lid catch

■ Multiple M20 threaded screw-outs

■ Test and reset buttons for safety checks

■ Status flag indicator

■ Conforms to BS 7288:2016 and BS1363-4

Product Dimensions

Height 160, Width 115, Depth 90mm

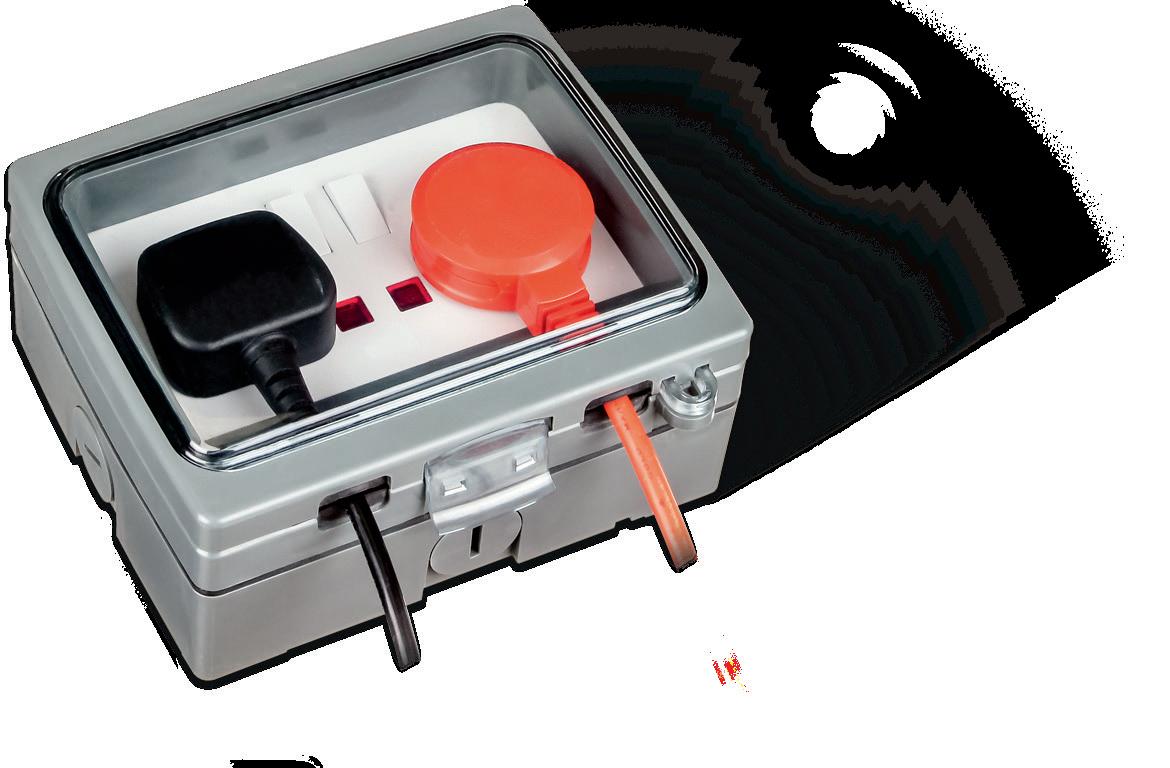

TGV201N - Weathersafe Vision Twin Gang 13A Switched Socket

■ Weathersafe ‘Vision’ see-through clear plastic cover

■ Twin gang switched socket – suitable for all 13 amp BS plugs

■ Lockable cover facility

■ Impact resistant housing

■ Easy release lid catch

■ Multiple M20 threaded screw-outs

■ Power ‘ON’ neon indicators clearly visible when lid closed

■ Spacious design allows full closure of lid with plug in position

■ Complies with BS1363

■ IP66 weatherproof rating

Product Dimensions

Height 148, Width 165, Depth 75.5mm

See page 90 for product specifications.

This innovative range of outdoor power sockets and switches offer IP66 protection against dust and water, providing perfect protection against whatever the UK weather may through at them.

Designed with safety and security in mind, Weathersafe outdoor power products are the safest way to use power outside with IP66 lid closure protecting the user.

Weathersafe Vision will accommodate standard UK plugs, enclosing the lid fully to protect the plugs inside.

As a bonus, the lockable lide supplied as standard safeguards against unauthorised opening and tampering.

TGV105NP
TGV201N

Safety 54

Weathersafe Vision Outdoor Power

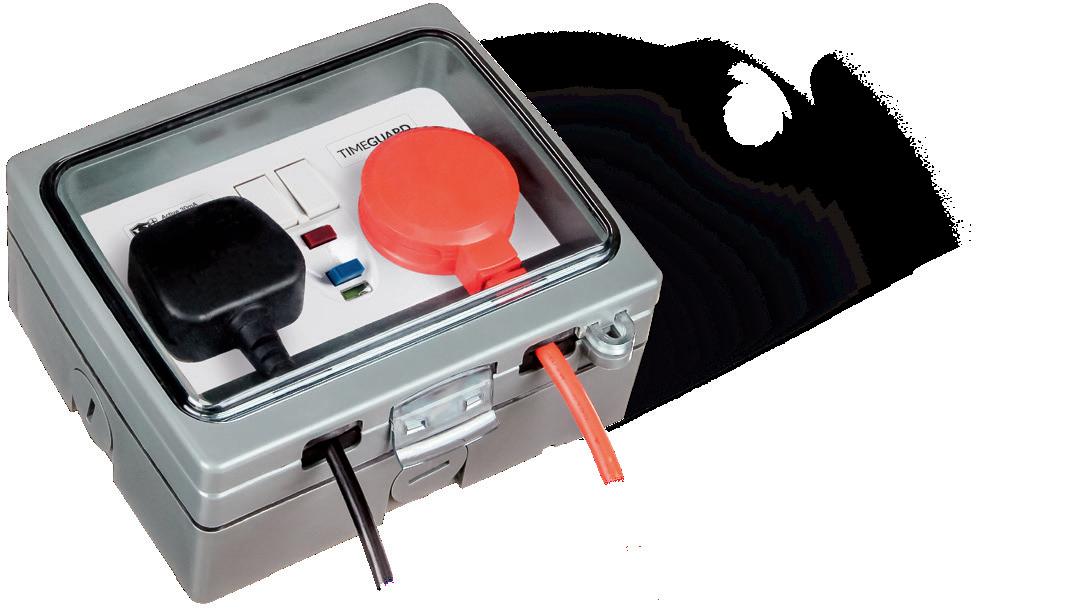

TGV204NP - Weathersafe Vision Twin Gang 13A RCD Switched Socket - Passive

Weathersafe Vision Switched RCD Socket gives additional protection against the risk of electric shocks at home and in the garden.

■ Weathersafe ‘Vision’ see-through clear plastic cover

■ Extra fast action

– trips out within 40 milliseconds (BS7288)

■ Contacts remain latched when power supply is temporarily lost

■ Impact resistant housing

■ Easy release lid catch

■ Multiple M20 threaded screw-outs

■ Test and reset buttons for safety checks

■ Status flag indicator

■ Spacious design allows full closure of lid with plug in position

■ Suitable for all 13 amp BS plugs

■ Complies with BS7288 and BS1363

■ IP66 weatherproof rating

Product Dimensions

TGV205NP - Weathersafe Vision Twin Gang 13A RCD Switched Socket - Active

TGV205NP

Weathersafe Vision Switched RCD Socket gives additional protection against the risk of electric shocks at home and in the garden.

■ Weathersafe ‘Vision’ see-through clear plastic cover

■ Extra fast action

– trips out within 40 milliseconds (BS7288)

■ Automatically disconnects both Live and Neutral connections leaving Earth connection intact

■ Trips out when the power supply is temporarily lost

A safety must for machine tool applications

■ Impact resistant housing

■ Easy release lid catch

■ Multiple M20 threaded screw-outs

■ Test and reset buttons for safety checks

■ Status flag indicator

■ Spacious design allows full closure of lid with plug in position

■ Suitable for all 13 amp BS plugs

■ Complies with BS7288 and BS1363

■ IP66 weatherproof rating

148, Width 165, Depth 75.5mm Product Dimensions

148, Width 165, Depth 75.5mm

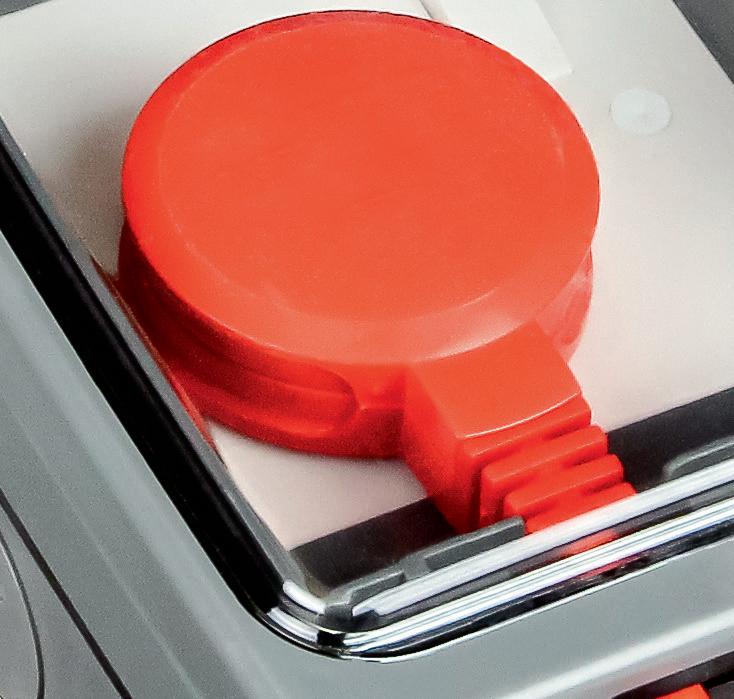

Product Features

feature for security against tampering and energy theft.

Locking
Simple click to close, pull to open catches.
Weathersafe Vision –clear see-through durable cover.
Multiple M20 screw-outs.
TGV204NP

-

Extreme Outdoor Power

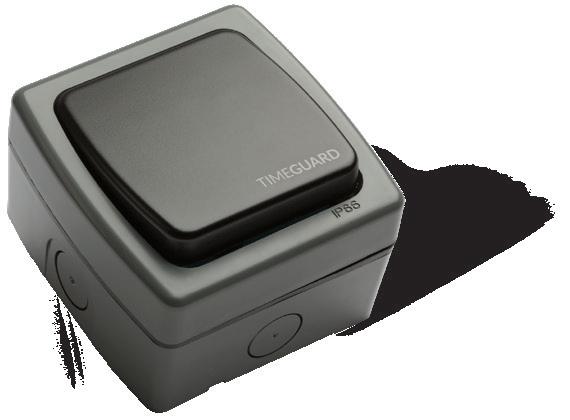

2-Way Switches (SP)

An IP66 outdoor switch is typically used for outdoor lighting and electrical applications that need to be protected from dust, dirt, and water. It is also commonly used for controlling machinery, motors, pumps, and other outdoor equipment.

■ 10AX (fluorescent rated)

■ Backlit neon illuminates switch for dark areas

■ Complies with BS EN 60669

■ Multiple 20mm knock outs

■ IP66 weatherproof rating

■ TGVL02 has the same features as TGVL01, with the key difference being a twin-gang setup that enables the control of two circuits vs a single circuit of which the TGVL01 would be used

Product Dimensions (TGVL01)

Height 96, Width 92, Depth 66mm

Product Dimensions (TGVL02) Height 96, Width 92, Depth 66mm

TGVL03 - Weathersafe Extreme Single Gang Bell Push Switch (SP)

A bell push switch is a type of momentary switch that is typically used to activate a bell or chime. It is often used as a doorbell switch, allowing a visitor to signal their presence by pushing the button. It is also used in security systems to activate an alarm or used as a trigger switch for lighting or other controls.

■ 10AX (fluorescent rated)

■ IP66 weatherproof rating TGVL01/TGVL02

■ Backlit neon illuminates switch for dark areas

■ Complies with BS EN 60669

■ Multiple 20mm knock outs

See pages 89 for product specifications.

Be Extremely Safe!

Electrical shocks are a real threat, resulting in approximately 1000 accidents involving electric shocks at work happen every year, around 30 of which are fatal.

Whenever sockets and switches are installed outside or in public spaces, extra protection helps to ensure sockets and switches are installed correctly and secure against the threat of vandalism or theft.

Covering all three areas of concern, the Timeguard Vision range of outdoor sockets provides the utmost safety, reassuring users at all times.

Product Dimensions (TGVL03) Height 96, Width 92, Depth 66mm

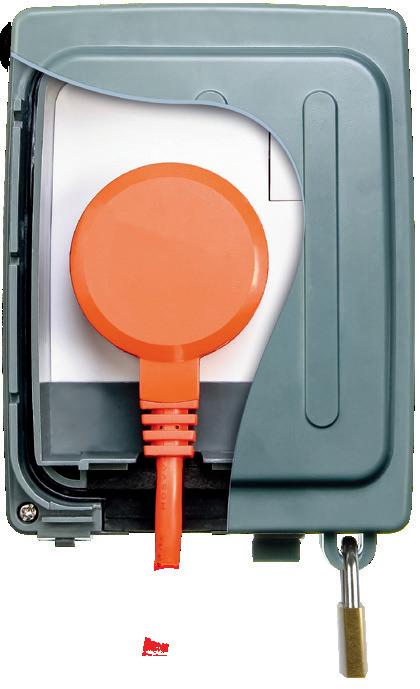

Lockable cover facility (illustrated with padlock in place).

TGVL01
TGVL02
TGVL03

WXT101N - Weathersafe Extreme IP66 Single Gang 13A Switched Socket

The safest way to take power outdoors. There is no need for running extension cables outside as it features a fully IP66 weatherproof casing. The WXT101N and all the extreme range feature an impact resistant solid ribbed lid. The IP66 protective housing has multiple replaceable cable outlets and is suitable for all BS 13A plugs.

■ Weathersafe ‘Extreme’ impact resistant solid ribbed lid

■ Single gang switched socket – suitable for all 1 3 amp BS plugs

■ Lockable cover facility

■ Impact resistant housing

■ Easy release lid catch

■ Multiple M20 threaded screw-outs

■ Power ‘ON’ neon indicator showing switch status

■ Spacious design allowing full closure of lid with plug in position

■ Complies with BS1363

■ IP66 weatherproof rating

WXT103N - Weathersafe Extreme IP66 Single Gang 13A Fused Spur

WXT103N

Weathersafe Extreme Fused Spur to control pond pumps, fountains and other permanent outdoor installations. As well as an On/Off switch it is fitted with a 13A fuse link and complies with BS1363.

■ Weathersafe ‘Extreme’ impact resistant solid ribbed lid

■ Fitted with 13A fuse link

■ Power ‘ON’ neon indicator showing switch status

■ Easy release lid catch

■ Multiple M20 threaded screw-outs

■ Lockable cover facility

■ Complies with BS1363

■ IP66 weatherproof rating

All Weathersafe products carry a 3 year guarantee.

See page 89 & 90 for product specifications.

Application Options

Weathersafe Extreme and Vision outdoor sockets are the safe way to take power outside. Providing protection when using gardening equipment, they are essential for all areas where electric equipment is used outdoors.

3 2 1

WXT101N

Weathersafe Extreme Outdoor Power

WXT201N - Weathersafe Extreme Twin Gang 13A Switched Socket

Weathersafe Twin Gang Switched Socket shares all the features and benefits of the single gang socket (WXT101N) plus it has two switched sockets, with individual power ON indicators.

■ Weathersafe ‘Extreme’ impact resistant solid ribbed lid

■ Single gang switched socket – suitable for all 13 amp BS plugs

■ Lockable cover facility

■ Impact resistant housing

■ Easy release lid catch

■ Multiple M20 threaded screw-outs

■ Power ‘ON’ neon indicator showing switch status

■ Spacious design allowing full closure of lid with plug in position

■ Complies with BS1363

■ IP66 weatherproof rating

with Socket Strip and Hinged Lids

■ Hinged lid for quick and easy access outdoor power

■ Suitable for 13 amp plugs and selective timers

■ Spacious design allowing for transformer storage

■ Allows up to 4x appliance outlets excluding the TPS202

■ 5x cable seal outlets

■ Socket strip included (cable and plug not supplied)

■ Tough and durable reinforced plastic lid and housing

■ Lockable cover facility

■ Ideal for transformer linked garden lighting and other outdoor appliances

Keep Safe Outside

The tough, impact resistant polycarbonate provides a robust housing that can be used for long periods in the toughest environments.

WXT201N
TPS202
TPS401

Safety 58

Weathersafe Extreme Outdoor Power

WXT204NP - Weathersafe Extreme Twin Gang 13A RCD Switched Socket - Passive

Weathersafe Extreme Switched RCD Socket gives additional protection against the risk of electric shocks at home and in the garden.

■ Dual Flag Technology provides added protection against the risks of electrocution

■ Automatically disconnects both Live and Neutral connections leaving Earth connection intact

■ Extra fast action

– trips out within 40ms (BS7288:2016)

■ Meets latest IET wiring regulations.

■ Fully enclosed IP66 protective housing

■ Lockable cover facility

■ Impact resistant housing

■ Easy release lid catch

■ Multiple M20 threaded screw-outs

■ IP66 weatherproof rating

WXT205NP - Weathersafe Extreme Twin Gang 13A RCD Switched Socket - Active

WXT205NP

Shares all the features of the WXT204NP but contacts break when power supply is temporarily lost.

■ Dual Flag Technology provides added protection against the risks of electrocution

■ Automatically disconnects both Live and Neutral connections leaving Earth connection intact

■ Extra fast action

– trips out within 40ms (BS7288:2016)

■ Meets latest IET wiring regulations

■ Fully enclosed IP66 protective housing

■ Lockable cover facility

■ Impact resistant housing

■ Easy release lid catch

■ Multiple M20 threaded screw-outs

■ IP66 weatherproof rating

See page 89 for product specifications.

All Weathersafe products carry a 3 year guarantee.

Say goodbye to long cables being dragged from inside sockets with Weathersafe Outdoor Power.

Available in single and double gang options, the need for an indoor lead is a thing of the past!

WXT204NP

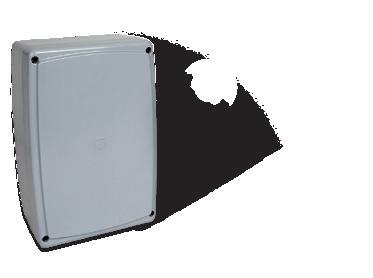

WP401 - Outdoor IP65 Multi-Connector Box With Strip

Comes complete with a 4 way, 13 amp socket strip providing the ideal solution for outdoor plug-in power. Ideal for transformer linked garden lighting, fountain pumps, pool filters etc.

■ Tough and durable housing

■ 4 gang 13A socket strip included (cable and plug not supplied)

■ 1x 20mm cable knock out (mains into socket strip)

■ Up to 5x cable seal outlets (to appliances)

■ IP65 weatherproof rating

■ Keyhole slot for temporary locating and in-situ alignment

WPM02 - Outdoor IP66 Power Connect-2 Mini Box With Strip

This compact 2-way mini-box is an ideal addition to the larger WP401. Using the Timeguard ETU17N timer it is ideal for garden and festive outdoor lighting. It has tough durable housing and IP66 weatherproof rating.

■ Tough and durable housing

■ 2 gang, 13A socket strip included (cable and plug not supplied)

■ Multiple appliance cable outlets

■ Spacious design suitable for all 13 amp BS plugs and selective timers

■ Ideal for transformer linked garden lighting and other outdoor appliances

■ IP66 weatherproof rating

■ Keyhole slot for temporary locating and in-situ alignment

On all selected products.

Weathersafe Outdoor Multi-Connector Boxes

Timeguard’s WP401 and WPM02 come complete with a 13A socket strip providing the ideal solution for outdoor plug-in power. Ideal for transformer linked garden lighting, fountain pumps, pool filters etc.

WP401 shown with ETU17 for timing applications.

Safety 60 Weathersafe IP68 Connectors

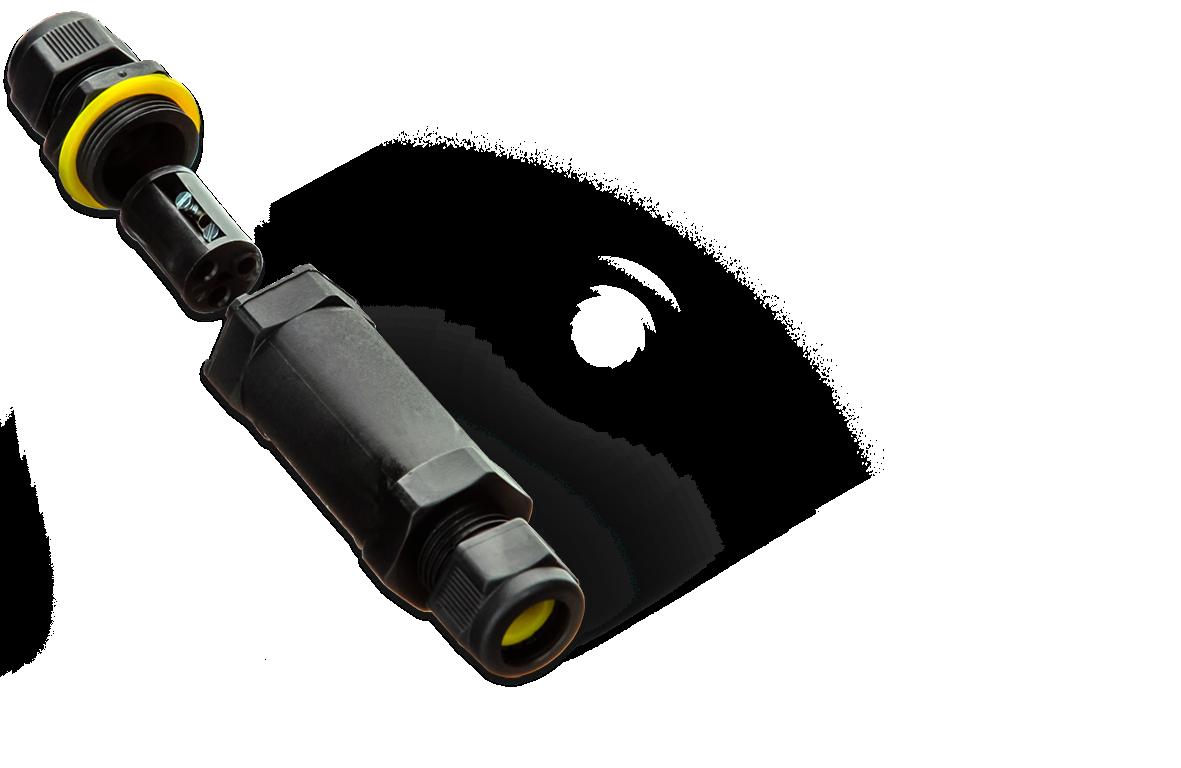

WXT68IL16/WXT68IL20 - In-Line IP68 Connectors

WXT68IL16 (16A)

WXT68IL20 (20A)

Timeguard’s in-line connectors feature easy hand screw locking nuts and accessible connector tightening points. Complete with IP68 seals and gaskets.

■ 3 pole connectors

■ Selection of seals for cable entry

■ Easy hand screw locking nuts

■ IP68 weatherproof protection

■ Robust nylon housing

■ The WXT68IL20 has the same features as the WXT68IL16, but with a 20A rating instead of a 16A rating

WXT68T20 - IP68 ‘T’ Connector - 20A

20A ‘T’ connector with easy hand screw locking nuts and accessible connector tightening points. Complete with IP68 seals and gaskets.

■ 20A rating

■ 3 pole connectors

■ Selection of seals for cable entry

■ Easy hand screw locking nuts

■ IP68 weatherproof protection

■ Robust nylon housing

WXT68JB25

- IP68 Junction Box - 25A

25A junction box with easy hand screw locking nuts and accessible connector tightening points. Complete with IP68 seals and gaskets.

■ 25A rating

■ 3 or 5 pole connectors

■ Selection of seals for cable entry

■ Easy hand screw locking nuts

■ IP68 weatherproof protection

■ Robust nylon housing

Product Dimensions (WXT68IL16)

Height 24, Width 74, Depth 24mm

Product Dimensions (WXT68IL20)

Height 33, Width 114, Depth 33mm

Product Dimensions

Height 32, Width 109, Depth 88mm

Product Dimensions

Height 40, Width 128, Depth 72mm

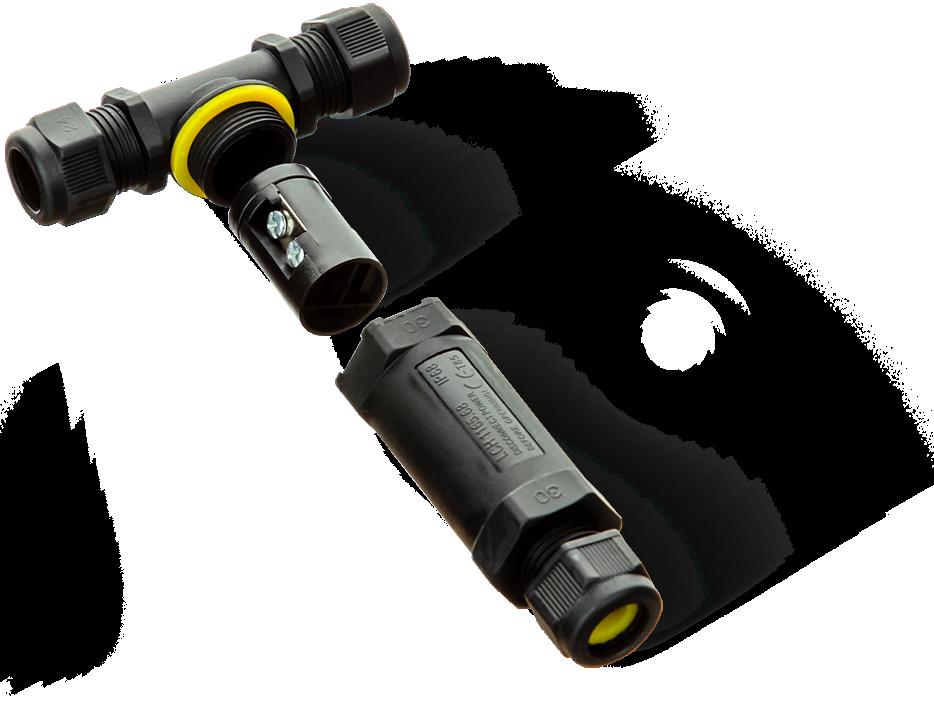

Weathersafe Outdoor IP68 Connectors

A selection of IP68 outdoor power connectors designed to connect cable runs safely in outdoor installations. Ideal for extending cable runs when installing Weathersafe power sockets. Range includes in-line connectors, ‘T’ connector and junction box, supplied with various seal sizes for differing cable entry.

Locking Nut
Locking Nut
Seals
WXT68T20
WXT68JB25

Weathersafe DC Isolator Switches

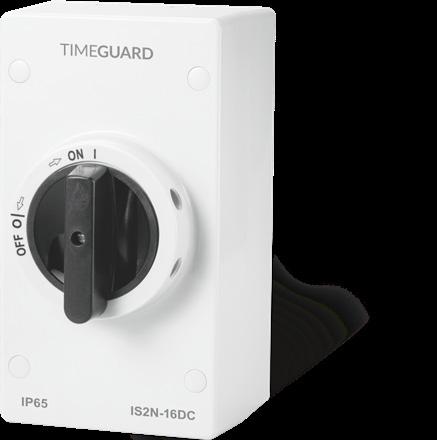

IS2N-16DC (16A Version)

IS2N-25DC (25A Version)

■ Interlocked front cover can only be removed from the OFF position

■ Lockable switch to prevent tampering

■ Tough Thermoplastic construction

■ Multiple M20 cable entry knockouts on enclosure.

IS2N-32DC (32A Version)

■ The switch can be easily removed from the housing assembly allowing for a quick and easy installation

■ Guaranteed arc suppression time of under 5mS

■ Rising clamp terminals with 16mm² max. cable support

■ Manufactured to BS EN IEC 60947-3

■ Complies with DC-PV2, DC-PV1 PV utilisation categories

■ Large enclosure for easier wiring

■ The IS2N-25DC & IS2N-32DC has the same features as the IS2N-16DC, but with a 25A & 32A rating instead of a 16A rating

IS4N-16DC (16A Version)

IS4N-25DC (25A Version)

■ Interlocked front cover can only be removed from the OFF position

■ Lockable switch to prevent tampering

■ Tough Thermoplastic construction

■ Multiple M20 cable entry knockouts on enclosure.

IS4N-32DC (32A Version)

Weathersafe DC Isolator Switches

Timeguard’s new range of DC Isolators are designed to provide a safe, reliable and cost-effective way to switch and maintain DC voltage circuits. With a range of 2 and 4 pole options with different amperages (16A to 32A), you can find the perfect solution for your specific needs. Easy to install thanks to clear intuitive instructions, the range is constructed from durable thermoplastic materials, giving you peace of mind that your system will remain safe at all times. The ideal choice for any commercial or industrial applications.

■ The switch can be easily removed from the housing assembly allowing for a quick and easy installation

■ Guaranteed arc suppression time of under 5mS

■ Rising clamp terminals with 16mm² max. cable support

■ Manufactured to BS EN IEC 60947-3

■ Complies with DC-PV2, DC-PV1 PV utilisation categories

■ Large enclosure for easier wiring

■ The IS4N-25DC & IS4N-32DC has the same features as the IS4N-16DC, but with a 25A & 32A rating instead of a 16A rating

Interlocked front cover can only be removed in the OFF position.

Product Dimensions

(IS2N-16DC/IS2N-25DC/IS2N-32DC)

Height 180, Width 100, Depth 117mm

Product Dimensions

(IS4N-16DC/IS4N-25DC/IS4N-32DC)

Height 180, Width 100, Depth 117mm

Lockable switch prevents tampering.

Safety 62

IS3N-20 (3 Pole Version)

Weathersafe Isolator Switches

■ Solid Neutral

■ On load switch disconnectors

■ To BS EN 60947-3

■ Switch can be removed from DIN rail assembly allowing quick and easy first fix

■ Interlocked front cover can only be removed when in OFF position

■ Lockable switch prevents tampering

■ Tough durable thermoplastic construction

■ Cable entry knockouts on enclosures

■ The IS3N-20 has the same features as the IS4N-20, but with 3 poles instead of 4 poles

IS3N-32 (3 Pole Version)

■ Solid Neutral

(4 Pole Version)

■ On load switch disconnectors

■ To BS EN 60947-3

■ Switch can be removed from DIN rail assembly allowing quick and easy first fix

■ Interlocked front cover can only be removed when in OFF position

■ Lockable switch prevents tampering

■ Tough durable thermoplastic construction

■ Cable entry knockouts on enclosures

■ The IS3N-32 has the same features as the IS4N-32, but with 3 poles instead of 4 poles.

140,

■ The IS4N-40 and IS4N-60 have the same features, with the only distinction being the switch rating: 40A on the IS4N-40 and 60A on the IS4N-60 IS3N-20/IS4N-20 - Weathersafe IP65 Rotary Isolator Switch 3 Pole - 20A IS3N-32/IS4N-32 - Weathersafe IP65 Rotary Isolator Switch 4 Pole - 32A

IS4N-40/IS4N-63 - Weathersafe P65 Rotary Isolator Switch 4 Pole - 40A/63A

IS4N-40 (40A Version) IS4N-20 (4 Pole Version)

■ Solid Neutral

■ On load switch disconnectors

■ To BS EN 60947-3

(60A Version)

■ Switch can be removed from DIN rail assembly allowing quick and easy first fix

■ Interlocked front cover can only be removed when in OFF position

■ Lockable switch prevents tampering

■ Tough durable thermoplastic construction

■ Cable entry knockouts on enclosures

Product Dimensions (IS4N-40/IS4N-63) Height 175, Width 121, Depth 122.5mm

■ Solid Neutral

■ On load switch disconnectors

■ To BS EN 60947-3

■ Switch can be removed from DIN rail assembly allowing quick and easy first fix

■ Interlocked front cover can only be removed when in OFF position

■ Lockable switch prevents tampering

■ Tough durable thermoplastic construction

■ Cable entry knockouts on enclosure

IS4N-100 - Weathersafe IP65 Rotary Isolator Switch 4 Pole - 100A IS4N20LENC/IS4N32LENC - Weathersafe Large Body Isolator Switch 4 Pole - 20A/32A

IS4N20LENC (20A Version)

IS4N32LENC (32A Version)

■ Large wiring area suitable for armoured cable

■ Solid Neutral

■ On load switch disconnectors

■ To BS EN 60947-3

■ Switch can be removed from DIN rail assembly allowing quick and easy first fix

■ Interlocked front cover can only be removed when in OFF position

■ Lockable switch prevents tampering

■ Tough durable thermoplastic construction

■ Cable entry knockouts on enclosures

■ The IS4N20LENC and IS4N32LENC have the same features, with the only distinction being the switch rating: 20A on the IS4N20LENC and 32A on the IS4N32LENC

IP65 Rotary Isolators keep you safe!

The Weathersafe Rotary Isolator range is constructed from robust, long-lasting thermoplastic, making it perfect for outside switching protection. Offering 3 and 4 pole versions ranging from 20A to 32A, and 4 pole versions from 40A to 100A, the enclosures feature multiple cable entry knockouts for user convenience. Additionally, large body versions are equipped to handle armoured cable, providing more wiring space to users.

Clear and Simple

Designed with safety in mind, the interlocked front covers can only be removed when in the OFF position. Lockable switch prevents tampering.

Emergency Assist Alarm Kit –

EASZKN

Emergency Assist Alarm System Kit –

Single Zone

Single zone control panel kits are available for where assistance may be required in WC areas, changing rooms, bedrooms etc. With 2 wire connection between control panel, pull cord, reset button and over door light, installation couldn’t be simpler, making it a must-have for new installations and existing conversions.

■ Suitable for use where assistance may be required in WC areas, changing rooms, bedrooms etc.

■ Each kit includes:

■ 1x single zone control panel – 2 gang

■ 1x reset button – Single gang

■ 1x over door light – Single gang

■ 1x pull cord

■ 1x disabled sticker

■ Simple 2 wire connection from control panel to kit components

■ Slimline design

■ Control panel features audible and visual alerts

■ Illuminated reset button clearly marked, also in Braille

■ Illuminated over door light with audio output

■ Pull cord comes with ceiling mounted housing and 2m cord

■ This is a stand-alone kit – that must be used in its entirety and cannot be mixed with additional components

Sold as part of

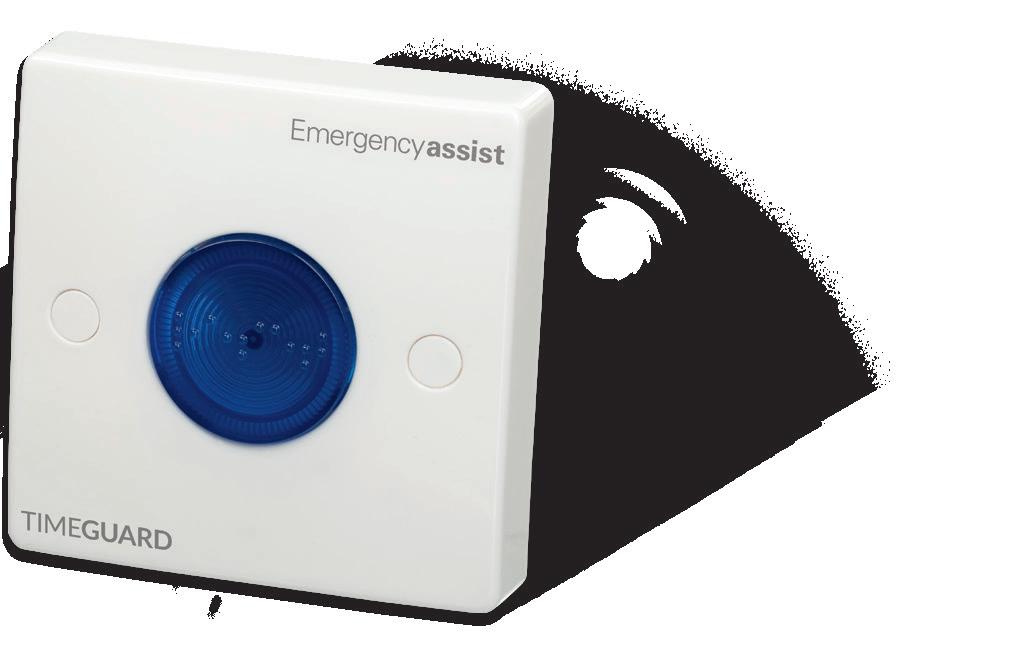

Single Zone Reset Button – Single Gang

■ Illuminated reset button clearly marked, also in Braille

■ Reset button fits standard BS flush or surface mounted boxes

ONLY Sold as part of

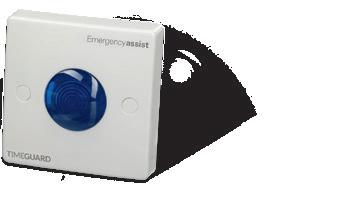

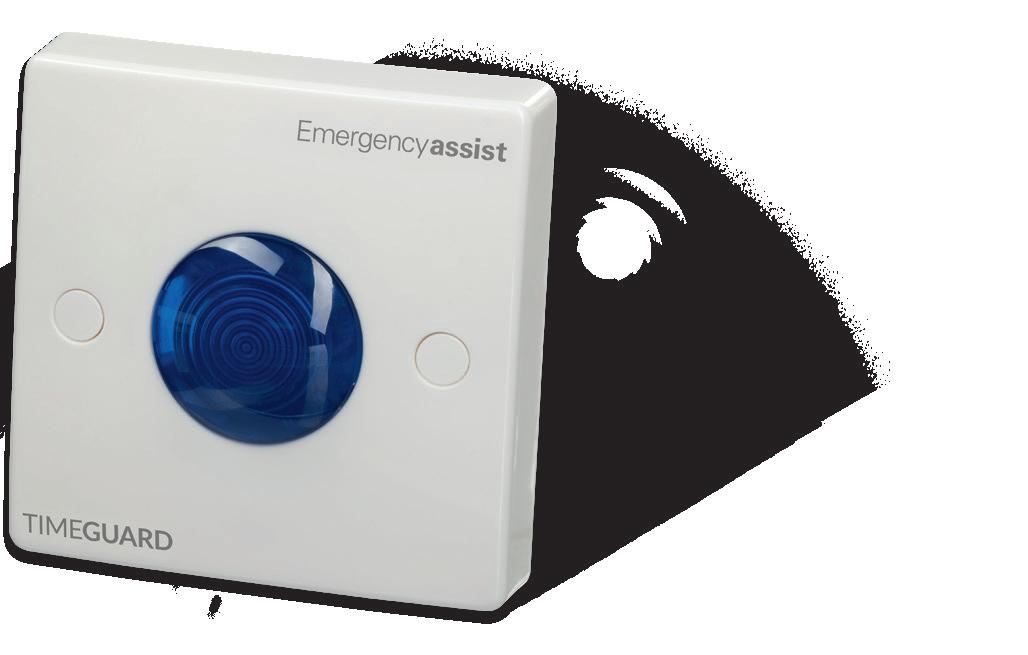

Single Zone Over Door Light

■ Illuminated over door light with audio output

Kit ONLY Sold as part of

Kit ONLY Sold as part of

Single Zone Control Panel – 2 Gang

■ Single zone systems ideal for WC’s and rooms in the home, shop conversions and small businesses

■ Continuous high dB Control Panel alarm with audible and visual alerts

■ Control Panel fits standard BS flush 2 gang or surface mounted boxes

Single Zone Pull Cord

Disabled Sticker

Self-adhesive disabled sticker

Climate Section

Timeguard’s stylish range of energy-saving Room Thermostats and Heating Programers are designed to practically improve system efficiency as well as reduce running costs, with multi-channel and wire-free versions providing accuracy and control at all times.

Easy Control at your fingertips

Whatever central heating application you want to control, the Programastat+ range will have it covered, being designed with ease of installation in mind. All products in the range are supported by Timeguard’s 3-year product guarantee.

& Hot Water

- 2 Channel

page 69.

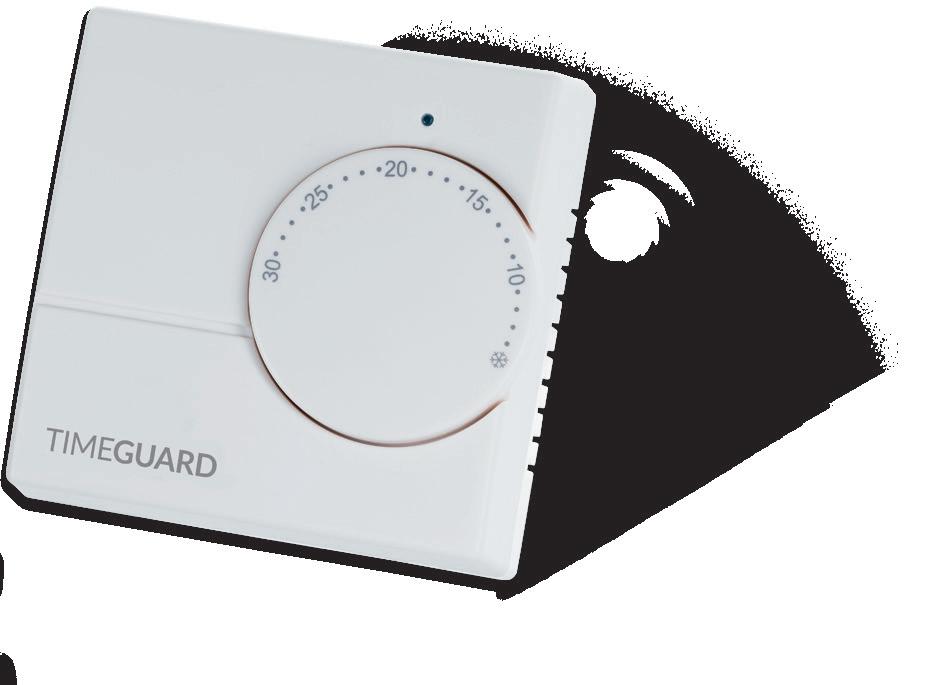

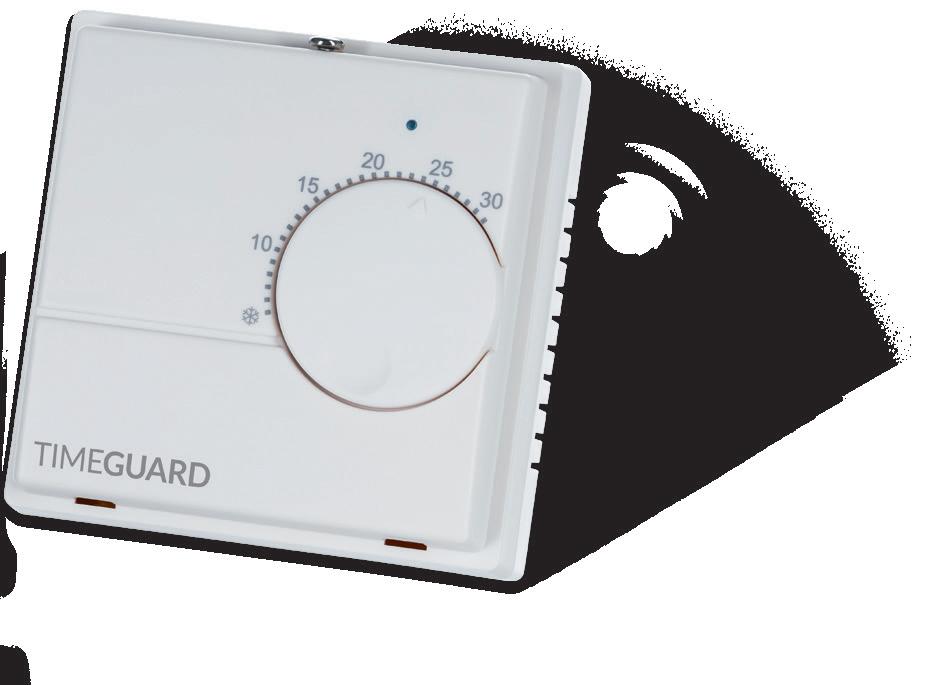

TRT030N - Electronic Room Thermostat

TRT030N

Electronic room thermostat with clearly marked temperature dial providing automatic temperature control for all central heating applications. Simple to install surface mount design with electronic accuracy to improve system efficiency and help reduce running costs.

■ Easily adjustable dial with clearly marked temperature scale

■ 5°C to 30°C set temperature range

■ Temperature swing adjustment (using DIP switches) between 0.5°C and 1°C

■ PID control

■ Output LED (illuminates on call for heat)

■ Switch Type: Single pole, single throw (SPST)

■ Surface mount with wall plate included

■ Connection Type: 3 wire

■ Switch Rating: 6(2)A

TRT030DN - Digital Electronic Room Thermostat

TRT030DN

Electronic room thermostat with digital temperature display, providing automatic temperature control for all central heating applications. Simple to install surface mount design, with electronic accuracy to improve system efficiency and help reduce running costs.

■ Easily adjustable dial

■ Digital room temperature display, illuminated on setting

■ Output LED (illuminated on call for heat)

■ 5°C to 30°C set temperature range

■ Temperature swing adjustment (using DIP switches) between 0.5°C and 1°C

■ PID control

■ Switch Type: Single pole, single throw (SPST)

■ Surface mount with wall plate included

■ Connection Type: 3 wire

■ Switch Rating: 6(2)A.

Versatility comes as standard

Whatever the central heating application you need to control, Timeguard can provide the answer with the Programastat+ range. Utilising features that have been designed to simplify installation and the user experience, all Programastat+ products offer Timeguard’s 3-year product guarantee.

All these products carry a 3 year guarantee.

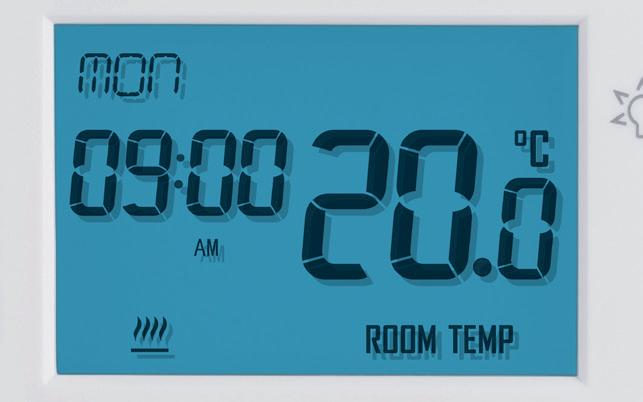

TRT030DN Digital Display

Programastat+ Room Thermostats

TRT031N - Electronic Frost Thermostat with Tamper Proof Cover

■ Easily adjustable dial with clearly marked temperature scale

■ Frost protection against the risk of freezing pipes

■ Tamper proof cover protects thermostat settings

■ 5°C to 10°C set temperature range

■ Temperature swing adjustment (using DIP switches) between 0.5°C and 1°C.

■ PID control

■ Switch Type: Single pole, single throw (SPST)

■ Surface mount with wall plate included

■ Connection Type: 3 wire

■ Switch Rating: 6(2)A

Product Dimensions Height 86, Width 88, Depth 38mm

TRT032N - Electronic Room Thermostat with Tamper Proof Cover

■ Easily adjustable dial with clearly marked temperature scale

■ Tamper proof cover protects thermostat settings

■ Frost Protection

■ 5°C to 30°C set temperature range

■ Temperature swing adjustment (using DIP switches) between 0.5°C and 1°C

■ PID control

■ Switch Type: Single pole, single throw (SPST)

■ Surface mount with wall plate included

■ Connection Type: 3 wire

■ Switch Rating: 6(2)A

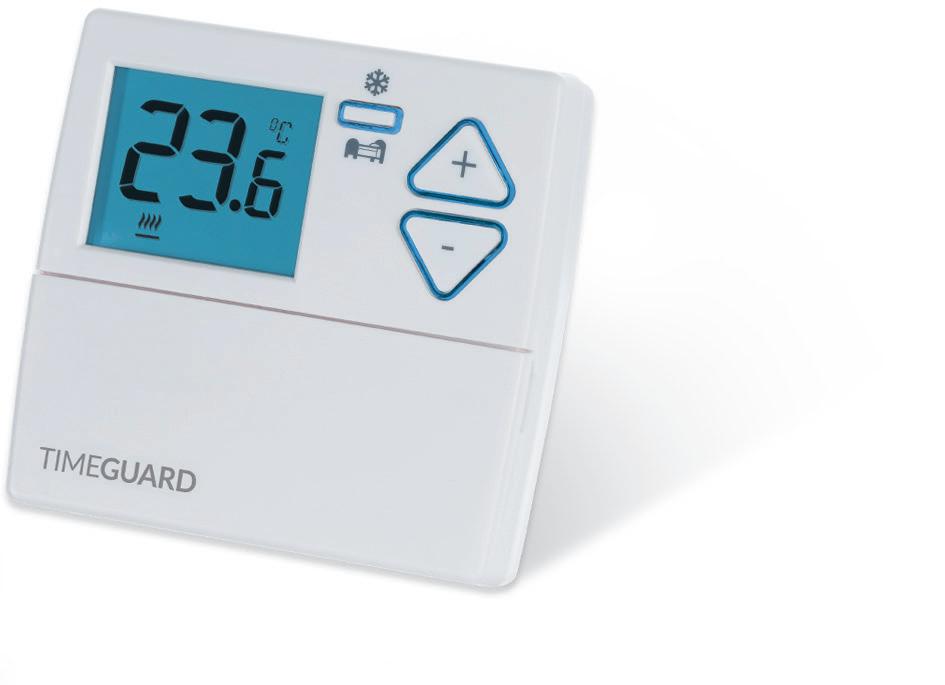

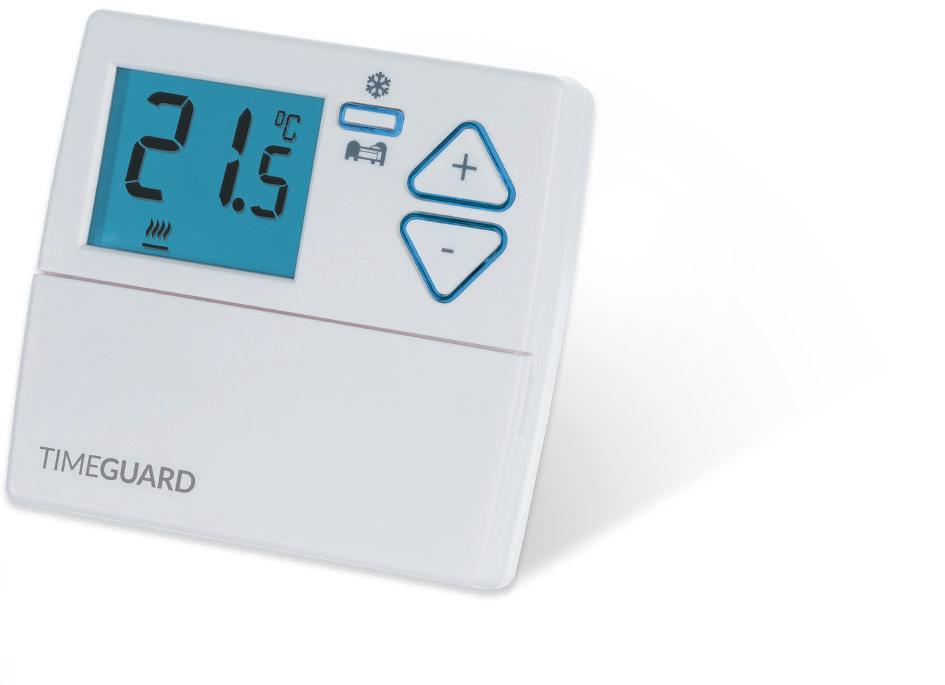

TRT033N

- Digital Room Thermostat with Night Set-Back

The TRT033N features an easy view blue luminescent screen displaying current room temperature. Simple +/- push buttons for temperature adjustments. Screen illuminates on setting, providing automatic temperature control for all central heating applications. Night set-back and frost protection modes help improve system efficiency and reduce running costs.

■ Easy view digital room temperature display, illuminated on setting

■ Easy +/- illuminated push button settings

■ Frost protection setting

■ 10°C to 30°C set temperature range

■ Temperature swing adjustment (using DIP switches) between 0.5°C and 1°C

■ PID control

■ Voltage free change over contacts

■ Display battery powered using 2x 1.5V AA

■ Switch Rating: 3(1)A

Product Dimensions Height 86, Width 88, Depth 40mm

TRT032N with tamper proof cover fitted

Product Dimensions Height 90, Width 95, Depth 30mm

See page 92 for product specifications.

TRT031N
TRT032N
TRT033N

Programastat+ Heating Programers Climate

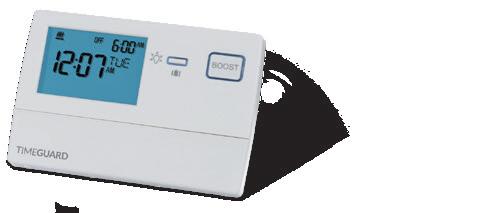

TRT034N - 7 Day Digital Programer - Channel

Single channel programer (for use with room thermostats) displayed on an easy view blue luminescent screen. Simple push button setting with full screen information providing automatic time control for domestic central heating applications.

■ 7 day programing for use with room thermostat

■ 3 timed control periods per day (5 day and 2 or 7 day programing)

■ Programe copy function

■ 1,2 and 3 hour boost function

■ Holiday mode

■ Always On/Off override mode

■ Blue LED screen illuminates upon setting

■ Automatic summer/winter changeover

■ Change over contacts

■ 7 Day factory fitted rechargeable battery backup

■ Switch Rating: 3(1)A

Single channel programer (for use with room thermostats) displayed on an easy view blue luminescent screen. Simple push button setting with full screen information providing automatic time control for domestic central heating applications. TRT034N

See page 92 for product specifications.

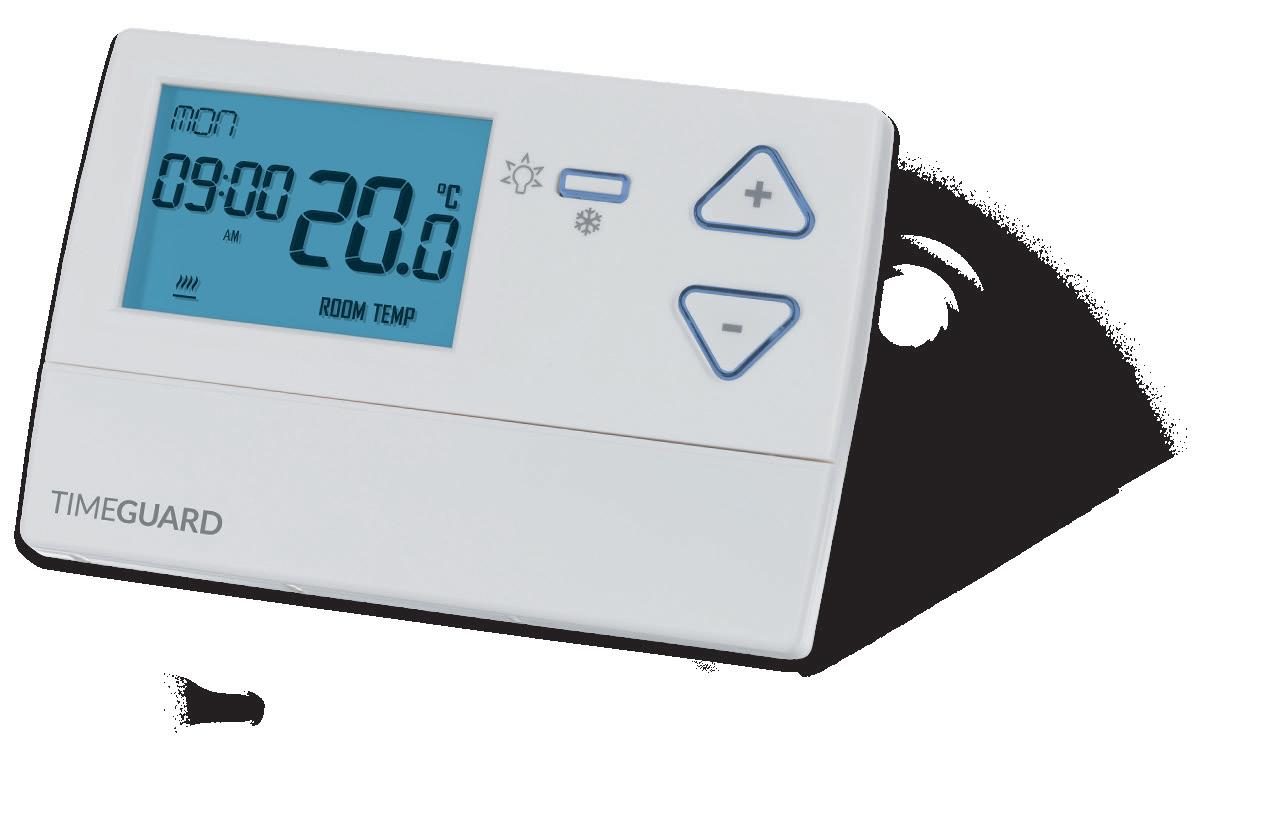

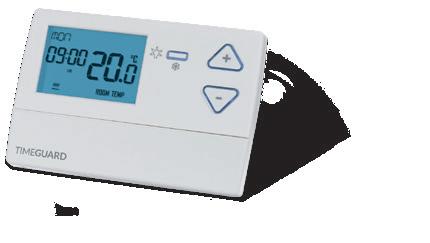

TRT035N - 7 Day Programable Room Thermostat with Frost Protection

TRT035N

All these products carry a 3 year guarantee.

■ 7 day time and temperature programing with digital accuracy

■ 6 different time/temperature periods (5 day and 2 or 7 day programing)

■ Easy +/- illuminated push button settings

■ Easy view time and temperature display illuminates on setting

■ Frost protection setting

■ 10°C to 35°C set temperature range

■ Temperature swing adjustment (using DIP switches) between 0.5°C and 1°C

■ Optimum start feature

■ Voltage free change over contacts

■ Display battery powered using 2x 1.5V AA batteries supplied

■ Switch Rating: 3(1)A

TOP TIP

Don’t settle for mediocrity, upgrade to Programastat+

The range features programers designed to be a direct replacement for all pre-existing heating program with no need for wiring changes.

See page 92 for product specifications.

Programastat+ Heating Programers Climate

TRT036N - 7 Day Digital Heating & Hot Water Programer - Channel

Digital heating programer allowing independent control of central heating and hot water. The TRT036N is suitable for pumped and gravity fed systems programing is displayed on an easy view blue luminescent screen.

■ 2 independently programed channels

■ 7 day programing for use with room thermostat

■ 3 timed control periods per day (5 day and 2 or 7 day programing)

■ Programe copy function

■ 1, 2 and 3 hour boost function for central heating and hot water

■ Holiday mode

■ Always On/Off override mode

■ Blue LED screen illuminates upon setting

■ Automatic summer/winter changeover

■ Change over contacts

■ Optional pumped or gravity operation set by DIP switches

■ 7 day factory fitted rechargeable battery backup

■ Switch Rating: 3(1)A

TRT037N - Wireless 7 Day Programable Room Thermostat

Ideal for installations where it is impractical to run wires from the room thermostat to other central heating controls. Simply transmits time and temperature programs to receiver box up to 60 metres away (depending on installation).

■ Wire free installation from thermostat to receiver control

■ Automatic transmission of time and temperature programs

■ 6 different time/temperature periods

■ Up to 60m transmission range, depending on installation

■ Easy +/- illuminated push button settings. Time and temperature display illuminates on setting

■ Frost protection setting

■ 10°C to 35°C set temperature range adjustable in 0.5°C steps

■ Temperature swing adjustment (using DIP switches) between 0.5°C and 1°C

■ Optimum start feature

■ Voltage free change over contacts

■ Output Light: Red LED on receiver

■ Display battery powered using 2x 1.5V AA batteries supplied

■ Switch Rating: 3(1)A

Did you know...

The TRT037N allows for both manual control and scheduled programing, providing the user with an easy and efficient way of regulating the temperature of the room. In Manual mode, the user can increase or decrease the temperature to their desired level, while in Automatic mode, the thermostat can be programed to different temperatures at different times of the day, saving both time and money.

Product Dimensions Height 90, Width 135, Depth 30mm

Product Dimensions (Transmitter) Height 90, Width 135, Depth 30mm

Product Dimensions (Receiver) Height 90, Width 95, Depth 30mm

See page 29 for product specifications. See page 93 for product specifications.

TRT036N
TRT037N

Climate 70 Programastat+ Heating Programers

TRT038N - 7 Day Digital Heater & Hot Water Programer - Channel

24 hour/7 day digital heating programer with 3 independent timed channels e.g. hot water and 2 separate heating zones, designed for fully pumped central heating systems.

■ 3 independently programed channels

■ Suitable for fully pumped systems

■ Simple push button control (illuminates on setting)

■ 3 timed control periods (5 day plus 2 or 7 day)

■ 1 and 2 hour boost function

■ Holiday mode

■ Always On/Off override mode

■ Blue LED screen illuminates upon setting

■ Optional automatic summer/winter changeover

■ Voltage free change over contacts

■ 24 hour factory fitted rechargeable battery backup

■ Switch Rating: 3(1)A

Product Dimensions

See page 92 for product specifications.

TRT039N - 7 Day Digital Heater & Hot Water Programer - Channel

TRT039N

24 hour/7 day digital heating programer with 4 independent timed channels e.g. hot water and 3 separate heating zones, designed for fully pumped central heating systems.

■ 4 independently timed channels – hot water and 3 separate heating zones

■ Suitable for fully pumped systems

■ Simple push button control (illuminates on setting)

■ 3 timed control periods (5 day plus 2 or 7 day)

■ 1 and 2 hour boost function

■ Holiday mode

■ Always On/Off override mode

■ Blue LED screen illuminates upon setting

■ Optional automatic summer/winter changeover

■ Voltage free change over contacts

■ 24 hour factory fitted rechargeable battery backup

■ Switch Rating: 3(1)A

Multi Channel Control

Our 7 day heating programers are designed for fully pumped systems and are available as the TRT038N with 3 independent timed channels (hot water and 2 separate heating zones) or the TRT039N with 4 channels (hot water and 3 separate heating zones).

Stylish in design with multiple features including automatic summer/winter changeover, 1 or 2 hour boost facility and a holiday mode to suspend programs whilst you’re away.

Product Dimensions

100, Width 150, Depth 32mm

See page 92 for product specifications.

TRT038N

Programastat+ Heating Programers

TRT047N - Wireless Digital Room Thermostat with Night Set-Back

■ Wire free installation from thermostat to receiver control

■ Automatic transmission of time and temperature programs

■ Night set back reduces set temperature by 4°C with 1 – 9 hours recall

■ Up to 60m transmission range, depending on installation

■ Easy +/- illuminated push button settings

■ Easy view temperature display illuminates on setting

■ Frost protection setting

■ 10°C to 30°C set temperature range adjustable in 0.5°C steps

■ Temperature swing adjustment (using DIP switches) between 0.5°C and 1°C

■ PID control

■ Voltage free change over contacts

■ Transmission Range: 60m depending on installation

■ Output Light: Red LED

■ Display battery powered using 2x 1.5V AA batteries supplied

■ Switch Rating: 3(1)A

Product Dimensions (Transmitter)

Height 90, Width 95, Depth 30mm

Product Dimensions (Receiver)

TRT05 - Electronic Plug-in Thermostat with 24 Hour Time Control

The TRT05 is a plug-in electronic thermostat with an in-built 24 hour programable timer. It has 3 programable time periods and 4 operating modes ON, OFF, Timed and Automatic. The set temperature range is between 0° and 35°C, and it is ideal for controlling radiant, convector and fan heaters as well as oil filled radiators.

■ Plug-in, no wiring

■ 3 ON/3 OFF easy-set programable time periods repeated over 24 hours

■ Integral temperature sensor with 0° – 35°C temperature range

■ 1000 hours integral battery power reserve retains programs and allows out of socket programing

■ Large LCD information screen

■ Reset button restores to factory set default programs

■ 13(2)A load rating, 3kW resistive, 400W filament, 2A inductive

All these products carry a 3 year guarantee.

Height 90, Width 95, Depth 30mm Product

See pages 92 & for product specifications.

TRTD7N - Economy 7 Digital Timeswitch with Boost Control

Product Dimensions

Height 116, Width 170, Depth 68mm

■ Designed for use with Economy 7 off peak rate overnight electricity plans

■ Interchangeable with Sangamo and Horstmann Economy 7 units

■ Suitable for use with single, dual or twin element immersion heaters

■ Pre-programed automatic boost and three on-demand options – 30 minutes, 1 & 2 hours

■ Countdown boost display shows boost time remaining

■ Automatic summer/winter changeover

■ 2 year factory fitted battery for memory backup

■ Fits and supplied with a standard size Economy 7 wall box

■ Accommodates up to 3 off-peak hot water or heating periods every 24 hours

■ Easy view 12 hour am/pm clock/timer display illuminates settings

■ Simple push button setting and select modes

■ IP30 enclosure protection and class 1 shock protection

■ Contact rating: 13A suitable for immersion heaters up to 3kW

■ Operating temperature: 0°C to +35°C

■ Contact type: Micro-disconnection ON control. Disconnection to immersion heater(s) via double pole rocker switch

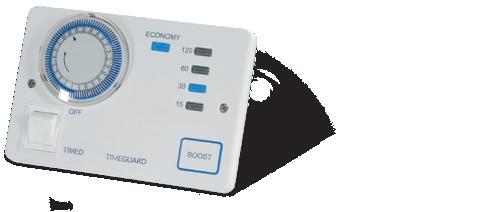

TRTM7N - Economy 7 Analogue Timeswitch with Boost Control

■ Designed for use with Economy 7 off peak rate overnight electricity plans

■ Interchangeable with Sangamo and Horstmann Economy 7 units

■ Suitable for use with single, dual or twin element immersion heaters

■ 4 Boost demand options – 15, 30 minutes, 1 & 2 hours

■ 24 hour Segment dial with minimum 15 minute switching intervals

■ Output LEDs illuminate during off-peak and boost periods

■ Quartz reserve with 150 hours memory back-up

■ Fits and supplied with a standard size Economy 7 wall box

■ IP30 enclosure protection

■ Class 1 shock protection

■ Contact rating: 13A suitable for immersion heaters up to 3kW

■ Operating temperature: 0°C to +35°C

■ Contact type: Micro-disconnection ON control. Disconnection to immersion heater(s) via double pole rocker switch

Product Dimensions

Height 116, Width 170, Depth 70mm

All these products carry a 3 year guarantee.

Economy

Designed for use with Economy 7 off peak rate overnight electricity plans with the flexibility of pre-selected timing options manually adjustable to allow customised programing.

Alternatively press the Boost button for instant On/Off control and walk away knowing you’re saving energy and money!

See page 93 for product specifications.

TRTD7N
TRTM7N

Pipe Thermostat/Wiring Centre

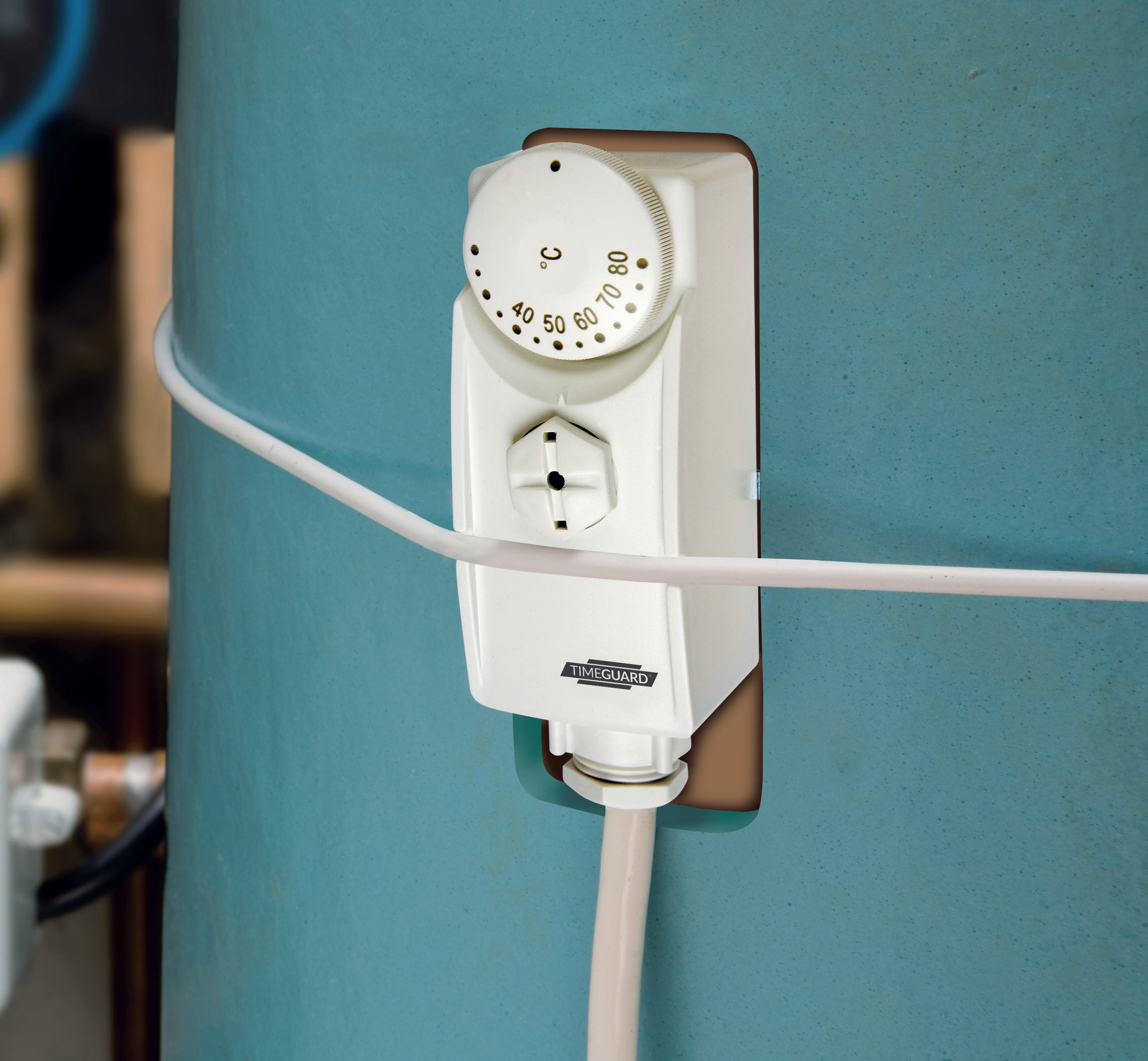

TRT044 - Cylinder/Pipe Thermostat

The TRT044 is a surface mounted mechanical thermostat used to control the temperature of domestic hot water cylinders (uninsulated and foam lagged). The unit comes complete with a cylinder strap and a wire strap which also enable the unit to be used as a pipe thermostat. The TRT044 can be used to switch a circulating pump, boiler or most common zone valves.

■ Cylinder or pipe thermostat

■ Ideal for uninsulated and foam lagged domestic cylinders

■ Solid construction with secure cable clamping

■ Supplied with cylinder strap and wire pipe strap

■ Large setting dial with clearly marked temperature scale

■ Temperature range between 40ºC and 80ºC

■ 16(4) A 230V

■ 2 wire connection

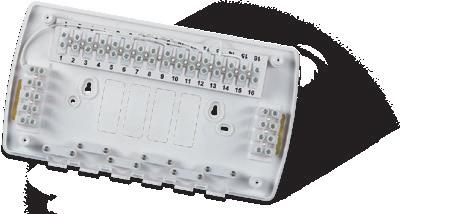

TRT049N - Wiring Centre Box

Using a wiring centre box is a safe and convenient way of wiring all connections to and from a heating system, making system testing a clean and simple task. Supplied with wiring diagrams for ‘S’ Plan and ‘Y’ Plan installations.

■ Spacious and robust box with easily accessible terminals

■ Suitable for all types of heating systems

■ Multiple fixing holes and cable entry knockouts

■ Supplied with wiring diagrams for S type and Y type plan installations

■ 16 terminal block circuits and 4 earth terminals

■ 6 Internal cable clamps

■ Installation Type: Surface mount with wall fixing kit supplied

■ Voltage: 230V 50Hz

■ Flame Retardant Rating: V1

■ Switch Rating: 10(2)A

All these products carry a 3 year guarantee.

See pages 92 & 93 for product specifications.

Piping hot!

Ideal for new or replacement installations with a clear temperature scale and easy fitting. For use with uninsulated and foam lagged domestic cylinders, complete with cylinder strap and wire strap which also enable the unit to be used as a pipe thermostat.

Product Dimensions Height 110, Width 45, Depth 55mm

Product Dimensions Height 126, Width 229, Depth 42mm

TRT044
TRT049N

Theben Room Heating Controls

RAMSES 701 - Mechanical Room Thermostat

RAMSES 701

■ Room temperature controller with thermal feedback

■ Suitable for all types of heating, e.g. gas, water, electric heating with central/individual room control

■ Mechanical setting limit via dial

■ 5°C to 30°C temperature range

■ 2 or 3 wire connection

■ Surface mounting or flush mounting onto a single gang wall box via adaptor plate. Part No. 907.0.480

■ 10(4)A rated. 10 A (at 230 V AC, cos φ = 1), 4 A (at 230 V AC, cos φ = 0.6)

See page 93 for product specifications.

RAMSES 705 - Mechanical Room Thermostat with Manual Override

RAMSES 705

■ Room temperature controller with thermal feedback

■ Suitable for all types of heating, e.g. gas, water, electric heating with central/individual room control

■ Mechanical setting limit via dial

■ 5°C to 30°C temperature range

■ 2 or 3 wire connection

■ Surface mounting or flush mounting onto a single gang wall box via adaptor plate. Part No. 907.0.480

■ 10(4)A rated. 10 A (at 230 V AC, cos φ = 1), 4 A (at 230 V AC, cos φ = 0.6)

■ Manual override switch

See page 93 for product specifications.

RAMSES 706 - Mechanical Room Thermostat with Manual Override & Indicator Light

RAMSES 706

■ Room temperature controller with thermal feedback

■ Suitable for all types of heating, e.g. gas, water, electric heating with central/individual room control

■ Mechanical setting limit via dial

■ 5°C to 30°C temperature range

■ 2 or 3 wire connection

■ Surface mounting or flush mounting onto a single gang wall box via adaptor plate. Part No. 907.0.480

■ 10(4)A rated. 10 A (at 230 V AC, cos φ = 1), 4 A (at 230 V AC, cos φ = 0.6)

■ Manual override switch

■ On/Off indicator light

See page 93 for product specifications.

All these products carry a 3 year guarantee.

Technical Specs Section

Making it easy to find the perfect product for your specific needs, the technical specs section features detailed information on the main operating parameters for a wide range of Timeguard products.

In need of further support? Our experienced technical support team are on hand to guide you through installation and help you pick the best product for your needs. Datasheets can be downloaded from our website at www.timeguard.com

Wi-Fi Section

Safety Section

Time Section

Climate Section

Light Section

See pages 8 & 9 for Product Information.

Plug-in & Immersion Heater Time Controllers

Dimensions

All these time controllers repeat their programs indefinitely day after day or week after week. Can be used with up to 100W of fluorescent or low energy lighting. Can be used with filament lighting up to 400W. Cannot be

lighting (e.g. SON and Metal Halide). Note: ETU17N can be used with up to 500W of fluorescent or low energy lighting and up to a 1hp motor. Can also be used with up to 1500W of filament lighting. Cannot be used with discharge lighting, (e.g. SON and Metal Halide). TG77 can be used with up to 400W of filament lighting and with up to 100W fluorescent/low energy lighting. Cannot be used with discharge lighting.

See pages 10 & 11 for Product Information.

See pages 10 & 11 for Product Information.

Note: The LED switching capabilities of the NTT04, NTT06, NTT07 and NTT08 can be increased up to 200W with the addition of the Timeguard ZV900 Automatic Switch Load Controller. The ZV900 is sold separately.

Immersion & General Purpose Timeswitches

page 12 for

Note: FST24/FST77N/FBT4N and FST24SL/FST77SL can

FST24/FST77N/FBT4N and FST24SL/FST77SL

Theben DIN Rail Controllers Time

PIR Presence Detectors Light 81

1 or 2 Channel

Plug & Play Slave Unit

Controls LED Lighting

1st Channel Filament/Halogen Loading

1st

2nd Channel Rating

1st

1st

2nd

Ceiling

Dimensions

Light PIR Presence & Microwave Detectors

PIR Lighting Controllers & LED Lighting

Light LED Lighting

Lighting

Light

See pages 43 & 44 for Product Information.

LED Lighting

35W Halogen GU10 or LED Equivalent

Metres (max.)

Conforms to Latest Directives

Note: *Lamp not supplied.

See page 29 for Product Information.

(Closed Lid)

Note: Cannot be used with dimmer or other electronic switches in two way switching systems or replace an intermediate switch in three or more way switching systems. Unsuitable for use with discharge lighting. These products need to be permanently powered which is achieved through the switched Live. As such, some LED lamps may glow or flash whilst this product is in the ‘OFF ’ position. This glow/flash can be eliminated by adding the Timeguard ZV900 Automatic Switch Load Controller to the circuit.

See page 46 for Product Information.

Note: DS2N heating load 2kW, inductive 4A, motor 1hp. RLS010 remote control range 8m (uses 3x AAA batteries – not supplied). * The DS1N and DSSN need to be permanently powered which is achieved through the switched Live. As such, some LED and CFL lamps may glow or flash whilst this product is in the ‘OFF’ position. This glow/flash can be eliminated by adding the Timeguard ZV900 Automatic Switch Load Controller to the circuit. The LED switching capabilities of all these products can be increased up to 200W with the addition of the Timeguard ZV900 Automatic Switch Load Controller. The ZV900 is sold separately.

Valiance+ RCD Protection

Weathersafe Vision Safety

See pages 53 & 54 for Product Information.

page 52

See pages 56 & 57 for Product Information.

See pages 57 & 58 for Product Information.

Weathersafe Isolators & Emergency Assist

Safety

Climate

Programastat+ Heating Programers

Programastat+ Heating Programers

Climate

907.0.011 4003468900604 20

907.0.404 4003468904053 17

907.0.409 4003468904015 17

907.0.415 4003468904268 20

907.0.416 4003468904275 20

907.0.456 4003468904343 20

CUFMS100 5012483015087 51

DS1N 5012483014851 46

DS2N 5012483014868 46

DS3HDN 5012483014882 46

DS41A 5012483012284 46

DSSN 5012483014875 46

EASZKN 5012483014660 64

ELPA 8 4003468010068 19

ETU17N 5012483015292 9

FBT4N 5012483015179 14

FLA01 5012483005231 46

FRD1000 5012483016176 43

FRD1001 5012483016169 43

FST24 5012483012604 12

FST24SL 5012483016190 13

FST77N 5012483016060 12

FST77SL 5012483016206 13

FSTWIFITU 5012483015520 5

FSTWIFITUTGV 5012483015636 5, 52

HF2R 5012483013404 25

IR10AB 5012483015605 26

IS2N-16DC 5012483016138 61

IS2N-25DC 5012483016145 61

IS2N-32DC 5012483016152 61

IS3N-20 5012483013052 62

IS3N-32 5012483013076 62

IS4N-100 5012483013113 63

IS4N-16DC 5012483016091 61

IS4N-20 5012483013069 62

IS4N-25DC 5012483016114 61

IS4N-32 5012483013083 62

IS4N-32DC 5012483016121 61

IS4N-40 5012483013090 62

IS4N-63 5012483013106 62

IS4N20LENC 5012483015889 63

IS4N32LENC 5012483015896 63

LED100FLBP 5012483015865 35

LED100FLWHP 5012483015858 35

LED100PIRBP 5012483015827 35

LED100PIRWHP 5012483015810 35

LED10PIRB 5012483016022 38

LED200FLBP 5012483015841 35

LED200FLWHP 5012483015834 35

LED200PIRBP 5012483015803 35

LED200PIRWHP 5012483015797 35

LED200WFB 5012483015964 6

LED20PIRB 5012483016046 38

LED88N 5012483015094 45

LED88PIRN 5012483015100 45

LEDBHO15W 5012483012673 40

LEDBHO25W 5012483012680 40

LEDBHO25WPIR 5012483015957 41

LEDBHO9WN 5012483012666 40

LEDBHR15W 5012483012642 40

LEDBHR25W 5012483012659 40

LEDBHR25WPIR 5012483015940 41

LEDBHR7W 5012483012635 40

LEDMR10WH 5012483015216 39

LEDMR18WHN 5012483015193 39

LEDPRO100B 5012483014820

LEDPRO100WH 5012483014837

LEDPRO10B 5012483013731

5012483013793

LEDPRO20B 5012483013748

LEDPRO20WH 5012483013809

5012483011867

5012483013847

LEDSL1DG 5012483013243

LEDX10FLBN 5012483014899

5012483014998

LUNA 108 PLUS AL 4003468100974

LUNA 108 PLUS EL 4003468100697

LUNA 110 PLUS AL 4003468110027

LUNA 110 PLUS EL 4003468110010 20

LUNA 111 top3 AL 4003468110034 21

5012483014509

RCD02WPVN 5012483014516

5012483014523

5012483014530

RCD05WAVN 5012483014547

RCD06WPVN 5012483014554

RCD07MAVN 5012483014561

RCD08MPVN 5012483014578

RCD10WPVN 5012483014585

RCD11WPVN 5012483014592 51

RCD16MLN 5012483014608 51

SELEKTA 170 top3 4003468170120 17

SELEKTA 172 top3 4003468170175 17 SLB2300 5012483013205

5012483007716

5012483014790

SLW2400 5012483008942

SLW360N 5012483014783

SUL 180 a 4003468183311

SUL 181 d 4003468182383

SUL 191 w 4003468191040

SYN 160 a 4003468161609 18

SYN 161 d 4003468161371 19

TG24 5012483009970 8

TG6000 5016211457705 44

TG6001 5016211457712 44

TG6004 5016211457743 44

TG6005 5016211457750 44

TG77 5012483009345 8

TGBD2 5012483015445 13

TGBD4 5012483015438 13

TGBT4N 5012483015186 14

TGBT6 5012483011393 9

TGV101N 5012483012796 52

TGV103N 5012483012802 52

TGV105NP 5012483016077 53

TGV201N 5012483012826 53

TGV204NP 5012483015124 54

TGV205NP 5012483015131 54

TGVL01 5012483010303 55

TGVL02 5012483010310 55

TGVL03 5012483010327 55

theLuxa S150 BK 4003468100226 27

theLuxa S150 WH 4003468100219 27

theLuxa S180 BK 4003468100257 27

theLuxa S180 WH 4003468100240 27

theLuxa S360 BK 4003468100271 27

theLuxa S360 WH 4003468100264 27

theMova S360-100 DE WH 7612748004986 27

theSenda P 4003468900475 27

theSenda S 4003468900505 27

TPS202 5012483015629 57

TPS401 5012483011386 57

TR 608 top2 S 4003468600115 18

TR 610 top3 4003468610299 16

TR 611 top3 4003468610312 16

TR 612 top3 4003468610305 16

TR 622 top3 4003468620021 16

TR 635 top2  4003468630006 15

TR 636 top2 4003468630020 15

TR 641 top2 4003468641088 17

TR 644 top2 4003468644232 17

TRT030DN 5012483014363 66

TRT030N 5012483014356 66

TRT031N 5012483014370 67

TRT032N 5012483014387 67 TRT033N 5012483014394 67 TRT034N 5012483014400 68 TRT035N 5012483014417 68

5012483015308

5012483009215

WPM02 5012483010068

5012483012765

5012483012857

5012483012888

5012483012871

ZV210N 5012483015032

ZV700N 5012483016183

ZV810N 5012483015049

5012483013434

www. timeguard .com

Timeguard 24 hours a day

Whenever you need us just visit our website at www.timeguard.com. It’s not just our catalogue that’s now online, it’s the latest information such as press releases, product datasheets and operating instructions. Check out Timeguard online now for simple selection of the right products for your needs.

Sales Office Direct Line

Tel: 020 8452 1112 | Email: sales.ce@deta.co.uk

Helpline & Technical Service Direct Line Tel: 020 8450 0515 | Email: technical@deta.co.uk

General Enquiries

Tel: 020 8450 8944 | Email: sales.ce@deta.co.uk | Website: www.timeguard.com

Social Media Handles www.youtube.com/@Official_Timeguard | @TimeguardInnovation @TimeguardNews | @OfficialTimeguard

Turn static files into dynamic content formats.

Create a flipbook
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
Timeguard Product Catalogue 2024/2025 by deta_electrical - Issuu
