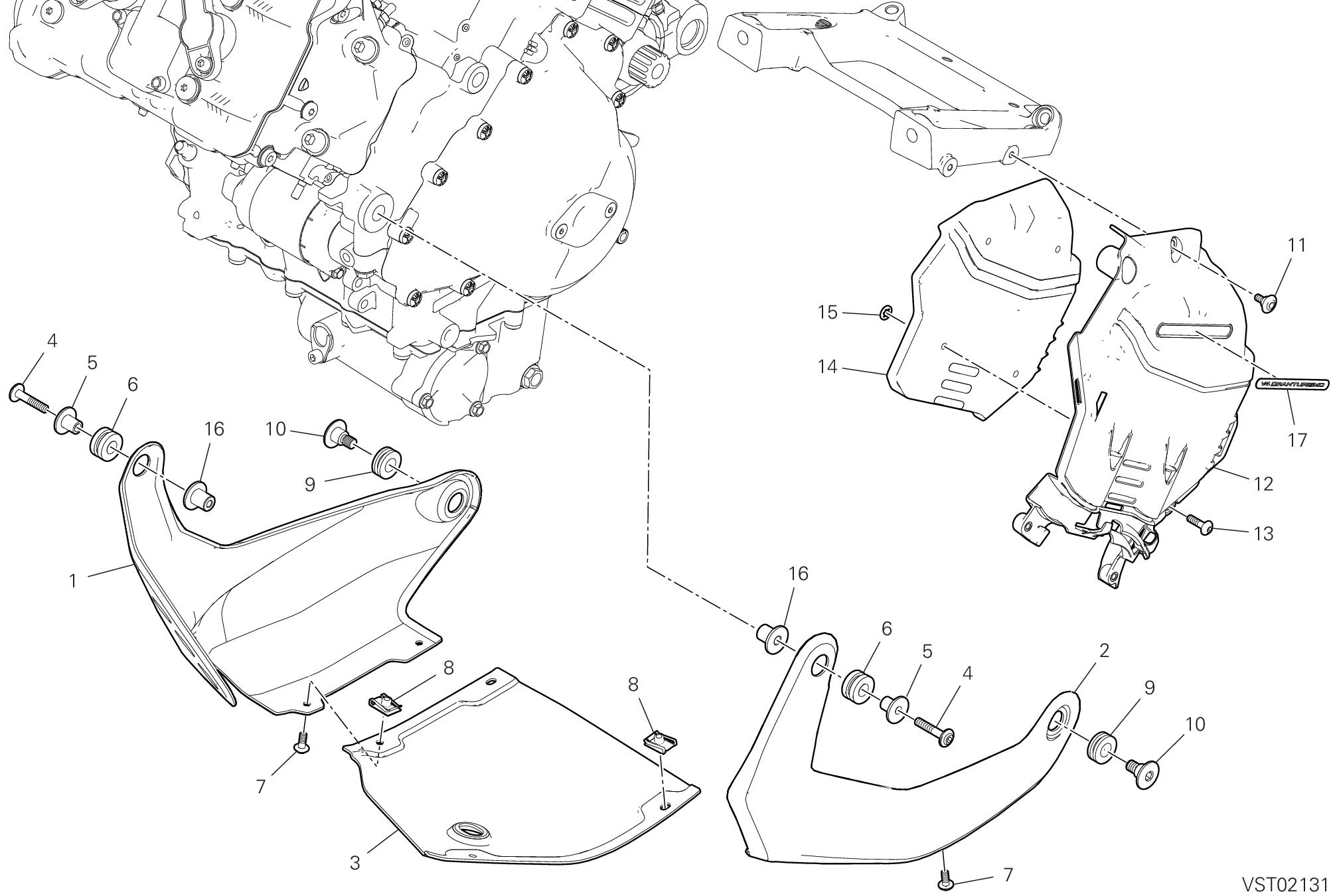

Drawing 37G - SUMP GUARD

POS. CODE DESCRIPTION QTY VALIDITY

1 4601H221BA SUMP GUARD RIGHT GRIGIO 2 4601H211BA SUMP GUARD LEFT GRIGIO 3 4601H231BA SUMP GUARD 4 77211011B SCREW TBEI M6X30 5 71610061A SPACER 6 76410641A VIBRATION DAMPER PAD 7 77244178B SCREW 8 85040551A QUICK FASTENING 9 76411381A VIBRATION DAMPER PAD 10 77916371A SCREW, SPECIAL 11 77214411AA SCREW 12 4601H811B COVER 13 77244203B SCREW 14 48612591A DAMPER, SOUND ARRESTER 15 85040521A CLIP 16 7791B801AA SCREW, SPECIAL 17 4381E341A MARKING PLATE 1 1 1 2 2 2 4 4 2 2 2 1 1 1 4 2 1

NOTES
