Adaptive Outdoor Structure Cove

JESSIE RAIL BAR ACCESORY OPTIONS

Adaptive Outdoor Structure

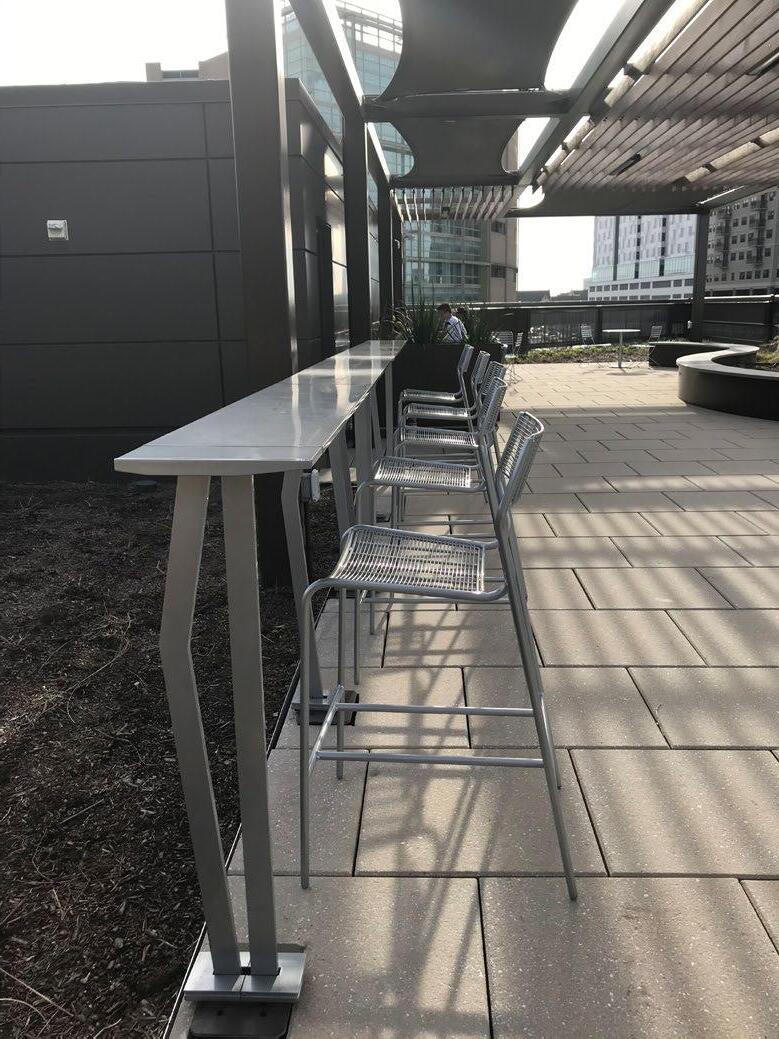

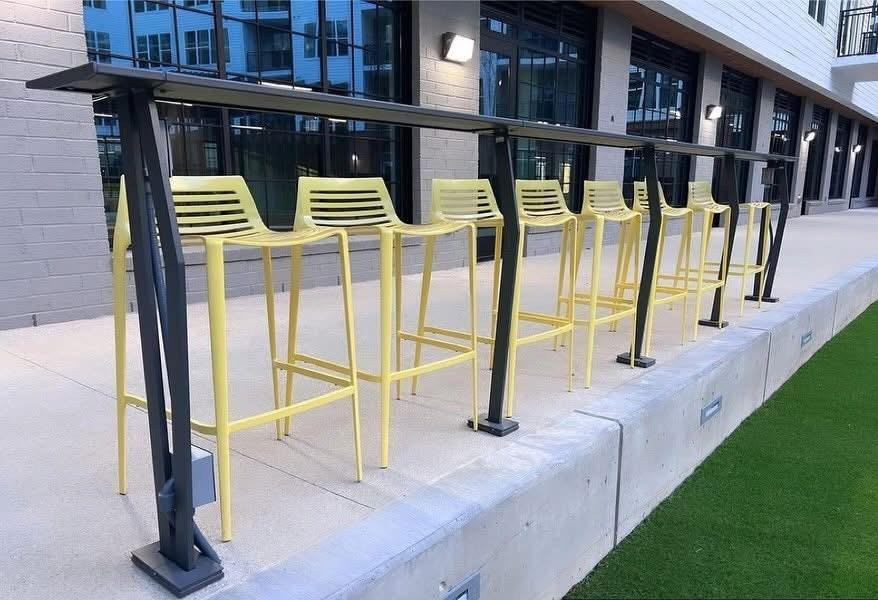

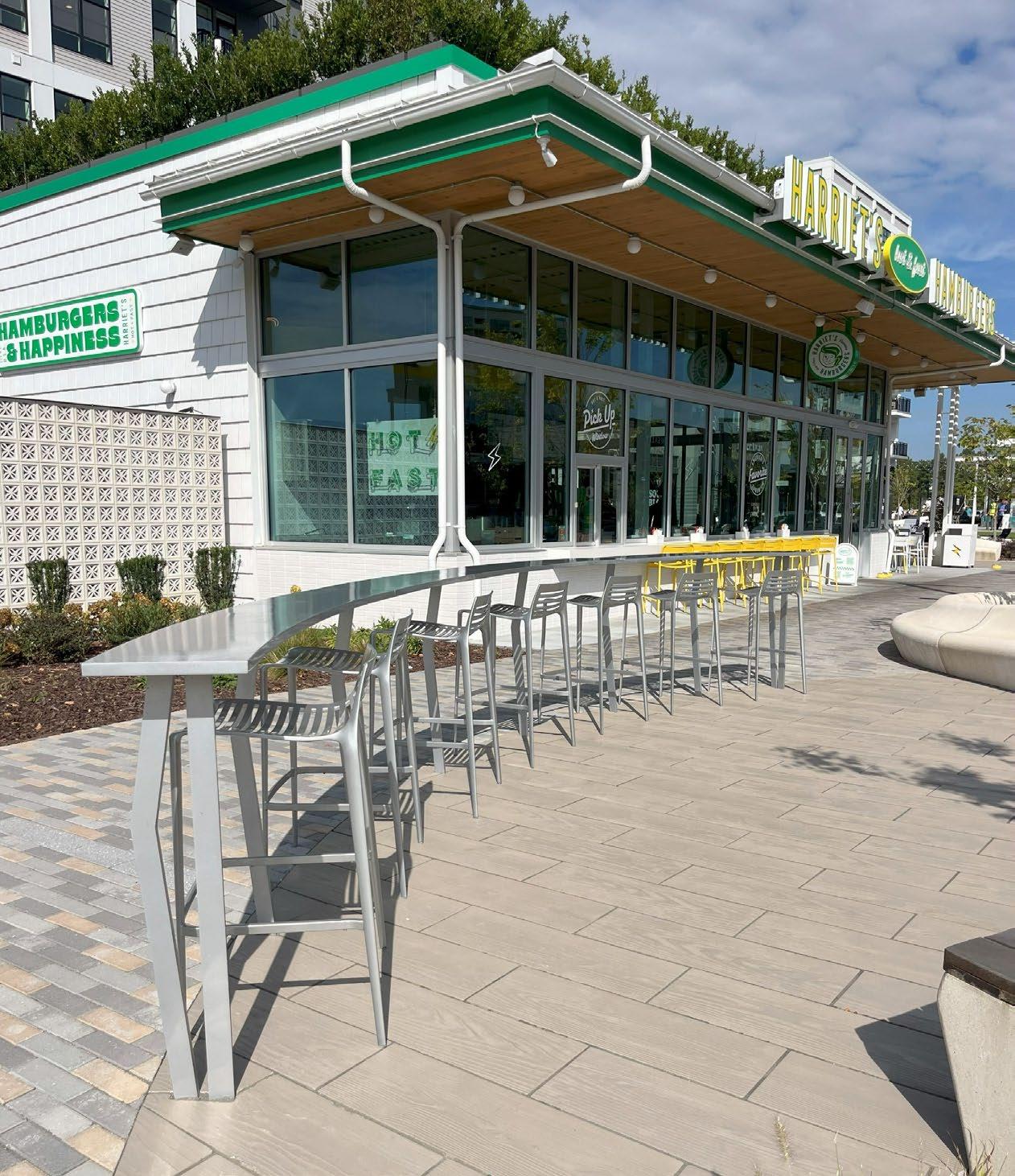

Modified curved Jessie Rail, with Chipman Stools

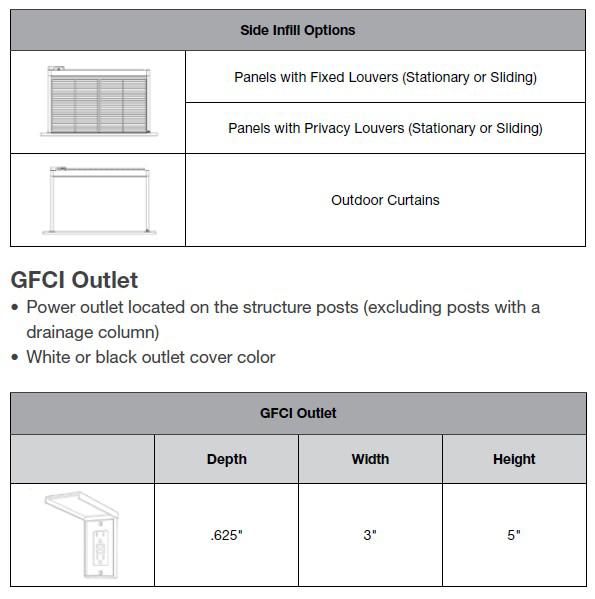

Jessie Rail with power outlet

Modified Verona stools

Adaptive Outdoor Structure

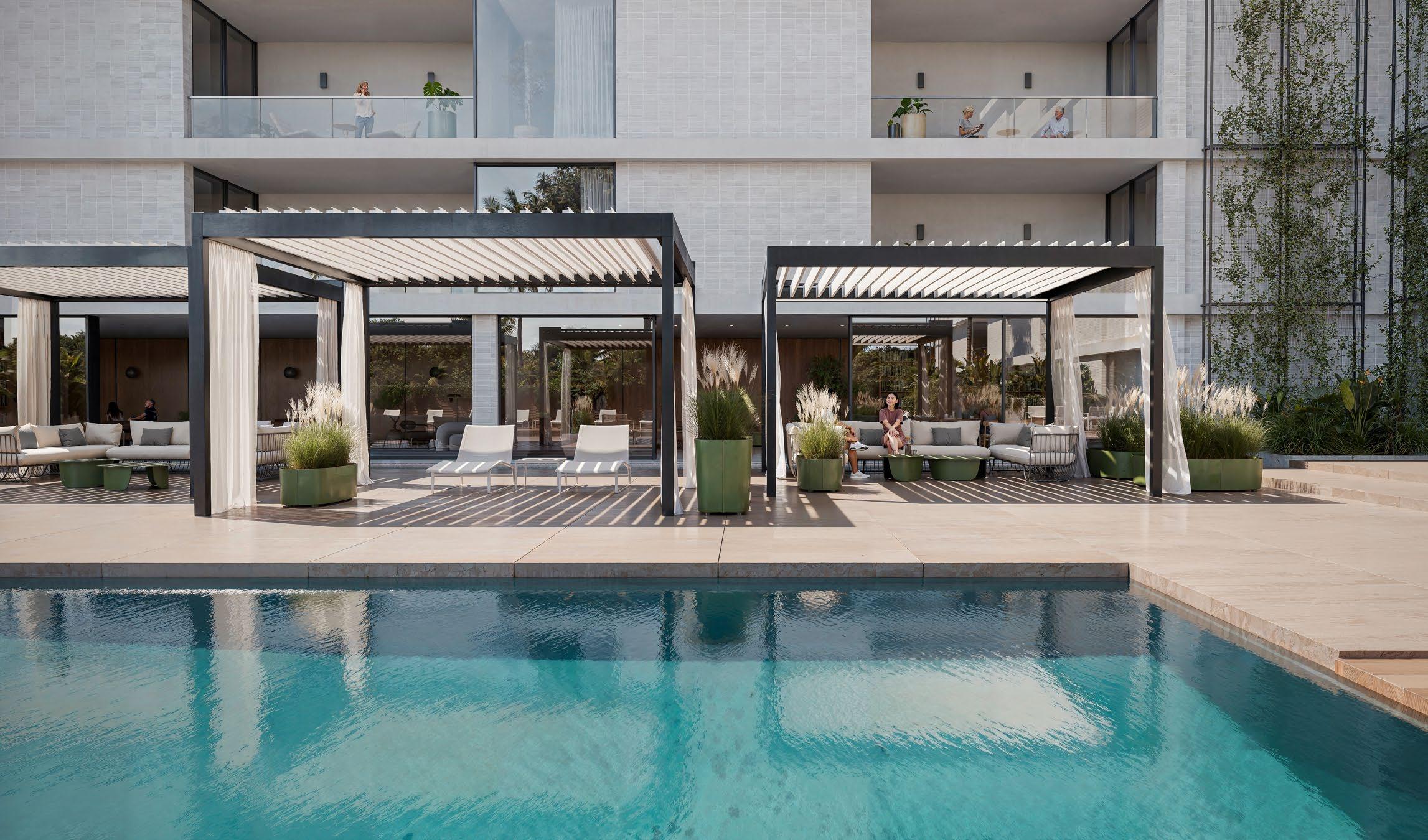

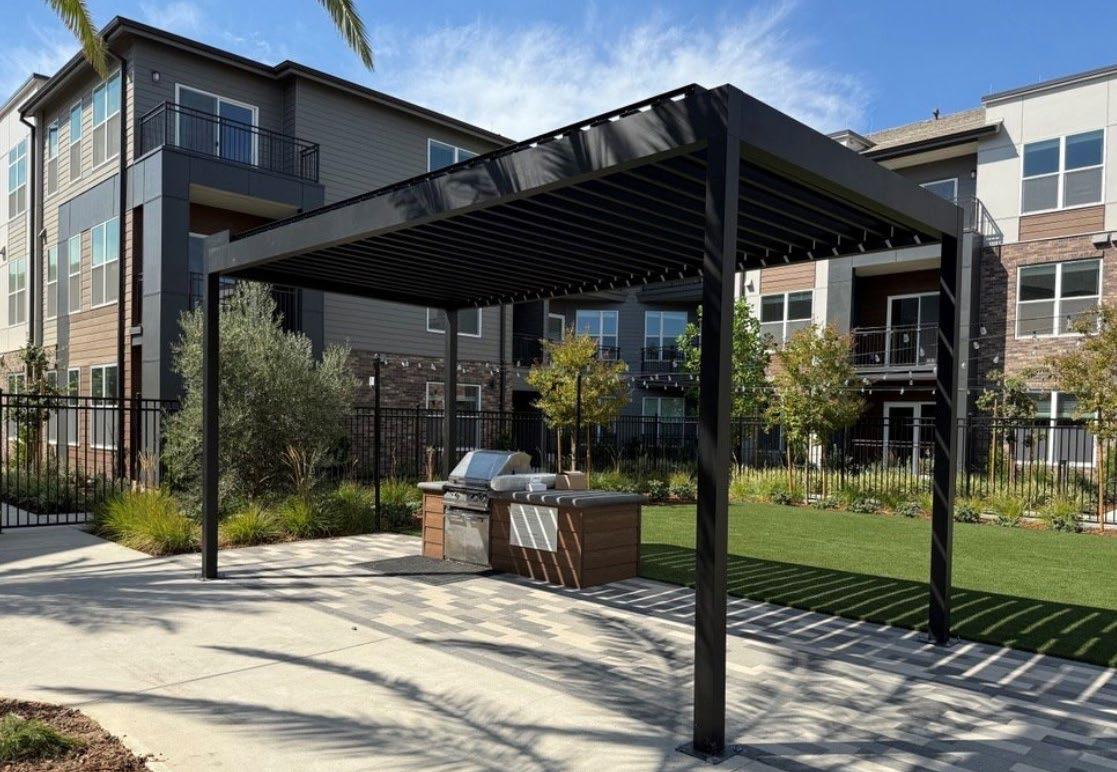

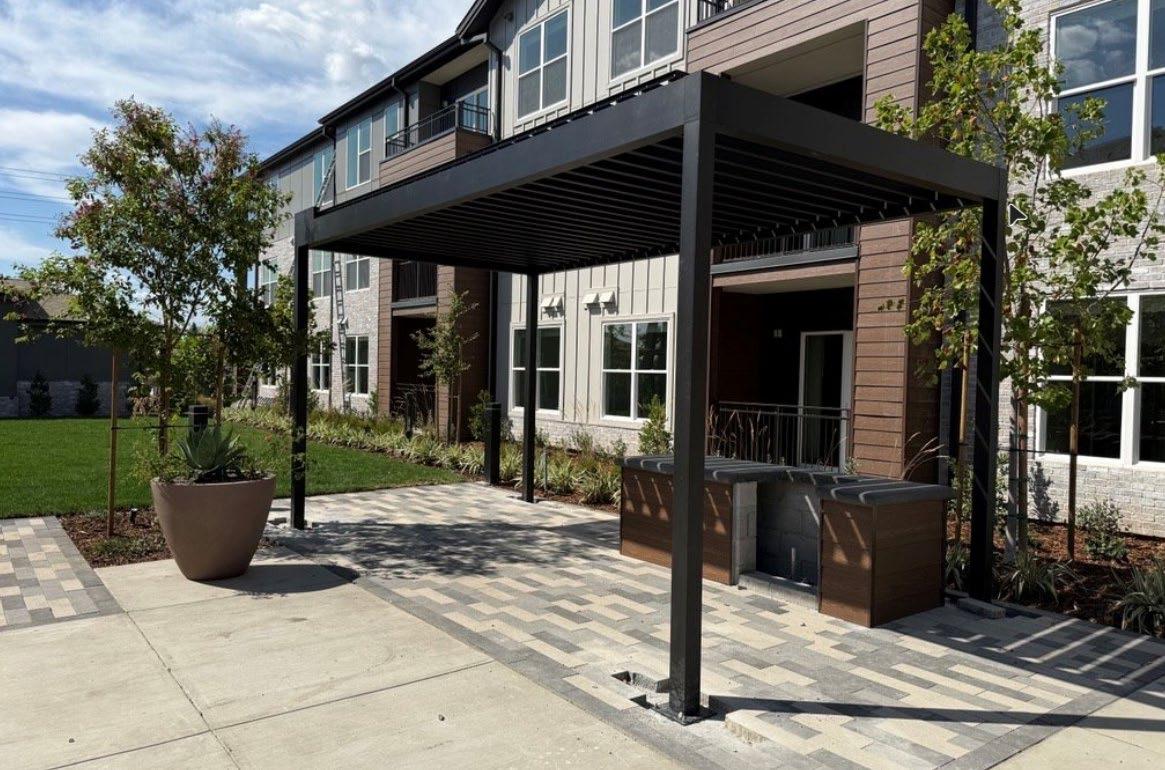

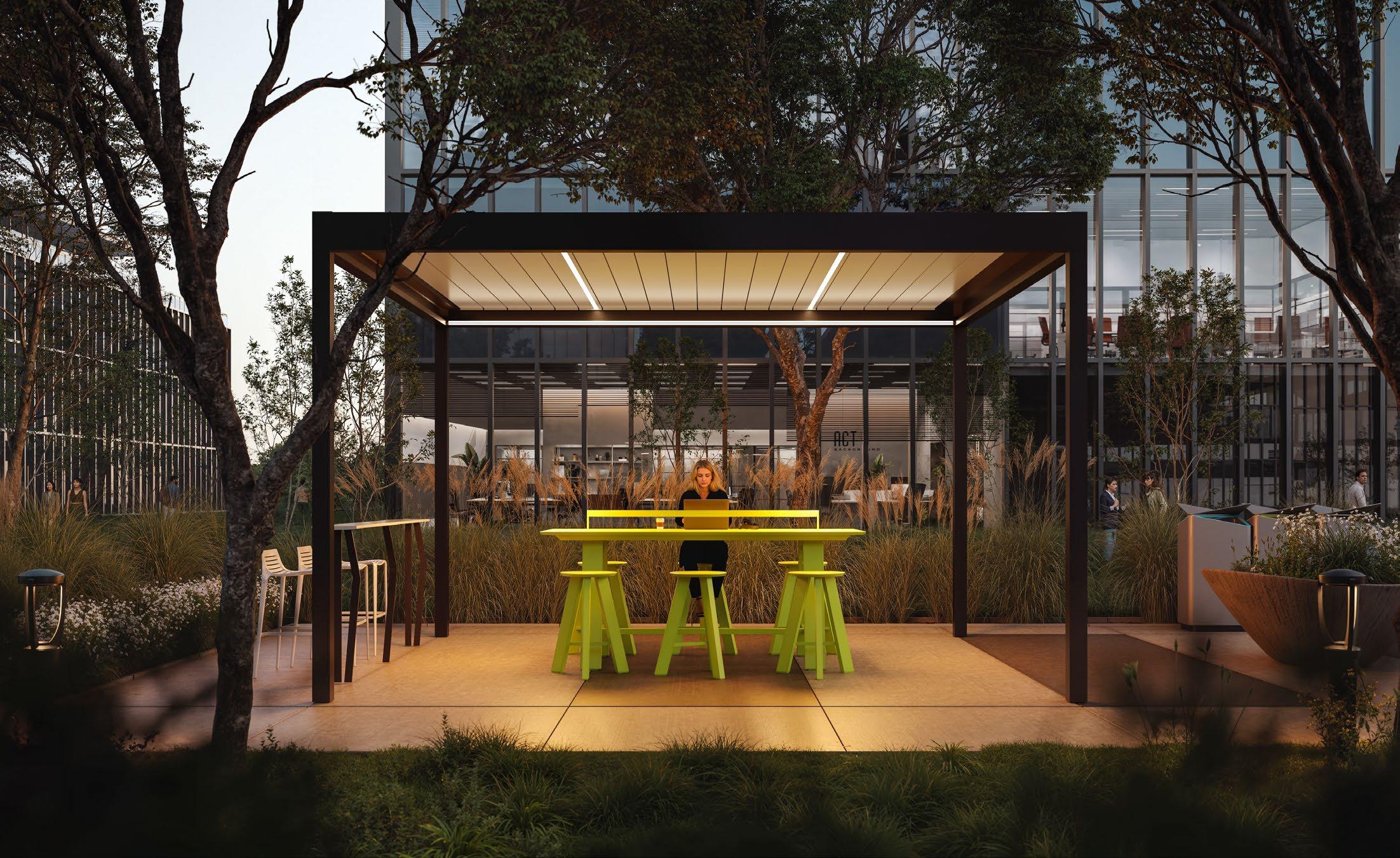

Motorized Louvered Roof

Scenic's louvered roof system manages weather conditions and protection from sun, rain, snow and wind. The motorized system operates via switch, remote control or smart device app. Rain sensors detect precipitation and close to shelter the interior, while wind sensors detect excessive wind speed and open to minimize uplift.

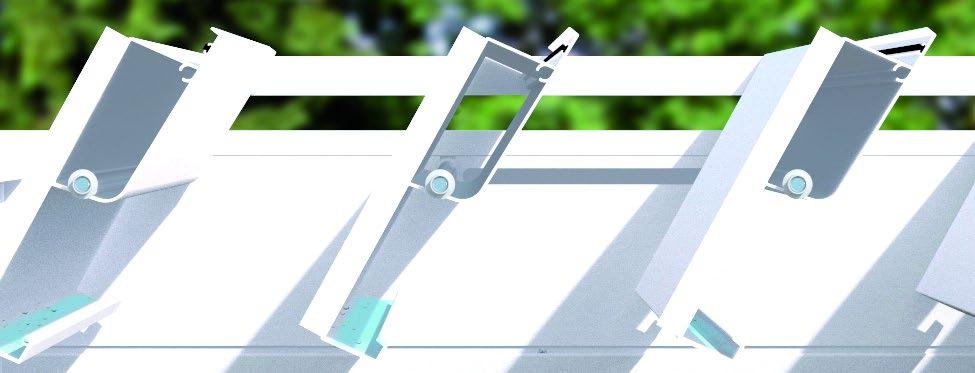

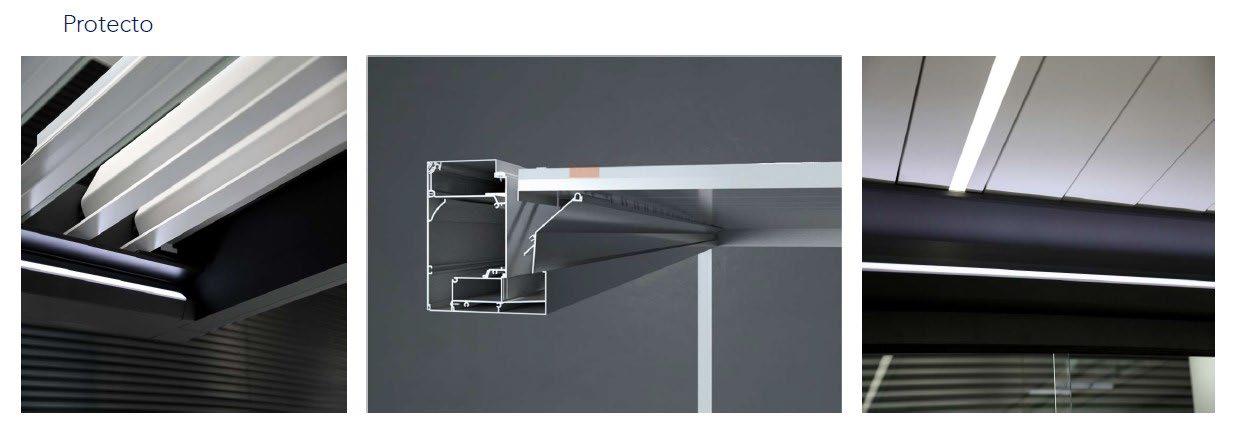

The louvers include a small bristle on the underside where the louvers overlap, preventing metal-onmetal contact and minimizing noise. Additionally, up to three glass louver blades per roof section can also be used to give Scenic a skylight.

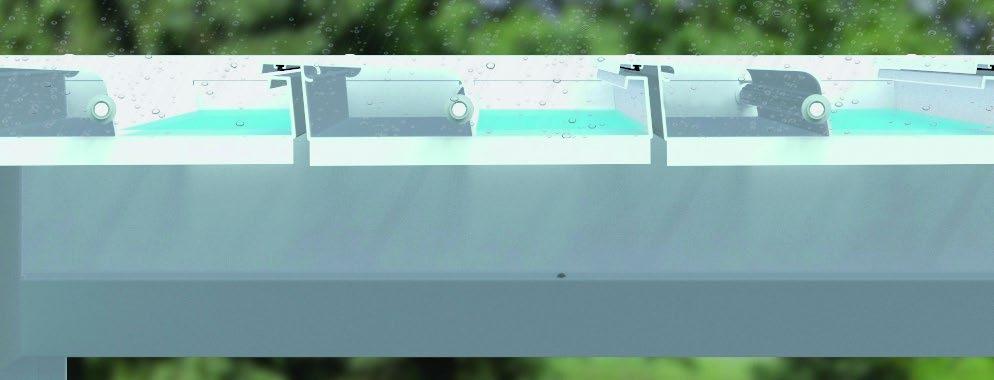

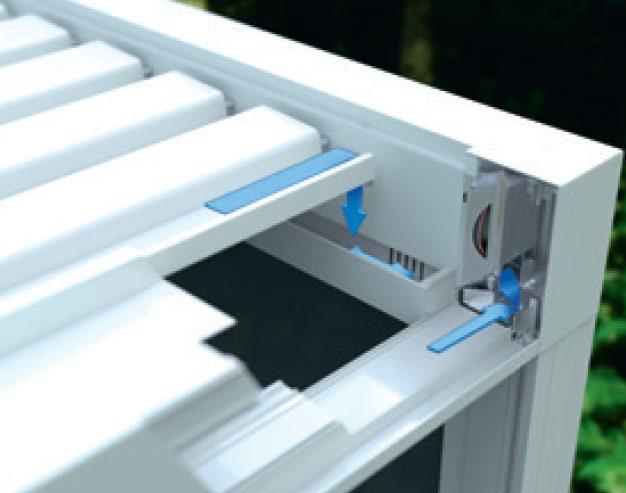

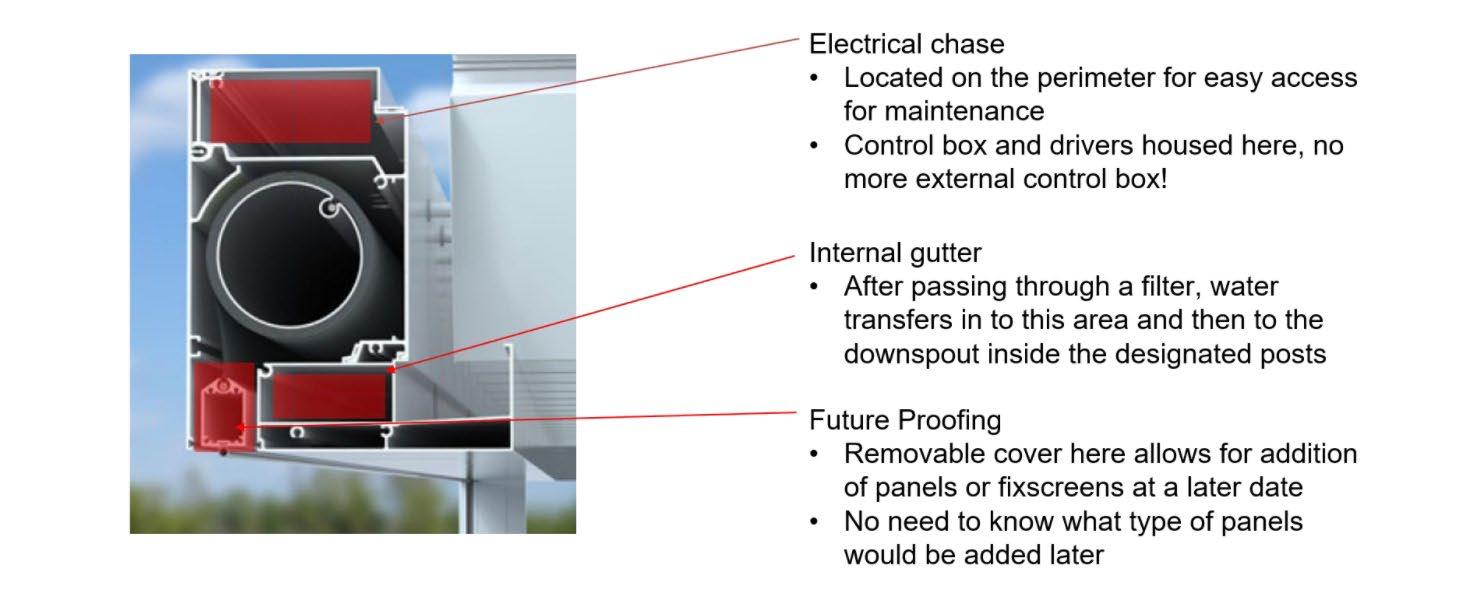

Built-In Water Management

Completely flat when closed, Scenic’s louvered roof overhangs its gutters to neatly channel water down through the designated posts toward the base of the unit or into a prepared site drain. For a four-post system, two posts will need to be designated for drainage.

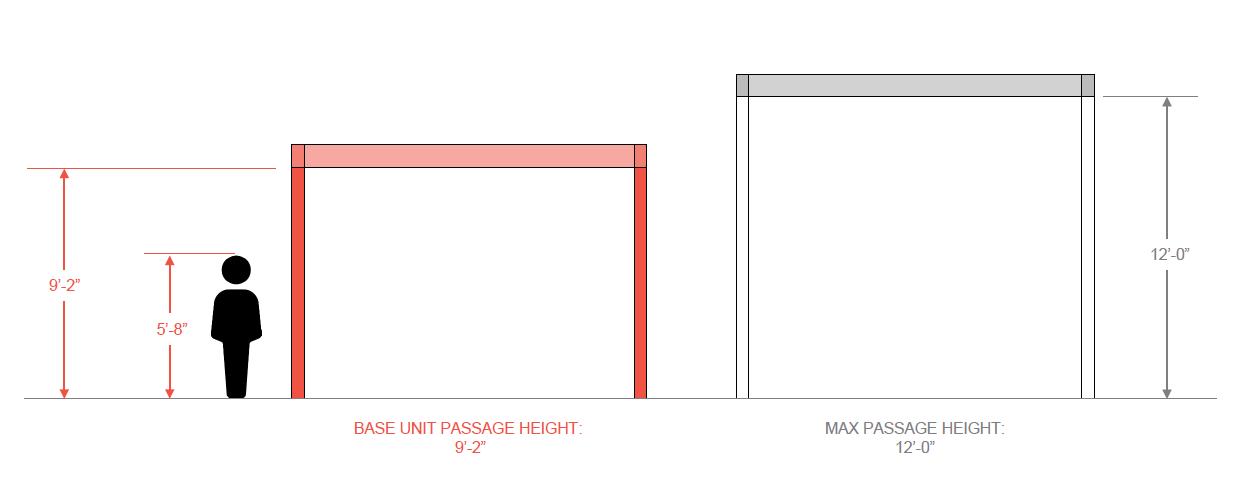

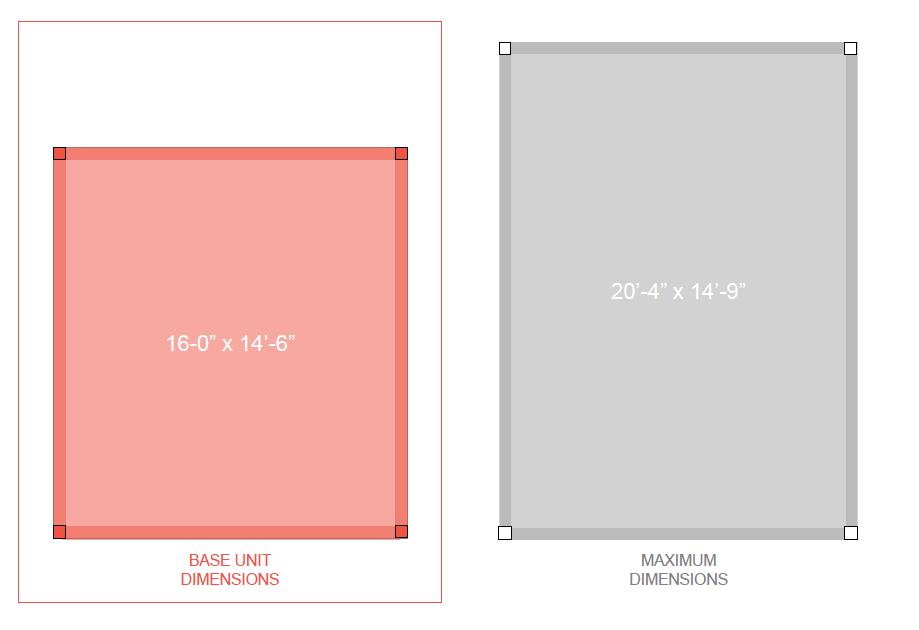

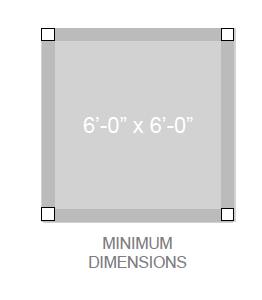

SCENIC Single-Roof Base Unit Dimensions

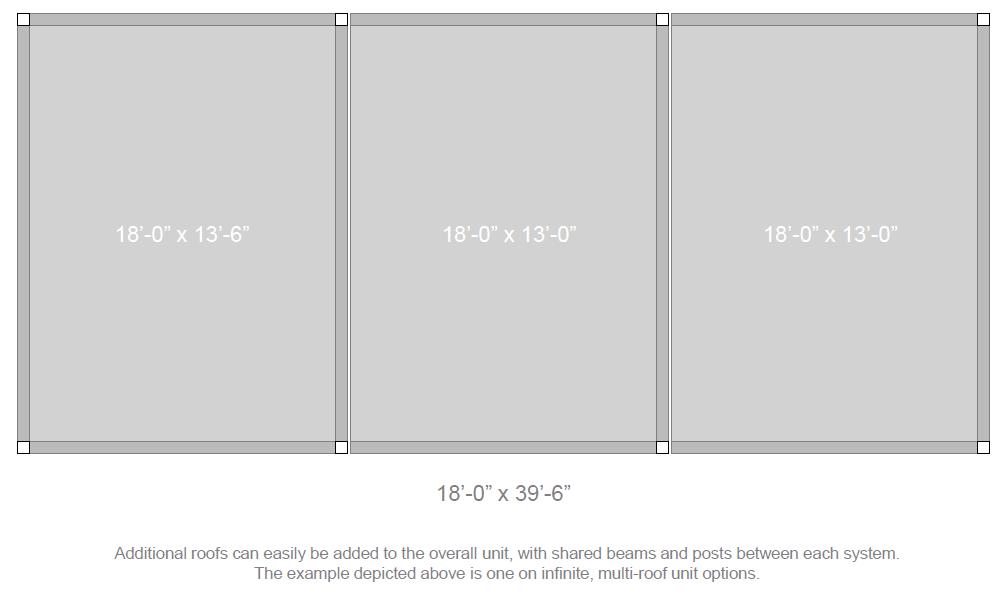

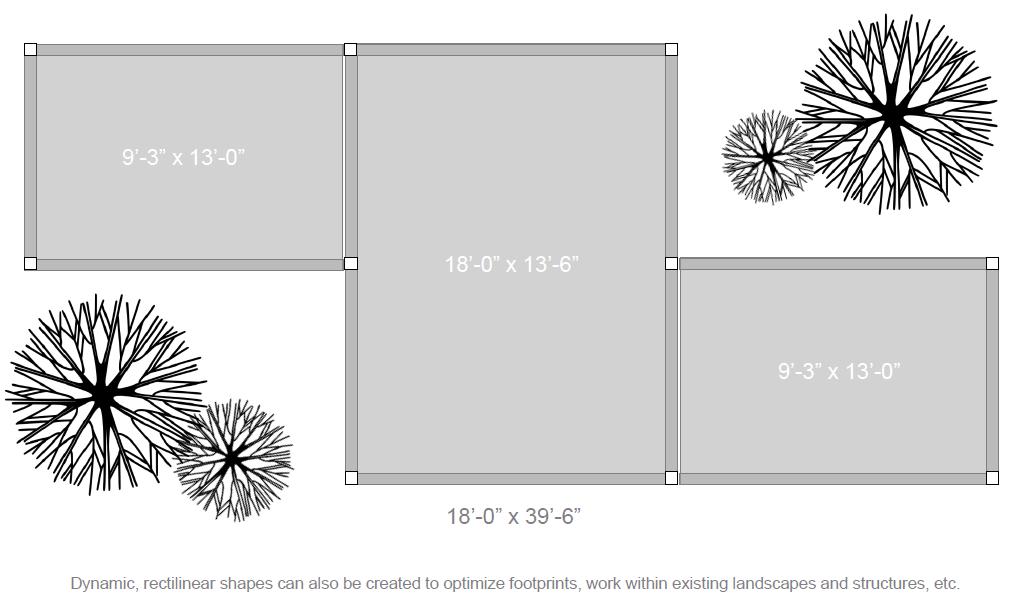

SCENIC Multi-Roof Unit

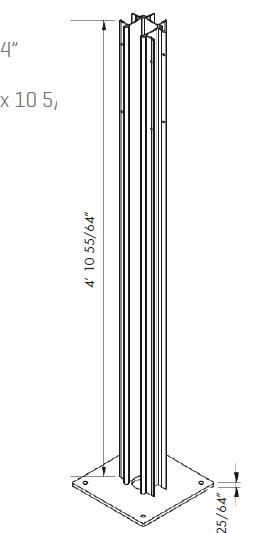

SCENIC Mounting Bases

The choice of reinforced or non-reinforced mounting bases will be made automatically based on the strength requirements and/or side infill selection. You can select a finish for your mounting bases from the possible options below

Application Not against structure Pivot or span against a structure All applications Cast in concrete foundation

Non-reinforced Mounting Base

Reinforced Mounting Base

The strength requirements determine whether reinforced mounting bases are needed.

Application

Available at standard price

Available at surcharge Not available

For use in normal circumstances without increased wind load.

At locations with increased wind loads, the cover must be equipped with reinforced mounting bases to guarantee the stability of the structure. Examples include coastal areas, installation at a height or on a rooftop terrace.

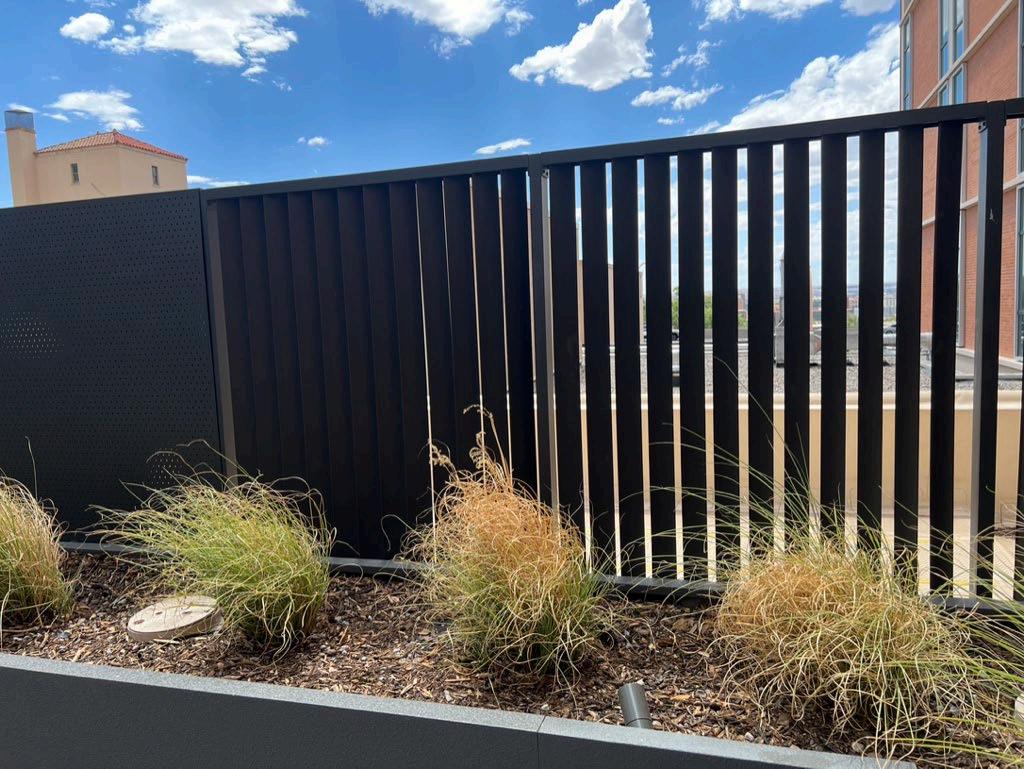

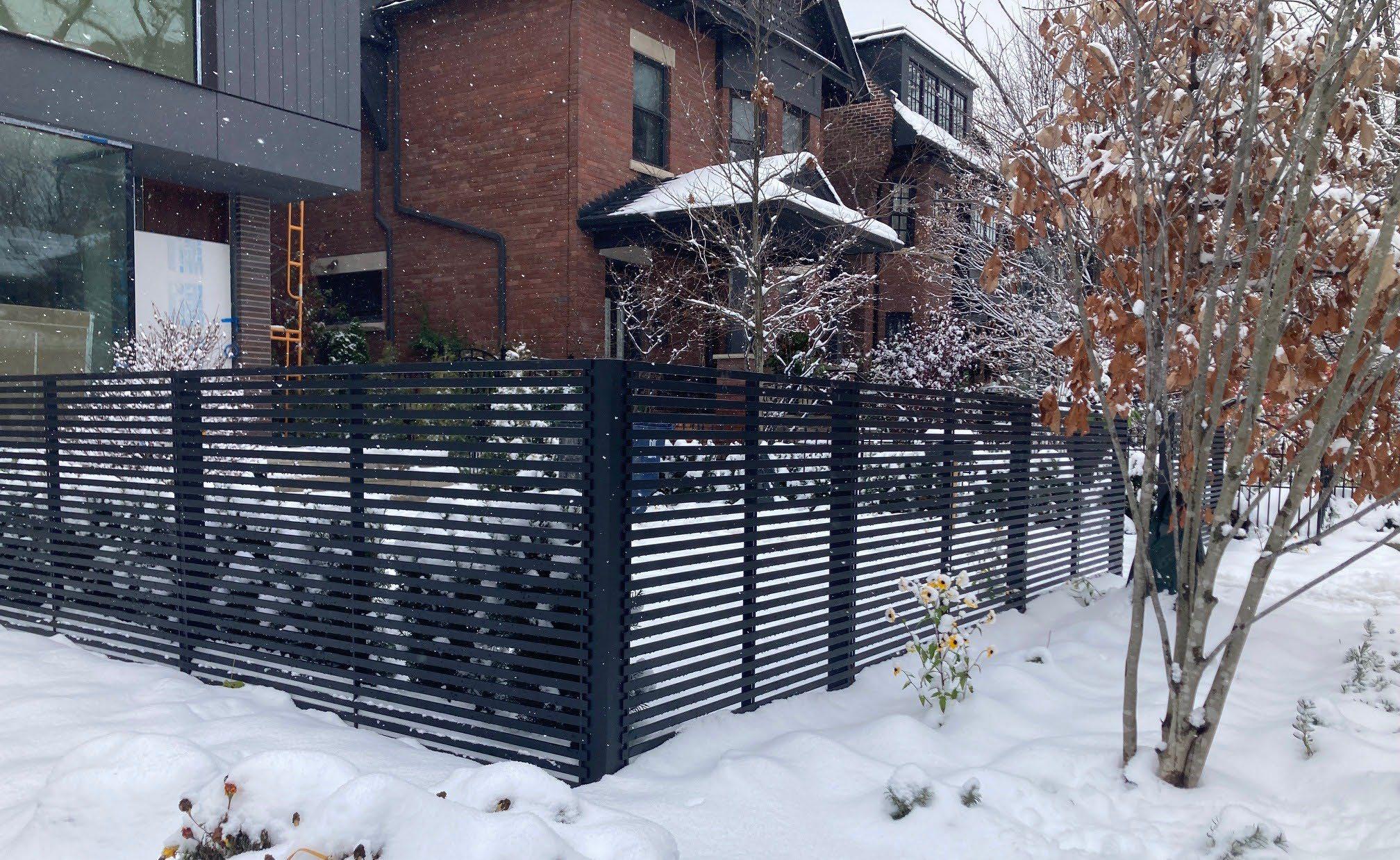

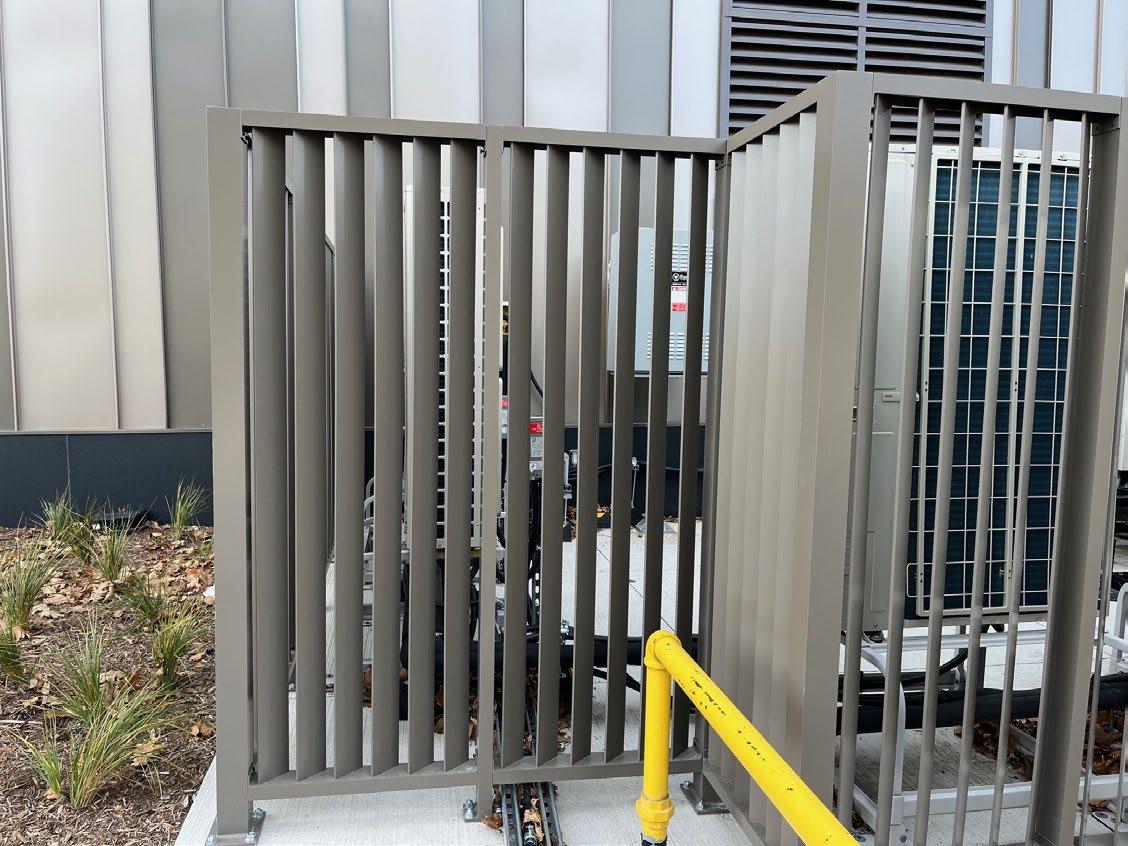

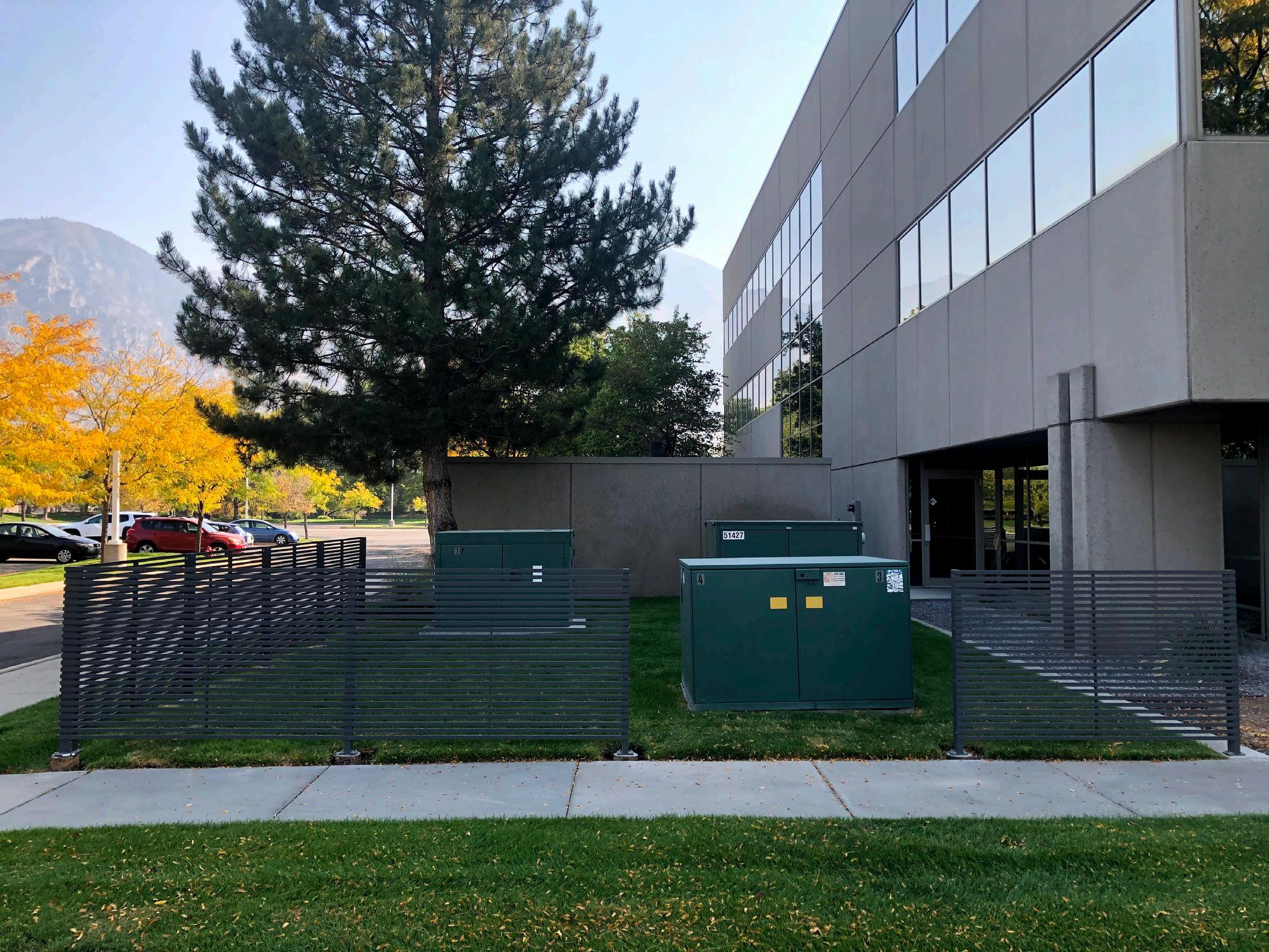

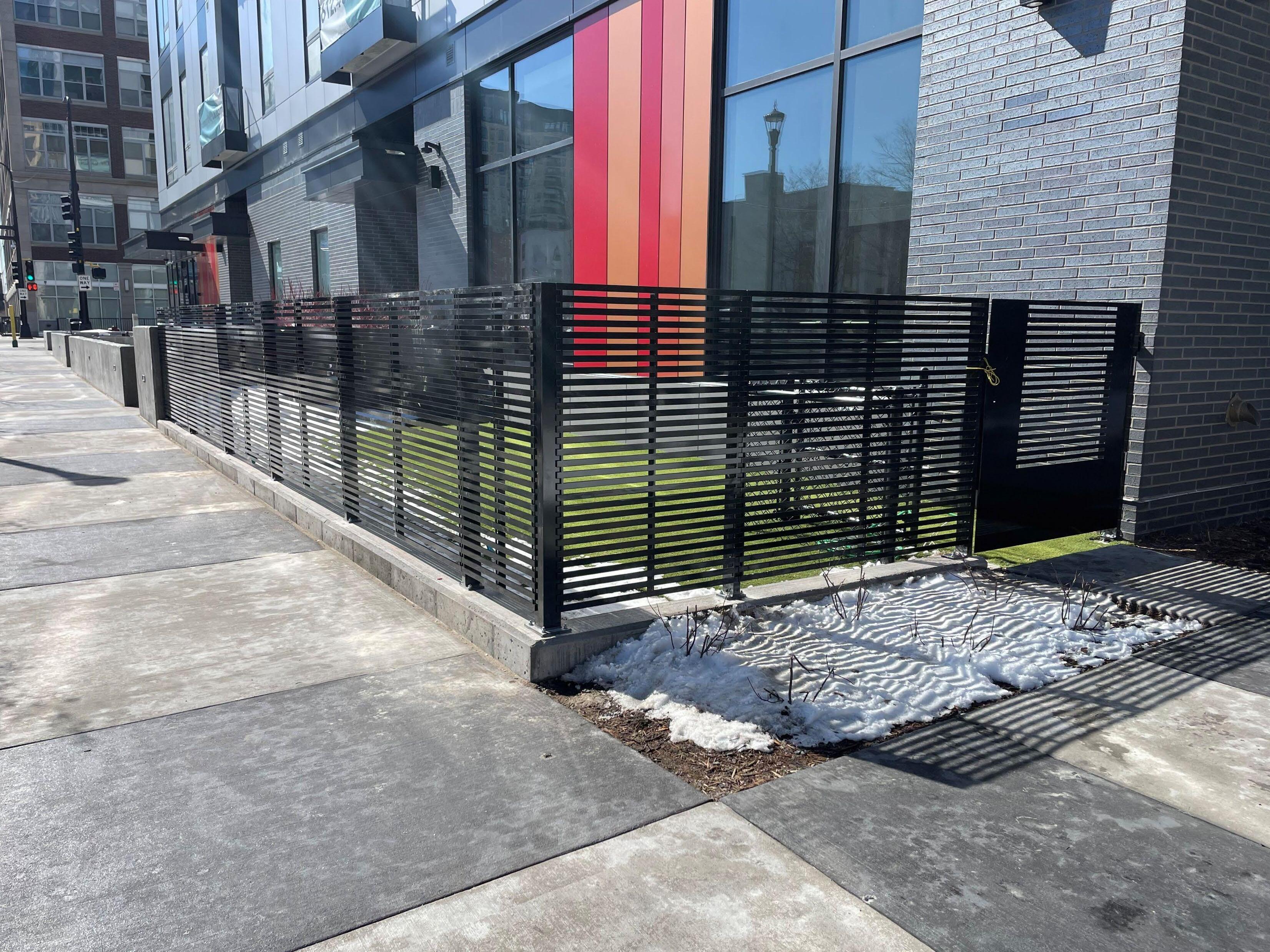

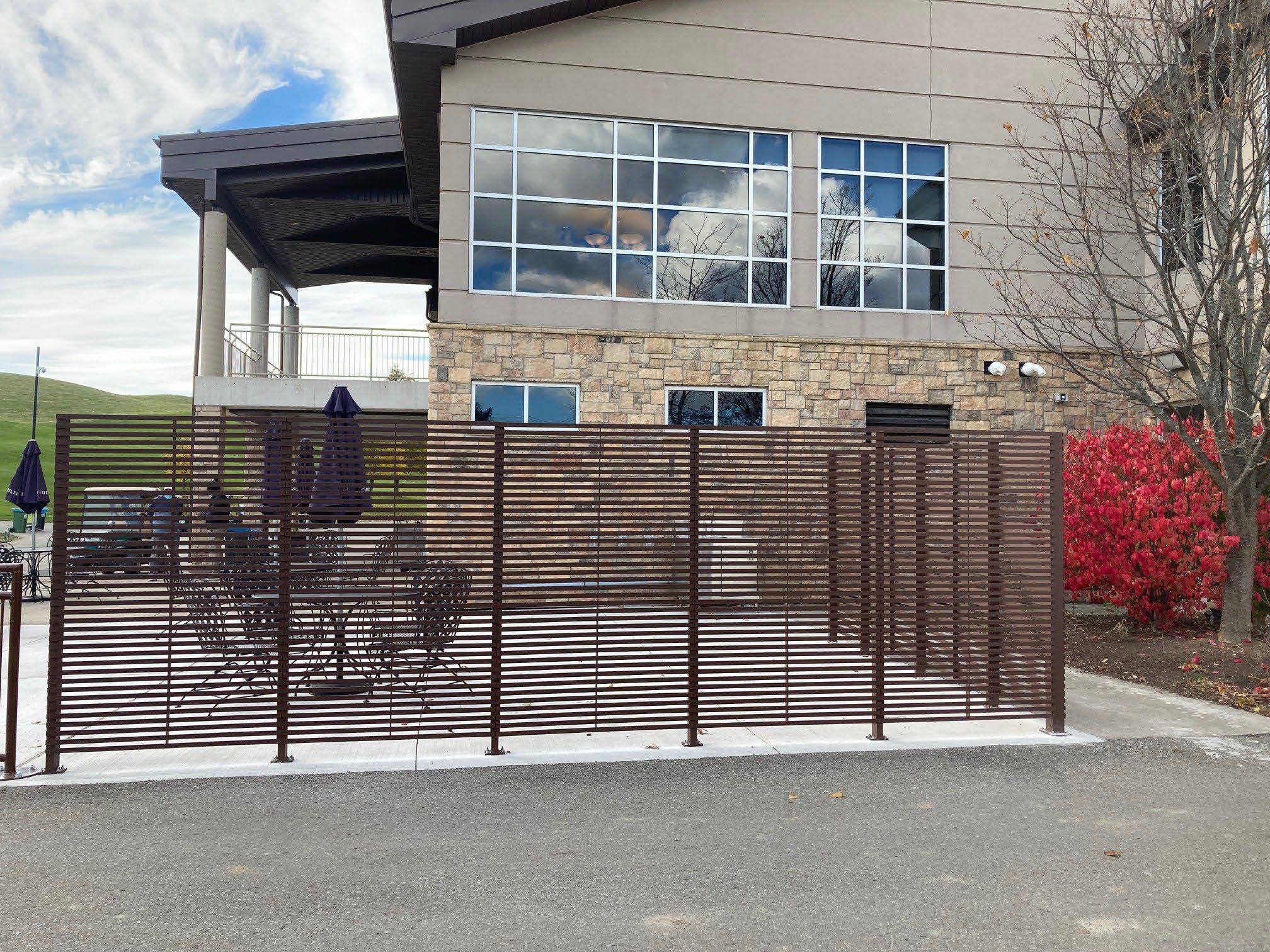

General Specifications

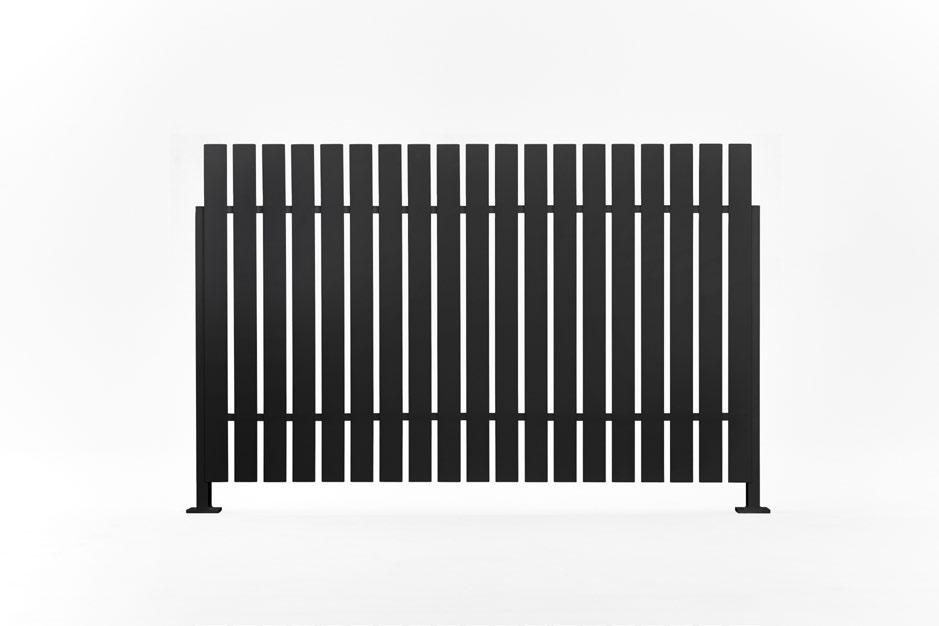

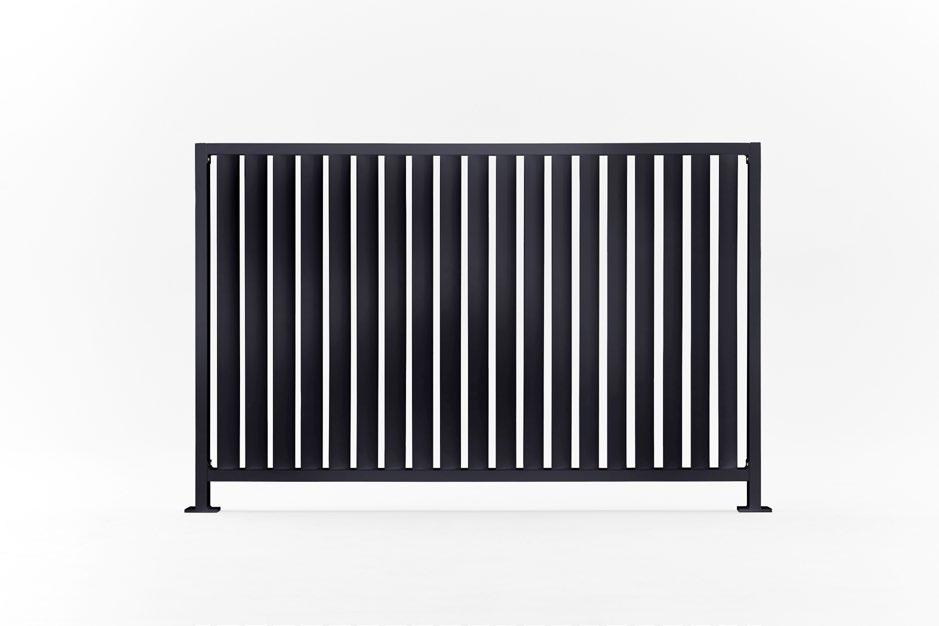

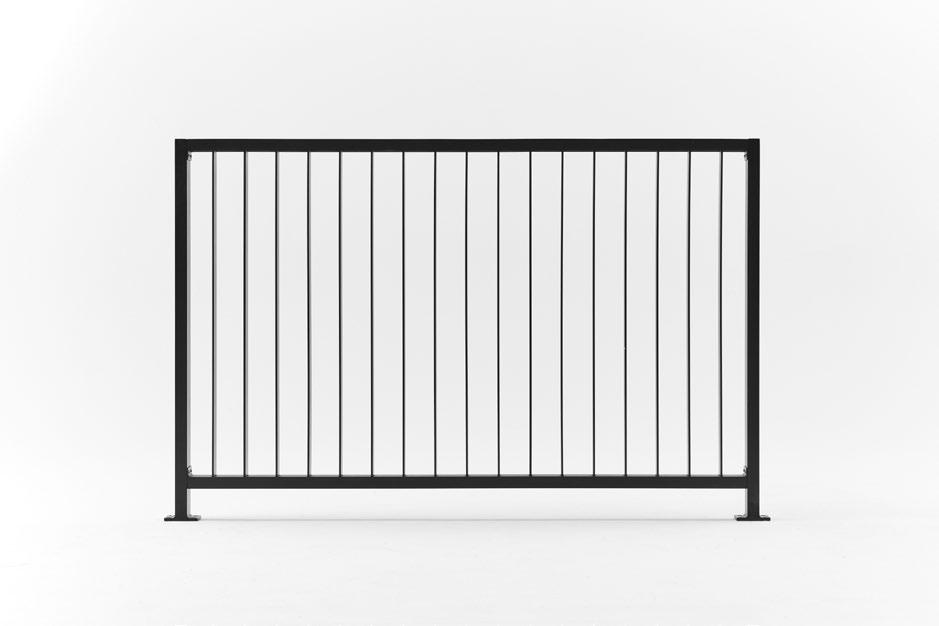

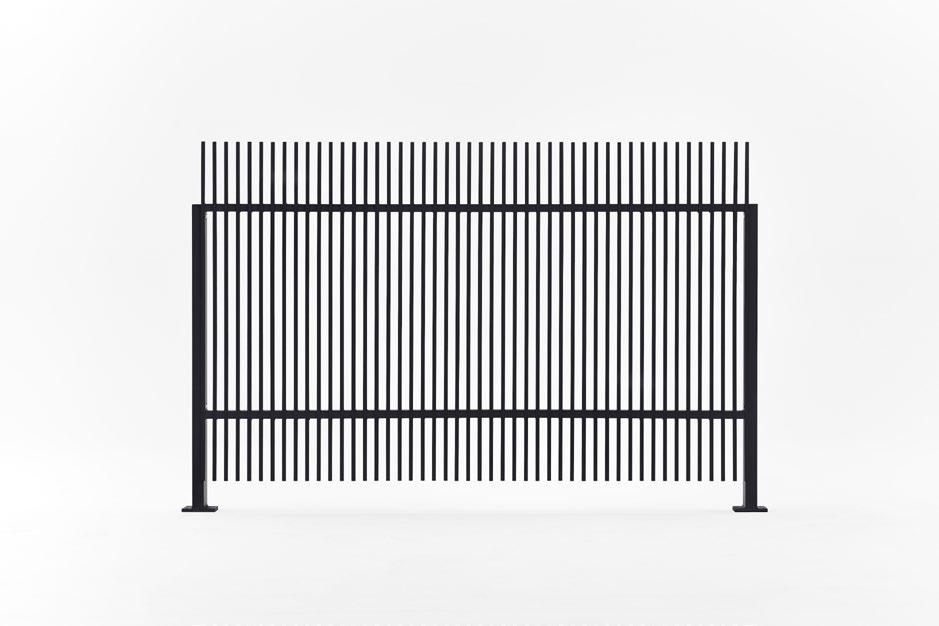

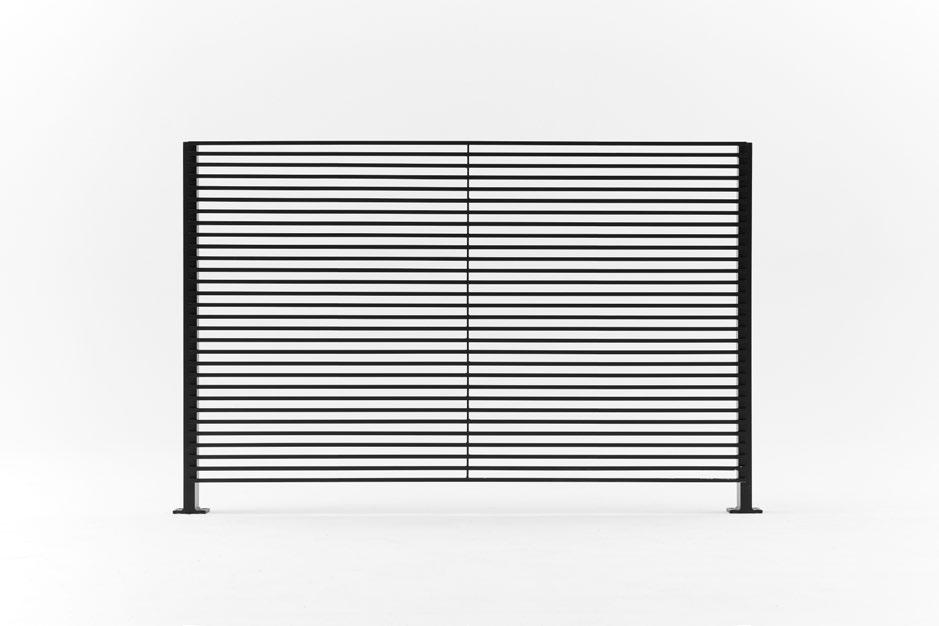

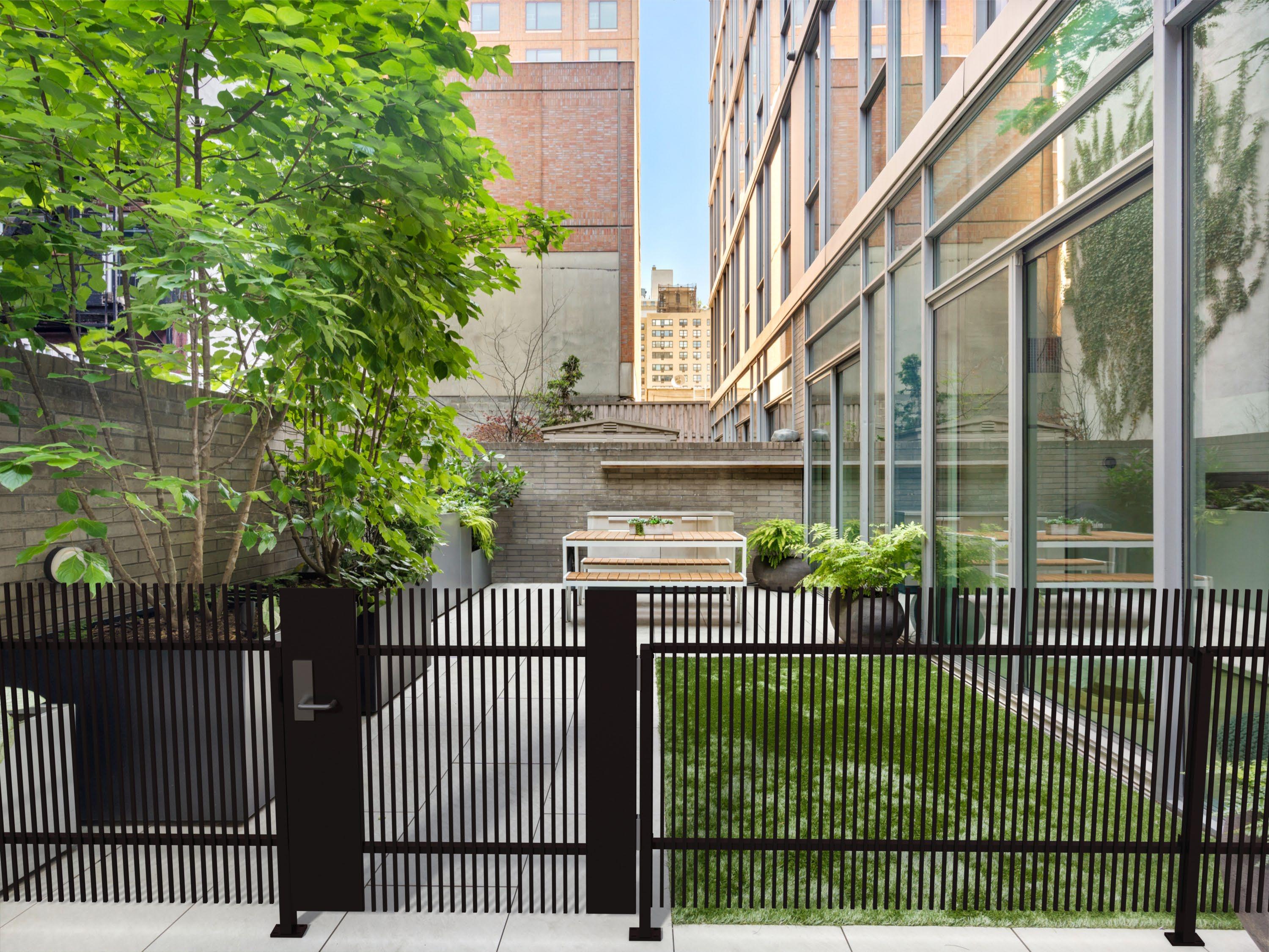

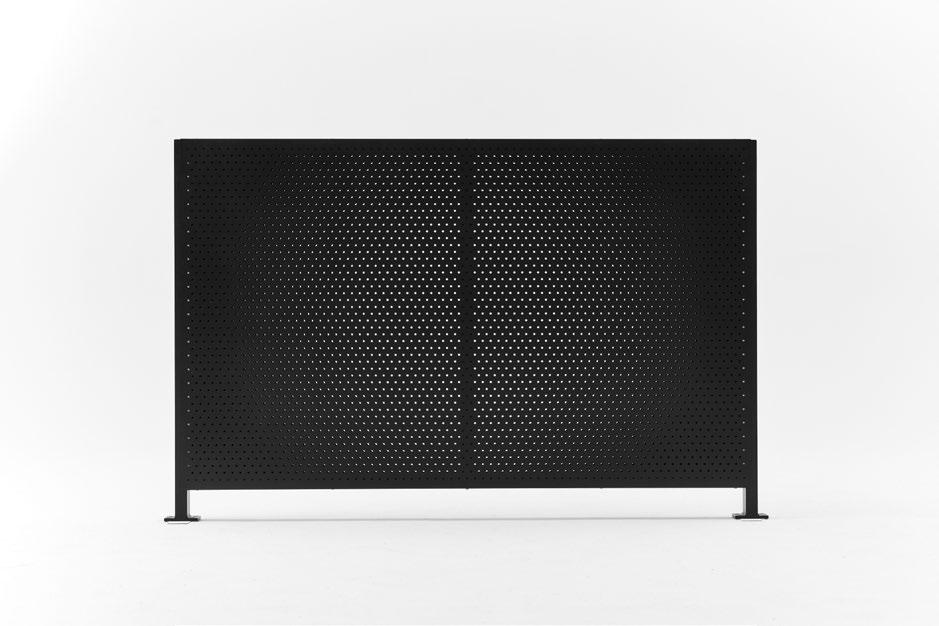

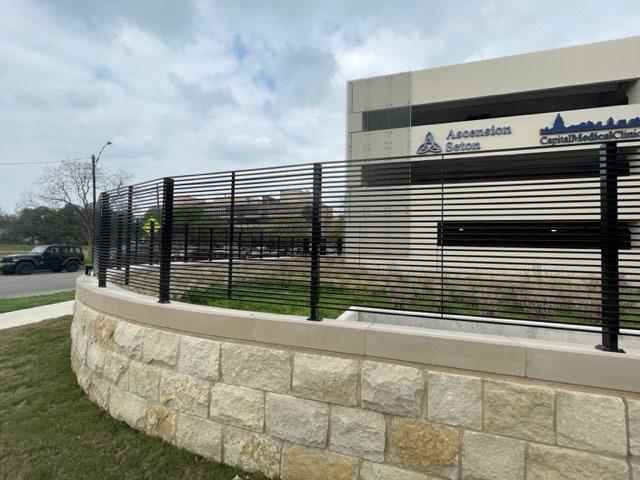

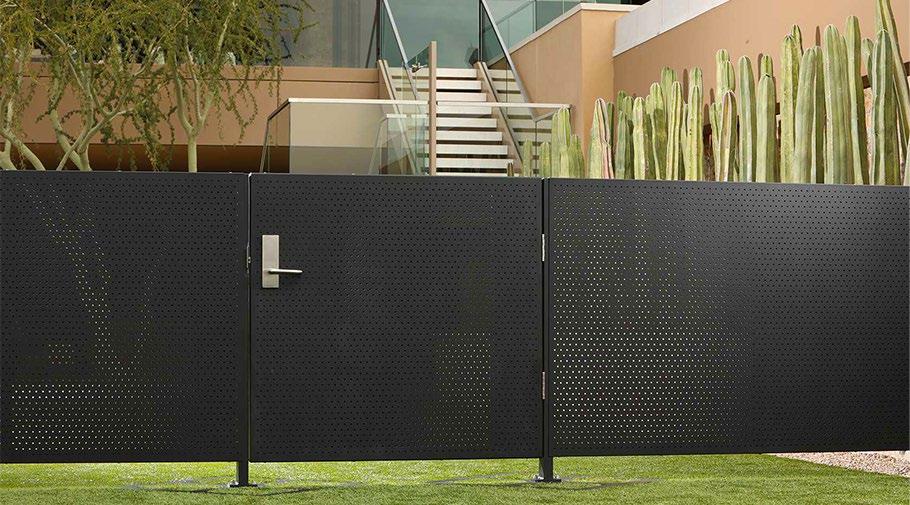

• L I N E is available as standard in 8 panel designs.

• All panels are constructed of extruded and fabricated aluminum.

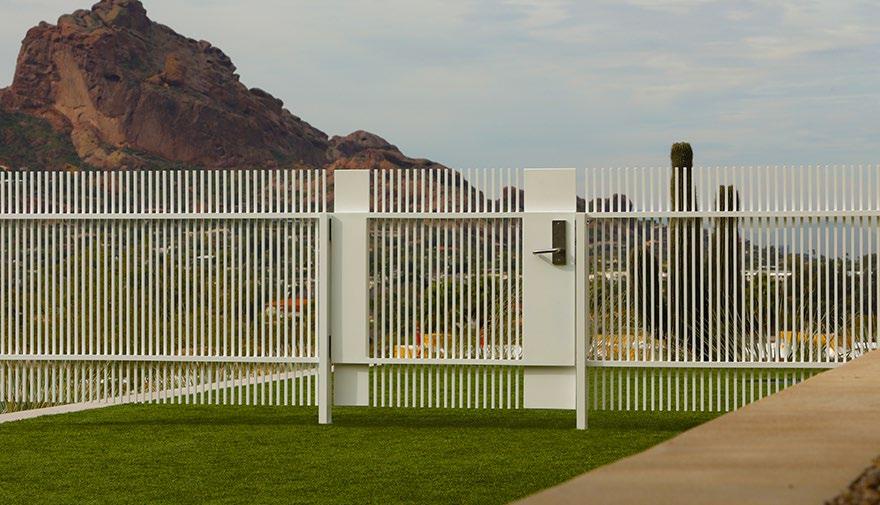

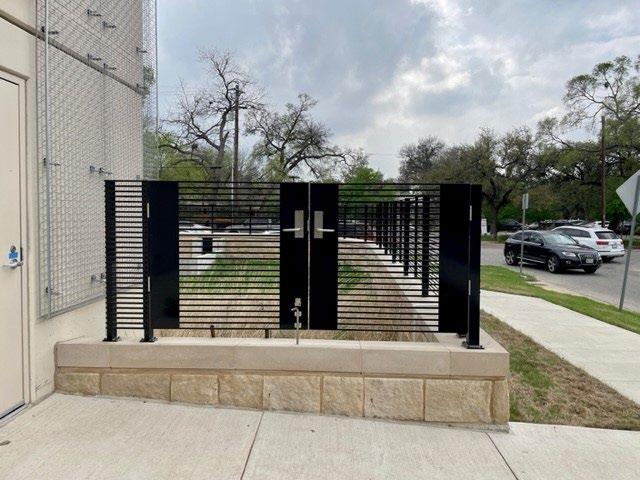

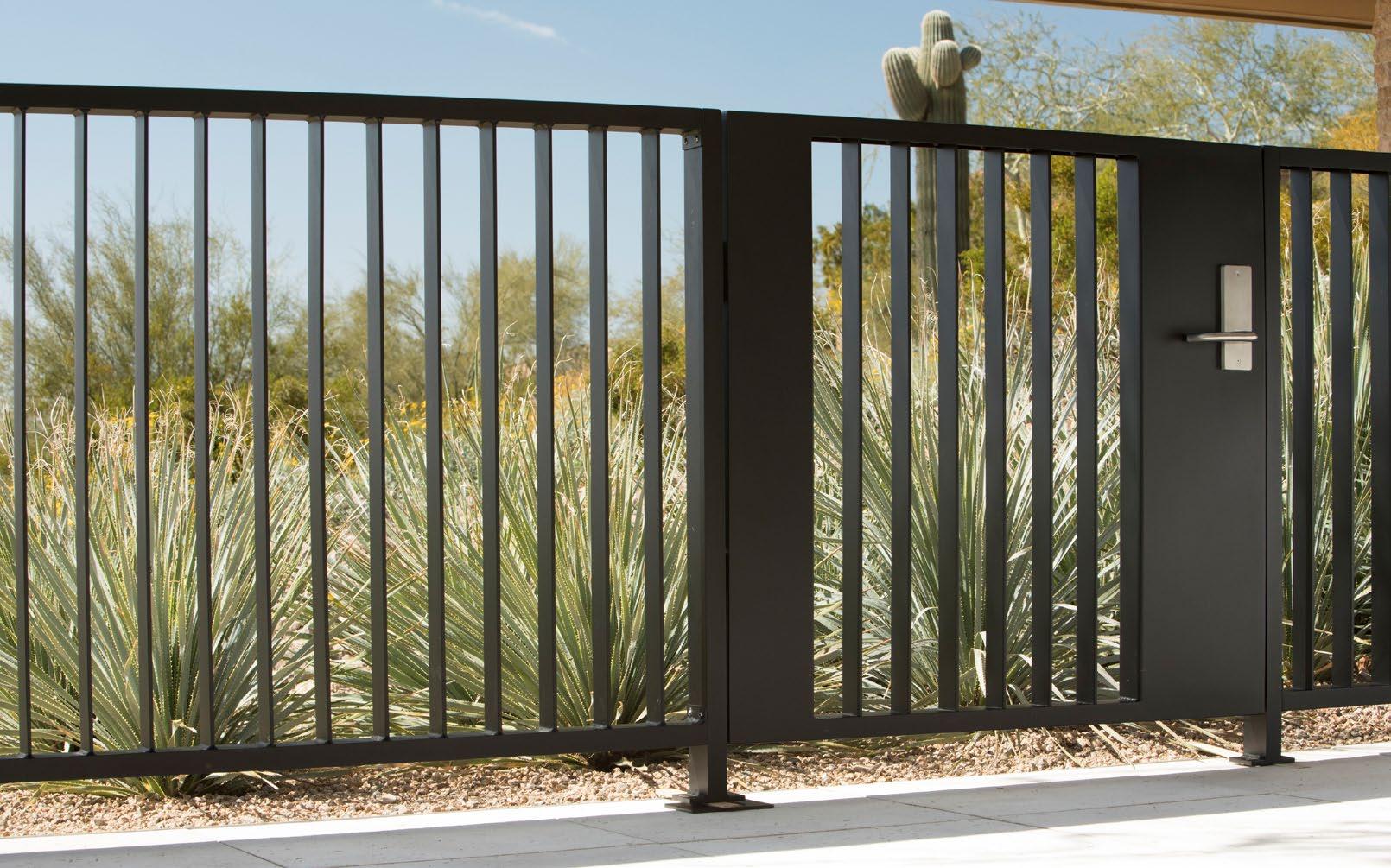

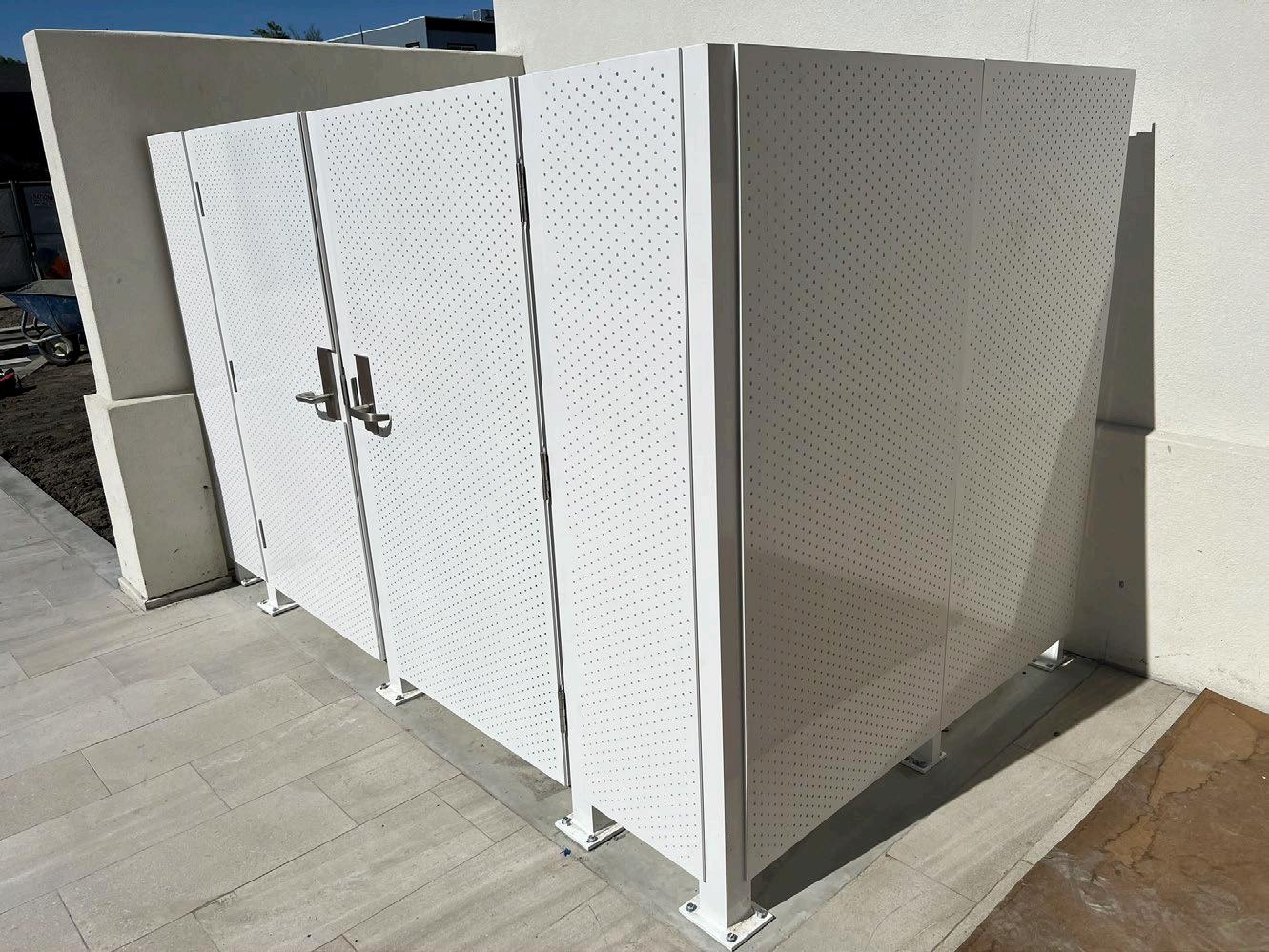

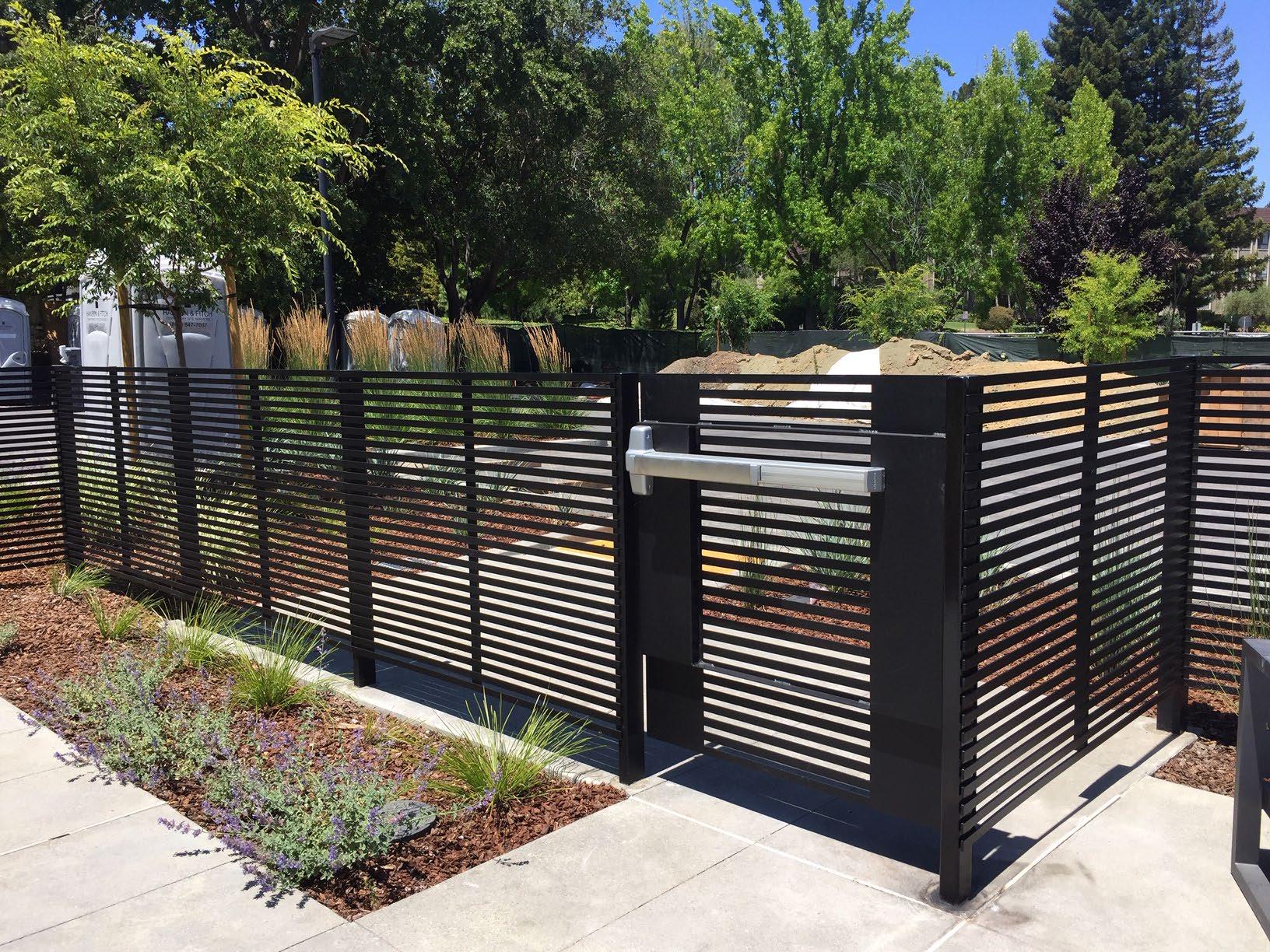

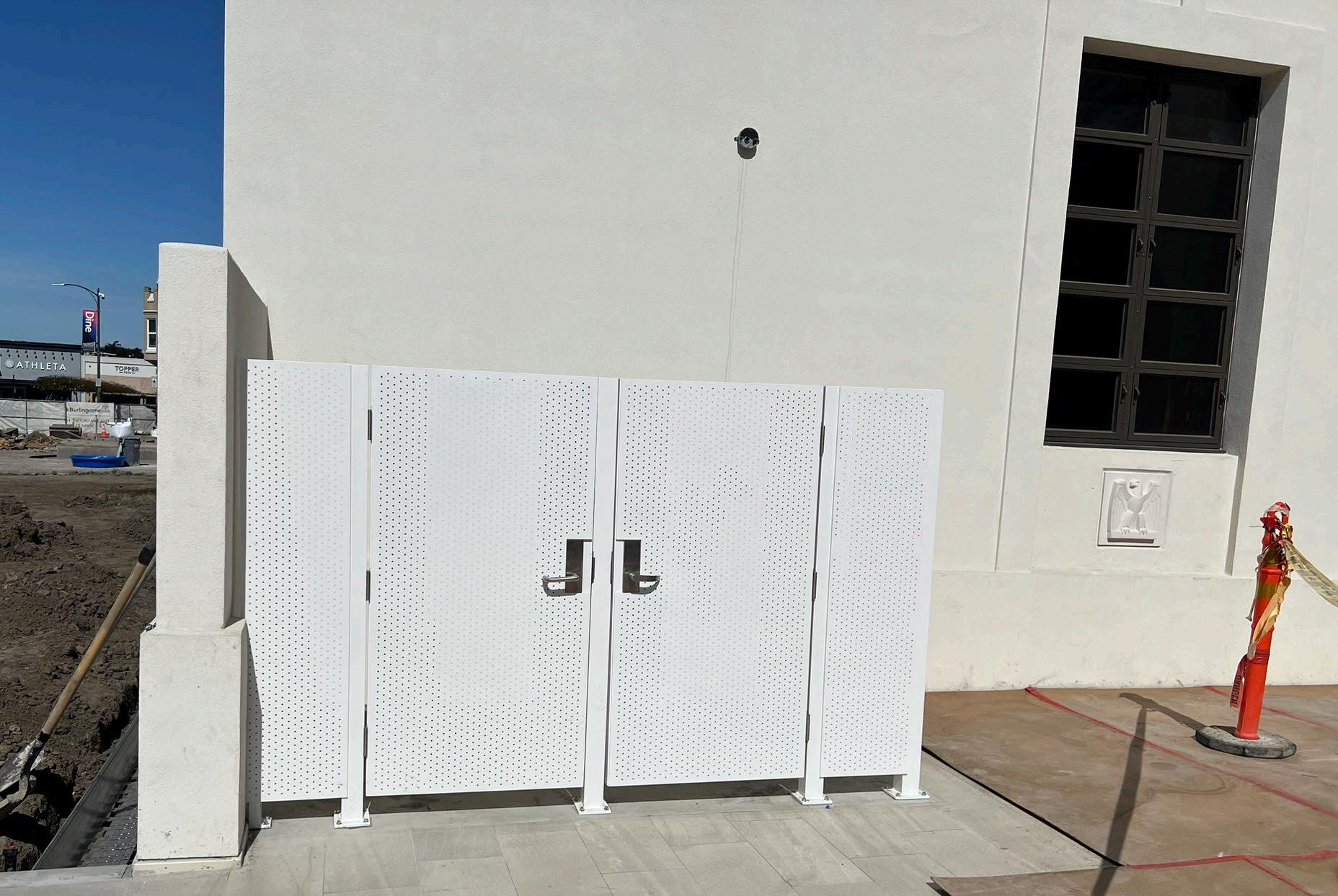

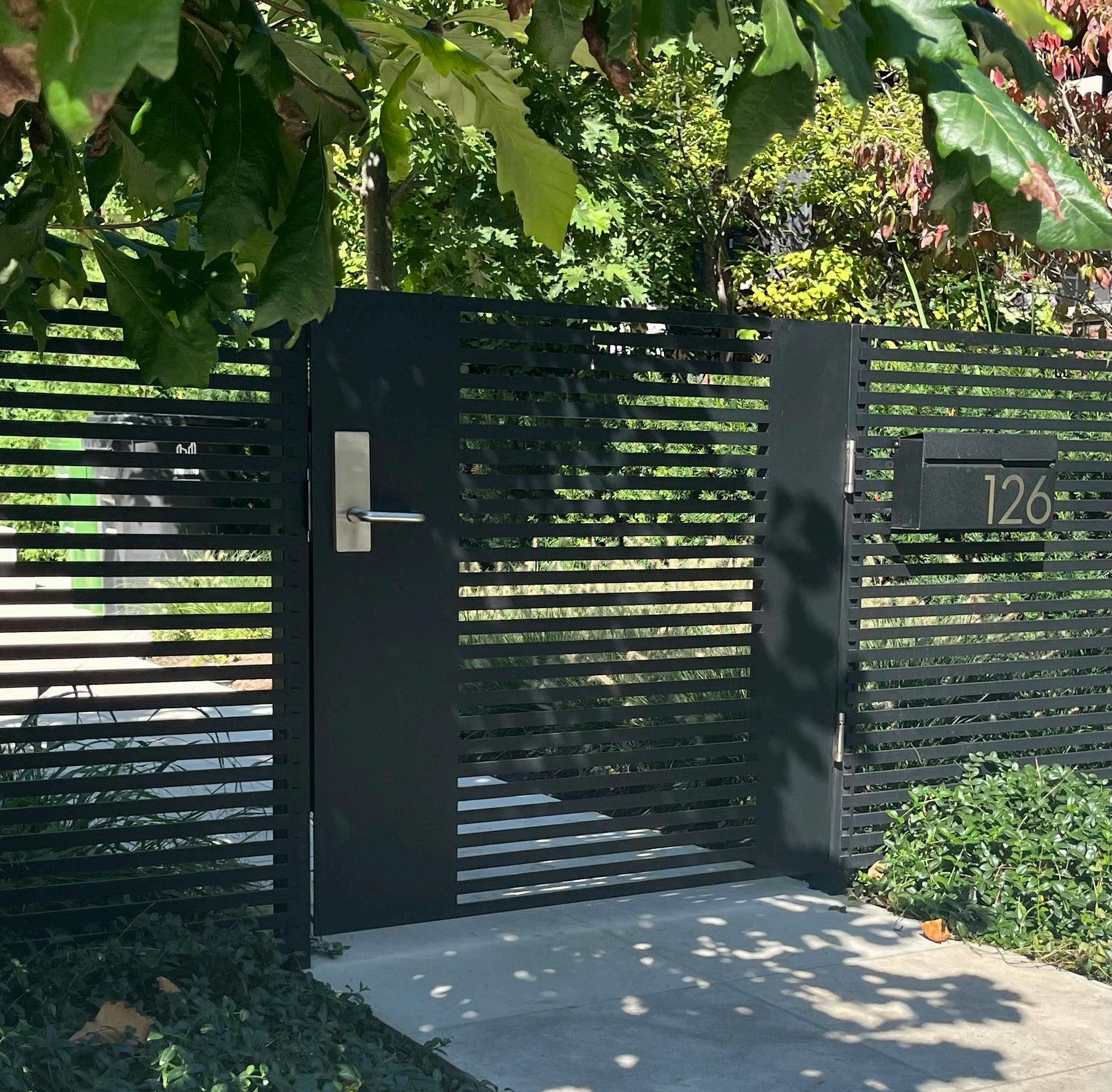

• All panel types are available with a matching gate option.

• Gate hardware (hinges, handle mechanism) are included with an order; bespoke hardware may be specified as a custom.

• All panel types are available in 4’ and 6’ panel heights.

• Posts are spaced at 6’ intervals for 4’ height panels, and at 4’ intervals for 6’ height panels as standard; modified post spacing is available to accommodate a specific site plan.

• All panel types are available surface mounted or embedded.

• Panels can be modified up to 8’ as a special request (4’ wide gates are the only option with 8’ panel height).
