Lightraulics® A- / S-Series Cylinders

Lightraulics® A- / S-Series

The Lightraulics® A- and S-Series contain a thin-walled metal liner with a fbre reinforced composite overwrap, delivering weight savings of up to 45% compared to standard steel designs.

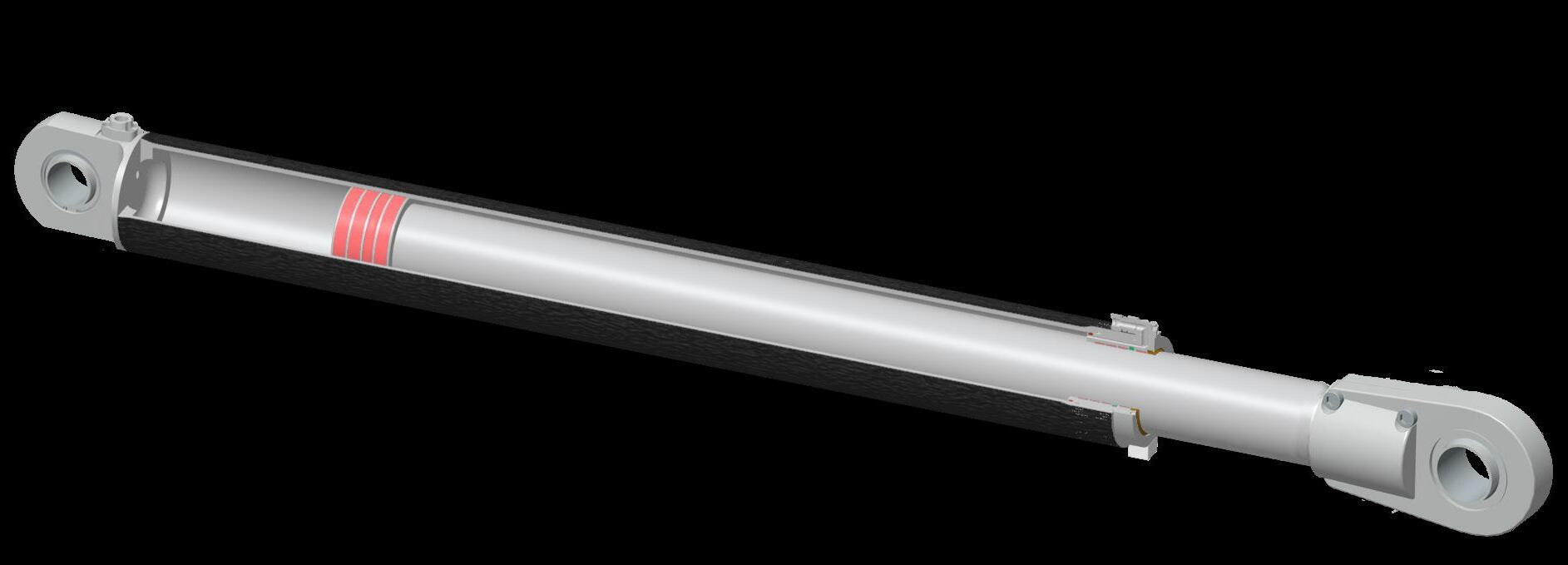

▲ Composite overwrap The carbon fibre reinforced composite structure supports the metal liner with carrying the hoop loads. ▼ Metal liner A thin-walled aluminium (A-Series) or steel (S-Series) liner acts as a diffusion barrier and carries the axial and hoop loads.

Product specifcations

Working pressure Piston diameter Stroke length Barrel material

Piston material up to 700 bar (10150 psi) up to 250 mm up to 3000 mm thinwalled aluminium (A-Series) or steel (S-Series) with fibre reinforced composite overwrap aluminium

Piston rod material Temperature range Fluid medium hard chrome plated steel -20 °C to +80 °C mineral hydraulic oil

Lightraulics® A-Series and S-Series cylinders will be designed especially for your application. Please contact lightraulics@parker.com with your specifications.

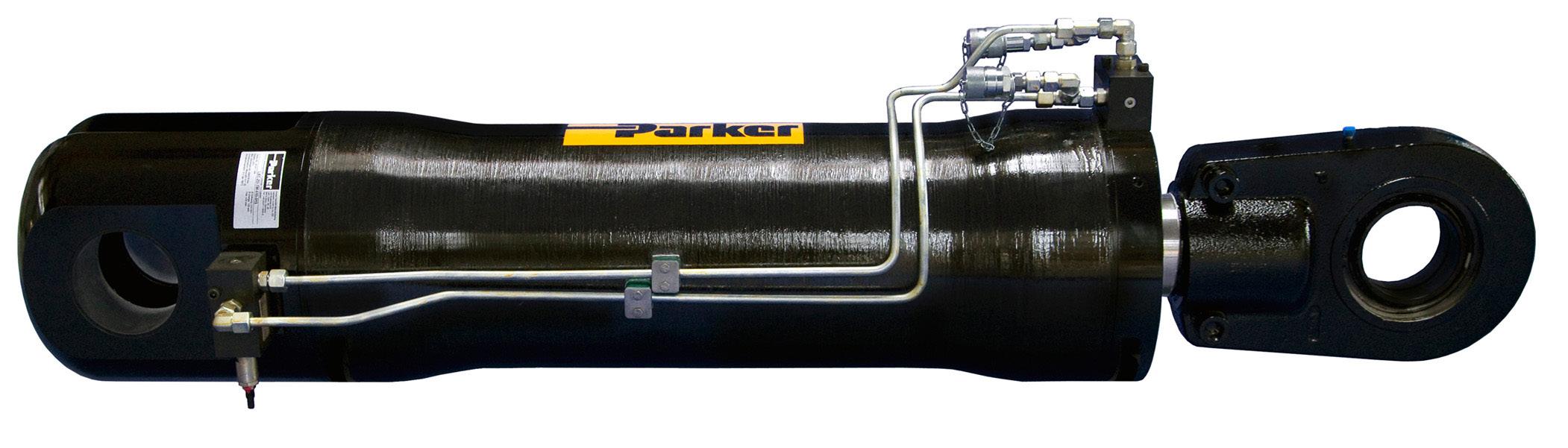

▲ Product example A-Series Working pressure Piston diameter Stroke Maximum force Weight 700 bar 210 mm 550 mm 1480 kN 248 kg
