V-Series

THE V-SERIES PORTFOLIO OFFERS A COMPREHENSIVE RANGE OF SYSTEM OPTIONS FOR THE FABRIC BOX PLEATED & SOFTCELL COLLECTION, PROVIDING THE CONSUMER WITH OPTIMUM CHOICE AND LIGHT CONTROL FOR THEIR HOMES. The blind operation can vary from a highly innovative patented easy safe breakaway chain control, free hanging, spring, and tensioned options alongside motorised, offering the ultimate in comfort and control.

Available in a choice of profile colours.

Boasting a wide range of system choices, the V Series offers ultimate blind control. Choose from cord control through to inherently child safe options.

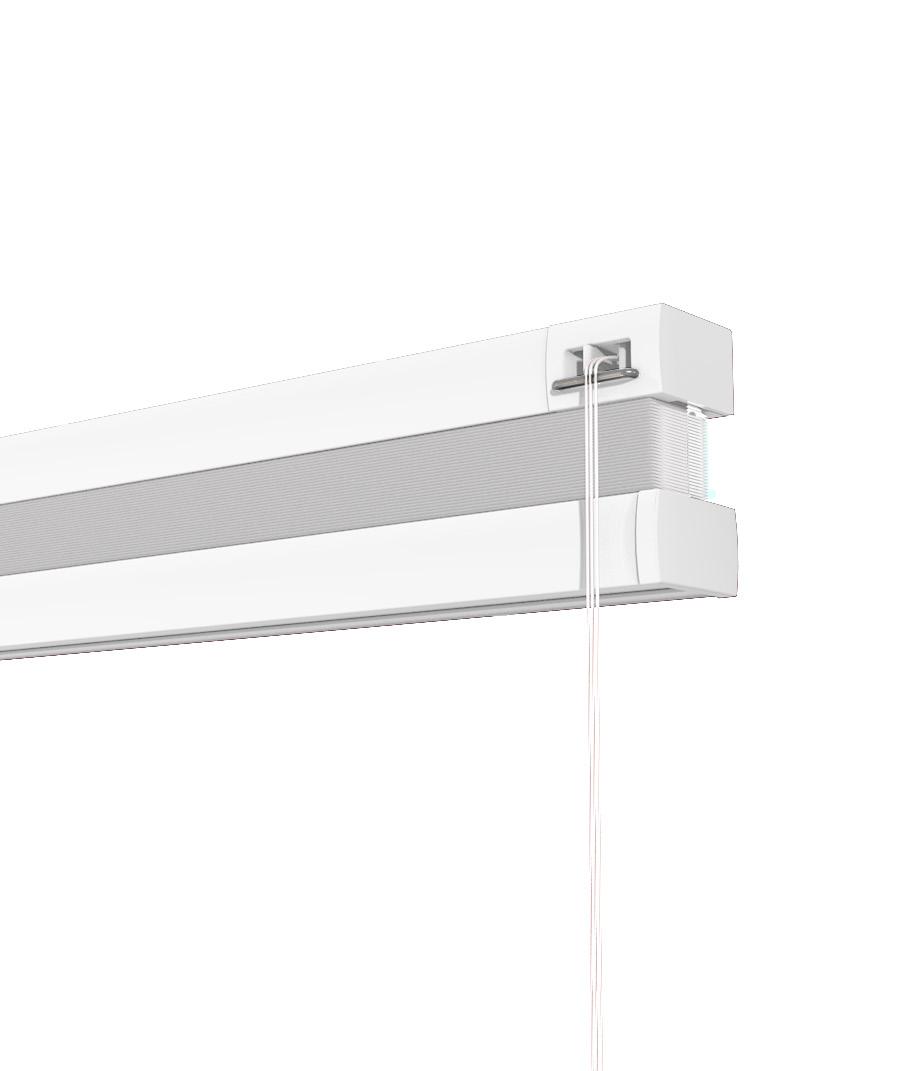

System V01 presents a simple bottom-up cord control. The fabric hangs from the slimline headrail profile and the blind is operated by locking the cord in the desired position.

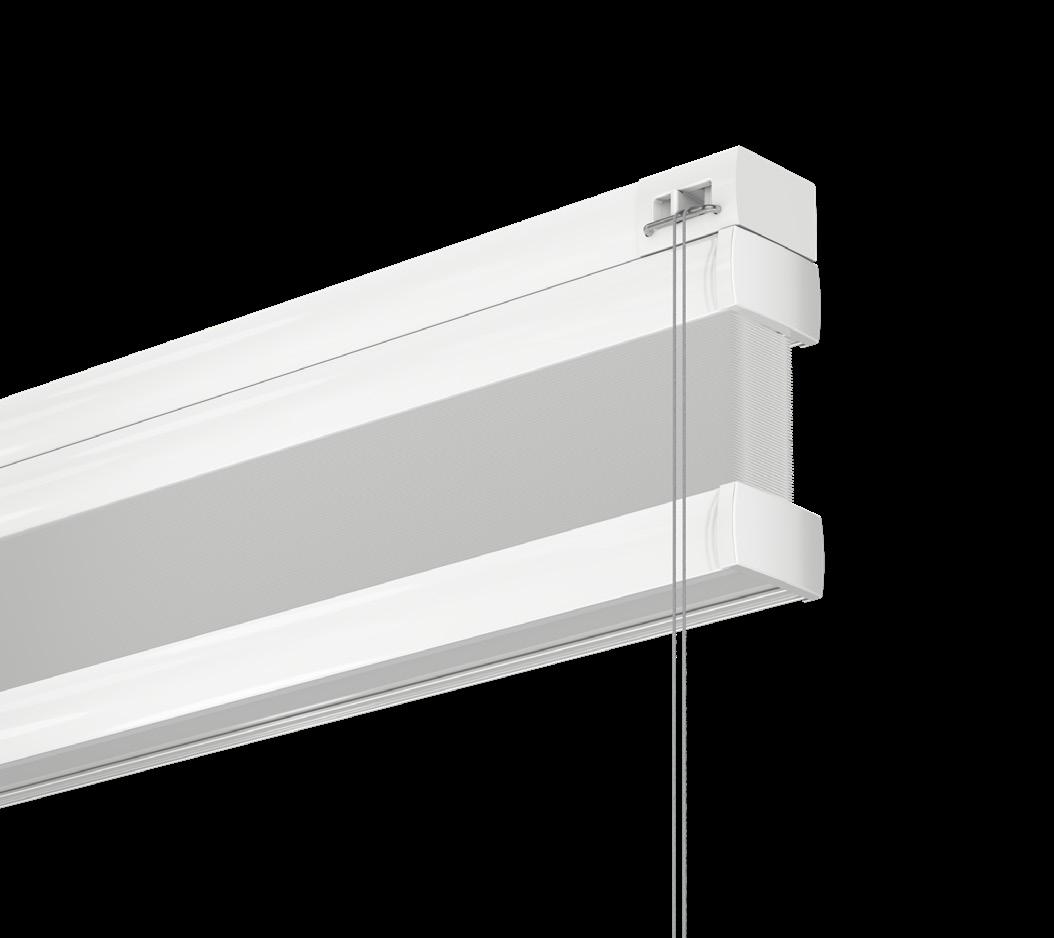

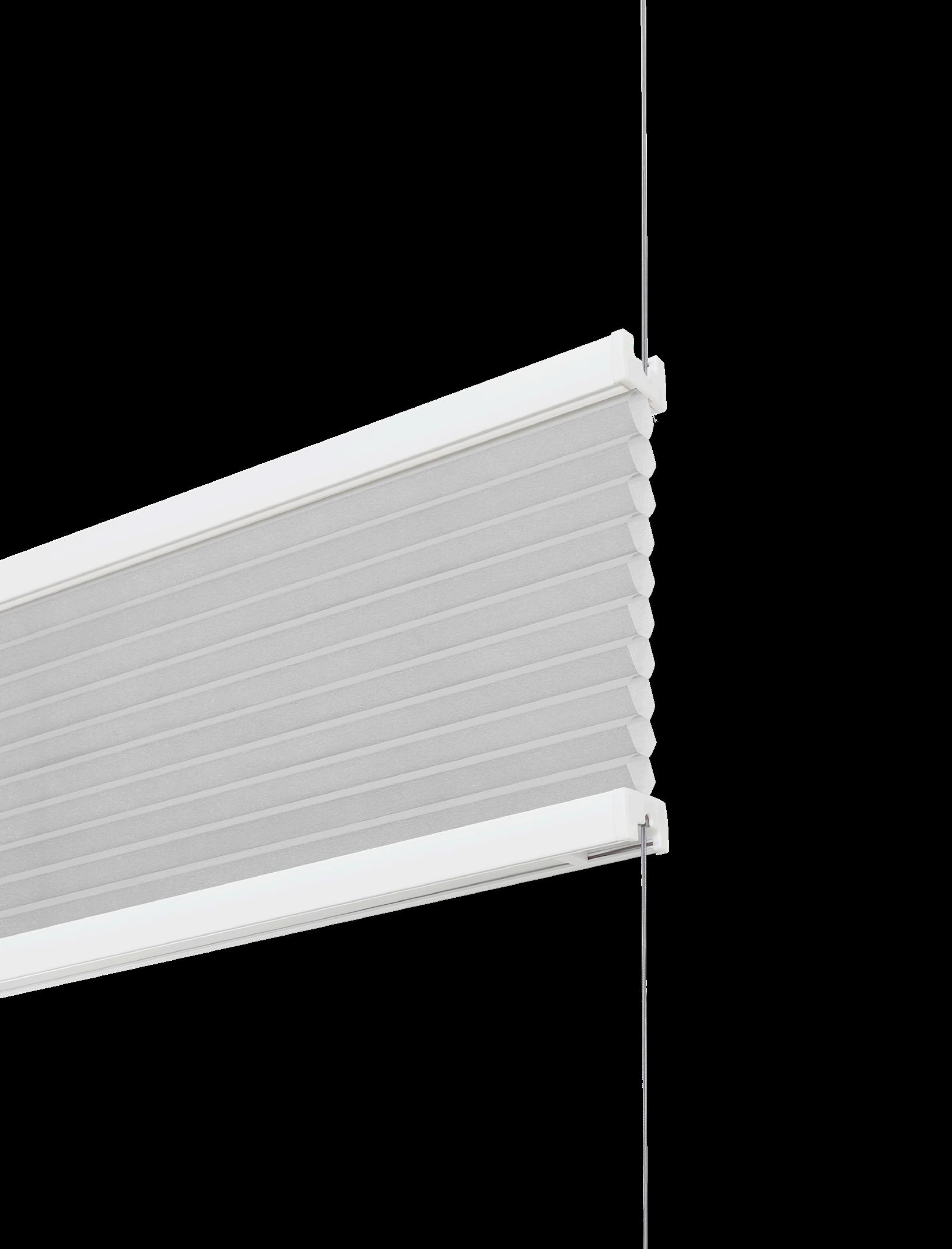

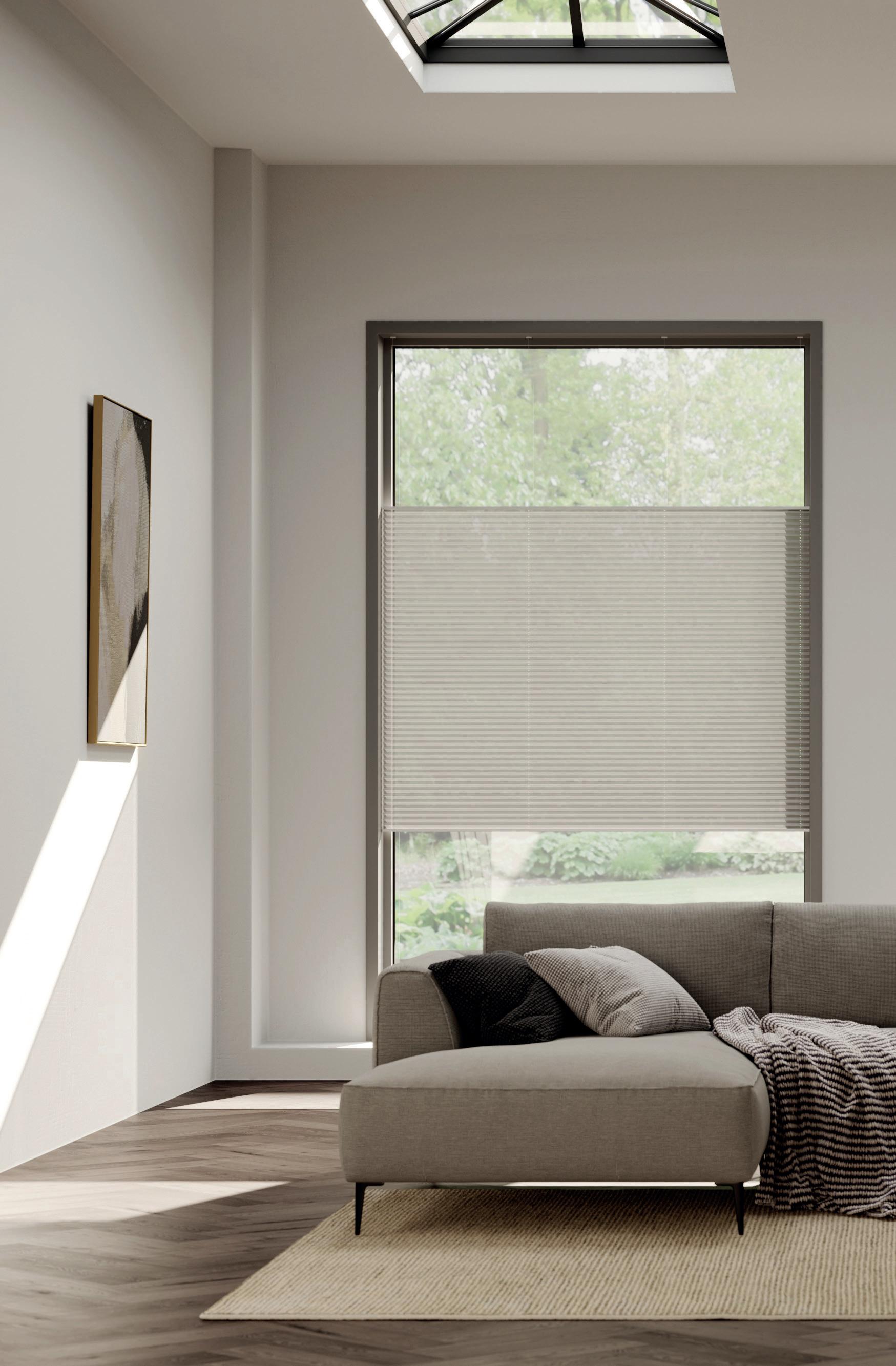

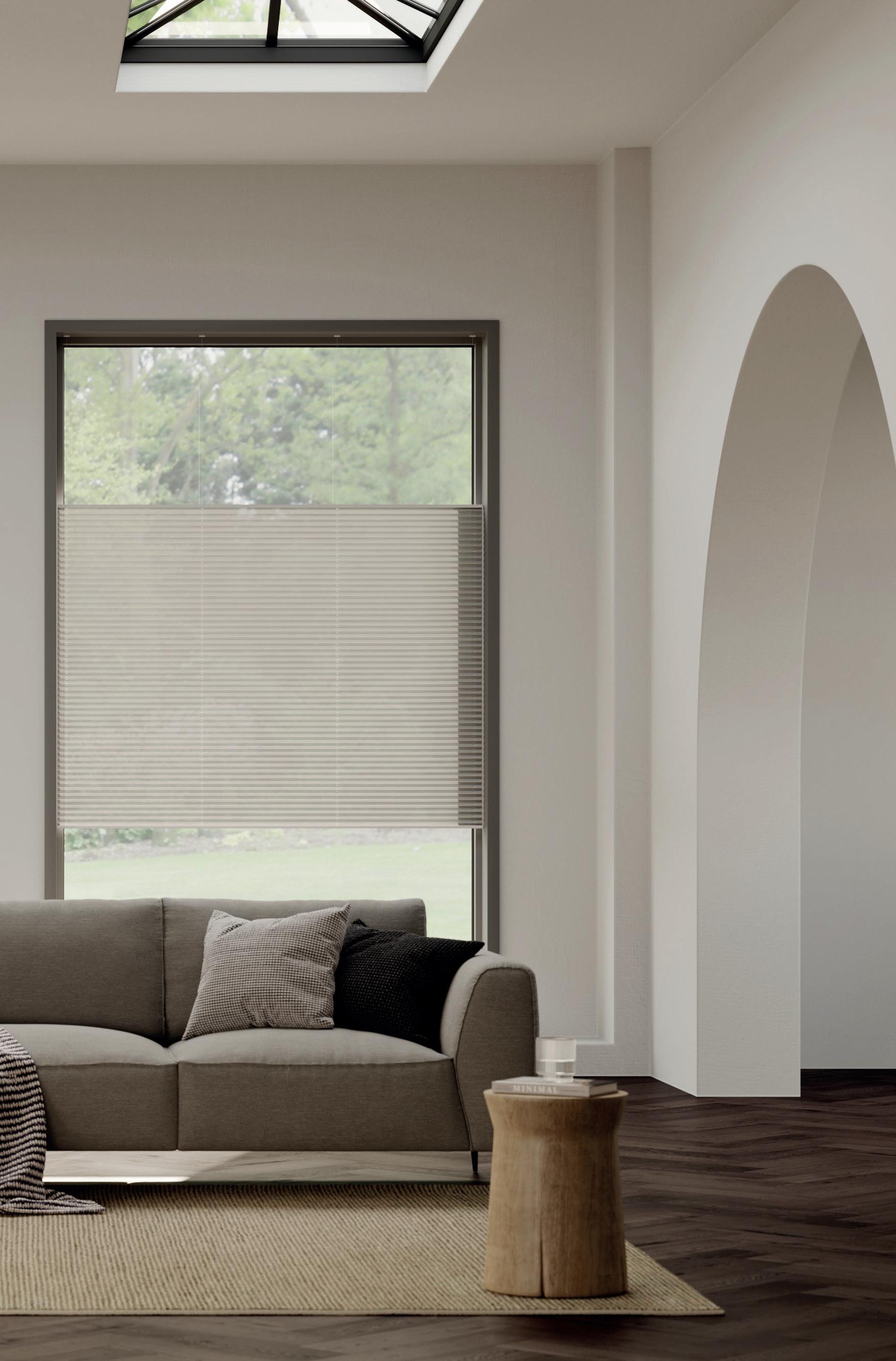

Top-down bottom-up operation V02 the easy-to-use cord lock presents premium light control and privacy.

The fabric is held within an additional slimline profile that allows the fabric to sit at any point, enabling view to the top and bottom section, whilst the fabric offers privacy to head height in the middle section of the window.

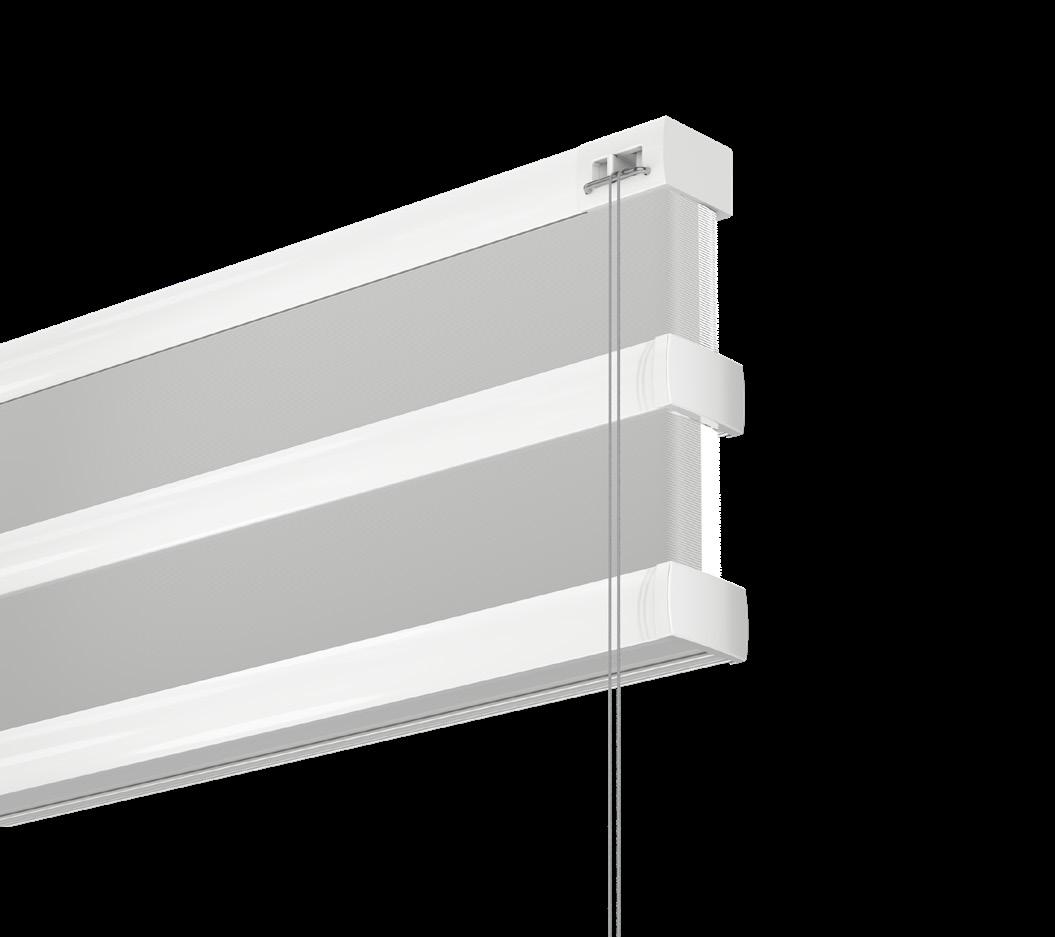

V03 allows for two fabrics to be utilised in the one blind. The bottomup operation is perfect where privacy only may be required during the day, whilst a semi-transparent or blockout fabric is required for enhanced light control. Ideal for use in a bedroom combining a delicate sheer voile with a blockout fabric.

With the importance of ensuring a child safe home, inherently child safe blind options are available.

This unique operating system is available in a bottom up and topdown bottom-up.

MOTORISED The ultimate choice for child safety and convenience is motorisation.

System V07 enables seamless integration with innovative and smart home appliances.

When motorised, your blinds will create a safe, comfortable and more energy efficient environment. Set your favourite positions and schedule times with your remote, smart phone or Home Automation System.

TENSIONED Developed to keep the fabric in place, the tensioned option is the perfect solution for tilt and turn windows and bi-fold doors. Available as top-down bottom-up operation the V08 system offers perfect light control and privacy.

Operation is controlled by moving the slimline top and bottom profiles to the desired position.

SYSTEM INFORMATION Blind Size = Width of blind.

Recess Size = Width of blind - 10mm.

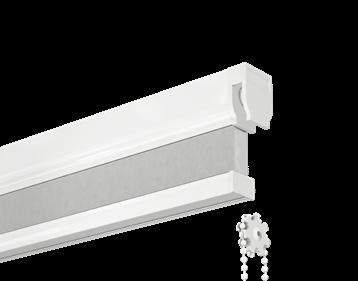

Innovative design is presented with V05 and V06 options. The chain control operation houses a patented chain wheel that breaks away from the headrail when pressure is applied.

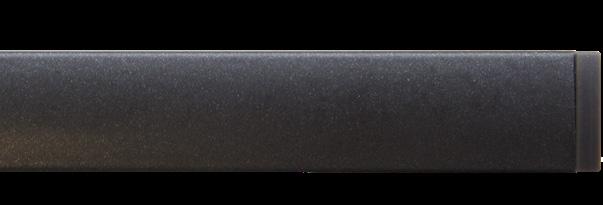

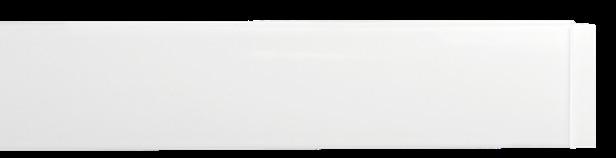

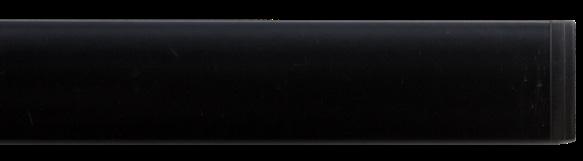

SYSTEM COLOURS

WHITE

RAL9016

GREY

RAL9006

ANTHRACITE

RAL7022

BLACK

RAL9005

V-SERIES SYSTEMS

FREEHANGING

FREEHANGING V-SERIES V01

FREEHANGING BOTTOM UP CORDLOCK Headrail Size (W x H mm) Fixing Options Control Type

Min Drop x Max Drop (mm)

200 x 3000

FREEHANGING TOP DOWN BOTTOM UP CORDLOCK

FREEHANGING DAY NIGHT BOTTOM UP CORDLOCK

Fixing Options Control Type

Click-on & swivel Right & left hand lift

Right or left hand lift 200 x 2900

V-SERIES V-S ER I E S V03 V03 V-SERIES V03

26 x 16.5

Click-on & swivel

Min Width x Max Width (mm)

V-SERIES V02

Headrail Size (W x H mm)

26 x 16.5

Headrail Size (W x H mm) Fixing Options Control Type

26 x 16.5 Click-on & swivel Right or left hand lift

Min Width x Max Width (mm)

200 x 2900

Min Width x Max Width (mm)

200 x 2900

Min Drop x Max Drop (mm)

200 x 3000

Min Drop x Max Drop (mm)

200 x 3000

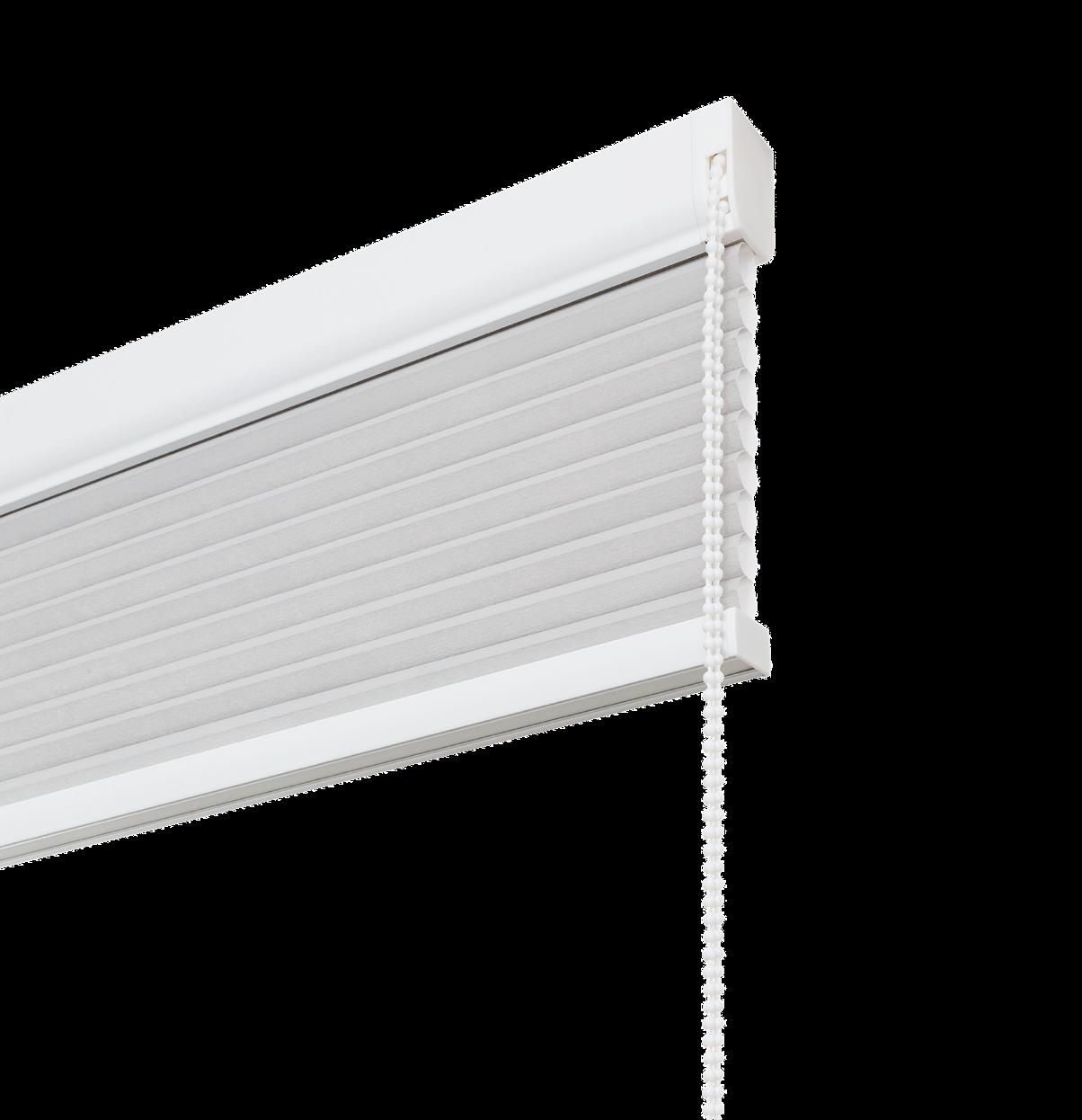

V-SERIES V05

EASY SAFE SAFE OPTION CHILD OPTION

STANDARD OPTION

P A T E N T E D

FREEHANGING CHAIN BOTTOM UP Fixing Options Control Type Control Options

32 x 44 Click-on & swivel Right & left hand lift Standard 1:1 or 1:4 Easy Safe 1:1 or 1:4

Min Width x Max Width (mm)

500 x 2900

Min Drop x Max Drop (mm)

200 x 3000

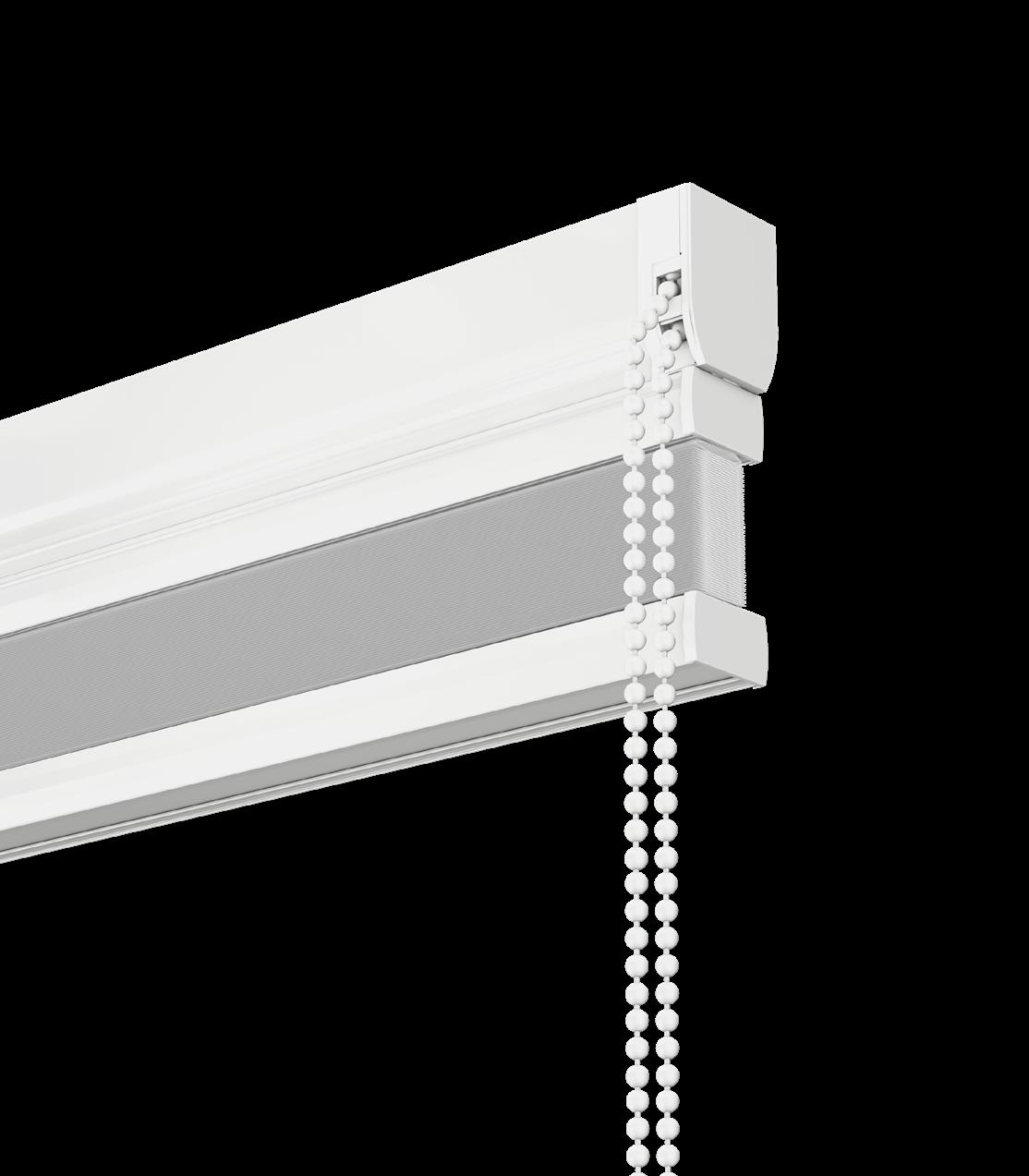

V-SERIES V06

EASY SAFE OPTION

STANDARD OPTION

P A T E N T E D

FREEHANGING CHAIN TOP DOWN BOTTOM UP Headrail Size (W x H mm) Fixing Options Control Type Control Options

32 x 44 Click-on & swivel Right & left hand lift Standard 1:1 or 1:4 Easy Safe 1:1 or 1:4

Min Width x Max Width (mm)

500 x 2900

Min Drop x Max Drop (mm)

200 x 3000

V-SERIES SYSTEMS

Headrail Size (W x H mm)

MOTORISED V-SERIES V07

MOTORISED BOTTOM UP Headrail Size (W x H mm) Fixing Options Control Type

32 x 44 Click-on & swivel Cordless

Min Width x Max Width (mm)

800 x 2900

Min Drop x Max Drop (mm)

200 x 3000

TENSIONED

V-SERIES SYSTEMS

V-SERIES V08

TENSIONED TOP DOWN BOTTOM UP Headrail Size (W x H mm) Fixing Options Control Type

26 x 16.5 Screwblock Cordless

Min Width x Max Width (mm)

200 x 1500

Min Drop x Max Drop (mm)*

200 x 2200

*Max drop of 2200mm can only be achieved with max width 1000mm. Widths above 1000mm, max drop is 1500mm.
