SYSTEM OVERVIEW
CZP09/CZP10
Other components are closely matched to profile colour.
ADDITIONAL INFORMATION:
› Cellular: Cell: 25mm width.
› Pleated: Pleat size 20mm width.
› Blinds are produced within an operating tolerance of +/- 3mm (width & drop).
› Width deduction of 10mm made on all blinds ordered as recess size.
› Colour of the cords for Tensioned, Free-hanging and FITtoFRAME™ systems are chosen closest to the fabric colour.
› Default profile colour is white unless otherwise specified.
› Side wires are available on CZP06 & CZP07 for a surcharge. Maximum angle of deflection 15°.
› Anthracite is RAL7016, Nobel is RAL7022.
FREE-HANGING, TENSIONED, FIT to FRAME
DAY/NIGHT RAIL WIDTH 23mm HEIGHT 22mm
FITtoFRAME™ SIDE GUIDE
WIDTH 14mm HEIGHT 8mm
SYSTEM OPTIONS
*Free-Hanging systems not available with Bowery fabric.
FREE-HANGING BOTTOM UP
Min Width (mm)
Top Profile
Bottom Profile Standard
Control Options
Cord
Control Positions Right (standard) & Left (optional)
Child Safety
Breakaway tassel, cleat, and stop rings
Top Profile Standard
Middle Profile Standard
Bottom Profile Standard
Control Options
Control Positions
Child Safety
Cord
Dual
Breakaway tassel, cleat, and stop rings
CZP01
CZP02
SYSTEM OPTIONS
FREE-HANGING
DAY/NIGHT
Top Profile Standard
Middle Profile
Day/Night Rail
Bottom Profile Standard
Control Options Cord
Control Positions Dual
Child Safety Breakaway tassel, cleat, and stop rings

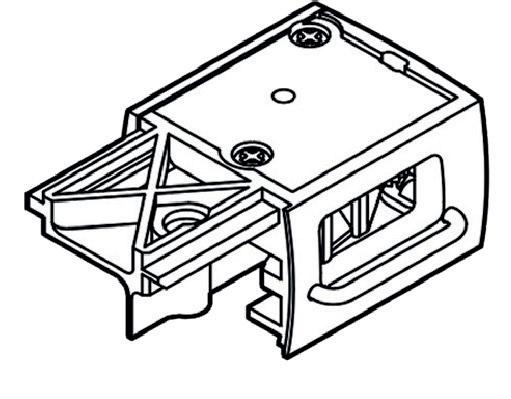

COMPONENTS FOR FREE-HANGING SYSTEM
All cordlock system blinds are supplied with swivel brackets for top profile. These brackets can be Top fixed or Face fixed.
CZP078 White
CZP079 Cream
CZP080 Grey
CZP081 Nobel
CZP082 Black
CZP083 Anthracite
CZP084 Brown
CZP085 Light Brown
CZP070 White
CZP071 Cream
CZP072 Grey
CZP073 Nobel
CZP074 Black
CZP075 Anthracite
CZP076 Brown
Light Brown
CORDLOCK
CZP077
CHILD SAFETY
All corded blinds come with clear cord stop rings, breakaway tassel, and twopiece cleat.
Minimum cord length required is 300mm.
CORD STOP RINGS - VC902
BREAKAWAY TASSEL – VC986
CONTROL LENGHTS AND INSTALLATION HEIGHTS
› Standard control length is 2/3 of product height.
› When control length does not meet the child safety requirements, then it needs to be reduced to the maximum allowed length according to those requirements.
› When installation height is known, the distance between the floor and the bottom of the controls needs to be no less than 1.5m.
› When installation height is unknown, but the blind height is less than 2.5m, control length should be no more than 1m.
› When installation height is unknown, but the blind height is more than 2.5m, control length should not be longer than the blind height reduced by 1.5m (blind h - 1.5m=control length).
SYSTEM TYPE TENSIONED
*Bowery fabric:
Max Width 1200mm
Max Drop 1600mm
Min
TENSIONED BOTTOM UP
Top Profile Standard
Bottom Profile ≤ 1m width -Standard / > 1m width Reinforced
Control Options
Handle
*Bowery fabric:
Max Width 1200mm
Max Drop 1600mm
Side wires are available on CZP06 for an additional surcharge
TENSIONED BOTTOM UP BOTTOM BAR
Top Profile Standard
Bottom Profile
≤ 1m width -Standard / >1m width Reinforced
Fixed Bottom Profile Standard
Control Options
Handle
CZP06
CZP04
SYSTEM TYPE TENSIONED
Bowery fabric not available in TDBU or Day/Night configurations.
Side wires are available on CZP07 for an additional surcharge
Min
Min
Top Profile
Bottom Profile
≤1m width - Standard / >1m width Reinforced
≤1m width - Standard / >1m width Reinforced
Control Options Handle
Top Profile
Bottom Profile
Fixed Profile
Control Options
Standard
≤ 1m width -Standard / >1m width Reinforced
Standard
Handle
CZP05
CZP07
CZP07
SYSTEM TYPE TENSIONED
TENSIONED DAY & NIGHT
Top Profile
Middle Profile Day/Night Rail
Bottom Profile ≤ 1m width -Standard / > 1m width Reinforced
Control Options Handle
COMPONENTS FOR TENSIONED SYSTEM
MOUNTING BRACKETS
4 sets with end caps for 1 blind
2 sets for 1 blind
CZP04 / CZP08
CZP06 / CZP07
For top profile swivel bracket
For bottom profile (2 sets for 1 blind)
For top profile swivel bracket
bracket
For bottom fixation (1 set for 1 blind)
CZP05
Swivel
COMPONENTS FOR TENSIONED SYSTEM
END CAP TENSIONED FOR STANDARD PROFILE
CODE COLOUR
CZP046 White
CZP047 Cream
CZP048 Grey
CZP049 Nobel
CZP050 Black
CZP051 Anthracite
CZP052 Brown
CZP053 Light Brown
CZP116 White
CZP117 Cream
CZP118 Grey
CZP119 Nobel
CZP120 Black
CZP121 Anthracite
CZP122 Brown
CZP123 Light Brown
END CAP TENSIONED FOR REINFORCED PROFILE CODE COLOUR
CZP025 White
CZP026 Cream
CZP027 Grey
CZP028 Nobel
CZP029 Black
CZP030 Anthracite
CZP031 Brown
CZP032 Light Brown
TOP FIX BRACKET FOR STANDARD PROFILE CODE COLOUR
CZP175 Chrome
COMPONENTS FOR TENSIONED SYSTEM
CONTROL HANDLE
CRUZE HANDLE (SUPPLIED AS STANDARD) FOLDING HANDLE (ADDITIONAL SURCHARGE)
CZP128 White
CZP129 Black
CZP130 Anthracite
CZP131 Clear
CZP151 Clear
Handle quantity: up to 1.2m width there will be 1 handle for every moving profile (over 1.2m width blind - 2pcs).
Please note: Handles come as two pieces, a handle and an insert.
SYSTEM TYPE
FIT to FRAME ™
FITtoFRAME™ allows customers to mount blinds directly to windows, without the need for screws.
A tensioned Top Down, Bottom Up blind is used, guided by side rails.
*Not available with Bowery fabric.
Scan the QR code below to see the installation of FITtoFRAME™
Min Width (mm)
FIT to FRAME ™
200
Min Drop (mm) 150
Max Width (mm)
Max Drop (mm)
Max m2
Top Profile
Bottom Profile
3m2
Reinforced
Reinforced
Control Options Handle
FIT to FRAME ™ INSTALLATION OPTIONS
Beading brackets, which then connect in to the side guide.
High-strength adhesive tape to affix the side guide to the window.
CZP09/CZP10
CZP09
CZP10
MOUNTING BRACKETS
CLIPS FOR WINDOW BEAD MOUNTING
CLIPS FOR TAPED MOUNTING
CZP106 Beading bracket (A) (2 per blind)
CZP107 Beading bracket (B) (2 per blind)
CZP124 Side guide bracket (E) (2 per blind)
CZP125 Side guide bracket (F) (2 per blind)
CZP109 Side guide bracket (C) (2 per blind)
CZP110 Side guide bracket (D) (2 per blind)
CZP108 Side guide clip (As Required)
END CAP TENSIONED FOR FITtoFRAME™ CODE COLOUR
CZP033 White
CZP034 Anthracite
CZP035 Black
CZP036 Grey
CZP037 Nobel
CONTROL HANDLE
CRUZE HANDLE (SUPPLIED AS STANDARD)
CZP128 White
CZP129 Black
CZP130 Anthracite
CZP131 Clear
FOLDING HANDLE (ADDITIONAL SURCHARGE)
CZP151 Clear
Handle quantity: up to 1,2m width there will be 1 handle for every moving profile (over 1,2m width blind - 2pcs).
Please note: Handles come as two pieces, a handle and an insert.
COLOUR MATCH
PERFECT FIT
SYSTEM
Min/max size based on glass size.
PERFECT FIT FRAME
Aluminium perfect fit frames available in 8 colours.
25mm of clearance is required between handles and or vents to the glass.
PROFILE
REINFORCED
White
Anthracite
Black Golden Oak
Anodised
Mahogany Brown
Beige
PERFECT FIT SYSTEM
Bowery fabric not available in TDBU or Day/Night configurations.
Min Width (mm)
200
Min Drop (mm) 150
Max Width (mm) 1500
Max Drop (mm) 2300
Max m2
Top Profile
Bottom Profile
Control Options
3m2
Reinforced
Reinforced
Handle
Mounting - Under-glass beading with brackets On-window frame with Konnect Strip
PERFECT FIT SYSTEM
SIDE FRAMES
Two holes are punched into the side frames. Window fixing brackets attach the blind to the window. Anything over 1100mm drop there will be three holes punched.
FIXING BRACKETS
Fixing brackets come along with the blind to fit the blind into the window space.
Window fixing brackets come in 9 sizes: 18mm, 20mm, 22mm, 24mm, 26mm, 28mm, 30mm, 32mm, 38mm Colours available: White, Brown, Anthracite and Black
PERFECT FIT SYSTEM
ATTACHING THE BRACKETS
You can use a credit/debit card as a template to find the correct position for the brackets.
Place the card length ways along the side of the window in each corner and line up the bracket with the end of the card.
CONTROL HANDLE CRUZE HANDLE (SUPPLIED AS STANDARD)
White
CZP129 Black
CZP130 Anthracite
CZP131 Clear
Clear
Handle quantity: up to 1,2m width there will be 1 handle for every moving profile (over 1,2m width blind - 2pcs).
Please note: Handles come as two pieces, a handle and an insert.
CZP128
CZP151
PERFECT FIT SYSTEM
HANDLE INSERTS
Handle insert will be available in 6 colours to provide clearance of any window handles. 25mm of clearance is required between handles and or vents to the glass.
When ordering please specify handle insert position in the frame.
Available in White, Tan, Brown, Grey, Anthracite and Black.
UNIVERSIAL FRAME
Perfect Fit Universial frame allows you to fit your blind outside of the window recess.
Available in 2 colours: White and Anthracite.
Max size available 1400mm x 1800mm
With this option, magnetic strips are supplied to fit the blind to the window space.
The blind frame and window frame will need cleaned with an alcohol wipe to clear away any dirt to ensure strips will stick.
Max size available 1400mm x 2000mm.
KONNECT STRIP
PERFECT FIT SYSTEM
COLOUR MATCH
PROFILE COLOURS
Cream
Grey
SOFTCELL FABRICS
THE BELOW TABLE PROVIDES INFORMATION ON SOFTCELL FABRICS
Charcoal
Cool Grey Desert Sand Slate Stone
Artezen Snow
Blockout Indigo
Blockout Lime
Blockout Ochre
Blenheim
Bowery
*only available on CZP04 & CZP06
Blockout Rouge
Blockout Snowdrop
Blockout White Mist
Blanc Cashmere Charcoal Mineral Pewter Smoke
Burgundy
Fawn Parchment Platinum Royal Blue Slate Snow Teal
Anthracite
Cream Dove Grey Grey Lagoon Neptune Onyx Orchid Saffron Sky Spring Taupe Terra White
Blockout Anthracite
Blockout Cream
Blockout Dove Grey
Blockout Grey
Blockout Lagoon
Blockout Neptune
Blockout Onyx
Blockout Orchid
Blockout Saffron
Blockout Sky
Blockout Spring
Blockout Taupe
Blockout Terra
Blockout White
Blockout Camel
Blockout Grey Dawn
Blockout Oatmeal
Blockout Stone
Blockout Vintage Grey
*(FR) - Flame retardant fabric - BS5867-2:2008 Type B.
Soho Barley
Tribeca
Blockout, Water Resistant
PLEATED FABRICS
THE BELOW TABLE PROVIDES INFORMATION ON ALL PLEATED FABRICS
Nera Black
Pearl Royal Blue Adia Atlantic
White
Aliz Gris
Snow
Sea Smoke
Blush
Ash
Chalk Sand
Parchment
Slate
Slate Evissa Lilac
Orchid Pink Pacific
Graphite
Bamboo Black White Mist
Almond
Coffee Linen Mint Red Rose Silver Yellow
Kana Amethyst
Chocolate Merlot Navy Blue Obsidian Black Perla White Terra Kimora Cumulus
Nut
Mako Tranquil
White Cotton
Mirabella Mirabella Concrete Grey
Mirabella Coral
Mirabella Marble
Mirabella Mint
Mirabella Perla Black
Mirabella Plum
Mirabella Vanilla
Mirari Chiffon
Pearlised, Textured
Mythic Coral
Ecru
Snow Drift
Noto Sky
Surf
Nouveau Frosted Grey
Grey Mist
Oketo Lagoon
Mineral
Paradise Pure Satin
Twilight
Scandi Charcoal
Khol
Scandi Olive
Scandi Teal White Linen
Sylvan Beige
Grey
Talia Brown
Gris Tropez Mulberry
Polar White
Canary
Rose
PLEASE NOTE: Cords will be chosen to the closest colour of
Pearlised
