D&D Trade Catalog Volume 15

ME VOLU

15

World’s Most Trusted Gate Hardware www.ddtech.com DDTECH.COM

1

New Products

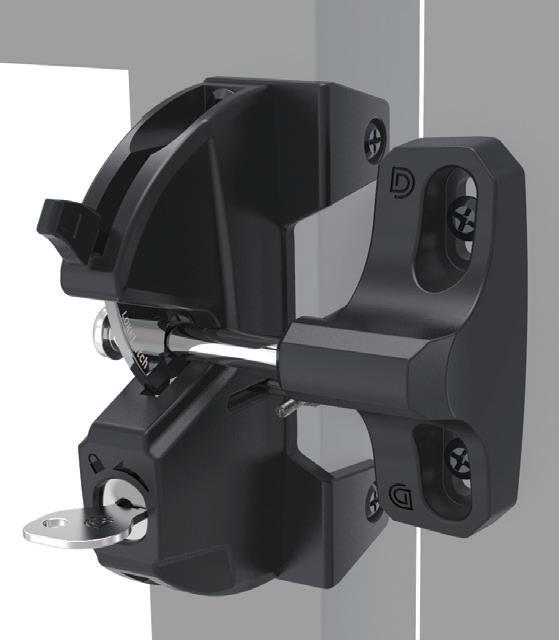

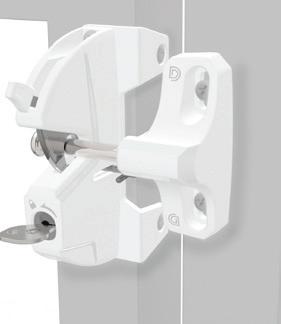

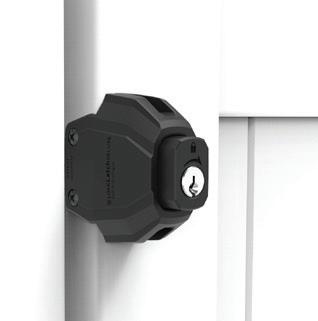

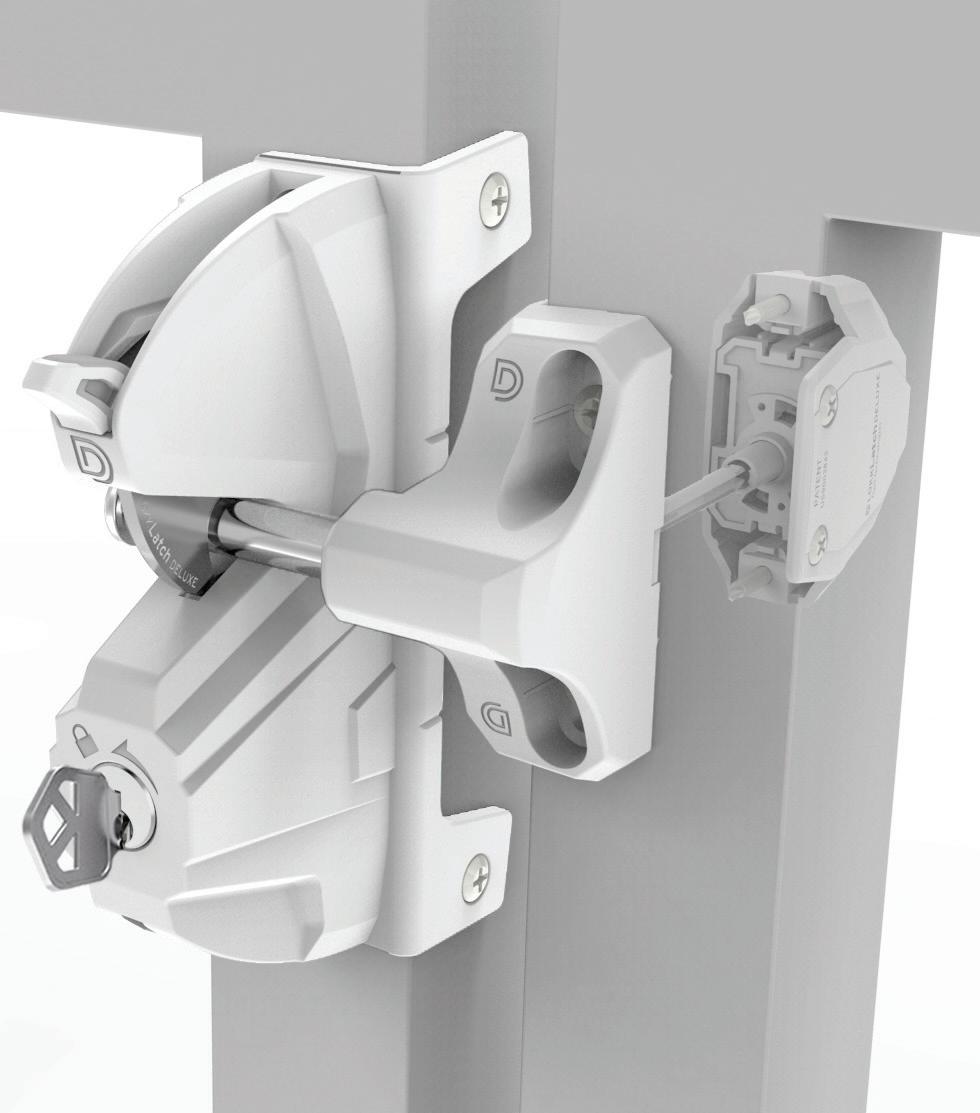

LokkLatch® REGULAR S3 Privacy Latch LL3A

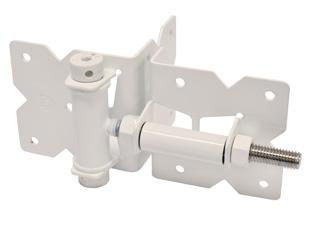

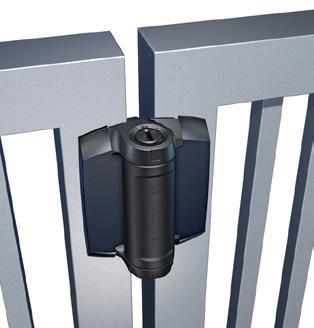

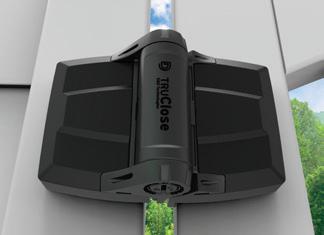

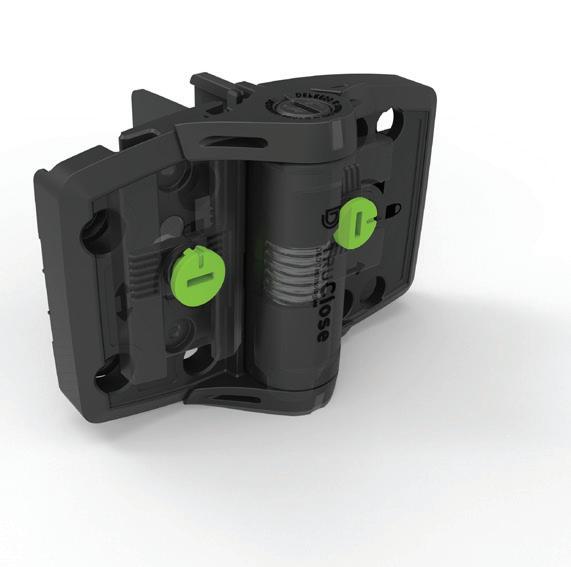

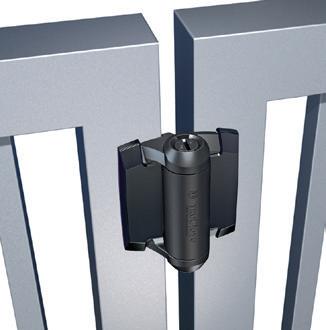

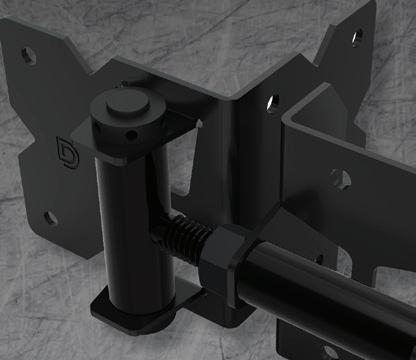

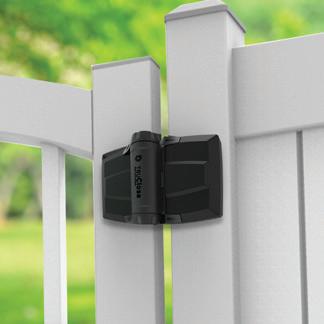

TruClose® MULTIADJUST Heavy Duty TCHDMA1S3BT

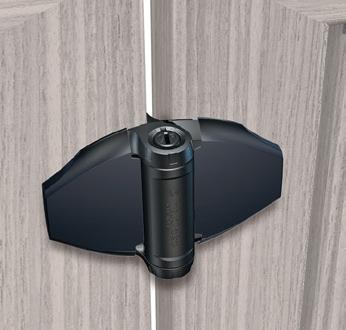

TruClose® MULTIADJUST Heavy Duty TCHDMA1S3WT

Since 1989 Proudly the world’s leading innovator and manufacturer of premium gate latches, locks and hinges...

The installation of a new gate is an important decision, regardless of it being for residential, industrial, commercial or child safety applications.

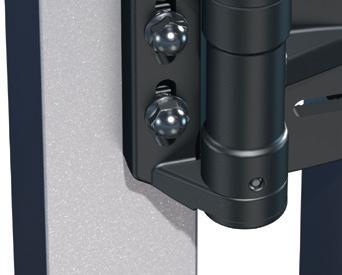

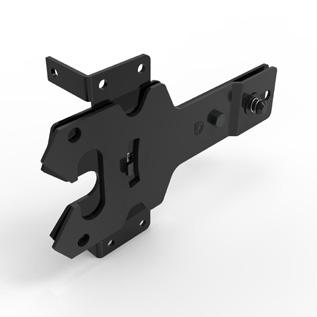

Shut-It® Bolt-on Black Powder Coated Range

In general, gate latches and hinges make up just 1% of the total cost of a fencing installation…but they make the other 99% function and protect effectively.

The operation, construction (materials used), quality, weight, functionality, footprint and security are just some of the variations to consider when making an informed decision about gate hardware.

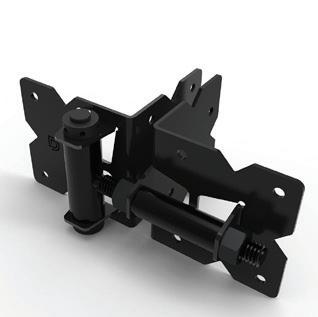

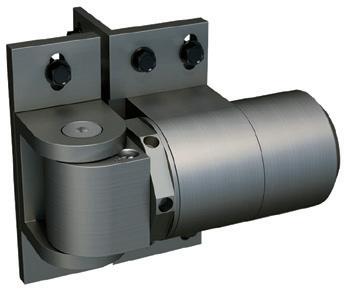

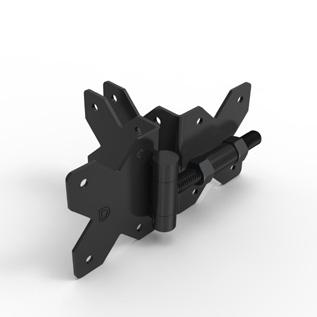

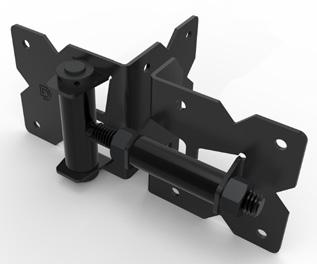

Shut-It® Self-closing Hinge Sets CI3850, CI3850R, CI3850FM, CI3860, CI3860FM

For over 35 years D&D Technologies has been developing gate-closing systems you can trust, with state-of-the art manufacturing, quality testing and, most importantly, products backed by a guarantee to always perform to their intended use.

D&D Technologies now has over 350 Hi-Performance Gate Hardware Solutions!

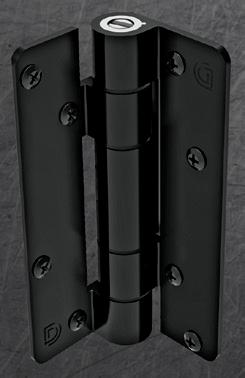

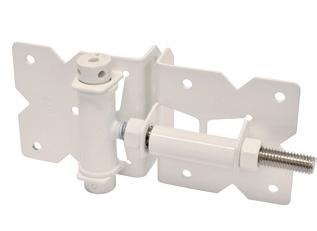

Stainless Steel™ Adjustable, Self-Closing Hinges in White

2

DDTECH.COM

AWARDS, MEMBERSHIPS, GLOBAL AFFILIATIONS & COMPLIANCES

D&D Technologies operates under a fully accredited and internationally recognized ISO 9001 Quality Assurance System, which governs the design and manufacture of all our proprietary products.

NORTH AMERICA • U.S. Consumer Product Safety Commission (CPSC) • American Fence Association member • Pool and Hot Tub Alliance (PHTA) • International Code Council (ICC) • ASTM International (ASTM) • Co-founder/Sponsor, National Drowning Prevention Alliance (NDPA)

®

AUSTRALIA-NZ • Australian Made™ – an accreditation which ensures products that carry the logo are certified as ‘genuinely Australian’.

• Master Locksmiths Association of Australasia Ltd • Standards Australia – Pool Fencing & Safety Gate Compliance • Swimming Pool & Spa Association (SPASA) • Laurie Lawrence’s “Kids Alive – Do The Five” Drowning Prevention • WaterSafe Auckland™ • McDonald’s® Restaurant Playlands (Australia) • Architectural Hardware Industry Association (AHIA) • Master Builders’ Association (MBA) EUROPE • Relevant products conform with AFNOR Standard NF P90-306 (relating to swimming pools; tested by LNE EO13331) WARRANTIES & LIABILITY All D&D Technologies’ (“D&D”) proprietary* products are warranted free of defects in materials and workmanship to the original purchaser for as long as they own the product.

If a structural defect appears, the original purchaser may return the item, freight prepaid, together with proof-of-purchase to D&D or its approved international agents.

D&D or its agent will, at their discretion, repair or replace the defective item or part without charge to the purchaser.

THIS WARRANTY SHALL NOT APPLY WHEN the product has been tampered with, when repairs or attempted repairs have been made by unauthorized persons, where the item has been subjected to misuse, abuse, accident or damage in transit, or where the installer has not followed the instructions set out during installation, operations or Maintenance Requirements.

IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES. No warranty is given other than that set out above. No other express or implied warranties (including statutory warranties) apply, other than warranties which may not be legally excluded.

For full Warranty terms & conditions please refer to the individual products’ documentation.

Note: D&D Technologies reserves the right to modify or update any products within this catalog without notice. * Warranty terms on non-proprietary products offered by D&D may carry different conditions and requirements.

Refer to those individual products for more details.

DDTECH.COM

AWARDS & WARRANTIES

3

A proud history of innovation

Dave Doyle D&D Technologies begins life as D&D Aluminium Balustrading, a custom-made, aluminium and glass pool fencing and balcony railing company. Based in Sydney, Australia, it was co-founded

by David Doyle and Neil Dunne.

The “D&D” is derived from the surnames of the company’s two founding partners.

MagnaLatch is invented!

David Doyle sees a TV science program featuring “rare earth” magnets – powerful “new” magnets that never lose their magnetic force. From this he gets the inspiration to develop a magnetic gate latch that won’t jam, stick or rust, and will always engage to close reliably.

The first magnetic gate latch manufactured.

The first hand-made MagnaLatch® ‘Side Pull’ is constructed for use on all D&D Aluminium’s gates.

D&D Technologies is formed soon after to manufacture the gate latches in Sydney, Australia.

D&D invents Polymer Safety Gate Hardware.

MagnaLatch® ‘Top Pull’ Child Safety Gate Latch & TruClose® S1 Polymer Hinges are released. Both revolutionize child safety for swimming pools, childcare centers, homes and businesses.

MagnaLatch® wins the Silver Medal at the Geneva International Exhibition of Inventions.

1985

1988

1989

1990

MagnaLatch® Series 1 wins the prestigious Australian Design Award from Standards Australia.

The original TruClose® S1 gate hinge wins the Australia Design Award from Standards Australia.

TruClose® Series 2 Regular, Heavy Duty and MultiAdjust Hinges are born.

MagnaLatch® D&D Technologies Top Pull and ® (USA) Inc. TruClose TCA1 accepted into select established in Los Angeles, BBC and McEwan California.

Hardware stores, Export markets with both soon to expand to become Bunnings numerous Warehouse. Initial countries, marking packaging entailed two products shrink- the beginning of D&D Technologies wrapped to porous as a global brand. backing cards.

1991

1992

1995

1996

®

SHUTIt

Introduction of TruClose Vizage™ the SureClose® receives a Good range of heavy Design Mark from duty, hydraulic gate Good Design hinges and hingeAustralia. closers. Stainless MagnaLatch® Steel Vizage™ Side LOCKABLE Side Pull Pull Gate Latch released to market.

Series 2 launched.

D&D releases the D&D releases MagnaLatch® Introduction of ® the TruClose the contemporary ALERT Gate LatchMagnaLatch® S3 Alarm, the world’s Series 3 safety first safety gate gate hinge range. with revolutionary D&D introduces latch with built-in LokkLatch® Locked/Unlocked innovative, electronic alarms. indicator light.

MAGNETIC ® sustainable-design launched in another SureClose MagnaLatch® flexible pouches for innovative ‘first’ to READYFIT launched. ALERT awarded retail hardware lines, fencing market.

Within six months Good Design Award eliminating the Both product on the market it wins by Good Design need for costly ranges include Architectural Record’s Australia. KwikFit™ and wasteful optional, metalized 2014 Product Award Aluminium Hinge clamshell packs. trim covers. in the USA. range launched.

D&D acquires Shut-It® Gate Hardware, a range of industrial, metal gate hardware.

‘BadAss’ and ‘Hard Core’ product lines introduced to the D&D range.

D&D Technologies wins the Australian National Export Award from the Master Builders Association Australia.

D&D launches the new brand line Stainless Steel, a 100% marine-grade, powdercoated range of hinges and latches for the vinyl gate market. Regular and Heavy Duty models available.

2010

2012

2016

2017

®

4

2011

2013

2014

DDTECH.COM

2015

The original LokkLatch® Series 1 with an EAK (External pushbutton) and built-in locks is launched, marking the first significant advancement in gravity gate latches in centuries.

D&D releases the MagnaLatch Top Pull ‘Series 2’, a marked improvement over Series 1 designs and the world’s first horizontally and vertically adjustable safety gate latch.

Launch of the MagnaLatch LokkLatch PRO, a true key-way lock, Series 2 ‘Top Pull’ accessible from wins Kidsafe both sides with 6-pin ‘Product of the Year”. MagnaLatch® security locks.

David Doyle endorsed by Royal posthumously Life Saving Society, awarded SPASA’s Water Safety (Swimming Pool & NZ and Laurie Lawrence’s Kids Alive Spa Association) coveted Ellis National Drowning Prevention Program. Champion Award.

1997

1999

2000

Series 2 LokkLatch® DELUXE and LokkLatch® general-purpose gravity gate latch launched to market.

Patent application filed for a LokkLatch® with a self-locking mechanism.

LokkLatch® PRO Self-Locking Gate Latch launched to market.

Introduction of the TruClose® Vizage™ Hinge for glass-to-round-post gates and fences, with revolutionary tension adjustment from both ends of hinge. The Vizage™ Hinge is the first to market with optional, decorative metalized trim hinge covers.

2006

2007

2009

®

2002

LokkLatch® PRO Privacy and Security Gate Latch wins the prestigious Australia Design Mark from Standards Australia.

Founding partner of the National Drowning Prevention Alliance.

2004

KwikFit Series 3 is launched.

A general-purpose hinge ideal for lightto mid-weight gates around homes and gardens. Available in plain pivot or selfclosing models.

The new D&D website is launched www.ddtech.com with improved functionality and compatibilty on all viewing devices.

The TruClose® ROUND model hinges are redesigned with D&D introduces the Introduction of added strength ® ® SureClose the SureClose and enhanced styling to match READYFIT 180º, a CONCEALFIT, an hydraulic hingeall-in-one concealed the newer Series 3 style. MagnaLatch® closer that self-closes hydraulic hingeheavy duty gates closer for doors Side Pull body is from up to a 180º or gates. redesigned to set opening angle.

Easily installed it apart from Release of the within the door and counterfeit products. ® LokkLatch PLUS frame for a clean, D&D’s R&D team distinctive look and begins work on Privacy Gate Latch with distinctive D&D added security with pedestrian access burglary resistance. control products green key, operates and locks from both Meets ADA and DDA of the electronic requirements. variety. sides of the gate.

LokkLatch® DELUXE Series 3 Privacy & Security Gate Latch released to market.

Revolutionary mounting bracket, connector rod and fitting jig makes installation faster and easier.

In November 2022, ASSA ABLOY– Opening Solutions Australia (a division of the multinational public company in Sweden), acquires D&D Technologies.

TruClose® Multi-Adjust S3 is released to market and wins an Australian Good Design Award.

The highly adjustable hinge is built for heavy, vinyl and composite gates with large gate gaps.

D&D Technologies develops a new, range of 100% recyclable retail bags to integrate with the sustainable, APCO packaging guidelines for 2025.

LokkLatch® S3 Privacy Gate Latch released to market. Contemporary design with revolutionary mounting bracket, connector rod and, fitting jig for faster and easier installation.

MagnaLatch® PanicBar & ACCESS are showcased at FenceTech ‘24.

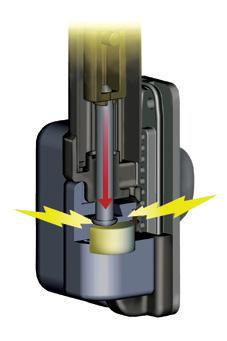

Innovative permanent magnets eliminate all mechanical latching resistance.

Vizage Lockable Stainless Steel Side Pull S3 is developed to add function and beauty to contemporary glass pool gates.

2018

2019

2022

2023

2024

2020

2021

DDTECH.COM

5

The world’s most trusted gate hardware

WHY A WELL-MAINTAINED GATE IS A SMART DECISION

1

In general, gate latches and hinges make up just 1% of the total cost of a perimeter fence…but they make the other 99% function effectively.

2

Gates are the only moving part of the fence system. Gates depend on high-quality gate hardware to function properly in all conditions and climates.

3

Fences and gates can shift due to ground settling, environmental factors and general use and abuse. Latches, locks and hinges should be readily adjustable to ensure that gates work reliably and safely at all times.

4

Properly functioning gates that self-close, self-latch and provide ongoing adjustability (alignment) give consumers peace-of-mind.

Gates and gate hardware should provide reliability, security or safety at all times.

6

GATE ESSENTIALS

ADJUSTABILITY

QUALITY

RELIABILITY

Hardware that’s easily installed and can be adjusted for vertical and horizontal alignment, or self-closing tension.

Industrial-strength engineering polymers and quality, stainless steel components offer rust-free reliability over a lifetime.

D&D gate hardware is designed to work in the harshest environments and conditions – freezing, heat, salt, sand...

WARRANTY

TESTING

SECURITY

D&D’s exceptional Lifetime Warranty (most products) is your guarantee of peace-ofmind during and after your hardware has been installed.

All our hardware is rigorously tested to meet international Codes/Standards for ISO-9001:2015 Quality Assurance Management System.

D&D’s award-winning, innovations provide the quality and strength needed to keep children, homes and businesses safe and secure.

DDTECH.COM

INDEX 12 ............. MAGNETIC LATCHES

MagnaLatch® ALERT* MagnaLatch® TOP PULL* MagnaLatch® VERTICAL PULL* MagnaLatch® SIDE PULL* MagnaLatch® VIZAGE®*

D&D Technologies’ range of quality gate latches, locks, hinges and closers are designed to protect children and families by safeguarding swimming pools, homes, gardens and perimeter gates and fences.

18 ............. LOCKABLE LATCHES T-Latch™ LokkLatch® REGULAR* LokkLatch® ROUND* LokkLatch® DELUXE* LokkLatch® PLUS* LokkLatch® MAGNETIC*

Experience counts

28 ............. SELF-CLOSING HINGES

D&D Technologies began life as a fencing company more than 35 years ago.

Our multi-award-winning products are the choice of fencing professionals and DIY’ers worldwide.

We are proudly Made in Australia

All of D&D’s polymer gate products are manufactured in Sydney, Australia. Production is subject to ISO-9001:2015 Quality Assurance Certification and auditing to ensure strict quality standards and product reliability are maintained across all products.

We offer a Lifetime Warranty

D&D confidently offers a Lifetime Warranty on all its D&D-manufactured gate hardware products. Some electronic components are limited to a 2-Year Warranty from our supplier/manufacturer.

Our products will not rust or stain

D&D invented the world’s first polymer gate latches and hinges (and magnetic gate latches) constructed of engineering polymers and marine-grade stainless steel components. Our long-lasting polymer and stainless steel hardware will not rust, bind, sag or stain.

DecoMold™ TruClose® REGULAR TruClose® HEAVY DUTY TruClose® ROUND TruClose® MULTI-ADJUST TruClose® HD MULTI-ADJUST

40 ............. KWIKFIT ECONOMICAL HINGES KwikFit™ ALUMINUM Hinges KwikFit™ POLYMER Hinges

44 ............. GATE ACCESSORIES LokkBolt®* Q-Bolt™ GateStop™ GateHandle™

47 ............. HYDRAULIC HINGE/CLOSERS

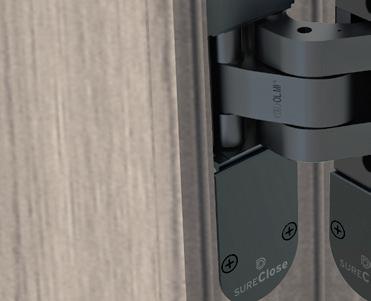

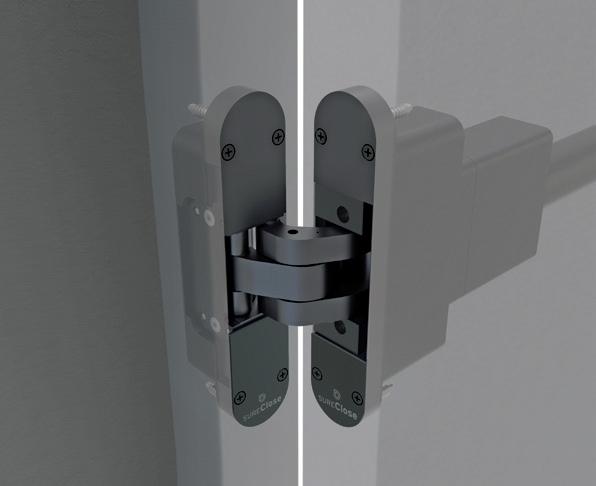

SureClose® READYFIT* SureClose® FLUSH/CENTER MOUNT* SureClose® CONCEALFIT* SureClose® EASY*

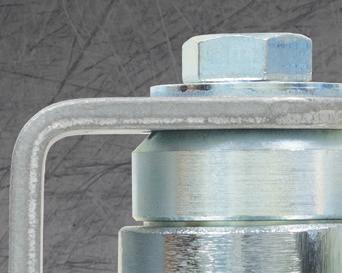

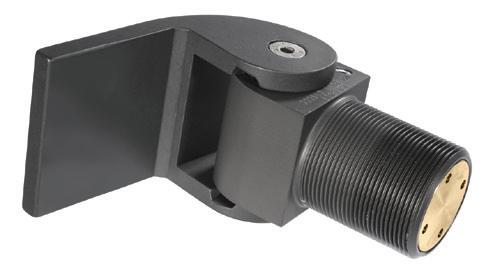

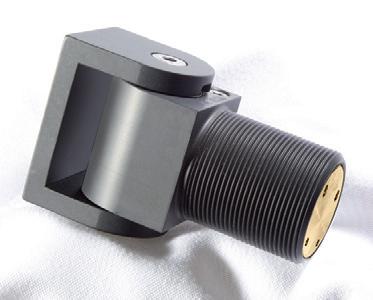

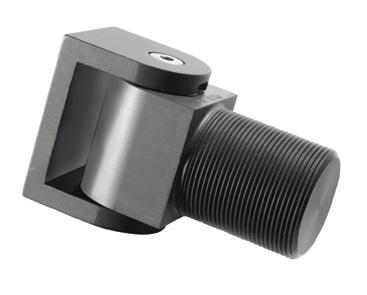

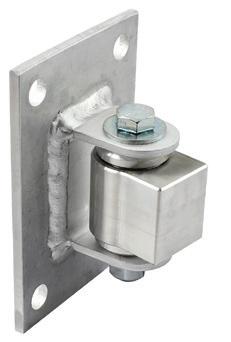

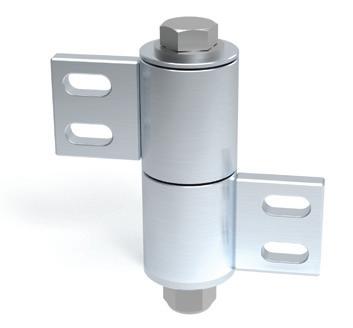

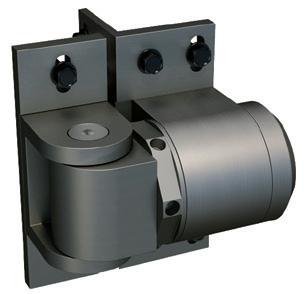

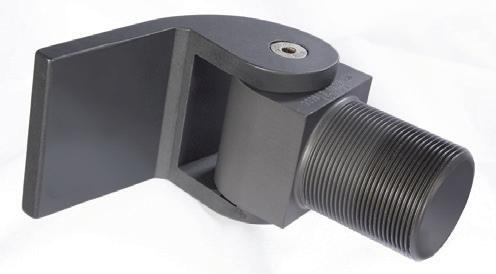

59 ............. INDUSTRIAL HINGES Shut-It® BadAss™ Hinges

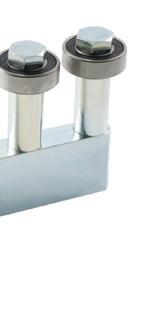

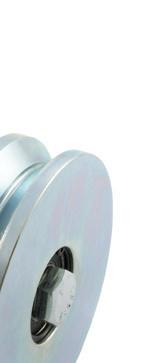

72 ............. GATE WHEELS

Shut-It® HardCore™ Wheels/Accessories

Your safety is our priority

We are constantly refining the designs of our premium gate hardware to improve child safety around swimming pools, childcare centers, schools, resorts, hotels, homes and businesses.

Innovation is our passion

We employ a dedicated team of Research and Development engineers and industrial designers to develop new and improved products year after year.

The result is innovative, state-of-the-art gate hardware boasting numerous design awards and accolades from safety organizations.

DDTECH.COM

81 ............. WOOD GATE HARDWARE Wood Hardware Latches Wood Hardware Accessories Wood Hardware Hinges

86 ............. STAINLESS STEEL HARDWARE D&D Stainless Steel Latches D&D Stainless Steel Hinges

* Indicates product affected by Californian Govt “Prop 65” initiative, whereby products contain possible harmful substances listed under Prop 65 guidelines. Substances used in D&D’s products are not airborne, unbound particles of a respirable size, as Prop 65 outlines.

PRODUCT INDEX

7

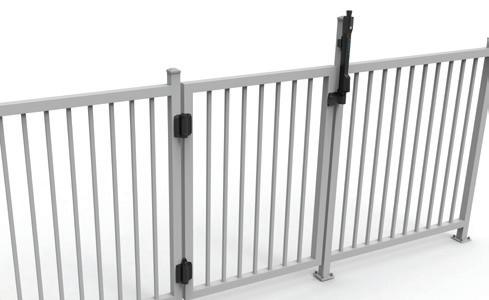

Choosing the correct POOL AND CHILD SAFETY GATES Safety gates around pools, homes, childcare centers, schools and wherever safety is critical, need hardware you can trust.

D&D invented the MagnaLatch® over 30 years ago, and with millions installed worldwide, they continue to set the standard in compliant, child safety gates.

MagnaLatch® ALERT Top Pull – Latch with electronic alarms MagnaLatch® Top Pull – Reliable, magnetic latching MagnaLatch® Side Pull Lockable – Small, magnetic latch Truclose® Regular – Self-closing hinges for regular gates TruClose® Heavy Duty – Self-closing hinges for heavier gates SureClose® SF models – Hydraulic hinge-closers

FRONT ENTRANCE OR GARDEN GATES Usually constructed of metal, wood, vinyl or Colorbond®, residential entrance gates are often high traffic, so need to be reliable and secure, with smooth and even closure. D&D gate latches and hinges are designed to last – no rusting, sagging, binding or staining. Easy to install, and adjustable to allow for fence or ground movement.

MagnaLatch® Side Pull – Lockable or non-lockable latches LokkLatch® – Versatile range of lockable gate latches T-Latch – Toggle-style gravity latch; padlockable TruClose® – Self-closing hinges for heavy or high traffic gates KwikFit™ – Aluminum and Polymer self-closing hinges

PRIVACY AND SECURITY GATES Privacy gates for residential or commercial applications are designed to protect loved ones, pets and property. D&D’s range of gate latches, locks and self-closing hinges are guaranteed to offer reliability and added protection for perimeter and side gates.

MagnaLatch® ALERT Vertical Pull – Latch with electronic alarms MagnaLatch® Vertical Pull – Reliable, magnetic latching LokkLatch® – Entire range of versatile lockable latches SureClose® – Hydraulic hinge-closers TruClose® Regular – Self-closing hinges for regular gates TruClose® Heavy Duty – Self-closing hinges for heavier gates KwikFit™ – Aluminum and Polymer self-closing hinges

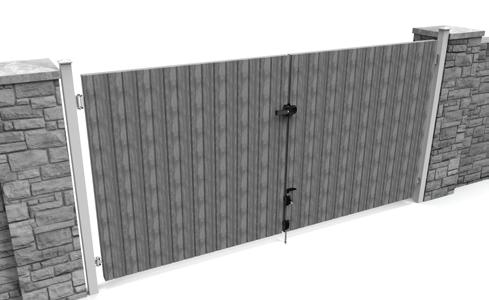

DOUBLE DRIVEWAY GATES Swinging, double driveway gates give a more traditional look by opening from the center. The gates can be automated with less swing and weight than single driveway gates, but require hinges on both sides, plus a latch and optional drop-bolts. D&D’s range of double driveway gate hardware is designed for this type of application.

MagnaLatch® S3 Vertical Pull – Magnetic, reliable closure LokkLatch® – Range of lockable latches TruClose® – Self-closing hinges for heavy or high traffic gates SureClose® – Hydraulic hinge-closers Shut-It® BadAss™ – Heavy duty, weld or bolt-on hinges LokkBolt® & Q-Bolt™ – Drop-bolts for Metal, wood and Vinyl

8

GATE CONCEPTS

DDTECH.COM

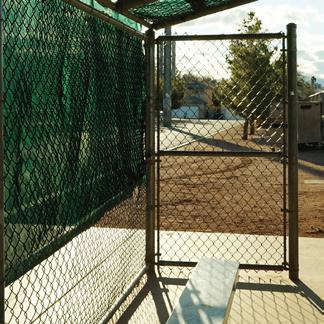

D&D gate hardware for every application ROUND-POST CHAINLINK GATES Chainwire gates, also known as chainlink and chainmesh gates, are used for a variety of domestic, commercial or industrial applications, including tennis court fencing, factory/building enclosures, ball-game practice nets, sporting enclosures and temporary fencing.

LokkLatch® ROUND – Lockable Gate Latch for round posts MagnaLatch® TP or VP with round-post adaptor kit TruClose® ROUND – Heavy Duty hinges for round posts Mini MultiADJUST™ – Round post hinge for regular gates Shut-It® BadAss™ – Weld-on or bolt-on heavy duty hinges GateStop™ – Reduces gate slam noise

HIGH SECURITY ACCESS GATES High-security pedestrian gates are designed to provide selfclosing and lockable access to secure people and property.

Often used for commercial entry gates at schools, apartments, data centers, strata buildings, government depots, police stations, industrial sites and other high security applications.

LokkLatch® DELUXE – Key lockable, premium gate latch TruClose® Heavy Duty – Self-closing hinges for heavy gates SureClose® READYFIT – External mount hydraulic hinge-closers SureClose® FLUSH/CENTER MOUNT – Hydraulic hinge-closers Shut-It® BadAss™ – Weld-on or bolt-on heavy duty hinges

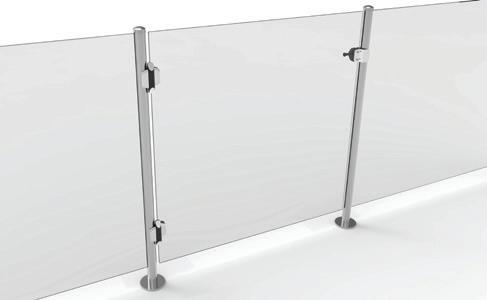

GLASS GATES WITH ROUND, METAL POSTS Semi-frameless glass is typically 8mm or 10mm (5⁄16” or 3⁄8”) thick supported by steel or aluminum round posts.

The glass is then mounted into the post with rubber seals to prevent the glass from moving. D&D has developed a range of gate hardware to complement this style of modern pool fence or balustrading system.

MagnaLatch® Side Pull – Lockable or non-lockable latches Glass Hardware Kit MLSPS2GHK - Latch with gate-stop MagnaLatch® Vizage® – Stainless steel magnetic latch (bracket required) TruClose® Vizage – Self-closing hinges with decorative trim

ROLLING ACCESS-CONTROL GATES Sliding gates are either on a track (wheels slide on metal track) or are of a cantilevered sliding gate system where the gate is structurally supported by rollers or wheels.

LokkLatch® DELUXE – Key lockable, premium gate latch Shut-It® HardCore™ – Gate wheels and accessories

DDTECH.COM

GATE CONCEPTS

9

Choosing your latch or lock

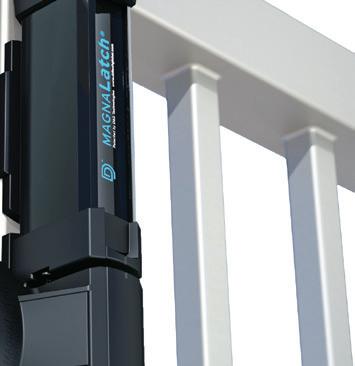

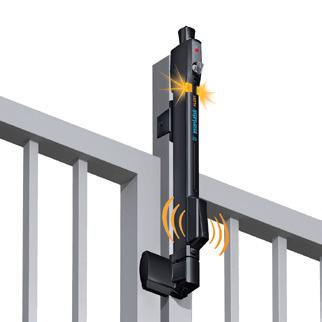

MagnaLatch® ALERT Top Pull & Vertical Pull

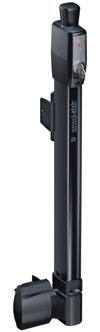

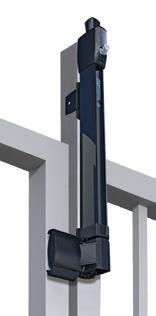

MagnaLatch® Top Pull & Vertical Pull

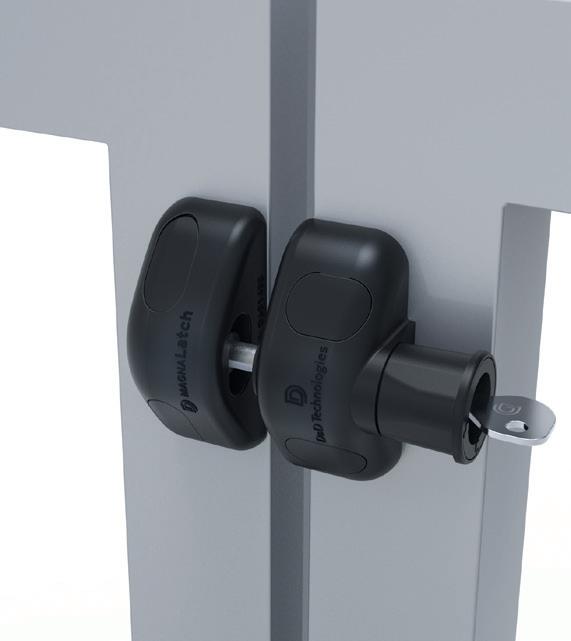

MagnaLatch® Side Pull Lockable

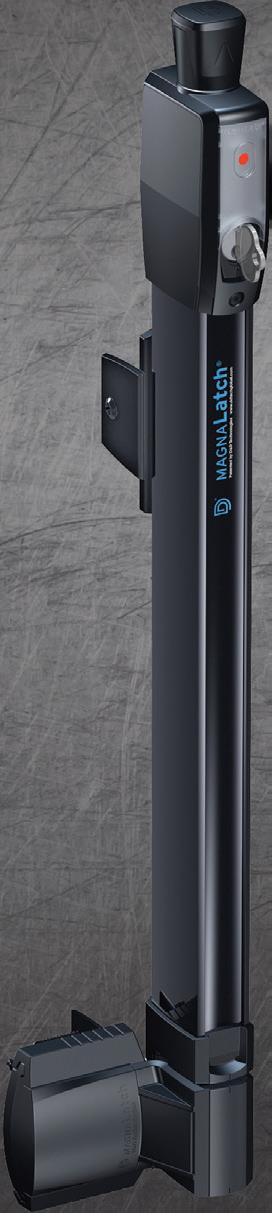

GATE LATCH/LOCK PRODUCT MagnaLatch® S3 Top Pull & Top Pull ALERT.

Magnetic child safety gate latch. ALERT model with visual and audible alarms. Key Lockable.

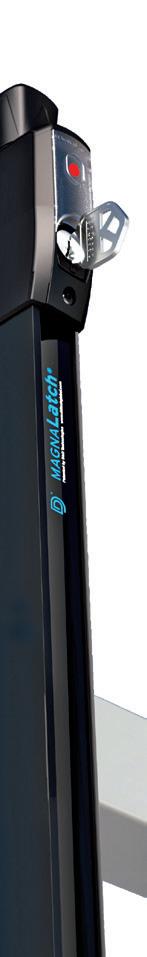

MagnaLatch® S3 Vertical Pull & Vertical Pull ALERT. Magnetic front gate, side gate and pet safety gate latch.

ALERT model with visual and audible alarms. Key Lockable.

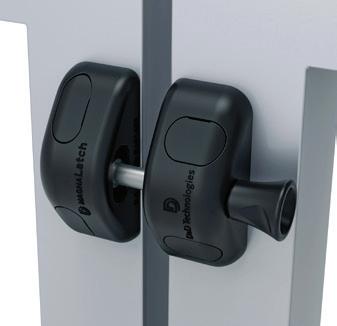

MagnaLatch® Side Pull. General-purpose gate latch for

gates around homes and gardens. Available in lockable and unlockable models.

LOCK TYPE/ IDEAL REKEYABLE GATE GAP

6-Pin/Yes

6-Pin/Yes

Wafer/No

MagnaLatch® Vizage™ Side Pull. Stylish, stainless steel, magnetic gate latch. Ideal for glass gates but requires mounting brackets.

N/A

T-Latch®. Toggle-style gravity gate latch with “floating” latch bolt. Automatically compensates for gate sag. Padlockable.

Use Padlock

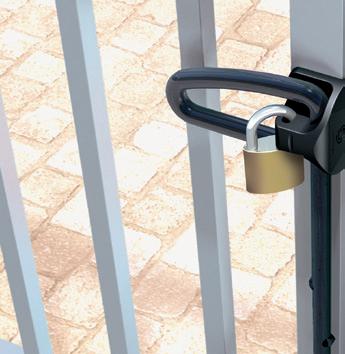

LokkLatch® REGULAR. Lockable gravity latch for generalpurpose gates around homes and gardens. Wafer keyed.

Wafer/No

LokkLatch® ROUND. Lockable gate latch for round-posted gates and fences. Includes adaptors for various diameters.

Wafer/No

LokkLatch® PLUS. Privacy gate latch that locks and operates from both sides of the gate. Semi-security lock cylinder. Smaller footprint than premium LokkLatch® DELUXE.

Wafer/No

LokkLatch® DELUXE. Short bolt with Lockwood™ key.

Locks and operates from both sides of the gate. Lock cylinder can be rekeyed to match existing doors and accesses.

LokkLatch® DELUXE. Long bolt with Kwikset™ key.

Locks and operates from both sides of the gate. Lock cylinder can be rekeyed to match existing doors and accesses.

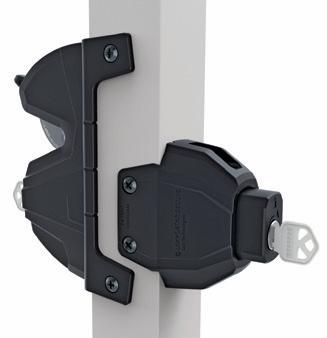

LokkLatch® MAGNETIC. Magnetic gate lock with unique

push/pull handles. Locks and operates from both sides of gate.

10

LATCH & LOCK GUIDE

MagnaLatch® Side Pull Non-lockable

6-Pin/Yes

6-Pin/Yes

6-Pin/Yes

¾”

19mm

¾”

19mm

GAP VARIANCE

½”–1½”

13-38mm

½”–1½”

13-38mm

⅜”

5

Max. ⅜” 10mm

5

10mm

⁄16 ”– 11 ⁄16 ”

MagnaLatch® Vizage™ Stainless Steel Side Pull PSS/BSS

VERTICAL ADJUSTMENT

1½”

38mm

1½”

38mm

⅜”

7-17mm

10mm

⁄16 ”– 11 ⁄16 ” 7-17mm

⅜” 10mm

¾”

⅜”–1¾” 10-44mm

13mm

19mm

¾”

⅜”–1½” (10-38mm)

13mm

1½” 38mm

1¼”–2¼” 32-57mm

13mm

¾”

⅜”–11 ⁄16 ”

19mm

19mm

10-27mm

¾”

½”-13 ⁄16 ”

½”

No

No

Yes, with External Access Button (EAB)

½”

13mm

½”

12-38mm

13mm

⅜”–1¼” 10-32mm

13mm

DDTECH.COM

No

½”

1” 25mm

¾”

No

Yes, with External Access Button (EAB)

12-30mm

19mm

No

½”

19mm

½”–1½”

LOCKS OR OPERATES FROM BOTH SIDES OF THE GATE

13mm

½”

½”

Yes

Yes

Yes

Yes

Check your latch applications and features

T-Latch™

LokkLatch® REGULAR

LokkLatch® PLUS

METAL

WOOD

VINYL

CHAINLINK

• • • • • •

• • • • • •

• • •

•* •*

LokkLatch® DELUXE3

POOL SAFETY GATES

PEDESTRIAN GATES

•** •** •** •**

•† • •

• • • •

• • •

• • •

• • • • • • • • • • •

LokkLatch® MAGNETIC

PRIVACY GATES

DOUBLE DRIVE

AVAILABLE IN WHITE †

•† •† •†

•*** •*** • • • •

•† • • • •

•† •†

*Using Round Post Adaptor Kit. **Check local pool barrier guidelines for proper installation methods. *** With EAK † White not available in AU-NZ

DDTECH.COM

LATCH & LOCK GUIDE

11

World’s most trusted child safety gate latches Child-resistant knob

Series 3 knob shape is more ergonomic, but also more child resistant than ever

Visible Lock Indicator

“Red dot” indicator shows, at a glance, whether the latch is locked or unlocked

Rekeyable security lock

Side Pull

6-pin lock cylinder can be rekeyed (by a locksmith) to match existing doors etc.

Built-in post cap spacing No need for separate post-cap spacers

T-track innovation

Unique and solid rear-mounting track provides superior fixing strength and easy vertical adjustment

Product traceability

Sealed magnets

Superior, quality manufacturing and responsible tracking through registered product numbering

Powerful magnet is fully sealed from the elements to ensure long-lasting performance

Improved drainage

Sloping feature channels water away from latch and striker body

Alignment indicators Help identify when vertical or horizontal adjustment is required

®

Vertical Pull

Safety “stop”

The original safety stop prevents children from pushing the gate down to unlatch

Top Pull

12

MAGNETIC LATCHES

DDTECH.COM

Side Pull ‘Lockable’

The original, versatile magnetic latch • Small & unobtrusive - easy to install • Lockable and non-lockable models • Model for round-post-to-glass gates • Vertically & horizontally adjustable • New, snap-fit dress caps - no visible fasteners • Will not rust or corrode GLASS

WOOD

METAL

VINYL

CODE

MODEL - FEATURE

IDEAL GAP

GAP VARIANCE

MLSPS2L

Key Lockable Side Pull

⅜” (10mm)

MLSPS2

Side Pull

⅜” (10mm)

⁵/¹⁶”–¹¹/¹⁶” (7–10mm) ⁵/¹⁶”–¹¹/¹⁶” (7–10mm)

Side Pull: non-lockable

Stainless steel Side Pull latch • Polished or Brushed surface finishes • 316 marine-grade stainless steel • Corrosion-resistant latch bolt • No visible fasteners (blind fixing from rear) • Brackets not included 89mm 3 1 2"

Brushed

Polished

71mm

2 1316 "

Vizage™ stainless steel gates latches are not lockable

29mm 1 1 8"

31mm 1 1 4"

CODE

FINISH

MLSPS2VPSS

Polished Stainless Steel

13 32

MLSPS2VBSS

Brushed Stainless Steel

13 32

31mm 1 1 4"

FIXED GATE GAP

GLASS

DDTECH.COM

⁄ ” (10mm) ⁄ ” (10mm)

METAL

MAGNETIC LATCHES

13

Safety Gate Latch with ELECTRONIC ALARMS ALERT Top Pull

Replacements/Spares

ALERT Vertical Pull

Keys

Battery

CODE

COLOR

MODEL FEATURE

IDEAL GAP GAP VARIANCE

ML3ATP

Black

Top Pull 6-pin lock. Keyed alike + alarm

ML3AVP

Black

Vertical Pull 6-pin lock. Keyed alike + alarm

ML3SPACER

Black

Gate Gap Spacer

MagnaLatch® ALERT Top Pull

¾”

MODEL FEATURE

(19mm)

(13-38mm)

½”–1½”

ML3ASB

Replacement 3.6-volt AA Battery

¾”

(19mm)

½”–1½”

(13-38mm)

ML3SKLA

Replacement Lockwood® Key (AU-NZ)

2” (50mm)

-

ML3SKKA

Replacement KwikSet® Key (US)

MagnaLatch® comes standard with a gate gap variance of ½”–1½” (13-38mm).

For larger gaps of up to 2” (50mm), an optional spacer is available (see left).

Install the spacer behind the Striker mounting plate to ensure proper latch installation and operation.

2” Gate Gap Spacer fits MagnaLatch® Series 2, 3 and ALERT models.

62mm 2 7/16" 34mm 1 5/16"

CODE

27mm 1 1/16"

Gate gap spacer

MagnaLatch® ALERT Vertical Pull

27mm 1 1/16"

34mm 1 5/16"

GAP VARIANCE [13mm] 1/2" - [38mm] 1 1/2" GAP VARIANCE [13mm] 1/2" - [38mm] 1 1/2"

85mm 3 3/8"

520mm 20 1/2"

85mm 3 3/8"

56mm 2 3/16"

316mm 12 7/16"

56mm 2 3/16"

62mm 2 7/16"

29mm 1 1/8"

73mm 2 7/8"

73mm 2 7/8"

29mm 1 1/8"

54mm 2 1/8"

54mm 2 1/8" 85mm 3 3/8"

14

MAGNALATCH® ALERT

DDTECH.COM

85mm 3 3/8"

MagnaLatch® ALERT ®

2 YEAR WARRANTY ON ALARM UNIT

The ultimate gate protection • World’s first, safety gate latch with built-in electronic alarms • Visual and audible alarms (flashing LEDs + sound alert) • No wiring or electricians required (easy installation) • Single alert beep each time gate is entered/exited • Alarms notify if gate is open or not securely latched • Full alarm mode only if gate left open 15+ seconds • Optional: Touch-sensor disarm feature • Long-life lithium battery included • IP55 rating – tested to withstand dust and water in mechanism ROUND

METAL

WOOD

DDTECH.COM

VINYL

MAGNALATCH® ALERT

15

The Original Magnetic Child Safety gate latch

ML3TP/ML3TPKAWT S3 Top Pull

ML3VP/ML3VPKAWT S3 Vertical Pull

CODE

COLOR

MODEL FEATURE

IDEAL GAP

GAP VARIANCE

ML3TP

Black

Top Pull: 6-pin lock, keyed alike

¾” (19mm)

½”–1½” (13–38mm)

ML3TPKAWT

White

Top Pull: 6-pin lock, keyed alike

¾” (19mm)

½”–1½” (13–38mm)

ML3VP

Black

Vertical Pull: 6-pin lock, keyed alike

¾” (19mm)

½”–1½” (13–38mm)

ML3VPKAWT

White

Vertical Pull: 6-pin lock, keyed alike

¾” (19mm)

½”–1½” (13–38mm)

ML3RPK

Black

ML3 Round-Post Adaptor Kit

ML3SPACER

Black

Gate Gap Spacer

2” (50mm)

-

MagnaLatch® S3 Vertical Pull 62mm 2 7/16"

62mm 2 7/16" 27mm 1 1/16"

Keys

27mm 1 1/16"

34mm 1 5/16"

GAP VARIANCE [13mm] 1/2" - [38mm] 1 1/2"

316mm 12 7/16"

64mm 2 1/2"

56mm 2 3/16"

GAP VARIANCE mm] 1/2" - [38mm] 1 1/2"

29mm 1 1/8"

CODE

MODEL FEATURE

ML3SKLA

Replacement Lockwood® Key (AU-NZ)

ML3SKKA

Replacement KwikSet® Key (US)

MagnaLatch® comes standard with a gate gap variance of ½”–1½” (13-38mm).

For larger gaps of up to 2” (50mm), an optional spacer is available (see left).

Install the spacer behind the Striker mounting plate to ensure proper latch installation and operation.

2” (50mm) Gate Gap Spacer fits MagnaLatch® Series 2, 3 & ALERT models.

73mm 2 7/8"

520mm 20 1/2"

64mm 2 1/2"

Gate Gap spacer

1½” (38mm) 1¼”–2¼” (32–57mm)

MagnaLatch® S3 Top Pull

34mm 1 5/16"

ML3RPK Round-Post Adaptor Kit

MagnaLatch® S3 Round-Post Adaptor

54mm 2 1/8"

29mm 1 1/8"

An optional kit for mounting all MagnaLatch ‘Top Pull’ or ‘Vertical Pull’ models to gates and fences with round posts.

73mm 2 7/8"

49 mm 1 15/16" 83 mm 3 1/4"

[65mm] 2 9/16" [38mm] 1 1/2"

[48mm - 51mm] 1 7/8" - 2"

[73mm] 2 7/8"

54mm 2 1/8"

16

MAGNALATCH® Series 3

[60mm] 2 3/8"

[41mm] 1 5/8"

[54mm] 2 1/8"

[35mm] 1 3/8"

42mm 1 11/16"

DDTECH.COM

Industry leading safety features • The world’s most trusted safety gate latch • Ideal for residential or commercial safety gates • Improved, stylish “Series 3” design • Industry leading magnetic latching technology • “Red dot” indicator shows Locked/Unlocked status • 6-pin lock for higher security (rekeyable, to match doors) • Vertically & horizontally adjustable • Alignment marks indicate when adjustment is required ROUND

METAL

WOOD

VINYL

* D&D’s White Polymer range may discolour over time.

Aesthetic changes/discoloration etc. are not covered under D&D’s PRODUCT WARRANTY. Visit our white hardware cleaning tips HERE.

DDTECH.COM

MAGNALATCH®Series 3

17

World’s first key lockable, polymer gravity latch

Molded latch body Strong and rust-free.

Constructed of UV-stabilized, industrial-strength polymer.

Easy installation

External Access PushButton

Requires only one drilled hole through post. Fast and accurate front and side installation, with fitting jig provided.

The LokkLatch® range can be opened from either side of the gate using an External Access Button (EAB)

Stainless steel components 316 marine-grade stainless steel components will totally resist rust and stains.

Vertical adjustment

Latch provides quick and simple vertical adjustment to allow for gate sag or ground movement over time.

6-pin rekeyable lock

Can be rekeyed (by a locksmith) to match existing doors and other accesses.

LOKKLatch

®

Economy Residential

18

LOCKABLE LATCHES

Economy Plus Residential

Premium Residential/Commercial

DDTECH.COM

Premium Residential/Commercial

Padlockable Gravity Gate Latch • Toggle-action design compensates for gate sag • Ideal for gates prone to ground movement • Fits to all square posts & gate frames • Padlockable, with padlock storage feature • Vertically and horizontally adjustable • Industrial-strength polymer construction • Stainless steel toggle/latch bolt Padlock security. Padlock storage feature.

CODE COLOR

METAL

Black

WOOD

GATE MATERIAL IDEAL GAP

Padlock not included.

GAP VARIANCE

⅜”–1¾”

Padlockable latch Metal, Wood, Vinyl 1” (25mm)

(10–44mm)

ADJUSTS HORIZONTALLY

VINYL

PADLOCK NOT INCLUDED Recommended padlock: Fits most standard shackle 19⁄16 ” (40mm) padlocks [ 40mm ] 9 1 16 "

5mm 3 " 16 5mm 3 16 "

TOGGLE ACTION

24mm 15 16 "

24mm 15 " 16 24mm 15 16 "

24mm 15 16 "

120mm 42332"

120mm 42332"

15mm 19 32"

15mm 19 " 32

[ 40mm ] 19 " 16

ADJUSTS VERTICALLY

TL01

FEATURE

DDTECH.COM

LOCKABLE LATCHES

19

NEW PRODUCT

General-Purpose, Lockable Latch S3 • Key lockable - no need for padlock • Optional External Access Push-Button • Fits fence posts 1” - 6” (25-150mm) deep • Quick and easy to install and adjust Vertically to ⅜” (10mm) Horizontally 1½” (38mm) • Industrial-strength polymer construction • Stainless-steel latching trip plate and striker pin • Won’t rust or corrode • Short and long striker models available • Round-post model fits most chainlink gates

Latch Only (LL3A)

ROUND

METAL

CODE

WOOD

White Latch (LL3AW)

VINYL

FEATURE

COLOR

GATE MATERIAL

IDEAL GAP

GAP VARIANCE

¾”

⅜”–1½” (10-38mm)

¾”

9/16””–1¼” (14–32mm)

¾”

⅜”–1½” (10-38mm)

(19mm)

¾”

9/16””–1¼” (14–32mm)

LL3A

LokkLatch® Series 3

Black

Metal, Wood, Vinyl

LL3AB

LokkLatch® Series 3 + External Access Button

Black

Metal, Wood, Vinyl

LL3AW*

White LokkLatch® Series 3

White

Metal, Wood, Vinyl

LL3ABW*

LokkLatch® Series 3 + External Access Button

White

Metal, Wood, Vinyl

LL3AL

Latch with Long Striker

Black

Metal, Wood, Vinyl

7/8” (22mm)

⅜”–1½” (10-38mm)

LL3ABL

Latch with Long Striker + External access Button

Black

Metal, Wood, Vinyl

7/8” (22mm)

9/16”–1½” (14–38mm)

LL3ALW*

White Latch Long Striker

White

Metal, Wood, Vinyl

7/8” (22mm)

⅜”–1½” (10-38mm)

LL3ABLW*

White Latch Long Striker + External Access Button

White

Metal, Wood, Vinyl

7/8” (22mm)

9/16”–1½” (14–38mm)

LL3B

External Access Button Accessory

Black

Metal, Wood, Vinyl

–

–

LL3BW

External Access Button Accessory

White

Metal, Wood, Vinyl

–

–

LL3ABRND

Latch+EAB for Round /Chainlink Post

Black

Chainlink

1½” (38mm)

1¼” –2¼”

(19mm) (19mm) (19mm)

* D&D’s White Polymer range may discolour over time.

Aesthetic changes/discoloration etc. are not covered under D&D’s PRODUCT WARRANTY. Visit our white hardware cleaning tips HERE.

20

LOCKABLE LATCHES

DDTECH.COM

32 – 57mm

External Access Button (LL3B)

NEW PRODUCT

Round post model for chainlink fences

Round Post External Access Button Regular model with EAB (LL3ABL)

Round Post model (LL3ABRND)

DDTECH.COM

LOCKABLE LATCHES

21

PREMIUM Privacy & Security Gate Latch

COLOR

KEYED

GATE MATERIAL

½”–1½”

STRIKER

Black

Alike

Metal, Wood, Vinyl

(25mm)

(12-38mm)

LLD3KD

Black

Different

Metal, Wood, Vinyl

(25mm)

1”

½”–1½” (12-38mm)

Long bolt

LLD3KAW

White

Alike

Metal, Wood, Vinyl

(25mm)

1”

½”–1½” (12-38mm)

Long bolt

LLD3KDW

White

Different

Metal, Wood, Vinyl

(25mm)

1”

½”–1½” (12-38mm)

Long bolt

LLD3LA

Black

Alike

Metal, Wood

¾” (19mm)

½“ to 13/16“ (12–30mm)

Short bolt

LLD3LD

Black

Different

Metal, Wood

¾” (19mm)

½“ to 13/16“ (12–30mm)

Short bolt

* D&D’s White Polymer range may discolour over time.

Aesthetic changes/discoloration etc. are not covered under D&D’s PRODUCT WARRANTY. Visit our white hardware cleaning tips HERE.

LOCKABLE LATCHES

1”

LLD3KA

METAL

22

IDEAL GAP GAP VARIANCE

LOCKS

CODE

KEYABL RE

E

6-PIN

• Operates and locks from both sides of gate • New ‘fitting jig’ provides easier, faster installation • New ball-joint Connecting Rod simplifies installation • Two latch-bolt lengths (models) for different gates • Requires only one drilled hole through post • Keyed-alike or keyed different options • Dual 6-pin locks can be rekeyed to match doors etc.

• Includes 5” & 6” (125 & 150mm) rods (spare if needed) • Vertically & horizontally adjustable • Industrial-strength polymer construction • 316 marine-grade stainless components • Fits fence posts 1½–6” (38–150mm) deep • Minimum post width 1½” (38mm)

DDTECH.COM

WOOD

VINYL

Long bolt

Also available in white finish

KEYABL RE

E

LOCKS

6-PIN

LokkLatch® DELUXE S3 Long latch bolt

LokkLatch® DELUXE S3 Short latch bolt

DDTECH.COM

LOCKABLE LATCHES

23

LOKKLatch

®

PLUS

Privacy Gate Latch • Operates from both sides with EAB • Innovative alignment jig for easy installation • Includes 5 & 6” (125 & 150mm) connector rods • Wafer key with over 200 combinations • Keyed alike and keyed different options • Vertically and horizontally adjustable • Will not rust, bind or stain • Industrial-strength polymer construction • 316 marine-grade stainless components • Fits fence posts 1”– 6” (25–150mm) deep

LL3PWAWT White Model METAL

WOOD

VINYL

External Access Button (EAB) CODE

COLOR

KEYED

GATE MATERIAL

LL3PWD

Black

LL3PWA

Black

Alike

Metal, Wood, Vinyl

LL3PWAWT

White

Alike

Metal, Wood, Vinyl

24

Different Metal, Wood, Vinyl

LOCKABLE LATCHES

IDEAL GAP

GAP VARIANCE

¾”

/8”–1 /8” (10–35mm)

¾”

3 /8”–13/8” (10–35mm)

¾”

3 /8”–13/8” (10–35mm))

3

(19mm) (19mm) (19mm)

3

DDTECH.COM

* D&D’s White Polymer range may discolour over time.

Aesthetic changes/discoloration etc. are not covered under D&D’s PRODUCT WARRANTY. Visit our white hardware cleaning tips HERE.

Lockable, dual-sided Push/Pull Handle

LOCKS

METAL

KEYABL RE

E

6-PIN

• Operates and locks from both sides of gate • Ergonomic Push/Pull handled design • Requires only one drilled hole through post • Proven magnetic latching technology • Black trim covers included • No visible fasteners • Keyed-alike or keyed different options • Dual 6-pin rekeyable locks • Vertically & horizontally adjustable • Fits fence posts 1½”–6” (38–150mm) deep

CODE

COLOR

TRIM FINISH

IDEAL GAP

GAP VARIANCE

LLMBT

Black

Black

¾” (19mm)

⅜”–1¼” (10-32mm)

VINYL

58mm 2 1 4"

99mm 37 " 8

29mm 1 1 8"

29mm 1 1 " 8

38mm 1 1 2"

100mm 15 3 16 "

48mm 17 " 8

108mm 41 4" 29mm 1 1 8"

221mm 8 11 16 "

55mm 21 " 8

DDTECH.COM

LOCKABLE LATCHES

25

Convenient Gate Kits ML3KFSK

LLD3LDTCHD1A

MagnaLatch® Series 3 Gate Latch plus KwikFit™ Self-Closing (fixed tension) hinges to provide pedestrian access gate kit.

For metal and wood gates up to 44 lb (20kg).

LokkLatch® DELUXE Privacy & Security Gate Latch plus TruClose® Heavy Duty self-closing safety hinges.

For metal or wood gates up to 154 lb (70kg).

MTSTDKS3LA

LLD3LDTCA1S3

MagnaLatch® Series 3 Child Safety Gate Latch plus TruClose® Regular self-closing safety gate hinges with Hinge Safety Cap. For metal gates up to 66 lb (30kg) .

LokkLatch® DELUXE Privacy & Security Gate Latch plus TruClose® Regular self-closing safety hinges.

For metal gates up to 66 lb (30kg).

MTSTDKS3LLA

LL3PWDTCA1

MagnaLatch® Series 3 Safety Gate Latch plus TruClose® Regular selfclosing safety hinges with side-fixing legs and Hinge Safety Cap. For metal gates to 66 lb (30kg).

LokkLatch® PLUS Medium-Security Gate Latch plus TruClose® Regular self-closing safety gate hinges.

For metal gates up to 66 lb (30kg).

TL01KFP T-Latch™ padlockable, toggle-style generalpurpose gate latch plus KwikFit™ Plain Pivot Hinges.

For metal or wood gates up to 55 lb (25kg).

26

LATCH + HINGE KITS

Also available in White LLD3KDTCHD1AL2WT

NEW

LLAAKFPK LokkLatch® REGULAR General-Purpose, Gate Latch plus KwikFit™ Plain Pivot Hinges.

For metal or wood gates up to 55 lb (25kg).

DDTECH.COM

NEW

NEW

The world’s most trusted safety gate hinges Patented tension adjustment

Quick and easy tension adjustment (closing force) using a large screwdriver at either end of hinge barrel.

Molded hinge body

No rust, binding, sagging or staining!

Constructed from UV-stabilized, industrial-strength polymer.

Stainless steel spring

High-quality, stainless steel spring provides reliable closure and lasting performance.

Reinforcement ribs

Molded ribs provide superior torsional and lateral leaf strength.

Optional alignment legs Models with and without quick-fit alignment legs for fast, convenient installation and added fixing strength.

Concealed Fasteners

Clip-on leaf trim covers hide the fasteners to provide a clean, contemporary finish and enhance gate style.

D&D’s super-strong polymer hinges don’t rust, sag or bind - even under the most rigorous conditions. The unique housing of the stainless-steel spring requires no lubrication or maintenance.

Better yet, the hinges are easy for the homeowner to adjust themselves, eliminating the need for callbacks to the installer.

DDTECH.COM

SELF-CLOSING HINGES

27

TCA1S3

TCA2S3

TCHD1AS3

TCA3S3

TCHD1S3

TCHD2L1SS3

TRUCLOSE REGULAR RANGE

PRODUCT CODE TRIM COVER OPTIONS

TRUCLOSE HEAVY DUTY RANGE

TCA4

TCAMA1&2

TCHDMA1S3

GATE MATERIAL

IDEAL GATE GAP

TCAMA2RND

TCHDRND1S3

GAP VARIANCE

TCHDRND2S3

MAXIMUM SELF-CLOSING ALIGNMENT LEGS WEIGHT*

TCA1S3

Gloss Black, White

Metal

3

⁄4 ” (19mm)

3

⁄8 ”– 7⁄8 ” (9-22mm)

66 lb 30kg

Optional

TCA2S3

Gloss Black, Chrome, Brushed,

Metal to Wood

3

⁄4 ” (19mm)

3

⁄8 ”– 7⁄8 ” (9-22mm)

66 lb 30kg

Optional

TCA3S3

Gloss Black, Chrome, Brushed, White

Wood, Vinyl

3

⁄4 ” (19mm)

3

⁄8 ”– 7⁄8 ” (9-22mm)

66 lb 30kg

Optional

TCA4

NA

Wood

3

⁄4 ” (19mm)

3

⁄8 ”– 7⁄8 ” (8-22mm)

55 lb 25kg

No

TCAMA1/2

NA

Metal, Wood, Vinyl

13⁄8 ” (35mm)

7

⁄8 ”–2” (22–50mm)

55 lb 25kg

Yes

TCAMA2RND

NA

Chainlink

13⁄8 ” (35mm)

7

⁄8 ”–2” (22–50mm)

55 lb 25kg

Yes

TCHD1AS3

Gloss Black, Chrome, Brushed, White

Metal

3

⁄4 ” (19mm)

3

⁄8 ”–1” (9–25mm)

155 lb 70kg

Optional

TCHD1S3

Gloss Black, Chrome, Brushed

Metal, Wood, Vinyl

3

⁄4 ” (19mm)

3

⁄8 ”–1” (9–25mm)

155 lb 70kg

Optional

TCHD2L1SS3

Gloss Black, Chrome, Brushed, White

Wood, Vinyl

3

⁄4 ” (19mm)

3

⁄8 ”–1” (9–25mm)

155 lb 70kg

Yes

TCHD2L2S3

Gloss Black, Chrome, Brushed, White

Wood, Vinyl

Fixed at 13⁄16 ” (21mm)

Fixed at 13⁄16 ” (21mm)

155 lb 70kg

Yes

TCHDMA1S3

Black, White

Metal, Wood, Vinyl

1” (25mm)

⁄8 ”–111 ⁄16 ” (16–43mm)

155 lb 70kg

Yes

TCHDRNDS3 1/2

NA

Chainlink

1” (25mm)

⁄4 ”–13⁄8 ” (19–35mm)

132 lb 60kg

Yes

5

3

*Ratings are based upon two hinges on a maximum gate size of: Regular hinges: 5’H x 3’W (1500mmH x 900mmW) Heavy Duty hinges: 6’H x 4’W (1800mmH x 1200mmW)

28

SELF-CLOSING HINGES

DDTECH.COM

Decorative, Self-Closing T-Hinge for Wood Gates

GATE MATERIAL

IDEAL GATE GAP

GAP VARIANCE

COLOR

TCA4

Wood

¾” (19mm)

¼”–⅞” (6–22mm)

Black

55lb 25kg

6.5mm 1 4"

40mm 19 " 16

DDTECH.COM

187mm 711 " 32

SELF-CLOSING HINGES 6.5mm 1

m

200mm 778"

OSING AC CL T F-

N IO

WOOD

SEL

CODE

"

40mm 1 916 "

• Self-closes gates up to 55 lb (25kg) • Won’t rust, bind, sag or stain • UV stabilized, industrial-strength polymer construction • Stainless steel internal spring • Molded center rib for added strength 187mm 711 32" • Fasteners included

4"

29

Adjustable, Self-Closing Hinges for gates up to 66 lb (30kg)

TCA1S3 – METAL

TCA2S3 – METAL/WOOD/VINYL

TCA3S3 – WOOD/VINYL

• Ideal for pool and child safety gate applications • D&D-patented tension adjustment • Won’t rust, bind, sag or stain • Adjust tension from either end (adjustment always facing up) • UV-stabilized, industrial-strength polymer construction • Self-lubricating durability; requires no maintenance • Internal stainless steel closing spring • Trim Cover options - Gloss Black, White, Brushed or Chrome • Hinges sold as pairs; Hinge Safety Caps as single units

TruClose® Hinge Safety Cap

Optional. Helps prevent toddlers from using bottom hinge as a climbing foothold.

CODE: TCACAPS3 TCA1S3 25mm 1"

21mm 13 " 16

TCA2S3 25mm

25mm

1"

1"

TCA3S3 55mm 2 316"

55mm 2316 "

21mm 13 " 16

22mm 7 8"

34mm

1 11 32"

104mm 4332"

75mm 31 2 32"

46mm

1 13

46mm 1 13 " 16

44mm

1 2332"

30

96mm 325 " 32

16

"

SELF-CLOSING HINGES

46mm

1 13 16 "

44mm

1 23 " 32

DDTECH.COM

34mm 11 32"

1

132mm 53 " 16

32.5mm 19 " 32

96mm 32532"

55mm 2 316 "

22mm 7 " 8

22mm 7 " 8

22mm 7 " 8

22mm 7 " 8

22mm 7 " 8

21mm 13 " 16

96mm 25 3 32"

32.5mm 1 932"

44mm

1 2332"

TCA1S3WT

TCA1L2S3BT

CODE

TRIM FINISH

TCA1S3BT

Gloss Black

Metal

–

¾” (19mm)

3

TCA1S3WT

White

Metal

–

¾” (19mm)

3

TCA1L2S3BT

Gloss Black

Metal

2 Legs

Fixed at 13⁄16 ” (21mm)

TCA1L2S3WT TCA2S3BT

GATE MATERIAL SIDE LEGS

White

Metal

Gloss Black

Metal/Wood

2 Legs –

IDEAL GATE GAP

Fixed at

GAP VARIANCE

⁄8 ”– 7⁄8 ” (9–22mm) ⁄8 ”– 7⁄8 ” (9–22mm) –

⁄16 ” (21mm)

13

¾” (19mm)

–

⁄8 ”– ⁄8 ” (9–22mm)

3

7

⁄16 ” (21mm)

13

TCA2L2S3BT

Gloss Black

Metal/Wood

2 Legs

TCA3S3BT

Gloss Black

Vinyl/Wood

-

TCA3L2S3BT

Gloss Black

Vinyl/Wood

2 Legs

Fixed at

⁄16 ” (21mm)

–

TCA3L2S3WT

White

Vinyl/Wood

2 Legs

Fixed at 13⁄16 ” (21mm)

–

TCACAPS3

Gloss Black

Safety Cap

–

–

–

METAL

WOOD

VINYL

Fixed at

¾” (19mm) 13

–

⁄8 ”– ⁄8 ” (9–22mm)

3

7

ALIGNMENT LEGS (“L2” models): Quick-fit alignment legs for fast-align installation and added fixing strength.

Two legs provide secure, double-face fixing.

66lb 30kg

* D&D’s White Polymer range may discolour over time.

Aesthetic changes/discoloration etc. are not covered under D&D’s PRODUCT WARRANTY. Visit our white hardware cleaning tips HERE.

DDTECH.COM

SELF-CLOSING HINGES

31

Adjustable, Self-Closing Hinges for heavy/high-traffic gates up to 155 lb (70kg)

TCHD1AS3 – METAL

TCHD1S3 – METAL/VINYL/WOOD

TCHD2L2S3 – VINYL/WOOD

• Suitable for use on pool and child safety gate applications • D&D-patented tension adjustment • Won’t rust, bind, sag or stain • Adjust tension from either end (adjustment always facing up) • UV-stabilized, industrial-strength polymer construction • Self-lubricating durability; requires no maintenance • Internal stainless steel closing spring • Trim Cover options - Gloss Black, White, Brushed or Chrome • Hinges sold as pairs, Hinge Safety Caps as single units

TruClose® Hinge Safety Cap

Optional use. Helps prevent toddlers from using bottom hinge as a climbing foothold.

CODE: TCHDCAPS3 TCHD1AS3 35mm 1 38"

21mm 13 16 "

27mm 1 1 16 "

TCHD1S3 35mm 1 38"

49mm 1 15 16 "

27mm 1 1 16 "

27mm 1 1 16 "

56mm 2 316"

32

TCHD2S3 49mm 1 15 16 "

78mm 31 16 "

27mm 1 1 16 "

27mm 1 1 16 "

22mm 7/8"

45mm 1 3/4"

44.5mm 1 34"

121mm 4 3/4"

19mm 3 " 4

SELF-CLOSING HINGES

21mm 13 " 16

78mm 31 16 " 27mm 1 1 16 "

176mm 615 " 16

118.5mm 11 4 16 "

90.5mm 3916 "

121mm 434"

21mm 13 " 16

56mm 3 2 16 "

56mm 2316 "

19mm 3 " 4

44.5mm 1 34"

DDTECH.COM

121mm 43 " 4

47mm 1 78"

44.5mm 1 34"

TCHD1AS3

CODE

TRIM FINISH

TCHD1AS3BT

Black

GATE MATERIAL SIDE LEGS Metal

-

3

⁄4 ” (19mm)

3

TCHD1AS3WT

White

Metal

-

3

⁄4 ” (19mm)

3

TCHD1AL1S3BT

Black

Metal

1 Leg

3

⁄4 ” (19mm)

3

TCHD1AL2S3WT

White

Metal

2 Legs

TCHD1AL2S3BT

Black

Metal

2 Legs

TCHD1S3BT

Black

Metal/Wood/Vinyl

-

TCHD1L2S3BT TCHD2L1SS3BT

Black

Metal/Wood/Vinyl

Black

Vinyl/Wood

2 Legs 1 Leg

TCHD2L2S3BT

Black

Vinyl/Wood

2 Legs

TCHDCAPS3

Black

Safety Cap

-

METAL

WOOD

VINYL

IDEAL GATE GAP

GAP VARIANCE

⁄8 ”–1” (9–25mm) ⁄8 ”–1” (9–25mm) ⁄8 ”–1” (9–25mm)

⁄16 ” (21mm) ⁄16 ” (21mm)

Fixed at

13

-

Fixed at

13

-

⁄4 ” (19mm)

3

Fixed at

Fixed at

⁄8 ”–1” (9–25mm)

⁄16 ” (21mm)

⁄4 ” (19mm)

-

⁄8 ”–1” (9–25mm)

3

⁄16 ” (21mm)

-

-

-

13

“L2” & “L1” models: Quick-fit alignment legs for faster installation and added fixing strength.

Two legs provide secure, double-face fixing.

3

13

3

ALIGNMENT LEGS

155lb 70kg

* D&D’s White Polymer range may discolour over time.

Aesthetic changes/discoloration etc. are not covered under D&D’s PRODUCT WARRANTY. Visit our white hardware cleaning tips HERE.

DDTECH.COM

SELF-CLOSING HINGES

33

Self-closing hinges for round-post applications • Easy tension adjustment from both ends • Includes adaptors for various post diameters • Right- or left-handed gate-swing installation • Side-fixing legs for fast alignment and extra fixing strength • Self-closes gates up to 154 lb (70kg) • UV-stabilised, industrial-grade polymer & stainless components • Will not rust, bind, sag or stain • All fasteners included TCHDRND1S3 GATE DIAMETER*

POST DIAMETER*

DISTANCE BETWEEN GATE AND POST (D)

1⅜” (35mm)

2” (48–51mm)

2⅝” (67mm)

1” (25mm)

1⅜” (35mm)

2⅜” (60mm)

13

2 ⁄16” (72mm)

1” (25mm)

1⅜” (35mm)

2⅞” (73mm)

3¹⁄⁸” (78mm)

1” (25mm)

1⅝” (41mm)

2” (48–51mm)

1⅝” (41mm)

2⅜” (60mm)

3” (75mm)

1” (25mm)

1⅝” (41mm)

2⅞” (73mm)

3¼” (81mm)

1” (25mm)

FIXED GATE GAP (E)

2¾” (70mm)

1” (25mm)

TCHDRND2S3 DISTANCE BETWEEN GATE AND POST (D)

FIXED GATE GAP (E)

GATE DIAMETER*

POST DIAMETER*

2” (48–51mm)

2” (48–51mm)

3” (75mm)

1” (24mm)

2” (48–51mm)

2⅞” (73mm)

3⅜” (86mm)

1” (24mm)

* Using Round Post adaptors provided

154lb 70kg

ROUND

TCHDRND1S3

TCHDRND2S3

Distance from post centers

Distance from post centers

D

D

E

E

(82mm) 7 3 32" (108mm) 1 4 4"

(82mm) 7 3 32"

(73mm) 7 2 8"

(44.5mm) 3 1 4"

(123mm) 27 4 32"

(121mm) 25 4 32"

(83.5mm) 9 3 32"

(42mm) 21 1 32"

(44.5mm) 3 1 4"

(121mm) 25 4 32"

(42mm) 21 1 32"

TCHDRND1S3

34

(79mm) 1 3 8"

TCHDRND2S3

GATE DIAMETER

POST DIAMETER

D

SELF-CLOSING HINGES

E

1 3/8" (35mm)

2" (48mm-51mm)

2 5/8" (67mm)

15/16" (24mm)

1 3/8" (35mm)

2 3/8" (60mm)

2 7/8" (72mm)

15/16" (24mm)

GATE DIAMETER

DDTECH.COM 1-7/8"-2" (48mm-51mm) 1-7/8"-2" (48mm-51mm)

POST DIAMETER

D

E

1-7/8"-2" (48mm-51mm)

3" (75mm)

15/16" (24mm)

2 3/8" (60mm)

3 1/8" (80mm)

15/16" (24mm)

Highly adjustable, self-closing hinges for round-post or chainlink gates • 3-way adjustment - vertical, horizontal & tension • Easy alignment legs & adjustment slots • Up to ¾” (19mm) adjustment • For gate gaps from 7⁄8-2” (22-50mm) • Self-closes gates up 55 lb (25kg) • Won’t rust, bind, sag or stain • Industrial-strength polymer with stainless components • UV stabilized, self-lubricating durability

CODE

GATE MATERIAL IDEAL GATE GAP

TCAMA2RND

1⅜” (35mm)

Chainlink

GAP VARIANCE

COLOR

⅞”–2” (22–50mm)

Black

55lb 25kg

ROUND

Fits fence posts of 1.7/8" – 2", Fits [35mm] 1.3/8" up to [41mm] 1.5/8"

102mm 4" 40mm 1 9 " 16

[102mm] 4"

96mm 32532"

Fits [35mm] 1.3/8" up to [41mm] 1.5/8"

Horizontal adjustment [22–50mm] 7/8" to 2”

Fits fence posts of 1.7/8" – 2", 2.3/8” and 2.7/8” [48–51, 60, 73mm]

DDTECH.COM

SELF-CLOSING HINGES

35

Highly adjustable, self-closing hinges for large gate gaps • 3-way adjustment: vertical, horizontal & tension • Up to ¾” (19mm) horizontal adjustment • Fits gate gaps up to 2” (50mm) • UV-stabilized, industrial-strength polymer construction • Internal stainless steel spring and components • Regular models self-close gates up to 55 lb (25kg) CODE

GATE MATERIAL

IDEAL GATE GAP

GAP VARIANCE

TCAMA1

Metal, Wood, Vinyl

1⅛” (29mm)

⅞”–1½” (22–38mm)

Black

TCAMA2

Metal, Wood, Vinyl

1⅛” (35mm)

⅞”–2” (22–50mm)

Black

TCAMA2WT

Metal, Wood, Vinyl

1⅛” (35mm)

⅞”–2” (22–50mm)

White

METAL

WOOD

COLOR

55lb 25kg

VINYL

Regular TCAMA2

23mm 29 32"

GAP HORIZONTALLY ADJUSTABLE

30mm 1 316 "

23mm 29 32"

30mm 13 " 16

25mm 31 " 32

GAP HORIZONTALLY ADJUSTABLE

30mm 1 316 " 30mm 3 1 " 16

25mm 31 " 32

Regular TCAMA1 TCAMA1

TCAMA2

86mm 33 " 8

101mm 31 3 32" 27mm 1 1 16"

40mm 1 9 " 16

96mm 32532"

96mm 32532"

Regular TCAMA2WT

36

MULTI ADJUST HINGES

DDTECH.COM

NEW PRODUCT

Highly adjustable, heavy duty self-closing hinges for large gate gaps • 3-way adjustment: vertical, horizontal & tension • Up to 50% faster to install with NEW built-in brackets • Quick self-closing adjustment - no special tools required • Self-closes gates up to 154 lb (70kg) • UV stabilised, industrial strength polymer construction • Internal stainless steel spring • Contemporary design for vinyl & composite gates • Removable trim covers & all fasteners included

Horizontal Adjustment up to 11/16” (27mm) Vertical Adjustment up to ¹⁵/16” (24mm)

70mm 2 3/4"

56mm 2 3/16"

Black

1” (25mm)

⅝”–1 /16” (16–43mm)

White

Vinyl, Composite

22mm 7/8"

24mm 15/16"

11

36mm 1 7/16"

22mm 7/8"

24mm 15/16"

45mm 1 3/4"

54mm 2 1/8"

58mm 2 5/16"

120mm 4 11/16"

120mm 4 11/16"

64mm 2 1/2"

70mm 2 3/4"

46 1 13/16"

46[16 - 33mm] 5/8" - 1 5/16" 1 13/16" GATE GAP RANGE

170mm 6 11/16"

36mm 1 7/16"

58mm 2 5/16"

20mm 3/4"

56mm 2 3/16"

62mm 2 7/16"

24mm 15/16"

27mm 1 1/16" HORIZONTAL ADJUSTMENT

VERTICAL ADJUSTMENT

[16 - 33mm] 5/8" - 1 5/16" GATE GAP RANGE

62mm 2 7/16"

170mm 6 11/16"

24mm 15/16"

⅝”–1 /16” (16–43mm) 11

62mm 2 7/16"

27 1 1/16"

VERTICAL ADJUSTMENT

COLOR

54mm 2 1/8"

45mm 1 3/4"

70mm 2 3/4"

56mm 2 3/16"

GAP VARIANCE

1” (25mm)

20mm 36mm 22mm 3/4" 1 7/16"

24mm

7/8" 3/4" 15/16" * D&D’s White Polymer range may discolour over time. Aesthetic changes/discoloration TCHDMAS3 [16 - 33mm] etc. are not covered under D&D’s 5/8" - 1 5/16" GATE GAP RANGE PRODUCT WARRANTY. Visit our white hardware cleaning tips HERE.

45mm 1 3/4"

IDEAL GAP

Vinyl, Composite

54mm 2 1/8"

20mm

GATE MATERIAL

77mm 3"

TCHDMA1S3WT

24mm 15/16"

CODE

TCHDMA1S3BT

VERTICAL ADJUSTMENT

27mm 1 1/16" HORIZONTAL ADJUSTMENT

77mm 3"

77mm 3"

27mm 1 1/16" HORIZONTAL ADJUSTMENT

27 1 1/16"

154lb 70kg

VINYL

TCHDMAS3

MAS3

27 1 1/16"

170mm 6 11/16"

DDTECH.COM

MULTI ADJUST HINGES

37

Traditionally styled, self-closing, aluminum gate hinges Patented tension adjustment

• Adjust tension from both ends (tension adjustment always facing up) • 6 tension settings for finer adjustment (suit a range of metal gates) • Single-handed tension adjustment (using slot-head screwdriver)

Polymer pivot design

Low-friction polymer pivot washers provide long life & low maintenance

Side-fixing legs

For quick alignment during installation plus added fixing strength

Stainless steel spring

Internal torsion spring constructed of stainless steel to prevent binding and staining

Versatile installation Suits left- or right-swinging gates

Gate weight

Self-closes gates up to 44 lb (20kg)

3 finishes available

Aluminum with powder-coated finish in Black, Bronze or White (KF3A1BL model only available in black)

1” (25mm) narrower leaf model

Now 10% smaller in size. Designed to suit smaller post sizes, with a narrower leaf.

Only available in black.

2

KF3A

38

KF3A1BL

KWIKFIT® HINGES

DDTECH.COM

Aluminum & Polymer General-Purpose Hinges POLYMER RANGE

KF3A1BL

KF3ABL

KF3

KF3L2

Black (Gloss) Black, White* or Bronze* Black, White* or Bronze* 1” (25mm) leaf width Mounts to post, or wall Alignment ridges for fast Mounts to post, or wall if no post available and easy installation if no post available

PRODUCT CODE KF3

KWIKFIT ALUMINUM

Alignment ridges, self-closing

KF3L2

2 side fixing legs, self-closing

KF3A

Wall or post mount, self-closing

KF3A1BL

KWIKFIT POLYMER

Wall or post mount, self-closing

KF3P

No spring, non-self-closing

KF3S

Fixed tension, self-closing

KF3A1BL/KF3A

KF3S

Black Plain Pivot Hinge

Black Self-Closing Hinge

GATE MATERIAL

IDEAL GATE GAP

MAXIMUM SELF-CLOSING WEIGHT*

HINGE MATERIAL

COLOR OPTIONS

Metal

Fixed at ½” 13mm

44 lb/20kg

Aluminum

Black, Bronze, White

Metal

Fixed at ½” 13mm

44 lb/20kg

Aluminum

Black, Bronze, White

Metal, Wood, Brick

Fixed at ¾” 19mm

44 lb/20kg

Aluminum

Black, Bronze, White

Metal, Wood, Brick

Fixed at ⅞” 21.5mm

44 lb/20kg

Aluminum

Black

Metal, Wood

Fixed at ¾” 19mm

N/A

Polymer

Black

Metal, Wood

Fixed at ¾” 19mm

44 lb/20kg

Polymer

Black

KF3A1/KF3A Post-to-Gate

KF3

Post-to-Gate mount with alignment ridges

KF3L2

Post-to-Gate mount with two side-fixing legs

WALL

Mounts to post, or wall if no post available

KF3P

Black, White* or Bronze* Two side-fixing legs for added strength

*Available in Black, White or Bronze finish.

KF3A1BL only available in black.

DDTECH.COM

KWIKFIT® HINGES

39

Self-Closing, Adjustable Aluminum Hinges • Traditionally styled, self-closing hinges • Aluminum construction with powder-coated finish • Wall- and post-mount models available • Internal stainless steel closing spring • Tension adjustment from either end • Low-friction polymer bushes for smooth closure • Self-closes gates up to 44 lb (20kg) • New 1” (25mm) leaf model for narrow frames

GAP VARIANCE

KF3A1BL

Black Gloss

Wall/Post mounted

Fixed at 7⁄8” (21.5mm)

KF3ABL

Black Gloss

Wall/Post mounted

Fixed at 3⁄4” (19mm)

KF3ABR

Bronze Satin

Wall/Post mounted

Fixed at 3⁄4” (19mm)

KF3AWT

White Gloss

Wall/Post mounted

Fixed at 3⁄4” (19mm)

KF3BL

Black Gloss

Alignment ridges

Fixed at ½” (13mm)

KF3BR

Bronze satin

Alignment ridges

Fixed at ½” (13mm)

KF3WT

White Gloss

Alignment ridges

Fixed at ½” (13mm)

KF3L2BL

Black Gloss

2 side-fixing legs

Fixed at ½” (13mm)

KF3L2BR

Bronze Satin

2 side-fixing legs

Fixed at ½” (13mm)

KF3L2WT

White Gloss

2 side-fixing legs

Fixed at ½” (13mm)

10.2mm (13/32”)

KF3A

KF3A

21.5mm

(27/32”)

33mm (15/ 16” )

38mm (11/2”) 25.4mm (1”)

19mm (3/4”)

KF3

90mm

(3½”)

KF3L2

38mm (11/2”)

8mm 5 " 16

38mm (11/2”) 13mm (1/2”)

38mm (11/2”) 13mm (1/2”)

KWIKFIT® HINGES

KF3A • KF3 • KF3L2

/4”)

25.4mm (1”)

25.4mm (1”)

40

19mm (3/4”)

DDTECH.COM

89mm (3½”)

(53

25.4mm (1”)

75mm (3”)

38mm (11/2”)

146mm

25.4mm 21.5mm (1”) (27/32”)

33mm (15 /16” )

33mm (15/16” )

25.4mm (1”)

33mm (15/16” )

25.4mm (1”)

25.4mm (1”)

(15/16”)

23.5mm

75mm (3”)

KF3A1BL

A

5.5mm 7 " 32

KF3A1BL

61mm (2 1 3 /32”)

NOTE: New KF3A1BL (1”/25mm wide leaf) model sold in pairs.

All other KwikFit® Aluminum models sold as single hinges.

For pairing or kit options, please contact your D&D sales representative.

KF3A1BL 6.5mm (¼”)

MODEL/FEATURE

10mm (25/64”)

COLOR

2

44lb 20kg

WOOD

20mm (2 5 /32”)

CODE

METAL

132mm (5 1 3 /64”)

BRICK

General-Purpose Gate Hinges for light- to mid-weight gates

KF3P Plain pivoting, no spring

KF3S Self-closing, fixed tension COLOR

MODEL/FEATURE

GATE GAP

GATE MATERIAL

KF3P

Black

Plain pivoting No spring

Fixed at ¾” (19mm)

Metal, Wood, Vinyl

KF3S

Black

Self-closing fixed tension

Fixed at ¾” (19mm)

Metal, Wood, Vinyl

1/4" 6.2 mm)

KwikFit ™ side-fixing legs

VINYL

1 37/64" (40 mm)

(

1/4" 6.2 mm)

1" (50mm)

(

WOOD

4 21/64" (110mm)

METAL

2 63/64" (76mm)

1 37/64" (40 mm)

CODE

4 21/64" (110mm)

• New, economical gate hinges • Industrial-strength polymer construction • Integrated safety cap prevents foothold • Stainless-steel components • Won’t rust, bind, sag or stain • KF3P model for gates up to 55 lb (25kg) • KF3S self-closes gates up to 44 lb (20kg)

2 49/64" (70.3mm)

2 49/64" (70.3mm)

offer quick and easy alignment of the hinges on gate and fence post.

31/32" (24.5mm)

Double face-fixing (i.e. fixes to both face and side of post and gate) also adds mounting strength.

31/32" (24.5mm)

2 49/64" (70.3mm)

DDTECH.COM

2 49/64" (70.3mm)

KWIKFIT® HINGES

41

• 316 marine-grade stainless steel drop-rod • Tough polymer-housing mounting system • 6-pin lock (rekeyable to match door & gate locks) • Retention grooves prevent dropping and dragging • Bolt lengths: 18” & 24” (450 & 610mm) • Models for wood & vinyl have added fixing points • Optional ‘Base Plate’ retains bolt into ground

KEYABL RE

E

K LOC

6 PIN

Premium, Lockable Security Drop-Bolt

METAL

WOOD

Optional Base Plate LBBPGB CODE

COLOR

GATE MATERIAL

VINYL

Extra fixing points for wood and vinyl models

BOLT LENGTH

LB118BX

Black

Metal

18” (450mm)

LB124BX

Black

Metal

24” (610mm)

LB218BX

Black

Wood, Vinyl

18” (450mm)

LBBPGB

Black

Optional Base Plate

-

105.5mm 4532"

594mm 2313 32"

120mm

55mm 2532"

38mm 1 1 2"

4 23 " 32

120mm 23 4 32"

21mm 27 32"

38mm 1 1 2"

38mm 1 1 2"

14mm 9 16 "

42

DROP-BOLTS

DDTECH.COM

Economical, Padlockable Drop-Bolt • Electro-polished stainless steel & powder-coated • Tough polymer-housing mounting system • High wear and corrosion resistant drop-rod • Padlockable; with padlock storage feature • Retention tabs prevent bolt dropping & dragging • Mounting systems for metal, wood & vinyl • Bolt lengths: 24” & 40” (610 & 1020mm) METAL

WOOD

VINYL

CODE

COLOR

GATE MATERIAL

BOLT LENGTH

QB124

Black

Metal

24” (610mm)

QB140

Black

Metal

40” (1020mm)

QB224

Black

Wood, Vinyl

24” (610mm)

QB240

Black

Wood, Vinyl

40” (1020mm)

LBBPGB

Black

Optional Base Plate

–

116mm

37mm

120mm

4 23 " 32

120mm 23 4 32"

21mm 27 32"

4 1932"

617mm 24932"

25mm 31 32"

1 1532"

49mm 15 16 "

25mm 31 32"

1

14mm 9 " 16

DDTECH.COM

DROP-BOLTS

43

METAL

WOOD

TCGS3

VINYL

Gate Protection Device in 3 sizes & styles • Industrial-strength polymer construction + rubber bumper • Prevents damage to latches & hinges • Greatly reduces gate-slam noise • Two side-fixing legs for added strength

22mm 7 8"

45mm

1 2532"

33mm 1 516 "

TCGS2

TCGS1WT

70mm 234"

60mm 238"

30mm 1 316 "

62mm 2716 "

21mm 13 16 "

77mm 31 32"

TCGS1

TCGS2 133mm 51 4"

120mm 42332"

TCGS3

TCGS1 63mm 215 32"

93mm 321 32"

94mm 311 16 "

120mm 42332"

METAL

WOOD

CODE

COLOR

GATE MATERIAL

TCGS1

Black

Wood, Vinyl

TCGS1WT

White

Wood, Vinyl

TCGS2

Black

Metal, Wood, Vinyl

TCGS3

Black

Metal

VINYL

CODE

COLOR

GATE MATERIAL

LL3GH

Black

Metal, Wood, Vinyl

LL3GHWT

White

Metal, Wood, Vinyl

* D&D’s White Polymer range may discolour over time.

Aesthetic changes/discoloration etc. are not covered under D&D’s PRODUCT WARRANTY. Visit our white hardware cleaning tips HERE.

44

GATE ACCESSORIES

DDTECH.COM

27mm 1 1 16 "

106mm 4 316 "

156.5mm 6316 "

• Improved ergonomics & styling • Side-fixing legs for quick alignment & added strength • Fits left-or right-hand opening gates • Won’t rust, stain or chip • Industrial-strength polymer construction • Available in Black or White finish • Stainless steel fasteners included

38mm 1 1 2"

General-Purpose, Ergonomic Gate Handle

31.5mm 11 " 4

Powerful, hydraulic hinge-closers.

Heavy duty and corrosion resistant.

Quick-fit alignment legs For ease of installation, alignment and double face-fixing strength.

Vertical alignment slots Re-align hinge (gate) at any time.

Added security

Torx screws that prevent tampering.

Multiple adjustment options

• Adjustable self-closing and speed • Adjustable final snap-close action • Gate gap horizontal adjustability ½”–1⅜” (12–35mm)

Superior corrosion resistance

• Steel weld-on models feature high-performance proprietary, non-electrolytic zinc flake coating (no need to grind off before welding).

• Aluminum screw-on models feature 50-micron thick anodized coating.

READYFIT model

Mounting Brackets:

A variety of gate bracket options to suit virtually any square-post application: • Steel or Aluminum • Fastened or Welded • External, Flush Mount or Center Mount

Powerful, hidden hydraulics

Hydraulics are concealed within the hinge providing controlled, quiet closing in a tamper-resistant, compact design.

No need to ever add fluid.

Dual -Bearing Glide System Two rows of bearings for consistently superior performance FLUSH MOUNT model

5

DDTECH.COM

SURECLOSE® HINGES

45

SUREClose

®

Hydraulic Hinge-Closer Selection Guide

READYFIT™

FLUSH MOUNT

CENTER MOUNT

EASY™

EASY

CONCEALFIT

MAX OPENING ANGLE

MODEL

PRODUCT DESCRIPTION

MOUNTING TYPE

FIXING METHOD

74108323T

RF108SF S

Safety Hinge/Closer

External

Aluminum Screw-on

88º

88º

74108313T

RF108 S

Hinge/Closer

External

Aluminum Screw-on

178º

83º

74001313T

RFSM S

Hinge Only

External

Aluminum Screw-on

178º

N/A

74108325T

RF108SF W

Safety Hinge/Closer

External

Steel Weld-on

88º

88º

74108315T

RF108 W

Hinge/Closer

External

Steel Weld-on

178º

83º

74001315T

RFSM W

Hinge Only

External

Steel Weld-on

178º

N/A

75001213

SMAT90 S

Hinge Only

Flush

Aluminum Screw-on

180º

N/A

75057213M

57AT90 S

Hinge/Closer

Flush

Aluminum Screw-on

180º

85º

75057223M

57SFAT90 S

Hinge/Closer

Flush

Aluminum Screw-on

90º

90º

75108213M

108AT90 S

Hinge/Closer

Flush

Aluminum Screw-on

180º

85º

75108223M

108SF AT90 S

Safety Hinge/Closer

Flush

Aluminum Screw-on

90º

90º

75001214

SMAT90 W

Hinge Only

Flush

Steel Weld-on

180º

N/A

75057214M

57AT90 W

Hinge/Closer

Flush

Steel Weld-on

180º

85º

75057224M

57SF AT90 W

Hinge/Closer

Flush

Steel Weld-on

90º

90º

75108214M

108 AT90 W

Hinge/Closer

Flush

Steel Weld-on

180º

85º

75108224M

108SFAT90 W

Safety Hinge/Closer

Flush

Steel Weld-on

90º

90º

75001113

SM S

Heavy Duty Hinge

Center

Aluminum Screw-on

90º

N/A

75057113M

57 S

Hinge/Closer

Center

Aluminum Screw-on

90º

85º

75057123M

57SF S

Hinge/Closer

Center

Aluminum Screw-on

90º

90º

75108113M

108 S

Safety Hinge/Closer

Center

Aluminum Screw-on

90º

85º

75108123M

108SF S

Safety Hinge/Closer

Center

Aluminum Screw-on

90º

90º

75001114

SM W

Heavy Duty Hinge

Center

Steel Weld-on

90º

N/A

75057114M

57 W

Hinge/Closer

Center

Steel Weld-on

90º

85º

75057124M

57SF W

Hinge/Closer

Center

Steel Weld-on

90º

90º

75108114M

108 W

Safety Hinge/Close

Center

Steel Weld-on

90º

85º

75108124

108SF W

Safety Hinge/Close

Center

Steel Weld-on

90º

90º

72108423

SC108SF S

Hydraulic Closer

External

Aluminum Screw-on

90º

90º

77108523

SC CF KIT

Door Closer/Hinge Kit

Center

Aluminum Screw-on

125º

125º

78108513

SC CF HINGE

Plain Pivot Door Hinge

Center

Aluminum Screw-on

125º

N/A AP CLOSE SN

N TIO AC

DDTECH.COM

G ASIN REQ RE

D RE UI

SURECLOSE® HINGES

LE FOR AD A AB E US

46

SELFCLOSING FROM

CODE

SU IT

CONCEALFIT™

CENTER MOUNT

FINA L

MODEL

FLUSH MOUNT

NO G

READYFIT

Post Mounting Brackets (sold separately)

7511 CENTER MOUNT

7512 CENTER MOUNT

7515 FLUSH MOUNT

7526 CENTER MOUNT

FIXING BRACKET CODE

SELFCLOSING SAFETY/ POOL

½”–1⅜” (12-35mm) 2” (50mm)

Included

*

½”–1⅜” (12-35mm)

2” (50mm)

Included

½”–1⅜” (12-35mm) 2” (50mm)

Included

½”–1⅜” (12-35mm) 2” (50mm)

Included

½”–1⅜” (12-35mm) 2” (50mm)

Included

½”–1⅜” (12-35mm) 2” (50mm)

Included

HORIZONTAL GAP VARIANCE

MINIMUM POST/DOOR SIZE

½” (13mm)

2” (50mm)

7515

½” (13mm)

2” (50mm)

7515

½” (13mm)

2” (50mm)

7515

½” (13mm)

3” (76mm)

7515

½” (13mm)

3” (76mm)

7515

½” (13mm)

2” (50mm

7525

½” (13mm)

2” (50mm)

7525

½” (13mm)

2” (50mm)

7525

½” (13mm)

3” (76mm)

7525

½” (13mm)

3” (76mm)

7525

2½–3” (63-76mm)

2½” (64mm)

7511, 7512

2½–3” (63-76mm)

2½” (64mm)

7511, 7512

2½–3” (63-76mm)

2½” (64mm)

7511, 7512

2½–3” (63-76mm)

3” (76mm)

7511,7 512

2½–3” (63-76mm)

3” (76mm)

7511, 7512

2½–3” (63-76mm)

2½” (64mm)

7526

2½–3” (63-76mm)

2½” (64mm)

7526

2½–3” (63-76mm)

2½” (64mm)

7526

2½–3” (63-76mm)

3” (76mm)

7526

2½–3” (63-76mm)

3” (76mm)

7526

2” (50mm)

Included

2–4” (51-102mm) N/A

9 16” (40mm)

1⁄

N/A

N/A

19⁄16” (40mm)

N/A

• •

*

•

*

•

*

•

*

•

*

•

*

•

*

•

*

• *• *

SELFCLOSING ADA HOLD COMPLIANT WITH OPEN

•

•

• •

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

NON SELFCLOSING

• •

•

•

•

7525 FLUSH MOUNT

ADJUSTABLE FINAL SNAP CLOSING ACTION SPEED

• •

• •

•

•

• • • •

• •

• • • •

• •

• • • •

• •

• • • • • •

• • • •

*Check local pool barrier guidelines for proper installation methods. (SF) = Gate will not hold open at 90° (i.e. OK for safety gates).

Do NOT use a hinge with a 90° hold-open feature for pool/child safety gates.

In Australia, hinges must be at least 36” (900mm) apart so that they cannot be used as footholds by toddlers.

CAUTION: A gate-stop must be installed when using SF models. Gate must not be allowed to open past 90˚. Doing so voids warranty.

DDTECH.COM

SURECLOSE® BRACKETS

47

External, heavy duty hydraulic hinge-closers • Hidden hydraulics for quiet, controlled closing • Screw-on or weld-on; screws and brackets included • Weld-on models feature proprietary finish – no need to grind off before welding!

• For gate gaps of ½”–1⅜” (12–35mm) • Alignment side legs give double face-fixing strength • Final Snap-Close Action in all “108” models • Emergency override feature for safety and longevity • Minimum fence post size 2” (50mm) • Suitable for ADA use NOTE: Warranty conditions vary according to application and usage.

See full Warranty details and Limitations on D&D Technologies’ website.

5

RF SM S 74001313T HINGE ONLY

RF SM W 74001315T HINGE ONLY

RF 108 S / RF 108SF S 74108313T / 74108323T HINGE-CLOSER

RF 108 W / RF 108SF W 74108315T / 74108325T HINGE-CLOSER

7403 RF GATE STOP

SURECLOSE® READYFIT – PLAIN PIVOTING HINGES CODE

DESCRIPTION

SOLD AS

MATERIAL & MOUNTING

MAX. OPENING ANGLE

Configuration for Maximum gate weight 260 lb (120kg)1. Access Control.

74001315T

Plain Pivoting Hinge

Single Hinge

Steel Weld or Screw

178º

74001315T + 74001315T (Not self-closing)

Plain Pivoting Hinge

Single Hinge

Aluminum Weld or Screw

178º

74001313T + 74001313T (Not self-closing)

74001313T

Note: Minimum fence post size 2” (50m). Gap variance for all models ½ to 1⅜” (12–35mm). Do not exceed gap of 1⅜” (35mm) SURECLOSE® READYFIT – SELF-CLOSING HYDRAULIC HINGE/CLOSERS & ACCESSORIES MAX. SELF- REQUIRES Self-closes gates up to Self-closes gates up to OPENING CLOSING GATE180 lb (80Kg) 1 260 lb (120kg) 1 ANGLE FROM STOP

SOLD AS

MATERIAL AND MOUNTING

74108313T 4 Hinge-Closer w/ hold-open

Single

Aluminum Weld or Screw

180º

83º

No

74108313T + 74001313T 74108313T + 74108313T

74108323T 4 Hinge-Closer – safety model

Single

Aluminum Weld or Screw

88º

88º

Yes 3

74108323T + 74001313T 74108323T + 74108323T

74108315T

Single

Steel Weld or Screw

180º

83º

No

74108315T + 74001315T 74108315T + 74108315T

Single

Steel Weld or Screw

88º

88º

Yes 2

74108325T + 74001315T 74108325T + 74108325T

Single

Steel Weld or Screw

85º

N/A

N/A

CODE

DESCRIPTION

4

Hydraulic Hinge-Closer

74108325T 4 Hinge-Closer – safety model 7403

READYFIT GateStop

N/A

N/A

1 Based on maximum gate size 72”H x 40W (1800x1000mm).

For gates with greater HxW, or if weather conditions such as wind play a role, use hinge combinations with higher self-closing weight ratings.

2 CAUTION: Not suitable child/pool gates unless a gate-stop is installed at a maximum of 170˚opening. DO NOT PROP GATE OPEN. 3 CAUTION: When used on swimming pool gates, always consult local authorities for swimming pool Codes.

A gate-stop MUST be installed when using safety models. Gate MUST NOT be allowed to open past 90˚. Doing so voids warranty.

4 MEETS ADA REQUIREMENTS for gate opening and closing angles and self-closing speed.

48

SURECLOSE® READYFIT

DDTECH.COM

Gate Function

Hold-open Not for safety gates

SELF-CLOSING - NON SAFETY

READYFIT Brackets Models 74108313T 74108315T

Self-closing Speed adjustable

FENCE

SELF-CLOSING - SAFETY (“SF” model)

READYFIT Brackets

Not suitable for child/pool safety

Bracket Material Aluminum Steel

Models 74108323T 74108325T

Suitable for child/pool safety* DO NOT PROP GATE OPEN

Bracket Material Aluminum

Steel

FENCE

GATE

GATE

Face of gate and post are aligned.

[60mm] 23 " 8

Face of gate and post are aligned.

CAUTION: When used on swimming pool gates, always consult local authorities for swimming pool Codes.

A gate-stop MUST be installed when using SF models. Gate MUST NOT be allowed to open past 90˚.

Doing so voids warranty.

[36mm] 13 " 8

For larger gaps, adjust hinge and gate stop equally ensuring the gate does not open past 85⁰.

NON SELF-CLOSING

READYFIT Brackets Bracket Material Aluminum

74001315T

Steel

Not suitable for child/pool safety [85mm] 338"

Models 74001313T

FENCE

85

°

GATE

All mounting [38mm] [6.5mm] brackets and 1 1 1 2"fasteners included. 4"

Face of gate and post are aligned.

[46mm] 1 34"

[11mm] 3 8"

Install Gate Stop onto the fence post the safest height to make contact with a cross rail or kick plate.

[28mm] 1 1 8"

+

Adjustable final Snap-close action in all “108” models.

Use adjustment tool provided.

[110mm] 438"

[75.5mm] 3"

[70mm] 234"

[40mm] 1 58"

READYFIT 108

[60mm] 238"

[19mm] 3 " 4

[38mm] 1 1 2"

[60mm] 238"

[15mm] 5 " 8

[36mm] 1 38"

[36mm] 1 38" [38mm] 1 1 2"

[6.5mm] 1 " 4

[6.5mm] 1 4" [46mm] 1 34"

[46mm] 1 34"

[11mm] 3 8"

[86mm] 338"

[48mm] 7 1 8"

[85mm] 338"

[60mm] 238"

V

[85mm] 3 3 8"

[9.5mm] 3 8"

[15mm] 5 " 8

[75.5mm] 3"

[9.5mm] 3 8"

[19mm] 3 " 4

Horizontal gate-gap variance ½ to 1⅜” (12-35mm).

Do not exceed gap of 1⅜” (35mm).

Alignment legs provide double face-fixing strength.

[9.5mm] 3 " 8

READYFIT SM

– S

V = Closing Speed S = Final Snap-Close Action

[75.5mm] 3" [48mm] 7 1 8"

[48mm] 1 78"

[75.5mm] 3"

[9.5mm] 3 8"

All mounting brackets and fasteners included.

All mounting brackets and fasteners included. [86mm] 3 3 8" [19mm] 3 " [15mm] 4 5 " 8

Non self-closing

Final snap-close action For electric/coded locks

[28mm] 1 1 8"

DDTECH.COM

[11mm] 3 8"

[28mm] 1 1 8"

SURECLOSE® READYFIT

49

FLUSH MOUNT Internally Mounted, Hydraulic Hinge-Closers • Powerful, hidden hydraulics in a compact unit • Prevents gate-slam noise and gate damage • Maintenance-free, with high corrosion resistance • Multiple adjustment options (closing force, speed) • Self-closes gates up to 260 lb (120kg) • Non-self-closing models available • 50-micron anodizing (aluminum components) • Weld-on models – no need to grind before welding!

• Mounting Brackets sold separately (see guide p.47) • Suitable for ADA use

SM AT90 S / SM AT90 W 75001213 /75001214 NON-SELF-CLOSING

57 AT90 S / 57 AT90 W 75057213M / 75057214M SELF-CLOSING FROM 85° Holds gate open at 90°

FENCE POST

5

57SF AT90 S / 57SF AT90 W 75057223M / 75057224M SELF-CLOSING FROM 90°

GATE

108 AT90 S / 108 AT90 W 75108213M / 75108214M SELF-CLOSING FROM 85° Holds gate open at 90° With Final Snap-Close Action

108SF AT90 / 108SF AT90 W 75108223M / 75108224M SELF-CLOSING FROM 90° With Final Snap-Close Action

CODE*

MODEL

DESCRIPTION

MOUNTING

75001213

SM AT90 S

Non-self-closing Hinge

Aluminum Screw-on

75057213M

57 AT90 S

Hydraulic Hinge Closer

Aluminum Screw-on

75057223M

57SF AT90 S**

Safety Hydraulic Hinge Closer

Aluminum Screw-on

CAUTION: Based on max. gate size 72”H x 40”W (1800x1000mm). For gates with greater HxW, or if weather conditions such as wind play a significant role, use hinge combinations with higher self-closing weight ratings. CAUTION: A gate-stop MUST be installed when using SF models. Gate MUST NOT be allowed to open past 90º. Doing so voids warranty.

75108213M

108 AT90 S

Hinge Closer w/ Final Snap Action

Aluminum Screw-on

HINGE COMBINATIONS

MAX SELF-CLOSING GATE WEIGHT

75108223M 108SF AT90 S** Safety Hinge Closer w/ Final Snap Action Aluminum Screw-on

57 + SM

90 lb (40kg)

75001214

SM AT90 W

Non Self-Closing Hinge

Steel Weld-on

57 + 57

180 lb (80kg)

75057214M

57 AT90 W

Hydraulic Hinge Closer

Steel Weld-on

108 + SM

180 lb (80kg)

Safety Hydraulic Hinge Closer

Steel Weld-on

108 + 108

260 lb (120kg)

Hinge Closer w/ Final Snap Action

Steel Weld-on

ACCESS CONTROL

WEIGHT CAPACITY

Steel Weld-on

SM + SM

260 lb (120kg)

75057224M 57SF AT90 W** 75108214M

108 AT90 W

75108224M 108SF AT90 W** Safety Hinge Closer w/ Final Snap Action

* Warranty conditions vary according to gate or door application and usage. See full Warranty details and limitations on D&D Technologies’ website.

Gate mounting brackets included with hinge. Post-mounting brackets sold separately. Fasteners not included. **Use only “SF” model (safety) closers on pool/safety gates. In Australia, hinges must be at least 36" (900mm) apart so they cannot be used as footholds by toddlers.

50 SURECLOSE® FLUSHMOUNT

DDTECH.COM

Gate Function

Hold-open Not for safety gates

SELF-CLOSING - NON SAFETY

Flush Mount Brackets Models

Bracket Material

75108214M 75108213M

Steel Aluminum

Not suitable for child/pool safety

GATE

Flush Mount: Face of gate and post are aligned.

SELF-CLOSING - NON SAFETY

Flush Mount Brackets 75057214M 75057213M

Steel Aluminum

Not suitable for child/pool safety

GATE

Flush Mount: Face of gate and post are aligned.

Suitable for child/pool safety* DO NOT PROP GATE OPEN

Aluminum

GATE

Flush Mount: Face of gate and post are aligned.

CAUTION: When used on swimming pool gates, always consult local authorities for swimming pool Codes.

A gate-stop MUST be installed when using SF models. Gate MUST NOT be allowed to open past 90˚. Doing so voids warranty.

Flush Mount Brackets Models

Bracket Material

75057224M 75057223M

Steel Aluminum

SELF-CLOSING - SAFETY (SF Model) Suitable for child/pool safety* DO NOT PROP GATE OPEN

GATE

Flush Mount: Face of gate and post are aligned.

CAUTION: When used on swimming pool gates, always consult local authorities for swimming pool Codes.

A gate-stop MUST be installed when using SF models. Gate MUST NOT be allowed to open past 90˚. Doing so voids warranty.

6mm 1 " 4

SM AT90 S 57 AT90 S

FENCE

9mm 3 " 8

Sold as a single hinge

62mm 2716 "

55mm 2532"

GATE

70mm 234"

Flush Mount: Face of gate and post are aligned

18mm 23 " 32

M37 x 1.5

6mm 1 4 "

108 AT90 S

77.5mm 31 16 "

6mm 1 " 4

Use post bracket: 7525 Steel 7515 Aluminum

103mm 41 16 "

9mm 3 8"

Steel Aluminum

Steel

NON SELF-CLOSING

Flush Mount Brackets 75001214 75001213

75108224M 75108223M

SELF-CLOSING - SAFETY (SF Model)

Use post bracket: 7525 Steel 7515 Aluminum

Use post bracket: 7525 Steel 7515 Aluminum

Bracket Material

Bracket Material

Final snap-close action For electric/coded locks

FENCE

FENCE

Models

Models

Use post bracket: 7525 (W) 7515 Aluminum

Use post bracket: 7525 Steel 7515 Aluminum

Bracket Material

Flush Mount Brackets

FENCE

FENCE

Models

Self-closing Speed adjustable

18mm 23 " 32

M37 x 1.5

119mm 4 11 16 "

6mm 1 " 4

55mm 2532"

70mm 234"

DDTECH.COM

SURECLOSE® FLUSHMOUNT 51

CENTER MOUNT Internally mounted, hydraulic, hinge-Closers

GATE

• Maintenance-free, with high corrosion resistance • Screw-on or weld-on models available • Multiple adjustment options (closing force, speed) • Self-closes gates up to 260 lb (120kg) • Non-self-closing models available • Prevents gate slam noise & gate damage • 50-micron anodizing (aluminum components) • Proprietary finish – no need to grind before welding!

• Mounting Brackets sold separately (see guide p.47) • Suitable for ADA use

5

FENCE POST

Center Mount swings in & out

SM S / SM W 75001113 / 75001114 NON-SELF-CLOSING

57 S / 57W 75057113M / 75057114M SELF-CLOSING FROM 85° Holds gate open at 90°

57SF S / 57SF W** 75057123M / 75057124M SELF-CLOSING FROM 90°

108 S / 108 W 75108113M / 75108114M SELF-CLOSING FROM 85° Holds gate open at 90° With Final Snap-Close action

108 SF S / 108SF W 75108123M / 75108124M SELF-CLOSING FROM 90° With Final Snap-Close action

CODE*

MODEL

DESCRIPTION

MOUNTING

75001113

SM S

Non Self-Closing Hinge

Aluminum Screw-on

75057113M

57 S

Hinge Closer

Aluminum Screw-on

Safety Hinge Closer

Aluminum Screw-on

CAUTION: Based on max. gate size 72”H x 40”W (1800x1000mm). For gates with greater HxW, or if weather conditions such as wind play a significant role, use hinge combinations with higher self-closing weight ratings. CAUTION: A gate-stop MUST be installed when using SF models. Gate MUST NOT be allowed to open past 90º. Doing so voids warranty.

Hinge Closer w/ Final Snap Action

Aluminum Screw-on

HINGE COMBINATIONS

MAX SELF-CLOSING GATE WEIGHT

Aluminum Screw-on

57 + SM

90 lb (40kg)

75057123M 57SF S** 75108113M

108 S

75108123M 108SF S** Safety Hinge Closer w/ Final Snap Action 75001114

SM W

Non Self-Closing Hinge

Steel Weld-on

57 + 57

180 lb (80kg)

75057114M

57 W

Hinge Closer

Steel Weld-on

108 + SM

180 lb (80kg)

Safety Hinge Closer

Steel Weld-on

108 + 108

260 lb (120kg)

Hinge Closer w/ Final Snap Action

Steel Weld-on

ACCESS CONTROL

WEIGHT CAPACITY

Steel Weld-on

SM + SM

260 lb (120kg)

75057124M 57SF W** 75108114M

108 W

75108124M 108SF W** Safety Hinge Closer w/ Final Snap Action

* Warranty conditions vary according to gate or door application and usage. See full Warranty details and limitations on D&D Technologies’ website.

Gate mounting brackets included with hinge. Post-mounting brackets sold separately. Fasteners not included. **Use only “SF” model (safety) closers on pool/safety gates. In Australia, hinges must be at least 36" (900mm) apart so they cannot be used as footholds by toddlers.

52 SURECLOSE® CENTERMOUNT

DDTECH.COM

Gate Function

Hold-open Not for safety gates

SELF-CLOSING - NON SAFETY

Center Mount Brackets Models

Bracket Material

75108114M 75108113M

Steel Aluminum

Not suitable for child/pool safety

FENCE

Self-closing Speed adjustable

Center Mount Brackets Models

Bracket Material

75108124M 75108123M

Steel Aluminum

FENCE

GATE

Use post bracket: 7526 Steel 7511 Aluminum 7512 Aluminum 7514 Aluminum

Center Mount: Center of gate and post are aligned.

Center Mount Brackets Models

Bracket Material

75057114M 75057113M

Steel Aluminum

SELF-CLOSING - NON SAFETY Not suitable for child/pool safety

FENCE

Center Mount Brackets Models

Bracket Material

75057124M 75057123M

Steel Aluminum

FENCE

Center Mount: Center of gate and post are aligned.

SELF-CLOSING - SAFETY (SF model) Suitable for child/pool safety* DO NOT PROP GATE OPEN Center Mount: Center of gate and post are aligned.

GATE

CAUTION: When used on swimming pool gates, always consult local authorities for swimming pool Codes.

A gate-stop MUST be installed when using SF models. Gate MUST NOT be allowed to open past 90˚. Doing so voids warranty.

GATE

Use post bracket: 7526 Steel 7511 Aluminum 7512 Aluminum 7514 Aluminum

Final snap-close action For electric/coded locks

Use post bracket: 7526 Steel 7511 Aluminum 7512 Aluminum 7514 Aluminum

SELF-CLOSING - SAFETY (SF model) Suitable for child/pool safety* DO NOT PROP GATE OPEN Center Mount: Center of gate and post are aligned.

GATE

Use post bracket: 7526 Steel 7511 Aluminum 7512 Aluminum 7514 Aluminum

CAUTION: When used on swimming pool gates, always consult local authorities for swimming pool Codes.

A gate-stop MUST be installed when using SF models. Gate MUST NOT be allowed to open past 90˚. Doing so voids warranty.

SM S & 57 S & 57SF S 6.4mm 1 4"

28mm 1 332"

14mm 9 16 "

55mm 2532"

1 1 2"

38mm

M37 x 1.5

19mm 3 " 4

27mm 1 1 16 "

90mm 317 32"

28mm 1 332"

38mm 1 1 2"

14mm 9 " 16

M37 x 1.5

19mm 3 4"

27mm 1 1 16 "

55mm 2532"

108 S & 108SF S

131.5mm 5316 "

DDTECH.COM

SURECLOSE® CENTERMOUNT 53

World’s only concealed Door or Gate Closer & Hinge all-in-one

FINA L

NO G

UL10 C

G ASIN REQ RE

AP CLOSE SN

5

N TIO AC

L10C FIR cU E

D RE UI

&

TING RA

LE FOR AD A AB E US

SU IT

• Powerful, hidden hydraulic closure • Concealed hydraulics (don’t need to add fluid) • Easily accessed, adjustable self-closing and self-latching speed valves • Concealed mechanisms for a stylish, clean, distinctive look and burglary resistance • Easily installed internally – within the door or frame • Decorative dress covers included • Tested to over 500,000 open-close cycles • Suitable for ADA applications, certified DDA use • 20-minute UL10C & cUL10C fire rating (Intertek W/N 22217) • Quietly, self-closes doors up to 220 lbs (100kg)

ONE PAIR, CLOSER + HINGE COMBINATION Maximum Door/Gate Weight

220 lbs (100kg)

Maximum Door/Gate Width

48” (1220mm)

Minimum Door/Gate Thickness

1⅝” (40mm)

Maximum Opening Angle

125º

Final snap-close action

12º–0º

77108523 CLOSER + HINGE

78108513 PLAIN PIVOT HINGE

CODE

MODEL

MAX DOOR OPENING

ADJUSTABLE CLOSING SPEED

FINAL SNAP-CLOSE ACTION

VERTICAL (DOOR HEIGHT) ADJUSTABILITY

77108523

SureClose® CONCEALFIT KIT (Hinge/Closer + Hinge Only)

125º

Yes

Yes (12º–0º)

+/- 5⁄64” (2mm)

5 64 –1 4

78108513

Hinge (Single Unit)

125º

No

No

+/- 5⁄64” (2mm)

5 64 –1 4

7801

Drill Jig for timber doors

DEPTH & INCLINATION ADJUSTABILITY

MAX. SELF-CLOSING WEIGHT

⁄ ” ⁄ ” (2–6mm)

220 lb (100kg)

⁄ ” ⁄ ” (2–6mm)

N/A

Constructed from hardened steel with black phosphate coating

* Warranty conditions vary according to door or gate application and usage. See full Warranty details and limitations on D&D Technologies’ website.

Door reinforcement hardware available for hollow-core doors.

Routing templates and drill jig available for wood doors and frames. Weld boxes available for metal gates.

54

SURECLOSE® CONCEALFIT

DDTECH.COM

6 DIFFERENT ADJUSTMENTS FOR PERFECT INSTALLATION

Adjustment valves for precise installation

REF

1 6

2

5

3

4 4

STRONG, SELF-CLOSING Product Code Description Hydraulic Closer With a Plain Hinge PERFORMANCE 77108523 WALL

DOOR/GATE

ADJUSTMENT

UNIT

RANGE

⁄ ”

1

Door Height (Vertical)

Both

+/- 5 64 (2mm) with 3 64 (1.25mm) steps

2

Lateral

Both

+/- 3⁄64” (1.25mm)

3

Depth and Inclination

Both

Gap between post and door leaf is adjustable from 5⁄64”–1⁄4” (2–6mm)

4

Door Latching Speed

Closer

Between 12º–0º

5

Door Sweep Opening Angle

Closer

Steps at 60º, 80º, 100º and 125º

6

Door Sweep Closing Speed

Closer

125º to 0º

⁄ ”

Weld Box for gates available in Aluminum or Steel

WALL

A

A

B

Post-side Box for closer & hinge

5ø

12 ø 12

DOOR STOP

Aluminum 7813S

Latch Zone Sweep Zone

* CAUTION: A floor-mounted DOOR STOP is required to prevent a door/gate opening beyond 125o (see above diagram). Forcing a door/gate beyond a 125o opening may damage closer and door/gate frame.

Failure to install a Door Stop where required may void Warranty.

B

Steel 7823S

Gate-side Box for pivot hinge

Aluminum 7812S 1-1/4 (31.8mm)

7/16" 7/16" (11mm) (11mm)

5-29/ 32" (150mm)

C

A

C

CONCEALFIT Steel Weld Box Kit 77108552

Kit Includes

Kit Includes

QTY

Part No.

Qty

1

7811S

1

Part No.

7821S

1

7812S

1

7822S

2

7813S

2

7823S

7/16" (11mm) 10-1/32" (255mm)

2-47/64" (69.5mm)

1-7/32" (31mm)

2-1/8" (54mm)

(

1-5/32" 29.5mm)

4-31/64" (114mm)

5-29/ 32" (150mm)

7/16" (11mm)

Steel 7821S

CONCEALFIT Aluminum Weld Box Kit 77108551

ADJUSTABLE 1/16" - 1/4" (2mm - 6mm)

1-1/4" (31.8mm)

Gate-side Box for hinge-closer

Aluminum 7811S

2-15/64" (56.6mm)

1-1/4" (31.8mm)

1-7/32" (31mm)

Steel 7822S

5-1/32" (127.6mm)

DDTECH.COM

SURECLOSE® CONCEALFIT

55

Hydraulic, Gate Closer for Center-Hinge Mounted Gates

2”–4” (50-100mm)

G ASIN REQ RE

CODE*

MODEL

DESCRIPTION

72108423

SC 108SF S**

Gate Closer – Aluminum Brackets

Bracket Material

72108423

Aluminum

Suitable for child/pool safety* DO NOT PROP GATE OPEN

Mounting Brackets & Fasteners included

FENCE

GATE

SELF-CLOSING SAFETY (SF Model)

GATE-STOP

Models

GATE

[55mm] 21 " 8

EASY – Closer

FENCE POST

Gate Function

Center Mounted: Center of gate and post are aligned.

Gate opens 90º inwards and outwards from center point.

CAUTION: When used on swimming pool gates, always consult local authorities for swimming pool Codes.

A gate-stop must be installed when using SF models. Gate MUST NOT be allowed to open past 90˚. Doing so voids warranty.

GATE-STOP

Final snap-close action For electric/coded locks

GATE WIDTH

MAX SELF-CLOSING GATE WEIGHT

40” (1000mm) wide

176 lb (80kg)

48” (1200mm) wide

132 lb (60kg)

[30 - 48mm] 13 "- 17 " 8 16

CAUTION: Based on max. gate width 40”W (1000mm) and 48”W (1200mm). For gates with greater W, or if weather conditions such as wind play a significant role, use a different model of SureClose® hinge + closer combination with higher self-closing weight ratings.

CAUTION: A gate-stop MUST be installed when using SF models.

Gate MUST NOT be allowed to open past 90º. Doing so voids warranty. *All EASY closers include fasteners, gate and post mounting brackets.

* Warranty conditions vary according to gate or door application and usage.

See full Warranty details and limitations on D&D Technologies’ website.

All EASY closers include fasteners, gate and post mounting brackets. **Yes (SF) = Gate will not hold open at 90° (OK for safety gates). Do NOT use a hinge with a 90° hold-open feature (-) for pool/child safety gates.

56

SURECLOSE® EASY

DDTECH.COM

1 [83mm] 3 4"

[50 - 200mm] 2" - 4"

[67mm] 25 " 8

Self-closing Speed adjustable

[50mm] 115 " 16

D RE UI

5

LE FOR AD A AB

E US

SureClose® EASY closer seen on gate with a Shut-It® weld-on hinge

SU IT

Hinge pivot point and gate gap must fall within this range

NO G

1³⁄¹⁶“- 1⅞” (30-48mm)

• Add-on hydraulic closer - mounts to top of gate • Adjustable self-closing speed & final snap action • Can be used with most center-mounted hinges • Self-closes gates up to 180 lb (80kg) • Horizontally adjusts: up to 4” (100mm) gate gaps • Opens to, and self-closes from, 90˚(no hold-open) • Maintenance-free: never need to add fluid • High corrosion resistance - 50-micron anodizing • Includes gate and post mounting brackets • Suitable for ADA use

SHUTIt

BADASS™

Heavy duty hinges tested to over 1 million cycles.

Adjustable and powder-coatable.

Heavy duty shaft (bolt)

Precision bushing

Zinc electroplating

Tightest tolerances in the industry

Distributes gate load for optimal performance and longer life

On all hinges; gives the highest weight rating in the industry

• CNC machined to perfection • Virtually frictionless rotation

• Inhibits rust and corrosion • No need to grind off before welding • On all components except stainless steel, aluminum and ‘rusted look’

Hinge Body (on gate)

• Fits round or flat surfaces • Decorative, brushed finish

Post bracket

High-temp sealed bearings

• Horizontally adjustable for accurate installations • Precision machining that fully utilizes the adjustment slots and maximizes welding surfaces

• Safe to powder-coat with hinges installed on gate (excluding CI3850 self-closing hinge and CI3800 Stainless Steel BadAss) • No greasing, no maintenance.

• Hinge options with 1, 2, 3 or 4 bearings • Performs better than roller cages that require periodic greasing

T

A

HIGH

B

Bolt-On BadAss™ CI3700

2 Sealed Bearings

Self-Closing CI3850

3 Sealed Bearings

DDTECH.COM

LED I USA

ZINC PLATED

N

Baby BadAss™ CI3600

1 Sealed Bearing

P SEALED B EM

S RING EA

• Innovative, shaped threads provide a vibration-resistant friction fit so nut stays firm • Top thread section is deformed to create two or three locking zones (can be re-used 2-3 times) • All-metal locknuts withstand higher temperatures than nylon-insert locknuts

SSEM

Unique Stover™ locknut

5 YEARS ON BEARINGS

BadAss™ Strap Hinge

4 Sealed Bearings

Shut-It® HINGES

57

BOLT-ON BADASS™ RANGE CODE

PRODUCT DESCRIPTION

**GAP VARIANCE

FINISH

BEARINGS

MAX GATE WEIGHT

YOKE MATERIAL

BODY MATERIAL

HINGE HEIGHT

CI3750

Baby Bolt-on

3”–31⁄2” (76-89mm)

Zinc Electroplated

1

300 lb (140kg)

Steel

Steel

4” (102mm)

CI3750B

Powder coat Baby Bolt-on

3”–31⁄2” (76-89mm)

Matt Black

1

300 lb (140kg)

Steel

Steel

4” (102mm)

CI3770

Half Bolt-on

23⁄4”–31⁄8” (67-80mm)

Zinc Electroplated

2

1,000 lb (450kg)

Steel

Steel

71⁄2” (191mm)

CI3780

Steel/Aluminum Half Bolt-On

23⁄4”–31⁄8” (67-80mm)

Zinc Electroplated /Unfinished

2

600 lb (270kg)

Steel

Alum

71⁄2” (191mm)

CI3700

Bolt-on

27⁄8”–33⁄8” (74-86mm)

Zinc Electroplated

2

1,000 lb (450kg)

Steel

Steel

71⁄2” (191mm)

CI3700B

Powder coat Bolt-on

27⁄8”–33⁄8” (74-86mm)

Matt Black

2

1,000 lb (450kg)

Steel

Steel

71⁄2” (191mm)

CI3720

Face Mount Bolt-on

1 ⁄2”–1” (13-25mm)

Zinc Electroplated

2

1,000 lb (450kg)

Steel

Steel

71⁄2” (191mm)

CI3720B

Powder coat Face Mount Bolt-on

1 ⁄2”–1” (13-25mm)

Matt Black

2

1,000 lb (450kg)

Steel

Steel

71⁄2” (191mm)

CI3740A

4” (102mm) Aluminum Half Bolt-on

3 ¼” - 3 ¾” (73-86 mm)

Unfinished

2

600 lb (270kg)

Alum

Alum

6” (152mm)

CI3740

4” (102mm) Combo Steel/Alum Half Bolt-on

3 ¼” - 3 ¾” (73-86 mm)

Zinc Electroplated /Unfinished

2

600 lb (270kg)

Steel

Alum

6” (152mm)

CI3760A

6” (152mm) Aluminum Body Half Bolt-on

3 ¼” - 3 ¾” (73-86 mm)

Unfinished

2

600 lb (270kg)

Alum

Alum

6” (152mm)

CI3950

Barrel Hinge – Bolt or weld-on

4

1,500 lb (680kg)

Steel

Steel

6” (152mm)

Fixed 1⁄2” (13mm) Zinc Electroplated

CI2051

4” (102mm) Round Bolt-on

2 ⁄4”–3 ⁄16” (70-81mm)

Zinc Electroplated

2

1,000 lb (450kg)

Steel

Steel

71⁄2” (191mm)

CI2053

6” (152mm) Round Bolt-on

23⁄4”–33⁄16” (70-81mm)

Zinc Electroplated

2

1,000 lb (450kg)

Steel

Steel

71⁄2” (191mm)

CI2054

8” (203mm) Round Bolt-on

23⁄4”–33⁄16” (70-81mm)

Zinc Electroplated

2

1,000 lb (450kg)

Steel

Steel

71⁄2” (191mm)

3

3

SELF-CLOSING BADASS™ RANGE (SC) HINGE HEIGHT

CODE

PRODUCT DESCRIPTION

**GAP VARIANCE

FINISH

BEARINGS

CI3825

Hinge/Closer, Center Mount, Weld-on

21⁄2”–3” (64-76mm)

Zinc Electroplated

3

*440 lb (200kg)

Steel

Steel

5” (127mm)

CI3850

Set – Closer + Hinge, Center Mount, Weld-on

21⁄2”–3” (64-76mm)

Zinc Electroplated

3/2

300 lb (140kg)

Steel

Steel

5”/33⁄4” 127/97mm

CI3825R

Hinge/Closer, Center Mount, Round Yoke

23⁄8”–27⁄8” (61-74mm)

Zinc Electroplated

3

*440 lb (200kg)

Steel

Steel

71⁄2” (191mm)

CI3850R

Set – Closer + Hinge, Center Mount, Weld-on

23⁄8”–27⁄8” (61-74mm)

Zinc Electroplated

3/2

300 lb (140kg)

Steel

Steel

71⁄2”/ 33⁄4” (191/97mm)

CI3825FM

Hinge/Closer, 180º Face Mount, Weld-On

1 ⁄2”–1” (13-25mm)

Zinc Electroplated

3

*440 lb (200kg)

Steel

Steel

6” (152mm)

1 ⁄2”–1” (13-25mm)

Zinc Electroplated

3/2

300 lb (140kg)

Steel

Steel

71⁄2”/ 6” (191/152mm)

CI3850FM Set – Closer + Hinge, 180º Face Mount, Weld-on

MAX SC GATE YOKE BODY WEIGHT MATERIAL MATERIAL

CI3835

Hinge/Closer, Center-Mount, Bolt-On

27⁄8”–33⁄8” (74-86mm)

Zinc Electroplated

3

*440 lb (200kg)

Steel

Steel

8 2/3” (220mm)

CI3860

Set – Closer + Hinge, Center-Mount, Bolt-On

27⁄8”–33⁄8” (74-86mm)

Zinc Electroplated

3/2

300 lb (140kg)

Steel

Steel

8 2/3”/ 71⁄2” (220/191mm)

CI3835FM

Hinge/Closer, 180º Face Mount, Bolt-On

1 ⁄2”–1” (13-25mm)

Zinc Electroplated

3

*440 lb (200kg)

Steel

Steel

8 2/3” (220mm)

CI3860FM

Set – Closer + Hinge, 180º Face Mount, Bolt-On

1 ⁄2”–1” (13-25mm)

Zinc Electroplated

3/2

300 lb (140kg)

Steel

Steel

8 2/3”/ 71⁄2” (220/191mm)

* Max self-closing weight of 440lb (200kg) is with 2 hinge/closers mounted to gate frame. † † Set comes with one self-closing hinge plus one CI3000.

58

Shut-It® HINGES

DDTECH.COM

CI3600 BABY

CI3620 RUSTED BABY

CI3670 COMBO BABY

CI3650 ALUMINUM BABY

CI3000 ORIGINAL

CI3100 RUSTED ORIGINAL

CI3200 COMBO ALUM/STEEL BODY

CI3300 COMBO STEEL/ALUM BODY

CI3000R CENTER MOUNT ROUND PIVOT HINGE (PAIR)

CI3400 ALUMINUM

CI3075 VERSAWELD™

CI3500 HEAVY DUTY

CI3050 FACE MOUNT WELD-ON

CI3520 100 YEAR

CI3800 STAINLESS STEEL

CI3900 6" (152mm) STRAP HINGE

CI3925 10" (254mm) STRAP HINGE

ELD-ON BADASS™ RANGE CODE

PRODUCT DESCRIPTION

**GAP VARIANCE

FINISH

BEARINGS

MAX GATE WEIGHT

YOKE MATERIAL

BODY MATERIAL

HINGE HEIGHT

CI3600

Baby Steel to Steel

21⁄2”–3” (64-76mm)

Zinc Electroplated

1

300 lb (140kg)

Steel

Steel

13⁄8” (33mm)

CI3620

Baby BadAss™ Rusted

21⁄2”–3” (64-76mm)

Unfinished

1

300 lb (140kg)

Steel

Steel

13⁄8” (33mm)

CI3650

Baby Aluminum to Aluminum

21⁄2”–3” (64-76mm)

Unfinished

1

300 lb (140kg)

Alum

Alum

13⁄8” (33mm)

CI3670

Baby Steel/Aluminum Combo

21⁄2”–3” (64-76mm)

Zinc Electroplated /Unfinished

1

300 lb (140kg)

Steel

Alum

13⁄8” (33mm)

CI3200

Alum/Steel Combo

23⁄8”–27⁄8” (61-74mm)

Unfinished/ Zinc Electroplated

2

600 lb (270kg)

Alum

Steel

33⁄4” (97mm)

CI3300

Steel/Alum Combo

23⁄8”–27⁄8” (61-74mm)

Zinc Electroplated /Unfinished

2

600 lb (270kg)

Steel

Alum

33⁄4” (97mm)

CI3400

Aluminum

23⁄8”–27⁄8” (61-74mm)

Unfinished

2

600 lb (270kg)

Alum

Alum

33⁄4” (97mm)

CI3800

Stainless Steel †

23⁄8”–27⁄8” (61-74mm)

304 Stainless

2

1,000 lb (450kg)

Stainless

Stainless

33⁄4” (97mm)

CI3000

The Original

23⁄8”–27⁄8” (61-74mm)

Zinc Electroplated

2

1,000 lb (450kg)

Steel

Steel

33⁄4” (97mm)

CI3100

Original BadAss™ Rusted

23⁄8”–27⁄8” (61-74mm)

Unfinished

2

1,000 lb (450kg)

Steel

Steel

33⁄4” (97mm)

CI3000R

Center Mount, Round Pivot Hinge (Pair)

23⁄8”–27⁄8” (61-74mm)

Zinc Electroplated

2/2

1,000 lb (450kg)

Steel

Steel

33⁄4” (97mm)

CI3500

Heavy Duty

23⁄8”–27⁄8” (61-74mm)

Zinc Electroplated

3

1,500 lb (680kg)

Steel

Steel

33⁄4” (97mm)

CI3520

100 Year

21⁄2”–3” (64-76mm)

Zinc Electroplated

3

1,500 lb (680kg)

Steel

Steel

41⁄8” (104mm)

CI3075

VersaWeld™

Fixed 23⁄4” (70mm)

Zinc Electroplated

2

1,000 lb (450kg)

Steel

Steel

33⁄4” (95mm)

CI3050

Face Mount Weld-on

1 ⁄2”–1” (13-25mm)

Zinc Electroplated

2

1,000 lb (450kg)

Steel

Steel

37⁄8” (98mm)

CI3900

152mm (6”) Strap Hinge

Fixed 1⁄2” (13mm)

Zinc Electroplated

4

1,500 lb (680kg)

Steel

Steel

6” (150mm)

CI3925

254mm (10”) Strap Hinge

Fixed 1⁄2” (13mm)

Zinc Electroplated

4

1,500 lb (680kg)

Steel

Steel

6” (150mm)

CI3975

Uphill Strap Hinge Set Includes 1x CI3900 + 1x CI3925

Fixed 1⁄2” (13mm)

Zinc Electroplated

4/4

1,500 lb (680kg)

Steel

Steel

6” (150mm)

Shut-It® HINGES

59

O LE F R ADA AB

E US

SU IT

**Adjustable yoke for perfect installations. † All components, including the sealed bearings, are stainless steel.

All weight ratings are based upon two hinges.

ADA Standards 404.2.8.2 Spring Hinges.

Door and gate spring hinges shall be adjusted so that, from the open position of 70 degrees, the door or gate shall move to the closed position in 1.5 seconds minimum.

DDTECH.COM

Bolt-On Range CODE

FINISH

FIXING

GAP BRACKET VARIANCE

BODY

HEIGHT WEIGHT INCH/MM LB/KG

CI3750

Zinc

Bolt-On

3”–31⁄2” (76-89mm)

Steel

Steel

4” (102mm)

2 lb (1kg)

CI3750B Matt Black Bolt-On

3”–31⁄2” (76-89mm)

Steel

Steel

4” (102mm)

2 lb (1kg)

Baby Bolt-on – Steel to Steel • Suits metal residential or small commercial gates • One sealed maintenance-free bearing • Horizontally adjustable for precise installations • Flat, bolt-on brackets for through-bolting • Maximum gate weight: 300 lb (140kg)

.54” (14mm) 2 PL

.54” (14mm) 2 PL

.9” (23mm)

1.3” (33mm)

2.75” (70mm)

HIGH

S RING EA

P SEALED B EM

4” (102mm)

1.8” (46mm)

SEALED

BEARINGS

T

.9” (23mm)

NEW 4” PRODUCT (102mm)

1

1.4 TO 1.9” (36-48mm) (ADJUSTABLE)

1.6” (41mm) (FIXED)

2.75” (70mm)

1.5” (38mm)

3 TO 3.5” (76-89mm) (ADJUSTABLE) .25” (6mm)

.75” (19mm)

.75” (19mm) 1.5” (38mm)

.25(6mm)

1.5” (38mm)

CI3770 Half Bolt-on – Steel to Steel CI3780 Half Bolt-on – Steel to Aluminum • Designed to bolt on to an end post • Two sealed maintenance-free bearings • Horizontally adjustable for precise installations • Flat, bolt-on brackets for through-bolting • CI3770 Maximum gate weight: 1000 lb (450kg) • CI3780 Maximum gate weight: 600 lb (270kg)

CODE

FINISH

FIXING

GAP VARIANCE

BRACKET

BODY

HEIGHT INCH/MM

WEIGHT LB/KG

CI3770

Zinc

Bolt-On / Weld

23⁄4”–31⁄8” (67-80mm)

Steel

Steel

71⁄2” (191mm)

2.5 lb (1.1kg)

CI3780

Zinc

Bolt-On / Weld

23⁄4”–31⁄8” (67-80mm)

Steel

Aluminum

71⁄2” (191mm)

2.4 lb (1.1kg)

.625” (16mm) 2 PL

2.4” (61mm)

2

SEALED

1.7” (43mm)

P SEALED B EM

HIGH

S RING EA

T

BEARINGS

1.5” (38mm)

3.8” (97mm)

5.4” 7.5” (137mm) (191mm)

1.25” (32mm) 2.8” (71mm)

2.4” (61mm)

.25” (6mm) 1.5” (38mm)

1.3 TO 1.8” (33-46mm) (ADJUSTABLE)

Bolt-on – Steel to Steel • Designed to bolt on to an end post • Two sealed maintenance-free bearings • Horizontally adjustable for precise installations • Flat, bolt-on brackets for through-bolting • Maximum gate weight: 1000 lb (450kg)

FINISH

FIXING

GAP BRACKET VARIANCE

BODY

HEIGHT WEIGHT INCH/MM LB/KG

CI3700

Zinc

Bolt-On

27⁄8”–33⁄8” (74-86mm)

Steel

Steel

71⁄2” (191mm)

3.5 lb (1.6kg)

CI3700B Matt Black Bolt-On

27⁄8”–33⁄8” (74-86mm)

Steel

Steel

71⁄2” (191mm)

3.5 lb (1.6kg)

.625” (16mm) 2 PL

.625” (16mm) 2 PL

2.4” (61mm)

HIGH

P SEALED B EM

S RING EA

T

CODE

NEW PRODUCT

2

SEALED

BEARINGS

1.1” (28mm)

2.7 TO 3.1” (69-79mm) (ADJUSTABLE)

7.5” (191mm) 1.7” (43mm)

5.4” (137mm)

7.5” (191mm)

3.8” (97mm)

2.8” (71mm)

5.4” (137mm)

2.4” (61mm)

.25” (6mm) 1.5” (38mm)

60

Shut-It® HINGES

DDTECH.COM

2.9 TO 3.4” (74-97mm) (ADJUSTABLE)

.25” (6mm)

1.5” (38mm)

1.1” (28mm)

CI3720 Face Mount Bolt-on – Steel to Steel • Achieve gate gaps as small as ½” (13mm) • No maintenance, smooth operation • Offers a full 180º gate opening • Adjustable bracket for round or square posts • Flat, bolt-on brackets for through-bolting • Maximum gate weight: 1000 lb (450kg)

CODE

FINISH

FIXING

GAP BRACKET VARIANCE

BODY

HEIGHT WEIGHT INCH/MM LB/KG

CI3720

Zinc

Bolt-On

1 ⁄2”–1” (13-25mm)

Steel

Steel

71⁄2” (191mm)

3.8 lb (1.7kg)

CI3720B Matt Black Bolt-On

1 ⁄2”–1” (13-25mm)

Steel

Steel

71⁄2” (191mm)

3.8 lb (1.7kg)

2.5" (64mm)

NEW PRODUCT

2

(

.625” (16mm)

SEALED

3.8" (98mm)

2.3" (59.7mm)

7.5" (190.5mm)

0.5" (12.7mm)

0.2" (5mm)

P SEALED B EM

HIGH

S RING EA

T

BEARINGS

1" (25.7mm)

1.5" (38 mm)

1.5" (38 mm)

CI2051 Round Bolt-on 4” (102mm) CI2053 Round Bolt-on 6” (152mm) CI2054 Round Bolt-on 8” (203mm) • Clamps to round post and bolts to flat post • Two sealed maintenance-free bearings • Horizontally adjustable for precise installations • Flat, bolt-on brackets for through-bolting • Maximum gate weight: 1000 lb (450kg)

CODE

FINISH

FIXING

GAP VARIANCE

BRACKET

BODY

HEIGHT INCH/MM

WEIGHT LB/KG

CI2051

Zinc

Bolt-On

23⁄4”–33⁄16” (70-81mm)

Steel

Steel

71⁄2” (191mm)

5 lb (2.3kg)

CI2053

Zinc

Bolt-On

23⁄4”–33⁄16” (70-81mm)

Steel

Steel

71⁄2” (191mm)

10 lb (4.5kg)

CI2054

Zinc

Bolt-On

23⁄4”–33⁄16” (70-81mm)

Steel

Steel

91⁄2” (241mm)

15 lb (6.8kg)

2" (50mm)

1.6” (41mm) 1.1” (28mm)

2

SEALED

HIGH

4” (102mm)

.25” (6mm) 3.75” (95mm)

P SEALED B EM

S RING EA

T

BEARINGS

6.625” (168mm)

.4” (10mm)

8.9 (226mm)

0.4" (10mm)

5.9” (150mm)

6.9" (175mm) 1.5” (38mm)

3.8” (97mm)

1.5” (38mm)

1.5" (38mm)

3.5” (89mm) (FIXED)

CI2051

5.75” (146mm)

4.9 TO 5.4” (124-137mm) (ADJUSTABLE)

6.9" (175mm)

5” (127mm) (FIXED)

CI2053

6" (152mm) (FIXED)

6.3 TO 6.8” (160-173mm) (ADJUSTABLE)

6.8" TO 7.5" (ADJUSTABLE)

CI2054

.625” (16mm) 2 PL

1.5” (38mm)

2.4” (61mm) 1.9” (48mm)

2.8” (71mm)

7.5” (191mm)

5.4” (137mm) 1.9” (48mm)

2.4” (61mm)

1.1” (28mm)

.25” (6mm)

DDTECH.COM

Shut-It® HINGES

61

Bolt-On Range Wide Bracket, Half Bolt-on/Weld-on Hinges CODE

FINISH

FIXING

GAP VARIANCE

HEIGHT INCH/MM

WEIGHT LB/KG

CI3740A

Unfinished

Bolt-on/ Weld

6” 3¼”–3¾” Aluminum Aluminum (152mm) (73–86mm)

3 lb (1.36kg)

CI3740

Zinc/ Unfinished

Bolt-on/ Weld

3¼”–3¾” (73–86mm)

6” (152mm)

4 lb (1.8kg)

CI3760A

Unfinished

Bolt-on/ Weld

6” 3¼”–3¾” Aluminum Aluminum (152mm) (73–86mm)

4 lb (1.8kg)

BRACKET

Steel

BODY

Aluminum

1.6" (41mm)

1.75" (44mm)

3.8" (97mm)

4.75" (121mm)

2.8" (71mm)

6" (152mm)

1.6" (41mm)

.25" (6mm)

2.8" (71mm)

1.3" TO 1.8" (33-46mm) (ADJUSTABLE)

0.625 (16mm) 4 PL

4" (102mm)

2.7" TO 3.2" (69-79mm) (ADJUSTABLE) 1.6" (41mm)

HIGH

BEARINGS

2.8" (71mm)

1.5" (38mm)

4.75" (121mm)

6" (152mm)

P SEALED B EM

G RIN S EA

G ASIN REQ RE

T

1.75" (44mm)

D RE UI

SEALED

NO G

1.7" (43mm)

3.8" (97mm)

1.6" (41mm)

CI3740 – 4” (102mm) Combo Steel /Aluminum Body Half Bolt-on .25" (6mm) CI3740A – 4” (102mm) Aluminum Half Bolt-on 1.3" TO 1.8" Made to bolt/weld to 4” or 5” (102 - 127mm) posts

(33-46mm) (ADJUSTABLE)

4.75" (121mm) 6" (152mm)

0.625 (16mm) 4 PL

(69-79mm) CI3760A – 6” (152mm) Aluminum Body Half Bolt-on (ADJUSTABLE)

2.7" TO 3.2"

Made to bolt or weld to 6” (152mm) or larger fence posts

• Wider brackets enable anchor points to be positioned at the sides, rather than center of fence post • Side mounting reduces flex, preventing fatigue in post • High-temperature sealed bearings - safe to powder-coat with hinges installed on gate • No greasing, no maintenance – ever!

1.7" 1.5" (43mm) (38mm) • Precision bushing - distributes gate load for optimal performance and longer life • CNC machined to perfection for near frictionless movement • Maximum Gate Load: 1,000 lb (450kg) • Maximum Gate Weight: 600 lb (270kg)

62

Shut-It® HINGES

DDTECH.COM

Lorem ipsum

CI3950 Barrel Bolt/Weld-on – Steel to Steel • The strongest, most versatile metal-gate GAP HEIGHT WEIGHT CODE FINISH FIXING BRACKET BODY VARIANCE INCH/MM LB/KG hinge on the market Fixed 4.0 lb 57⁄8” • Bolt-on or weld-on models for heavy duty gates CI3950 Zinc Bolt-On 1⁄2” or 31⁄2” Steel Steel (1.8kg) (150mm) (13 or 89mm) • Four sealed maintenance-free bearings • Offers a full 180º gate opening • Gate gap fixed at ½” or 3½” (13mm or 89 mm) depending on mounting • Maximum gate weight: 1500 lb (680kg) 2.6” (66mm)

2.6” (66mm) 1.9” (48mm)

1.7” (43mm)

SEALED BEARINGS

1” (25mm)

1.7” (43mm)

.4” (10mm)

1” (25mm) 2X .5” (13mm)

2X 1” (25mm)

1.85” (47mm)

.25” (6mm)

G ASIN REQ RE

2X 2” (51mm) 5.9” (150mm)

D RE UI

NO G

1.9” (48mm)

HIGH

G RIN S EA

T

2.25” (57mm) P SEALED B EM

4X .4” (10mm) SLOTS FOR 3/8 BOLTS 2X .5” (13mm)

Choosing the correct Shut-It® hinges for your gate D&D has set up a series of charts to help choose the correct pair of Shut It® hinges depending on the size, material and weight of a gate.

The calculated gate weight charts are based on a symmetrical gate design where the center of gravity can be determined.

This calculation is a guideline only and used for the purpose of estimating. Depending on the materials used and the design, the gate weight may differ.

The calculated maximum gate weight excludes the weight of the hardware, e.g., latches and drop bolts, which needs to be considered. In the case of borderline load requirements, use a higher weight capacity hinge for maximum safety.

IMPERIAL CHARTS

Where welding is required, it is suggested to follow sound engineering practices.

If weather conditions such as wind plays a role, use hinge combinations with a higher weight capacity.

The chart provides an overview of maximum load value for a pair of hinge type, taking into consideration the ratio of the width and height of the gate as well as the hinge spacing.

METRIC CHARTS

DDTECH.COM

Shut-It® HINGES

63

Self-Closing Range CI3825 Weld-On, Closer CI3850 Weld-On, SC Set • Set contains CI3825 + CI3000 • Suits restricted-access and industrial gates • Eliminates the need to fit a gate closer • Installation must include a gate-stop or latch/lock • 5 tension-adjustment settings (inc. bracket) • Max self-closing weight: 300 lb (140kg) (CI3850 set) • Max self-closing weight: 440 lb (200kg) (2 x CI3825)

CODE

FINISH

FIXING

GAP VARIANCE

BRACKET

BODY

HEIGHT INCH/MM

CI3825

Zinc

Weld-on

21⁄2”–3” (64-76mm)

Steel

Steel

5” (152mm)

CI3850 (Set)

Zinc

Weld-on

21⁄2”–3” (64-76mm)

Steel

Steel

5”/33⁄4” 127/97mm)

CODE

FINISH

FIXING

GAP VARIANCE

BRACKET

BODY

HEIGHT INCH/MM

CI3825R

Zinc

Weld-on

23⁄8”–27⁄8” (61-74mm)

Steel

Steel

71⁄2” (191mm)

CI3850R (Set)

Zinc

Weld-on

23⁄8”–27⁄8” (61-74mm)

Steel

Steel

71⁄2”/ 33⁄4” (191/97mm)

CODE

FINISH

FIXING

GAP VARIANCE

BRACKET

BODY

HEIGHT INCH/MM

Zinc

Weld-on

1 ⁄2”–1” (13-25mm)

Steel

Steel

6” (152mm)

Zinc

Weld-on

1 ⁄2”–1” (13-25mm)

Steel

Steel

71⁄2”/ 6” (191/152mm

SEALED

OSING AC CL T F-

N IO

SEL

BEARINGS

CI3825R Center Mount, Round Post, Closer CI3850R Center Mount, Round Post, SC Set

SEALED

OSING AC CL T F-

N IO

CI3825FM Weld-on, Face-Mount, Closer CI3850FM Weld-on, Face-Mount, SC Set

1" (25.7mm) 4.1" (104mm)

64

0.5" (12.7mm)

(

1.7" 43mm)

Shut-It® HINGES

2.2" (55mm)

2.3" (59.7mm)

BEARINGS

3.8" (98mm)

0.5" (12.7mm)

2.2" (55mm)

SEALED

1.5" 37.5mm)

(

1.5" 37.5mm)

(

2.8" (71mm)

3.8" (98mm)

0.2" (4.8mm)

• Set contains CI3825FM + CI3050 CI3825FM • Offers a 180º gate opening for unobstructed passage CI3850FM • Horizontally adjustable from 13mm to 25mm • Quiet and smooth operation • Max self-closing weight: 300 lb (140kg) (CI3850FM set) • Max self-closing weight: 440 lb (200kg) (2 x CI3825FM)

2.8" (71mm)

SEL

BEARINGS

0.2" (4.8mm)

• Set contains CI3825R + CI3000R • Post and frame mounting brackets are concaved • Easy weld-on installation for round posts • Eliminates the need to fit a gate closer • 5 tension adjustment settings • Max self-closing weight: 300 lb (140kg) (CI3850R set) • Max self-closing weight: 440 lb (200kg) (2 x CI3825R)

DDTECH.COM

1 (25.7 4.1" (104mm)

(

1.7" 43mm)

NEW PRODUCT

CI3835 Center-Mount Bolt-On Closer CI3860 Center-Mount Bolt-On SC Set

FINISH

FIXING

GAP VARIANCE

BRACKET

BODY

HEIGHT INCH/MM

CI3835

Zinc

Bolt-on

27⁄8”–33⁄8” (74-86mm)

Steel

Steel

8 2/3” (220mm)

CI3860 (Set)

Zinc

Bolt-on

27⁄8”–33⁄8” (74-86mm)

Steel

Steel

8 2/3”/ 71⁄2” (220/191mm)

16mm 16mm 2 PL

OSING AC CL T F-

N IO

SEL

• Set contains CI3835 + CI3700 • High traffic, no maintenance, smooth operation • Compatible for use on aluminium gates • Flat, bolt-on brackets for through-bolting • Max self-closing weight: 300 lb (140kg) (CI3860 set) CI3835 05-0329 • Max self-closing weight: 440 lb (200kg) (2 x CI3835)

CODE

2 PL

61mm 61mm 3 1/4" 83mm

16mm 2 PL

6 9/16" 167mm

43mm 43mm

3.8”

71mm 71mm

8 11/16" 221mm

BEARINGS

97mm 97mm

5 1/4" 133mm

1 1/2" 38mm

4 1/8" 105mm

191mm191mm

SEALED

3.8”

137mm137mm

61mm

61mm 61mm 5/8" 16

191mm 3.8”

71mm 3/4" 19mm

1 11/16" 43mm

61mm

FIXING

GAP VARIANCE

BRACKET

BODY

HEIGHT INCH/MM

Bolt-on

1 ⁄2”–1” (13-25mm)

Steel

Steel

8 2/3” (220mm)

1 ⁄2”–1” (13-25mm)

Steel

Steel

8 2/3”/ 71⁄2” (220/191mm)

6mm 1 1/2" 38mm

Bolt-on 3/4" 19mm

28mm

38mm

1 1/2" 38mm

9/16" - 1 1/16" [14mm - 27mm] GATE GAP ADJUSTMENT

3 3/4" 96mm

5/8" 16

3/4" 19mm

2.5" (64mm)

(

9/16" - 1 1/16" [14mm - 27mm] GATE GAP ADJUSTMENT

1" (25.7mm)

3 3/4" 96mm

CI3835FM 05-0331 3/4" 19mm

1.5" (38.1mm)

1.5" (38.1mm)

1" (25.7mm)

5/8" 16

1.5" (38.1mm)

1 1/2" 38mm

1.5" (38.1mm)

1 1/2" 38mm

3/4" 19mm

1 1/2" 38mm

6 9/16" 167mm

8 11/16" 221mm

4 1/8" 105mm

2 9/16" 66mm

3 3/4" 96mm

9/16" - 1 1/16" [14mm - 27mm] GATE GAP ADJUSTMENT

3 3/4" 96mm

3/4" 19mm

1 1/2" 38mm 3 3/4" 96mm

DDTECH.COM

Shut-It® HINGES

65

3.8" (98mm)

2.3" (59.7mm)

8 11/16" 221mm

6 9/16" 167mm

0.5" (12.7mm)

0.2" (5mm)

0.2" (5mm) 1 1/2" 38mm

8 11/16" 221mm

4 1/8" 105mm

2 9/16" 66mm 3/4" 19mm

0.6" 16.3mm)

0.5" (12.7mm)

2.3" (59.7mm)

0.6" 16.3mm)

(

1 1/2" 38mm 3 3/4" 96mm

7.5" (190.5mm)

2.5" (64mm)

1 1/2" 38mm

6 9/16" 167mm

FINISH

8 11/16" 221mm

CODE

28mm 28mm

38mm 38mm

6mm

137mm

(ADJUSTABLE) (ADJUSTABLE)

8 11/16" 221mm

SEL

N IO

CI3835FM 05-0331

6mm 74-97mm 74-97mm

5/8" 16

• Set contains CI3835FM + CI3720 CI3835FM Zinc • Offers a 180º gate opening for unobstructed passage .25” 6mm CI3860FM 74-97mm Zinc • Horizontally adjustable from 13mm to 25mm (ADJUSTABLE) • Flat, bolt-on brackets for through-bolting • Max self-closing weight: 300 lb (140kg) (CI3860FM set) • Max self-closing weight: 440 lb (200kg) (2 x CI3835FM) OSING AC CL T F-

6mm

CI3835FM 05-0331

2 7/8" - 3 3/8" [73mm - 86mm] (ADJUSTABLE)

CI3835FM Face-Mount Bolt-On Closer CI3860FM Face-Mount Bolt-On SC Set

.25”

6mm

4 1/8" 105mm

3 1/4" 83mm

.25”

3.8" (98mm)

97mm

2 9/16" 66mm

43mm

P SEALED B EM

HIGH

1

S RING EA

CI3600 – Baby BadAss™ Steel CI3620 – Baby BadAss™ ‘Rusted’ CI3650 – Baby BadAss™ Aluminum CI3670 – Baby BadAss™ Combo

T

Weld-On Range

SEALED BEARING

CODE

FINISH

FIXING

GAP VARIANCE

BRACKET

BODY

HEIGHT INCH/MM

WEIGHT LB/KG

CI3600

Zinc

Weld

21⁄2”–3” (64–76mm)

Steel

Steel

13⁄8” (33mm)

1 lb (0.5kg)

CI3620

Unfinished

Weld

21⁄2”–3” (64–76mm)

Steel

Steel

13⁄8” (33mm)

1 lb (0.5kg)

CI3650

Unfinished

Weld

21⁄2”–3” (64–76mm)

13⁄8” (33mm)

1 lb (0.5kg)

CI3670

Zinc/ Unfinished

Weld

21⁄2”–3” (64–76mm)

13⁄8” (33mm)

1 lb (0.5kg)

• One sealed maintenance-free bearing (no greasing) • High-temp bearings safe to powder-coat • Designed for lighter gates 2.5 TO 3” (64-76mm) • Horizontally adjustable (ADJUSTABLE) 1.2 TO 1.7” 1.4” • Ideal for square or round post installations (30-43mm) (36mm) (ADJUSTABLE) (FIXED) • Load rating per gate: 500 lb (230kg) • Maximum gate weight: 300 lb (140kg)

Aluminum Aluminum Steel

Aluminum

1.8” (46mm)

1.7” (43mm)

66

Shut-It® HINGES

1.5” (38mm)

HIGH

BEARINGS

FINISH

FIXING

GAP VARIANCE

BRACKET

BODY

HEIGHT INCH/MM

WEIGHT LB/KG

CI3000

Zinc

Weld

23⁄8”–27⁄8” (61–74mm)

Steel

Steel

33⁄4” (97mm)

2.5 lb (1.1kg)

CI3100

Unfinished

Weld

23⁄8”–27⁄8” (61–74mm)

Steel

Steel

33⁄4” (97mm)

2.5 lb (1.1kg)

.2” (5mm)

3.8” 2.8 (97-mm) (71mm)”

2.4 TO 2.9” (61-74mm) 1.5” (ADJUSTABLE) (38mm)

1.5” (38mm)

SEALED

P SEALED B EM

CODE

• Adjustable bracket for precise installations • Two sealed maintenance-free bearings • High-temp bearings safe to powder-coat 2.4 TO 2.9” • Hinge body welds to either flat or round(61-74mm) posts (ADJUSTABLE) • Load rating per gate: 2,000 lb (900kg) • Maximum gate weight: 1,000 lb (450kg) 1.7” (43mm)

2

S RING EA

CI3000 – Original BadAss™ CI3100 – Original BadAss™ ‘Rusted’

T

0.28

.75” (19mm)

1.3” (33mm)

.5” (13mm)

3.8” 2.8 (97-mm) (71mm)”

1.5” (38mm)

DDTECH.COM

1.1 TO 1.5” (28-38mm) (ADJUSTABLE) 1.1 TO 1.5” (28-38mm) (ADJUSTABLE)

1.25” (32mm)

.2” (5mm)

1.25” (32mm)

SEALED

T

P SEALED B EM

HIGH

2

S RING EA

CI3200 – BadAss™ Combo Steel Body CI3300 – BadAss™ Combo Aluminum Body CI3400 – The Aluminum BadAss™

BEARINGS

CODE

FINISH

FIXING

GAP VARIANCE

BRACKET

BODY

HEIGHT INCH/MM

WEIGHT LB/KG

CI3200

Zinc/ Unfinished

Weld

23⁄8”–27⁄8” (61–74mm)

Aluminum

Steel

33⁄4” (97mm)

2.5 lb (1.1kg)

CI3300

Zinc/ Unfinished

Weld

23⁄8”–27⁄8” (61–74mm)

Steel

Aluminum

33⁄4” (97mm)

2 lb (1kg)

CI3400

Unfinished

Weld

23⁄8”–27⁄8” (61–74mm)

Aluminum Aluminum

33⁄4” (97mm)

2 lb (1kg)

• Adjustable bracket for precise installations • High-temp bearings safe to powder-coat • Two sealed maintenance-free bearings (per hinge) 2.4 TO 2.9” • Perfect for that high-end installation (61mm-74mm) (ADJUSTABLE) • Round or plate post installations • Load rating per gate: 1,000 lb (450kg) 2.4 TO 2.9” (61mm-74mm) 1.7” 1.5” • Maximum gate weight: 600 lb (270kg) (ADJUSTABLE) (43mm) (38mm)

.2” (5mm)

.2” (5mm) 3.8” 2.8” (97mm) (71mm)

1.5” (38mm)

1.7” 1.5” (43mm) (38mm)

1.25” (32mm)

3.8” 2.8” (97mm) (71mm)

1.5” (38mm)

1.25” (32mm)

1.1 TO 1.5” (28mm-38mm) (ADJUSTABLE)

SEALED

HIGH

CI3800 – Stainless Steel BadAss™

P SEALED B EM

S RING EA

2

T

1.1 TO 1.5” (28mm-38mm) (ADJUSTABLE)

BEARINGS

CODE

FINISH

FIXING

GAP VARIANCE

BRACKET

BODY

HEIGHT INCH/MM

WEIGHT LB/KG

CI3800

Unfinished

Weld

23⁄8”–27⁄8” (61–74mm)

Stainless

Stainless

33⁄4” (97mm)

2.5 lb (1.1kg)

• 304 stainless steel includes the bearings, shaft (bolt), washers, retaining ring and locknut • Two sealed maintenance-free bearings (no greasing) • Adjustable yoke for perfect installations • Hinge body welds to either flat or round posts • Load rating per gate: 2,000 lb (900kg) 2.4 TO 2.9” • Maximum gate weight: 1,000 lb (450kg) (61mm-74mm)

.2” (5mm)

(ADJUSTABLE)

1.7” 1.5” (43mm) (38mm)

3.8” 2.8” (97mm) (71mm)

1.25” (32mm)

1.5” (38mm)

1.1 TO 1.5” (28mm-38mm) (ADJUSTABLE)

DDTECH.COM

Shut-It® HINGES

67

Weld-On Range CI3500 – Heavy Duty BadAss™

3

SEALED

P SEALED B EM

HIGH

S RING EA

T

BEARINGS

CODE

FINISH

FIXING

GAP VARIANCE

BRACKET

BODY

HEIGHT INCH/MM

WEIGHT LB/KG

CI3500

Zinc

Weld

23⁄8”–27⁄8” (61–74mm)

Steel

Steel

33⁄4” (97mm)

3.5 lb (1.6kg)

5mm

• High-temp bearings safe to powder-coat • Adjustable bracket for perfect installations • Hinge body welds to either flat or round posts 43mm 38mm • Holds 50% more load than the ‘Original’ BadAss • Load rating per gate: 3,000 lb (1,360kg) • Maximum gate weight: 1,500 lb (680kg)

61-74mm ADJUSTABLE

44mm

97mm 71mm 38mm

28-38mm ADJUSTABLE

CI3520 – 100 Year BadAss™ 3

SEALED

P SEALED B EM

HIGH

S RING EA

T

BEARINGS

CODE

FINISH

FIXING

GAP VARIANCE

BRACKET

BODY

HEIGHT INCH/MM

WEIGHT LB/KG

CI3520

Zinc

Weld

21⁄2”–3” (64–76mm)

Steel

Steel

4” (104mm)

3.5 lb (1.6kg) .3” (8mm)

• High-temp bearings safe to powder-coat • Thicker bracket and higher-tensile shaft • Hinge body welds to either flat or round posts • Adjustable bracket for precise installations • Guaranteed for 100 years!

• Load rating per gate: 3,000 lb (1,360kg) • Maximum gate weight: 1,500 lb (680kg)

2

1.7” (43mm)

1.75” (44mm)

1.5” (38mm)

1.2 TO 1.7” (30-43mm) (ADJUSTABLE)

FIXING

GAP VARIANCE

BRACKET

BODY

HEIGHT INCH/MM

WEIGHT LB/KG

CI3050

Zinc

Weld

1 ⁄2”–1” (13–25mm)

Steel

Steel

37⁄8” (98mm)

1.8 lb (0.8kg)

1.5" 37.5mm)

(

0.5" (12.7mm)

2.2" (55mm)

2.3" (59.7mm)

0.2" (4.8mm)

FINISH

2.8" (71mm)

• Opens to 180° • Achieve gate gaps as small as 1⁄2“ (13mm) • Horizontally adjustable to 1⁄2“ (13mm) • High-temp bearings safe to powder-coat • Load rating per gate: 2,000 lb (900kg) • Maximum gate weight: 1,000 lb (450kg)

CODE

3.8" (98mm)

T HIGH

S RING EA

P SEALED B EM

Shut-It® HINGES

3.1” 4.1” (104mm) (79mm)

CI3050 – Face Mount Weld-On BadAss™

SEALED

BEARINGS

68

2.5 TO 3” (64-76mm) (ADJUSTABLE)

1" (25.7mm) 4.1" (104mm)

DDTECH.COM

(

1.7" 43mm)

CI3075 – VersaWeld™ BadAss™ Hinge 2

BODY Steel

33⁄4” (95mm)

2.2 lb (1kg)

Steel

2 13/64" (56mm)

(

1 17/64" (32mm)

• One simple hinge that welds on nearly any gate right out of the box • Fits either flat or round posts or gates no adaptors needed • High-temp bearings safe to powder-coat • Smoother than traditional block or barrel hinges 2 43/64" • 2 sealed ball bearings (68mm) • Maintenance-free, never needs lubrication • Load rating per gate: 2,000 lb (900kg) • Maximum gate weight: 1,000 lb (450kg)

P SEALED B EM

1 11/16" 43mm)

3 55/64" (98mm)

Weld-On

Flat posts: Fixed 23⁄4” (70mm).

Round posts: no gap.

BRACKET

T

GATE GAP

HIGH

Zinc

FIXING

SEALED

BEARINGS

S RING EA

CI3075

FINISH

WEIGHT LB/KG

1 17/64" (32mm)

CODE

HEIGHT INCH/MM

2 13/64" (55.56mm)

Shut-It® benefits of powder-coating with hinges installed on the gate

NO G

HIGH

G ASIN REQ RE

D RE UI

P SEALED B EM

G RIN S EA

T

• High-temperature sealed bearings • No need to remove bearings prior to powder-coating • Applies to all Shut-It® hinges, except all self-closing models and stainless steel model (CI3800) • No more need for welding in the field • Consistent, high-quality finish • Gate, fence, hinge and weld finish all color match • No greasing, no maintenance - ever!

• Horizontal adjustability for perfect installation • Tested to over 1 million open/close cycles • Shut It® now offers matte black, powder coated hinges (CI3700B • CI3720B • CI3750B)

DDTECH.COM

Shut-It® HINGES

69

CI3975 Uphill BadAss™ Strap Hinge Set

P SEALED B EM

HIGH

S RING EA

T

(Includes: 1x CI3900 + 1x CI3925)

4

SEALED BEARING

CODE

FINISH

FIXING

GAP BRACKET VARIANCE

BODY

HEIGHT INCH/MM

WEIGHT LB/KG

CI3975

Zinc

Weld

Fixed 1⁄2” (13mm)

Steel

6” (150mm)

13.5 lb (6.1kg)

Steel

PER HINGE

• Suitable for motorized, uphill or heavy gates • High-temp bearings safe to powder-coat • For square-posted, weld-on installations • Zinc electroplated external components • Swings 180º; fixed gap variance 1⁄2“ (13mm) • Leaf straps can be cut to length • Load rating per gate: 3,000 lb (1,360kg) • Maximum gate weight: 1,500 lb (680kg)

ROAD

DRIVEWAY

DRIVEWAY

ROAD

SLOPE GRADIENT MATRIX AVAILABLE ON D&D’S WEBSITE OR BY REQUEST

CI3900 – 6” (152mm) BadAss™ Strap-Hinge 1.85” (47mm)

.4” (10mm)

CODE

FINISH

CI3900

FIXING

Zinc

Weld

GAP BRACKET VARIANCE

BODY

HEIGHT INCH/MM

WEIGHT LB/KG

Fixed ⁄2” (13mm)

Steel

6” (150mm)

6 lb (2.7kg)

.4” 1 (10mm)

Steel

6.9” (175mm) 6” (152mm)

2” (51mm) .25” (6mm) 6” (152mm)

1.85” (47mm)

.4” (10mm)

2” (51mm)

.4” (10mm)

1” (25mm) 6.9” (175mm)

6” (152mm)

6” (152mm)

6.9” (175mm)

CI3925 – 10” (245mm) BadAss™ Strap-Hinge

2” (51mm)

.25” (6mm)

1.85” (47mm)

.4” (10mm)

6” (152mm)

CODE

FINISH 2” (51mm) FIXING

CI3925

Zinc

Fixed 1⁄2” (13mm)

1” (25mm)

GAP BRACKET .4” VARIANCE (10mm)

BODY

HEIGHT INCH/MM

WEIGHT LB/KG

3”–31⁄2” (76–89mm)

Steel

6” (150mm)

7.5 lb (3.4kg)

Steel

6” (152mm)

10.9” (277mm)

6.9” (175mm)

10” (254mm)

2” (51mm) .25” (6mm) 5.9” (150mm) 2” (51mm)

1.85” (47mm)

.4” (10mm)

.4” (10mm)

1” (25mm)

10” (254mm) 10.9” (277mm)

10.9” (277mm)

70

Shut-It® HINGES

10” (254mm)

DDTECH.COM .25” (6mm) 5.9”

2” (51mm)

SHUTIt

Brilliant designs. Badass Products. Epic Results The Shut-It® Hardware story Shut-It® Gate Hardware starts as Counsel Industries LLC and becomes an early leader in the design and distribution of hardware and gate systems for the fence and access control industries.

Mid-1990s: As vehicular access control begins to explode as an industry, two veterans of the fence and access control industries discovered that many of their maintenance and repair issues for automated gate systems were being caused by the faulty or inferior hardware used on many gates.

With the help of a team of engineers and an award-winning CNC machinist, Counsel leaders set out to develop a line of products that would eliminate the damage caused to expensive operator systems and gates. After years of development and field testing, Counsel Industries was born.

1998: Counsel begins marketing innovative gate solutions designed to ease installation requirements and eliminate premature wear on expensive, automated gate-operator systems.

2010: Counsel rebrands itself as Shut-It® Gate Hardware in order to better reflect what the company had become Brilliant Designs. BadAss Products. Epic Results.

2016: D&D Technologies acquires Shut-It® Gate Hardware.

BadAss hinges, HardCore Wheels, full cantilever and slider systems are added to the D&D family of products.

D&D + Shut-It®: providing the industry with the broadest range of gate hardware.

2019: The VersaWeld hinge is added (CI3075). Designed for round or flat posts without the need for an adaptor, giving installers a single hinge that they can weld to just about any steel gate.

• Weld-on and bolt-on Face Mount hinges (CI3050 & CI3720) are introduced, enabling full, unobstructed 180˚openings.

• To reduce flexing on 4” (102mm) wide posts, three models of hinges with wider mounting brackets (CI3740A, CI3740 & CI3760A) are introduced to ensure added strength and longevity.

2021: A face-mounted, self-closing hinge set (CI3880) is added and features both vertical and horizontal adjustability.

The Shut-It® difference • CNC machined to the tightest tolerances in the industry • Unique bushing design produces near-frictionless movement and maintenance-free usage • Highest-quality sealed radial ball bearings never need greasing or maintenance • Four different sealed bearing configurations – 1, 2, 3 or 4 bearings per hinge; 2 bearings per wheel.

• All components are zinc electroplated to prevent rust and corrosion - exceptions: aluminum, stainless steel and rusted look • Steel Stover™ lock-nuts used to prevent loosening and slipping • Super-hard, cold-rolled steel used on all HardCore wheels; literally Hard to the Core • Slotted yokes for horizontal adjustability

Proper welding Warning: Hinges will be damaged if electrical welding current is not properly grounded, resulting in the Warranty being made void.

• Damage can be caused by excessive heat or by welding current passing through the bearings.

Ensure that the welding ground is always on the side being welded.

Current must not pass through the bearings or severe damage will result.

• To prevent heat-related damage to the bearings, the welding process must be done in several small segments.

Weld one surface at a time and alternate between top and bottom hinge.

After each small segment is welded, the hinge should be allowed to cool before welding the next segment.

• Use general, field-welding operations with suitable heat transfer controls.

Protect hinge from weld spatter.

• Clean up and finish with appropriate corrosion and rust protection.

DDTECH.COM

Shut-It® HINGES

71

SHUTIt

HARDCORE™

Anatomy of a Shut-It® Gate Wheel Zinc electroplating

Hardest steel

• Long lasting rust and corrosion protection • On all wheel components except aluminum carriage plates

• At Shut-It® we use the hardest steel in the industry in our wheels, making them literally ‘Hard to the Core’ (30 RC Rated)

Tightest tolerance in the industry • Virtually frictionless rotation

Spacer (bushing)

• Spacer options for 11⁄2" (38mm) and 2" (50mm) wide gate profiles • Distributes load directly onto the center ring of the sealed bearings for optimal performance and long life

Two sealed bearings

• Require no greasing • Maintenance free

Narrow wheel profile

• Reduces possibility of wheel hitting debris and running off track

Carriage plates

FOR CANTILEVER AND SLIDING GATE INSTALLATIONS SEE P.79-80

• Most versatile in assuring proper spacing under gates • No need to stock multiple wheel boxes • Less obtrusive than wheel boxes • Fits to all common gate widths • Vertically adjustable • Available in aluminum and steel

72

Shut-It® GATE WHEELS

DDTECH.COM

SHUTIt

CI2240 HARDCORE™ CANTILEVER WHEEL ASSEMBLY

CI2300 HARDCORE™ GATE GUIDE ASSEMBLY

HARDCORE™

CI2515 4” V-GROOVE WHEEL WITH CARRIAGE PLATES

CI2715 6” V-GROOVE WHEEL WITH CARRIAGE PLATES

# OF MAX GATE MAX GATE SEALED WEIGHT LOAD BEARINGS

CI2415 4” V-GROOVE WHEEL

CI2620 6” V-GROOVE WHEEL

WHEEL MATERIAL

CARRIAGE PLATE MATERIAL

HEIGHT INCH/MM

WEIGHT LB/KG

-

-

Steel

4" (102mm)

2 lb (1kg)

-

-

-

Aluminum

4" (102mm)

1.5 lb (0.7kg)

-

-

-

-

Steel

6" (152mm)

3.5 lb (1.6kg)

Aluminum

-

-

-

-

Aluminum

6" (152mm)

2 lb (1kg)

Weld

Zinc

2

1,500 lb (680kg)

3,000 lb (1,360kg)

Steel

-

6" (152mm)

5 lb (2.3kg)

6” (152mm) Cantilever Wheel Assembly

Weld

Zinc

2

1,500 lb (680kg)

3,000 lb (1,360kg)

Steel

-

8" (203mm)

10.5 lb (4.8kg)

CI2300

Guide Assembly

Weld

Zinc

2

-

-

-

-

6" (152mm)

4 lb (1.8kg)

CI2350

Extended Guide Assembly

Weld

Zinc

2

-

-

-

-

10" (254mm)

4.5 lb (2kg)

CI2340

4” (102mm) Carriage Cap

Weld

Zinc

-

-

-

-

-

6" (152mm)

1 lb (0.5kg)

CI2360

6” (152mm) Carriage Cap

Weld

Zinc

-

-

-

-

-

8" (203mm)

1.5 lb (0.7kg)

CI2415

4” (102mm) Wheel - 11⁄2” (38mm) Frame

Bolts to plates

Zinc

2

1,500 lb (680kg)

3,000 lb (1,360kg)

Steel

-

4" (102mm)

4.5 lb (2kg)

CI2420

4” (102mm) Wheel - 2” (51mm) Frame

Bolts to plates

Zinc

2

1,500 lb (680kg)

3,000 lb (1,360kg)

Steel

-

4" (102mm)

4.5 lb (2kg)

CI2515

4” (102mm) Wheel - 11⁄2” (38mm) Frame Set *

Weld

Zinc

2

1,500 lb (680kg)

3,000 lb (1,360kg)

Steel

Steel

4" (102mm)

6 lb (2.7kg)

CI2520

4” (102mm) Wheel - 2” (51mm) Frame Set *

Weld

Zinc

2

1,500 lb (680kg)

3,000 lb (1,360kg)

Steel

Steel

4" (102mm)

6 lb (2.7kg)

CI2615

6” (152mm) Wheel - 11⁄2” (38mm) Frame

Bolts to plates

Zinc

2

2,200 lb (1,000kg)

5,000 lb (2,270kg)

Steel

-

6" (152mm)

9 lb (4kg)

CI2620

6” (152mm) Wheel - 2” (51mm) Frame

Bolts to plates

Zinc

2

2,200 lb (1,000kg)

5,000 lb (2,270kg)

Steel

-

6" (152mm)

9.5 lb (4.3kg)

CI2625

6” (152mm) Wheel For Wheel Boxes †

Bolts to box

Zinc

2

2,200 lb (1,000kg)

5,000 lb (2,270kg)

Steel

-

6" (152mm)

9.5 lb (4.3kg)

CI2715

6” (152mm) Wheel 11⁄2” (38mm) Frame Set *

Weld

Zinc

2

2,200 lb (1,000kg)

5,000 lb (2,270kg)

Steel

Steel

6" (152mm)

12 lb (5.4kg)

CI2720

6” (152mm) Wheel 2” (51mm) Frame Set *

Weld

Zinc

2

2,200 lb (1,000kg)

5,000 lb (2,270kg)

Steel

Steel

6" (152mm)

12.5 lb (6kg)

CODE

PRODUCT NAME**

FIXING METHOD

FINISH

CI2140

4” (102mm) Carriage Plate Set - Steel ††

Weld

Zinc

-

-

CI2140A

4” (102mm) Carriage Plate Set - Aluminum ††

Weld

Aluminum

-

CI2160

6” (152mm) Carriage Plate Set - Steel ††

Weld

Zinc

CI2160A

6” (152mm) Carriage Plate Set - Aluminum ††

Weld

CI2240

4” (102mm) Cantilever Wheel Assembly

CI2260

All weight ratings are based upon two wheels. * Includes one wheel and two slotted carriage plates. ** All wheels include axle bolt, washers and locknuts. † For retrofit/repair † † Set includes two slotted carriage plates.

DDTECH.COM

Shut-It® GATE WHEELS

73

V-Groove Wheel for 1½” (38mm) Gate Frame 2

SEALED

BEARINGS

CODE

FINISH

FIXING

MAX GATE WEIGHT

WHEEL

HEIGHT INCH/MM

WEIGHT LB/KG

CI2415

Zinc

Bolts to plates

1,500 lb (680kg)

Steel

4” (102mm)

4.5 lb (2kg)

CI2615

Zinc

Bolts to plates

2,200 lb (1,000kg)

Steel

6” (152mm)

9 lb (4kg) 1.5” (38mm)

.5” HEX NUT (13mm) .5” FLAT WASHERS 2 PL (13mm) 1.5” SPACERS (38mm) 2 PL 2.8 (71mm) 1.1” (28mm) .5” HEX BOLT (13mm)

CI2415 - 4” (102mm) CI2615 - 6” (152mm)

4” (102mm)

• Narrow width to reduce friction and debris issues • This wheel does not include carriage plates • Adjustable plates for perfect installations • Super-hard cold rolled steel (30RC rating) Load rating per gate: 3,000 lb (1,360kg)/5000 lb (2,300kg) Max gate weight: 1,500 lb (680kg) /2,200 lb (1,000kg)

1.5” (38mm)

90°

.7” (18mm)

1.1” (28mm) .7” (18mm)

6” (152mm) 90°

V-Groove Wheel for 2” (51mm) Gate Frame 2

SEALED

BEARINGS

CODE

FINISH

FIXING

MAX GATE WEIGHT

WHEEL

HEIGHT INCH/MM

WEIGHT LB/KG

CI2420

Zinc

Bolts to plates

1,500 lb (680kg)

Steel

4” (102mm)

4.5 lb (2kg)

CI2620

Zinc

Bolts to plates

2,200 lb (1,000kg)

Steel

6” (152mm)

9.5 lb (4.3kg)

2” (51mm)

.50 HEX NUT (13mm) .50 FLAT WASHERS 2 PL (13mm) 1.5” SPACERS (38mm) 2 PL 3.3” (84mm)

1.1” (28mm)

CI2420 - 4” (102mm) CI2620 - 6” (152mm)

4” (102mm)

.5” HEX BOLT (13mm)

• Narrow width to reduce friction and debris issues • Adjustable plates for perfect installations • This wheel does not include carriage plates • Super-hard cold rolled steel (30RC rating) Load rating per gate: 3,000 lb (1,360kg)/5000 lb (2,200kg) Max gate weight: 1,500 lb (680kg) /2,200 lb (1,000kg) 6” (152mm)

74

Shut-It® GATE WHEELS

DDTECH.COM

.7” (18mm) 90°

Wheel with Carriage Plates for 1½” (38mm) Gate Frame 2

SEALED

BEARINGS

CODE

FINISH

FIXING

MAX GATE WEIGHT

WHEEL

PLATE

CI2515

Zinc

Weld

1,500 lb (680kg)

Steel

Steel

Zinc

Bolts to plates

2,200 lb (1,000kg)

CI2715

Steel

4.4” (112mm) NOMINAL [3.5 TO 5.2” (81-132mm)] (ADJUSTABLE)

2.8” (71mm) .12” (3mm)

⁄”

6 lb (2.7kg)

71⁄2” (188mm)

12 lb (5kg)

6” (152mm)

3” (76mm)

1.5” (38mm)

6” (152mm)

1.5” (38mm)

7.4” (188mm) NOMINAL NOMINAL 2.7” (69mm) [6.5 TO 8.2” (165-208mm)] [2.1 TO 3.2” (56-81mm)] (ADJUSTABLE)

.6” (15mm)

.12” (3mm)

WEIGHT LB/KG

48”5 8 (203mm) 4” (119mm) (102mm)

Steel

.12” (3mm)

HEIGHT INCH/MM

4” (102mm)

4.7” (119mm)NOMINAL 2.8” [4.2 TO 5.2” (71mm) (107-132mm)]

6” (152mm)

90°

.6” (15mm) .12” (3mm)

CI2515 - 4” (102mm) CI2715 - 6” (152mm)

4” (102mm)

4” (102mm)

• Adjustable plates for perfect installations • Includes carriage plates 4.4” (112mm) NOMINAL [3.5 TO 5.2” • Narrow with to reduce friction and debris issues (81-132mm)] (ADJUSTABLE) • Super-hard cold rolled steel (30RC rating) .12” 7.4” (188mm) NOMINAL (3mm) [6.5 TO 8.2” (165-208mm)] Load rating per gate: 3,000 lb (1,360kg)/5000 lb (2,300kg) 2.8” (71mm) Max gate weight: 1,500 lb (680kg) /2,200 lb (1,000kg) .6” (15mm)

8” (203mm)

90°

1.5” (38mm)

6” (152mm)

1.1” (28mm)

.12” (3mm)

6” (152mm)

.7” (18mm) 90°

Wheel with Carriage Plates for 2” (51mm) Gate Frame 2

SEALED

BEARINGS

CODE

FINISH

FIXING

MAX GATE WEIGHT

WHEEL

PLATE

HEIGHT INCH/MM

WEIGHT LB/KG

CI2520

Zinc

Weld

1,500 lb (680kg)

Steel

Steel

45⁄8” (119mm)

6 lb (2.7kg)

CI2720

Zinc

Weld

2,200 lb (1,000kg)

Steel

Steel

71⁄2” (188mm)

12.5 lb (6kg)

3” (76mm)

6” (152mm)

2” (51mm)

2.7” (69mm) NOMINAL [2.2 TO 3.2” (56-81mm)] (ADJUSTABLE)

.12” (3mm)

3.3” (84mm)

4” (102mm)

4.7” (119mm) NOMINAL [4.2 TO 5.2” (107-132mm)]

.6”(15mm)

CI2520 - 4” (102mm) CI2720 - 6” (152mm)

.12” (3mm)

4” (102mm)

• Adjustable plates for perfect installations • Includes carriage plates 4.4” (112mm) • Narrow width to reduce friction and debris issues NOMINAL [3.5 TO 5.2” (89-132mm)] • Super-hard cold rolled steel (30RC rating) (ADJUSTABLE) .12 Load rating per gate: 3,000(13mm) lb (1,360kg)/5000 lb (2,300kg) 7.4” (188mm) NOMINAL 3.3” Max gate weight: 1,500 lb (680kg) /2,200 lb (1,000kg) (84mm) [(6.5 TO 8.2” (165-208mm)]

4” (102mm)

8” (203mm)

2” (51mm)

6” (152mm)

1.1” (28mm)

.6” (15mm) .12 (13mm)

.7” (18mm) 6” (152mm)

DDTECH.COM

90°

Shut-It® GATE WHEELS

75

90°

The HardCore™ Carriage Plate in Steel/Aluminum CODE

FINISH

FIXING

PLATE

HEIGHT INCH/MM

WEIGHT LB/KG 2 lb (1kg)

CI2140

Zinc

Weld

Steel

4” (102mm)

CI2160

Zinc

Weld

Steel

6” (152mm)

3.5 lb (1.6kg)

CI2140A

Unfinished

Weld

Aluminum

4” (102mm)

2 lb (1kg)

CI2160A

Unfinished

Weld

Aluminum

6” (152mm)

3.5 lb (1.6kg)

• Adjustable plates for perfect installation • Models for 4” (102mm) and 6” (152mm) wheels • Available in steel and aluminum • No need for bulky and heavy wheel boxes

⁄2“ (3mm) plate thickness • Combine with carriage caps for chain link applications

•

1

8” (203mm)

6” (152mm) 3” (76mm)

.12” (3mm) THICKNESS

3.2” (81mm)

4” (102mm)

2.2” (56mm) 4” (102mm)

5.2” (132mm)

3.5” (89mm) 6” (152mm)

.12” THICKNESS (3mm)

.7” (18mm) SLOT

.6” (15mm)SLOT

The HardCore™ Carriage Cap CODE

FINISH

FIXING

PLATE

HEIGHT INCH/MM

WEIGHT LB/KG

CI2340

Zinc

Weld

Steel

6” (152mm)

1 lb (0.5kg)

CI2360

Zinc

Weld

Steel

8” (203mm)

1.5 lb (0.7kg)

.14” (3mm) 6” (152mm)

R .95” (24mm)

1.9” (48mm) .9” (23mm)

CI2340 - 6” (152mm) CI2360 - 8” (203mm) • Designed to be used with V-Groove Wheels • Combines with carriage plates for round rail .14” • Perfect chainlink gate solution (3mm) • Made from high strength steel • 4" (102mm) wheel carriage cap • 6" (152mm) wheel carriage cap • Welding instructions page 71

2.2” (56mm)

R .95” (24mm)

8” (203mm)

4” (102mm) 3.1” 79mm

2.2” (56mm)

76

Shut-It® GATE WHEELS

DDTECH.COM

The 4” (102mm) Cantilever Wheel Assembly

2

SEALED

BEARINGS

CODE

FINISH

FIXING

MAX GATE WEIGHT

WHEEL

PLATE

WHEEL DIAMETER

WEIGHT LB/KG

CI2240

Zinc

Weld

1,500 lb (680kg)

Steel

Steel

4” (102mm)

5 lb (2.3kg)

1.1” (28mm) .7” (mm18) 90°

1.9” (48mm) ADJUSTMENT RANGE

4” (102mm)

5” (127mm)

1.48” (38mm)

1.9” (48mm) ADJUSTMENT RANGE

CI2240 • Adjustable plates for perfect installations • Narrow width reduces friction and debris • Super-hard cold rolled steel (30RC rating) • Load rating per gate: 3,000 lb (1,360kg) • Maximum gate weight: 1,500 lb (680kg)

.75” (19mm)

2.5” (64mm)

1.5” (38mm)

2.1” (53mm) 2.7” (69mm) 2.9” (74mm)

The 6” (152mm) Cantilever Wheel Assembly

2

SEALED

BEARINGS

CODE

FINISH

FIXING

MAX GATE WEIGHT

WHEEL

PLATE

WHEEL DIAMETER

WEIGHT LB/KG

CI2260

Zinc

Weld

1,500 lb (680kg)

Steel

Steel

6” (152mm)

10.5 lb (4.8kg)

1.1” (28mm) .7” (18mm) 90°

1.9” (48mm) ADJUSTMENT RANGE

CI2260 • Adjustable plates for perfect installations • Narrow width reduces friction and debris • Super-hard cold rolled steel (30RC rating) • Load rating per gate: 3,000 lb (1,360kg) • Maximum gate weight: 1,500 lb (680kg)

6” (152mm)

5” (127mm)

1.5” (38mm)

1.9” (48mm) ADJUSTMENT RANGE

.75” (19mm) 2.1” (53mm) 2.7” (69mm) 2.9” (74mm)

DDTECH.COM

2.5” (64mm)

1.5” (38mm)

Shut-It® GATE WHEELS

77

The Gate-Guide Assembly CODE

FINISH

FIXING

MATERIAL

WEIGHT LB/KG

CI2300

Zinc

Weld

Steel

4 lb (1.8kg)

1.4” (36mm) 2 PL

.4” (10mm)

CI2300 - 6” (152mm) Gate-Guide Assembly

1.6” (41mm)

• Ideal for gates without grade variation • Replaces the industry standard guide-rollers • Simply attach Guide Assembly to the end-post • Super hard steel • Zinc finish

3.8” 3.5” (89mm) (97mm)

1.5” (38mm)

8” (203mm) 6” (152mm)

1.6” (41mm)

.75” (19mm)

The Extended Gate-Guide Assembly CODE

FINISH

FIXING

MATERIAL

WEIGHT LB/KG

CI2350

Zinc

Weld

Steel

4.5 lb (2kg)

.4” (10mm)

CI2350 - 10” (254mm) Gate-Guide Assembly • Ideal for gates without grade variation • Replaces the industry standard guide-rollers • Simply attach Guide Assembly to the end-post • Super hard steel • Zinc finish

5.1” (130mm)

1.5” (38mm)

8” (203mm) 6” (152mm)

.75” (19mm)

78

Shut-It® GATE WHEELS

5.4” (137mm)

3.2” (81mm)

DDTECH.COM

1.7” (43mm)

Full Cantilever Gate System: 4-Wheel System 6.25” (159mm) 2” (51mm)

GATE SYSTEM SPECIFICATIONS

3” (76mm)

3

2” (51mm)

1 2

4

1

Fence Line

2

Two Posts: 3 x 3 x 3⁄16” (76x76x5mm), 4 x 4 x 3⁄16” (102 x 102 x 5mm), or 6 x 6 x 3⁄16” (152 x 152 x 5mm)

2A

Connect two posts with rail (can be used for operator mount)

3

Weld four Cantilever wheel assemblies to post

4

Weld or bolt 2 x 2 Cantilever rails to gate frame

5

Gate frame with support panel posts 3 x 3” (76x76mm) – up to 12” (3,658 mm) opening 4 x 4” (102 x 102mm) – up to 22” (6,700mm) opening 6 x 6” (152 x 152mm) – over 22” (6,700mm) opening Support panel length up 12” (3,658mm) opening

6

For cantilever wheel assemblies: use CI2240 for 4” (102mm) wheels and CI2260 for 6” (152mm) wheels

Fence Height 2A 4 5

From 5' to 20' (127mm – 508mm ) Max Opening

12” (305mm)

6

Fence Line 1

2” (51mm)

5

36” (914mm)

3

3

3 2

4

2

2A

Full Cantilever Gate System: Weld-On/Bolt-On Rail 8” (203mm)

GATE SYSTEM SPECIFICATIONS

6 1.5” (38mm)

1

3” (76mm)

7

2

5 Fence Height

4

3

2A

1

Fence Line

2

Two Posts: 3 x 3 x 3⁄16” (76x76x5mm), 4 x 4 x 3⁄16” (102x102x5mm) 1 post at fence height – 1 post 24” (610mm) above grade

2A

Connect two posts with rail 6.5” (165mm) up from grade (can be used for operator mount)

3

Cantilever bracket with 2.5” (64mm) extensions (2 total)

4

Weld or bolt Cantilever rails to gate frame

5

Gate frame

6

2.5 x 2.5 x 3⁄16“ (64 x 64 x 5mm) continuous angle weld for guide

7

Weld Guide Assembly CI2300 or CI2350 (extended version) to guide post

8

For Cantilever wheel assemblies: Use CI2240 for 4” (102mm) wheels and CI2260 for 6” (152mm) wheels

8 4” (102mm)

6.5” (165mm)

Fence Line

From 5' to 20' (127mm – 508mm ) Max Opening

1

5 36” (914mm)

4

3 2

DDTECH.COM

2A

2

7

6

4

Shut-It® GATE WHEELS

79

7” (178mm) 2” (51mm)

5

3” (76mm)

Full Cantilever Gate System - built-In GATE SYSTEM SPECIFICATIONS

1

6 2

4

2A 3

7 4” (102mm)

1

Fence Line

2

Two Posts: 3 x 3 x 3⁄16” (76x76x5mm), 4 x 4 x 3⁄16” (102x102x5mm) 1 post at fence height – 1 post 24” (610mm) above grade

2A

Connect two posts with rail 6.5” (165mm) up from grade (can be used for operator mount)

3

Cantilever bracket with 3” (76mm) extensions (2 total)

4

Gate frame with cantilever rail can be used as part of frame

5

2.5 x 2.5 x 3⁄16“ (64 x 64 x 5mm) continuous angle weld for guide

6

Counsel guide weld to guide post

7

For Cantilever wheel assemblies: Use CI2240 for 4” (102mm) wheels and CI2260 for 6” (152mm) wheels

6.5” (165mm)

36” (914mm)

From 5' to 20' (127mm – 508mm ) Max Opening Fence Line

1

3

4

2

2A

2

6

5

Clearance advantage for a 4” Wheel

Shut-It® wheels machined from the hardest steel, enable a narrow design Narrower wheel profile of the Shut-It® Wheel helps prevent wheel from hitting debris and track anchors.

80

Shut-It® INFORMATION

DDTECH.COM

Powder-coated latches, hinges and accessories for wood gates

• Thicker-gauge steel improves overall strength and durability • Patented polymer bearings and high-tech lubricants prevent binding • Superior strength and appearance – no rough edges • Superior powder-coated finish (highly corrosion resistant) • Fully treated screws included, with a proprietary, corrosion-resistant finish • Screw heads have additional powder-coated weatherproofing • Striker-bolt head prevents bolt from slipping through the latch • Hinges will not bind (powder-coated before assembly)

10

WOOD

VINYL

5 YEAR ON SPRINGS

CODE

MODEL / FEATURE

GATE MATERIAL

SOLD AS

210001

Regular Gravity Latch

Wood/Vinyl

Single

210002

Heavy Duty Gravity Latch

Wood/Vinyl

Single

210007

HD Gravity Latch/Cable and O-ring

Wood/Vinyl

Single

210003

Standard Post Latch

Wood/Vinyl

Single

210004

Thumb Latch

Wood/Vinyl

Single

210005

Side Bolt Latch

Wood/Vinyl

Single

210006

Contemporary Post Latch

Wood/Vinyl

Single

220001

Round Rail Loop latch

Wood

Single

310001

8” T-Hinge Regular Decorative

Wood/Vinyl

Pair

310002

8” Strap Hinge Regular Decorative

Wood/Vinyl

Single Hinge

310003

10” T-Hinge Heavy Duty Traditional

Wood/Vinyl

Single Hinge

310004

8” T-Hinge Heavy Duty Traditional

Wood/Vinyl

Pair

310005

10” Strap Hinge Heavy Duty Traditional

Wood/Vinyl

Single Hinge

310006

8” Strap Hinge HD Traditional

Wood/Vinyl

Single Hinge

310007

8” T-Hinge Heavy Duty Contemporary

Wood/Vinyl

Pair

310008

8” Strap Hinge Contemporary

Wood/Vinyl

Single Hinge

310009

8” Butterfly Hinge Contemporary

Wood/Vinyl

Pair

310010

8” Butterfly Hinge Traditional

Wood/Vinyl

Pair

410001

11” Gate Spring

Wood/Vinyl

Single

410002

14” Gate Spring

Wood/Vinyl

Single

410003

24” Drop Bolt

Wood/Vinyl

Single

410004

40” Drop Bolt

Wood/Vinyl

Single

410005

Gate Handle

Wood/Vinyl

Single

420001

Gate Anti-sag Kit

Wood

Single

Customized wood gate hardware Kits available (USA only). Email: customerservice@ddtechusa.com for US pricing.

DDTECH.COM

WOOD GATE HARDWARE 81

210001 – Regular Gravity Latch

(

0.2" 5.20mm)

(

0.2" 5.20mm)

5.1" (130mm)

1" (25.40mm)

1.3" (35mm)

2.2" (55mm)

210002 – Heavy Duty Gravity Latch 210007 – With Cable and O-ring 0.2" 6mm)

2.8" (71mm)

(

(

0.2" 5.7mm)

2.4" (62mm)

4.2" (105mm)

2.8" (70mm)

7.3" (185mm)

210003 – Standard Post Latch 10.7" (273mm)

2.1" (54mm)

1" (23mm)

6.2" (159mm)

2.3" (59mm)

210004 – Thumb Latch

0.1" (3.4mm)

2.2" 11" (55mm) (280mm)

3" (77mm)

0.2" ( 5.3mm)

0.8" (20mm)

82 WOOD GATE HARDWARE

DDTECH.COM

3.2" (81.8mm)

210006 – Contemporary Post Latch 6.3" (161mm)

9.6" (245mm)

1.8" (48mm)

8.9" (226mm)

0.3" ( 8.40mm)

0.2" (R4.40mm)

0.3" (8.60mm)

410003 – 24” Drop Bolt • 410004 – 40” Drop Bolt

24" (609mm)

.95” (23.88mm)

1.6" (42mm)

1" (25.40mm)

Lorem ipsu

3.4" (88.5mm)

1.6" (42mm)

1.1" (28mm)

2" (51mm)

0.6” (ø 15mm)

410001 – 11” Gate Spring • 410002 14” Gate Spring

1" (25.4mm)

1.5" (38mm) 11.7" (297mm)

220001– Round Rail Loop latch • 420001– Anti-sag Kit 0.4" ( 9.5mm)

7.2" (183mm)

5" (126mm)

5.7" (145mm)

0.3" ( 8.1mm)

DDTECH.COM

6" (152mm)

0.2" (R4.10mm)

WOOD GATE HARDWARE 83

310001 – 8” T-Hinge Regular Decorative

5.5" (140mm)

0.5" (14mm)

0.1" (3mm)

(

0.3" 6.7mm)

9.7" (247mm)

310002 – 8” Strap Hinge Regular Decorative

3.1" (80mm)

0.6" (14.5mm)

(

0.2" 6.7mm) 0.1" (3mm)

15.4" (392mm)

310003 – 10” T-Hinge HD Traditional 310004 – 8” T-Hinge HD Traditional 3" ) 0. mm 0 .4

(8

12.7"

0.118" (3mm)

(8 .

0 40 .3" m m )

10" (254mm)

(321mm)

0.7" (18mm)

(8

.4 0.3" 0m m )

310005 – 10” Strap Hinge HD Traditional 310006 – 8” Strap Hinge HD Traditional

8" (200mm)

10" (250mm)

0.7" (18mm) 16" (400mm)

20" (508.20mm)

84 WOOD GATE HARDWARE

DDTECH.COM

0.1" (3mm)

310007 – 8” T-Hinge HD Contemporary

7.2" (185mm)

3" ) 0. mm .4 (8

0.5" (14mm)

10.4" (265mm)

(8

.3

0.

8m 3" m )

5.1" (129mm)

310008 – 8” Strap Hinge Contemporary

0.5" (14mm)

8" (194mm) 16" (407mm)

310009 – 8” Butterfly Hinge Contemporary

4.8" (123mm)

0.5" (14mm) 0.1" (2.4mm)

2" (52mm)

310010 – 8” Butterfly Hinge Traditional

.4 0.3" 0m m )

1.6" (41mm)

7.2" (185mm)

3" ) 0. mm .4 (8

0.7" (18mm)

0.5" (14mm)

(8

4.2" (107mm)

10.4" (265mm)

0.1" (3mm)

DDTECH.COM

WOOD GATE HARDWARE 85

Fully powder-coated hinges and latches for wood or vinyl gates

2

VINYL

• D&D branded so you know you’re getting the best!

• 100% marine-grade powder-coated finish (no unfinished surfaces) • Self-closing, tension-adjustable hinges • Regular and Heavy Duty models • Non-spring versions available • Standard and Narrow side-fixing legs • Stainless steel screws + tension-adjustment tool included • Horizontally adjustable • Standard and contemporary post latches • Latches accommodate most padlock sizes (padlock not included) CODE

MODEL / FEATURE

DDSHDSS

Heavy Duty Hinge – No spring, plain pivoting

Standard to Standard

DDSHSSA

Regular Hinge – Self-closing, tension adjustable

Standard to Standard

DDSHNNA DDS2HNNAW

Regular Hinge – Self-closing, tension adjustable

DDSHSN

Regular Hinge – No spring, plain pivoting

DDSHSNA DDS2HSNAW

Regular Hinge – Self-closing, tension adjustable

DDSHSS

Regular hinge – No Spring, plain pivoting

DDSHNW3A DDS2HNW3AW

Regular Hinge – Self-closing, tension adjustable

DDSL2 DDSL2W DDSLM

Standard Post Latch Contemporary Post Latch

SIDE FIXING LEGS

GAP VARIANCE

COLOR

FASTENERS INCLUDED

SOLD AS

Black

Self-drilling 410 Stainless Steel

Pair

5 ⁄8”–13⁄16” (16–30mm)

Black

Self-drilling 410 Stainless Steel

Pair

Narrow to Narrow

5 ⁄8”–13⁄16” (16–30mm)

Black/ White

Self-drilling 410 Stainless Steel

Pair

Standard to Narrow

⁄8”–1 ⁄4” (16–45mm)

Black

Self-drilling 410 Stainless Steel

Pair

Standard to Narrow

⁄8”–1 ⁄16” (16–30mm)

Black/ White

Self-drilling 410 Stainless Steel

Pair

Standard to Standard

⁄8”–13⁄4” (16–45mm)

Black

Self-drilling 410 Stainless Steel

Pair

Narrow to Wrap 2”

⁄8”–1 ⁄16” (16–30mm)

Black/ White

Self-drilling 410 Stainless Steel

Pair

Standard to Narrow

⁄4”–1 ⁄2” (19–38mm)

Black/ White

Self-drilling 410 Stainless Steel

Each

Standard to Narrow

⁄4”–2” (19 – 50mm)

Black

Self-drilling 410 Stainless Steel

Each

⁄8”–23⁄8”

5

(16–60mm)

5

3

5

3

5

5

3

3

1

3

DDSHNNA

DDSHSNA

DDSHSS

DDSLM

Narrow to Narrow

Standard to Narrow

Standard to Standard

Standard to Narrow

86 STAINLESS STEEL GATEWARE

DDTECH.COM

DDSHDSS Heavy Duty Hinge.

No spring, plain pivoting.

Standard to Standard.

3.15” (80mm)

0.25” (7mm)

3.15” (80mm)

4.57” (116mm)

0.57” (17mm) 7.16” (182mm)

3.5” (89mm)

GAP VARIES ACCORDING TO NUT PLACEMENT

DDSHSSA Regular Hinge Self-Closing, tension adjustable.

Standard to Standard.

[90mm] 3½”

[7mm] ø¼”

[16mm] ⅝” GAP VARIES ACCORDING TO NUT POSITION

[32mm] 1¼”

[81mm] 3¼”

[81mm] 3¼”

[112mm] 4⅜”

[91mm] 3⅝”

[91mm] 3⅝”

DDSHNNA/DDS2HNNAW Regular Hinge.

Self-closing, tension adjustable.

Narrow to Narrow.

1.25” (31.5mm)

7.9” (201.5mm)

1.34” (34mm)

1.32” (33.5mm)

NEW PRODUCT

3.52” (89.5mm)

ø 0.25” 6.5mm

GAP VARIES DEPENDING ON NUT POSITION 0.6” (15mm)

3.58” (91mm)

3.56” (90.5mm)

2.58” (65.5mm)

DDTECH.COM

STAINLESS STEEL GATEWARE

87

7” (179mm)

1.38” (35mm)

3.5” (89mm)

DDSHSN Regular Hinge.

No spring, plain pivoting.

Standard to Narrow.

ø 0.25” (7mm) 0.55” (14mm)

3.15” (80mm)

GAP VARIES ACCORDING TO NUT PLACEMENT

DDSHSNA/DDS2HSNAW Regular Hinge.

Self-closing, tension adjustable.

Standard to Narrow.

4.43” (112.5mm)

1.32” (33.5mm)

1.24” (31.5mm)

3.2” (81mm)

3.5” (89.5mm)

NEW PRODUCT

ø.25” (6.5mm)

0.6” (15mm)

7.90” (201.5mm)

3.57” (90.5mm)

GAP VARIES DEPENDING ON NUT POSITION 3.6” (91mm)

7.25” (184mm)

ø 0.25” (7mm)

3.15” (80mm)

3.5” (89mm)

DDSHSS Regular Hinge.

No spring, plain pivoting.

Standard to Standard.

0.75” 3.15” (19mm) (80mm) GAP VARIES ACCORDING TO NUT POSITION

88 STAINLESS STEEL GATEWARE

DDTECH.COM

DDSHNW3A/DDS2HNW3AW Regular Hinge.

Self-closing, tension adjustable.

Standard to 2” (51mm) wrap-around

2” (51mm)

POST BRACKET

NEW PRODUCT

3.5” (89.5mm)

3.25” (82.5mm)

ø 0.25” (7mm)

DDSL2/DDSL2W Standard Post Latch.

Standard to Narrow.

5 17/32” (140.5mm)

DDSLM Contemporary Post Latch.

Standard to Narrow.

8 7/8" (226mm)

3 1/2" (89mm)

1/4" (7mm)

5 3/4" (147mm)

NEW PRODUCT

4 17/64” (108.5mm)

9 11/64” (232.8mm)

9/16" (15mm) GAP VARIES

DDTECH.COM

STAINLESS STEEL GATEWARE

89

Swimming Pool Gate Compliance & Safety

✔

These are important product features and steps that should be considered when choosing a pool safety gate and associated latches and hinges.

A pool gate can and should be made safe safe,, one that will restrict unauthorized access by adventurous toddlers and fully comply with international Codes/Standards for swimming pool gates and fences.

THE LATCH Magnetically triggered latching (i.e. no mechanical resistance to closure).

Gate latch cannot be released by pushing, pulling or shaking gate.

Latch release knob works independently of the latch bolt mechanism (“Lost Motion”).

Latch will engage at all times.

Key lockable for added security, but ensures the latch cannot be locked open.

Safety checklist for pool gates ✔ Gate should open outwards, away from the pool release knob should be out of reach of children under 5 years. ✔ Latch (Check local Codes/Standards for minimum requirements.) should be at a minimum height to comply with your region. ✔ Fence (Check local Codes/Standards for minimum requirements.)

✔ Gate must be self-latching (self-closing)

Quality tested, magnetic mechanism that will not fail with use or from environmental factors.

Ability to adjust the latch vertically and horizontally to correct for gate movement.

Latch mechanism (shrouded) cannot be opened with common implements.

perimeter must have adequate distance from other climbable ✔ Fence objects or structures

✔ Gate carries reliable and tension-adjustable hinges

THE HINGE

✔ Latch cannot be key-locked in the “open” position

Self-closing hinges should be easily tension-adjustable, before and after installation.

✔ Latch cannot be opened using implements or force ✔

Maximum clearance from finished ground surface is no more than 4” (100mm)

will latch from any position, including from resting on the ✔ Gate latching mechanism complies with all relevant Codes/Standards and legislation for ✔ Gate pool safety NOTE: Information above is supplied and expressed by D&D Technologies in the interests of consumer and public safety. Always check requirements with local building officials re Codes & ordinances in your area. For USA visit www.cpsc.gov For details of Australian Standards relating to gate and fence safety visit Standards Australia at www.standards.com.au (AS1926.1–2012).

90

POOL GATE COMPLIANCE

DDTECH.COM

Reliable hinges made from industrial-strength polymer and stainless steel components.

Hinges are guaranteed against rust, binding, sagging or staining.

IMPORTANT: It is the responsibility of the property owner to regularly check that pool gates (including latches and selfclosing hinges) are maintained to prevent unauthorized access to pools by toddlers.

• INNOVATION • QUALITY & VALUE • ADVANCED ENGINEERING & MATERIALS • STRATEGIC GLOBAL PARTNERS • VALUE-ADDED CUSTOMER SERVICE & SUPPORT

DDTECH.COM

91

ME VOLU

15

AUSTRALIA:

EUROPE:

NORTH & SOUTH AMERICA:

UK:

D&D Technologies Pty Ltd Unit 6, 4–6 Aquatic Drive, Frenchs Forest NSW 2086 Tel: (02) 9454 7888 Fax: (02) 9454 7688.

E-mail: sales@ddtech.com.au

D&D Technologies (USA) Inc. 7020 Reames Rd. Suite D Charlotte, NC 28216 Tel: (800) 716-0888 or (714) 677-1300 Fax: (800) 464-6400 or (714) 677-1299 E-mail: info@ddtechusa.com

D&D Technologies B.V. Niasstraat 1, 3531 WR Utrecht, The Netherlands Tel: +31 (0)30 291 98 47 Fax: +31 (0)30 291 99 98 E-mail: sales@ddtech.nl

D&D Technologies, Charlwoods Road, East Grinstead, West Sussex RH19 2HR Tel: +44 (0) 1342 327280 Fax: +44 (0) 1342 327115 E-mail: enquiries@ddtechglobal.co.uk

ISBN 9780648760504

www.ddtech.com PROMO 194 15/01/24 Copyright© 2024, D&D Group Pty Ltd, Australia.

92

DDTECH.COM

9 780648 760504 >
