Founded in Birmingham’s historic gun quarter in the UK, Brocock has stood at the forefront of the global air rifle market.
Now, more than 30 years later, the company produces some of the finest pre-charged pneumatic (PCP) rifles in the world from a purpose-built facility in Staffordshire, UK which we share with sister company Daystate.
With an eye to the future, BRK rifles are made using the latest CNC machinery and are fully regulated. The addition of the Ghost to the range added solid monocoque construction.
As a result of these and many other innovations, we are transitioning our corporate identity from Brocock to BRK, a name we feel more accurately portrays our spirit of creativity, innovation and quality.
MODERN TIMES
Our engineers and gunsmiths are driven to deliver dependable and reliable PCP air rifles that are capable of the highest levels of performance. However, we know our customers demand more so we design our rifles to be modular, enabling shooters to customize their set up with an array of options and configurations such as folding stocks, interchangeable air bottles/cylinders and many other accessories.
At their heart though, each BRK rifle is designed to deliver every time and never let you down.
USED BY CHAMPIONS
BRK rifles have been the choice of professional pest controllers for decades thanks to their combination of rugged build quality, reliable performance and unerring accuracy.
Perhaps it’s no surprise that top hunters and competition target shooters, who appreciate these qualities too, have also turned to our rifles.
AIR REGULATOR THE A.R.T. BARREL
In recent years, many air rifle manufacturers have recognized the benefits of fitting their rifles with a regulator, a small high-pressure device that controls the volume and pressure of air used for each shot.
But there are regulators, and then there are regulators. The role they perform is vital to ensure consistent power delivery and accuracy and to make the most of every drop of air in your rifle’s bottle or cylinder.
Simply put, Dutch company Huma-Air makes the best regulators in the world and every BRK and Daystate rifle, has one. Each regulator is designed in partnership with Huma-Air to complement our latest hammer designs to precisely meter air release to eliminate inaccuracy related to a power curve and ensure minimal shot-to-shot deviation as the rifle cycles through its usable air charge. In addition to superior accuracy, the use of an air regulator achieves more efficient use of air to return more shots per fill up.
The Accuracy Research Team (A.R.T.) is a collaboration between world renowned barrel specialists and a worldwide group of expert shooters from a range of disciplines. Their combined expertise has resulted in the creation of air rifle barrels that far exceed the accuracy potential of anything seen up until now. The Accuracy Research Team (A.R.T.) developed barrels fitted exclusively to BRK and Daystate rifles to deliver accuracy and performance that other companies simply struggle to match.
SELF-INDEXING MAGAZINE
Our high-capacity magazines are made from the finest alloy materials to deliver many thousands of shots reliably and accurately. The self-indexing design is easy to load and ensures perfect pellet/slug to bore alignment. And each magazine inserts into the breech from the right to accommodate scopes with oversize parallax adjustment wheels.
PERFORMANCE CENTER
Shop online from our wide range of air rifle parts and accessories using our new performance center catalogue. Our range of airgun accessories has been designed, developed and tested in conjunction with Daystate and BRK’s quality values to ensure we supply the highest quality accessory that work perfectly with Daystate and BRK rifles. Our accessory range allows you to personalise your rifle to suit your individual style but also caters for those functional spares. Whatever you need, the Performance Center has it!
All parts supplied from our UK warehouse. To find our accessories, parts and to order just scan the QR code or visit https://issuu.com/daystate/docs/performance_center_001?fr=xKAE9_zU1NQ
The NEW BRK MF 1/2” UNF Air Gun Silencer is the quietest silencer BRK has ever made!
Nothing compares with an MTC scope. Airgun or high powered full-bore, an MTC scope earns its reputation day in, day out.
This fast-swap system means you can have multiple rifles in the one platform!
Direct fit extended accessory rail, designed specifically for the BRK Ghost.
Allows fitting of accessories like bipod and flashlight etc.
GHOST
INNOVATION IN DESIGN
Cheek Riser allows for correct eye/scope alignment and helps eliminate aiming errors.
Lightweight heavy-duty tactical bipod with monopod/hand grip.
Multi-adjustable butt pad adapter plate and adjustable Monopod
Self-indexing magazine for precise fast firing capability. Two magazines can be attached either side to double the shot count.
BRK GHOST
The BRK Ghost is a showcase for how good a mechanical PCP air rifle can be.
Latest PCP design technology built around a revolutionary monocoque chassis reduces the number of potential leak points and maximizes rigidity, eliminates stress points and improves accuracy.
Designed to satisfy a multitude of air rifle needs, the BRK Ghost features a quick and easy interchangeable barrel system so you can choose between four different calibres in a matter of minutes.
Available in a choice of barrel lengths from 17 to 23 inches, and 300cc or 480cc air bottles, the Carbine, Plus and High Power BRK Ghost range addresses just about every air rifle requirement. And thanks to a 20-point power dial at the back of the action, further fingertip refinement is possible to cover different environments and optimize performance for different ammunition.
Additionally, higher-power models feature a finger-adjustable dial to fine-tune the BRK Ghost’s regulator pressure, handily shown on a separate gauge. Yet more versatility is built in with a userswappable side lever from left to right, an adjustable cheek and butt pad and left or right-side magazine feed, making the BRK Ghost truly ambidextrous.
Supplied with a hard case, the BRK Ghost has many more desirable features: a fully-adjustable, matchstyle trigger, fully-shrouded barrel with a ½ inch UNF thread for an additional silencer, cross-bolt manual safety, adjustable Picatinny scope rail to enable perfect eye to scope relief, and three additional accessory rails provide a platform for a full range of accessories including butt pads, extended forend rail and a cheekpiece riser which allows two magazines to be loaded back-to-back to double the BRK Ghost’s shot count.
FEATURES
• Compact ‘monocoque’ alloy chassis
• Micro-adjustable power setting wheel
• Ultra Alpha valve technology
• Modular platform
• User tunable Huma-Air Air regulator
MAIN SPECIFICATIONS
• Overall Length Carbine 26ins (655mm) Plus 29ins (731mm) HP 33.6ins (855mm)
• Barrel Length Carbine and Plus 17ins (432mm) HP 23ins (600mm)
• Weight Carbine 6.83lbs (31kg) Plus 7.05lbs (3.2kg) HP 7.5lbs (3.4kg)
• Available Calibres
.177 (4.5mm) .22 (5.5mm),
. 25 (6.36mm) .30 (7.62mm)
• Power .177 (4.5mm) up to 31ftlbs (42J)
. 22 (5.5mm) up to 65ftlbs (88J)
. 25 (6.35mm) up to 70ftlbs (95J)
. 30 (7.62mm) up to 95ftlbs (129J)
Ghost HP (High Power) with accessories
Sliver Ghost Plus
PATHFINDER XR
The super-light and compact Ranger XR has quickly become a firm favourite with hunters and pest controllers.
Building on its success and reputation, the new Pathfinder XR features a lightweight 300cc carbon Kevlar bottle for increased shot count compared to the Ranger XR. Export and FAC models also benefit from higher power output as well.
The Pathfinder XR measures a carbine length 616mm with its folding stock deployed, and just 416mm with it retracted, resulting in a rifle that is incredibly fast onto the target and useful in tight situations. It weighs just 2.9kg (6.4lbs), and yet in the 12ft/lbs model can deliver over 200 shots. Export .22 calibre models produce energy up to 25ft/lbs. Super compact and able to be easily transported in a backpack, or optional purpose-built rifle slip, the Pathfinder XR offers superb accuracy at hunting ranges out to 40 meters and beyond and its slick sidelever action enables fast reloading. The Pathfinder features an advanced Huma-Air regulator and newly introduced hammer design. This new system is our most consistent yet which results in superb performance and accuracy.
mbidextrous stock with olding, telescopic butt
uma-Air regulated
rgonomic sidelever operation
ew, removable self-indexing
3-shot (.177), 11-shot (.22) or 0-shot (.25) rotary magazine
ith flip-open loading gate
ingle-shot tray
hree power settings via side ower adjuster
icatinny dovetail rail for precise cope mounting.
ower Picatinny accessory rails or bipod, torch etc.
wo-stage adjustable trigger
esettable safety catch
daptor for optional moderator
MAIN SPECIFICATIONS
verall Length 8.5ins to 25.5ins (416mm-616mm)
arrel Length 0.1ins (256mm)
.4lbs (2.9kg)
vailable Calibres
177 (4.5mm) .22 (5.5mm)
25 (6.35mm)
2-25ft/lbs (16-34J)
RANGER XR
The choice of some of the world’s top professional pest controllers
BRK is the choice of some of the world’s top professional pest controllers, so when a top red squirrel conservation ranger requested a super-compact, full-power PCP rifle incorporating a folding stock, we were happy to oblige.
The Ranger XR will suit air gunners who need to travel light, roam large areas or who shoot in confined environments, just like the environment that Jerry shoots in. In its UK compliant 12ft/lbs form, the Ranger XR measures a carbine length 600mm with its folding stock deployed, and just 400mm with it retracted. It weighs a featherlight 2.5kg (5.5lbs), yet will deliver around 35 shots in .177 and .22 calibre - slightly more if the on-board power adjuster is turned down.
Belying its compact size, the sidelever action Ranger XR is as accurate as a full-length rifle courtesy of its improved hammer design and highly advanced regulator system that combines precise meter air release and totally eradicates any power curve.
Note: Images shown with optional picatinny rails
FEATURES
• Ambidextrous stock with folding, telescopic butt
• Huma-Air regulated
• Ergonomic sidelever operation
• New, removable self-indexing 13 -shot (.177), 11-shot (.22) or 10 -shot (.25) rotary magazine with flip-open loading gate
• Single-shot tray
• Three power settings via side power adjuster
• 11mm dovetail rail for precise scope mounting. Additional Picatinny rail option available
• Two-stage adjustable trigger
• Resettable safety catch
• Adaptor for optional moderator
MAIN SPECIFICATIONS
•Overall Length 18ins to 26ins (460mm-660mm)
•Barrel Length 10.1ins (256mm)
• Weight 5.5lbs (2.56kg)
• Available Calibres .177 (4.5mm) .22 (5.5mm).25 (6.35mm)
• Power 12-20ft/lbs (16-27J)
Note: image shown with optional picatinny rails
CONCEPT XR
BRK’s XR series is designed to be modular with many components interchangeable across the range.
Or if you prefer, you can fit an array of aftermarket ‘AR’ style upgrades and accessories.
The Concept XR, for example, features an adjustable telescopic stock that allows pull-length adjustment and tailored gun fit for different shooting scenarios and stances. An AK style pistol grip, Picatinny style forend rail and the option of a folding stock, make the Concept XR the ideal choice for hunters looking for a small, compact yet powerful carbine-style rifle.
Fitted with a Huma-Air regulator and a high-grade shrouded barrel, high-power versions of the Concept XR can produce up to 40ft/lbs (52 joules) of energy, whilst delivering a large shot count.
In common with other XR series rifles, the Concept uses a slick sidelever action for light and fast shooting from the self-indexing magazine.
FEATURES
• Ambidextrous stock with adjustable butt
• Huma-Air regulated
• Ergonomic sidelever operation
• Removable 13 shot (.177), 11 shot (.22) or 10 shot (.25) self-indexing magazine with flip-open loading gate
• Single-shot tray
• Multiple power settings via side power adjuster
• Optional 11mm dovetail or Picatinny for precise scope mounting
• Two-stage adjustable trigger
• Resettable safety catch
• Adaptor for optional moderator
MAIN SPECIFICATIONS
• Overall Length 32.7ins to 36ins (830mm-915mm)
• Barrel Length 17ins (432mm)
• Weight 5 .5lbs (2.56kg)
• Available Calibres .177 (4.5mm) .22 (5.5mm)
. 25 (6.35mm)
• Power 12-40ft/lbs (16-54J)
Note: Above image shown with optional picatinny rail

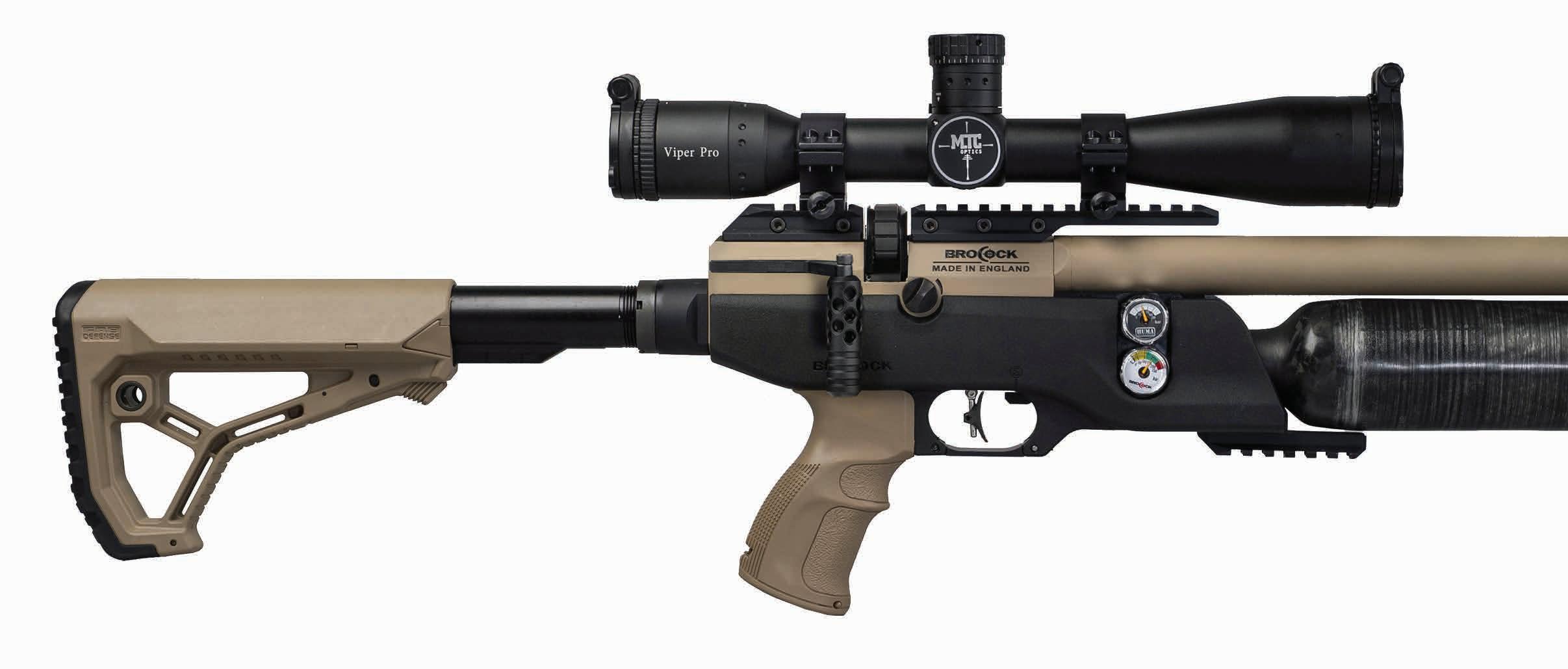

COMMANDER XR
The Commander XR’s modular design makes it compatible with many AR accessories.
The firing system has been developed and refined to incorporate all the latest developments into the XR range. The side lever Commander XR matches this performance and style in one highly practical and versatile package.
Indicated by its twin air gauges, the Commander XR incorporates a Huma-Air regulator system to eradicate a power curve and the telescopic stock can be adjusted to suit the shooter’s size and environment. The folding stock option takes compactness one stage further.
The stock is made from a lightweight, yet tough polymer in a choice of black or Desert Sand finish. Out front there is a lightweight 480cc carbon-fibre air bottle that helps to reduce the Commanders XR’s weight even further.
• Built-in silencer with adaptor for optional moderator
MAIN SPECIFICATIONS
• Overall Length 33.6ins - 37ins (855mm-940mm)
• Barrel Length 17ins (432mm)
• Weight 6 .4lbs (2.9kg)
• Available Calibres .177 (4.5mm) .22 (5.5mm) . 25 (6.35mm)
• Power 12-46ft/lbs (16-68J)
COMMANDER XR MAGNUM
With all the features of the Commander XR, the Commander XR Magnum has 20% more power.
Available in .22 and .25 calibres, the Commander XR Magnum features a longer 56cm A.R.T. barrel and can deliver up to 46ft/lbs of energy in a .22 configuration and 55ft/lbs in .25.
A purpose-designed Huma-Air regulator eradicates the power curve that unregulated rifles suffer from. Each carefully metered charge of air ensures minimal shot-to-shot deviation as the rifle cycles through its usable air charge, not only improving downrange accuracy but returning a shot count that reflects the huge hunting capabilities of this rifle.
An on-the-fly three position power adjuster, integral shroud and light, and adjustable trigger completes the package.
• Built-in silencer with ½ inch UNF threaded muzzle for second stage silencer
MAIN SPECIFICATIONS
• Overall Length 41ins to 46ins (1,010mm-1,117mm)
• Barrel Length 2 3ins (600mm)
• Weight 6 .7lbs (3kg)
• Available Calibres
. 22 (5.5mm) .25 (6.36mm)
• Power 4 6-55ft/lbs (62-74J)
XR / SNIPER XR / SAHARA XR
BRK’s innovative semi-bullpup design results in vastly improved gun handling and rifle ‘pointability’.
The XR series rank among the shortest air rifles on the market, with the Sahara measuring just 820mm from its adjustable butt to its shrouded muzzle.
An on-the-fly power adjuster, self-indexing magazine, match grade barrel with integral shroud and adjustable trigger completes the super compact package of this unique and handy air rifle.
Sniper and Sahara versions are fitted with a Huma-Air regulator while the black only XR is unregulated for shooters who prefer a simpler design and lower cost alternative.
Sniper XR versions can be suppled in a grey laminated wood. All versions feature cheek-piece and butt pad adjustment for a perfect gun fit.
• Built in silencer with adaptor for optional moderator
MAIN SPECIFICATIONS
• Overall Length 34ins (863mm)
• Sahara/Mini Version Length 32ins (820mm)
• Barrel Length 17ins (432mm)
• Weight 7.3lbs (3.3kg)
• Available Calibres .177 (4.5mm) .22 (5.5mm) . 25 (6.35mm)
• Power 12-50ft/lbs (16-68J)
SNIPER XR / SAFARI XR / SAHARA XR MAGNUM
BRK’s innovative semi-bullpup has a popular XR Magnum version with a longer barrel that increases power by 20%.
The Magnum uses a special fast flow Huma-Air regulator. With a longer 56cm A.R.T. barrel, the rifle can deliver up to 46ft/lbs of energy in a .22 configuration and 55ft/lbs in .25.
The usual ‘power curve’ that unregulated PCPs suffer from on high powered air rifles has been eradicated through measured air control to ensure minimal shotto-shot deviation as the rifle cycles through its usable air charge. This not only improves downrange accuracy but returns a shot count that reflects the huge hunting capabilities of this rifle.
An on-the-fly power adjuster, removable self-indexing magazine, integral shroud and adjustable trigger completes the package.
• Built in silencer with ½ inch UNF thread for moderator
• Huma-Air regulator
MAIN SPECIFICATIONS
• Overall Length
Sniper/Sahara 39ins (990mm)
Safari 34ins (863mm)
• Barrel Length
Sniper/Sahara 17ins (430mm)
2 3ins (600mm)
Sniper/Sahara Magnum
Safari 17ins (430mm)
Safari Magnum 23ins (600mm)
• Weight 7.3lbs-8.1lbs (3.3-3.7kg)
• Available Calibres
.177 (4.5mm) .22 (5.5mm)
. 25 (6.35mm)
• Power 12-55ft/lbs (62-75J)
Safari XR Magnum
GHOST WORLD RECORD ACCESSORIES
SHOOTING TO VICTORY
A full range of accessories are available for the BRK Ghost to convert and enhance the Ghost to win in any type of shooting
Set of 6 pre-rated springs that allows tuners to adjust the hammer tension to suit different pellets and slugs
Carbon fibre wrapped alloy bottle. Supplied with internal valve.
Rated to SWP of 250BAR.
A choice of 480cc or 580cc
or
Winning not one but two world championship titles is an amazing feat, but to set a world record score in the process is an incredible achievement.
And yet that’s exactly what Fady Kiwan did earlier this year at the Benchrest Rimfire and Air Rifle Championships held in Plzen, Czech Republic where he used the same BRK Ghost across the many disciplines, only changing the barrel length and caliber – one of the rifle’s key design benefits.
The 0dB Silencer range performs as impressively as its look suggests
Barrel tuning system. Developed by the world champion for BRK
The loader allows single shot loading, perhaps for target shooting
pellet type testing
Performance Barrel Clamp provides additional anti-vibration support
RANGEMASTER PELLETS &
AIRGUN
SLUGS
GHOST M-LOK AND ARCA FOREND RAIL
Even the finest air rifles in the world are only as good as the ammo they’re fed. Rangemaster has partnered with manufacturers around the world to develop the Rangemaster range - a comprehensive line up of high performance ammo that exploits the full potential of BRK’s highly acclaimed air rifles.
Precision-made to exacting tolerances, the Rangemaster range spans calibres from .177 to .30 (4.5mm to 7.62mm) and weights from 8.44 grains to 50.15 grains (0.547 grams to 3.240 grams).
Each of the Rangemaster types has been specially matched to suit specific purposes, from short and long-range hunting to field target and benchrest competition, with ballistic configurations to cater for rifles that produce sub-12ft/lbs (16J) power output to those in excess of 100+ft/lbs (135+J).
Supplied in easily identifiable colour-coded tins of 150 to 500 according to type/calibre, Rangemaster is the line that’s got every shooting scenario covered.
The BRK Ghost M-LOK and ARCA Forend Rail is a forestock extension for use with accessories with ARCA Swiss Plate or M-Lok style fittings.
Easy to fit with just the hex key supplied, the kit comprises an M-Lok to Picatinny adaptor and M-Lok and black anodised aluminium ARCA Forend Rail.
• Adjustable length 165-216mm (6.5-10 inches)
• Fits Picatinny rail and non-slip rubber feet
• Compact design folds forwards and back in 30 degree increments
• Attachable hand grip
SLING KITS
and
TACTICAL GUNBAG
The BRK Tactical Gunbag is designed specifically for the Pathfinder XR but can also take other shorter BRK rifles.
Quality made in the UK from heavy-duty black Cordura.
Features strong carry handles, and two shoulder straps allow it to be worn like a rucksack.
High quality sling
swivel kits for your BRK rifle.
GHOST BARREL CLAMP
Provides additional anti-vibration support for Ghost High Power models. Fits 430mm (17”) and 600 (23”) barrel HP models.
CLOTHING & ACCESSORIES
CARBON FIBRE/ALLOY BOTTLE
Supplied with internal valve. Rated to SWP of 250BAR. Choice of 480cc or 580cc capacity.
RACE RAIL INTERMOUNT
EXTENDED SCOPE
RISER RAIL
Features twin mounting points. Fits Ghost and other models with 11mm top dovetail. Converts 11mm dovetail to Picatinny mount.
Built-in 0.3 degree tilt to aid zeroing.
Images for illustration purposes only. Colours and finishes may

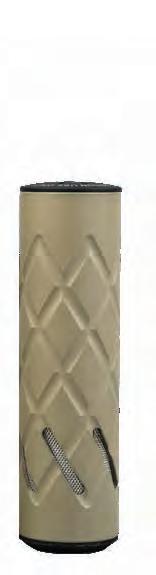

0d B SILENCER
An exciting range of air rifle silencers, the 0dB performs as good as it looks.
Externally, stylish flutes work to diffuse air while, internally, a specially developed baffle and mesh system dissipates both noise and air turbulence. This ensures the pellet not only exits a 0dB silencer with a barely audible report, but that it begins its downrange journey in the calmest air possible.
Designed in lightweight aluminium and CNC-engineered with the highest quality components, the 0dB silencer is female threaded to the industry standard ½” UNF fitting.
Each model is also close machined to rifle bore sizes to maximise sound suppression efficiency, with size specific designs for .177, .22, .25 and .30 calibre air rifles denoted by a star rating on the 0dB’s end cap. Effective and beautiful, the 0dB silencer is a classy complement as well as the perfect performance upgrade. The 0dB Short and 0dB Long can also be supplied with an attractive muzzle compensator (standard on the 0db Tactical).
/ DIAMETER WEIGHT
4.5” (115mm) / 1.25” (32mm) 3.7oz (106g)
6.5” (163mm) / 1.25” (32mm) 5.2oz (147g)
6.5” (163mm) / 1.25” (32mm) 5.3oz (150g)
7.5” (190mm) / 1.57” (40mm) 6.8oz (193g)
MAGNUM 0dB SILENCER
To complement the tactical nature and ultimate performance of the Magnum and Ghost HP, BRK has developed the Magnum 0dB for the ultimate in noise suppression even up to the BRK Ghost’s impressive 95ft/lbs
The Magnum 0dB is M20x1 and ½ UNF threaded to allow maximum flexibility.
BRK MF 1/2” UNF AIRGUN SILENCER
The new BRK MF 1/2” UNF Airgun Silencer is the quietest BRK has ever made, Two lengths: Short (MF121) and Long (MF170).
Caliber-specific design: For best suppression, choose for either .177 (4.5mm) or .22 (5.5mm) caliber barrels.
Diameter: 40mm (19/16”)
Weight: Short-151g (5.32oz); Long-195g (6.87oz)
0dB Tactical
Magnum 0dB
0dB Short & Long in Black
0dB Long & Short in Sand
NEW 0DB ATP & SSP SYSTEMS
The Ultimate Airgun Barrel Tuner and Silencer
The new 0dB Advantage Target Pro (ATP) and Stealth Silencer Pro (SSP) Systems must represent the ultimate airgun silencer and barrel tuner kits. Why? Not only does this system work to improve accuracy, it also works as a soundsuppressor!
Development and design
The ATP incorporates years of data we have collected from our experience in the Extreme Benchrest target shooting arena. By working closely with some of the world’s best competition shooters, we have developed a harmonic tuning system to incorporate a sound moderator.
Advantage Target Pro shooters can now tune the harmonics of their rifle’s barrel for optimum accuracy with the ammo they are using. Tuning is done by hand by rotating the internal weight inside the bronze-coloured tuners housing, makes it both quick and easy to achieve the desired setting Threaded to fit universal ½ in. UNF fitting, meaning the tuner will fit air rifle muzzle with a conventional ½ in. UNF male thread. Using a special key, you can add an extra baffle or baffles* to add the sound suppression.
Stealth Silencer Pro
The SSP is a short silencer with a ½ in. UNF fitting. Using the special key, different caliber inserts* are added, for the best silencing effect choose the correct insert for the caiber rifle you are using. *Multiple additional Silencer baffles can be added to the front end until the desired level of sound suppression is achieved.
*Included is a set of Composite baffles for different calibers -.177/4.5mm, .22/5.5mm, .25/6.35mm, .30/7.62mm. So you can optimise the noise suppressing efficiency according to the caliber of the rifle to which it is fitted, as well as tightening up the downrange groups!
PERFORMANCE CENTER
Shop online from our wide range of air rifle parts and accessories using our new performance center catalogue. Our range of airgun accessories has been designed, developed and tested in conjunction with Daystate and BRK’s quality values to ensure we supply the highest quality accessory that work perfectly with Daystate and BRK rifles. Our accessory range allows you to personalise your rifle to suit your individual style but also caters for those functional spares. Whatever you need, the Performance Center has it!
All parts supplied from our UK warehouse. To find our accessories, parts and to order just scan the QR code or visit https://issuu.com/daystate/docs/performance_center_001?fr=xKAE9_zU1NQ
