Marwood Traffic Management Barrier Systems Brochure
DELIVERING HIRE STANDARDS NATIONWIDE
BARRIER SYSTEMS
DELIVERING HIRE STANDARDS NATIONWIDE
If you are new to Marwood Group Ltd then let me explain that we have over 45 years experience in our chosen field of the Hire and Sale of Non-Mechanical Contractors Plant.
With our unrivalled knowledge and commitment to carry nationally the very best quality stocks of equipment, I am sure you will find our service second to none.
Being quality assured to ISO 9001: 2015 & ISO14001: 2015 and having gained RISQS, Achilles Building Confidence, UVDB Accreditations & Carbon Vis Accreditation shows our commitment to delivering a very high quality service at all levels.
Our brochures are designed to be highly informative and help you make the right decisions to fulfil any non-mechanical plant requirements that you may have. All our operatives are highly trained and versed in our product ranges and we can even help you source those plant items that we do not cover in our standard range.
We aim to take the stress out of sourcing the right equipment for your contract, hopefully these brochures together with our website can help you find not only the right equipment but the right service to deliver to you peace of mind.

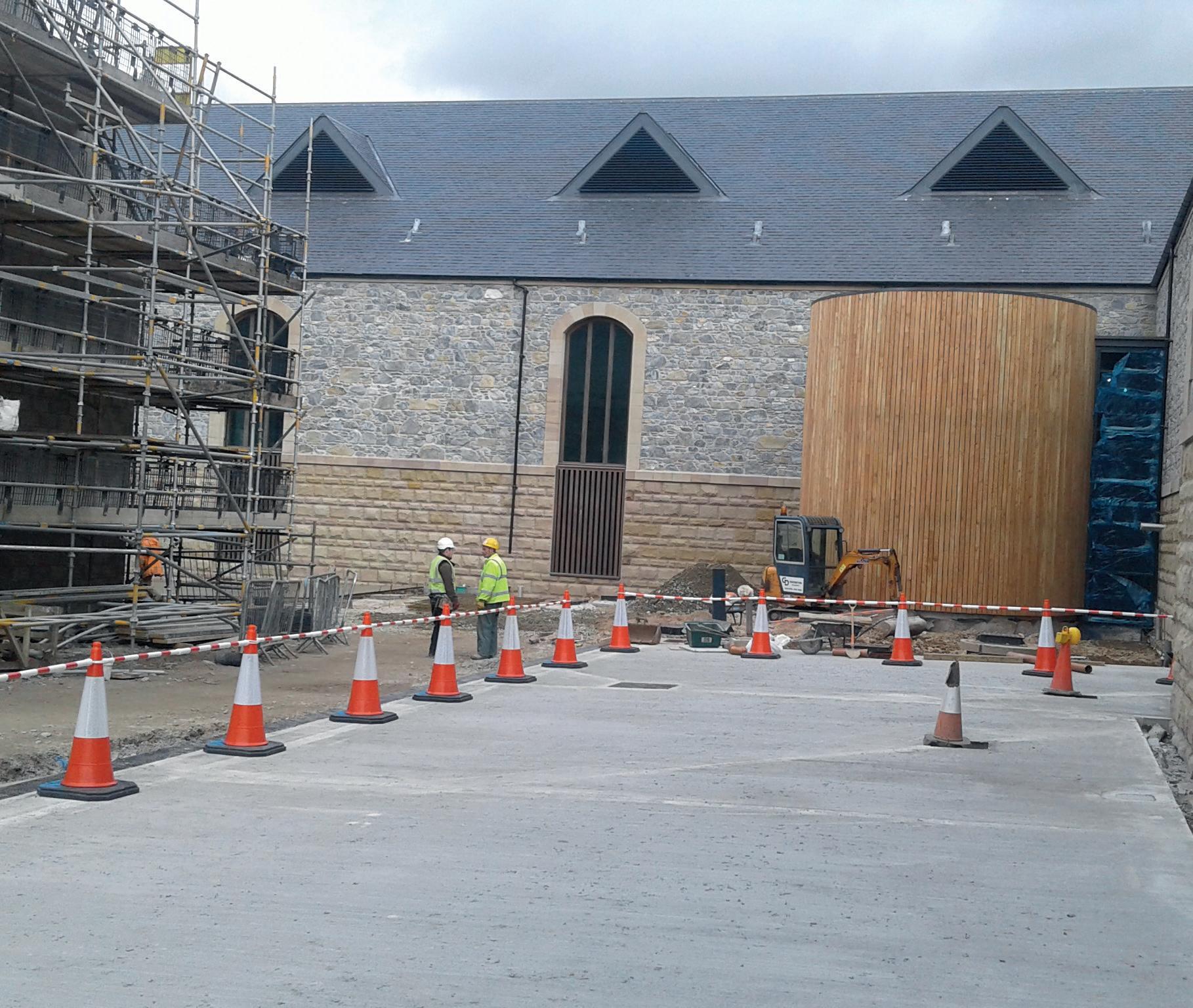

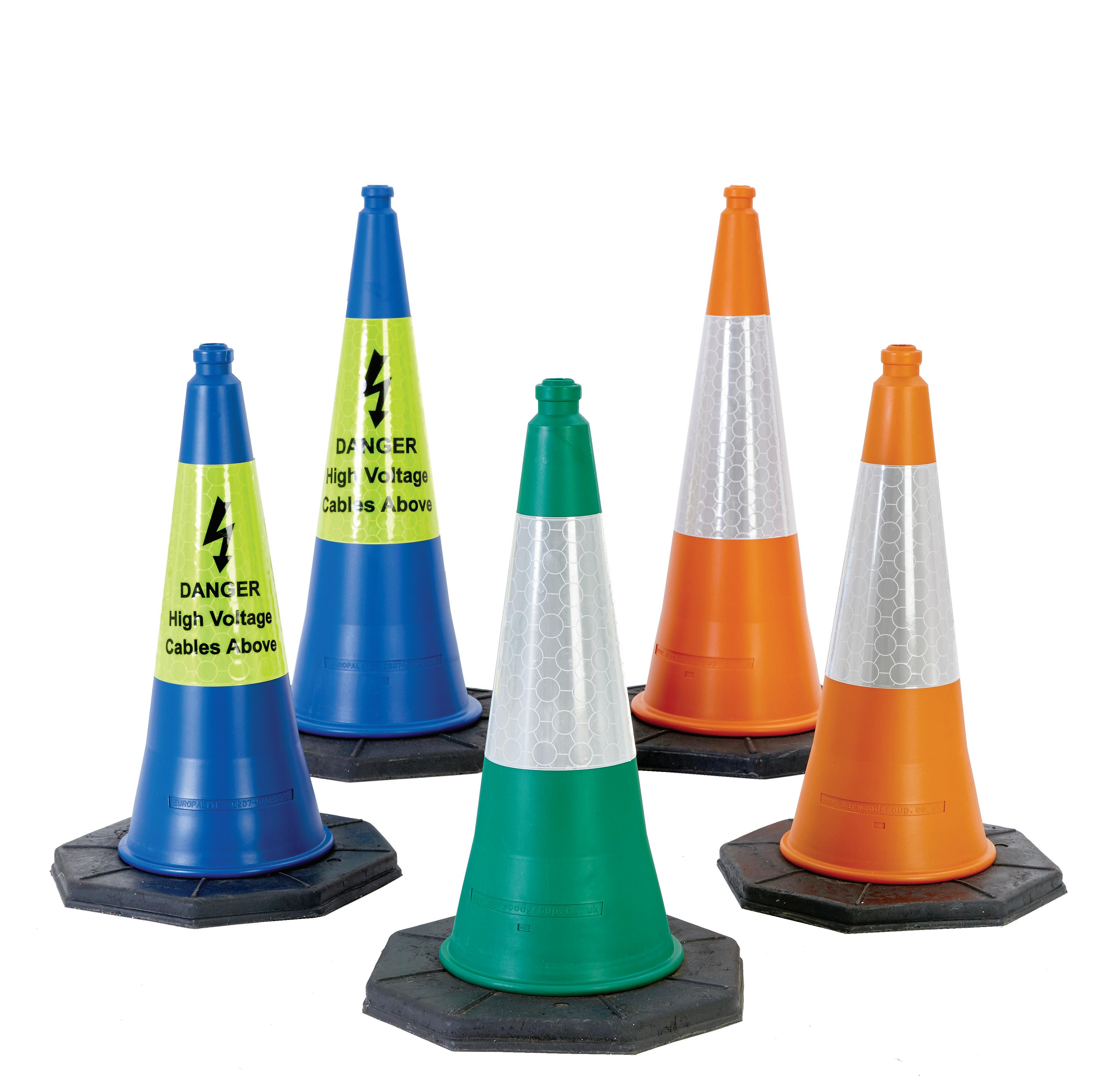

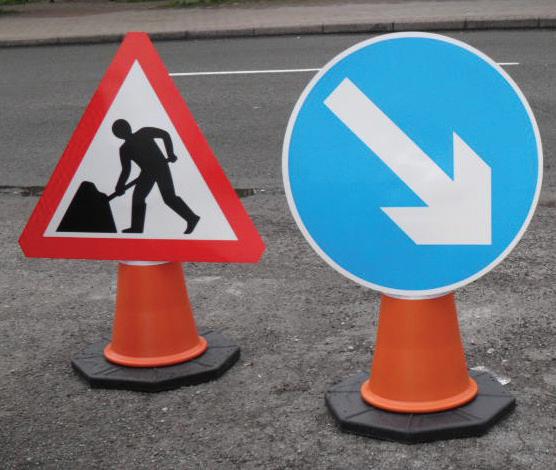

Roadmaster Traffic Cones, Roadmaster Cone Sign, Temporary Zebra Crossing Mat, Cone Bar, Stop/Go Works Lollipop, Speed Reduction Cable Protection Ramp 3/5 Channel Cable Ramps, Speed Control Ramps, Hose Protection Ramp
Ancillary Equipment 23

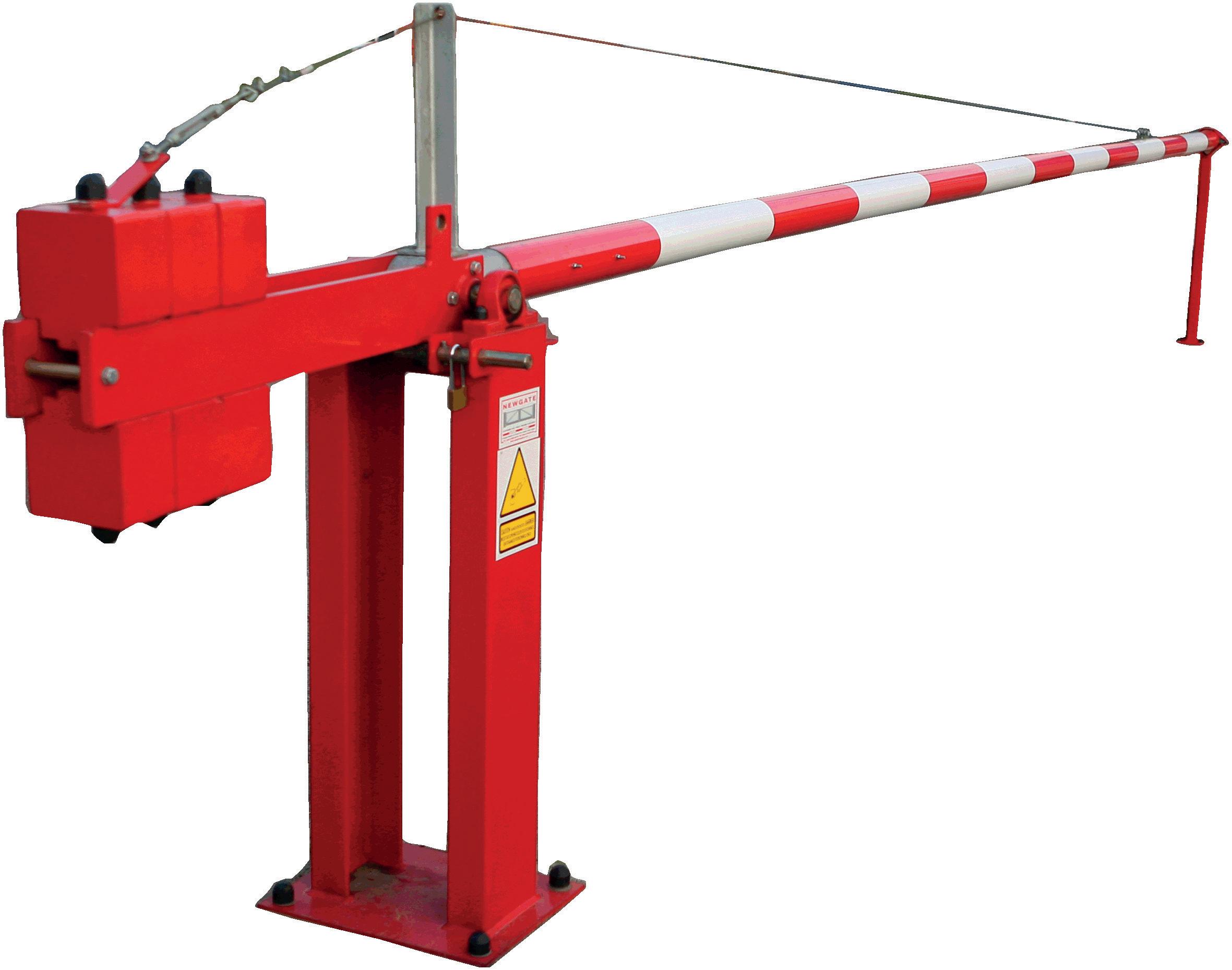

Manual Raise Arm Barrier, Gaol Post / Rail Industry
Marwood Group Limited has a policy of continuous improvement and reserves the right to change product specifications and prices without prior notice. E. & O.E. Where required, plant is supplied with a current test and inspection certificate. All plant fully conforms to Health and Safety regulations. Marwood reserve the right to change specifications without notice. All weights and dimensions quoted are nominal.
Marwood Group Ltd 2024
The products and services we offer and detail in this brochure are designed to bring real benefits to you. Every item of plant is carefully chosen for its quality and suitability to make a genuine contribution towards a more efficient and safer working environment.
As a specialist plant company we can concentrate and focus on our range and offer you our expertise and unrivalled resources.
From our regional depot network we can offer you the first class, reliable and competitively priced service you need. Visit www.marwoodgroup.co.uk for the latest news and views from the Marwood Group Ltd website.
TO OPEN AN ACCOUNT
Opening a credit account couldn’t be easier. Simply download a credit account application form from our website or request an application form from one of our depots or area representatives. Your credit account could be open on the same day as application.*
* Subject to credit status
NON-ACCOUNT CUSTOMERS
If you cannot open or do not wish to open a credit account then Marwood Group Ltd can offer a Cash Hire** transaction. We accept bank transfers and take most credit cards, however in all instances we will request cleared funds before delivery of any goods.
** Cash Hires are subject to deposits payable before the commencement of hire **
ELECTRONIC INVOICING
In an effort to help reduce customers administration costs, Marwood Group Ltd can offer credit account customers the benefit of Electronic (Paperless) Invoicing. Please contact one of our depots or your Marwood Group Ltd area representative to help set up this cost saving advantage.
Full details can be found on our website www.marwoodgroup.co.uk
Delivering Hire Standards Nationwide www.marwoodgroup.co.uk an

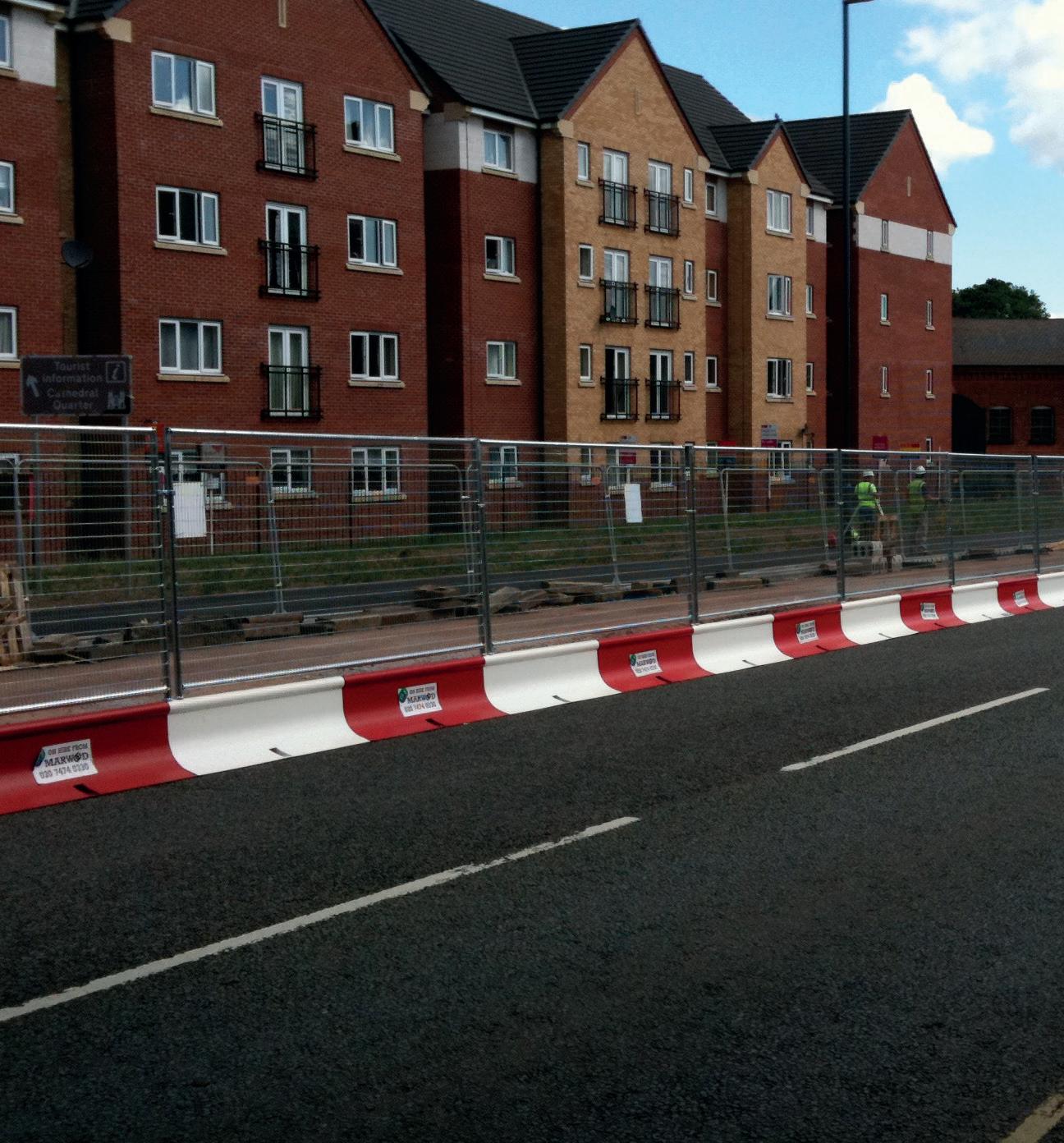

TRAFFIC & PEDESTRIAN SAFE BARRIER SYSTEMS

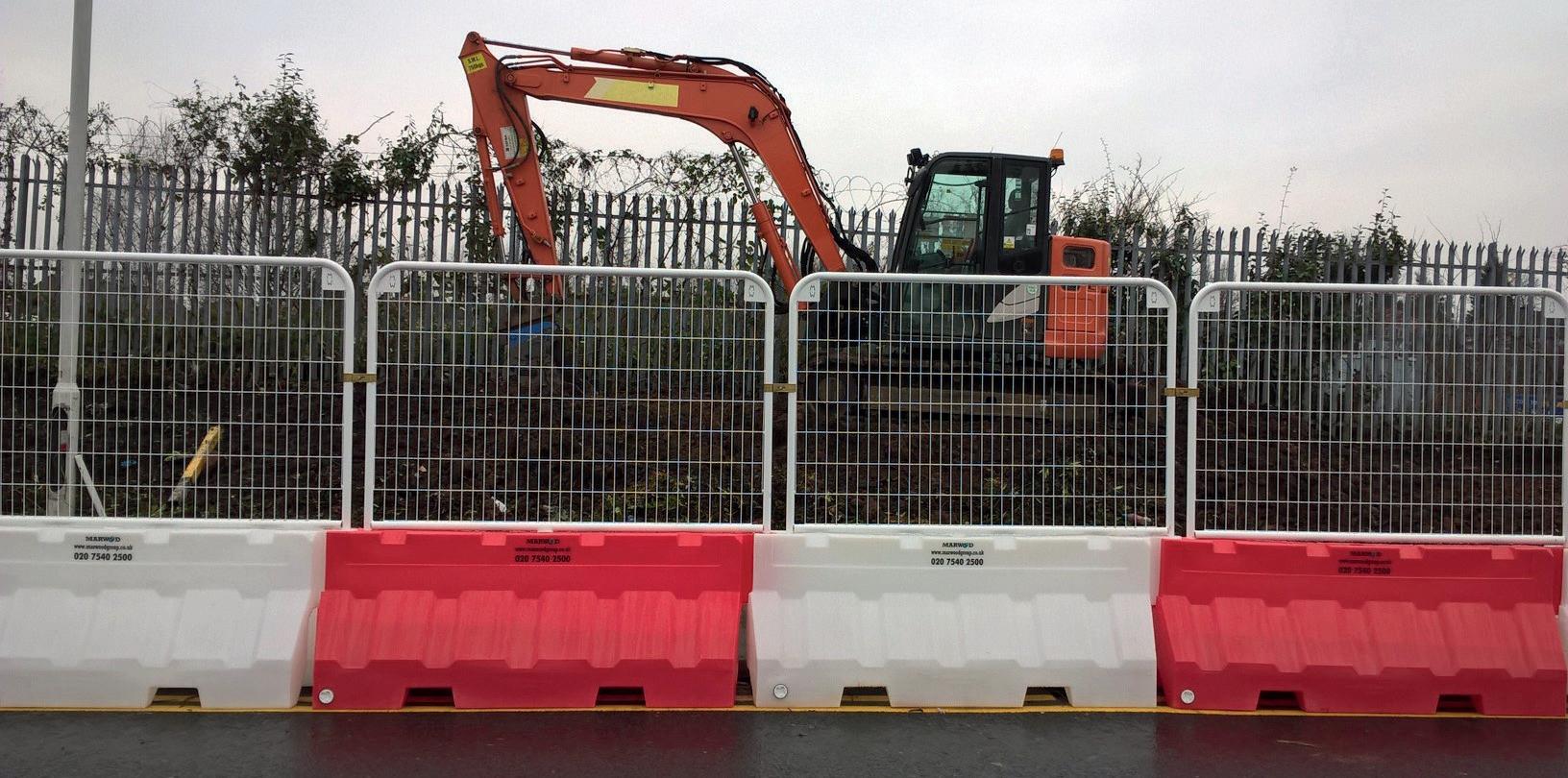

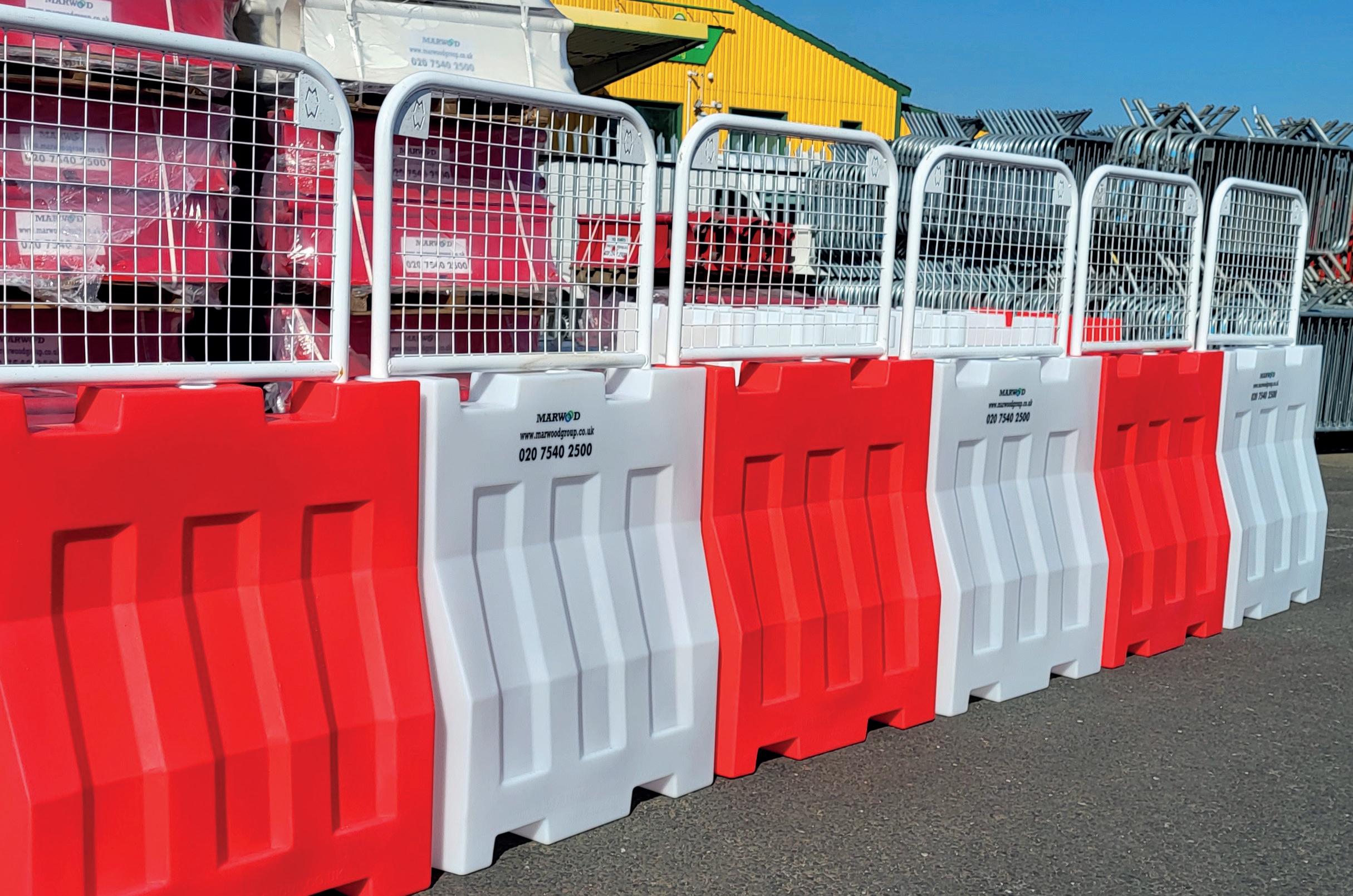

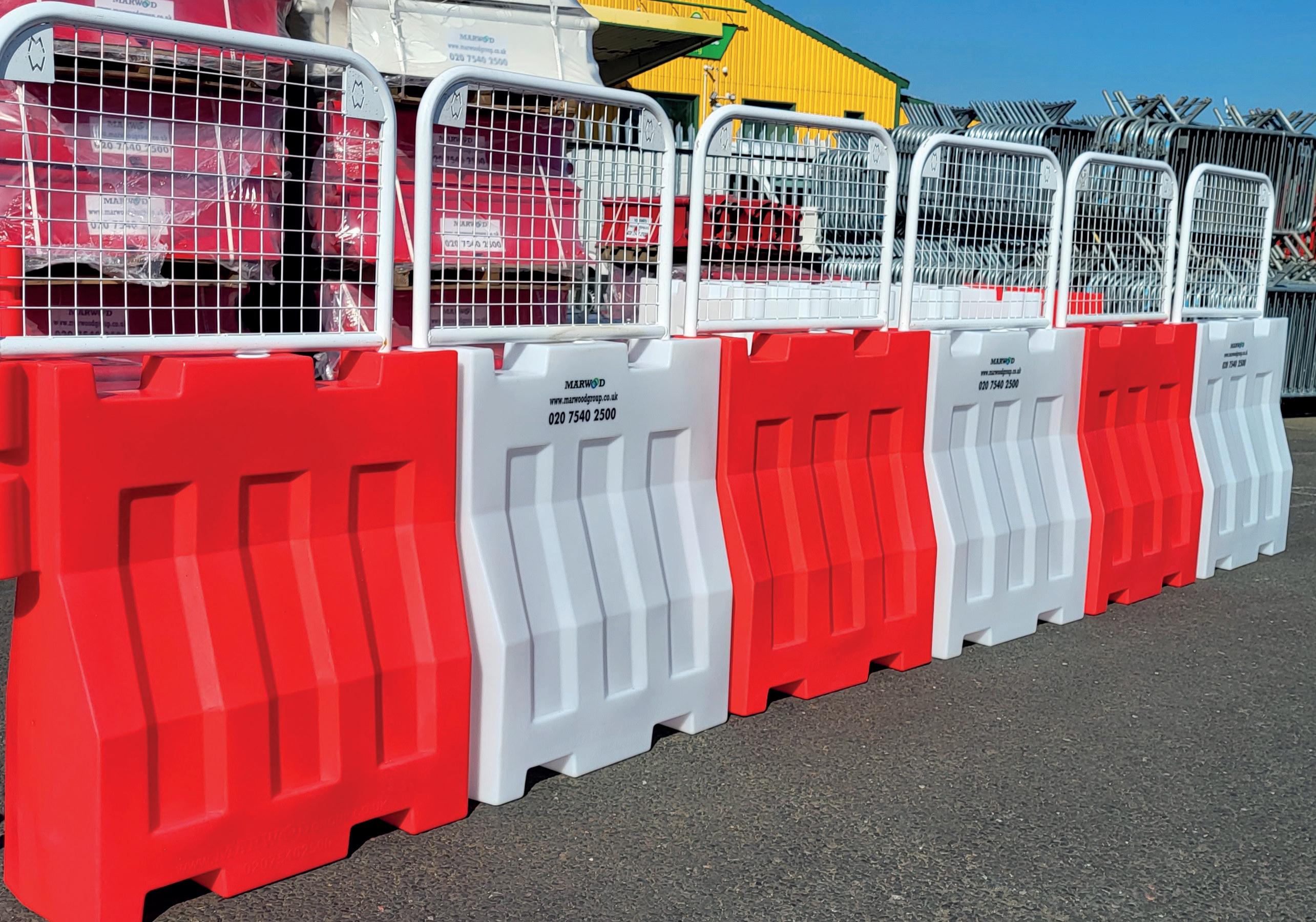

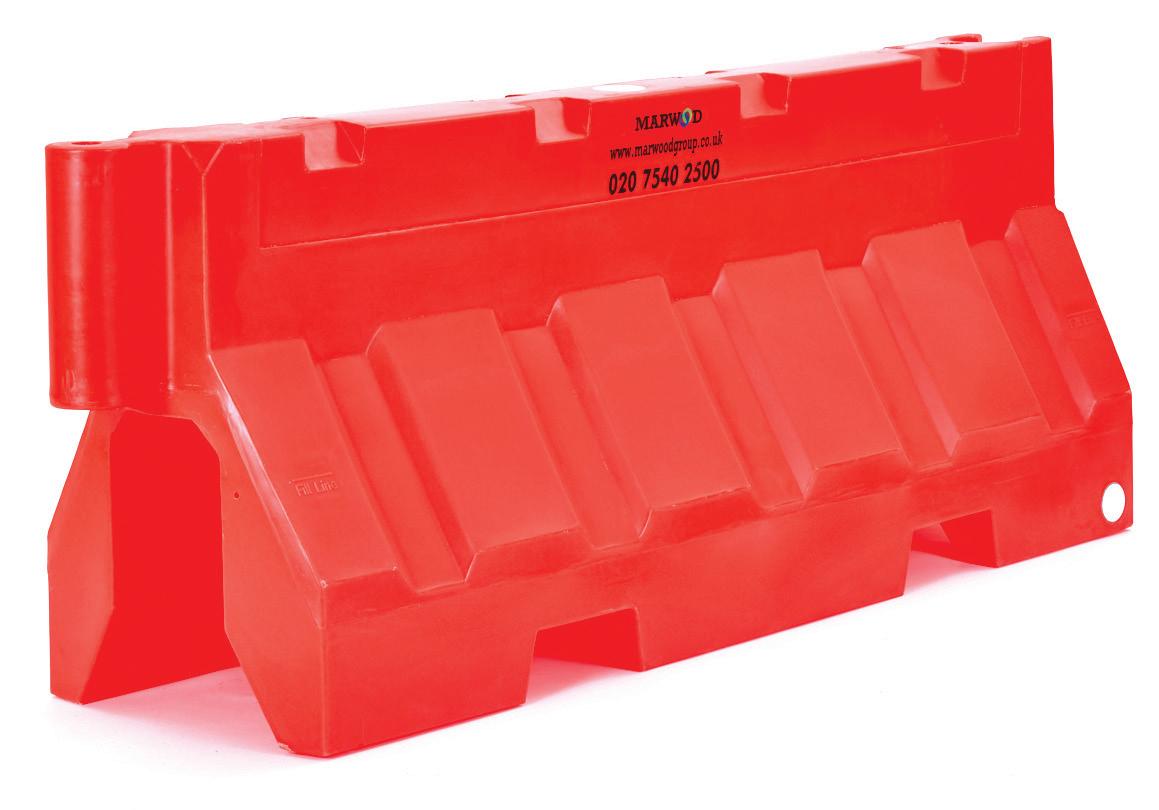

UNIVERSAL TVPB BARRIER NEW PRODUCT
2mtr Universal TVPB (temporary vertical plastic barrier) has been designed for situations where a larger safe barrier is required. Can be used in either temporary or permanent situations. Units stack to minimise transport and storage costs. When used in conjunction with our Universal fence and gate systems this makes a complete, safe traffic or pedestrian segregated zone.
• Made from UV stabilised virgin LLDPE
• Available in red & white
• Push cap for filling barriers (76mm) drain plug (60mm)
• Can be forklifted for easy transportation, fork channels 188mm x 100mm
• Compatible with 2mtr Universal Barrier (starts with female end)
• Reflective strips available upon request (Sale Only) Wind tested to BS8442
(overall)
(overall)
Empty
Terminator
empty
Terminator
empty
Overall height of barrier with fence panel

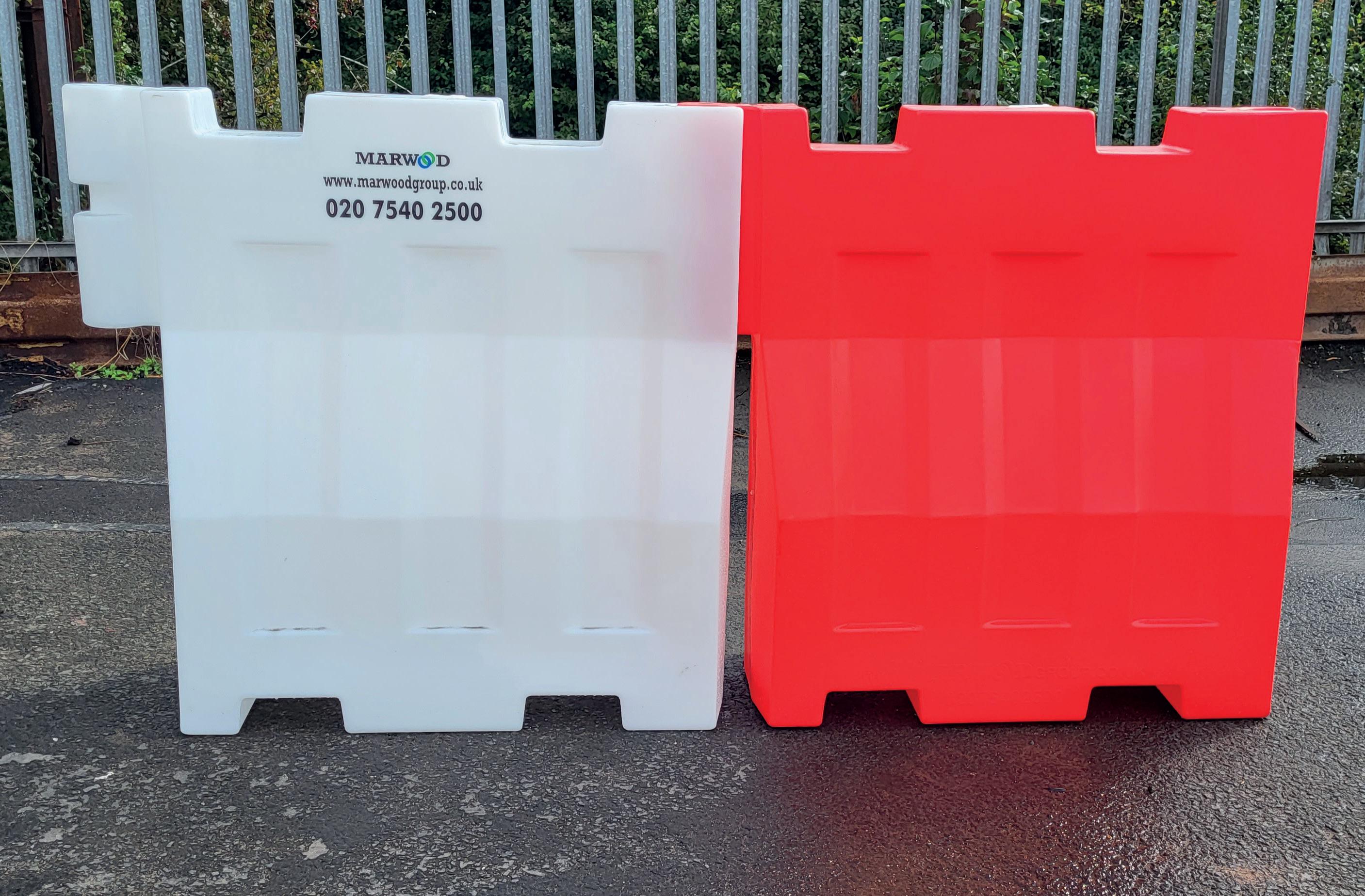

UNIVERSAL TALL BARRIER NEW PRODUCT
The Universal 1000 Tall Separator is designed for situations when storage is at a premium. It can be used where extended height separation for pedestrian is required with a fence panel on top.
It can also be used to restrict and direct flow of site users. This water fill unit is a must for all contractors or event organisers.
• Available as 1m length, the universal range stacks to minimise transport and storage costs.
• Made from UV stabilised LLDPE
• Top fill cap (76mm) drain plug at fill height (60mm)
• Can be water or sand filled to provide increased stability and strength.
• One piece rota-moulded barrier with no additional tools required for installation.

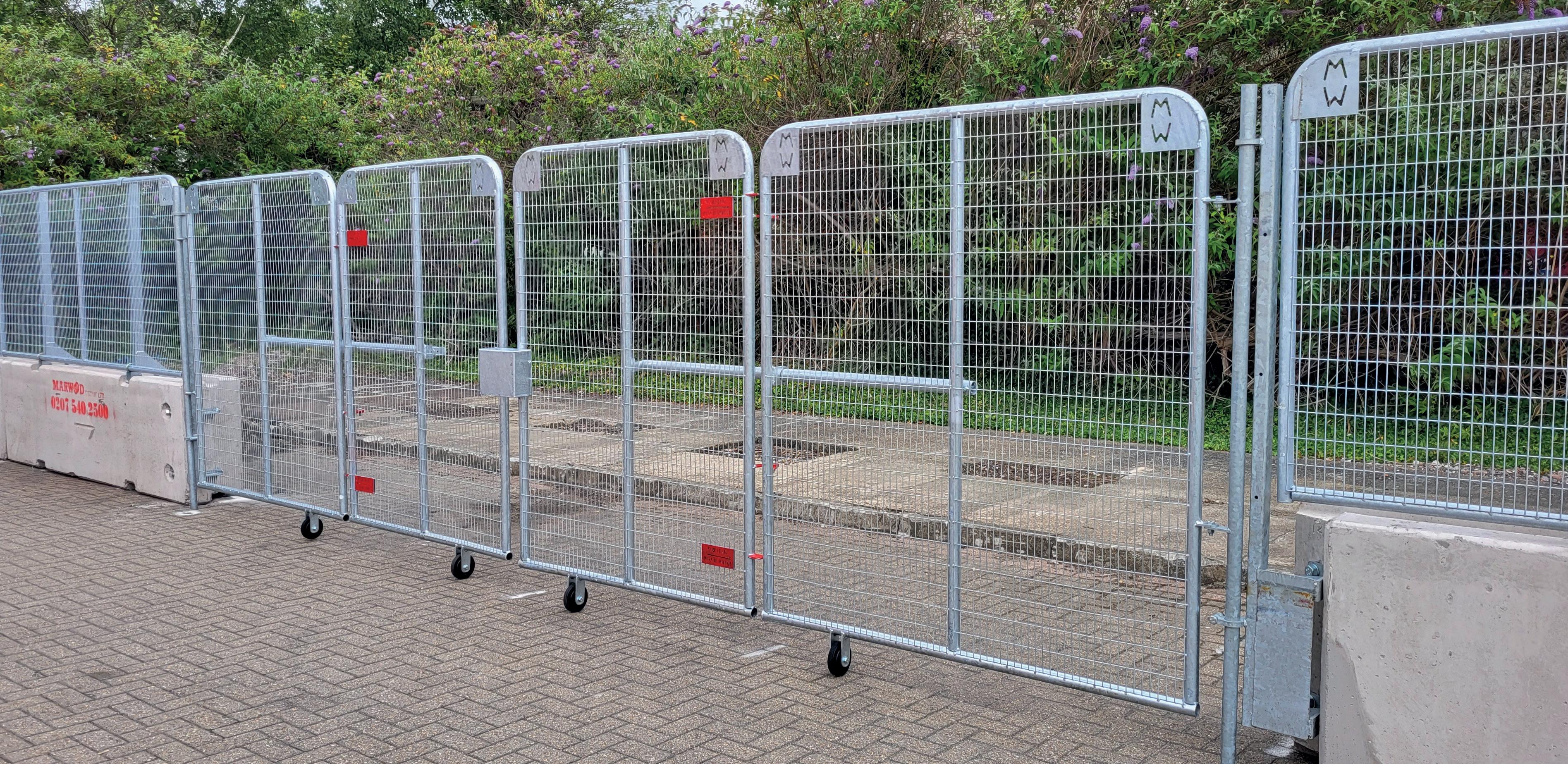

Products to perfectly suit both vehicle and pedestrian access requirements, both gate systems can be used to achieve access control and enforce site security management. Both gate systems come with an enclosed box section to allow for a padlock to be fitted,(not supplied). Securing the gate and offering added security.
Vehicle Gate (pair)
• Approximate weight of 140kg
• Height of the gate is approximate 2043mm
• Entrance & working dimensions of the gate is 6278mm
Pedestrian Gate
• Approximate weight of 50.1kg
• Height of the gate is approximate 2122mm
• Entrance & working dimension of the gate is 1435mm

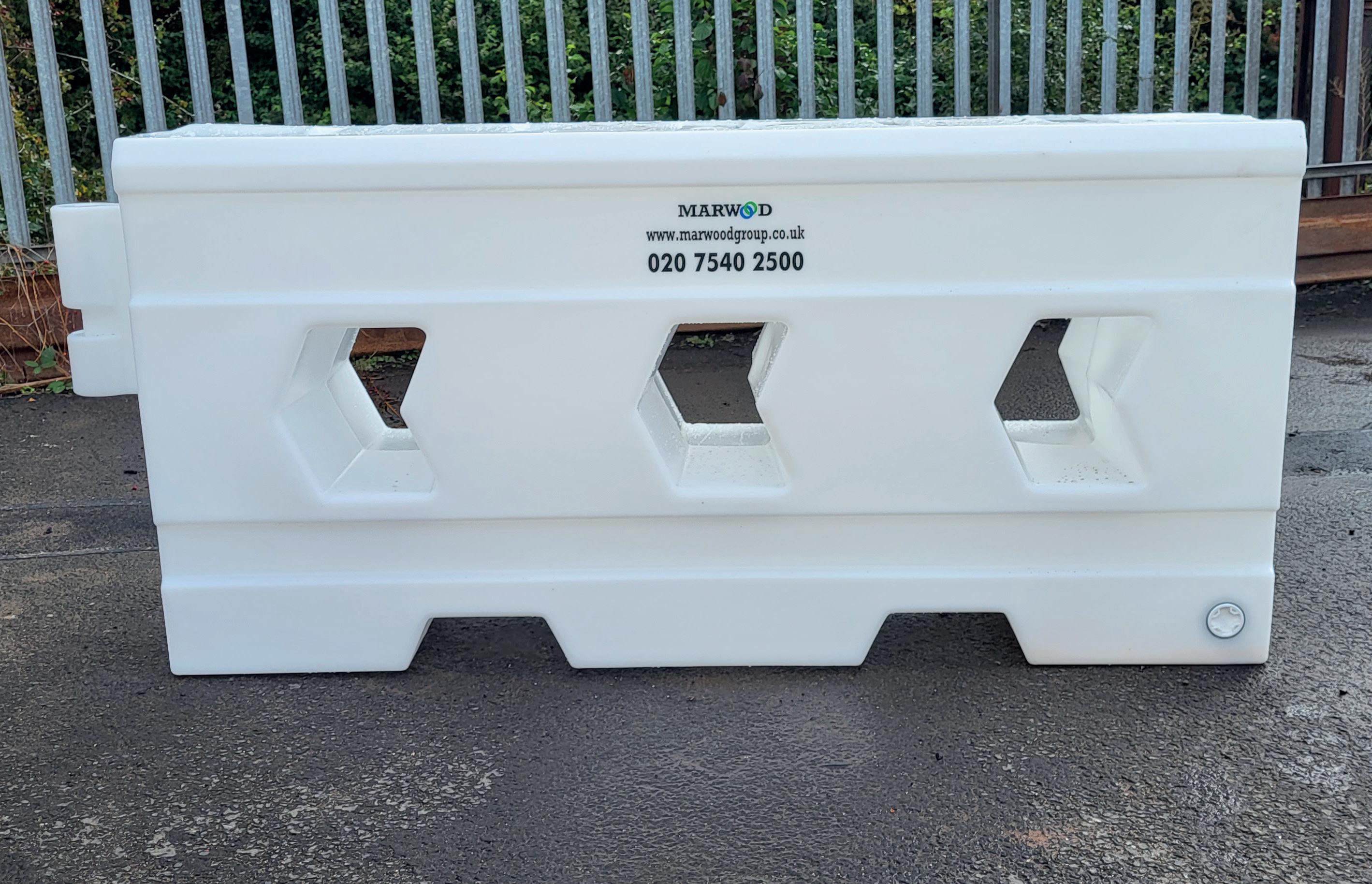

UNIVERSAL 1000 MINI BLOCK NEW PRODUCT
(SALE ONLY)
Designed for situations when storage is at a premium. These barriers are ideal for directing flow of traffic or separating site works from road traffic.
• Available as 1m length, the universal mini range helps to minimise transport and storage costs.
• Made from UV stabilised LLDPE.
Top fill cap (76mm) and drain plug at fill height (60mm).
• Can use water or sand to provide increased stability and strength.
• One piece rota-moulded barrier with no additional tool required for installation.
SELF-WEIGHTED TRAFFIC
• Can be forklifted for ease of transportation.
• Can be fitted with 1m Fence Panel.
• Wind tested to BS8442
• Fence panels available 900mm x 850mm
Description Universal 1000 Mini Block Universal 1000 Mini Block with fence panel Height 400mm 850mm
1115mm 900mm
370mmWeight empty 6.1kg 5.8kg
Overall height of barrier with fence panel - 1030mm
SEPARATOR
Ideal for short term use where water filled separators could be an issue due to icy weather conditions or no water supply. Has a unique turning feature that allows the barriers to rotate through 45 degrees to easily block off areas.
• Self-weighted, no need to fill with water
• Stacks for ease of transportation
• Installed within minutes

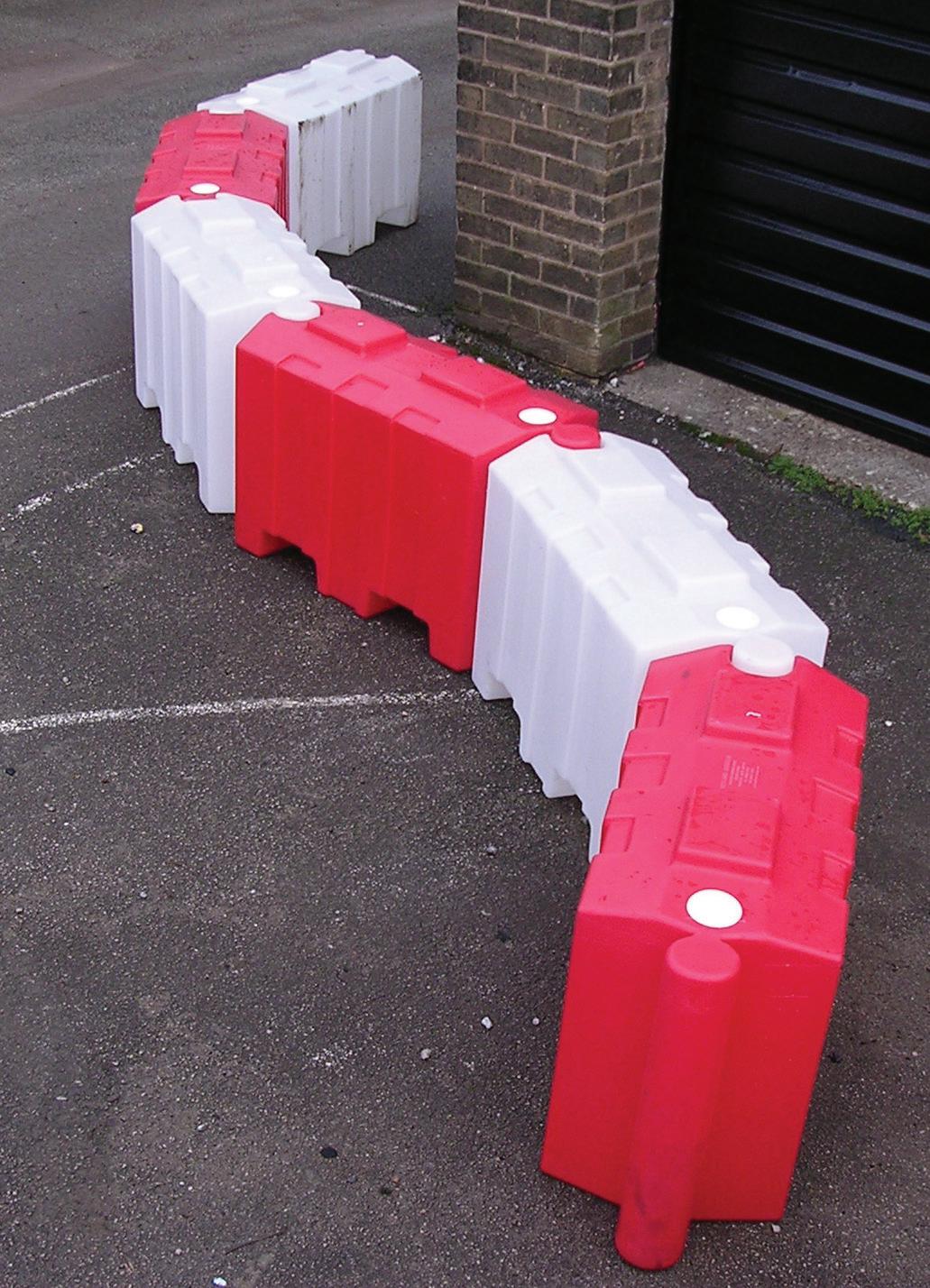

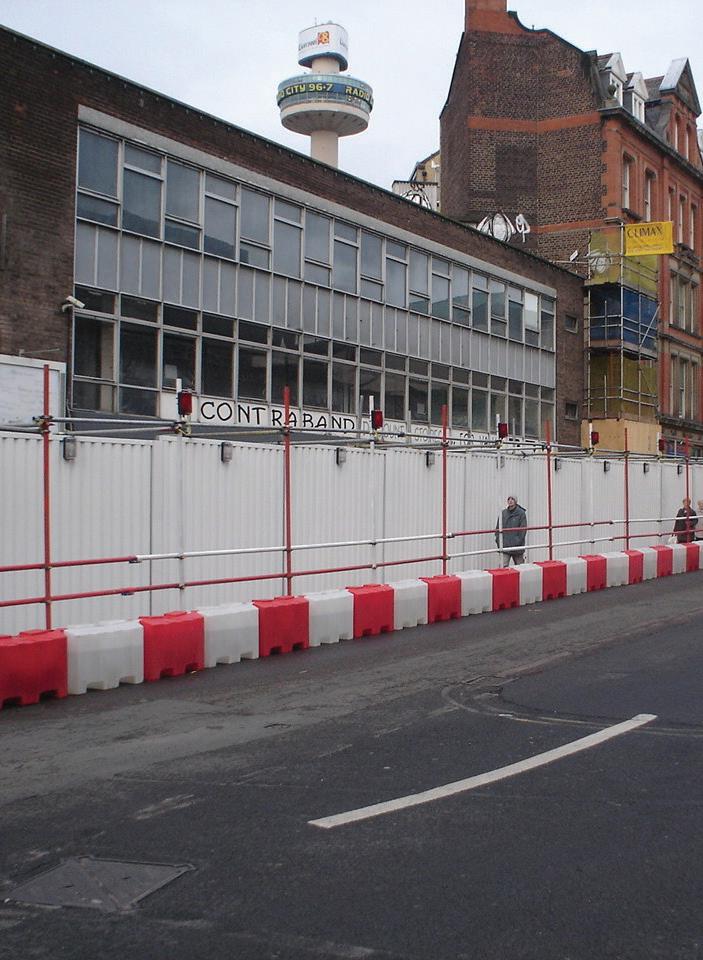

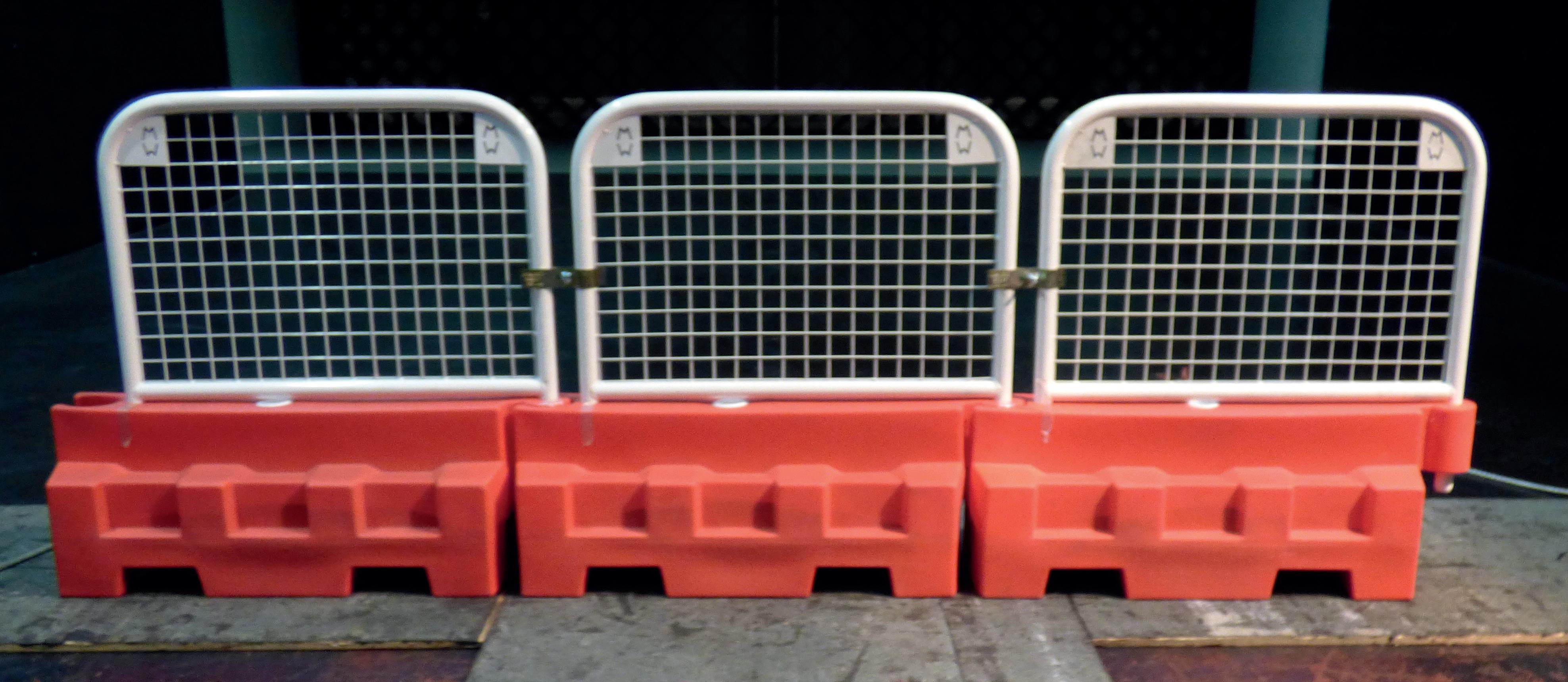

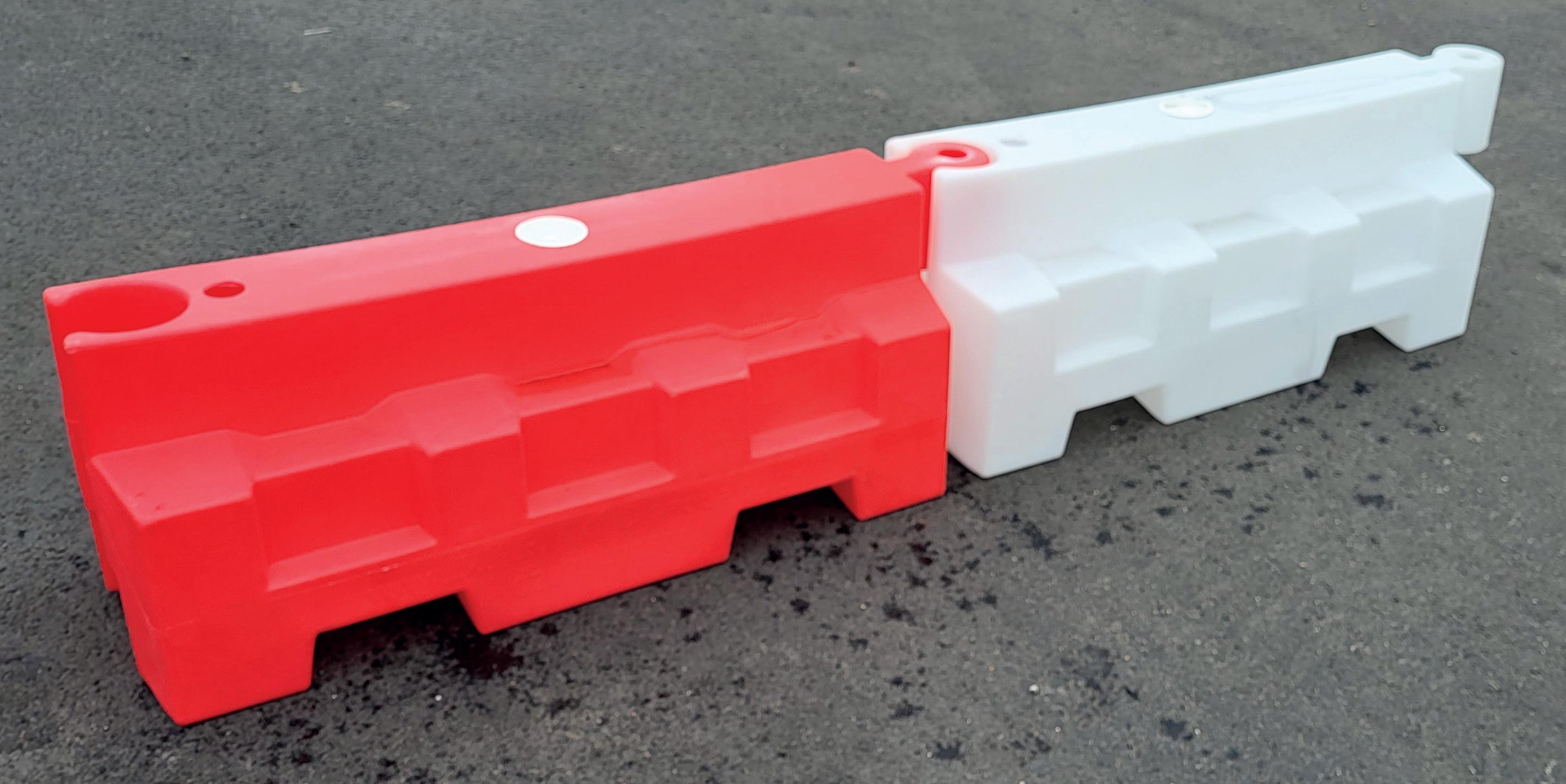

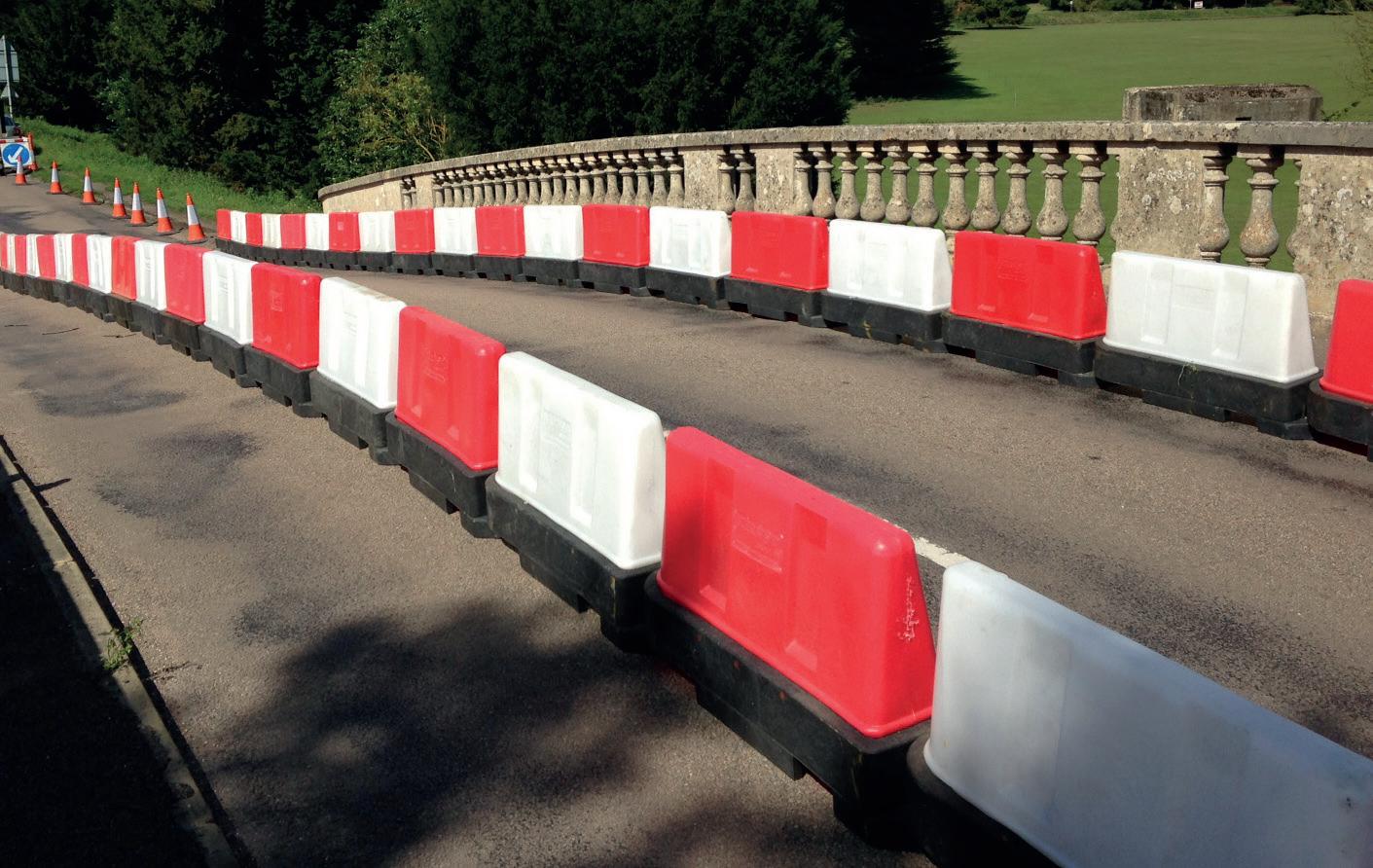

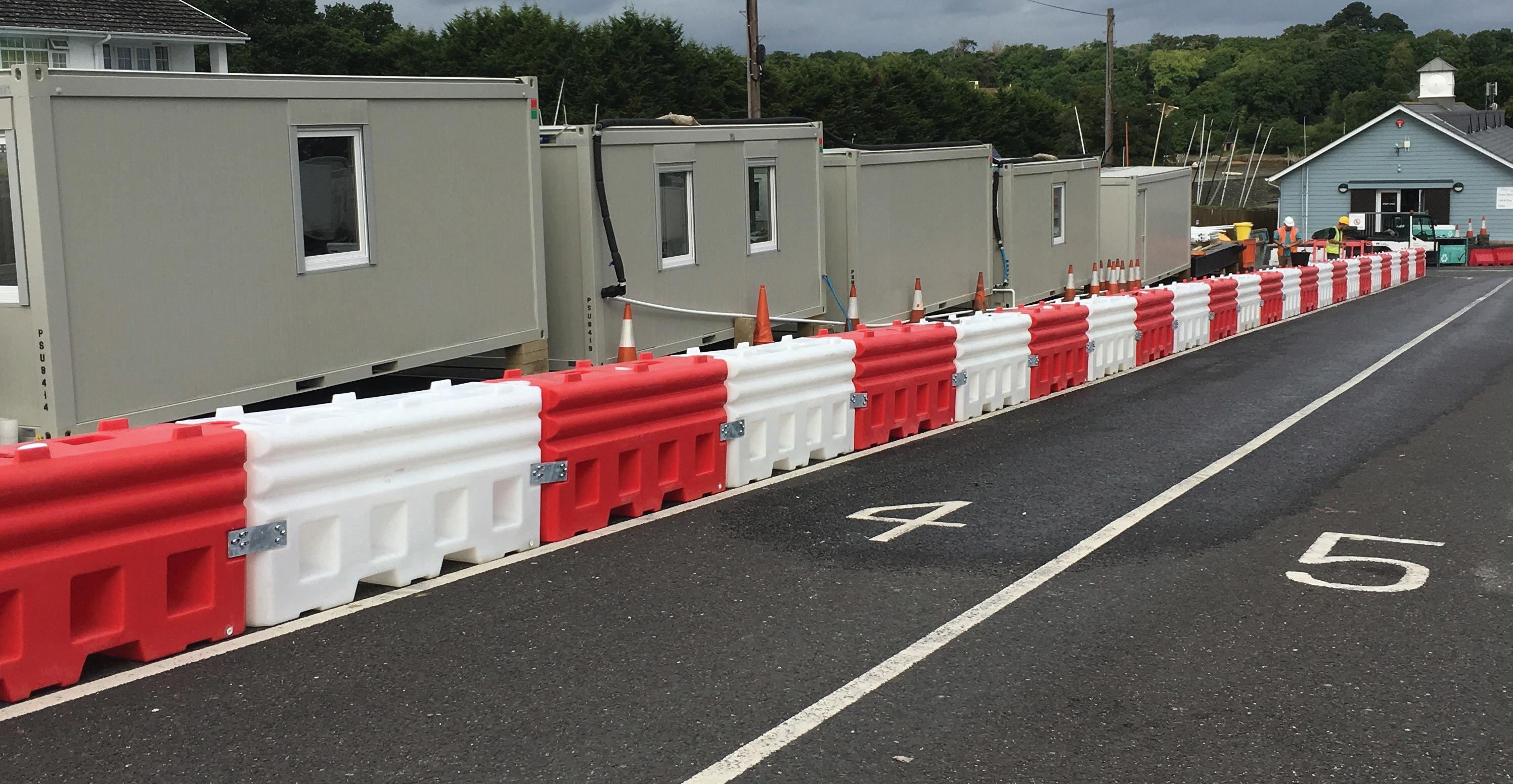

UNIVERSAL ROAD SEPARATOR
Available in 1m and 2m lengths and designed for situations where storage is at a premium. Can be used in either temporary or permanent situations. Units stack to minimise transport and storage costs.
• Water fill units
• Made from UV stabilised LLDPE
• Comes with tube end cap 76mm
• Overall height of 1m separator with fence panel is 1245mm
• Overall height of 2m separator with fence panel is 2080mm
Description 1mtr 2mtr
Length overall 1120mm 2140mm
Height 615mm 800mm
Width 370mm 520mm
Weight Empty 8.5kg 25kg
Weight Full 45kg 186kg
Warning - Units should not be moved when full with water / ballast as could cause damage to units.

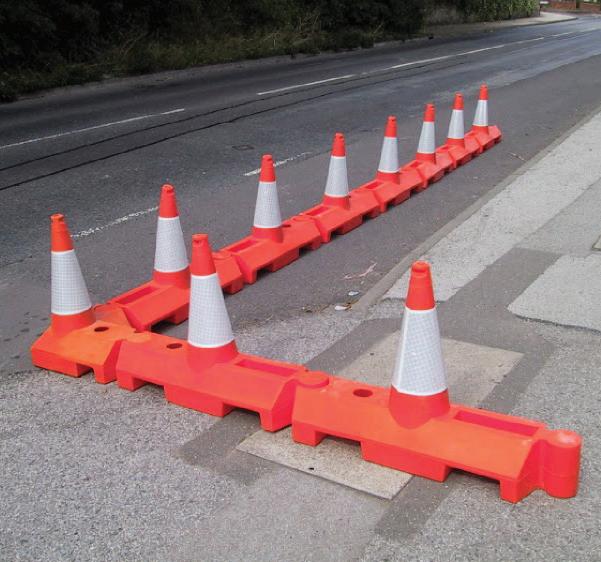

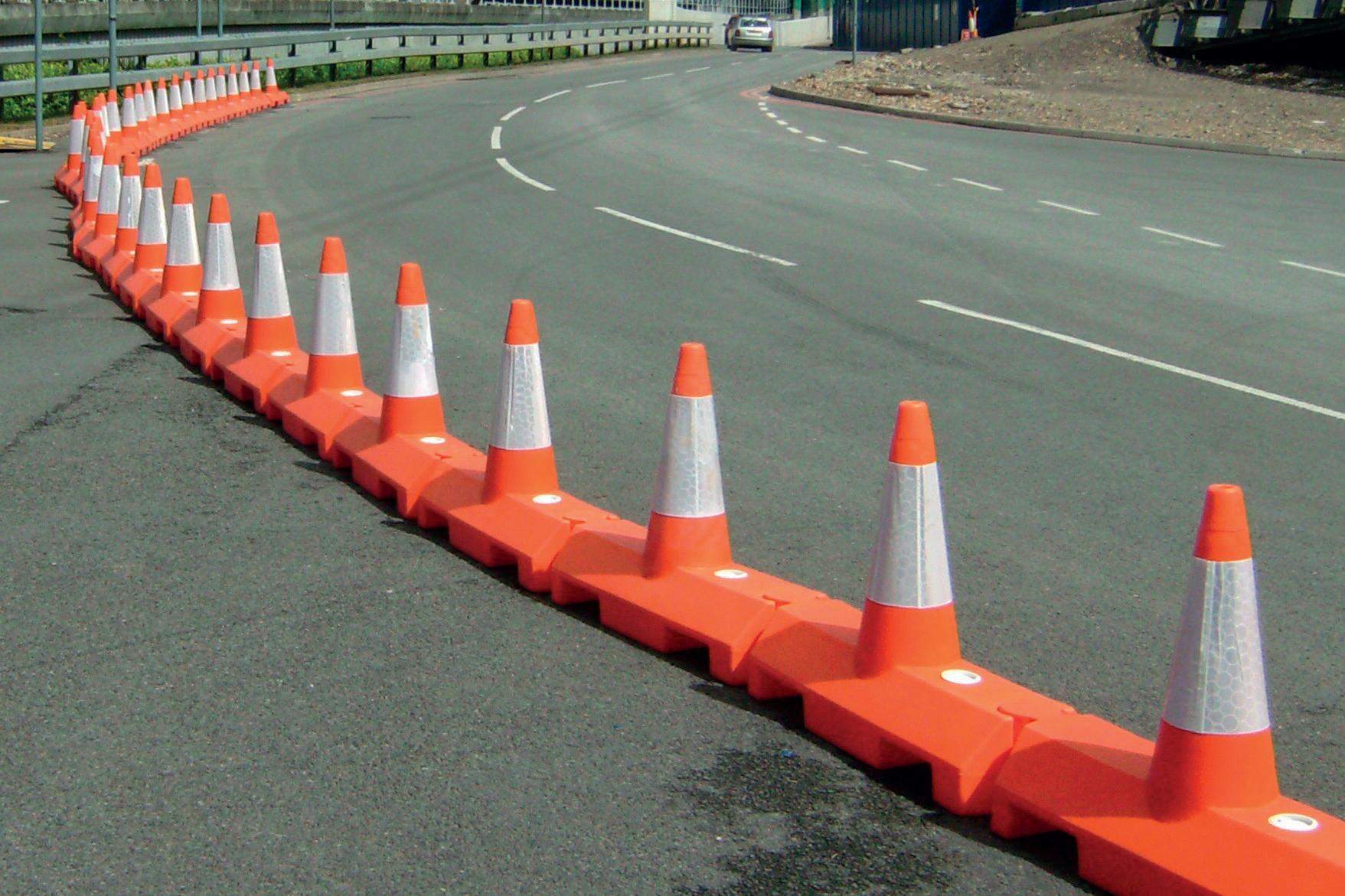

KERBCONE (SALE ONLY)
The innovative design of the Kerbcone combines a traffic cone and a traffic kerb into one unit. Ideal for use as a vehicle or pedestrian separation system and can equally be utilised for traffic management purposes. A spacer unit and a corner piece make this system exceptionally flexible for all locations. Kerbcone has excellent stability in poor weather conditions and much higher visibility than standard cones. Stackable for easy storage and transportation with its moulded forklift channels. Fitted with a D2 prismatic sleeve manufactured to BS and EN standards.

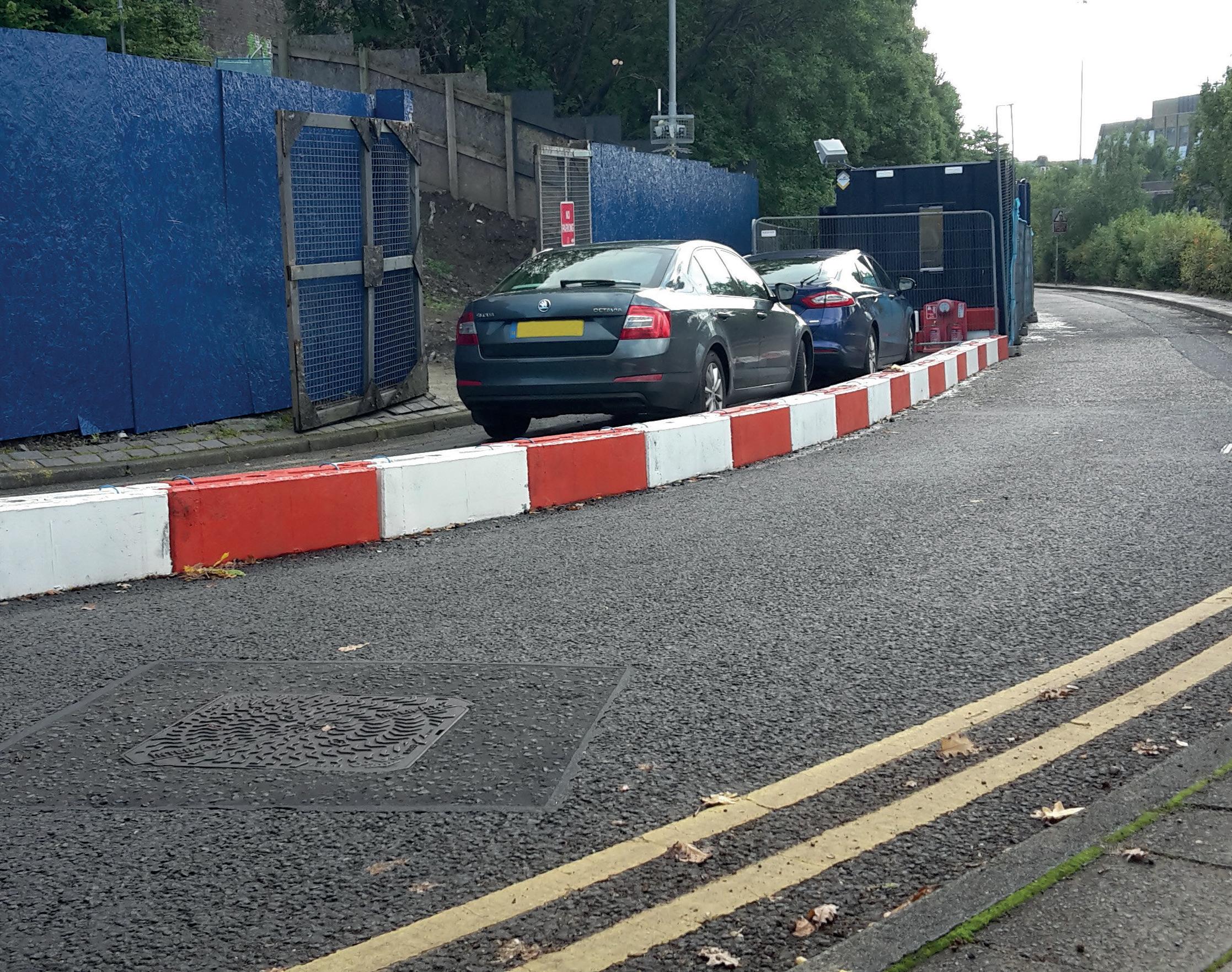

UTOPIAN KERB (SALE ONLY)
Provides a cost effective ballast or water fill kerb. It was originally designed for use at kart racing circuits where it proved to be very popular. Easy to store and transport, the Utopian Kerb is an excellent solution to many traffic management problems.
Description Type 400 Type 600
Length 1000mm 1000mm
Height 400mm 600mm
Width 320mm 450mm
Weight empty 8kg 9kg
Weight full 40kg 45kg
Warning - Units should not be moved when full with water / ballast as could cause damage to units.
Description Cone
Length 1000mm 1000mm 500mm
Height 750mm 220mm 750mm
Width 320mm 320mm 320mm

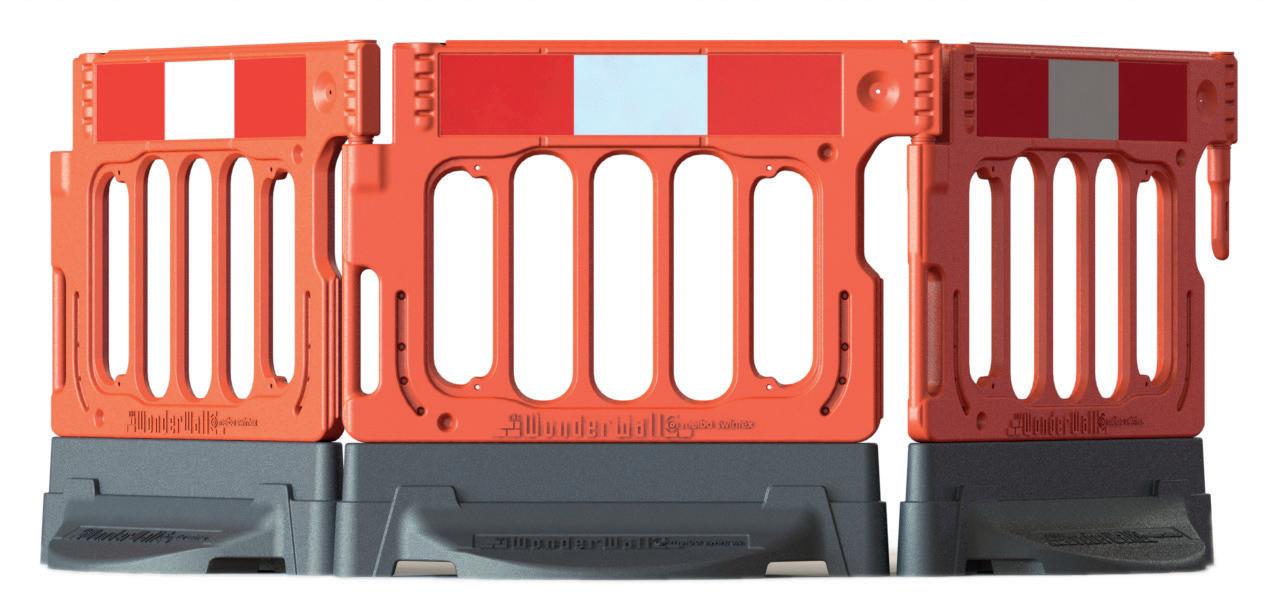

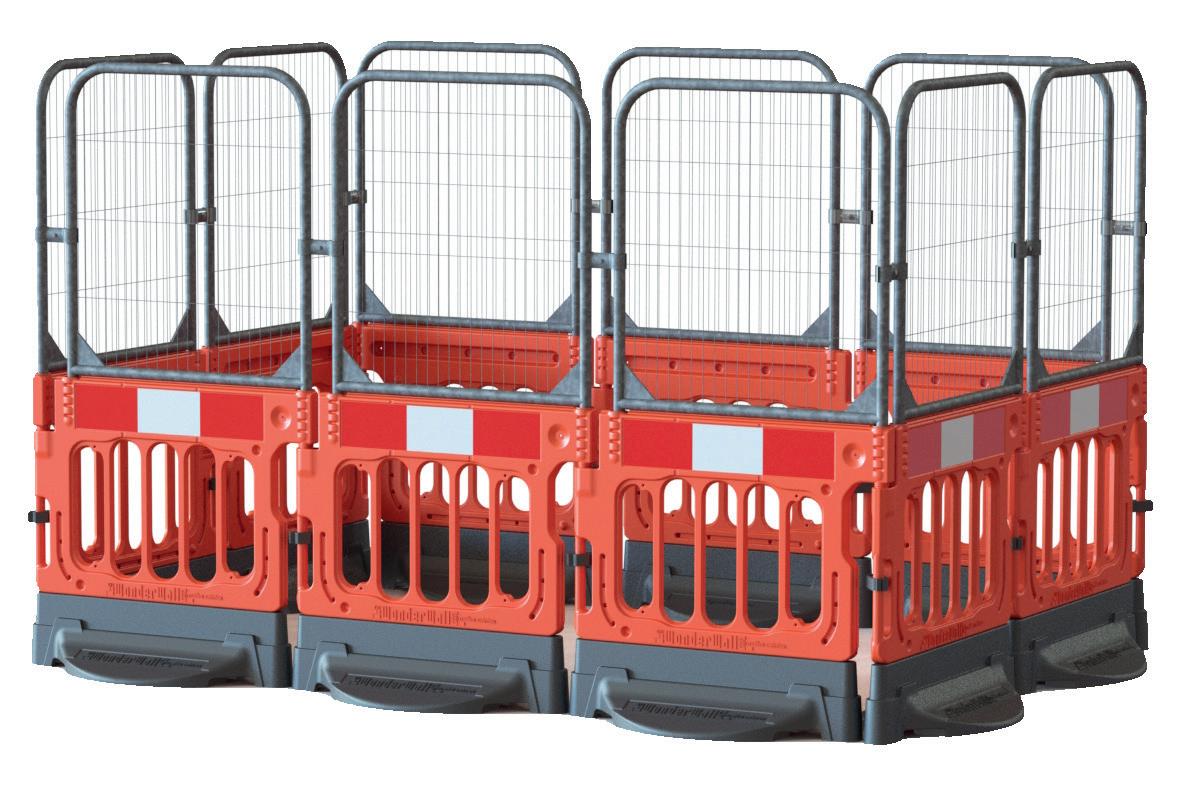

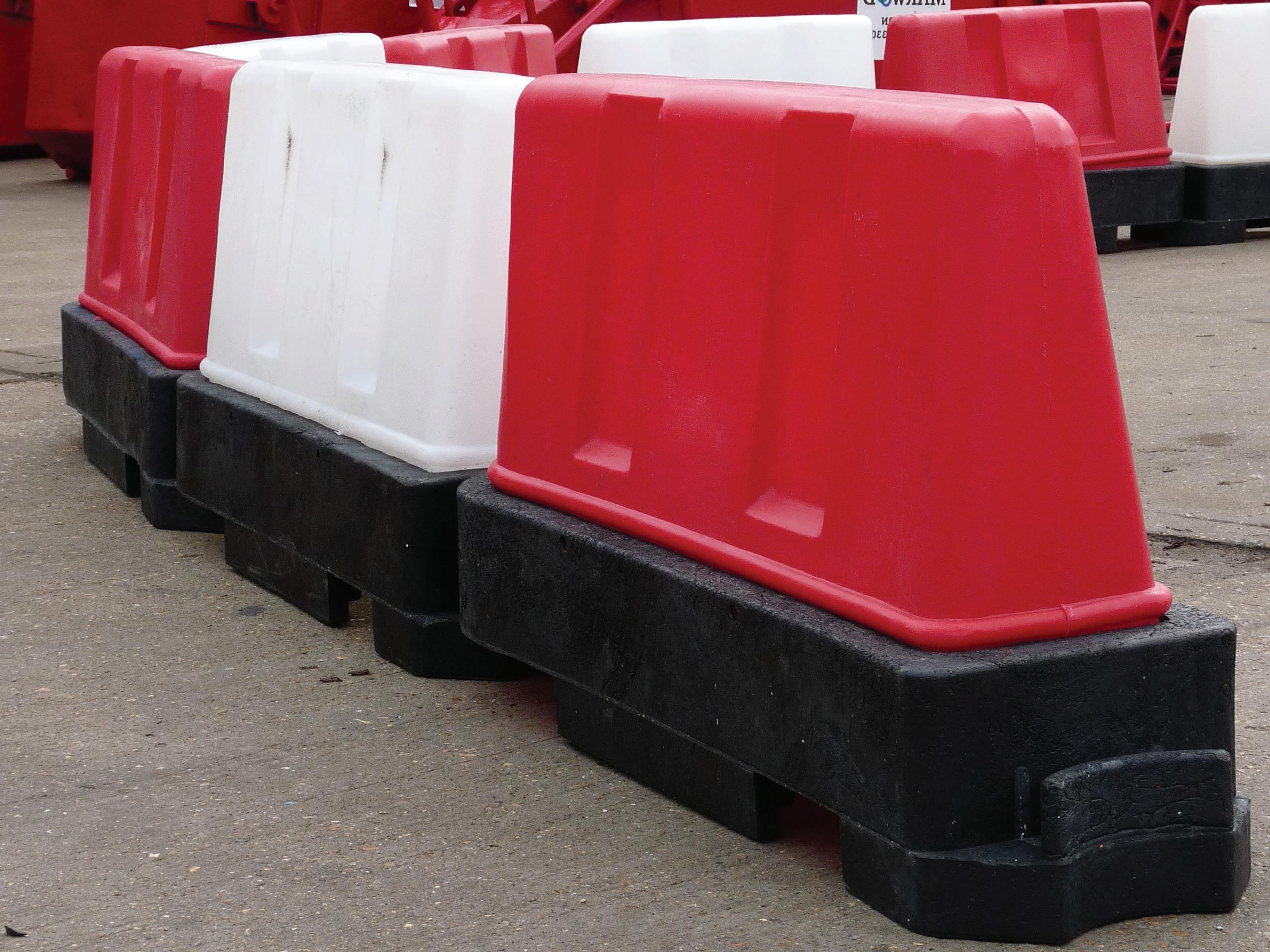

WONDERWALL
Robust barrier system, gives stability in high winds without the need for extra ballast. Creates a safer working environment when deployed near road sides or excavations. Easy to handle by one person using a forklift truck when the bases are stacked. Can be fitted with fence panels or double top if required. Conforms to reflectivity requirements of BSEN12899-1 standard, Chapter 8-The Traffic Signs Manual and Traffic Signs Regulations & General Directions.
• Comprises of a base and top
• Tough and durable
• Reflective area for high visibility
• Holes in base for Forklift entry
• Fence panels & double top options available Compatible with Mergon Barrier
• Flashing warning lights can be attached (Sale Only)
Height 1000mm
Width 1140mm
Barrier Depth 50mm
Base Depth 500mm
Top Weight 3.8kg
Base Weight 18.6kg
Fence Panel (Length) 1000mm
Fence Panel (Height) 2000mm
Double Top (Height) 1000mm
Height (overall) 2000mm
Double Top (Width) 1115mm
Double Top (Depth) 60mm
Double Top (Weight) 2.8kg

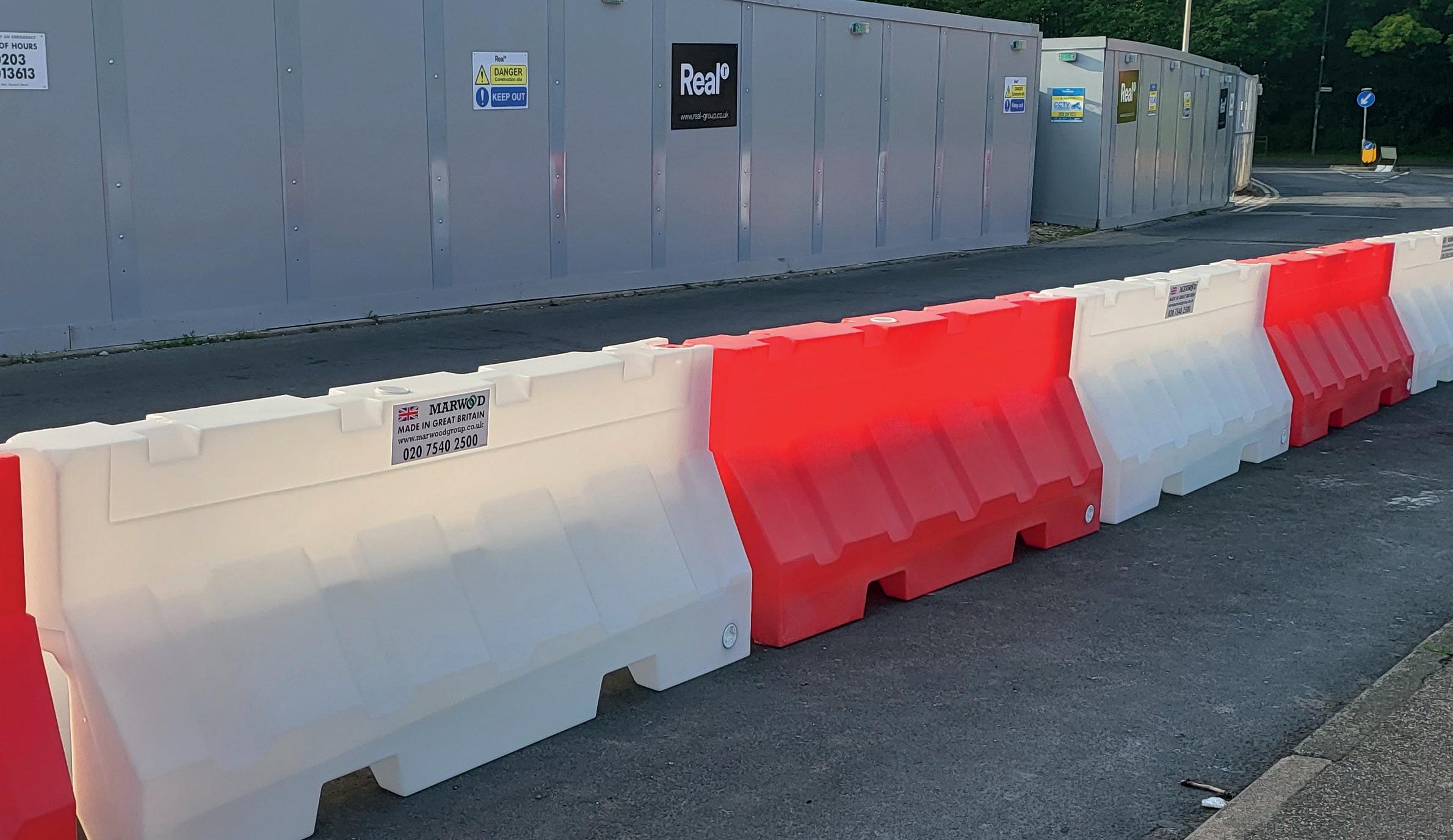

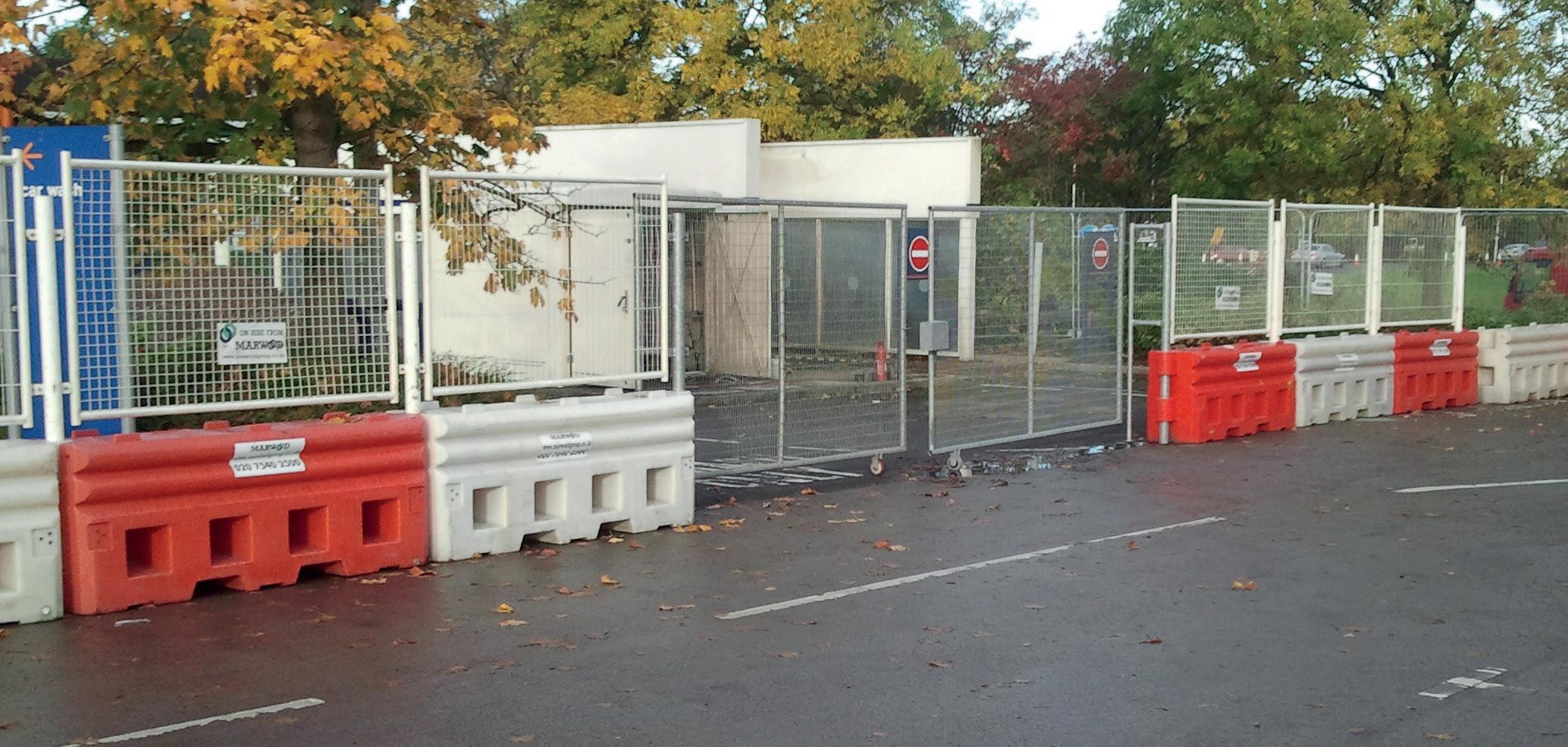

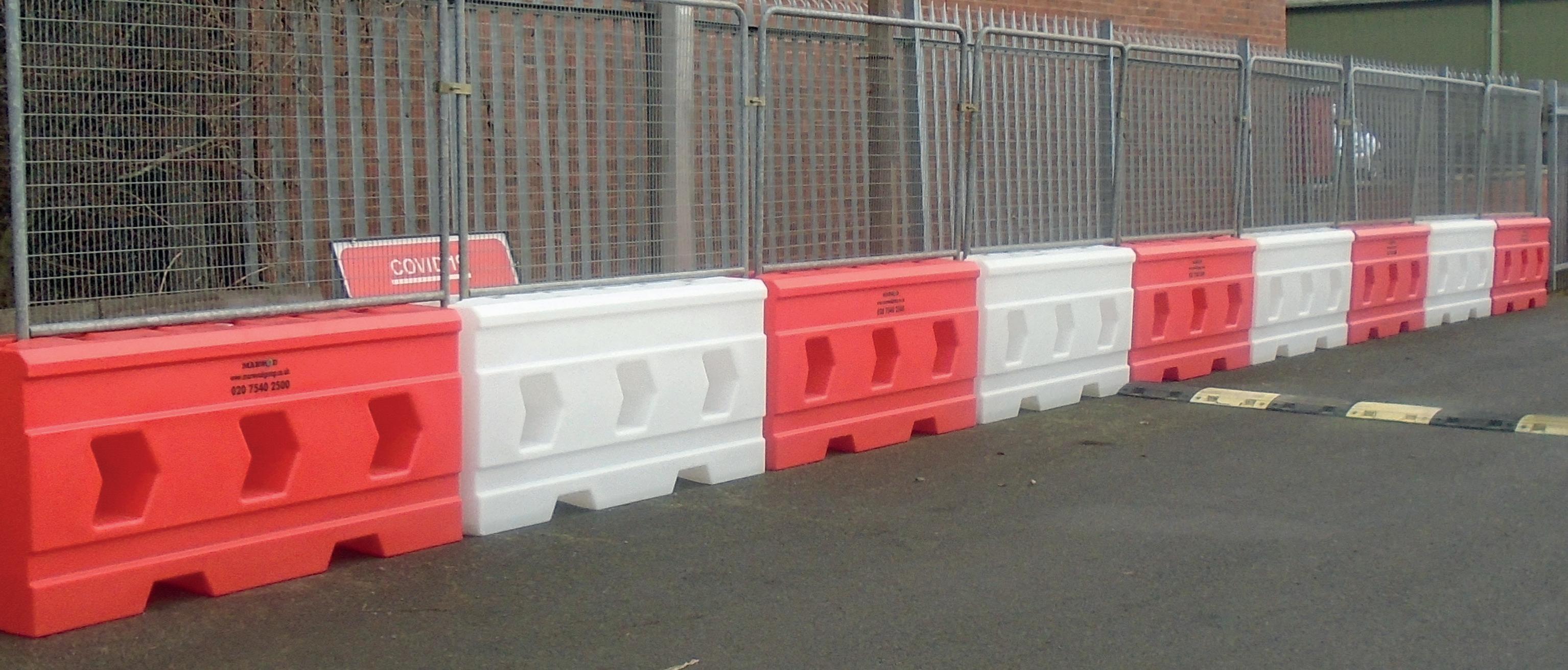

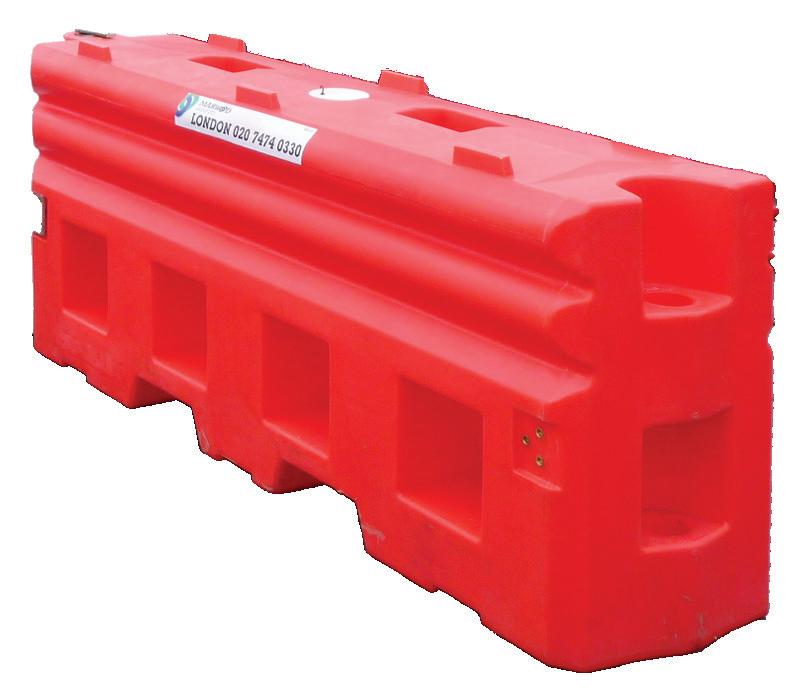

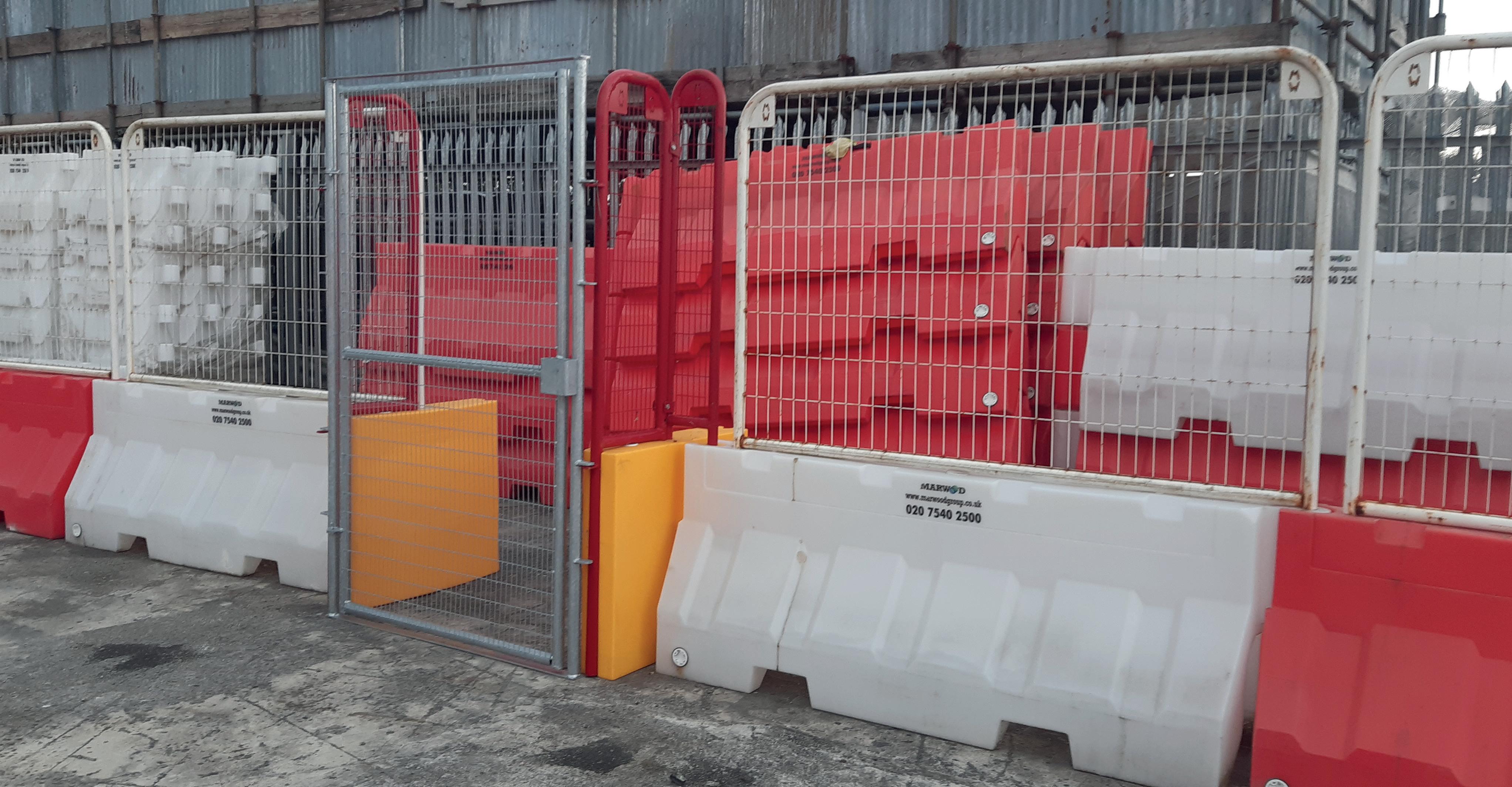

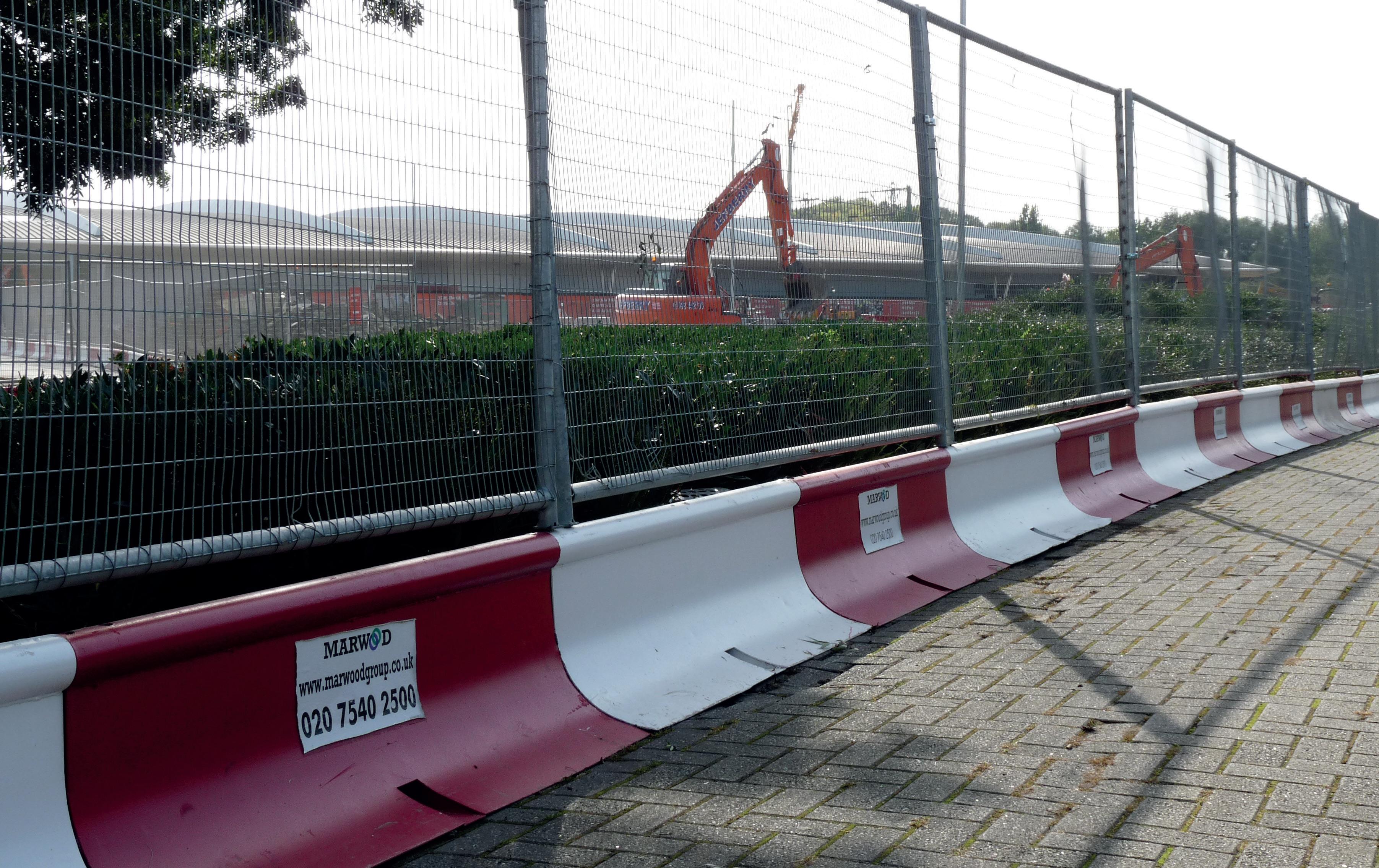

MARROBAR ® TRAFFIC BARRIER SYSTEM
Designed to offer maximum safety, MarroBar® is one of the quickest deployable barrier systems on the market. On impact it will bring an errant vehicle to a controlled stop. The barrier system locks together in the centre with a steel pin formation and for added strength two flat steel plates are easily screw fitted making it a strong and versatile barrier.
• Can be filled with water during assembly Totally free-standing-no permanent fixings
• One-piece moulding, no added sections
• Wide forklift slots at the base
• Anti-climb mesh and hoarding panels available
• Tested and approved by TRL to BS EN1317-N1 50 mph test
• Marrobar fully filled to top: approximately weight 535 L

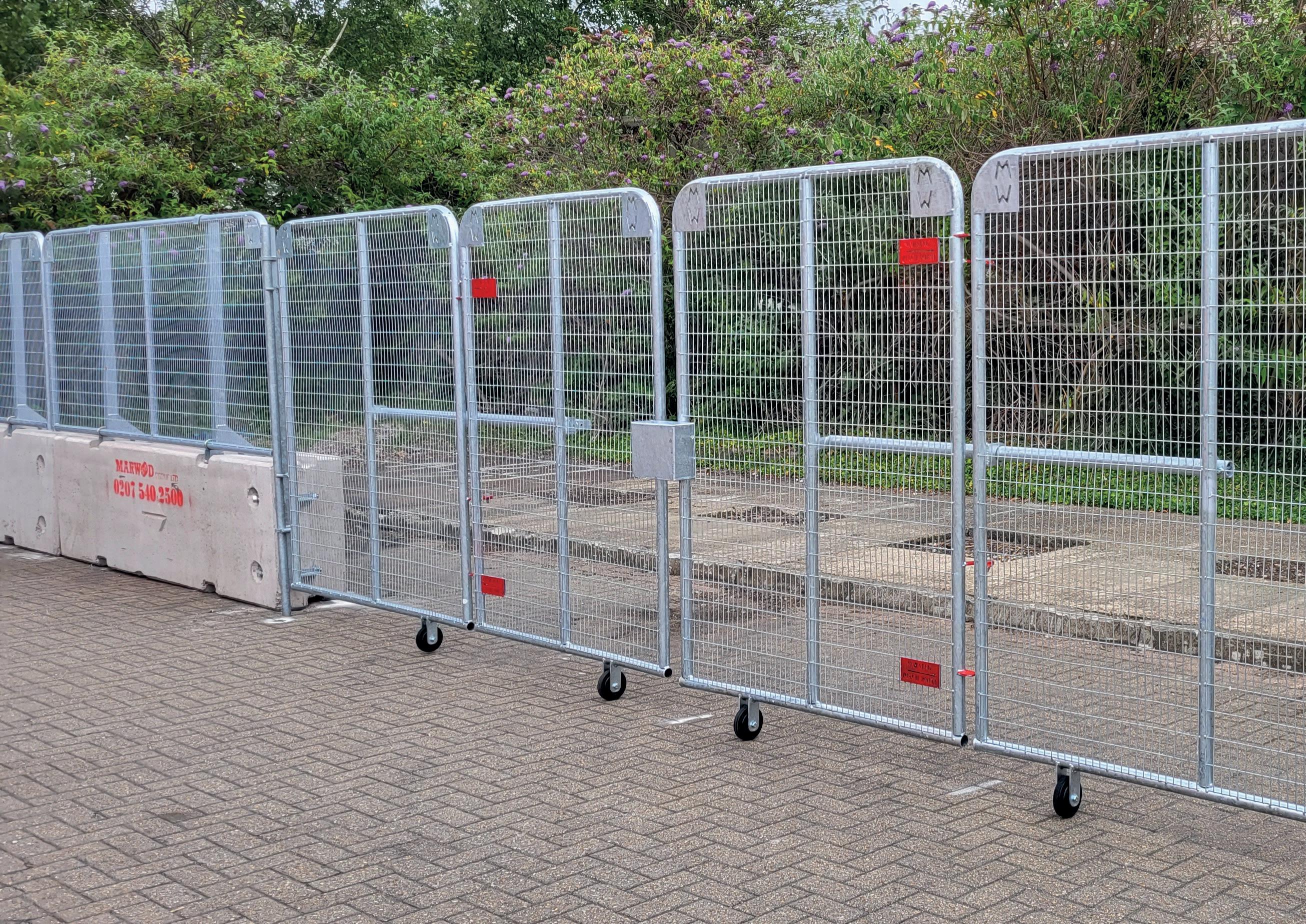

• Now available with Pedestrian & Vehicle Gates
Warning - Units should not be moved when full with water / ballast as could cause damage to units.
Length 2000mm
Height 800mm
Width 500mm
Weight Empty 60kg
Weight Full 600kg
PEDESTRIAN SAFE BARRIERS SYSTEMS

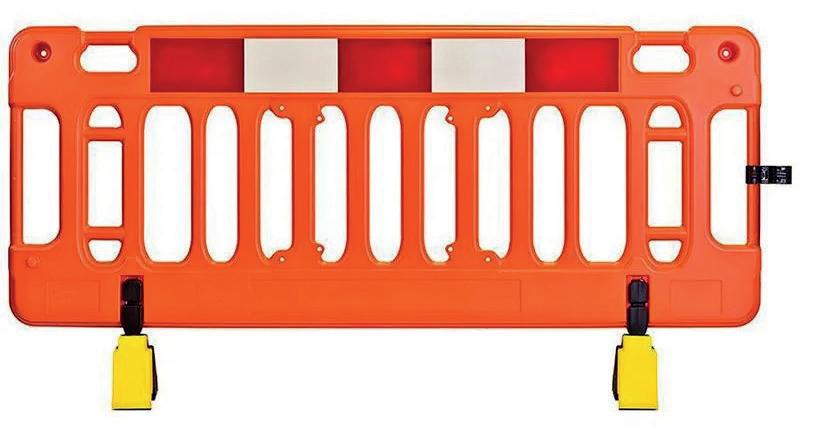

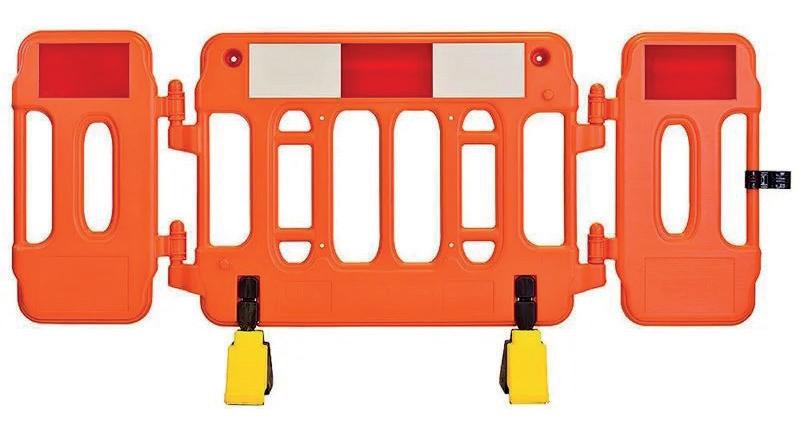

MERGON BARRIER NEW PRODUCT
The Mergon barrier system is designed to create pedestrian walkways that can be easily organised, monitored, and controlled. The system is made up of individual units that are connected to create a continuous barrier. These barriers are designed as a one-piece unit, which makes them easy to connect and stack for transportation and storage. The entire system can be recycled, making it an eco-friendly choice.
• Manufactured from virgin high density polythene.
• Comes in standard colour Orange. (Green, red and blue also available on request)
• Can be manufactured in any colour (minimum order applies).
• Side wings fold and rotate 90 degrees. (Folding one)

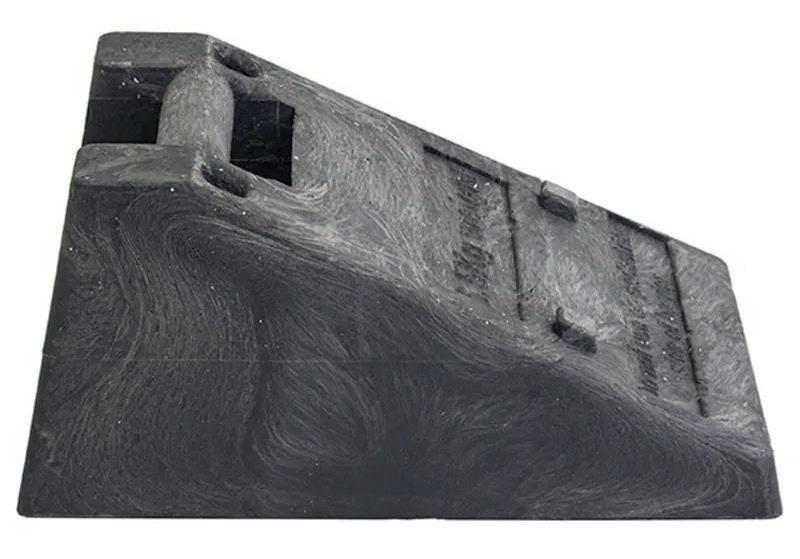

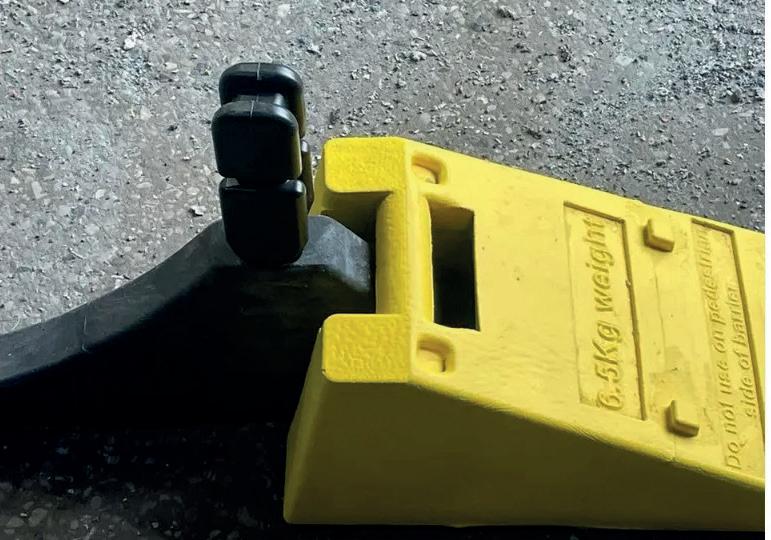

BARRIER FOOT WEIGHT
• Folding barrier feet swivels through 360 degrees
• Comes by default with anti-trip feet (x2) and clip (x1)
• Also available as standard feet (x2) and clip (x1)
• Compatible with other similar designed barriers with the sliding clip.
• Can accommodate 2 types of courtesy sign. (Sale Only)
Heavy-duty barrier foot weight blocks that can be securely attached to the feet of various types of barriers, including Mergon, Olympic, Stacca, Titan, or Gate barriers. These blocks provide exceptional stability and significantly reduce the risk of tipping, making them an essential safety feature, particularly in open areas and high wind environments.
When used in conjunction with anti-trip feet, the foot weight blocks are especially effective. The blocks are designed with a convenient carry handle for easy transportation, and when stacked in pairs, they remain level, offering a space saving solution.
Marwood Group Ltd highly recommends the use of foot weight blocks in every situation to enhance safety and reduce the likelihood of accidents.
Please note that when using foot weight blocks to stabilise barriers, they should be placed over the long foot rather than the anti-trip foot. This will ensure maximum stability and reduce the risk of tipping, especially in windy or high-traffic areas.
Barrier Foot Weight 6.5kg
Standard Mergon Barrier
Folding Mergon Barrier

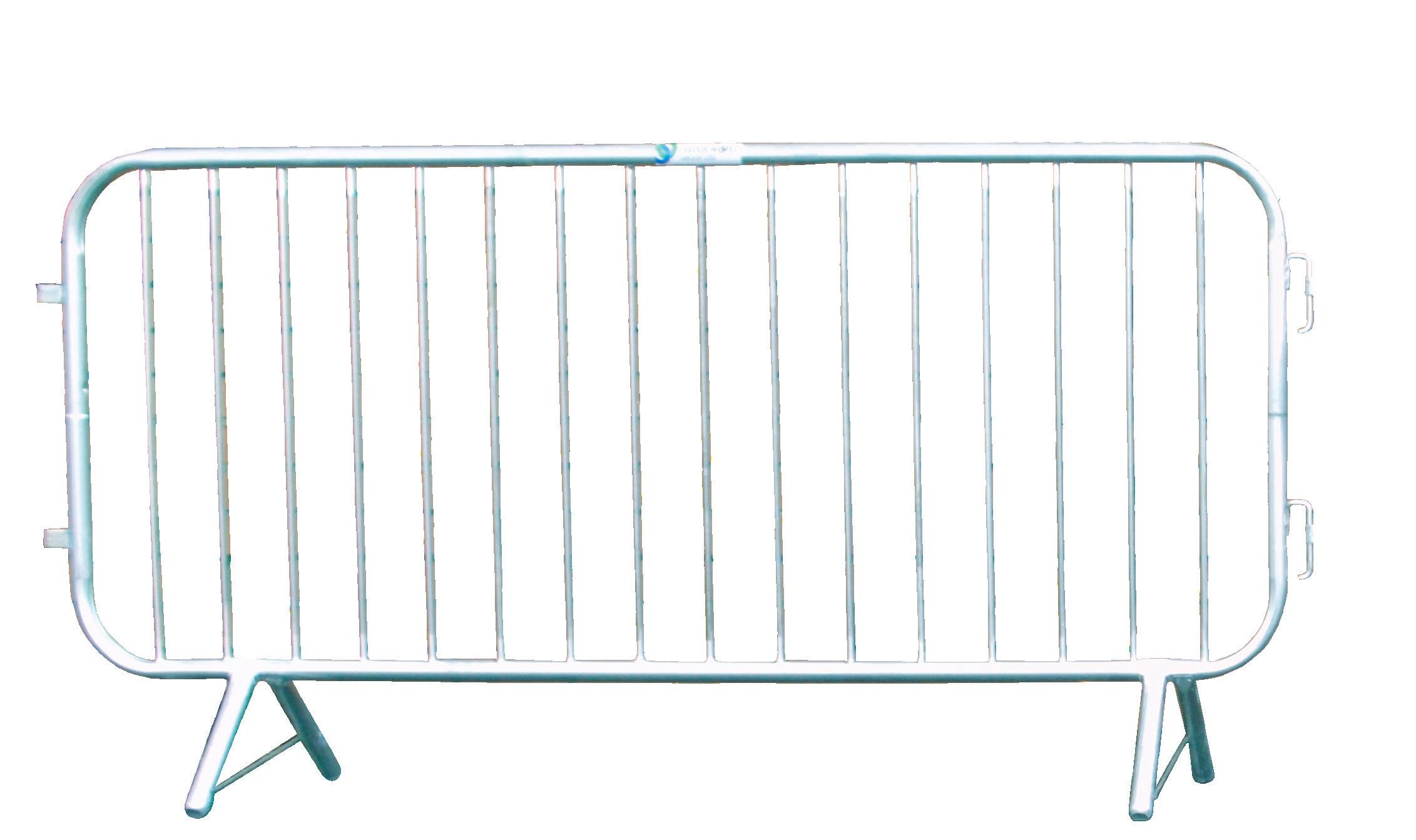

PEDESTRIAN FENCING BARRIER
Suitable for use as a means of directing pedestrian traffic to or from a specific area or separating pedestrians from traffic or areas of possible danger. Can also be used as a temporary traffic barrier around street works or similar.
• Sturdy construction
• Fully galvanised durable finish
• Integral welded feet for improved stability
• Single panels can be interlocked to form a continuous line.
Length 2300mm 2500mm
Height 1100mm 1100mm
Weight 10.6kg 11.5kg

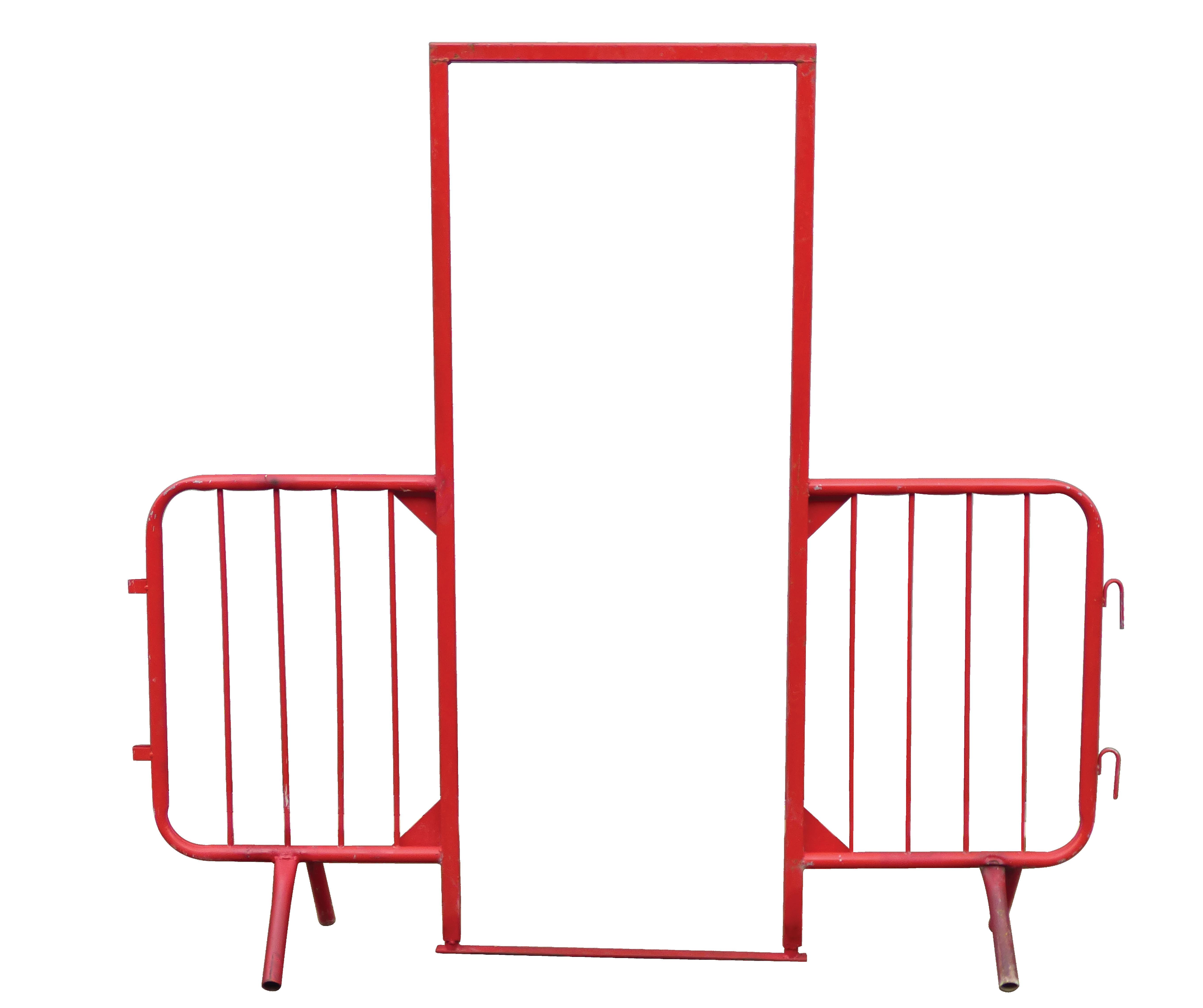

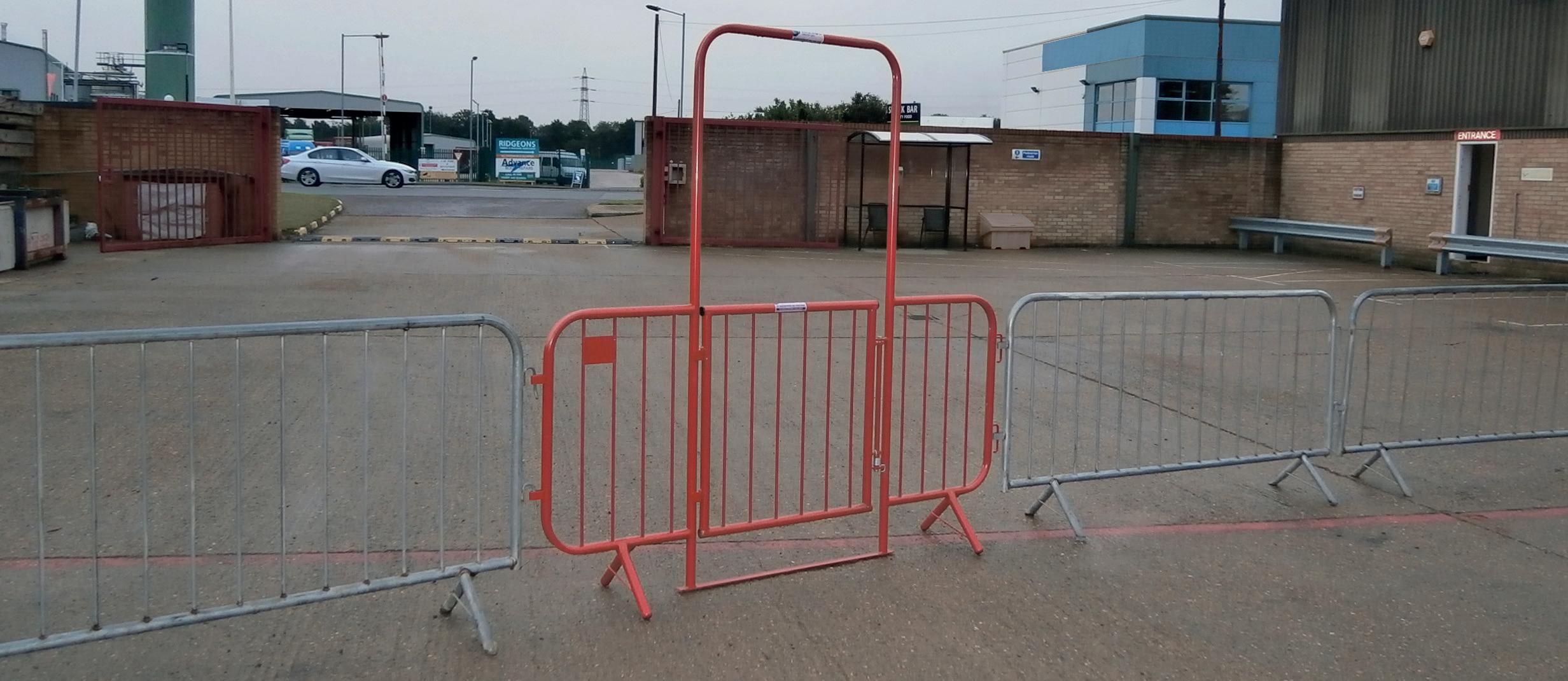

PEDESTRIAN WALK-THRU BARRIER
Ideal for identifying pedestrian crossing points. Can also be used at ticket checkpoints.
• Sturdy construction
• Integral welded feet for improved stability
• Interlocks with the standard pedestrian fence panels
• Access gates available
Description Walk-Thru Walk-Thru (Gate Access)
Height 2135mm 2070mm
Width 2478mm 2185mm
Weight 13.3kg 25kg

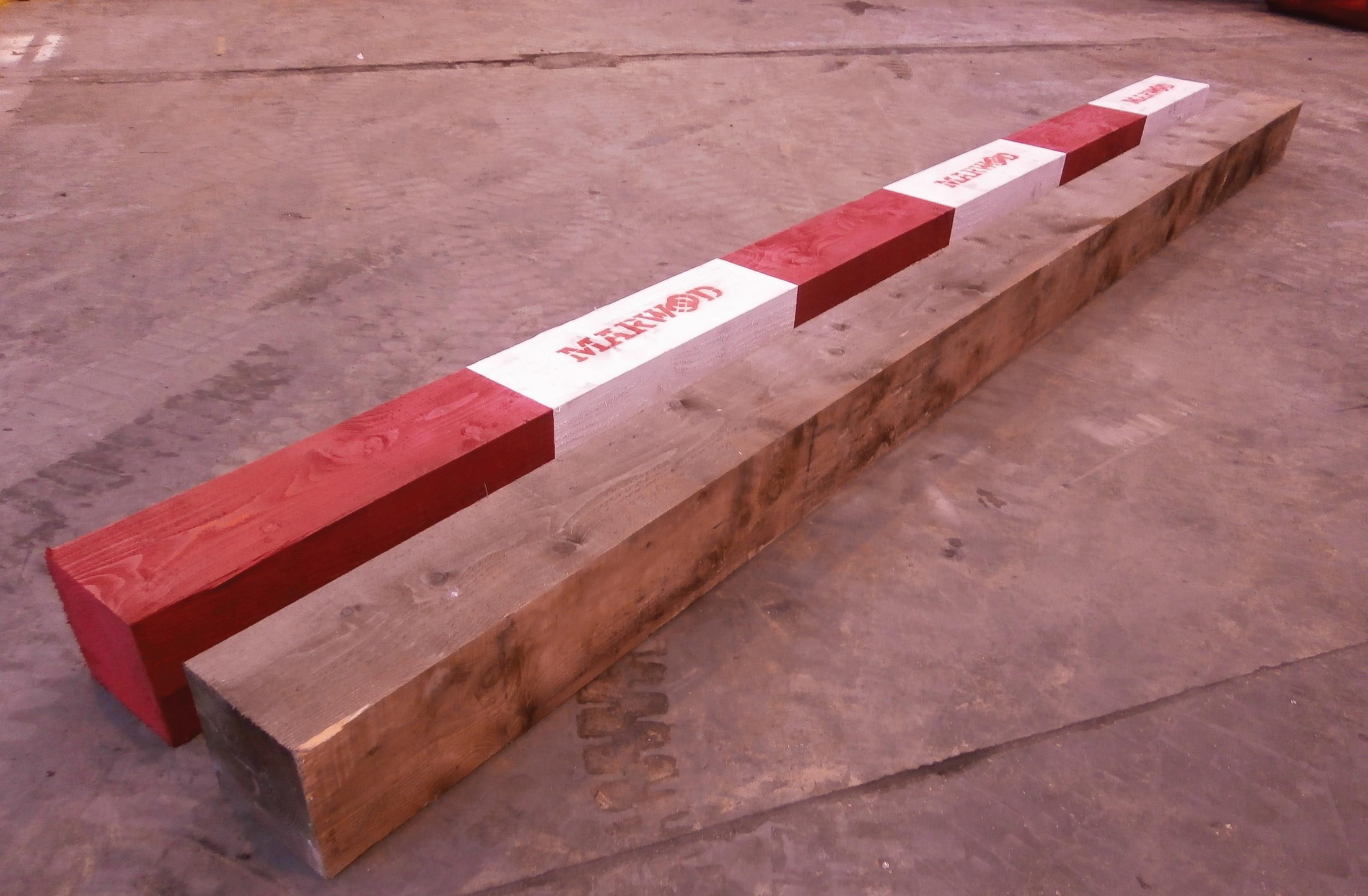

BAULK TIMBER
Used for such tasks as traffic demarcation and protection around the base of scaffolding. Baulk Timber comes in nominal lengths and whilst every effort is made to supply customer’s exact requirements, it may be necessary to amend the order according to lengths available.
• 300mm x 300mm x 6000mm/4000mm
• 36kg/m (may vary slightly due to the fact it is a natural product)
• Baulk timbers are ungraded or less than grade C16 They are usually used in the following sectors: Land & water services, Civil engineering, Scaffolding industry, Groundworks industry
MARWOOD TIP!
Timber can be supplied painted red and white if requested at an additional cost (painted three sides).

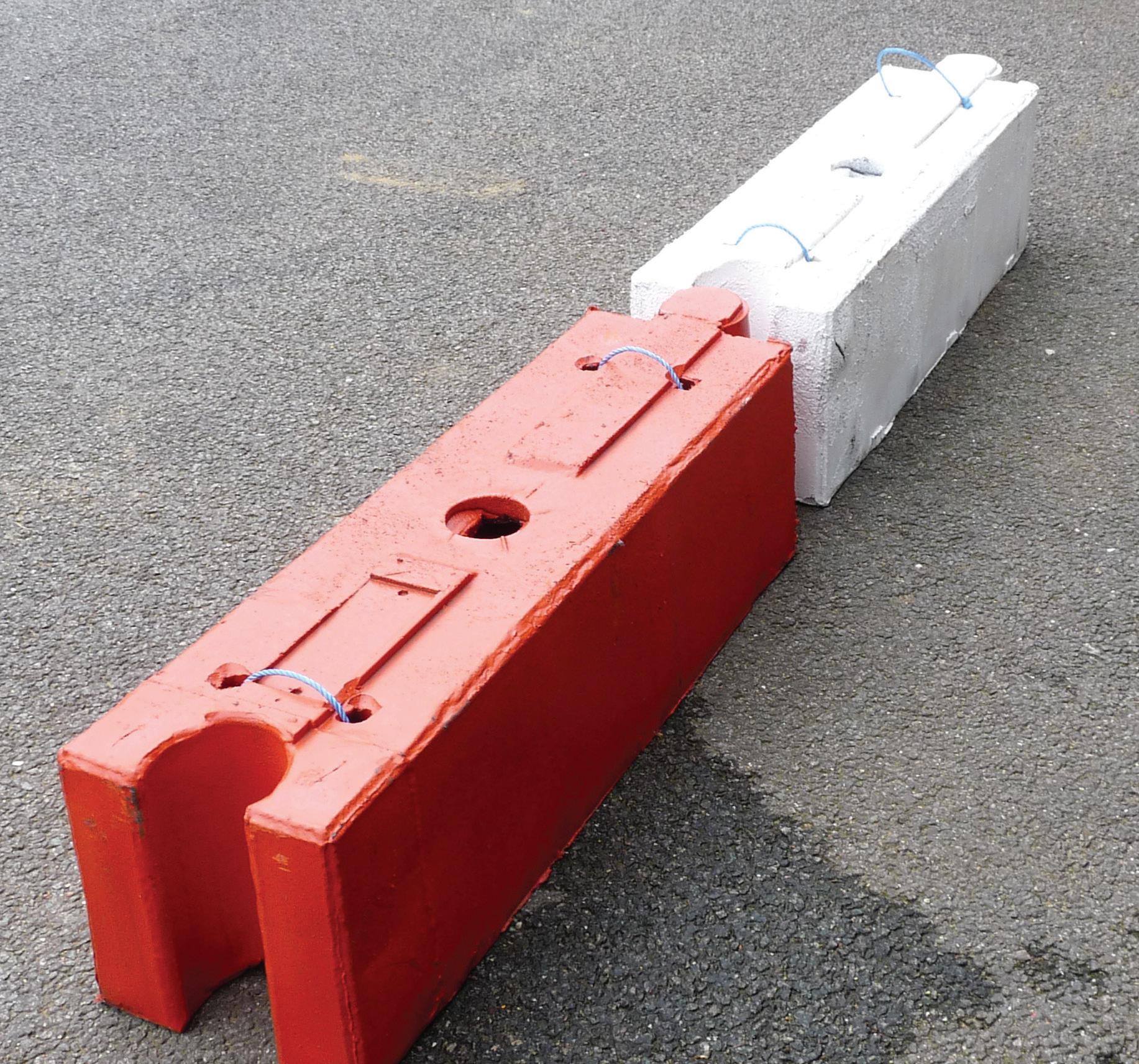

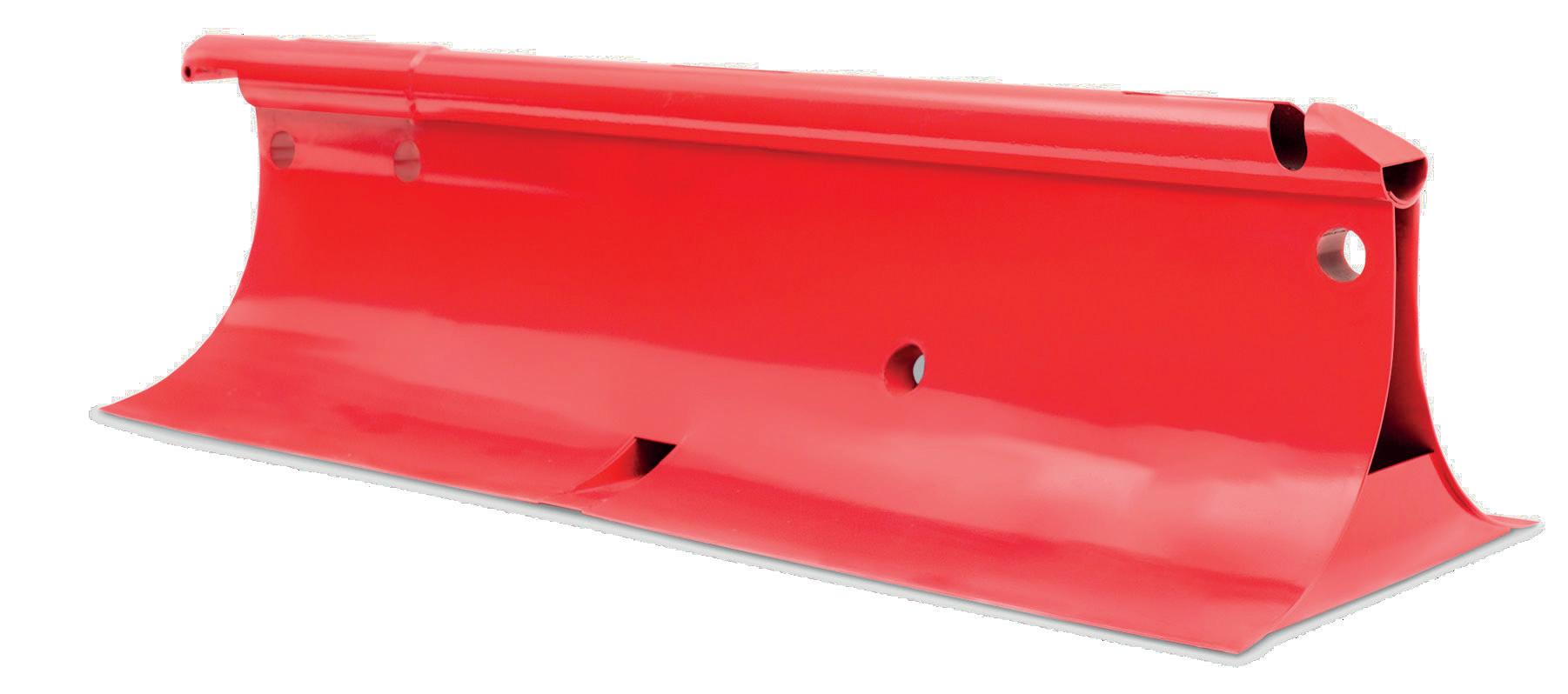

TRAFFIC BLOCKS
Heavy duty rubber block constructed in 1 metre red or white sections. When linked form a 300mm x 300mm barrier. Easy to handle and can be laid to form curves if required. An ideal alternative to traditional baulk timbers as lane markings.
+ Related Products: Posts & Planks available with the provisions for flashing warning lights (Sale Only) Length

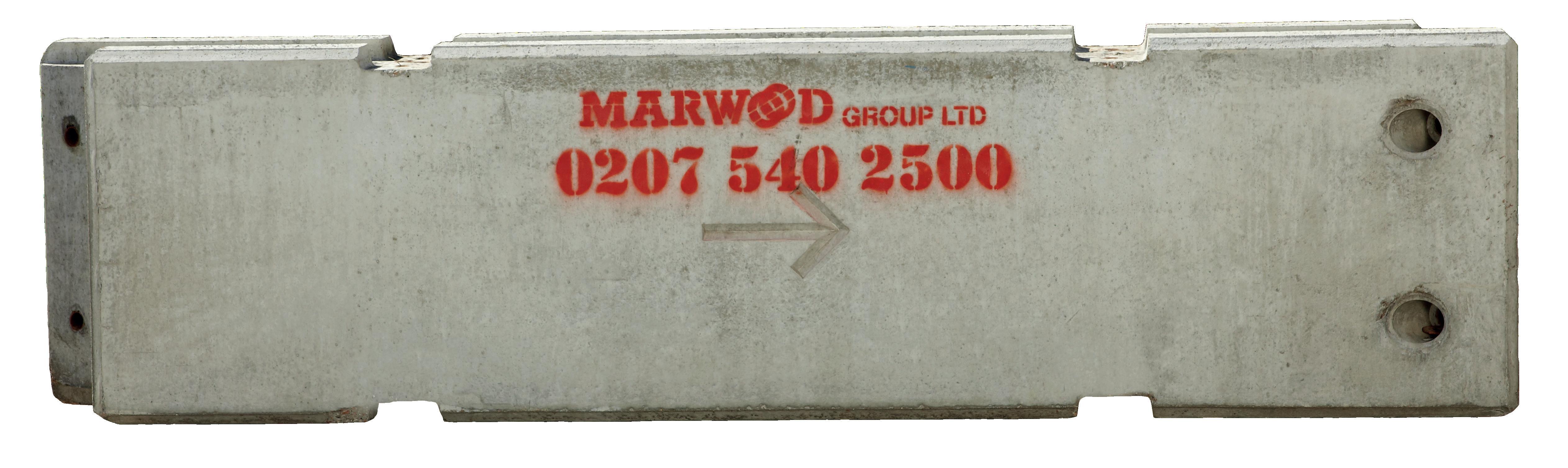

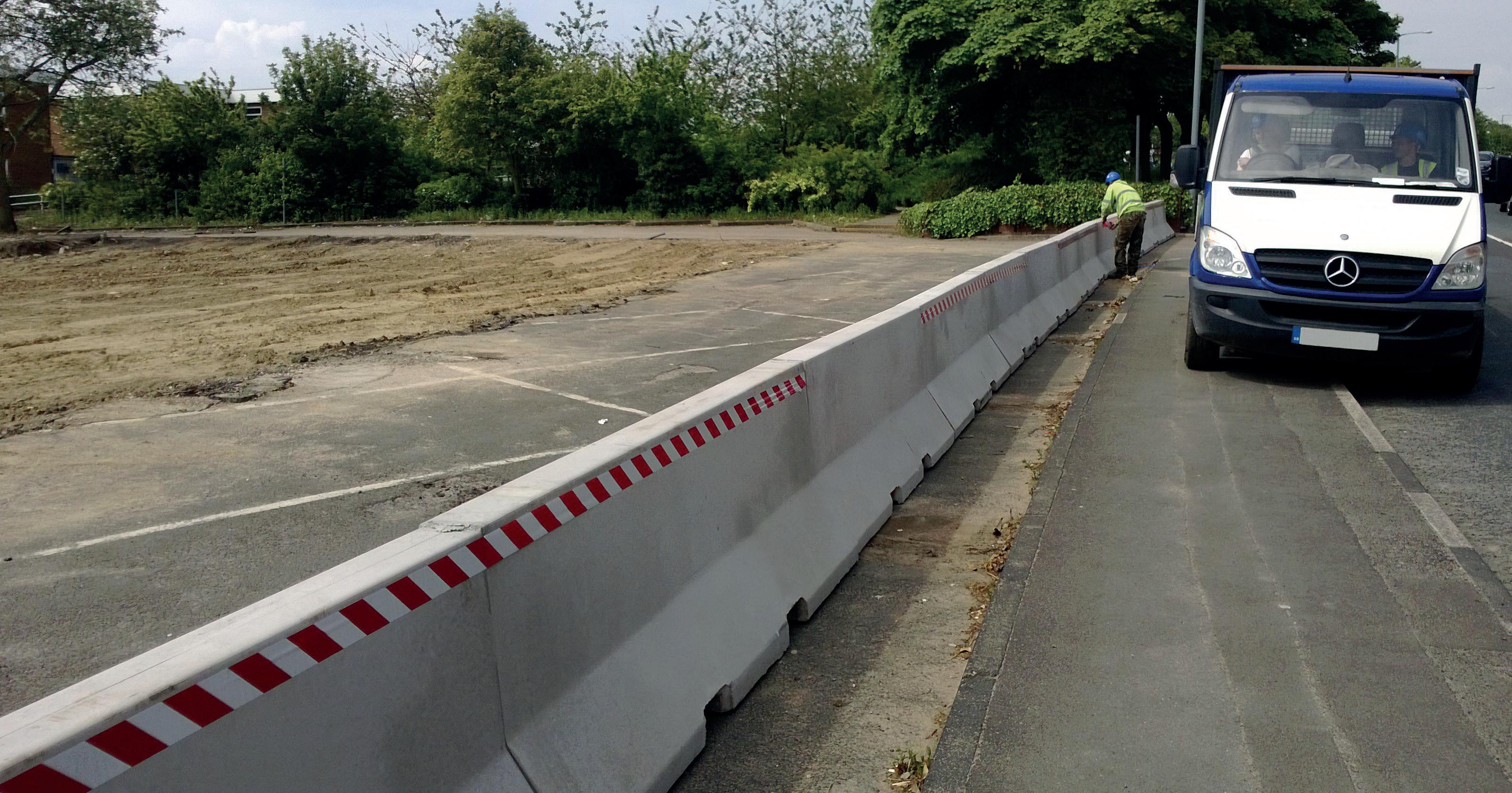

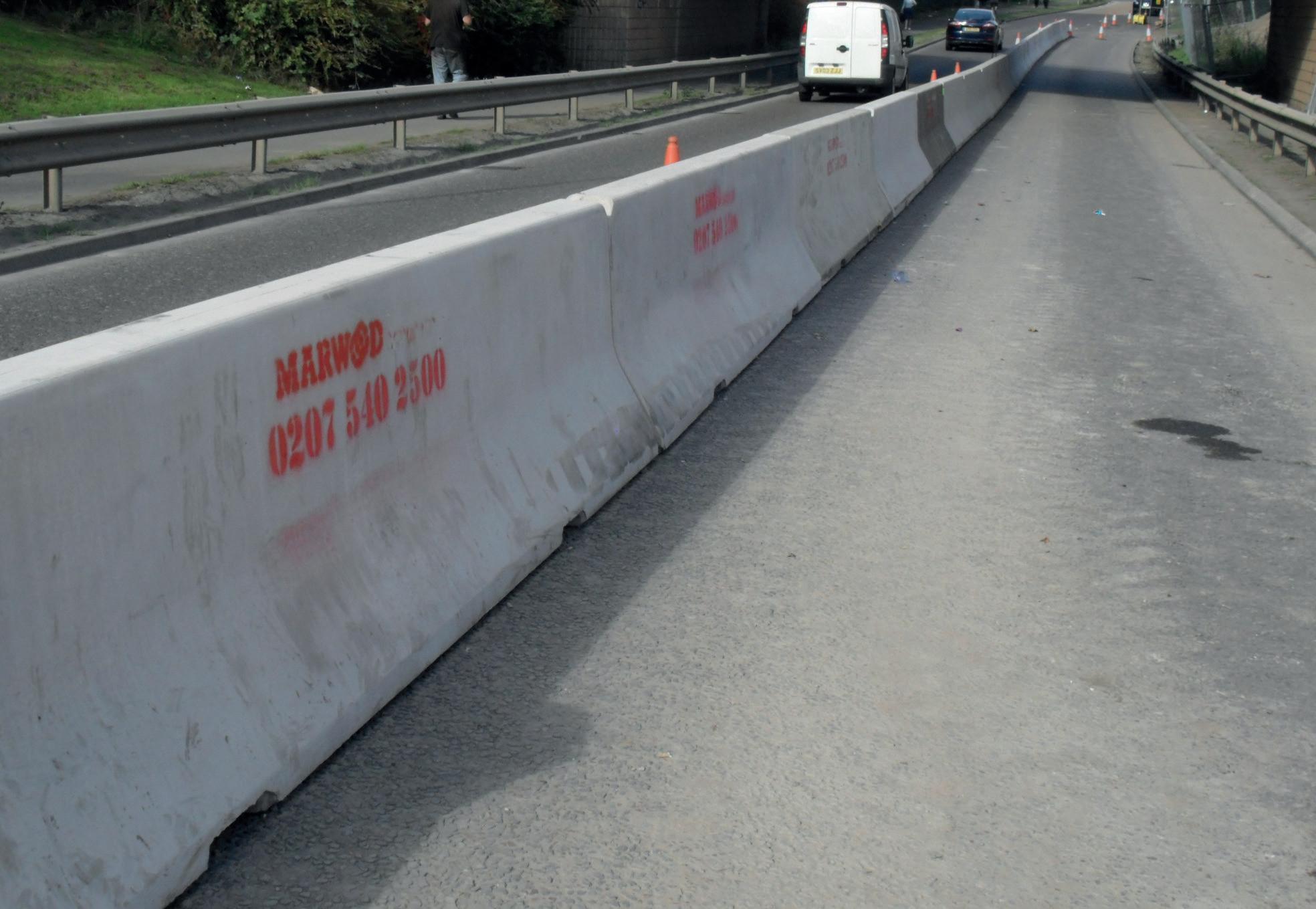

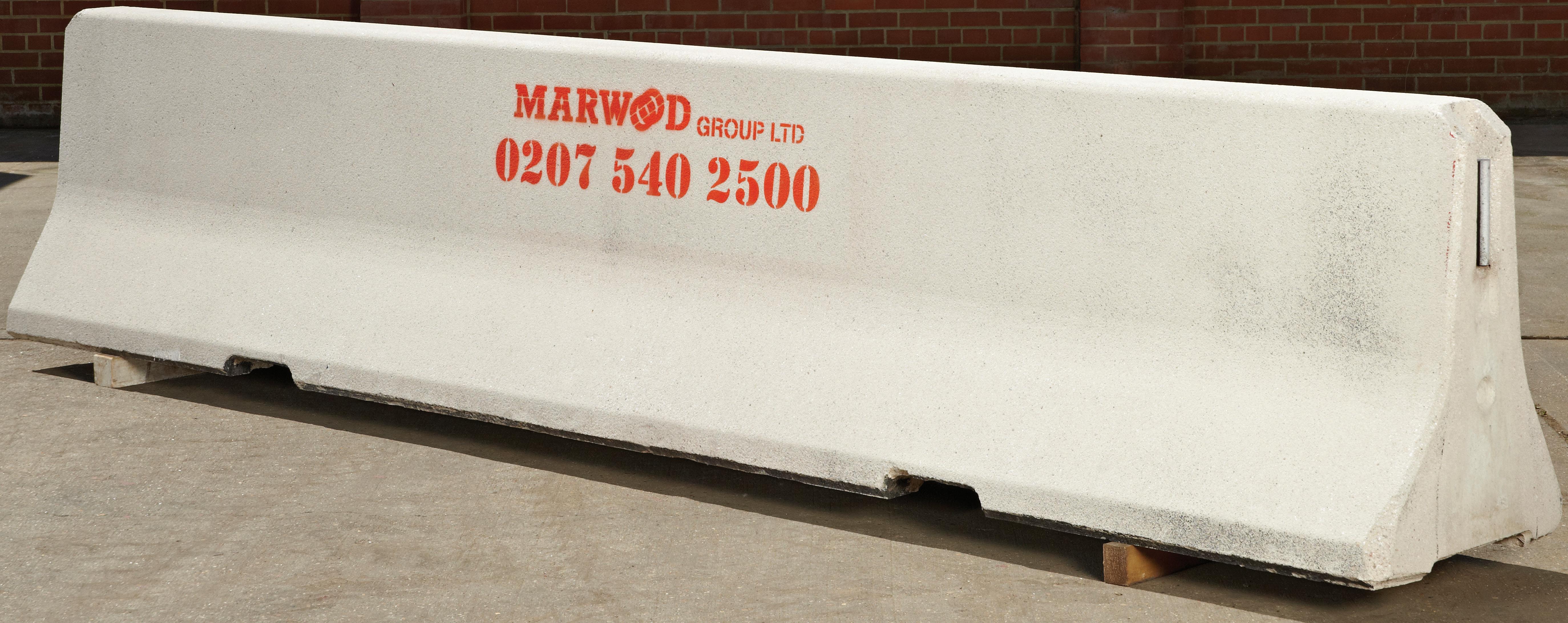

CONCRETE SAFETY BARRIERS
V28

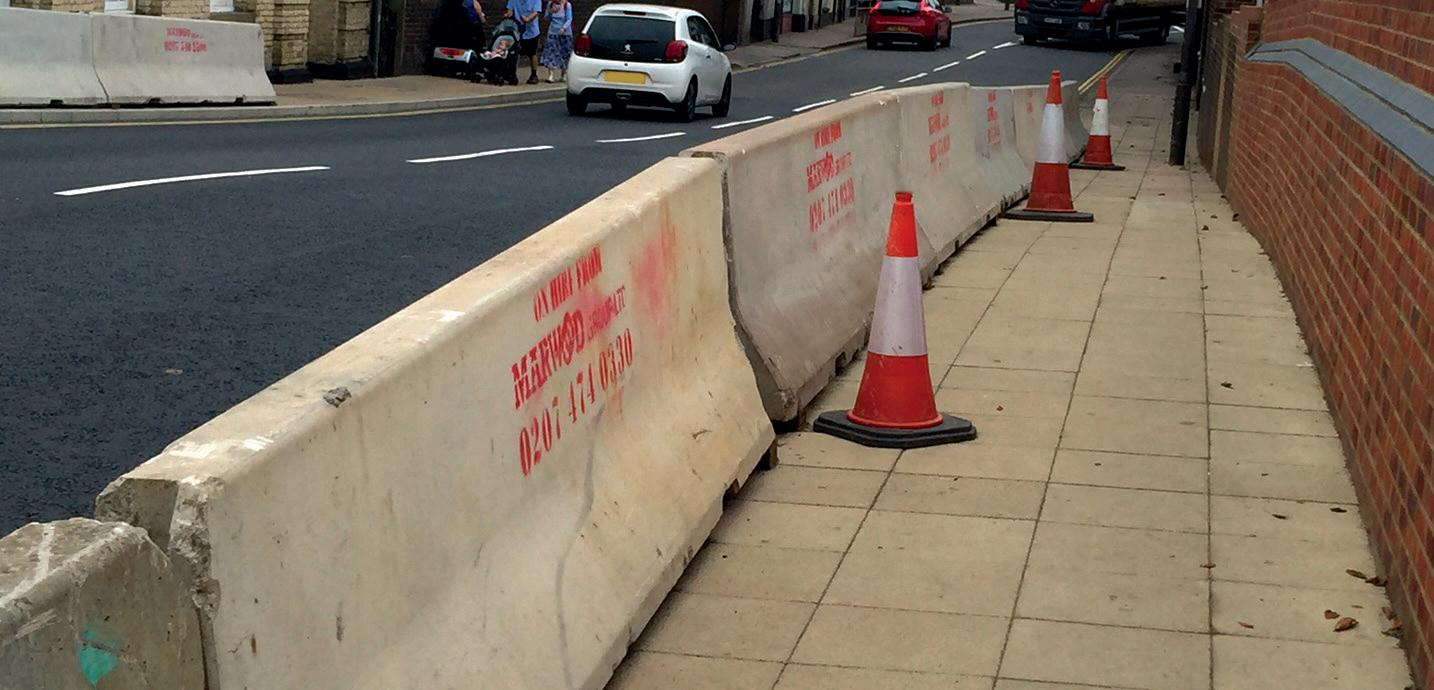

CONCRETE SAFETY BARRIER
Manufactured from high quality reinforced concrete and conform to all current highway works regulations. Used to create a safe working zone between live traffic lanes and maintenance operatives or plant. Comprises of intermediate and terminator units. The symmetrical section allows the intermediate units to be inverted, making it suitable for both verge and central use. Can be fitted with fence panels, vehicle gate, pedestrian gate or swing gate if required.
• Effective deterrent for unwanted visitors
• Vehicle & Pedestrian Gate Systems available
• To create a safe working area for your workforce.
• Can be readily repositioned giving a high degree of flexibility To provide support in flood defences
• Protecting pedestrians from traffic
• Helping direct traffic flows safely
• N1 & N2 containment
Description Intermediate Terminator
Effective Length 3000mm 3000mm
Overall Length 3150mm 3075mm
Height 800mm 150/800mm
Width 450mm 450mm
Weight 2500kg 1570kg

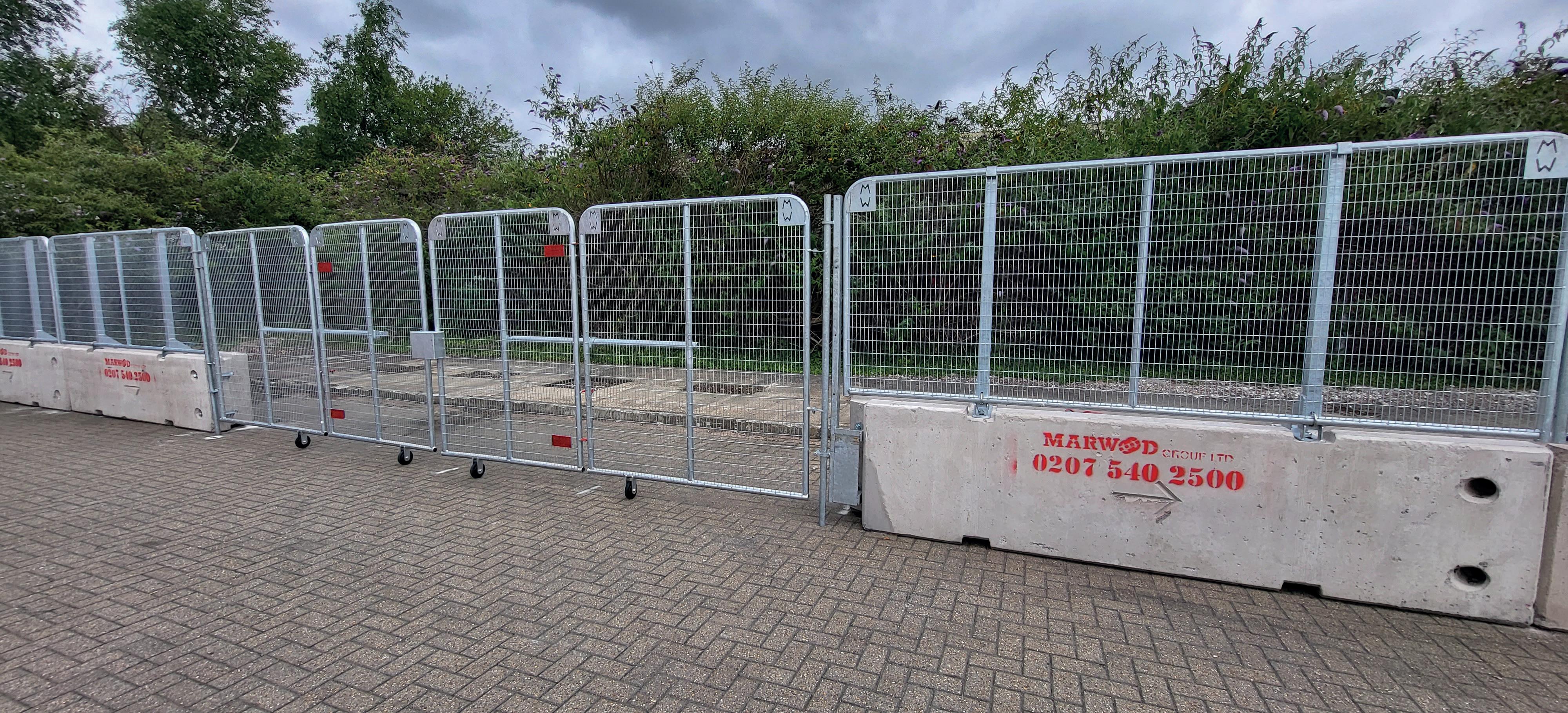

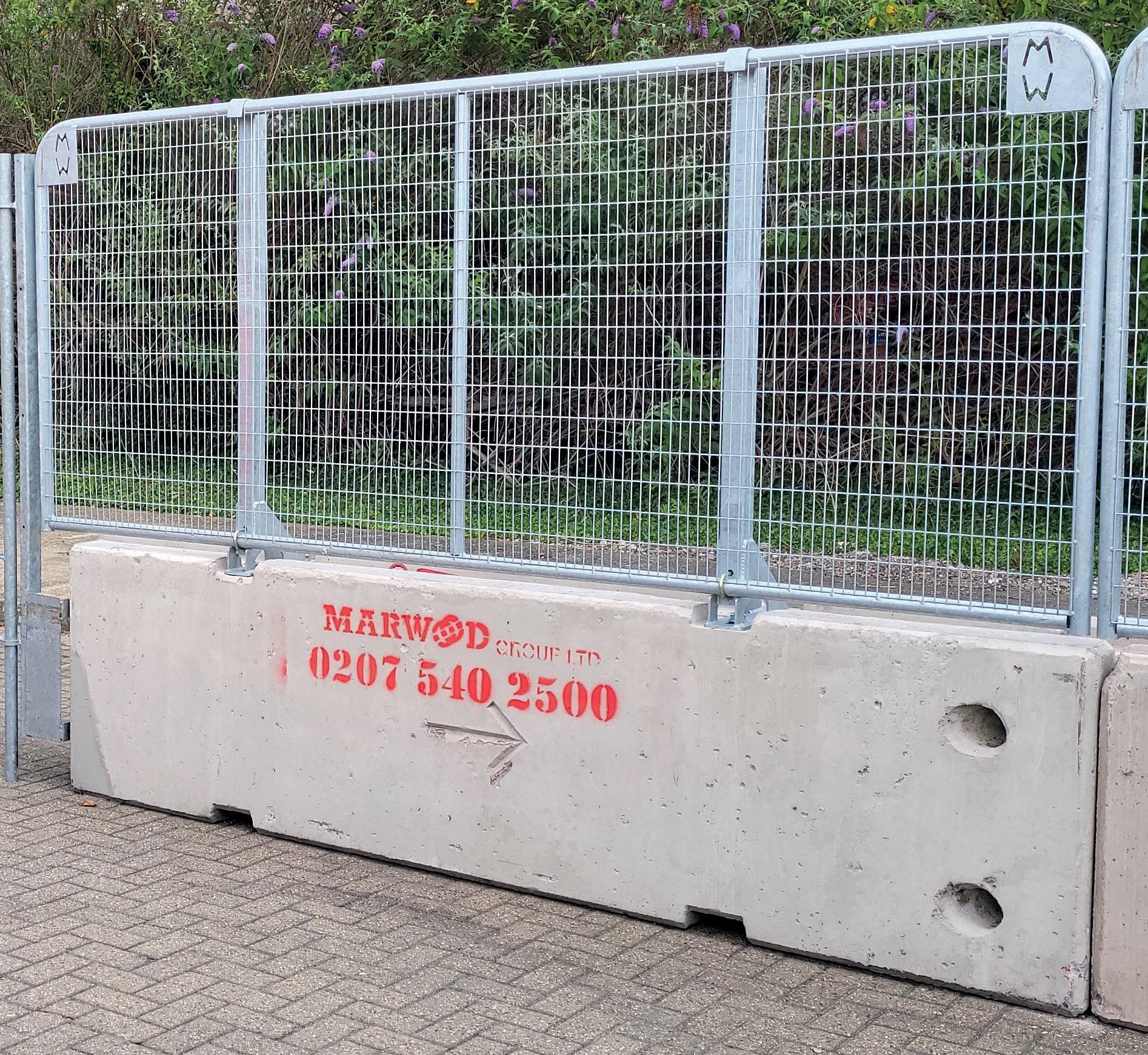

TVCB FENCE PANEL
Galvanised fence barrier system that can be connected onto the V28 Concrete Safety Barriers, panels are safely secured by two fixing bolts, anti-climb panel will help protect sites against unwanted intruders.
• Fence height of 1200mm
• No in-ground pinning or foundations required
Description Fence Panel Fence Post
Length - -
Height 1292mm 1374mm
Width 3120mm -
Weight 41kg 12kg
Please Note: The pin anchor on the V28 must be thoroughly examined to detect wear / damage / security concerns before and after each lift.

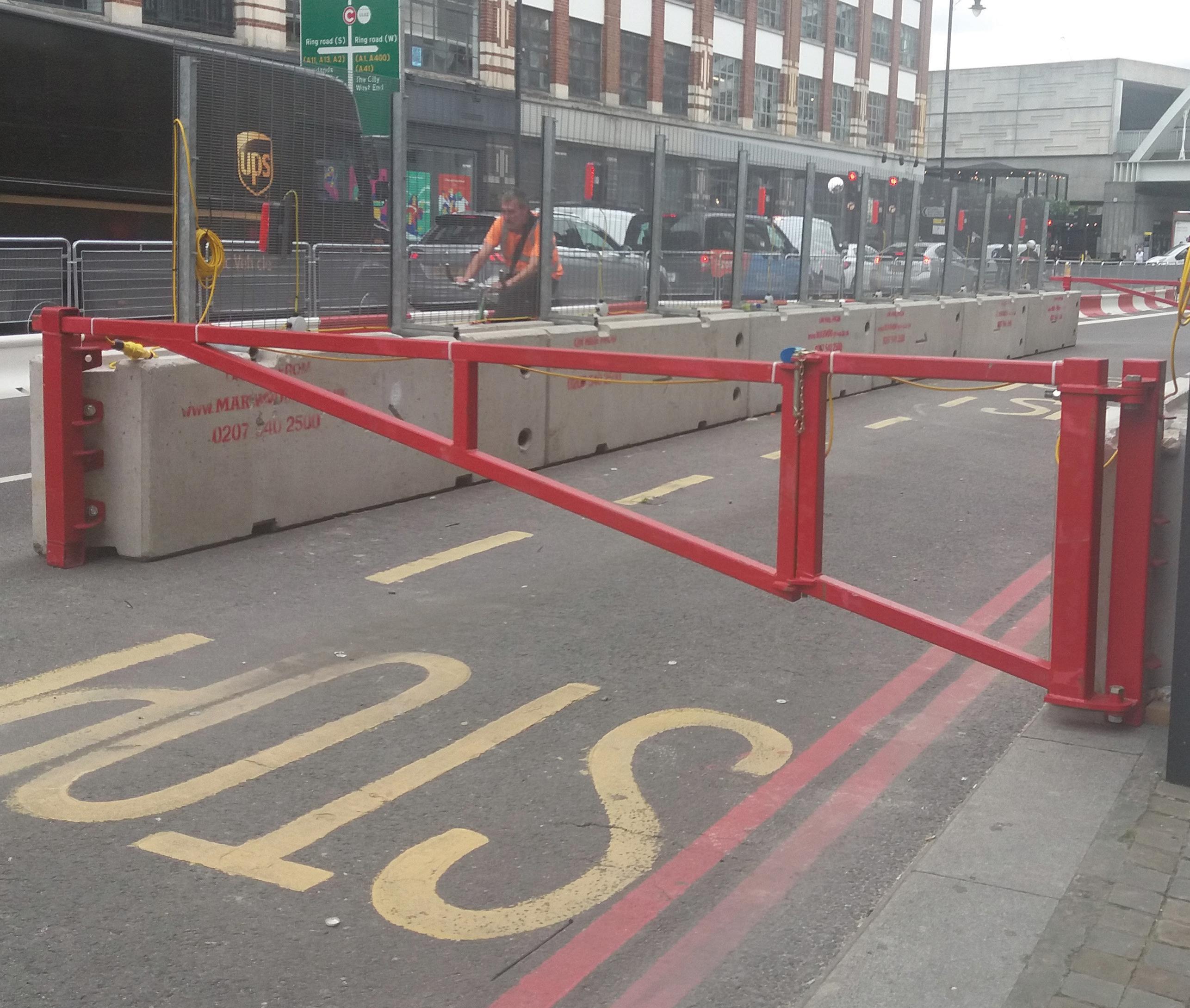

TVCB SWING GATE
The Swing Gate forms the perfect combination when used with V28 Concrete Security Barriers which makes it ideal when used where there is a requirement for low volume traffic control. Constructed from steel and painted in red to ensure maximum visibility. The sturdy 4m boom arm prevents access to unauthorised area. Padlock (not supplied) can be used to secure the gate in the closed position.
Overall boom length 4000mm
Height 1000mm
Depth 140mm
Weight 105kg
Body colour Red
DELTA BLOC ® (SALE ONLY)
Designed and tested to BS EN 1317– 1&2:1998, this traffic barrier system provides protection to containment level N2. For most Impacts occurring at low speeds and shallow angles, the vehicles are redirected back onto their proper path. Vehicles impacting at higher speeds and wider angles are controlled and prevented from breaking through the barrier by the continuous tension bar within the block structure and optimum safety is maintained.
• No Need for Ground Fixing
• Simple Coupling Device
• Simple Installation
• Other sizes available – sale only
Description Intermediate Terminator
Length 4000mm 4000mm
Height 800mm 170mm-800mm
Width 600mm 300mm-600mm
Weight 2250kg 1690kg

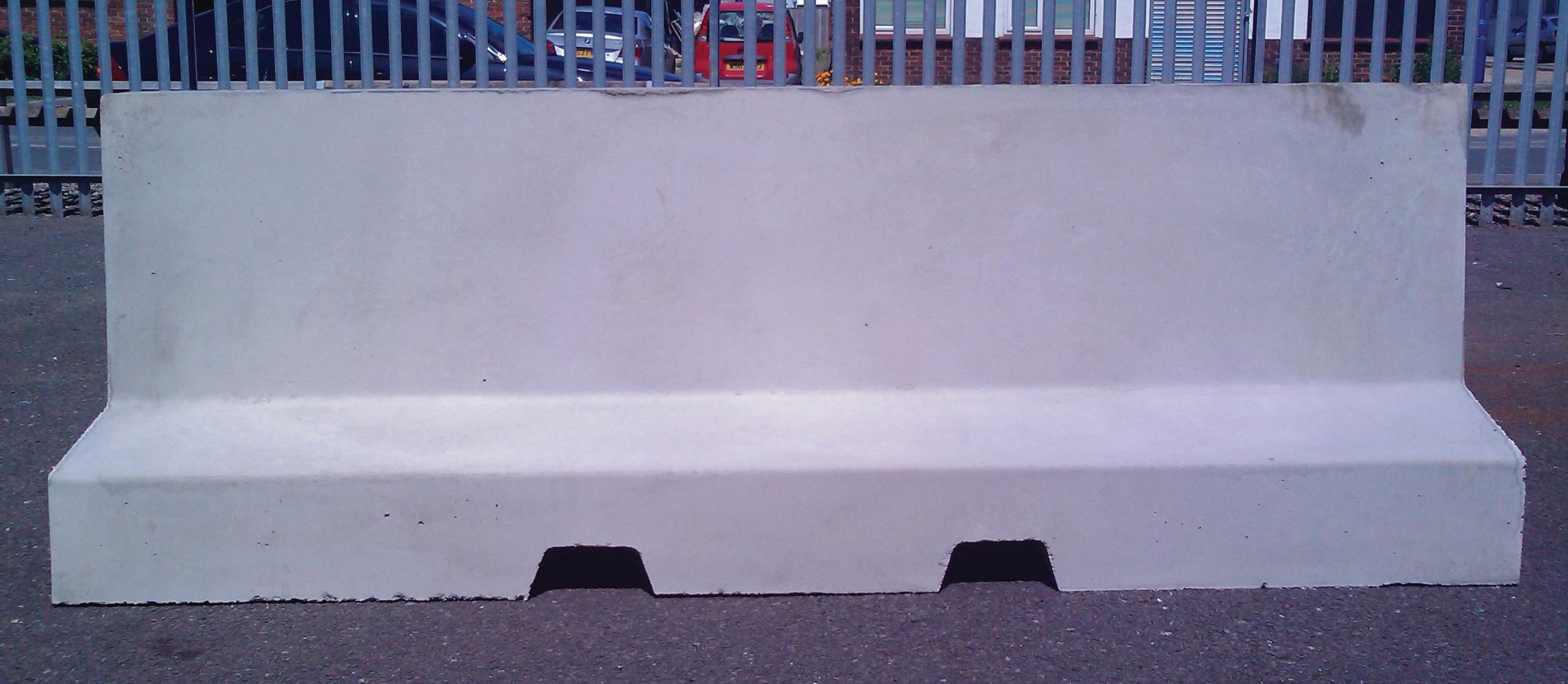

CONCRETE SECURITY BARRIER
Ideal for use as temporary road blocks, perimeter security and earth retention. Constructed with precast grooves on the bottom of the structure enabling easy handling using a forklift. Lifting sockets can also be cast into the top of the barrier to assist with manoeuvring. Simple and quick to move into place and provide a solid structure to deter unwanted visitors. Can be painted and warning signs attached.
• Rapid installation (interlocking)
• High-quality production
Effective Length 2500mm
Height 810mm
Width at base 610mm
Width at top 152mm
Weight (approx) 1450kg
Please Note: This barrier is not tested to give any containment protection if used on a highway.
TRAFFIC BARRIER SYSTEMS

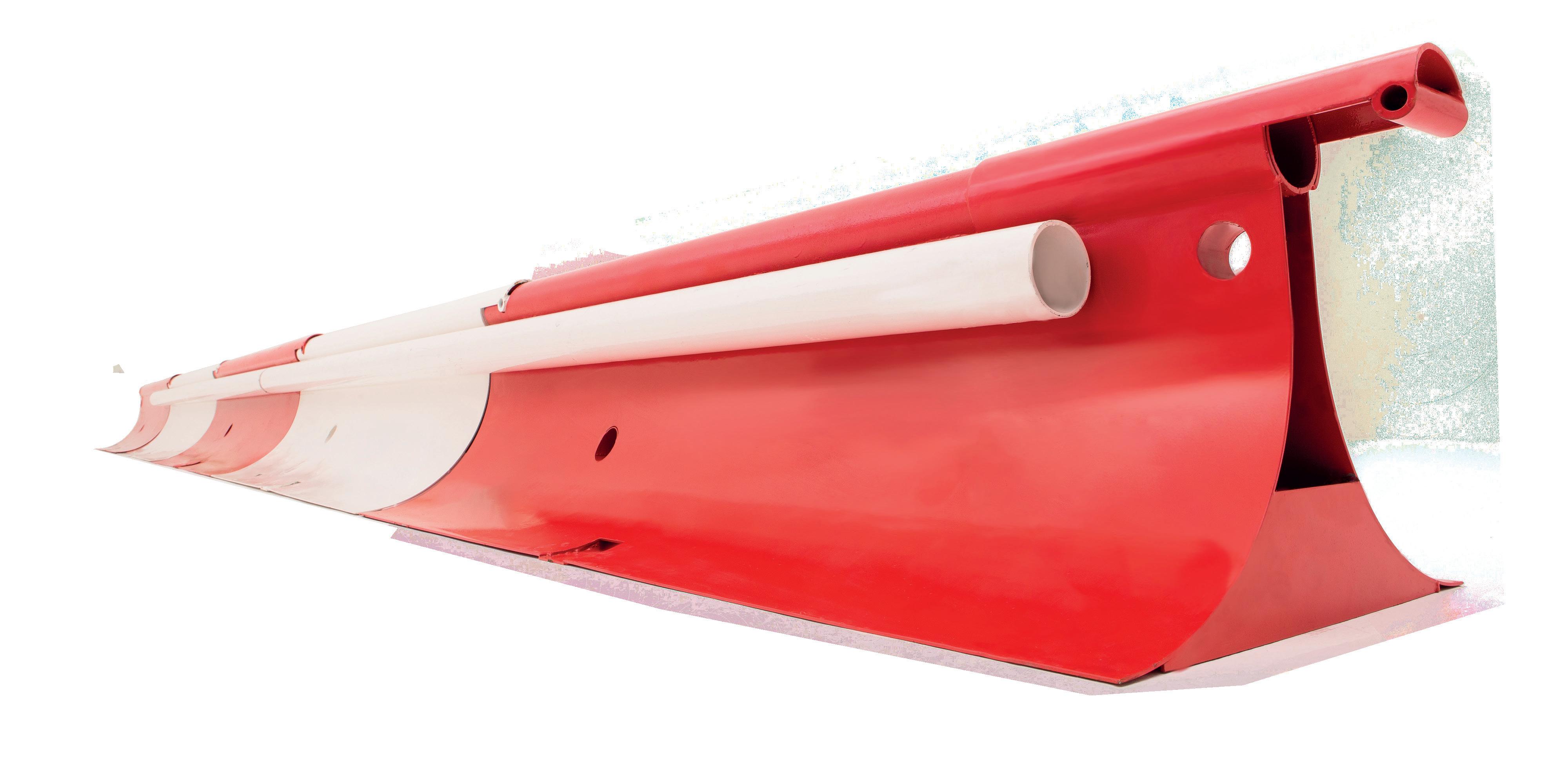

BULL BARRIER (SALE ONLY)
The Bull Barrier is a temporary heavy duty traffic / pedestrian barrier system designed for roadworks where moving vehicles are in close proximity to the site perimeter and its operatives. It can also be used to delineate a construction or work area. For use in areas of 50mph, a reinforced traffic bar is required.
The system has the advantage of being used with anti-climb pedestrian fence panels to keep the public safe,
but can also be used as a stand-alone barrier to delineate a construction site or work area.
The bull barrier has a hinge and slot connection method that make installation a much faster process comparable to comparable products. Installation is less labour intensive and requires two people.
• Unique hinge and slot design makes it the fastest installation of its type
• Only 2 people are required to fit the modules together
• Withstood wind speeds of up to 54mph
• Accommodates 90o degree bends
• Vehicle roll-on-roll-off stability
• Anti-climb fence panels available (Please ask for further details
• Crash tested to EN1317 T2 W6
TRAFFIC BARRIER SYSTEM
Suitable for use on non-highway roads and low speed highways where vehicle speeds are restricted to 30mph. This barrier system will help increase pedestrian safety, can accommodate 90 degree bends and is wind resistant. The base unit is a steel barrier which is galvanised and painted in highly visible safety colours. Units link together via vertical pins and the base units are mounted unfixed to the road with an anchorage at the terminal sections only. Can be fitted with vehicle gate or pedestrian gate if required.
• Overall height with vehicle gate: 2043mm
• Overall height with pedestrian gate: 2122mm

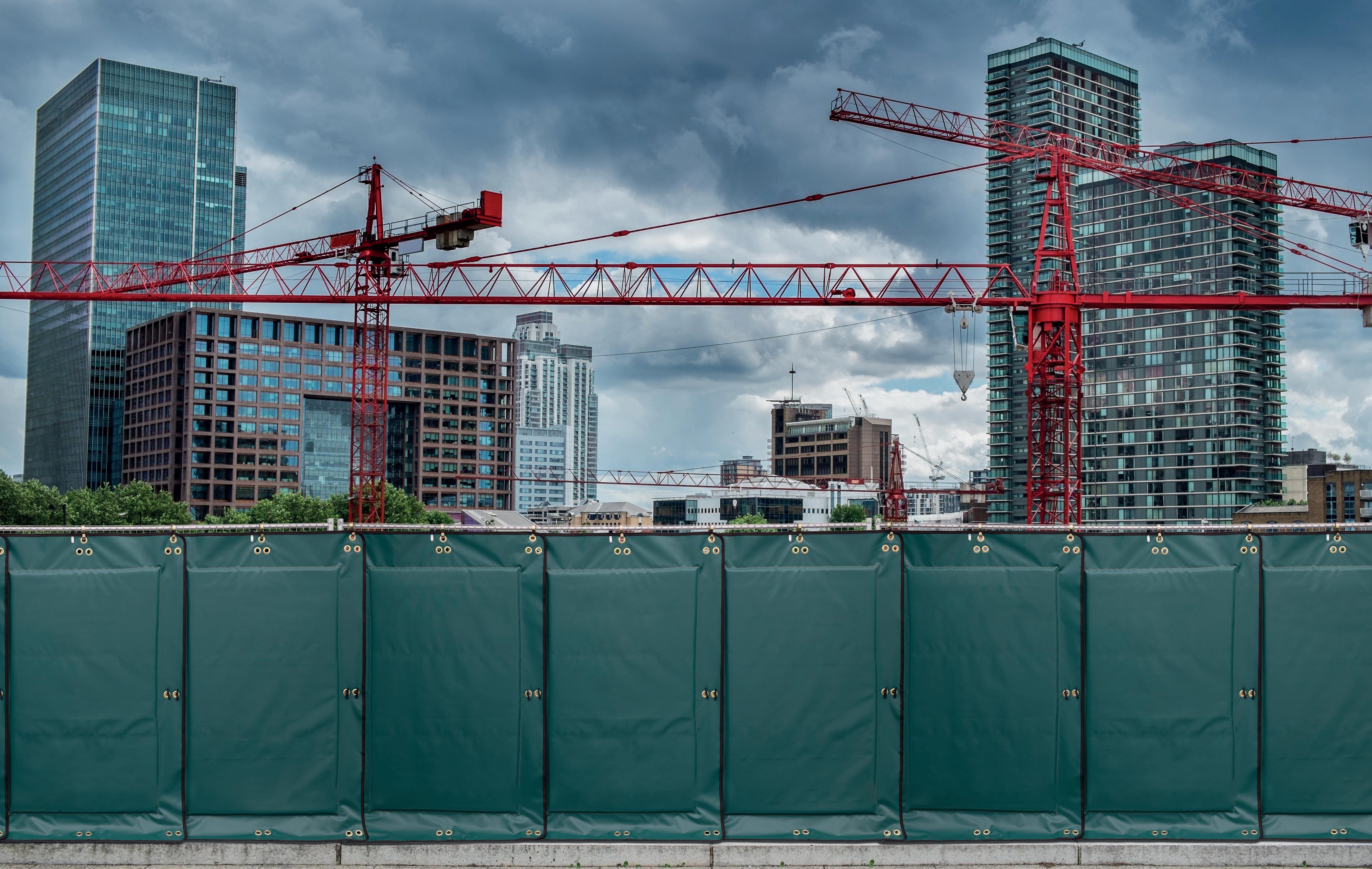

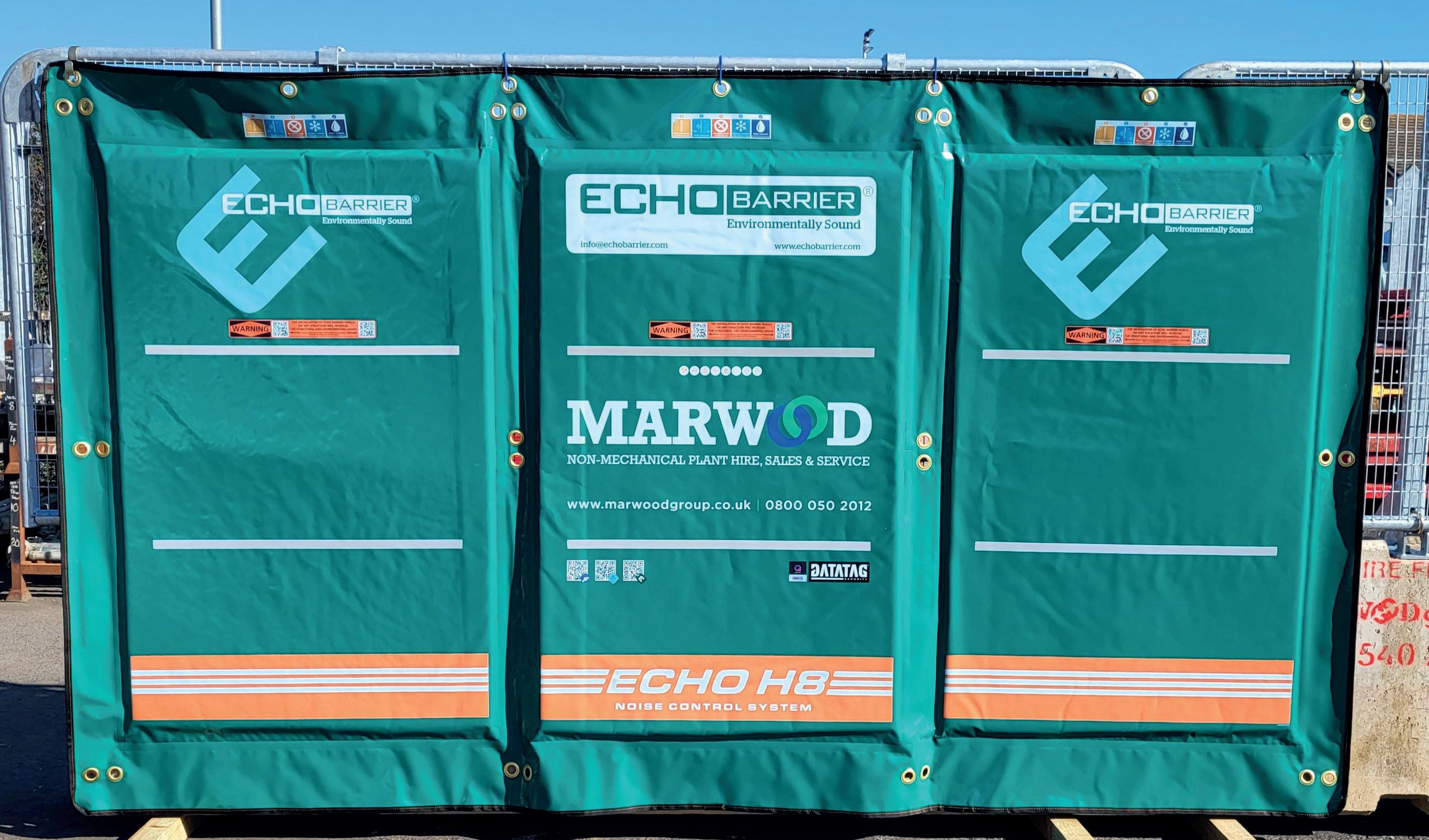

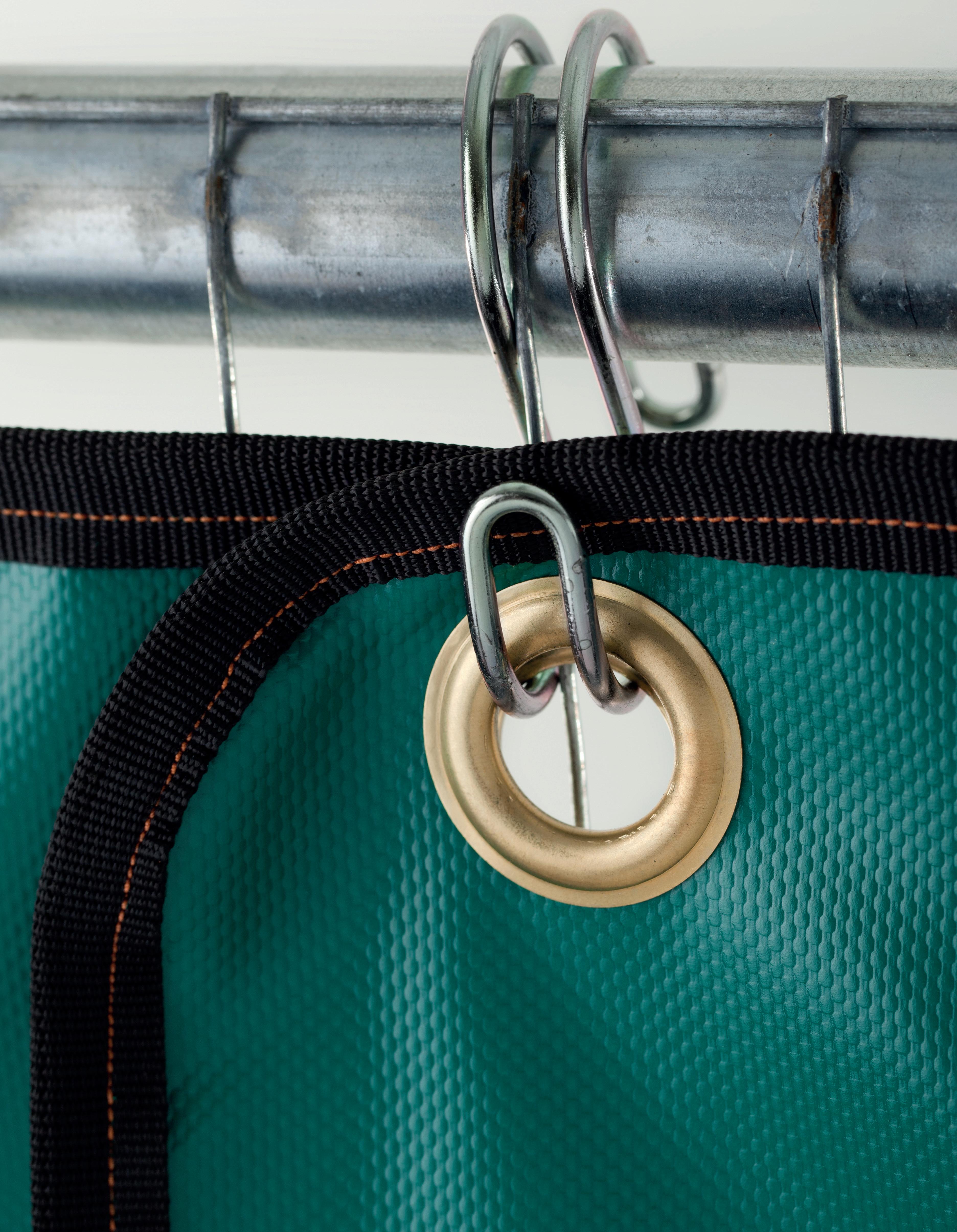

SOUND SUPPRESSION BLANKETS

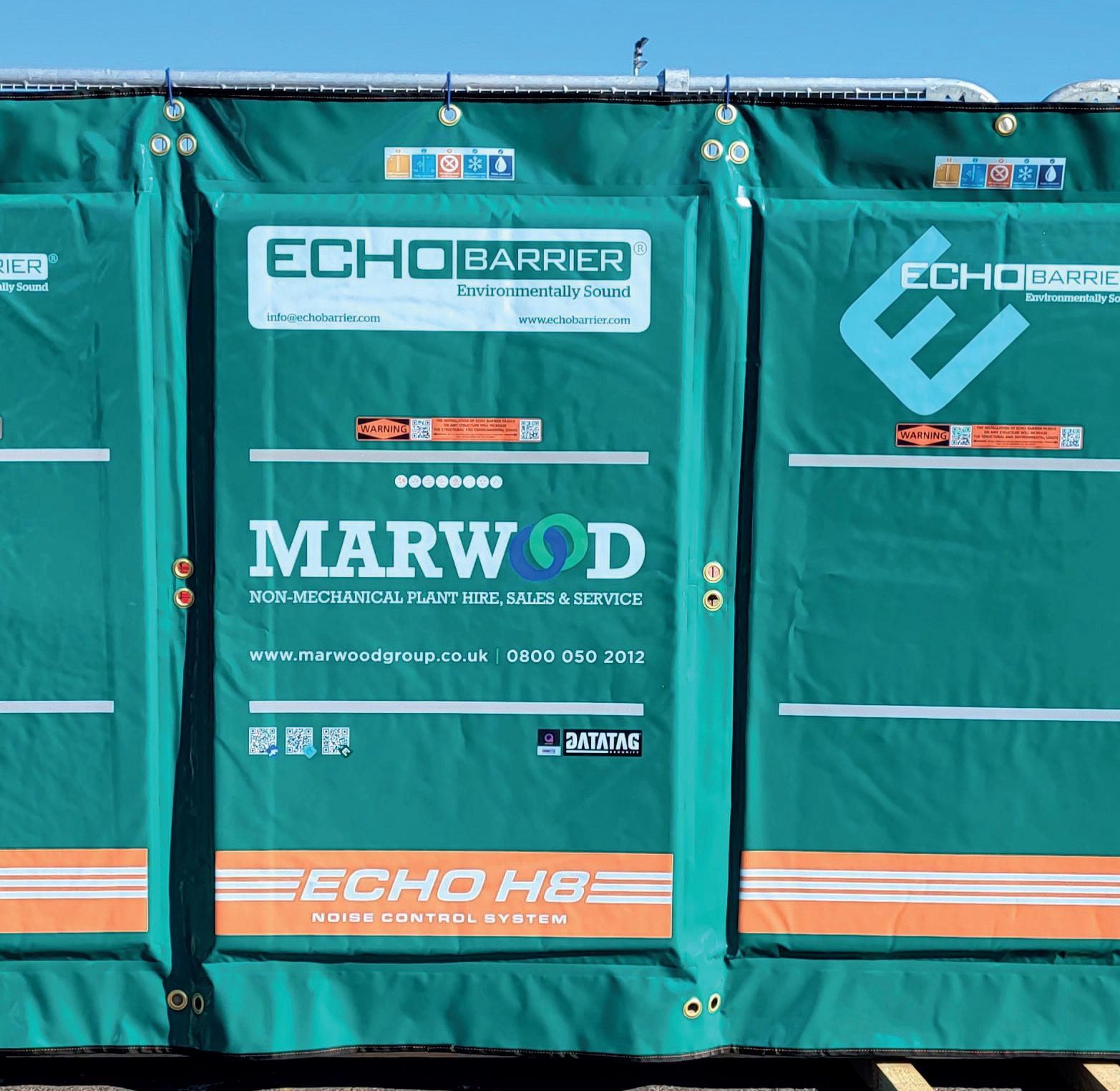

The Echo Barrier H-Series™ is the most effective portable noise-management system on the market. Developed by Echo Barrier’s expert team, the H-Series offers outstanding attenuation and absorption of noise, reducing sound energy by up to 99%.
Like all Echo Barrier’s products, H-Series acoustic panels are lightweight, weatherproof, durable and fire-resistant to BS7837:1996.
Designed for easy transportation and for quick installation and disassembly, they are readily fitted onto fencing or scaffolding and easily configured to meet specific project requirements in fields such as construction and demolition, road and rail and live events.
Echo Barrier enclosures provide portable noise management for generators, compressors and workstations. The enclosures are lightweight, waterproof, easily assembled in just a few minutes, and can be moved around a site as needed.
They can screen generators, compressors or HVAC equipment, or provide a safe working environment while minimising environmental disturbance from noisy activities such as cutting.
• Lightweight
• Quick and easy to install or move.
• Up to 40dB noise reduction
• Fire-resistant to BS7837:1996

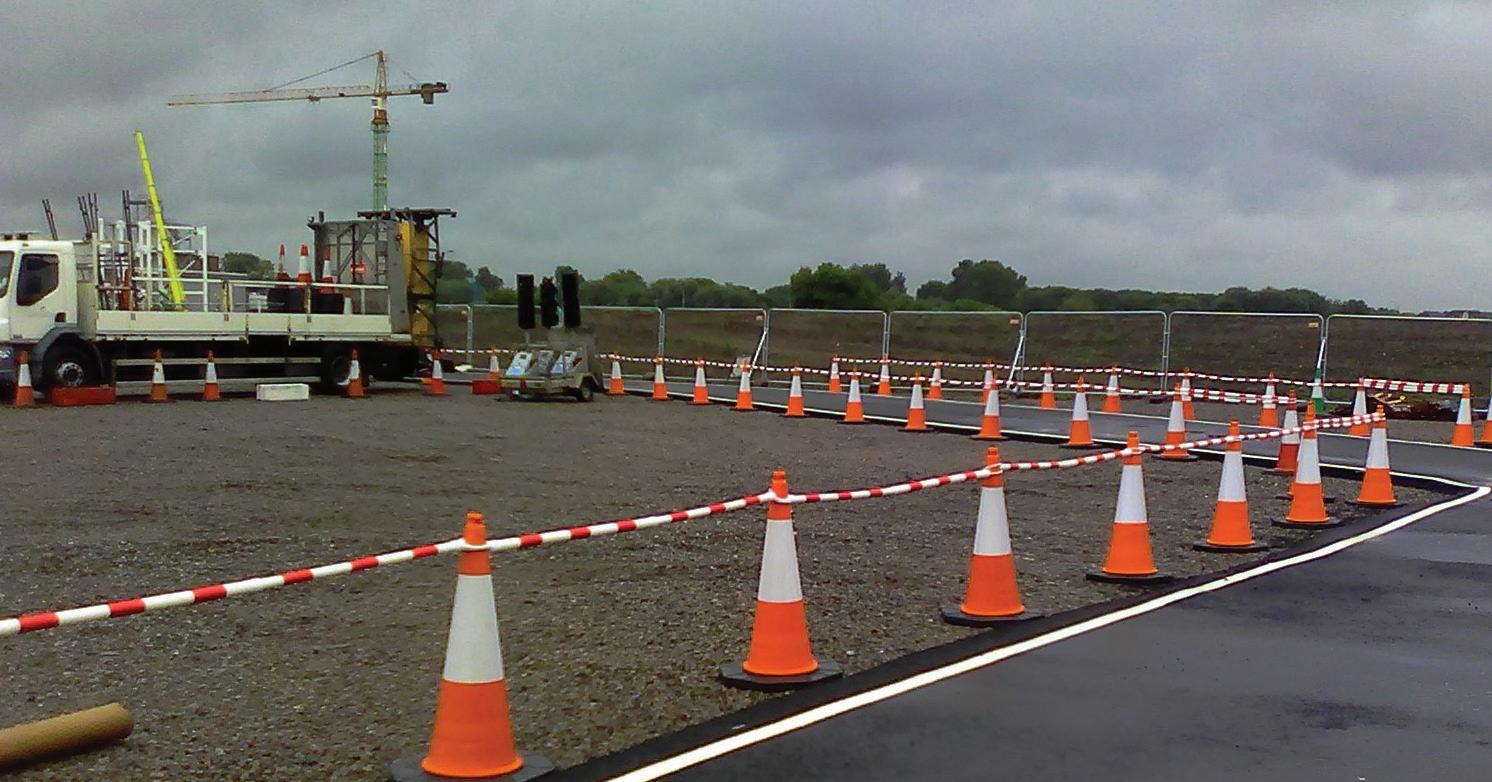

ROAD CONES
ROADMASTER TRAFFIC CONES (SALE ONLY)

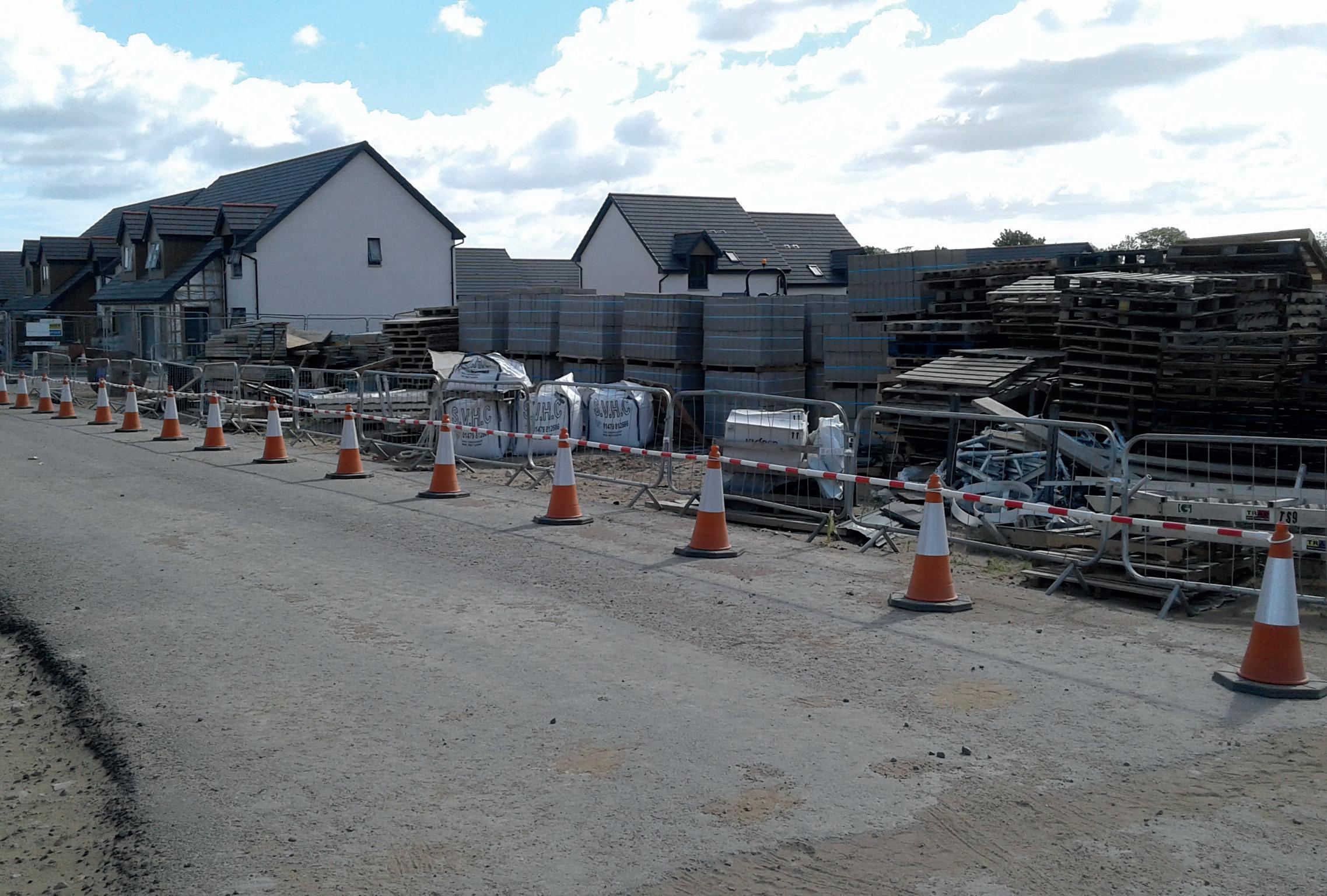

Tough and durable offering good impact resistance in all weather conditions. Fitted with prismatic sleeve manufactured to the relevant BS and EN standards.
One Part Cones
• 450mm - one part thermoplastic cone
• 750mm - one part thermoplastic cone
Two Part Cones
• 750mm - two part polyethylene cone with PVC moulded base
• 1000mm - two part polyethylene cone with PVC moulded base
ROADMASTER CONE SIGN
Ideal for utility companies where a fast installation is required. Conform to Chapter 8 regulation using reflective material compliant with BS and EN standards. Labelling available as an additional option.
Triangle 750mm
Circle 750mm
Square 600mm x 450mm

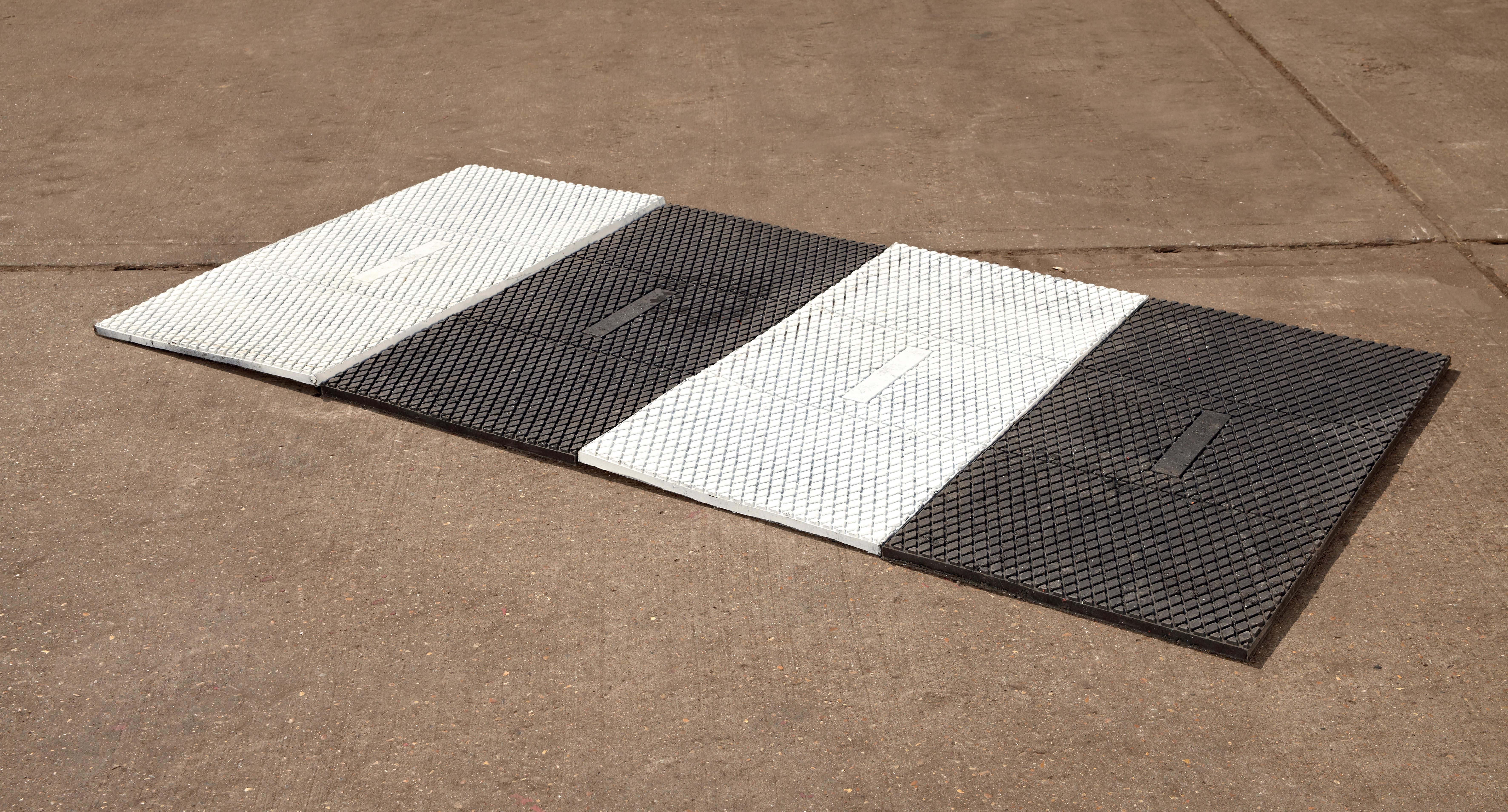

TEMPORARY ZEBRA CROSSING MAT (SALE ONLY)
Designed for use as temporary pedestrian crossing, providing safety and clear directions. Flexible, fast and easy to install with the added advantage of high visibility. Can also be used on construction sites or other places of work used by pedestrians.
Length 1200mm
Width 600mm
Height 22mm
Weight 24kg
CONE BAR
Retractable cone bars, easily installed on a range of safety cones to create a solid pedestrian barrier. Used for parking spaces, pedestrian areas, constructions sites and crowd containment at public & sports events, ski resorts and citywide events.
• Lightweight, easy to stack and carry
• Reflective for evening use
Description Top Bar Bottom Bar
Bar length 1280mm - 2150mm
1520mm - 2400mm
Internal diameter 79mm of top loop ring 195mm of bottom loop ring
Weight 0.5kg each 0.9kg each

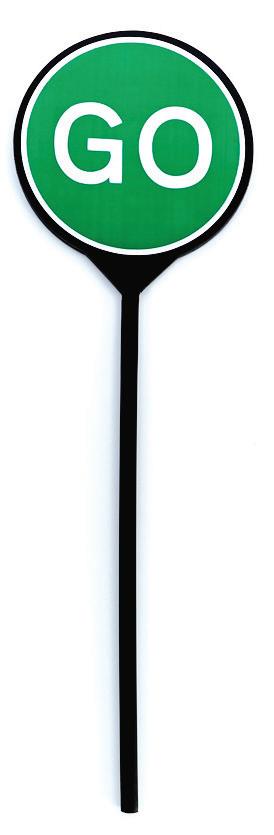

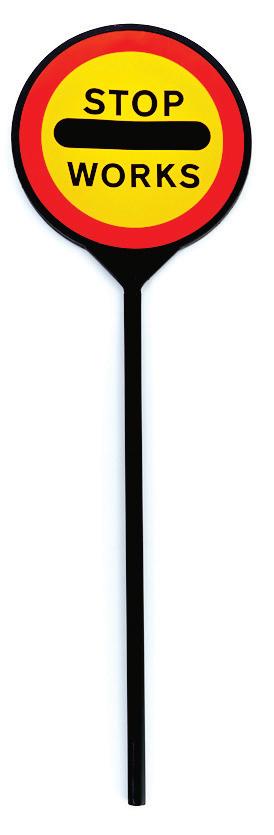

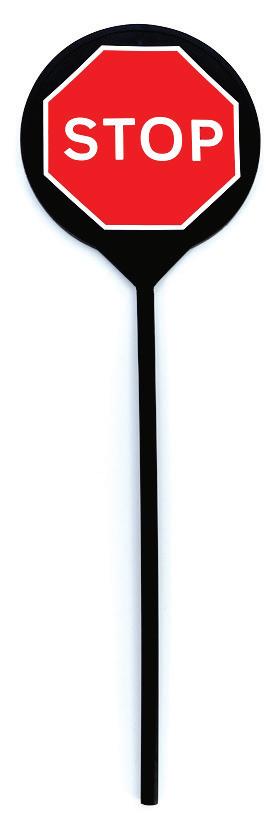

STOP/GO & STOP WORKS LOLLIPOP (SALE ONLY)
Ideal for traffic flow situations. Extremely long lasting making it an excellent alternative to the traditional metal or wooden pole types.

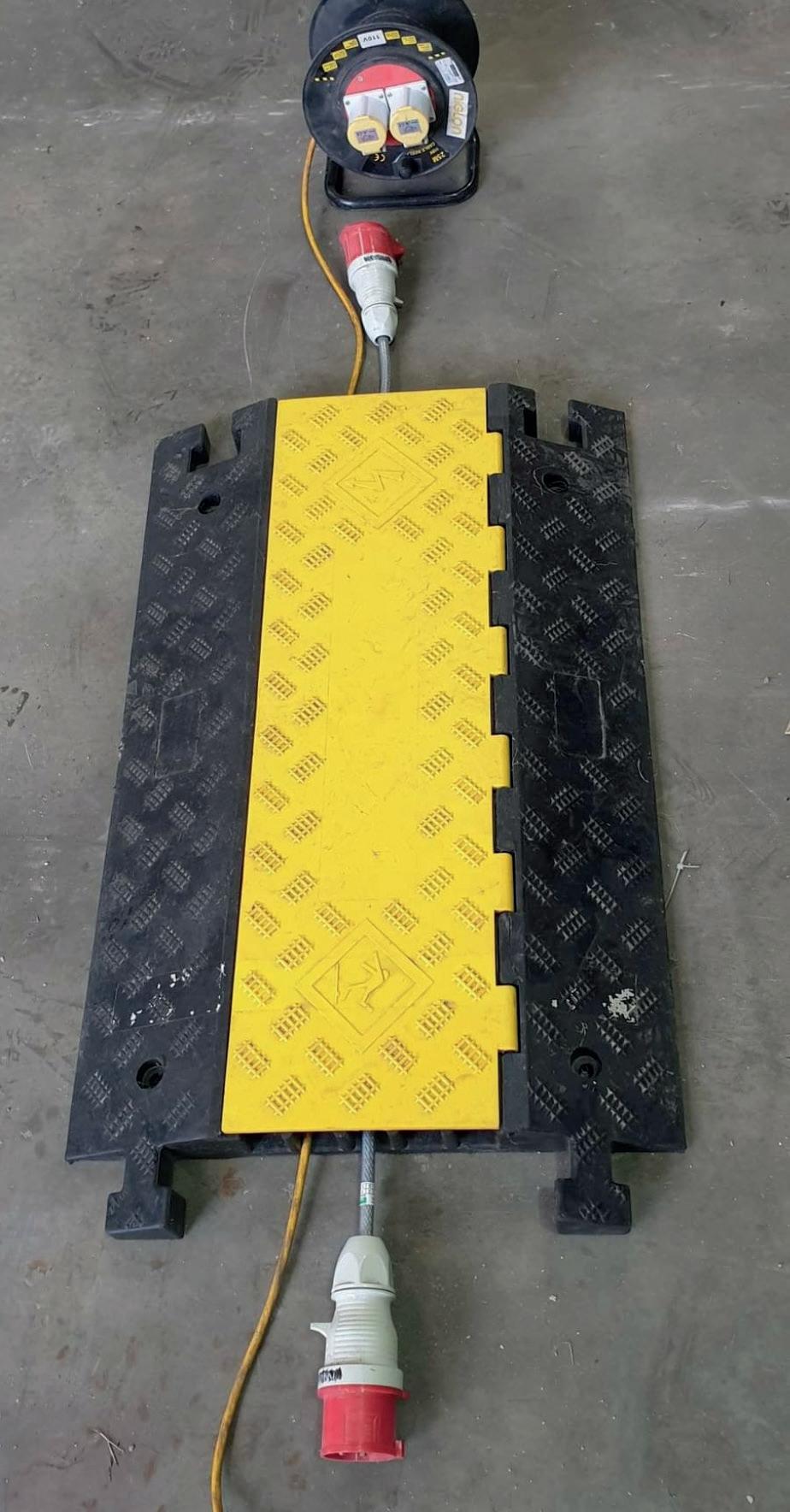

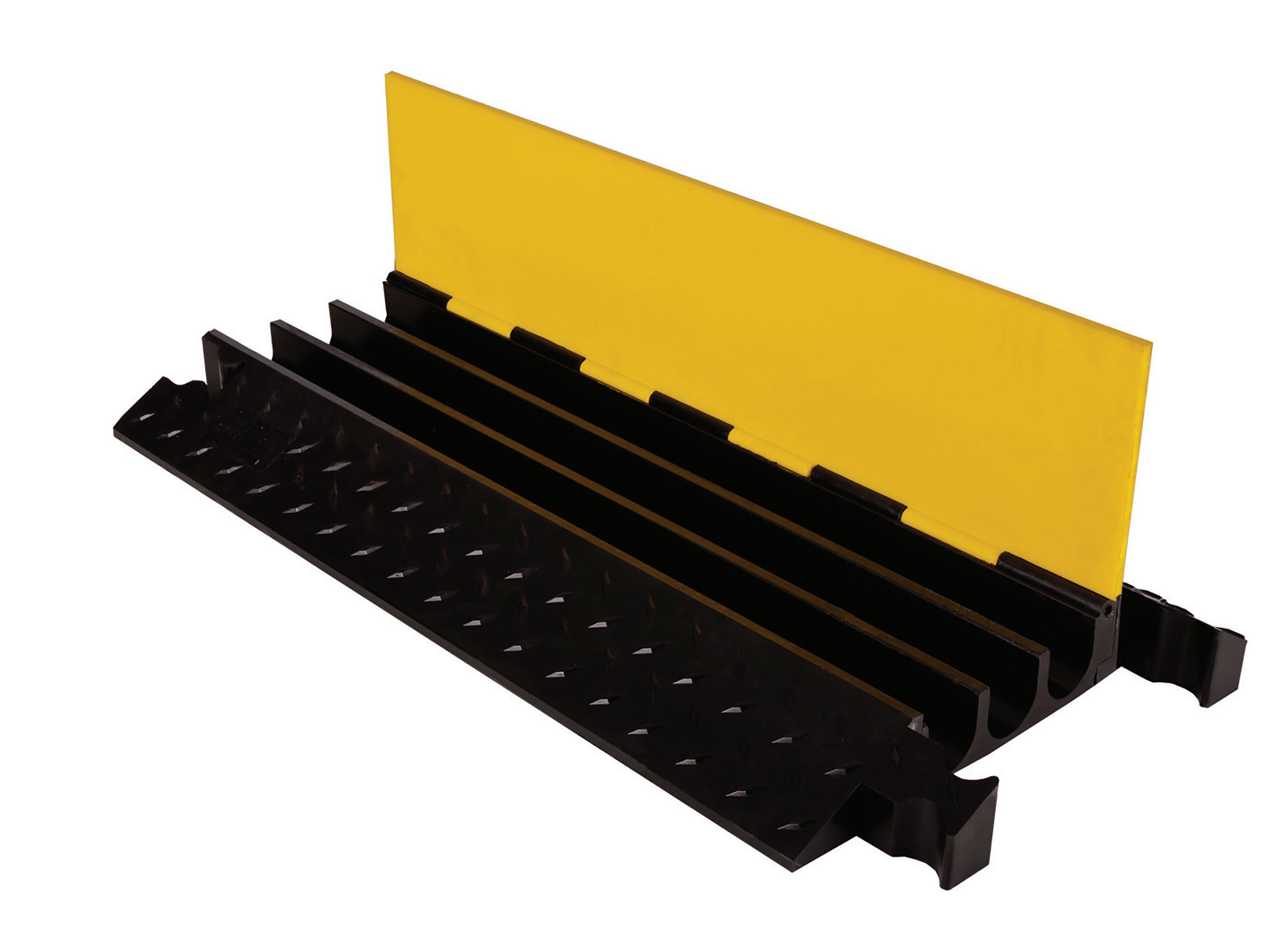

Cable Protection System with reinforced high visibility yellow PE hinged lid for easy cable placement. Protects valuable electrical cables and hose lines from damage while providing a safe crossing for vehicle and pedestrian traffic.
Ideal for use in construction sites, commercial, industrial and utility applications. Can also be used in entertainment venues, sporting events, amusement parks and most public areas.
• Male & Female end sections available for 3-Channel only
• Modular interlocking design is lightweight, easy to transport, setup, disassemble and store
Description
970mm 960mm
590mm
80mm 80mm
Weight 24kg 23kg
Max load per vehicle axle 12 Tonne 12 Tonne
Inner channel 55cm (W) x 50mm (D) 35mm (W) x 50mm (D)

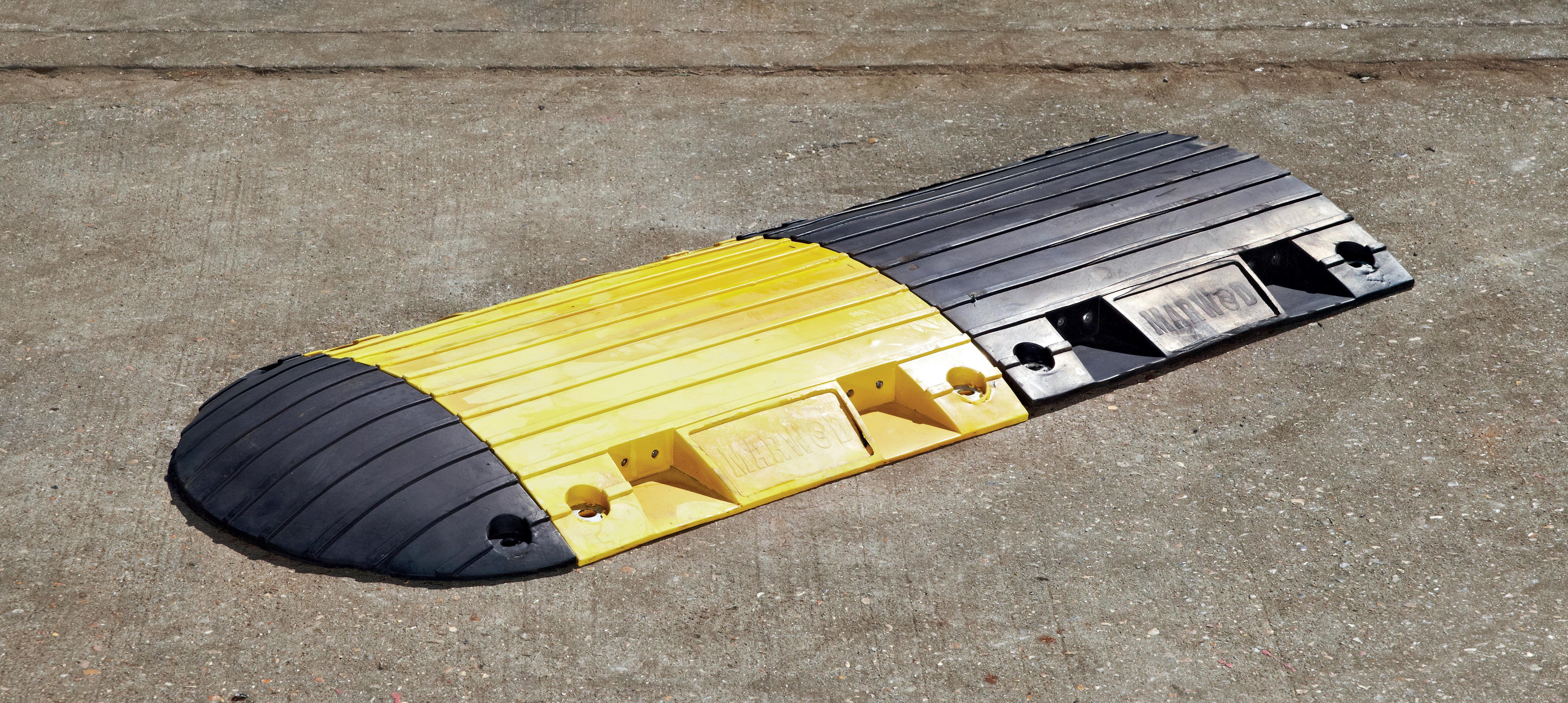

SPEED CONTROL RAMP
Ideal method for protecting temporary cables, hoses or reducing traffic speed. Should be laid as alternate black and yellow sections and bolted down. Manufactured from heavy duty PVC.
• 48mm x 33mm aperture suitable for temporary cable protection
• End caps available for permanent installation if required
• 1 meter of ramp weighs approximately 30kg
• Allowable axle weight is 12.5 tonne or less
Additional products available upon request: Dog Bone Connector Cats Eyes, supplied in sets of 8
• Bolts, supplied in sets of 4

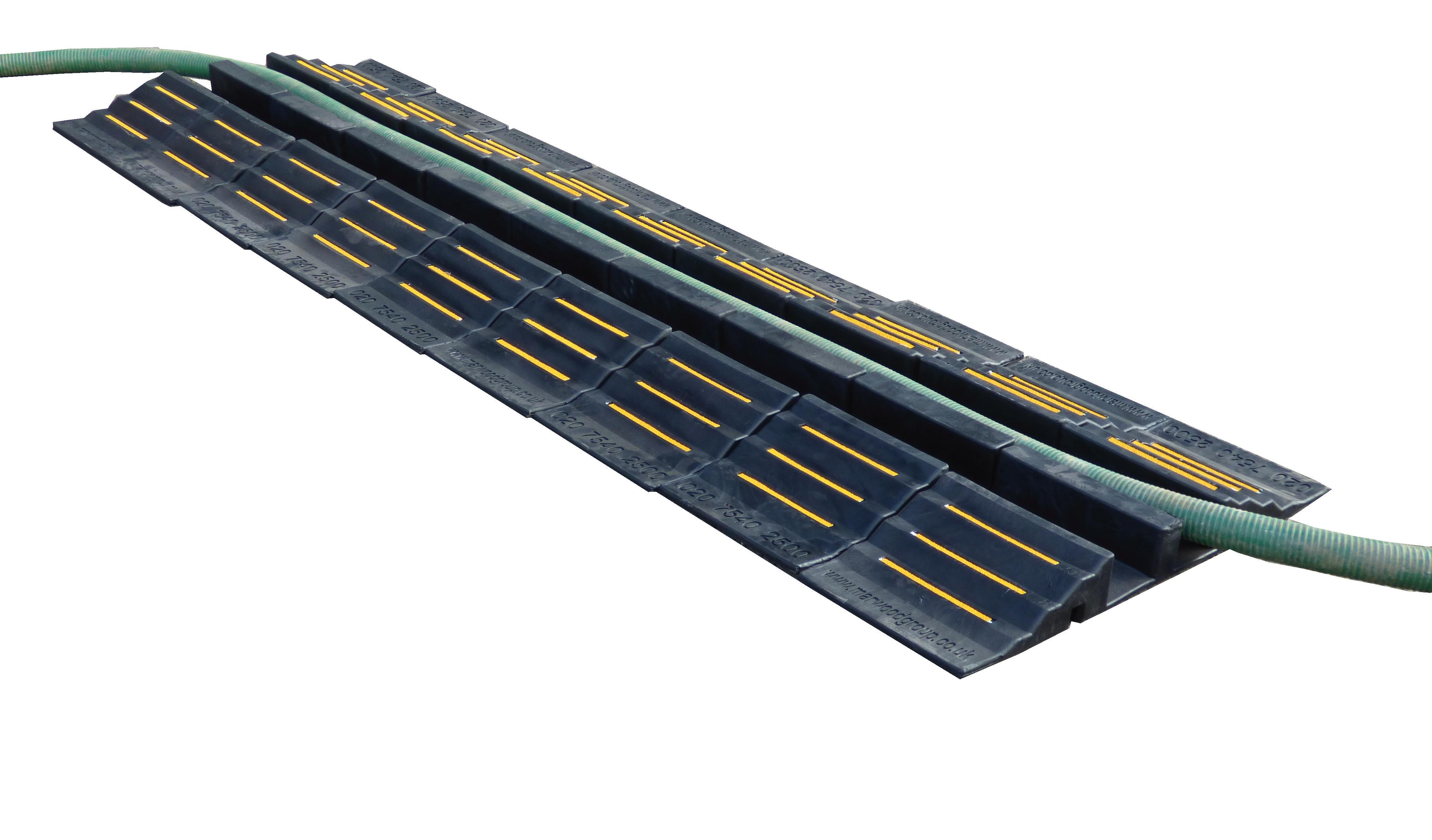

HOSE PROTECTION RAMP
Solid reinforced rubber units for the protection of hoses, electrical cables or pipe work. Feature a stepped construction for safe use and flexible base apron for maximum grip.
• Gap size to suit cable is 90mm across x 75mm depth
• Suitable for use with most vehicles including buses and HGV
• Joiners available for multiple use (Sale Only)
Safety Requirement: “Ramp” warning signs should be displayed to warn road users of the obstruction and to approach with minimum speed.
CALL TODAY ON 0800 050 2012
x 500mm x 70/75mm
x 500mm x 70/75mm
Length 820mm Width 300mm
85mm
8.8kg
ANCILLARY EQUIPMENT
MANUAL RAISE ARM BARRIER (SALE ONLY)
Low maintenance and cost effective way of manually controlling access to unauthorised areas. The design of the Manual Raise Arm Barrier comes with a spring-loaded locking mechanism, allowing the barrier to be fixed in the raised and lowered position prior to applying the padlock.
• Finish Pedestal - Red
• Operational Movement 90 Degrees
Standard CE Approved
• Aluminium boom span openings up to 8.5 metres (17 metres with a pair of barriers)
Barrier weight 110kg
Pole 2.73 kg/m
Balance weight 16.9kg

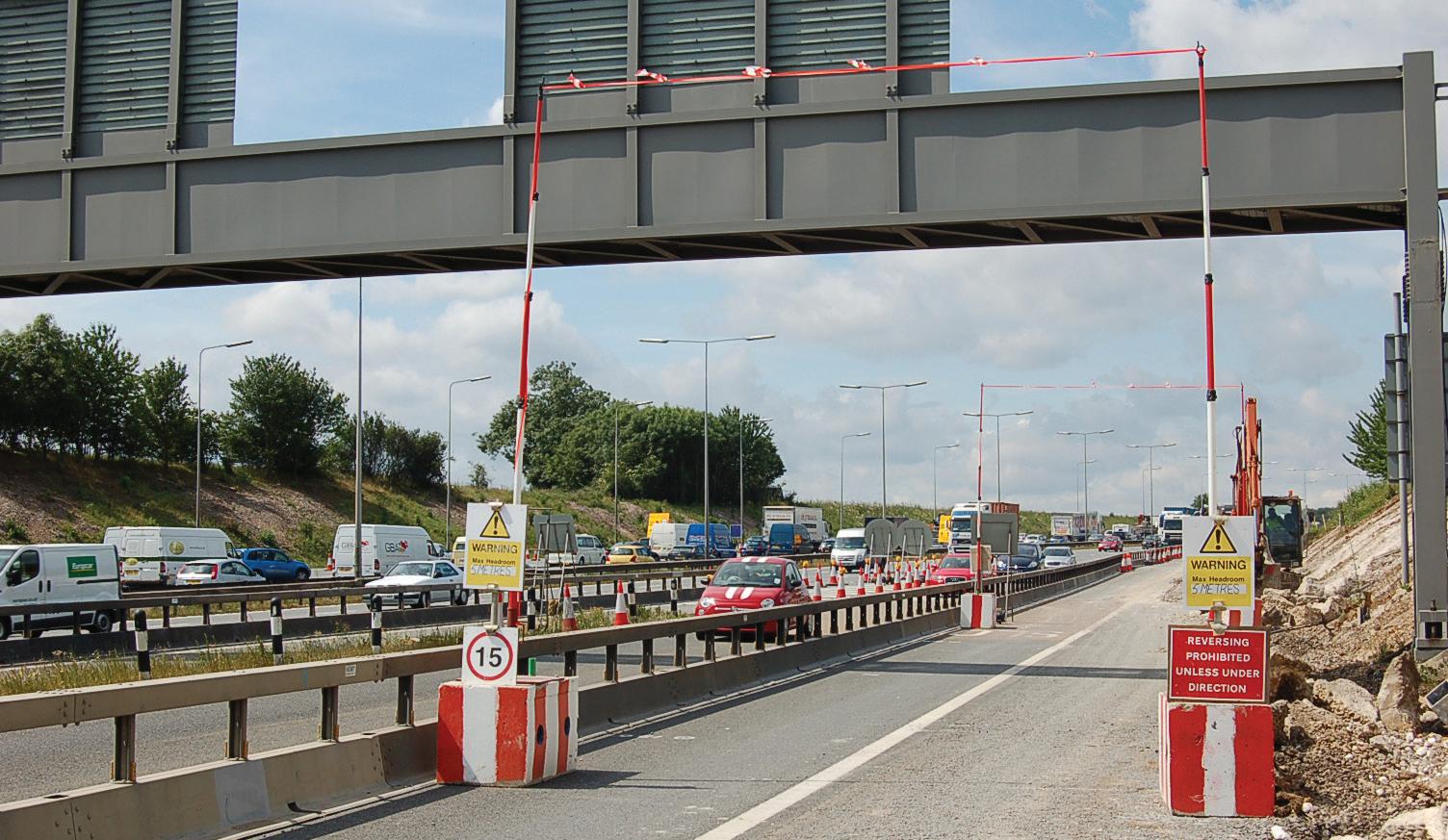

GOAL POST / RAIL INDUSTRY

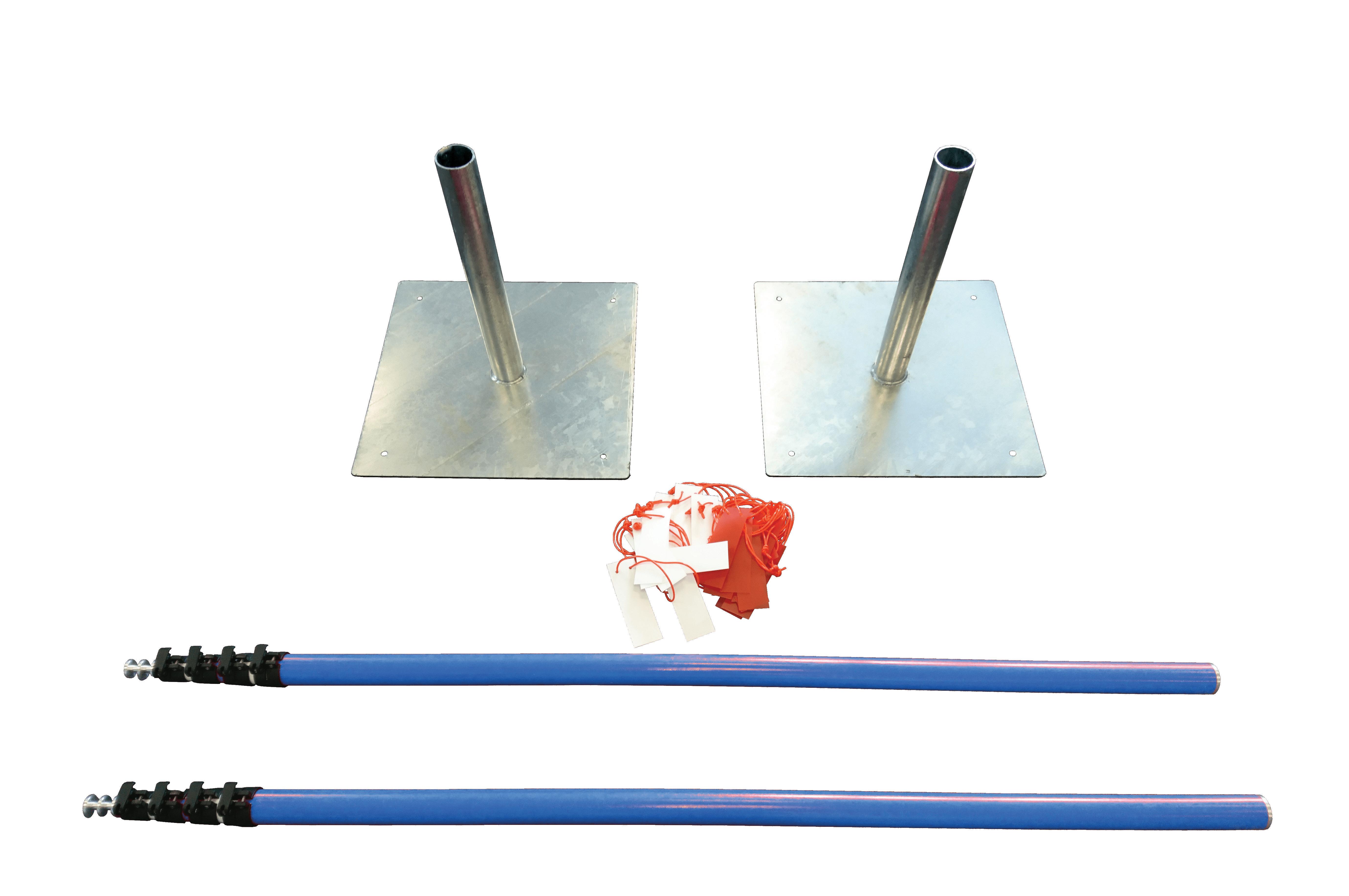

A lightweight GRP (non-conductive) telescopic red and white post which conforms in full to the “GS6 avoidance of danger from overhead electric power lines”. The system is easily transported to and around site. Assembly to full carriageway clearance height can be achieved in minutes by one person. Bunting, solid crossbar or cantilever arm options are available with the system.
• Lightweight and extremely transportable
• Full height clearance over carriageway
• Non-Conductive
• Completely reusable
• Highly visible red and white posts
• Blue posts option for rail industry use Various base options to suit site conditions Bunting available as sale only
MARWOOD NATIONWIDE DEPOTS
London (Head Office) 020 7540 2500
Dagenham 020 7474 0330
Birmingham 01384 240330
Bristol 0117 972 8641
East Kilbride 01355 208608
Fareham 01329 284747
Leeds 01132 380300
Manchester 0161 876 7832
Medway 01634 297797
Middlesbrough 01642 459300
Newbury 01635 866707
Northampton 01604 756180
Norwich 01603 488478
Nottingham 01159 304334
Peterborough 01733 311444
Plymouth 01752 973590
Wales 01656 657013
Railtec Engineering (Fabrications) Part of Marwood Group Ltd 01226 384207 Europalite (Moulded Plastic Manufacturers) Part of Marwood Group Ltd 01623 528 760
