AIR SYSTEMS 78

The rugged design of our original SCBA bracket has been safeguarding your SCBA cylinders from scarring and damage since 1988. All brackets are constructed of powder coated steel with removable spring clips featuring a high quality nylon protective coating. The resilient cylinder clips are constructed of 1075 spring steel making them ideal for both fiberglass and carbon fiber tanks. We guarantee our brackets to be the best with our industry leading Lifetime Warranty. Manufactured and assembled in USA. Ship. wt. 5 lbs. • Clip only available for standalone use, retrofit, and tank changes • Horizontal & diagonal drill pattern standard

AR043 SCBA Bracket, 30 min. High Pressure / 5.25" AR044 SCBA Bracket, 30 min. Low or 45 min. High / 6.10"- 6.75" AR045 SCBA Bracket, 60 min. High Pressure / 7.25" AR046 Bracket Clip, 30 min. High Pressure / 5.25" AR047 Bracket Clip, 30 min. Low or 45 min. High / 6.10"- 6.75" AR048 Bracket Clip, 60 min. High Pressure / 7.25"

This bracket is required for securing SCBA within crew compartment areas. It features a 3-point release that keeps your SCBA locked and securely in place. Simply don the SCBA while enroute and keep it safely secured. On the scene pull that lanyard from between your legs or along the side of your seat and you are ready to go. This universal bracket is designed to fit all SCBA. Additionally this bracket is NFPA compliant meeting the 1901-03 2009 standard. We guarantee our brackets to be the best with our industry leading Lifetime Warranty. Manufactured and assembled in USA. Ship. wt. 5 lbs.

AZ618 Complete Universal NFPA Compliant Bracket AZ534 Clip Only - Universal “V” Clip

• No straps or levers. Locks quickly and easily by simply pressing down on the top clamp • Ratcheting design safely locks SCBA in place over a range of engagement - no struggling to achieve a lock or slamming the cylinder against a backplate • Fully adjustable. Fits most makes/models of SCBA with only minor adjustments • Footplate Guide makes stowing the air pack an easy, no-look process • NFPA 1901 compliant and third party tested to exceed

NFPA 9G standard • Ship. wt. 12.8 lbs.

BK252 EZ-LOC Mechanical Bracket

Rely on these classic brackets for secure storage and quick, easy access to breathing apparatus All brackets are constructed of heavy-duty steel with a smooth, crack-resistant thermoplastic coating to protect the cylinder and make retrieval a breeze. Standard coating is ideal for low to moderate use. High cycle coating (tested to over 50,000 cycles) adds yellow tips for moderate to high use. Meets NFPA Requirements (For installation in a crew cab when used with AS075 Collision Restraint Strap). Ship. wt. ranges from 4-6 lb.

AS070 • • •

AS071 • • •

AS072 • •

AS073 • • SPECIFY SIZE (see chart above) AS070 Knockdown Walkaway® Bracket (Standard) AS071 Knockdown Walkaway® Bracket (High Cycle) AS072 Scott Knockdown Walkaway® Bracket (High Cycle) AS073 Scott Knockdown Walkaway® Bracket (High Cycle) w/PHS Strap Assembled ACCESSORIES AS074 Positive Holding Strap AS075 Collision Restraint Strap

A

• 180˚ Tilt: Provides the largest tilt range among battery fans, allowing airflow to be directed virtually anywhere • Compact, Roll-Cage Frame: Features one of the most compact, lightweight designs among battery PPVs with its aluminum frame design • Polymer Blade: Minimizes weight; Super Vac’s single-piece cast aluminum blade is available by request • Precision-Spun Steel Shroud with StreamShaper Guard: Shroud provides durability with max airflow, while the StreamShaper guard allows for flexible setback; Air Cone Guard available by request

Cat# Dimensions Amp-Hour/Runtime BP222 223/4"x231/2"x12" BP223 223/4"x231/2"x12" 8Ah/30 Min. BP224 223/4"x231/2"x12" 8Ah/30 Min. BP225 223/4"x231/2"x12" 12Ah/40 Min. BP226 223/4"x231/2"x12" 12Ah/40 Min. BP227 223/4"x231/2"x12" Shore Power CFM Wt. Price 9,800 42 lbs. 9,800 42 lbs. 9,800 42 lbs. 9,800 42 lbs. 9,800 42 lbs. 9,800 42 lbs.

Cat# Dimensions Amp-Hour/Runtime BP228 253/4"x253/4"x12" BP229 253/4"x253/4"x12" 8Ah/30 Min. BP230 253/4"x253/4"x12" 8Ah/30 Min. BP231 253/4"x253/4"x12" 12Ah/40 Min. BP232 253/4"x253/4"x12" 12Ah/40 Min. BP233 253/4"x253/4"x12" Shore Power CFM Wt. Price 10,800 46 lbs. 10,800 46 lbs. 10,800 46 lbs. 10,800 46 lbs. 10,800 46 lbs. 10,800 46 lbs.

Cat# Dimensions Amp-Hour/Runtime BP250 223/4"x231/2"x12" BP251 223/4"x231/2"x12" 9Ah/30 Min. BP252 223/4"x231/2"x12" 9Ah/30 Min. BP253 223/4"x231/2"x12" 12Ah/40 Min. BP254 223/4"x231/2"x12" 12Ah/40 Min. BP255 223/4"x231/2"x12" Shore Power CFM Wt. Price 9,816 42 lbs. 9,816 42 lbs. 9,816 42 lbs. 9,816 42 lbs. 9,816 42 lbs. 9,816 42 lbs.

Cat# Dimensions Amp-Hour/Runtime Charger Type CFM Wt. Price BP256 253/4"x253/4"x12" 10,840 46 lbs. BP070 253/4"x253/4"x12" 9Ah/30 Min. 10,840 46 lbs. BP257 253/4"x253/4"x12" 9Ah/30 Min. 10,840 46 lbs. BP072 253/4"x253/4"x12" 12Ah/40 Min. 10,840 46 lbs. BP258 253/4"x253/4"x12" 12Ah/40 Min. 10,840 46 lbs. BP259 253/4"x253/4"x12" Shore Power 10,840 46 lbs.

The Valor Series is engineered to take on the toughest ventilation challenges. Featuring a tough, tubular aluminum frame, rubber never-flat tires, and a 7-position tilt system with a quick step pad. Ducting attaches easily to Valor Series Fans, allowing for quick deployment. The seven point aluminum airfoil blade is manufactured to withstand the heat of structure fires and precision engineered to last a lifetime. Cat# Size Dimensions Motor CFM Wt. Price BN229 18" 231/2"x22"x21" Single Speed 6,378 80 lbs. BN230 18" 231/2"x22"x21" Variable Speed 11,709 84 lbs. BN231 18" 231/2"x22"x21" Hazardous Location 6,378 90 lbs. BN232 20" 261/2 "x25"x211/2 " Single Speed 9,007 82 lbs. BN233 20" 261/2"x25"x211/2 " Variable Speed 13,788 86 lbs. BN234 20" 261/2"x25"x211/2 " Hazardous Location 9,007 92 lbs.

Cat# Size Dimensions Engine CFM Wt. Price BN287 18" 231/2"x22"x21" GX200 Honda 15,168 84 lbs. BN286 18" 231/2"x22"x21" GC160 Honda 13,223 76 lbs. BN285 18" 231/2 "x22"x21" Vanguard 14,342 84 lbs. BN290 20" 261/2"x25"x211/2 " GX200 Honda 18,182 86 lbs. BN289 20" 261/2"x25"x211/2 " GC160 Honda 15,499 78 lbs. BN288 20" 261/2"x25"x211/2 " Vanguard 17,064 86 lbs.

Featuring a durable steel-frame, roll-cage design with 4-position tilt for -10°, 0°, 10°, 20° angles to ventilate stairwells and basements, this PPV has proven itself for decades as one of Super Vac’s most trusted PPVs. This fan is available in a variety of sizes (16", 18", 20" and 24" fans) with a variety of Honda engine choices, making this a fan favorite. • Fold-Down Ergonomic Handle: Folds down into frame for compact storage; features fullwidth handle for easy grip with heavy-duty gloves • Flat-Proof Rubber Tires: Eliminates flat tires; rolls up stairs/curbs easily • Single-Piece Cast Aluminum Blade: Holds up better than plastic in high heat • Precision-Spun Steel Shroud: Provides durability with max airflow • Air Cone Guard: Classic design for maximum airflow;

StreamShaper Guard optional

Cat# Size Dimensions Engine CFM Wt. Price BD033 16" 20"x201/2"x16" GX120 Honda 11,740 74 lbs. AC952 18" 22"x231/2"x191/2 " GX200 Honda 15,168 86 lbs. BL618 18" 22"x231/2"x191/2 " GC160 Honda 13,223 78 lbs. AC953 20" 251/2"x26"x191/2 " GX200 Honda 18,182 96 lbs. AC954 24" 28"x291/2"x21" GX270 Honda 20,920 134 lbs.

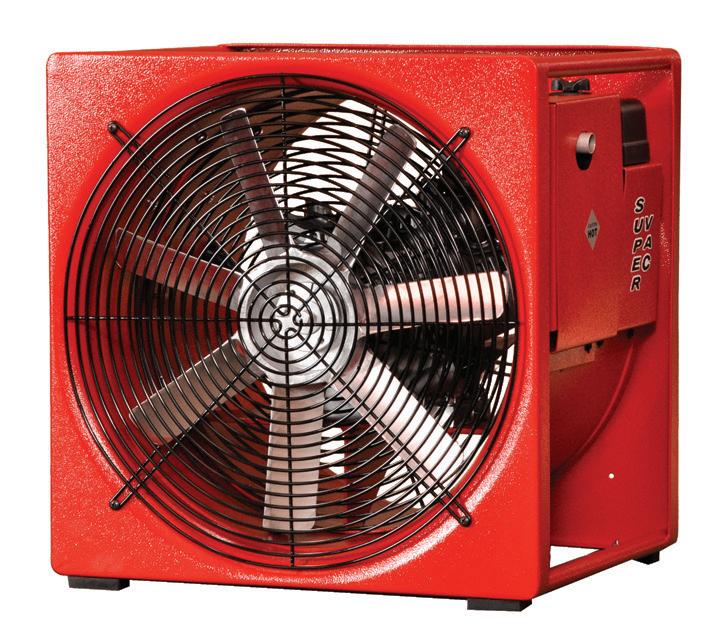

The most popular smoke ejector in the fire service, the Super Vac Electric Smoke Ejector features a patented 4-tip recurved aluminum propeller, which produces a greater intake of air into the vacuum side of the fan, eliminating turbulence at the tips. All Super Vac’s are designed to easily accept spiral duct with adapters on the output side for positive ventilation or the input side for negative ventilation.

• Patented 4-Tip Recurved Aluminum Blade: Creates a tight spiral of air to eject smoke and fumes away from the building; aluminum holds up better than plastic in high heat • Precision-Balanced Blade: Maximizes output • Heavy-Duty Rubber Feet: Adds friction to keep fan in place • 4 Carry Handles: Makes transportation easy with one or two people • Front and Rear Guards: Prevents accidental contact with key components

• Explosion Proof Motor: J594 & J594A • Overall Dimensions: 191/4"x183/4"x13" • AC948 has explosion-proof motor Cat# Size RPM Voltage Housing CFM Wt. Price J593 16" 1,725 115/230 Steel 5,200 44 lbs. J593A 16" 1,725 115/230 Alum. 5,200 39 lbs. AC947 16" 3,450 115/230 Alum. 9,620 59 lbs. J594 16" 1,725 115/230 Steel 5,200 49 lbs. J594A 16" 1,725 115/230 Alum. 5,200 44 lbs. AC948 16" 3,450 115/230 Alum. 9,620 63 lbs.

• Explosion Proof Motor: M912 & M912A • Overall Dimensions: 251/2"x243/4"x161/4 " Cat# Size RPM Voltage Housing CFM Wt. Price M910 20" 1,725 115/230 Steel 9,800 85 lbs. M910A 20" 1,725 115/230 Alum. 9,800 85 lbs. M912 20" 1,725 115/230 Steel 9,800 93 lbs. M912A 20" 1,725 115/230 Alum. 9,800 93 lbs.

• Explosion Proof Motor: J598 • Overall Dimensions: 281/2"x28"x183/4 "

Minimum 6kw generator w/20amp circuit is recommended to power these blowers.

Cat# Size RPM Voltage Housing CFM Wt. Price J597 24" 1,725 115/230 Steel 11,800 110 lbs. J598 24" 1,725 115/230 Steel 11,800 115 lbs.

24"

STANDARD SINGLE SPEED

Among the smallest gas-powered fans in the industry, the 16" and 18" Fits into tight compartments and yet pack a cfm output that matches larger electrical smoke ejectors thanks to the powerful Honda GX engine. Totally enclosed housing, which protects the fan’s moving parts, gives crews the ability to stack multiple units on top of each other. GX120: 16" Dimensions: 19.5"x19"x15.5". Weight: 55 lbs. / 58 lbs. for GP167S. 18”: 23.5”x23”x16.5”. Weight: 76 lbs. Made in USA.Ship. wt. 55 lbs. • Single-Piece Cast Aluminum Blade: Holds up better than plastic in high heat • Precision-Balanced Blade: Maximizes output • Front and Rear Guards: Prevents accidental contact with key components • Heavy-Duty Rubber Feet: Adds friction to keep fan in place • 4 Carry Handles: Makes transportation easy with one or two people

J670 Direct Drive Gas Smoke Ejector

The Tempest Special Operations Power Blower is the latest addition to the positive pressure ventilation and attack arsenal. The fan’s unique grille and shroud design create a Laminar Air Flow (LAF) which uses an increased setback (9' to 11') and is highly effective in unique fireground scenarios such as multi-story stairwells, highrise structures, complex structures and commercial structures > 5,000 ft. The SP blower also showcases a number of new features like wheels now located in the back and a wider footprint for increased stability.

Cat# Description Size Dimensions CFM Weight Price

BL415 Special Operations Blower 18" 201/2"x211/2"x221/2 " 15,792 88 lbs.

BL416 Special Operations Blower

21" 241/4"x24"x251/2 " 19,396 122 lbs. BL828 Special Operations Blower Variable Speed Electric 18" 213/4"x211/2"x253/4 " 13,338 105 lbs.

Tempest Direct-Drive Gas Power Blowers were some of the first units designed and used on the fire ground. With a level a durability and performance backed only by the Tempest name, these units offer the perfect balance in features, performance, cost and versatility. • AMCA Certified Performance • Reliable Honda GX or Briggs & Stratton engine • Rugged construction with stands use and abuse • Tempest exclusive features makes use easy and economical

Cat# Size HP Engine Dimensions CFM Weight

AM118 16" 4.8 Honda 201/2"x193/4"x213/4 " 12,008 79 lbs.

AM120 18" 4.8 Honda 223/4"x21"x241/4 " 14,773 85 lbs.

AM122 21" 5.5 Honda 25"x21"x261/4 " 20,152 90 lbs.

BL838 24" 5.5 Honda 28"x21"x30" 19,606 99 lbs.

BK038 16" 3.5 Briggs BK039 18" 5.5 Briggs BK040 21" 5.5 Briggs BK041 24" 5.5 Briggs 201/2"x193/4"x213/4 " 11,541 73 lbs. 231/2"x21"x25" 14,341 83 lbs. Price

The most comprehensive line of Electric Powered Blowers for PPV and NPV available today. Built on the same chassis that has been so successful for our Tempest Gasoline Powered Blowers, Electric Powered Blowers are powerful, durable and versatile while maintaining the ability to operate on a standard household current. • No exhaust emissions, which can collect Carbon

Monoxide inside the structure that you are trying to ventilate • Never requires "oil change" or has gas go bad while sitting in storage • Designed to start and run off a standard residential 120v 20amp receptacle without tripping the circuit breaker • Power supply is readily available at most sites

EXPLOSION PROOF MOTOR

Cat# Description HP Dimensions CFM RPM Weight Price AS106 16" Single Speed Electric Blower 1.5 TEFC 201/2"x193/4"x213/4 " 11,804 3,450 74 lbs. AS107 18" Single Speed Electric Blower 1 TEFC 22"x21"x241/4 " 8,748 1,750 76 lbs. AS108 21" Single Speed Electric Blower 1 TEFC 243/4"x21"x261/4 " 11,698 1,731 81 lbs. BG288 24" Single Speed Electric Blower 1 TEFC 28"x21"x30" 12,867 1,736 90 lbs. Cat# Description HP Dimensions CFM BP354 16" Variable Speed Electric Blower 2 TEFC 21"x193/4"x23" 11,551 BP355 18" Variable Speed Electric Blower 2 TEFC 23"x21"x24.90" 12,839 BP356 21" Variable Speed Electric Blower 2 TEFC 26"x21"x261/4 " 14,836 BP357 24" Variable Speed Electric Blower 2 TEFC 291/2"x21"x30" 15,663 Weight Price 98 lbs. 104 lbs. 108 lbs. 119 lbs.

Used by fire departments around the globe for more than fifty years, traditional smoke ejectors have proven to be the most versatile tool for smoke ventilation. Tempest smoke ejectors have all the standard features including the AirFlex Composite Impeller and other designs to provide years of dependable service, with a durable steel housing, rigid frame and optional duct adapter that easily attaches to a blower’s inlet or outlet. Dimensions: 18.75"x14.25"x19.5", 16" blade.

The Tempest GBS-16-HP is a popular unit for all forms of confined space ventilation, a design that’s been used for decades. It’s light and small enough to ventilate tight areas yet still built to Tempest’s high standard of long lasting durability and reliability. The GBS’s 3.5 (Honda GX 120) and 4.8 HP (Honda GX 160) engine options deliver massive performance out of a compact footprint. Suck the smoke/fumes/ particulates out from almost any location, or turn it around and blow them out. Dimensions: 3.5 HP: 18.75"x14.00"x19.5" | 4.8 HP: 21"x17"x21"

Cat# Description HP CFM RPM Weight Price AW179 Smoke Ejector .3 TEFC 3,200 1,736 47 lbs.

AZ571 Ducting Adapter with 16"x15' Ducting

Cat# Description HP CFM Weight BP367 Gas Smoke Ejector 3.5 9,372 70 lbs. BP368 Gas Smoke Ejector 4.8 11,172 72 lbs. Price

The 18" battery-powered blower features a 40-minute run time with removable DeWalt batteries.

BP590 PPV, VS1.2D Basic - No Battery, No Charger BP591 PPV, VS1.2D Basic - 3 x 12Ah DeWalt Batteries & 1 Single Bay Charger BP592 PPV, VS1.2D Basic - 3 x 12Ah DeWalt Batteries & 4 Bay Charger BP593 PPV, VS1.2D Basic - 3 x 9Ah DeWalt Batteries & 1 Single Bay Charger BP594 PPV, VS1.2D Basic - 3 x 12Ah DeWalt Batteries & 4 Bay Charger

• 40-minute run time • Removable battery 1 and up to 3 lithium Ion batteries in succession with hour quick charge • Only 51 pounds w/ 3 batteries 41 pounds without batteries • 10887 CFM AMCA certified • Battery management system

BMS built into the battery insures maximum performance and safety • Small footprint • LED flow-path lighting • Thin-Vane™ air straightener

Reduces wasted airflow. Forces the air to flow straight out • Warranty

Blower: 5 year limited warranty

Battery: Separate manufacturers’ warranty • Conversion kits available

• Air Volume: 10,887 CFM (18497 m3/h) • Weight: With batteries: 51 lbs. /

Without batteries: 41 lbs. • Dimensions (L x H x D):

Handle Down: -22.88"L x 24.4"H x 12.25"D

Handle Up: +4.9" • Propellar Diameter: 18" • Run Time: Average run time at full speed 40 mins. with 3x12AH batteries • Operating Temperature: -5˚F to + 113˚F • Motor: 0.87HP/744W variable speed drive

BLDC totally enclosed, air over IP65 • Battery: Removable DeWalt FLEXVOLT • Charging Time: 100% charge in 2-hours with external optional charger • Ingress Protection: IP65 (excludes DeWalt batteries) • Drop Test: Designed to resist a Drop Test of 1.5M/5’ • Noise Level: 83.7dB at 3m-10’

POWERED BY 1 AND UP TO 3 DeWALT FLEXVOLT 60V, 12AH OR 9AH BATTERIES

• 50-minute run time • Removable battery • Built-in battery charger • Only 51 pounds with battery 42 pounds without battery • 10,940 CFM: Tested to AMCA standards • Warranty

Blower: 3 year limited warranty

Lithium-Ion Battery: 1 year / 500 charge cycles • Adjustable tilt: Tilt range +65˚ to -90˚ with locking system • LED flow-path lighting • Small footprint

• Air Volume: 10,940 CFM • Weight: With battery: 51 lbs. /

Without battery: 41 lbs. • Dimensions (L x H x D): 22"L x 21"H x 11"D • Propeller Diameter: 16" • Run Time: 50 minutes at full speed • Operating Temperature: -4˚Fto+130˚F • Motor: 0.8 HP / 600W variable speed drive

BLDC totally enclosed, air over IP66 • Battery: Removable 12.5AH/585WH Li-Ion • Charging Time: 100% charge in 3-hours with external optional charger • Ingress Protection: IP66 • Drop Test: Designed to resist a Drop Test of 1.5M/5’ • Noise Level: 76.3dB at 3m / 10’
