3. 4D Simulation Result

Table 3. Proposed Schedule Summary for new Assembly arrangement

1 DAYS SURVEY SET SHIM PACKS LAYOUT 3 DAYS 5 DAYS 9 DAYS LAND MAJOR COLUMN ASSEMBLIES LAND LOOSE BRACES LAND FLOOR PLATFORMS AND DECK

8 DAYS

LAND STAIRS/ GUARDS 4 DAYS TRUE/ PLUMB/ ALLOWANCE/ INSPECTIONS AND DEFICIENCIES

After fully defining the new schedule for this new proposal, a 4D simulation can be performed

and can be seen as an the most optimal visualization tool for showing this project. As many pieces

get unstilled at the same time, the camera positioning and progress tracking is essential in order to

have a proper progress follow-up. The 4D simulation for this project was a video that is broken

apart by their main video frames, which is what can be seen in Figure 7.

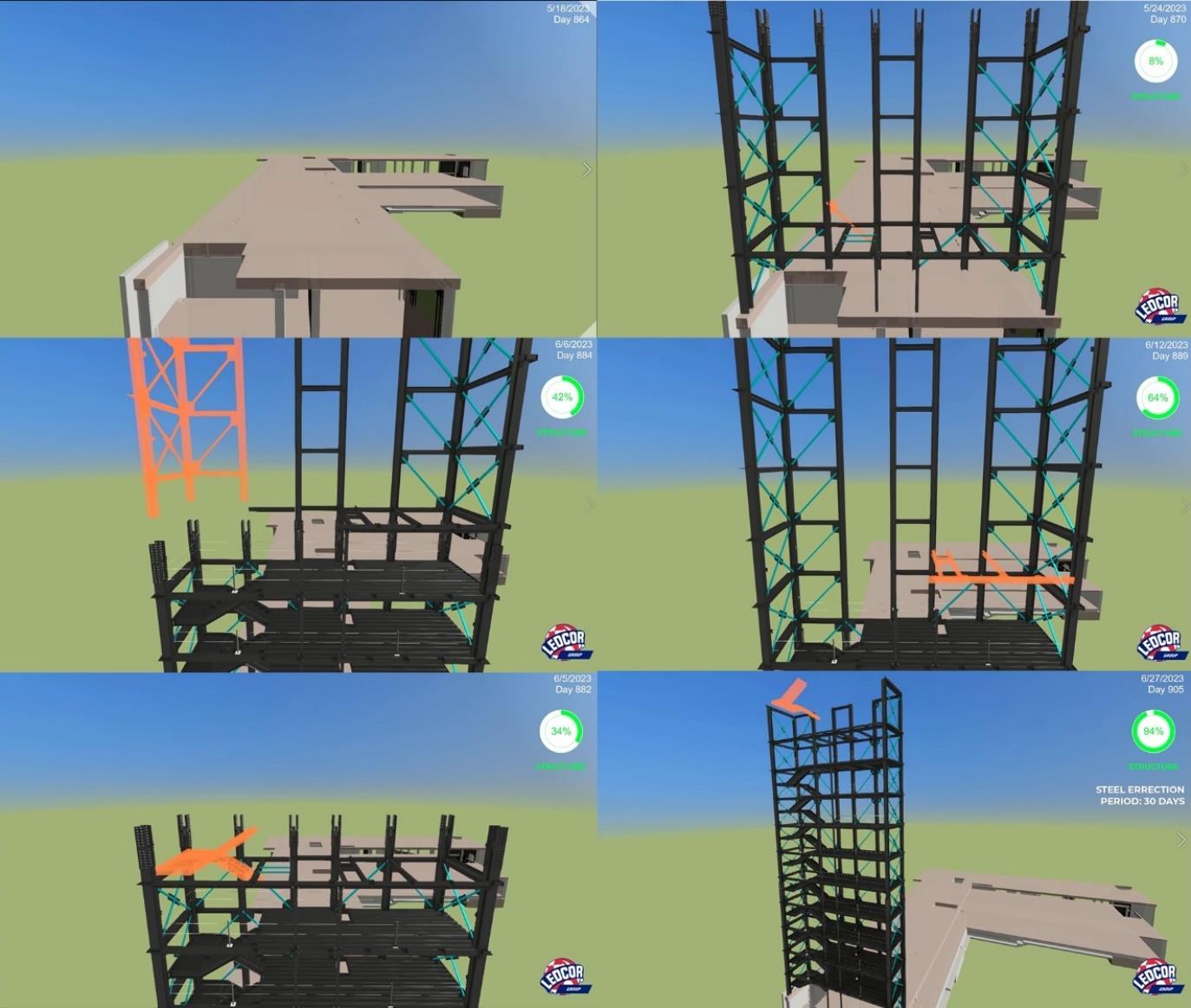

Figure 7. Video frames of the Final 4D simulation product of the new proposed assembly.

As mentioned before, the result simulation is found in Figure 7, and it encapsulates how in

the first two frames and three main lower parts are placed. Following to this, the inner elements

are assembled, including beams, braces, floor assemblies and decking until Level 6. In the second

row of frames, the upper sections are also placed and experience the same inner process. In the last

frames reflects more about the final elements and roof components that will finish the whole steel

structure.
