The Food Collective: An Urban Playground.

the food collective: an urban playground Architectural Design Project Report

CHEW XUE ER AR. PRINCE FAVIS ISIP

TABLE OF

CONTENTS

01

Designer’s CV

02

Project Background

03

Site Investigation & Contextual Studies [ 3.1 ] [ 3.2 ]

Macro Site Analysis Sense of Place

04

Design Strategy & Exploration [ 4.1 ] [ 4.2 ] [ 4.3 ] [ 4.4 ] [ 4.5 ]

05

Precedent studies Design Narrative Site Planning Strategies Spatial Programming Form studies

Technical Components [ 5.1 ] [ 5.2 ]

Green Strategies & Features Architectural Detailing /Details

06

Final Design Portfolio

07

Reflective Journal Summary

08

References

01

EDUCATION

CV

TECHNICAL SKILLS

PRIMARY EDUCATION @ Sekolah Seri Suria, Hulu Langat

AutoCAD

08/2008 - 07/2014

SECONDARY EDUCATION @ Rafflesia International School, Kajang

Autodesk Revit

08/2014 - 07/2019

Adobe Photoshop

FOUNDATION (FNBE) @ Taylor's Lakeside Campus, Subang 08/2019 - 07/2020

CHEW XUE ER

Sketchup

BACHELOR'S DEGREE (BSCA) @ Taylor's Lakeside Campus, Subang 08/2020 - PRESENT

Lumion

ABOUT ME 25 November 2003 Kajang, Selangor Architecure, Sem 6

Blender

PAST EXPERIENCE FREELANCE GRAPHIC DESIGNER

3DS Max

2021 - Present

CONTACT ME +60 162161530 xueerchew@gmail.com @xueer.c_ https://xueerchew.wixsite. com/sabd

PARTICIPANT OF ARC.ADE COMPETITION SABD Esports 2021

LANGUAGES

PARTICIPANT OF INTERNATIONAL STUDENT COMPETITION IN ARCHITECTURAL DESIGN AND BAMBOO CONSTRUCTION OF 2021

English

2021

Malay

Chinese

02

project brief

PROJECT BACKGROUND

URBAN HUB DESIGN SITE LOCATION

Jalan PM 10, Malacca

BUILDING FUNCTION Public Building

GROSS FLOOR AREA 1800m² - 2000m² excl. basement

BUILDING DESIGN 3-5 Storeys Open space Landscaping Parking on site

DESIGN OBJECTIVES

PROJECT AIM

Focuses on "Sensing the City" by considering user requirements and goals. An urban hub that will serve as the "Third Place" for the city.

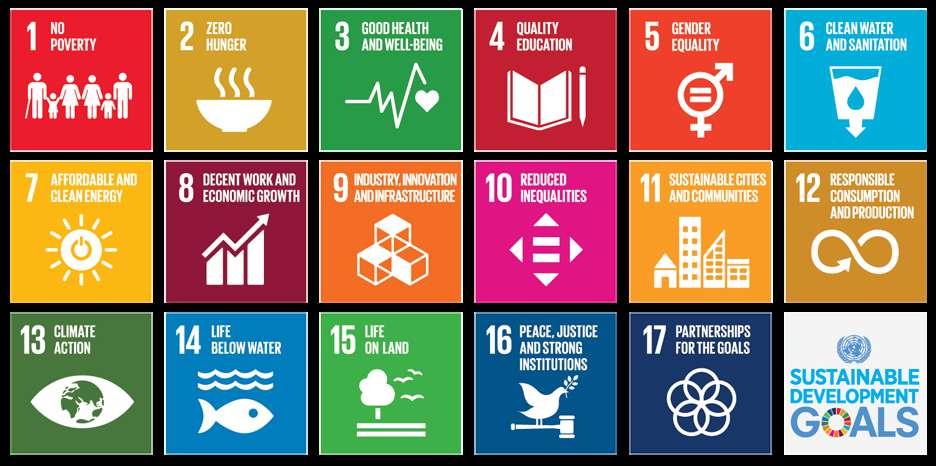

Aligns to UN’s Sustainable Development Goals to reduce inequalities and promote inclusivity. and designing sustainable communities.

UNITE PEOPLE

A design to create a positive impact to the city and the community, bridging people together.

TARGET AUDIENCE

A community building supported by the local NGOs to support, help and empower youth.

CITY PARK

A common space for public to express creativity, yet maximizing economical gain, sustaining the community

GREEN DESIGN

Implement net-zero strategies to achieve a climate sustainable building.

02

project analysis

PROJECT BACKGROUND

CLIENT REQUIREMENTS

Complies with pertinent guidelines and regulations.

Positive impact on neighbourhood in a long-term and universal issue.

LOCAL FOOD

FOOD PRODUCTION RETAIL MARKET

Engaging and inviting to the surrounding by implementing architectural enhancement.

General and wellunderstood programme.

To educate users about importance of sustainability Programs to ignite learning experiences with workshops, technological, and social exposure

ECONOMY BOOSTER

MALACCA LOCAL GAMES

GAMES SPORTS

IMPROVING QUALITY OF LIFE

03

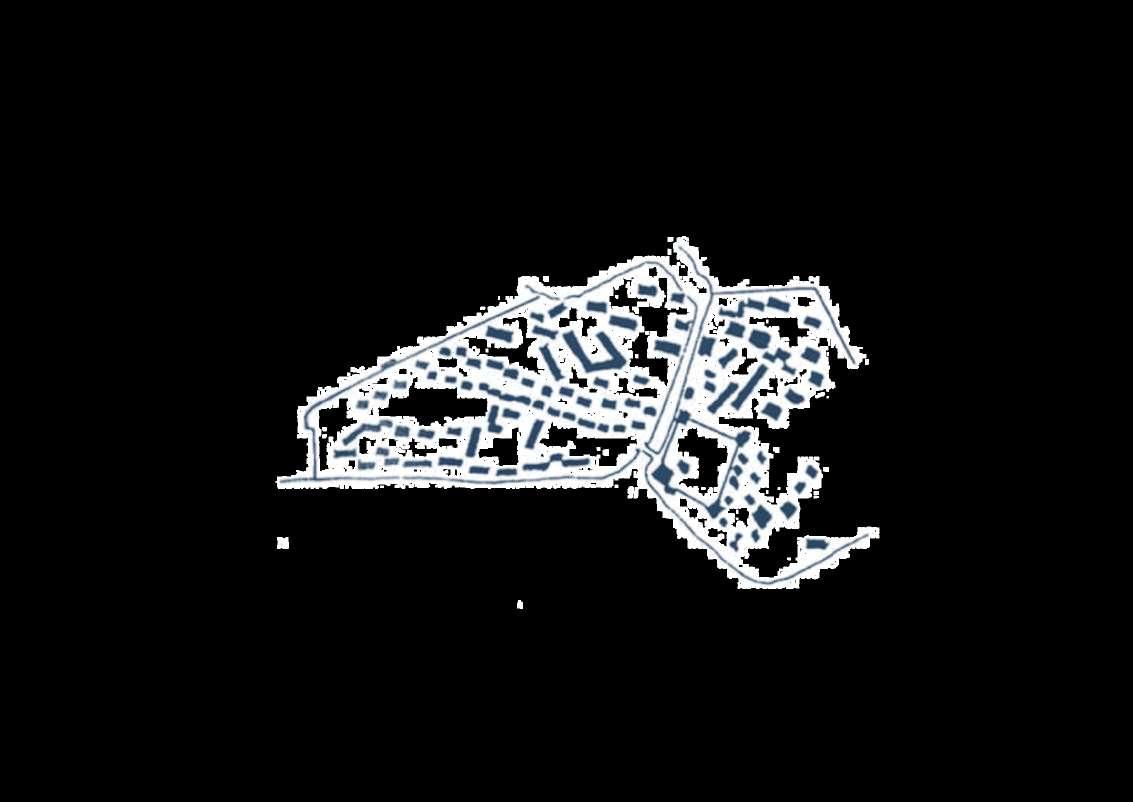

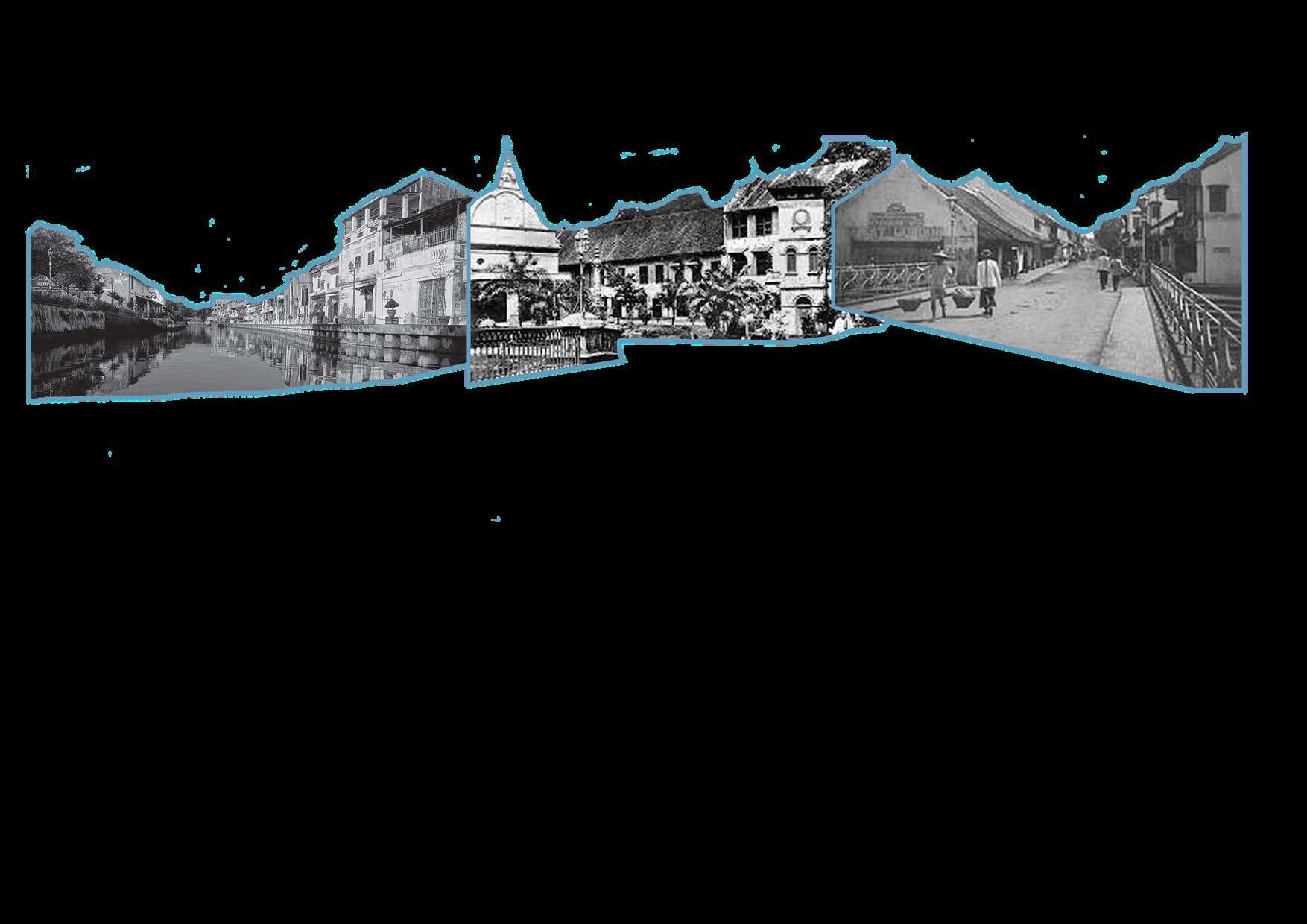

morphology

SITE INVESTIGATION & CONTEXTUAL STUDIES

PRE - COLONI AL ERA [ SETTLEMENTS ]

COLONI AL ERA [ FORTRESS ]

Settlements existed along both sides of the river bank.

Fishing was the main business & activity during this era.

Split to 3 zones: suburbs, residential, commercial.

Surrounded by walls as defense against enemy.

Crucial trading port developed to trade spices.

POST I NDEPENDENCE ERA [ DEVELOPMENT ]

Melaka settlement during 1957 after gaining independence. The town was reignited with joy and businesses flourished.

PRESENT [ HERI TAGE ]

Melaka settlement at a present date clearly shows the liveliness of the town, due to tourism of cultural heritage and local food.

03

elements of legibility

SITE INVESTIGATION & CONTEXTUAL STUDIES MUSEUM SAMUDERA

MENARA TOWER

I CQ FERRY TERMI NAL

PARAMESWARA JETTY

CONVENI ENCE STORES

PAHLAWAN WALK

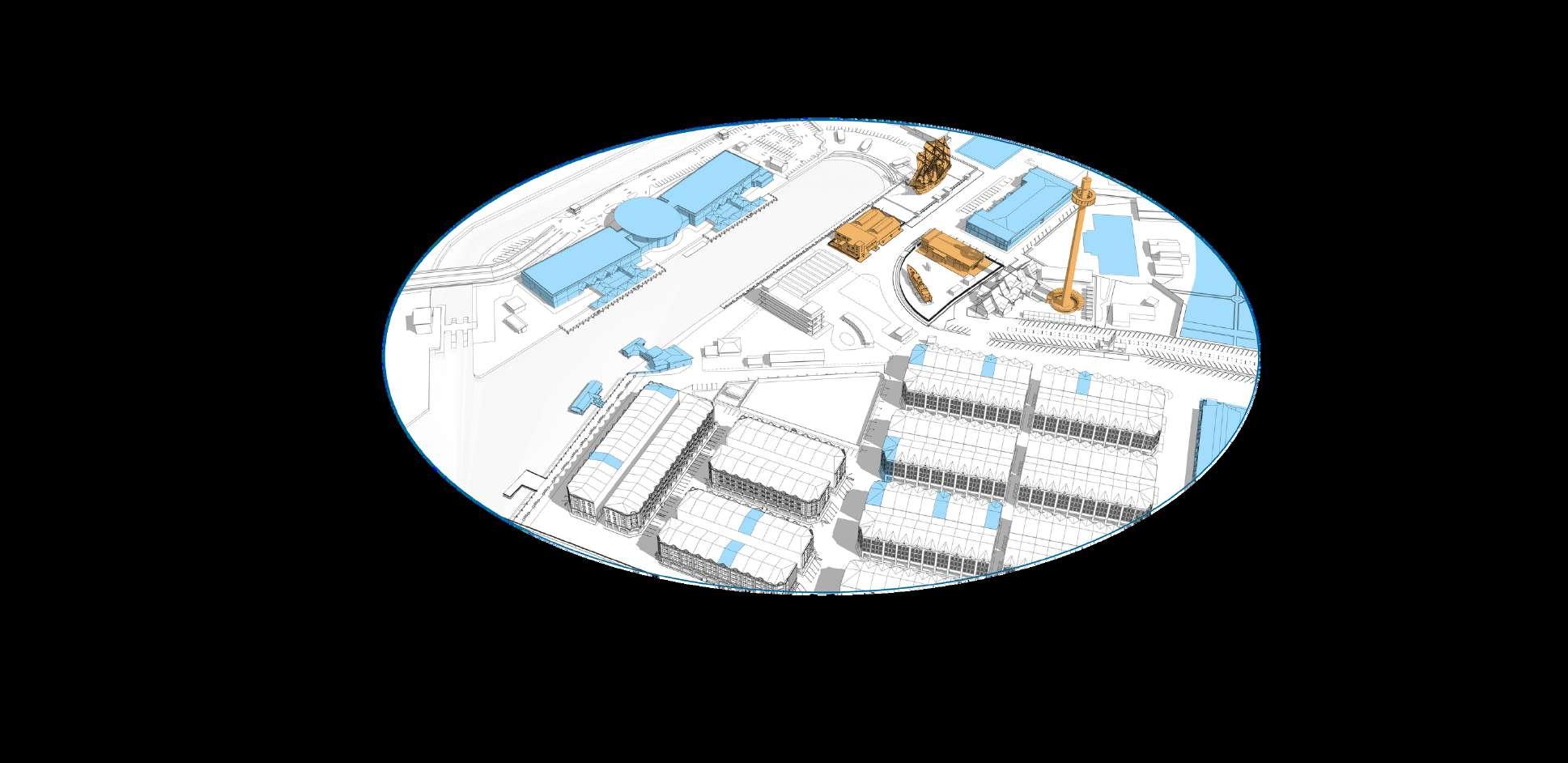

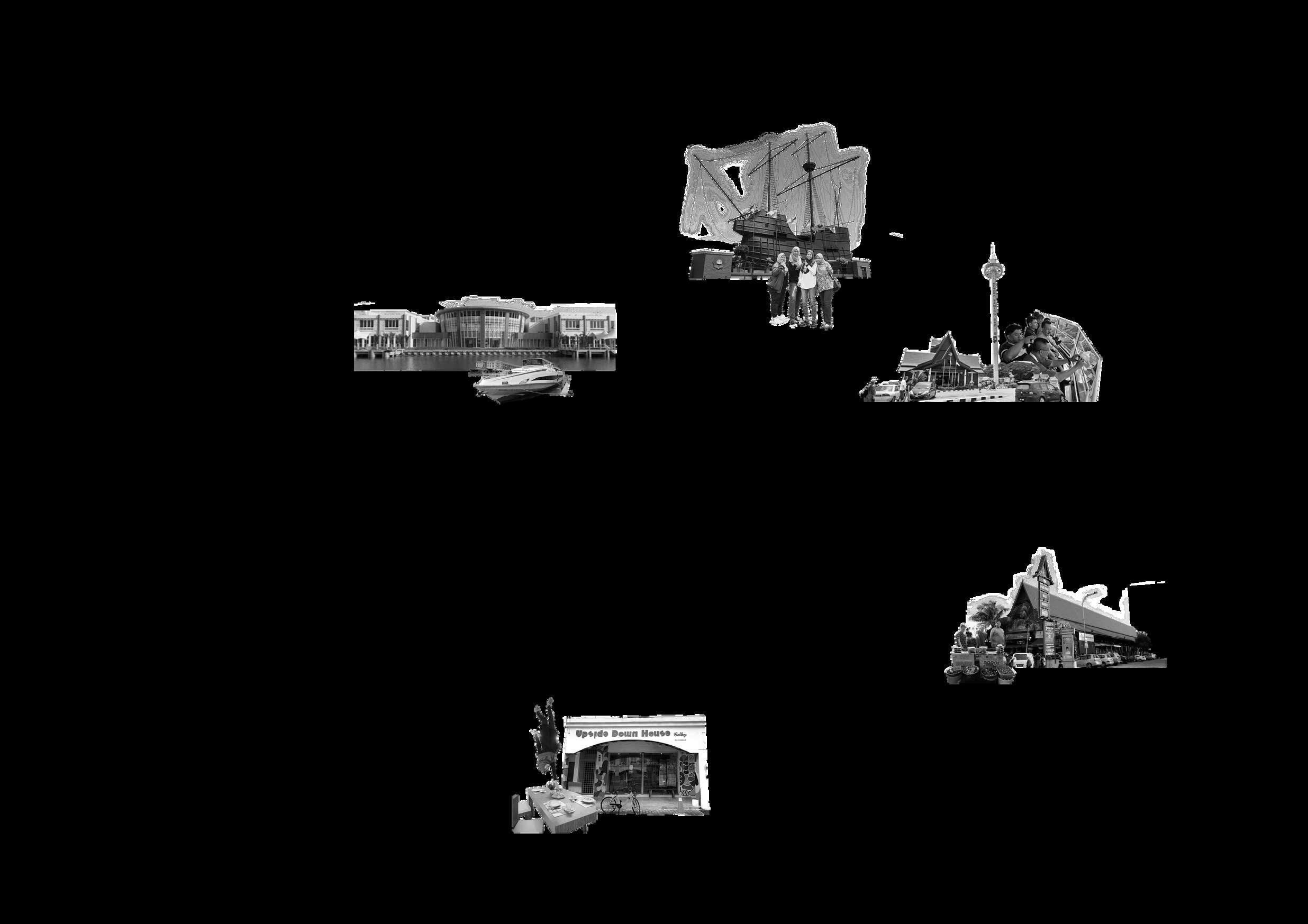

PLACE OF INTERESTS LANDMARKS

UPSI DE DOWN HOUSE

ASAM PEDAS

03

SITE INVESTIGATION & CONTEXTUAL STUDIES

elements of legibility

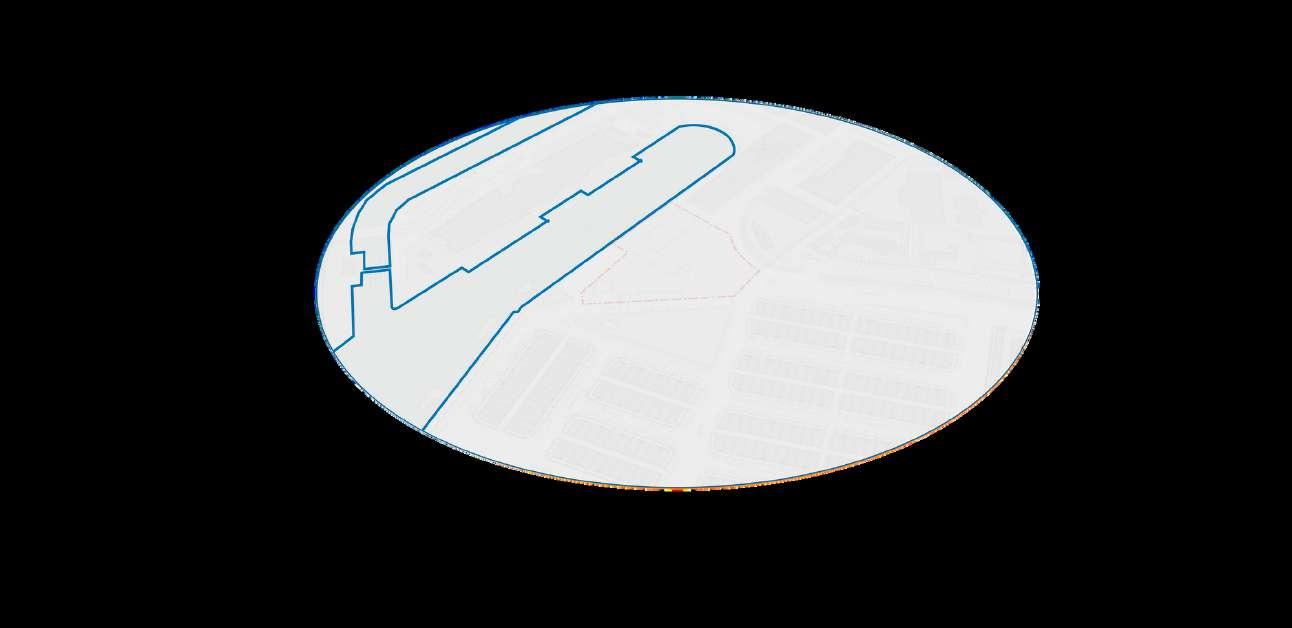

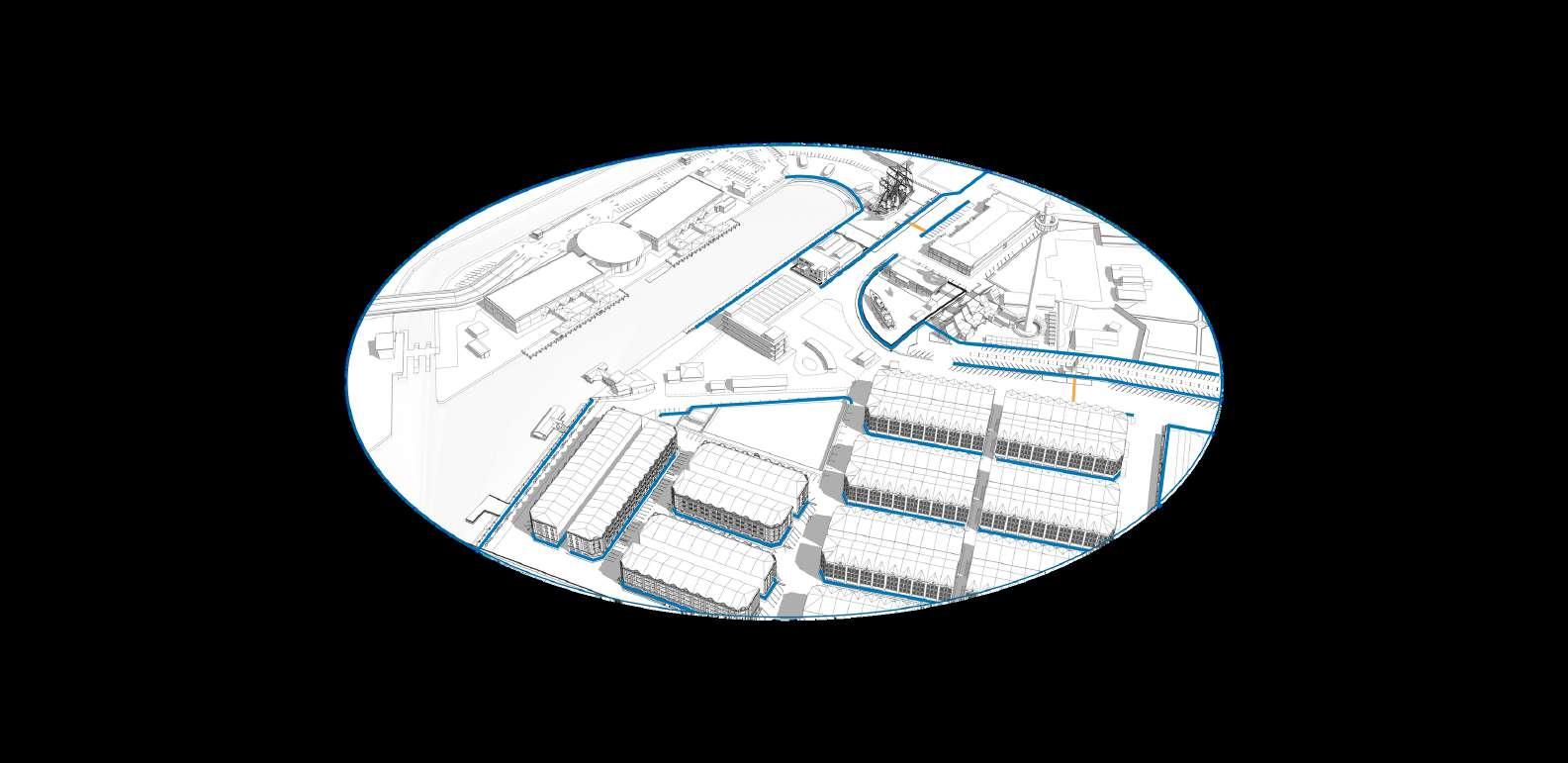

PATHS & EDGES

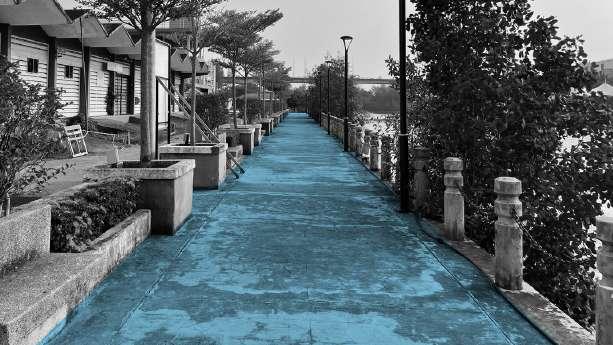

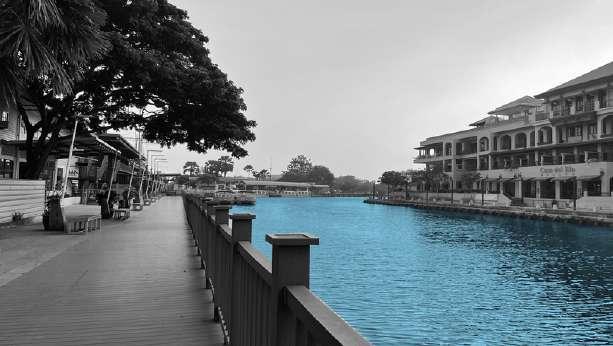

NATURAL EDGE The river gives nostalgia as it has always been a part of the local's everyday life. The natural edge of the river gives a sense of calmness.

PERMEABLE EDGE Permeability of shop houses' edges gives a sense of familiarity to users which heightens chance of interaction between users.

PATHS Streets or sidewalks which encourages walking. Surrounded by frontages, giving a sense of enclosure, connecting two areas.

03

elements of legibility

SITE INVESTIGATION & CONTEXTUAL STUDIES

FUNCTIONAL ZONING ECONOMY

DISTRICT ZONINGS

SERVICES CULTURAL

Majority of function is economy, however, many shophouses have been abandoned and neglected.

PUBLIC

SOCIAL ZONING MIXED TOURIST

Locates active human activities.

Social activities in cultural areas to authenticate cultural value.

URBAN BLOCK 3 - 4 STOREY 1 - 2 STOREY > 5 STOREY

Urban block distinguishes differences in storeys for each highlighted districts.

03

elements of legibility

SITE INVESTIGATION & CONTEXTUAL STUDIES

HOTSPOTS OF MELAKA

CONTACT POINTS Contact points of where most people meet which includes tourists and locals.

NODES LINKAGE Main attractions in Melaka which both tourist and local visits.

NODES

NODES Focal points that have frequent activity from locals & tourist, creating intersections.

CONTACT POINTS

CIRCULATION

ACCESSIBILITY

The nodes surrounds the site creating points of identities. Creates a pausing point allowing users to interact with the site.

03

elements of legibility

SITE INVESTIGATION & CONTEXTUAL STUDIES

VEHICULAR CIRCULATION

PEDESTRIAN CIRCULATION

PRIMARY

WALKWAYS

SECONDARY

ROAD CROSSING

FERRY ROUTE DIRECTION OF

03

urban walls

SITE INVESTIGATION & CONTEXTUAL STUDIES

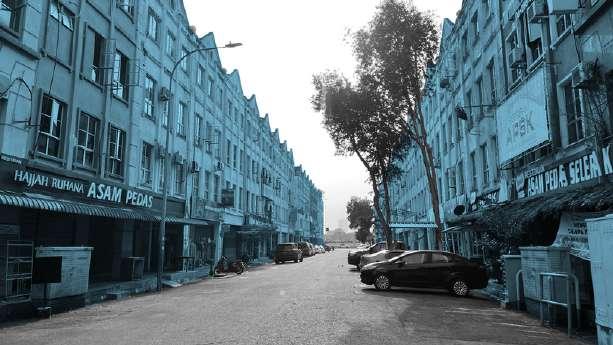

[shophouses]

90% of shophouses on Jalan Pm 10 are vacant/ abandoned, as a result of post-pandemic syndrome.

Causing low human activity on Jalan PM 10.

JALAN MERDEKA

Modern typology compared to shophouses in Jonker street

Back View From River

Building name

Muzium Samudera (Flor de La Mar) Historical Attractions

Function

Medium

Intensity

JALAN PM 6

Jalan PM 8

Site 2

NEOCLASSICAL (1910S -1920S)

Chinese Association Hall

Sure Ledeng resources

community commercial

Low

Low

Building name

Restaurant & Teashops Association

Parameswara tour

community

commercial

Function

Low

Low

Intensity

03

urban walls

SITE INVESTIGATION & CONTEXTUAL STUDIES Shophouses catered to tourism & local services.

[shophouses]

Jalan PM 8

JALAN PM 8

ART DECO (C 1930S - 1950S)

Vacant shophouses occupy first floor & above or rented to foreign workers Urban Wall Front View

Moty Hotel

Pacific & orient insurance

Team hair studio & academy

Hotel Seri Costa

green space

commercial

commercial

commercial

commercial

private

Function

High

Medium

Medium

High

Low

Intensity

Building name

Site 2

Higher human activities compared to Jalan Pm 10,

Muzium Samudera (Flor de La Mar) Historical Attractions Medium

Building name Function Intensity

03

urban walls

SITE INVESTIGATION & CONTEXTUAL STUDIES The jetty enables people to travel to Indonesia or vice versa.

[river]

Many Indonesians arrived in Melaka through this jetty either for medical treatment from private hospitals or sightseeing.

Building name

Transportation, Trade & Commerce

Function

Hig h

Intensity

Site 2

ICQ Terminal Feri Antarabangsa

ICQ Terminal Feri Antarabangsa Transportation, Trade & Commerce High

River Melaka

Melaka River Cruise

Transportation, Cruise High

Medium

Green Space private space Low

03

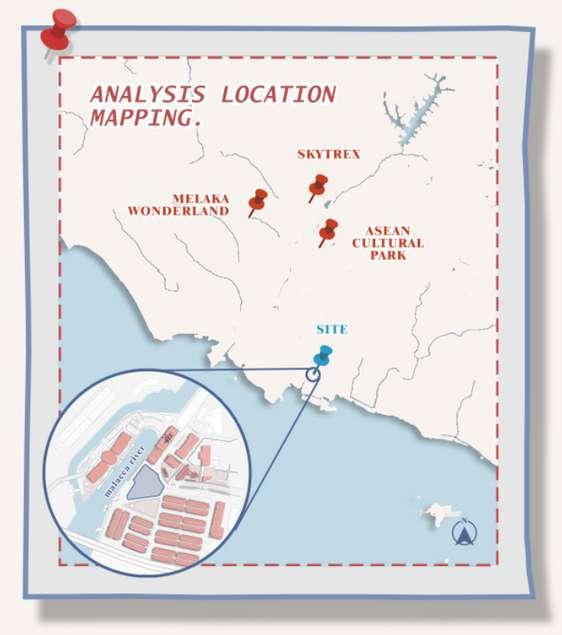

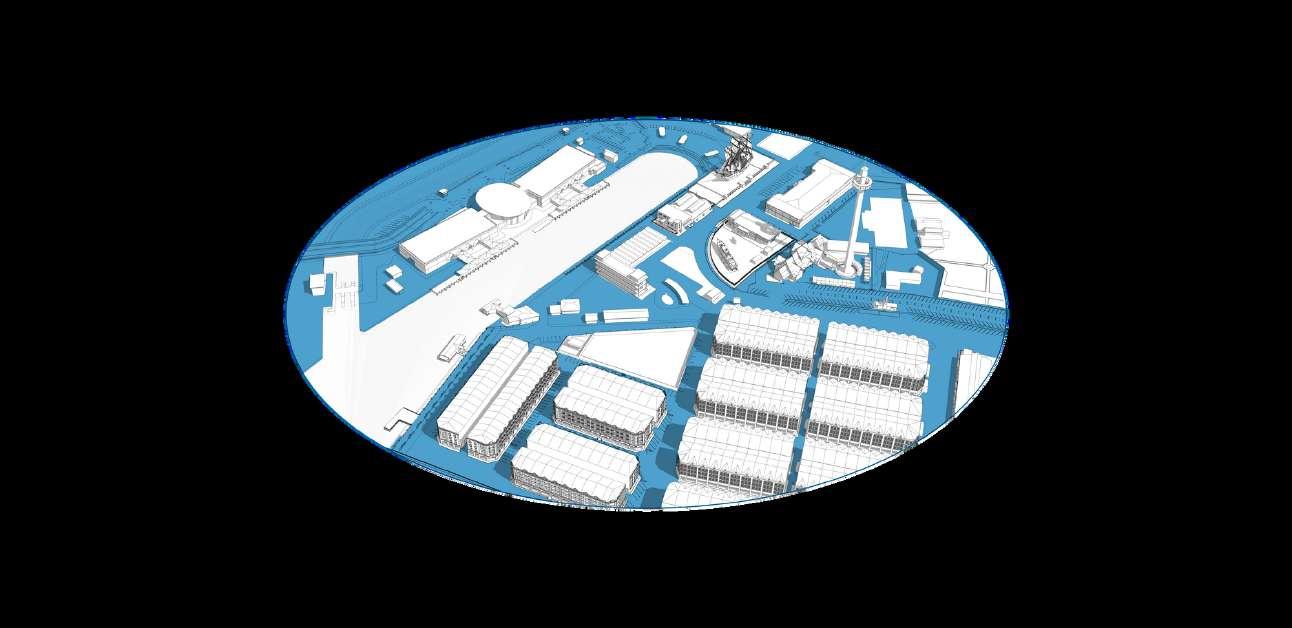

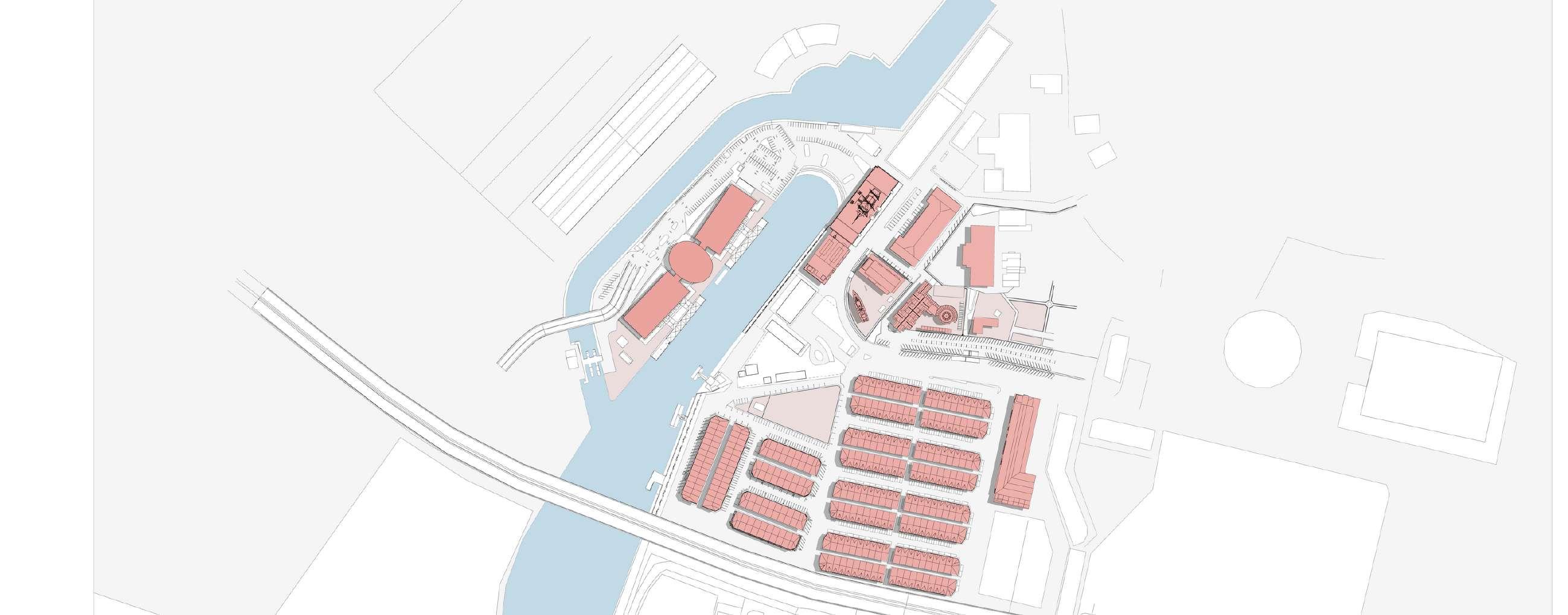

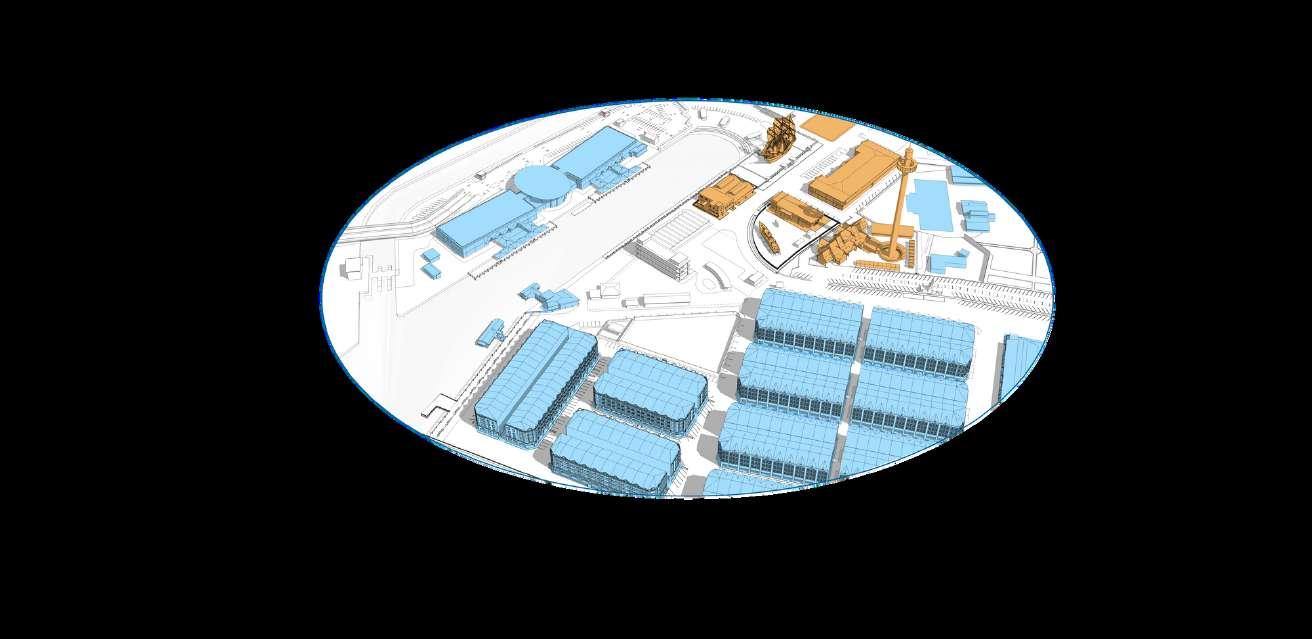

macro site analysis

SITE INVESTIGATION & CONTEXTUAL STUDIES

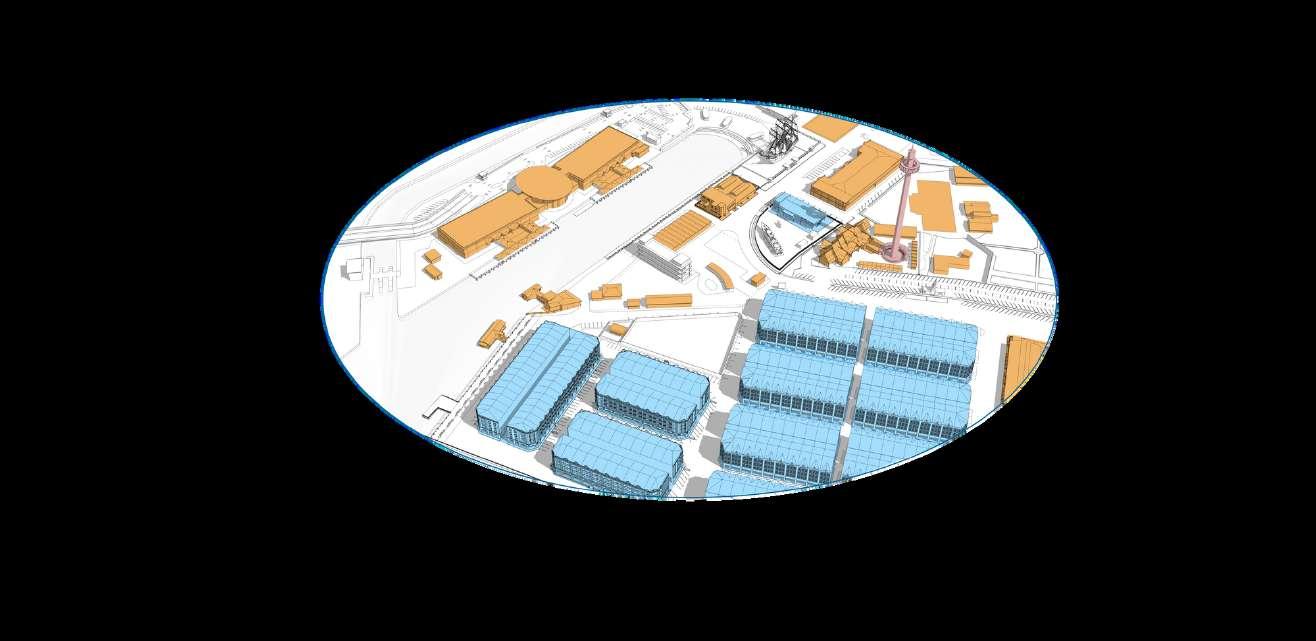

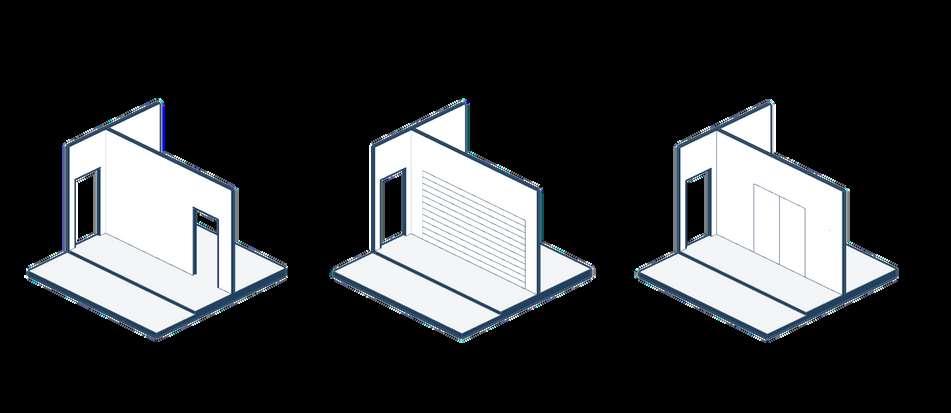

INACTIVE FRONTAGE S

ENCLOSED Minimal openings Reflective glass Reduces views into or out from space.

ACTIVE FRONTAGES

VACANT

ENCLOSED

GLASS

Vacant shop lots seen throughout site A place where homeless congregate

Enclosed Shopfront Minimal openings Reflective glass Reduces views into or out from space

Separated Maintain passive contact through views Airconditioned & privacy

About 50% of shophouses and buildings are vacant due to high rent, post-pandemic syndrome and abandonment. Ground floors are usually occupied, first floor and above would be vacant or rented out to foreign workers.

In order to encourage existing buildings to undergo adaptive reuse, low cost spaces are necessary to incentivize startups establishment in this area.

SPILL-OUT Building extended out to 5 foot way Obstructive Vibrant & lively

OPEN Direct access without obstruction.

Interaction between inside and outside

Most active shop lots are highly permeable as majority tend to maintain same open shopfront, allowing interaction between pedestrians and shop owners.

Rare instances such as obstructing the 5footway due to business are very unlikely.

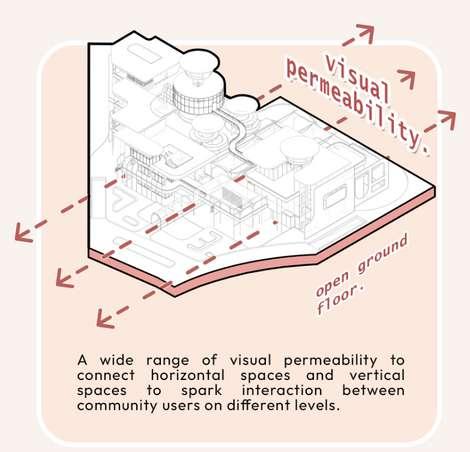

Permeability of shop lots sets the tone for town as a mellow, free and humble business dwellings which makes people linger.

the food collective: an urban playground

04

DESIGN STRATEGY & EXPLORATION

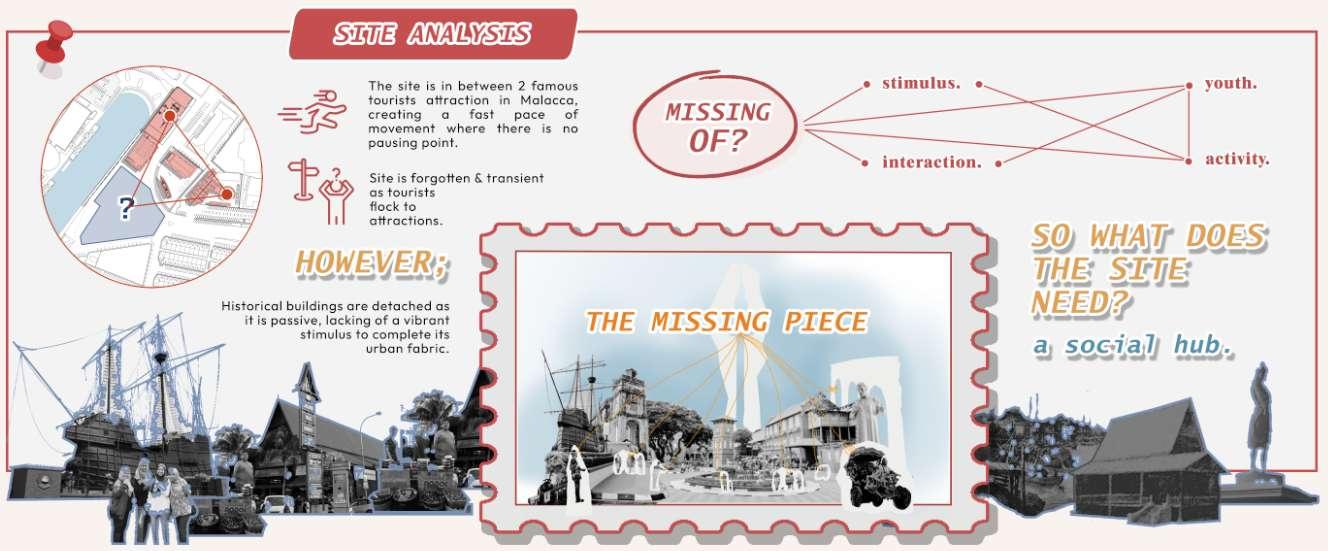

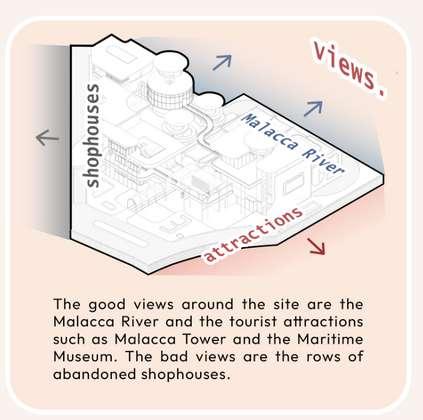

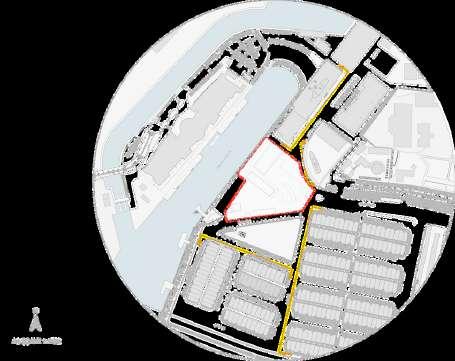

micro site analysis

04

DESIGN STRATEGY & EXPLORATION

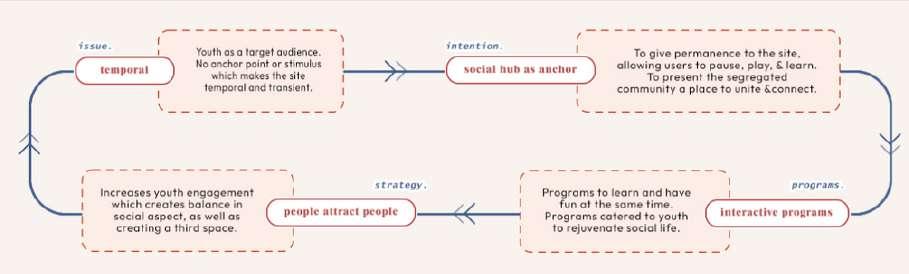

design narrative

04

DESIGN STRATEGY & EXPLORATION

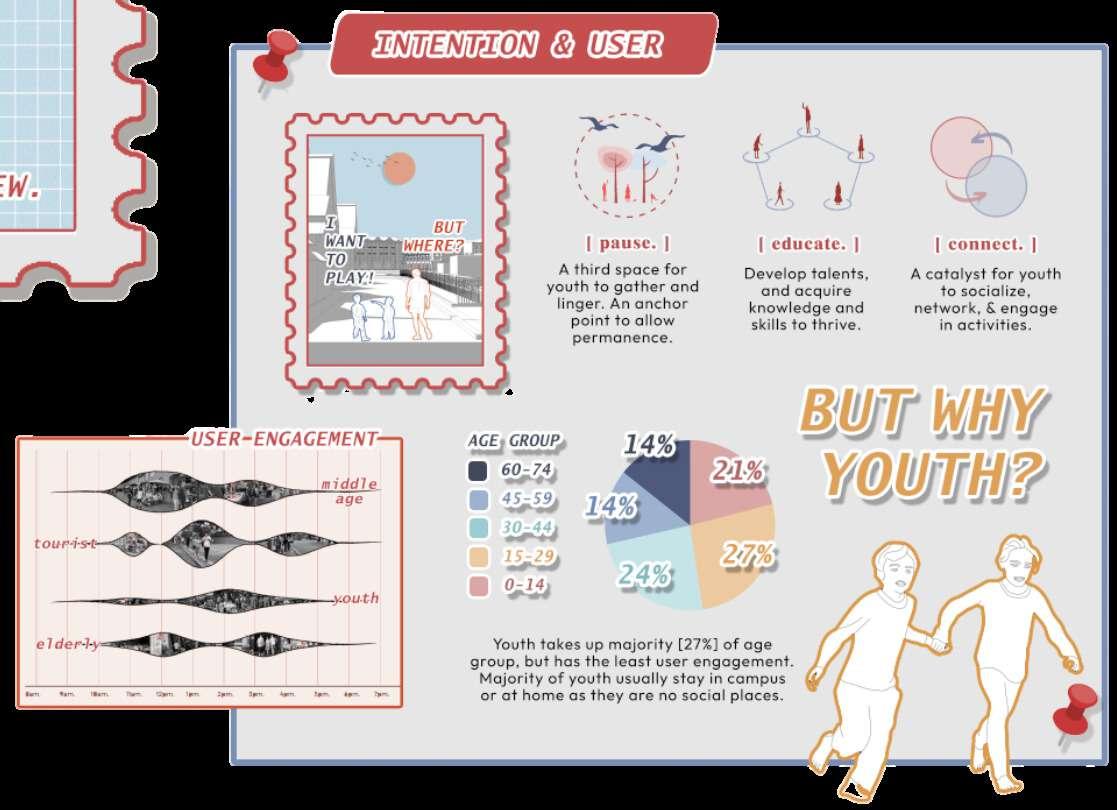

intention & user

04

DESIGN STRATEGY & EXPLORATION

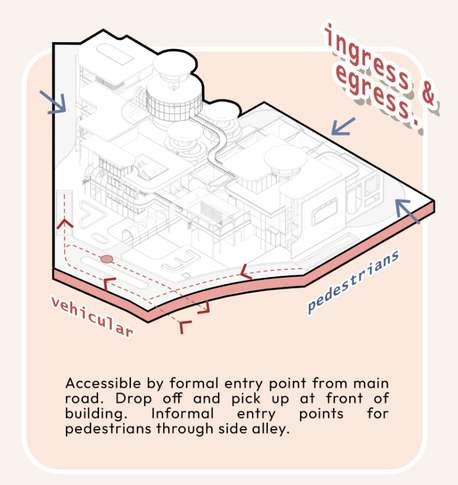

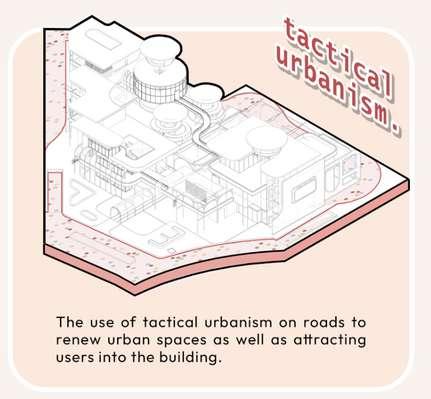

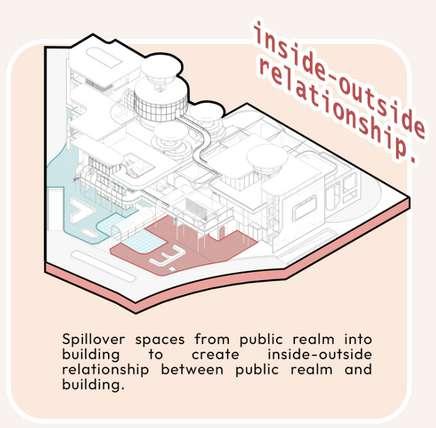

design strategies

04

DESIGN STRATEGY & EXPLORATION

Spatial Programming

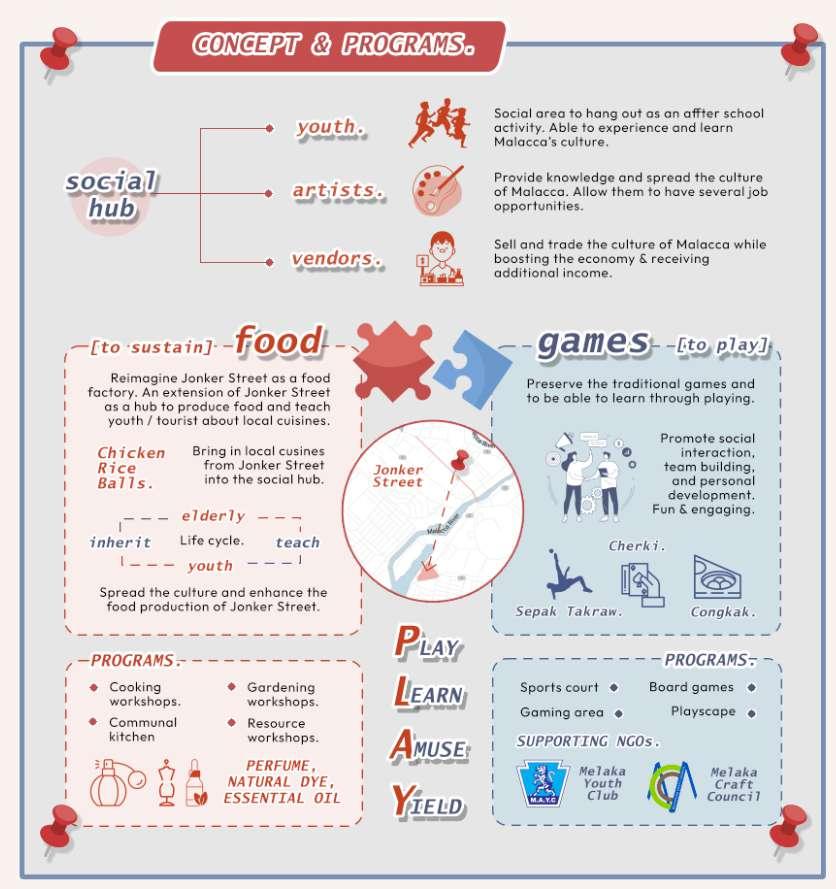

concept & framework

04

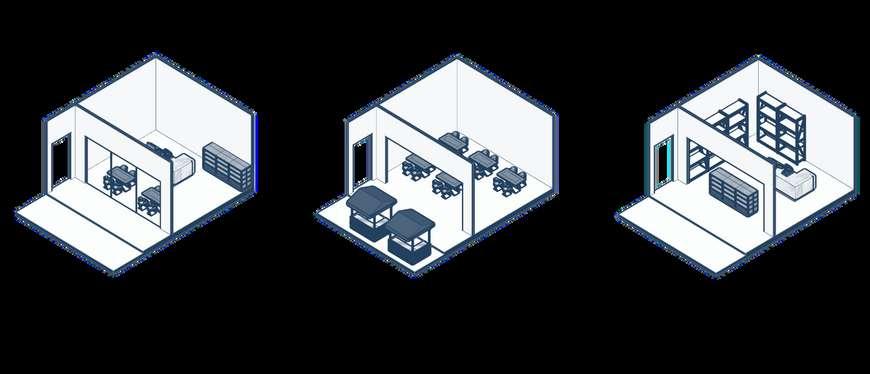

spatial programs

DESIGN STRATEGY & EXPLORATION

retails

cafe

SOCIAL P.L.A.Y HUB ground

board games

04

DESIGN STRATEGY & EXPLORATION

precedent studies

The reasonable circulation in the space makes it a comprehensive family park that integrates entertainment, education and rest areas. Oversized parasol structures mark out the location of different functions and contribute to a playful atmosphere, improving the overall aesthetic quality of the shopping mall and enriching the experience of consumers, who can enjoy the open view from the various floors.

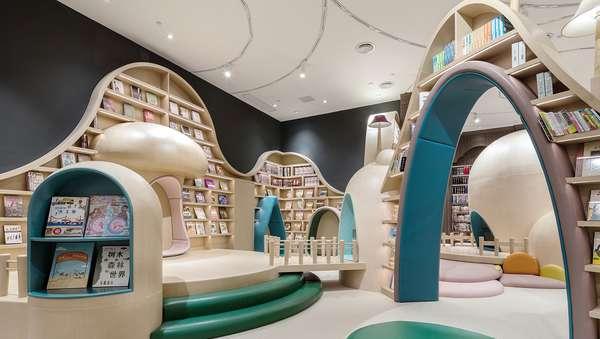

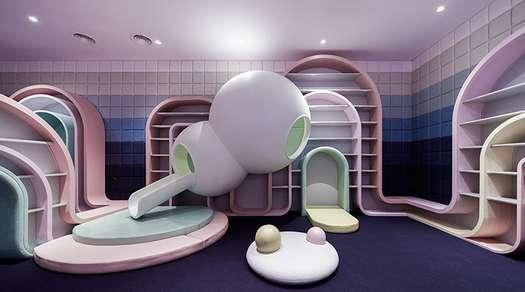

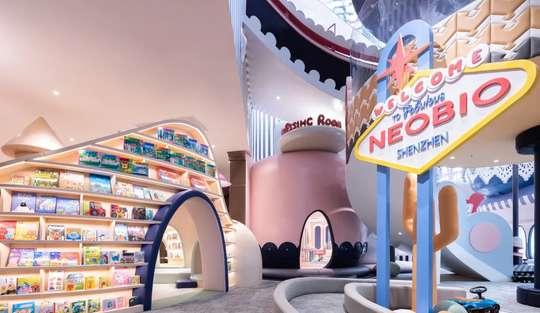

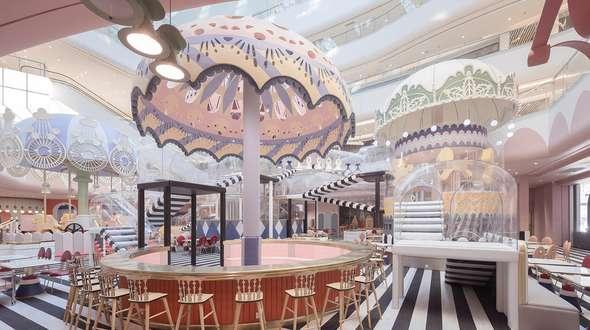

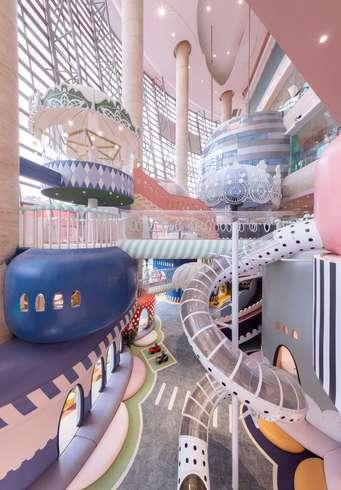

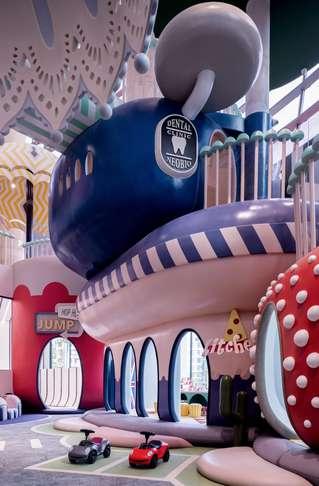

Shenzhen Neobio Family Park / X+Living.

Shenzhen Neobio Family Park occupies the atrium of the shopping centre, creating what X+ Living described as a "dream city" for children. Since the family park is located at the riverside, designers drew inspirations from natural views in the composition of the design.

Various play pits are filled with balls, sand and toys.

Children enjoy learning different jobs and making friends at a children’s vocational experience center.

A pastel-hued world of castles that decorate the various activity areas. While the environment is designed for kids, the restaurant is also an adultfriendly place where parents will want to linger as well.

Includes a large play center, a party place, a library and areas for kid-friendly activities. All areas have a distinct story-world quality, decorated with digital projections on wall where diners can have an immersive experience in a fairyland.

04

DESIGN STRATEGY & EXPLORATION

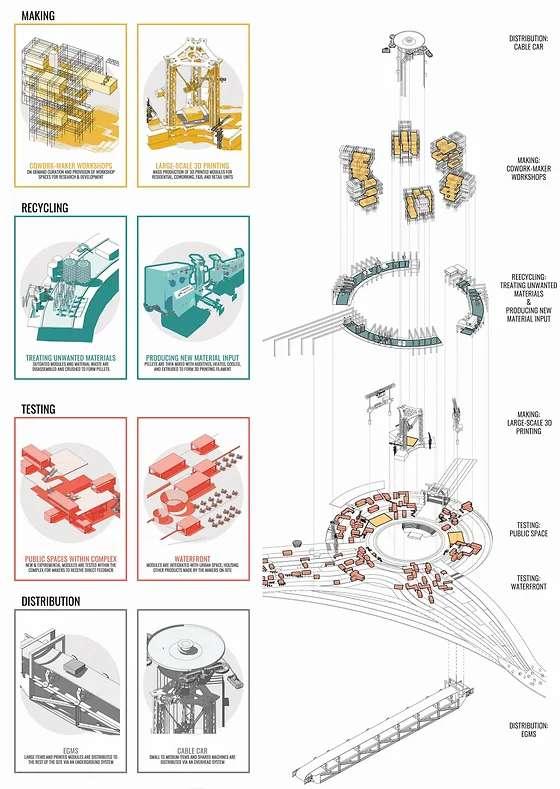

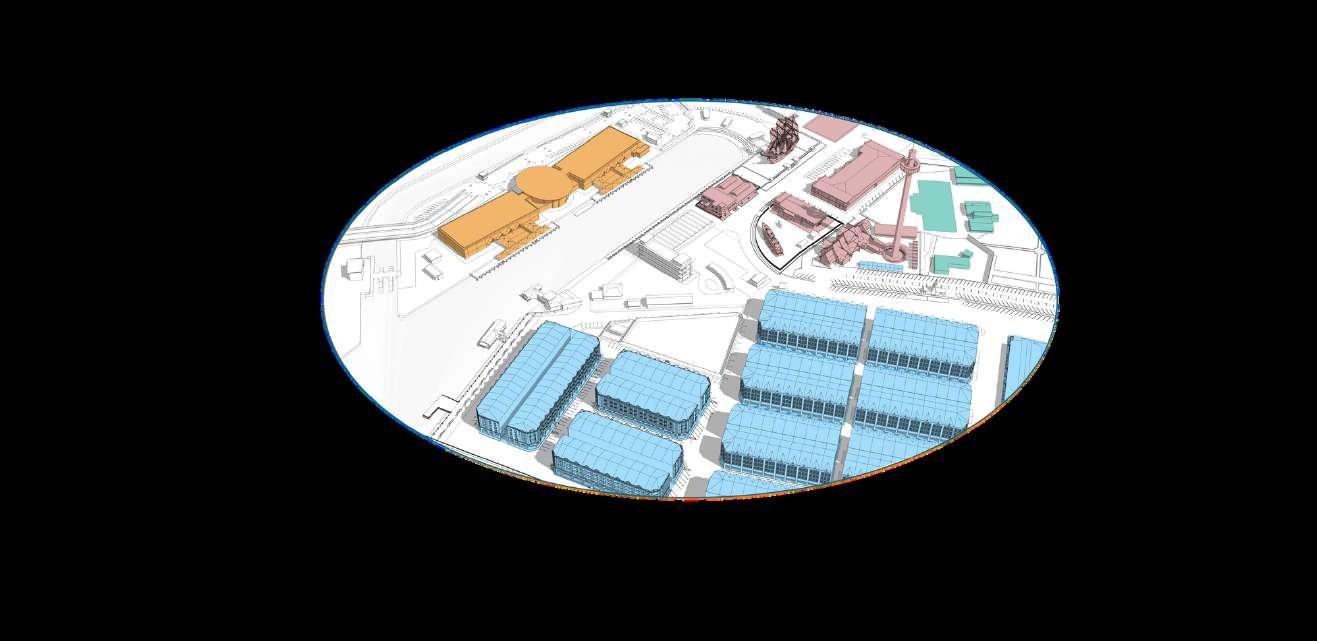

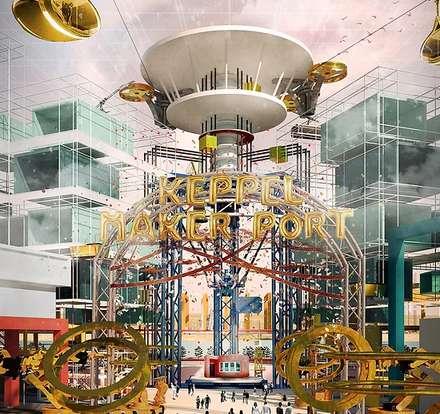

Keppel Maker Port Sharing City YEOW YANN HERNG & JESSICA JOLIN HO. Propagate the ‘maker culture’ that arose with the advent of the Sharing Economy paradigm. The Keppel Maker Port serves as an incubator for designers and makers, providing opportunities for collaboration and exchange throes ugh a new model of working.

‘For the people, by the people’.

The main thing was to get people engaged and involved from the making process, ideation, testing and giving feedback, crowdfunding, to the consumption of retail and dining through a new experience of the ‘site as a marketplace’. To further support the idea of coproduction, these activities are then hosted in spaces produced by the Keppel Maker Port’s Production Hub itself, such in which strives to cultivate a community that produces what they consume.

Explores the concept of circular economy which seeks to keep resources in use for as long as possible.

Involves 4 elements — recycling, making, testing, and distribution. Old models of 3D printed are sent back to the Production Hub to be disassembled, crushed, and recycled to form filaments for large-scale 3D printers.

Uses these recycled filaments to print new models to be distributed. Such encourages minimal material wastage and allows for on-demand production of such modules. Such is actually in line with Singapore’s trend of ‘designing for disassembly’.

precedent studies

04

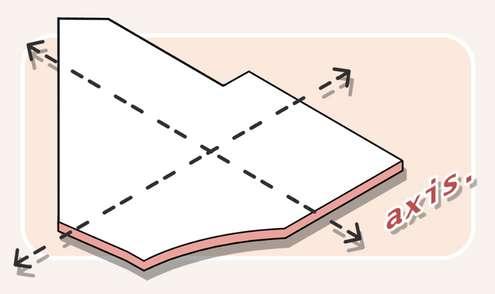

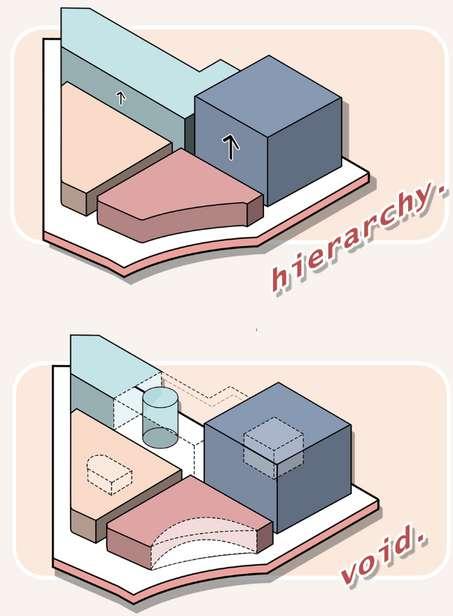

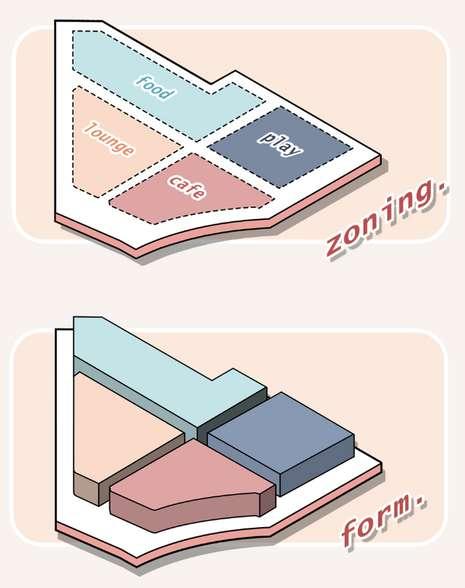

massing strategies

DESIGN STRATEGY & EXPLORATION

01

02

04

03

05

05

TECHNICAL COMPONENTS

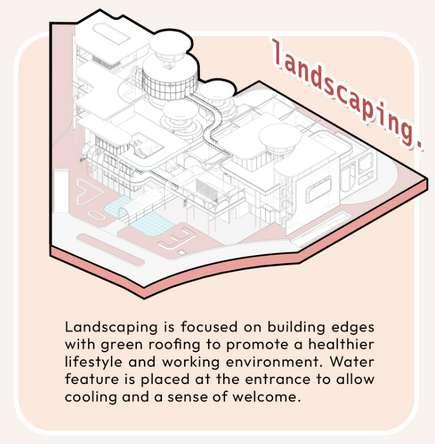

green strategies

05

TECHNICAL COMPONENTS

4mm polycarbonate 6mm fire proof glass

support profile reflective coating edge beam

facade detail

06

FINAL DESIGN PORTFOLIO

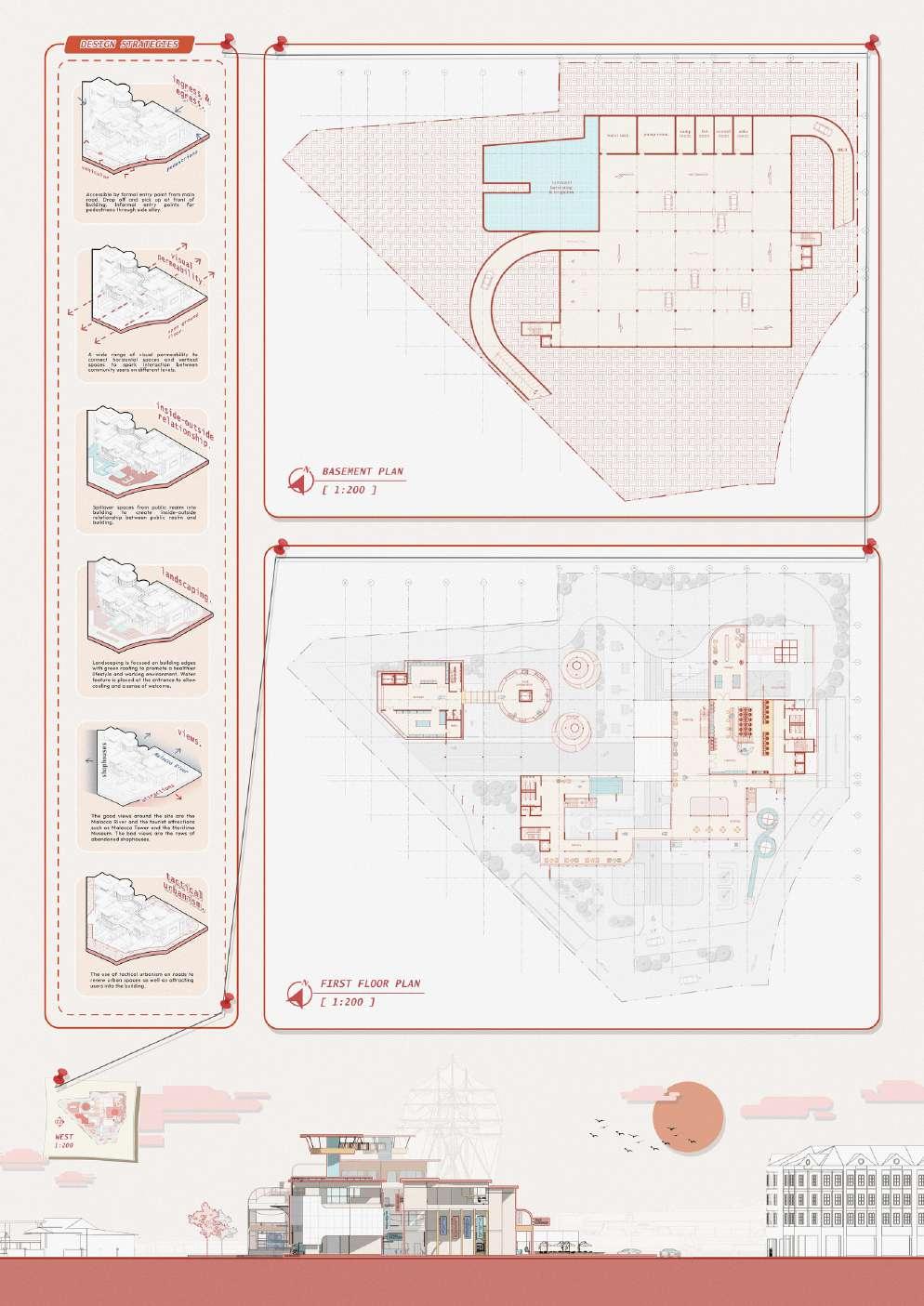

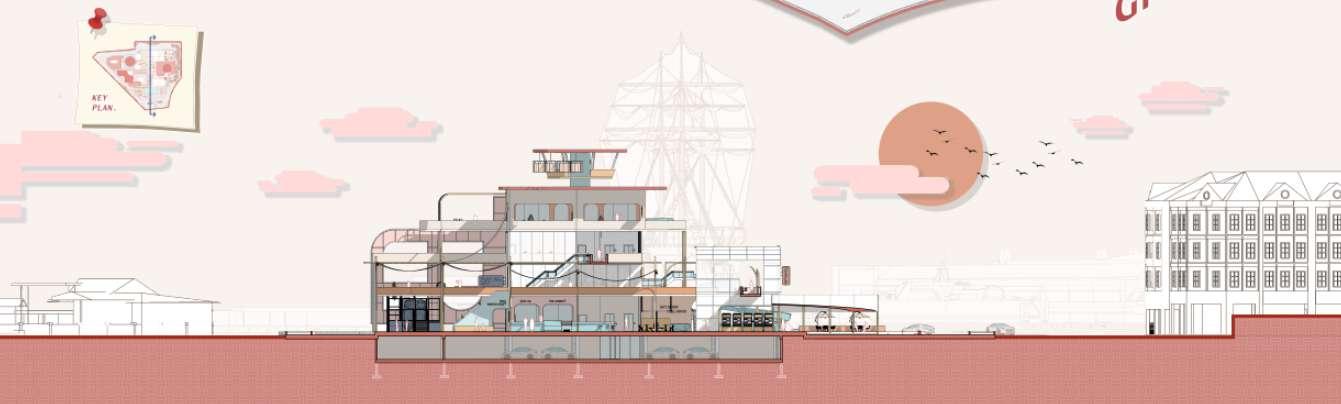

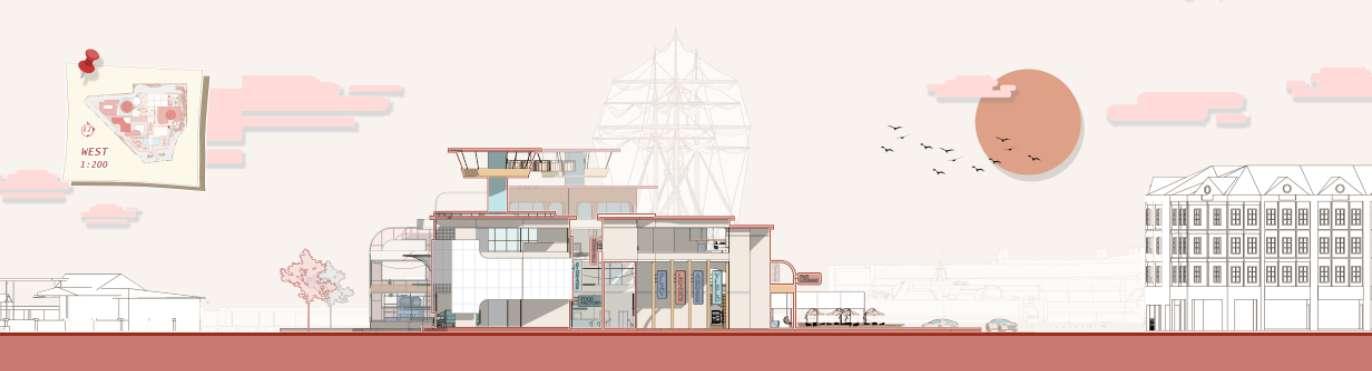

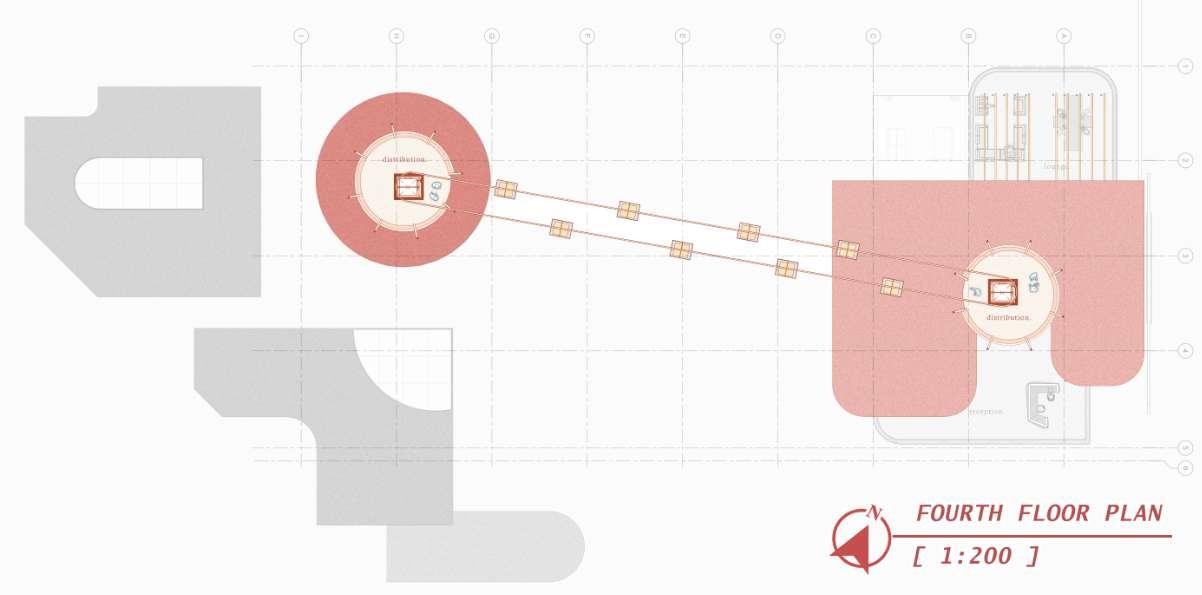

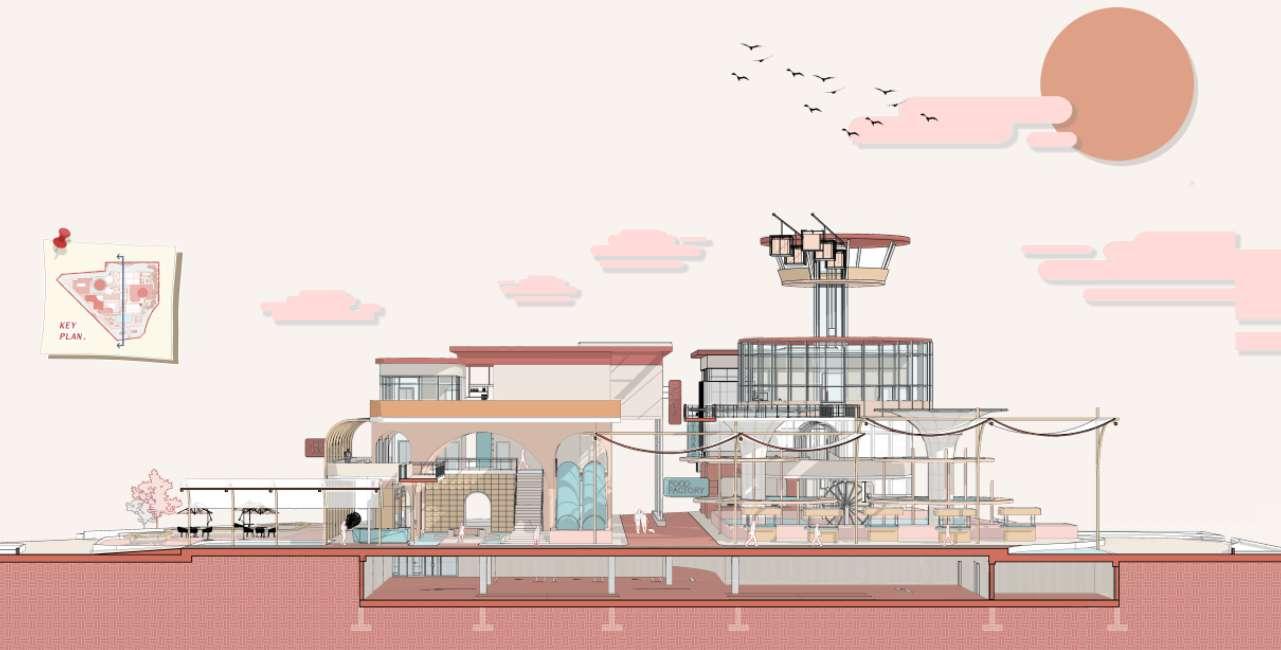

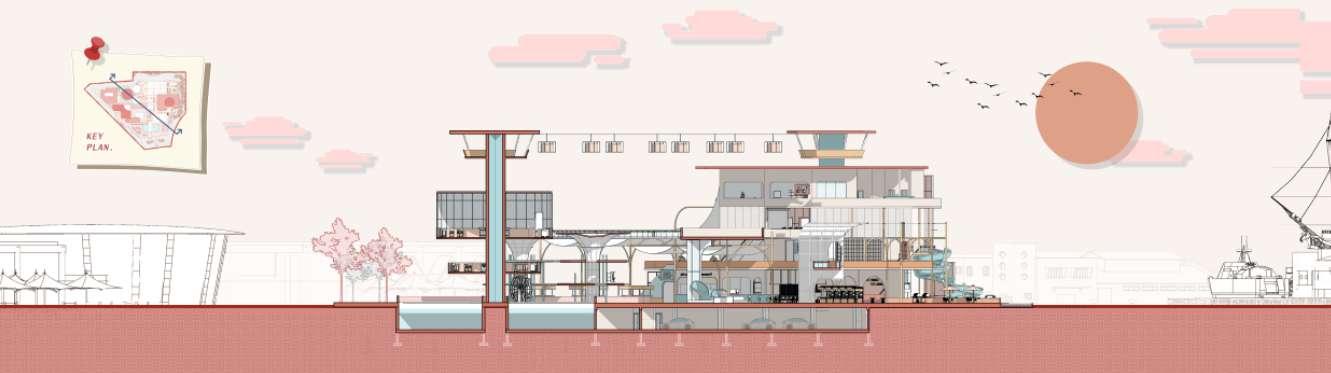

orthographics

06

FINAL DESIGN PORTFOLIO

orthographics

06

FINAL DESIGN PORTFOLIO

orthographics

06

FINAL DESIGN PORTFOLIO

orthographics

06

FINAL DESIGN PORTFOLIO

orthographics

06

FINAL DESIGN PORTFOLIO

orthographics

06

FINAL DESIGN PORTFOLIO

orthographics

06

FINAL DESIGN PORTFOLIO

orthographics

06

FINAL DESIGN PORTFOLIO

orthographics

06

FINAL DESIGN PORTFOLIO

orthographics

06

FINAL DESIGN PORTFOLIO

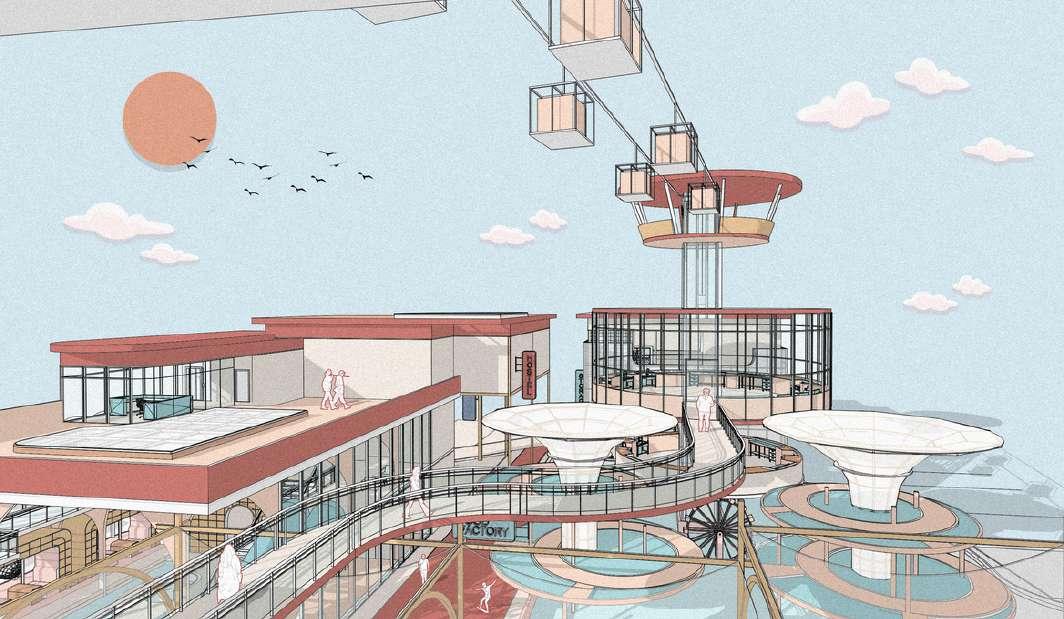

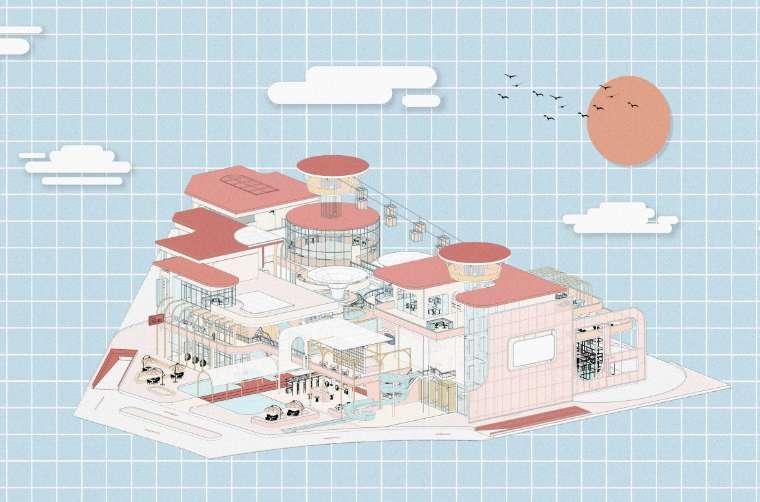

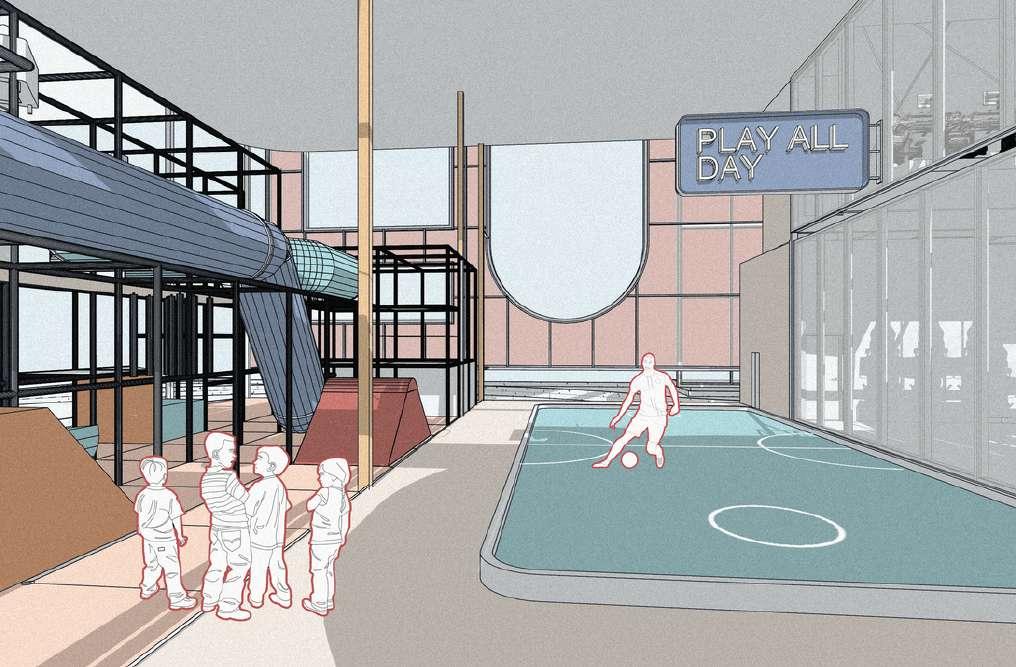

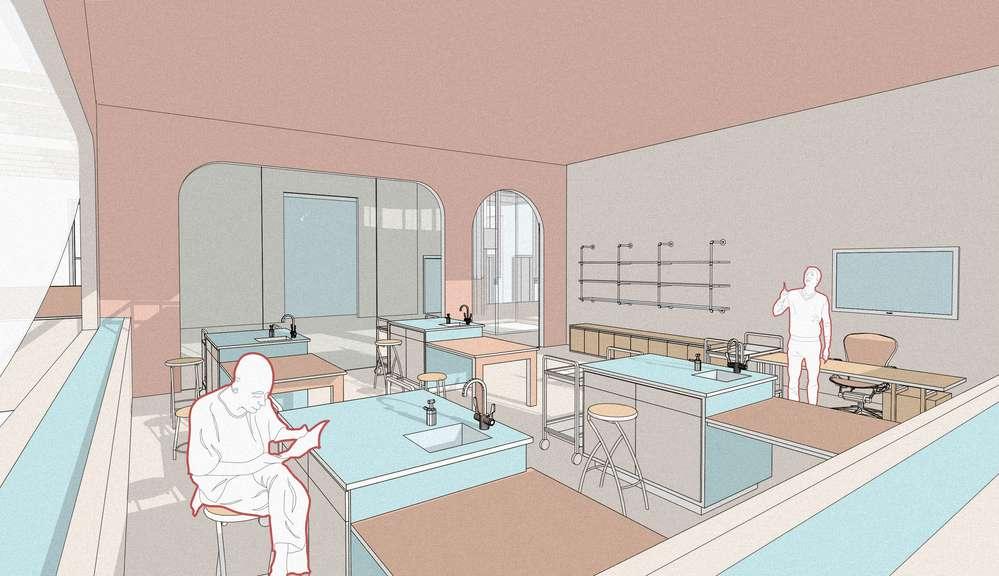

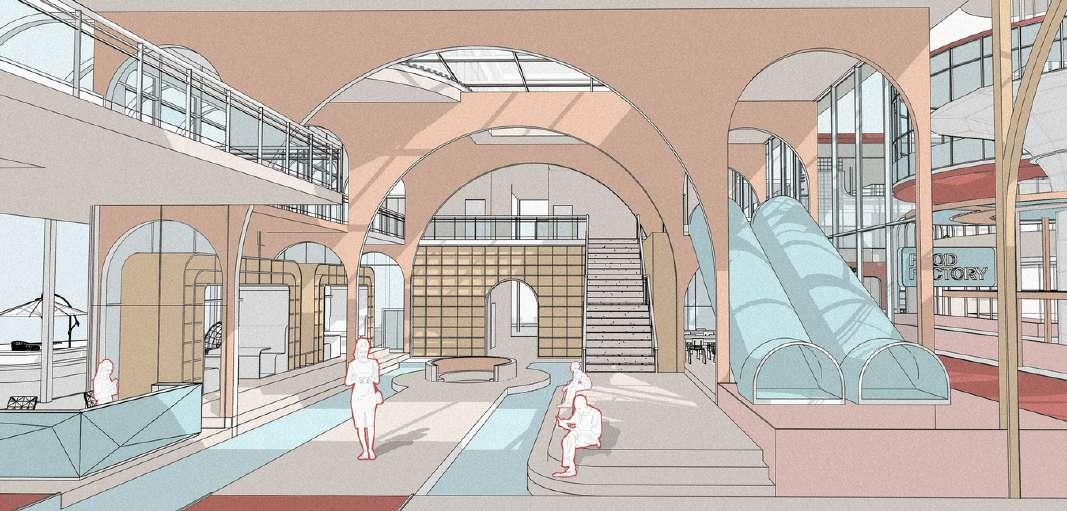

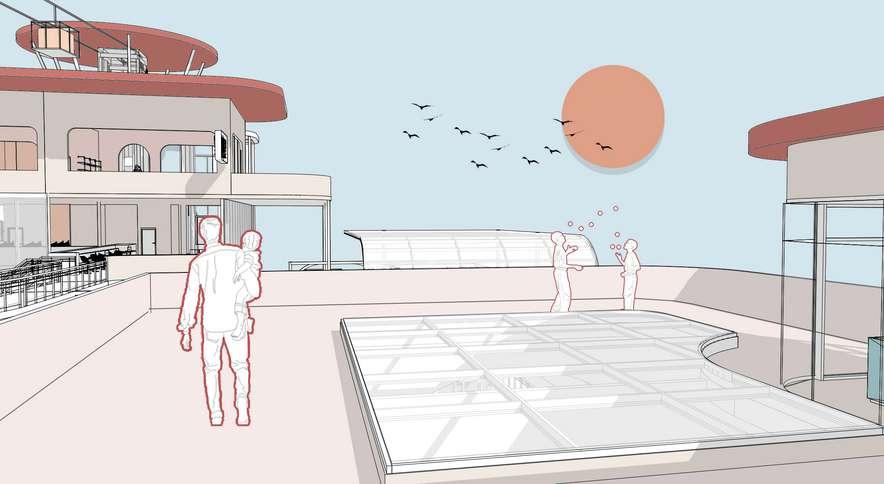

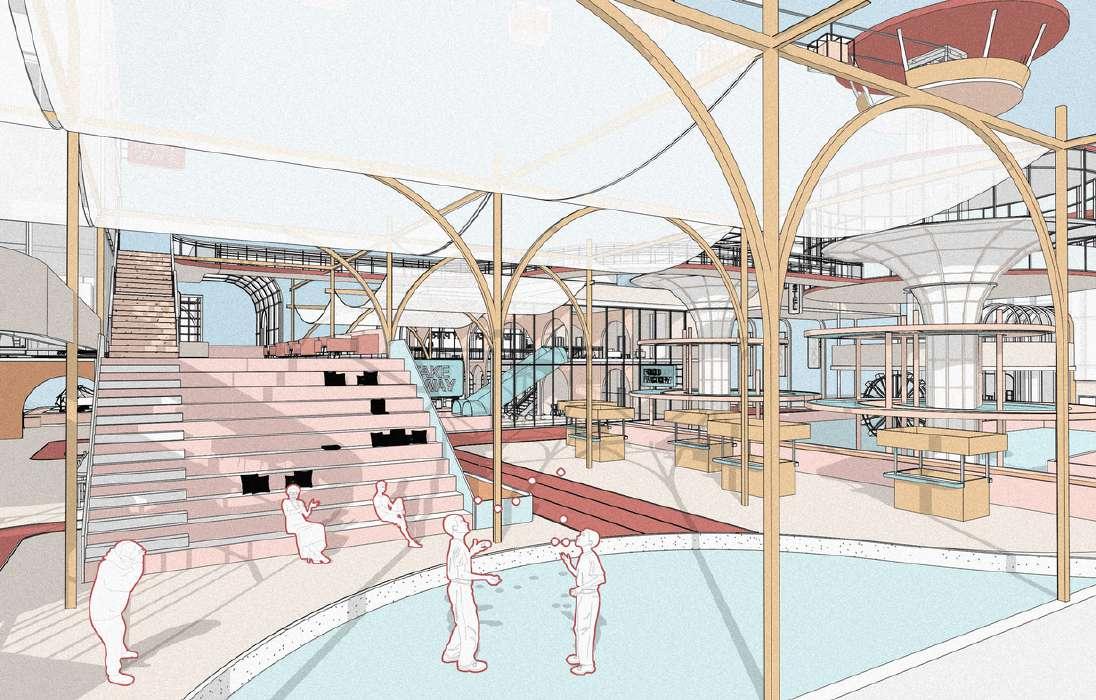

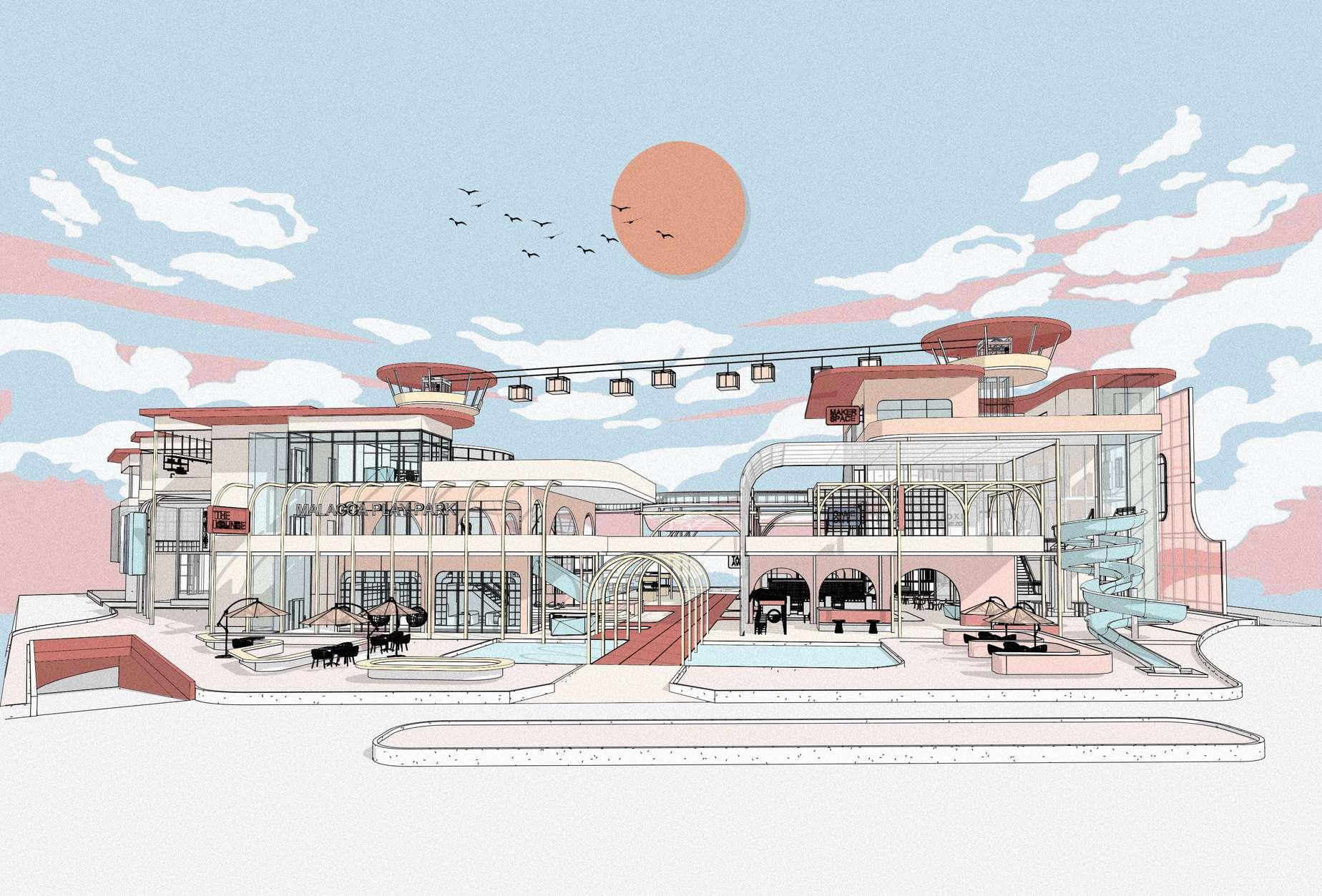

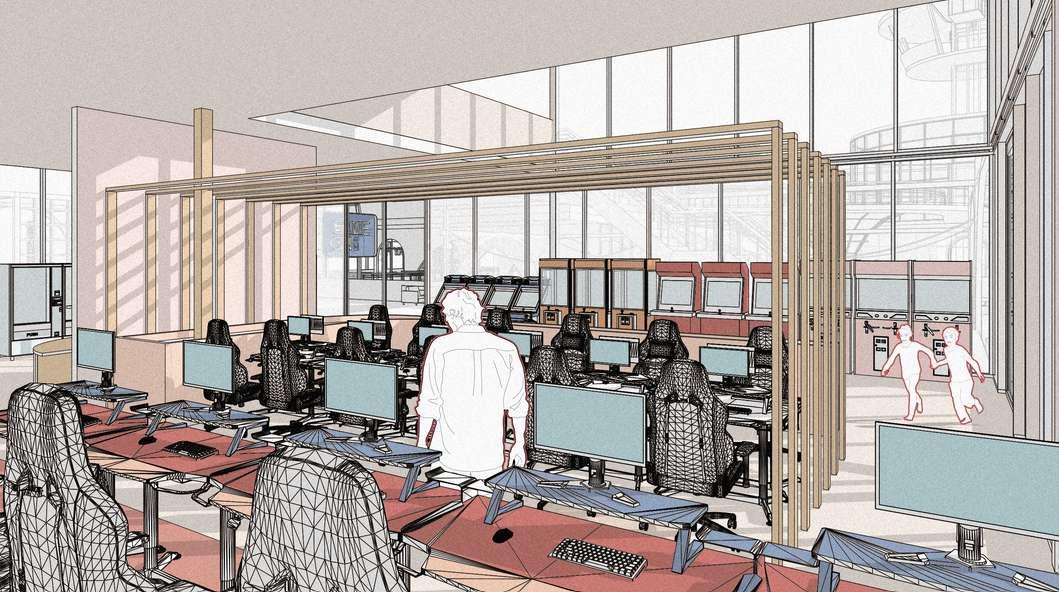

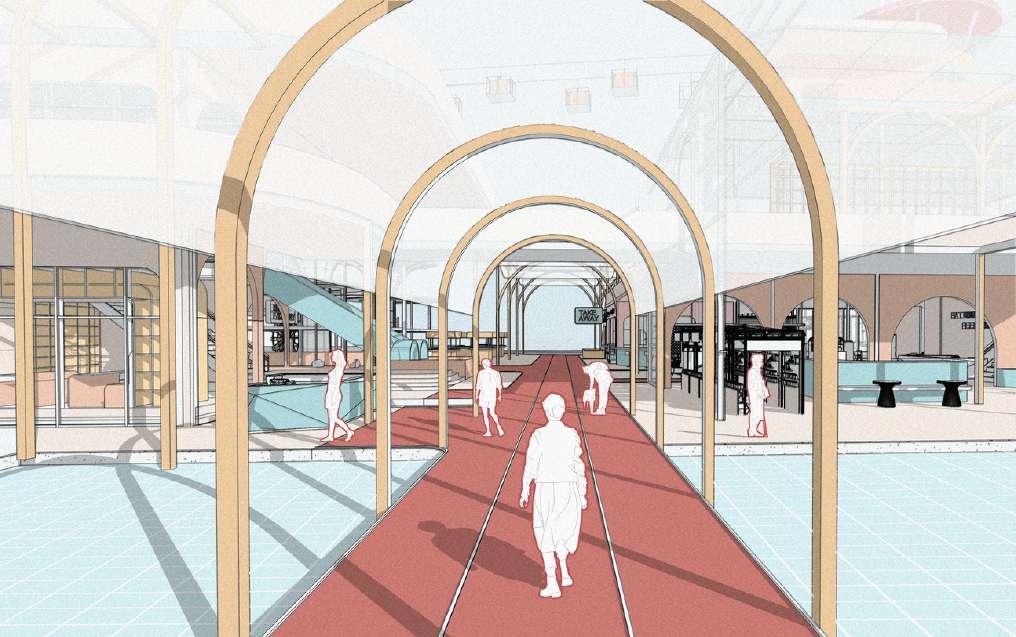

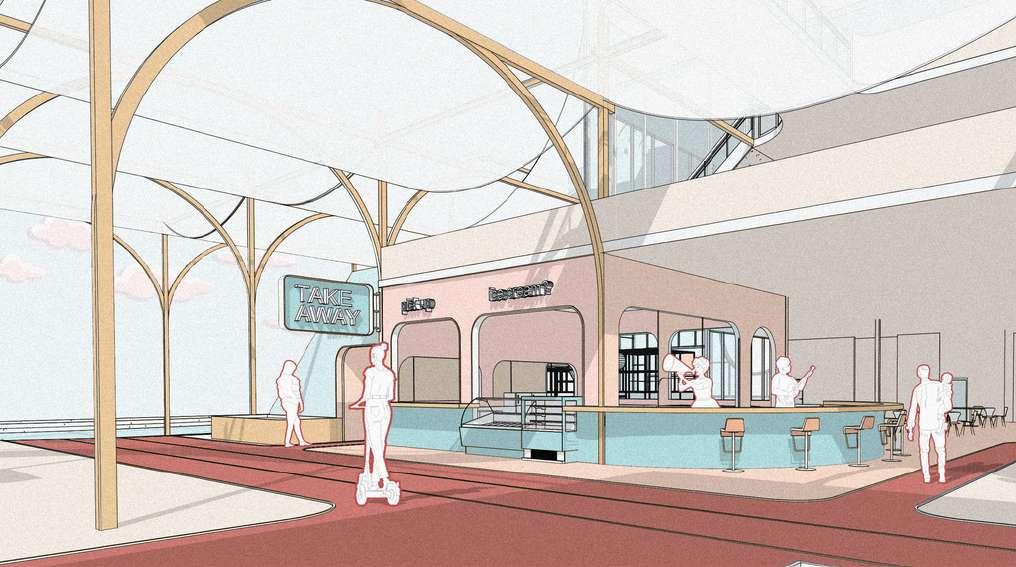

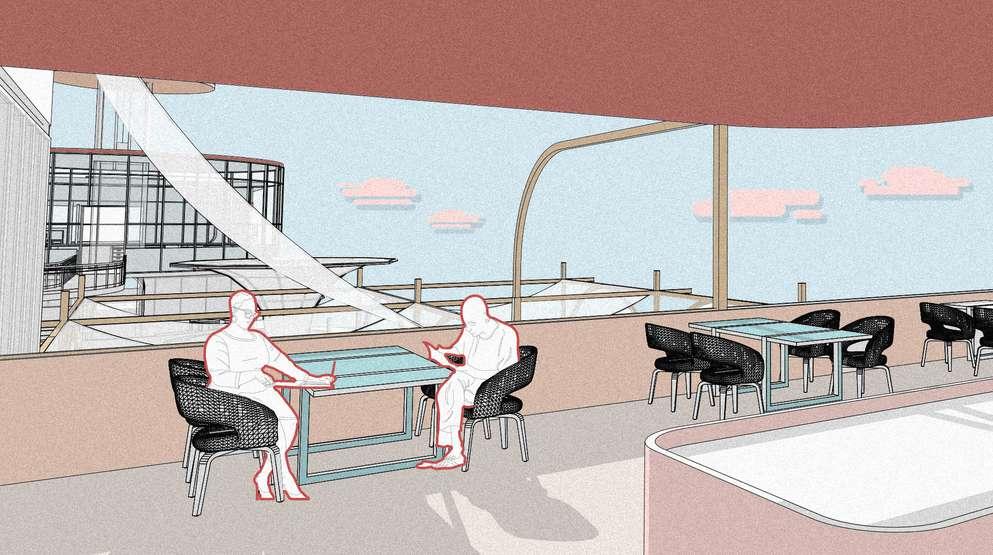

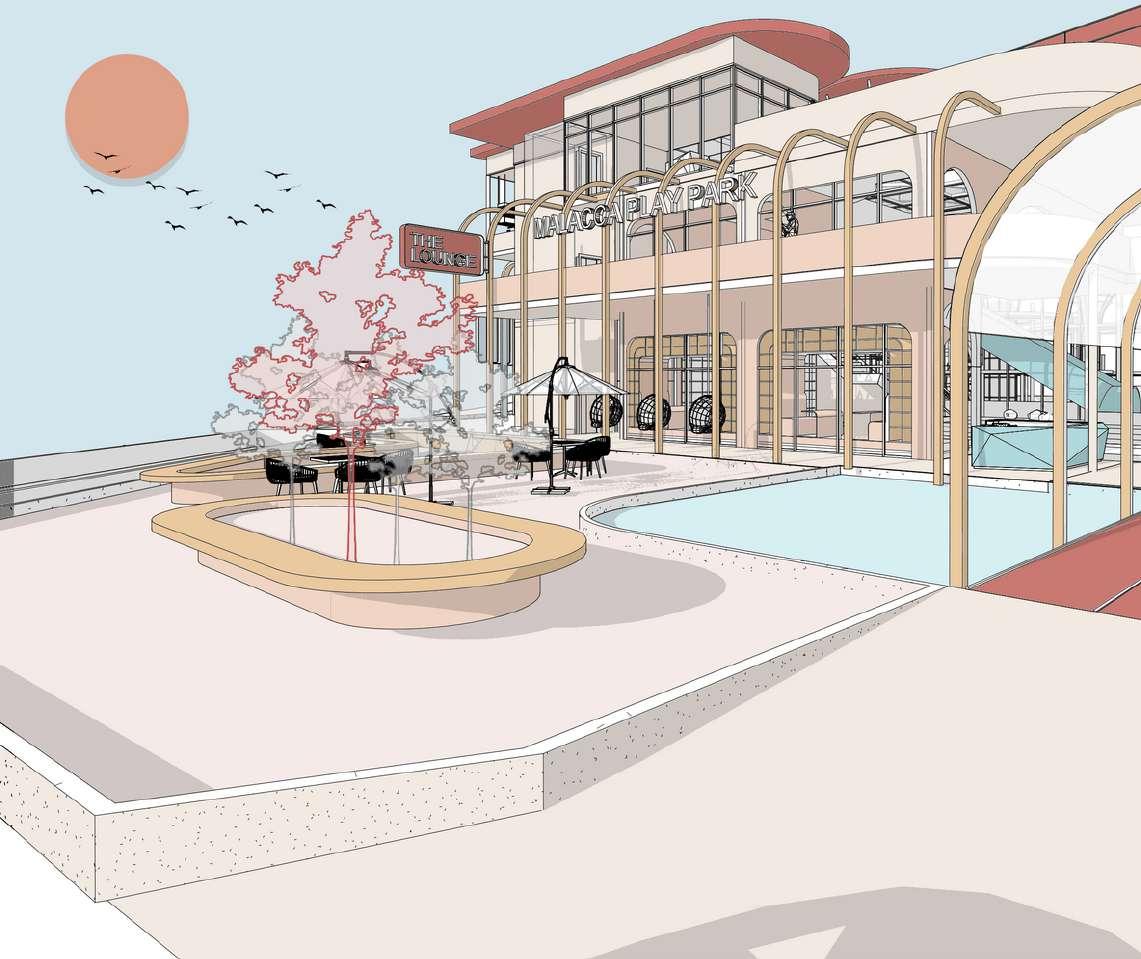

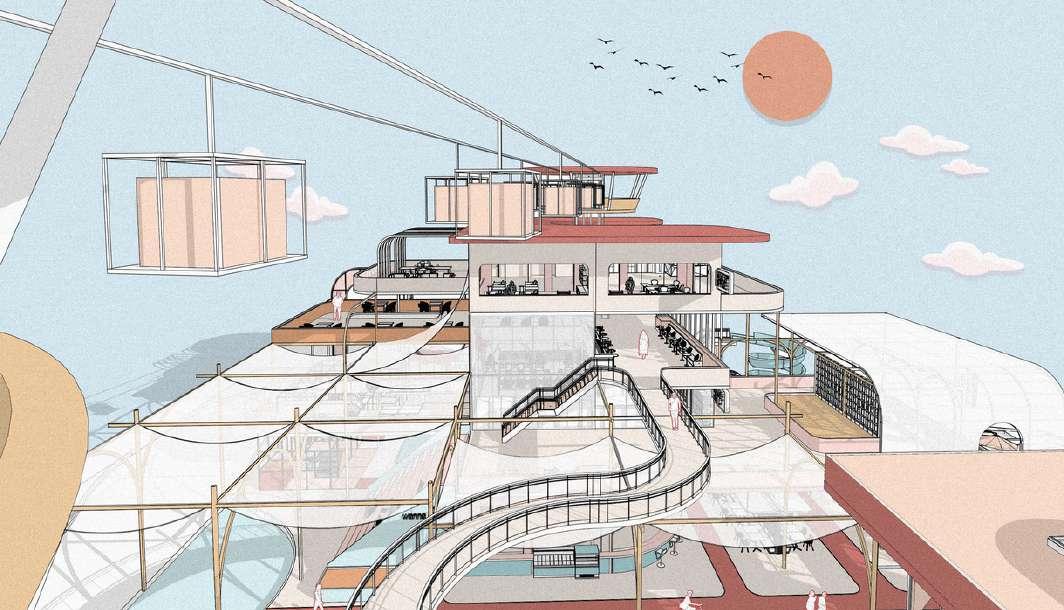

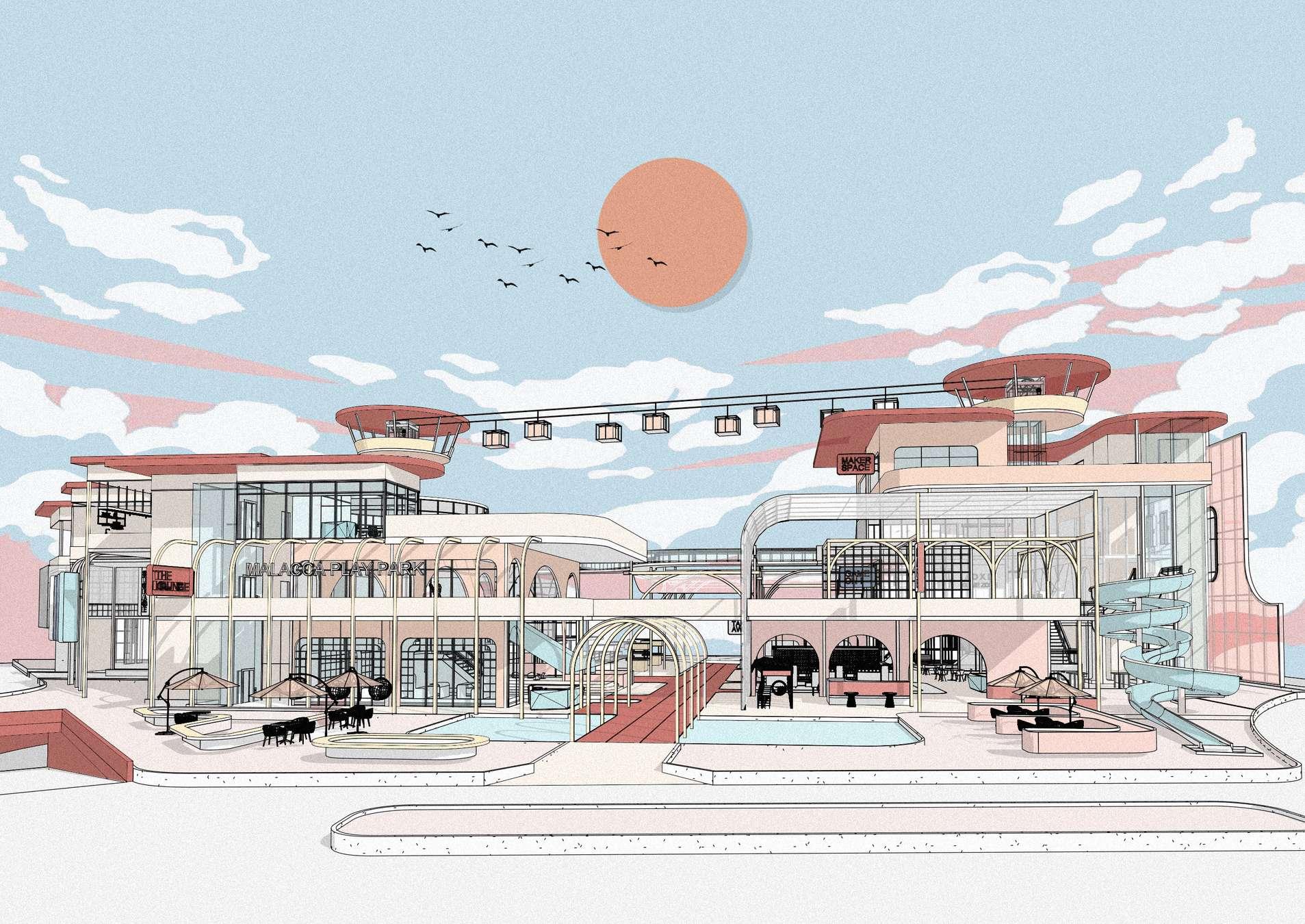

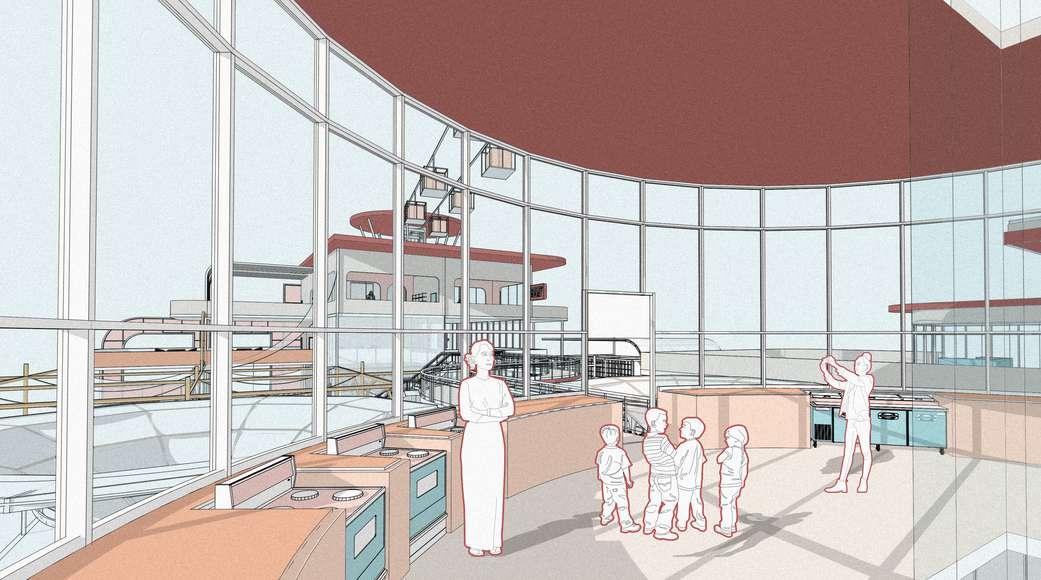

perspectives

06

FINAL DESIGN PORTFOLIO

perspectives

06

FINAL DESIGN PORTFOLIO

perspectives

06

FINAL DESIGN PORTFOLIO

perspectives

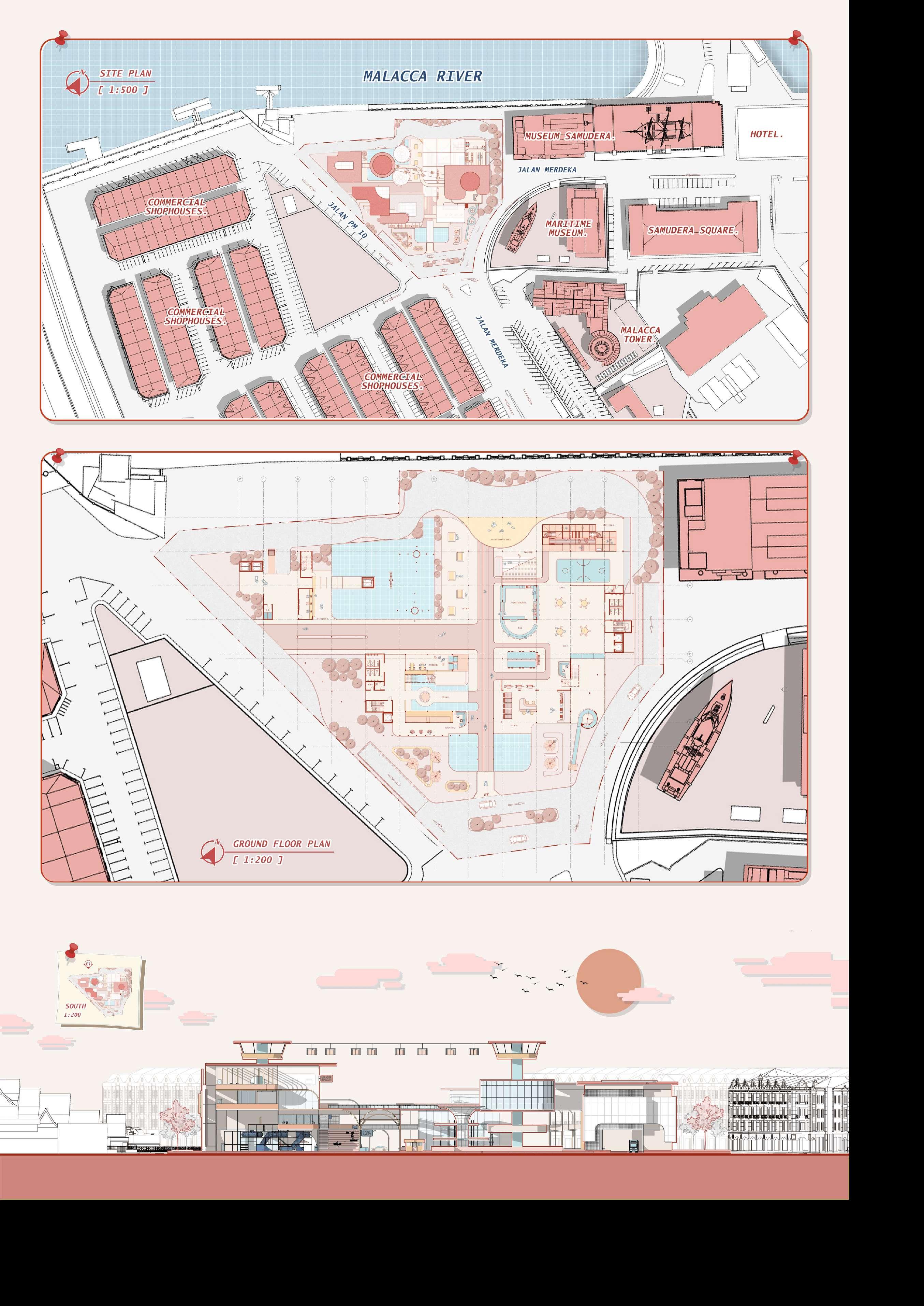

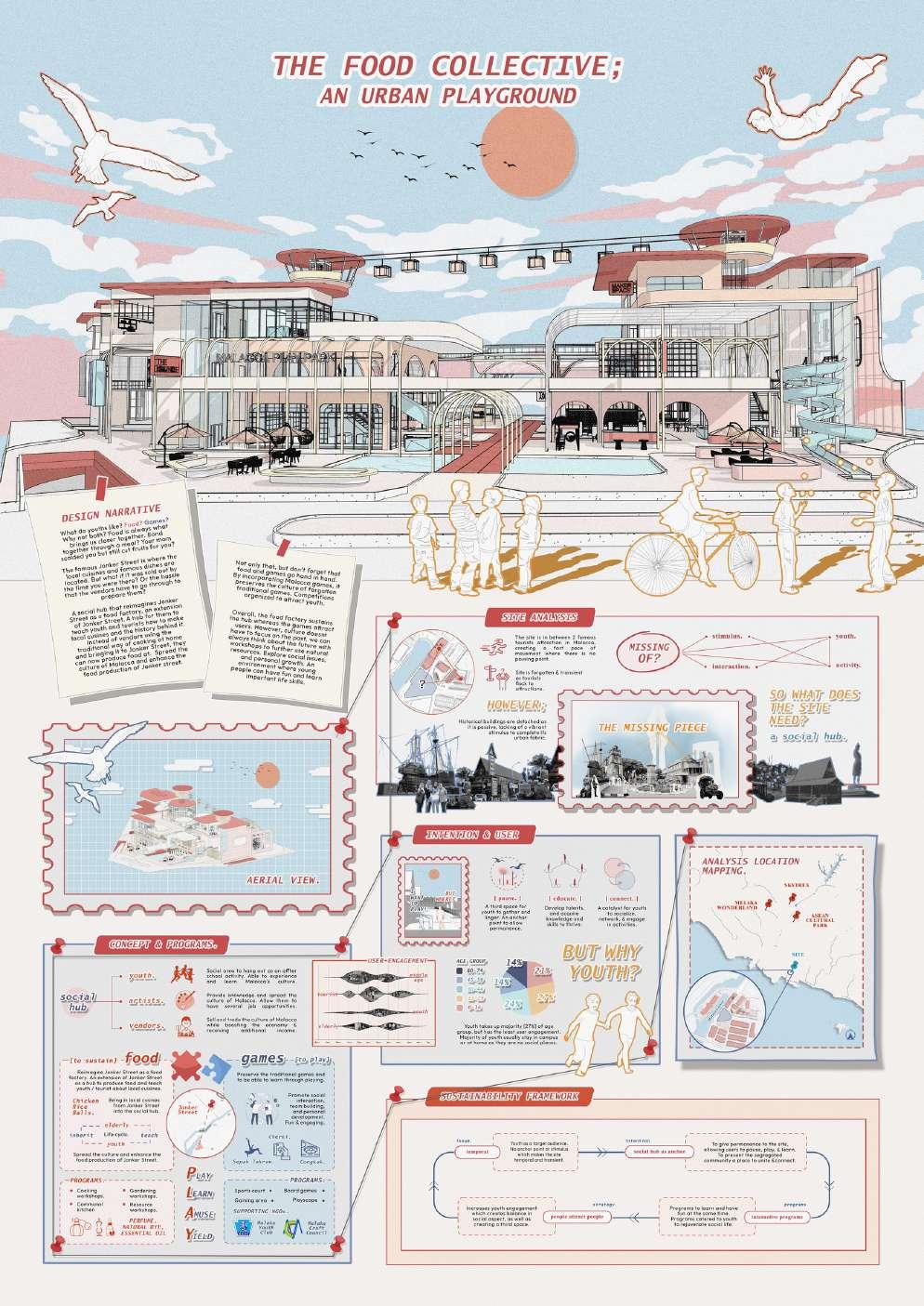

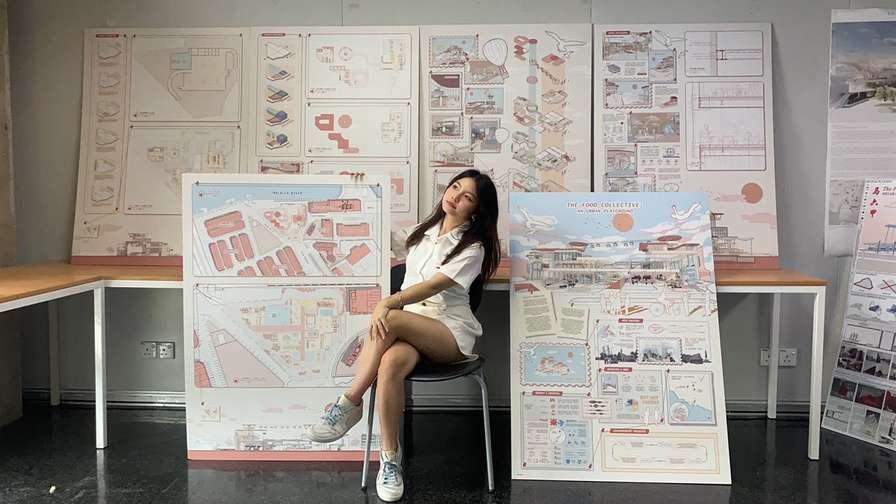

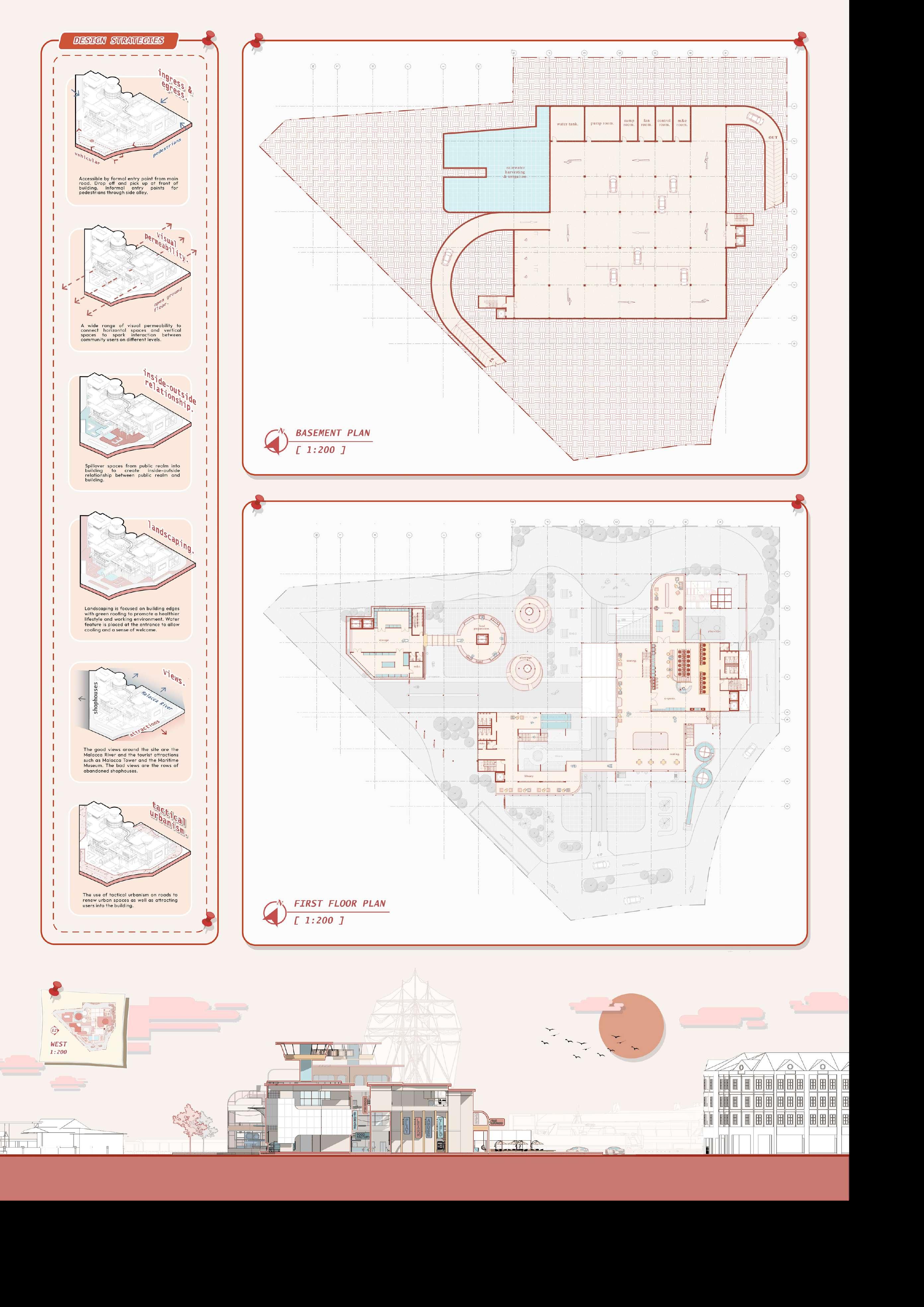

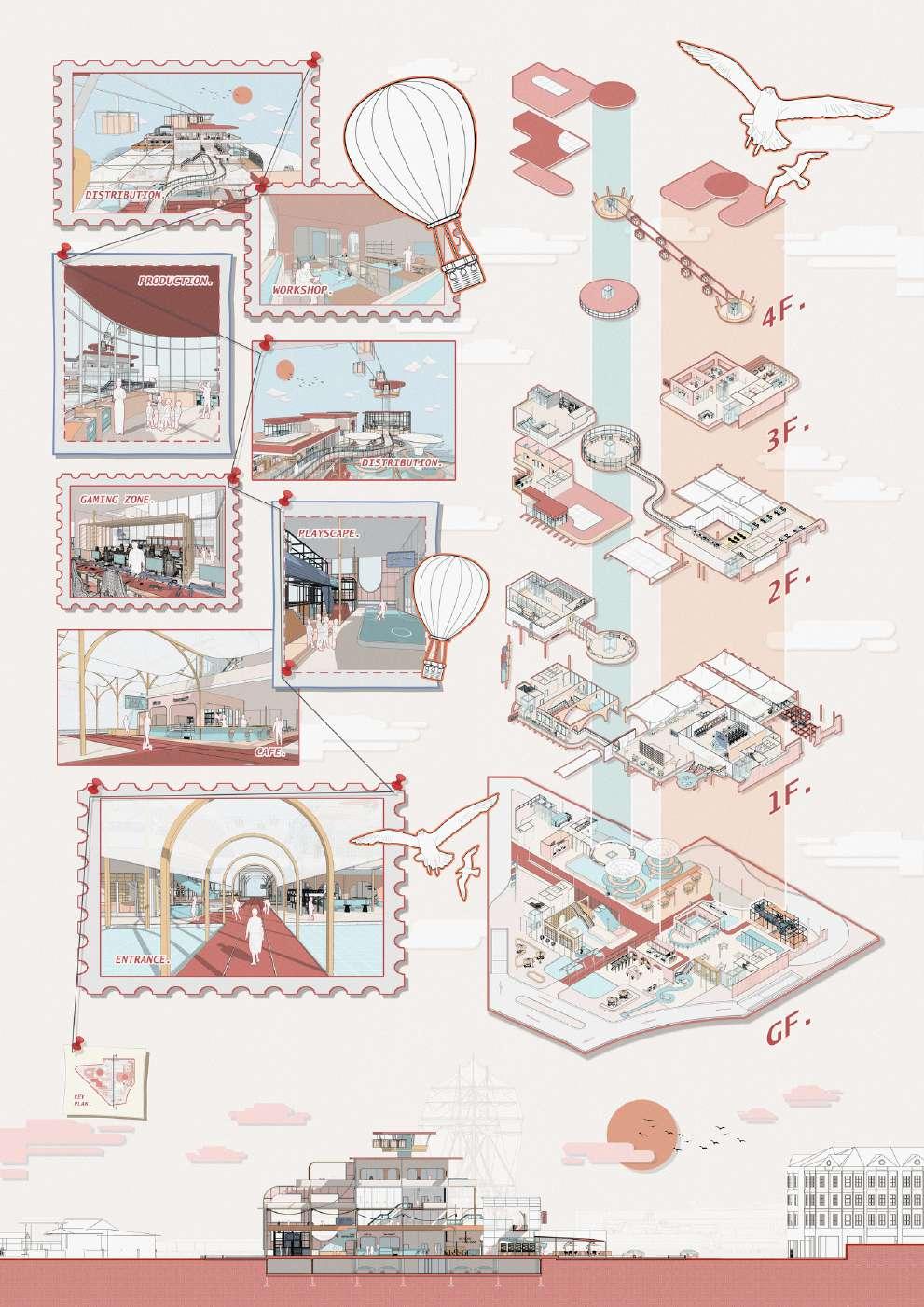

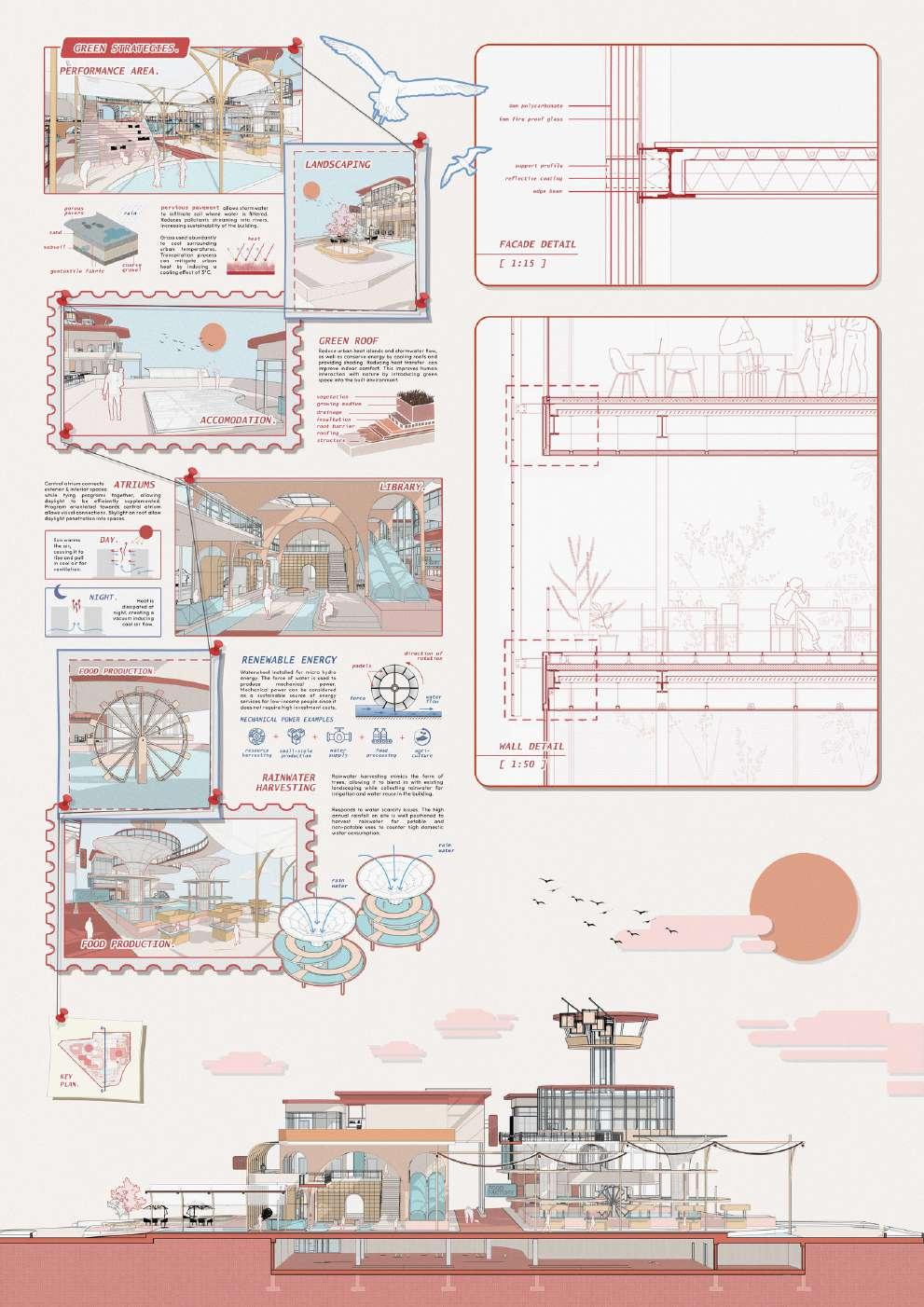

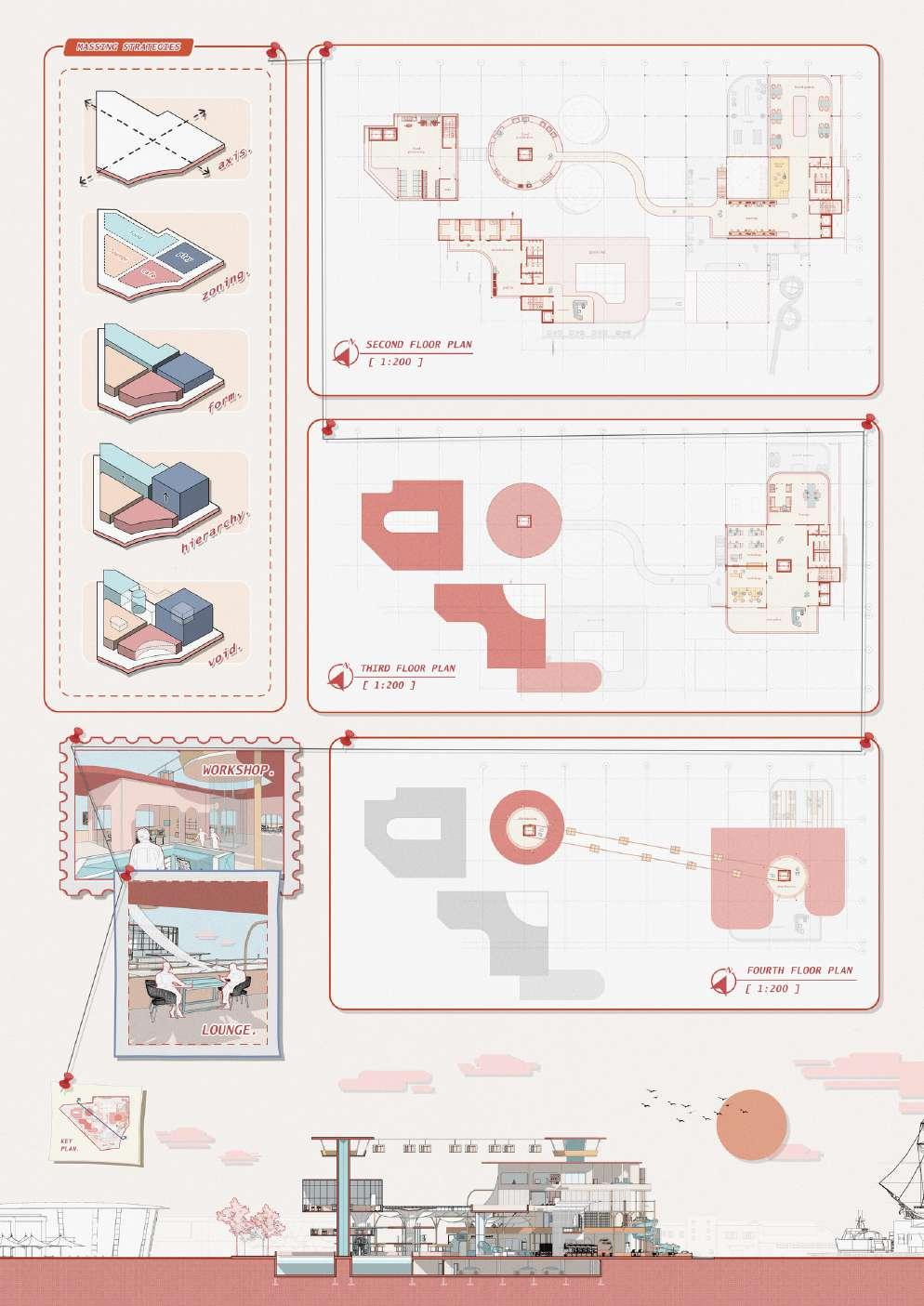

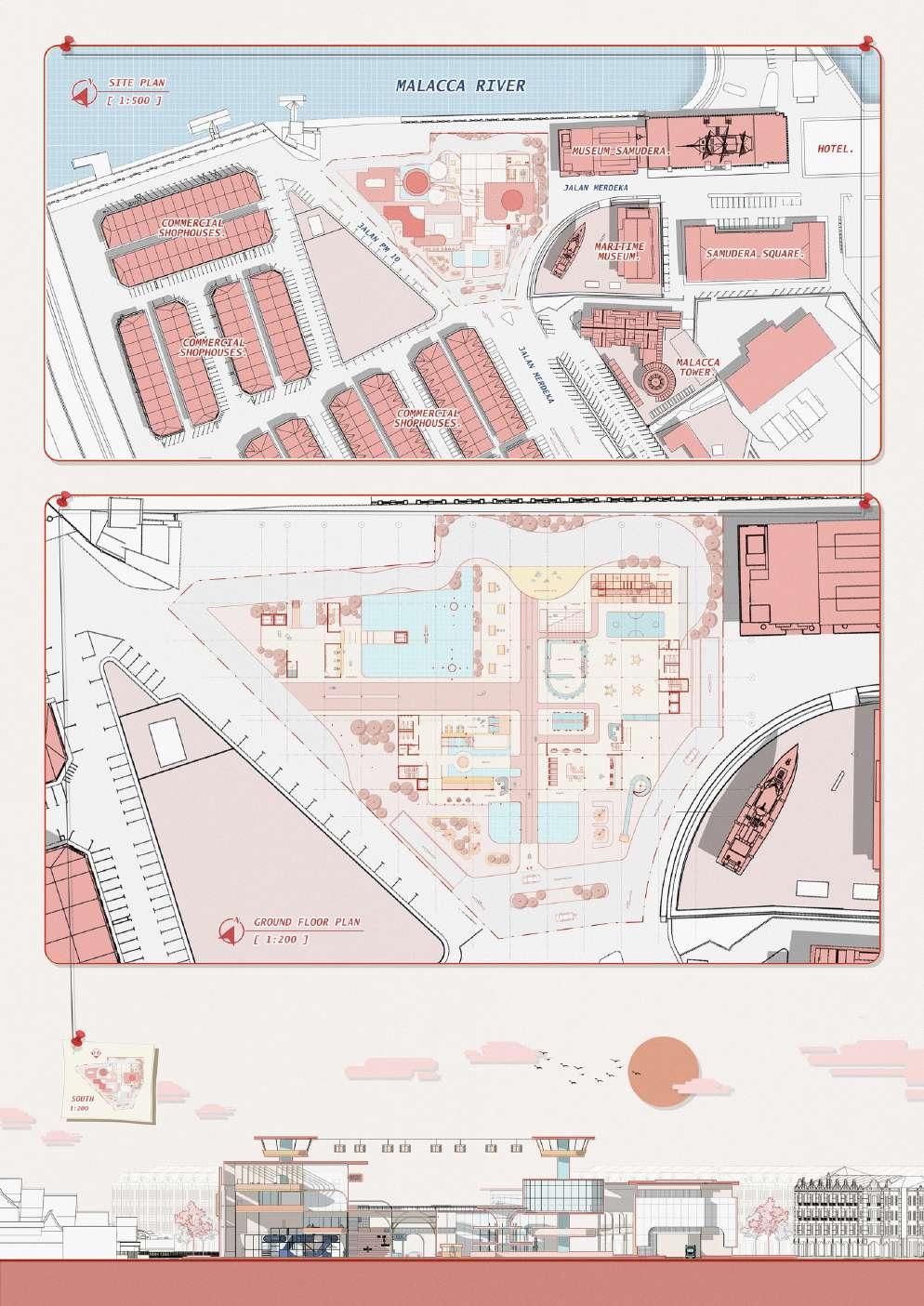

FINAL PANEL LAYOUT

BOARD 1

BOARD 2

BOARD 3

BOARD 4

BOARD 5

BOARD 6

07

JOURNEY REFLECTION SUMMARY

As the last semester of studying architecture comes to a close, I find myself filled with a whirlwind of emotions. This journey has been one of both challenges, growth and self-discovery, but most importantly, a time of profound appreciation for the incredible mentors who have guided me along the way.

From the very beginning, stepping into the world of architecture was a daunting yet exciting prospect. Throughout the whole degree, my tutors have been guiding me. Their unwavering support and encouragement were evident in every critique, where they pushed me to think beyond the obvious and embrace the unconventional. They challenged me, to embrace failures as stepping stones, and to learn from every setback. It was in these moments that I truly understood the value of their dedication to my success. Beyond the academic realm, my tutors were more than just instructors; they were mentors and friends. They offered a listening ear during times of doubt, providing the reassurance I needed to keep pushing forward. Their empathy and understanding created a nurturing space where I could freely express my ideas without fear of judgment.

As I reflect on the growth I've experienced during this semester, I realize that it wouldn't have been possible without their genuine care and belief in my potential. They saw something in me that I struggled to see in myself, and that faith has fueled my determination to become the best architect I can be. I am grateful for the countless hours they invested in helping me hone my skills, shaping me both professionally and personally.

As I step into the next chapter in my journey, I carry with me a deep appreciation for what my tutors have had on my life. Their passion for architecture has become contagious, and I can only hope to carry on their legacy by becoming an architect who makes a positive difference in the lives of others. To all of my tutors from Semester 1 till Semester 6, thank you for being the guiding stars in my architectural voyage. You have not only imparted knowledge but also instilled in me the courage to dream big and the motivation to pursue those dreams relentlessly. I will forever cherish the memories of every semester and the invaluable lessons you have taught me.

08 REFERENCES Admin. (2023, May 25). Rainwater harvesting -process, advantages and disadvantages. BYJUS. https://byjus.com/biology/rainwaterharvesting/#:~:text=Rainwater%20harvesting%20is%20the%20simple,%2C%20etc.%20for%20later%20use. Retrieved on July 20, 2023.

Ink, S. (2015, July 24). Pervious pavement. National Association of City Transportation Officials. https://nacto.org/publication/urbanstreet-design-guide/street-design-elements/stormwater-management/perviouspavement/#:~:text=Pervious%20pavement%20effectively%20treats%2C%20detains,lane%20or%20gutter%20strip%20portions).

Retrieved on July 21, 2023.

Keppel Maker Port, SHARNG City. THE ASB. (n.d.). https://www.thearchitecturestudentblog.com/keppel-maker-port-sharing-city.

Retrieved on July 21, 2023.

Ooiio. (2020, April 22). Light and Shadow, as architecture keys. https://ooiio.com/en/luz-y-sombra-claves-de-la-arquitectura/.

Retrieved on July 22, 2023.

Paye, D. (2021, September 8). The stack effect: How it works and impact on Energy Efficiency. Therma. https://www.therma.com/thestack-effect/. Retrieved on July 22, 2023.

Rooftop Greenery the horizontal dimension.

National https://www.nparks.gov.sg/skyrisegreenery/explore/rooftop-greenery. Retrieved on July 22, 2023.

Parks

Board.

(n.d.).

Waterwheel. Waterwheel - Energy Education. (n.d.). https://energyeducation.ca/encyclopedia/Waterwheel. Retrieved on July 21, 2023.

Yuekang, 舒岳康-S. (2017, September 4).

Neobio family https://www.archdaily.com/877575/neobio-family-park-x-plus-living. Retrieved on July 21, 2023.

park

/

x+living.

ArchDaily.
