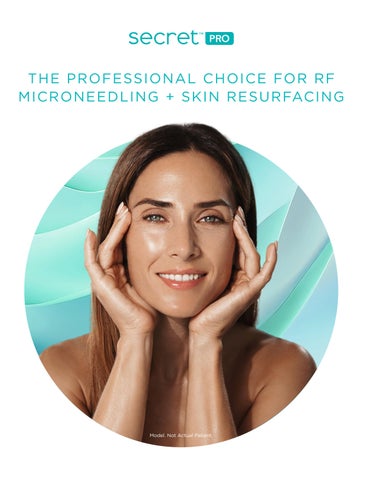

THE PROFESSIONAL CHOICE FOR RF MICRONEEDLING + SKIN RESURFACING
Model. Not Actual Patient.
TAKE SKIN REVITALIZATION TO NEW DEPTHS

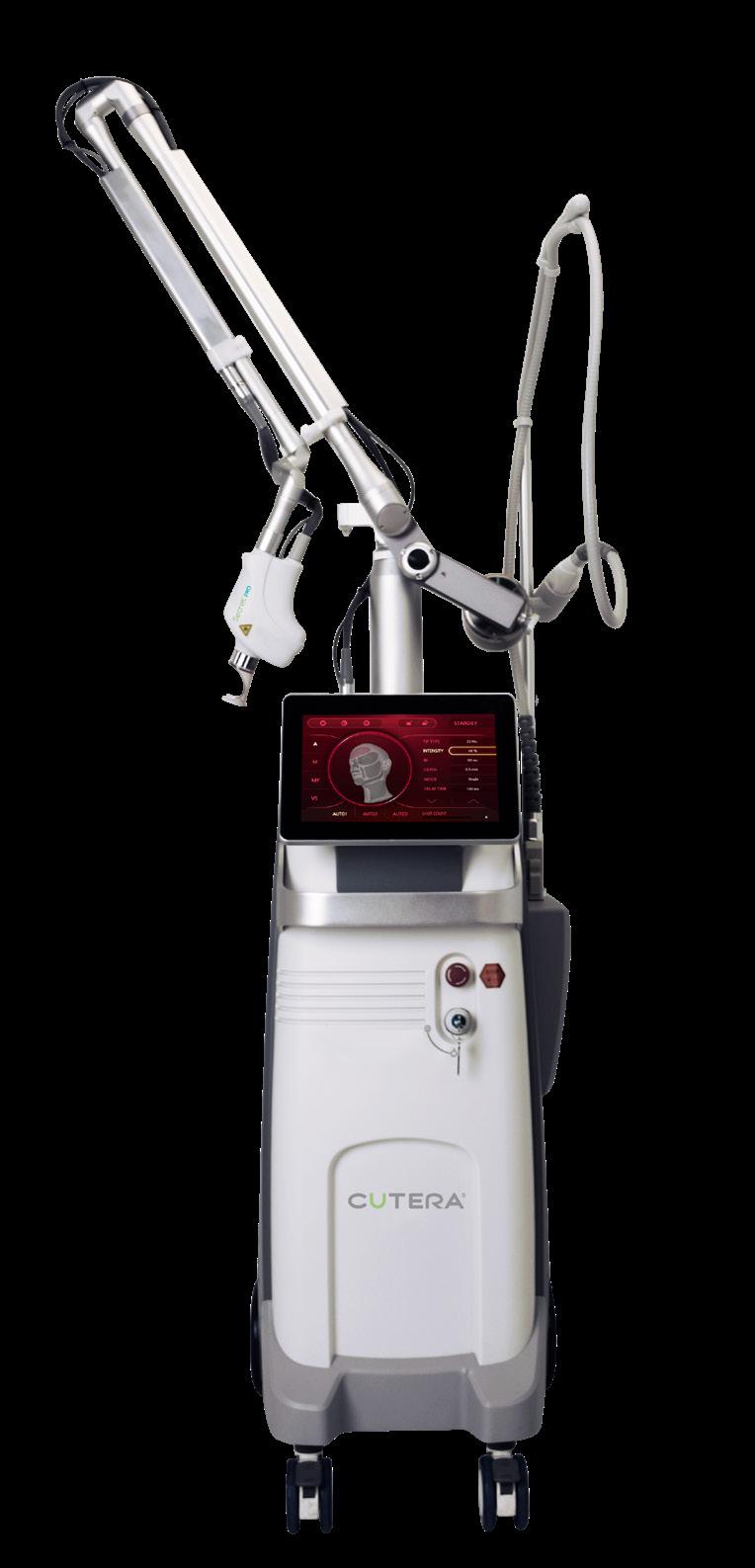

Secret PRO takes an innovative approach to skin revitalization by uniquely combining two clinically proven technologies in a single device. Treat the skin from the epidermis to the deeper dermal layers, independently or together.
Secret PRO’s fractional CO2 laser technology is optimal for skin resurfacing and radio frequency (RF) microneedling for deep dermal remodeling.*
CUSTOMIZABLE SKIN REVITALIZATION
EXCELLENT ROI
A DYNAMIC DUO: RF + CO 2
RF microneedling and fractional CO2 laser for comprehensive skin resurfacing and dermal remodeling.
Set needle penetration depth, RF energy, fractional ablation, scan pattern, and scan mode to customize the treatment.
Treat all skin types RF microneedling and offer CO2 to skin types I-III. Quick and delegable treatment options.
IMPROVES THE APPEARANCE OF
Fine Lines and Wrinkles1,2
Sun Damage1
Stretch Marks3
Scars2
Tone & Texture1,2
Skin Quality1,2
Pore Size4
MEET THE DEMAND FOR SKIN RESURFACING AND REMODELING
most in-demand treatment by patients worldwide is non-surgical skin tightening5 is the projected reach of the skin rejuvenation and resurfacing market by 20287 of today’s patients are bothered by lines and wrinkles around the eyes and skin texture and/or discoloration6

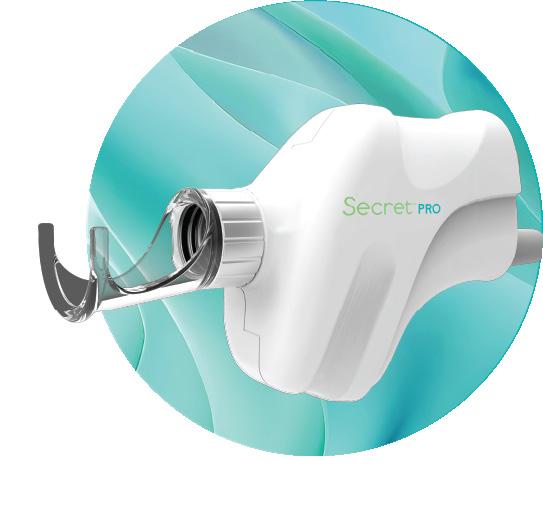

BIPOLAR FRACTIONAL RADIO FREQUENCY MICRONEEDLING CO

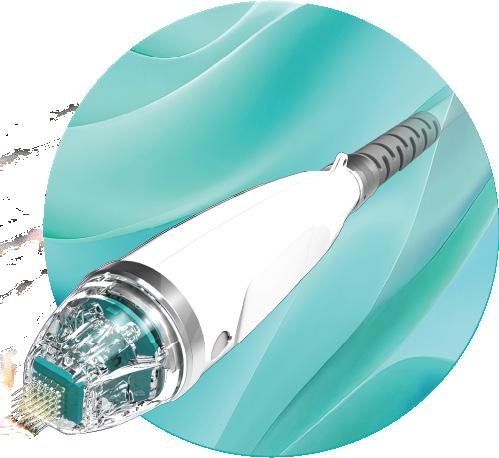

SEMI- AND NON-INSULATED NEEDLES available in 25- and 64-pin tips can treat all skin types and common aesthetic concerns
CONTROLLED ENERGY DELIVERY at the point of needle insertion for precision, improved treatment outcomes, and patient experience
ADJUSTABLE NEEDLE DEPTHS ranging from 0.5-3.5 mm to treat at various depths based on area and concern
PATTERNS AND MODES
100 micrometer beam size with 6 scan patterns and 9 scan modes to more easily treat difficult to target areas.
I-STACK FUNCTION
Stack 1-10 laser pulses for adjustable depth. Tailor treatments to your patient’s needs and tolerance for downtime.
Photo courtesy of A. Bhatia,
ACNE SCARS2
Photo courtesy of Michael Sarti, M.D.
GLOBAL SKIN REJUVENATION
TECHNICAL SPECIFICATIONS
TECHNOLOGY
Source 10,600 nm wavelength laser 2 MHz bipolar radio frequency
Power Max 30 W (Max 150 mJ) 70 W (64Pin) / 25W (25Pin)
Duration 20 – 5,000μs (Pulse duration)
50 – 750 ms (RF duration) at 10 – 100% intensity
Repetition 0.2 / 0.5 / 0.8 / 1.0 / 2.0 sec / Single
Treatment
Spot Size
- 4 cm2
Fractional: 100 - 120 microns
Surgical: Min. 0.2 - max. 1.3 mm
Treatment Distance 0.1 - 2.0 mm
Handpiece Options Fractional and surgical available 1 handpiece fits all tip sizes
Adjustable Depths
Needle Tips
Needle Thinness
Stack 1 - 10 laser pulses for adjustable depth with i-Stack function
0.5 - 3.5 mm (adjustable in 0.1 mm increments)
25 non-insulated / 25 semi-insulated / 64 semi-insulated
0.25 mm gold plated
*Via electro-coagulation and hemostasis. **Downtime may vary.
References:
1 Tierney, Emily, and William Hanke. “Fractionated Carbon Dioxide Laser Treatment of Photoaging: Prospective Study in 45 Patients and Review of the Literature.” Dermatologic Surgery, vol. 37, no. 9, 2011, pp. 1279– 1290., https://doi.org/10.1111/j.1524-4725.2011.02082.x. 2 Yadav, Savita, and Aashim Singh. “Microneedling: Advances and Widening Horizons.” Indian Dermatology Online Journal, vol. 7, no. 4, 2016, p. 244., 3 Ryu, Han-Won, et al. “Clinical Improvement of Striae Distensae in Korean Patients Using a Combination of Fractionated Microneedle Radiofrequency and Fractional Carbon Dioxide Laser.” Dermatologic Surgery, vol. 39, no. 10, 2013, pp. 1452–1458., https://doi.org/10.1111/dsu.12268. https://doi.org/10.4103/22295178.185468. 4 Cho, Soo Ick, et al. “Evaluation of the Clinical Efficacy of Fractional Radiofrequency Microneedle Treatment in Acne Scars and Large Facial Pores.” Dermatologic Surgery, vol. 38, no. 7, 2012, pp. 1017–1024., https://doi.org/10.1111/j.1524-4725.2012.02402.x. 5 ASDS Consumer Survey on Cosmetic Dermatologic Procedures 6 SAPS international survey on Aesthetic /cosmetic procedures, 2021-2022 Absolute Reports Pvt Ltd, 2022
Important Safety Information
The following adverse effects can occur when treating with the Secret PRO: Discomfort; Pain; Swelling; Redness; Skin color changes; Milia; Acne; Wounds; Contact/Allergic dermatitis or Skin sensitivity; Infection; Scarring; Treatment Pattern; Petechiae; Dilated pores; Allergy; Ectropion; Sun exposure, tanning beds, artificial tanning may increase risk of side effects and adverse events.
@2024 Cutera, Inc. All rights reserved. AP003543 rE (05/24)
