RELIABLE REMOTE ACCESS TO SCRUBBER CONTROL SYSTEMS
PureteQ’s Remote Access Unit (RAU) is a Windows‑based industrial computer system designed to ensure secure, stable, and full featured remote connection to scrubber systems and auxiliary equipment onboard vessels.

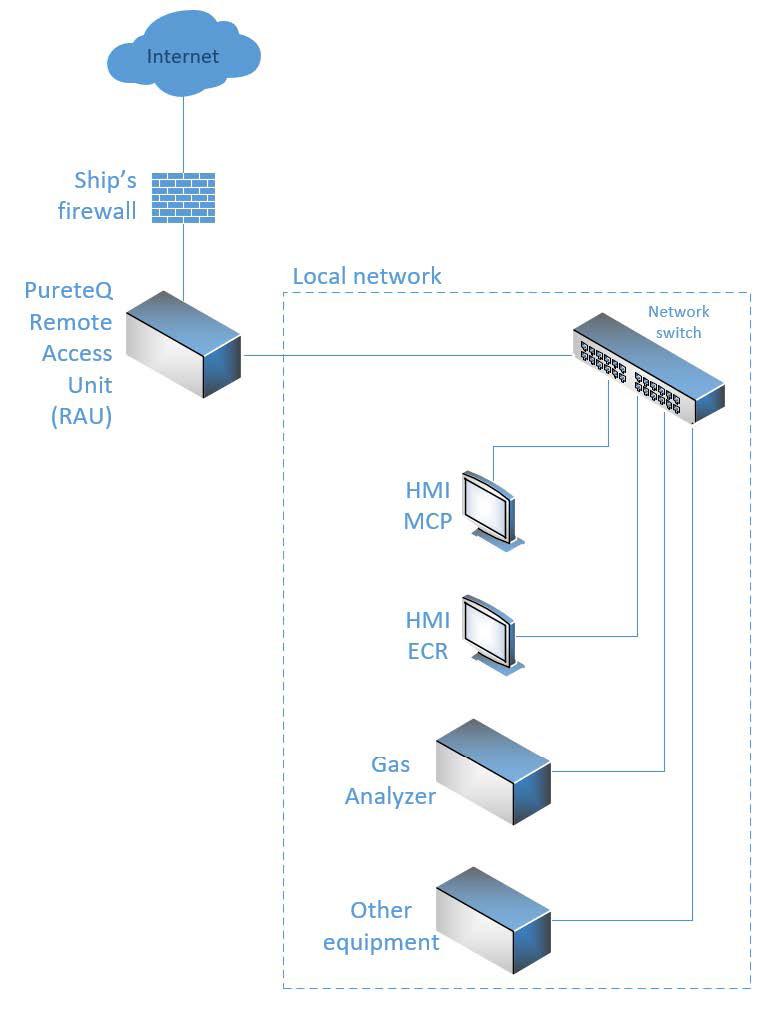

The RAU eliminates limitations often caused by proprietary operator panels or closed operating systems. By integrating a Windows environment inside the vessel’s local network, the RAU enables PureteQ and fleet technical support teams to access, diagnose, and optimize equipment with unparalleled efficiency.
Why the PureteQ RAU?
• Full feature remote access to equipment that is otherwise inaccessible due to closed interfaces
• Stable, secure connection enabled by PureteQ’s two level authorized software configuration for remote service and monitoring
• Reduced service costs thanks to faster diag nostics and improved remote troubleshooting capability
Key Features
• Windows based industrial computer installed directly on the vessel’s network
• Preconfigured for each application, incl. soft ware, IP setup, and access credentials
• Streamlined access to HMIs and auxiliary sub systems
• Designed for marine operating environments with a robust cabinet and IP44 protection
• Compact interface with integrated 10” marine approved touch display
PURETEQ REMOTE ACCESS UNIT (RAU) -
DETAILS
CABINET
Material Polycarbonate, RAL 7035
Dimensions (H x W x D)
300 x 400 x 210 mm
Weight Approx. 8 kg
INSTALLATION & SETUP

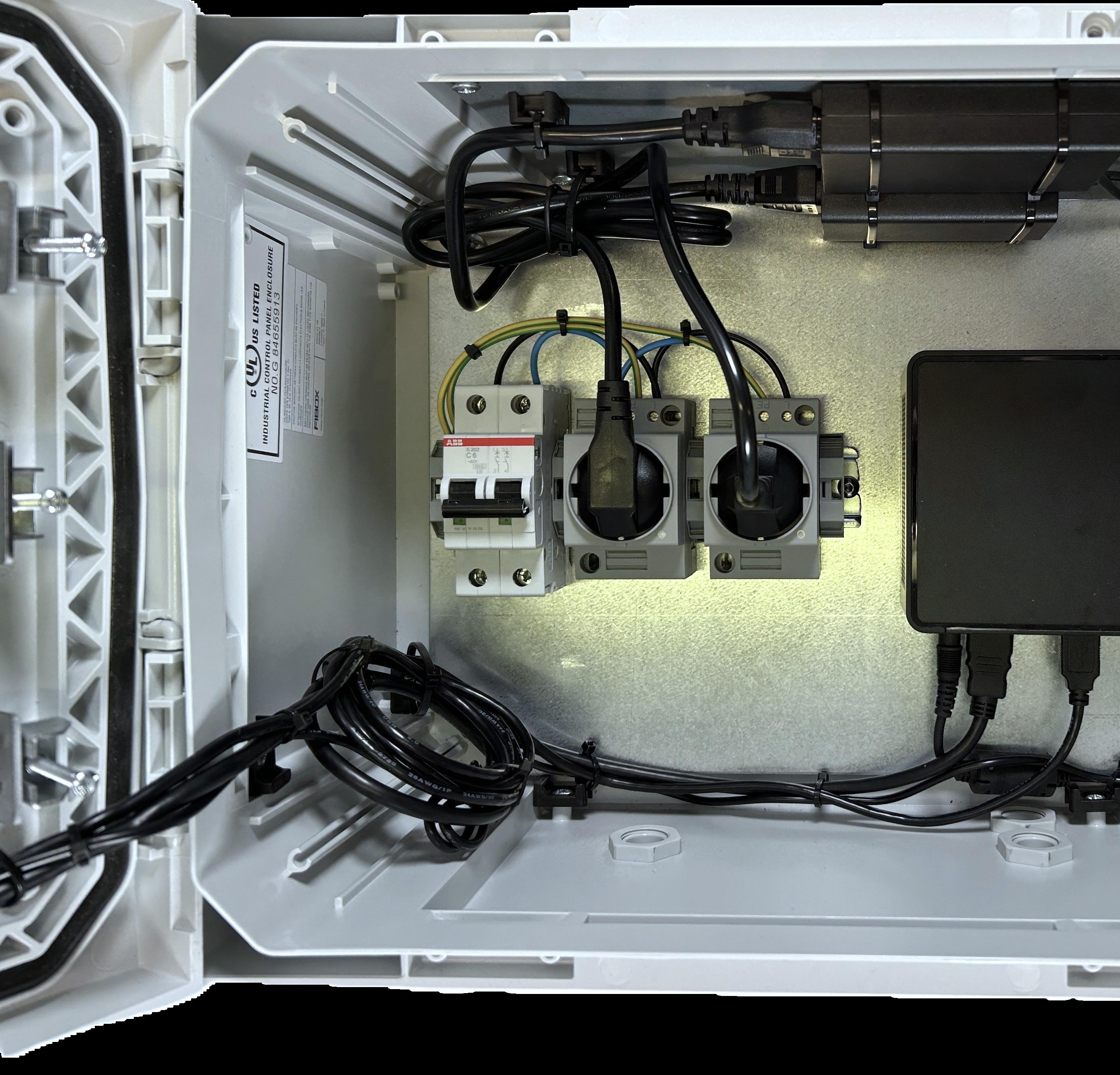

Single integrated cabinet Including computer, power supply, touch display
Installation Easy installation in the vessel ECR carried out by PureteQ or customer technician
Configuration Is tailored specifically to each application
TECHNICAL SPECIFICATIONS
Power 100-240 VAC, 50/60 Hz, <200 W
Monitor 10” industrial touch display
Computer ASUS NUC gen. 15
Operating system PureteQ OEM Windows 10 IoT LTSC
Protection class Minimum IP44 (with properly sealed cable glands)
AMBIENT CONDITIONS
Temperature 5-40°C
Humidity 10-90% non-condensing
ORDERING INFORMATION
Remote Access Unit (RAU001)
Item no. 140-000465
