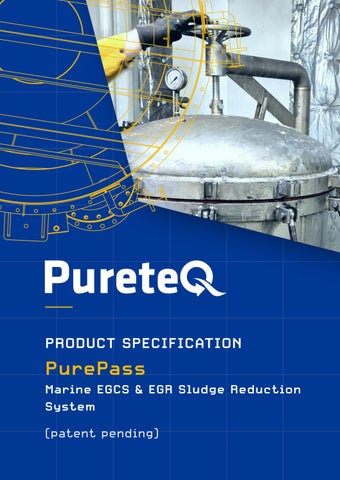

SPECIFICATION PurePass Marine Water Filtration System
(patent pending)
PURETEQ PUREPASS FILTRATION - DETAILS

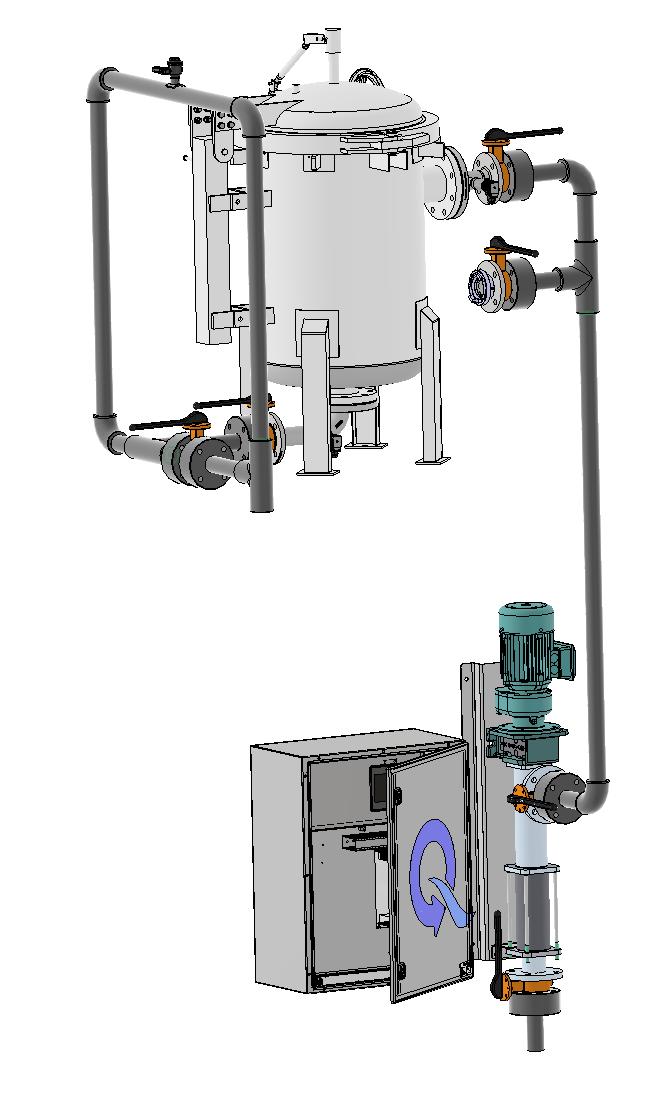

INSTALLATION & DIMENSIONS
Pump Main pump & motor body:
Width: 280 mm
Height: 1200 mm
Control cabinet
Stainless cabinet: H: 760 x W: 600 x D: 350 mm
Control unit/PLC
PLC for pump motor

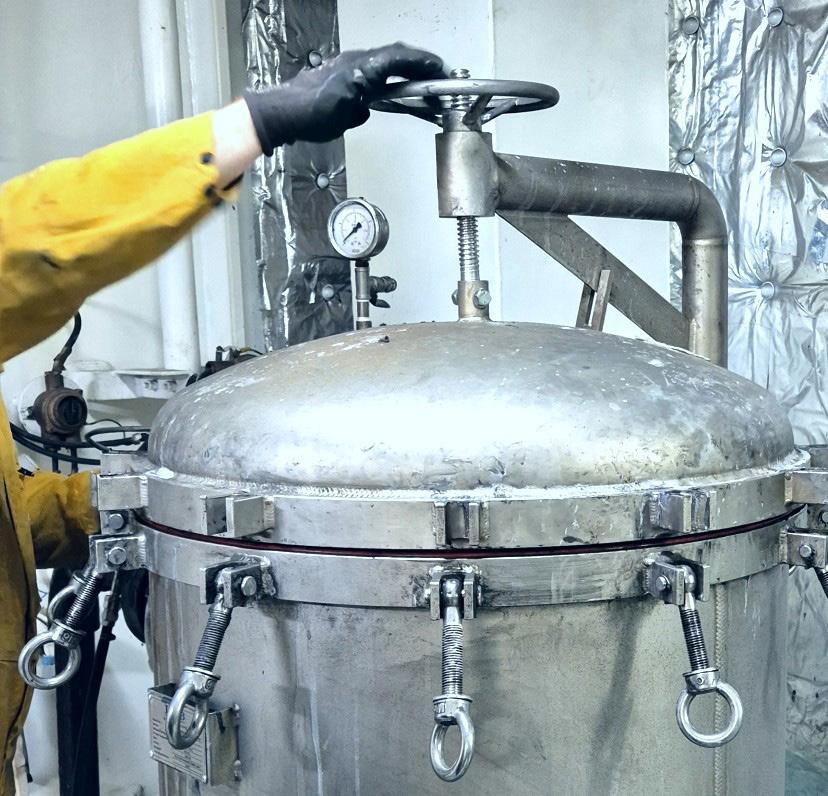

Filter house 4, 6, or 8 element capacity (see table below)
Size A (height) B (length) C (width) Free height Weight (kg)
4 bags 1396 824 812 525 175
6 bags 1542 976 1035 680 255
8 bags 1581 1076 1185 760 270
CAPACITIES & OPERATION
Filter pressure Design max. 2 bar
Filtration range 10 -> 0 micron
Sludge capacity:
Size 4
Size 6
Size 8
55 kg - 0.85 m3 80 kg - 1.30 m3 105 kg - 1.70 m3
SYSTEM EQUIPMENT
Sensors Liquid temperature
Filter delta pressure
Liquid conductivity
Liquid density
WMS Water monitoring acc. MEPC307 and MEPC340
Tanks WTS tank, approx. 1 m3 required when integrated with other water treatment system
INTERFACES
Power 380-480V 50/60 Hz
Screen 7” color touch
Communication Modbus TCP
Pump power Up to 3 pumps powered from control cabinet
Remote access (if network) Full data & service access
Alarms Local alarm possible
REGULATIONS & CLASS
IMO compliance MEPC 259(68)
MEPC 340(77) MEPC 307(73) (EGR)
AMBIENT CONDITIONS
Filter flow 0-5 m3/hour
Max. 10 bar
Temp.: 0-110 °C
GENERAL PID DESIGN
